Stuart Victoria steam plant

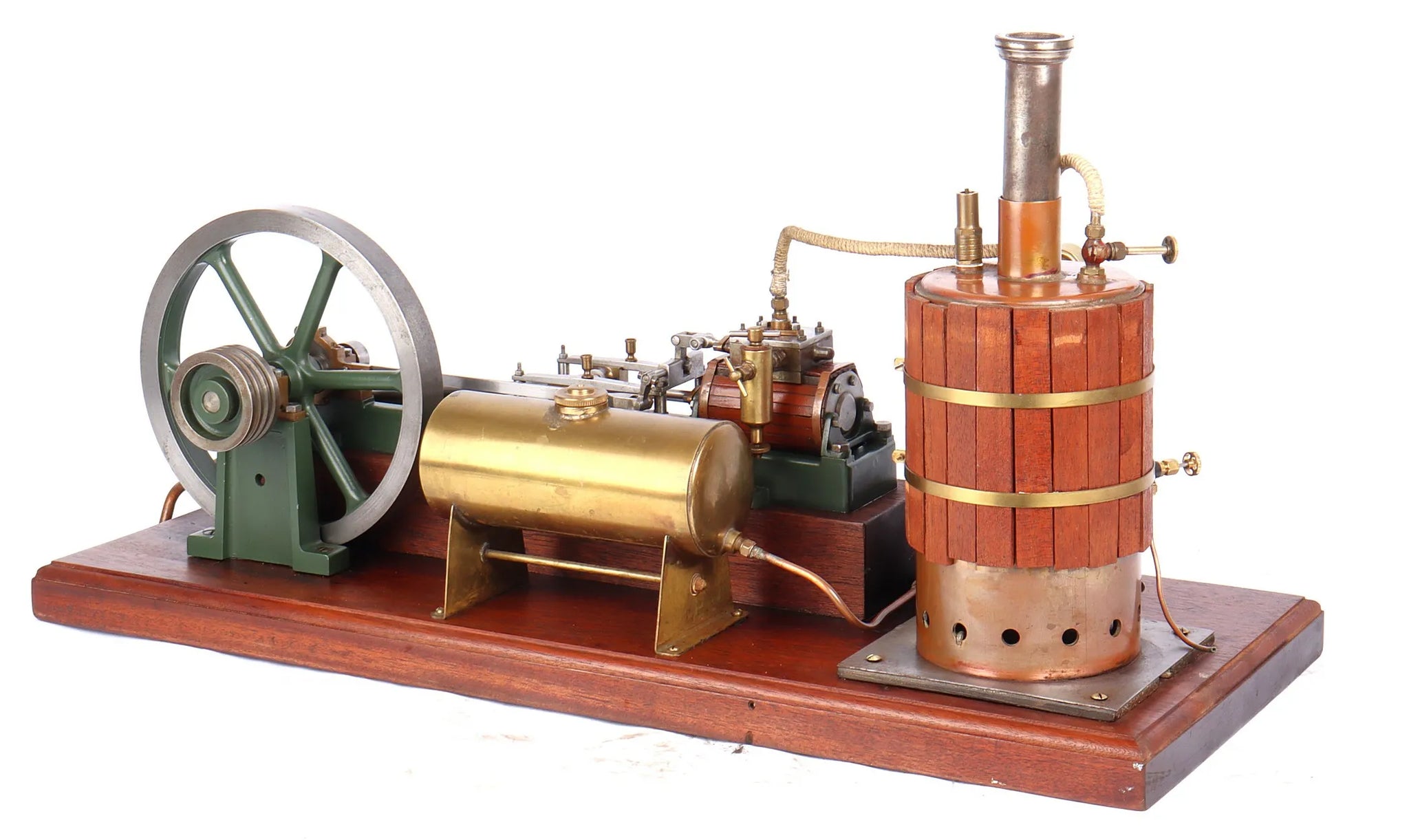

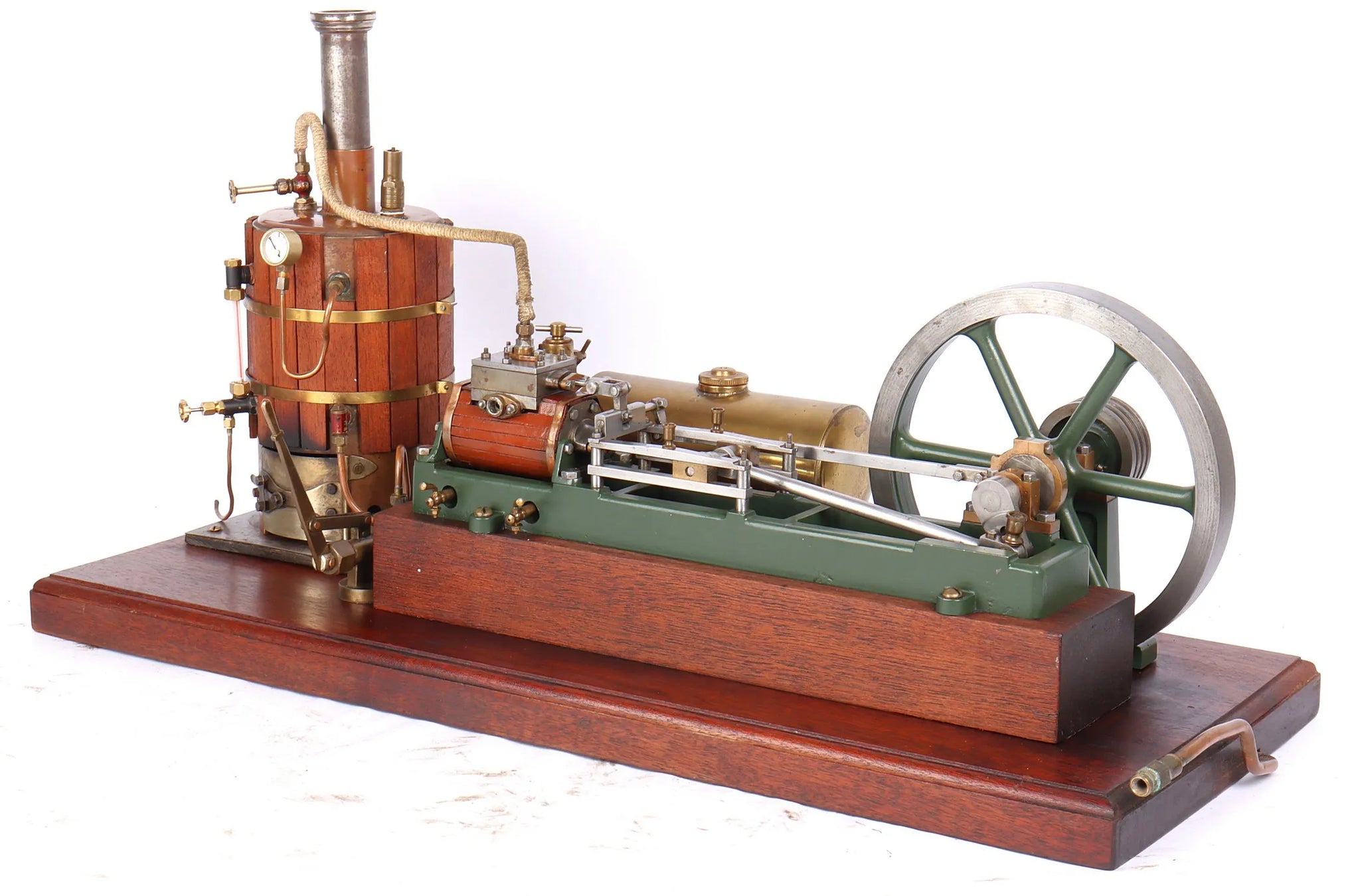

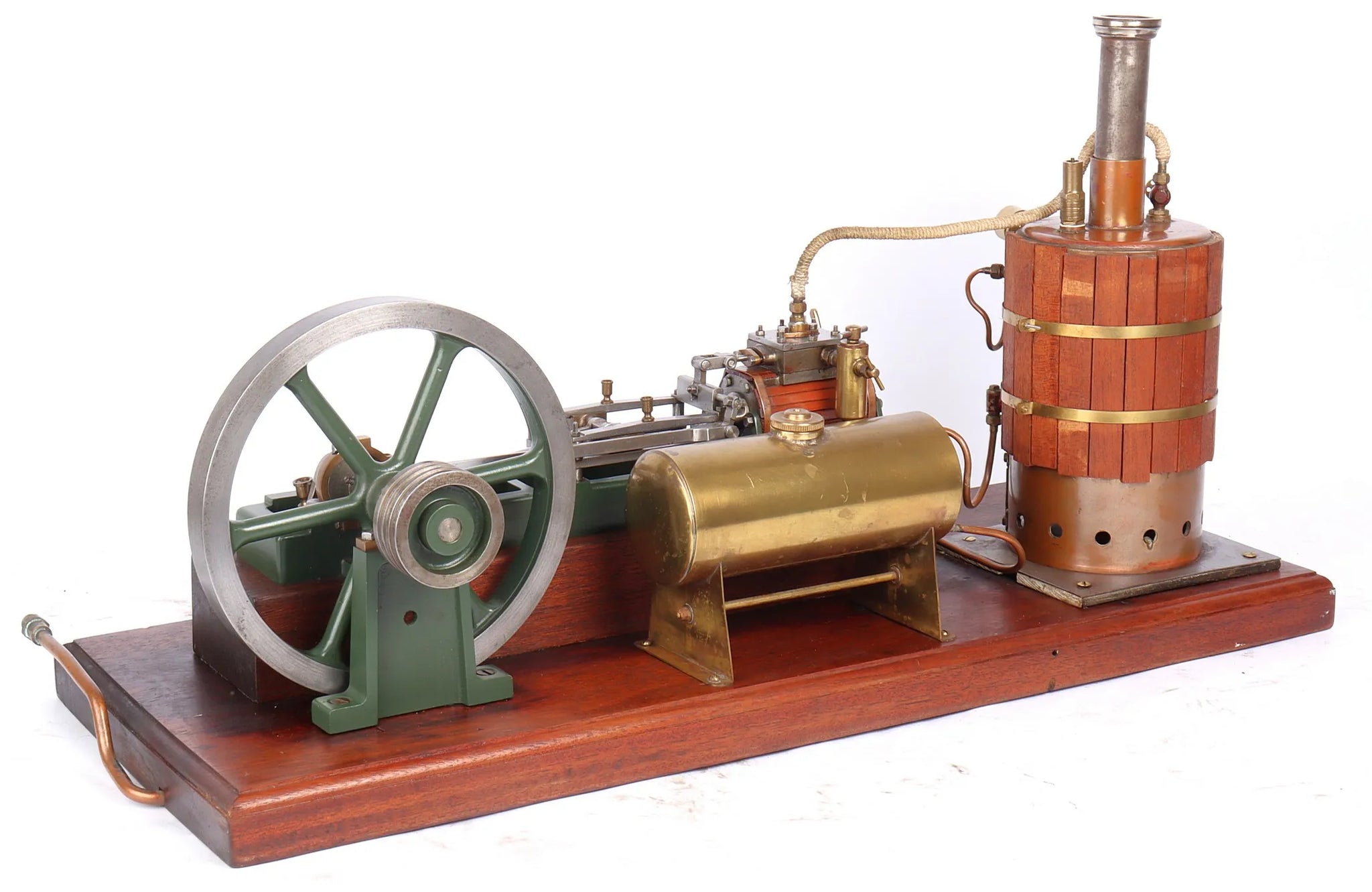

A steam plant comprising a Stuart Victoria mill engine and vertical spirit-fired boiler.

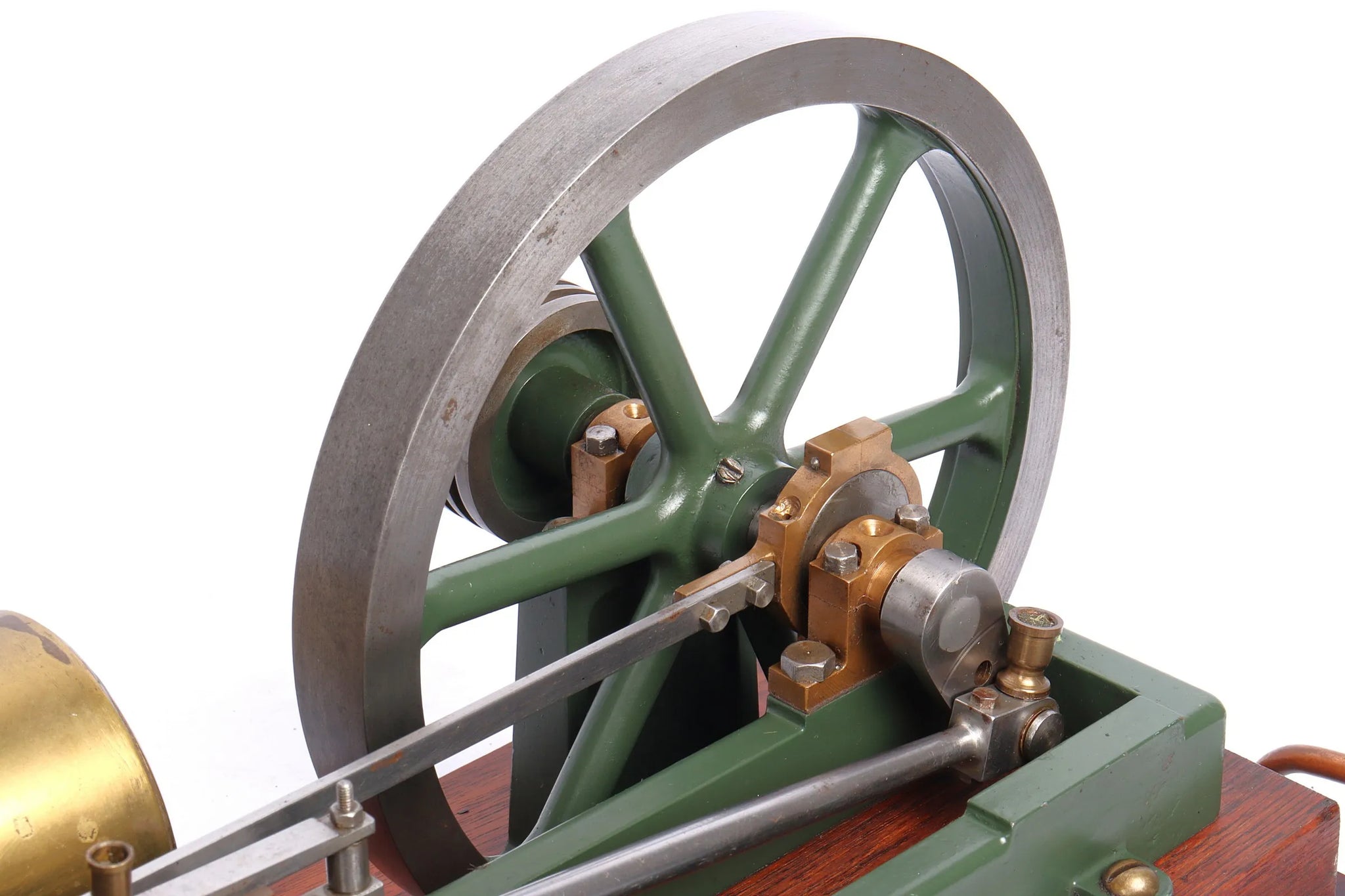

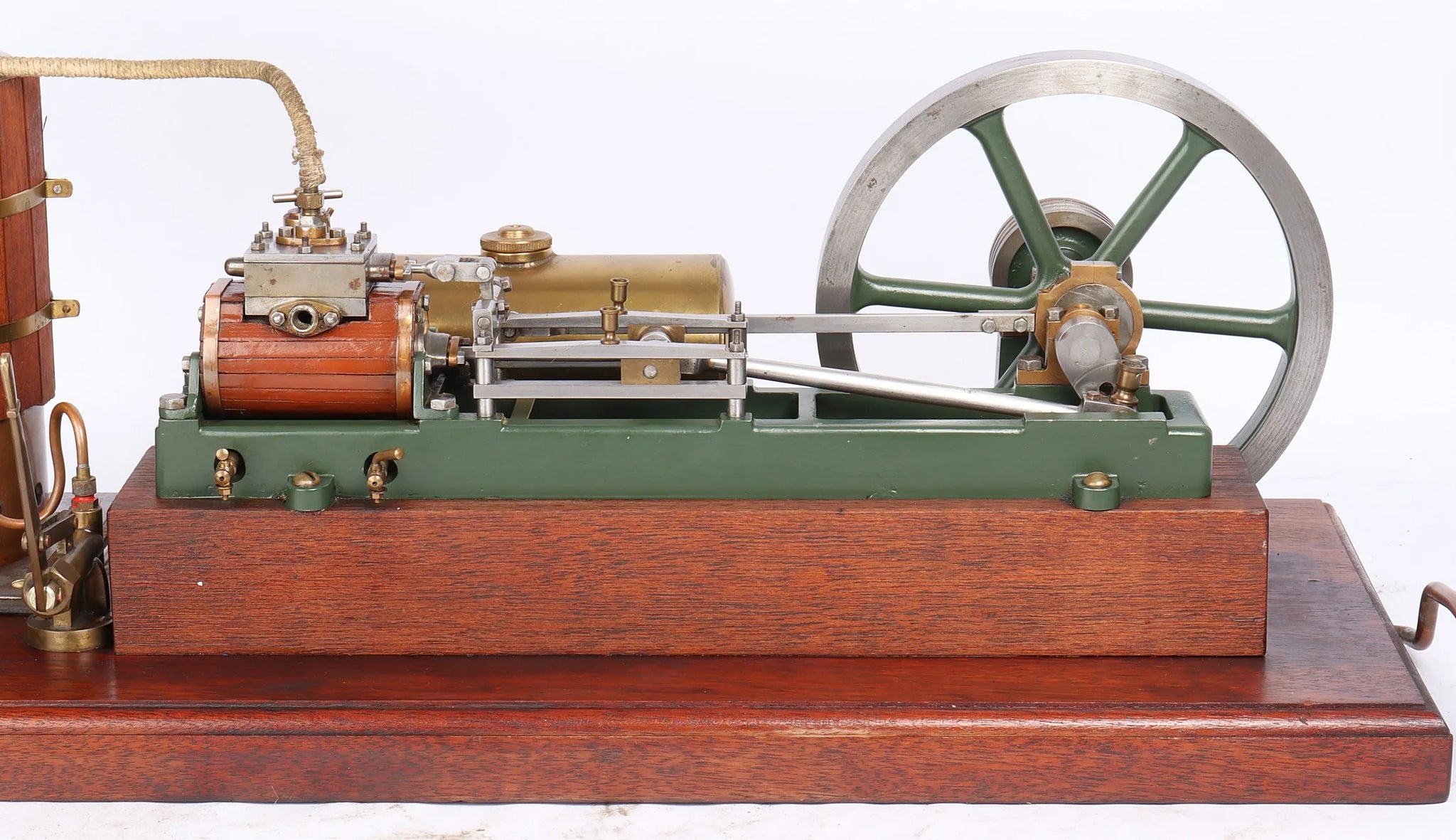

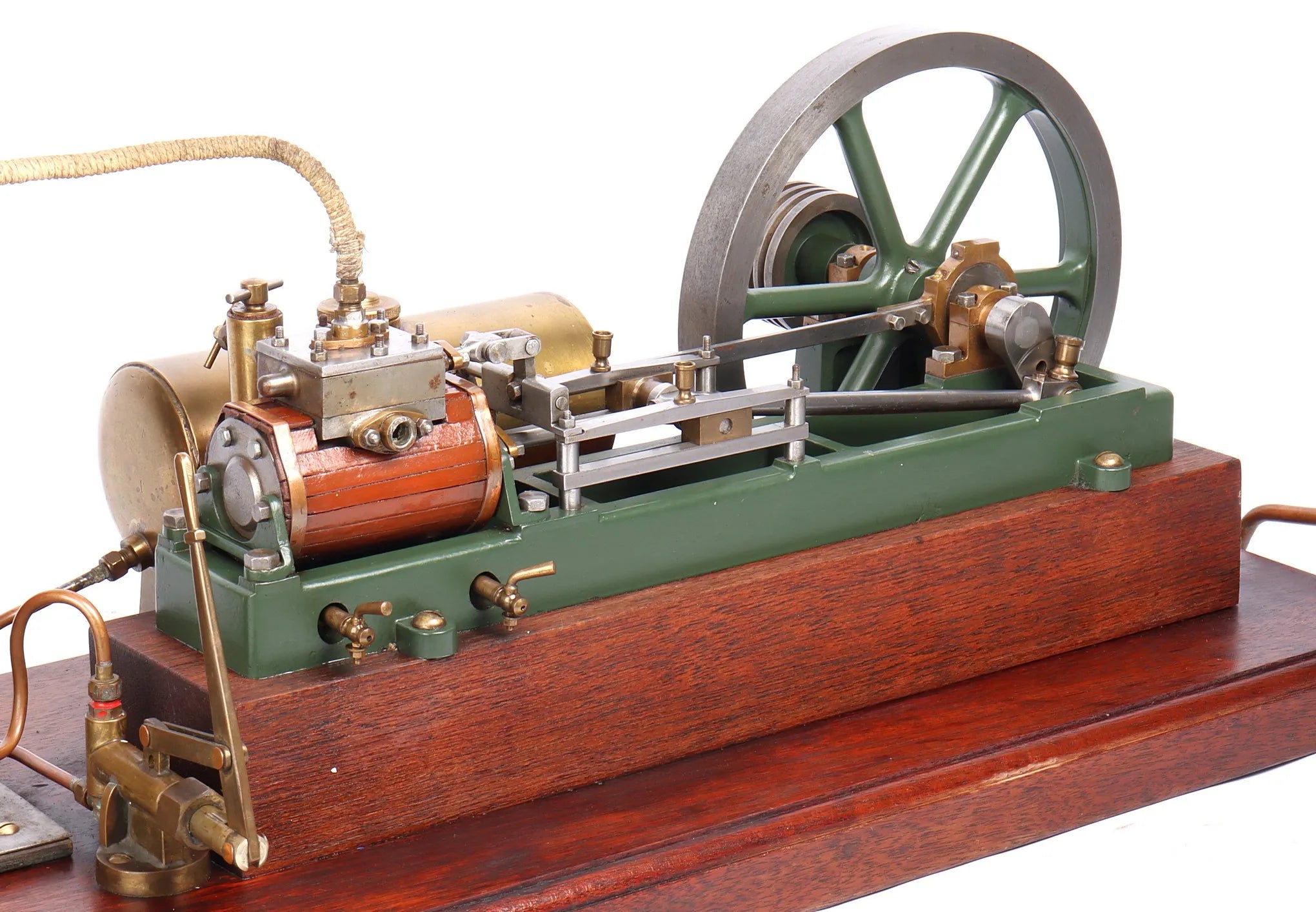

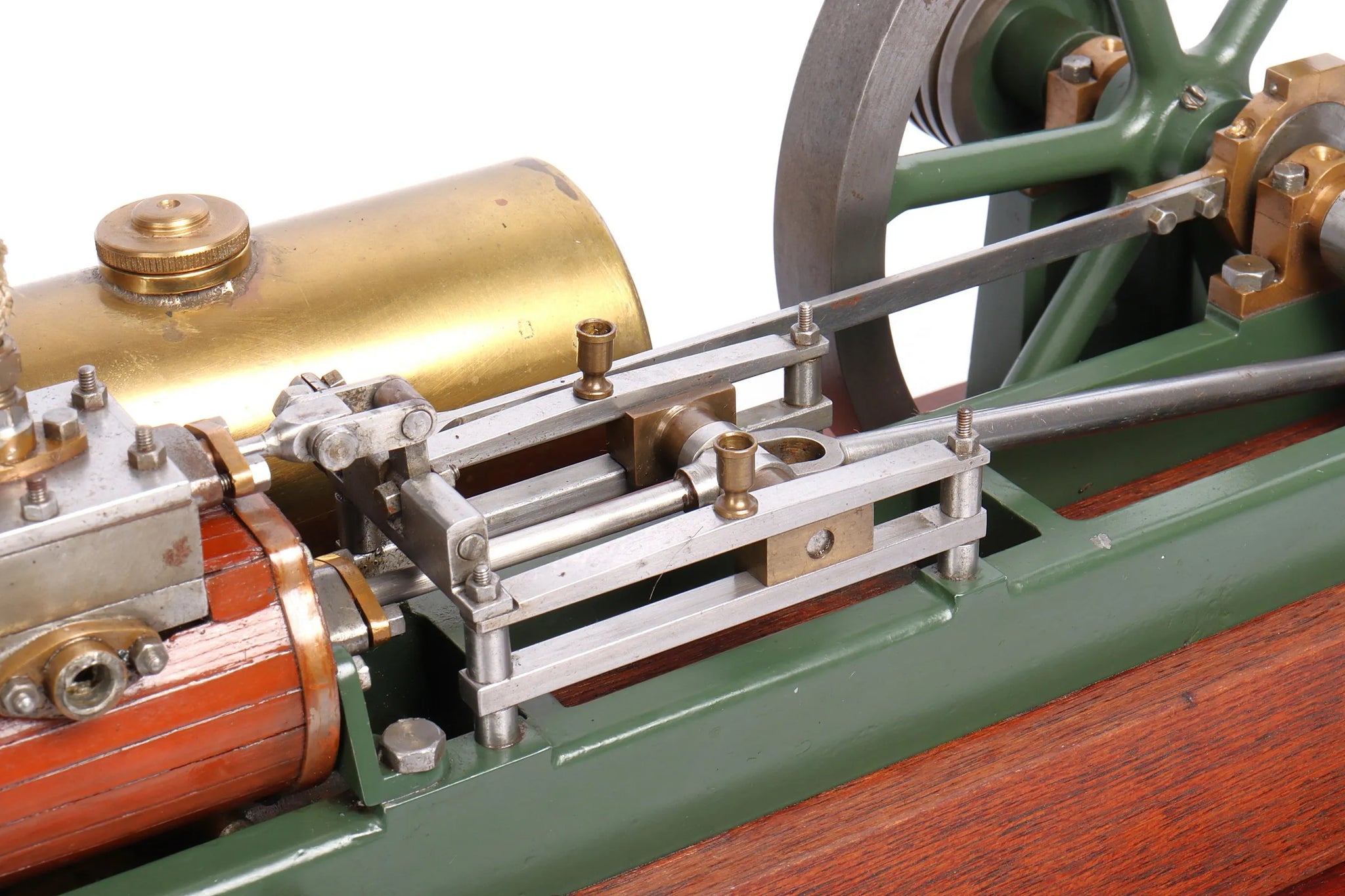

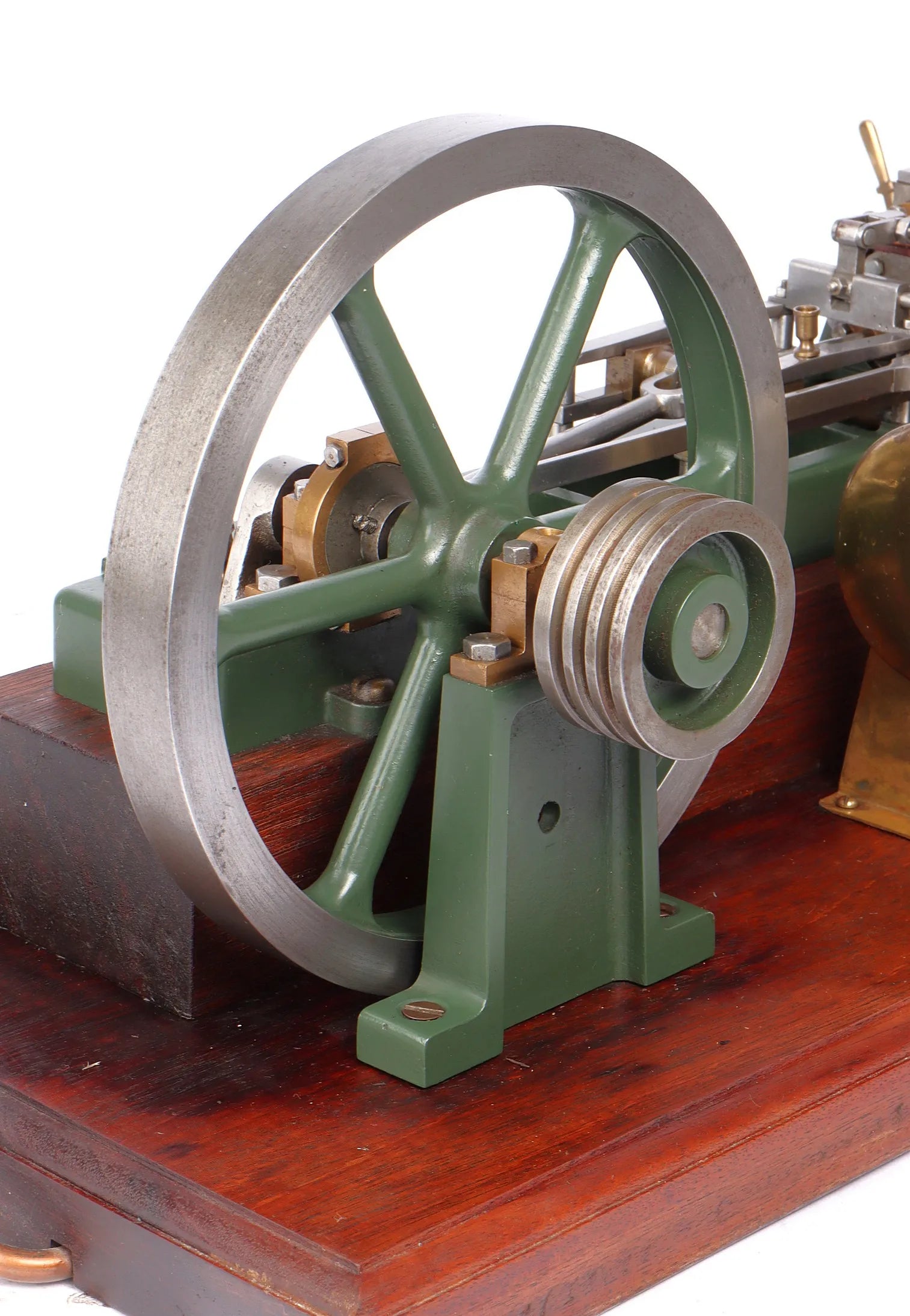

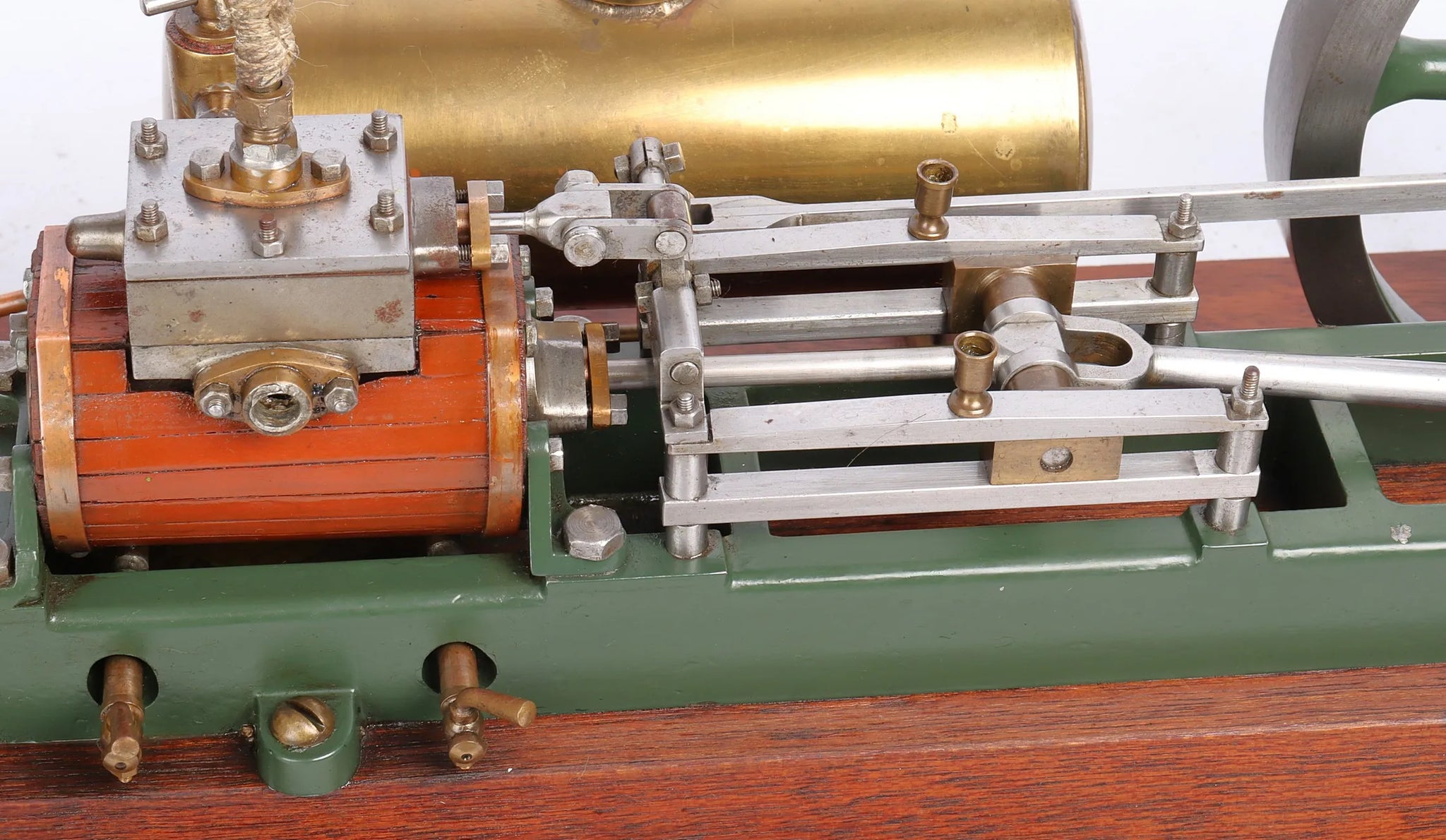

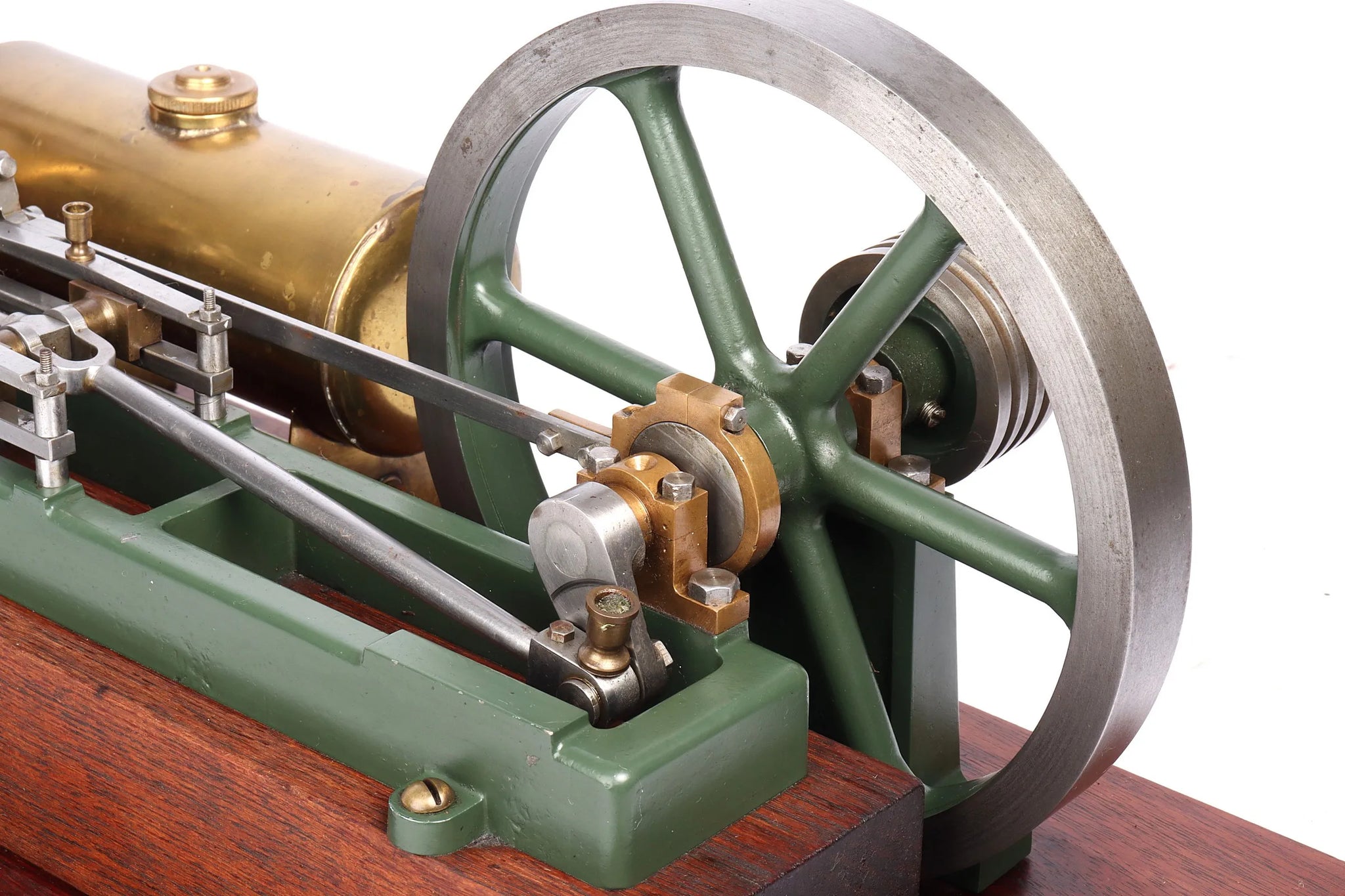

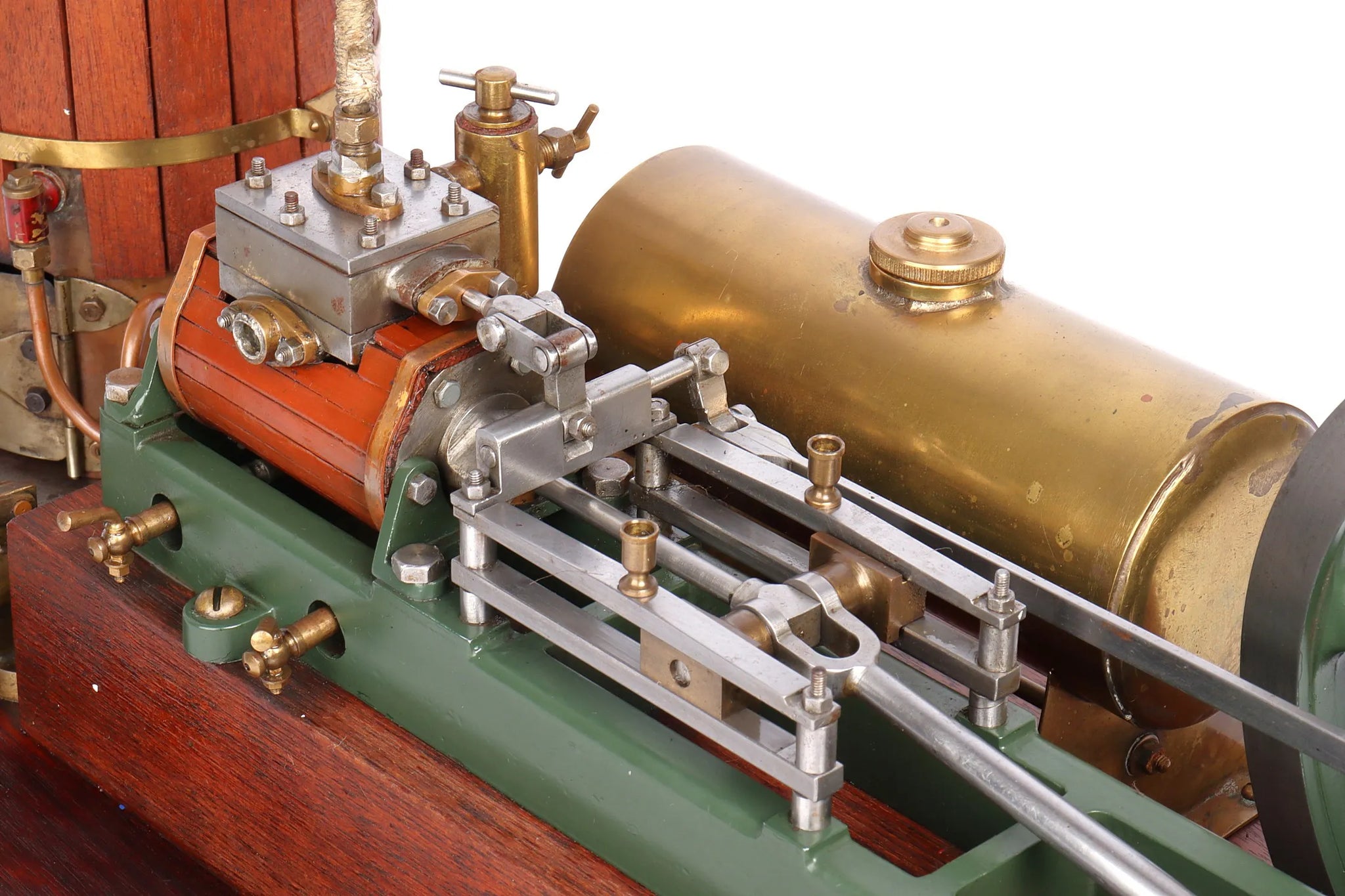

The engine is well made and runs nicely on air, although with some wear apparent.

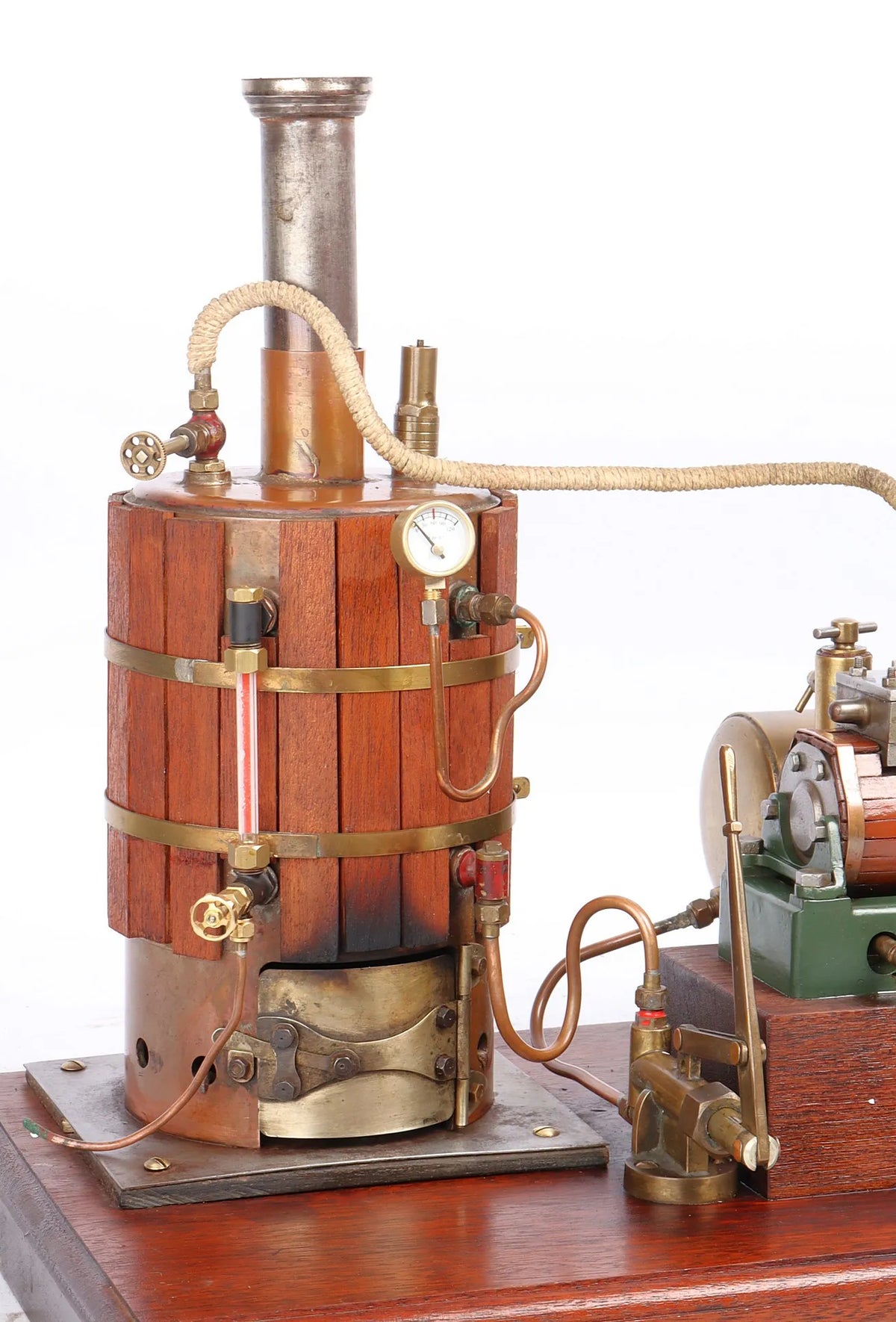

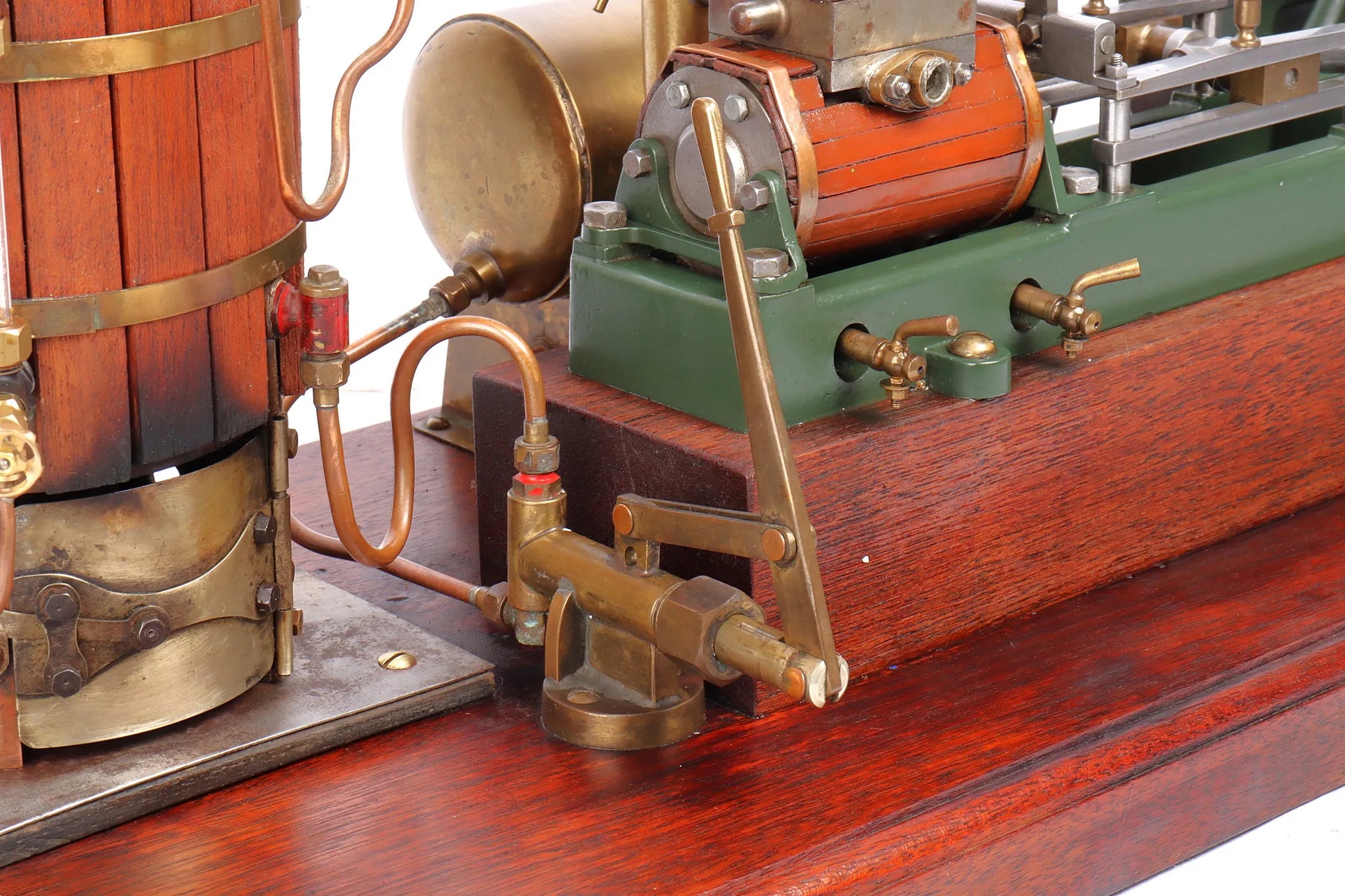

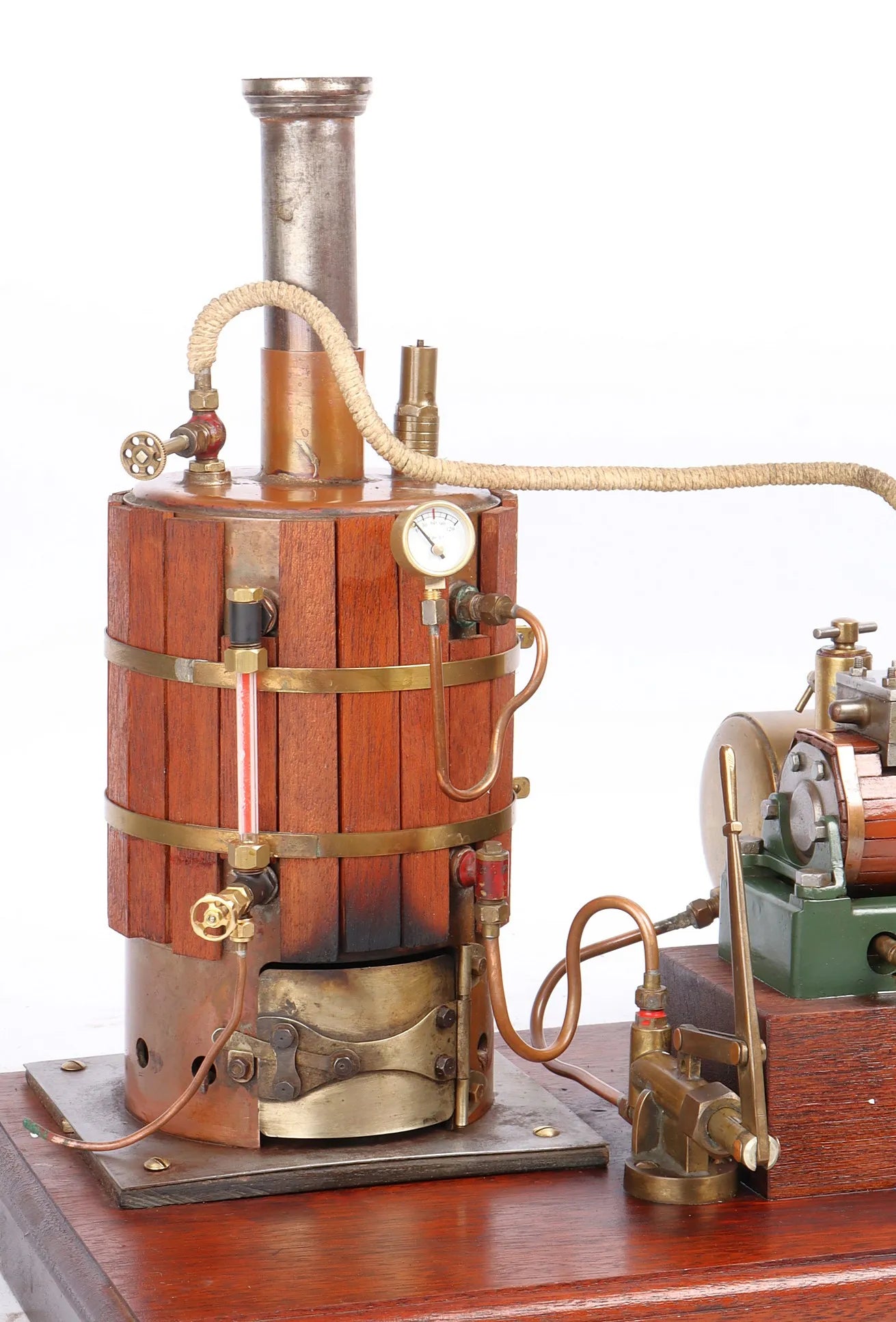

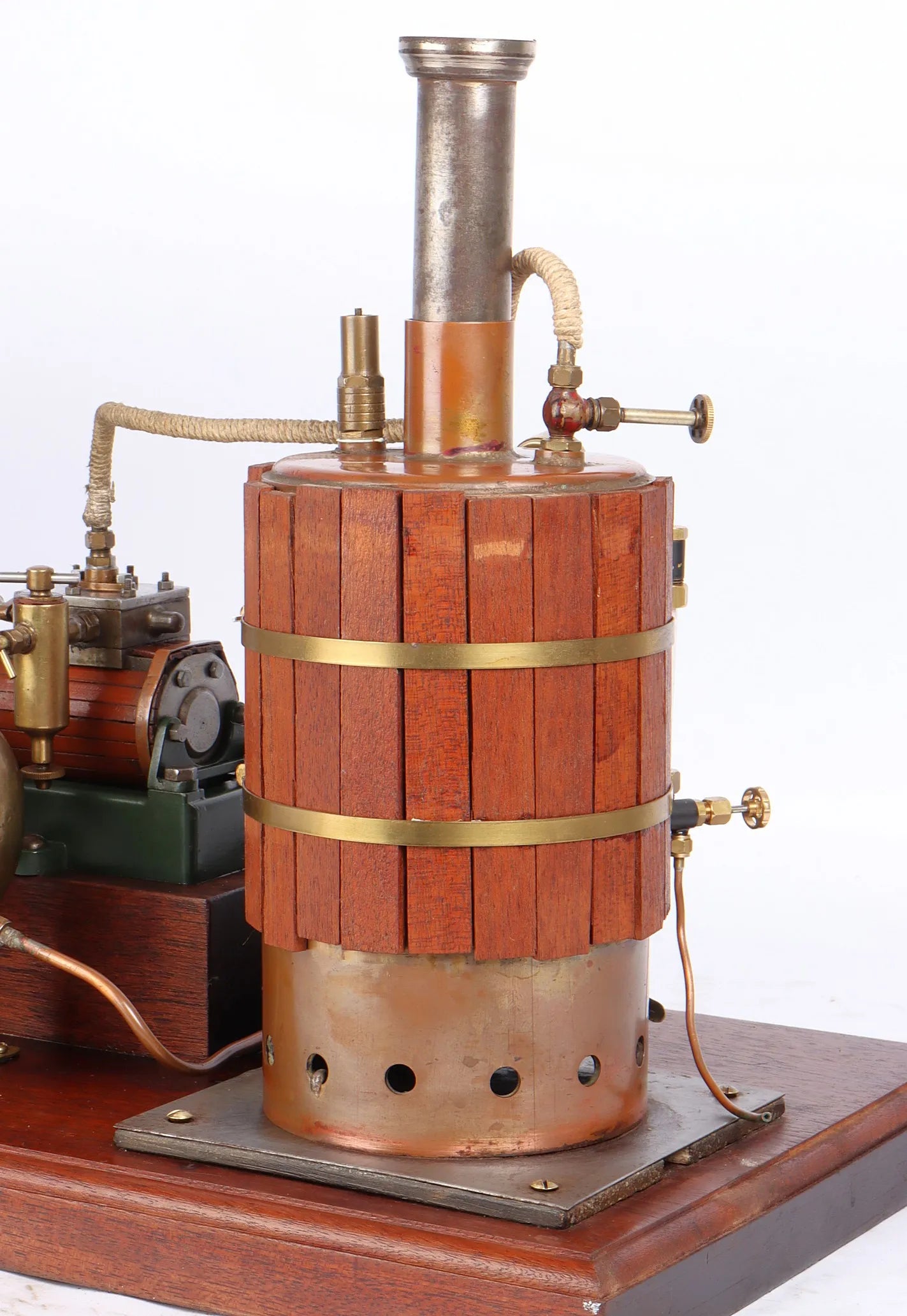

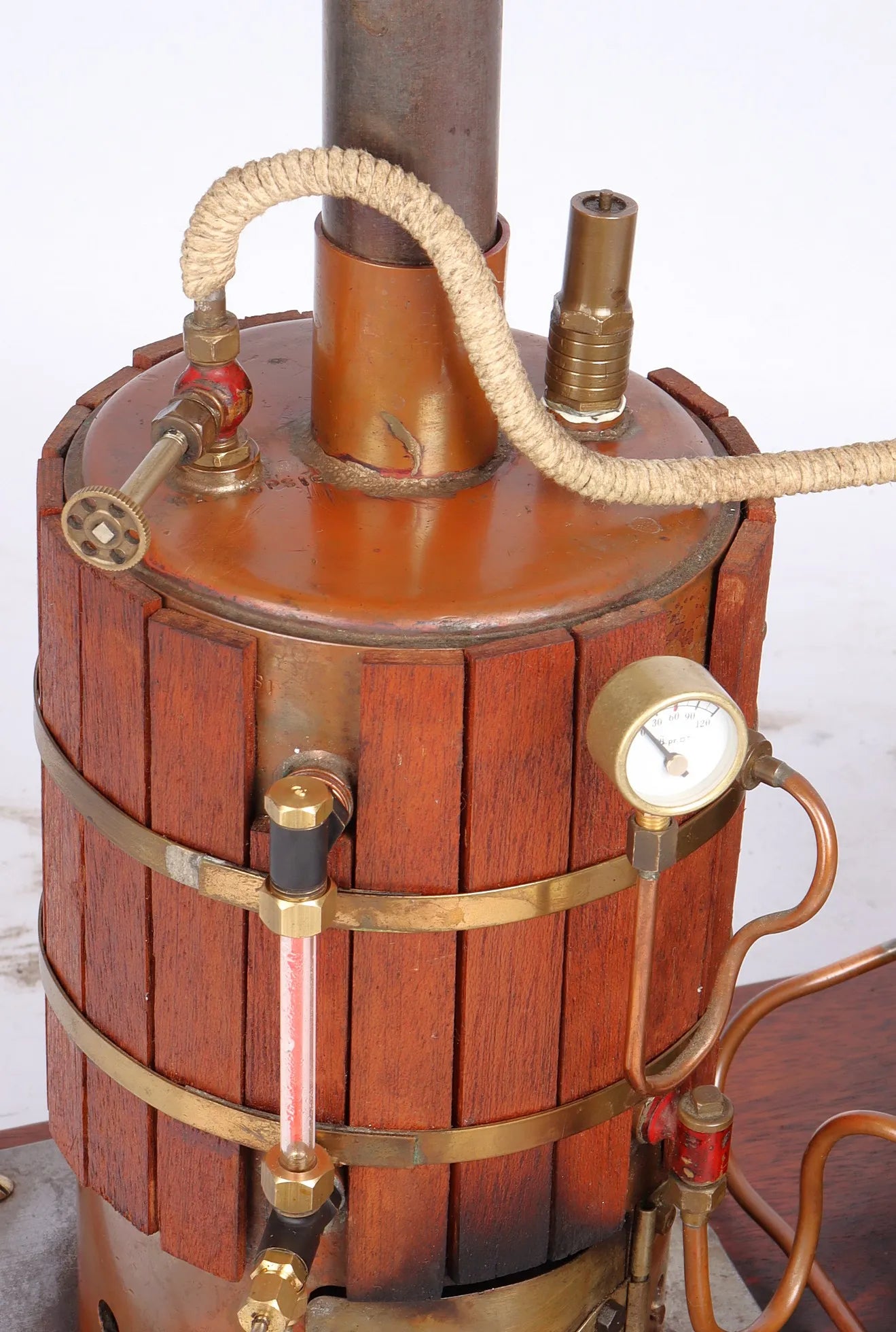

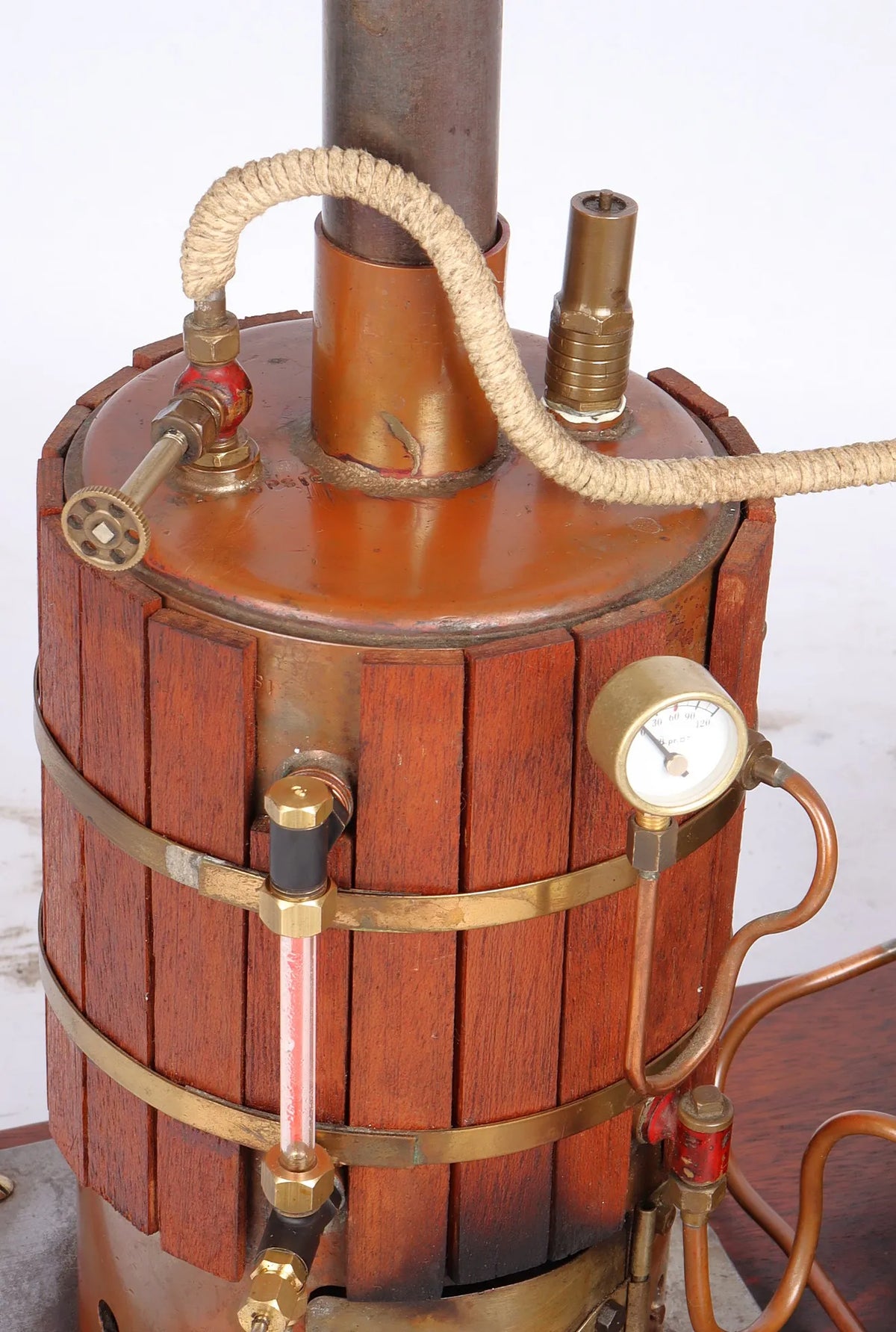

The boiler, complete with all fittings and a hand pump, has had a hydraulic test with new certification issued. Rather too small for the engine, even at low speeds the long stroke engine's modest steam demand quickly sees boiler pressure drop from 60 to 30psi.

Technical information

Stock code

13033

Length/inches

24

Width/inches

9.5

Height/inches

13

Weight/Kg

11.5

Wheel material

cast iron, 7 inch diameter

Axlebox type

plain

Cylinder material

cast iron

Valve type

slide

Valve gear

single eccentric

Boiler maker

non-commercial

Boiler type

centre flue

Boiler construction

silver soldered

Boiler material

copper

Working pressure

60

CE/UKCA mark

n/a - non-commercial

Year built

unknown

Boiler number

13033

Safety valve type

spring

Safety valve

1

Bore x stroke

1 x 2

Hand pump

1

Hydraulic test valid to

03-Aug-2029
