Gauge 1 LMS 4F 0-6-0

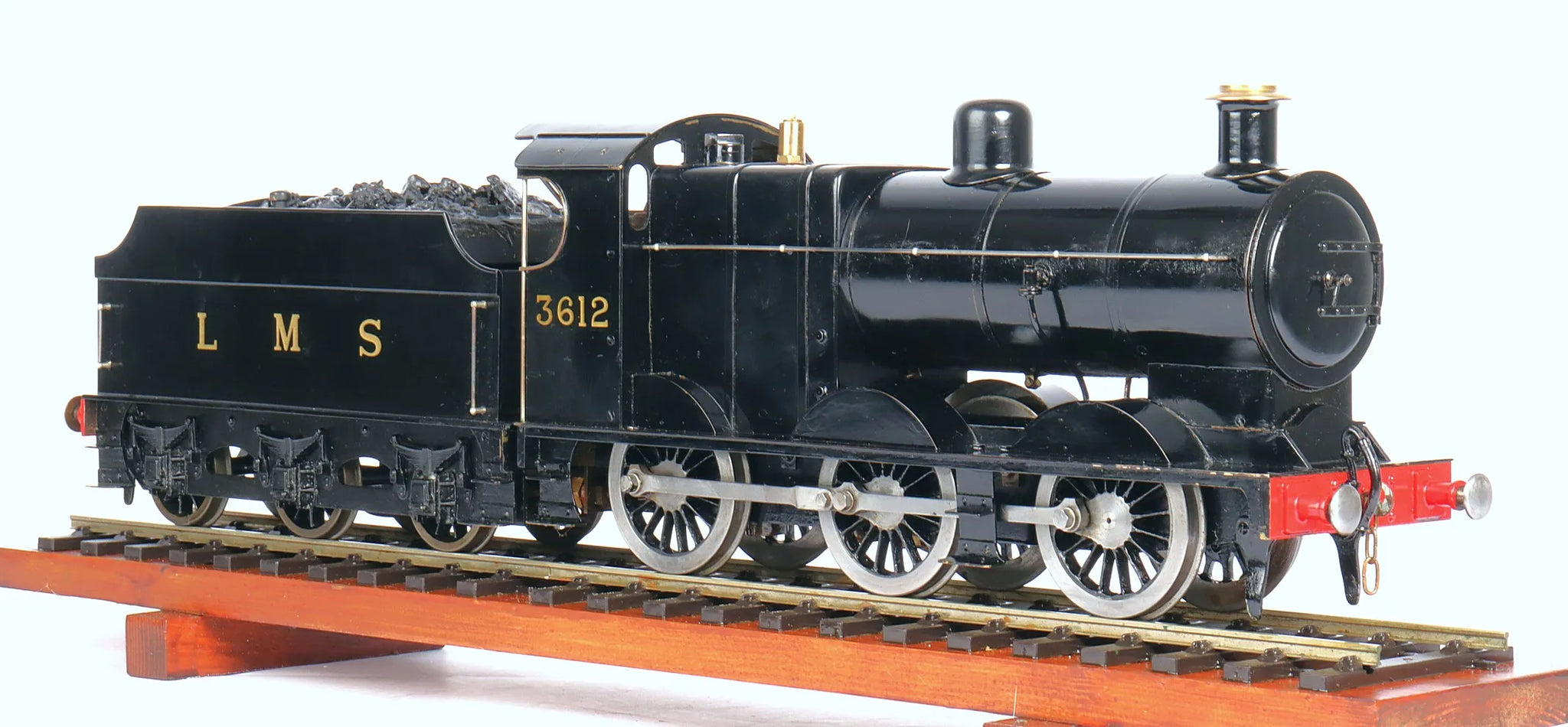

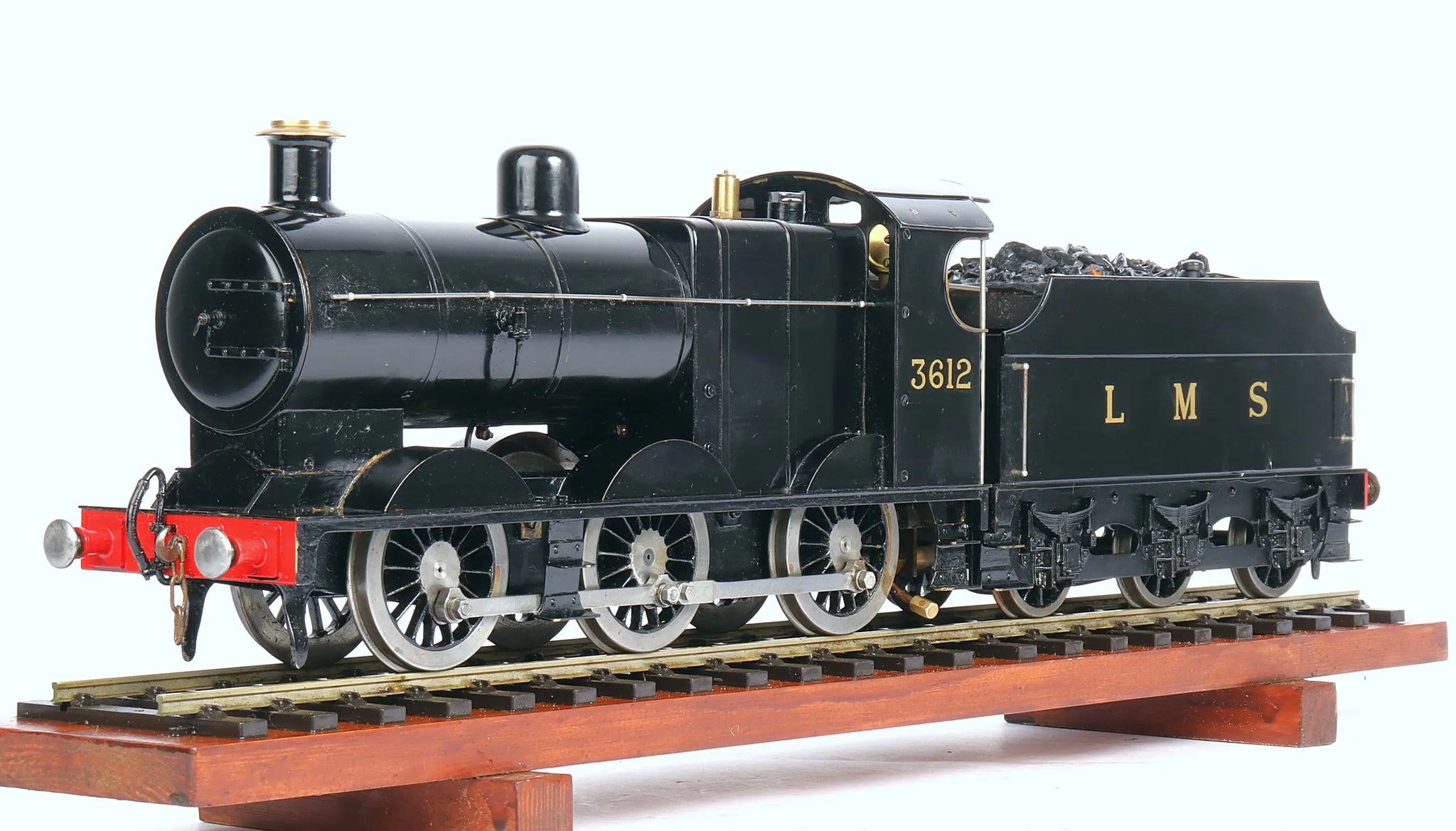

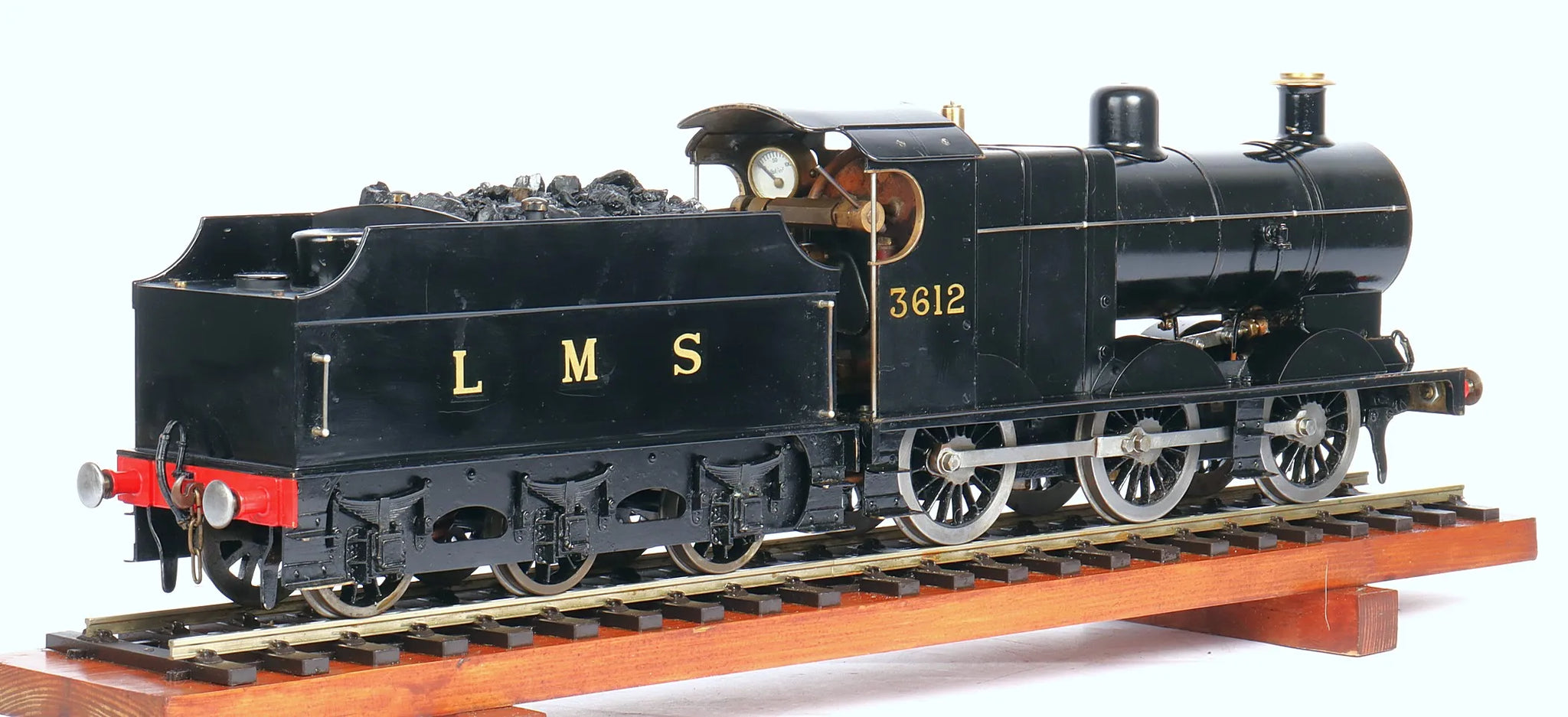

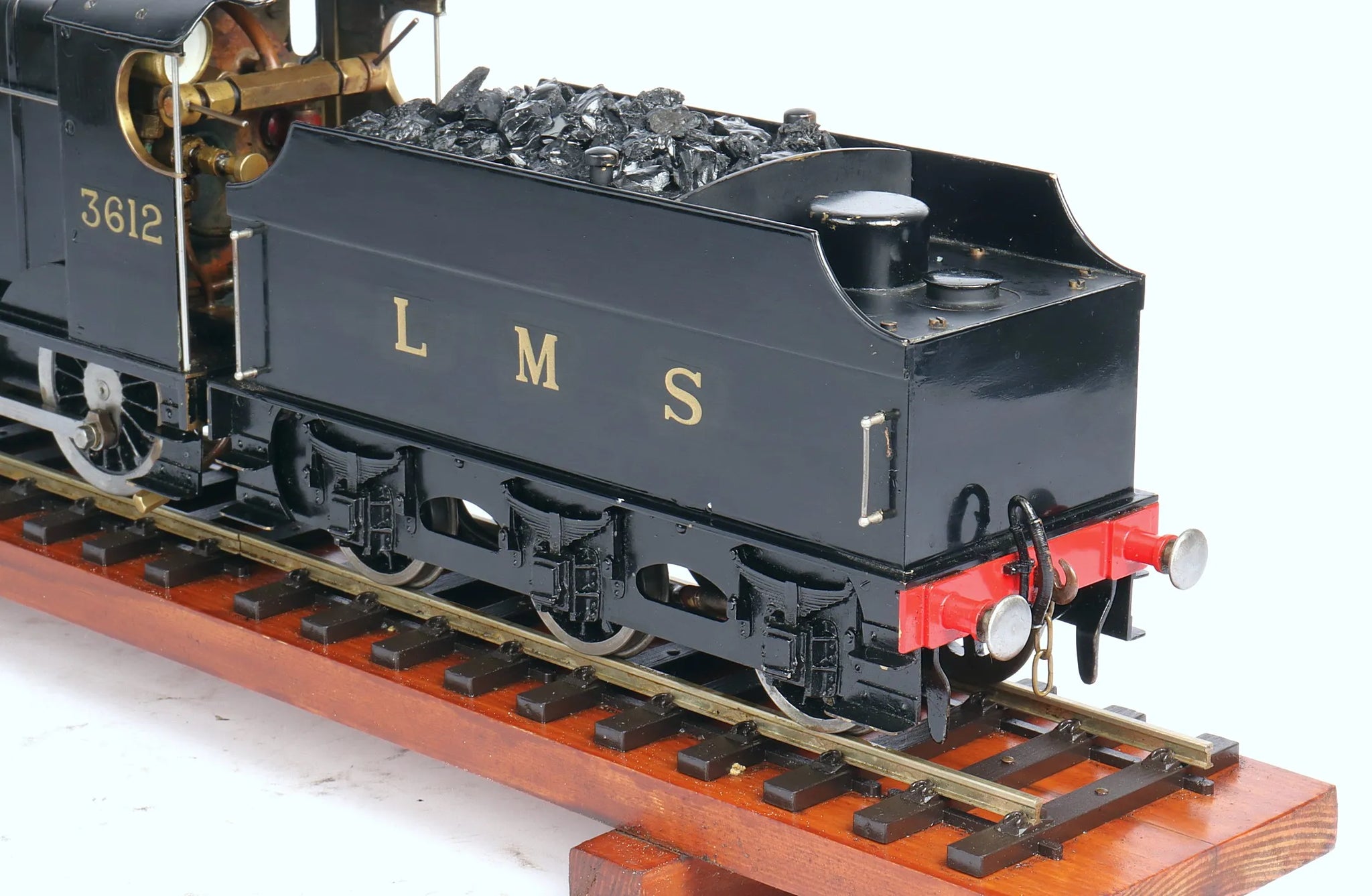

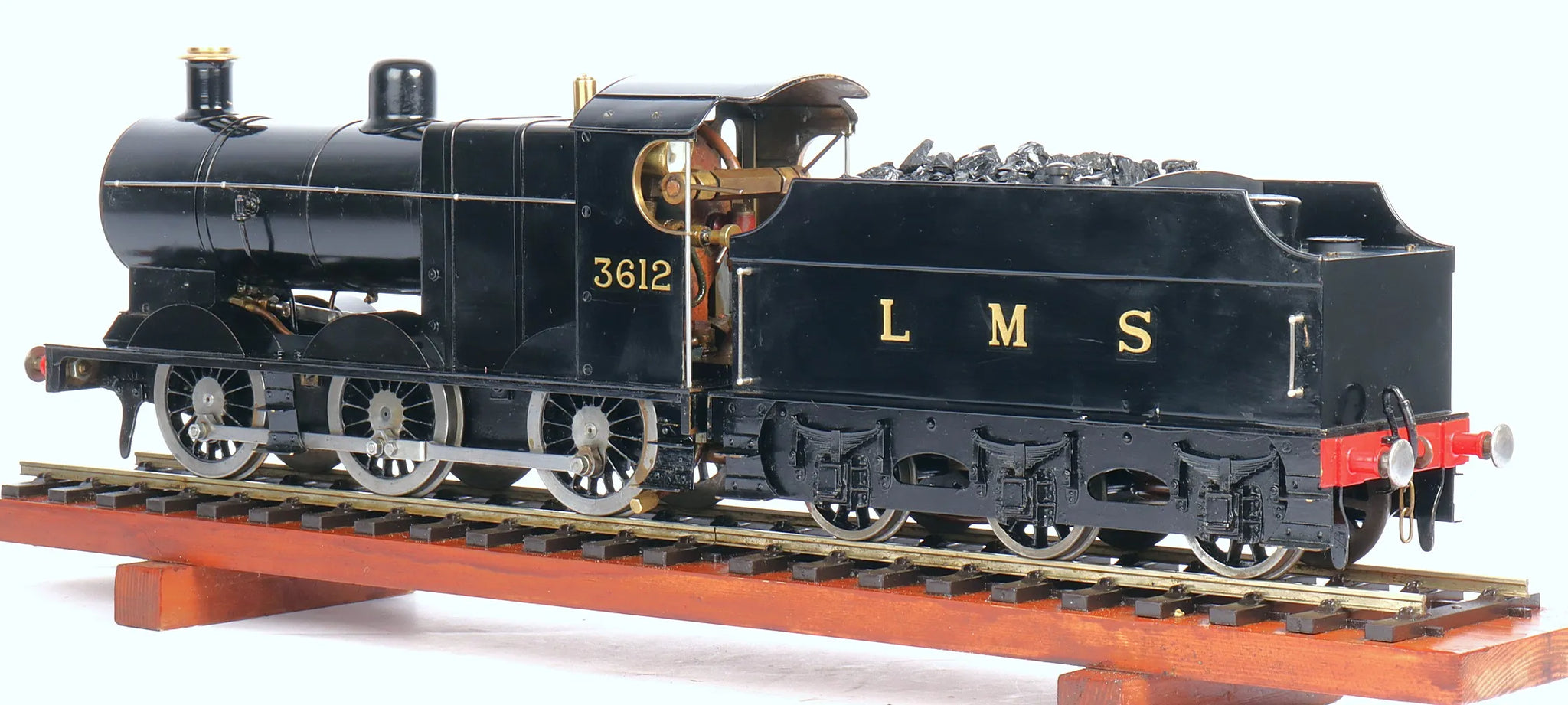

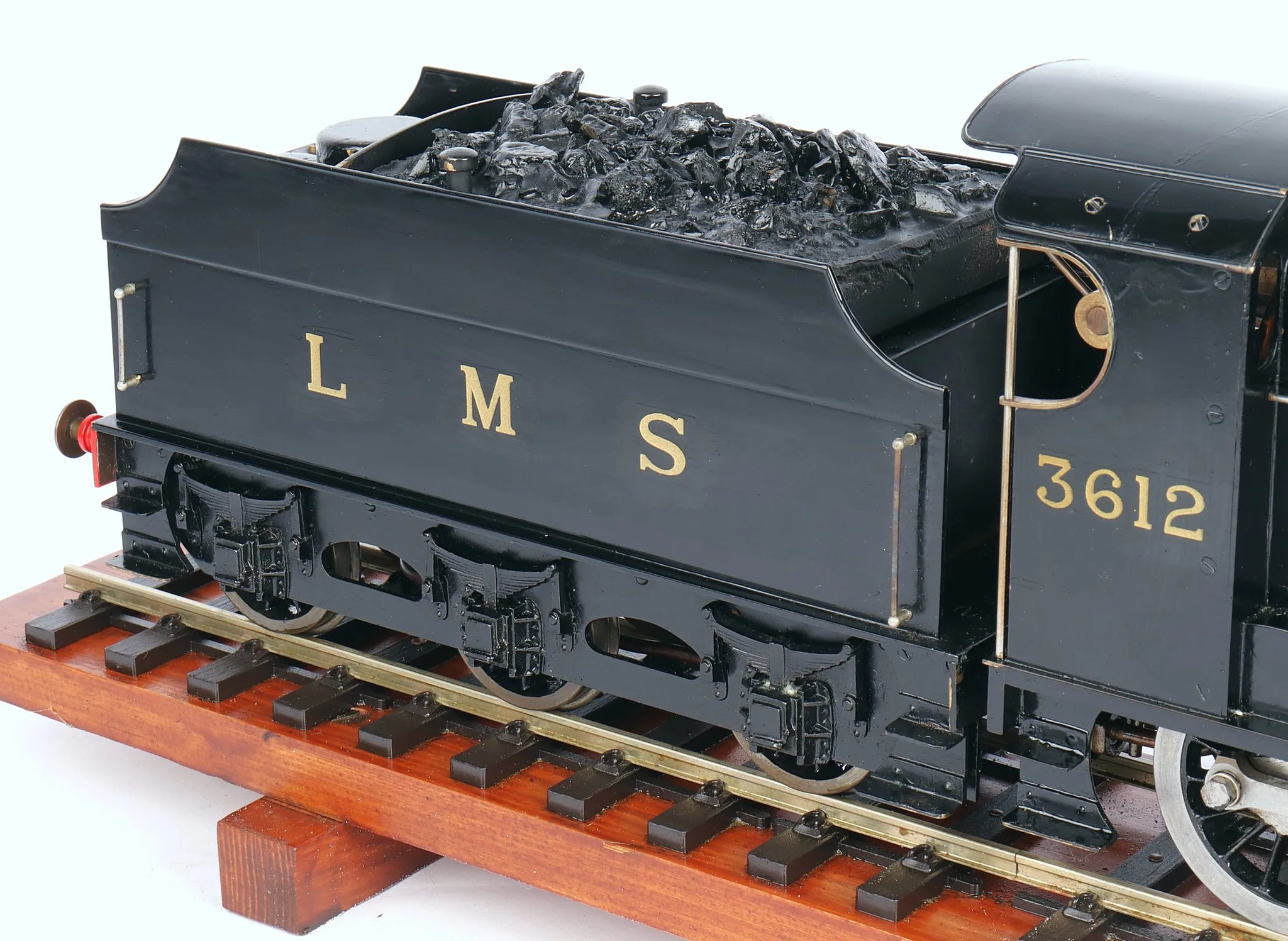

A gauge 1 LMS 4F, built to the popular "Project" design, featuring a single cylinder engine with slip eccentric valve gear.

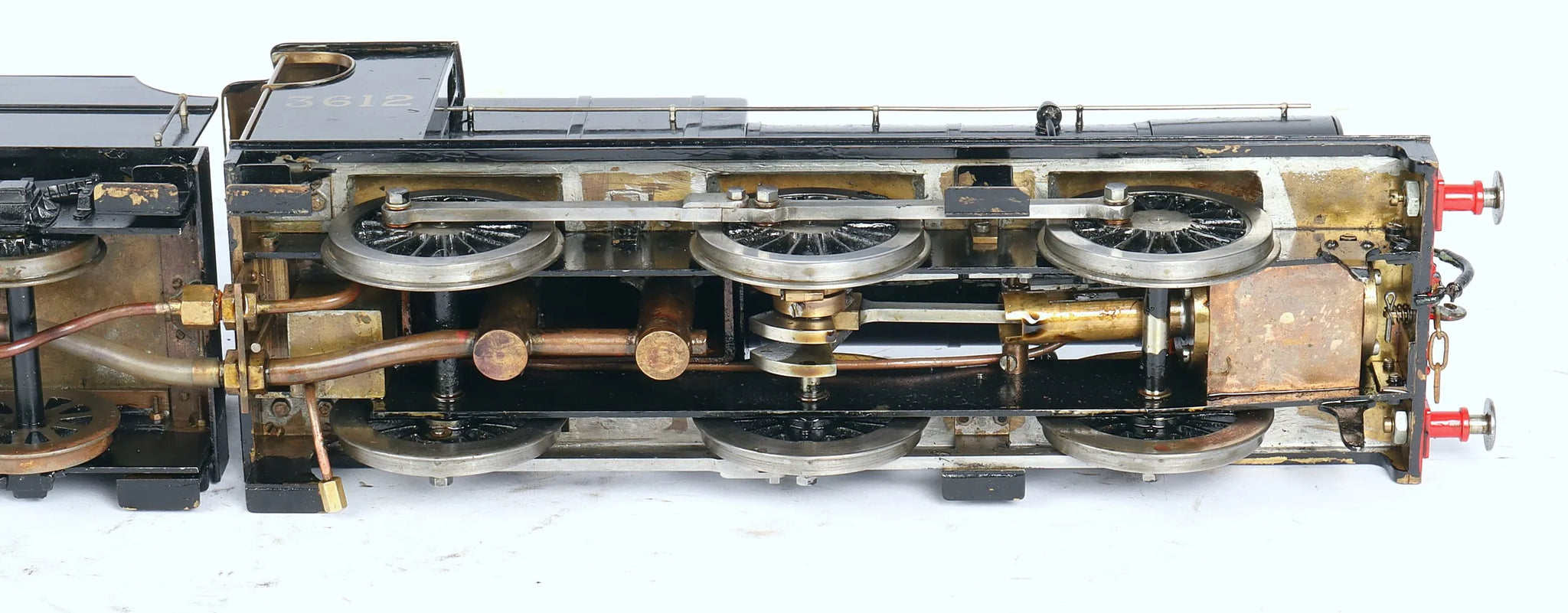

The boiler has had a hydraulic test, with new certification issued; the chassis runs on air.

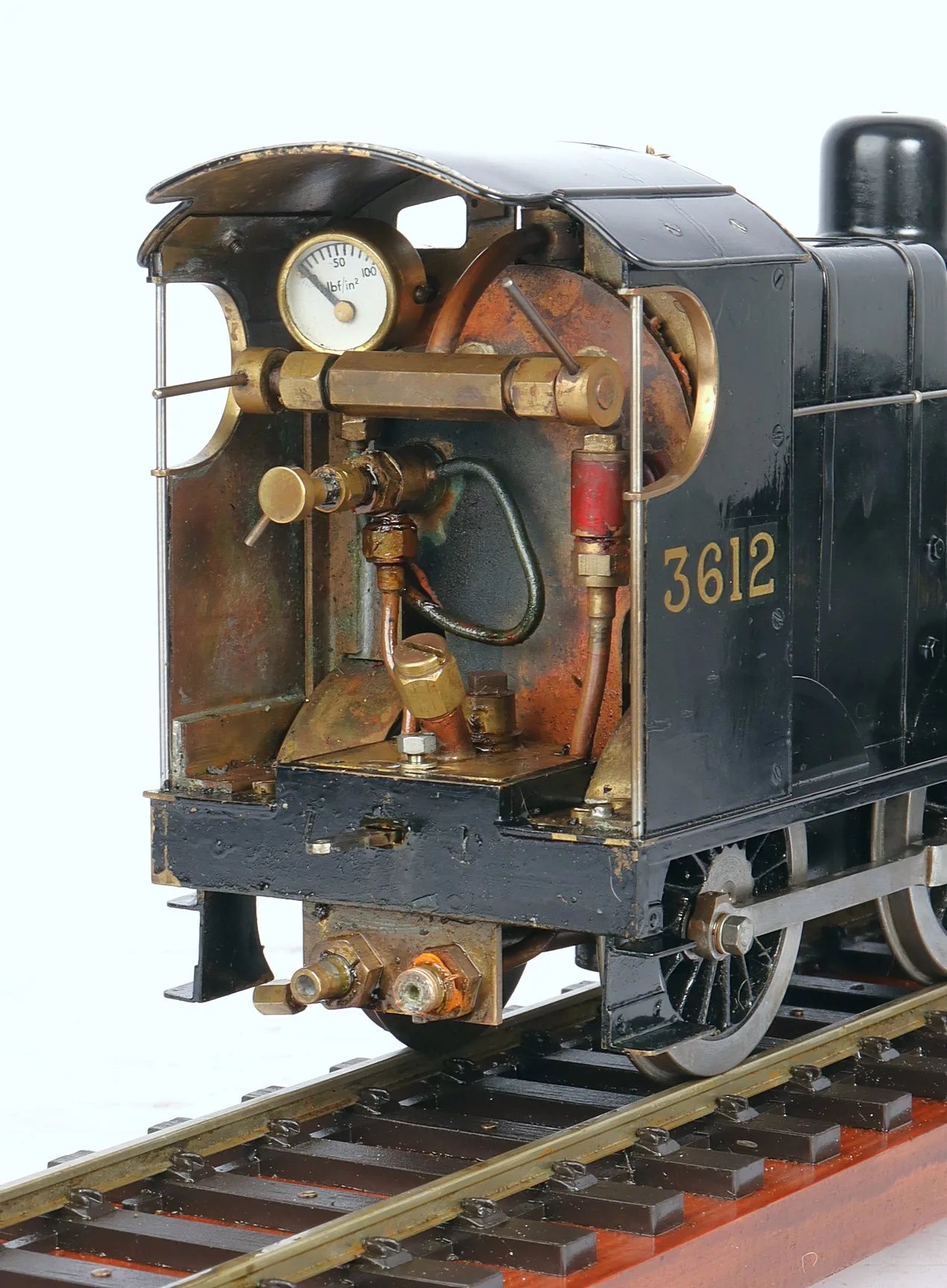

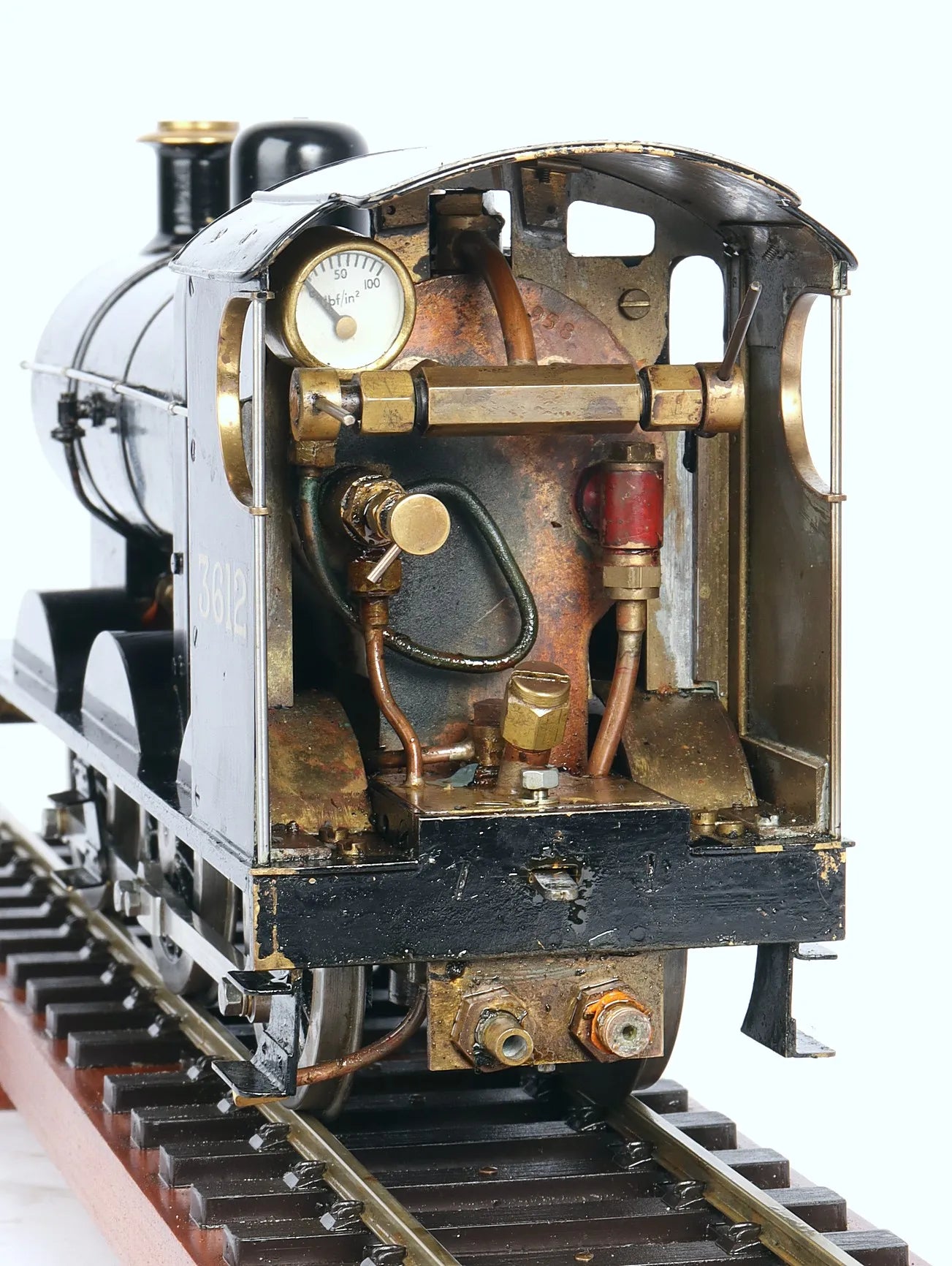

The pressure gauge doesn't currently read - we suspect a blocked syphon,

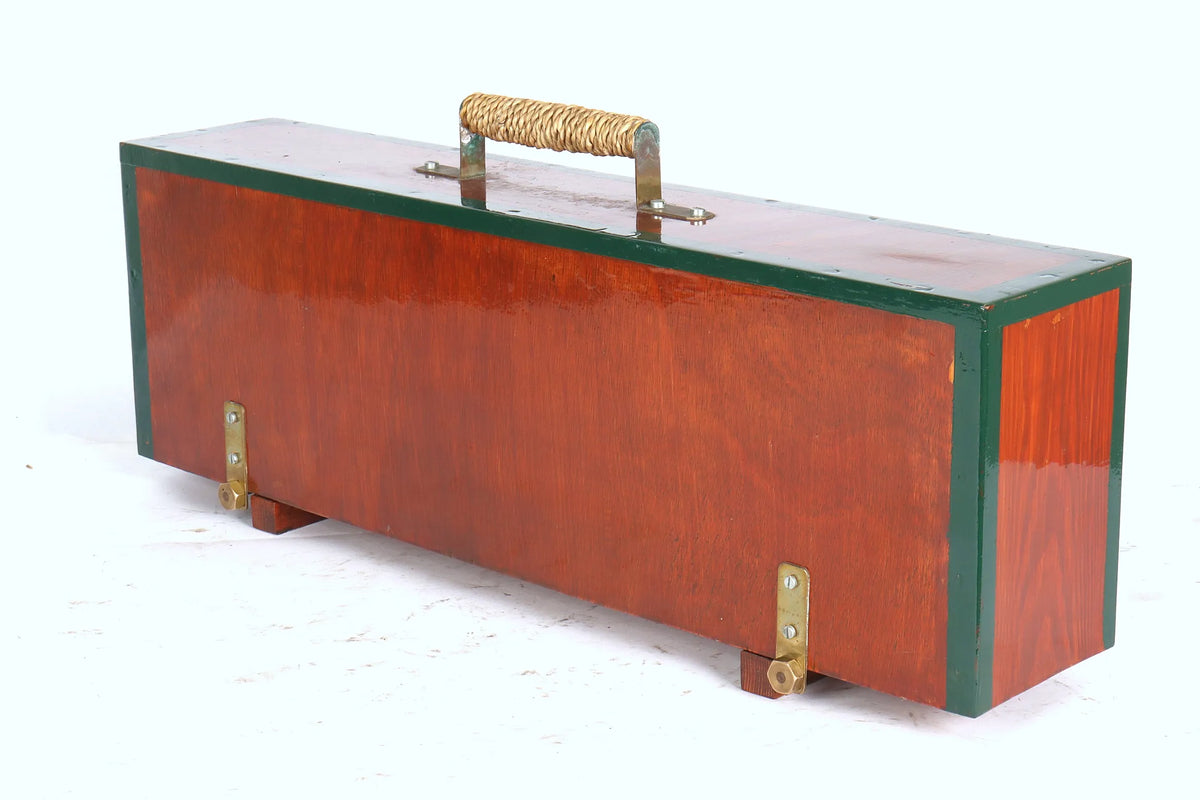

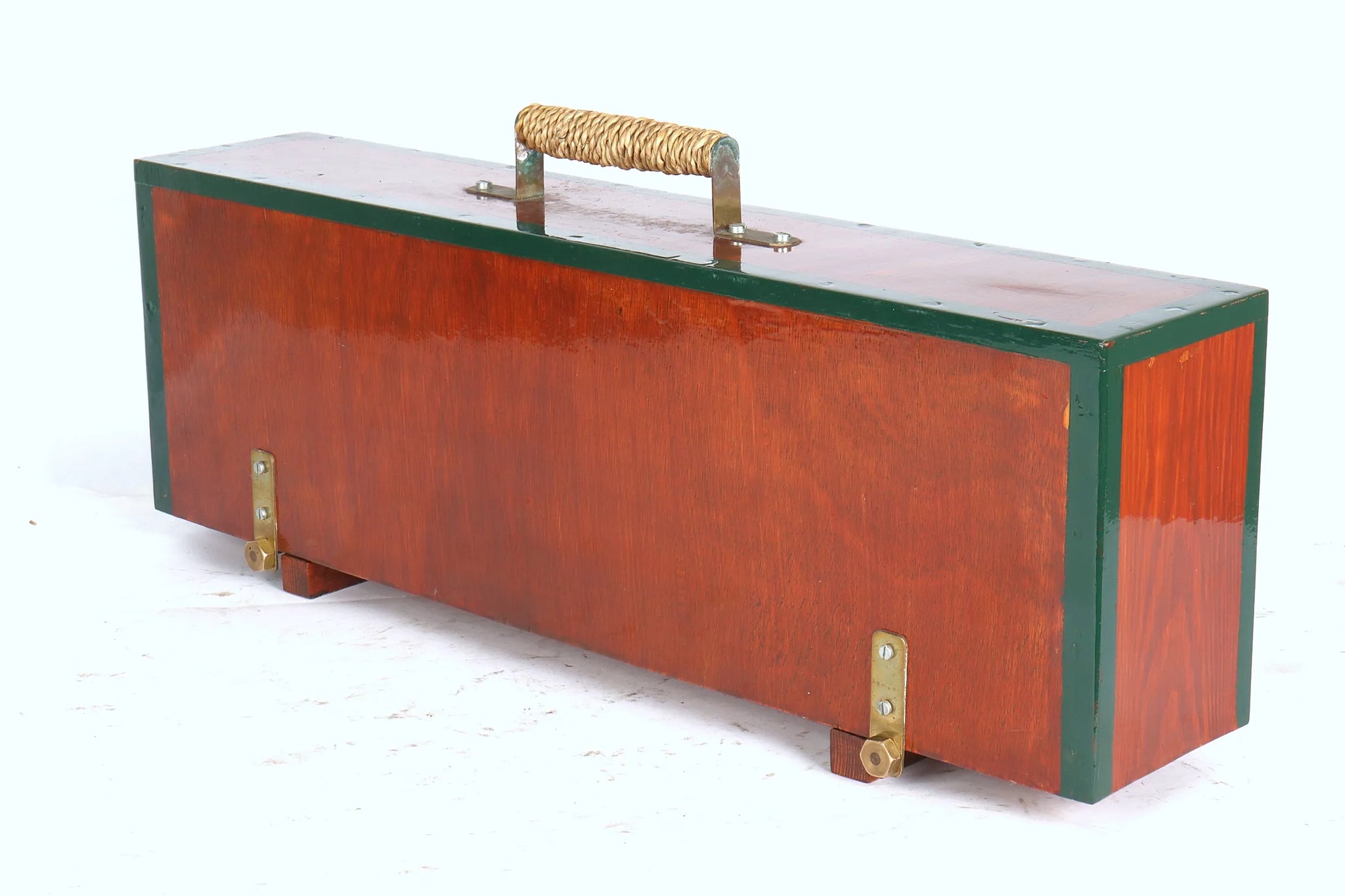

Complete with purpose built carrying box.

Technical information

Stock code

12958

Length/inches

12 + 9

Width/inches

3.5

Height/inches

5.5

Weight/Kg

8.5

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

brass

Valve type

slide

Valve gear

slip eccentric

Boiler type

water tube spirit fired

Boiler construction

silver soldered

Boiler material

copper

CE/UKCA mark

n/a - non-commercial

Safety valve type

spring

Safety valve

1

Hydraulic test valid to

07-Jul-2029
