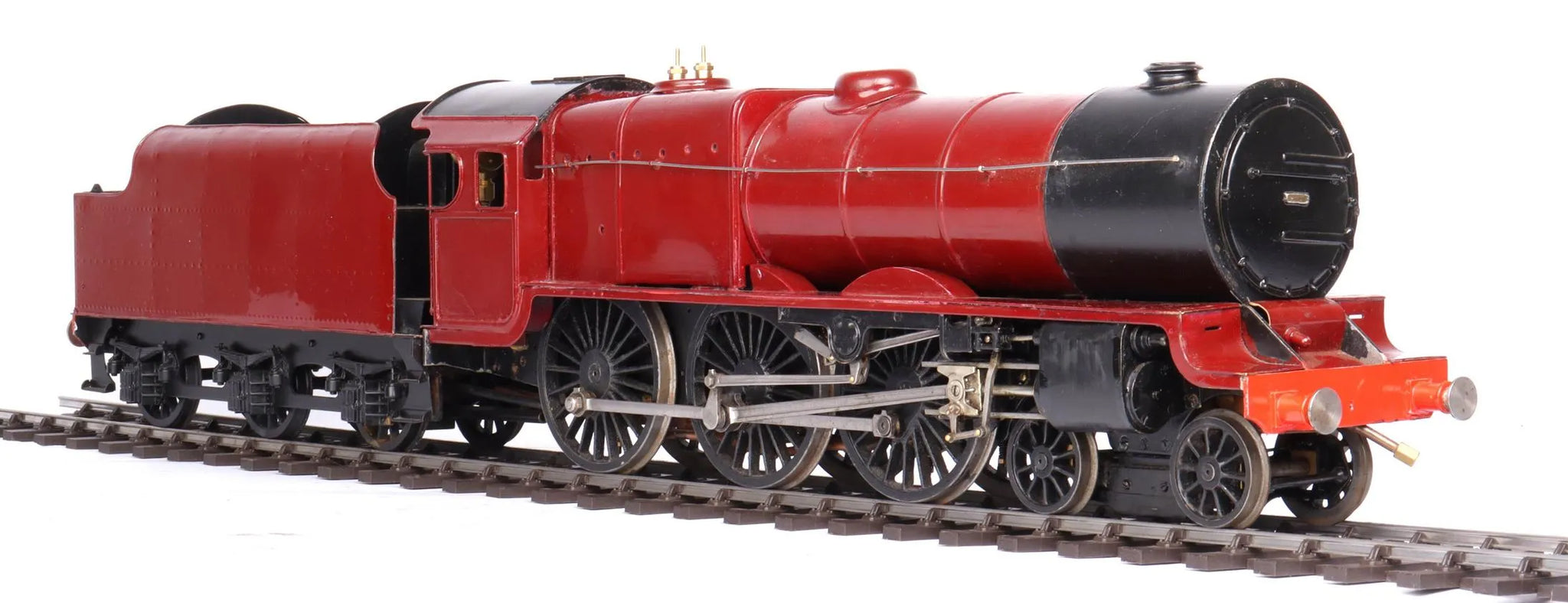

Gauge 1 LMS Royal Scot 4-6-0

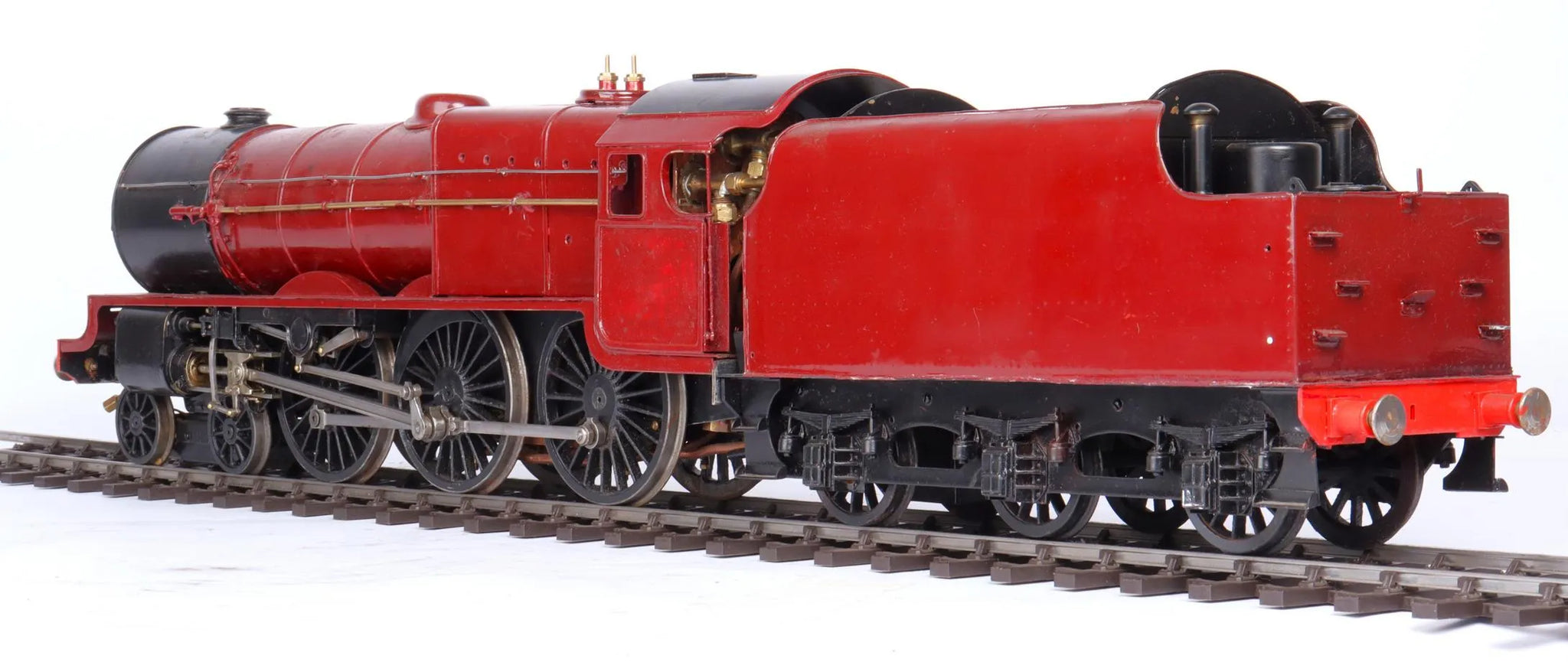

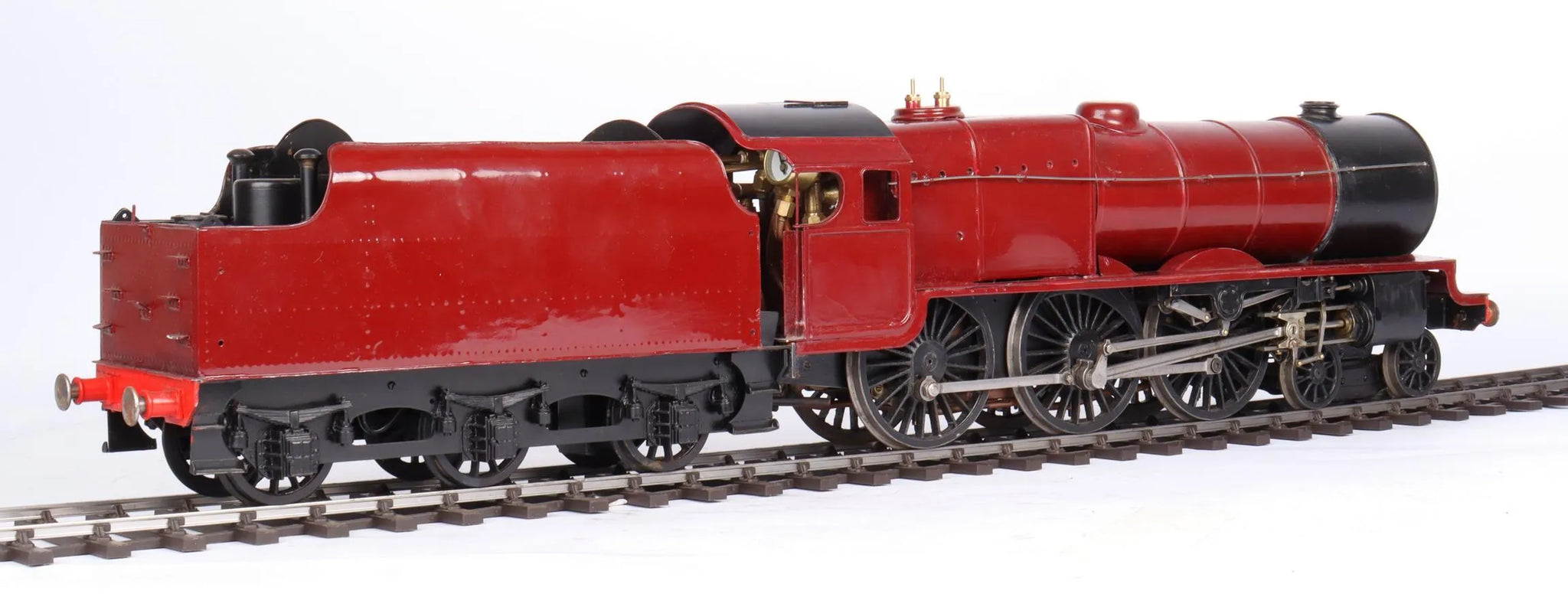

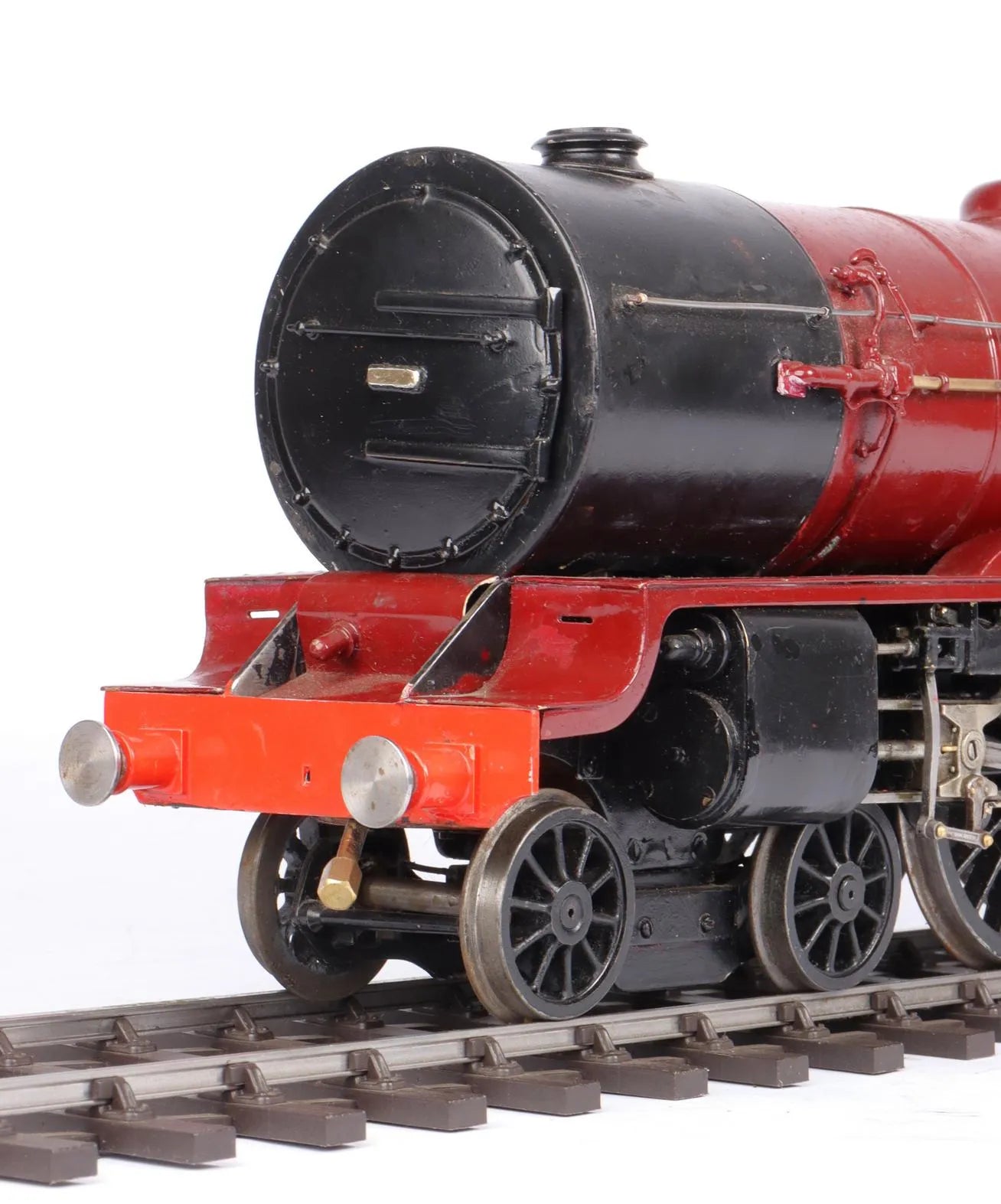

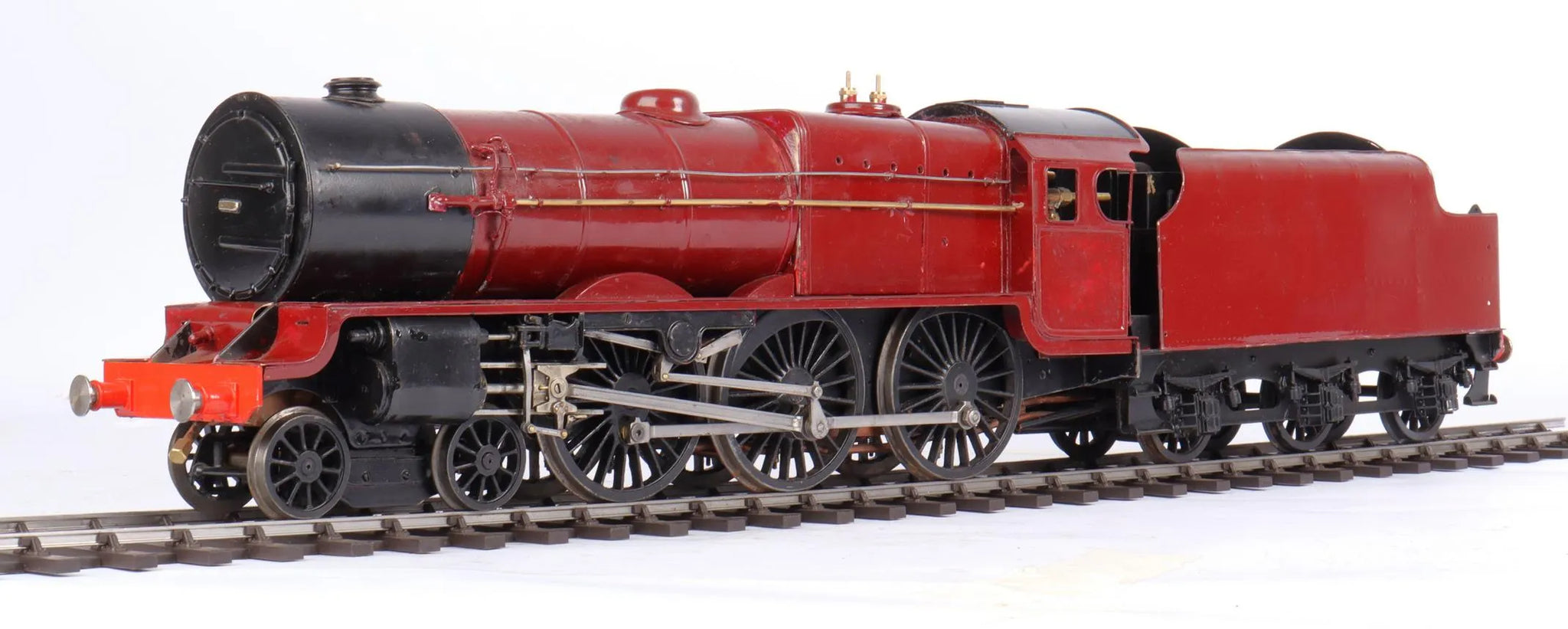

A spirit-fired gauge 1 LMS "Royal Scot", this one has come to us as part of a small collection of gauge 1 engines in part exchange for a 5 inch gauge 9F (which seems to be going from one extreme to the other in size - it was certainly easier loading than unloading when we delivered!)

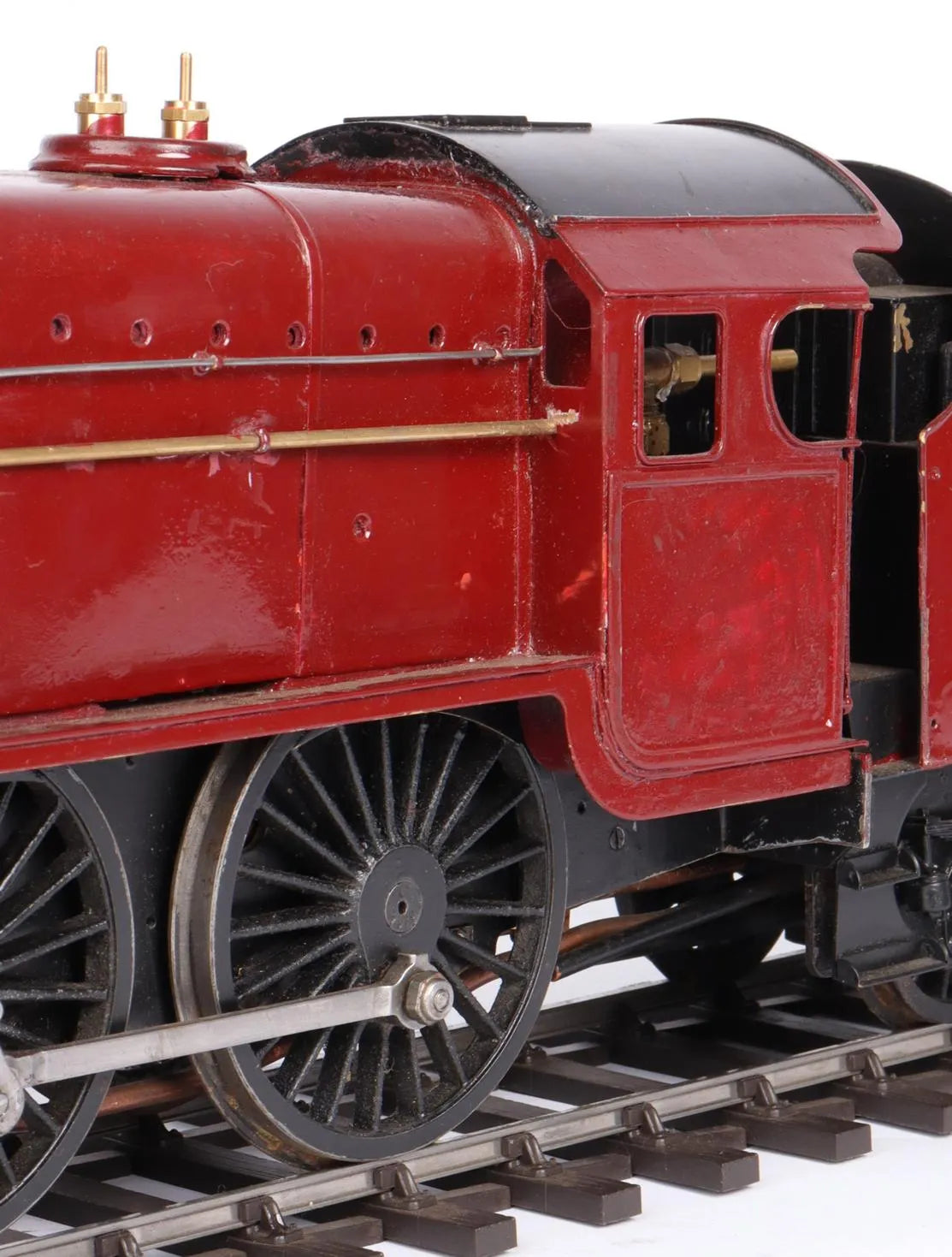

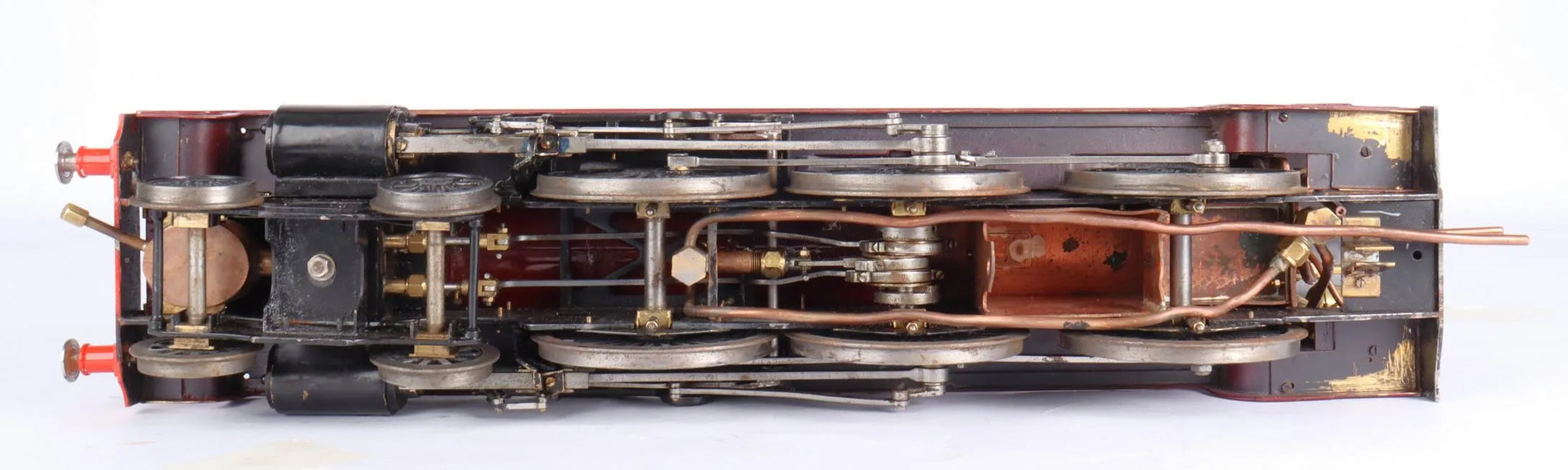

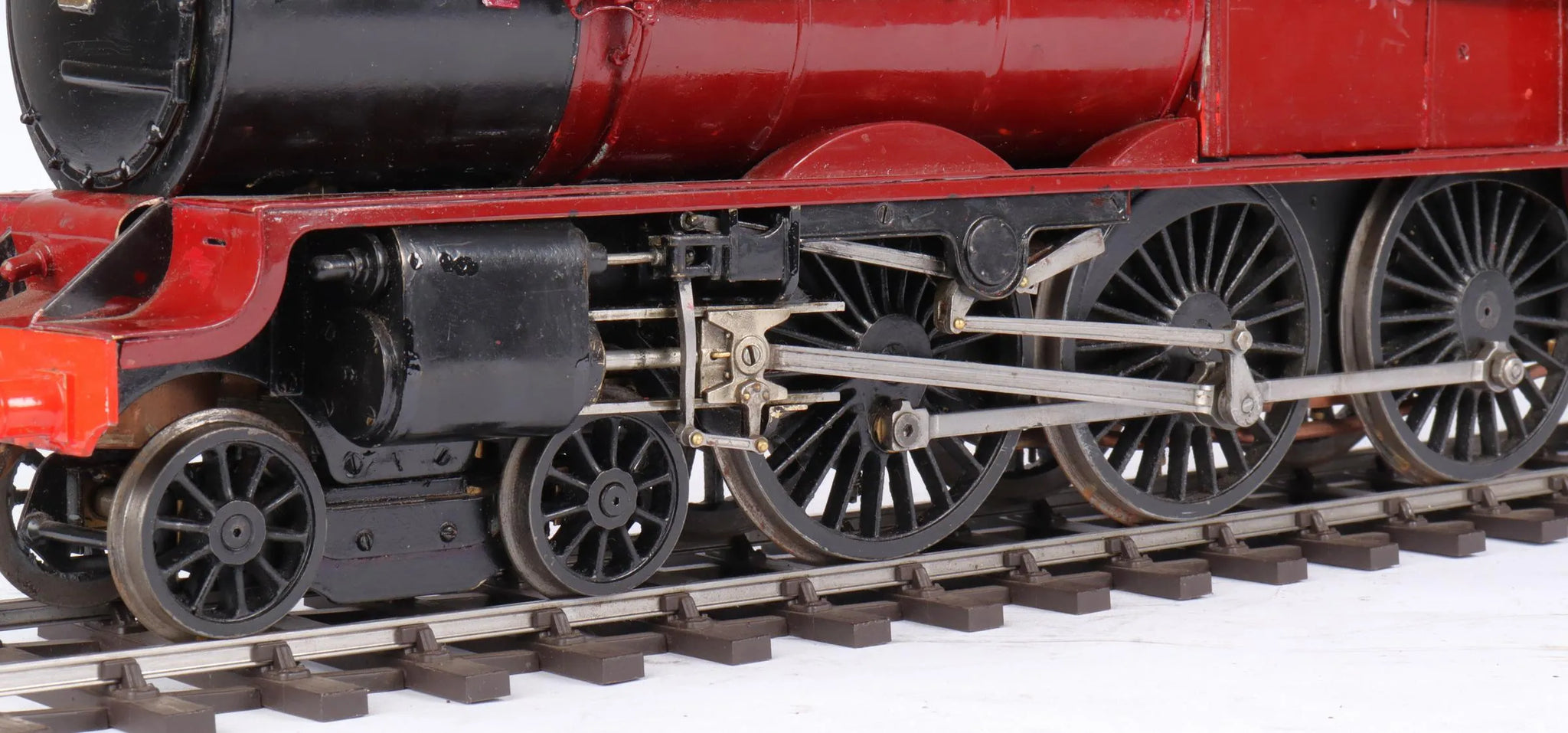

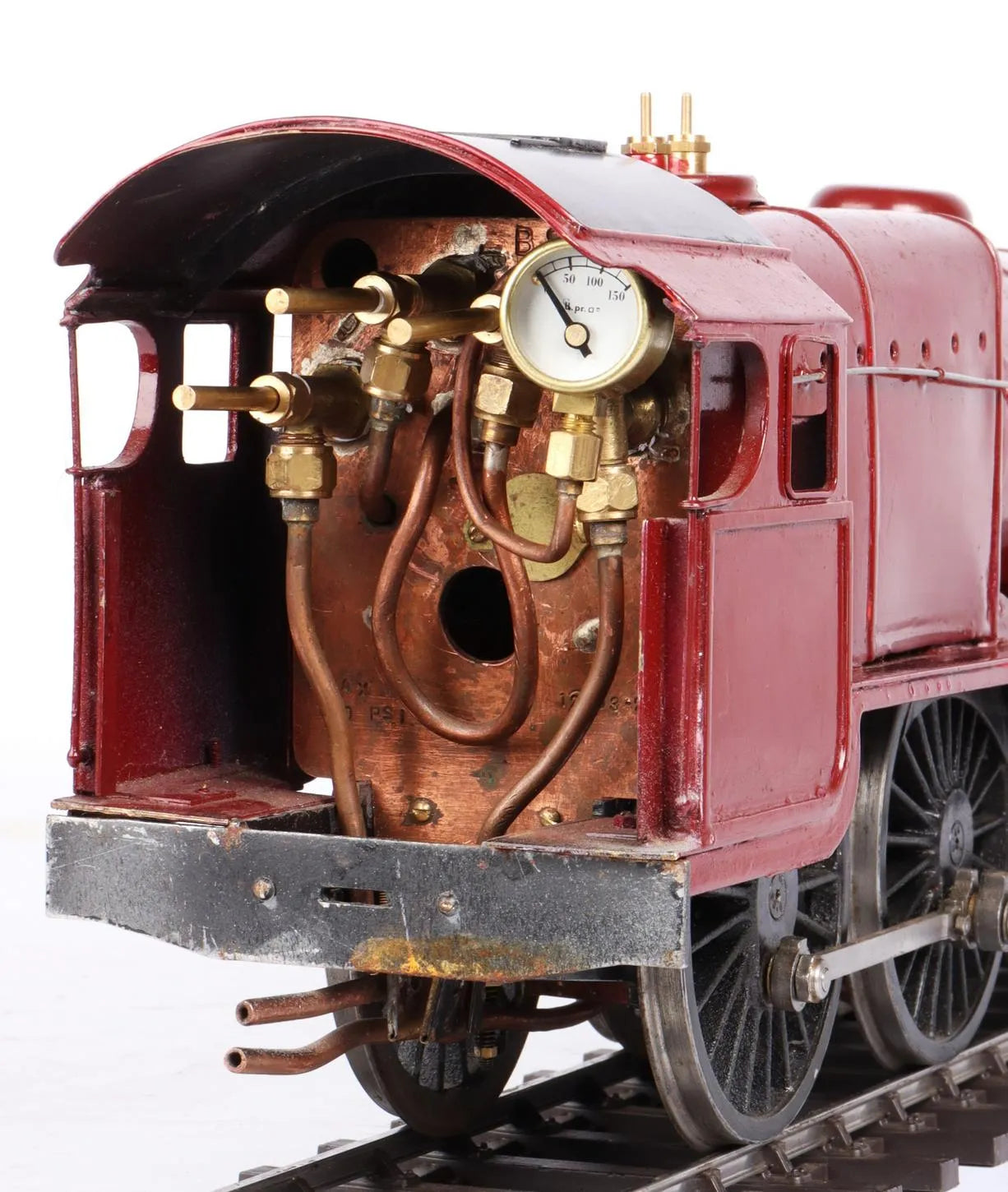

Assembled from a kit, the engine is complete and runs on air in both directions. The pump bracket is loose and fittings on the backhead are unfinished.

The boiler is stamped with its serial number, date and "Max WP 100psi" - on hydraulic test it appeared structurally sound, with various leaks from backhead fittings.

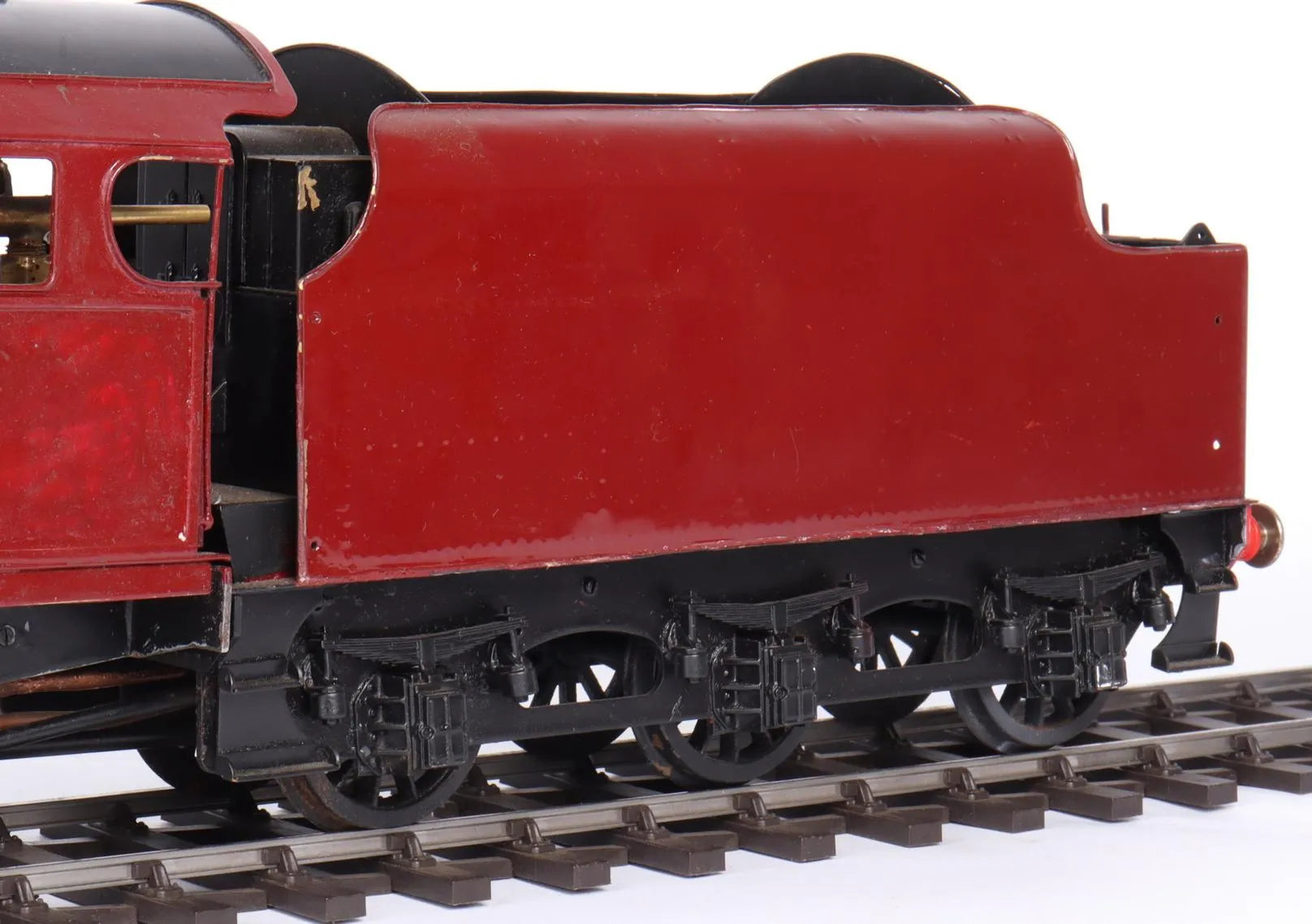

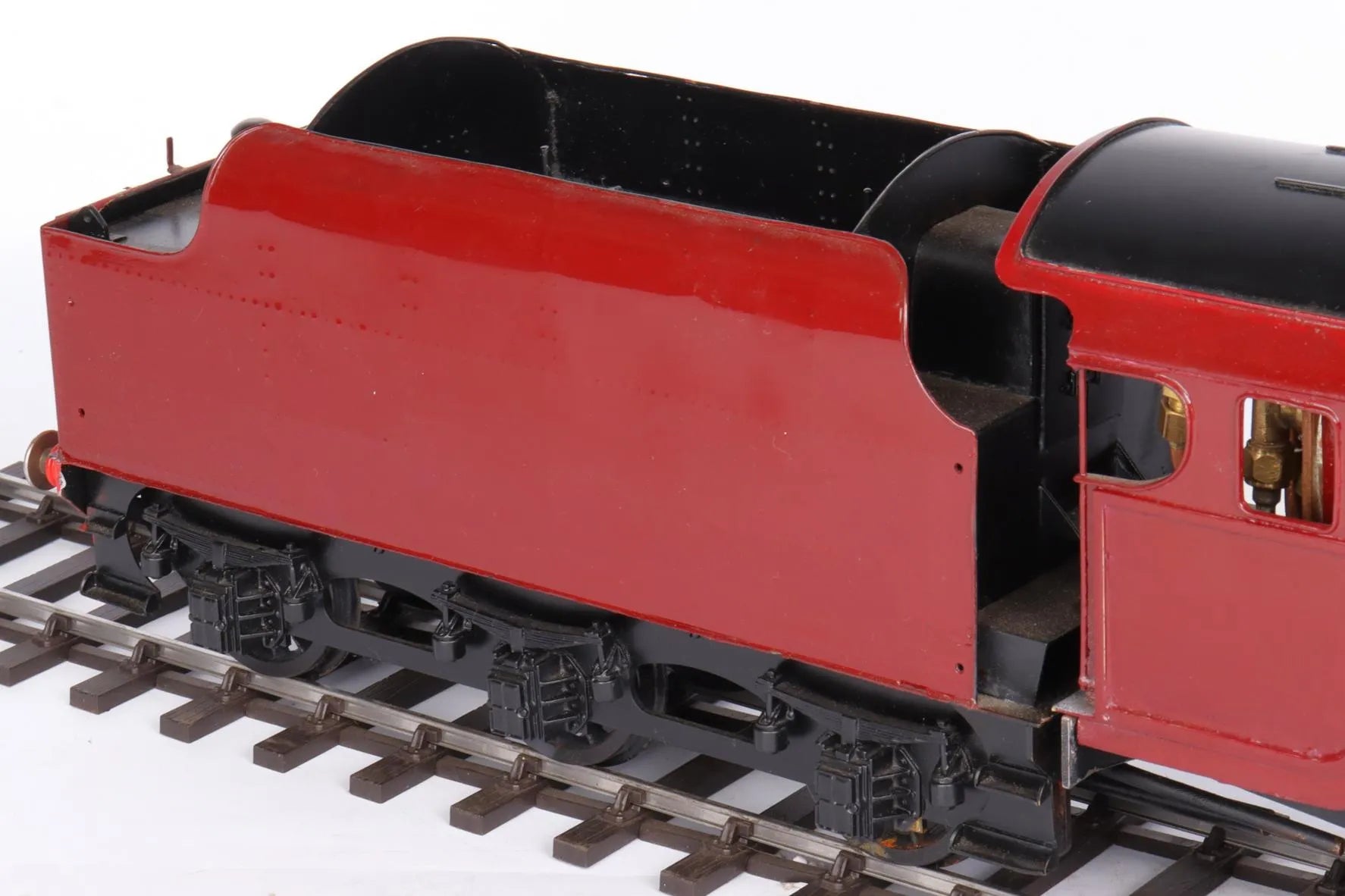

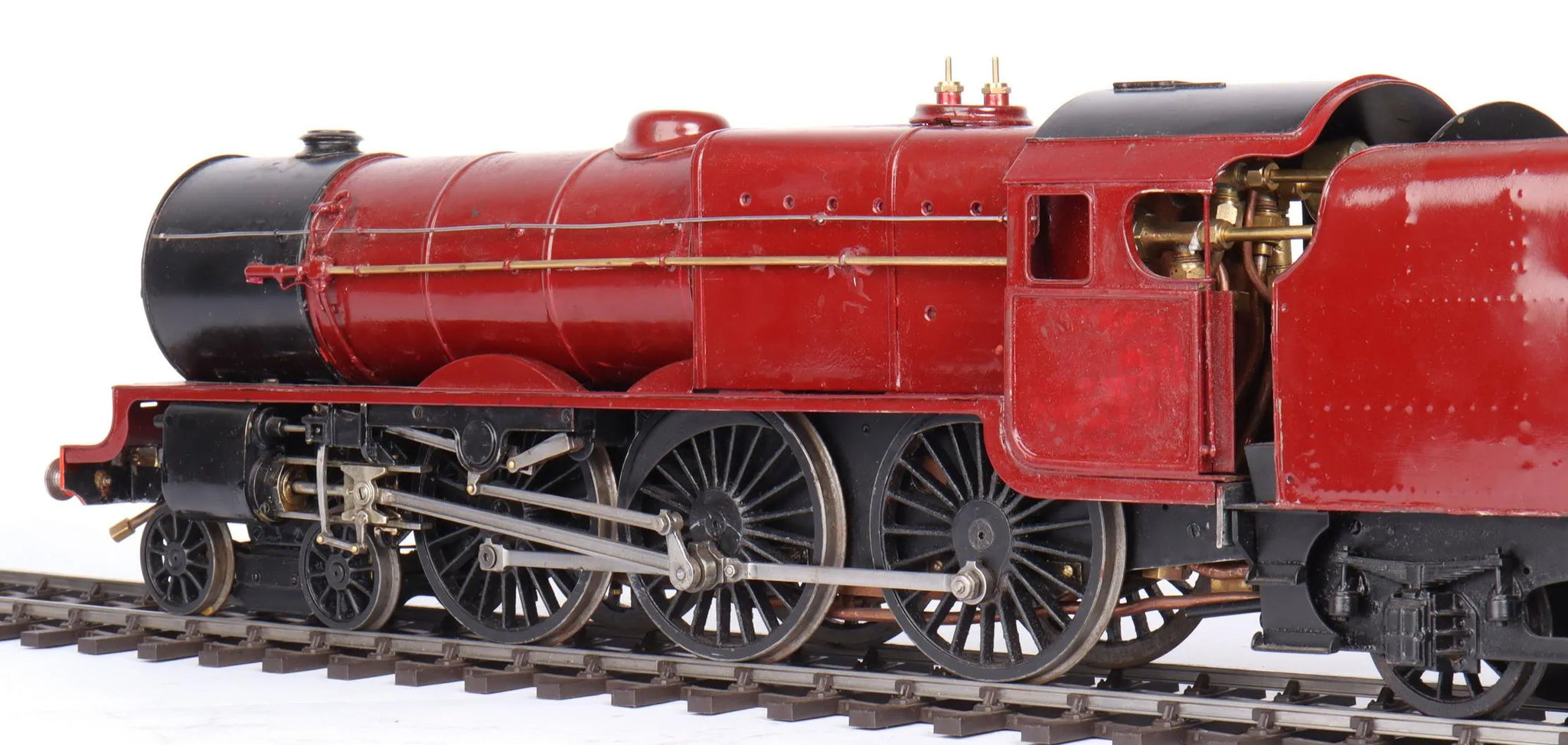

The unlined paintwork has been applied to a pedestrian standard. We would be inclined to strip it completely, repaint and carefully reassemble - given the underlying quality of the kit, there's the potential to make a decent engine of this.

Technical information

Stock code

12422

Gauge

45mm

Length/inches

17+11

Width/inches

4

Height/inches

6

Weight/Kg

5.5

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

brass

Valve type

slide

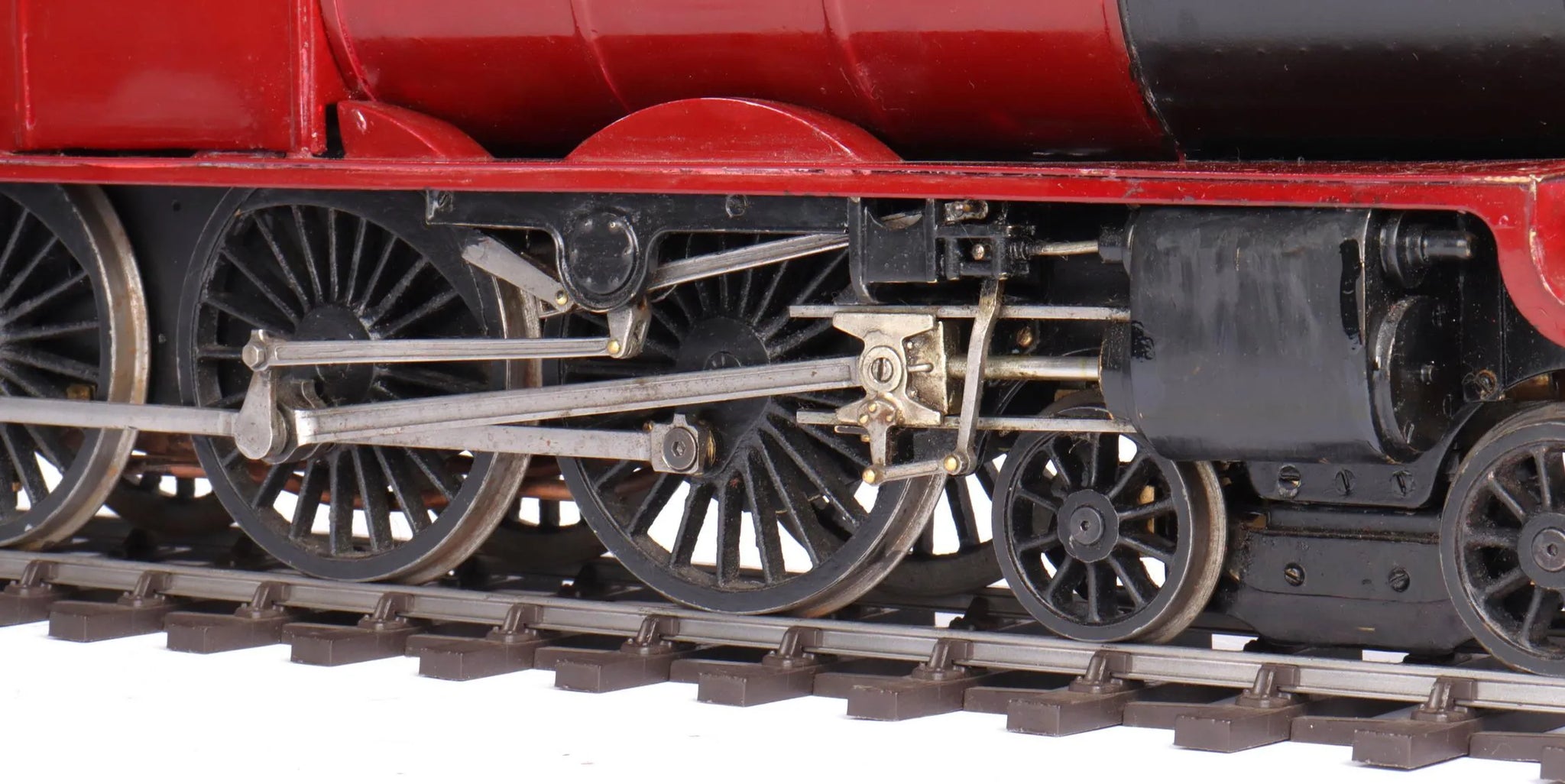

Valve gear

slip eccentric

Boiler type

spirit fired

Boiler construction

silver soldered

Boiler material

copper

CE/UKCA mark

n/a - <2 litre capacity

Year built

2021

Boiler number

BS231

Safety valve type

spring

Safety valve

2

Hand pump

1

Mechanical pump

1
