Sold

11036

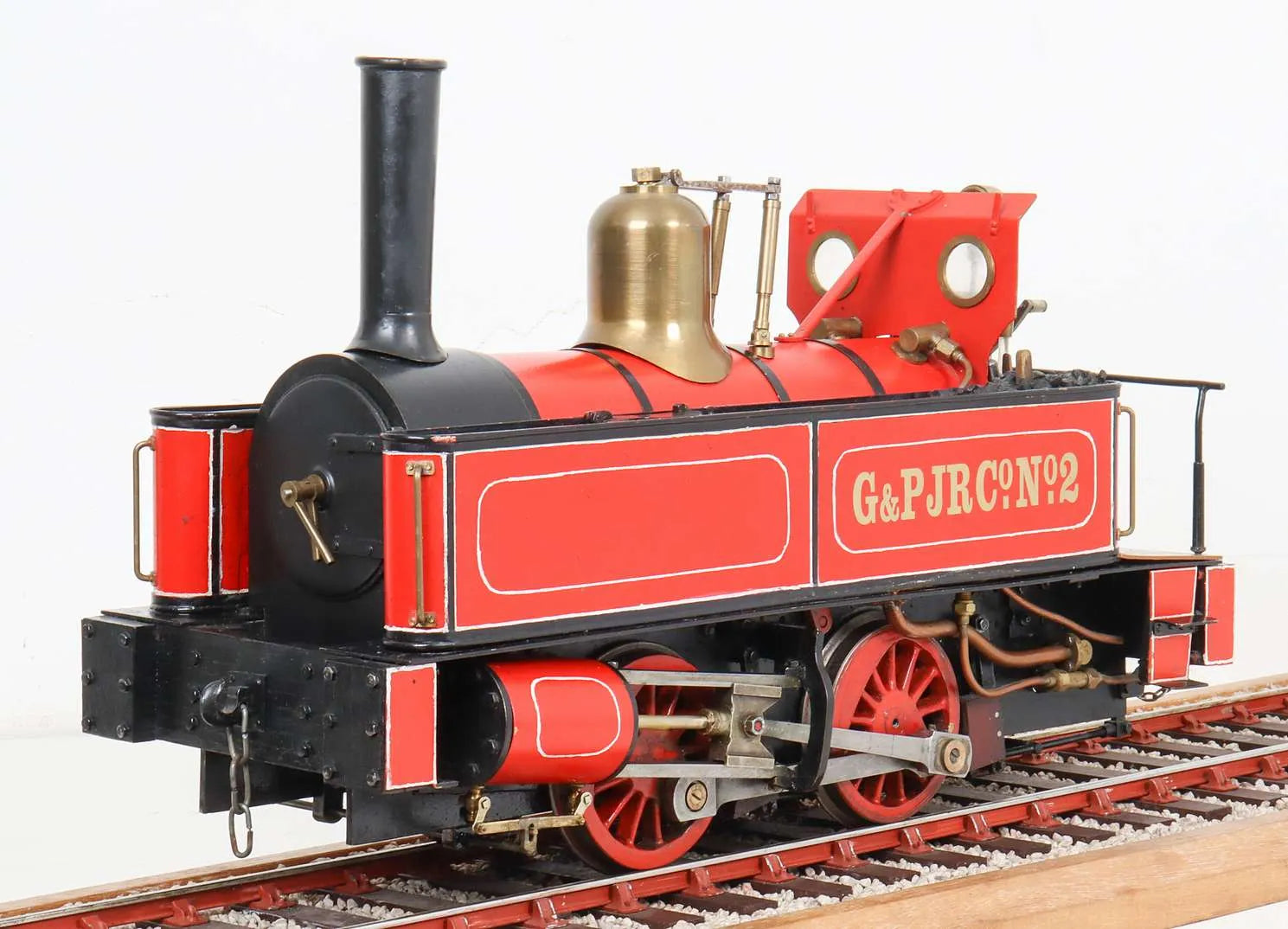

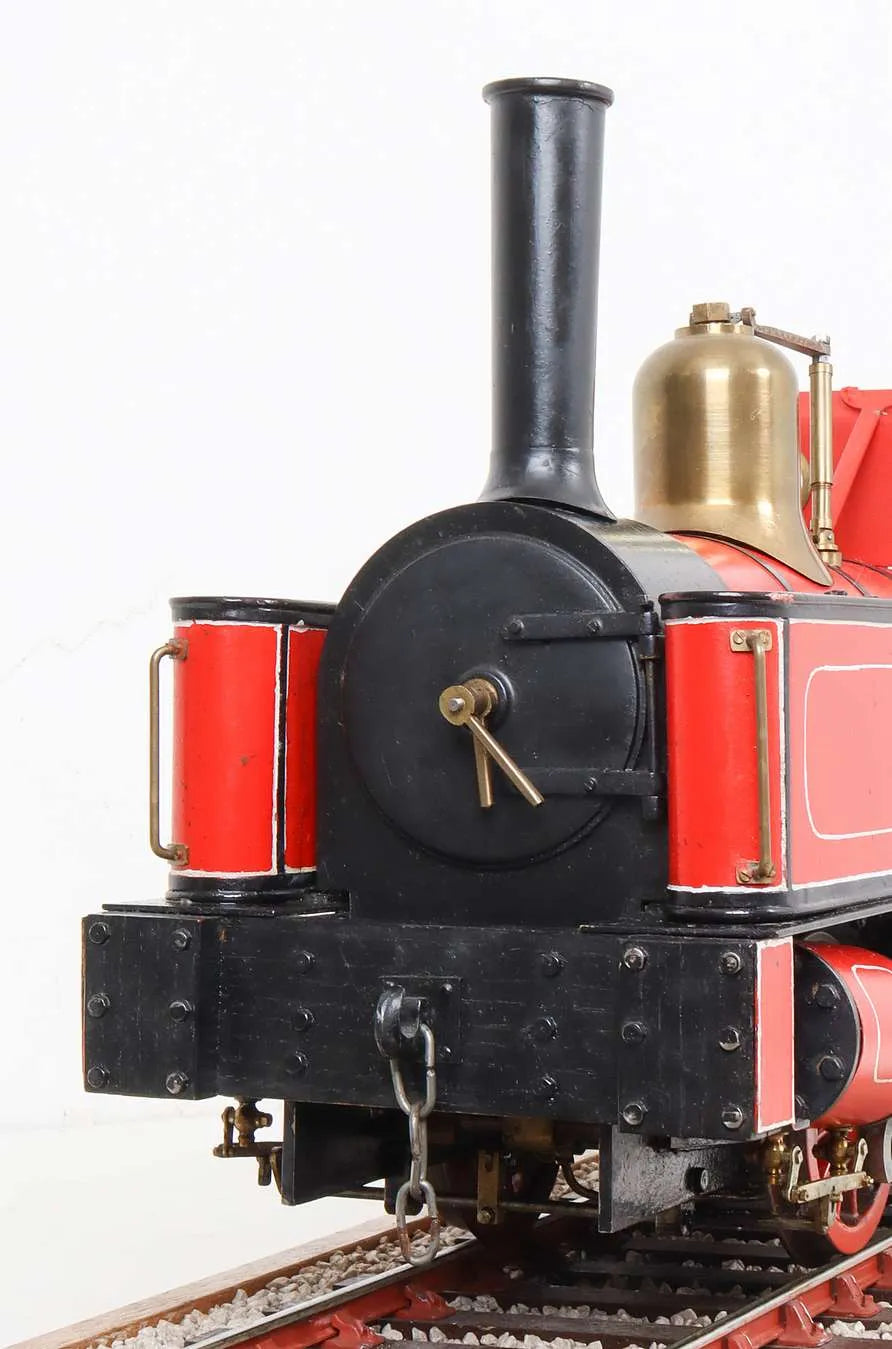

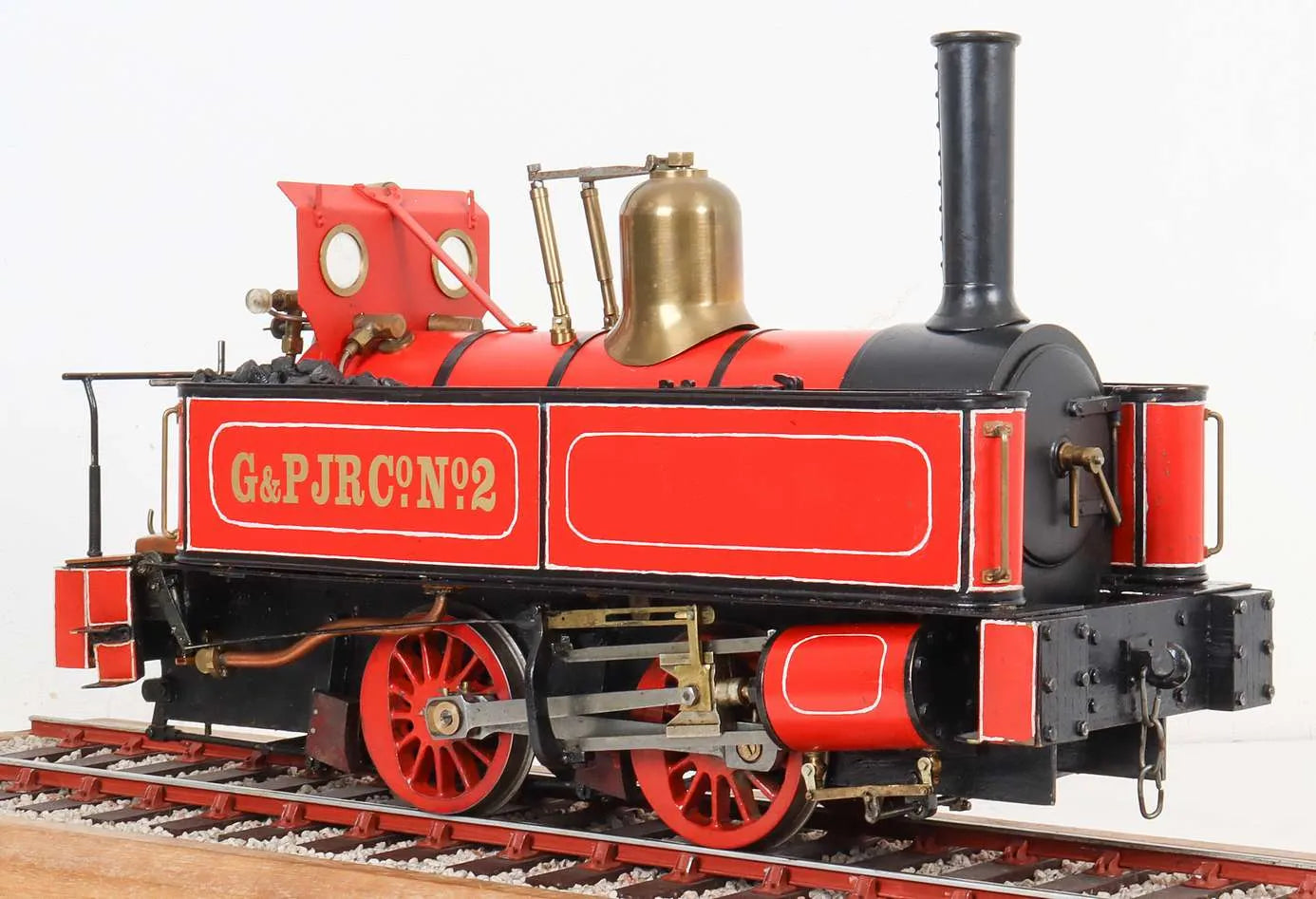

3 1/2 inch gauge tank engine

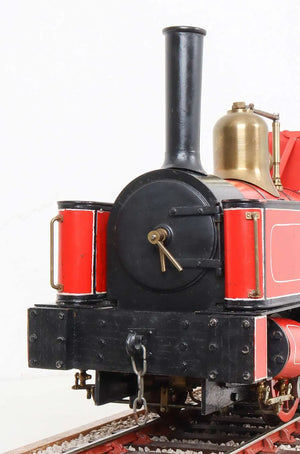

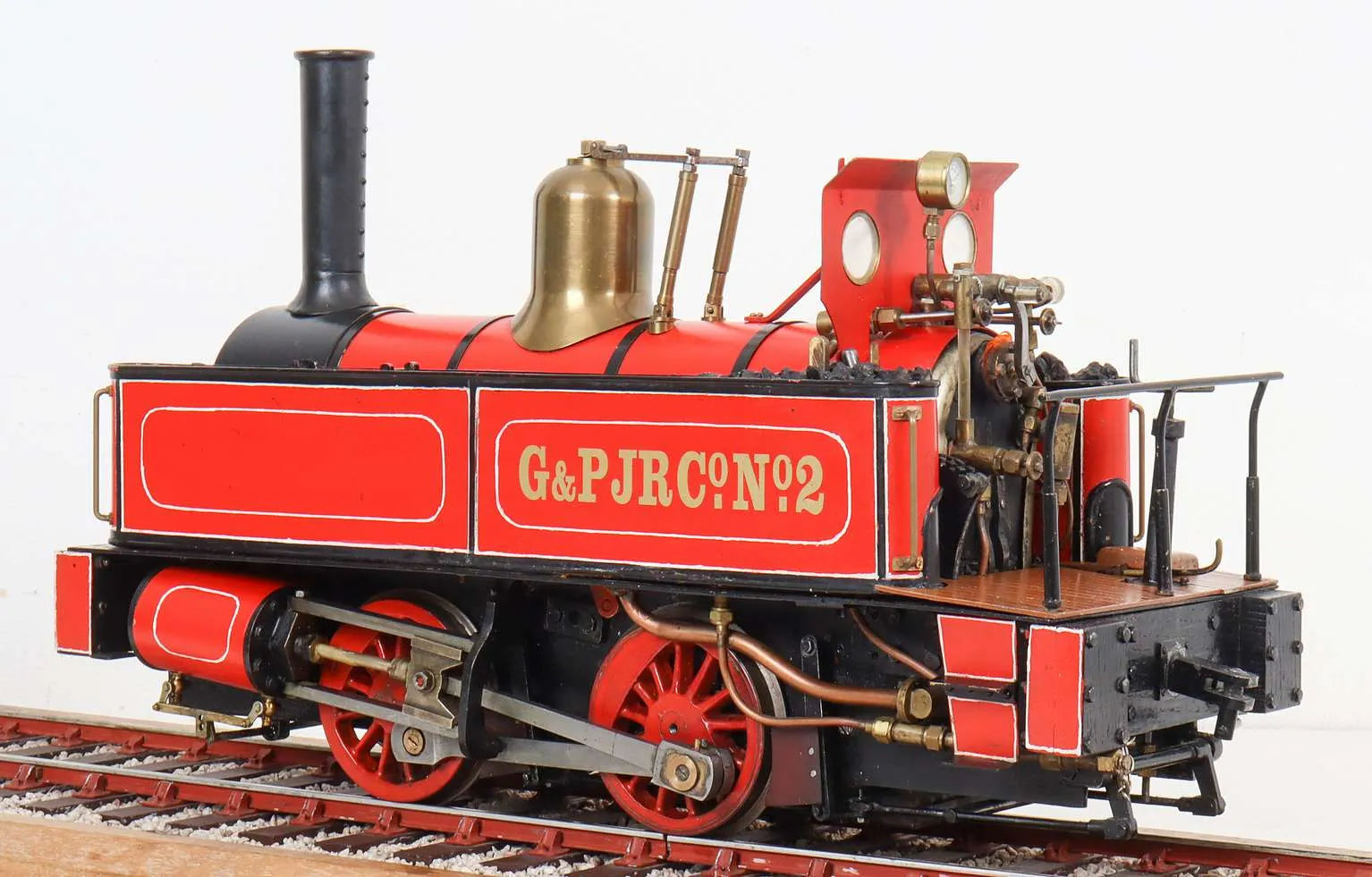

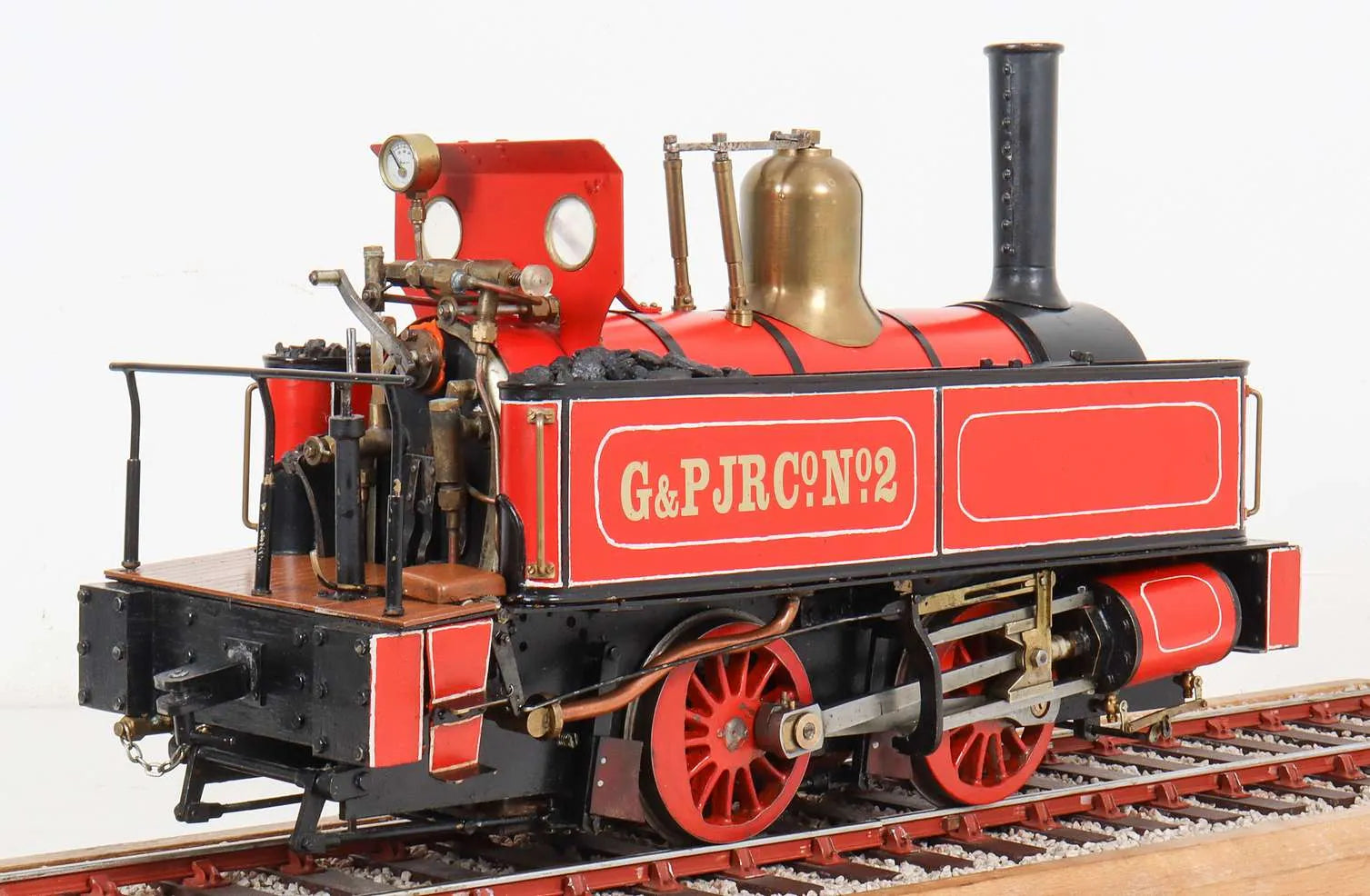

A quirky 3 1/2 inch gauge tank locomotive, of freelance design with - to our eyes - a touch of Emmett about it!

Unused for many years, the boiler appeared leak and distortion free at a twice working pressure hydraulic test, however overall standard of construction is utilitarian - it will need lifting and the cladding removing for thorough inspection before it could be put into service.

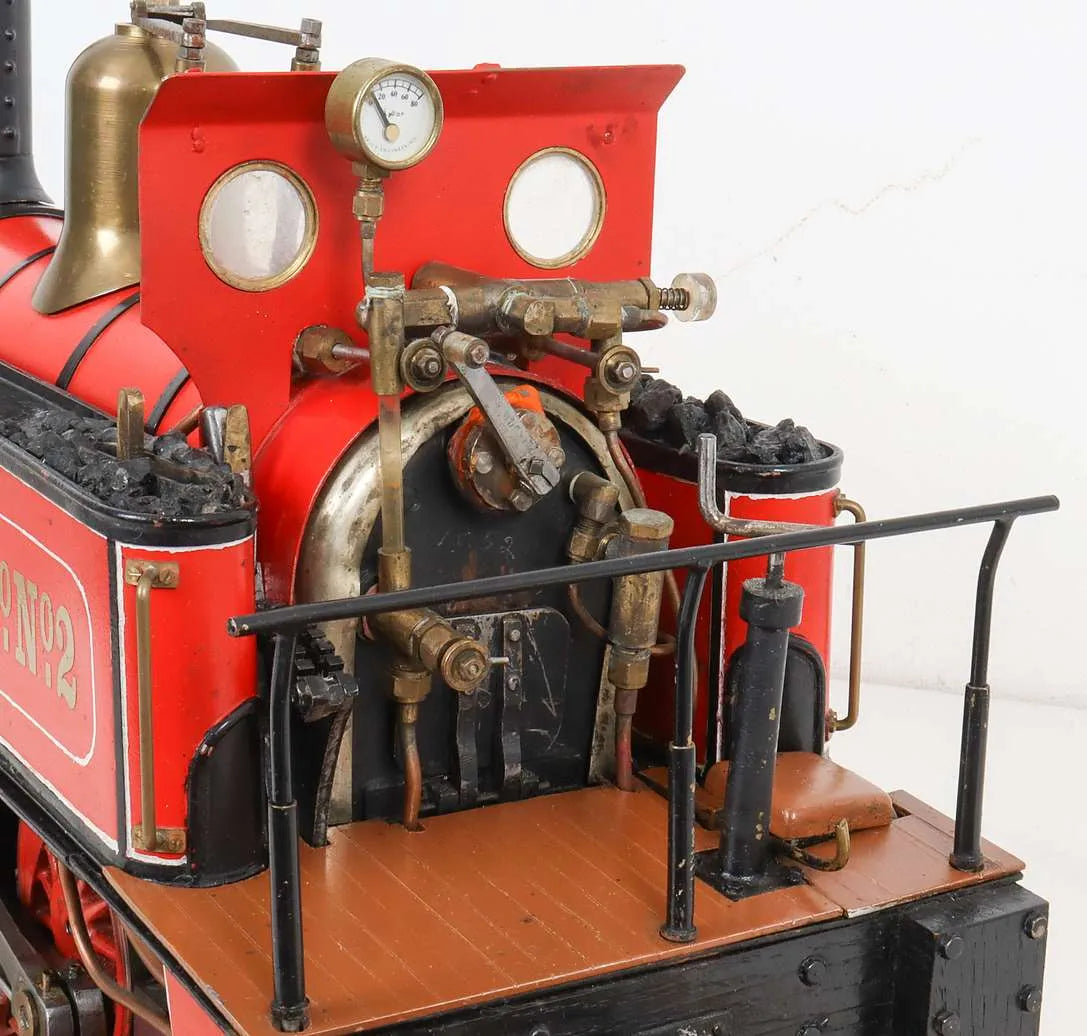

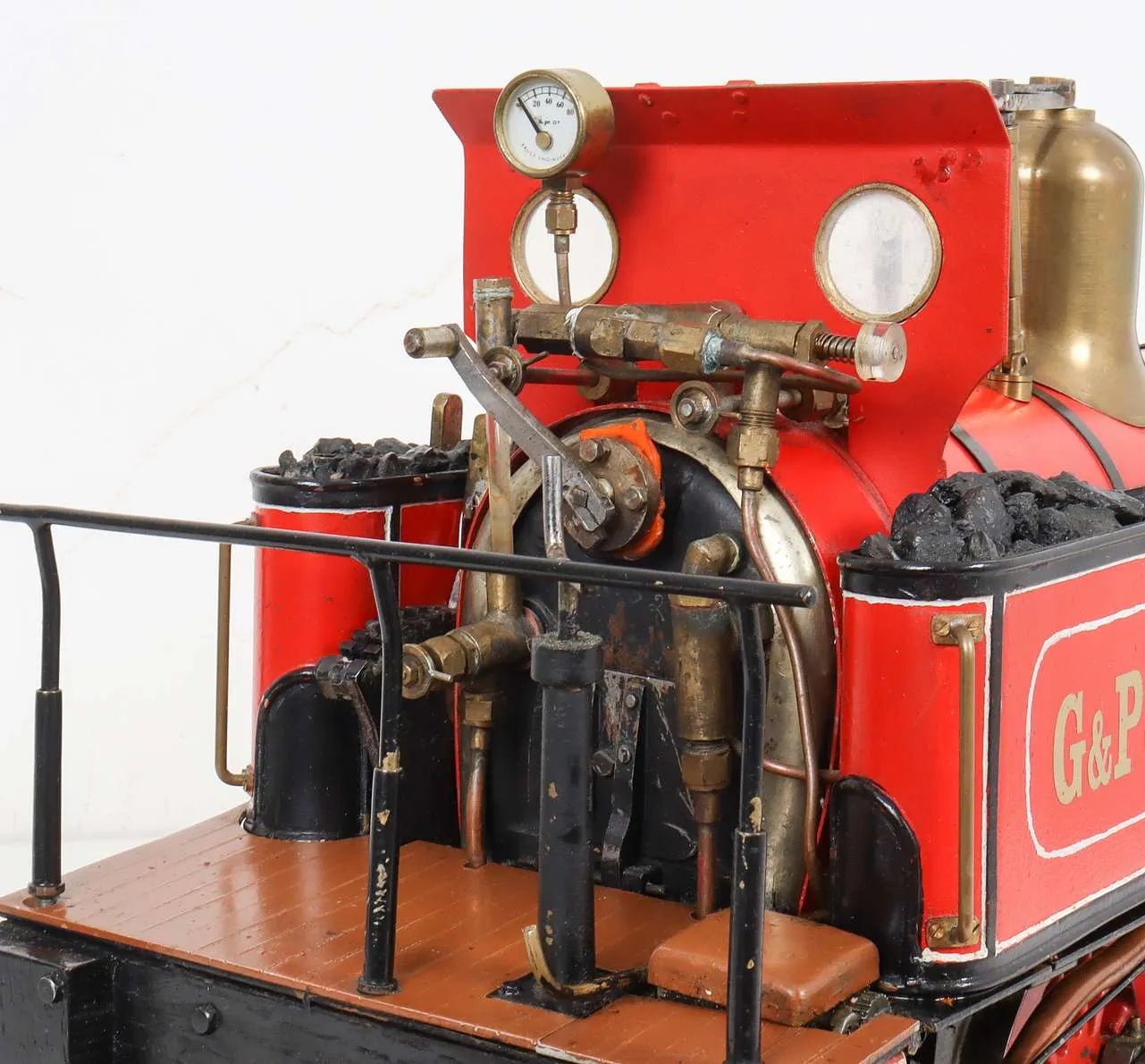

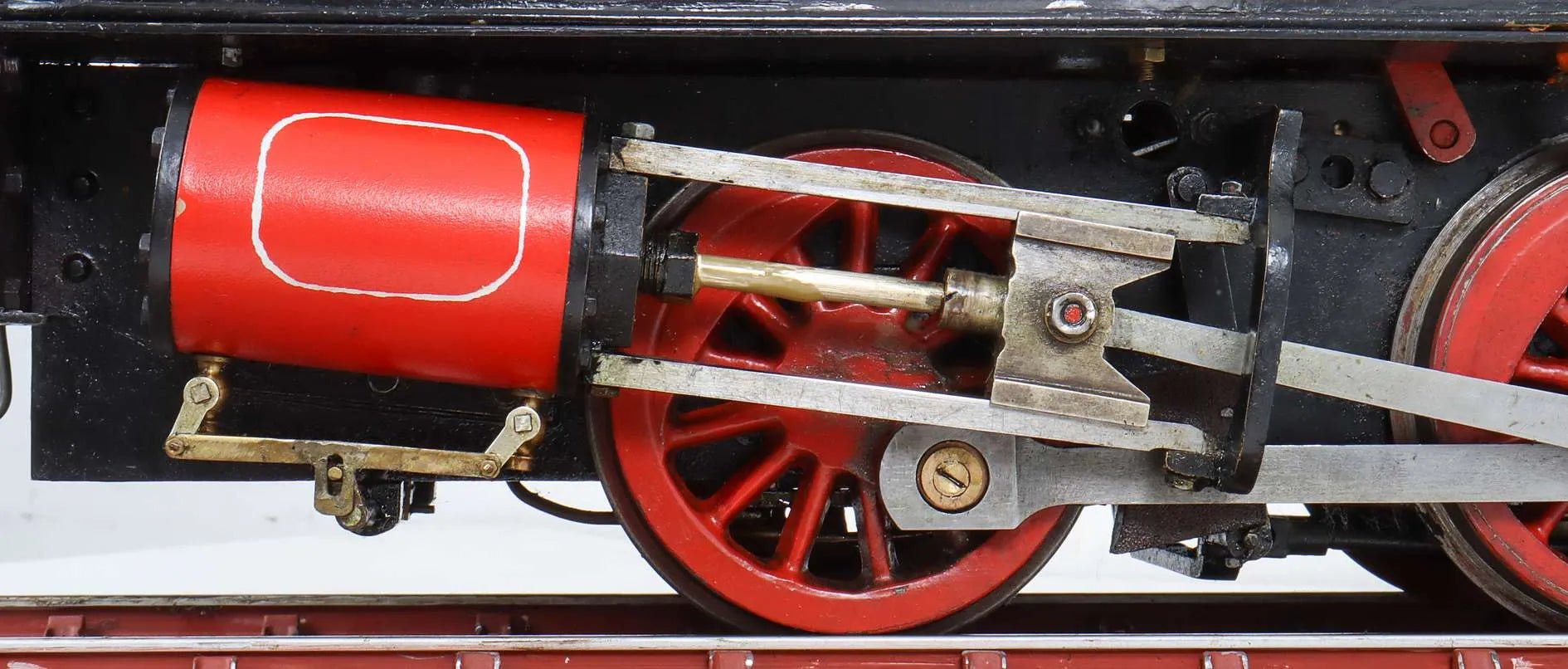

Although the chassis is free to roll, opening the regulator doesn't appear to allow air through to the cylinders, which will require further investigation.

Technical information

Stock code

11036

Gauge

3 1/2 inch

Length/inches

19

Width/inches

7

Height/inches

12

Weight/Kg

16

Wheel material

cast iron

Axlebox type

plain

Valve type

slide

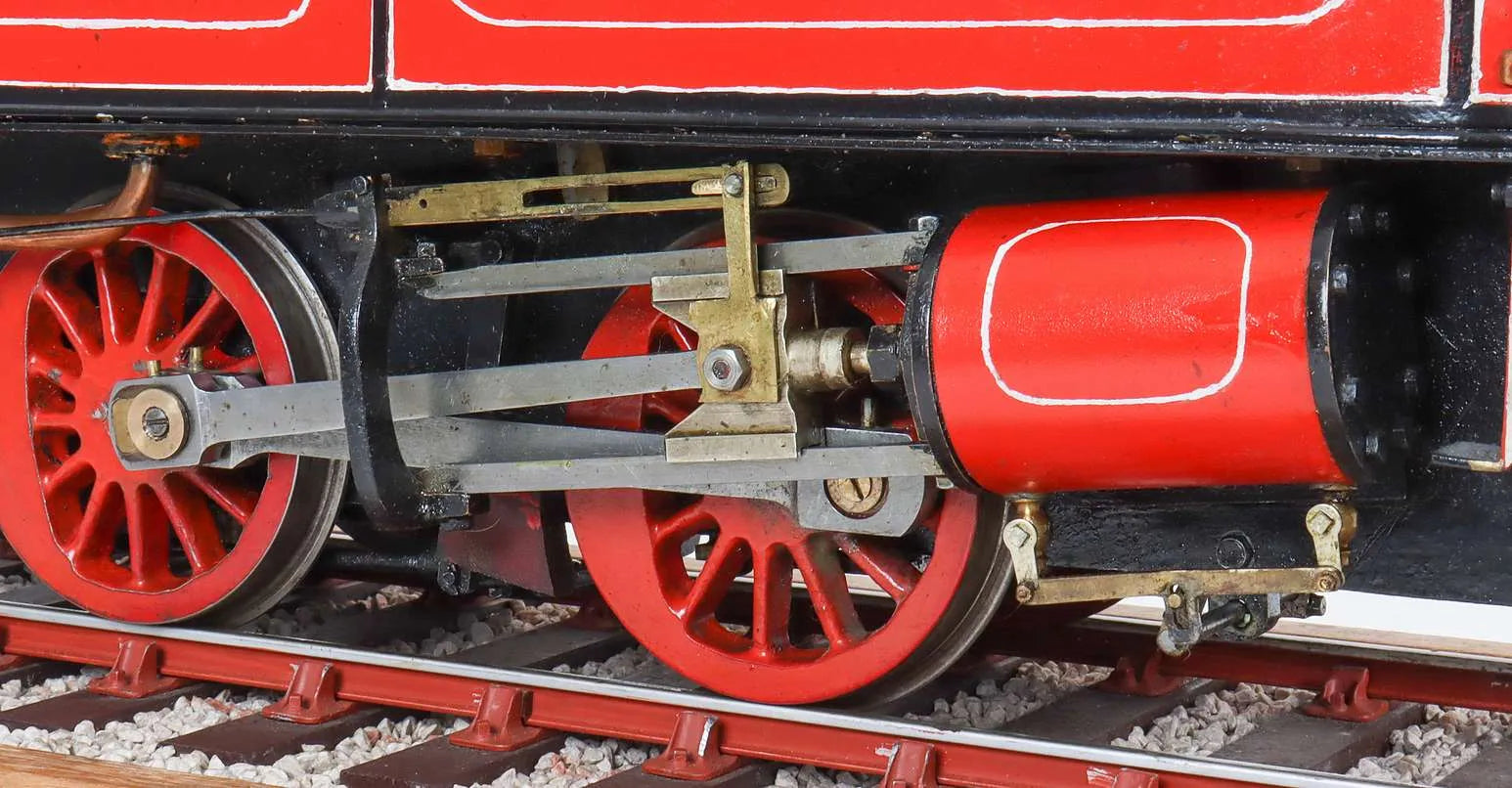

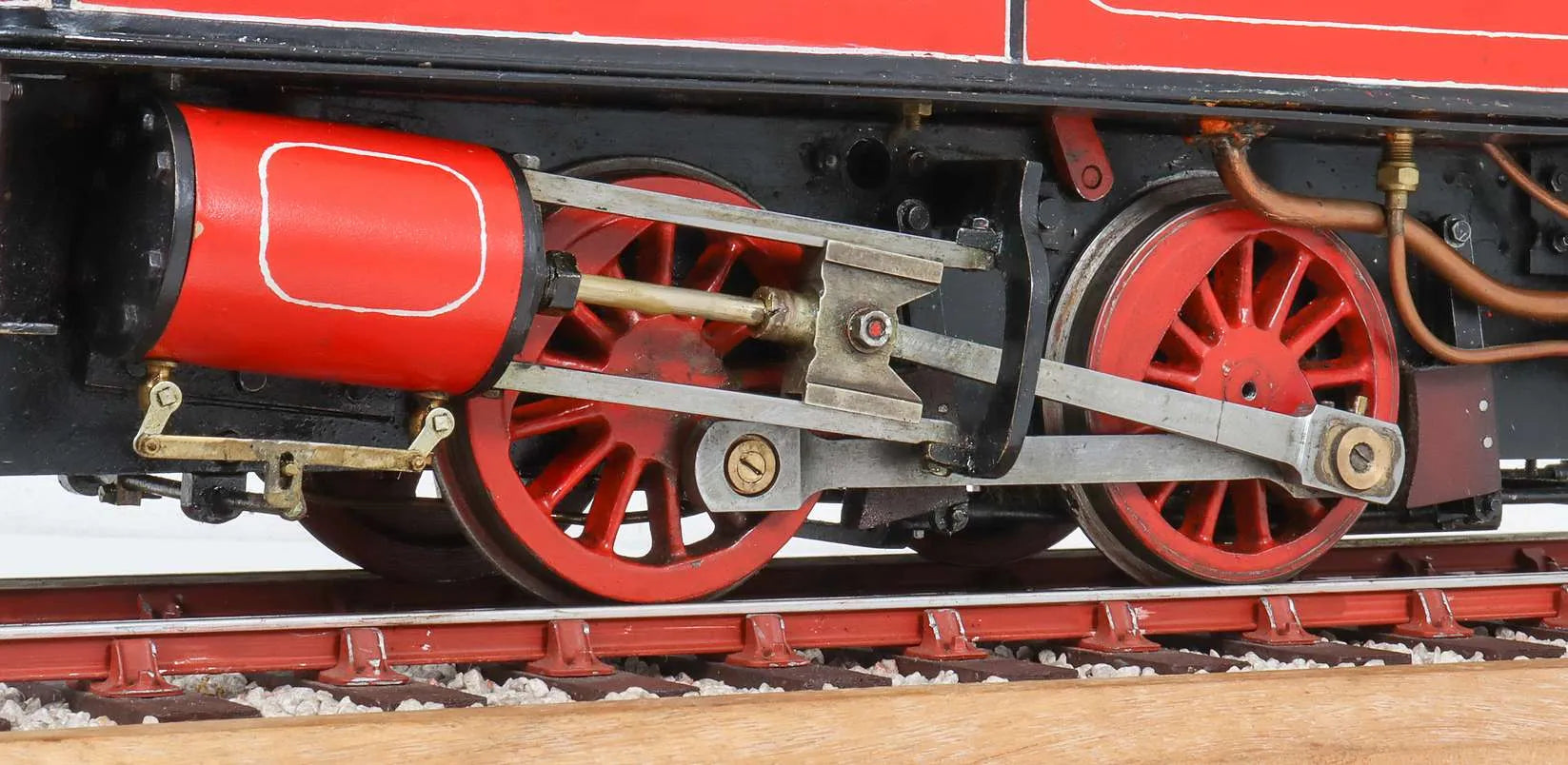

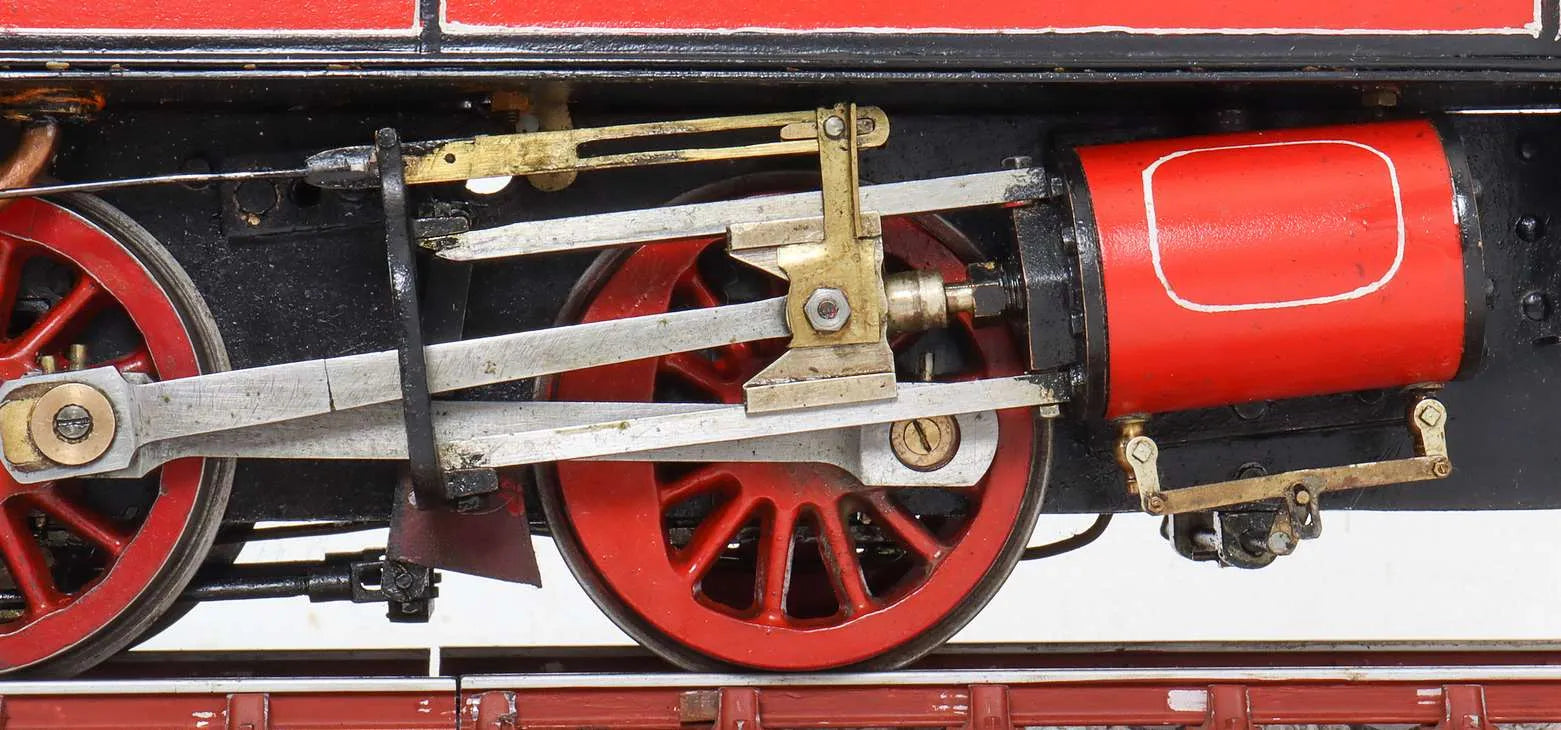

Valve gear

slip eccentric

Lubricator type

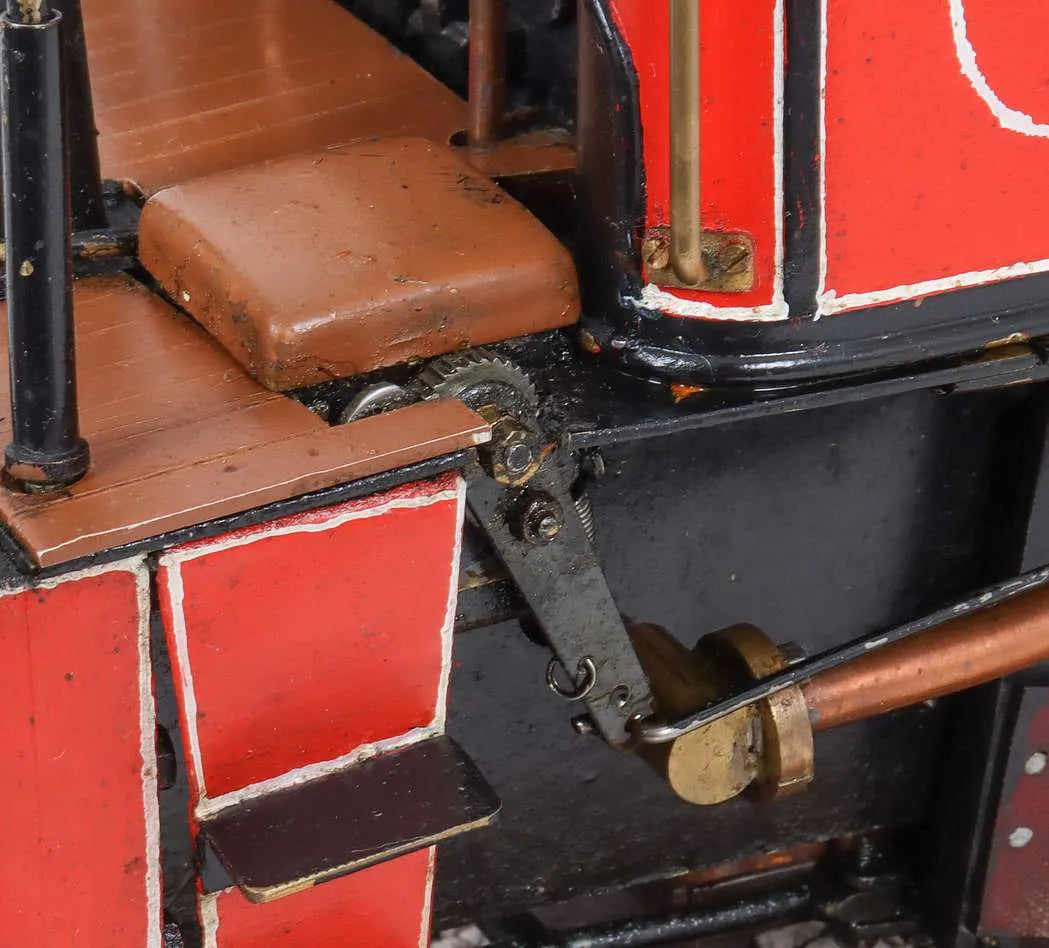

mechanical

Boiler type

locomotive

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Whistle

yes

Date out

Jun-24
