3 inch scale Foden tipper wagon

Name: 3 inch scale Foden tipper wagon
Brand: Station Road Steam
SKU: 9383
Price: 4250.0 GBP
Availability: OutOfStock

Sold

We sold this one last year, it's recently come back in part exchange from a long term customer, a highly capable builder in his own right. Condition pretty much unchanged from last time it was here, pictures opposite and words below from 2020.

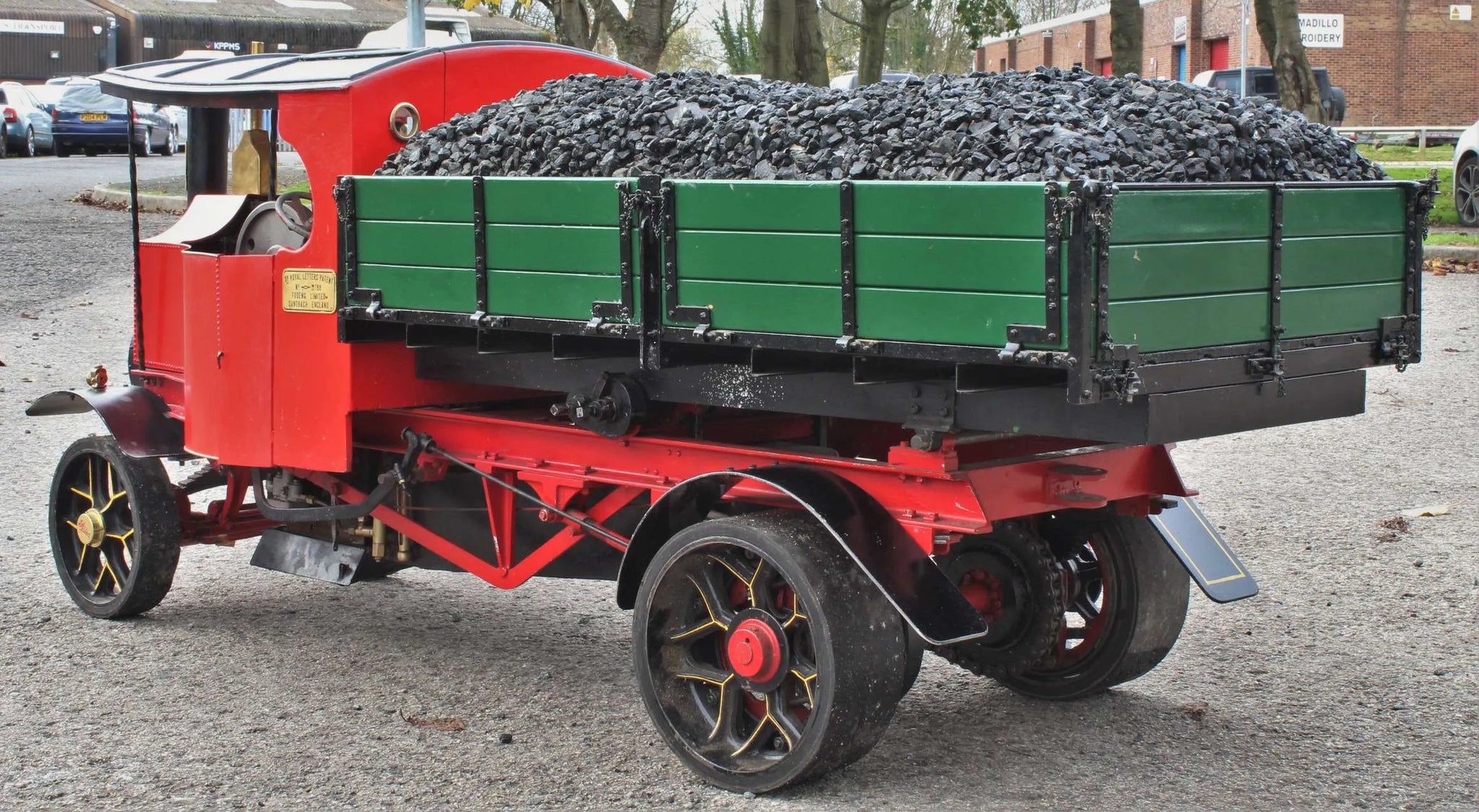

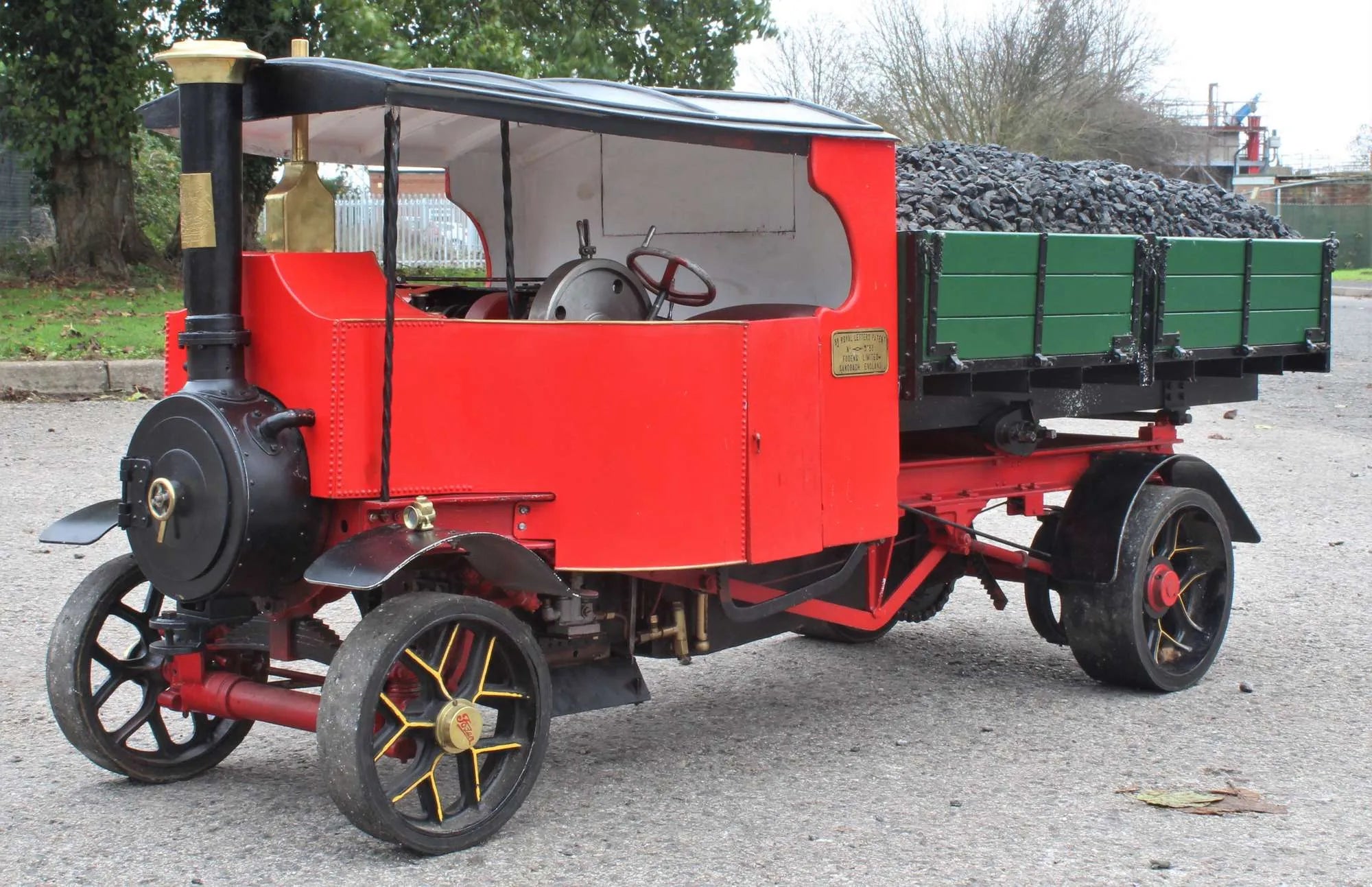

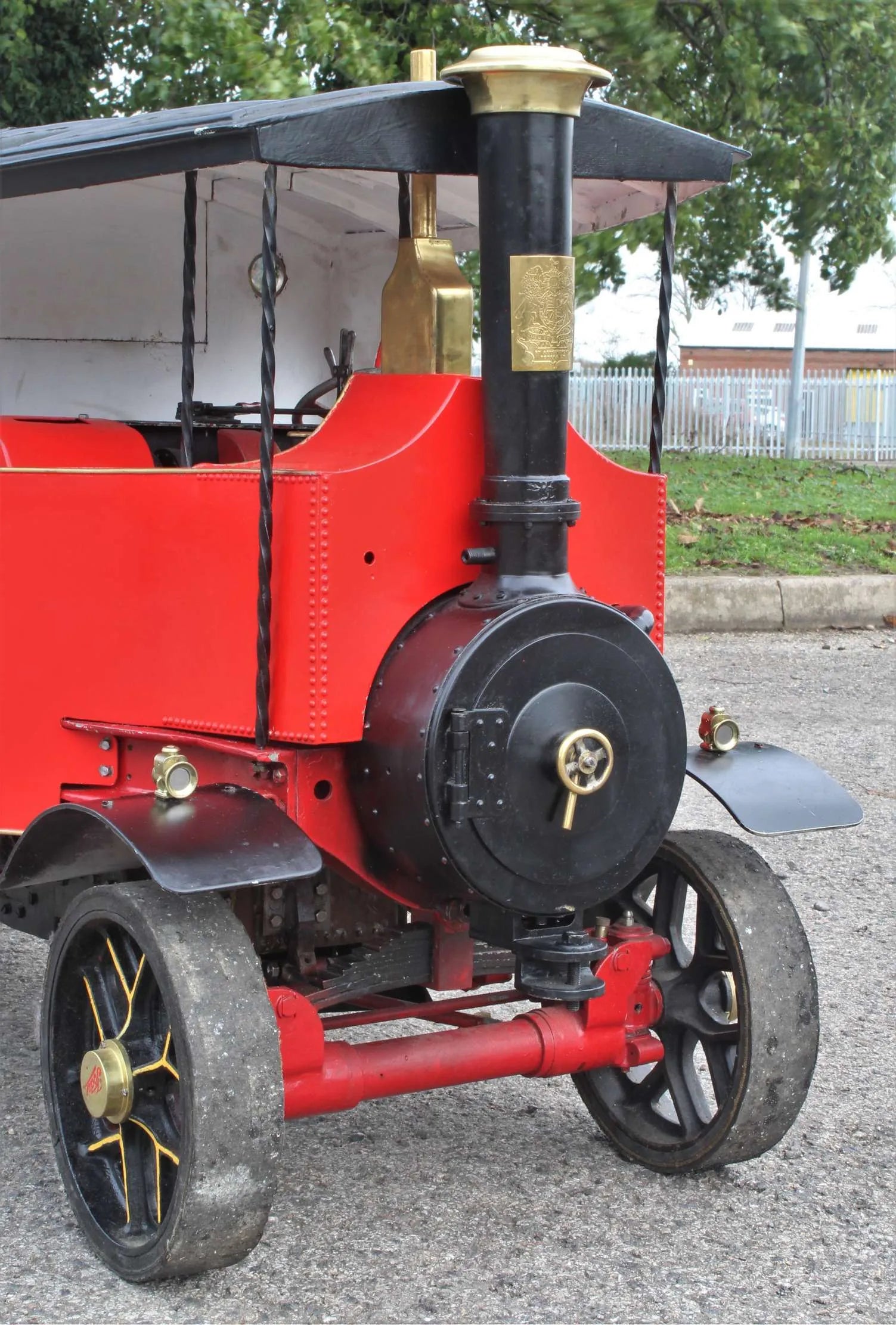

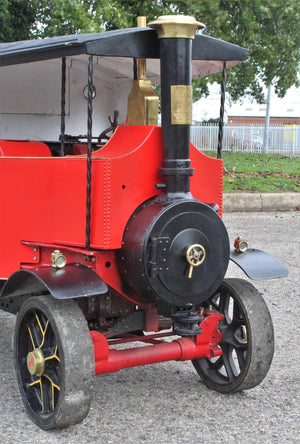

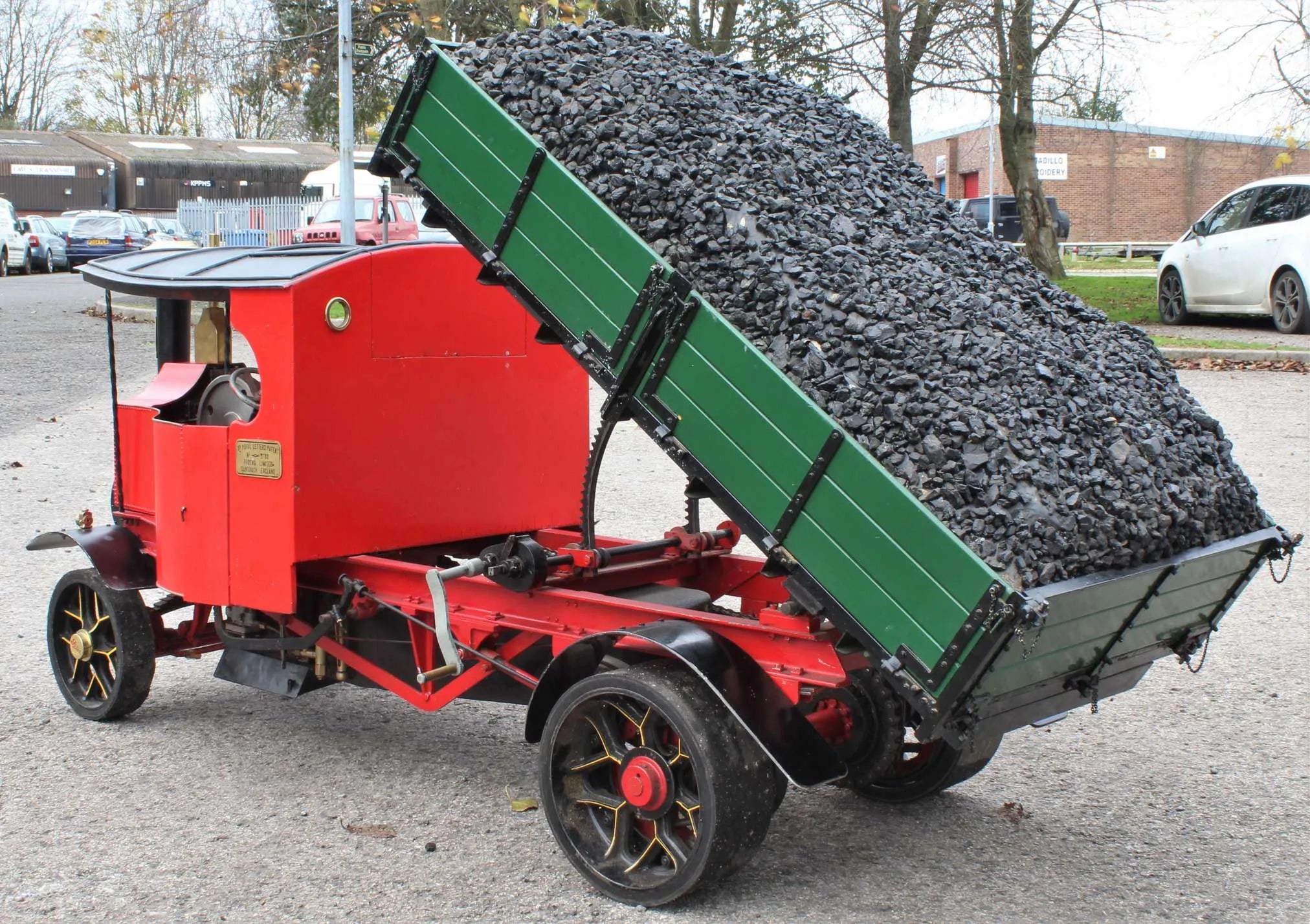

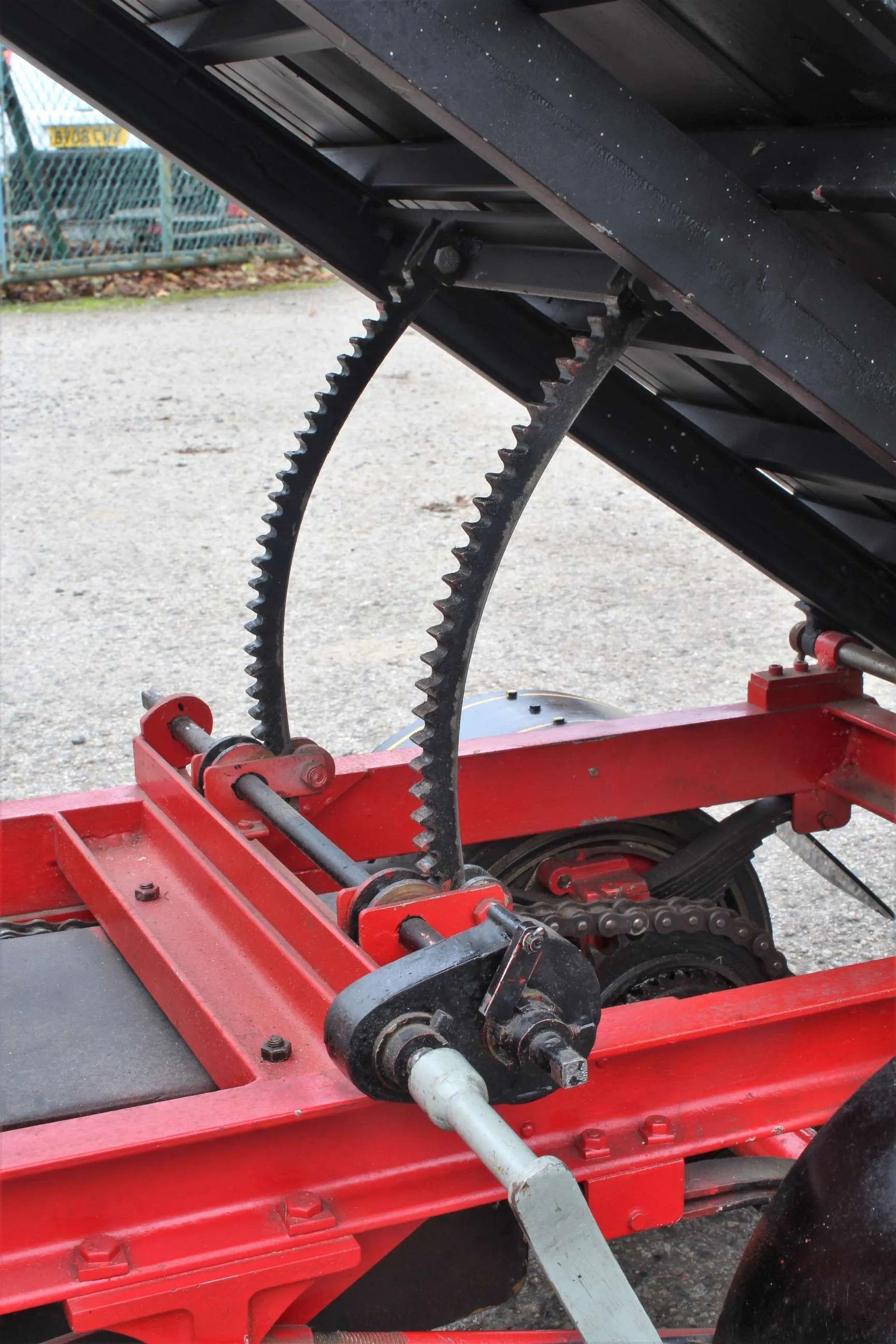

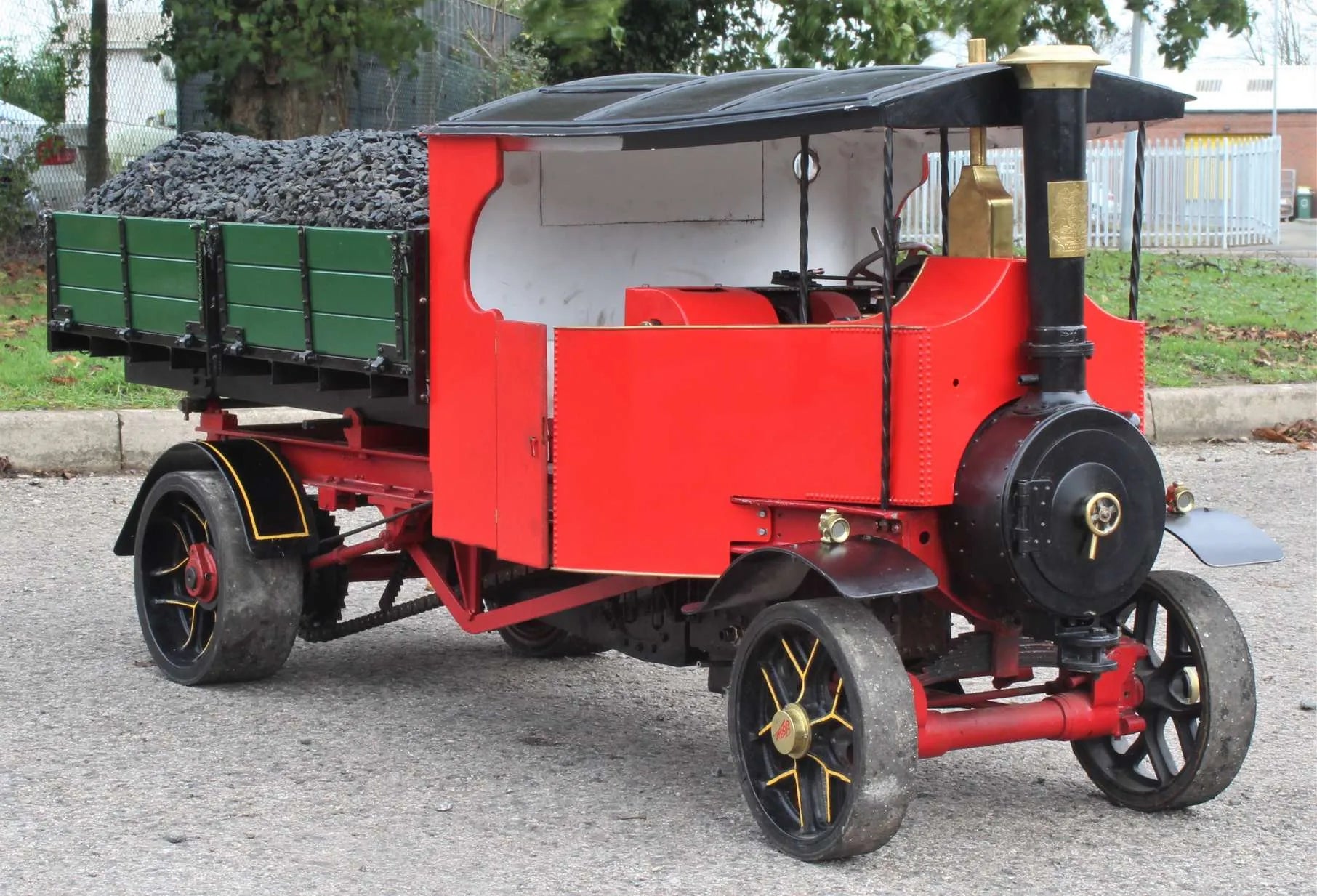

A 3 inch scale Foden steam wagon, built with tipper bed. An older engine, it requires some restoration, including:

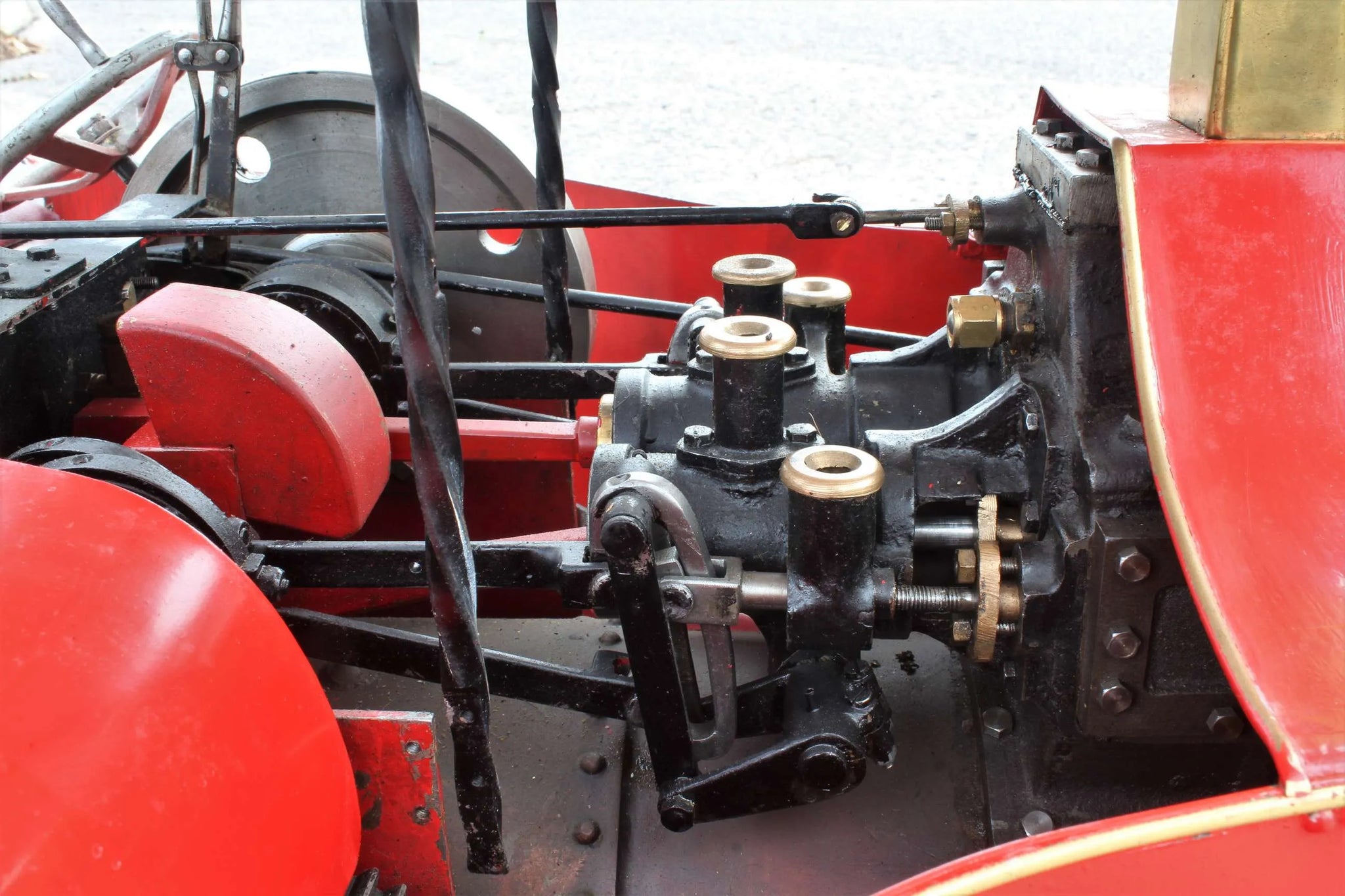

Adjustment of valves and eccentric setting - runs in reverse, not forwards

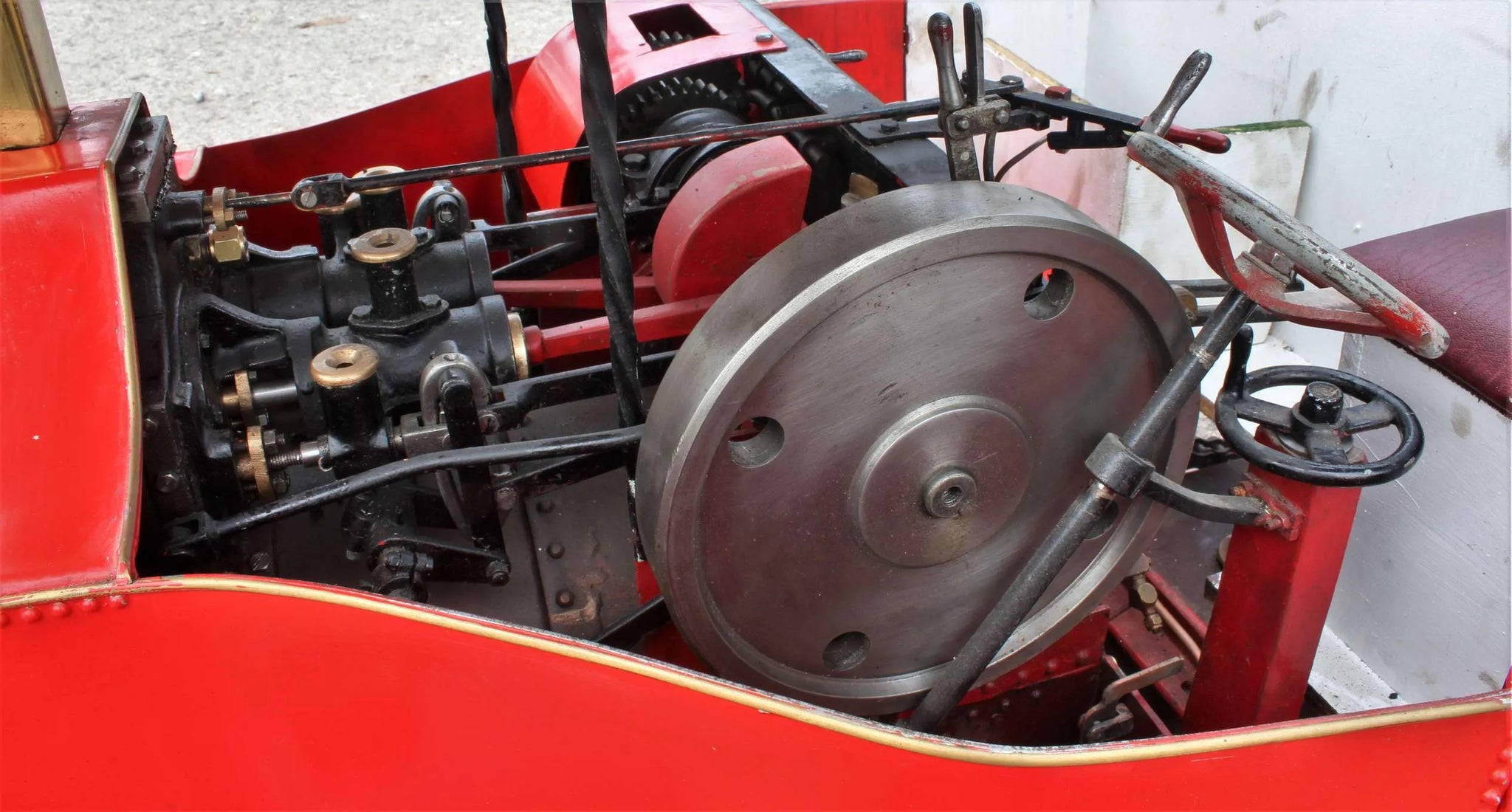

Attention to crankshaft - flywheel and gear side mainshaft run out slightly.
Rebushing big & little ends

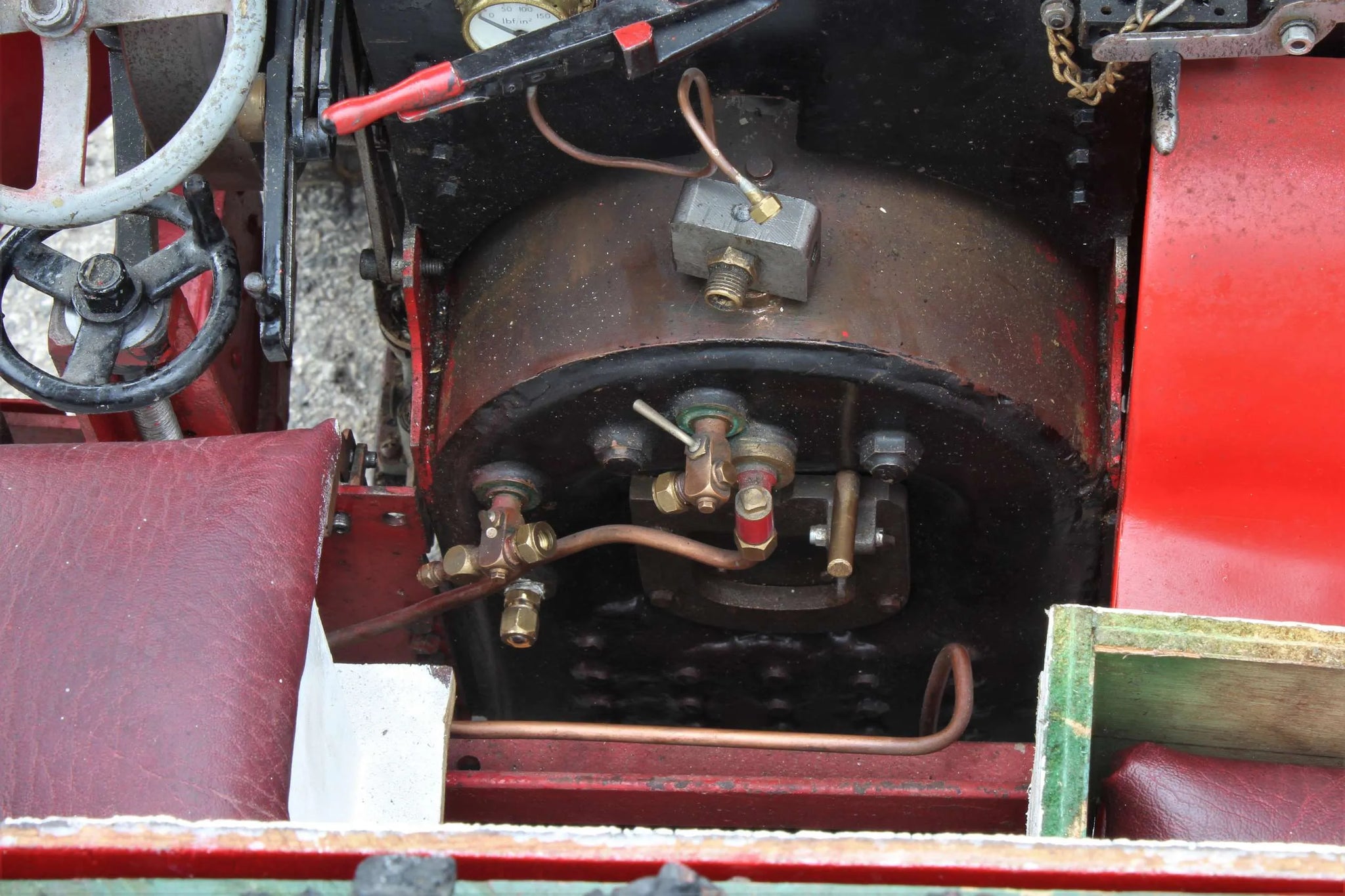

The copper boiler has club history, we've hydraulic tested and issued new certification for same in recent days.

Type: Second hand

Tags: Traction engines

Technical information

Stock code	9383
Scale	3 inch
Length/inches	64
Width/inches	23
Height/inches	28
Wheel material	cast iron
Axlebox type	plain bearing
Cylinder material	cast iron
Valve type	slide
Valve gear	Stephensons
Reverser type	pole
Lubricator type	mechanical
Boiler type	locomotive
Boiler construction	silver soldered
Boiler material	copper
Working pressure	110
CE/UKCA mark	n/a - non-commercial
Year built	1993
Boiler number	287
Safety valve type	spring
Safety valve	2
Differential	yes
Road speed	3
Mechanical pump	1
Injector	1
Date out	Jan-22
Hydraulic test valid to	16-Nov-24
