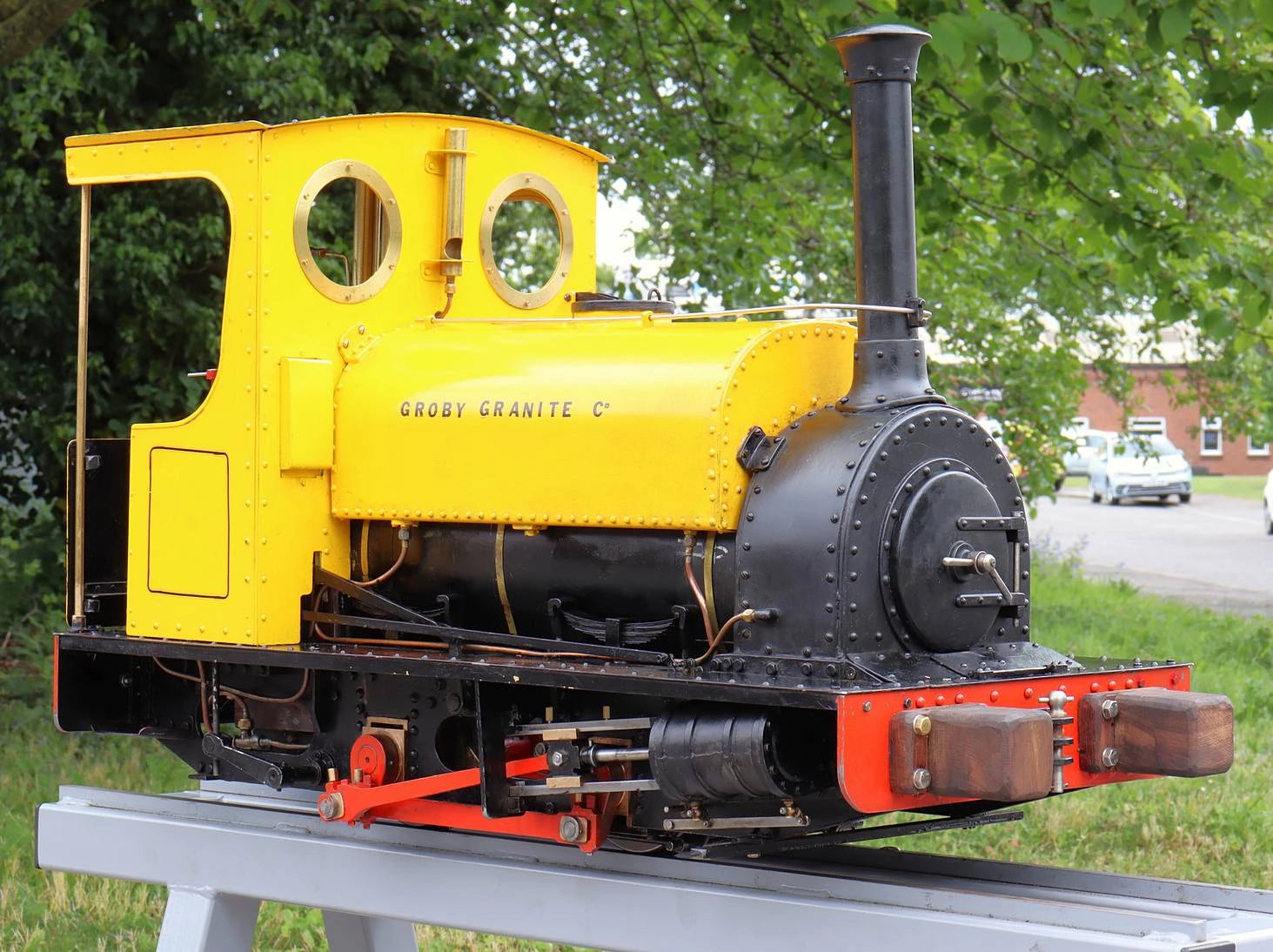

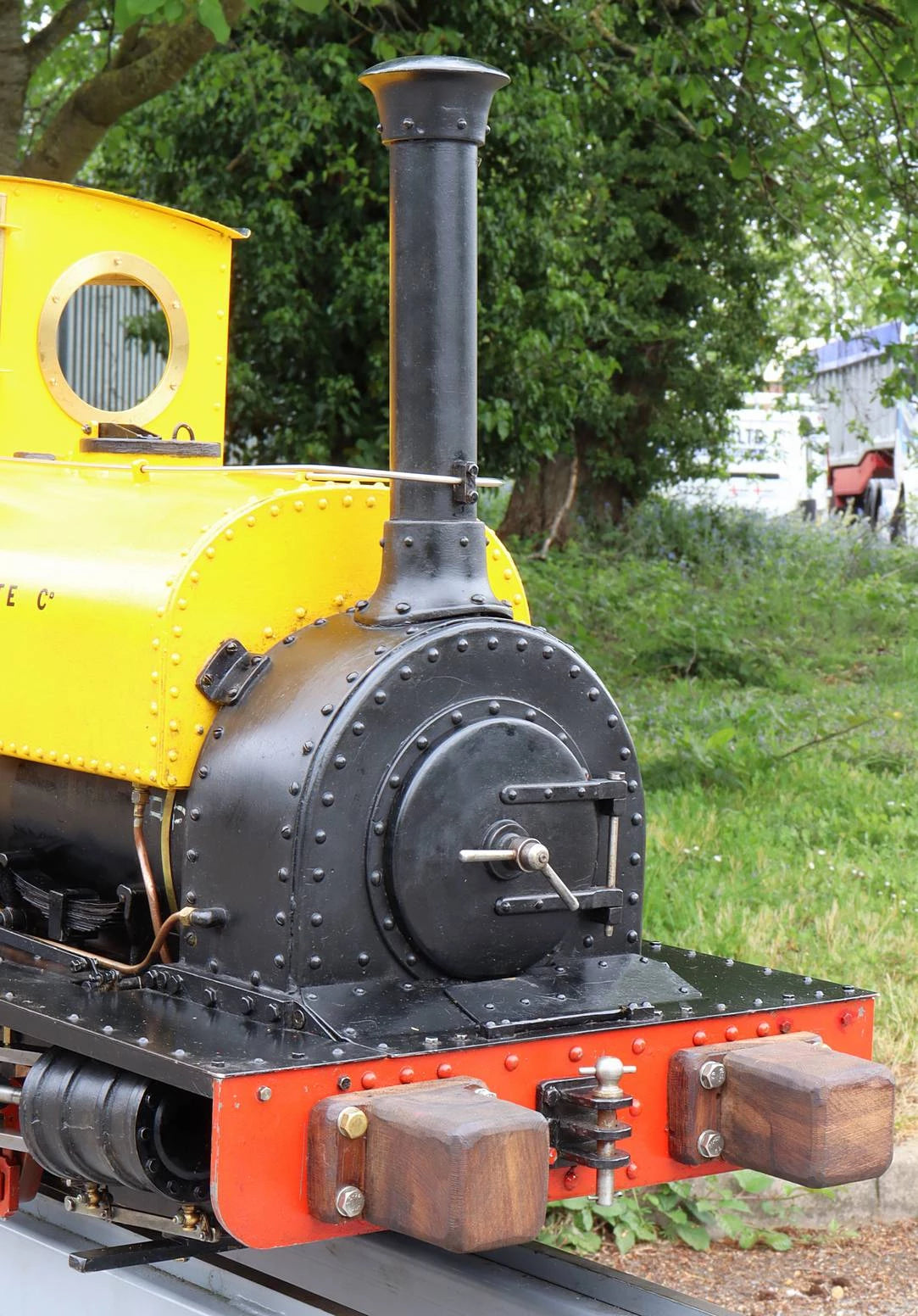

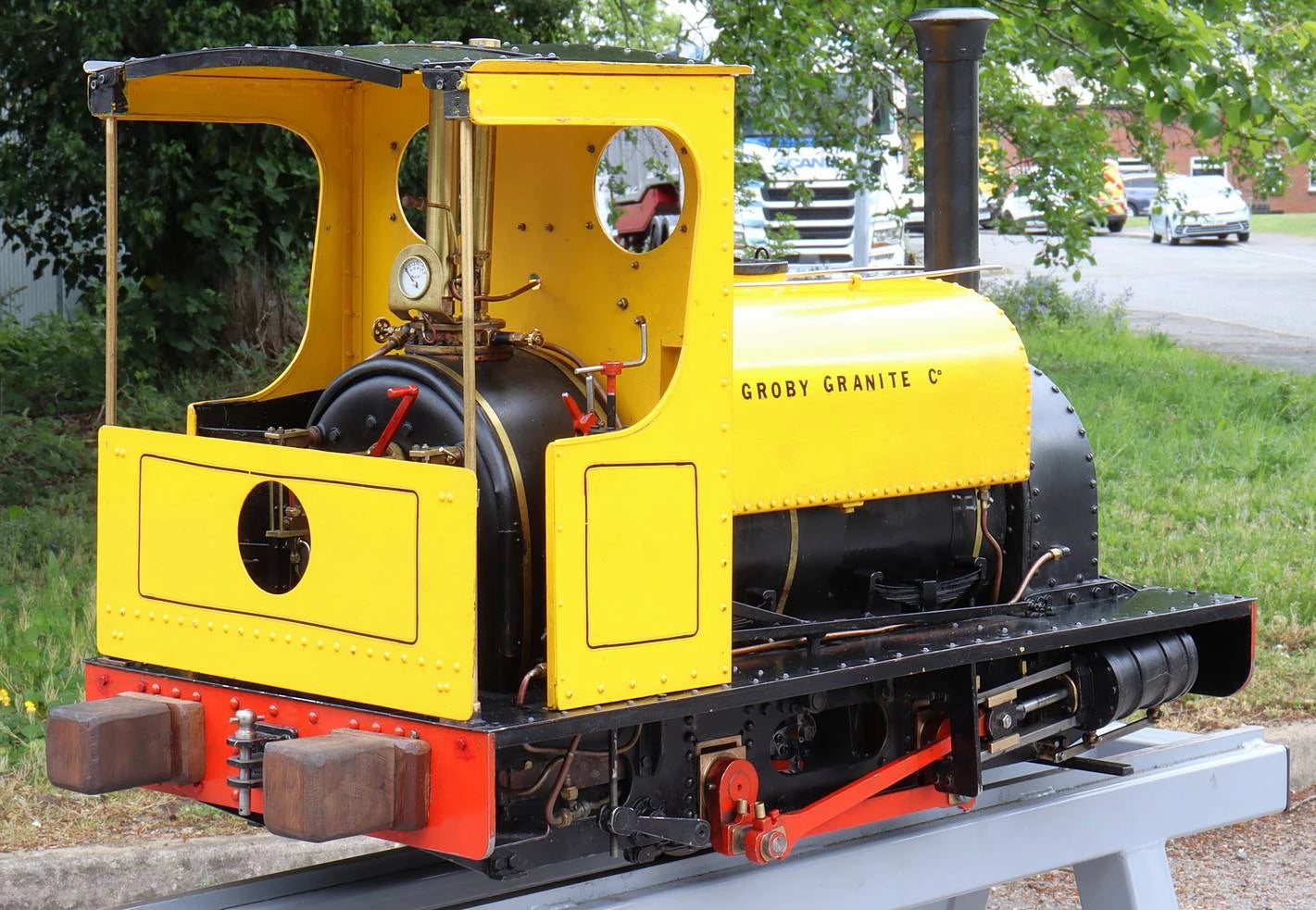

5 inch gauge Hunslet 0-4-0T

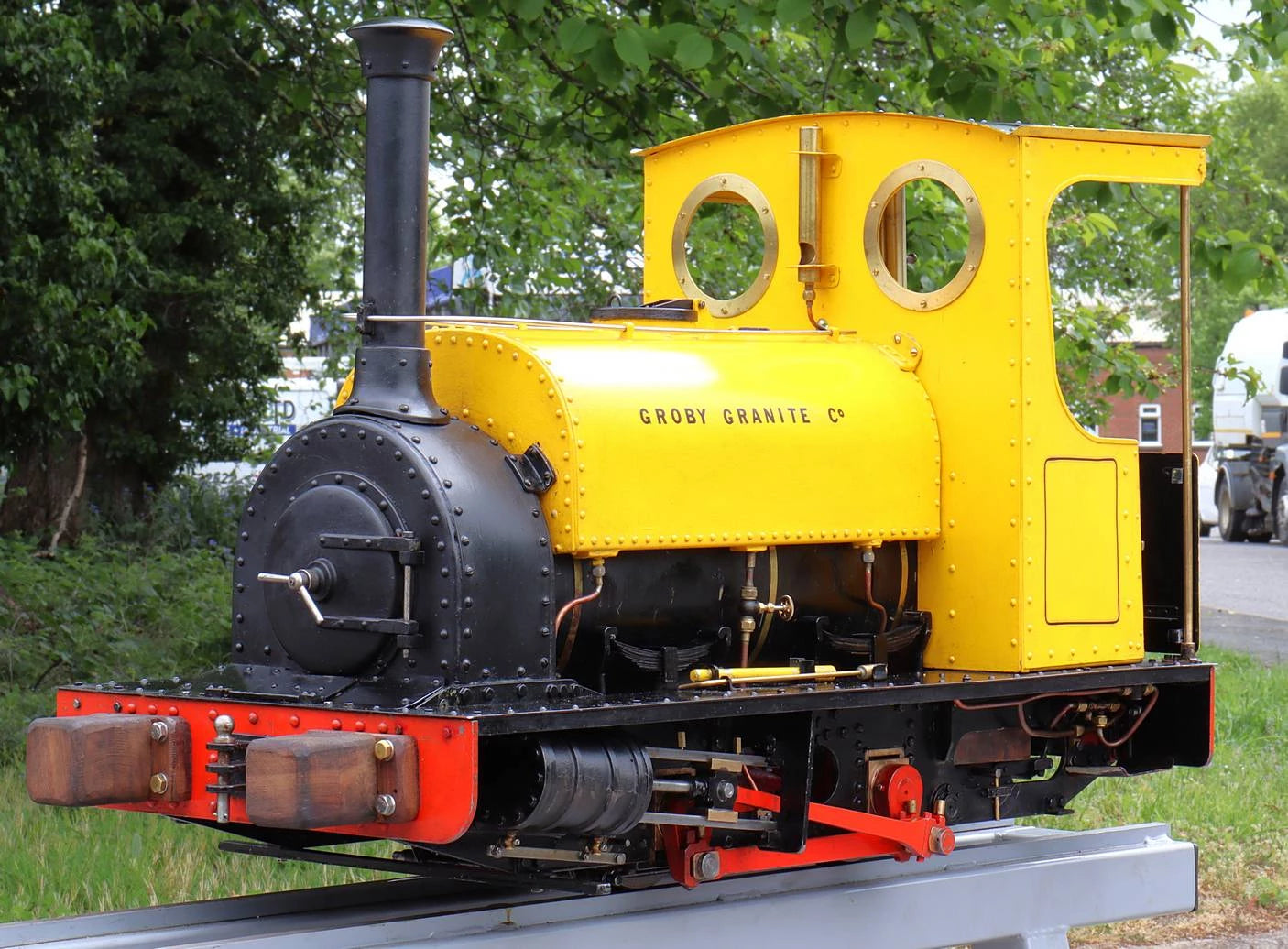

A 5 inch gauge Hunslet 0-4-0 to the Don Young design.

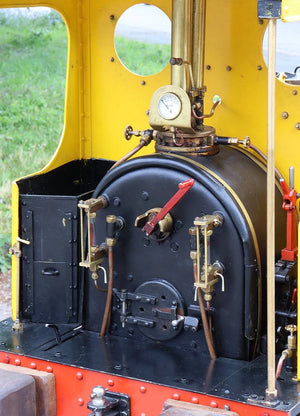

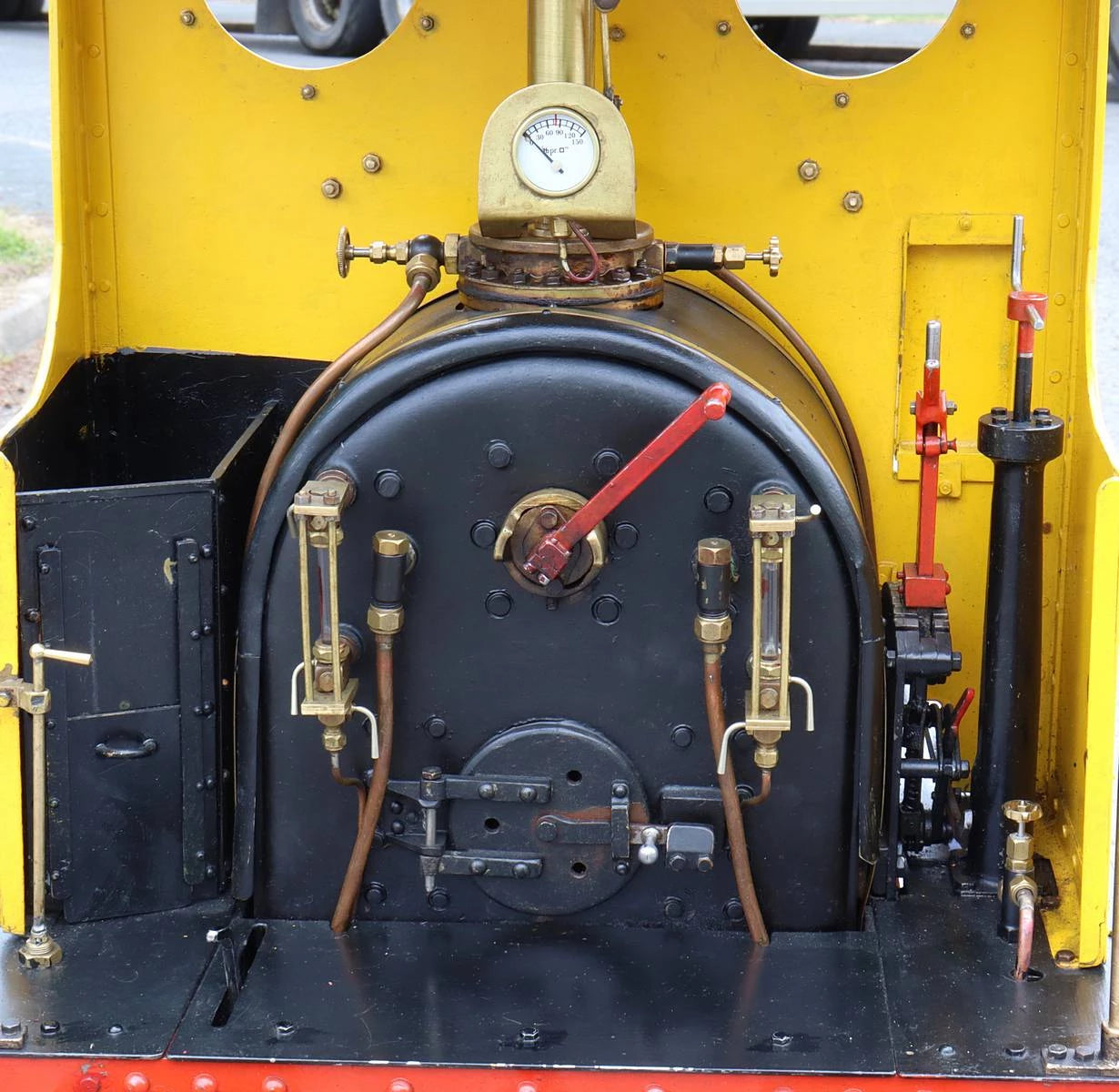

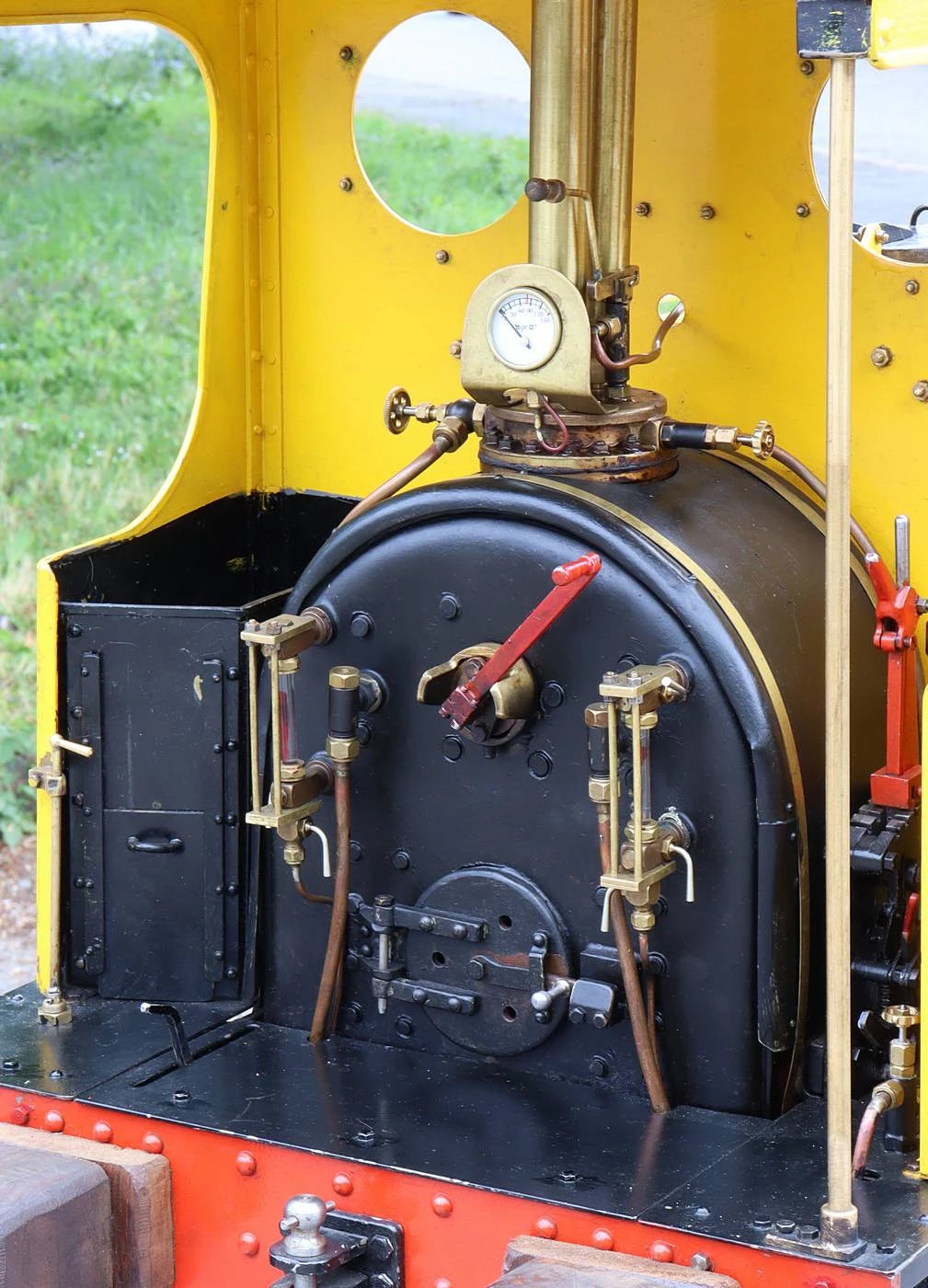

Built in 2023 by an experienced engineer with a 5 inch gauge Stirling Single and kit-built A4 to his credit, it's fitted with a professional copper silver-soldered boiler from the estimable George Brannigan of GB Boilers.

We've tested the boiler and issued new hydraulic and steam certificates.

The engine steamed freely and runs in both directions, though better in reverse than in forwards - the builder admitted to us that it's never notched up terribly well from the day it was built, it merits investigation in the valve chests.

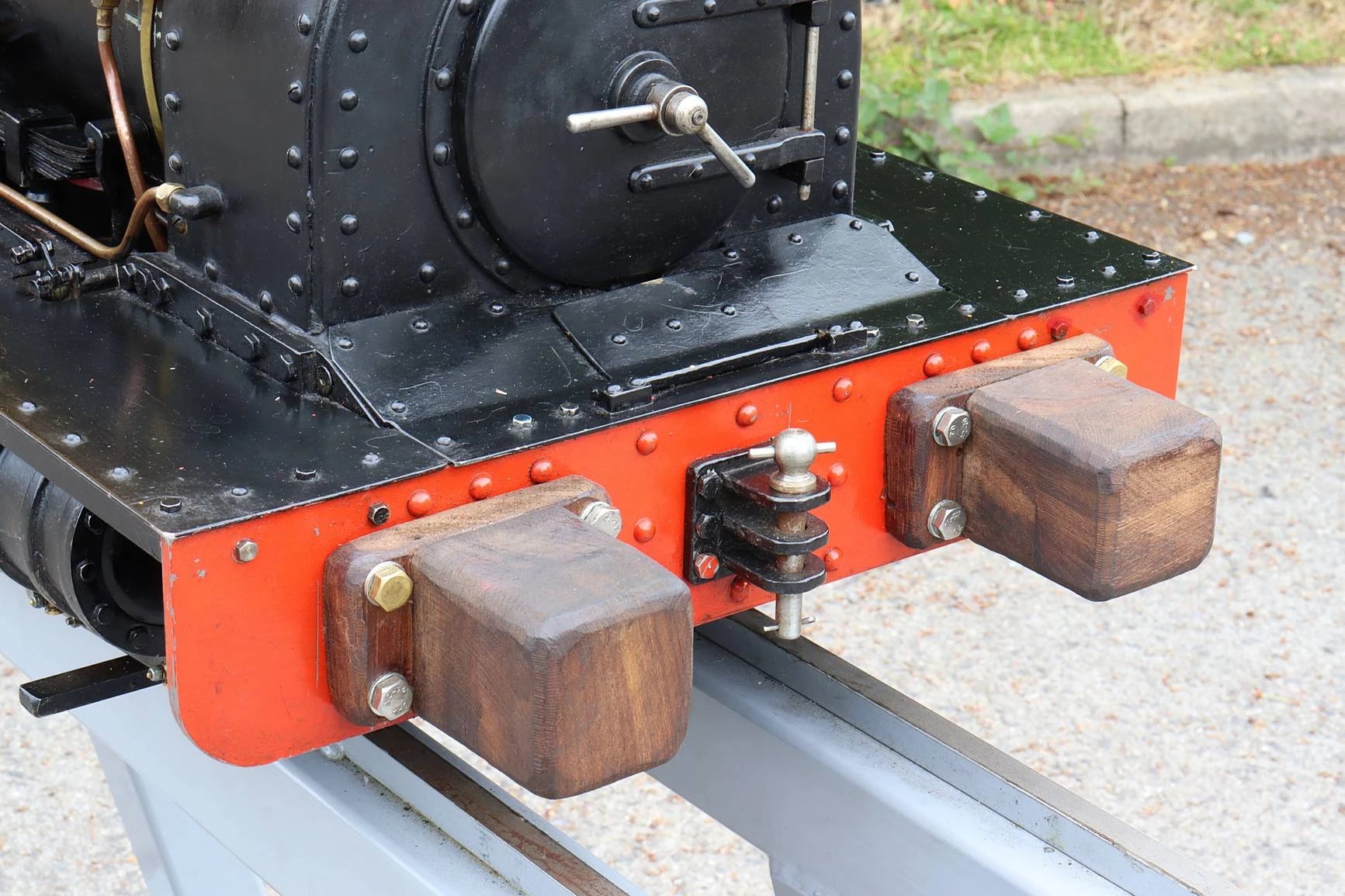

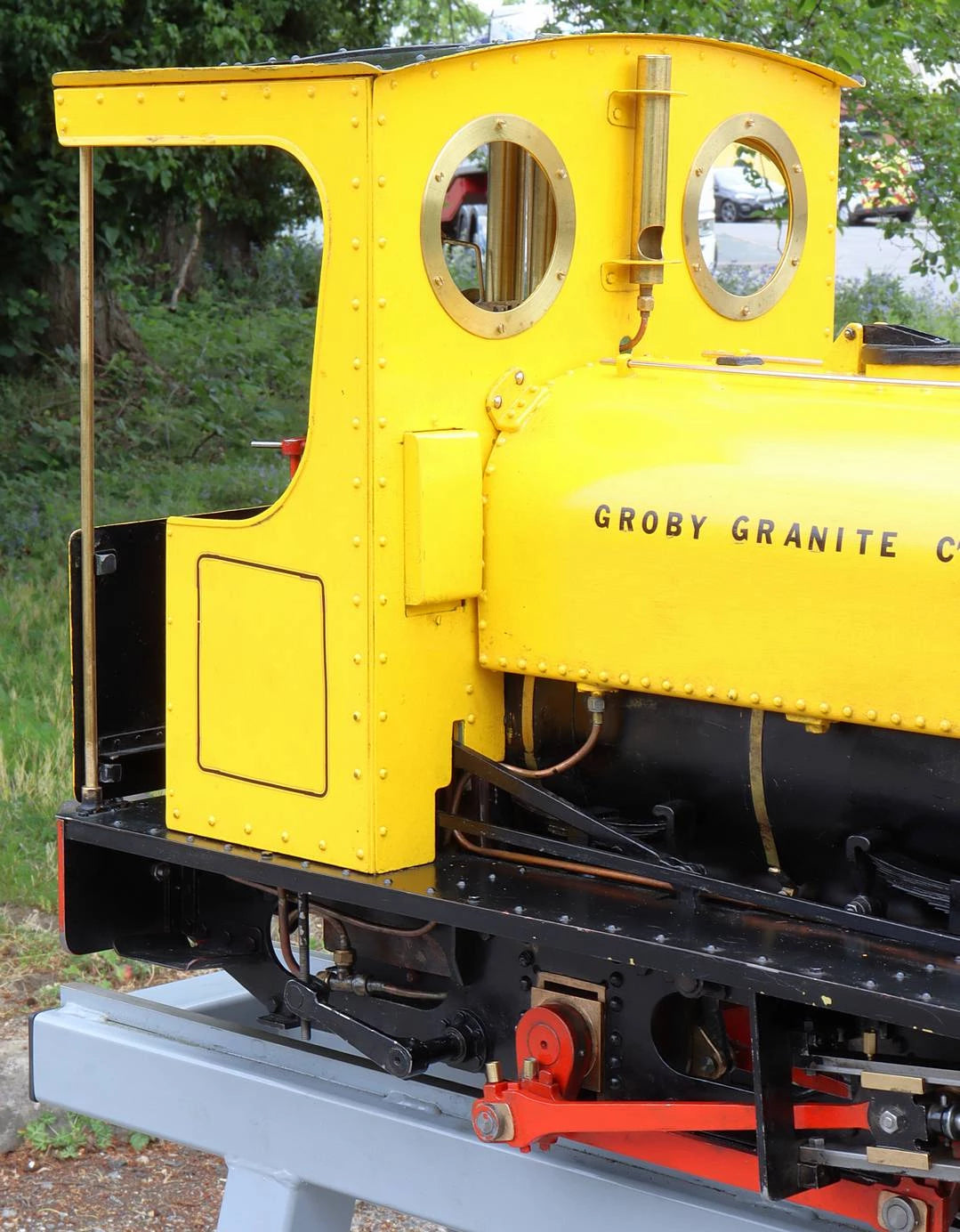

The paintwork leaves much to be desired, but the platework underneath is nicely formed and riveted - it would take well to a more sympathetic repaint.

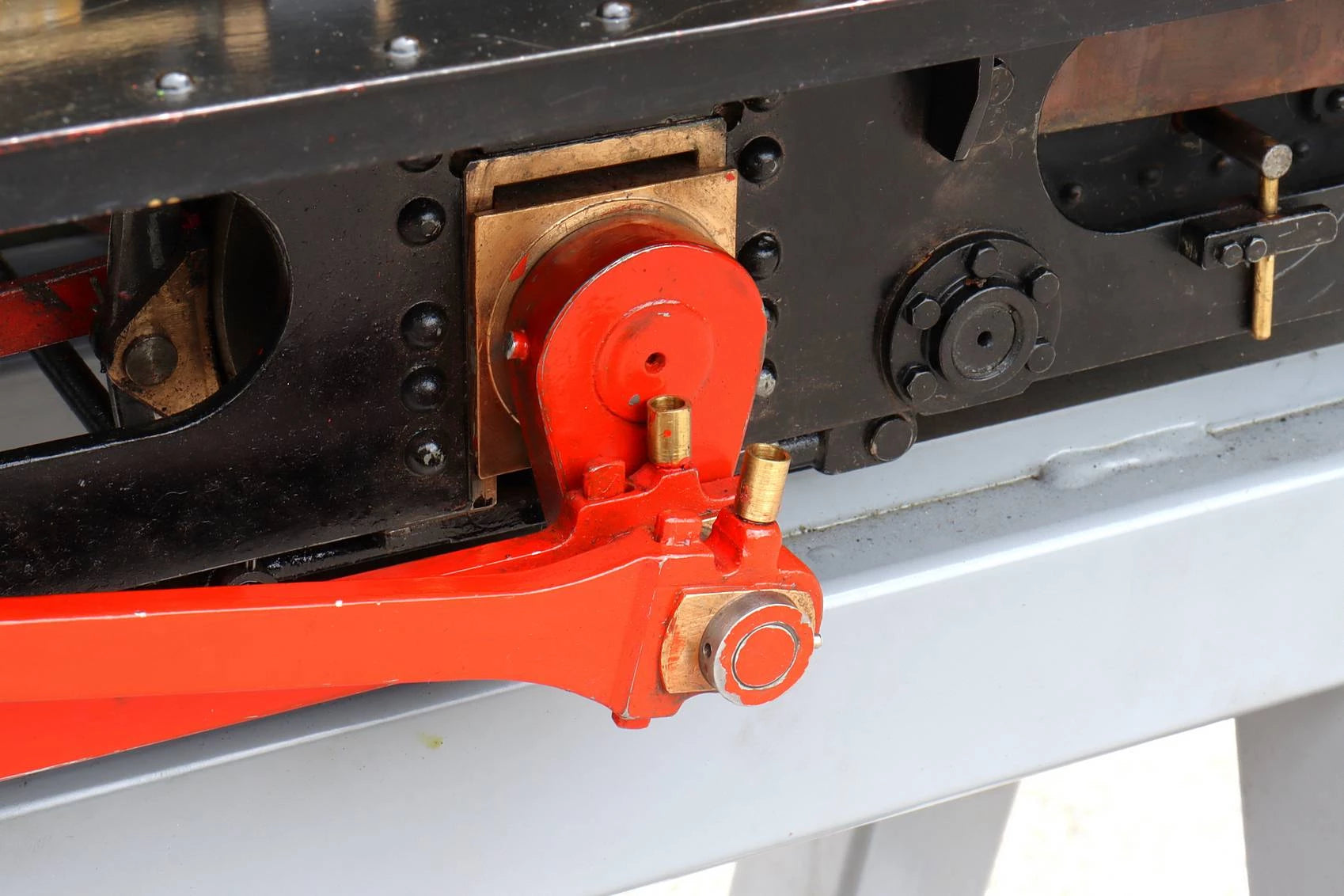

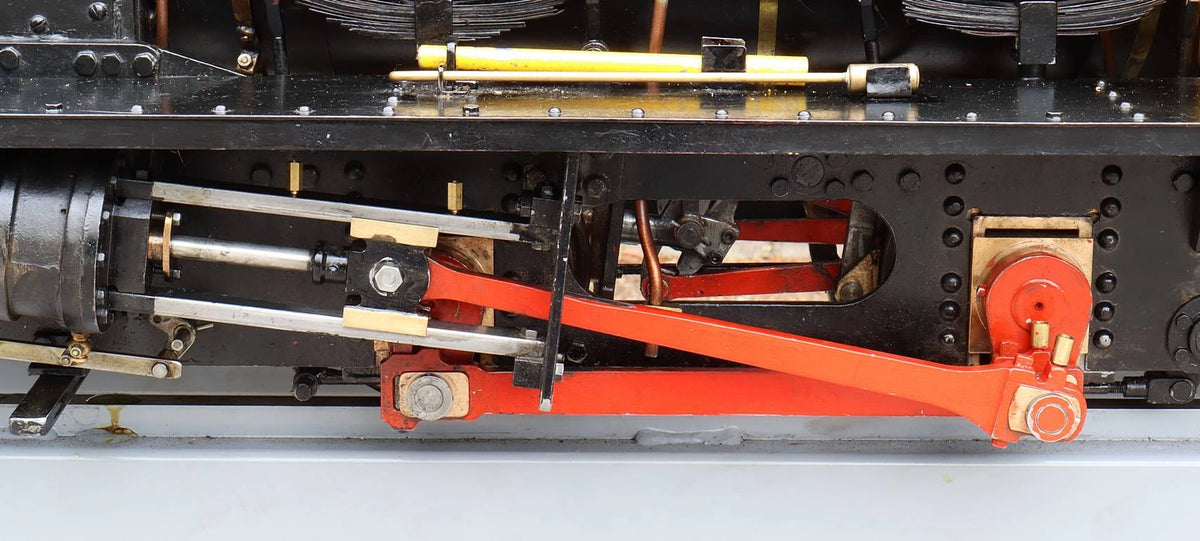

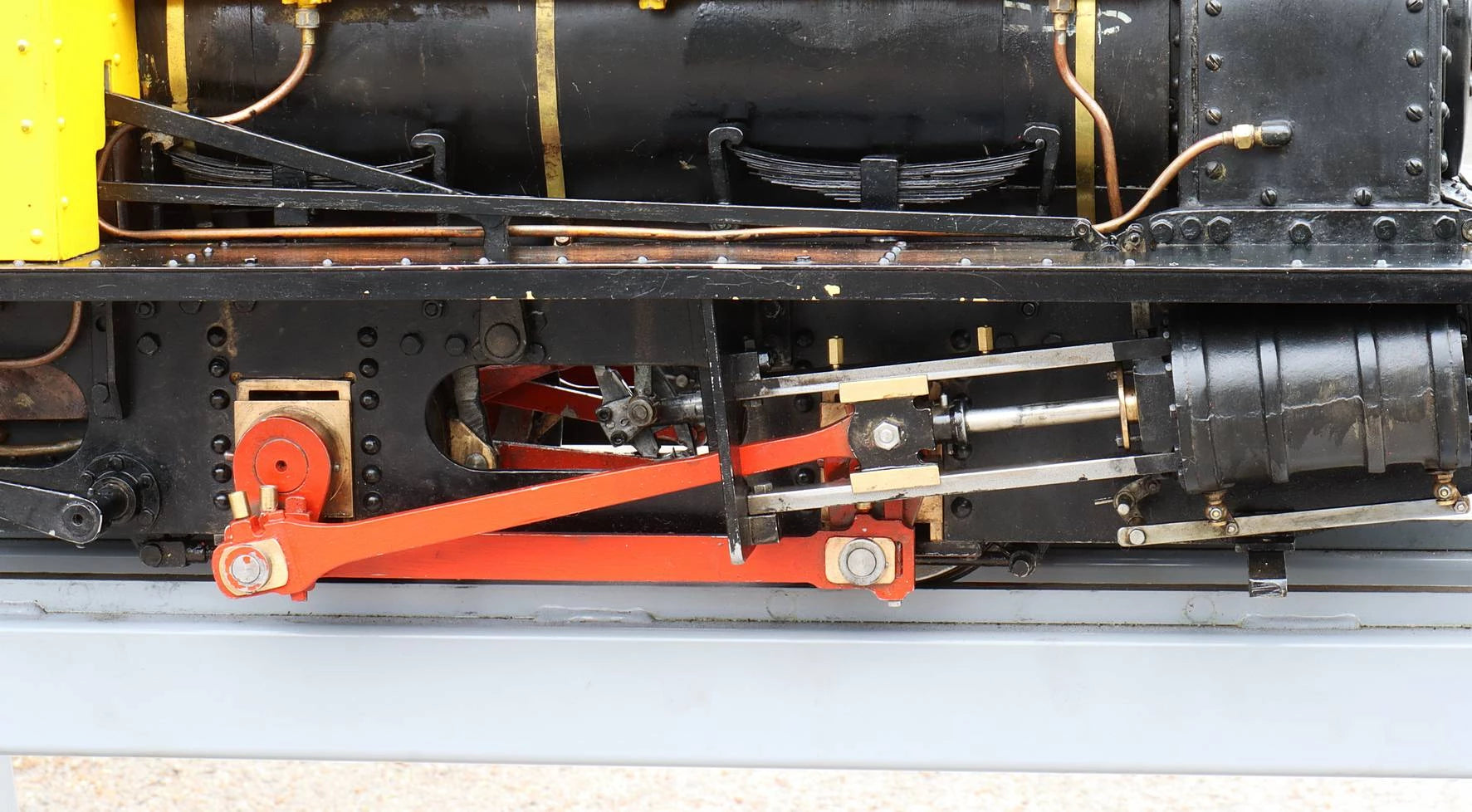

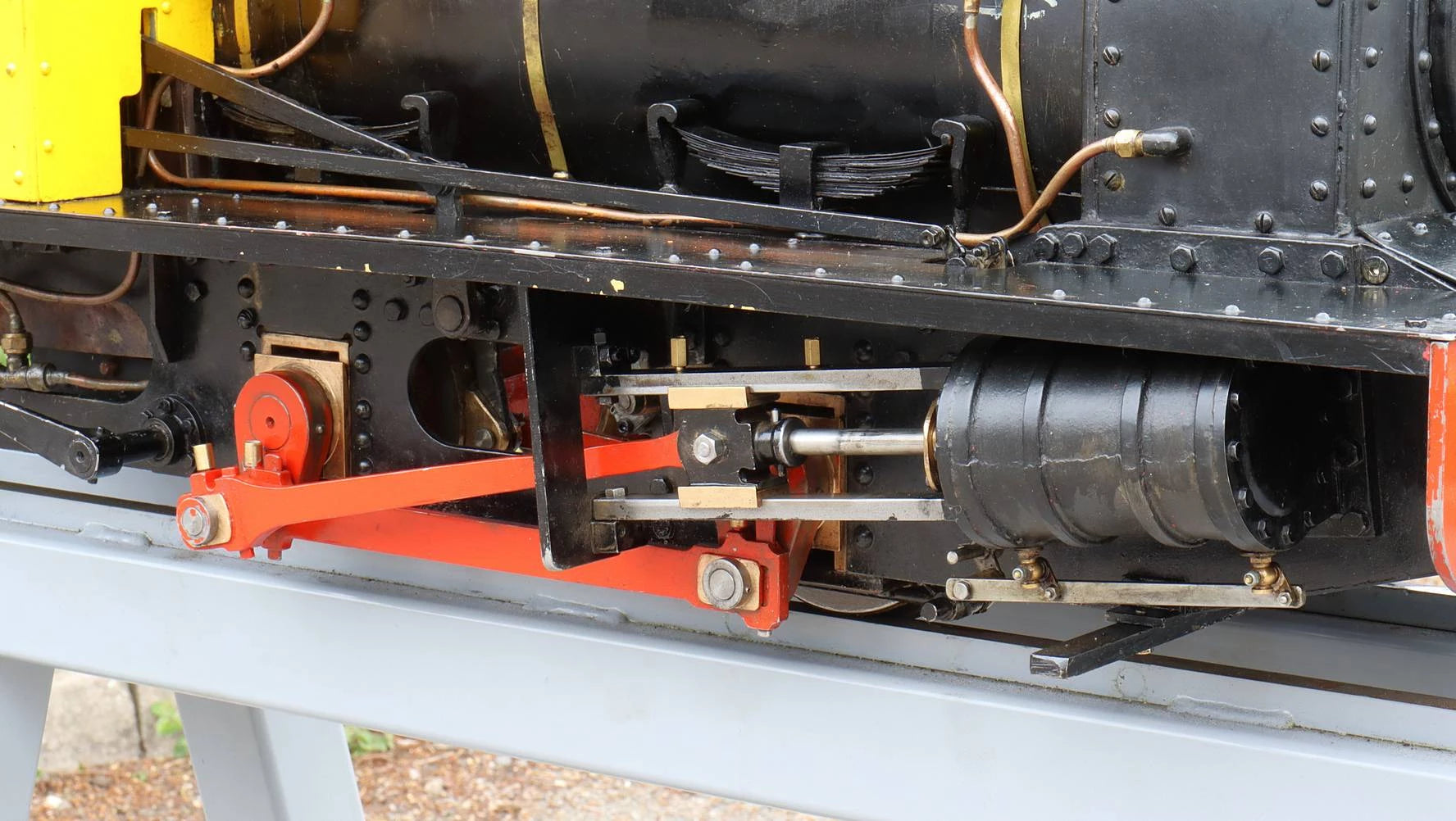

There's a good deal of wear in the axleboxes, which render it very noisy in motion - probably a job best addressed one sunny weekend rather than left until the winter.

Technical information

Stock code

13373

Length/inches

34 1/2

Width/inches

14

Height/inches

22

Weight/Kg

60

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

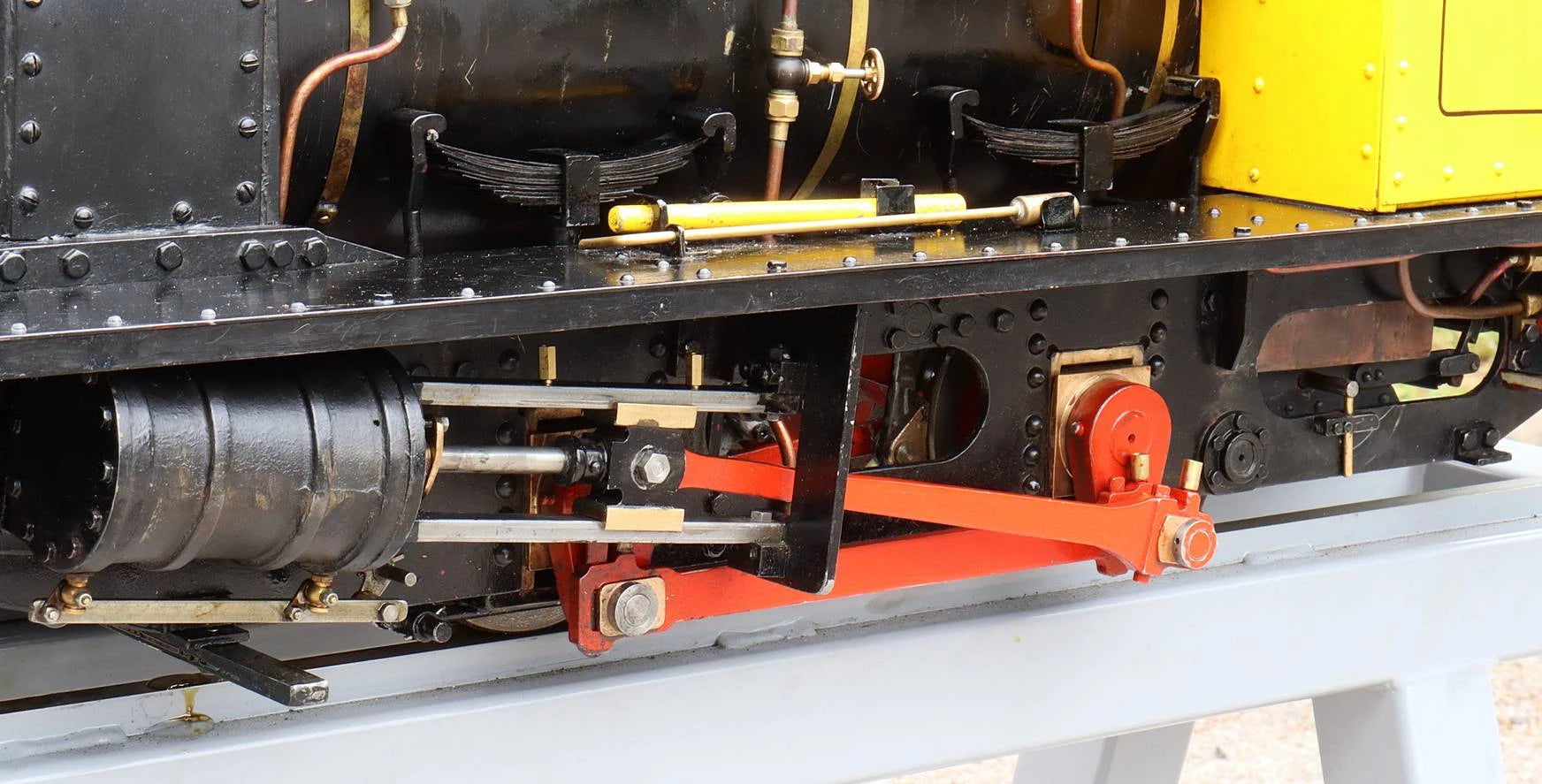

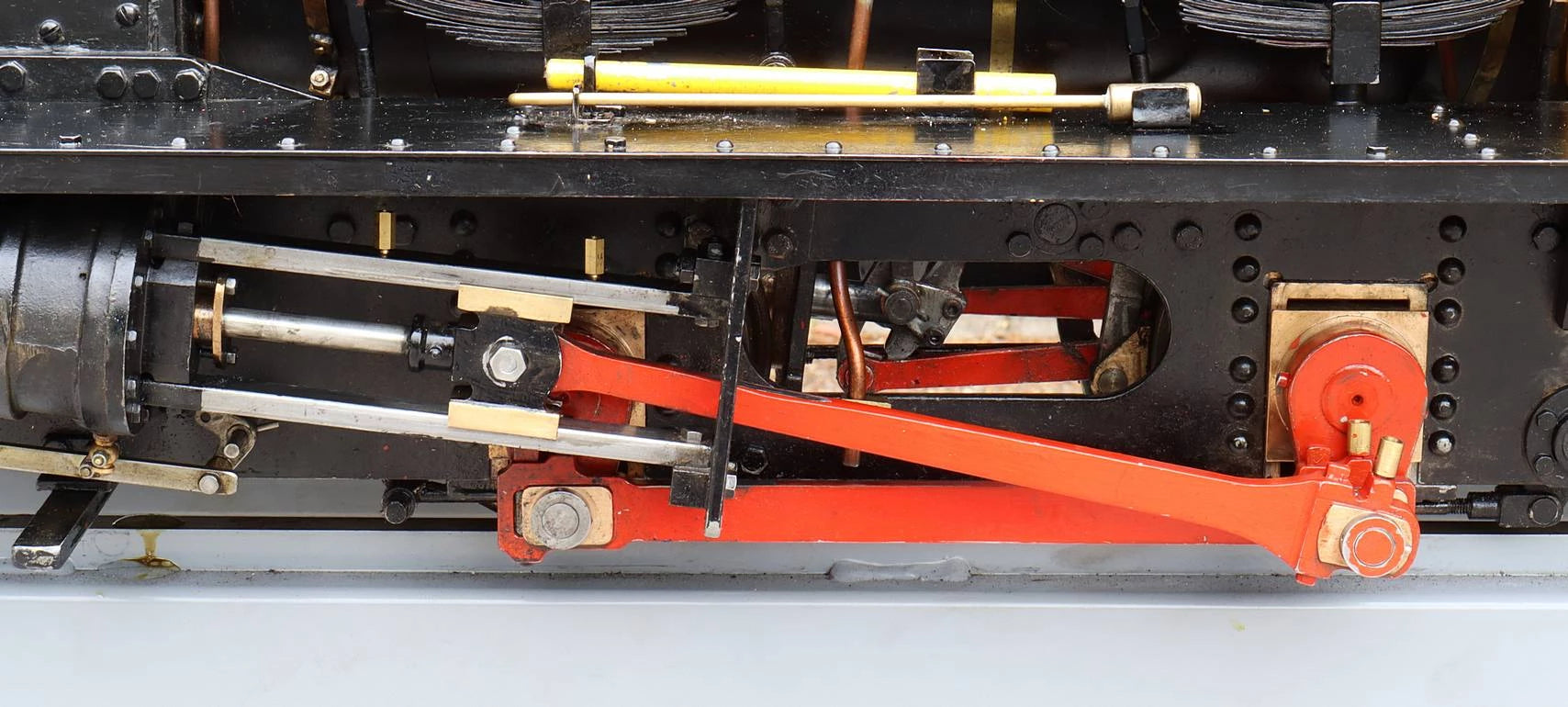

Valve gear

Stephensons

Reverser type

pole

Boiler maker

GB Boiler Services

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

yes

Year built

2023

Boiler number

GB984

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

2

Hydraulic test valid to

07-May-30

Steam test valid to

10-Jul-27
