11031
We've issued new hydraulic and steam certificates; in good condition throughout, the engine is offered with full certification, 12 months warranty, set of firing irons and a starter kit of coal and oil.
We would be more than happy to give half a day's instruction on the steaming, running and disposal of the engine to a new owner if required.

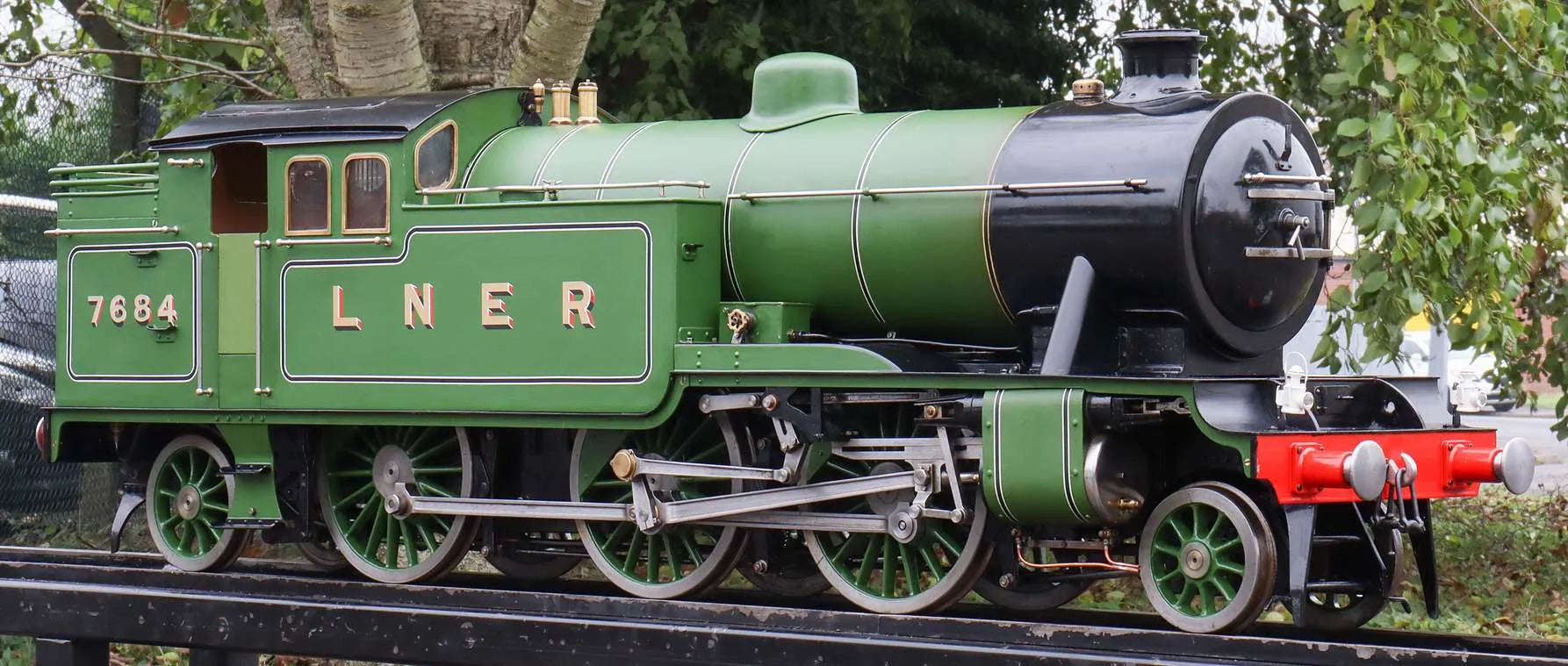

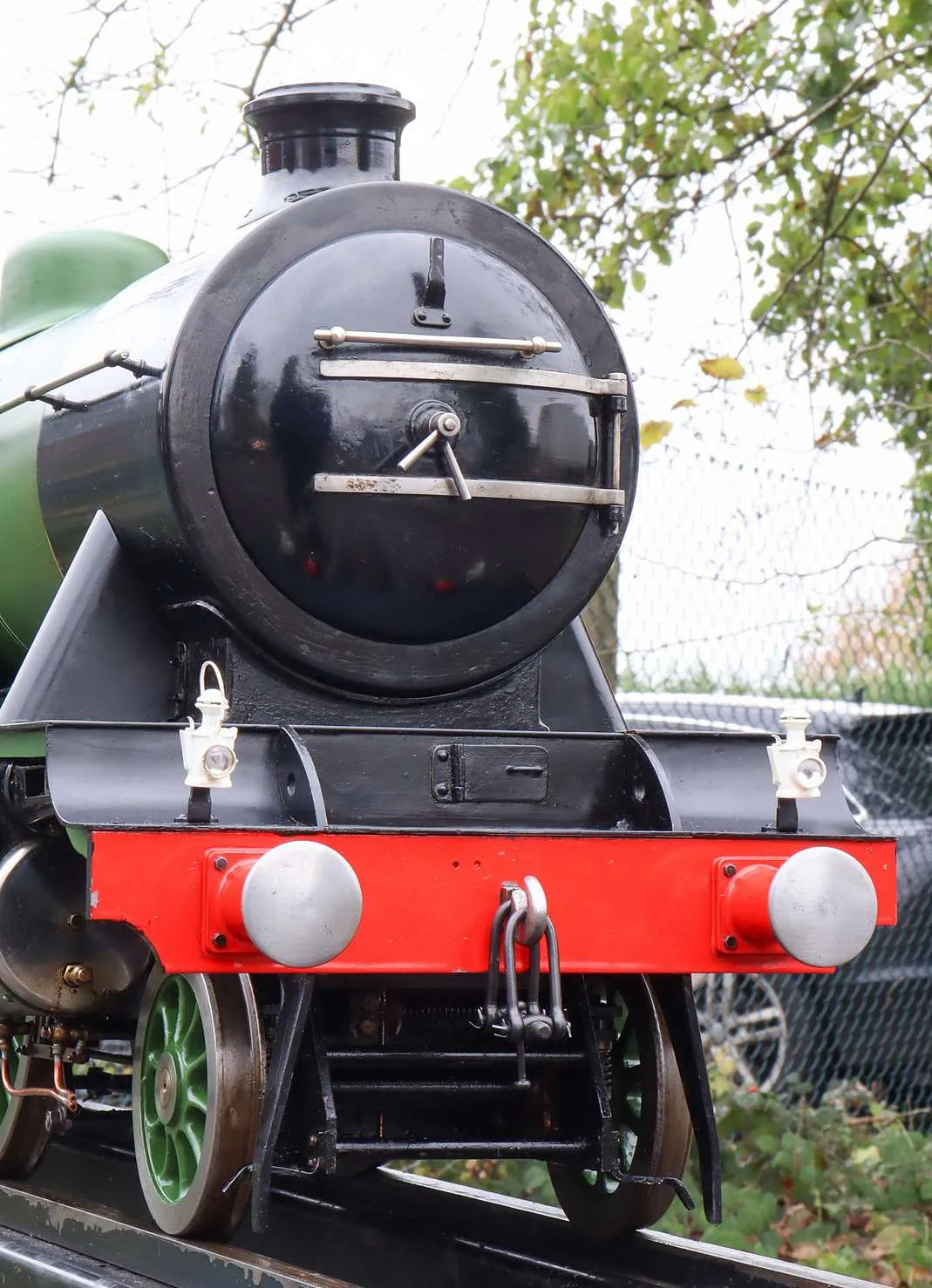

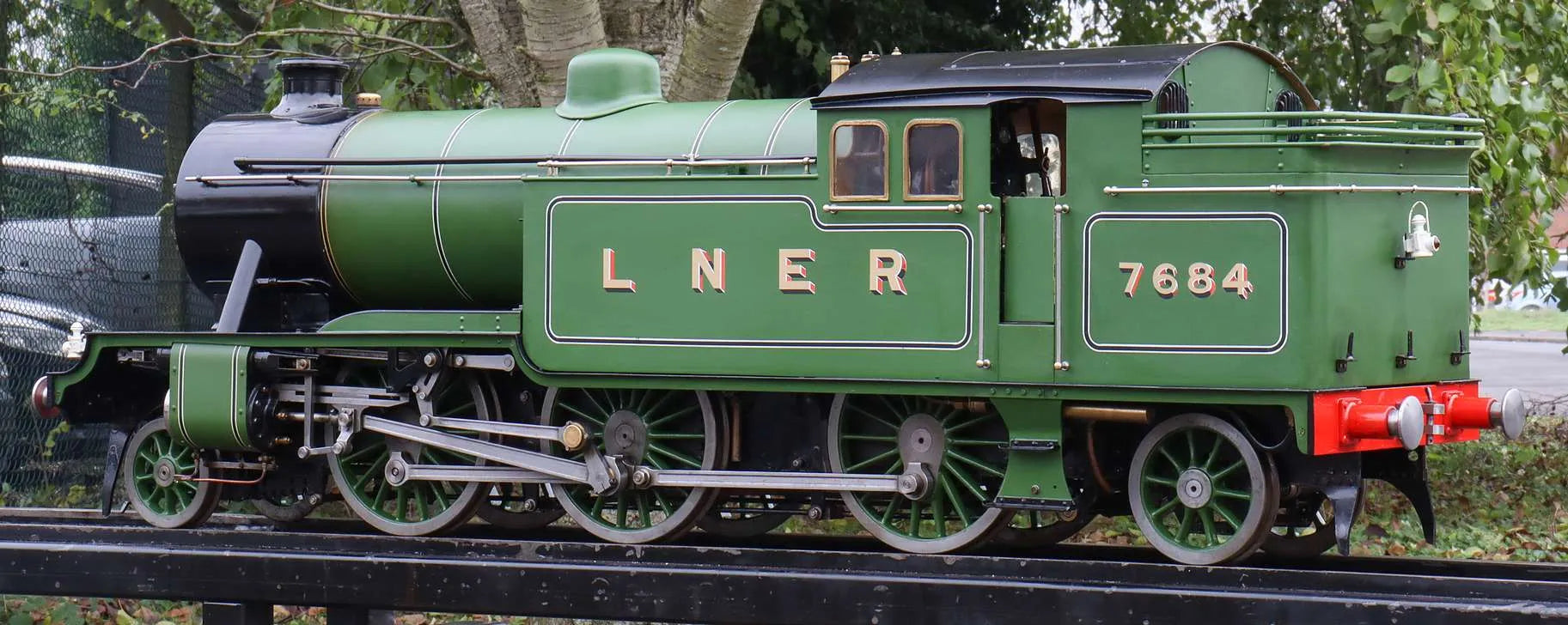

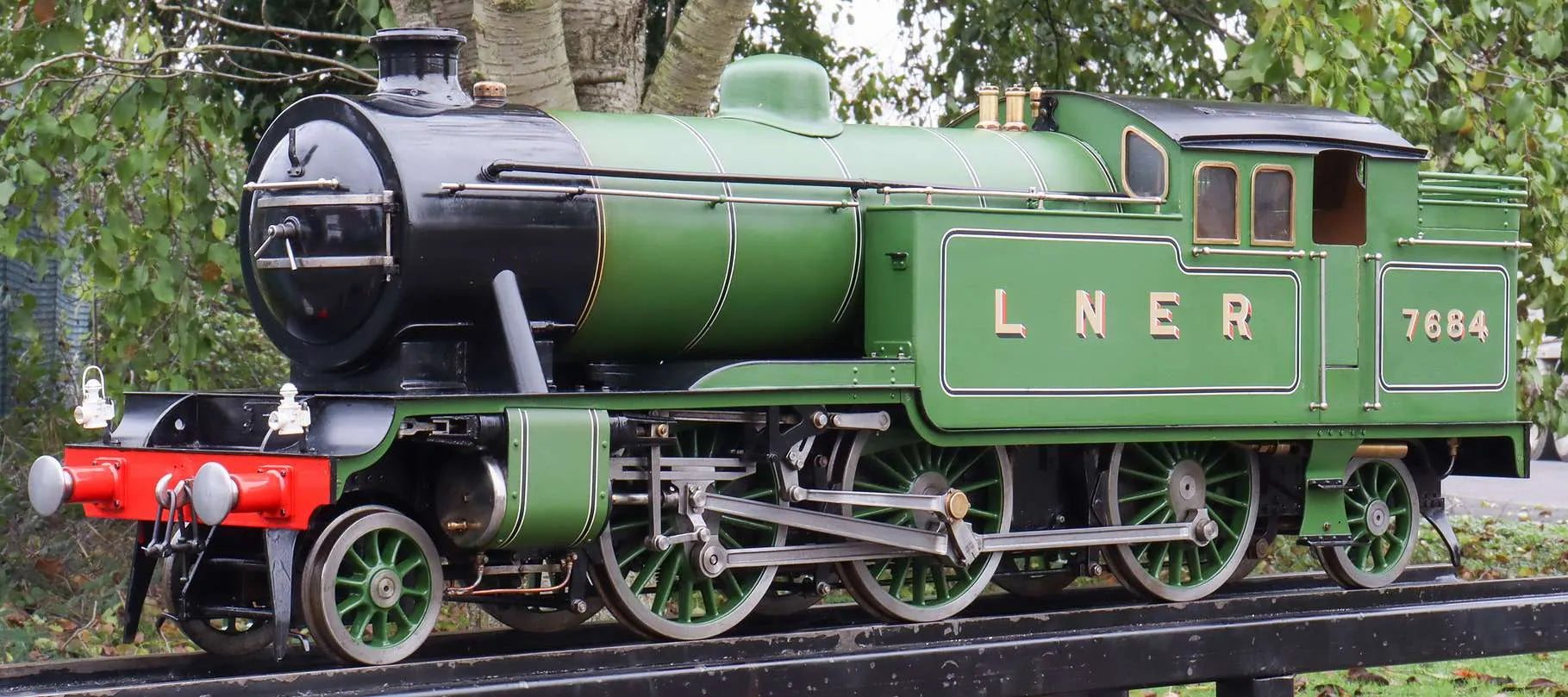

A finely built 5 inch gauge LNER V1 2-6-2T, to Martin Evans' three cylinder "Enterprise" design.
We last sold this one in 2020, it had come to us as part of a collection of locomotives from a highly experienced model engineer, along with the Britannia "Western Star", LNER A4 "Sir Nigel Gresley" and a GWR Pannier tank in the same gauge - at the time the man had just completed a 4 inch scale Burrell agricultural engine, having already built a magnificent Showmans engine in the same scale.
It's recently come back in much the same condition as the last time it was here - pictures opposite were taken earlier in the week, there is a full writeup from the last it was with us in the archive here.

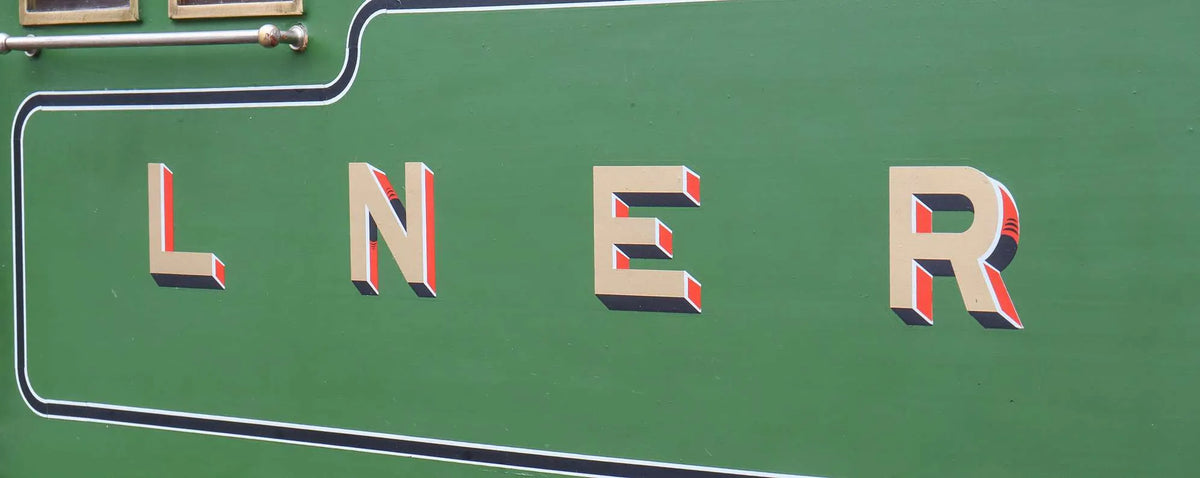

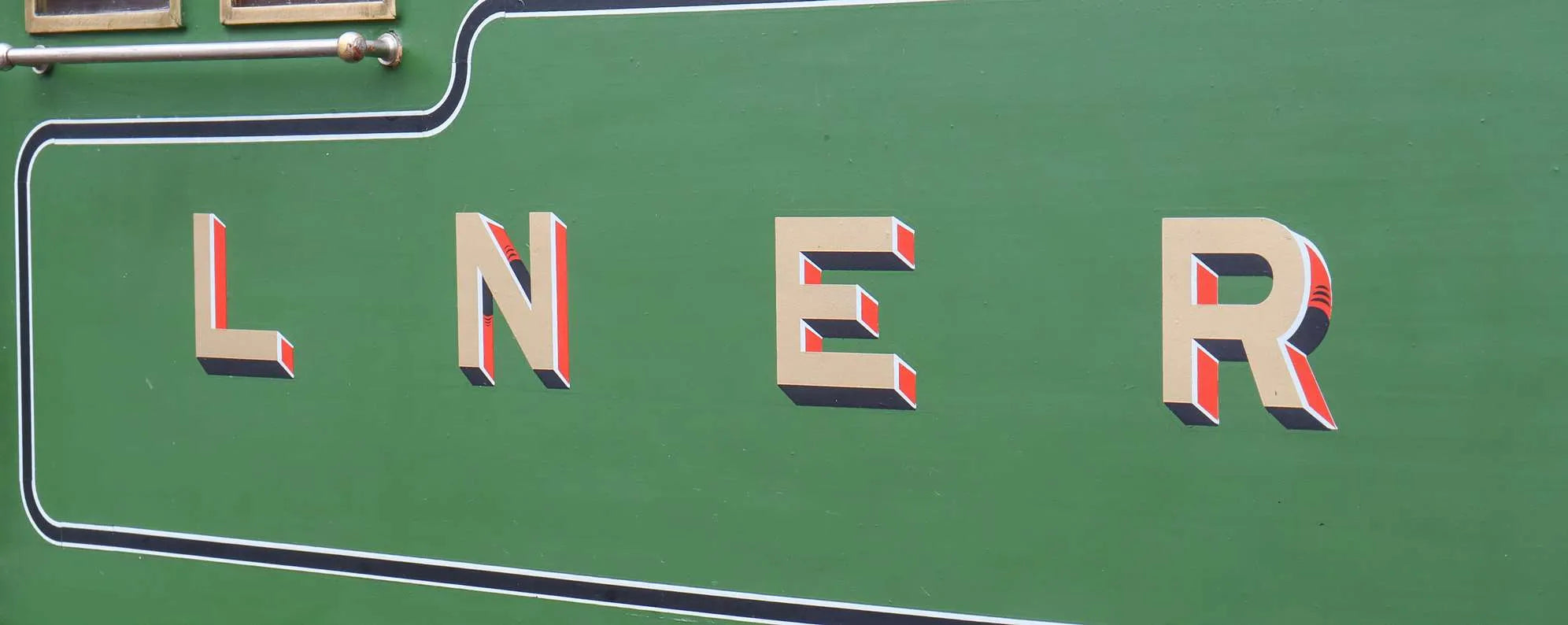

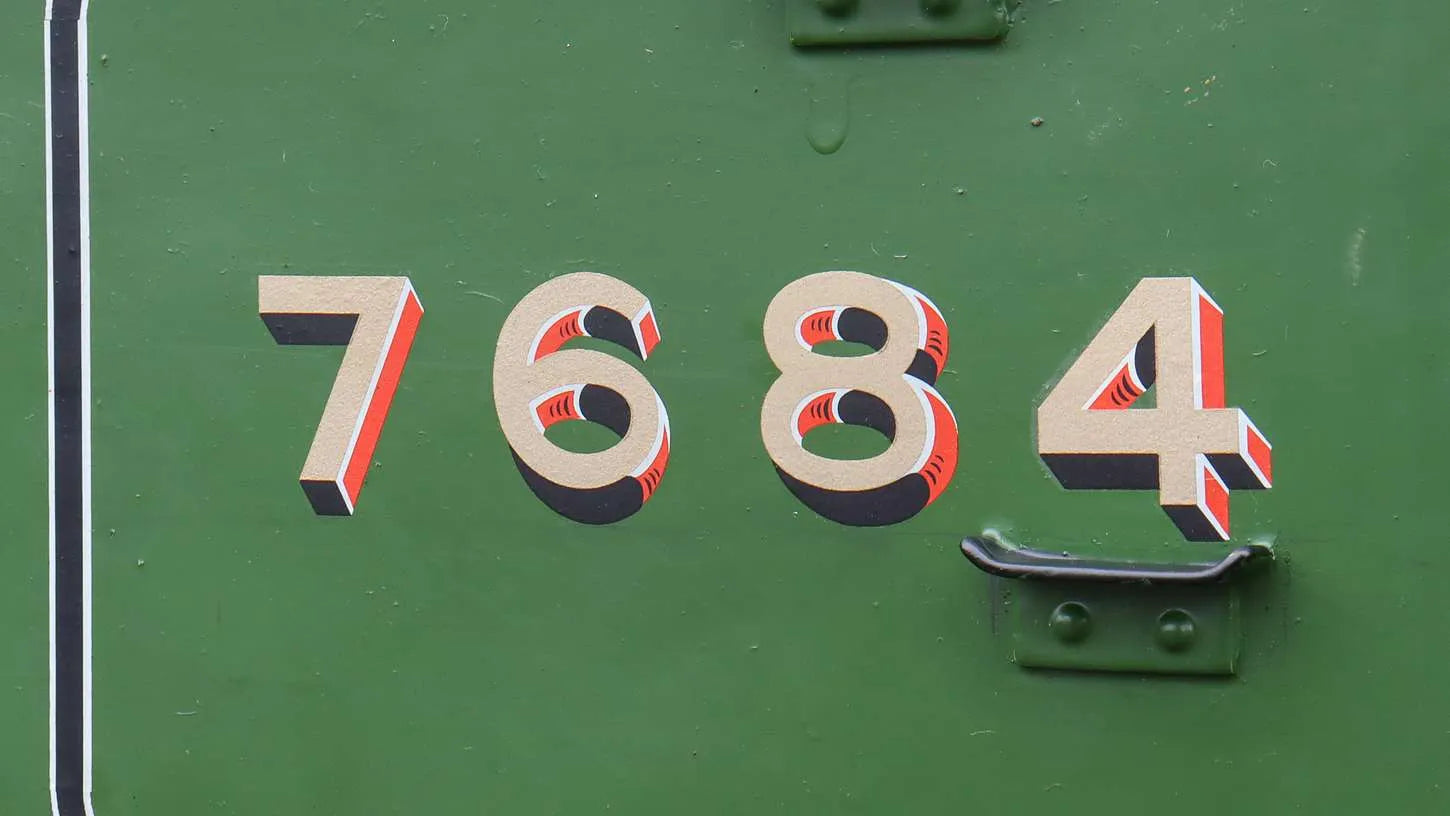

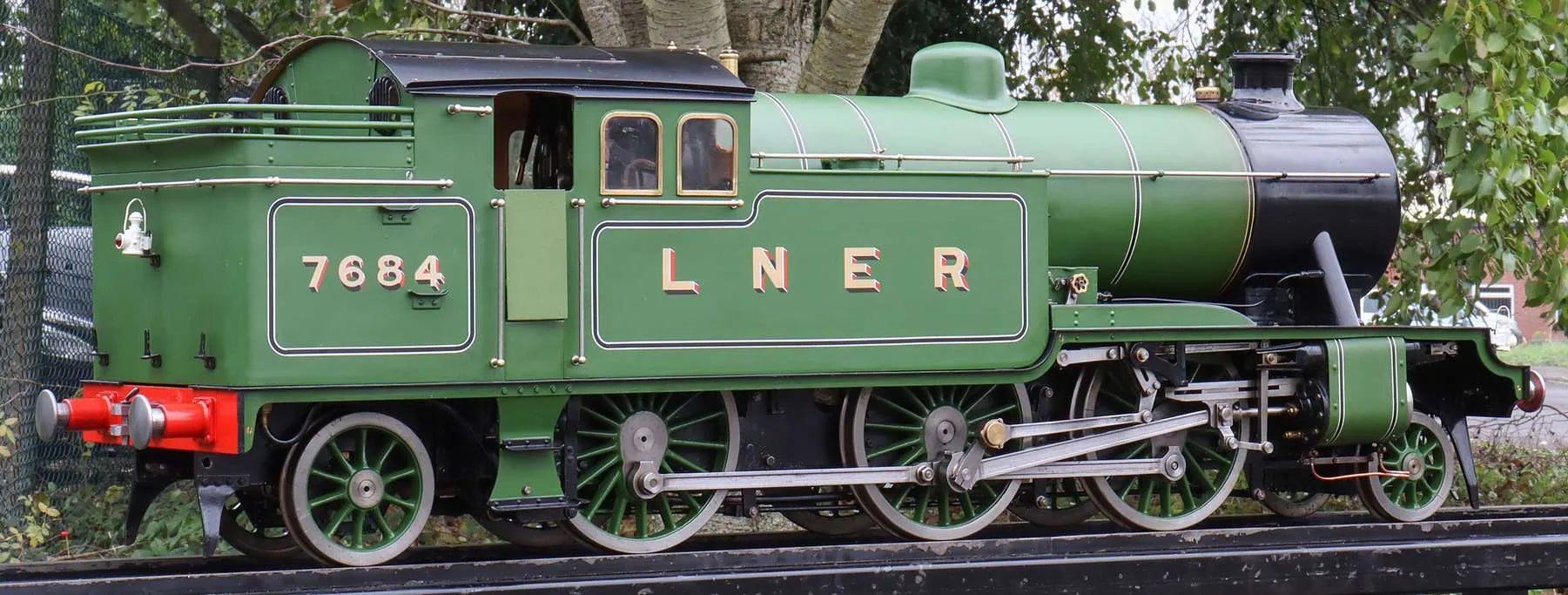

Presented in lined LNER green livery, done to a high standard the paintwork remains in good condition, with minor blemishes expected from normal running and maintenance.
Stock code |
11031 |
Gauge |
5 inch |
Length/inches |
46 |
Width/inches |
10 |
Height/inches |
15 |
Wheel material |
cast iron |
Valve type |
piston |

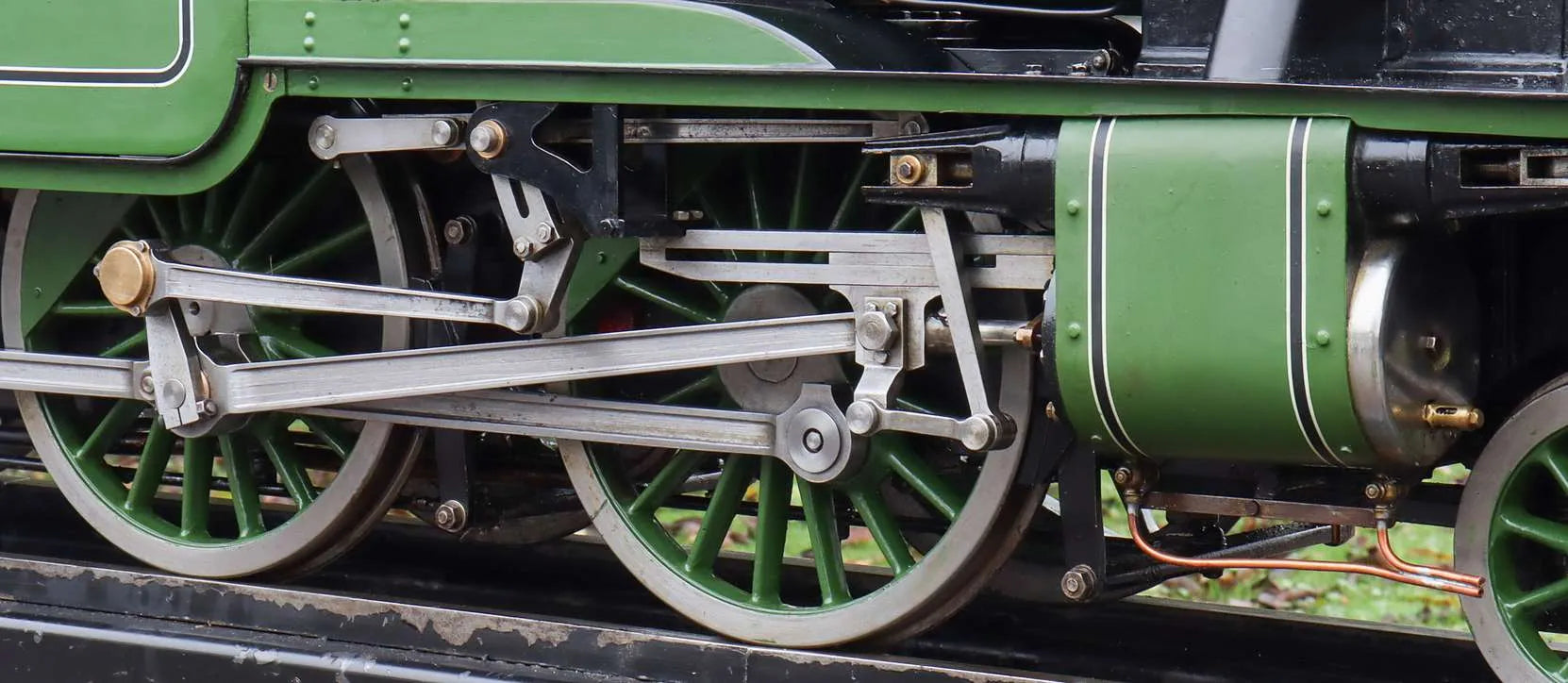

Valve gear |
Gresley-Holcroft conjugated |
Reverser type |
screw |

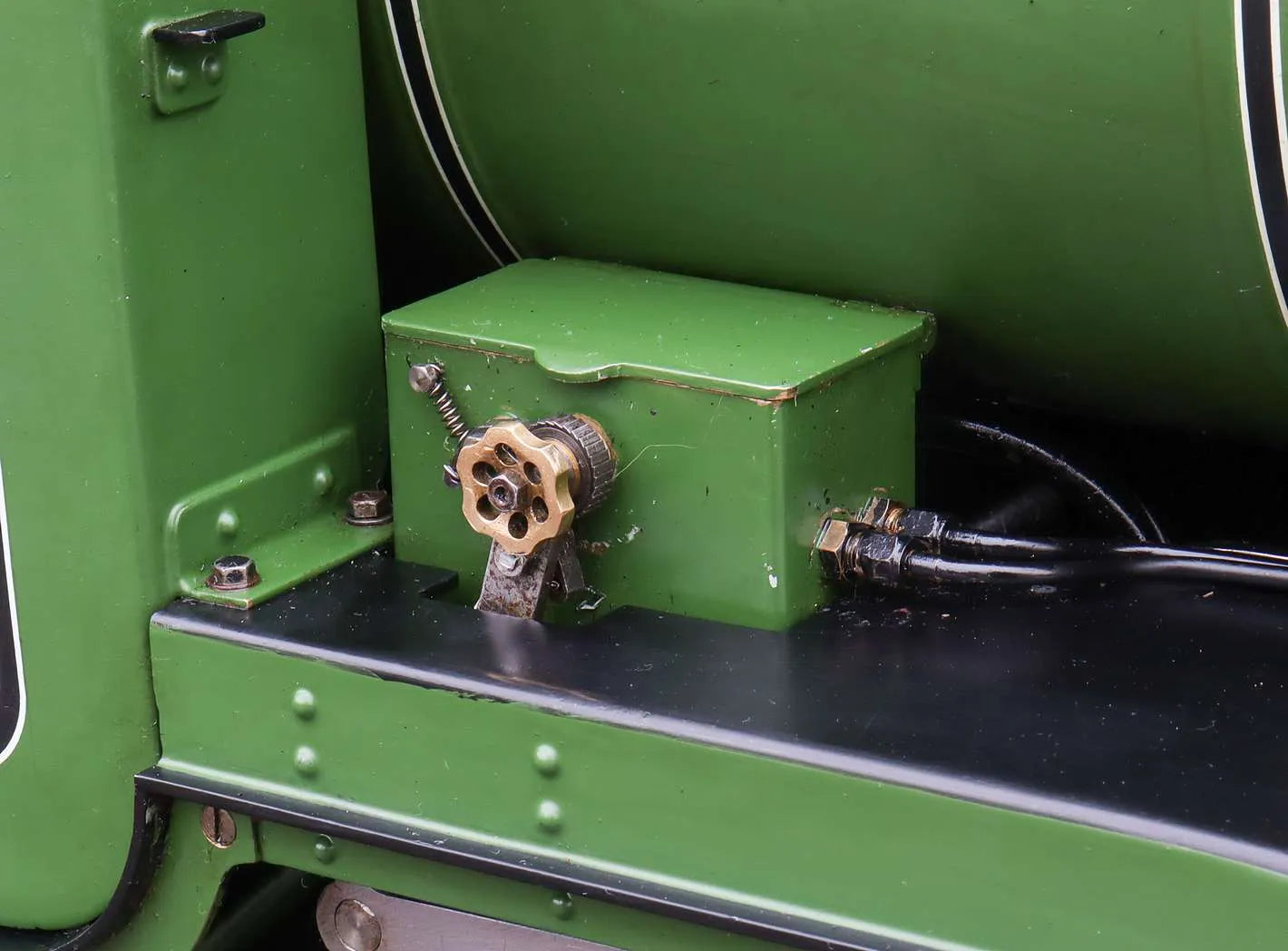

Lubricator type |
mechanical |
Boiler maker |
non-commercial |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
Year built |
2004 |
Boiler number |
V465 |
Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
2 |
Date out |
Mar-25 |
Hydraulic test valid to |
24-Feb-29 |
Steam test valid to |
24-Apr-26 |
