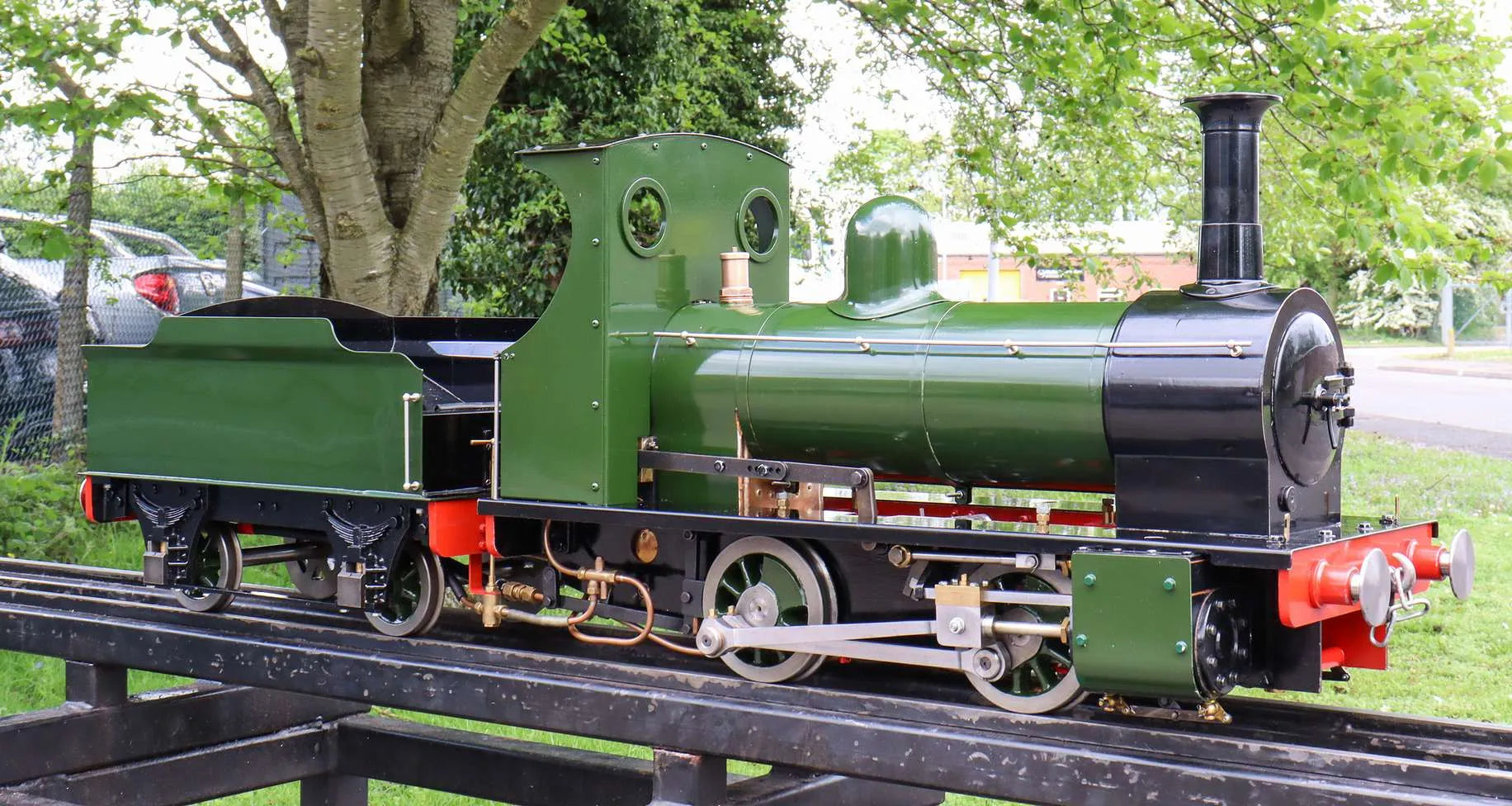

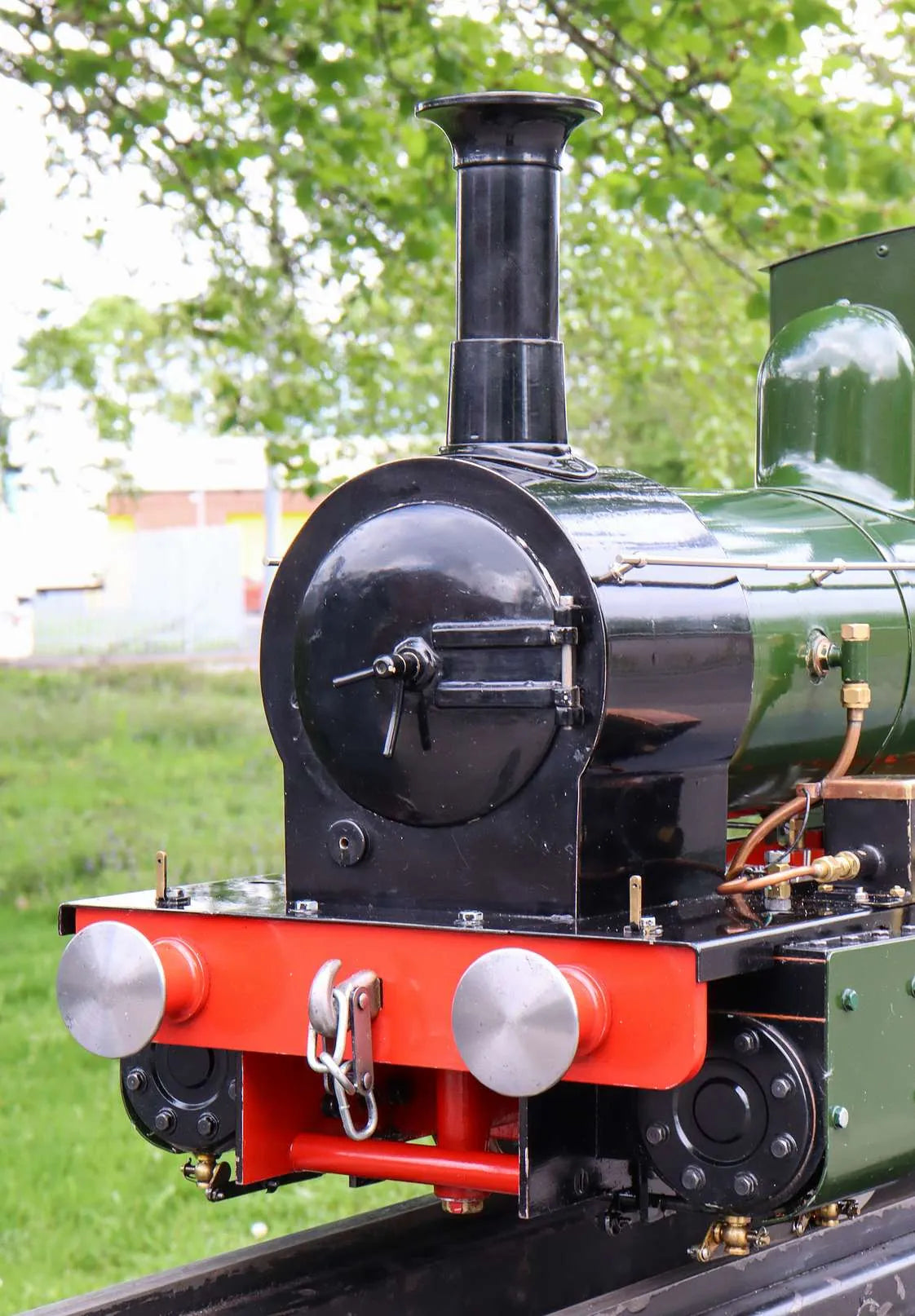

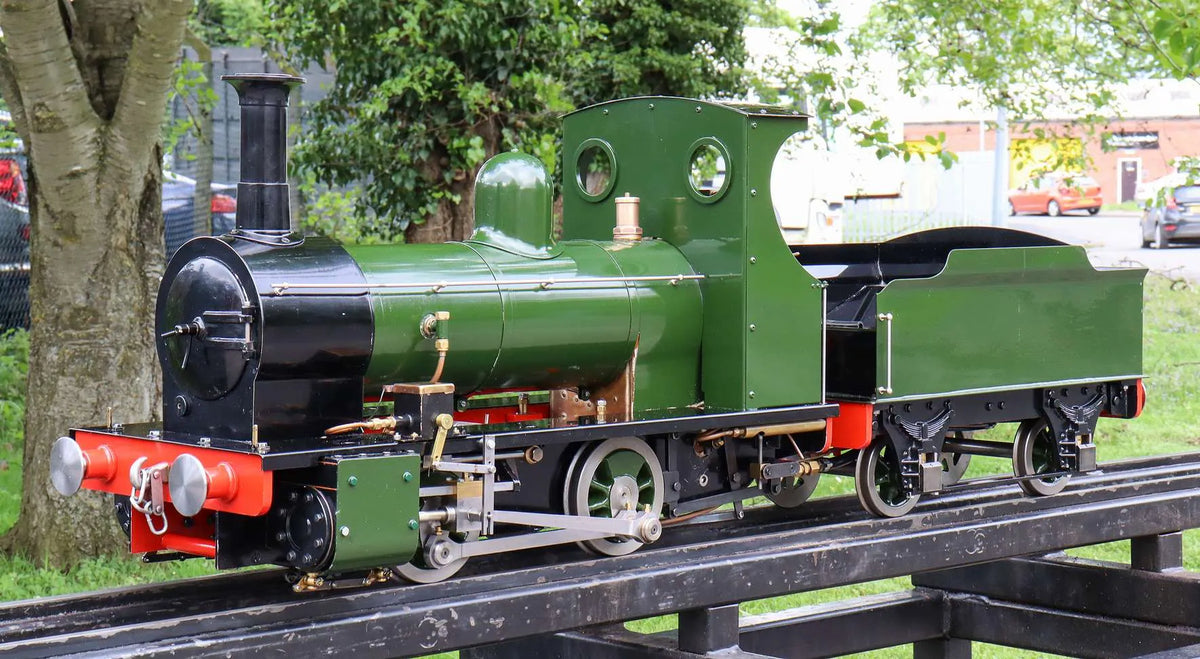

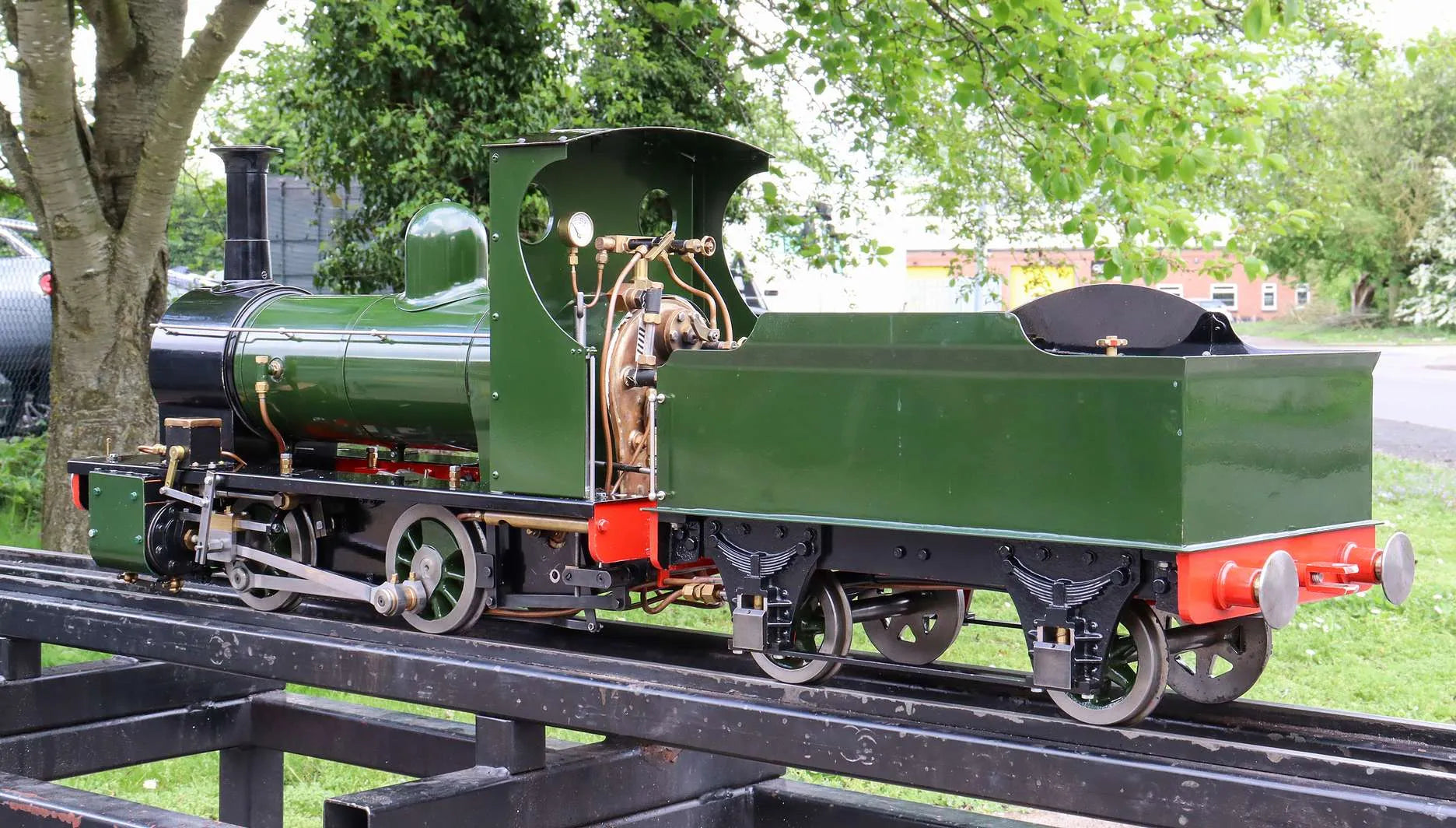

5 inch gauge Polly II 0-4-0

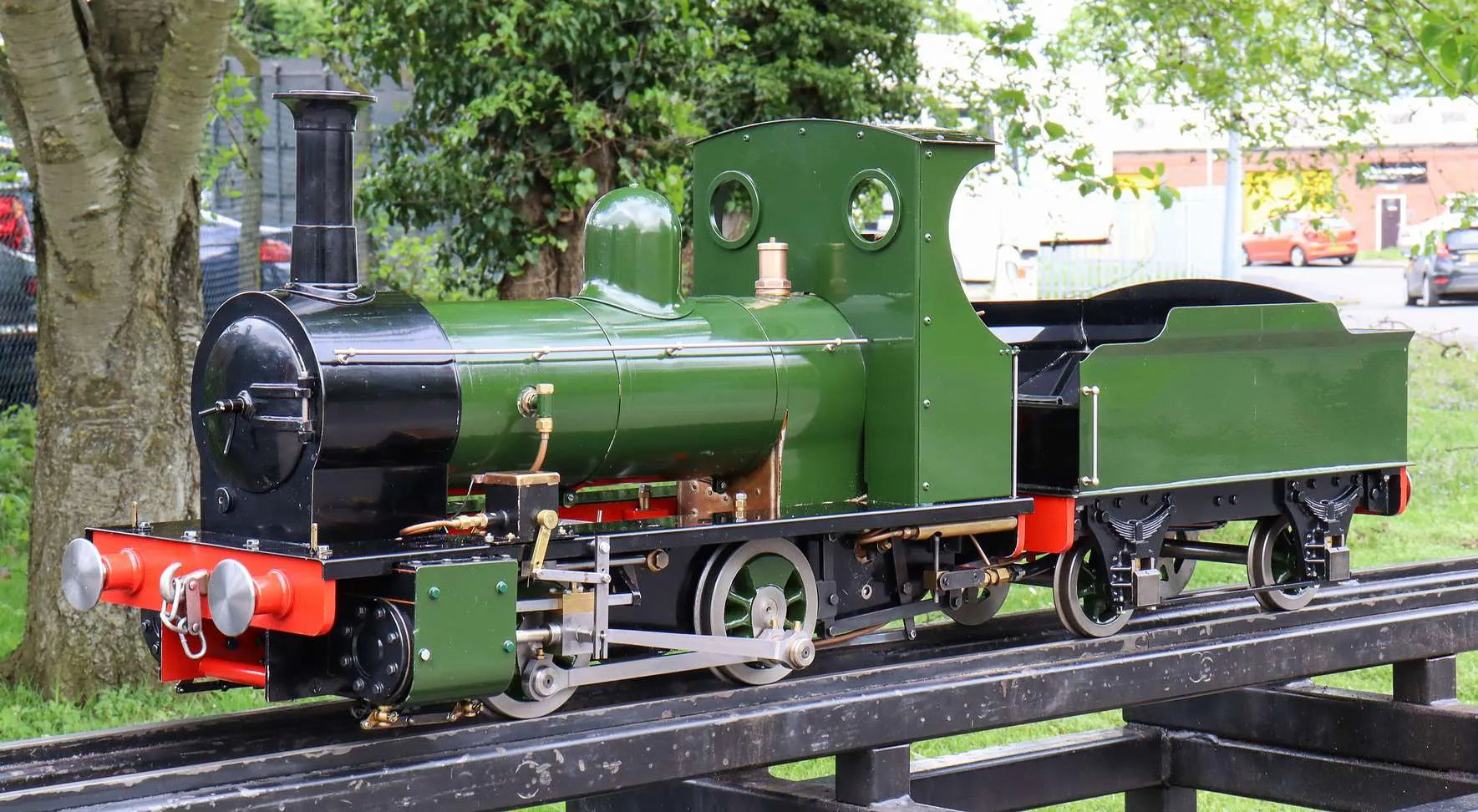

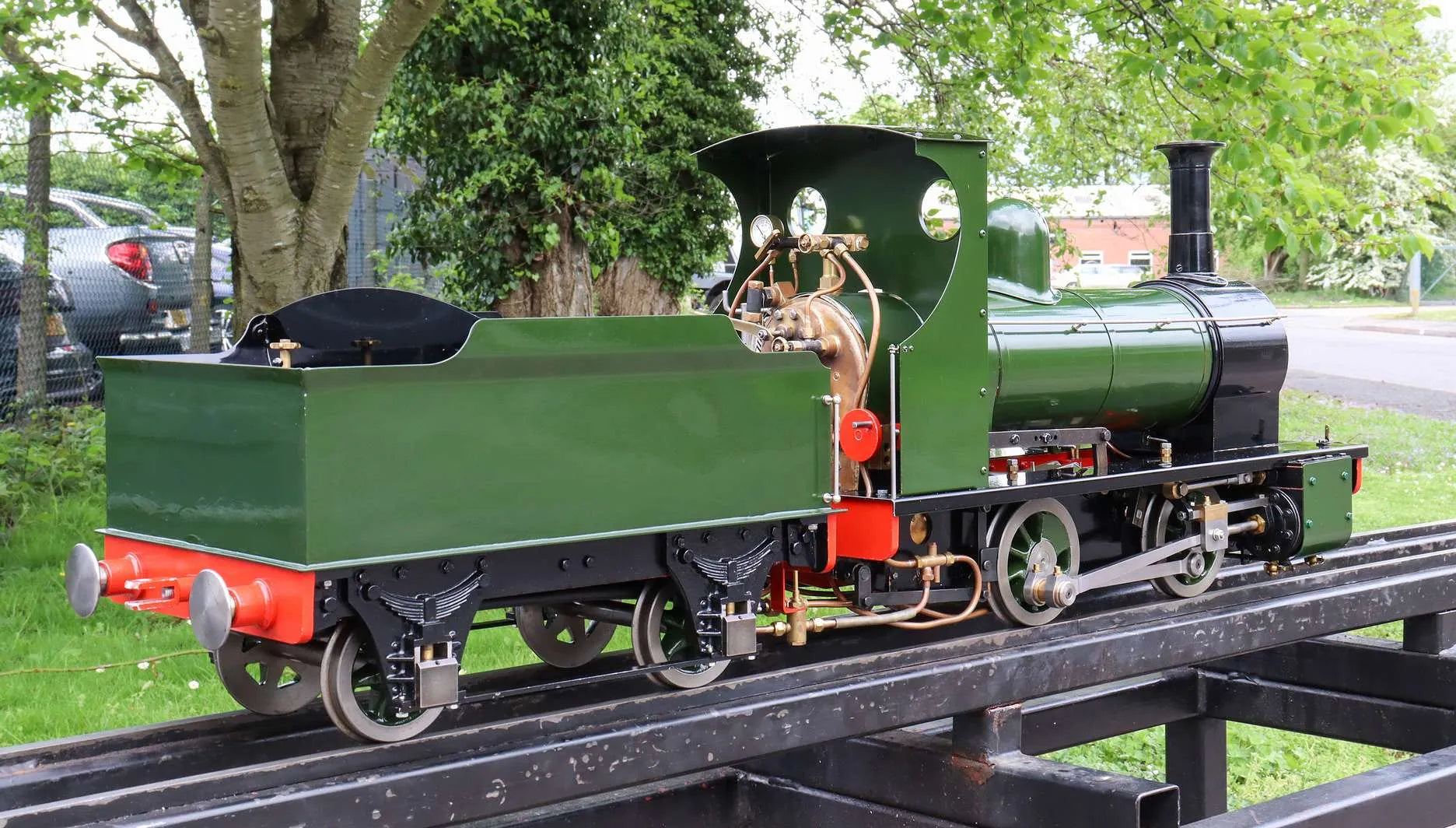

A Polly II 0-4-0, the tender engine version of the original Polly I tank locomotive. We've sold many of these over the years and would be hard-pressed to think of a better engine for a beginner in this gauge - free-steaming, reliable and with spare parts available off the shelf from Polly.

This one is a particularly well-built and nicely painted example, a one-owner engine which has come to us direct from the builder. Maintained to a high standard it remains in excellent condition throughout.

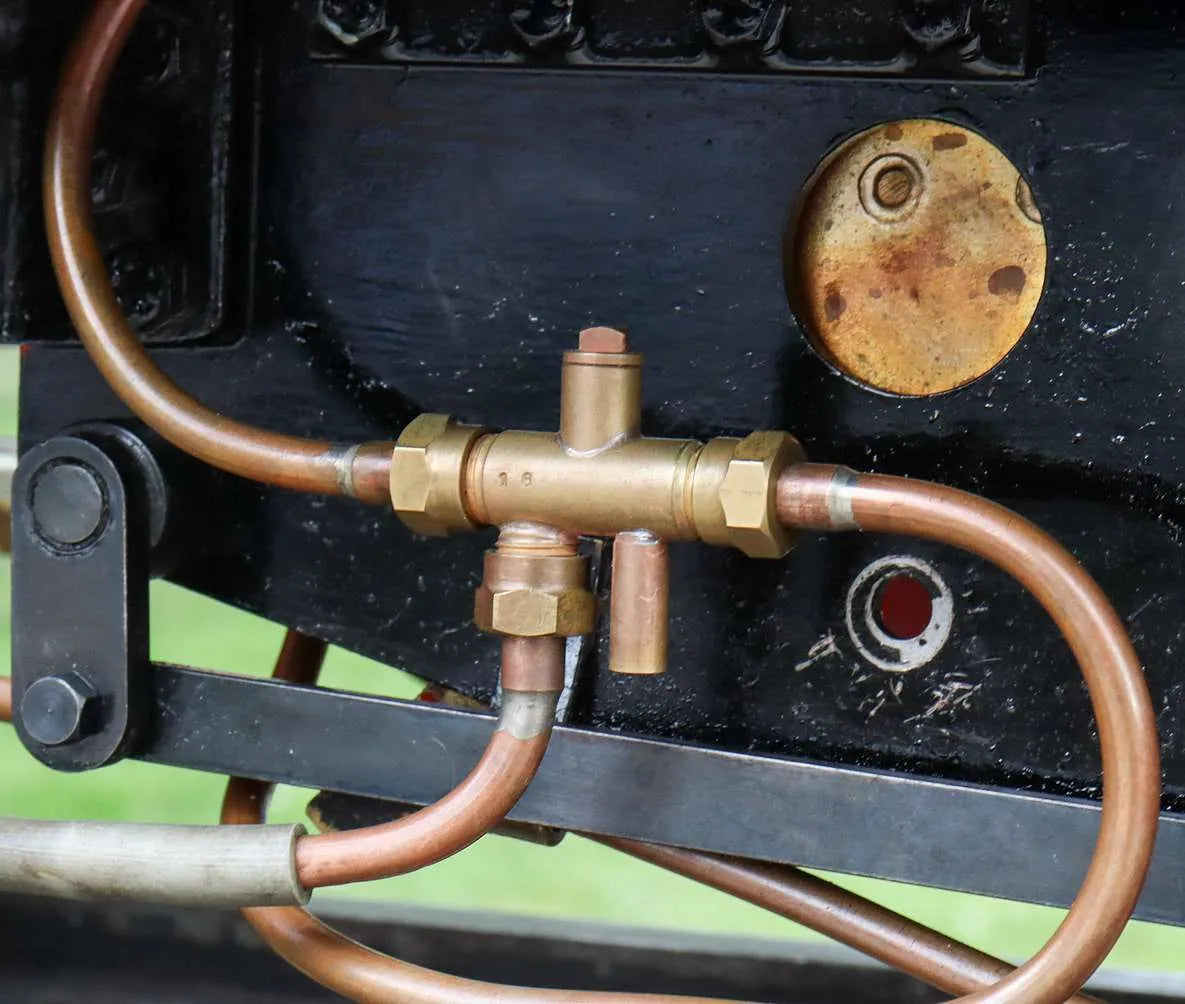

Since arriving with us the commercially-built, CE-marked boiler has had hydraulic and steam tests with new certification issued. The engine runs particularly well, keeping itself in steam and water on the rolling road without need of the blower, the bypass being used "little and often" to top up the boiler.

Supplied with firing irons, a starter kit of coal and steam oil and 12 months warranty. If required, we would be pleased to include a half day's training in the firing, driving and maintenance of the engine.

Technical information

Stock code

11305

Gauge

5 inch

Length/inches

26 + 20

Width/inches

10

Height/inches

15

Weight/Kg

51

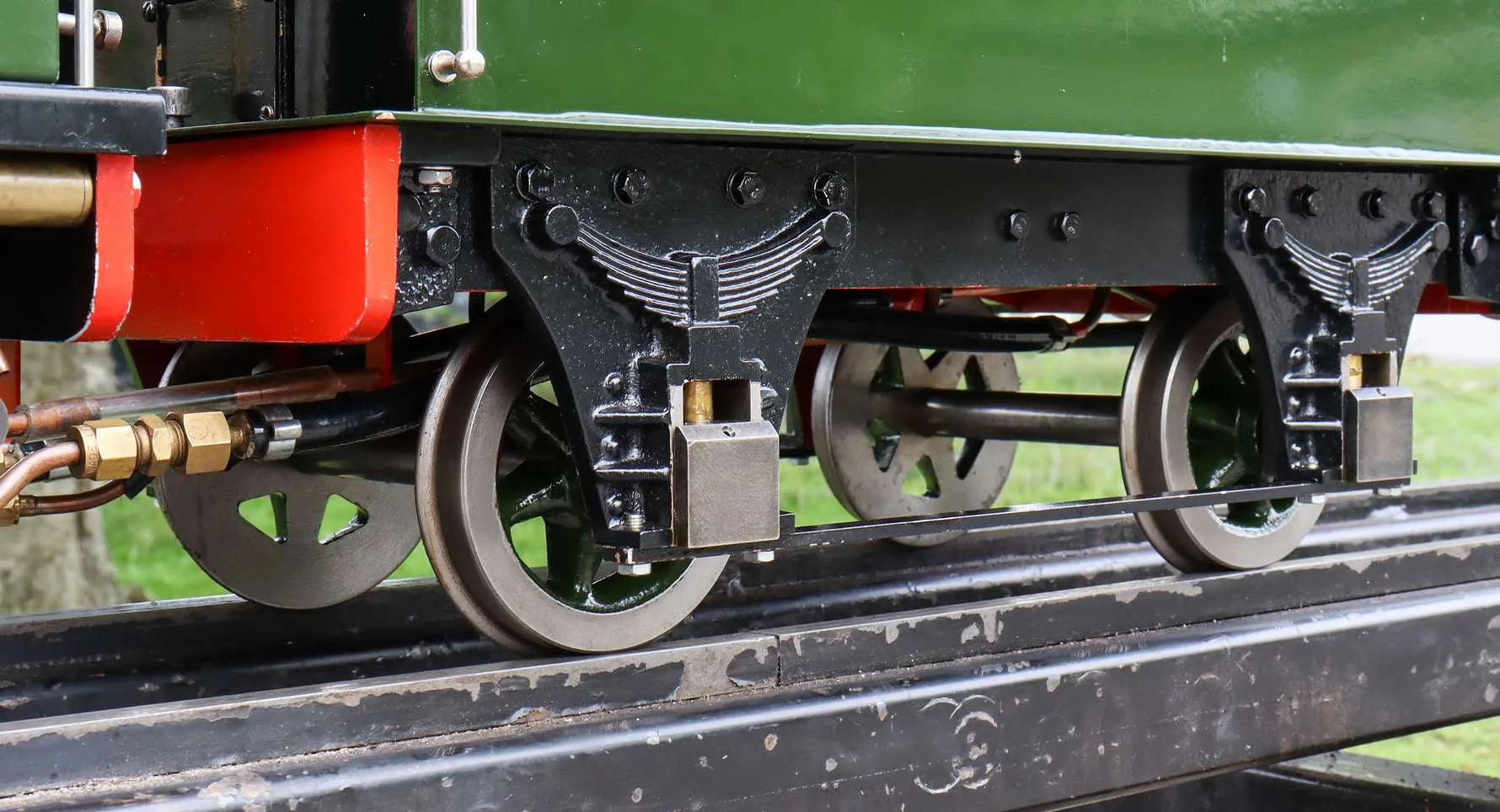

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

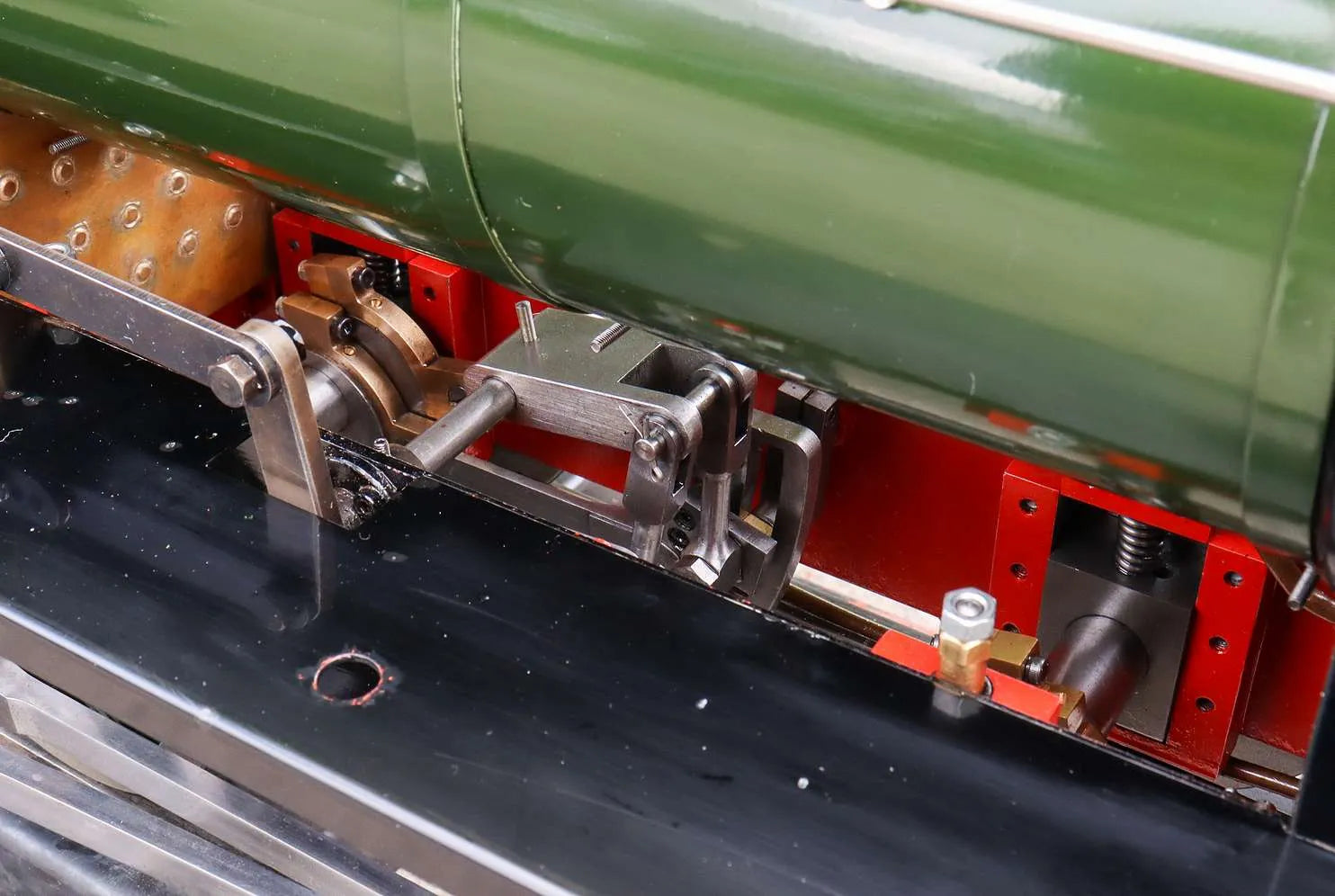

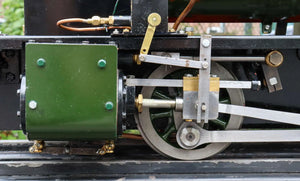

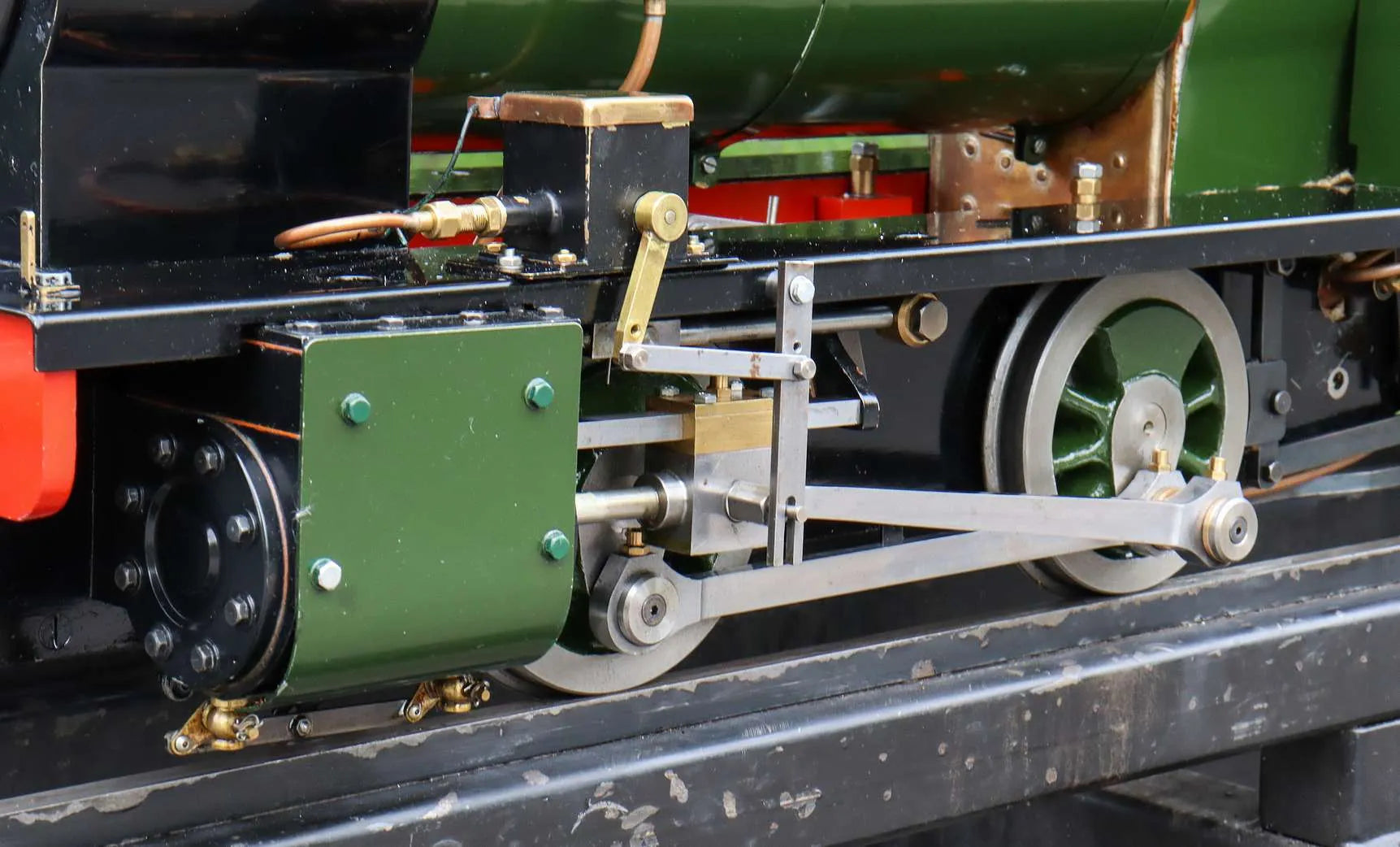

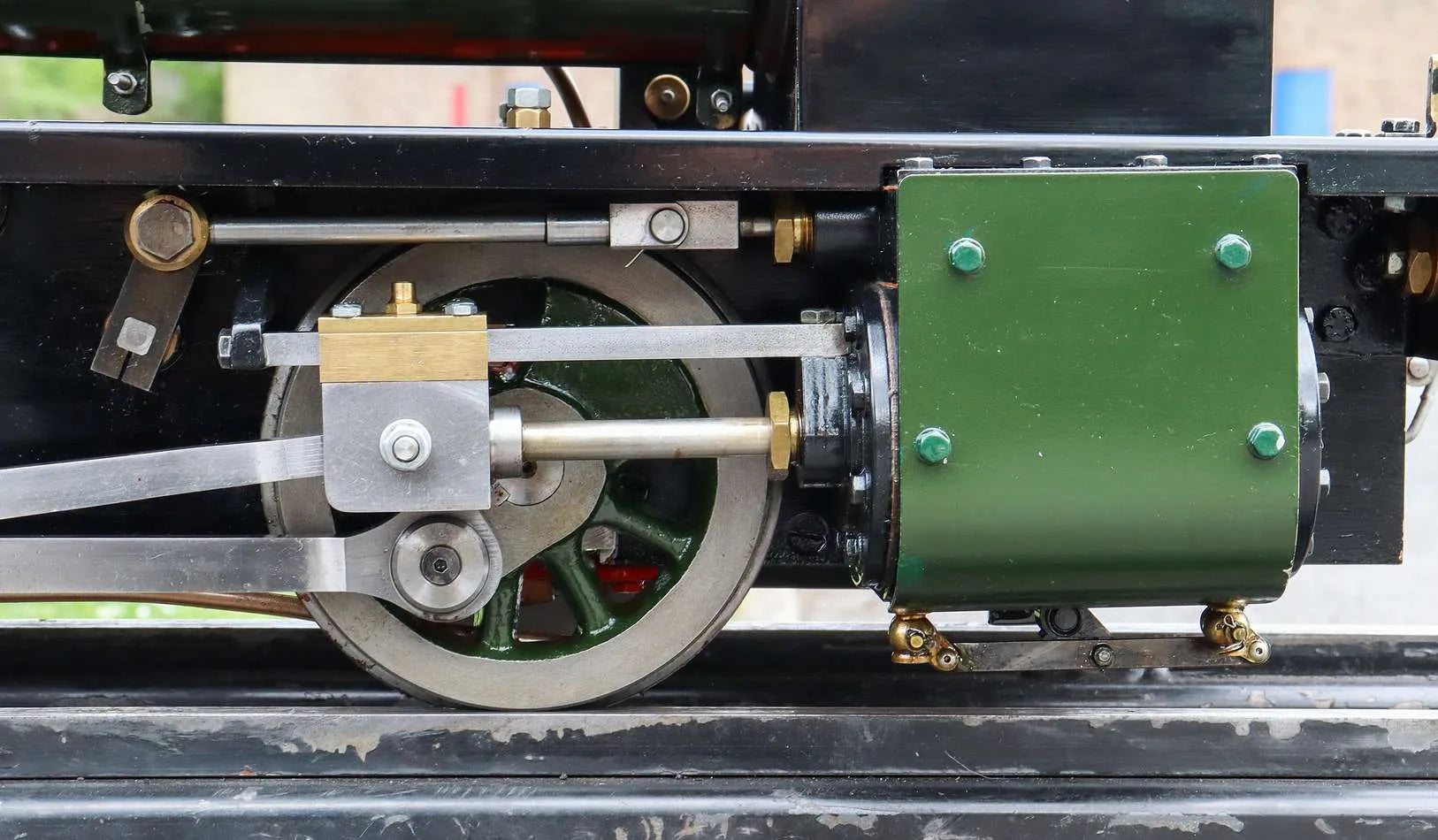

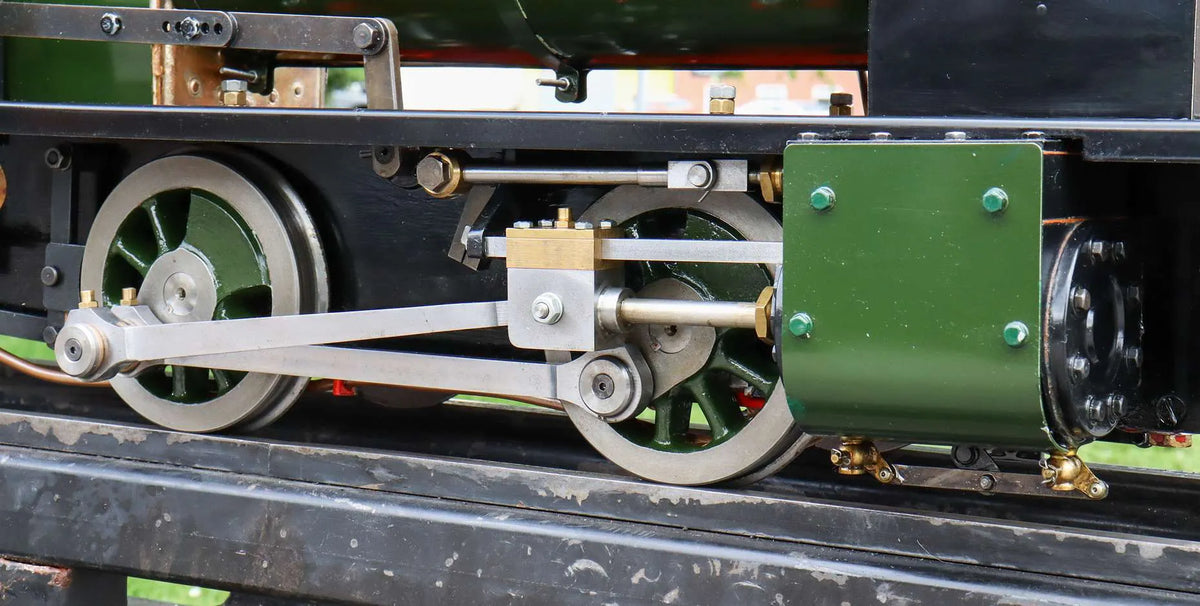

Valve gear

Stephensons

Reverser type

screw

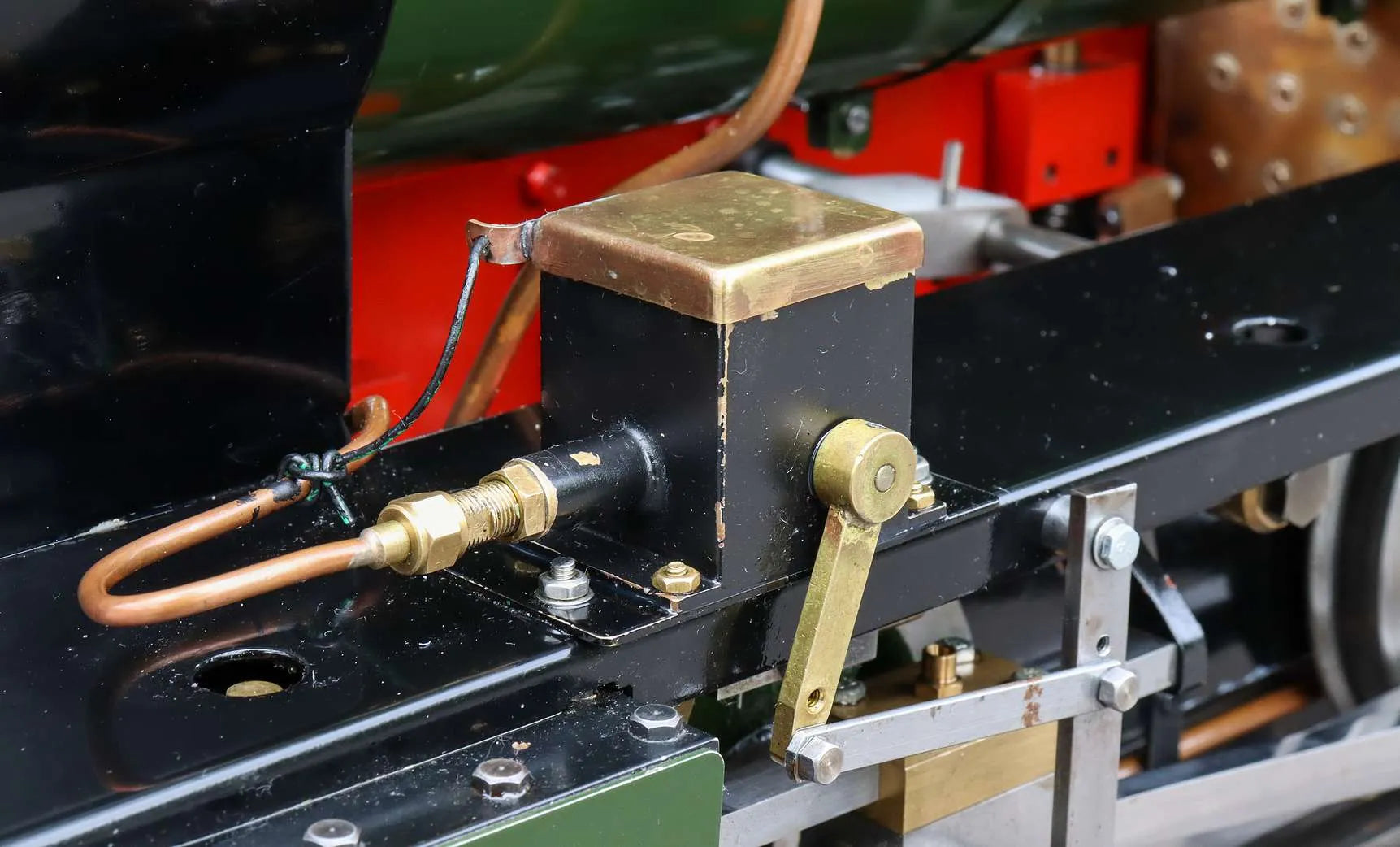

Lubricator type

mechanical

Boiler maker

Brian Nicholls

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

yes

Year built

2011

Boiler number

BN224

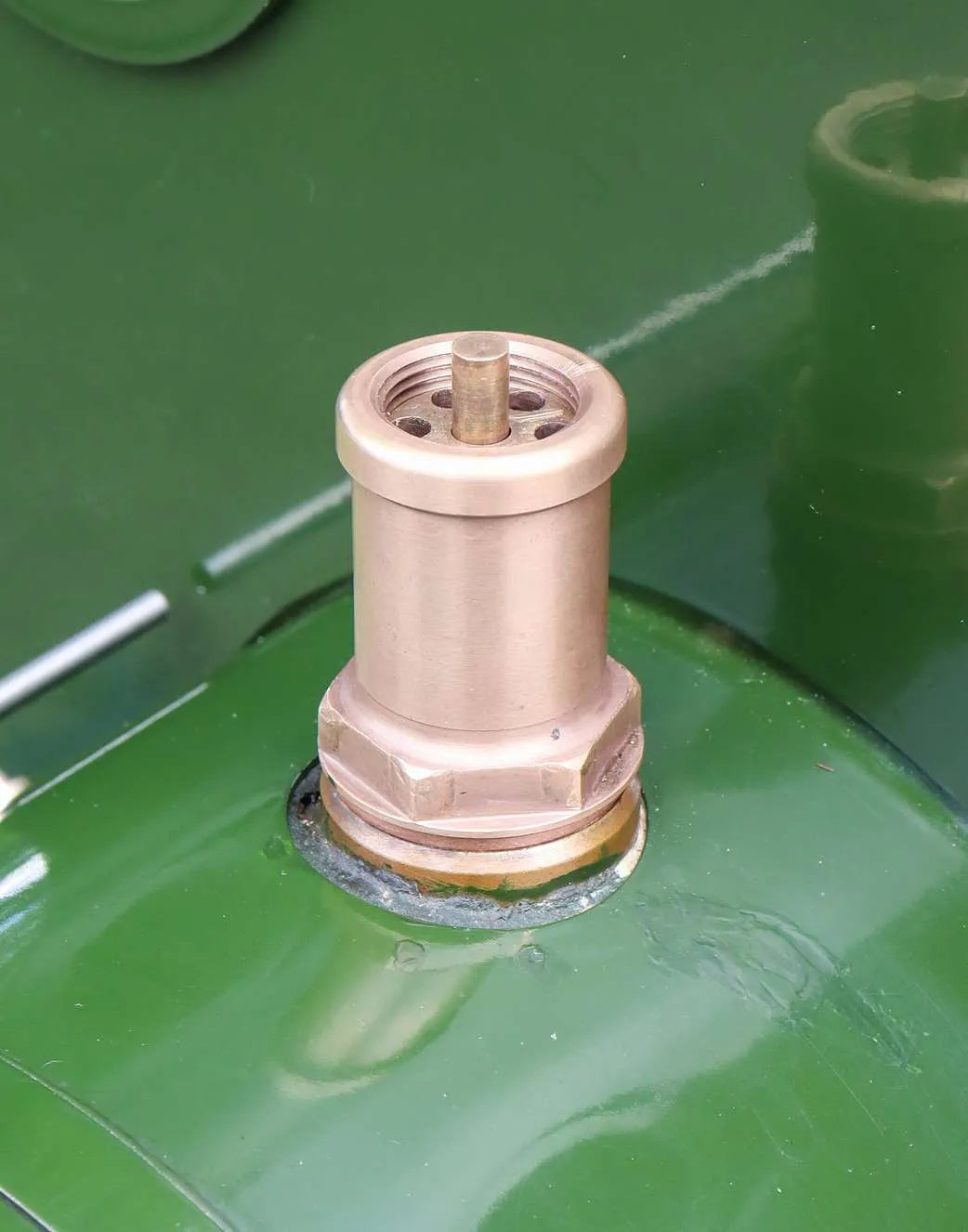

Safety valve type

pop

Safety valve

1

Fusible plug

yes

Bore x stroke

1 1/2 x 2

Whistle

yes

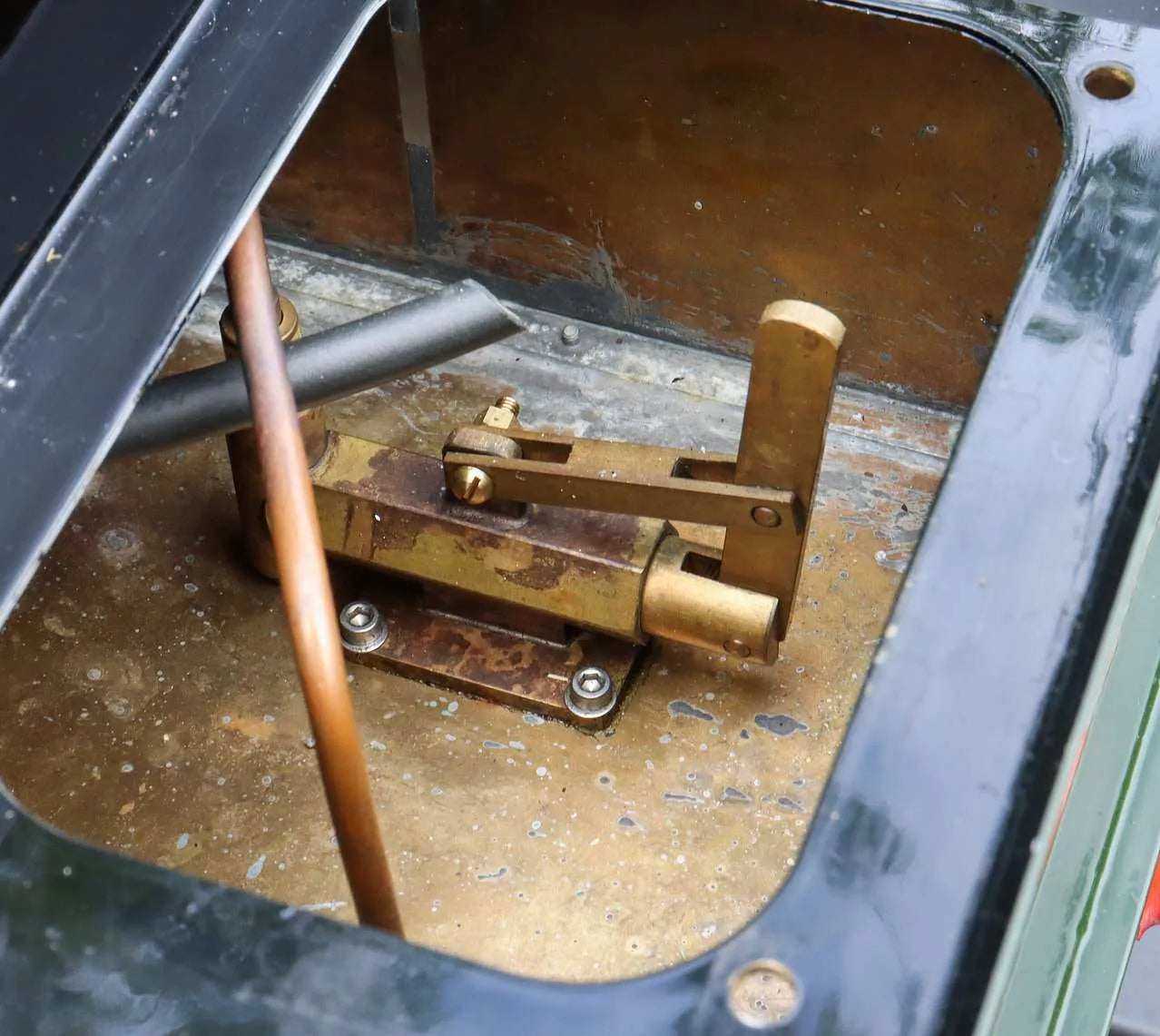

Hand pump

1

Mechanical pump

1

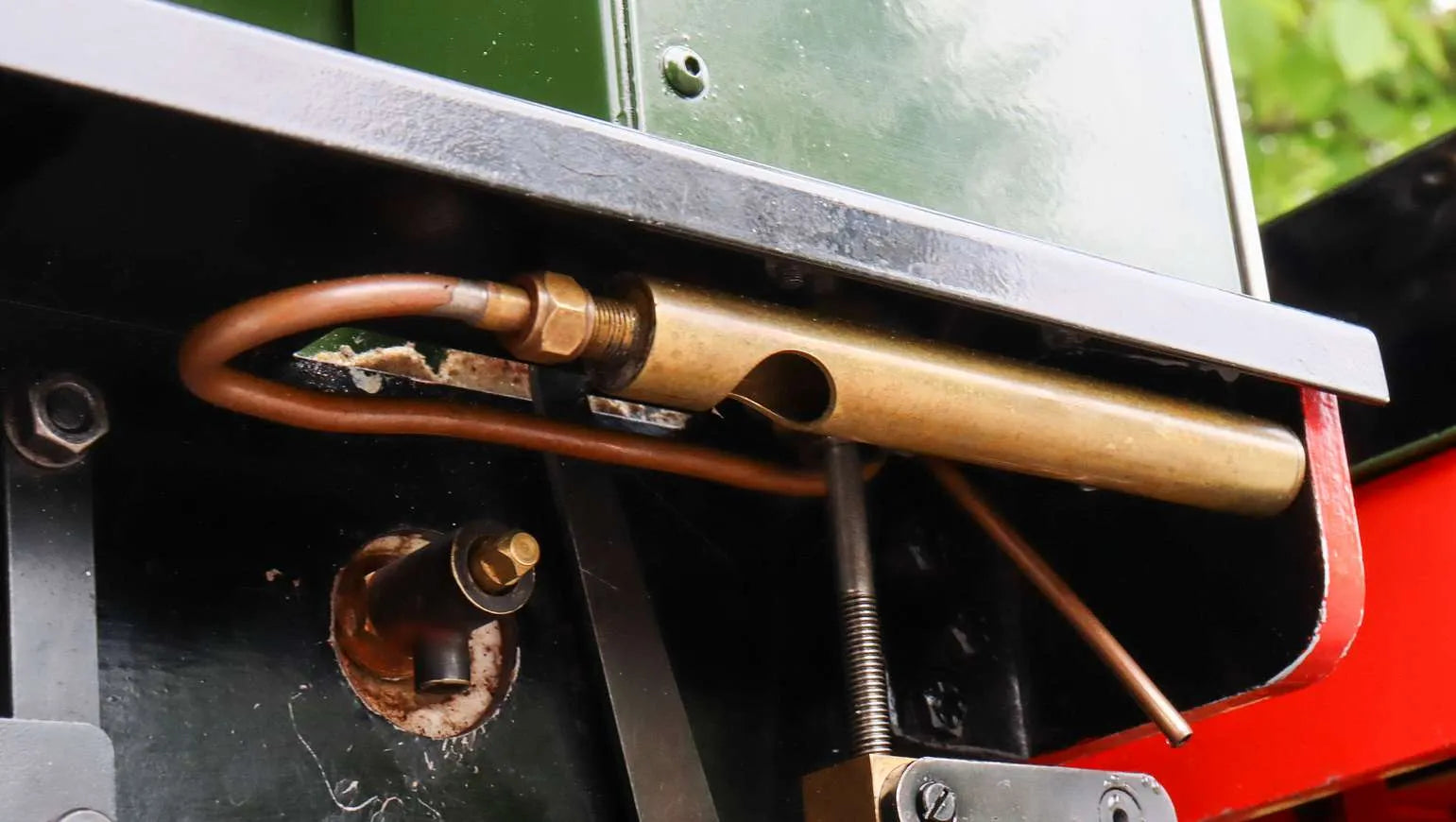

Injector

1

Superheater type

flue tube

Superheater

1

Date out

Sep-23

Hydraulic test valid to

09-May-27

Steam test valid to

14-Jul-24
