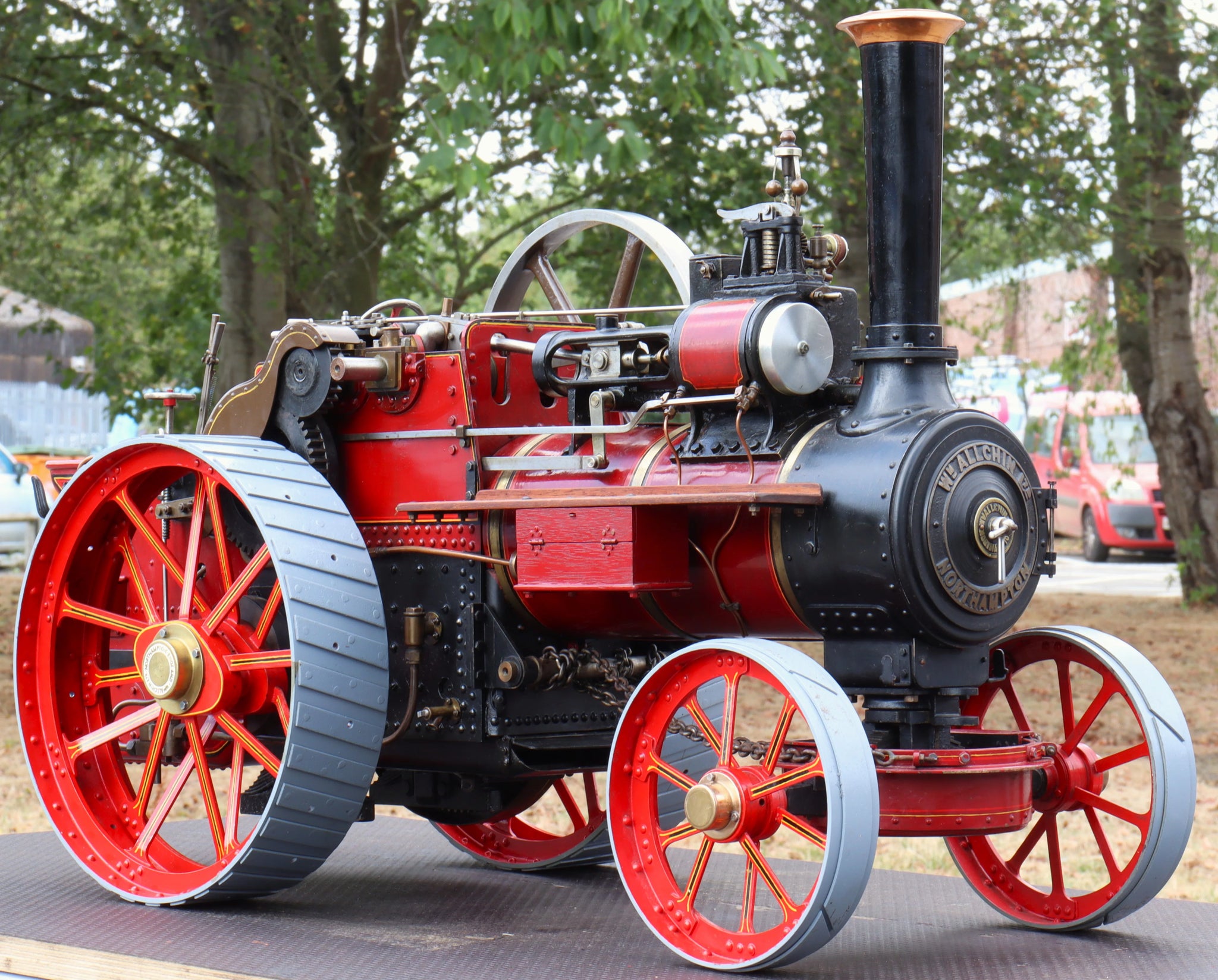

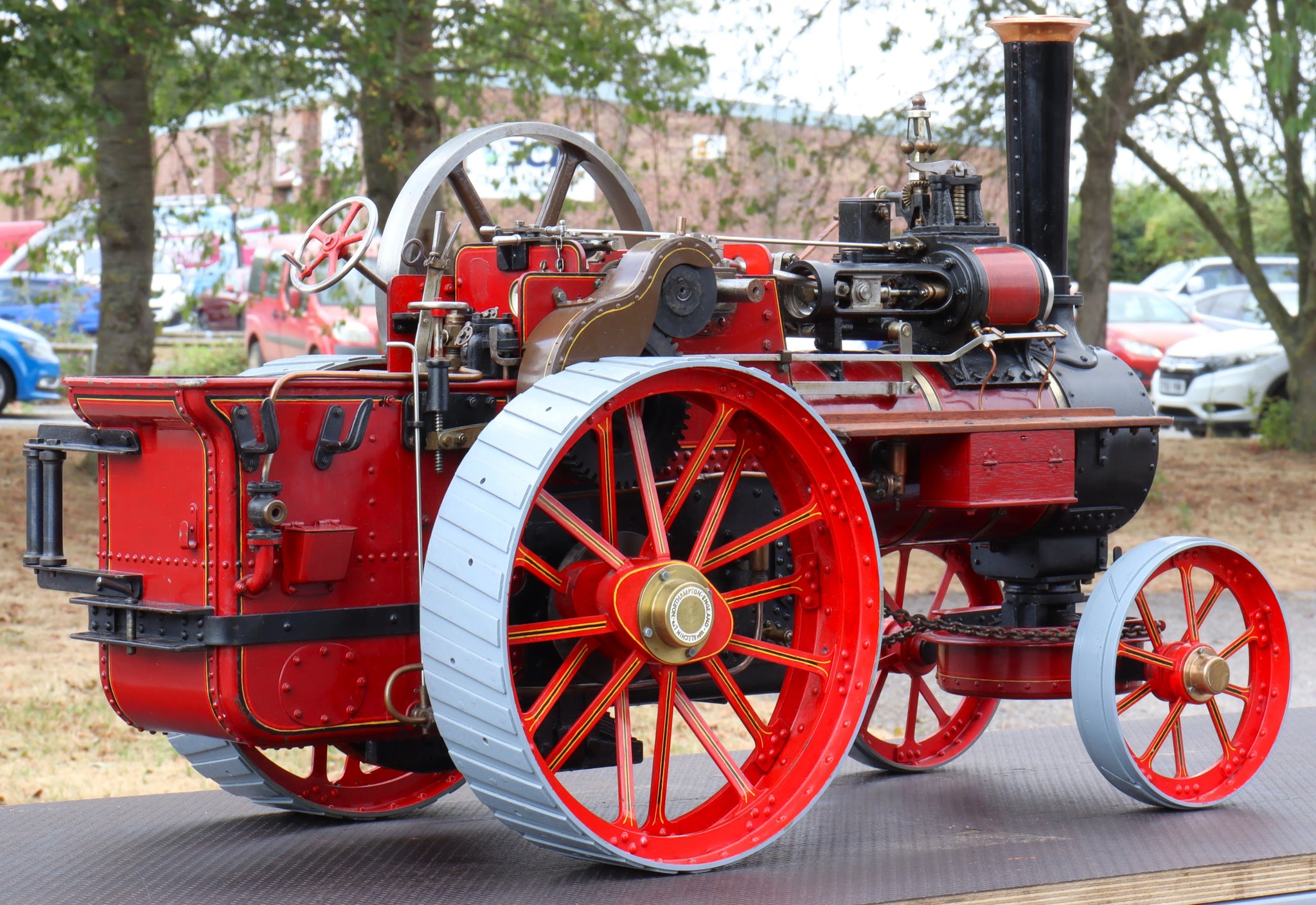

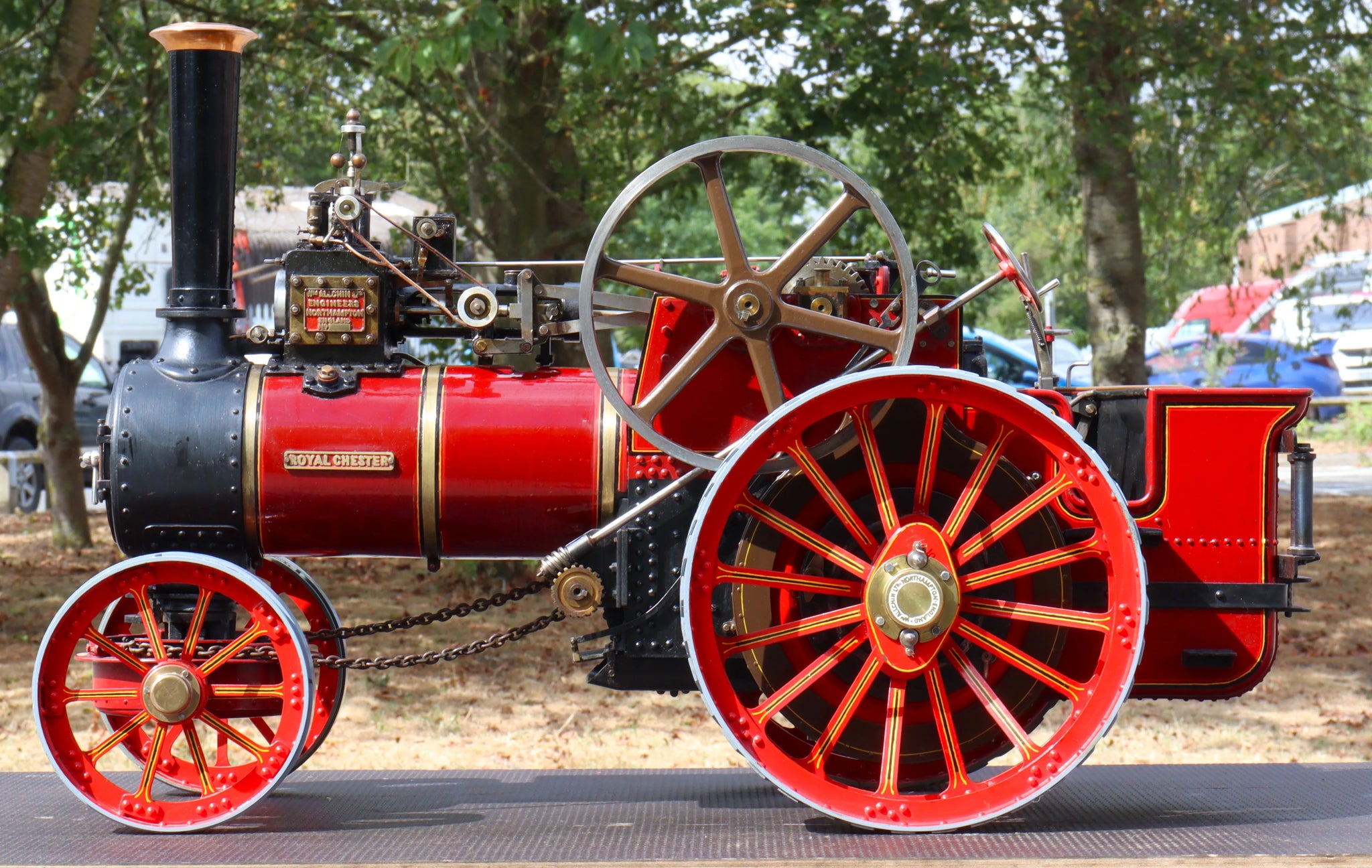

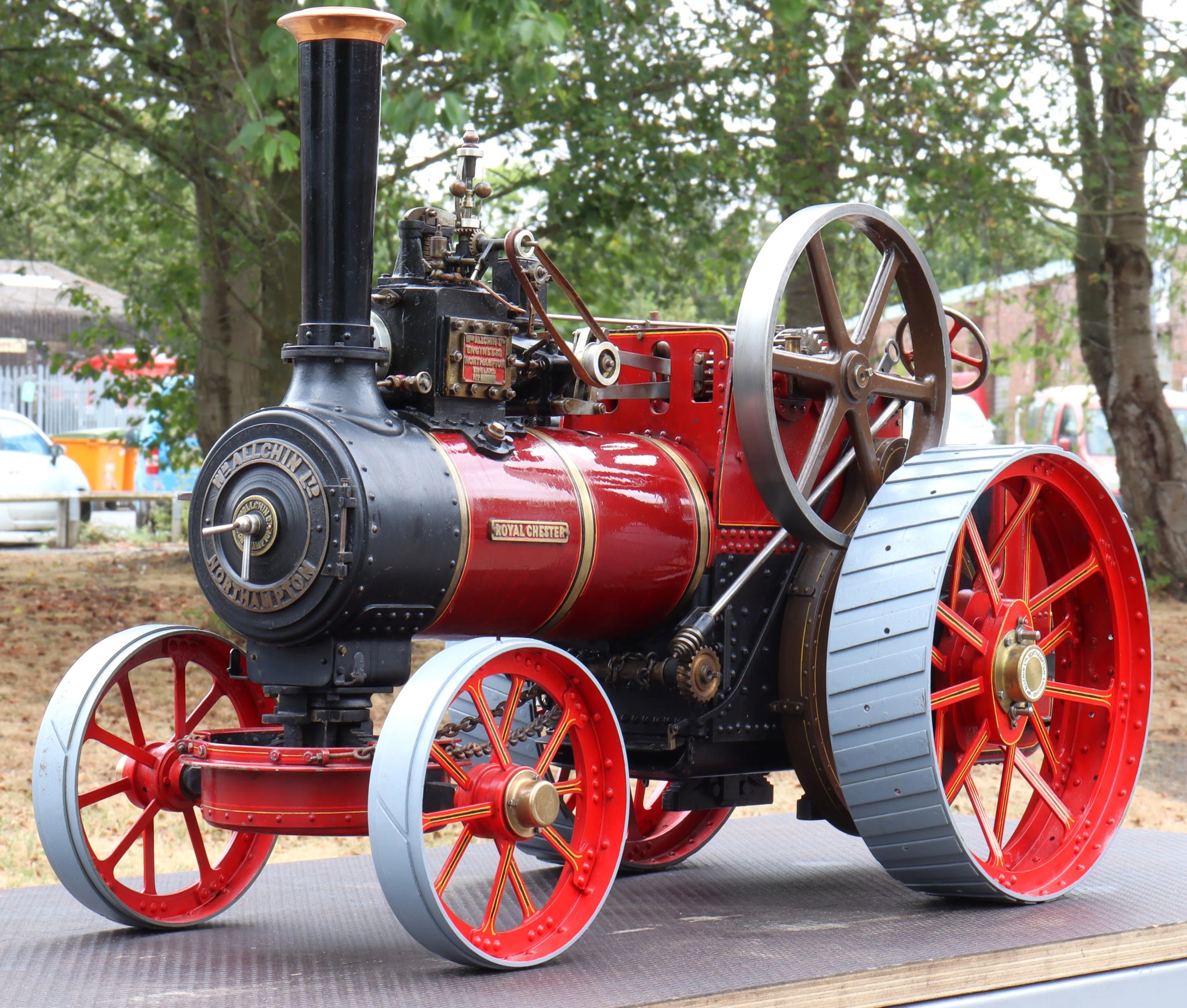

1 1/2 inch scale Allchin "Royal Chester"

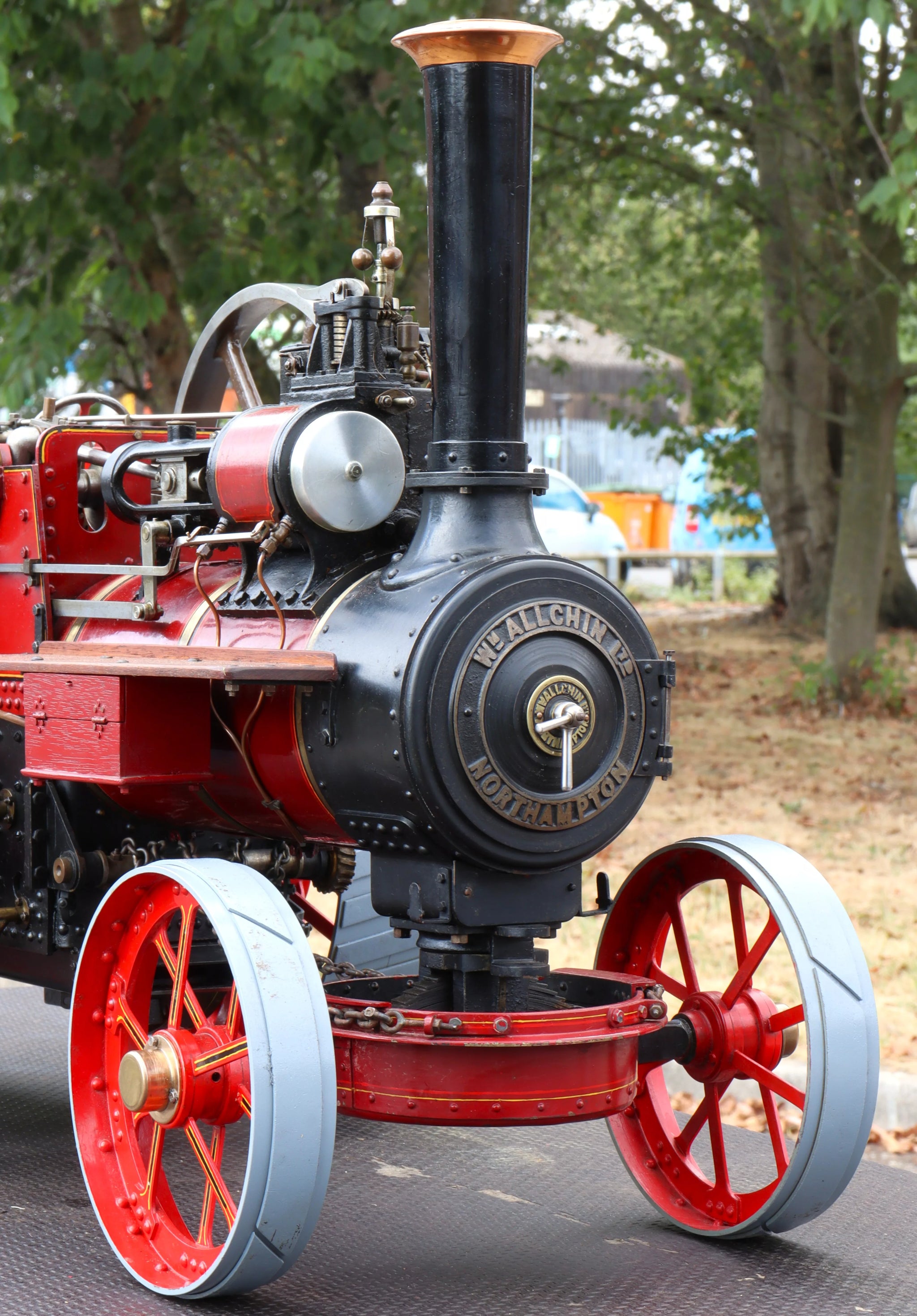

A nicely made example of an Allchin agricultural engine to Bill Hughes' detailed "Royal Chester" design.

An older engine, fit and finish of machined parts is good, the engine runs well in either direction. Nicely painted and lined originally, the paintwork remains in good condition with an appealing patina.

Whilst the boiler showed no signs of leaks or deflection on a preliminary hydraulic test at working pressure prior to running on air, in deference to its age and condition we have not stripped it to carry out the twice working pressure shell test required in the absence of previous boiler history.

Technical information

Stock code

13448

Scale

1 1/2 inch

Length/inches

27

Width/inches

12

Height/inches

18

Weight/Kg

30

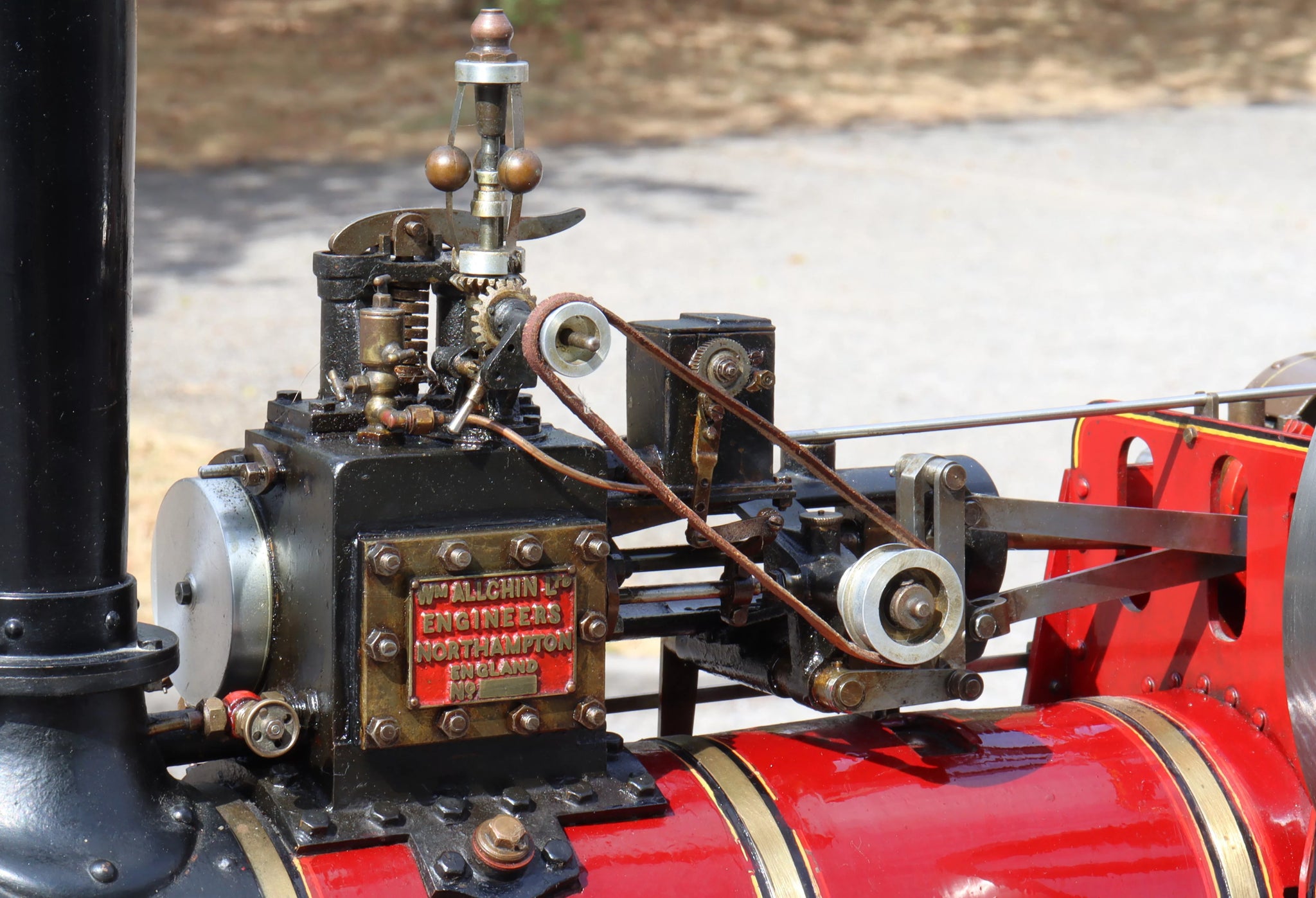

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Safety valve type

Ramsbottom

Safety valve

2

Governor type

Pickering

Road speed

2
