13449

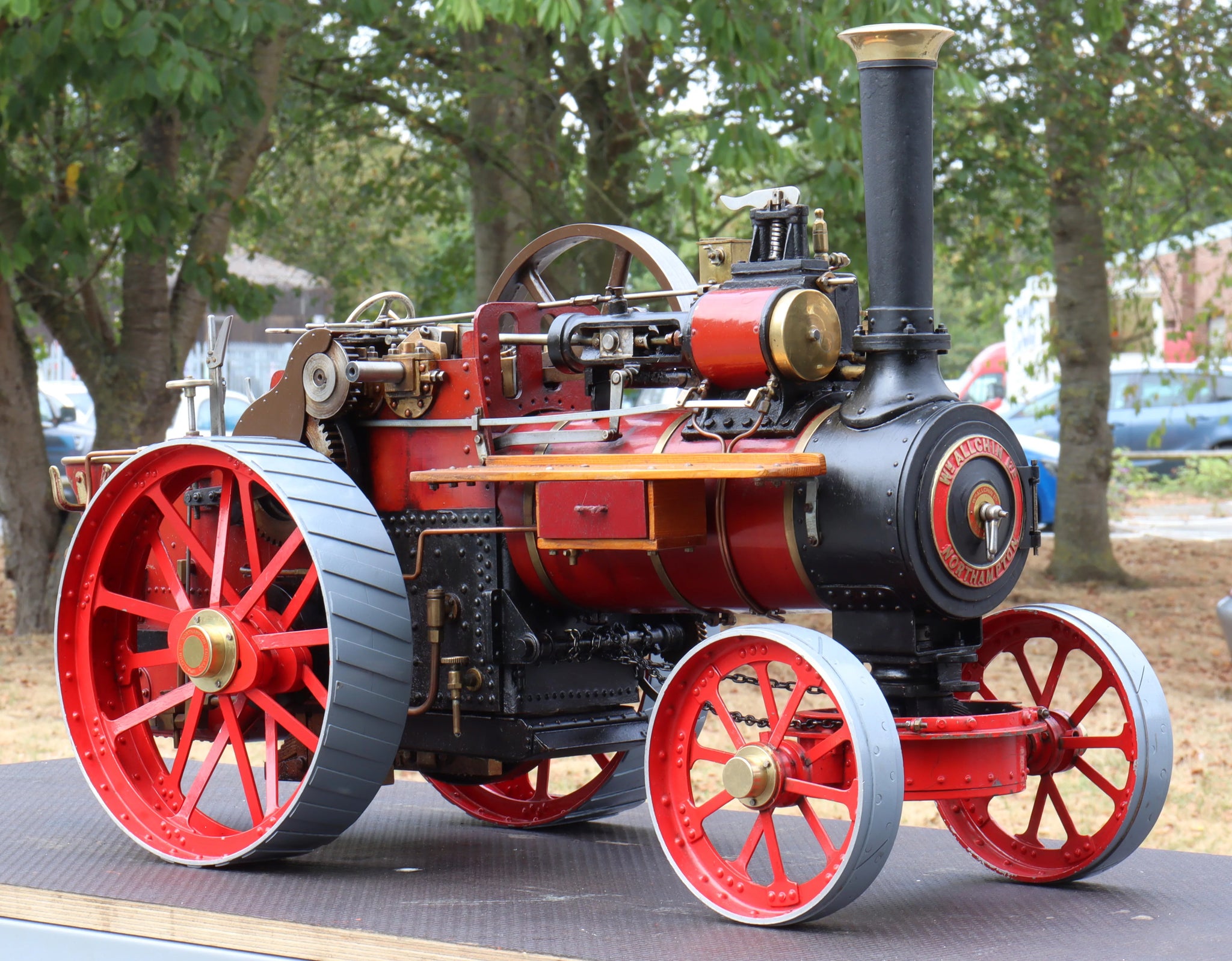

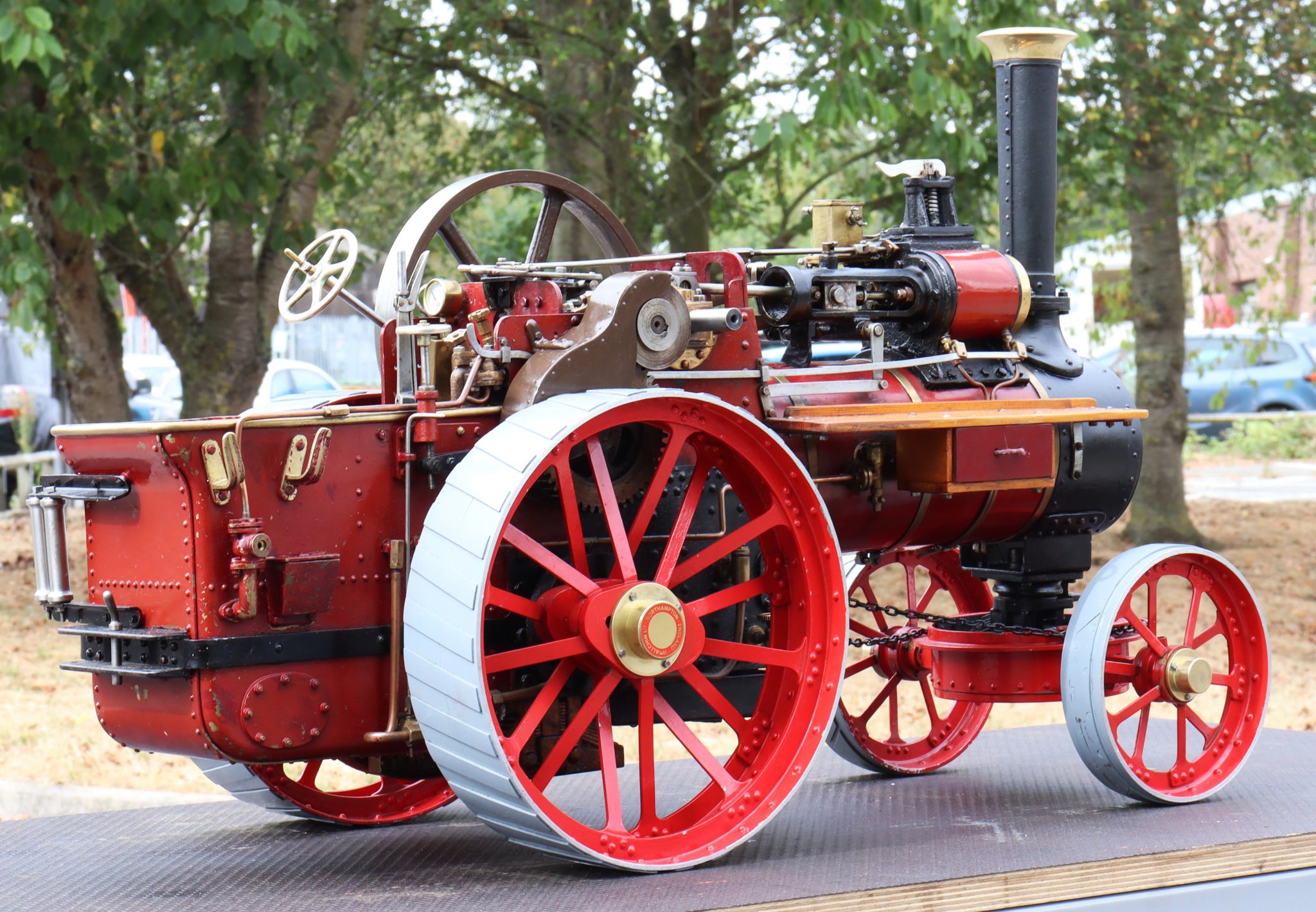

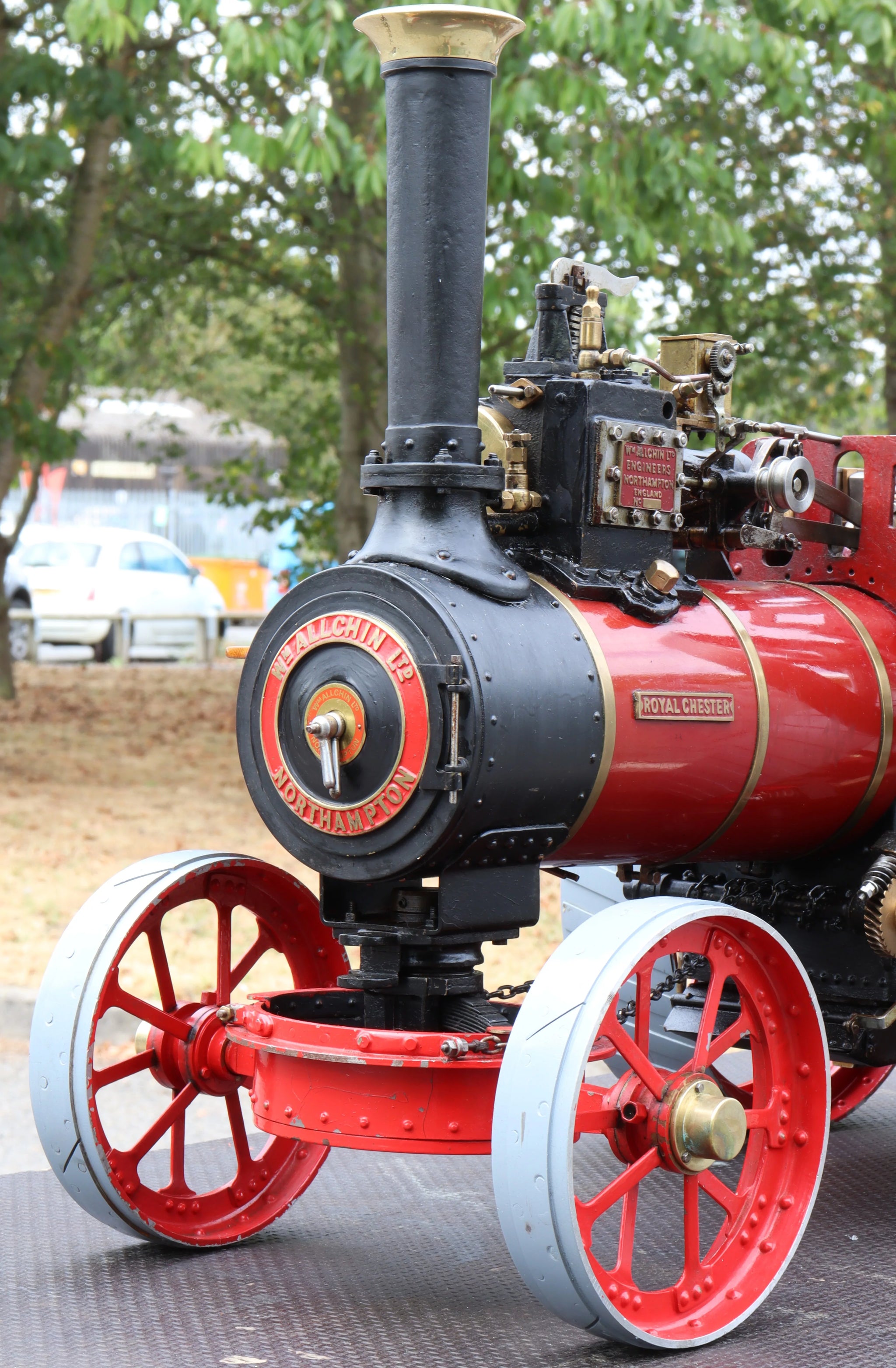

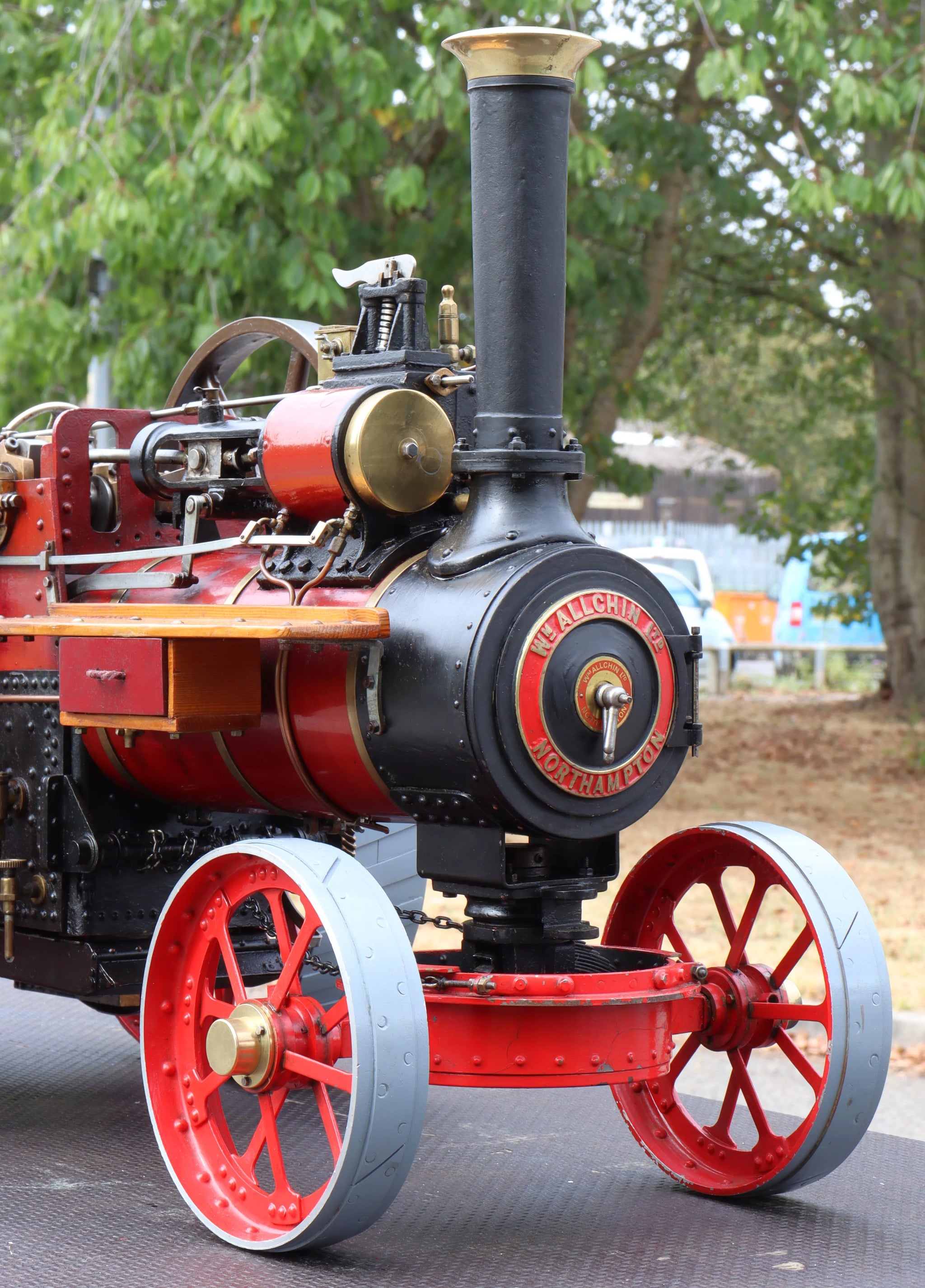

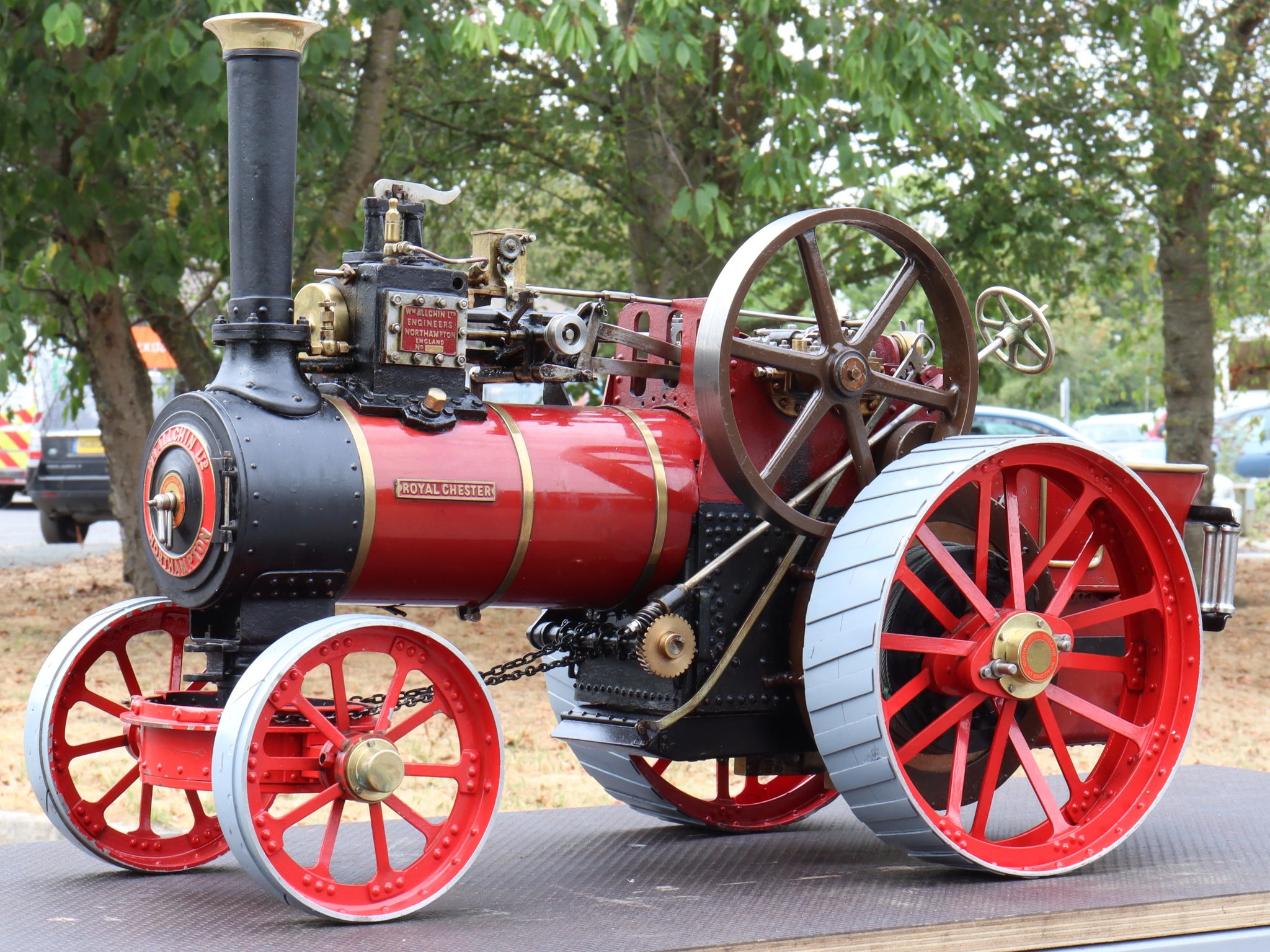

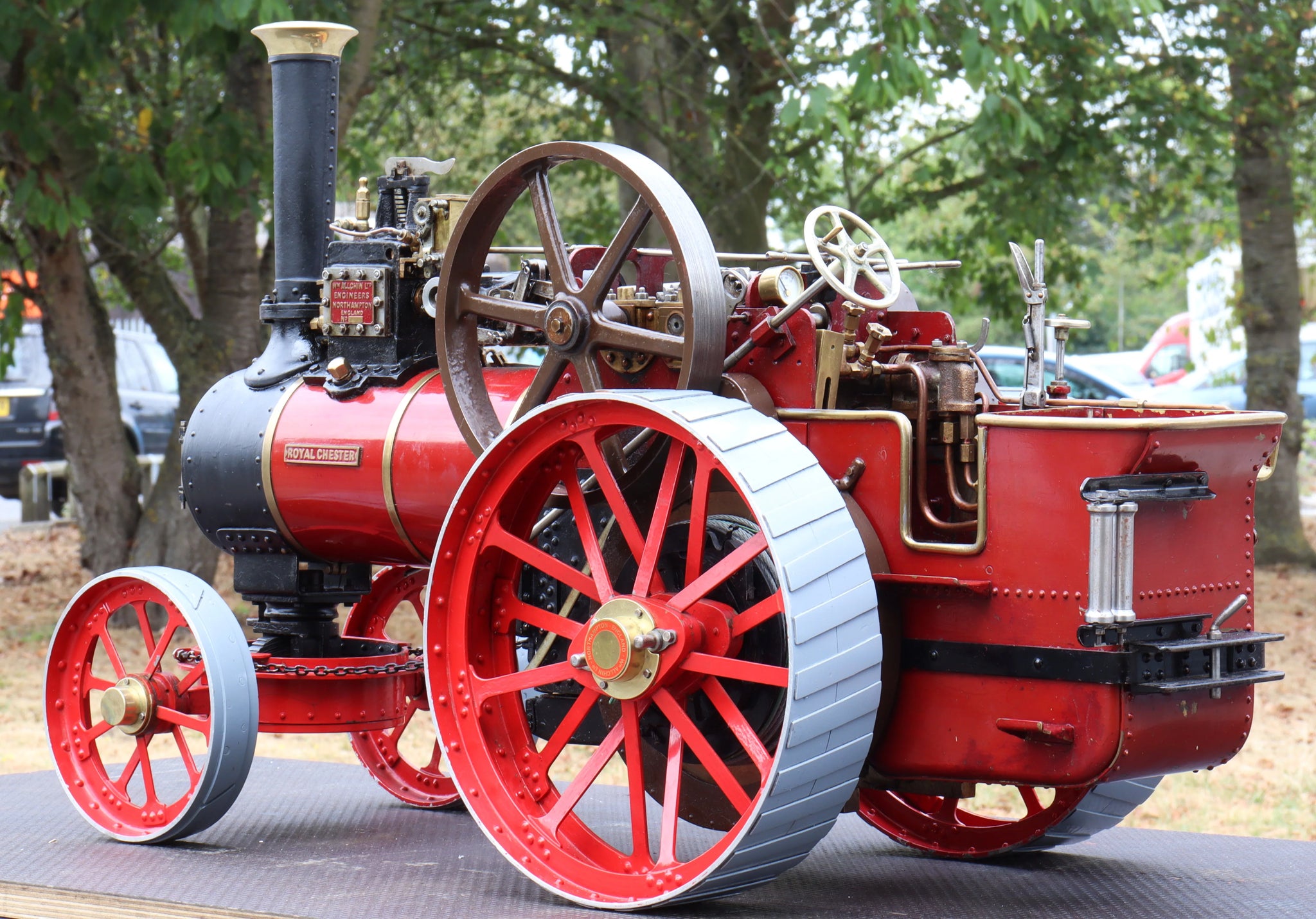

A 1 1/2 inch scale Allchin agricultural to the popular "Royal Chester" design.

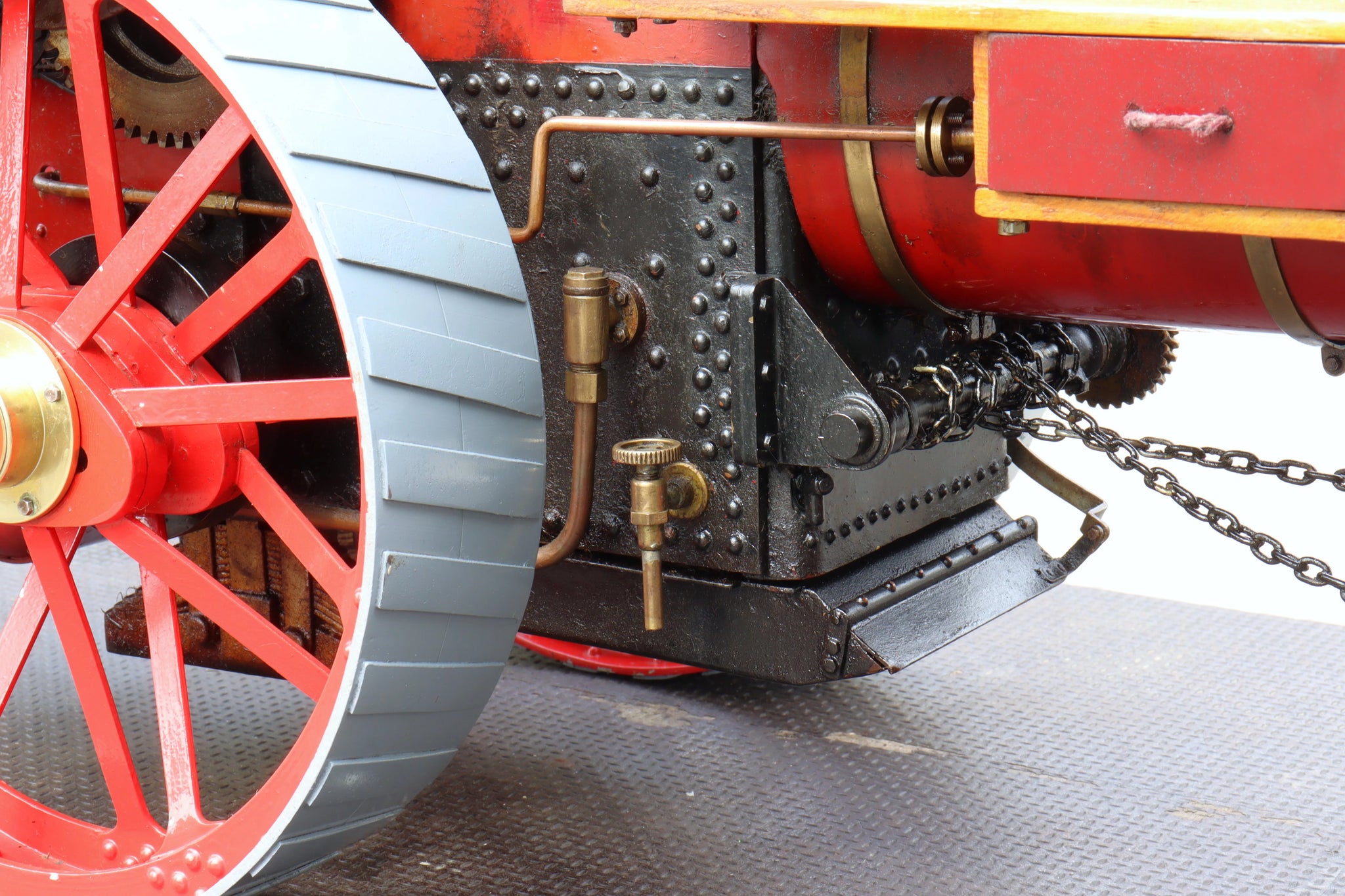

An older engine, it runs well on air in either direction, with some wear evident in the big end. A twice working pressure hydraulic test showed various minor leaks from nutted and calked stays in the firebox. The pressure gauge currently doesn't read due to a blocked syphon - the gauge itself tested ok.
Stock code |
13449 |
Scale |
1 1/2 inch |
Length/inches |
27 |
Width/inches |
12 |
Height/inches |
18 |
Weight/Kg |
30 |
Cylinder material |
cast iron |
Valve type |
slide |

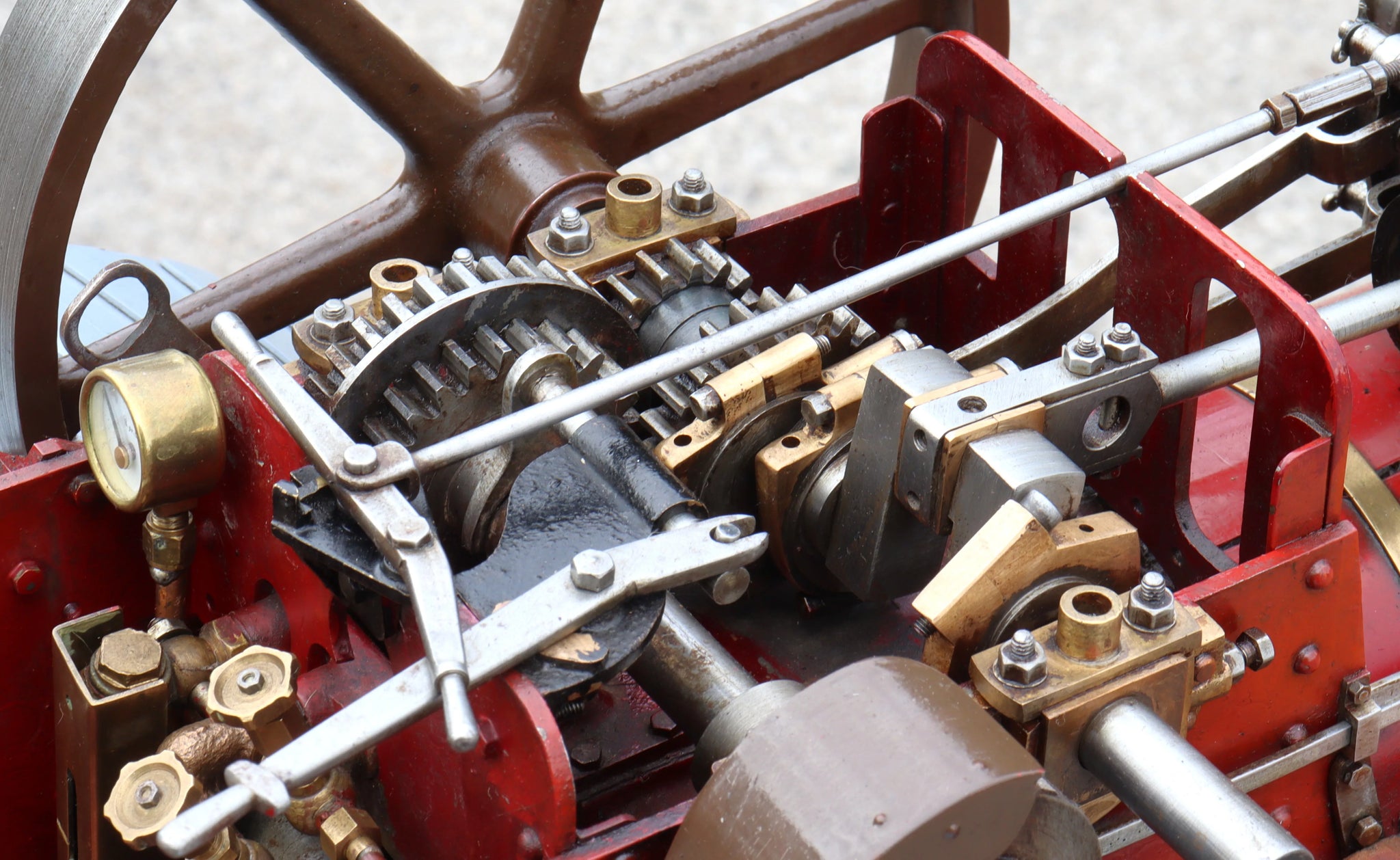

Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
Safety valve type |
Ramsbottom |
Safety valve |
2 |
Road speed |
2 |
