1 1/2 inch scale Allchin agricultural engine

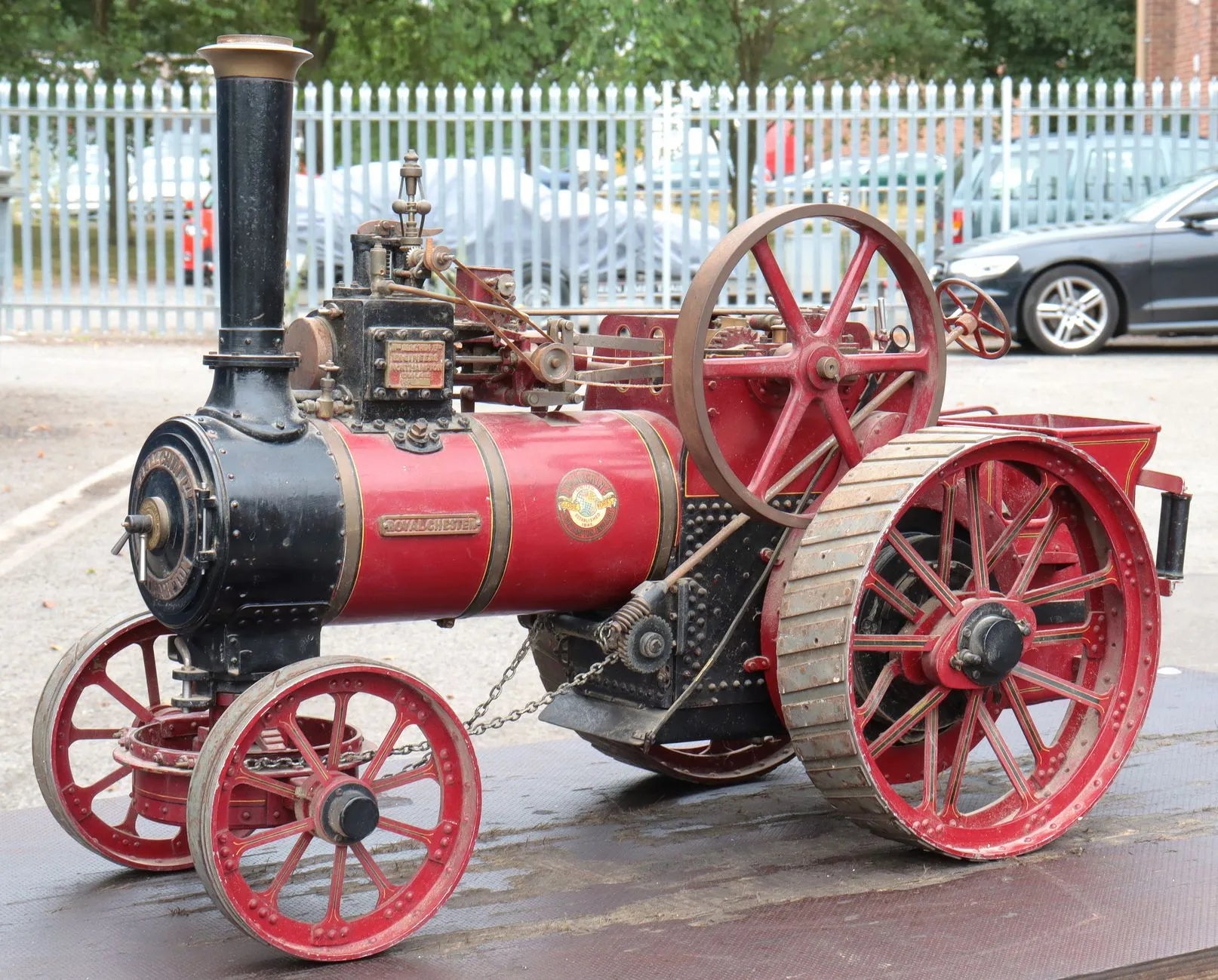

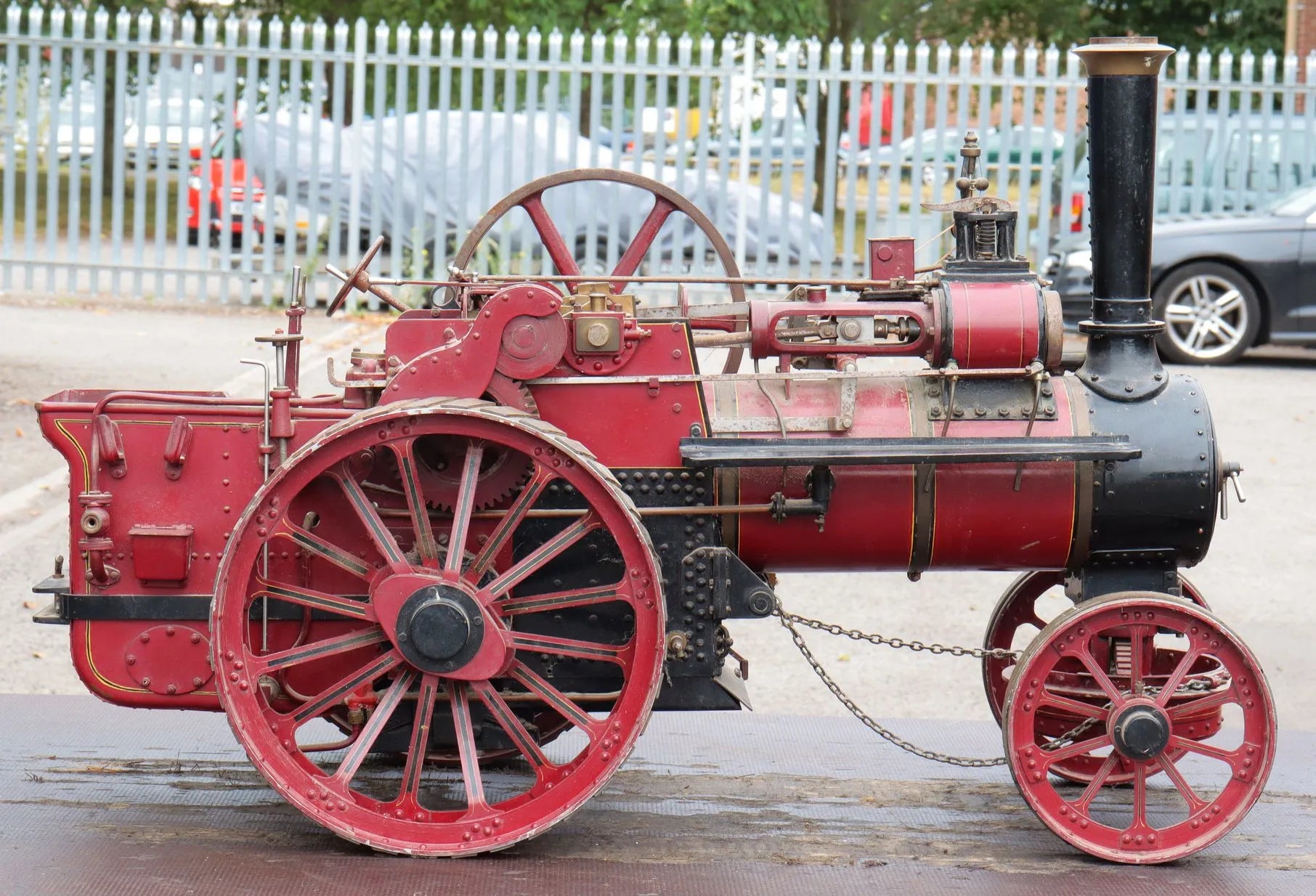

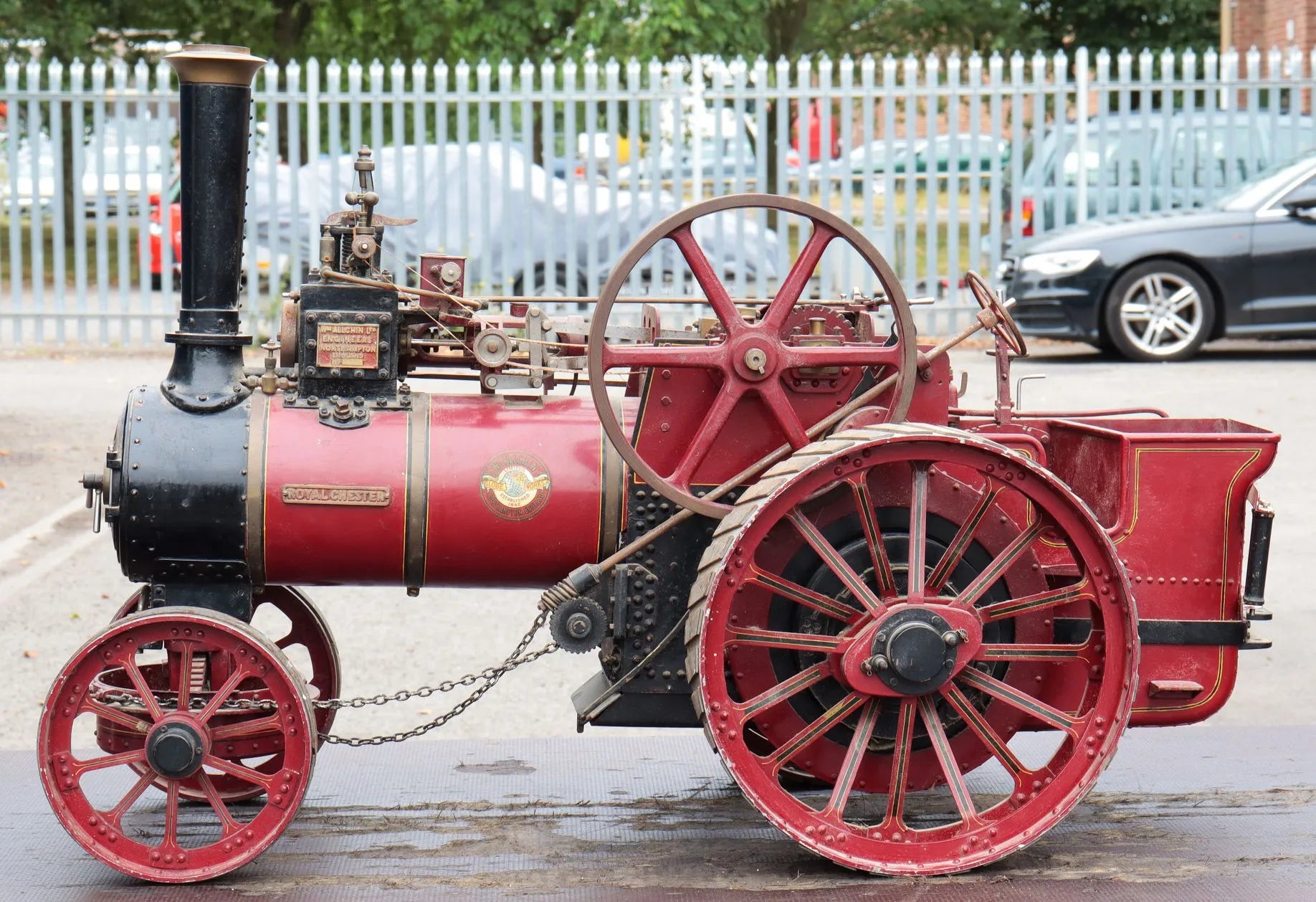

A "barn find" 1 1/2 inch scale Allchin agricultural engine, built to Bill Highes' popular "Royal Chester" design.

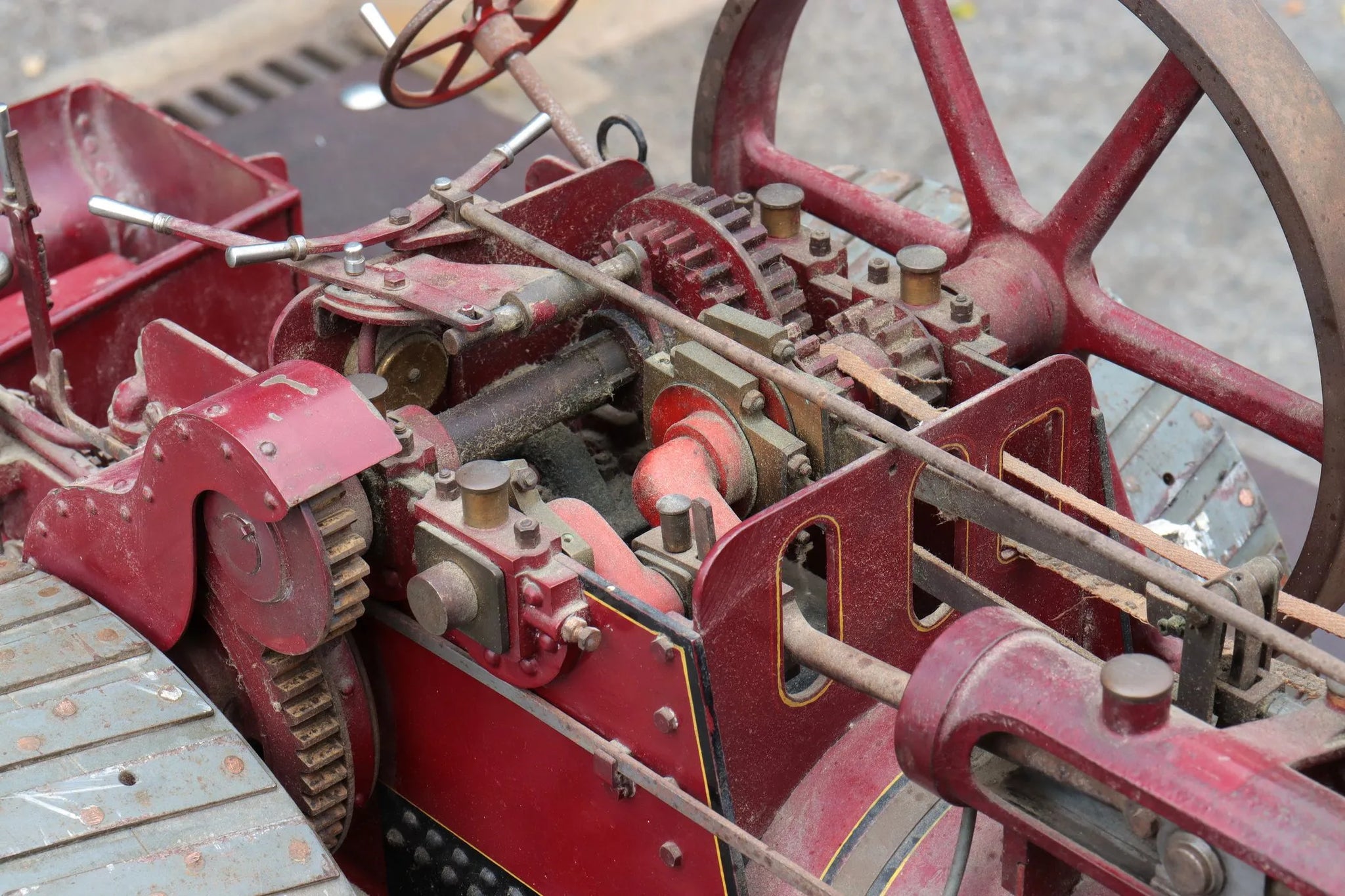

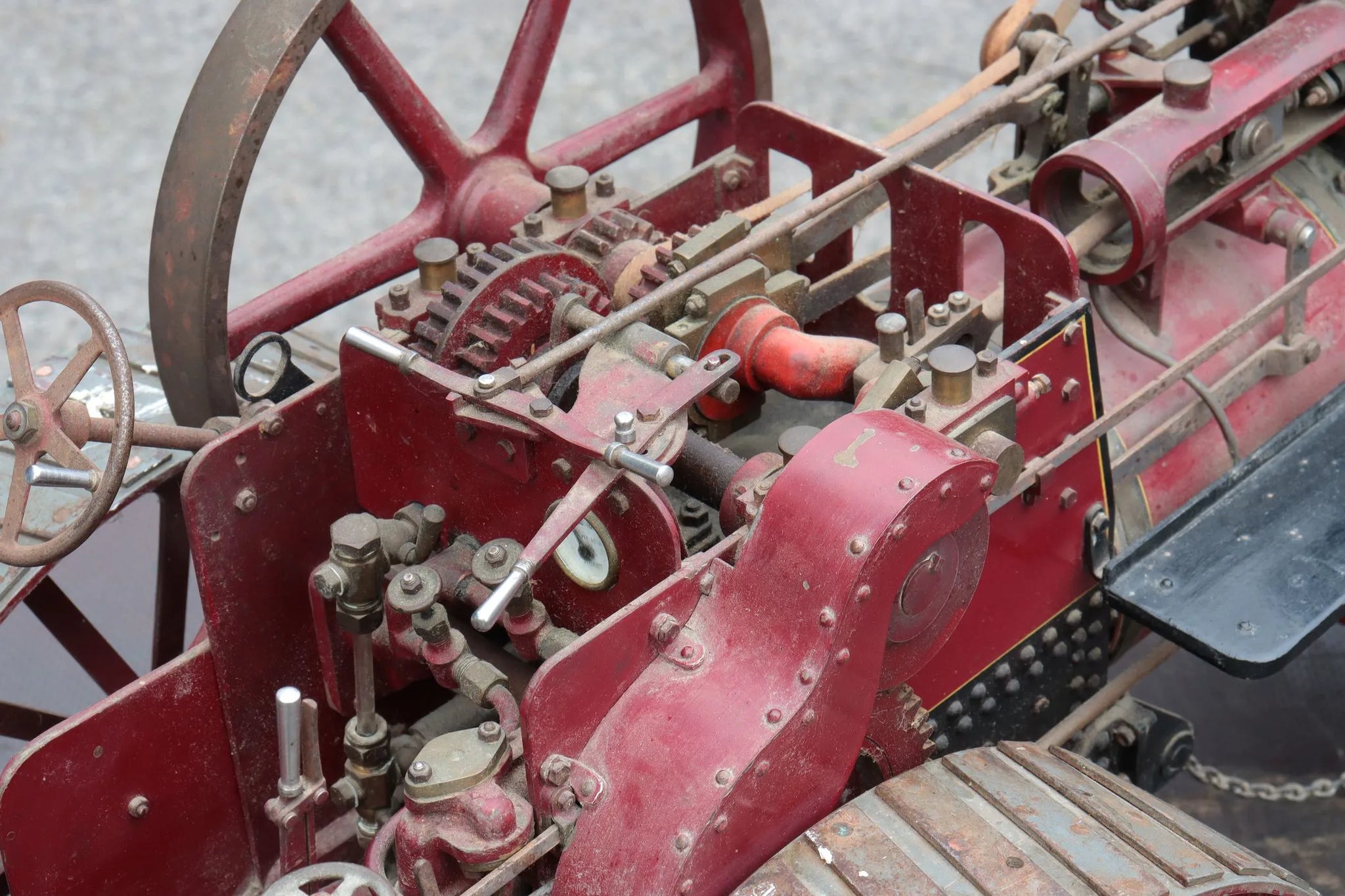

In immensely grubby condition with light surface rust to all brightwork, faded paintwork and a bent fairlead bracket. However - and despite initial impressions - underneath is a nicely made model, the fit and finish of motionwork and gearing was originally done to a high standard.

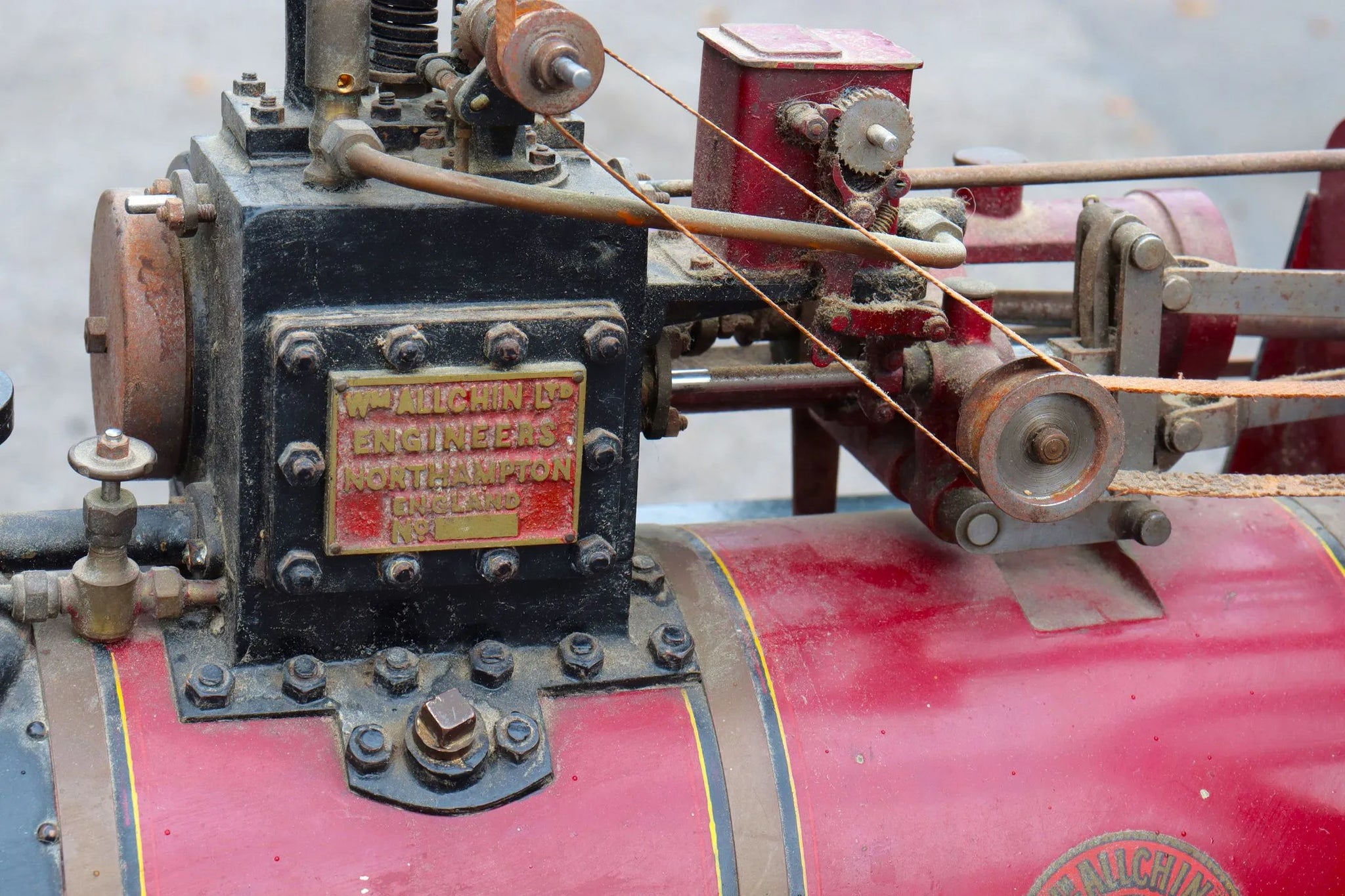

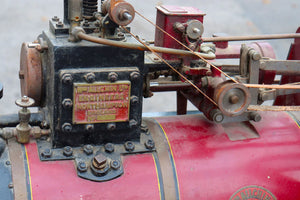

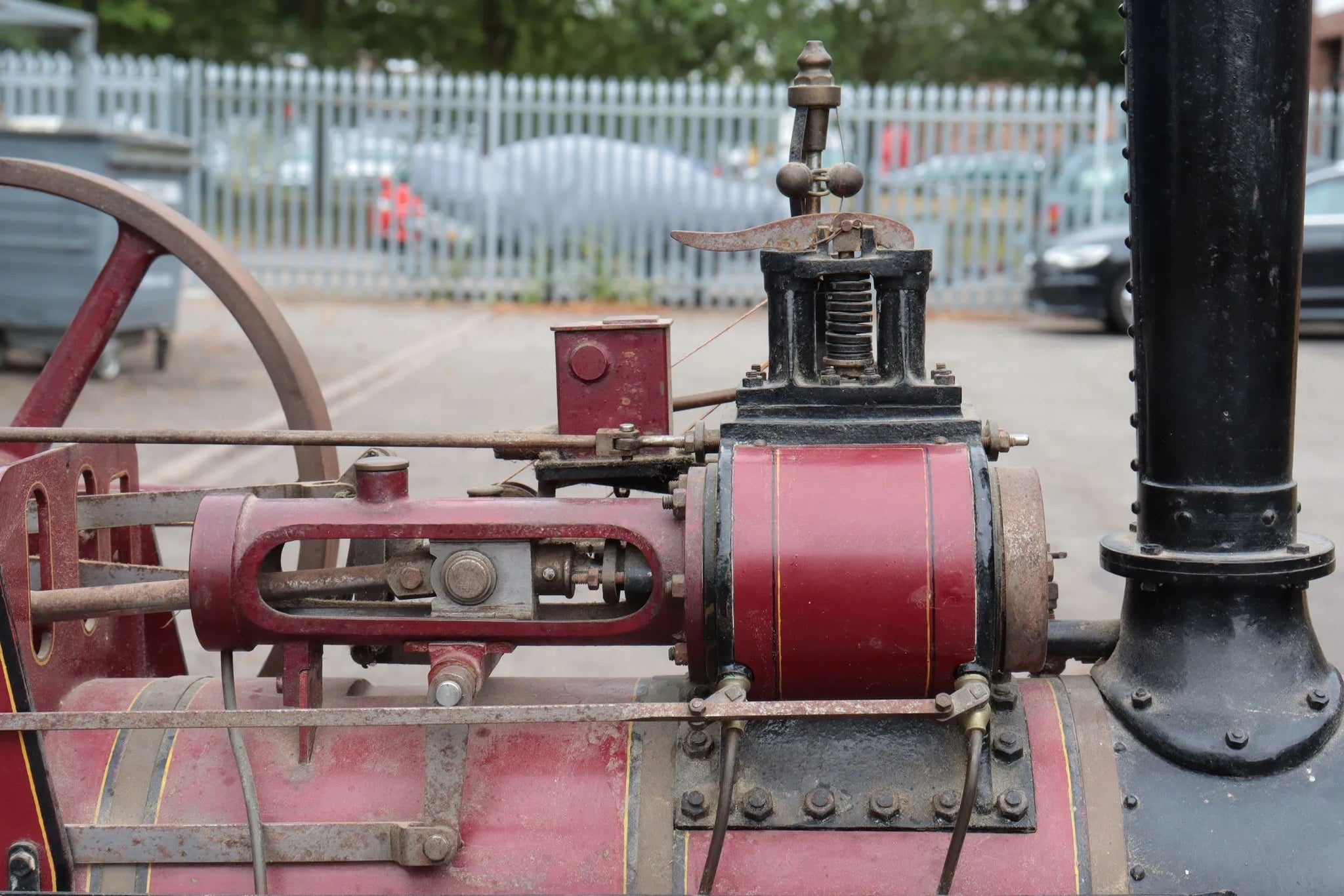

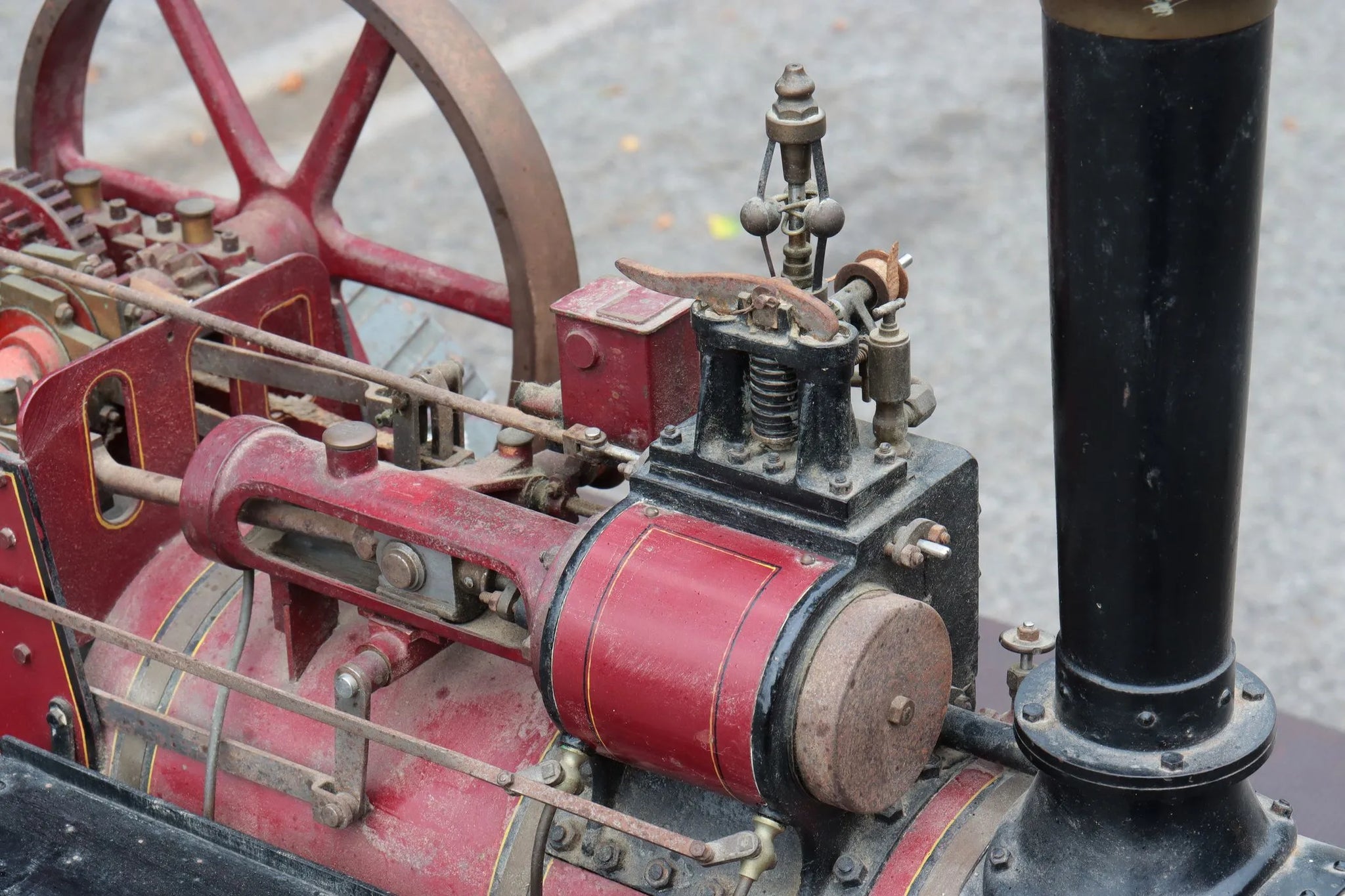

The engine turns over stiffly, although without tight spots - the cylinder and valve chest covers need to be removed to check, clean and thoroughly lubricate the moving parts within, we suspect it would be an engine transformed.

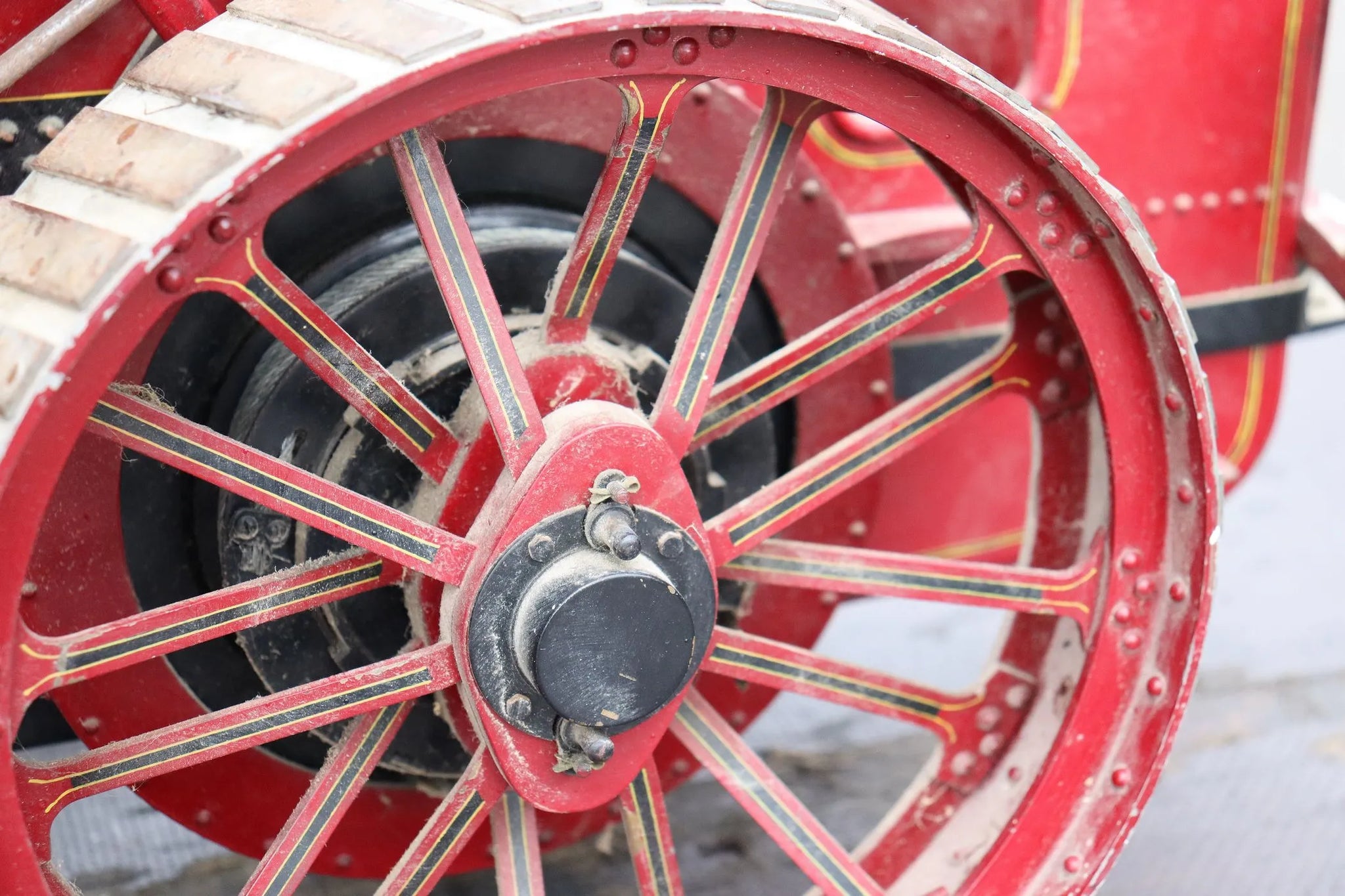

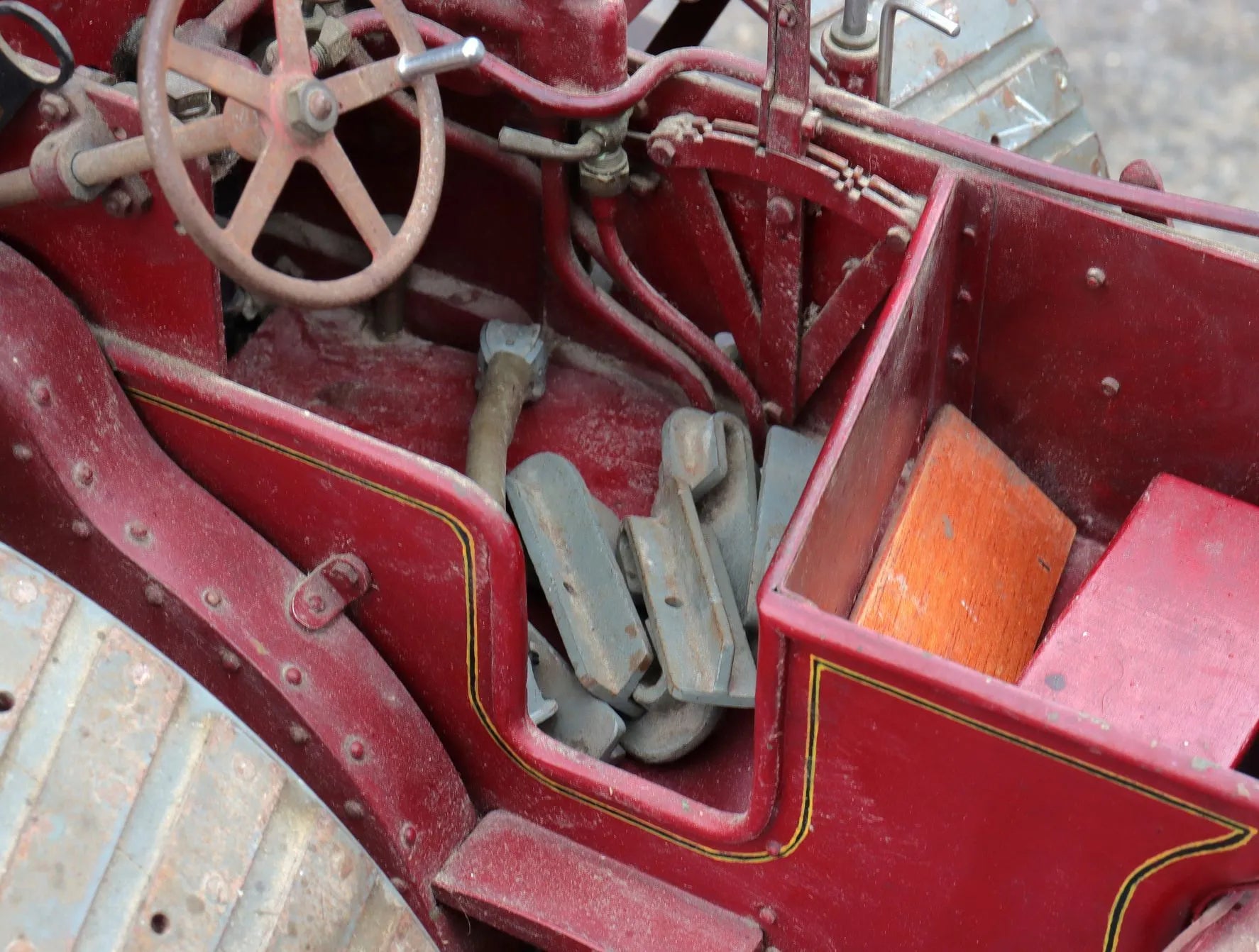

Complete with a handful of spuds for the back wheels.

Technical information

Stock code

12098

Scale

1 1/2 inch & smaller

Length/inches

26

Width/inches

12

Height/inches

17

Weight/Kg

29

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a non-commercial

Safety valve type

Ramsbottom

Safety valve

2

Governor type

Pickering

Differential

yes

Road speed

2

Whistle

no

Mechanical pump

1

Injector

1

Date out

Aug-24
