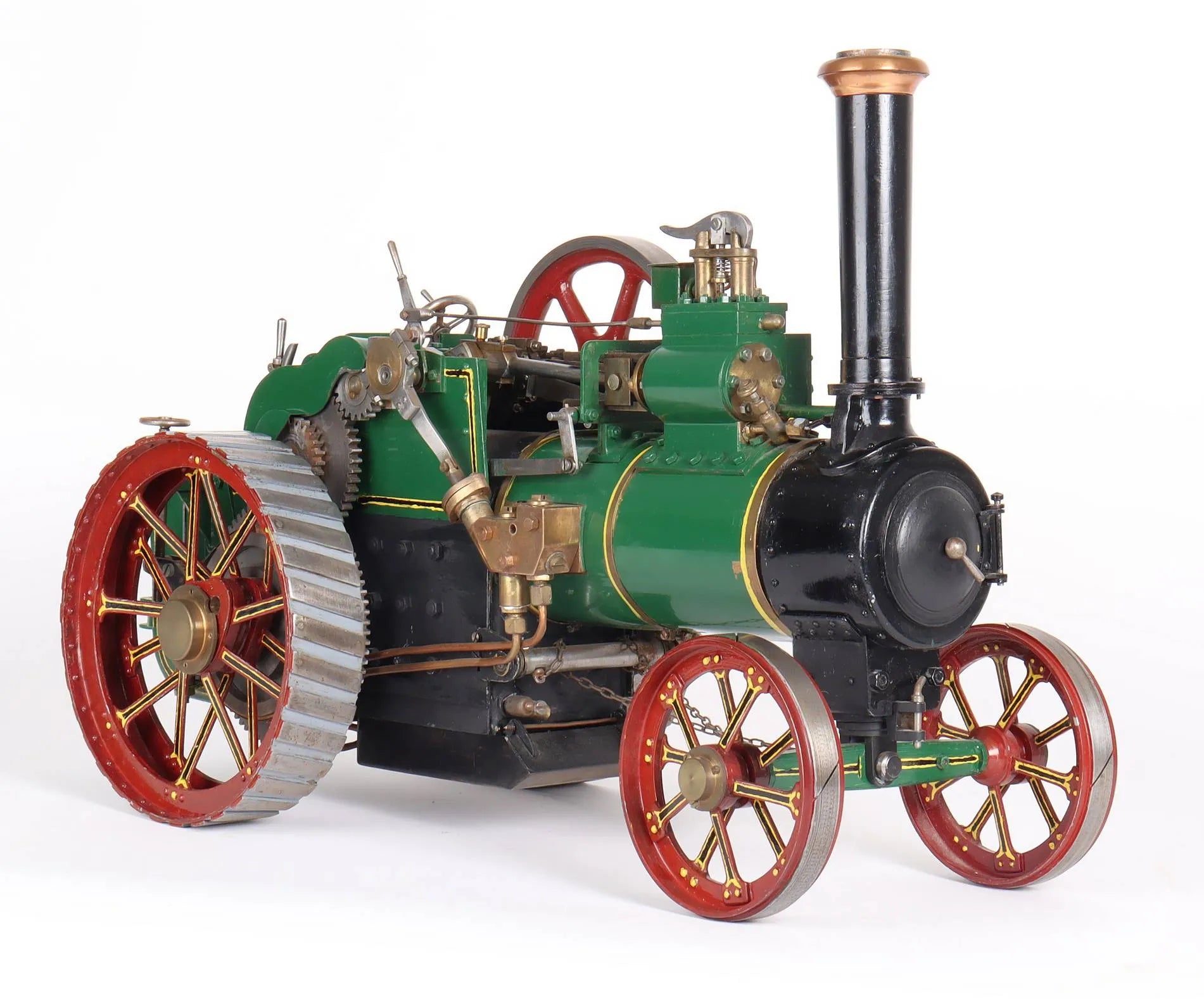

11685

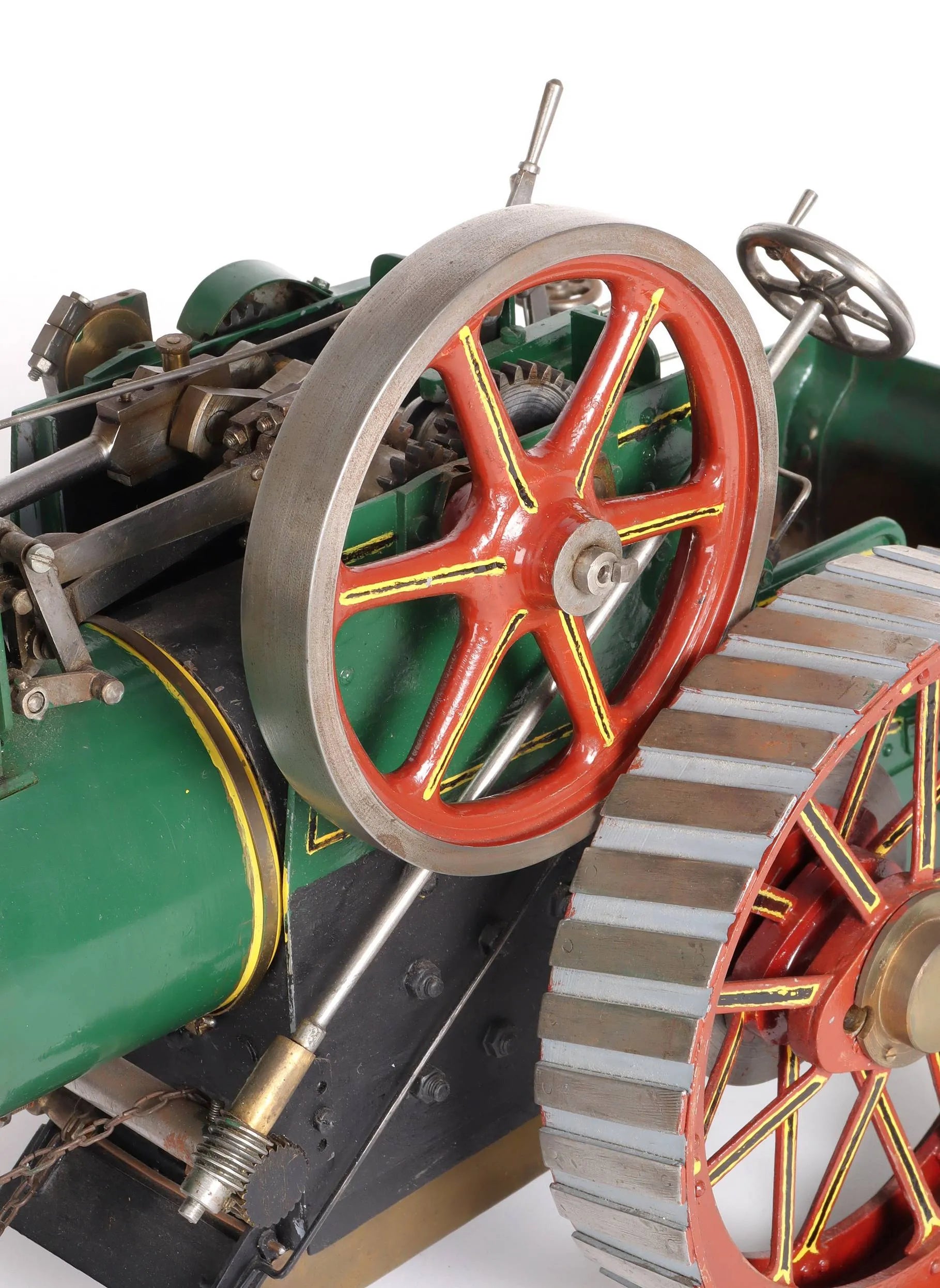

Largely complete, missing top water gauge plug and pressure gauge fitting from fountain; the reverser is stiff to operate and the second shaft gears jammed.
The engine turns over freely although doesn't currently run on air.
Stock code |
11685 |
Scale |
1 inch |
Length/inches |
18 |
Width/inches |
9 |
Height/inches |
13 |
Weight/Kg |
10.5 |
Wheel material |
steel |
Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered, nutted and calked firebox |
Boiler material |
copper |
Working pressure |
50 |
CE/UKCA mark |
n/a non-commercial |
Safety valve type |
Ramsbottom |
Safety valve |
2 |
Road speed |
2 |
Mechanical pump |
1 |
Date out |
Nov-23 |
