8264

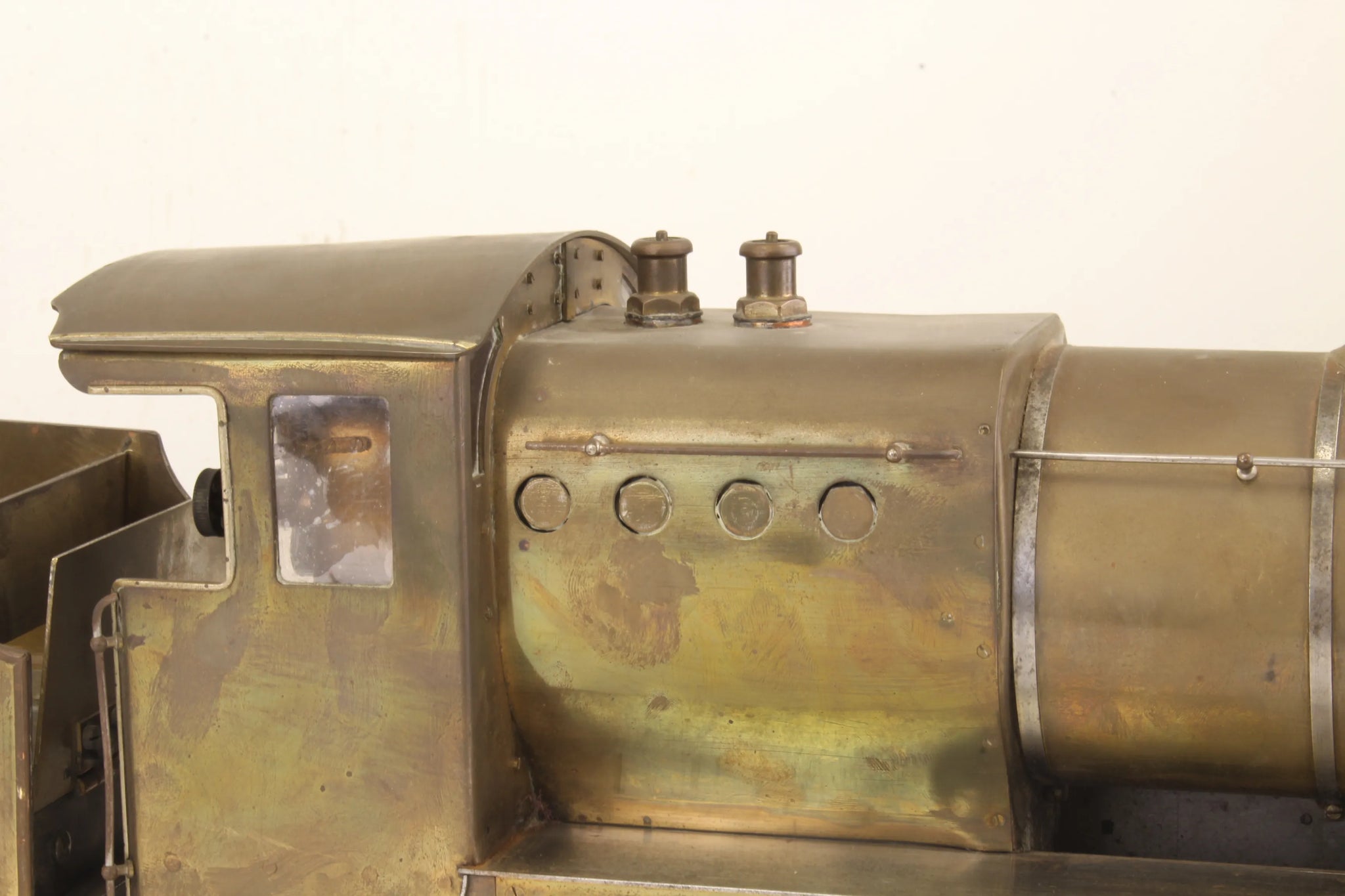

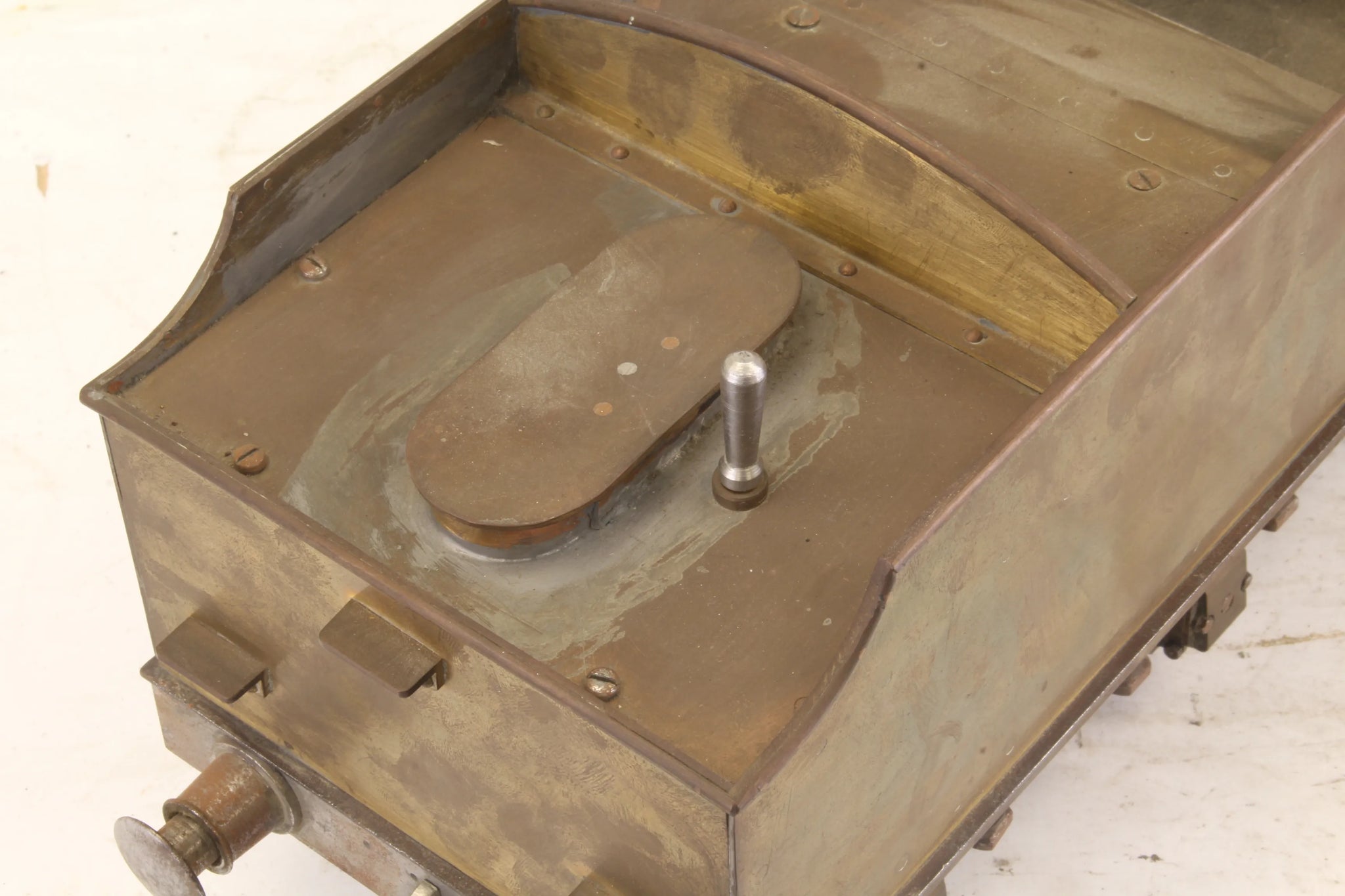

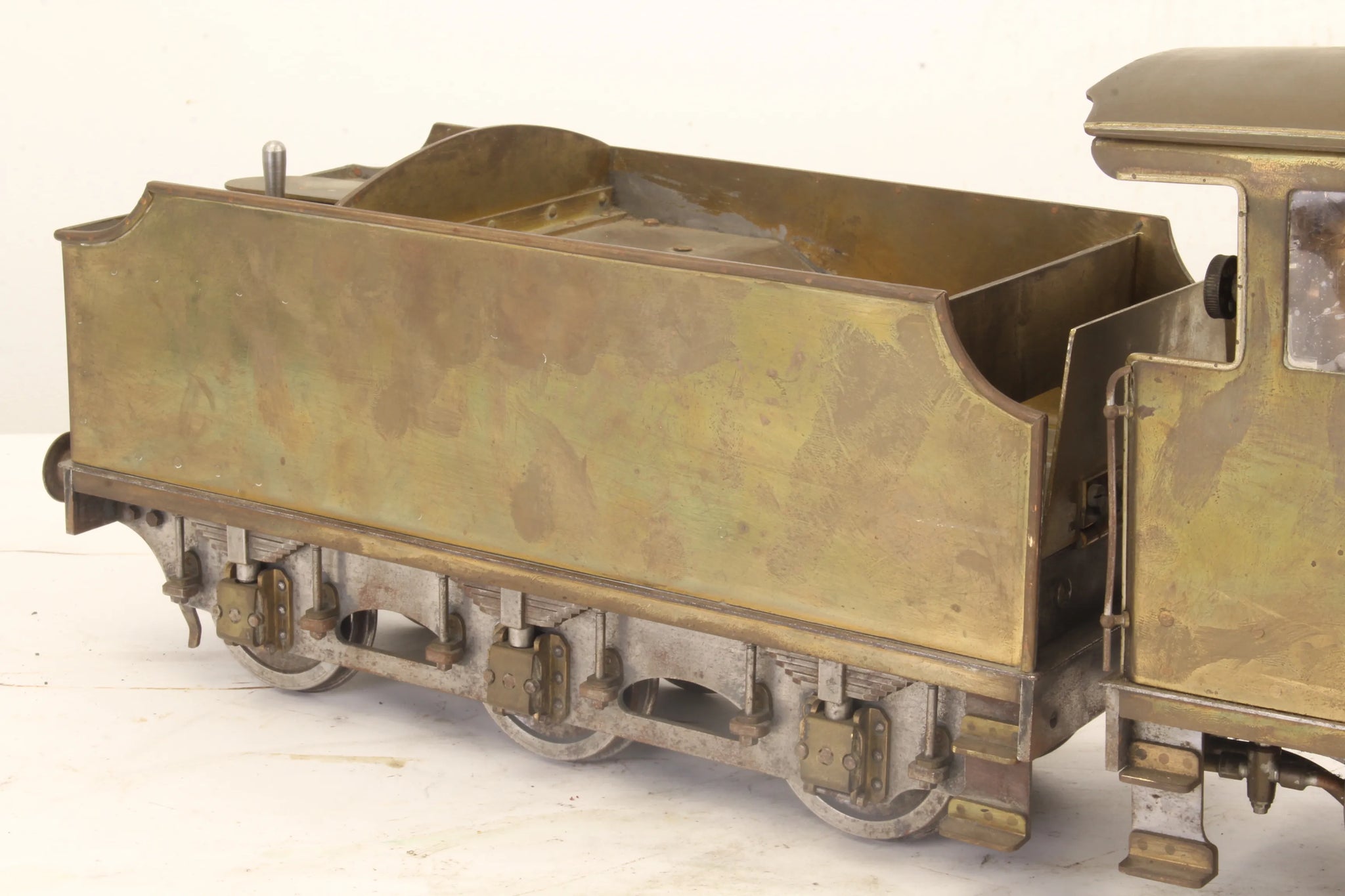

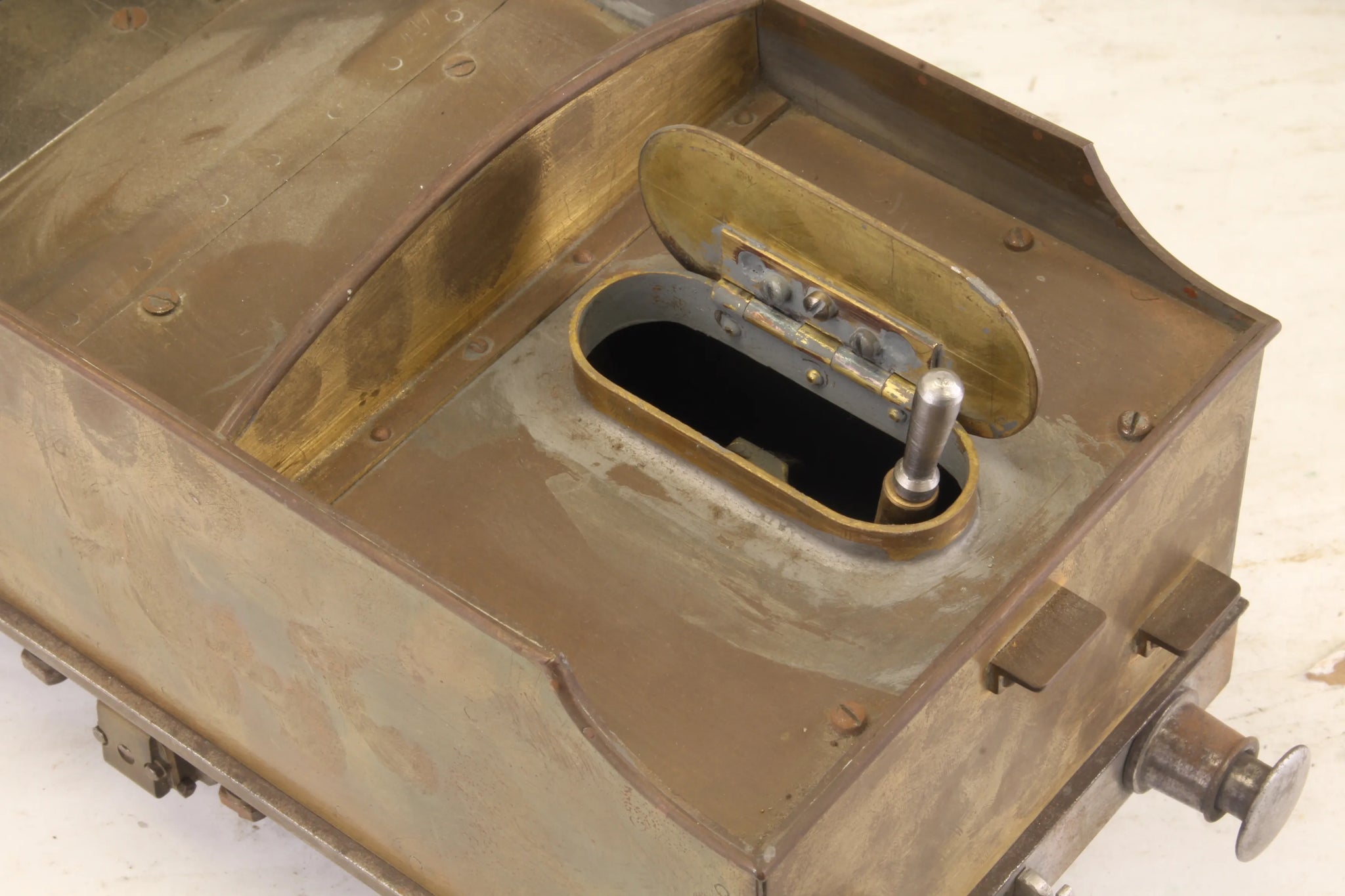

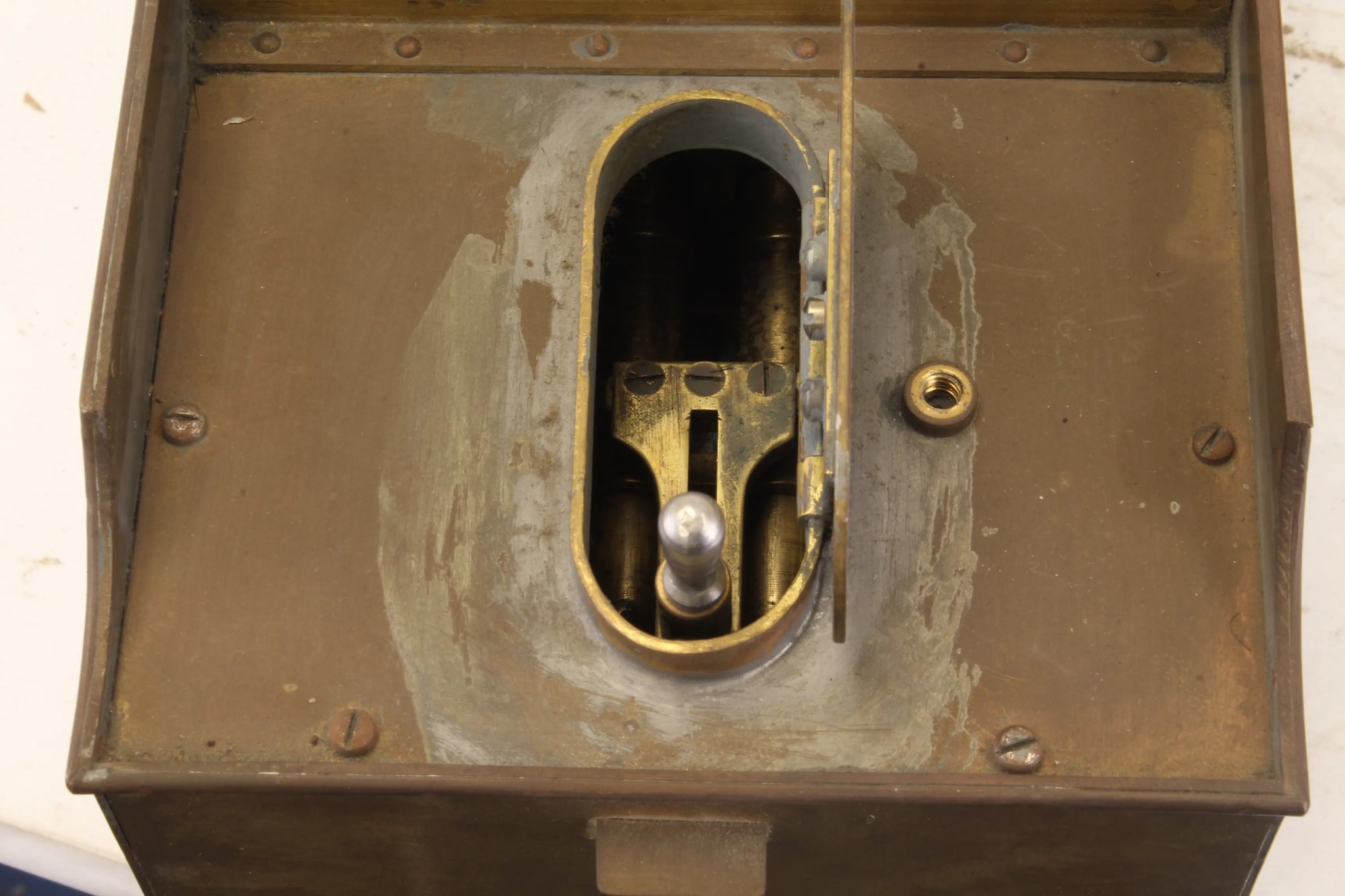

The standard of machining is good throughout, platework neatly formed. The engine is nicely detailed and well thought out - I like the detachable pump handle which has a threaded socket on the tender for storage.
Unpainted, although with evidence of having been steamed in the past, the engine has minor surface corrosion on the bare steel parts - it comes off easily with Scotchbrite.
Stock code |
8264 |
Gauge |
2 1/2 inch |
Length/inches |
19 1/2 + 12 |
Width/inches |
5 |
Height/inches |
8 |
Weight/Kg |
12 + 5 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |

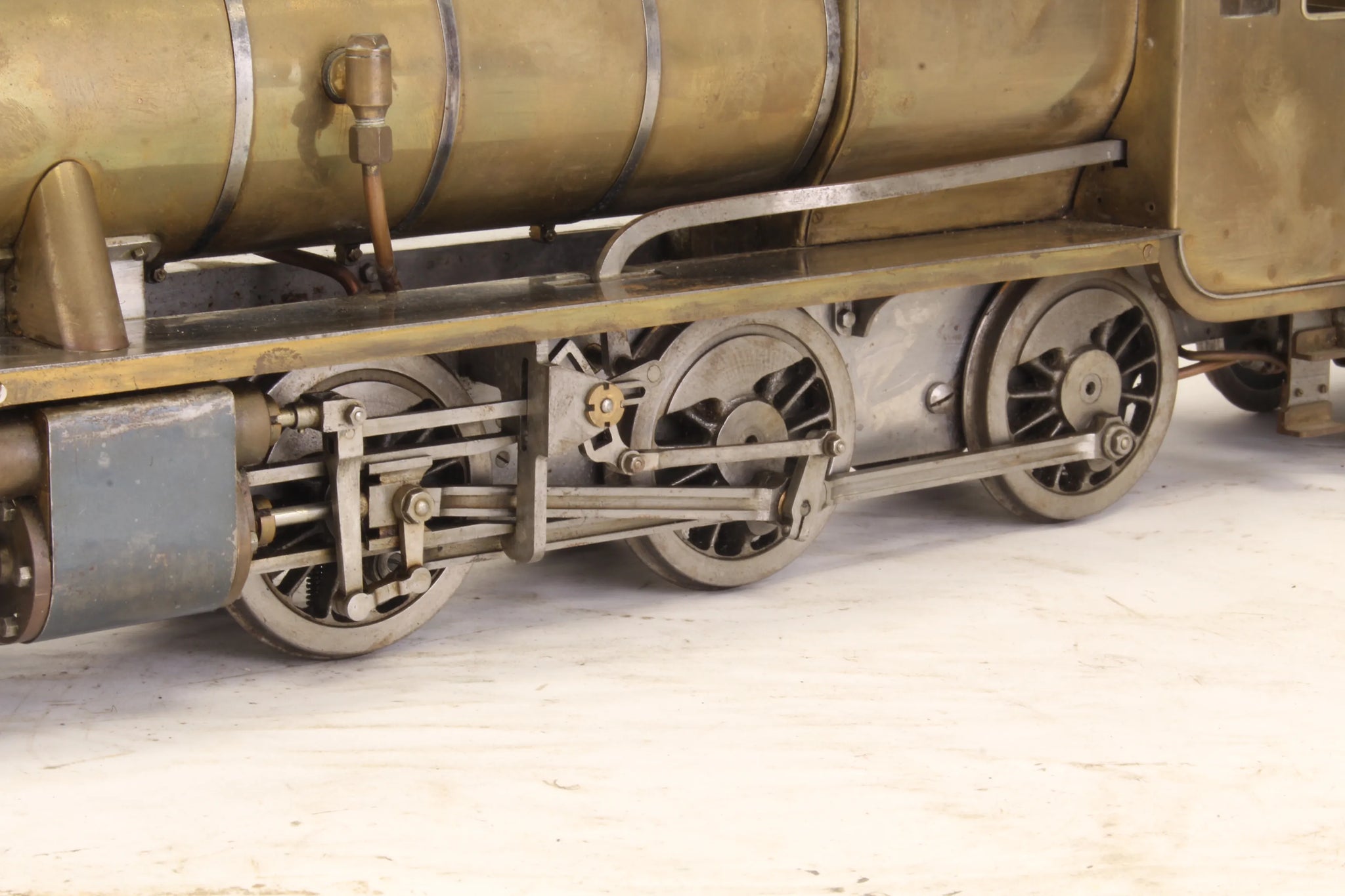

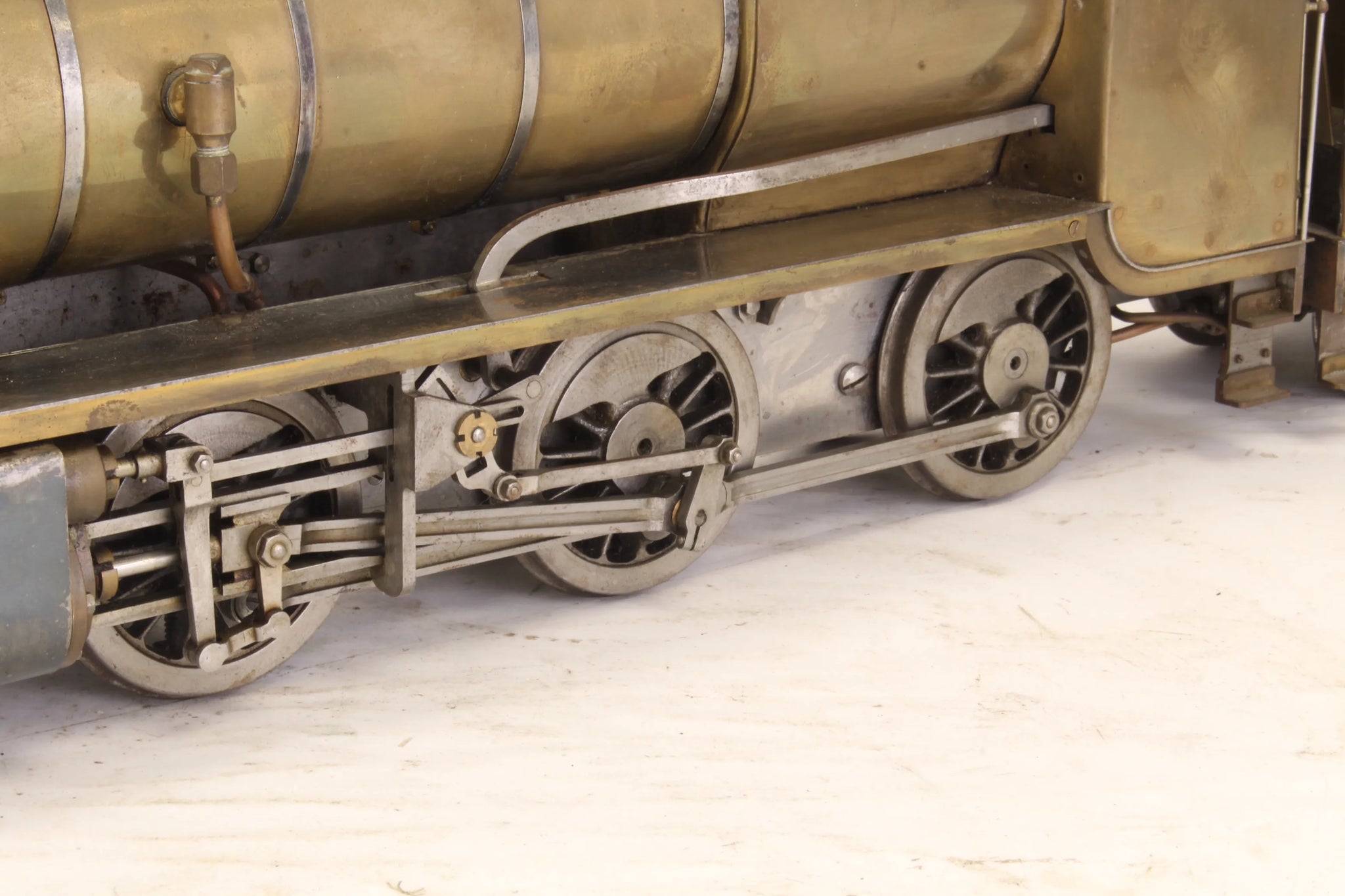

Walschaerts |
Reverser type |
pole |
Lubricator type |
mechanical |
Safety valve type |
spring |
Safety valve |
2 |
Hand pump |
1 |
Mechanical pump |
1 x axle |
Superheater type |
flue tube |
Superheater |
1 |
Date out |
Jan-19 |
