9689

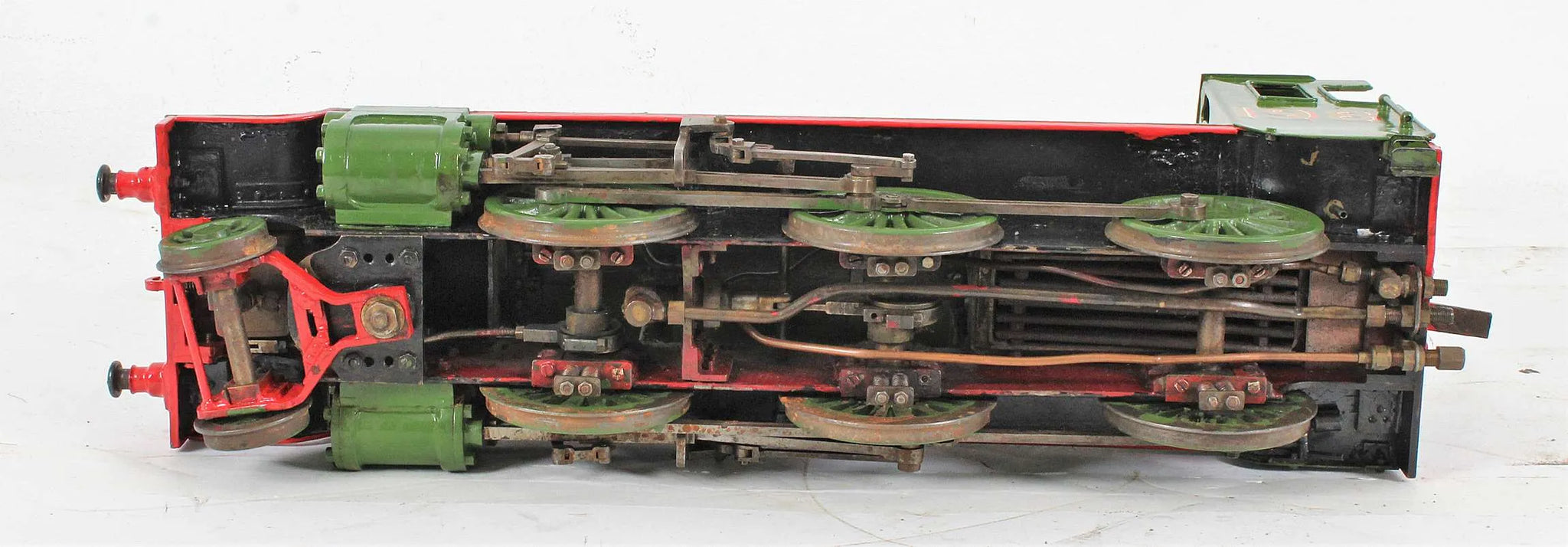

Chassis rolls freely, it runs on air in both directions, although the regulator is currently seized partly open which will require freeing off.
Stock code |
9689 |
Gauge |
2 1/2 inch |
Length/inches |
19 + 12 |
Width/inches |
5 |
Height/inches |
8 |
Weight/Kg |
10 + 4 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |

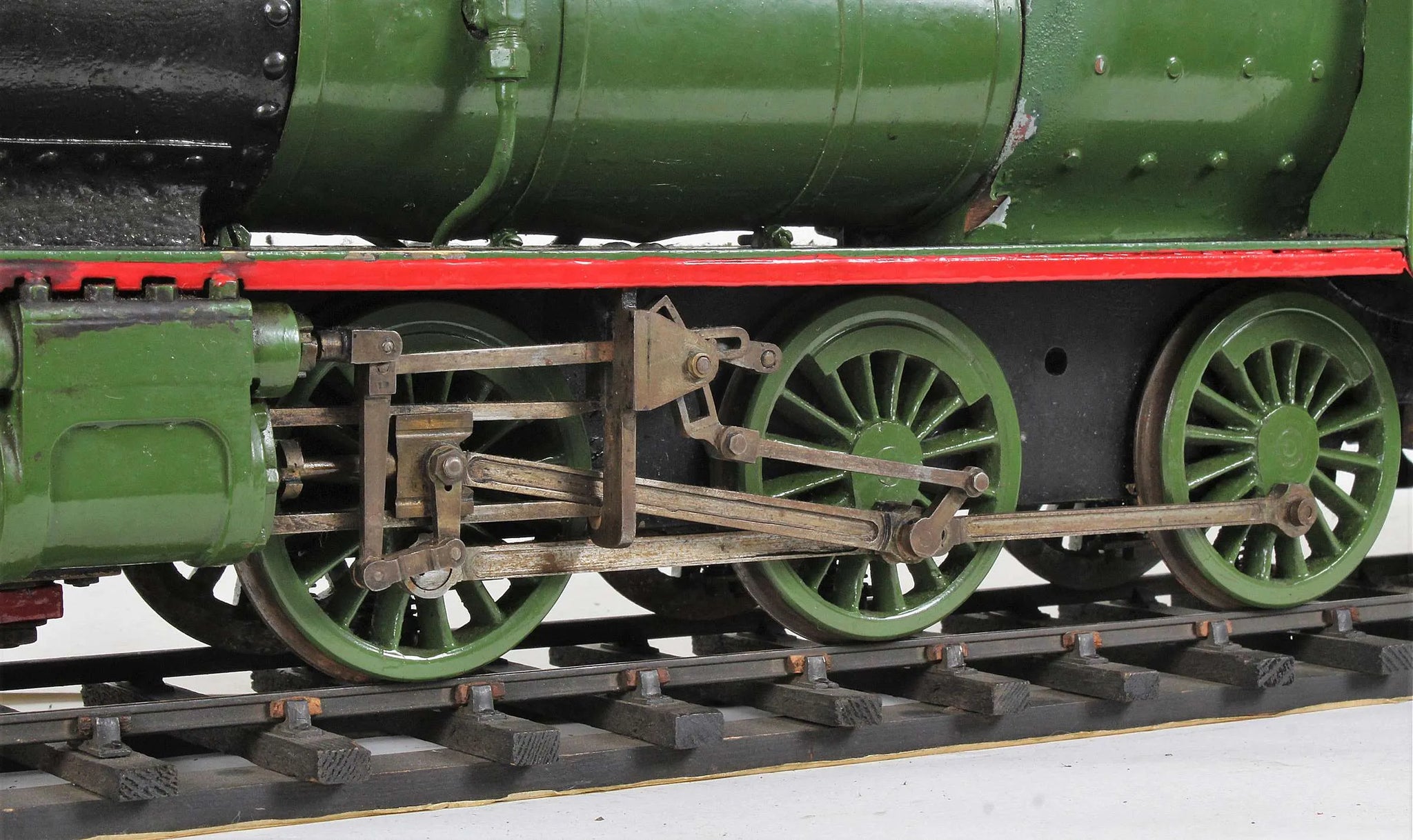

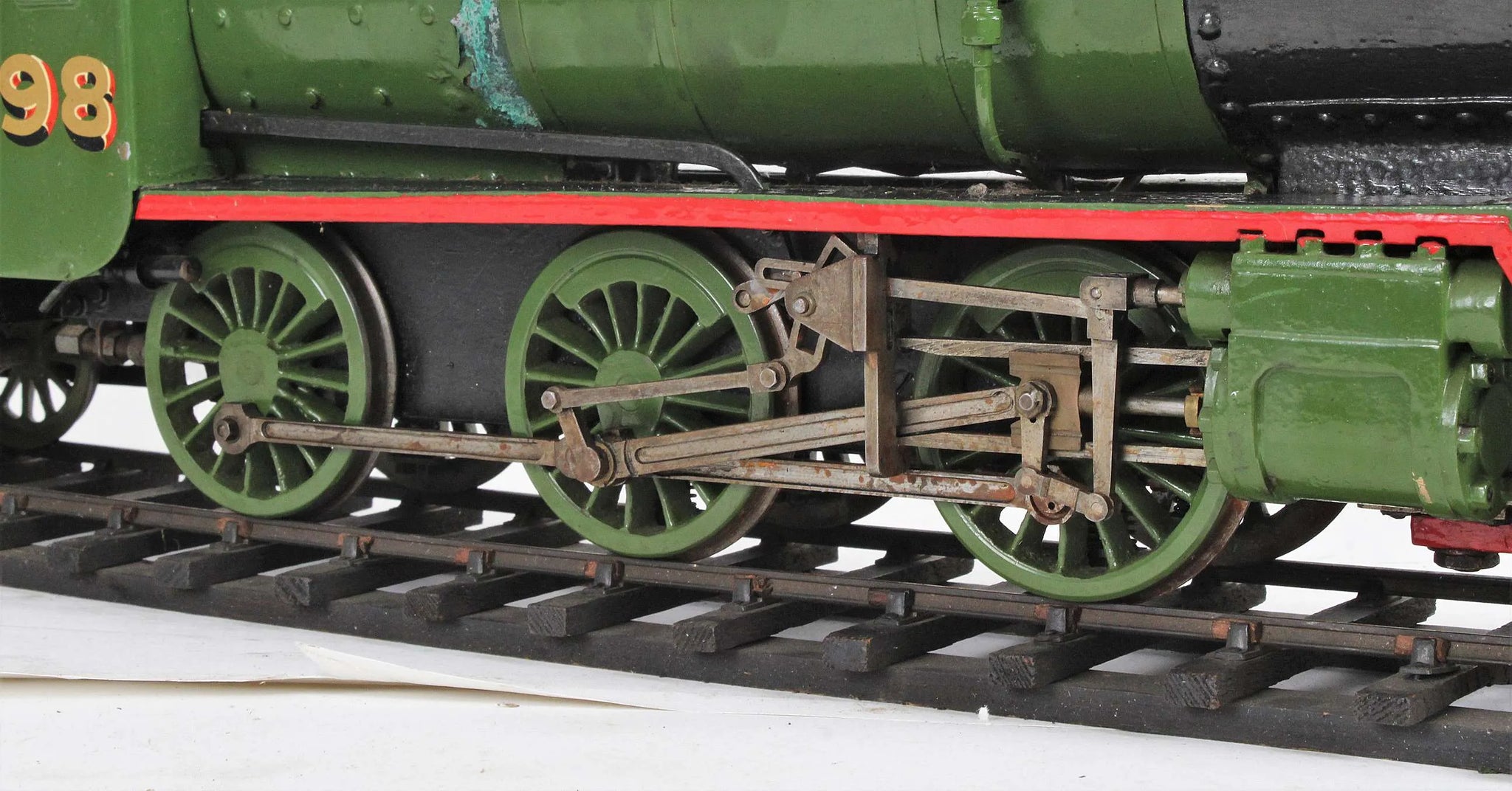

Valve gear |

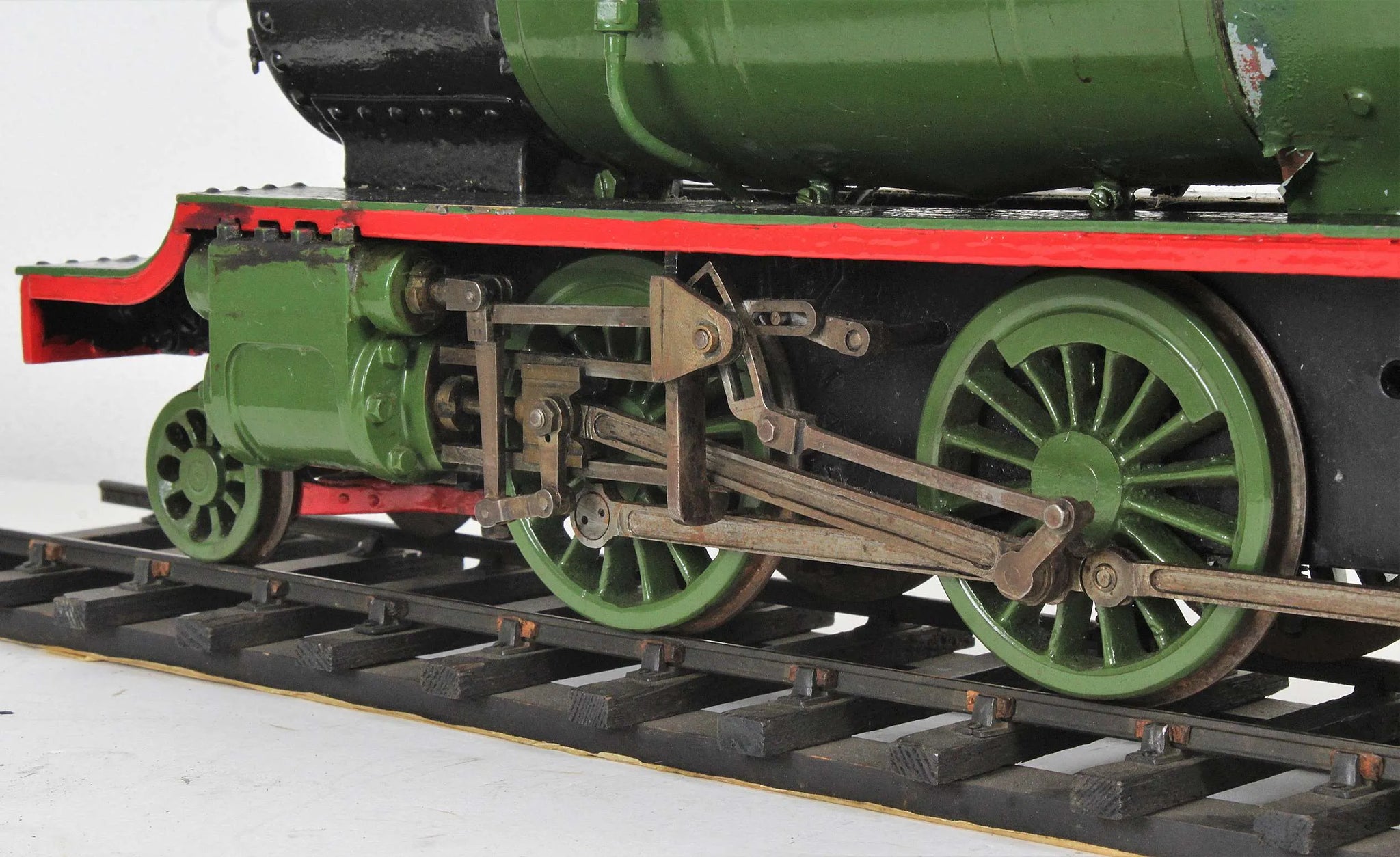

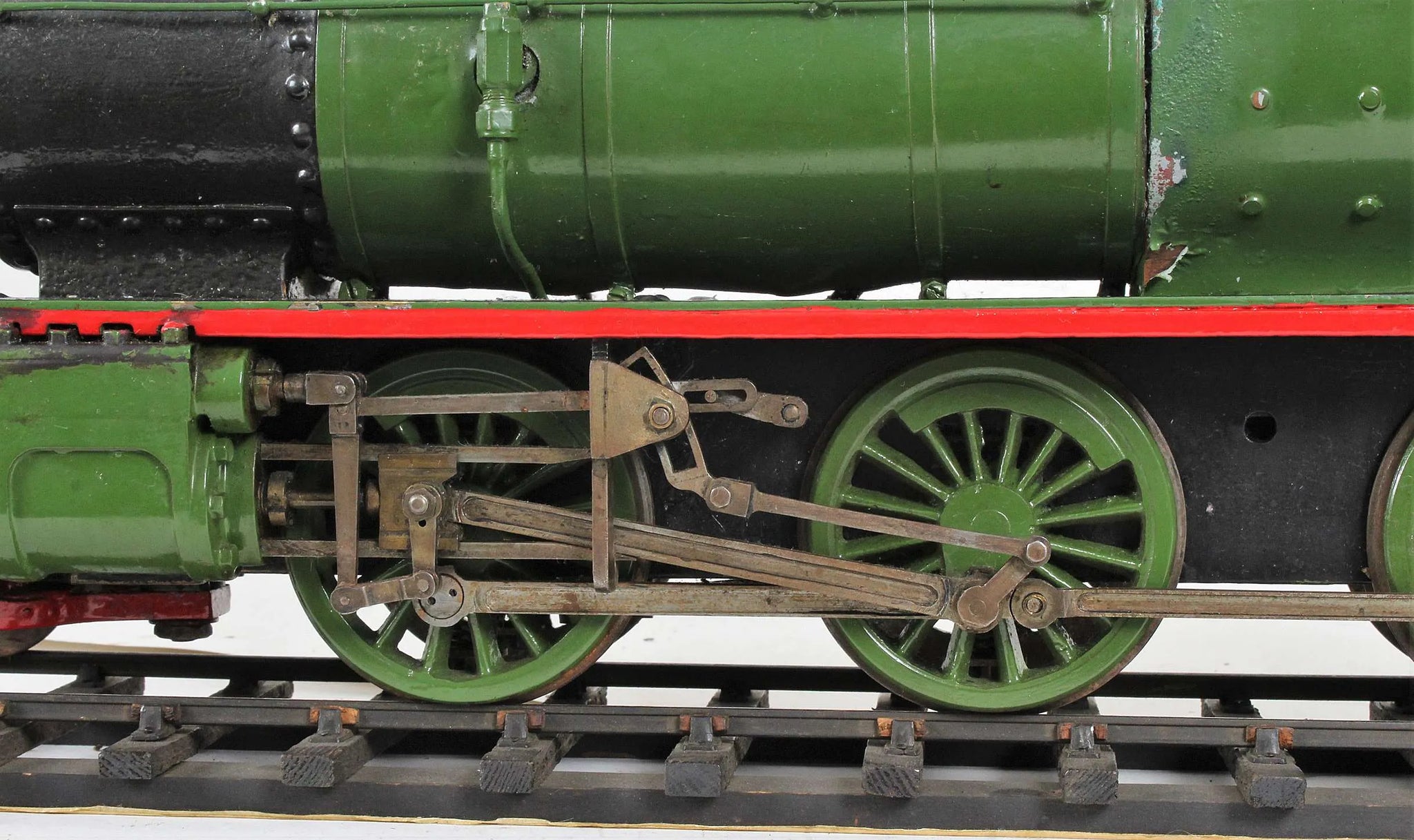

Walschaerts |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Safety valve type |
spring |
Safety valve |
2 |
Hand pump |
1 |
Mechanical pump |
1 |
Superheater type |
flue tube |
Superheater |
1 |
Date out |
Oct-21 |
