2 1/2 inch gauge LMS 2P 4-4-0

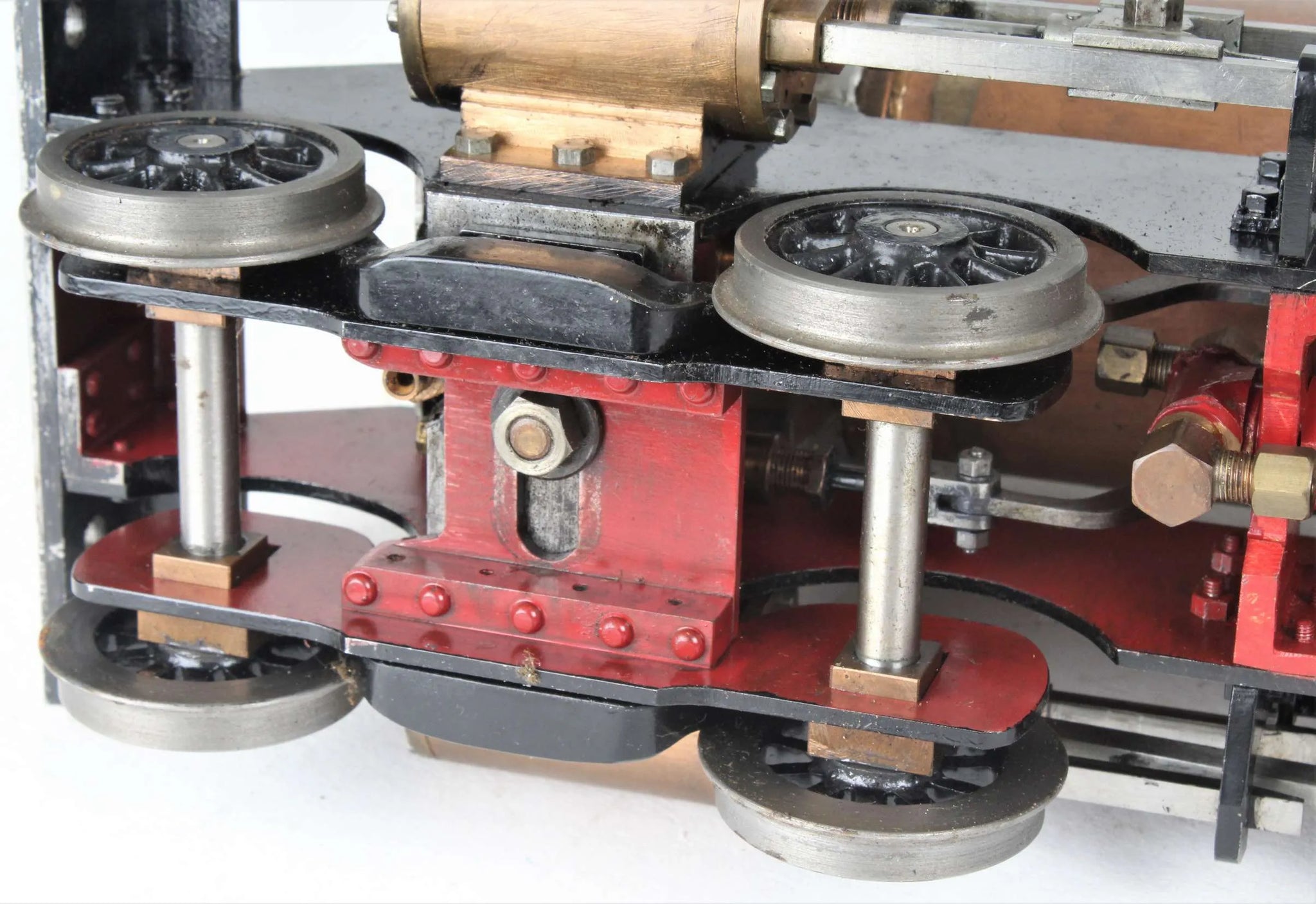

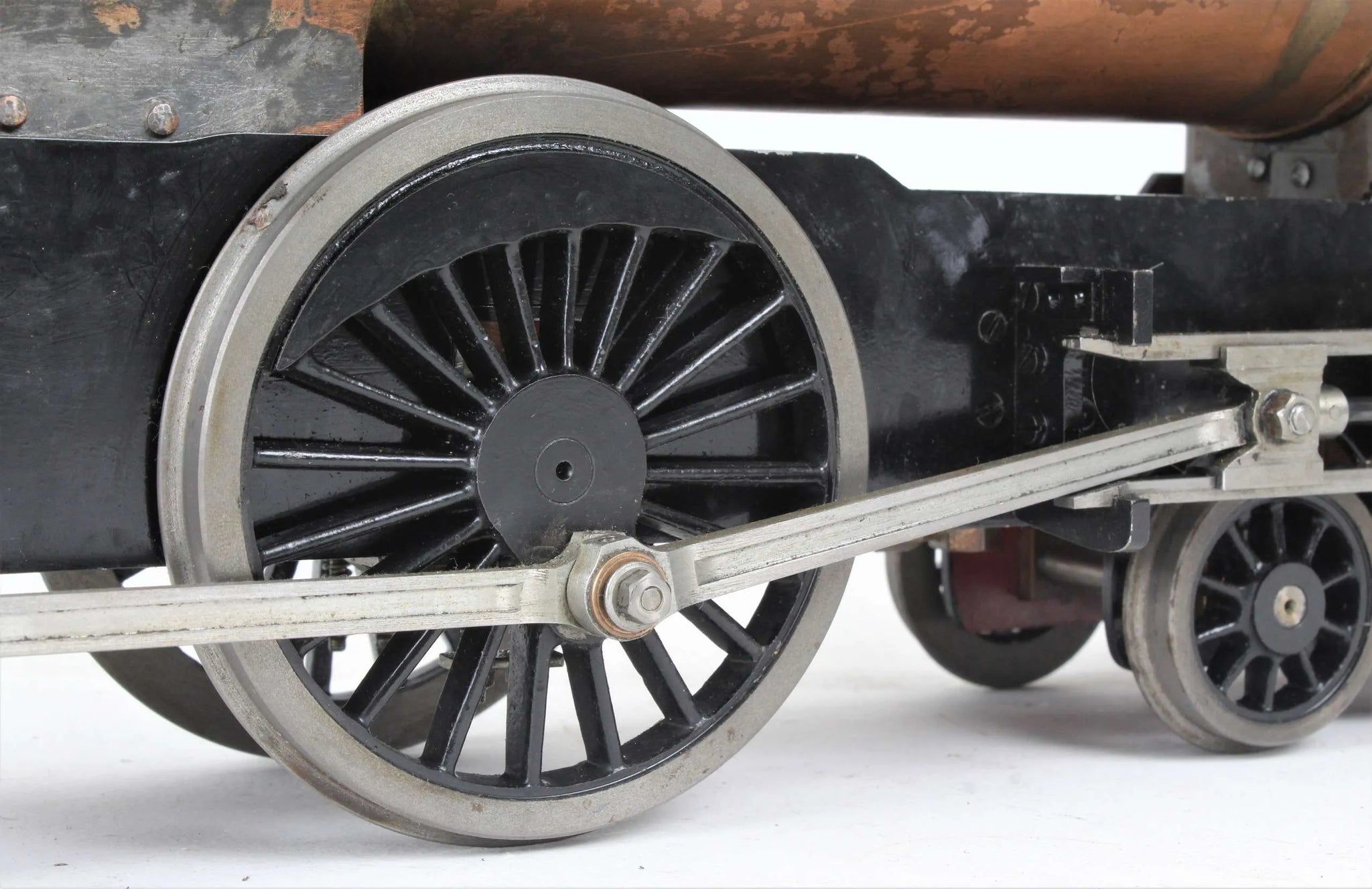

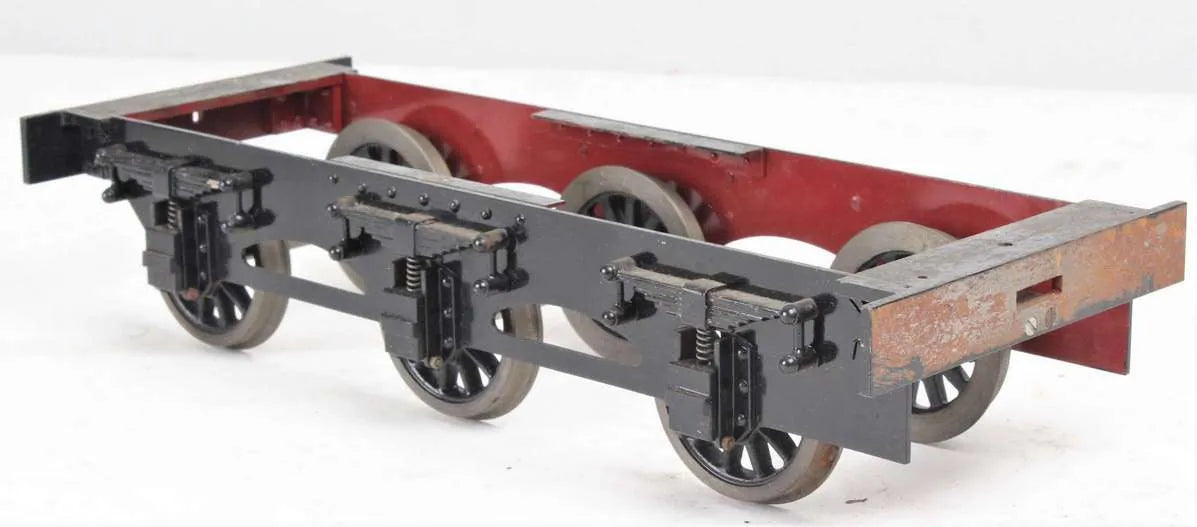

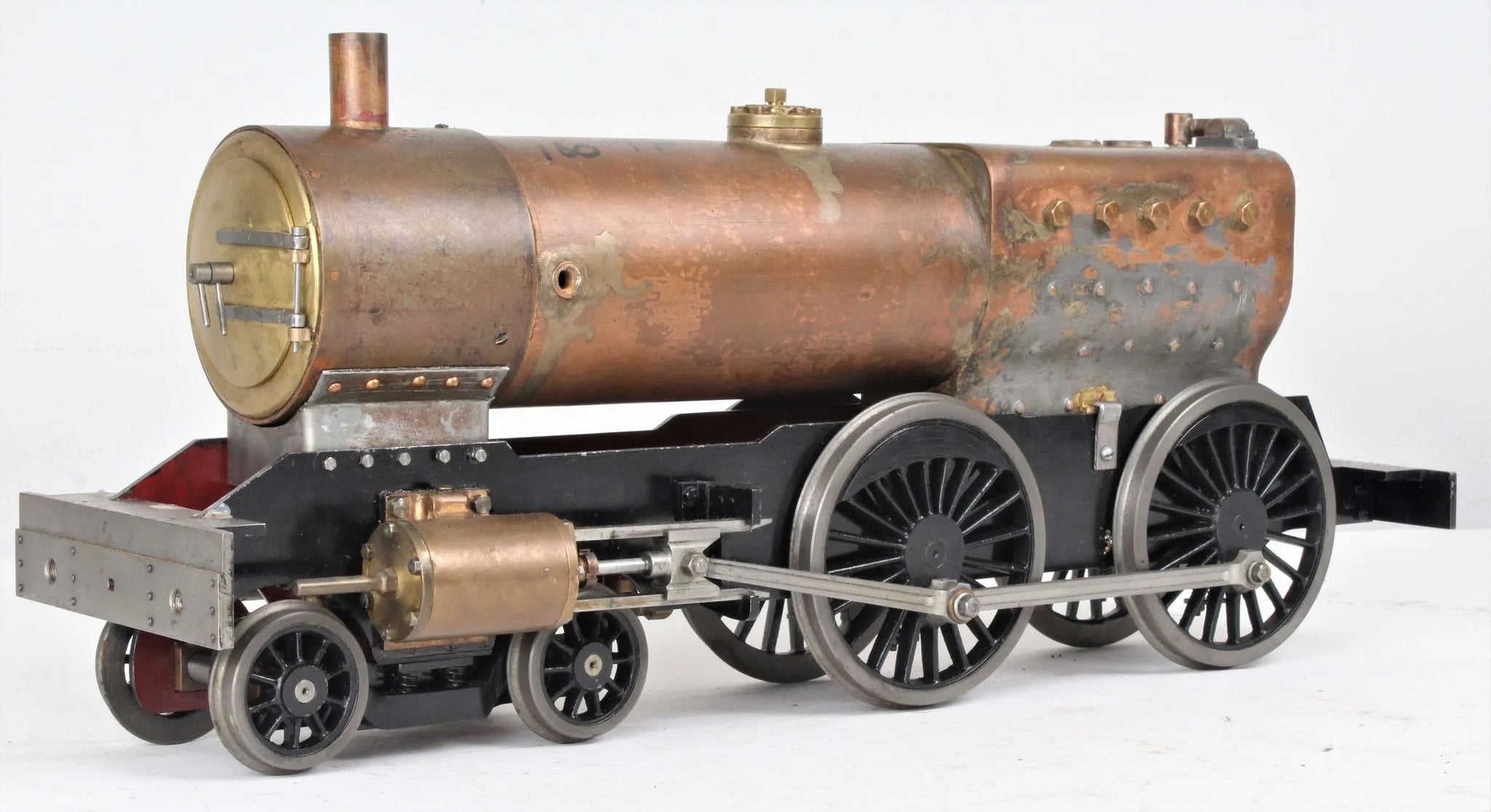

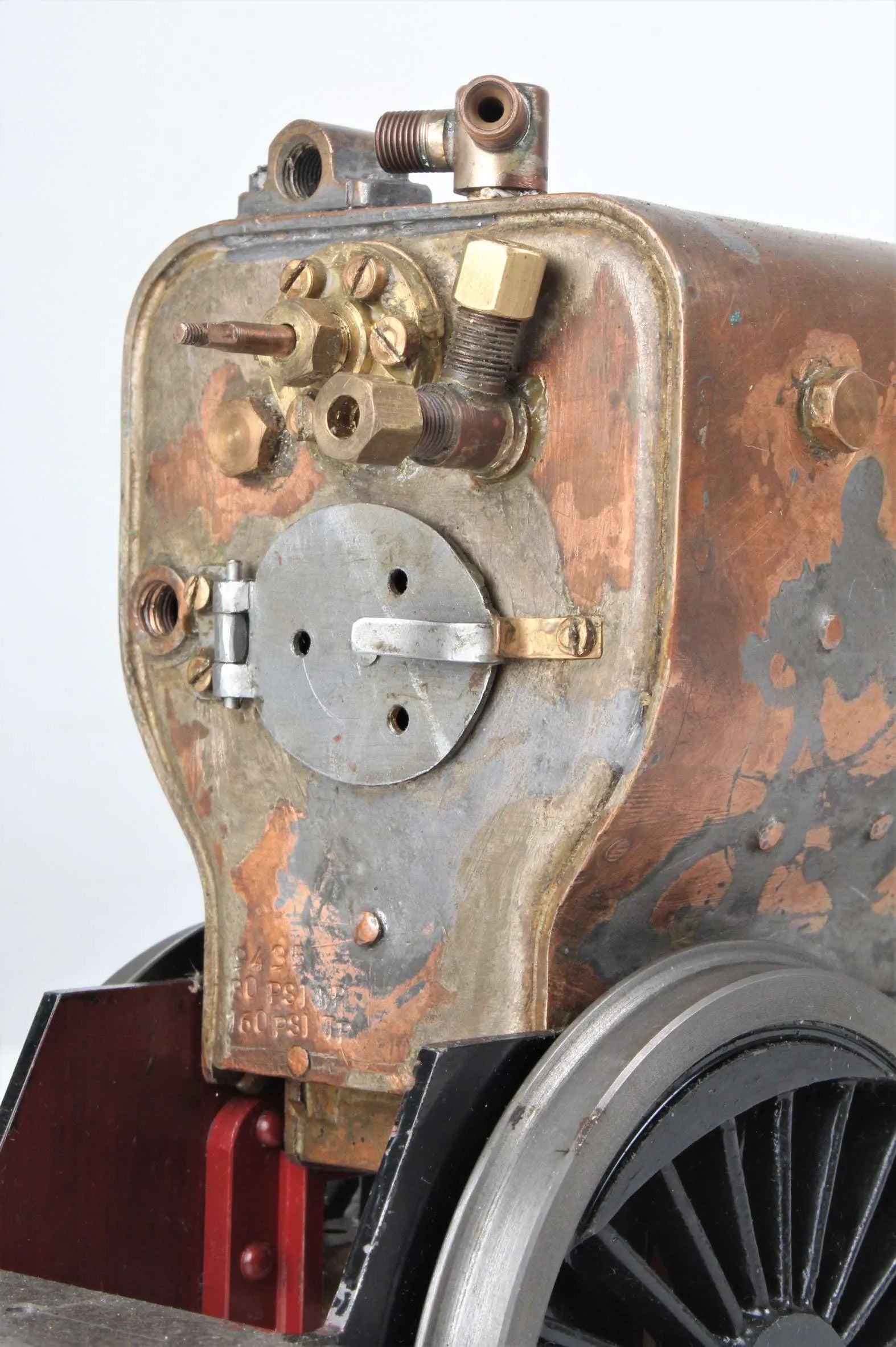

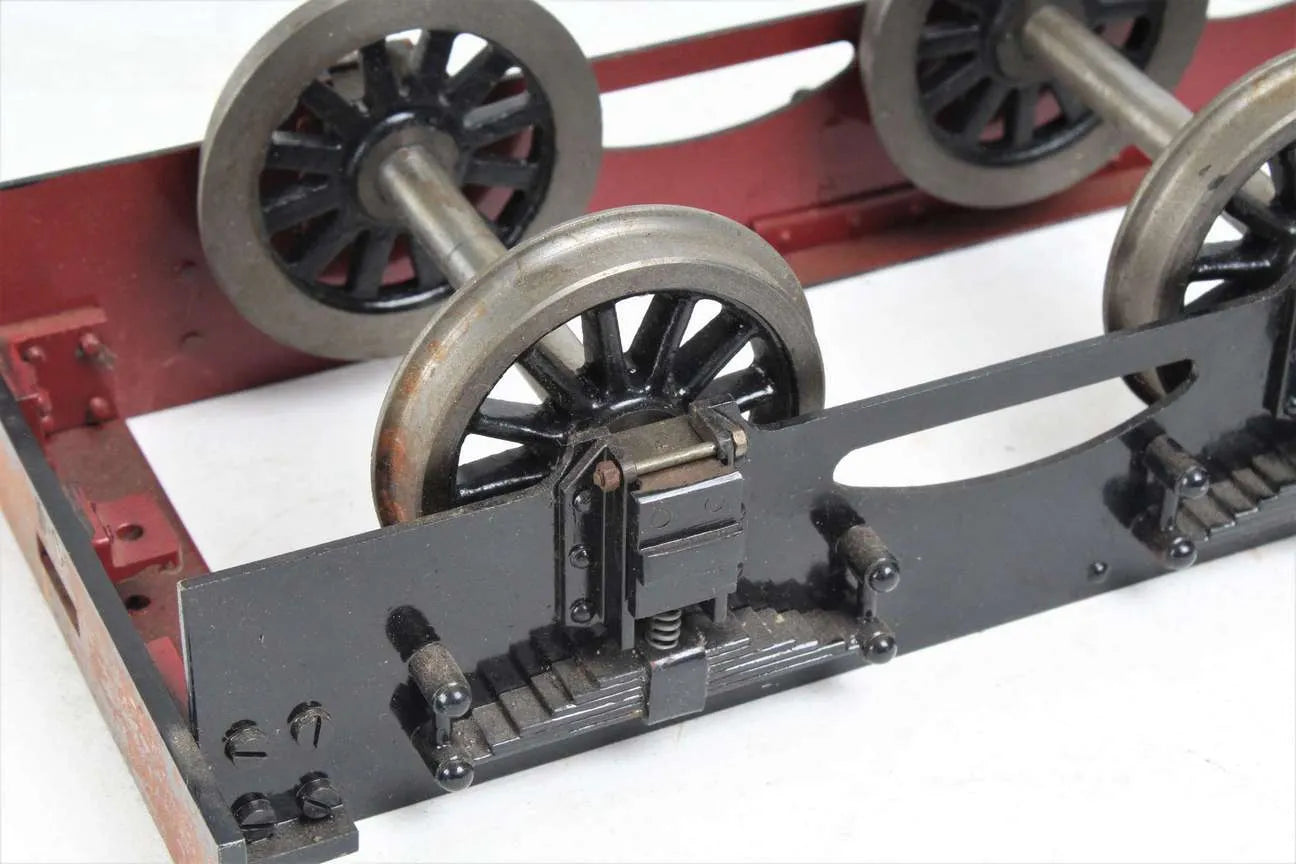

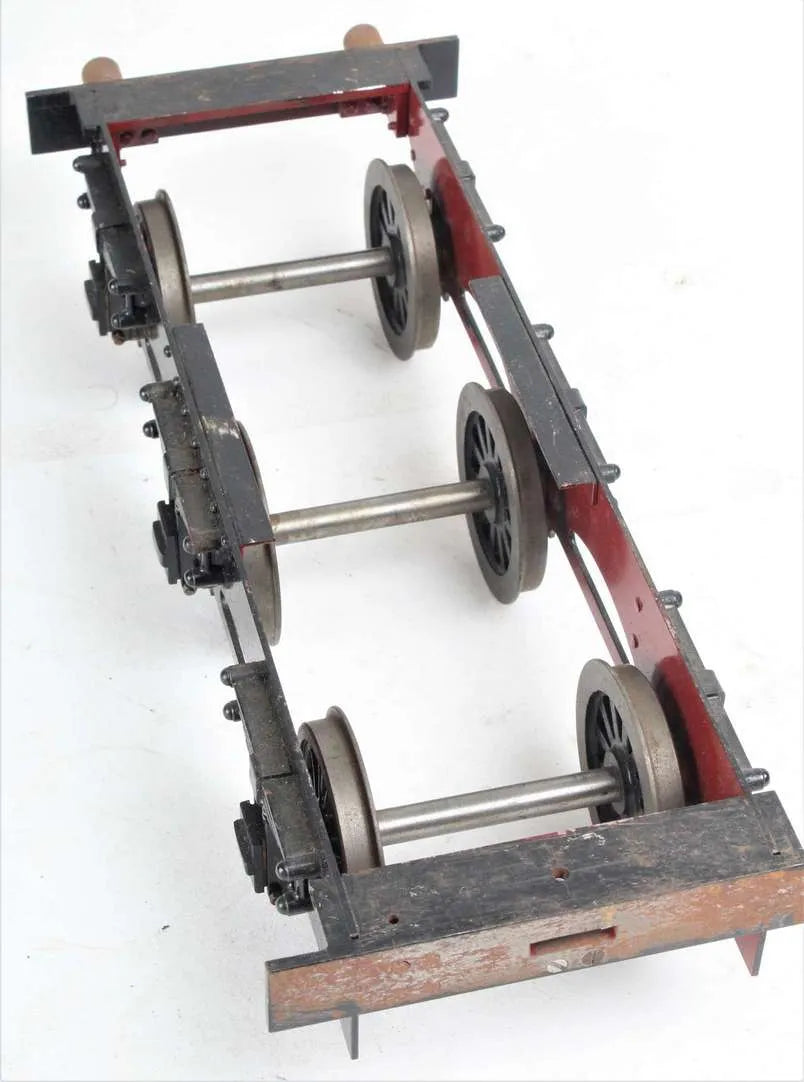

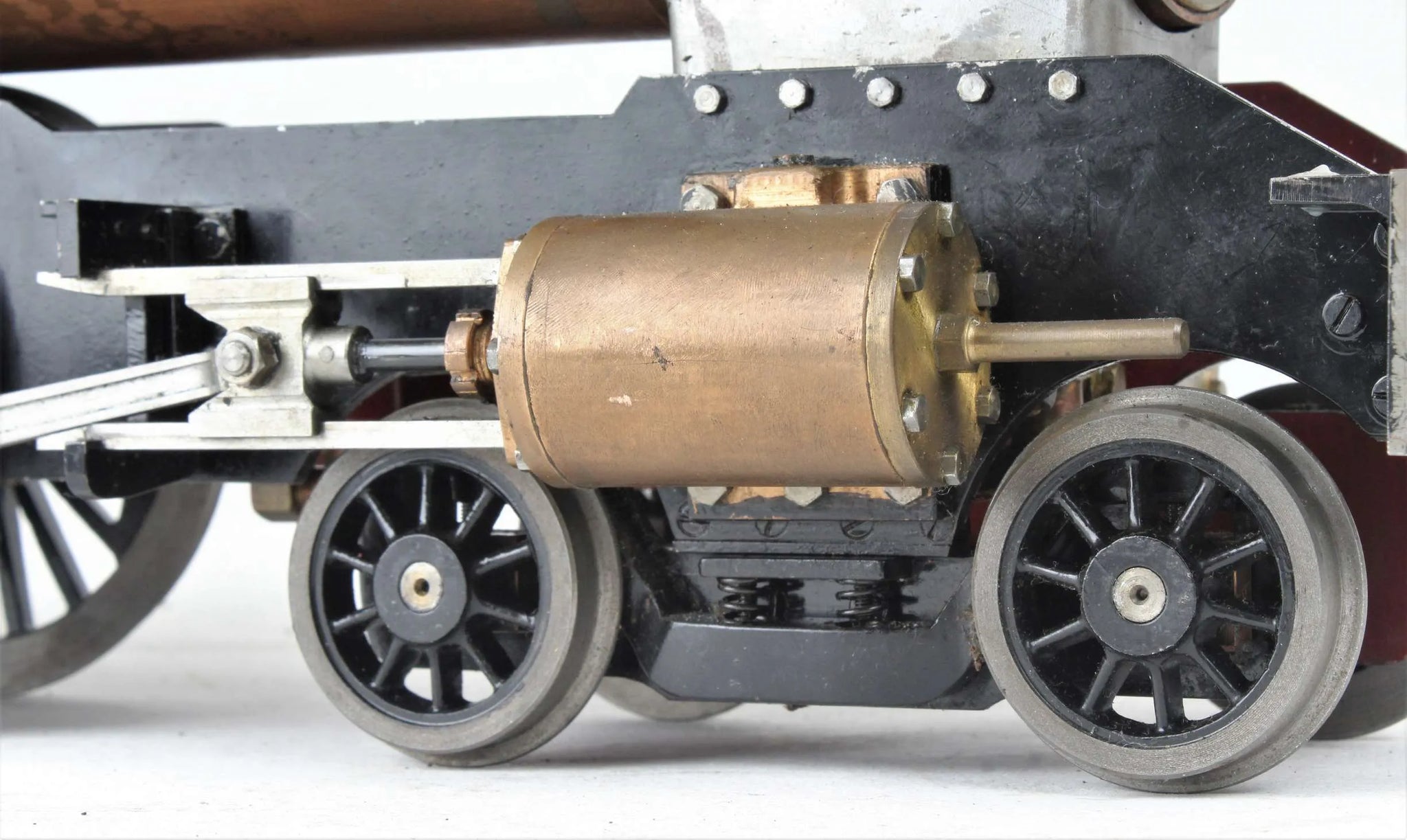

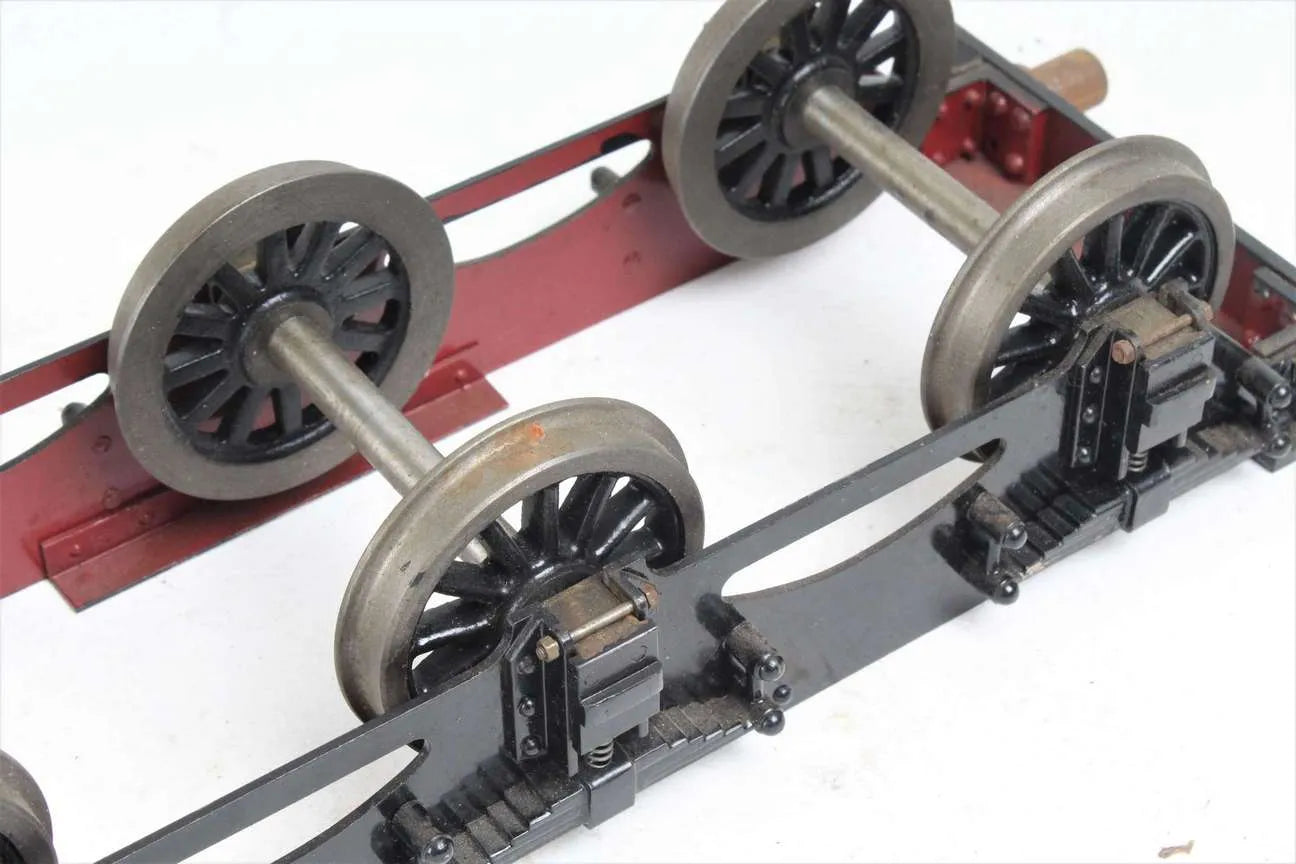

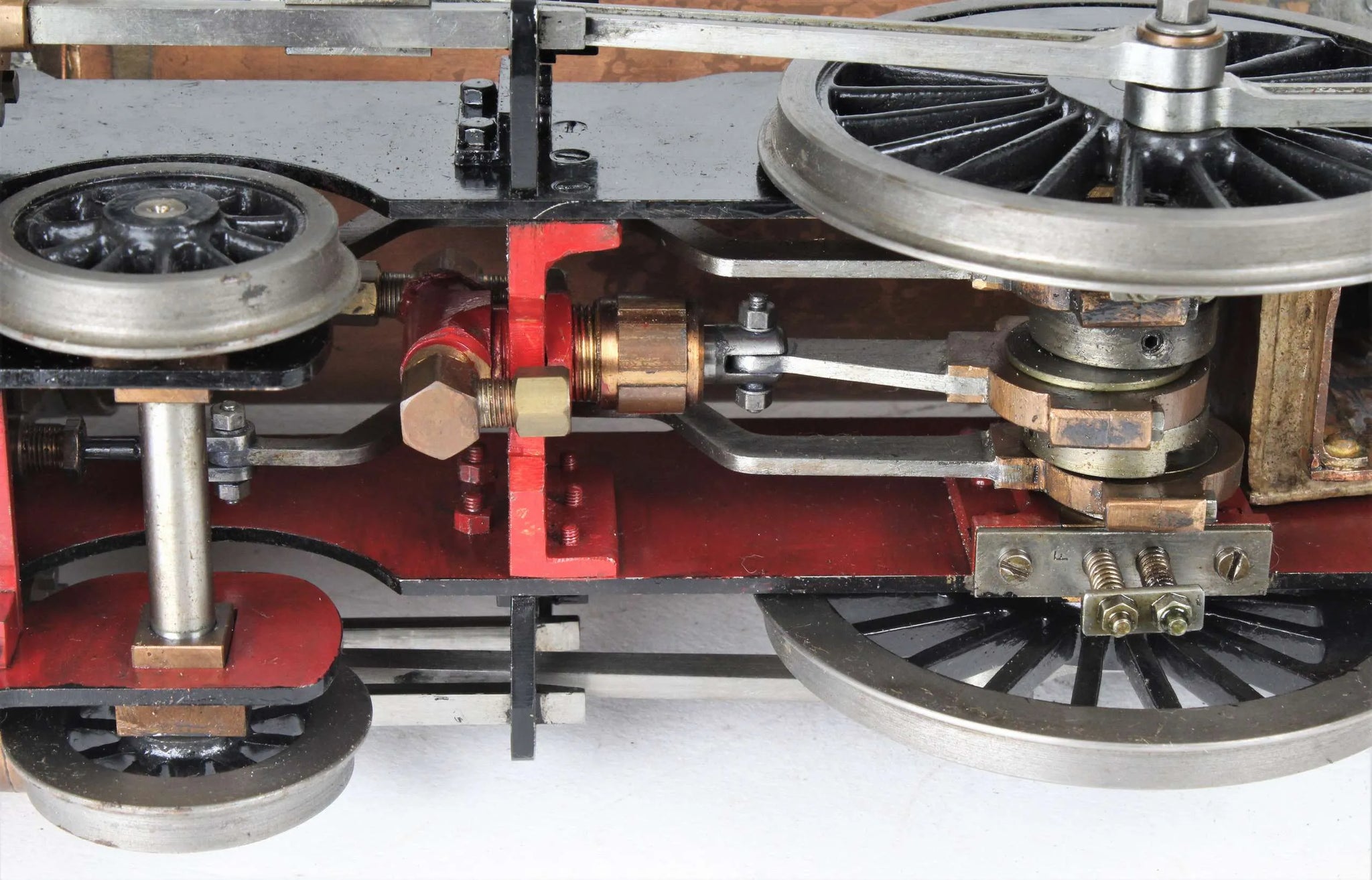

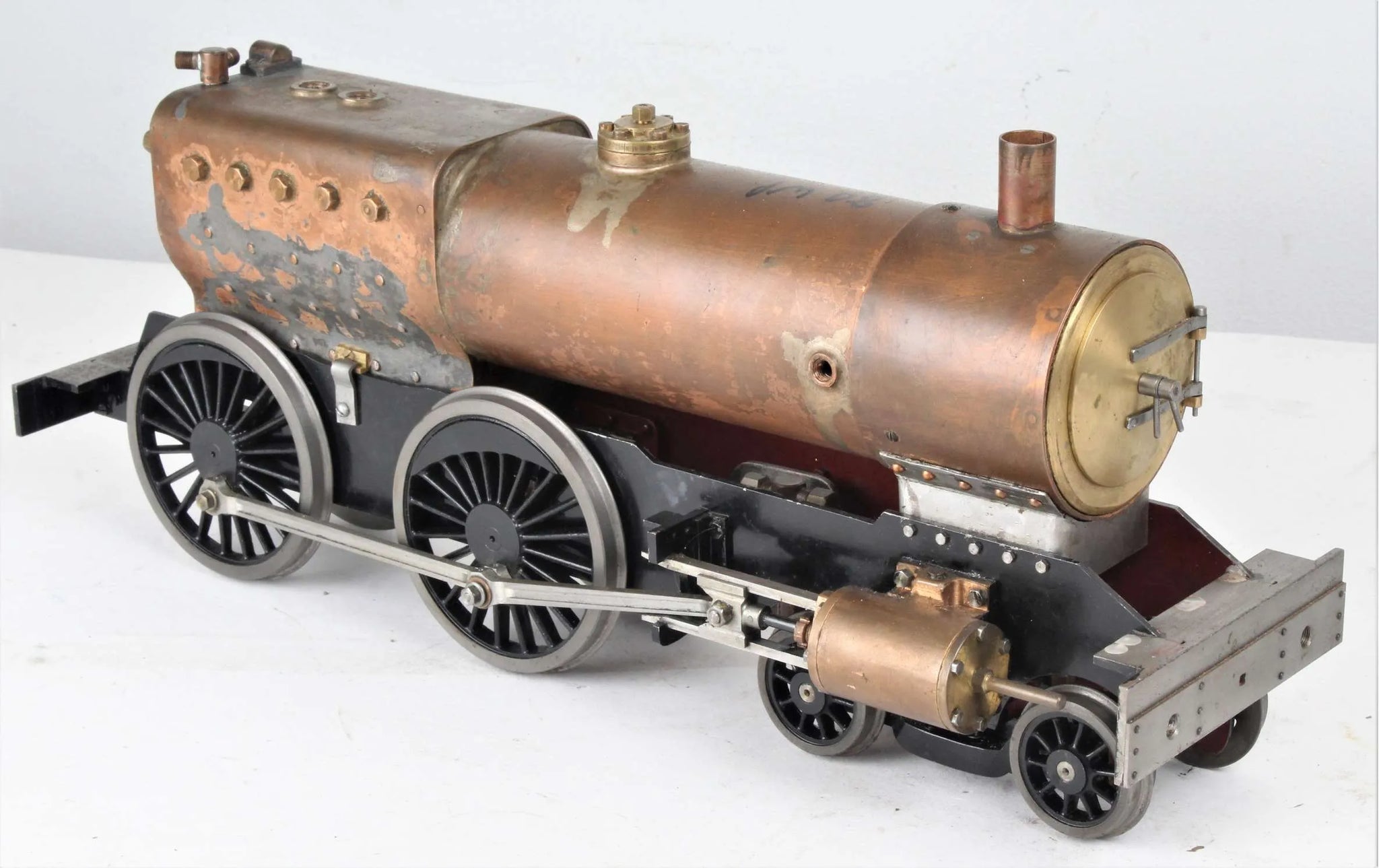

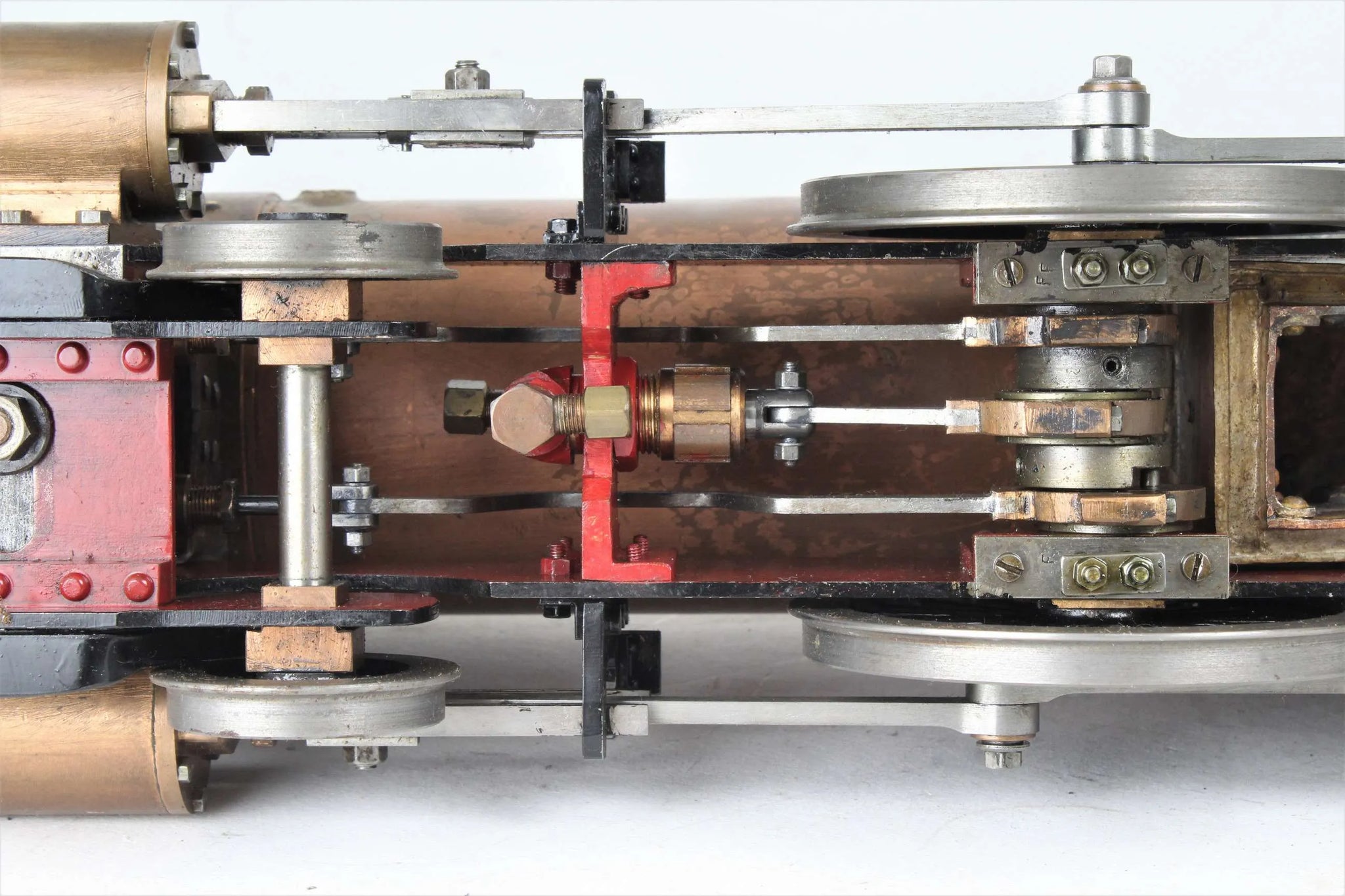

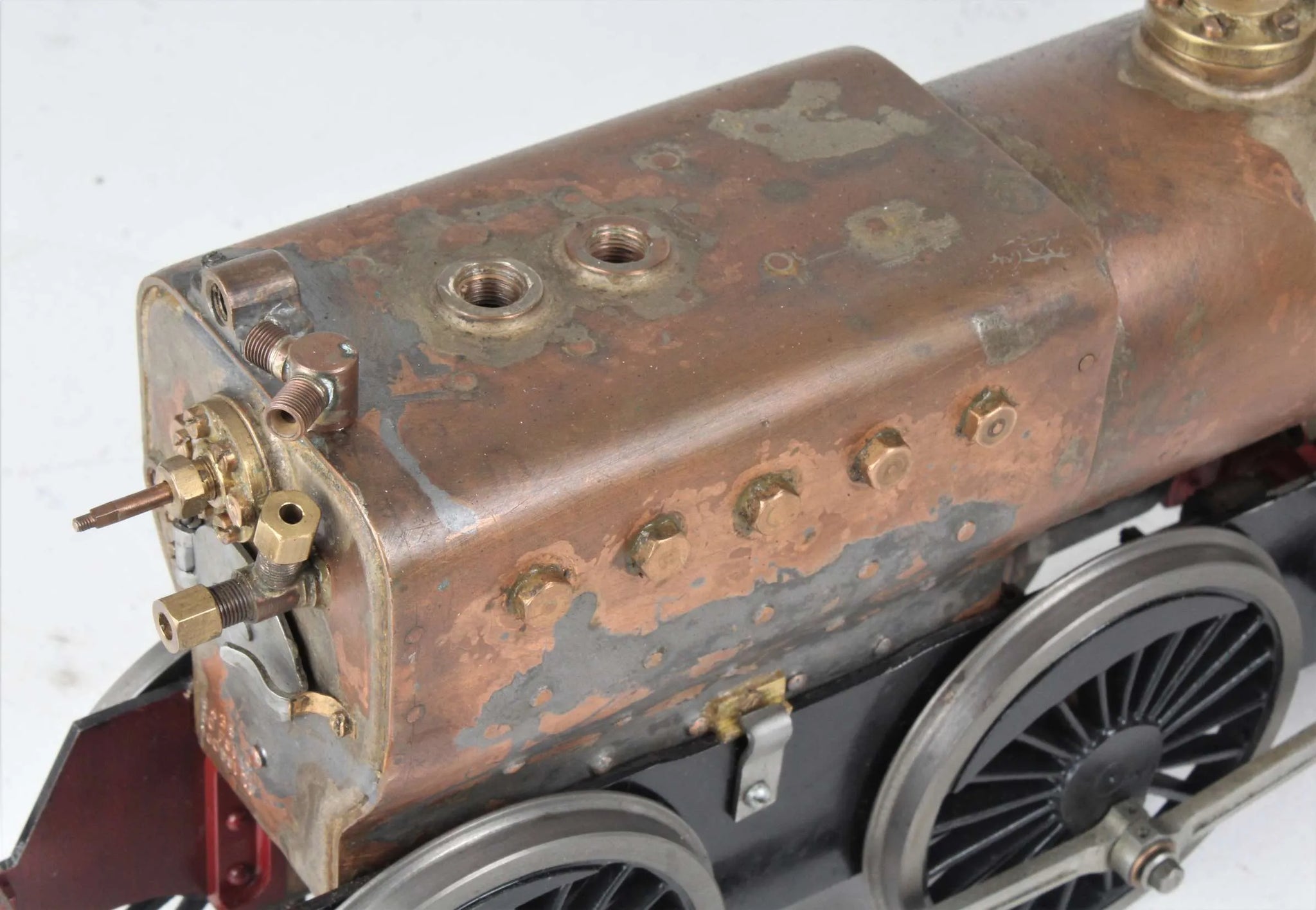

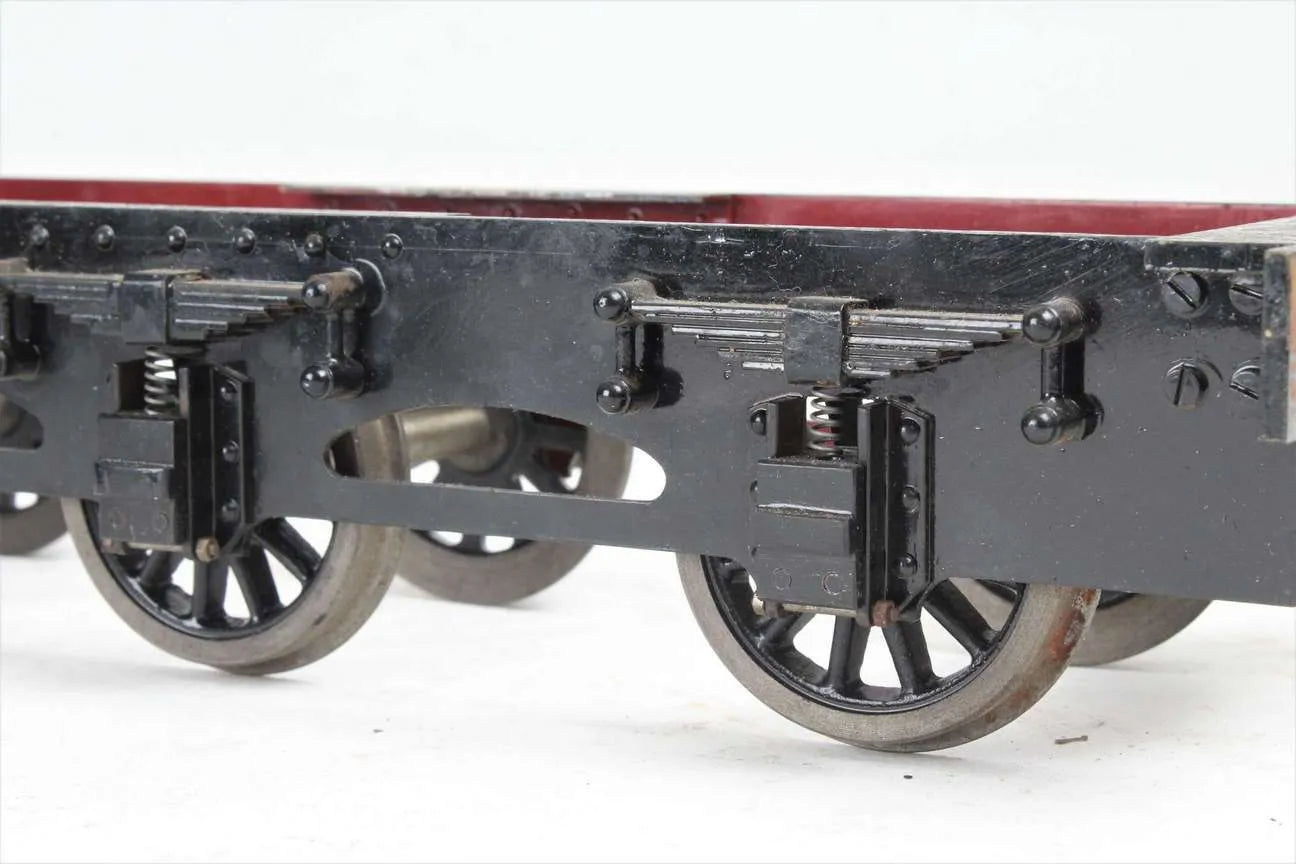

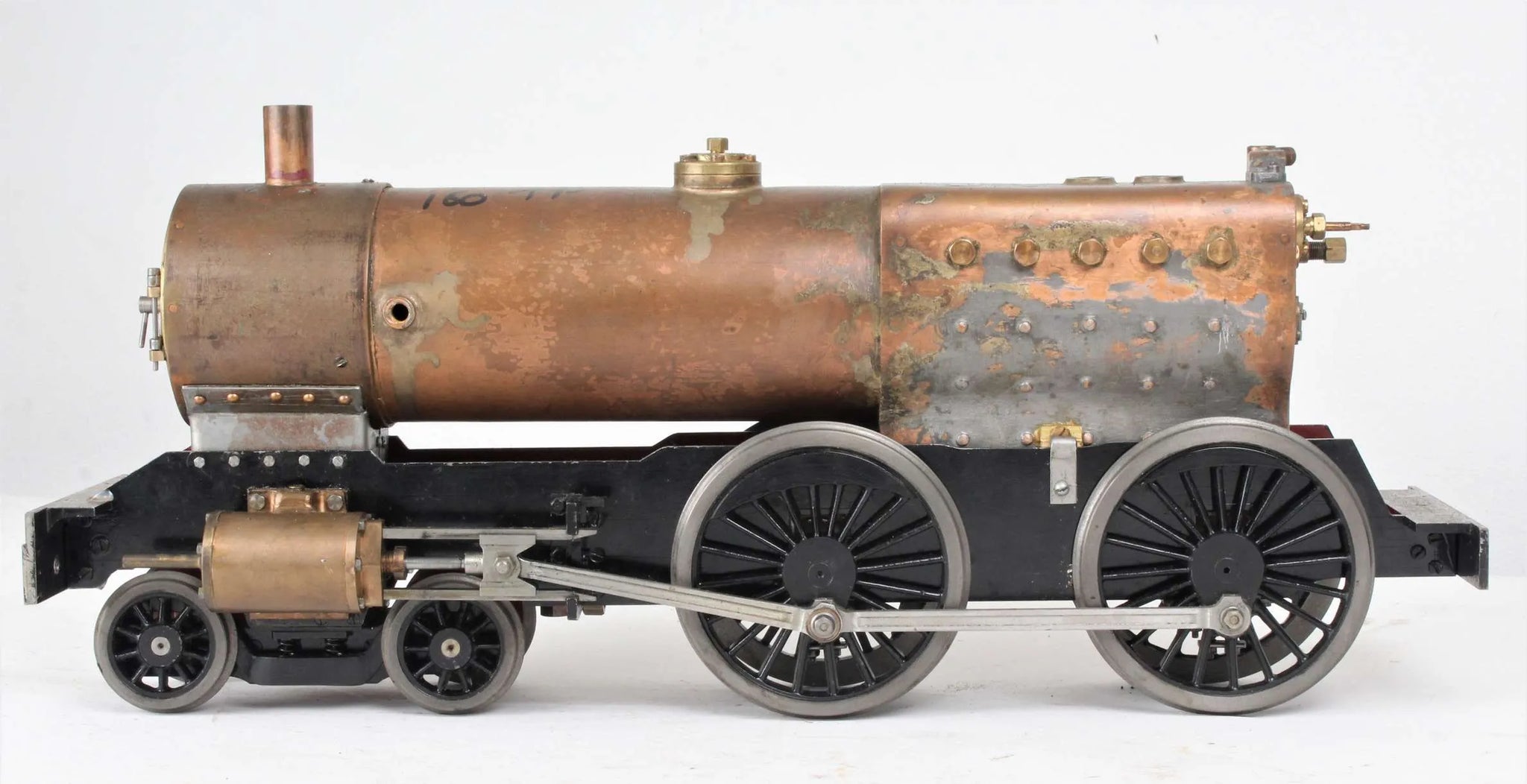

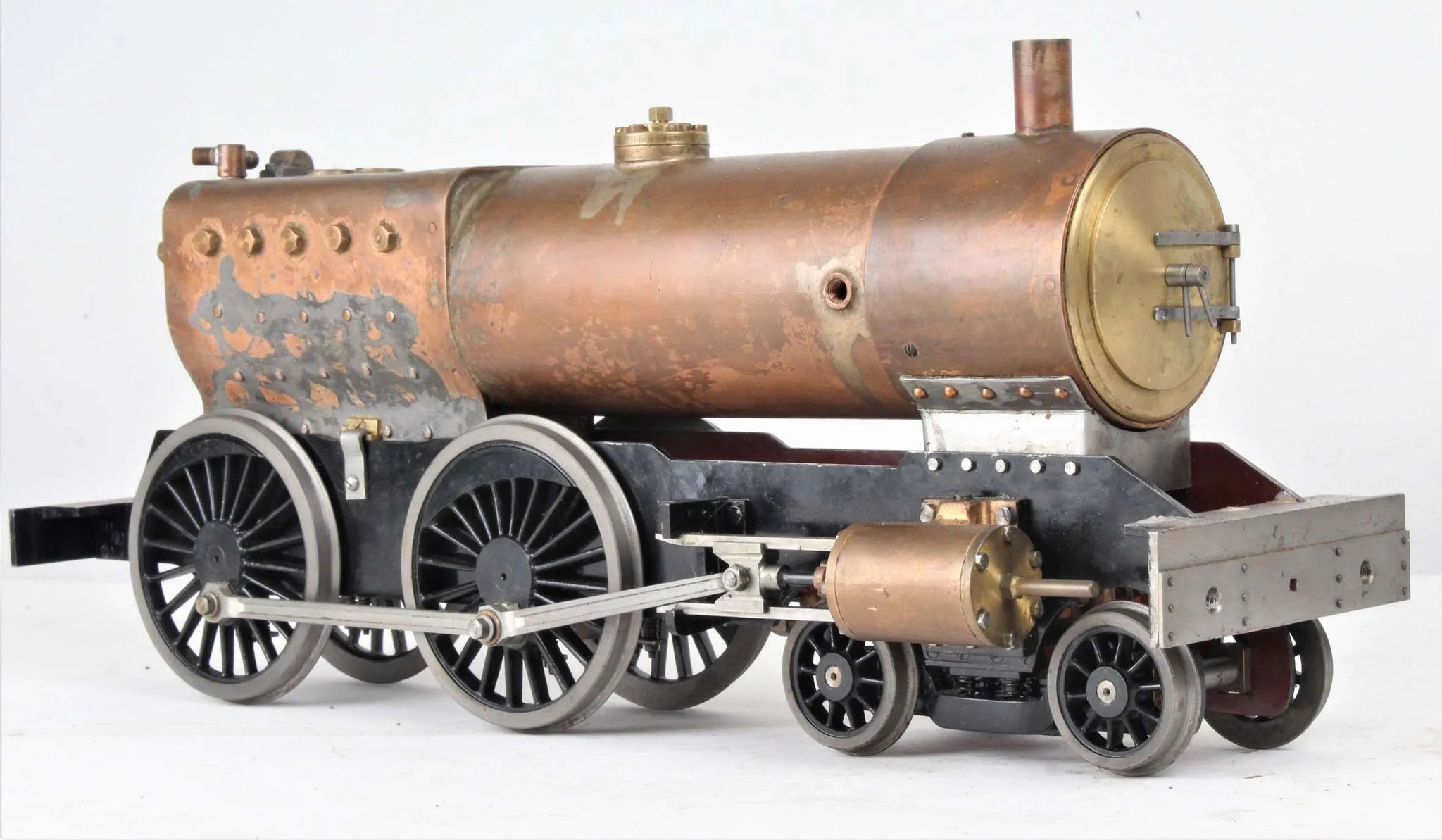

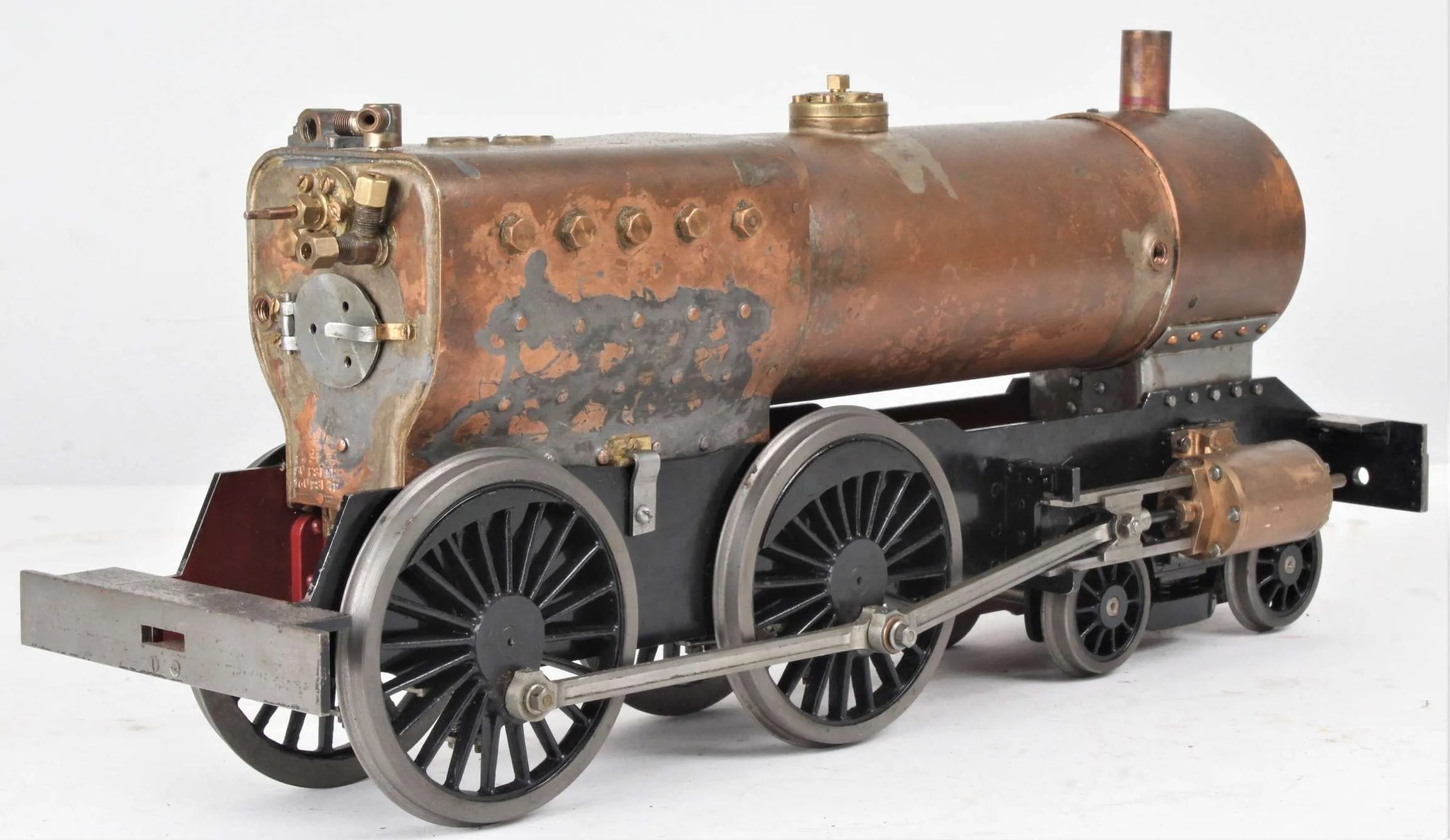

A well-advanced 2 1/2 inch gauge LMS 2P 4-4-0, comprising a chassis at close to air-running stage with all motion work and valve gear fitted, a copper superheated boiler, and a tender chassis.

Boiler has had a twice working pressure hydraulic test at 160psi for 80psi working pressure with certification issued for same.

Work to date is to a good standard throughout, with the potential to produce a good example of this attractive design when finished.

Technical information

Stock code

9435

Gauge

2 1/2 inch

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

slip eccentric

Boiler type

locomotive

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Boiler number

9435

Fusible plug

no

Superheater type

flue tube

Superheater

1

Date out

Oct-21

Hydraulic test valid to

21-Feb-25
