Sold

10527

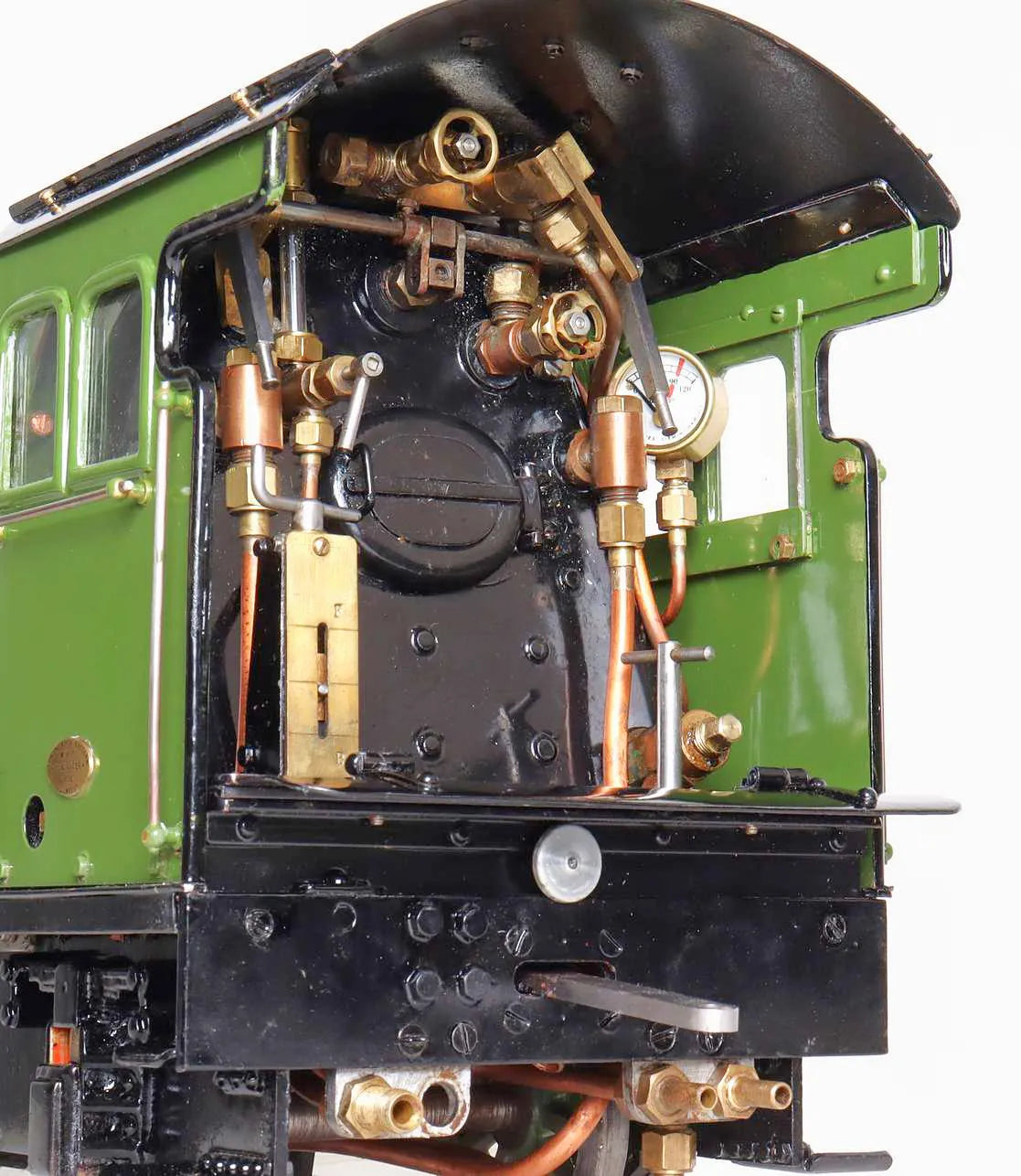

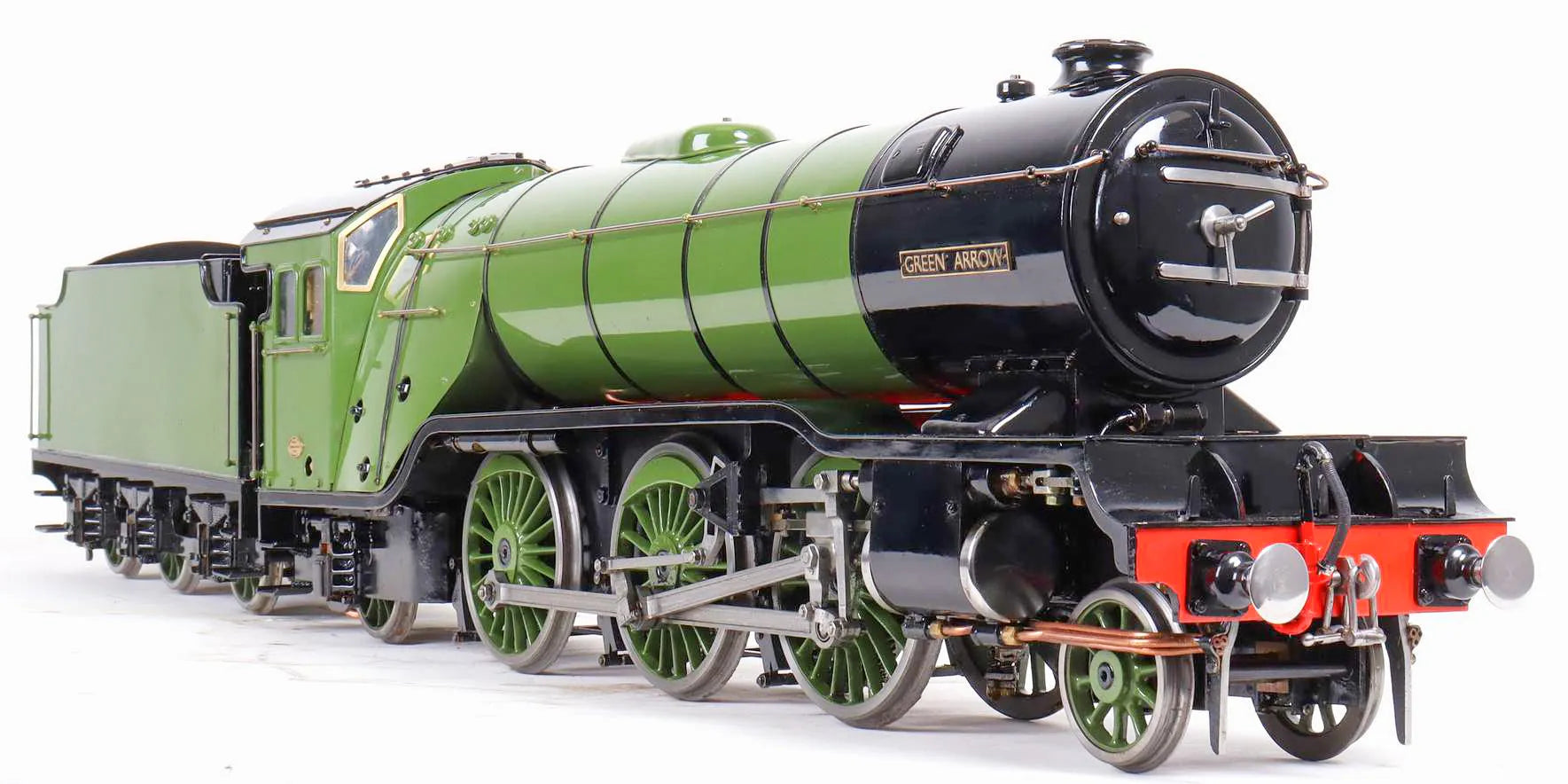

2 1/2 inch gauge LNER 2-6-2 "Green Arrow"

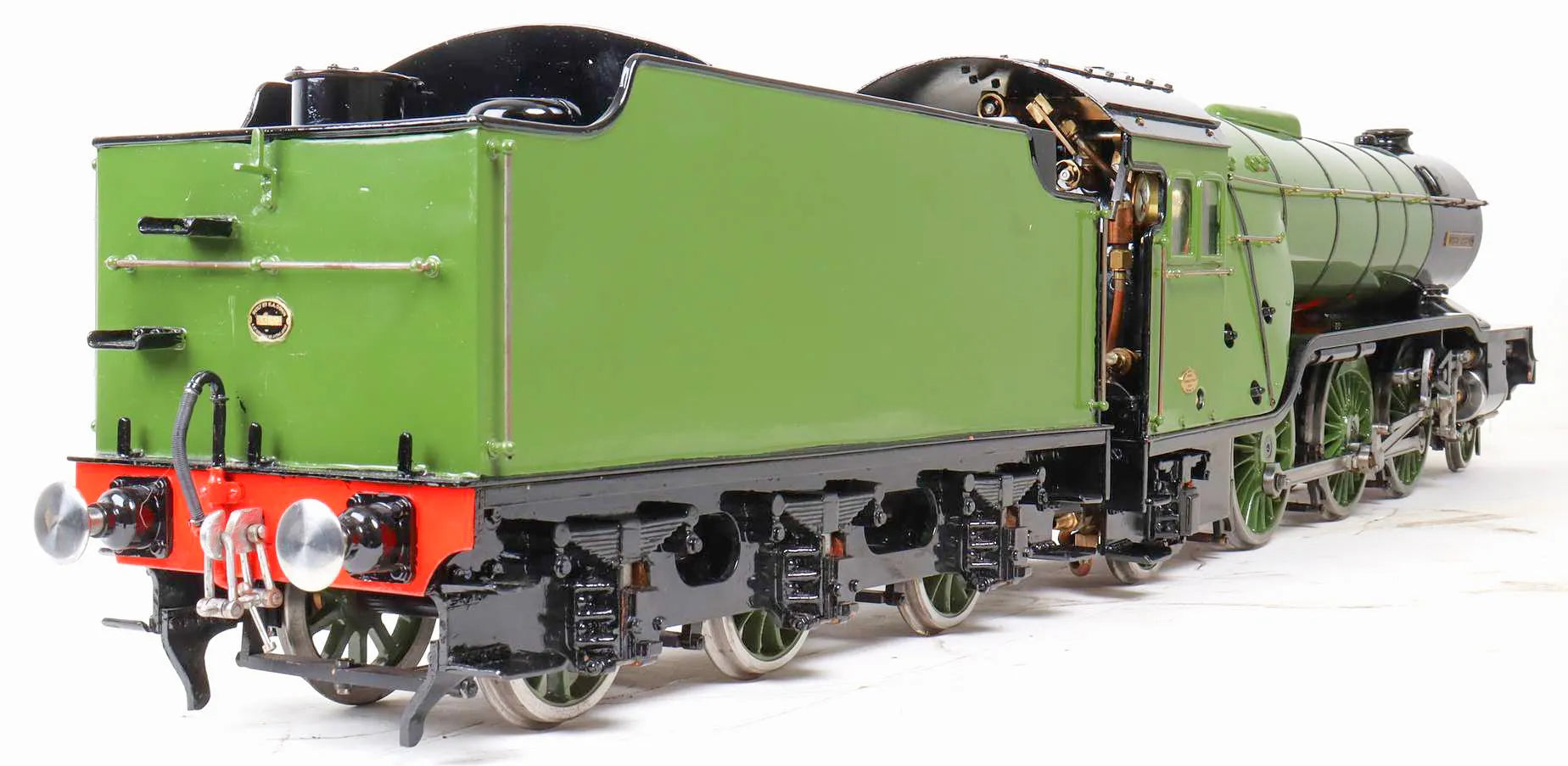

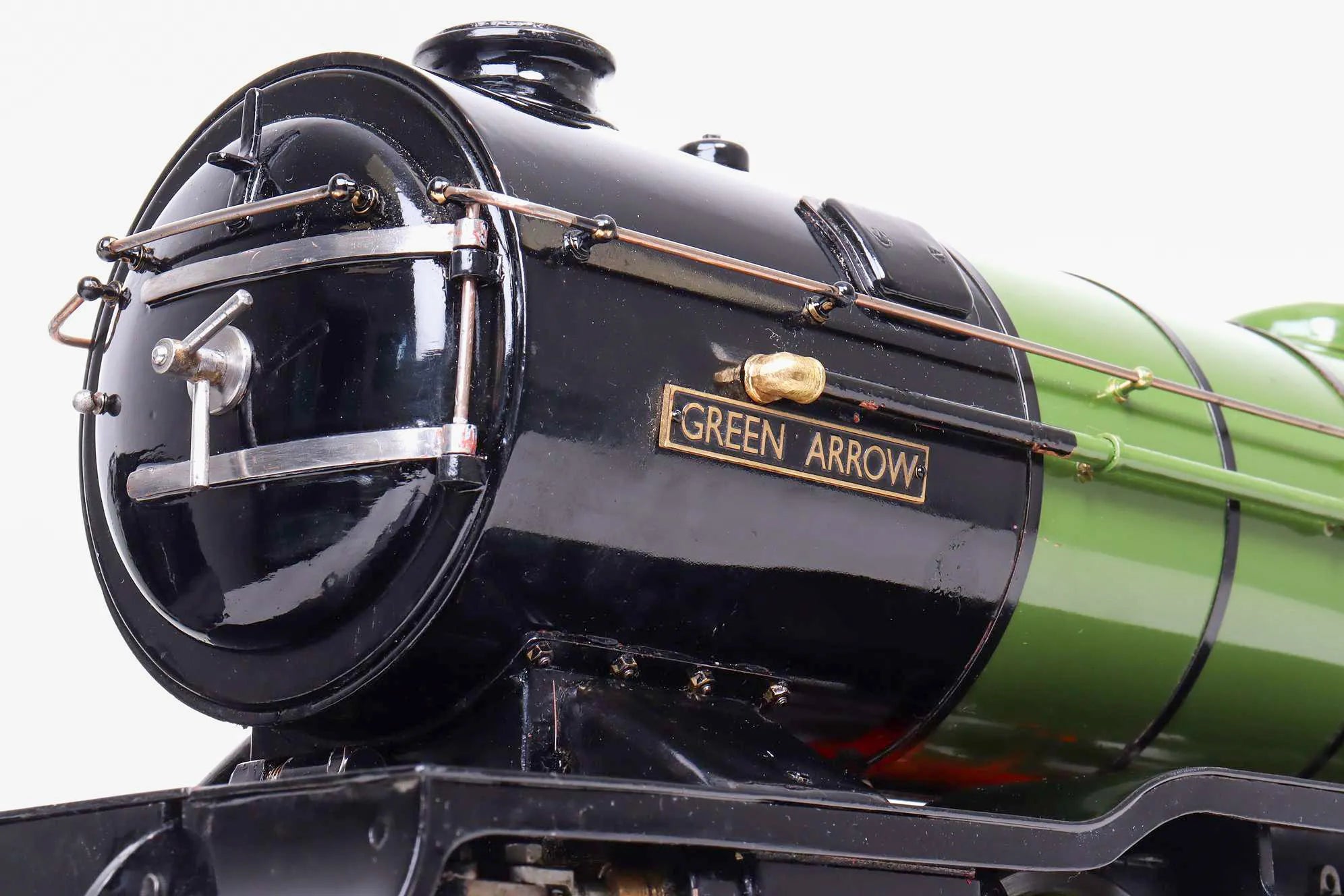

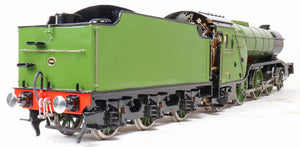

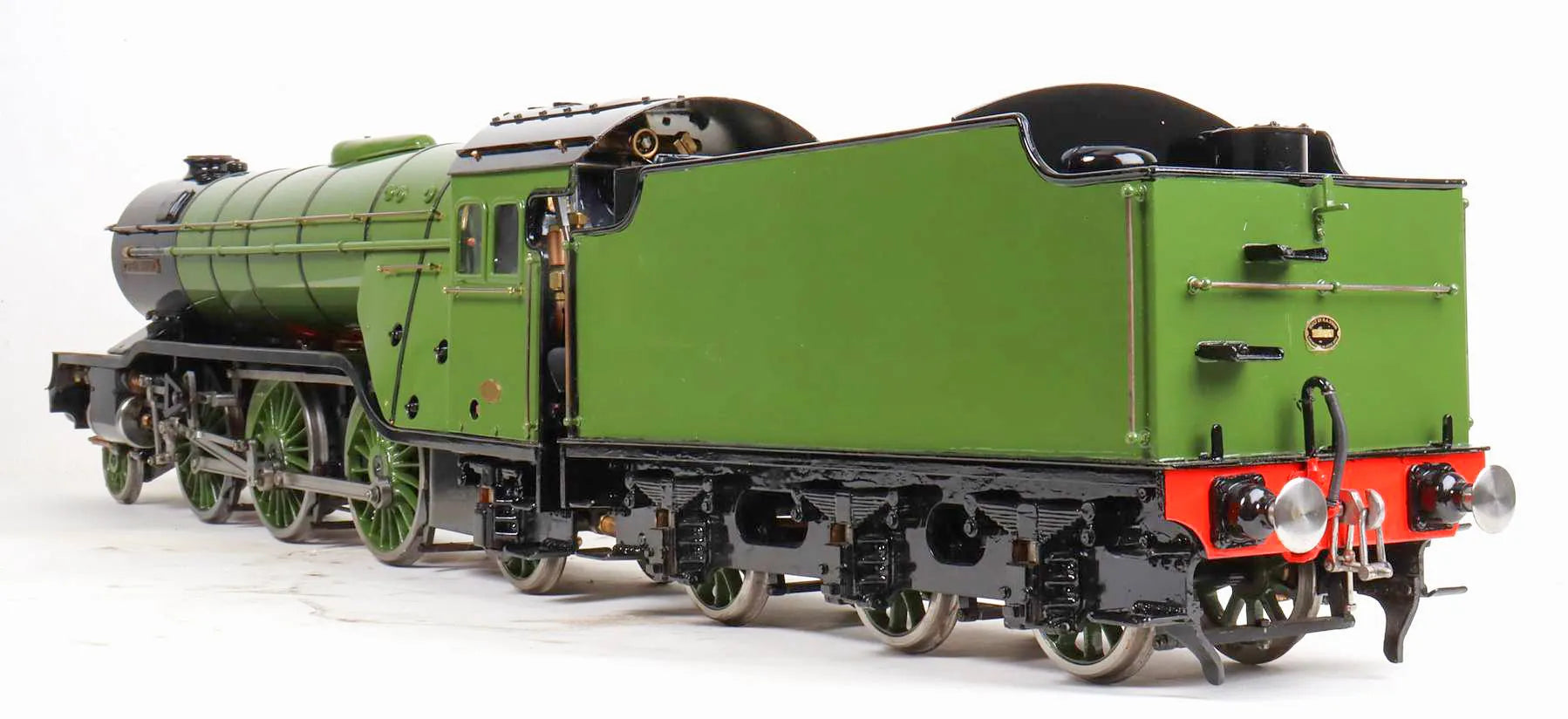

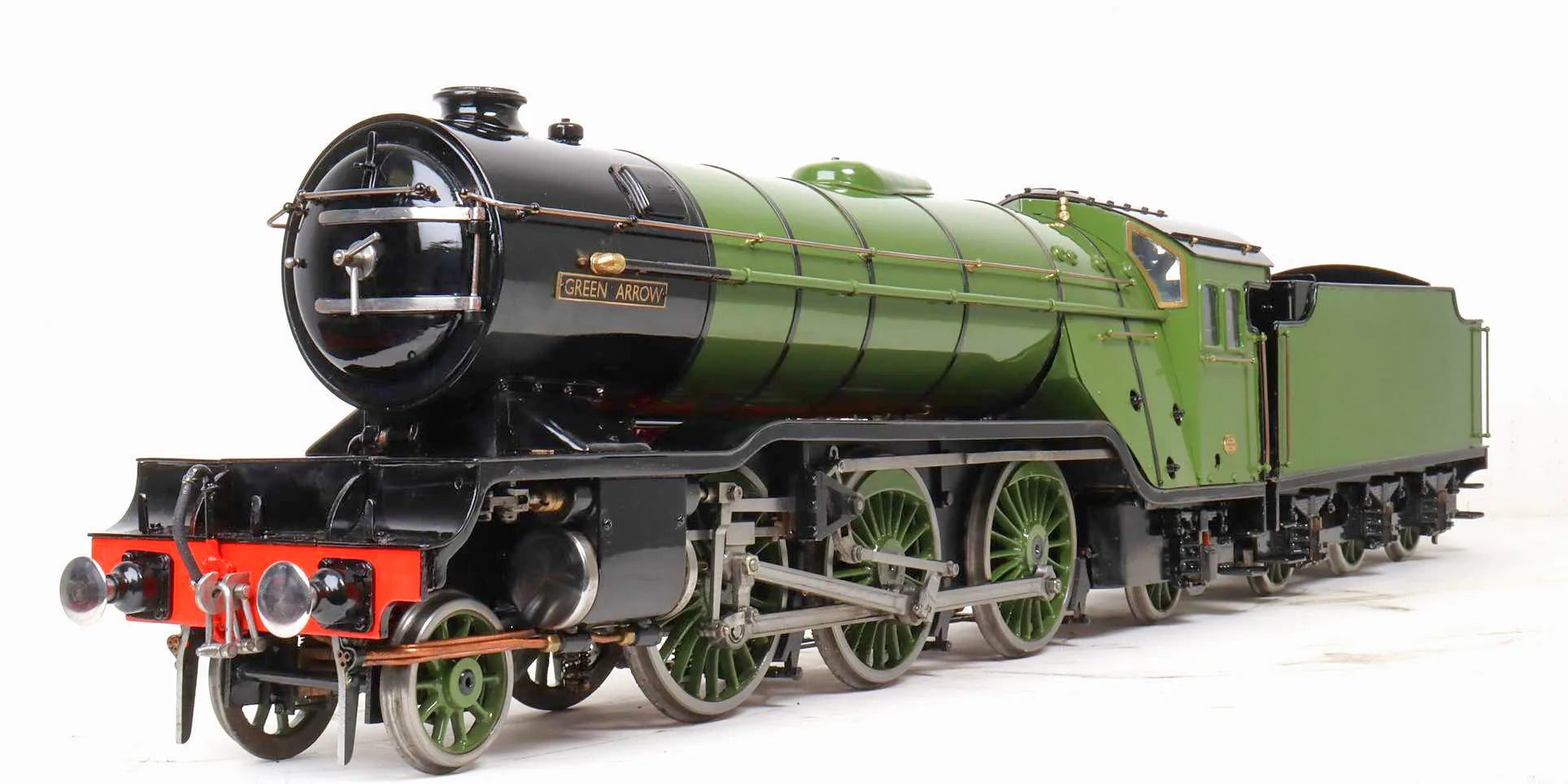

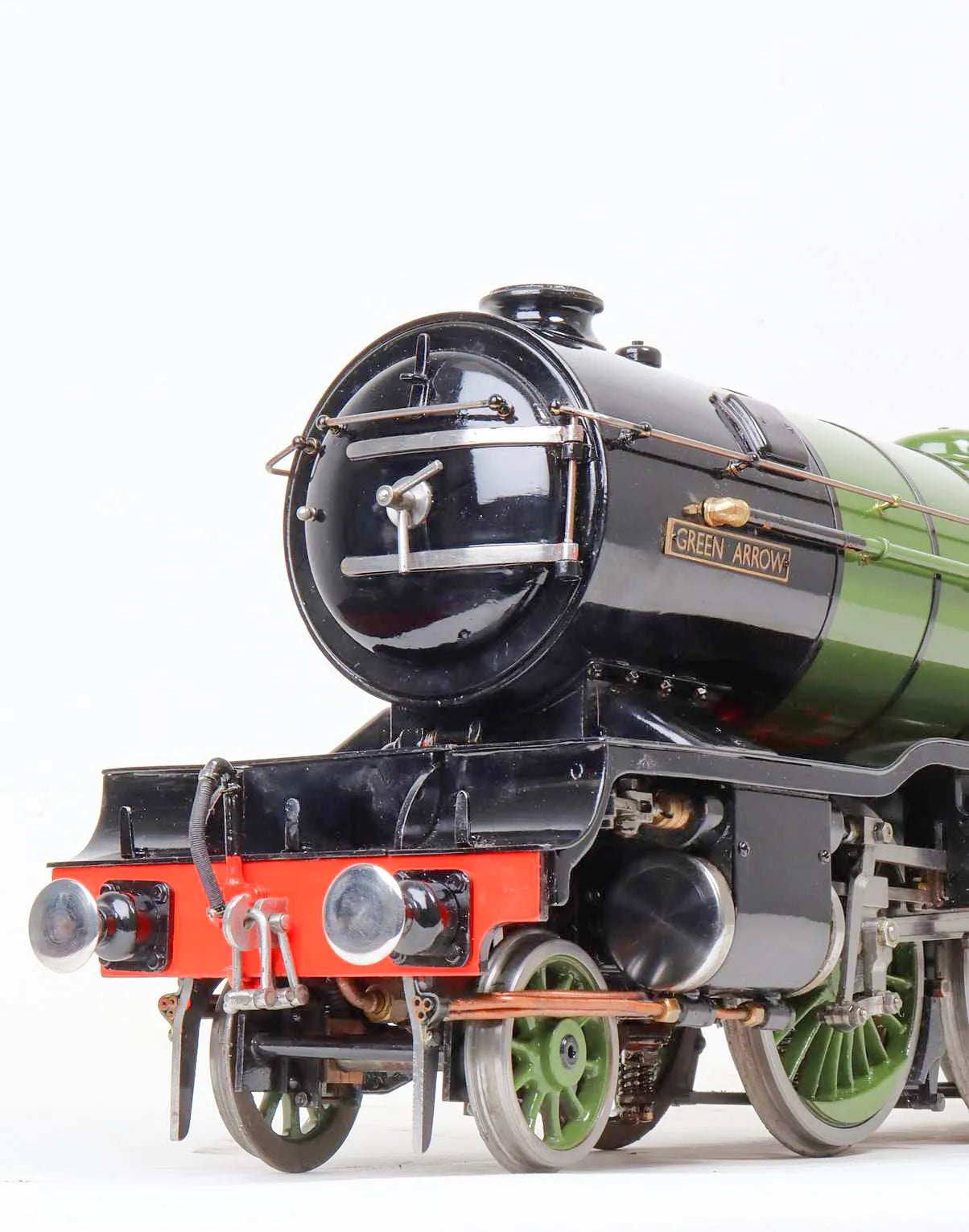

A 2 1/2 inch gauge LNER V2, an older engine which came to us as part of a large collection of fine locomotives and traction engines last year. Kept on display in the previous owner's house, it doesn't appear to have been steamed since last repainted.

The boiler has had a twice working pressure hydraulic test with no sign of leak or deflection. Beautfully made, we suspect it was professionally built, although can find no maker's mark on it.

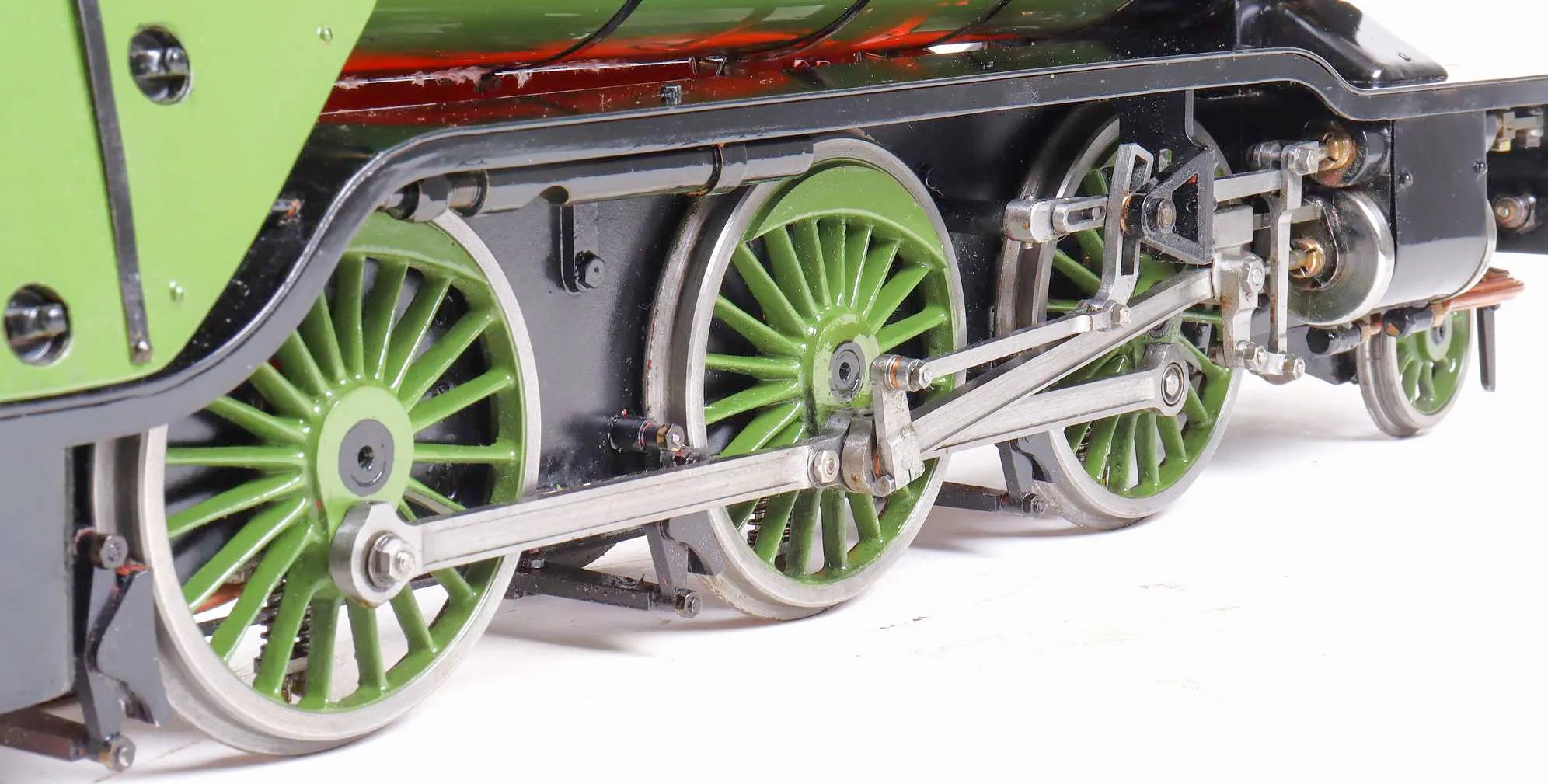

The chassis rolls freely and will make half a turn running on air before stopping - it requires the valves and/or returns cranks resetting.

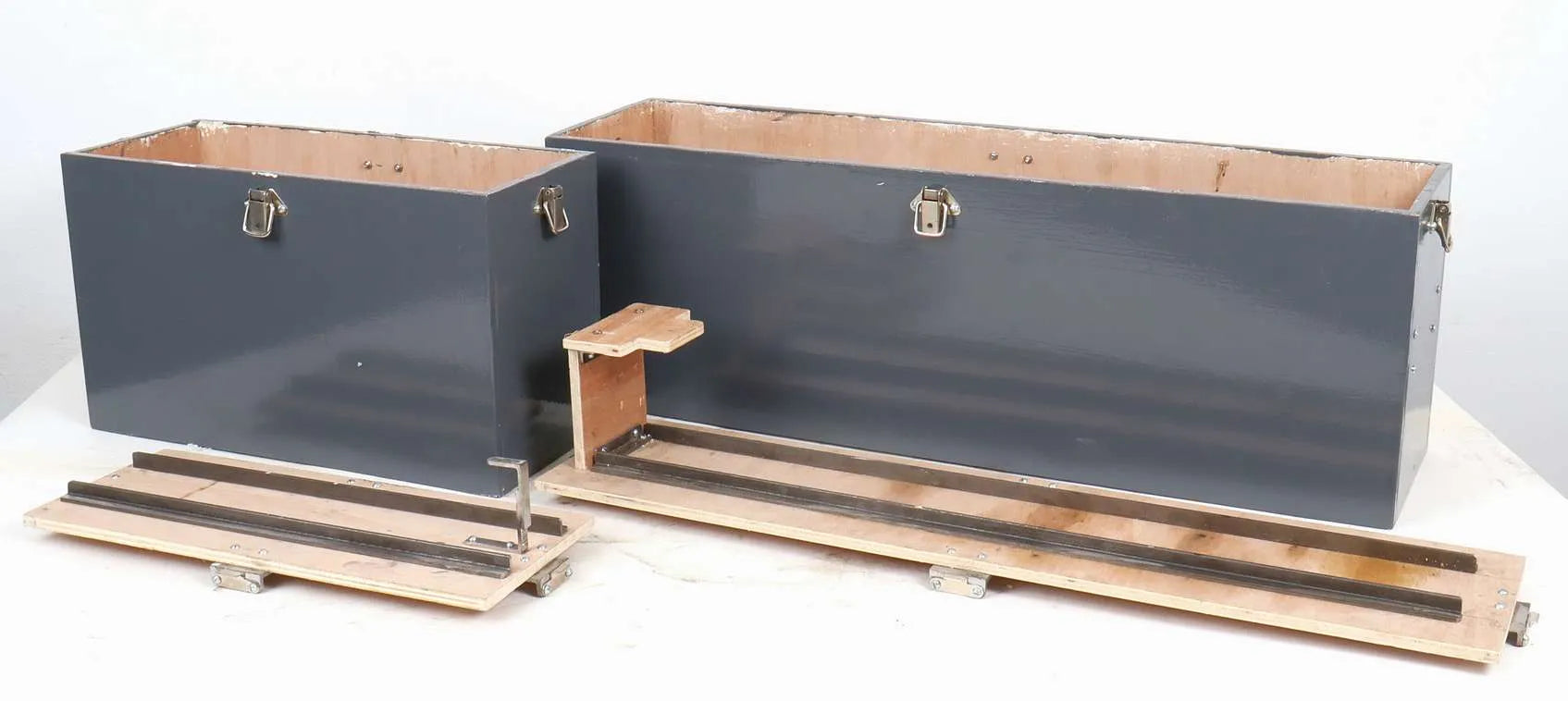

Complete with a pair of carrying boxes for locomotive and tender.

Technical information

Stock code

10527

Gauge

2 1/2 inch

Length/inches

25 + 14

Width/inches

5.5

Height/inches

8

Weight/Kg

14 + 5

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

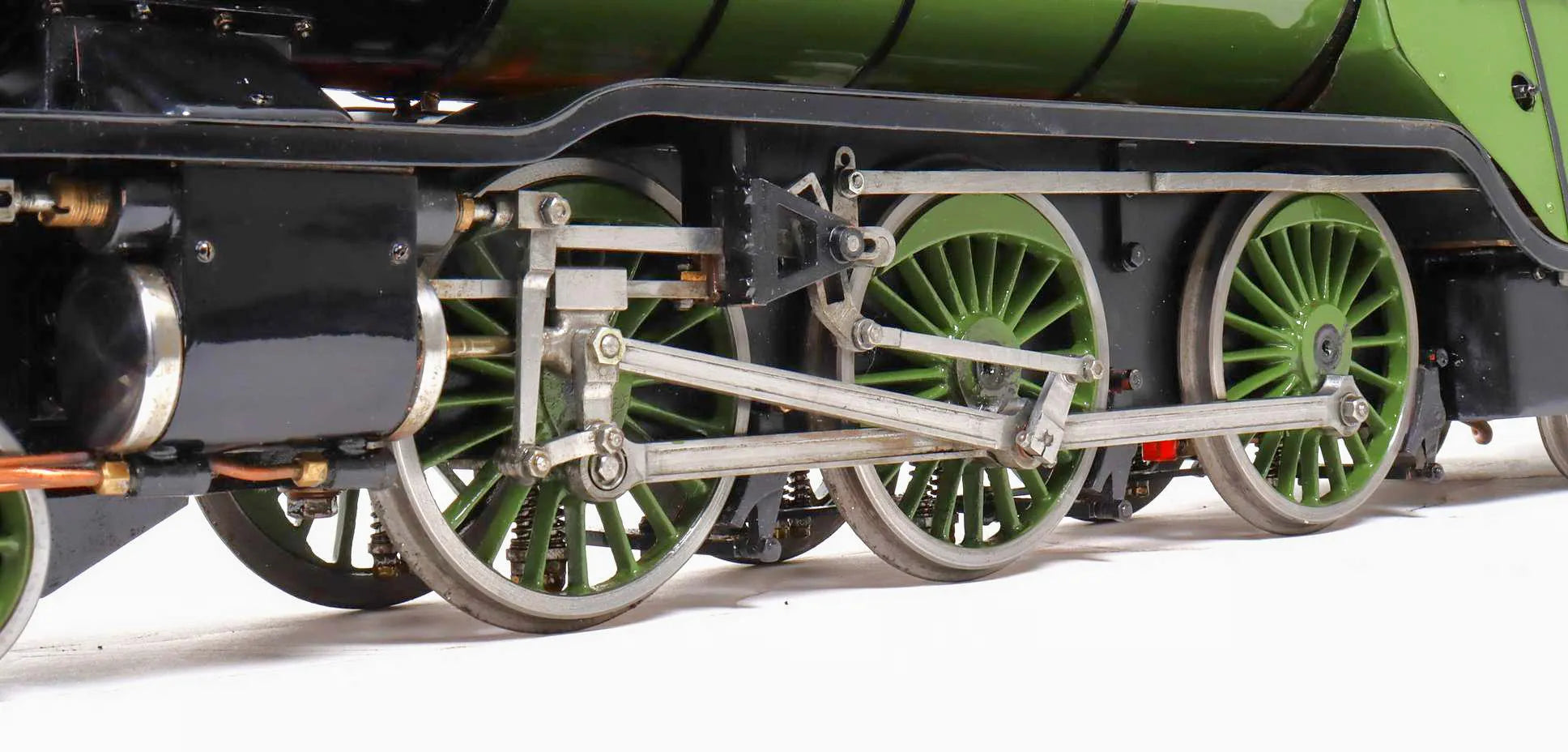

Valve gear

Walschaerts

Reverser type

screw

Lubricator type

mechanical

Boiler maker

unknown

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

Year built

unknown

Boiler number

446

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

2

Superheater type

flue tube

Superheater

2

Date out

Jan-23
