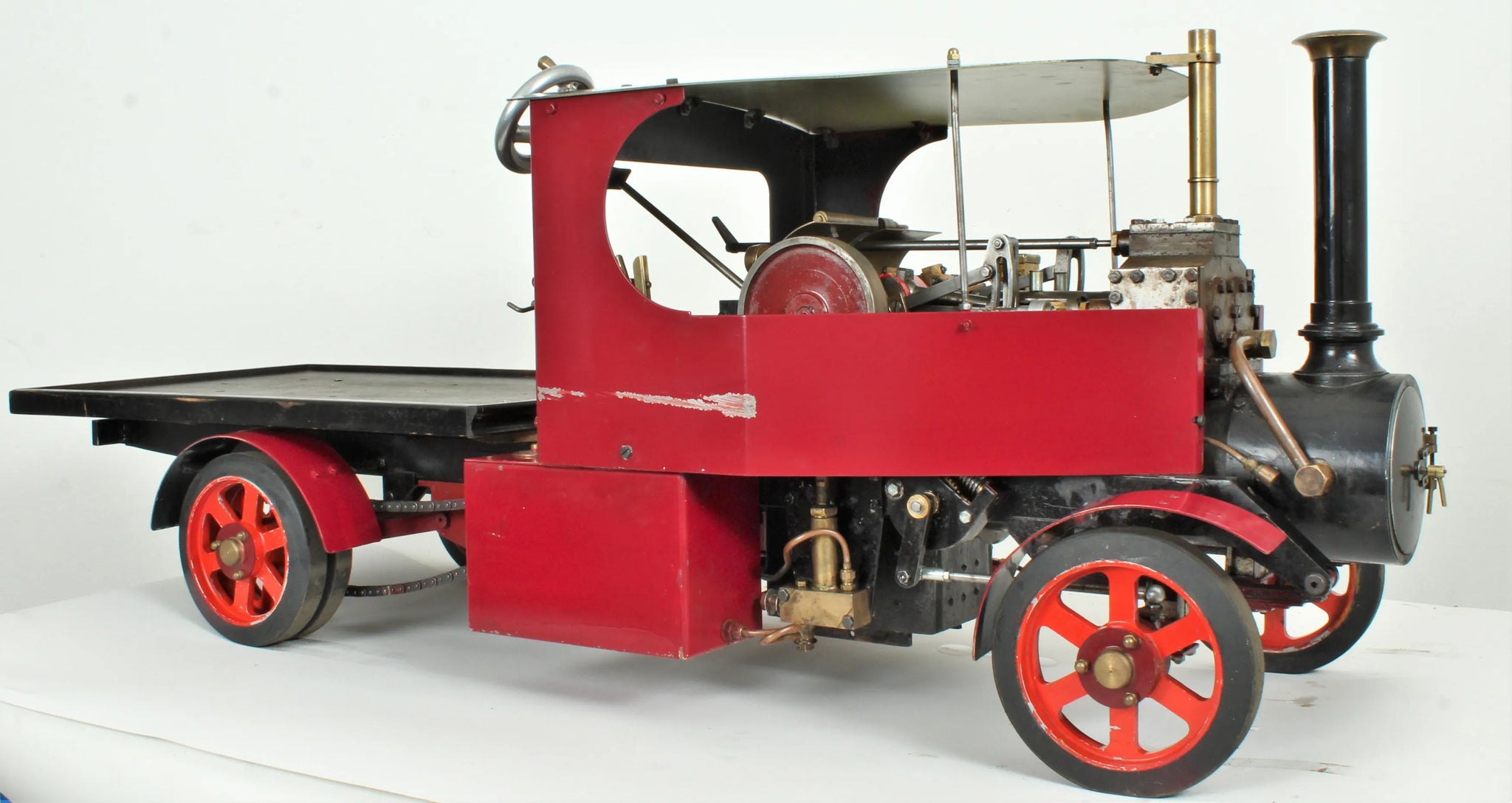

9076
Boiler has had a hydraulic test and is sound, with certification for same.

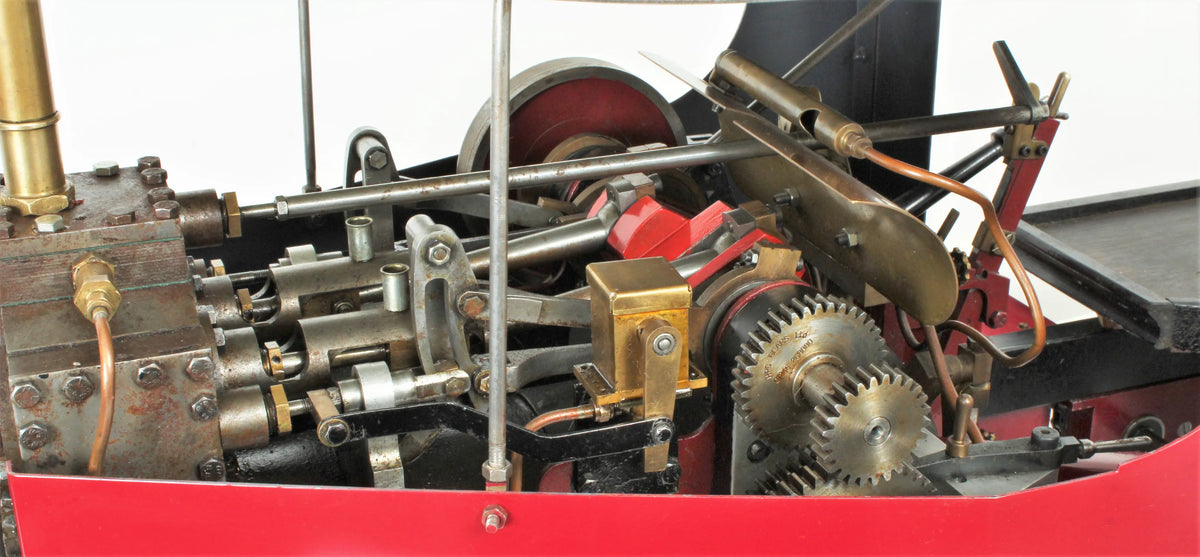

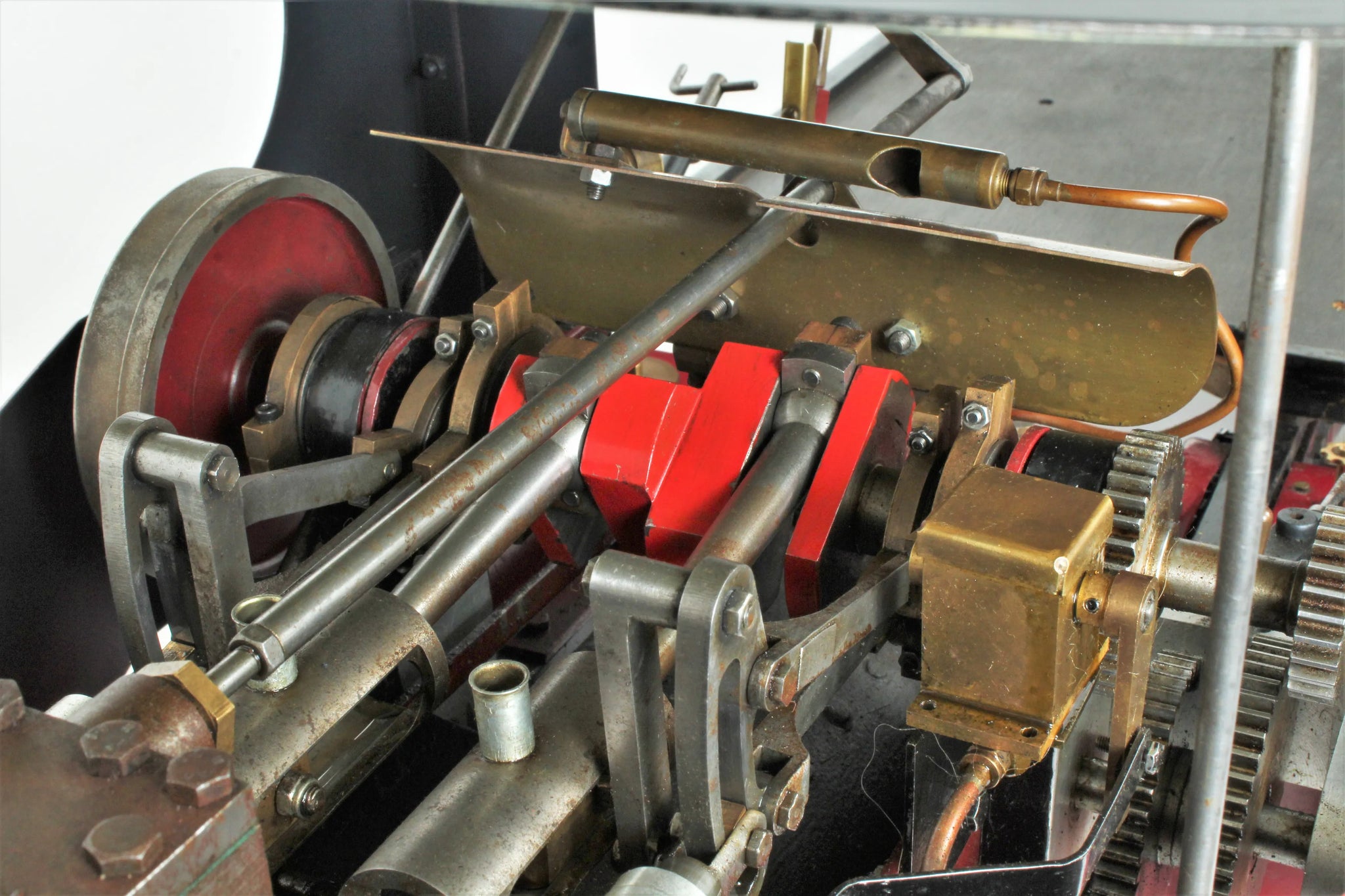

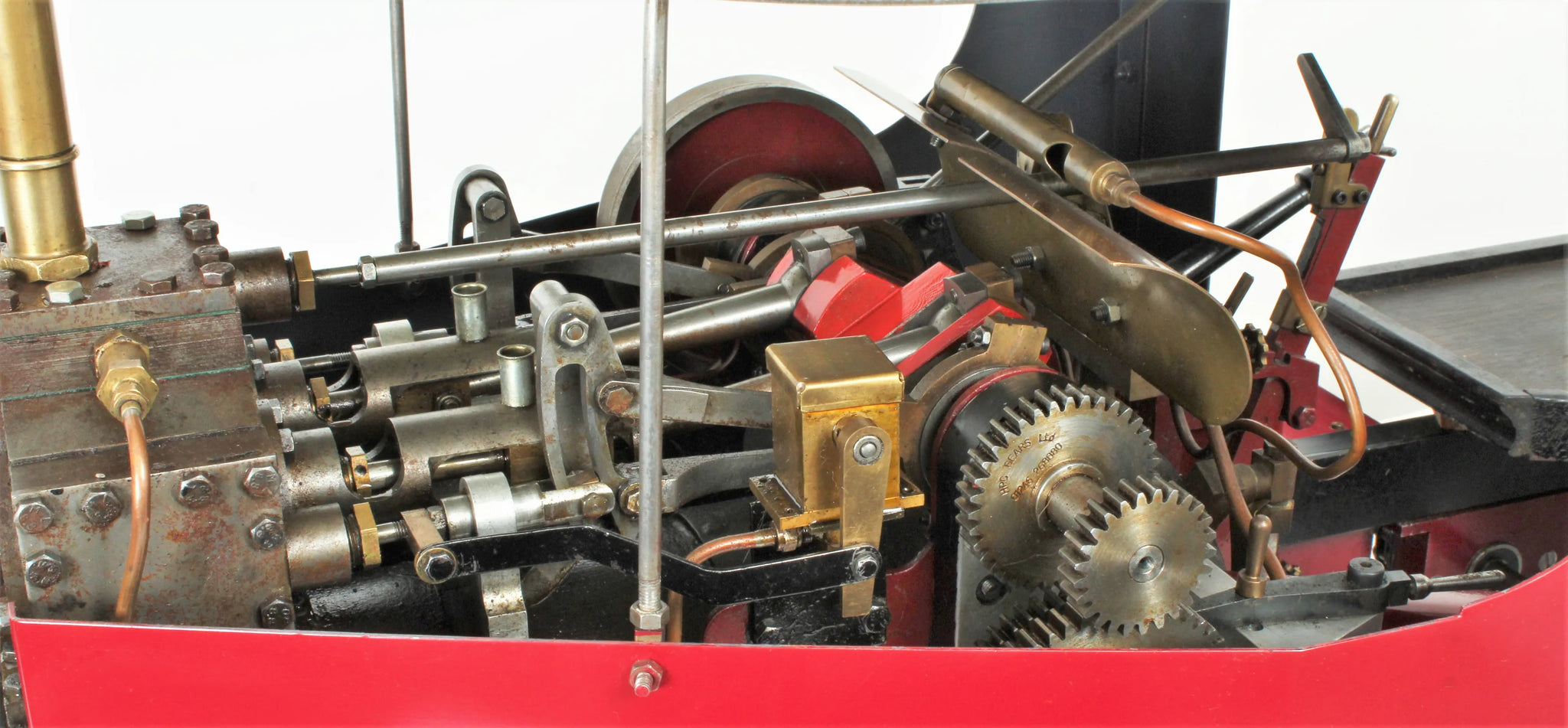

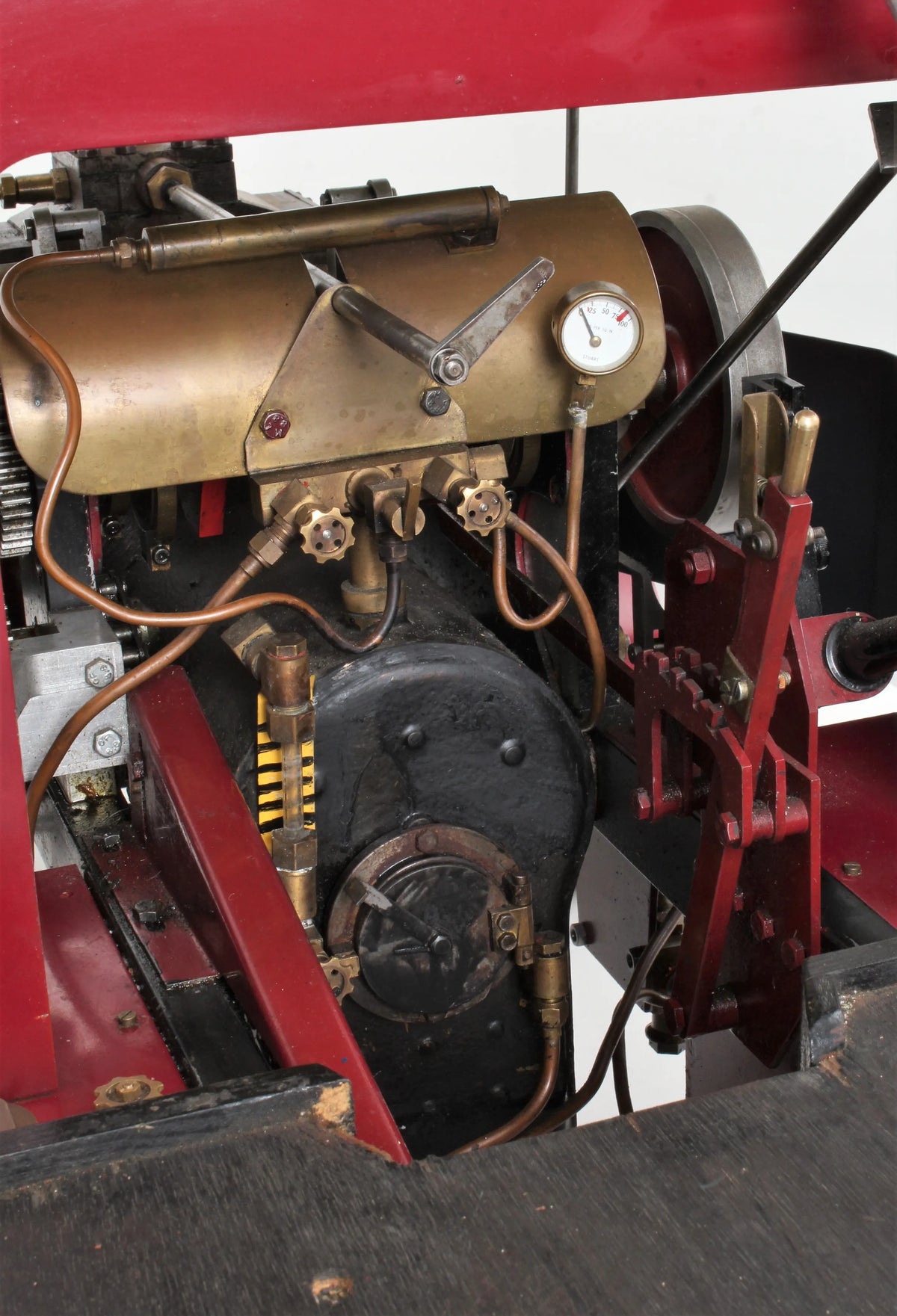

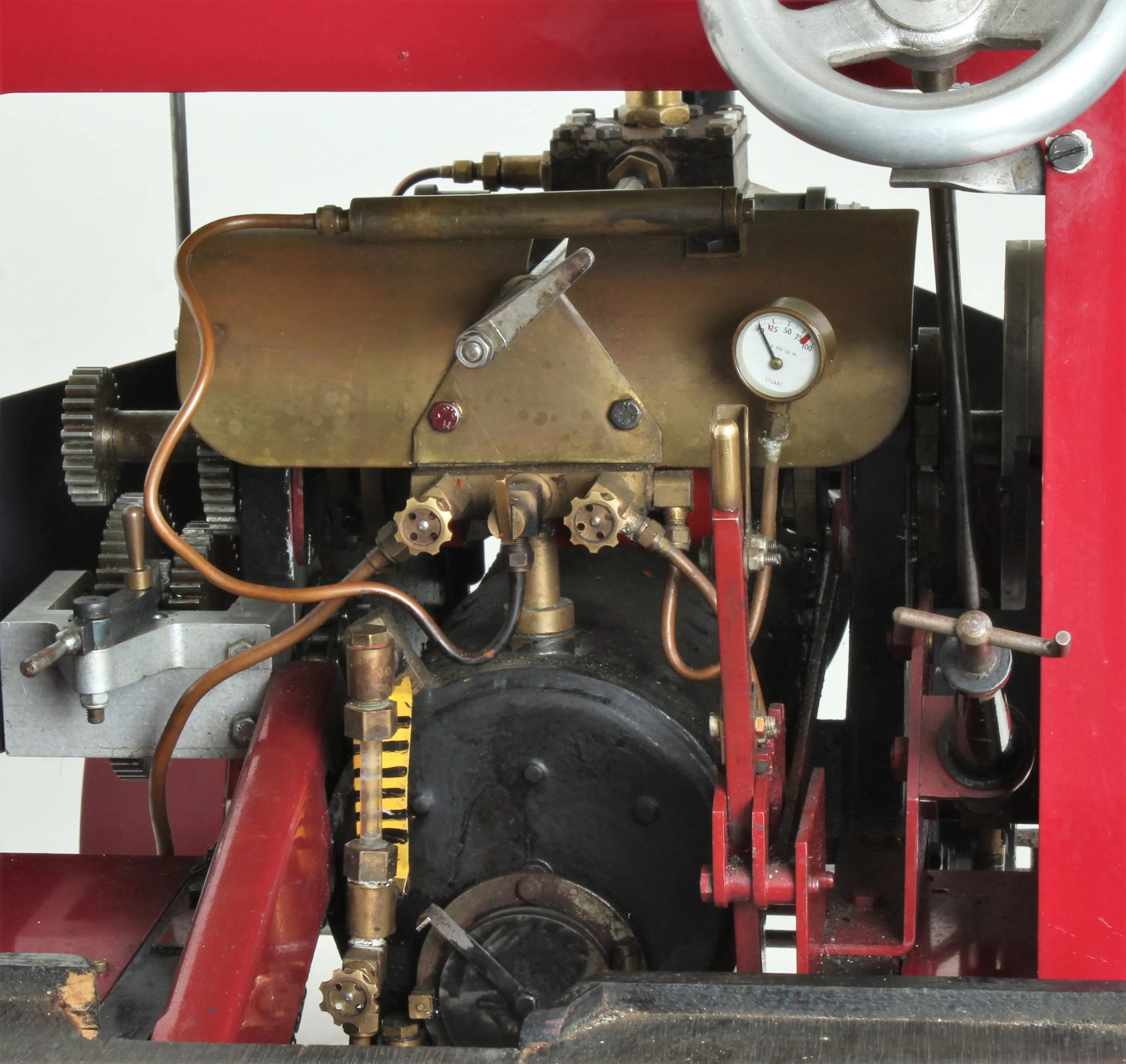

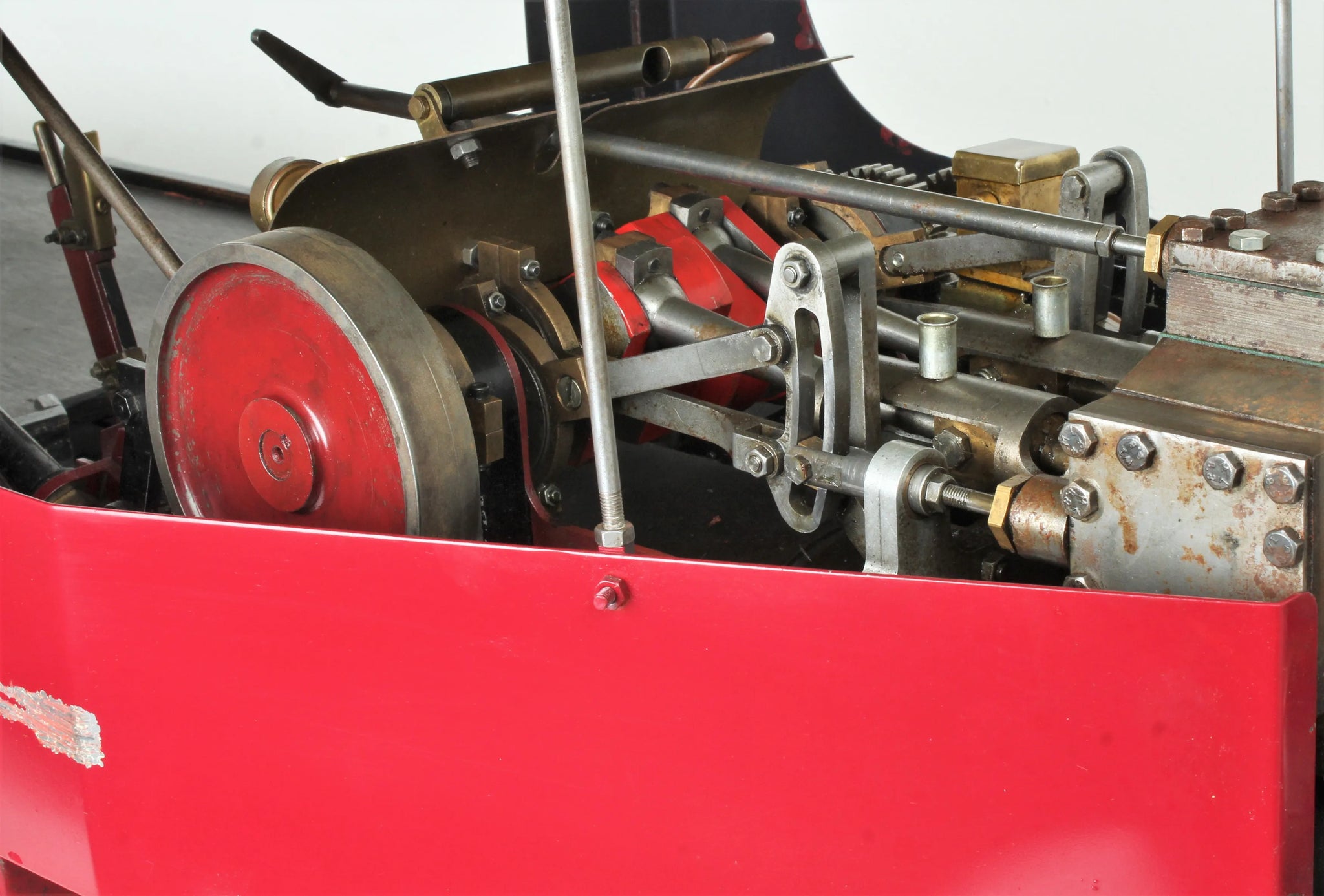

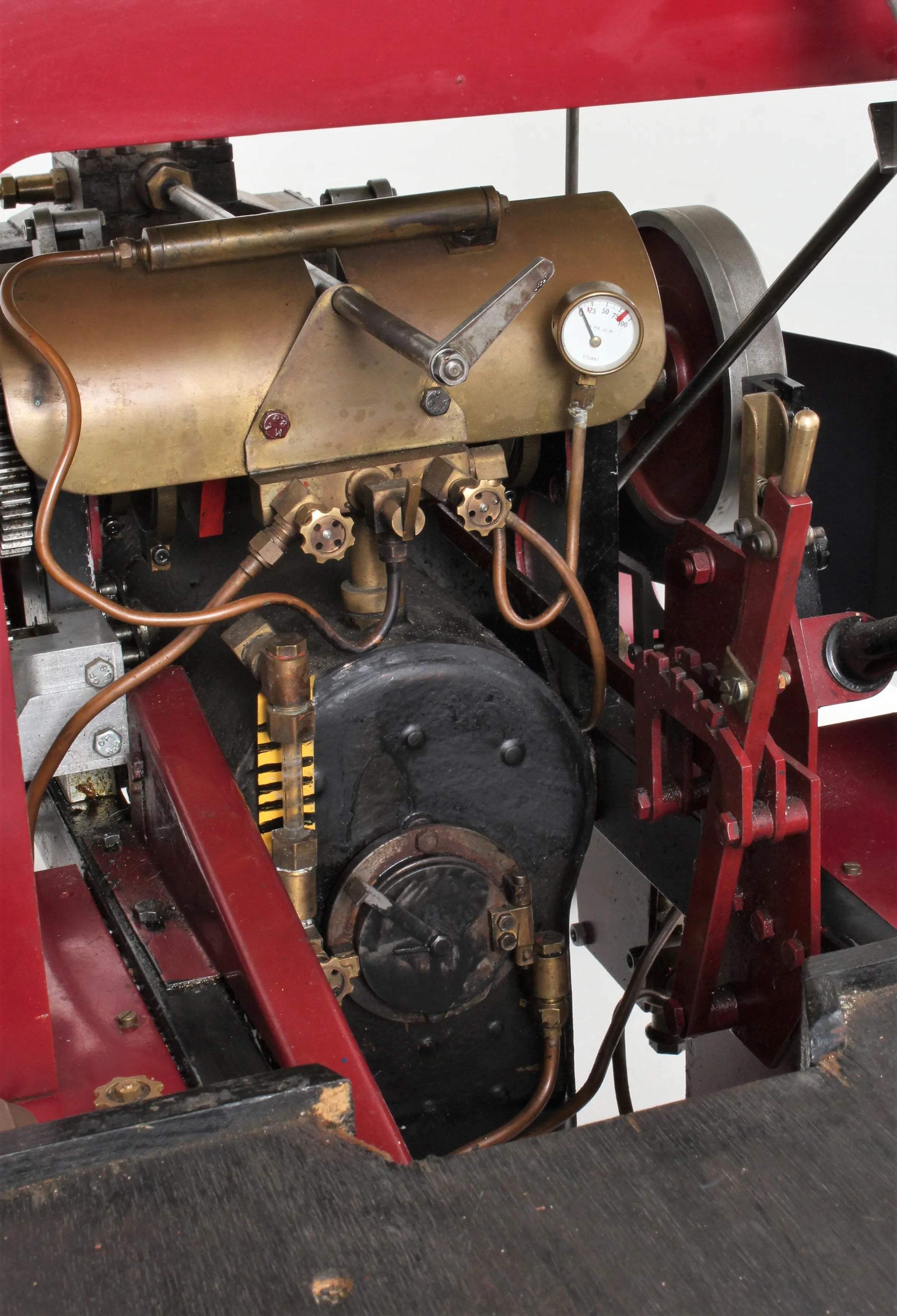

The engine turns over freely and runs on air, it needs new water gauge seals and the blower valve refacing or replacing - it leaks copiously.
Stock code |
9076 |
Length/inches |
50 |
Width/inches |
16 |
Height/inches |
19 |

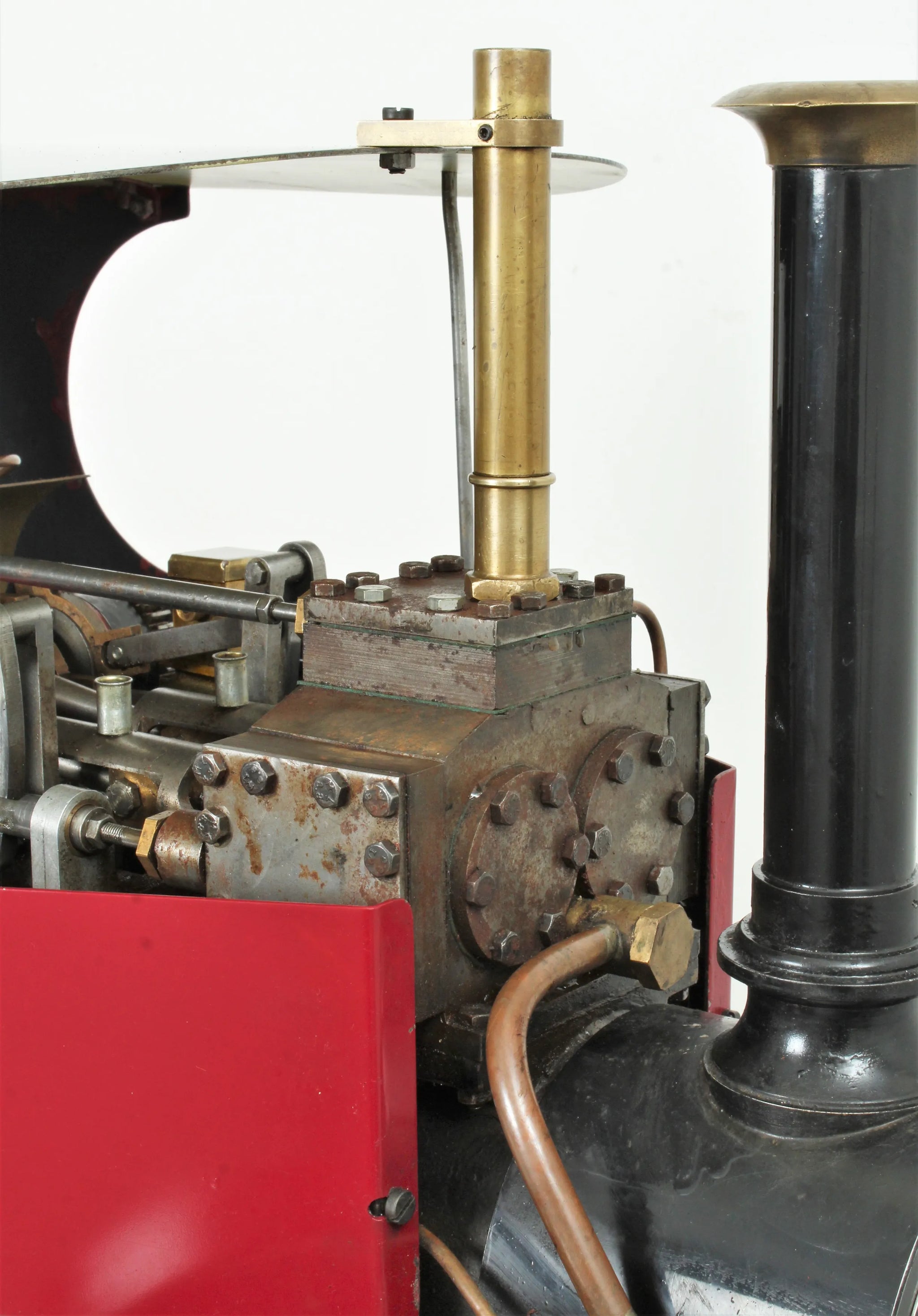

Cylinder material |
cast iron |
Valve type |
slide |

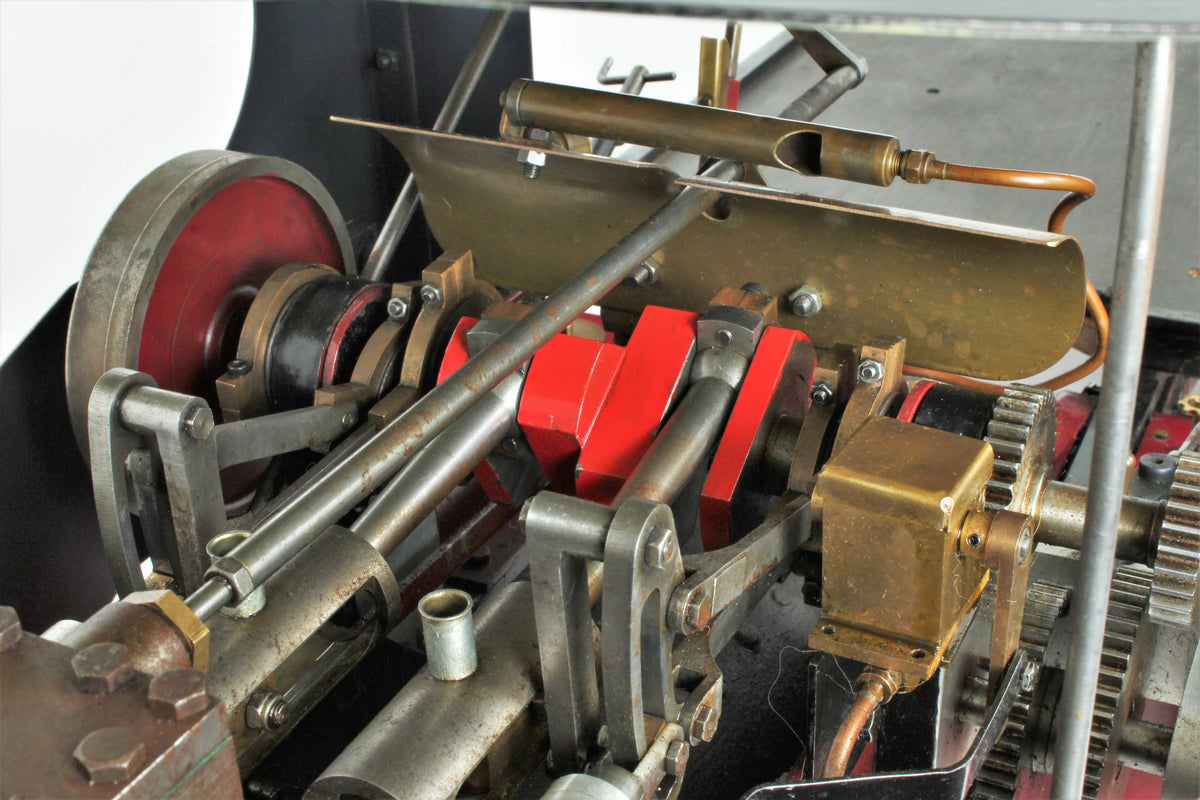

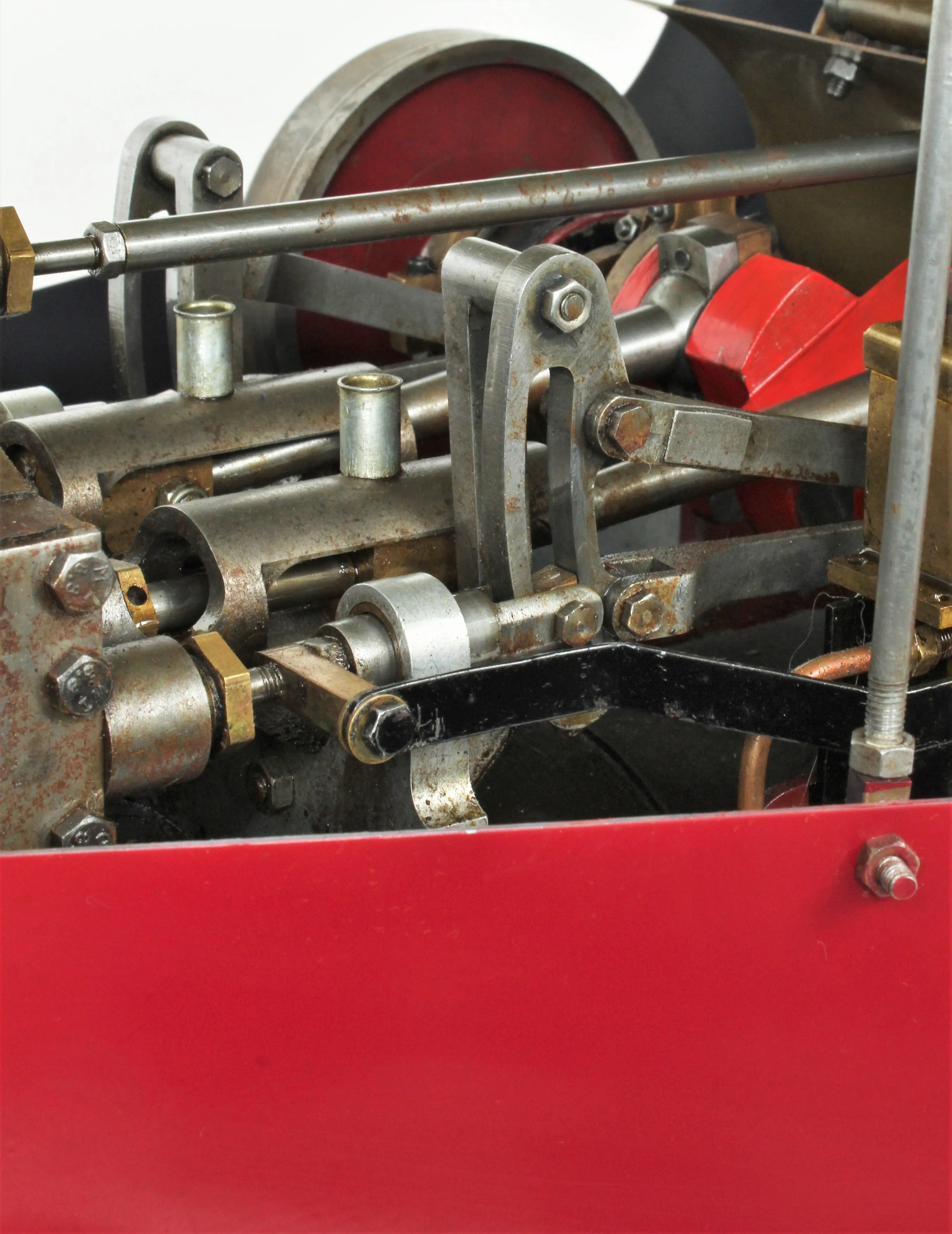

Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler maker |
Winson Model Technology |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
CE/UKCA mark |
n/a, pre-2002 |
Boiler number |
28 |
Safety valve type |
spring |
Safety valve |
1 |
Fusible plug |
yes |

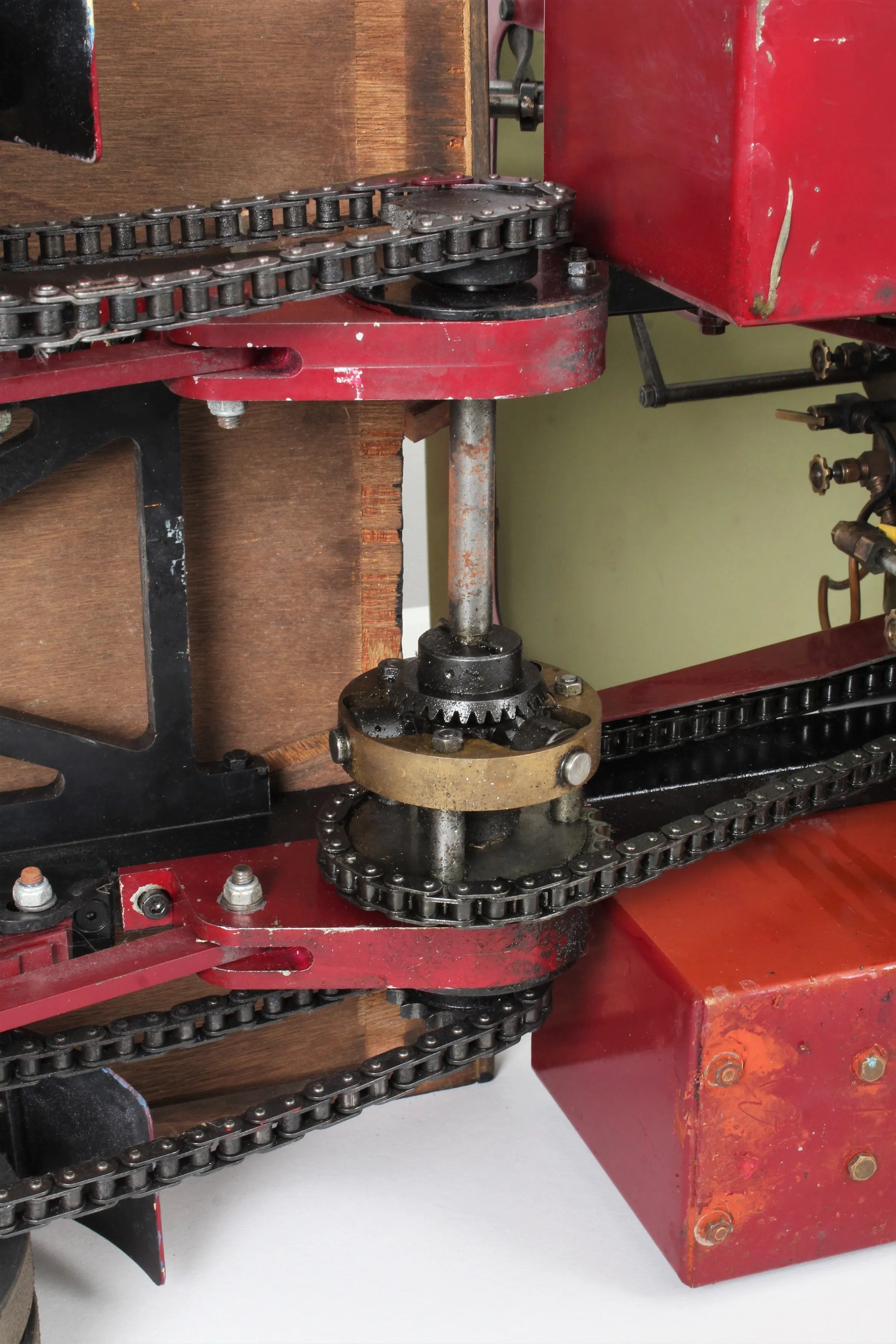

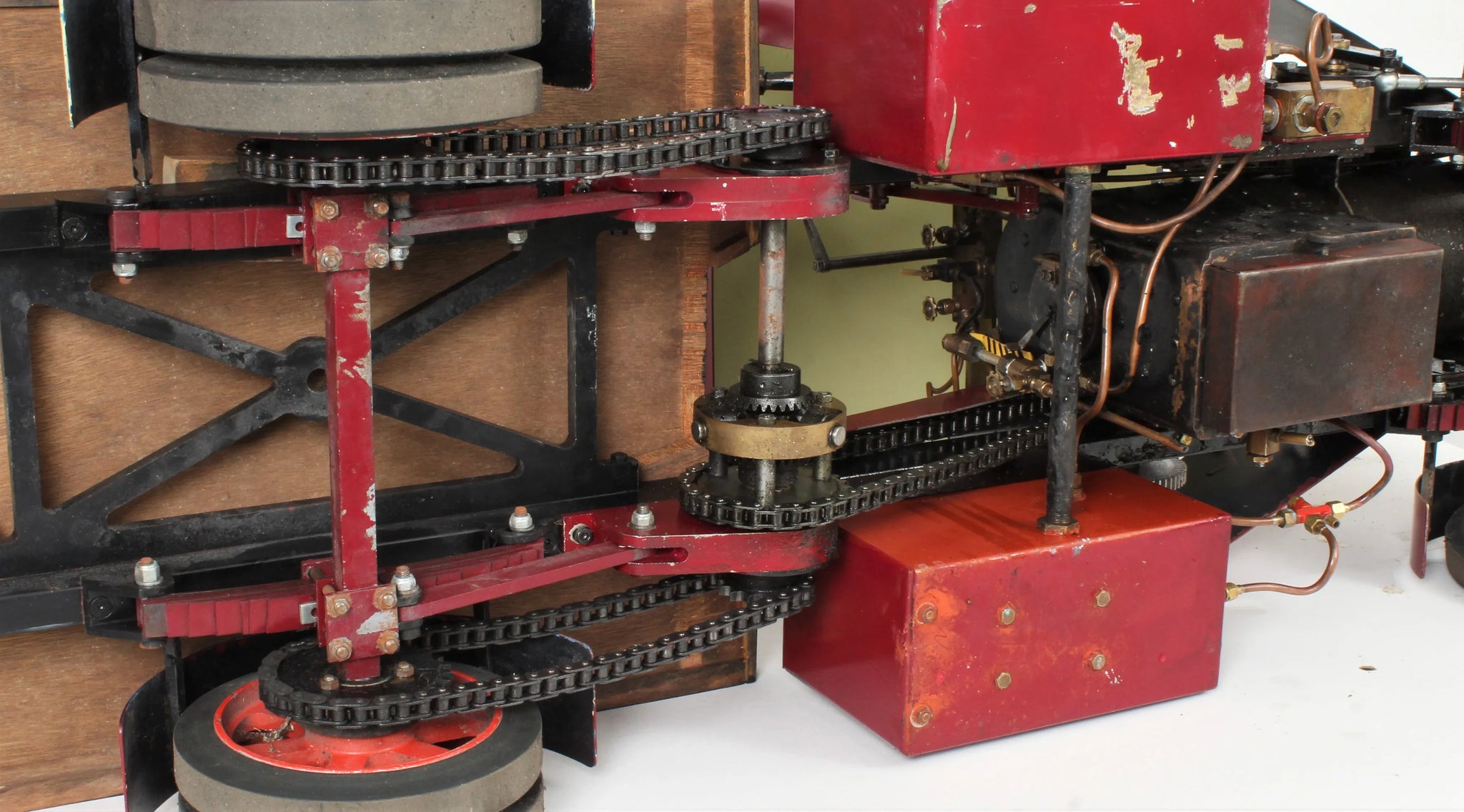

Differential |
yes |
Road speed |
2 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Date out |
Jun-20 |
Hydraulic test valid to |
09-Mar-24 |
