2 inch scale agricultural engine "Lincolnshire Lad"

Sold
We sold this one back in 2015, it's recently come back as part of a large collection of engines from a long time customer in Switzerland. New and unsteamed when we bought it from the builder back then, it remains in the same condition now.

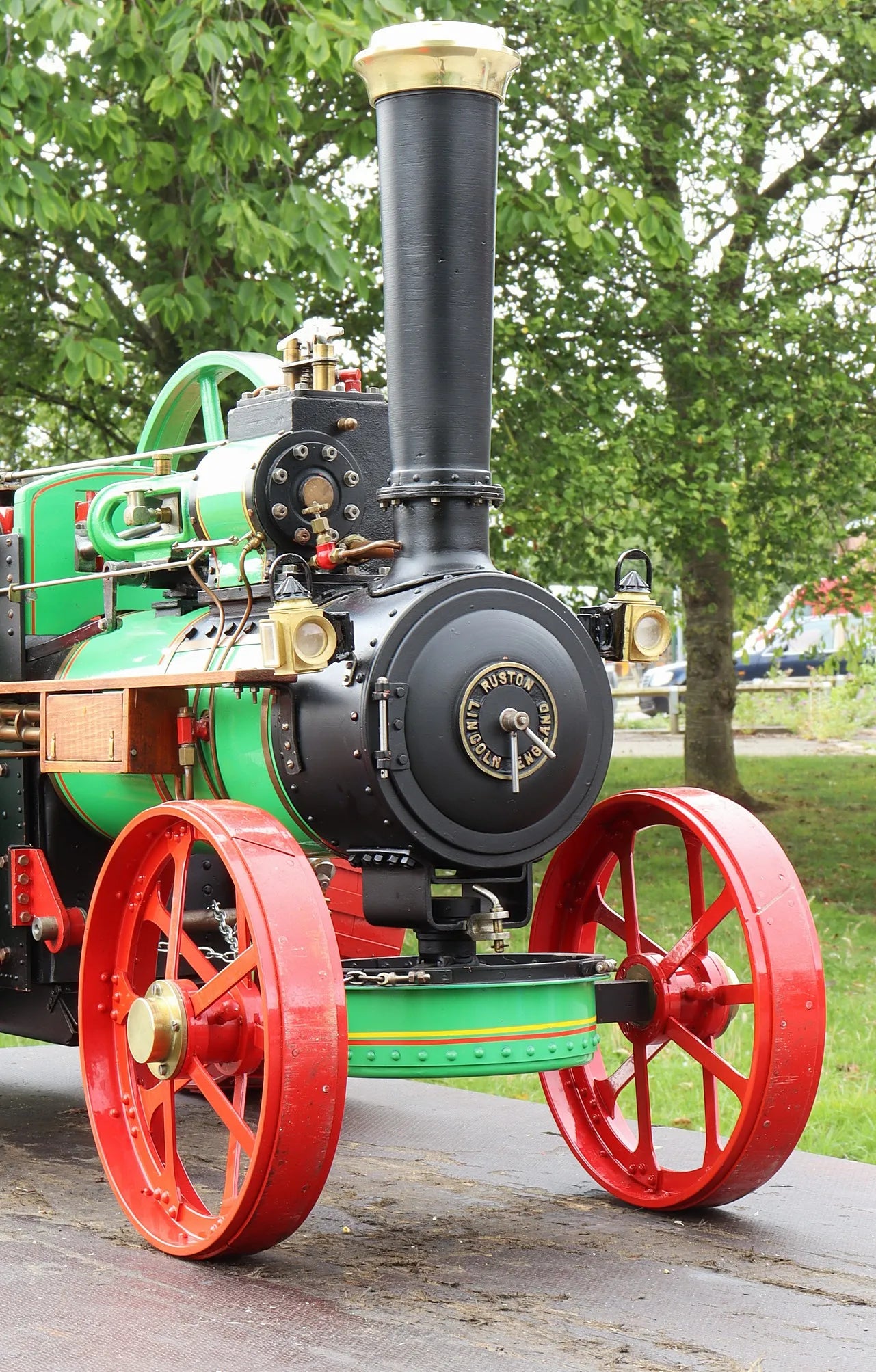

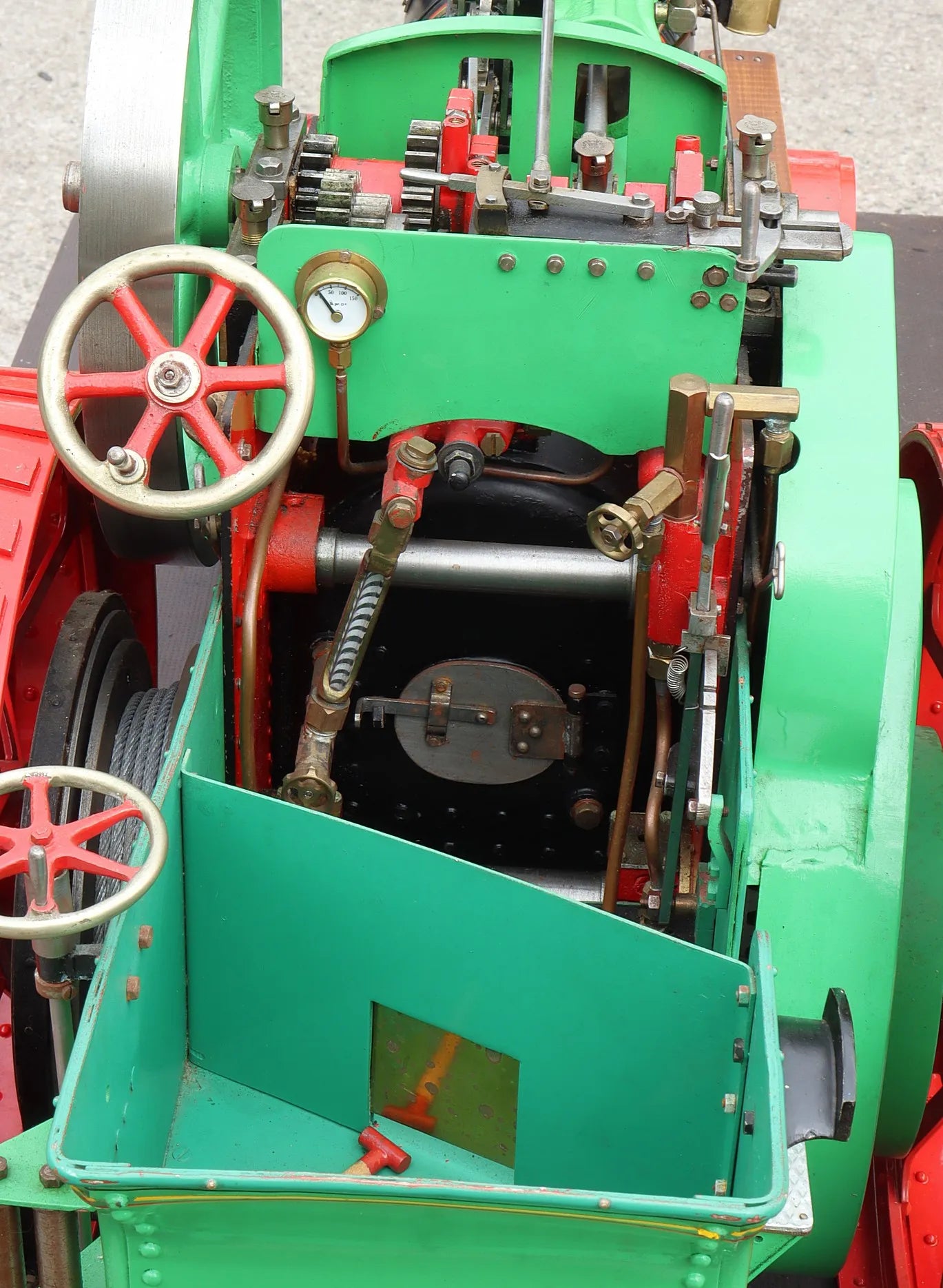

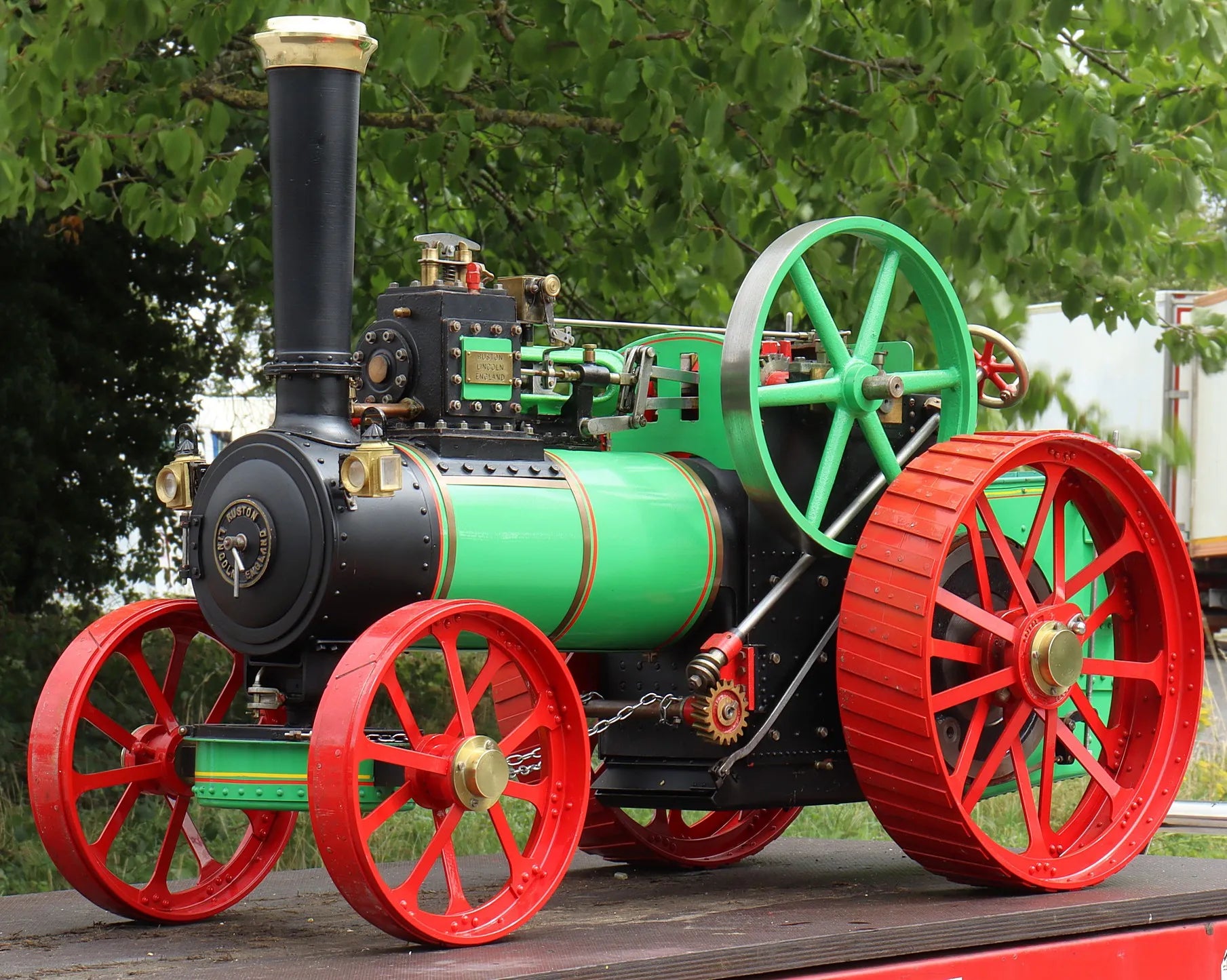

Words below and video are from 2015, the photographs opposite were taken in recent days.

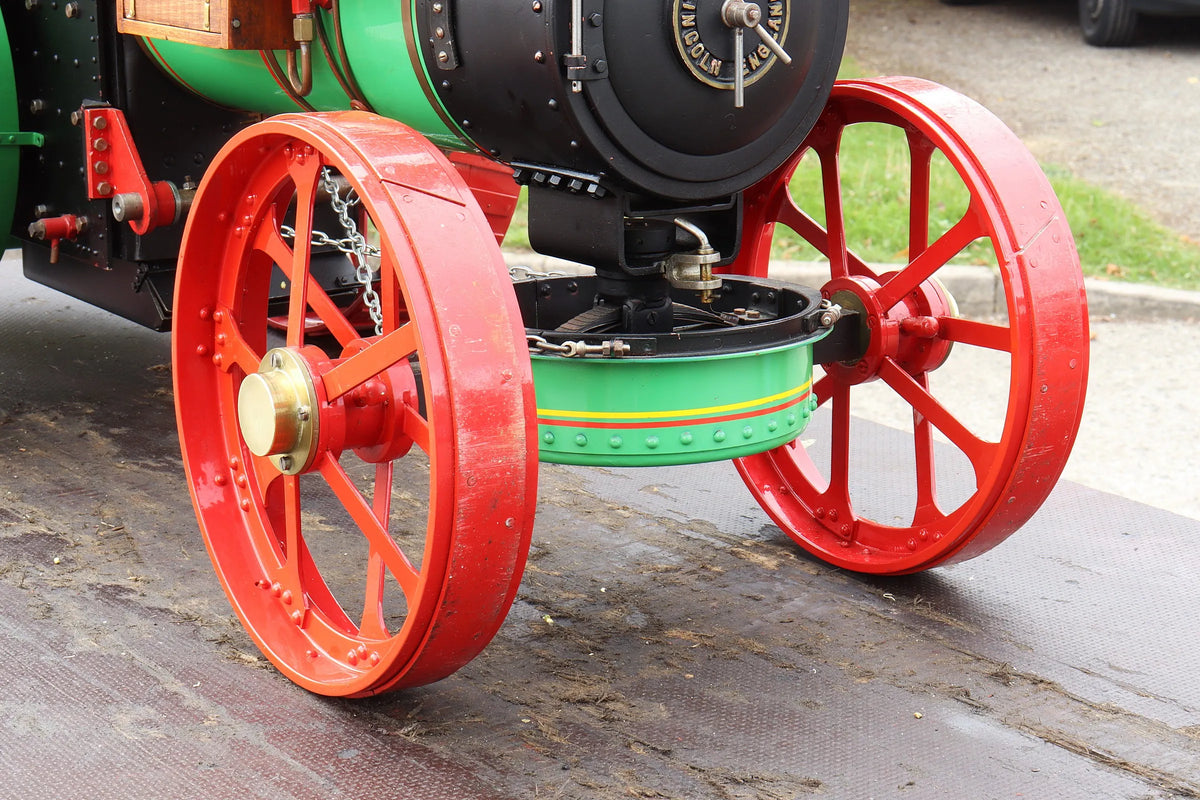

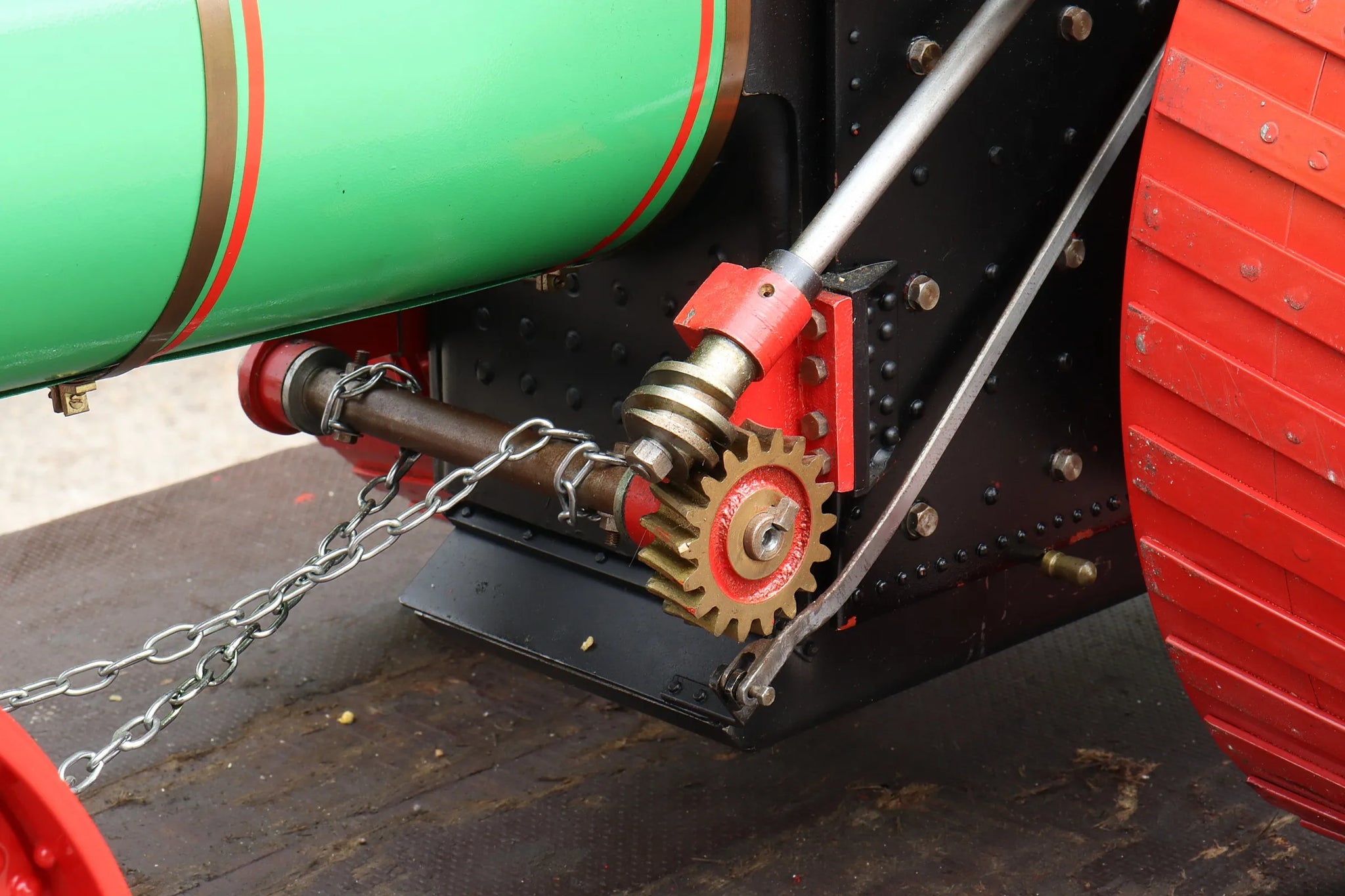

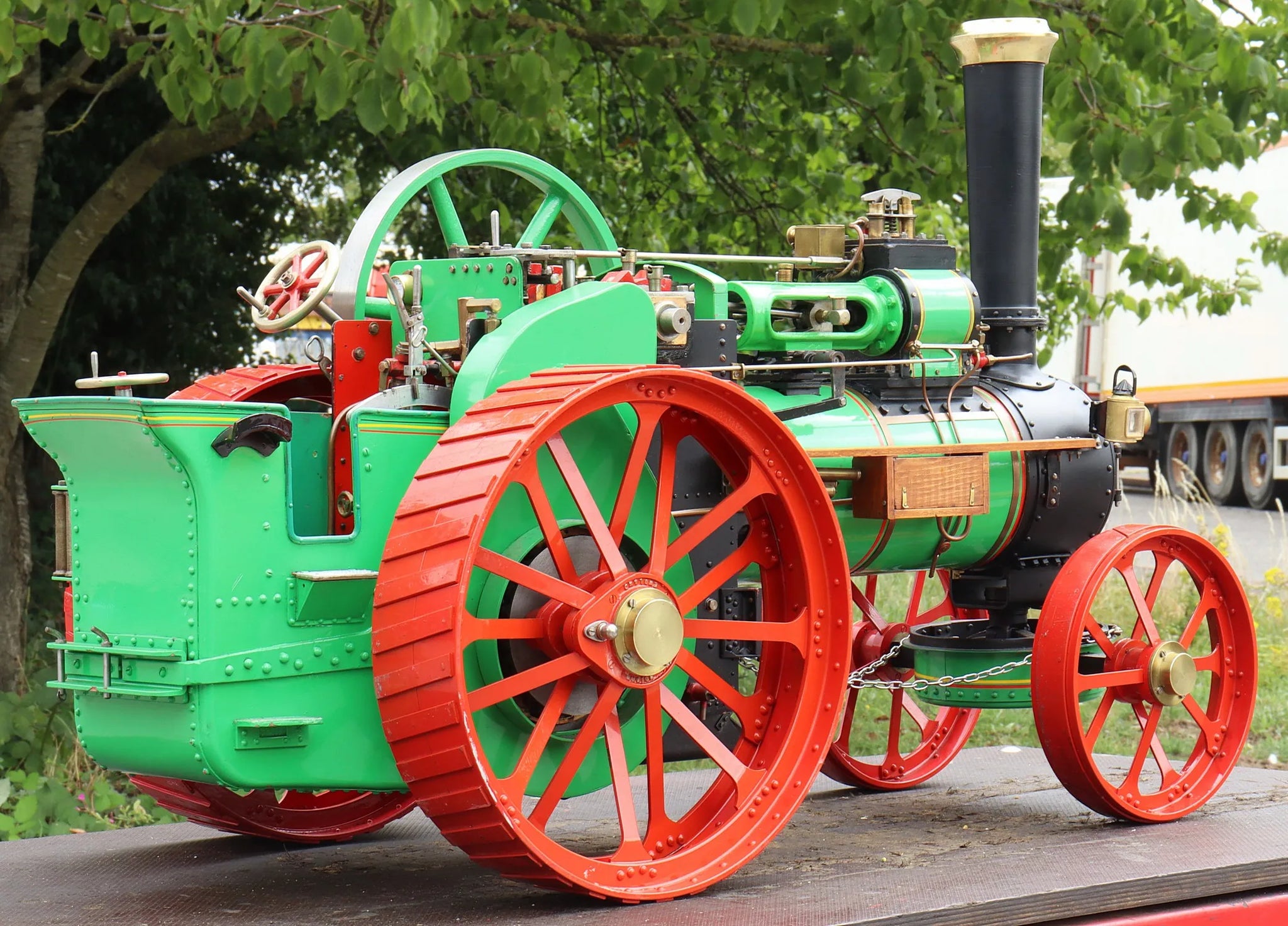

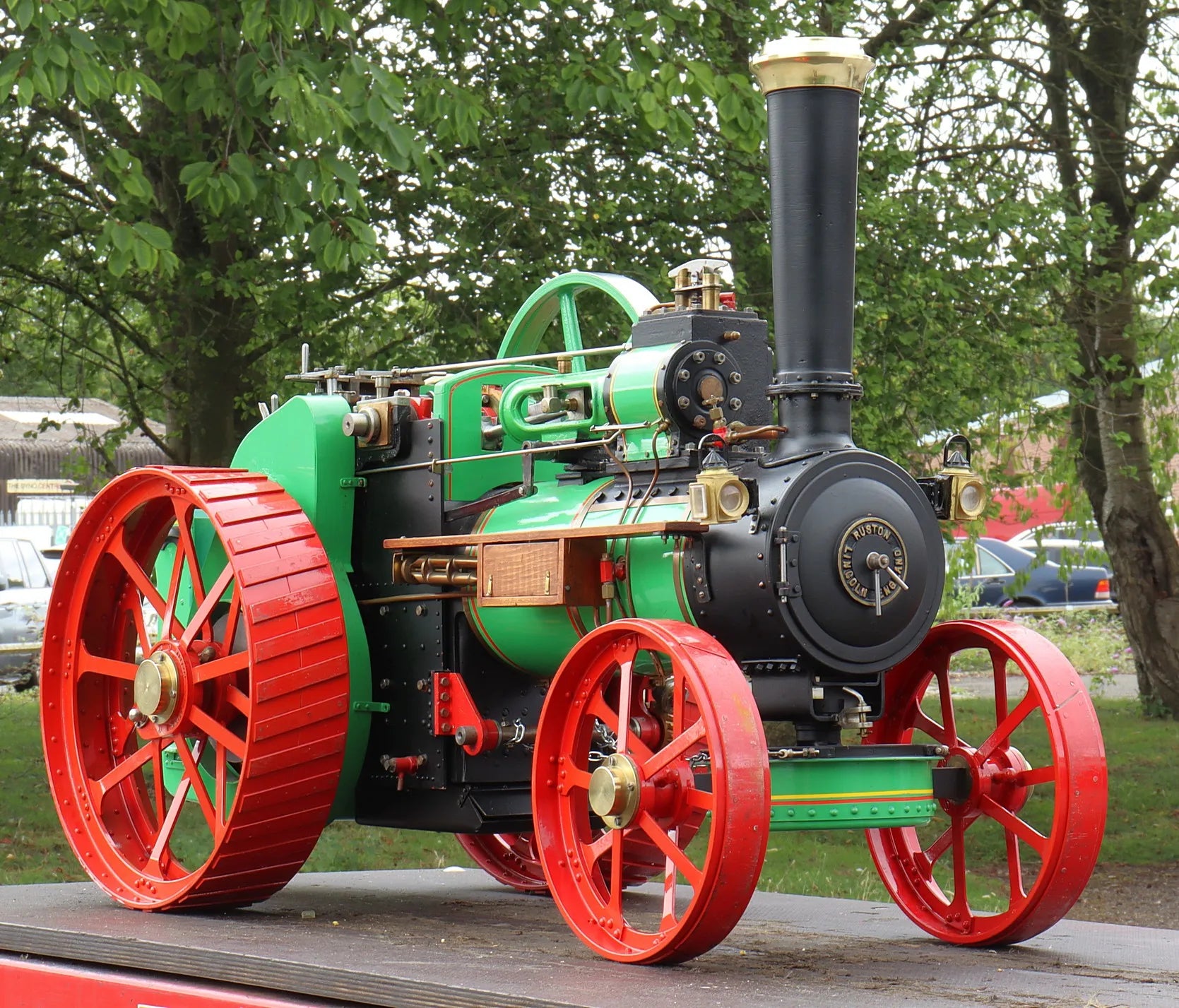

A 2 inch scale agricultural engine, built to Reeves' Ruston inspired "Lincolnshire Lad" design - it makes up into a large, well-proportioned engine.

Unsteamed from new, this engine was completed some years ago - the boiler was commercially built, delivered new in 2004 with manufacturer's twice working pressure test and PED declaration of conformity.

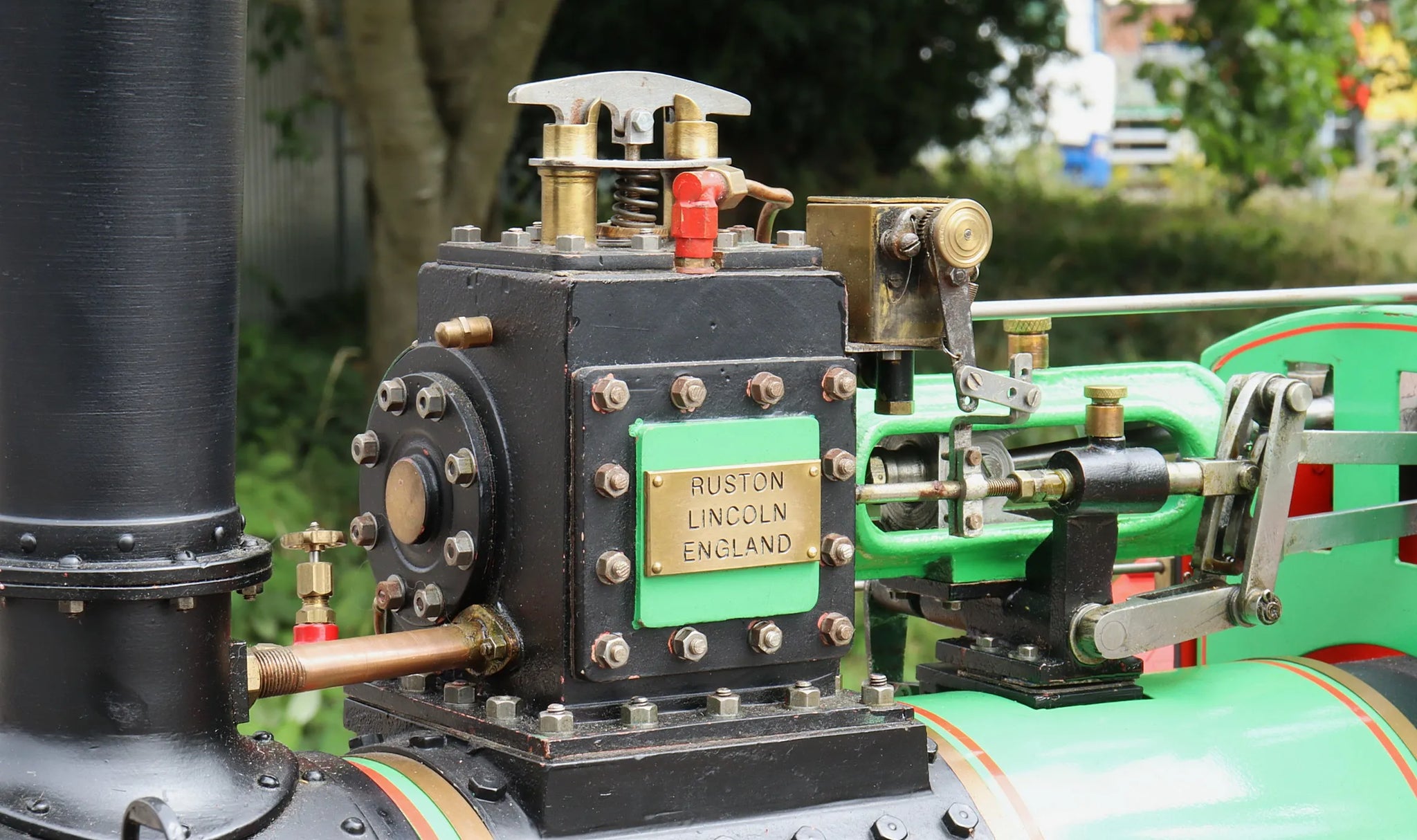

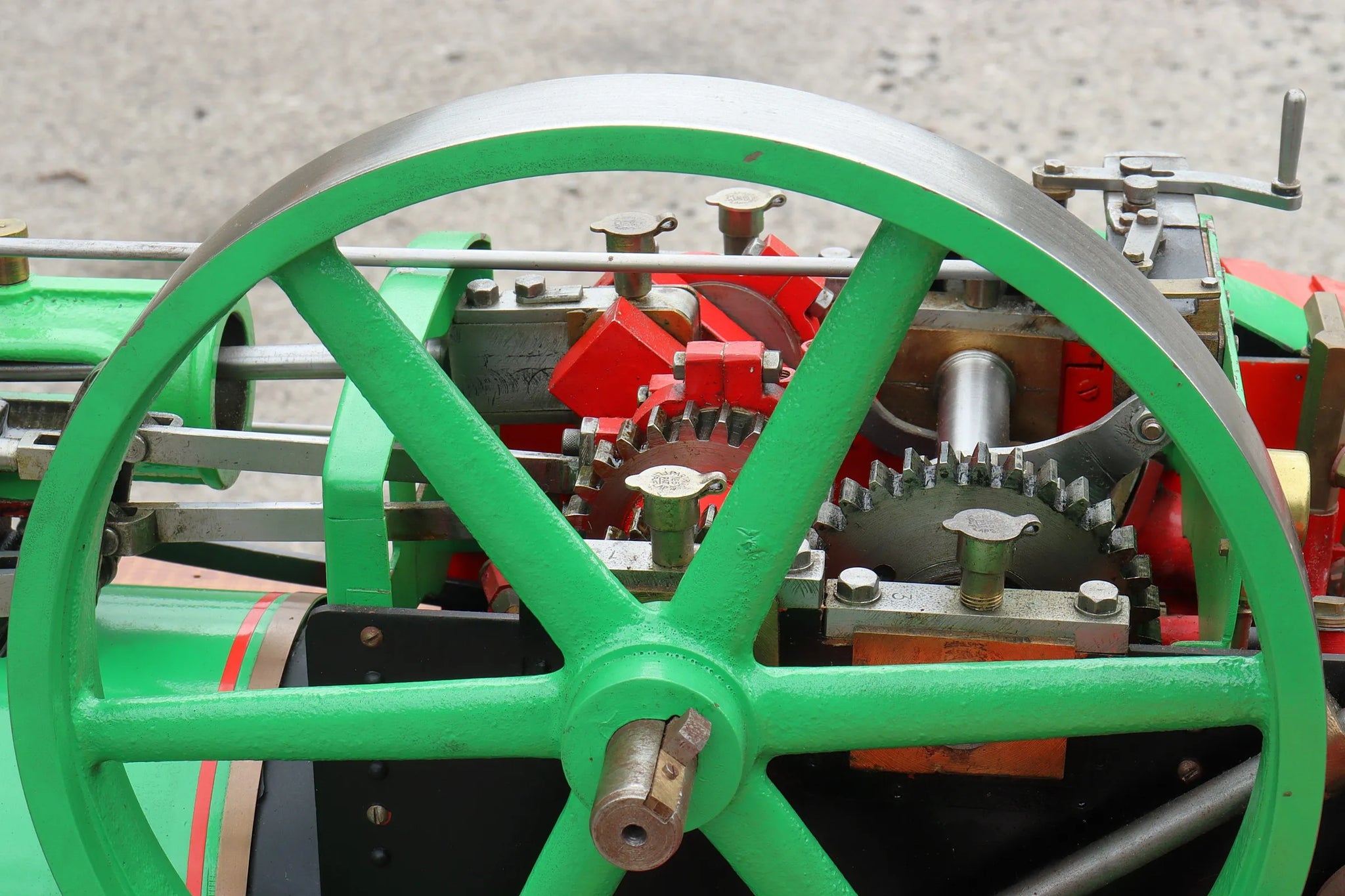

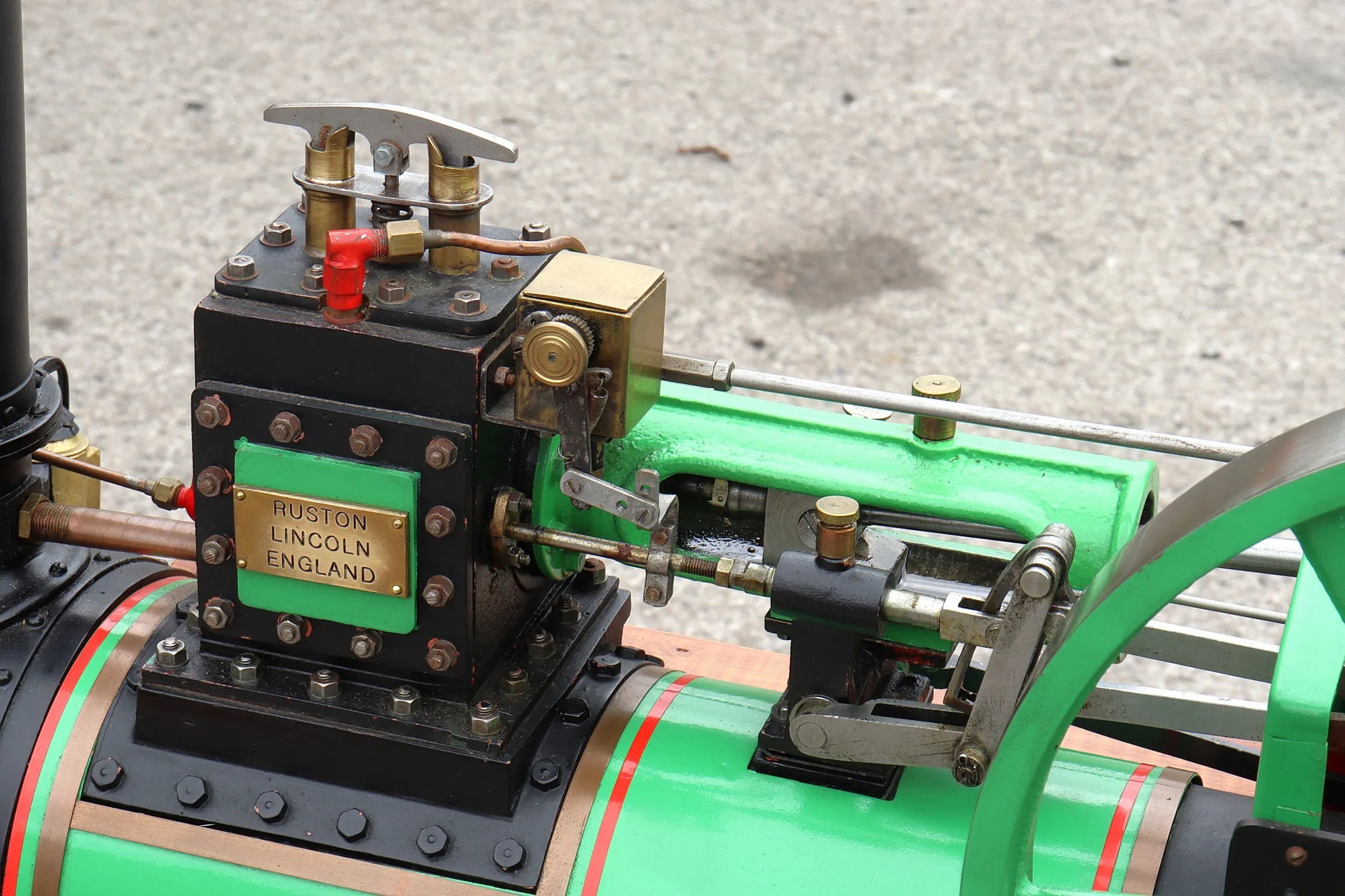

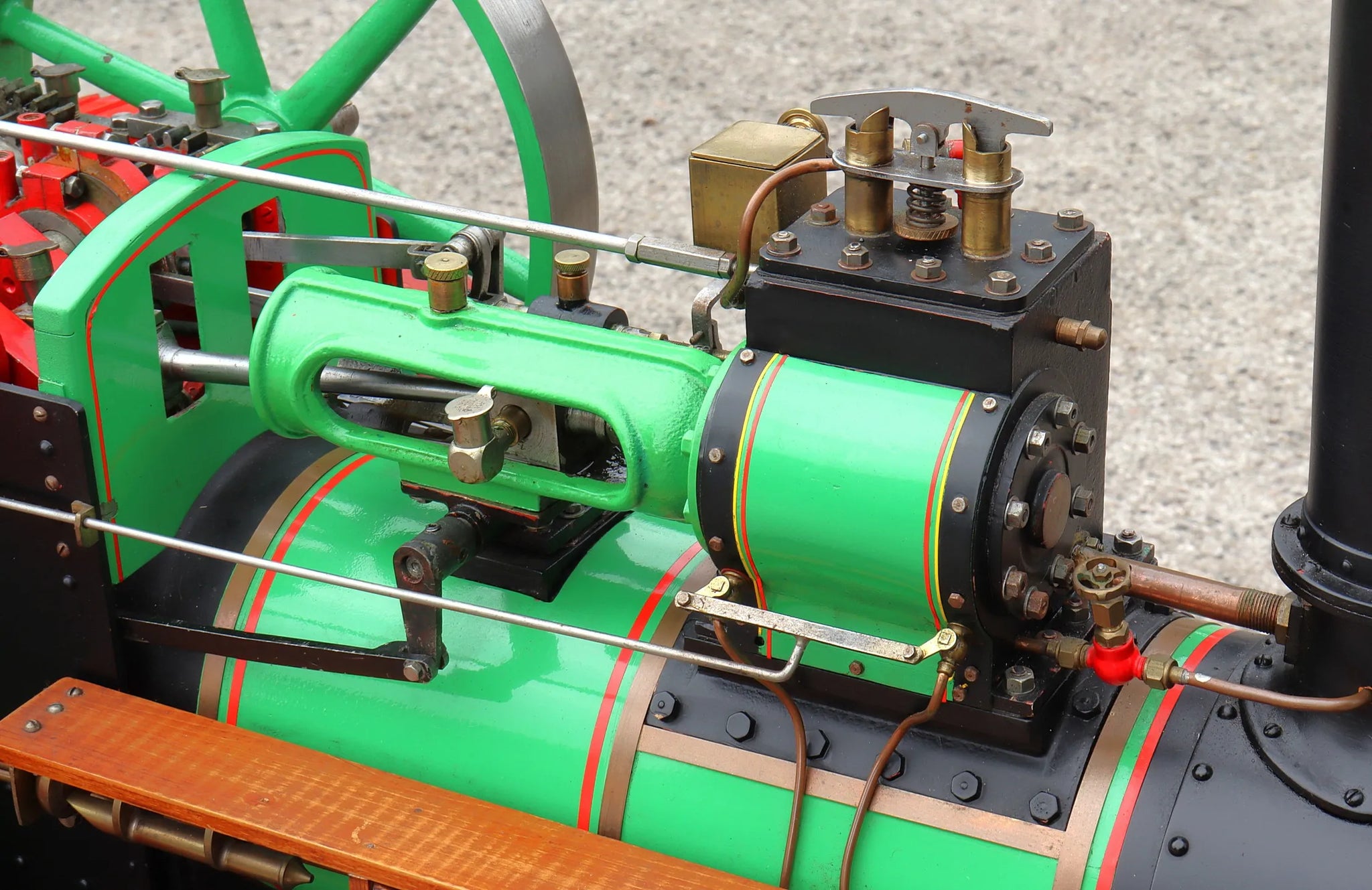

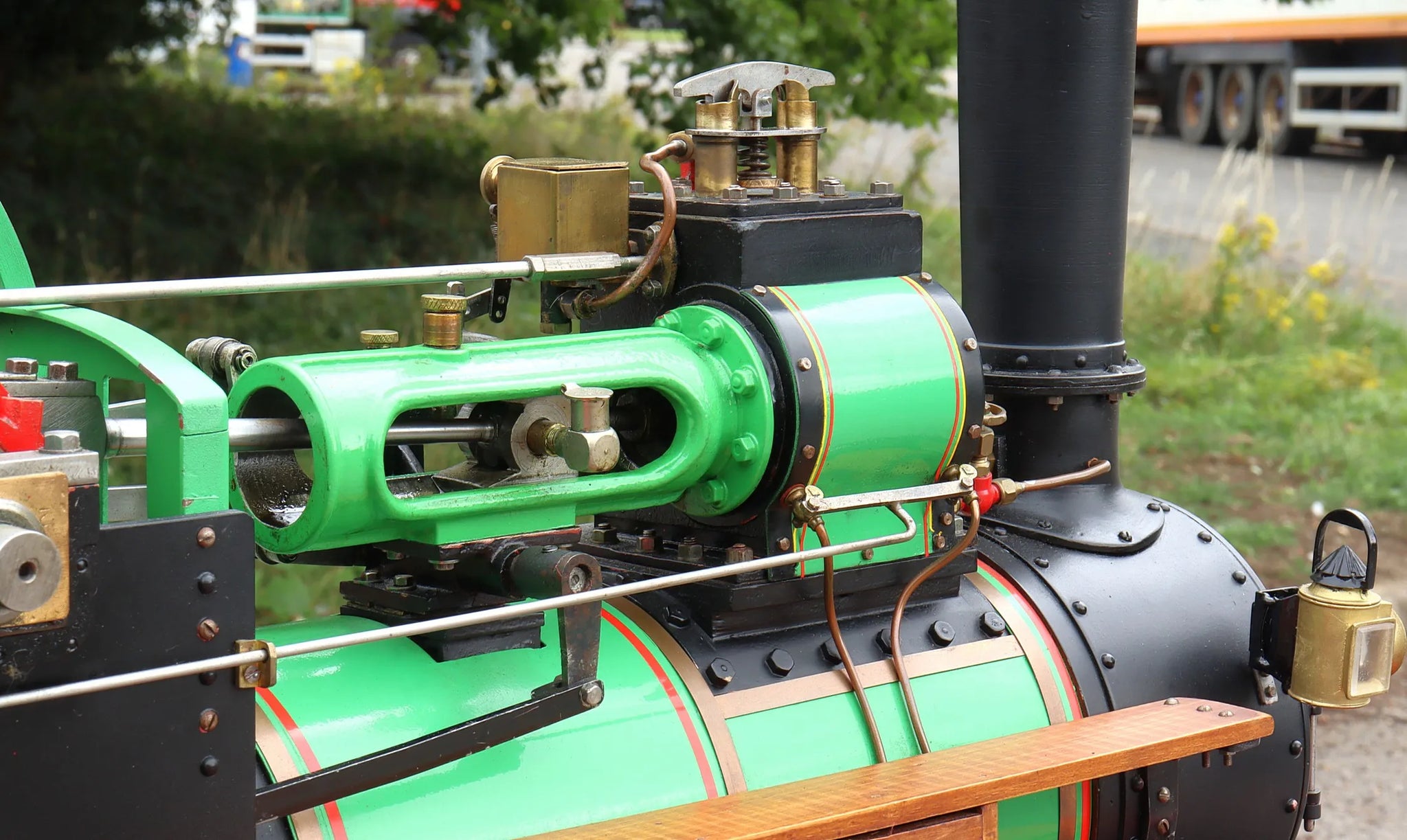

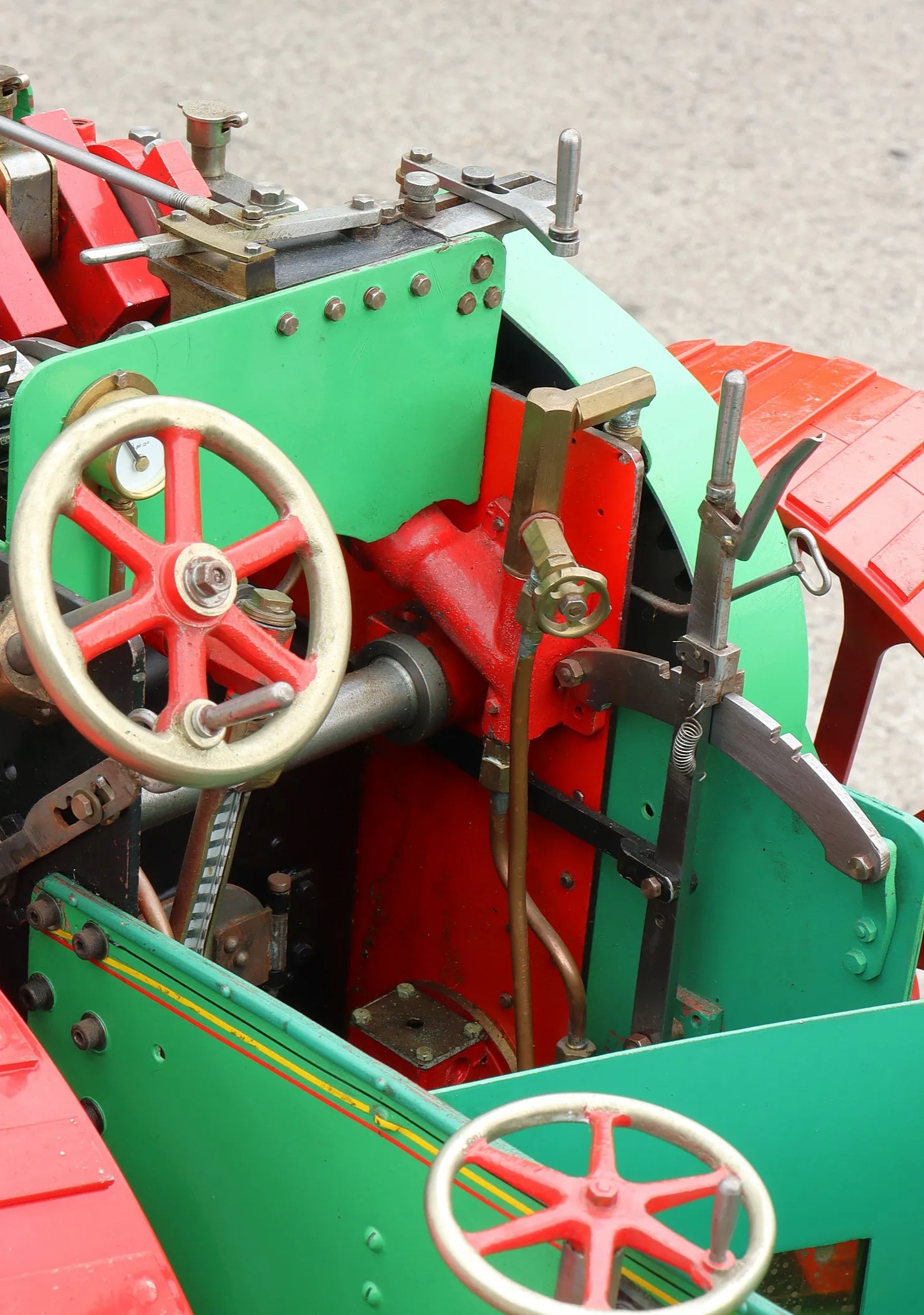

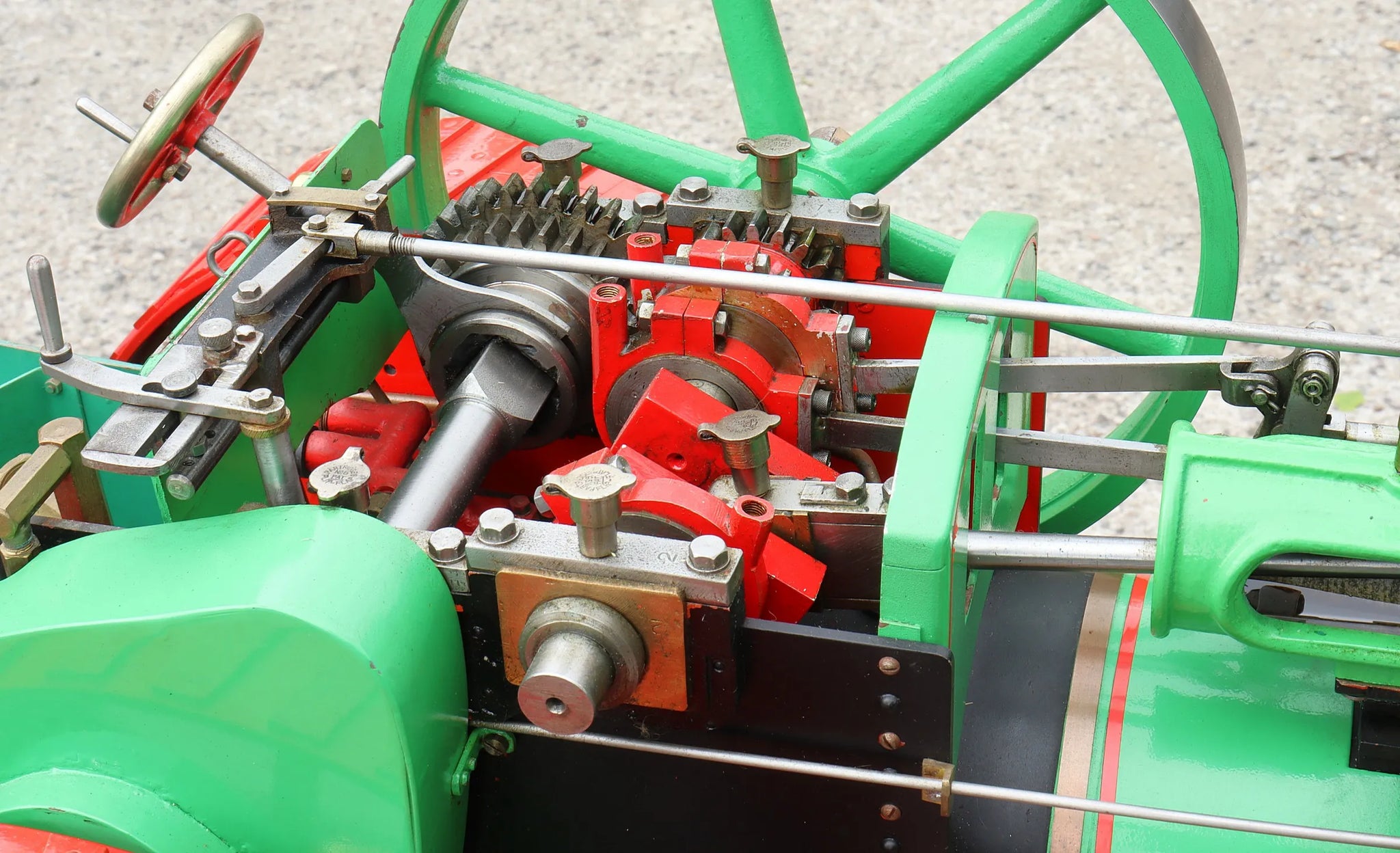

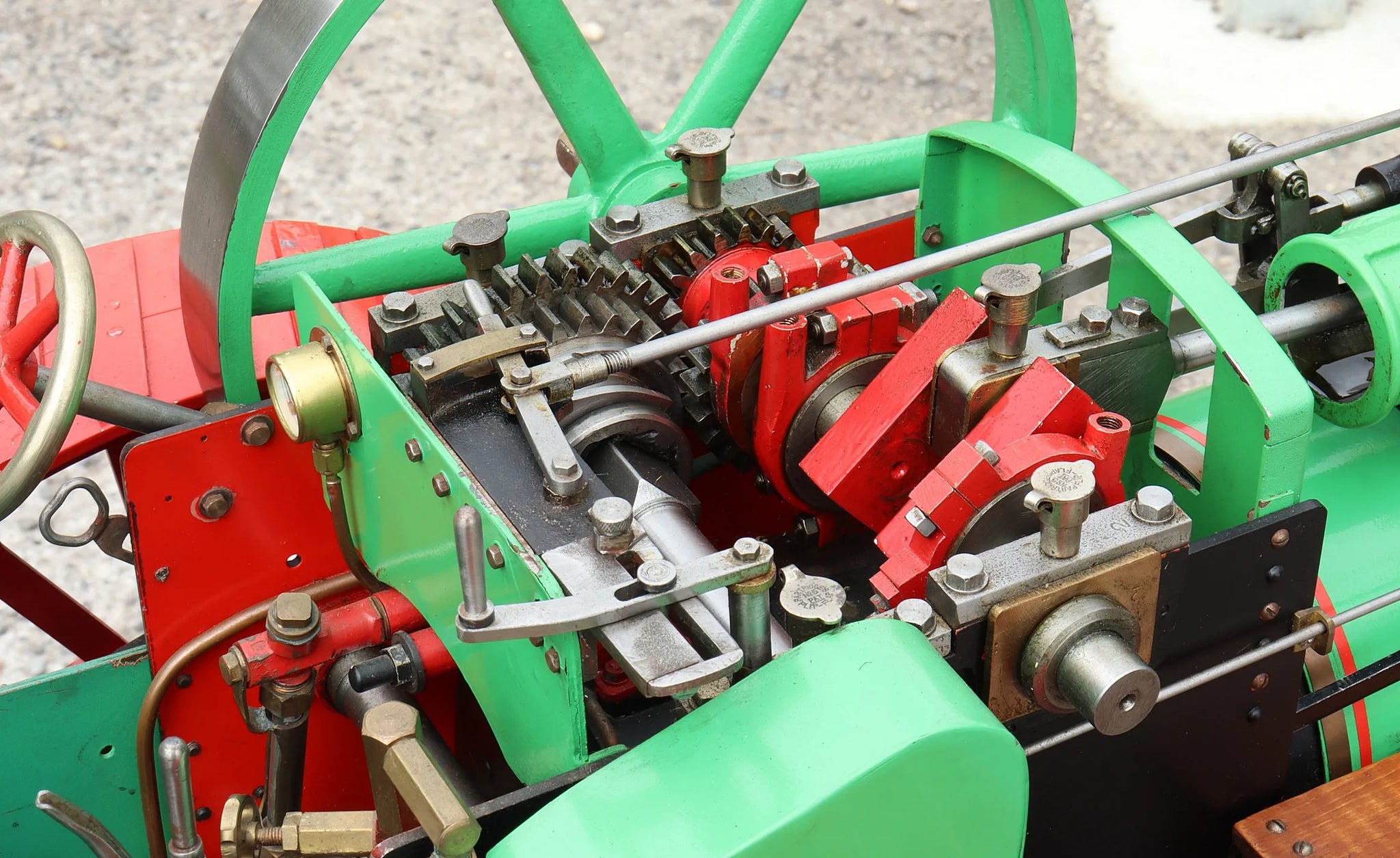

Silver soldered copper boiler, 80psi working pressure, feed by mechanical pump and injector. Single cylinder with slide valve actuated by Stephenson's gear, pole reverser, mechanical lubricator. Two speed transmission, band brake to nearside rear wheel.

The engine runs well on air - there's a clip of it running in the workshop here - and is complete with a set of drawings and material and adhesive for rubber tyring the wheels.


Type: Second hand

Tags: Traction engines

Technical information

Stock code

 12994

Length/inches

 35

Width/inches

 16

Height/inches

 23

Weight/Kg

 60

Cylinder material

 cast iron

Valve type

 slide

Valve gear

 Stephensons

Reverser type

 pole

Boiler maker

 Tower Model Engineering

Boiler type

 locomotive

Boiler construction

 silver soldered

Boiler material

 copper

Working pressure

 80

CE/UKCA mark

 yes

Year built

 2004

Boiler number

 TME 001

Safety valve type

 Ramsbottom

Safety valve

 2
