11348

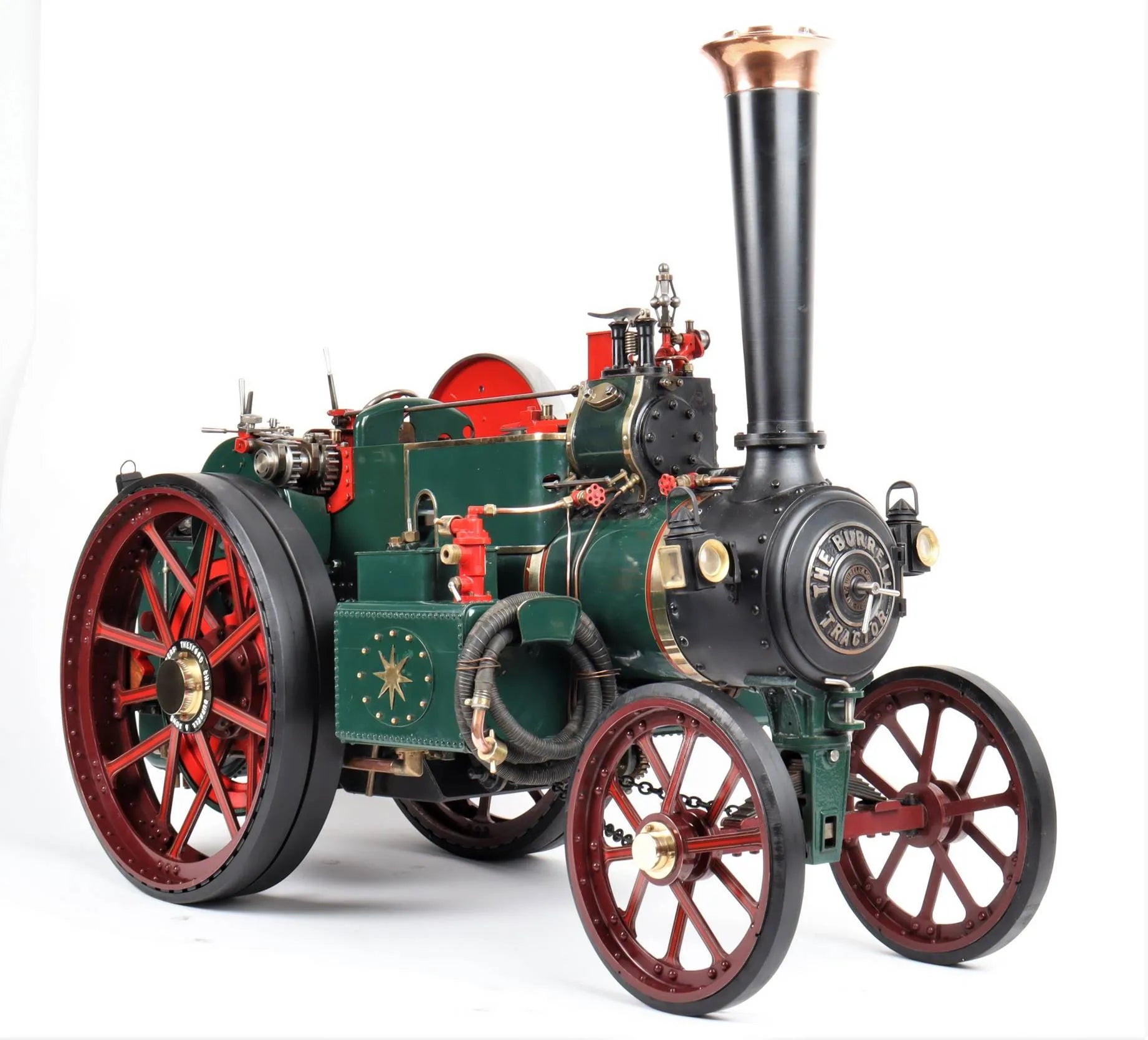

The engine turns over freely and runs well on air in either direction - steamed in the past it's in good condition, with some wear detectable in the main bearings.
The silver soldered copper boiler has had a twice working pressure hydraulic test with new certification issued.
Stock code |
11348 |
Scale |
2 inch |
Length/inches |
28 |
Width/inches |
12 |
Height/inches |
21 |
Weight/Kg |
38 |
Wheel material |
steel |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |

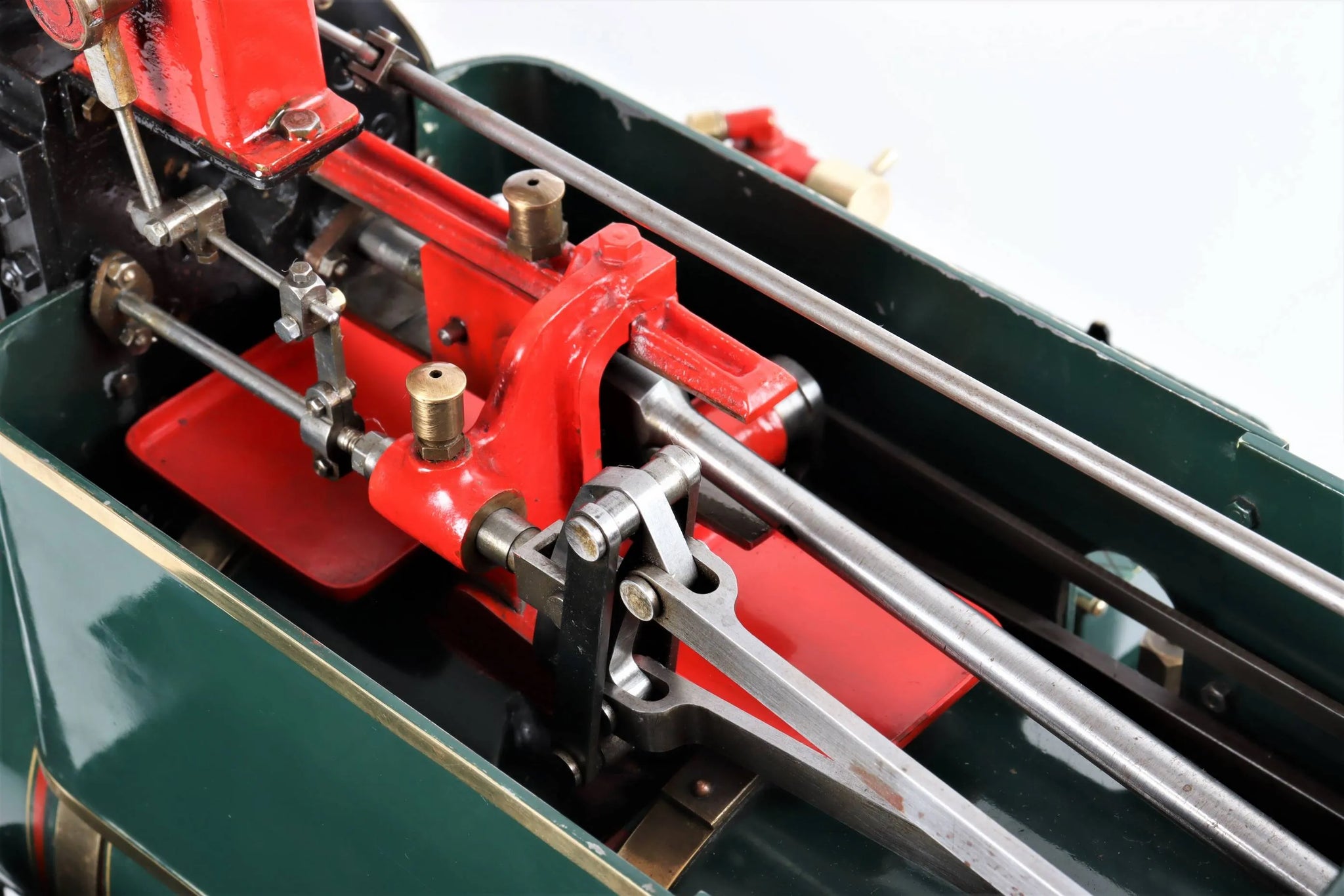

Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered with nutted and calked firebox |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a - non-commercial |
Safety valve type |
Ramsbottom |
Safety valve |
2 |
Fusible plug |
no |

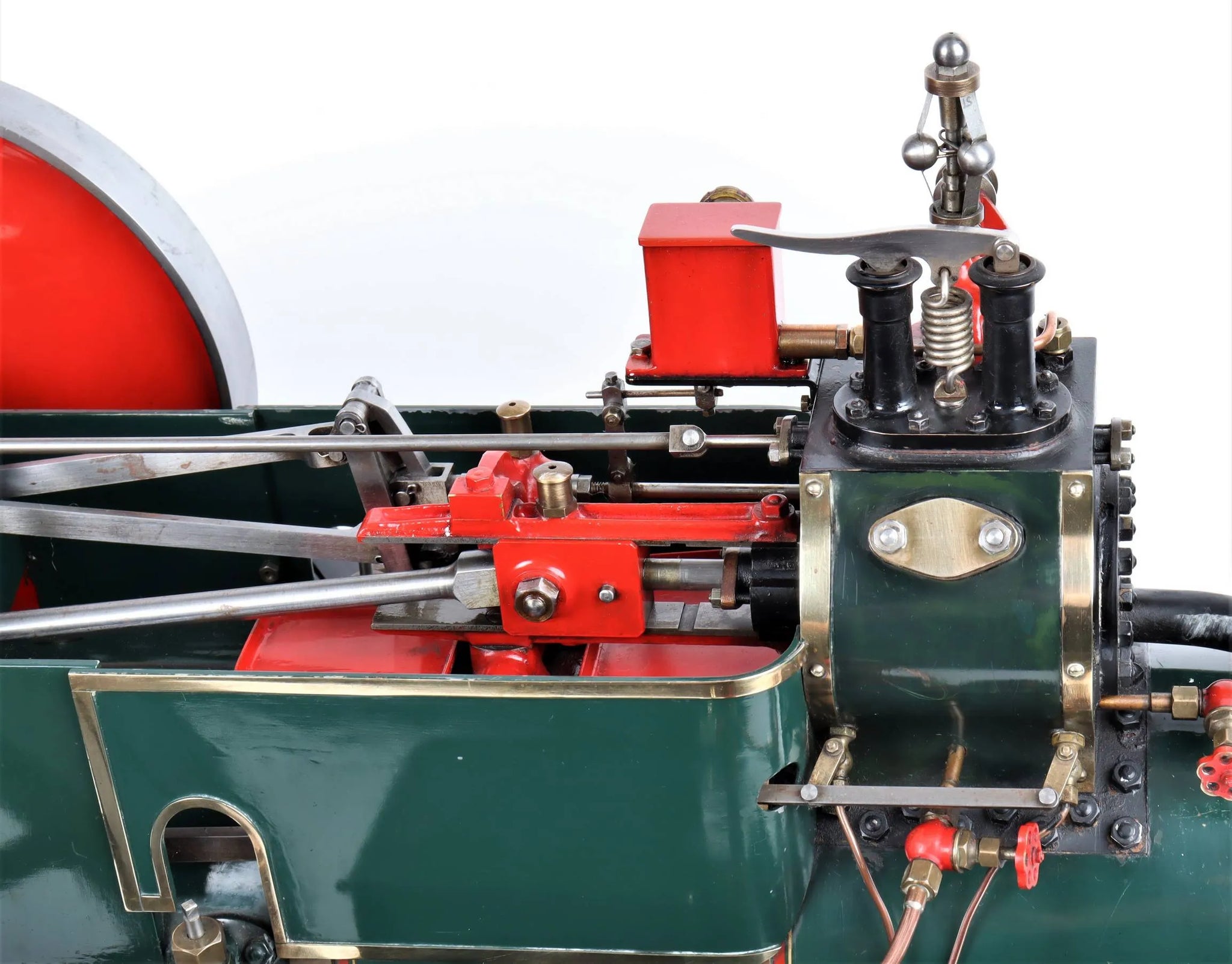

Governor type |
Pickering |
Differential |
yes |

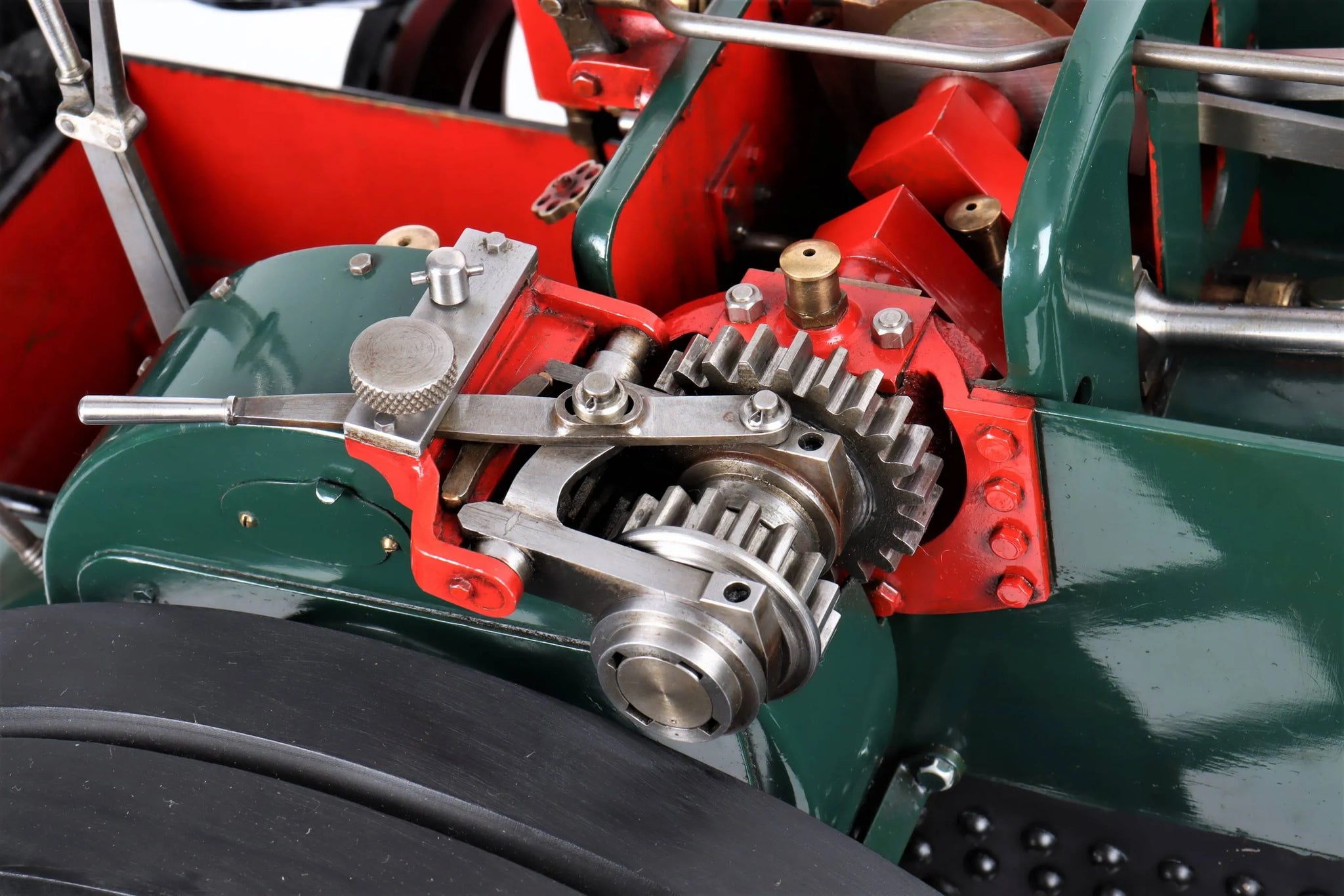

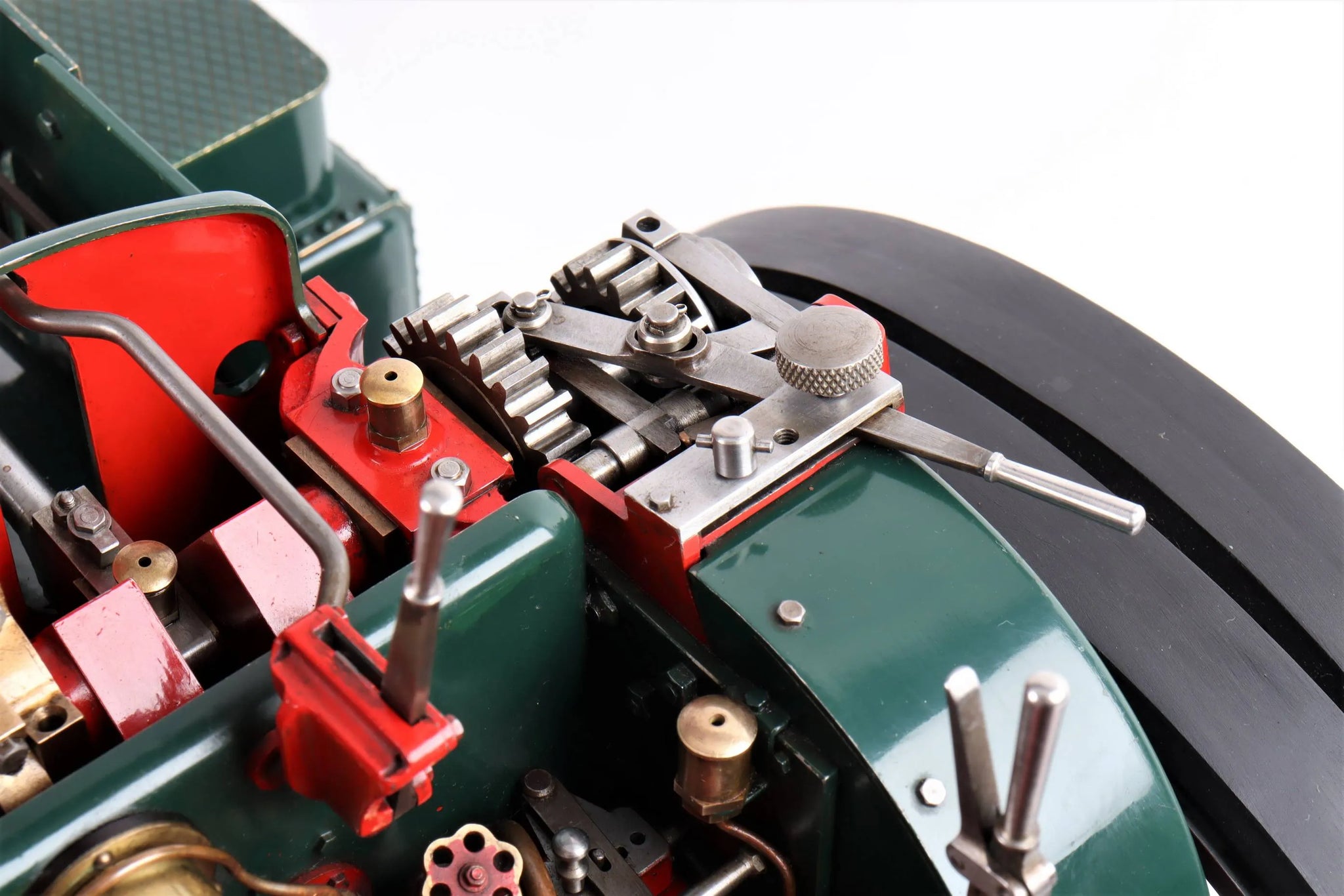

Road speed |
2 |
Whistle |
no |
Steam pump |
no |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Date out |
Aug-23 |
Hydraulic test valid to |
06-Jun-27 |
