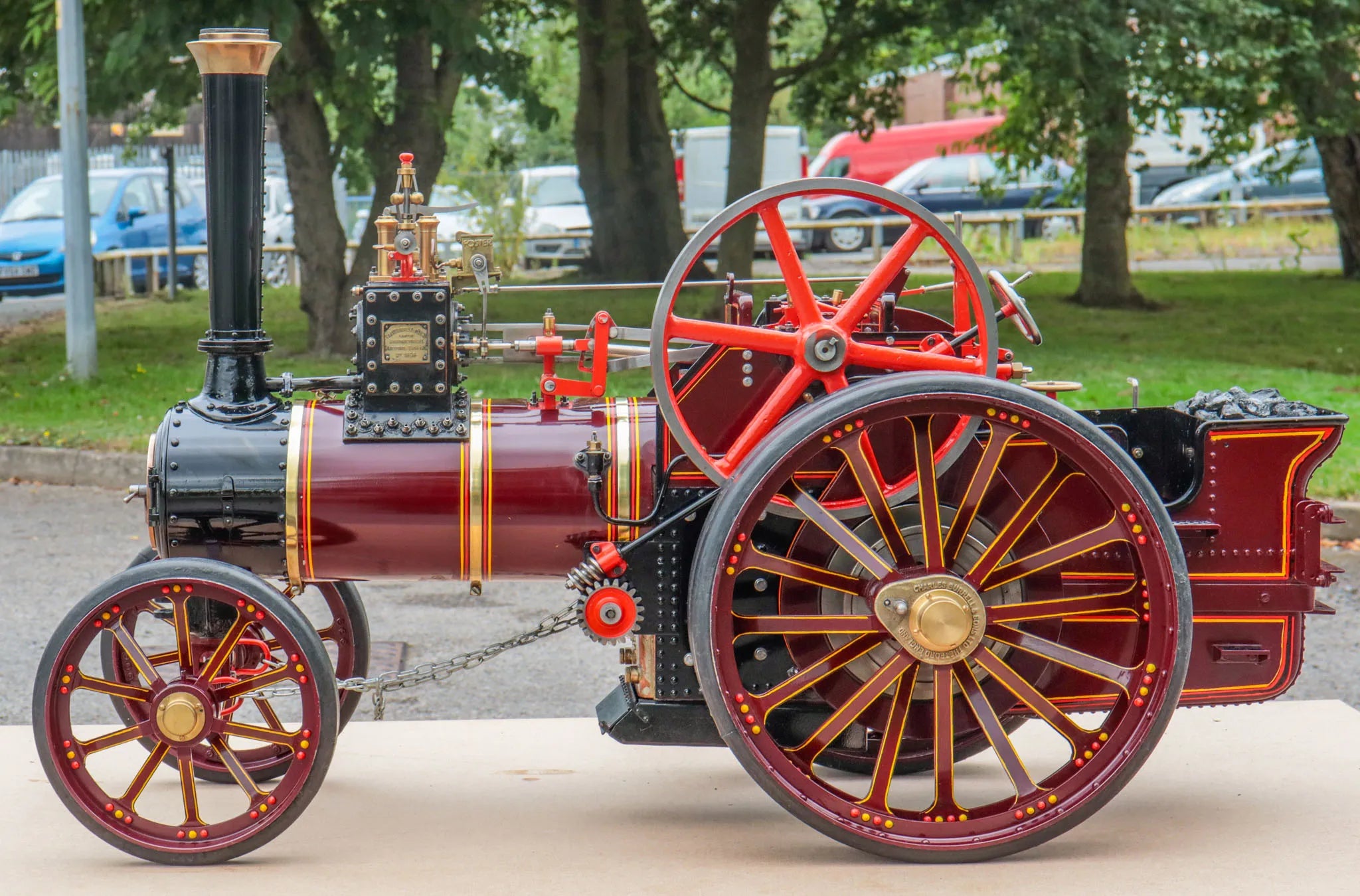

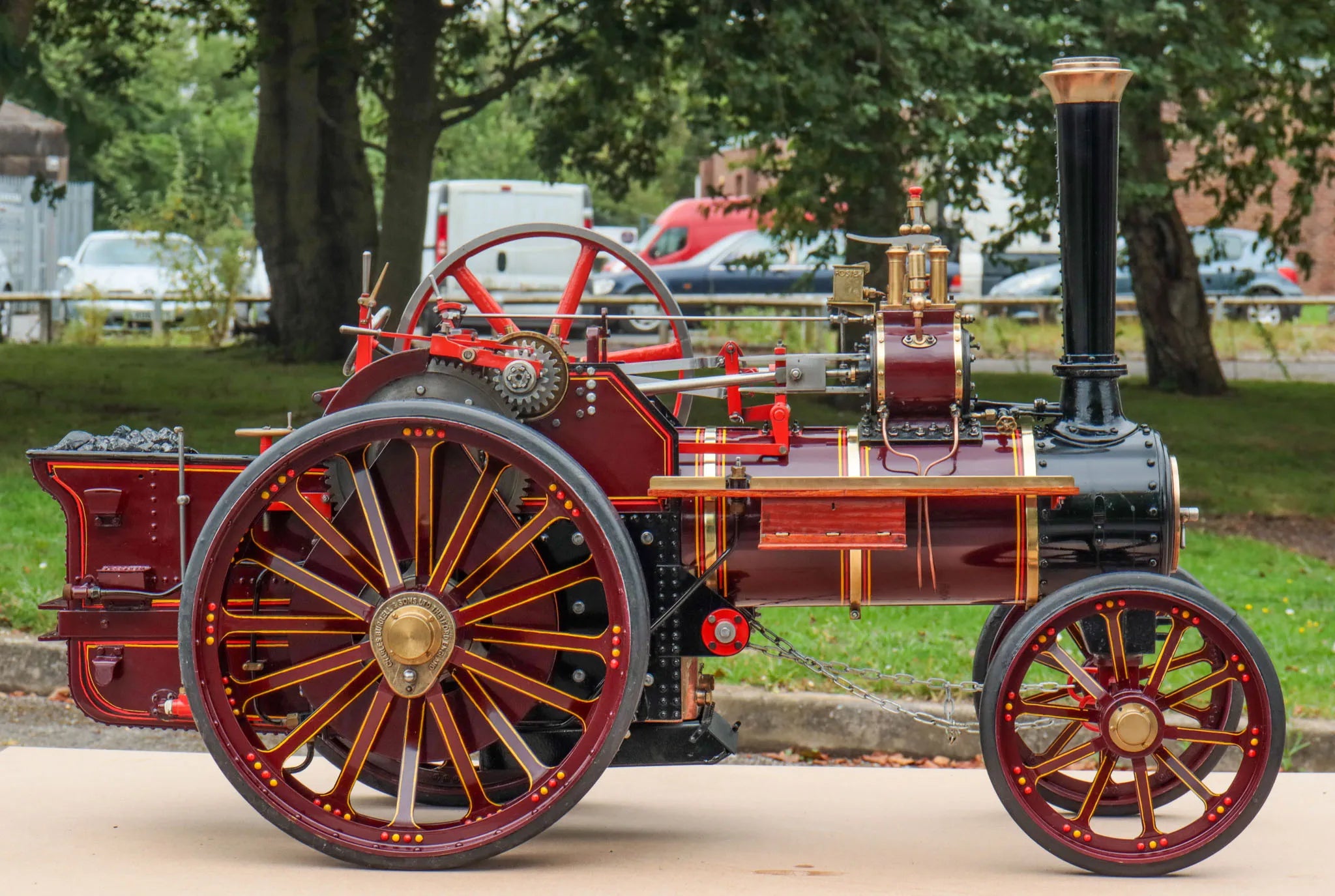

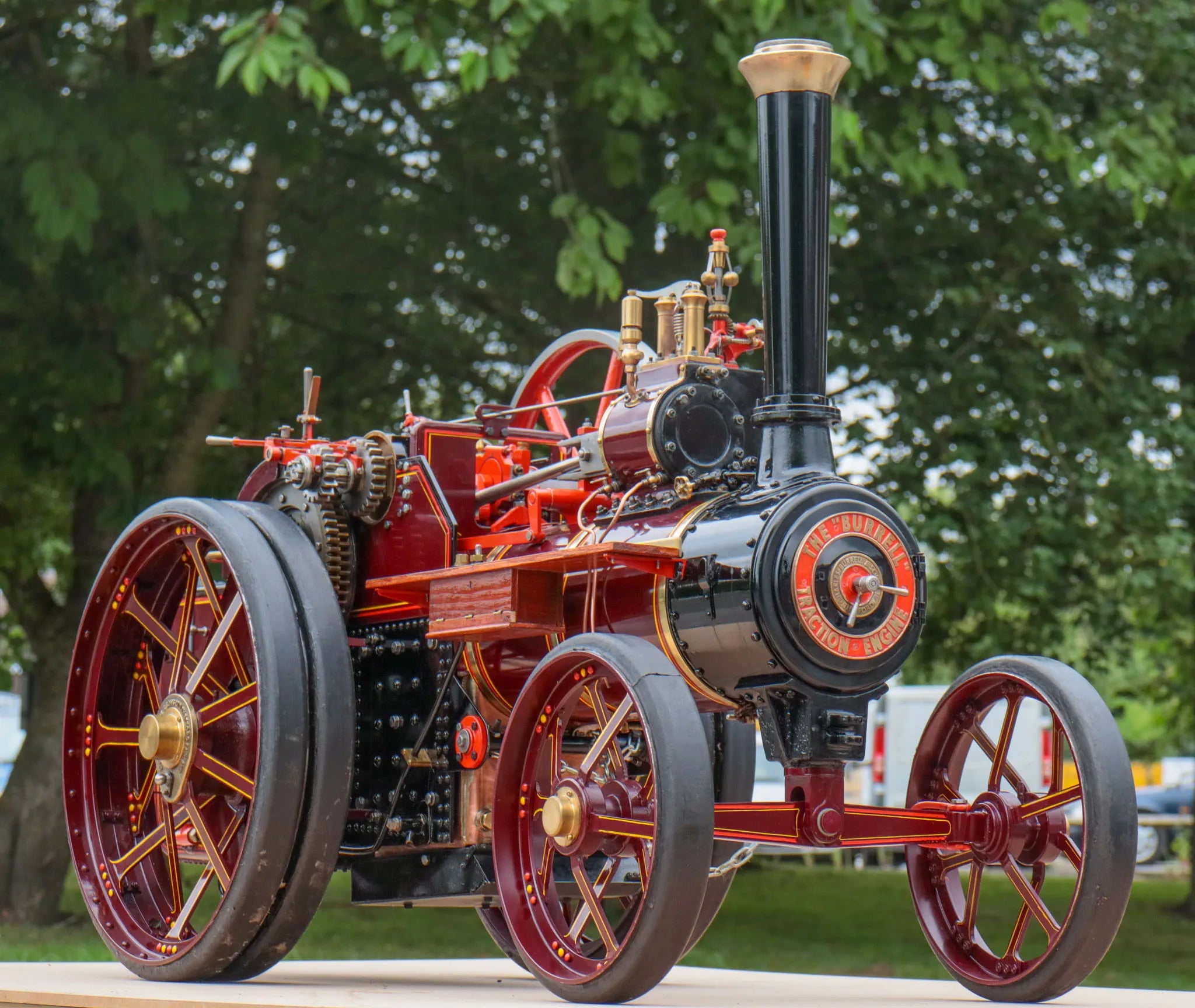

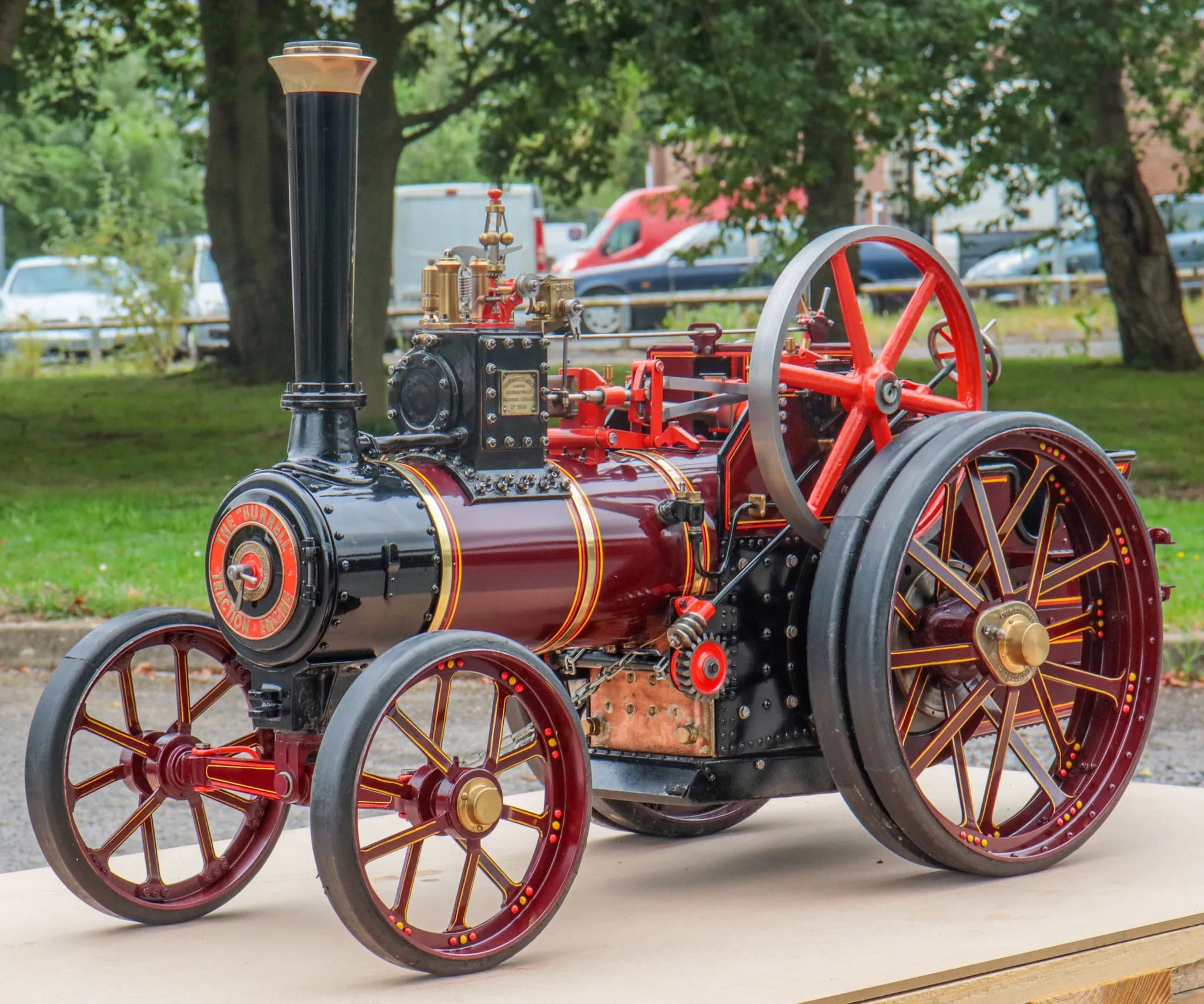

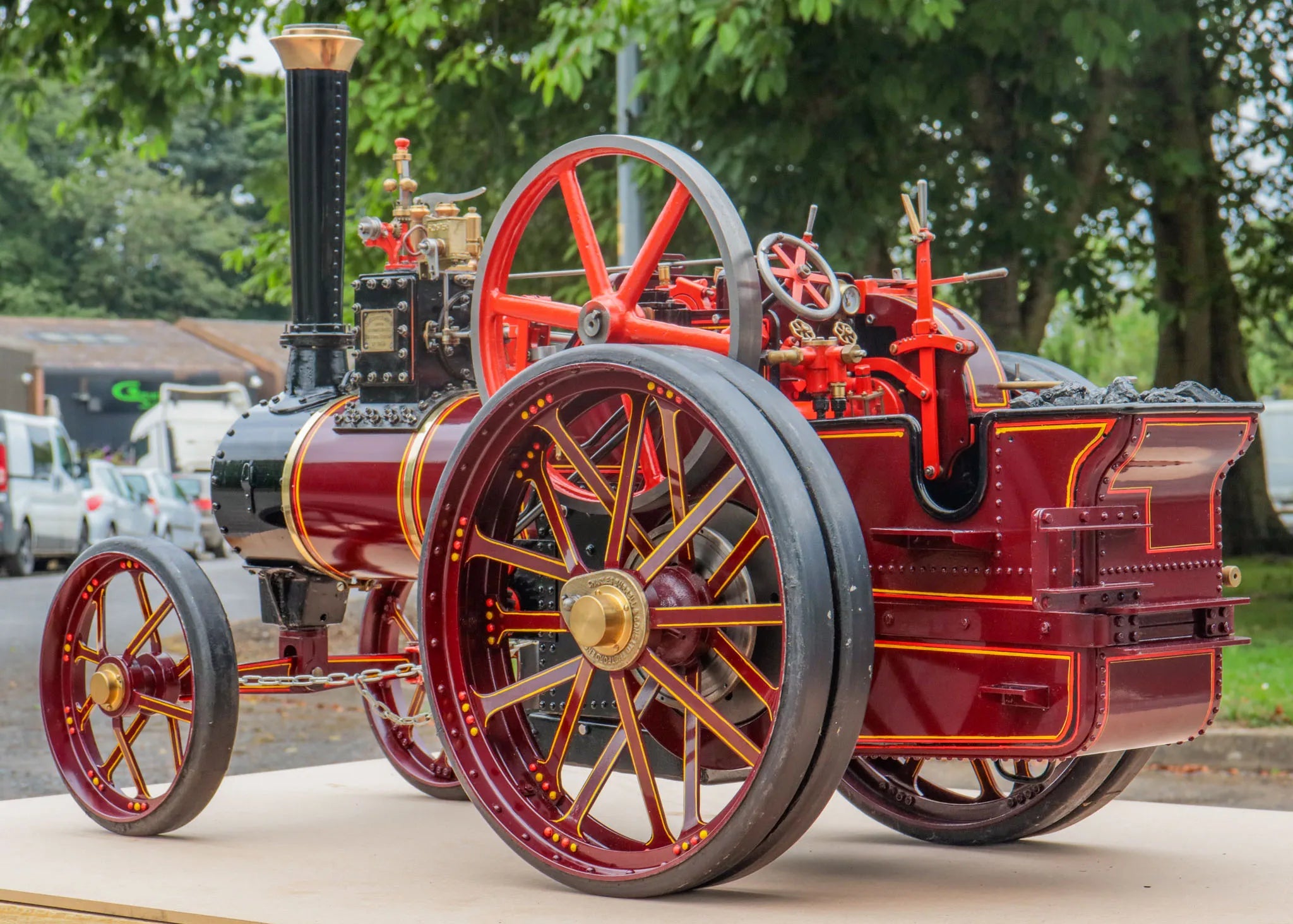

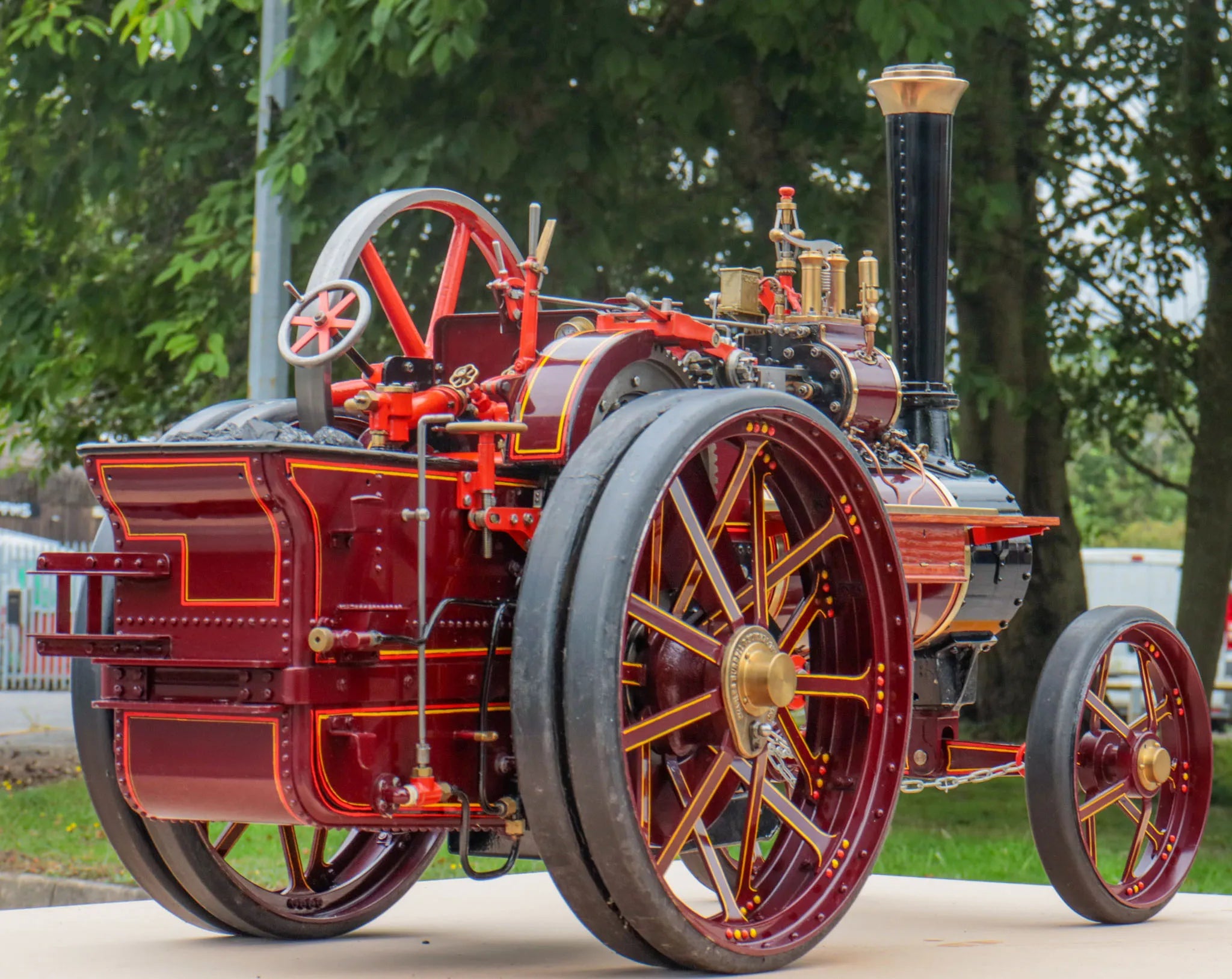

2 inch scale Burrell agricultural engine

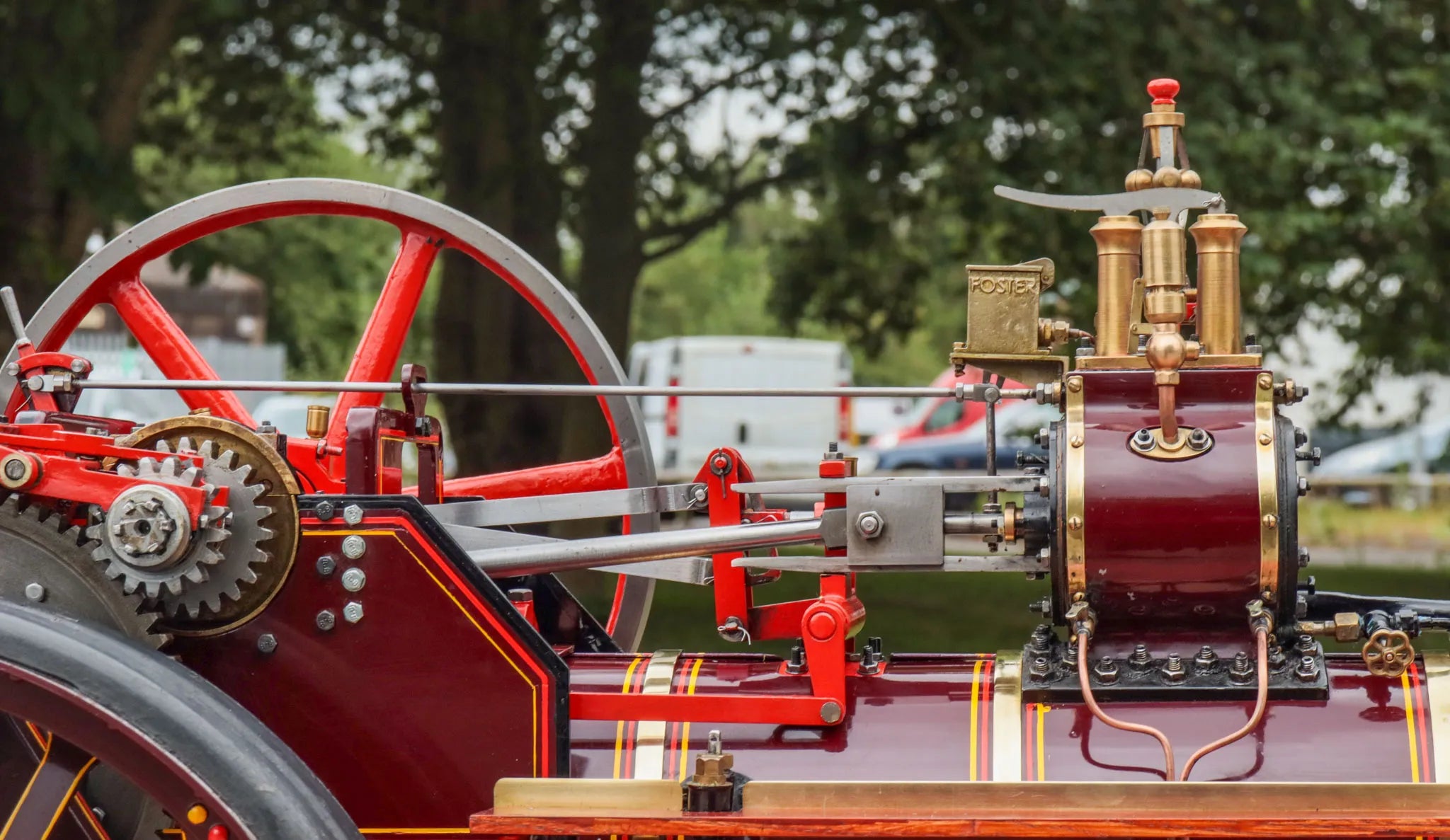

A 2 inch scale Burrell agricultural engine, kit-built it's been assembled and finished to a high standard, painted and lined using Phoenix Precision Paint synthetic enamel.

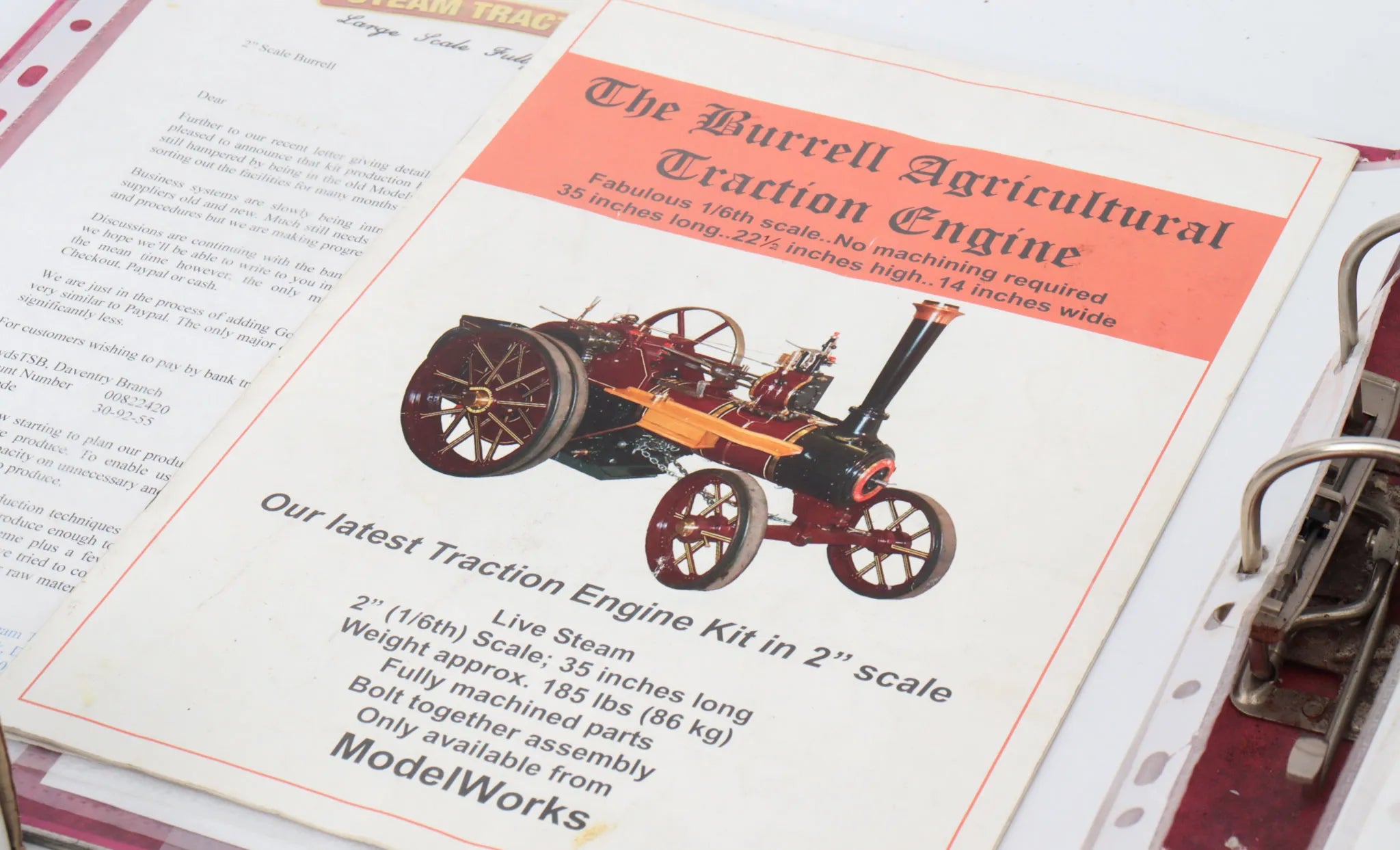

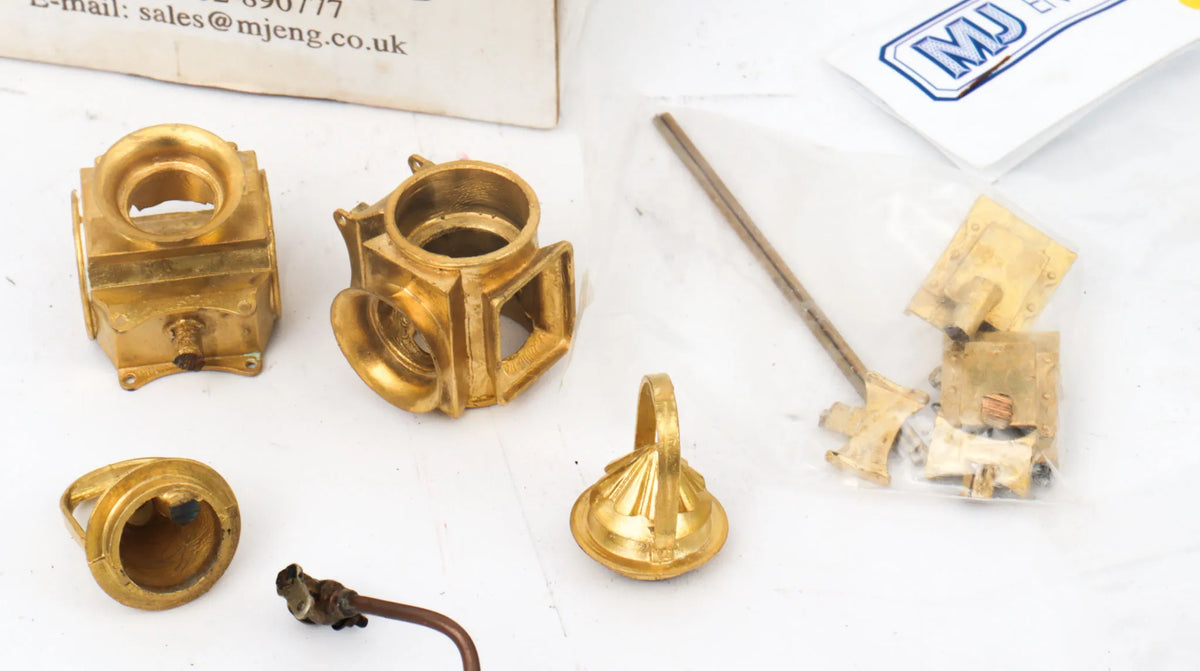

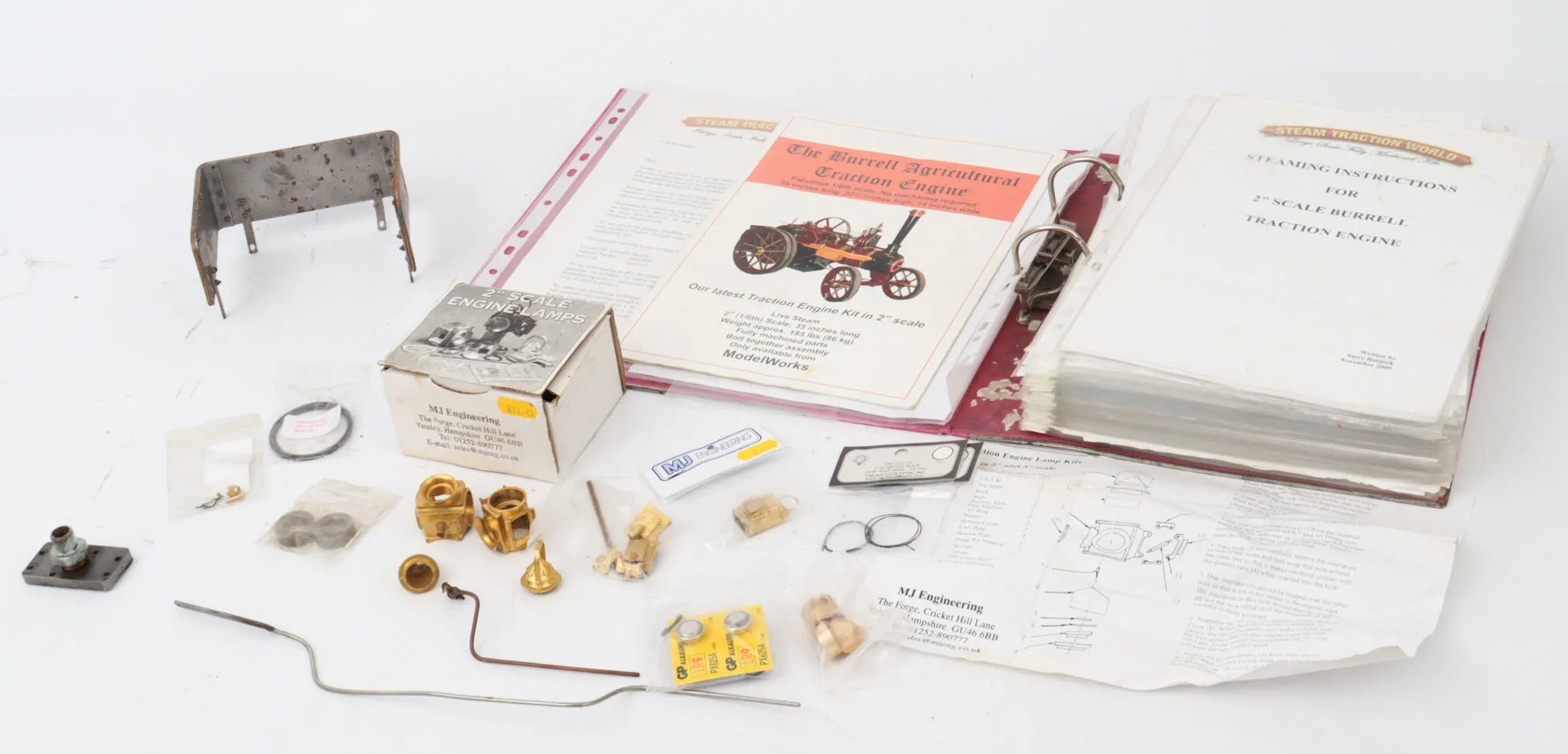

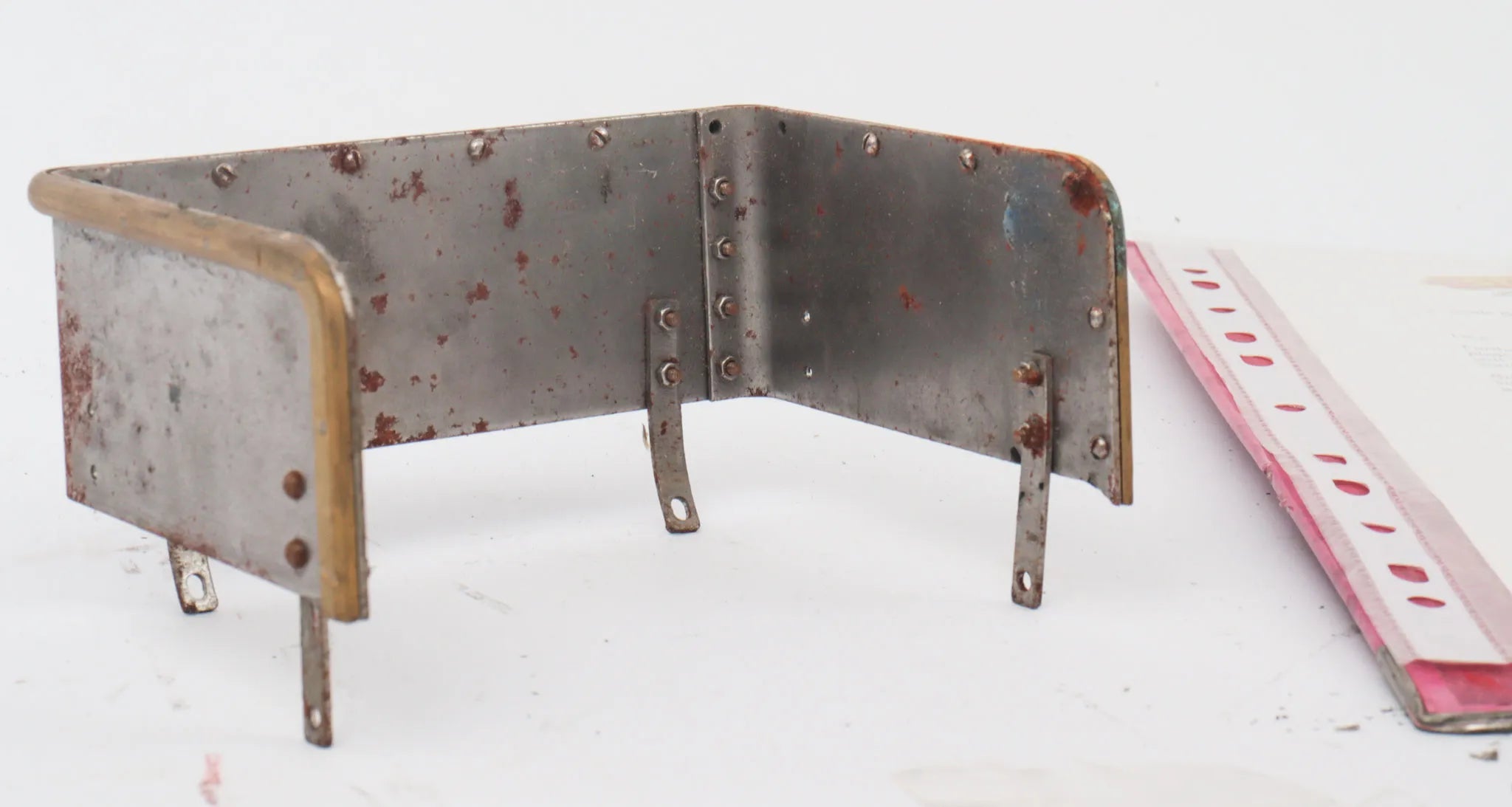

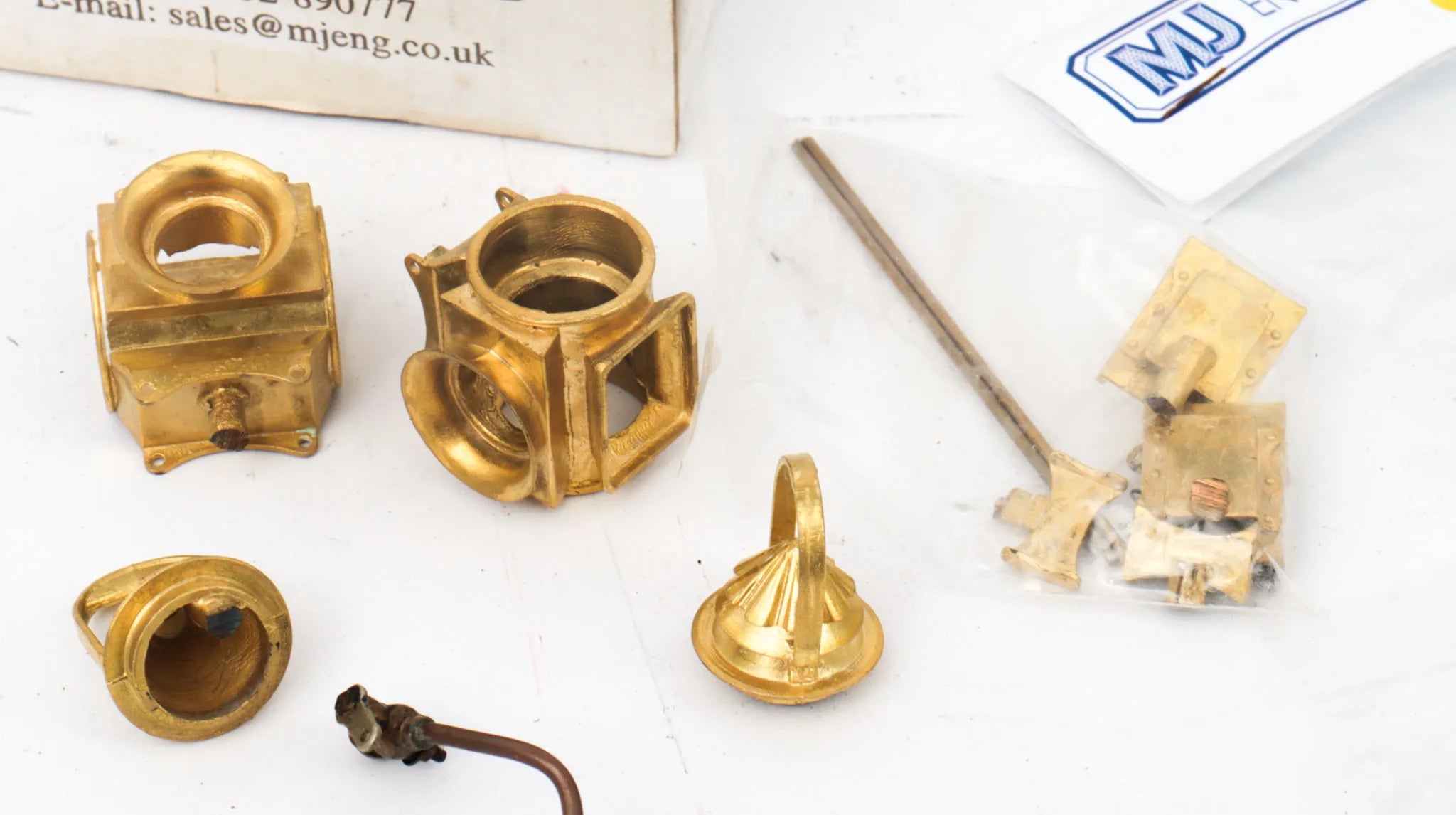

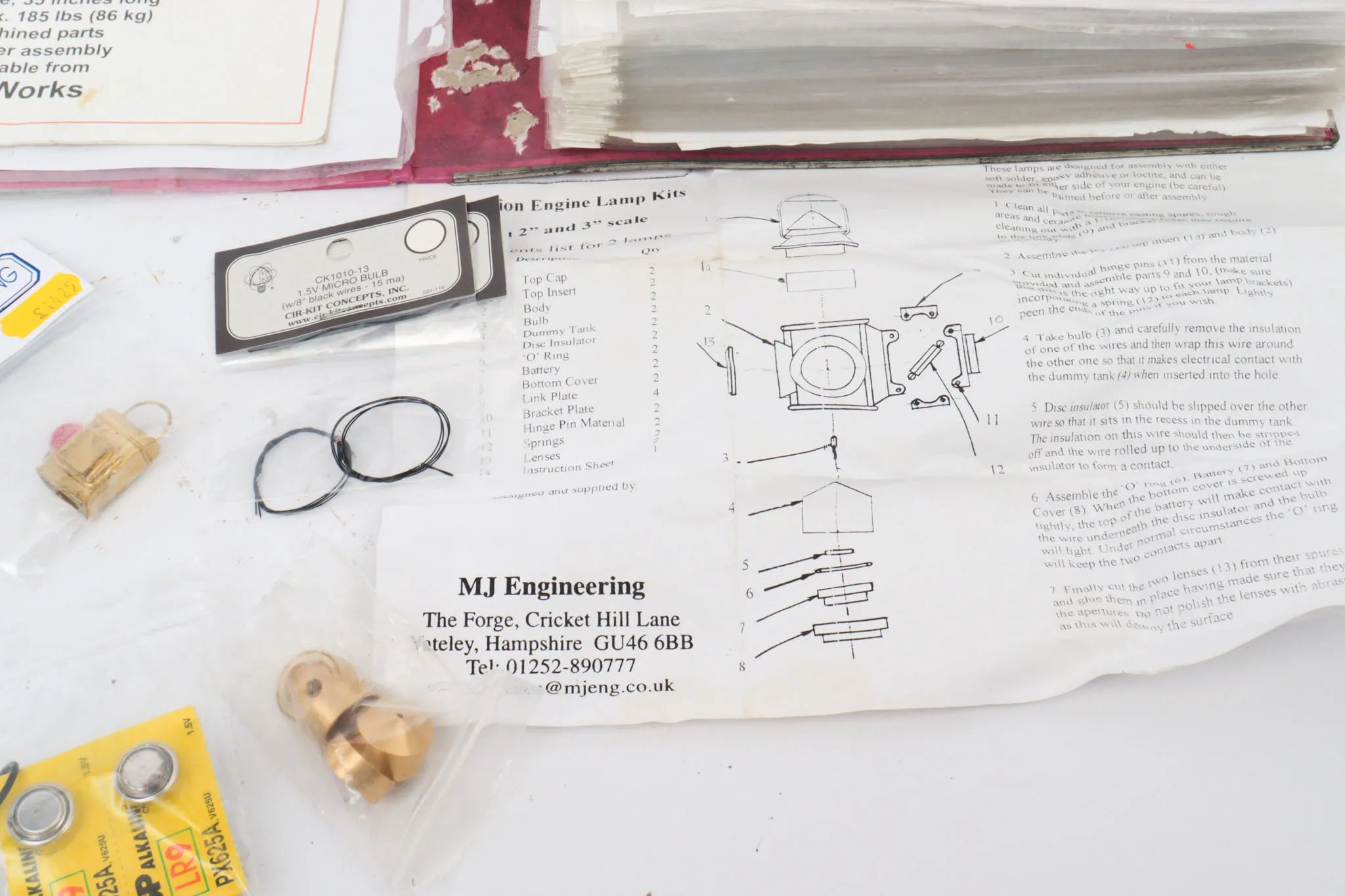

In new, unsteamed condition, complete with original build manual and certification for the CE-marked boiler, set of engine lamps for assembly and tender extension.

The engine has been well set up - it runs nicely in both directions, with clear, square exhaust beats.

We've sold several of these popular-sized engines over the years - it remains in Steam Traction World's current model range, there is further information and a full specification for the engine on their website here.


Technical information

Stock code

12078

Scale

2 inch

Length/inches

36

Width/inches

15.75

Height/inches

23

Weight/Kg

65

Wheel material

steel

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Steam Traction World

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

100

CE/UKCA mark

yes

Year built

2008

Boiler number

STW20

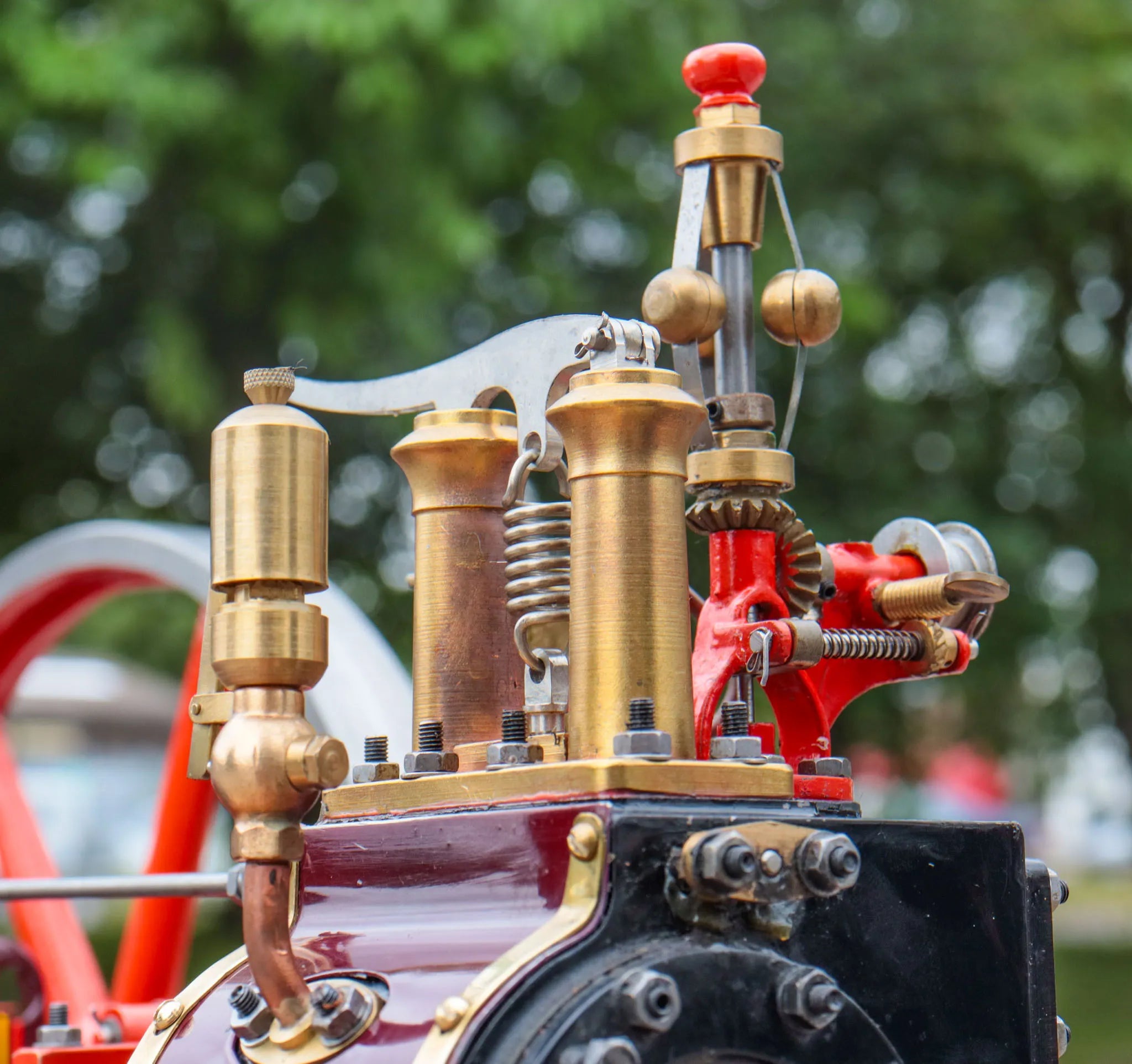

Safety valve type

Ramsbottom

Safety valve

2

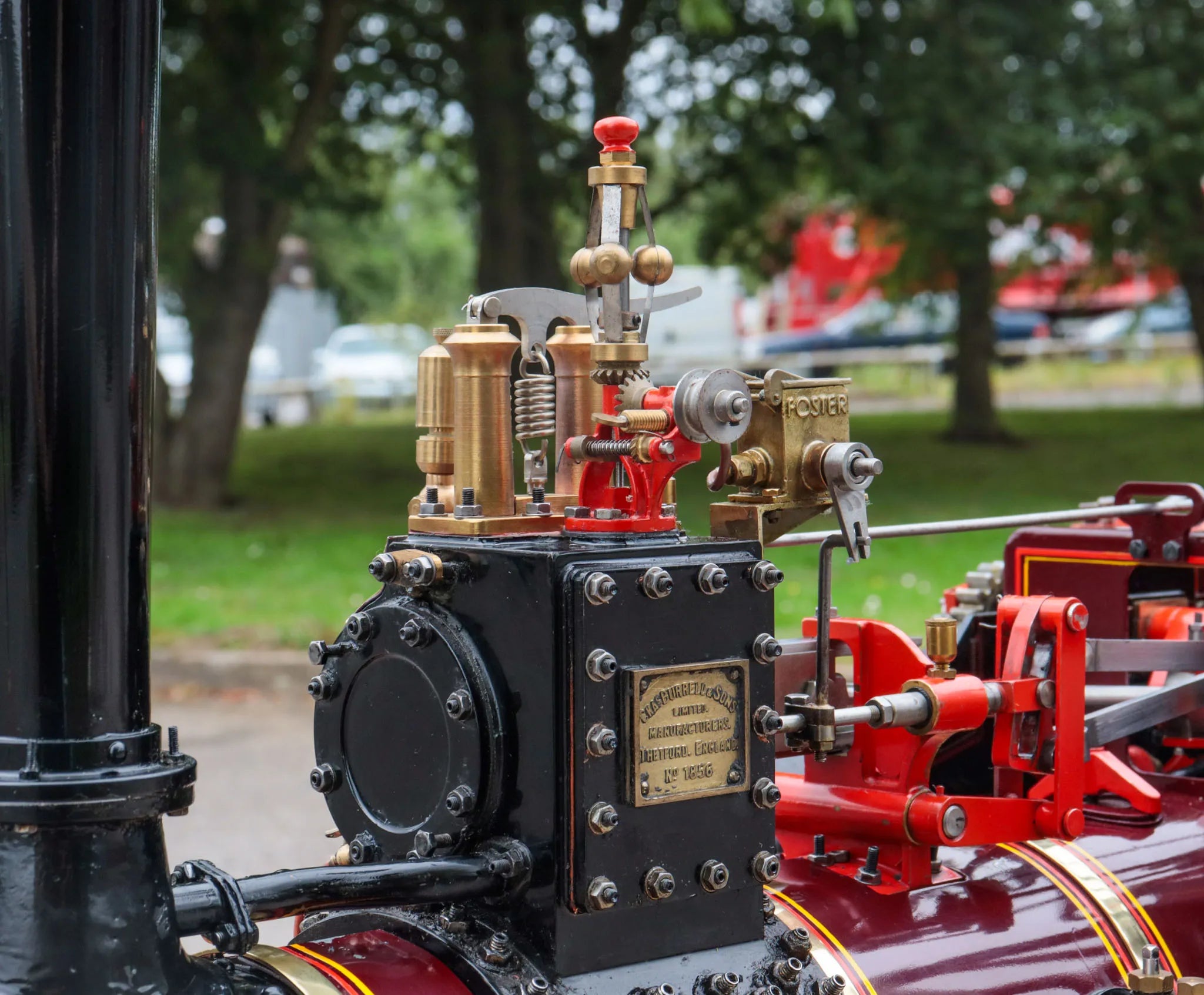

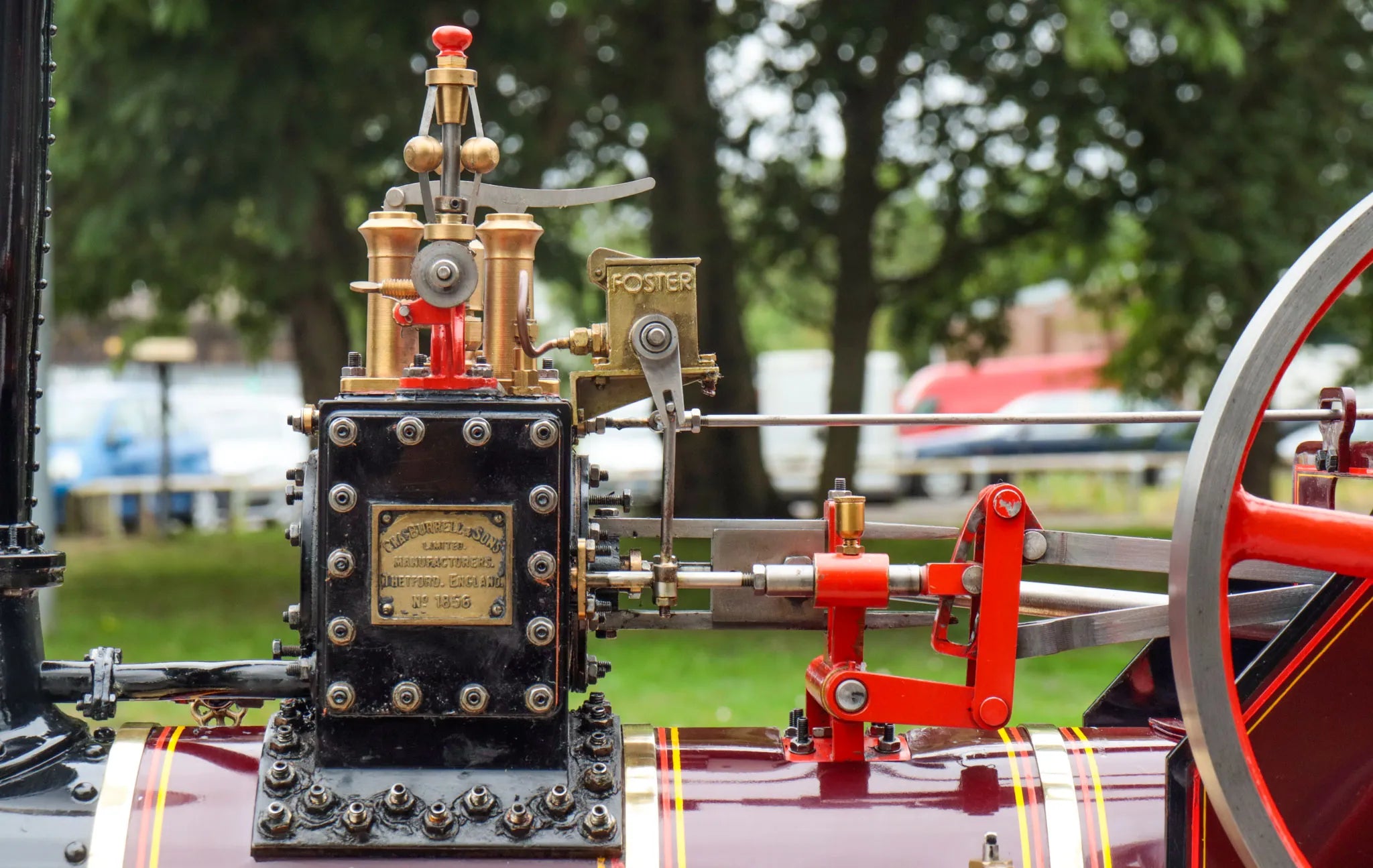

Governor type

Pickering

Differential

yes

Road speed

2

Whistle

yes

Mechanical pump

1

Injector

1

Date out

Jul-24
