2 inch scale Burrell agricultural engine

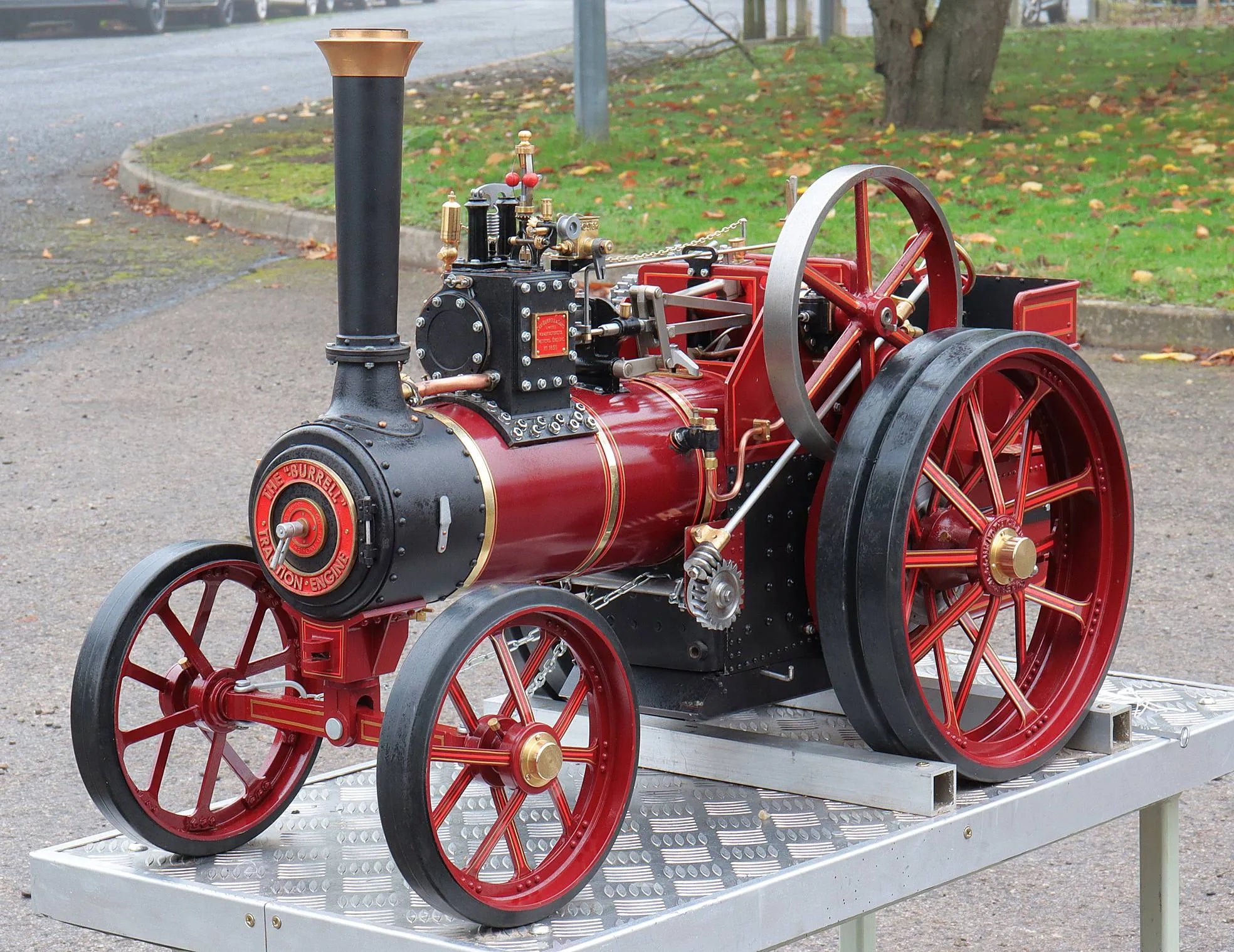

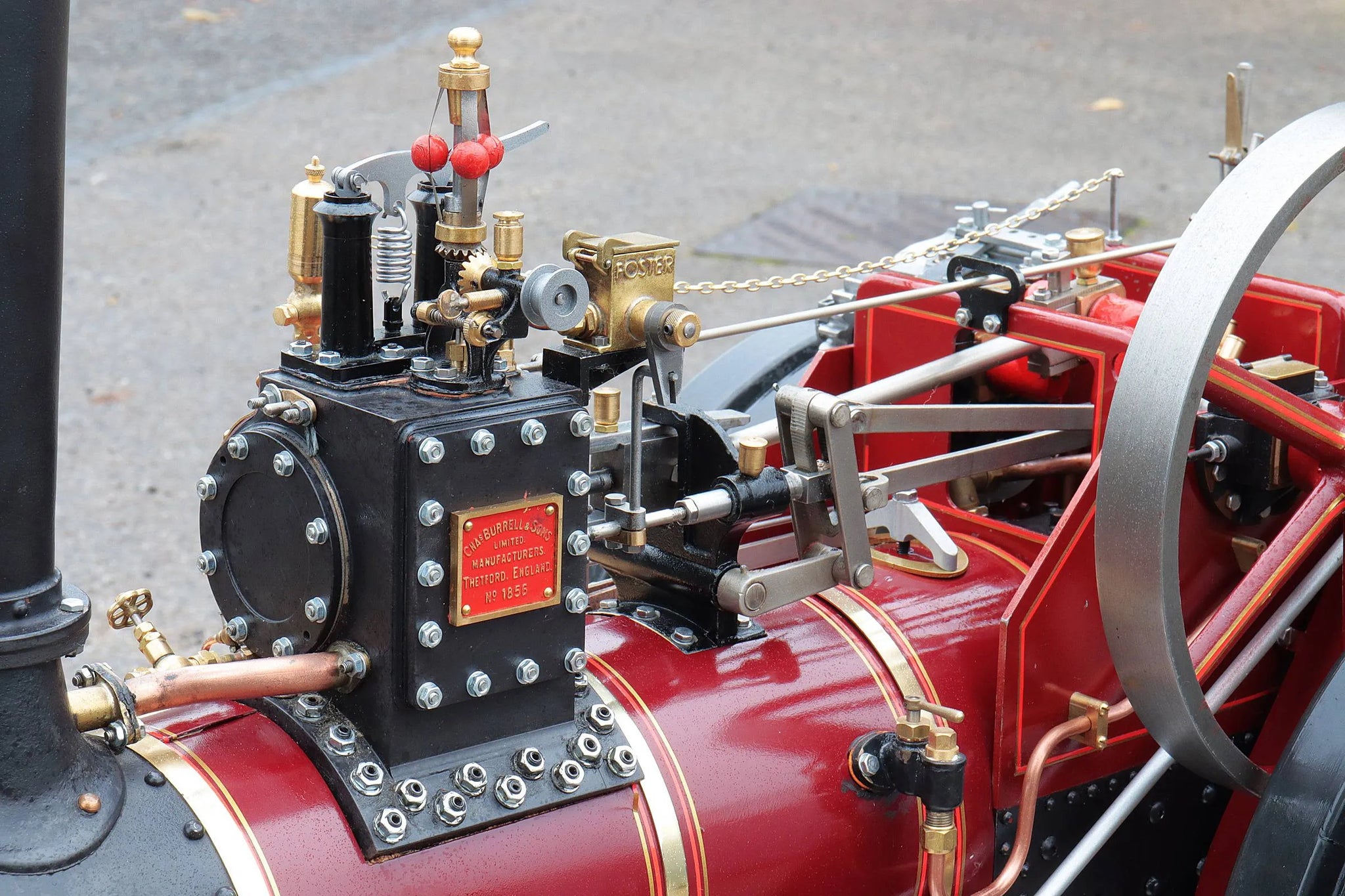

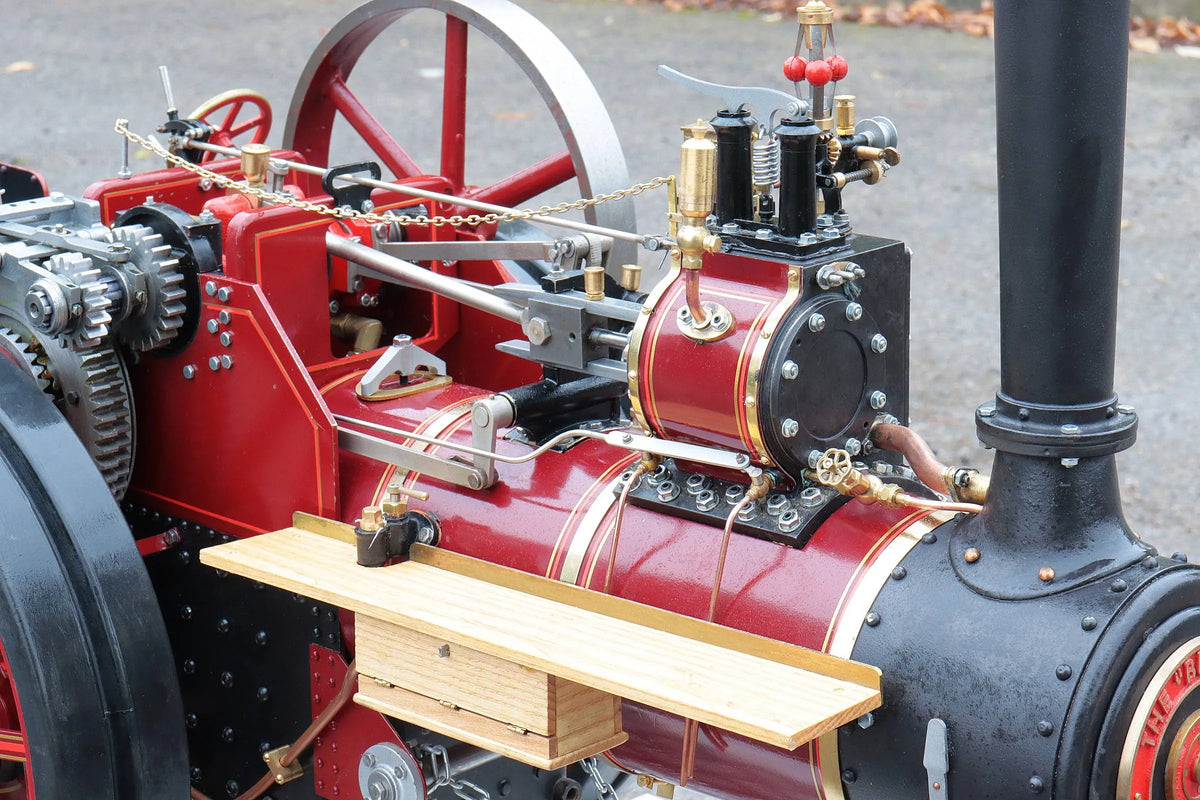

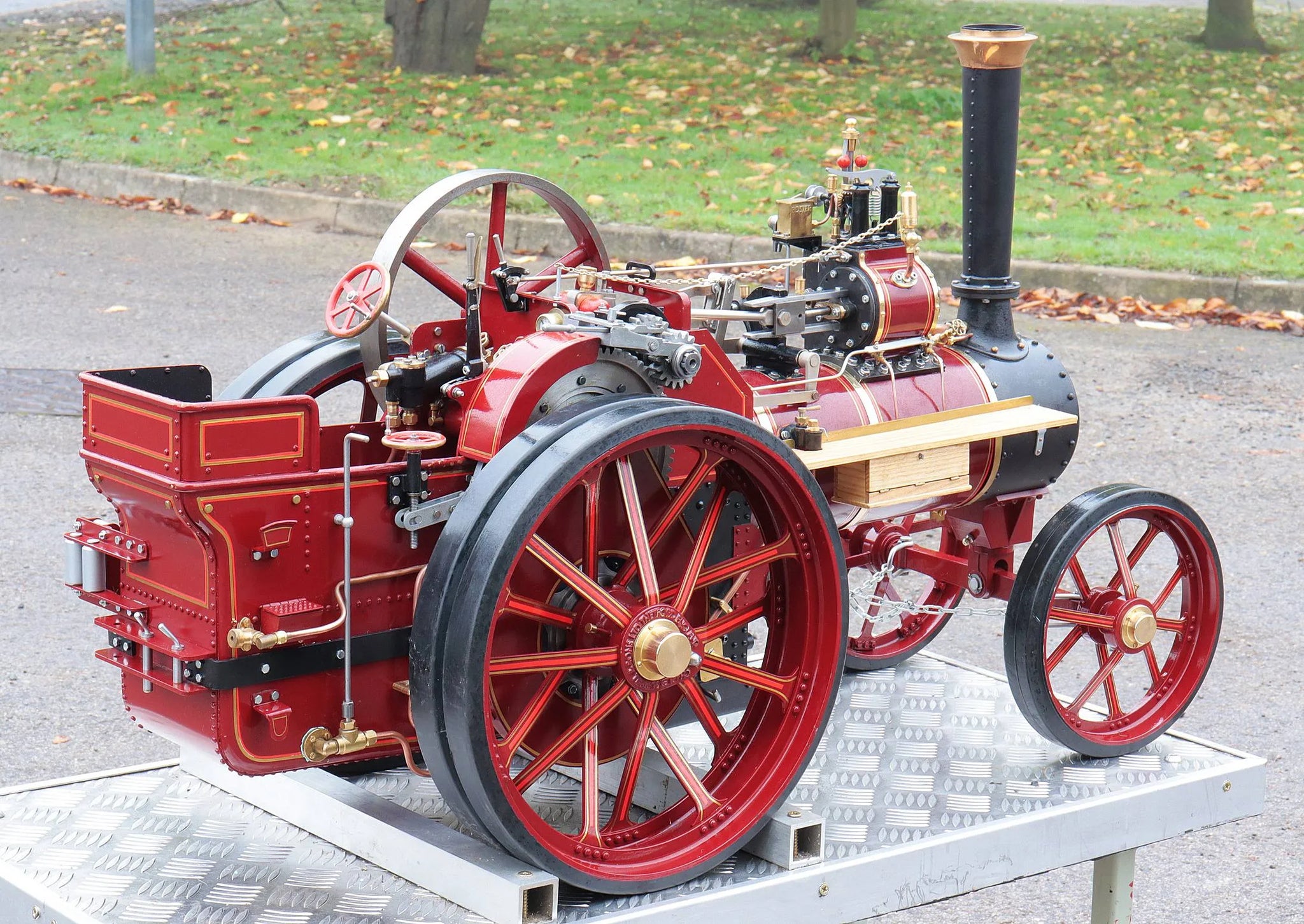

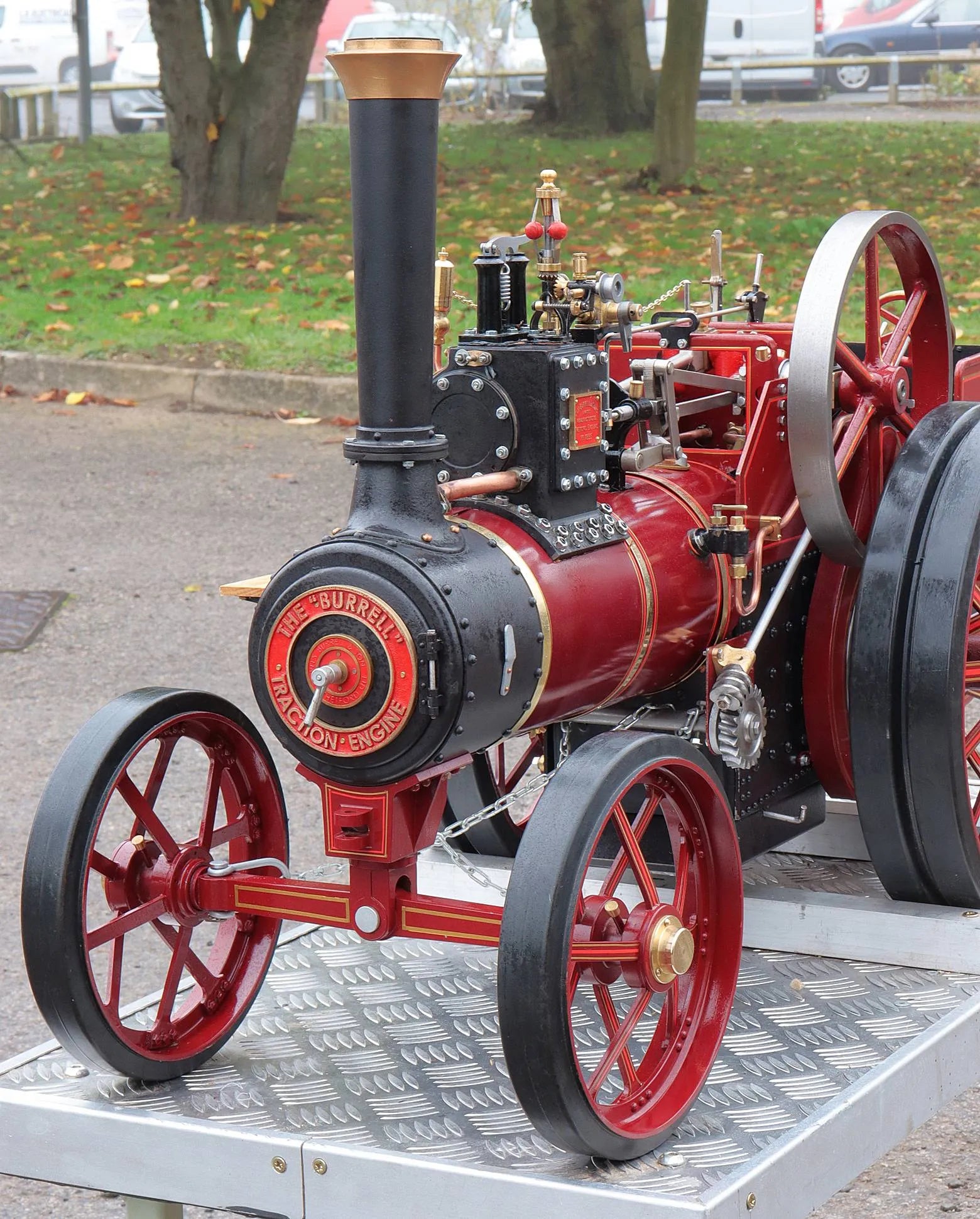

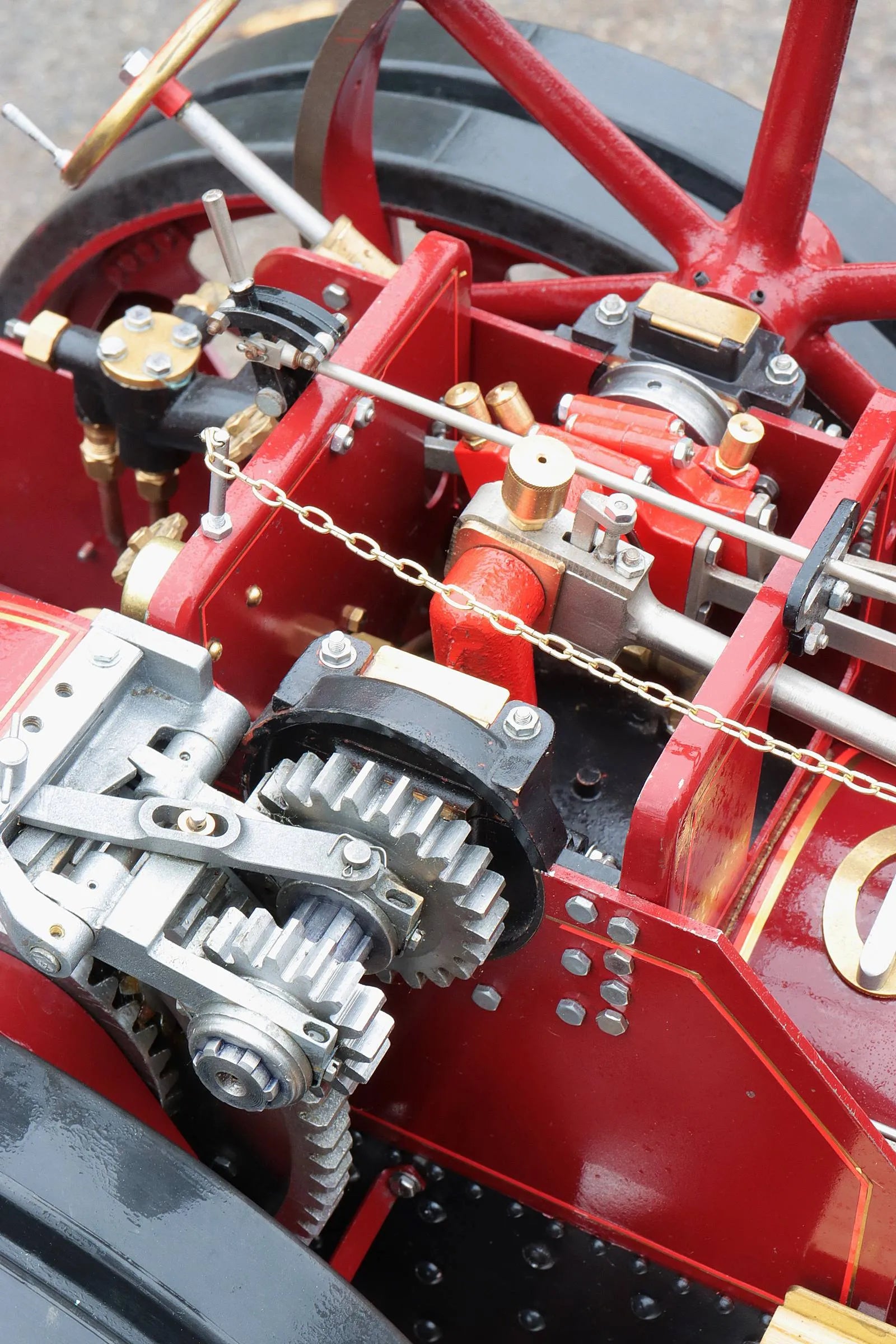

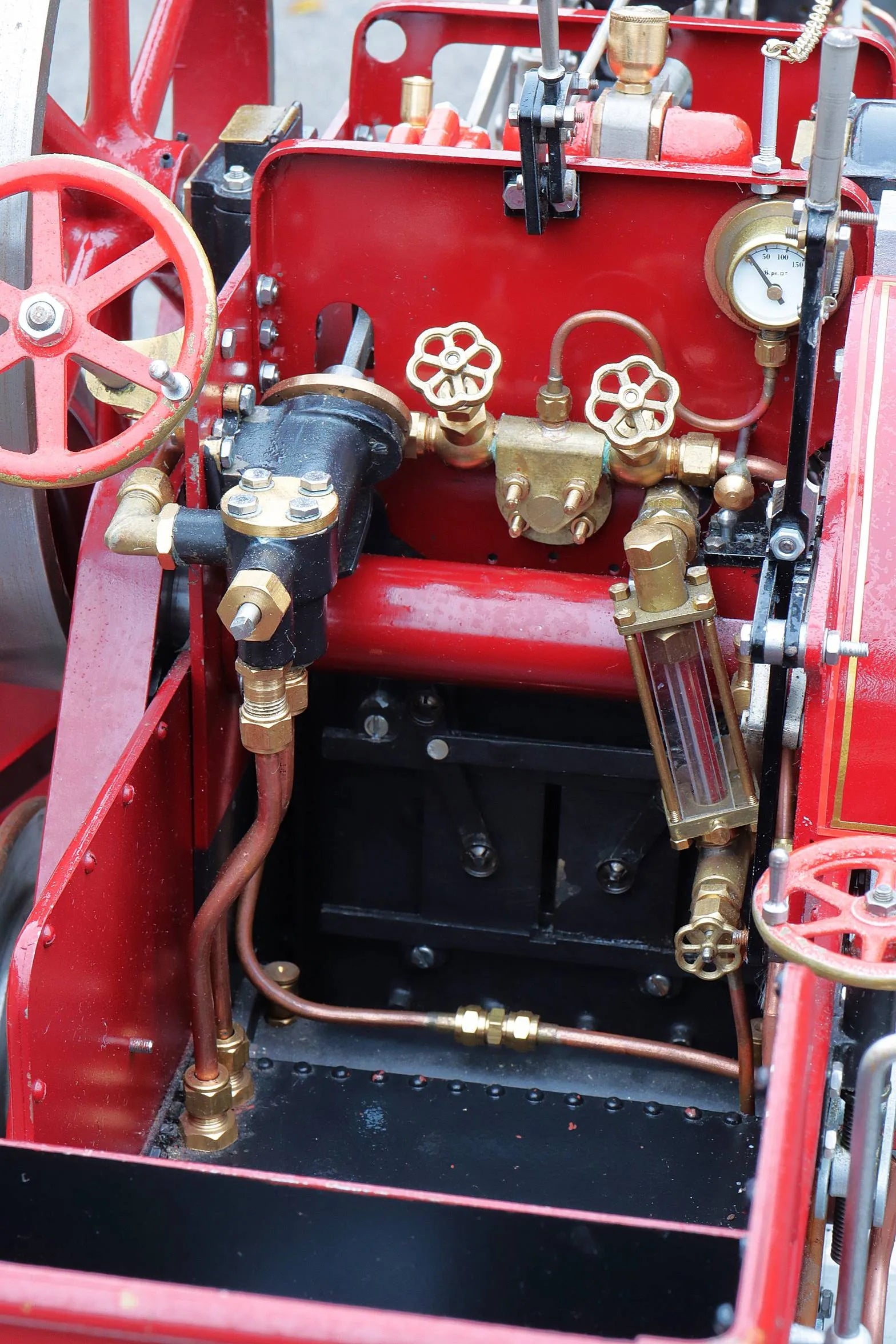

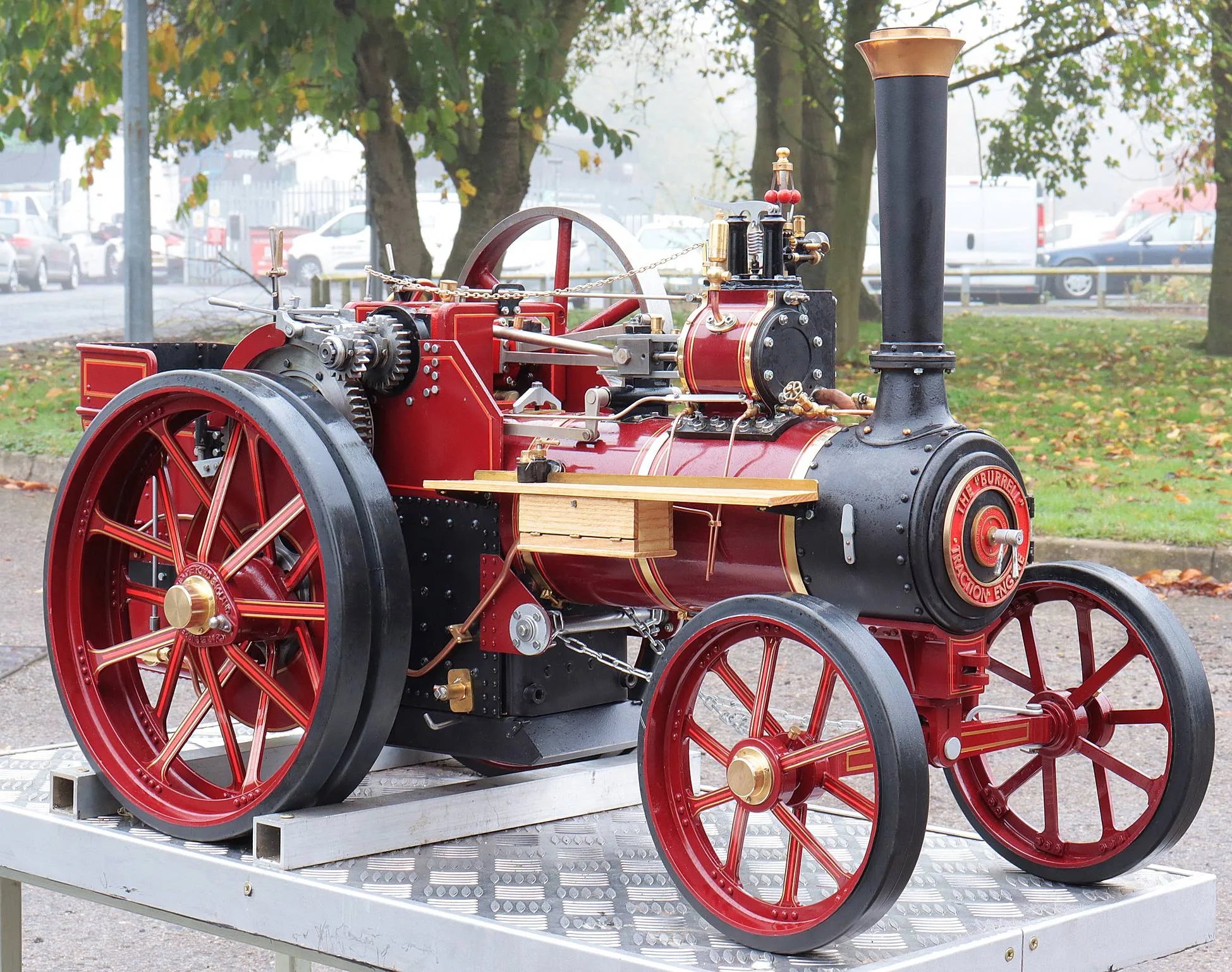

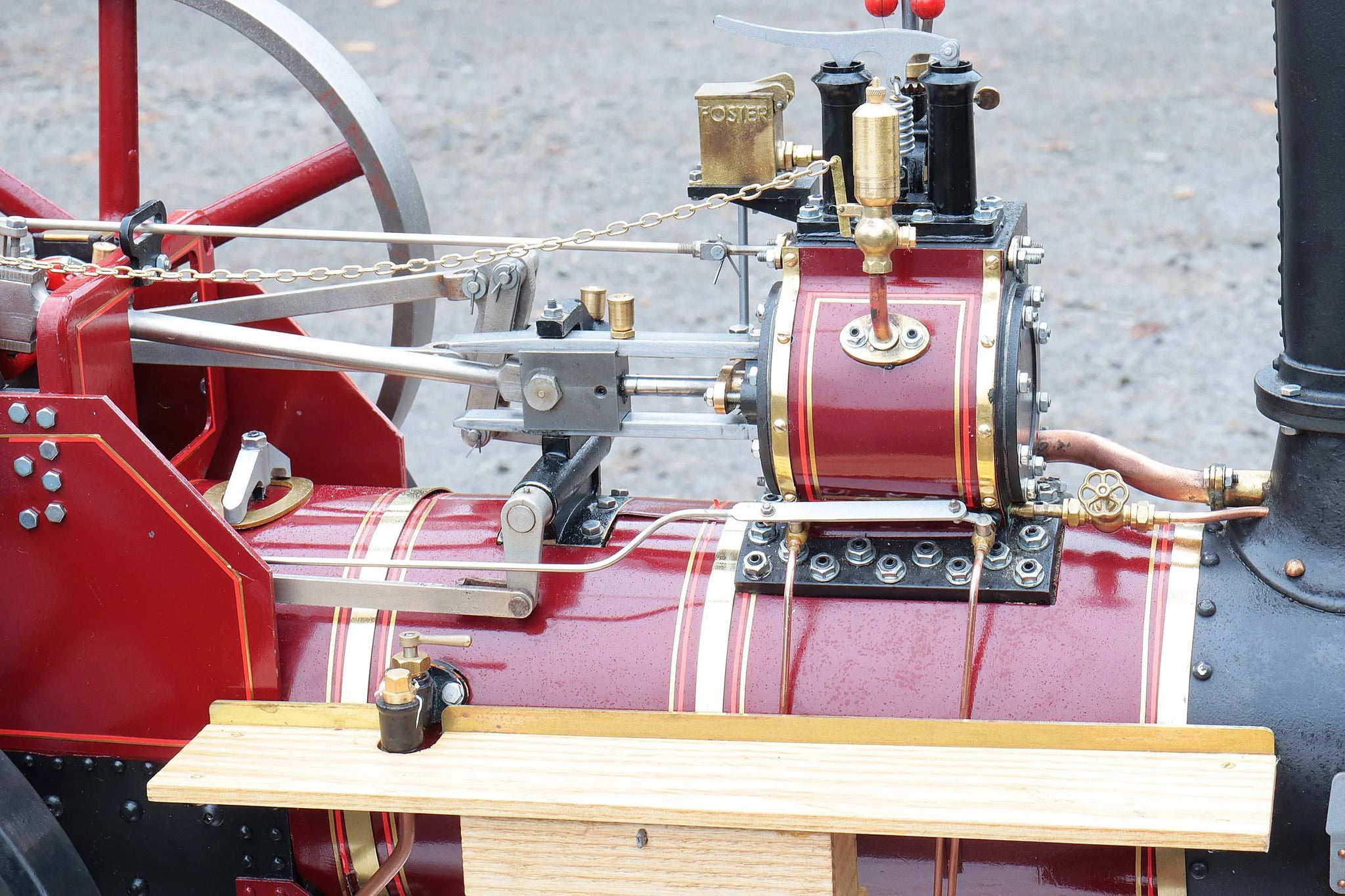

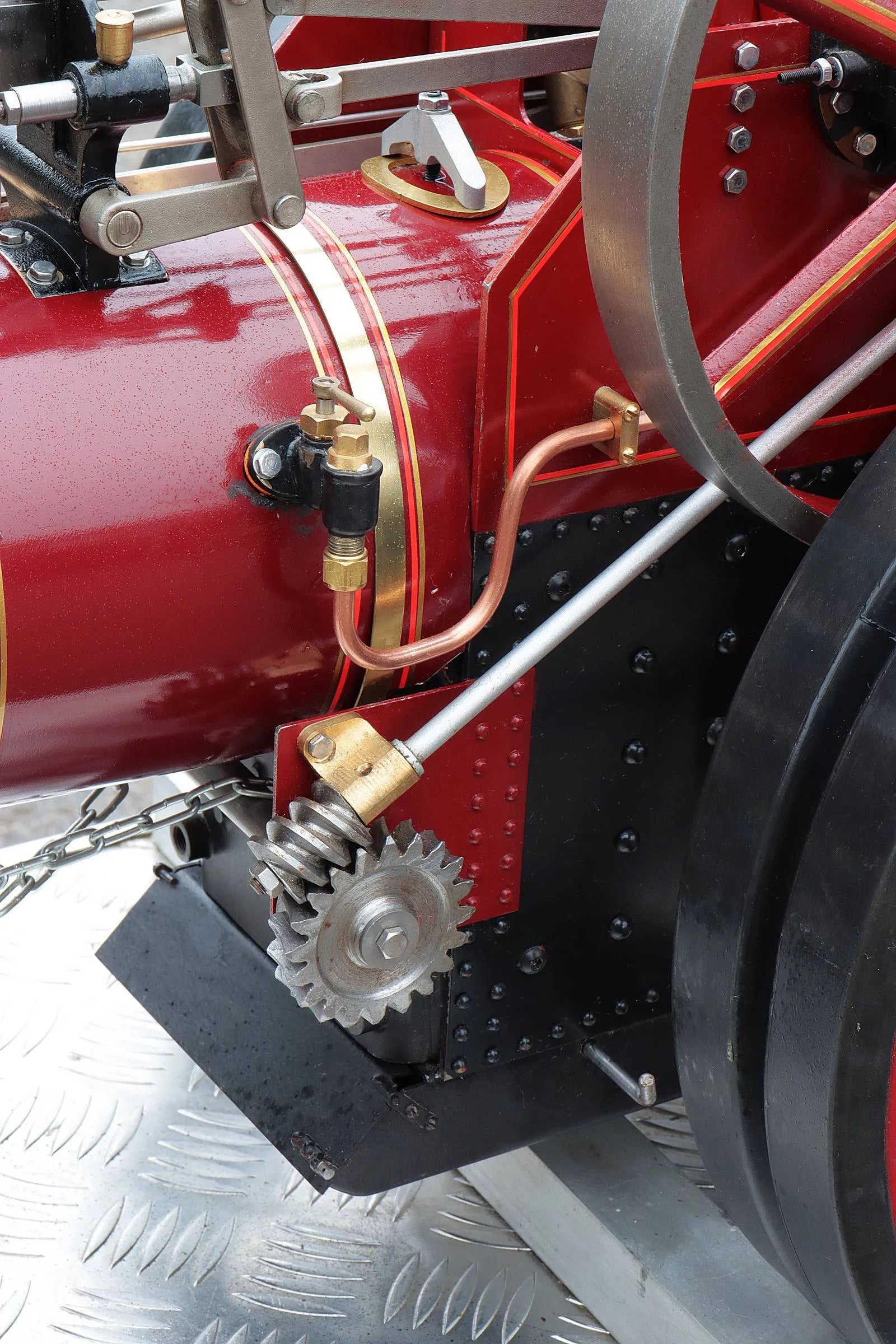

A 2 inch scale Burrell agricultural engine, built from a Steam Traction World kit, painted and lined to a high standard.

Unsteamed, the engine is fairly stiff to turn over - not unheard of in kits which have been assembled "straight from the box" without a degree of fettling. Complete apart from a couple of blanking plugs for throatplate and front tubeplate; the valve and eccentric need setting - it makes half a turn on air.

Complete with original build instructions and manufacturer's boiler certification, there is further information and a full specification for the model on Steam Traction World's website.

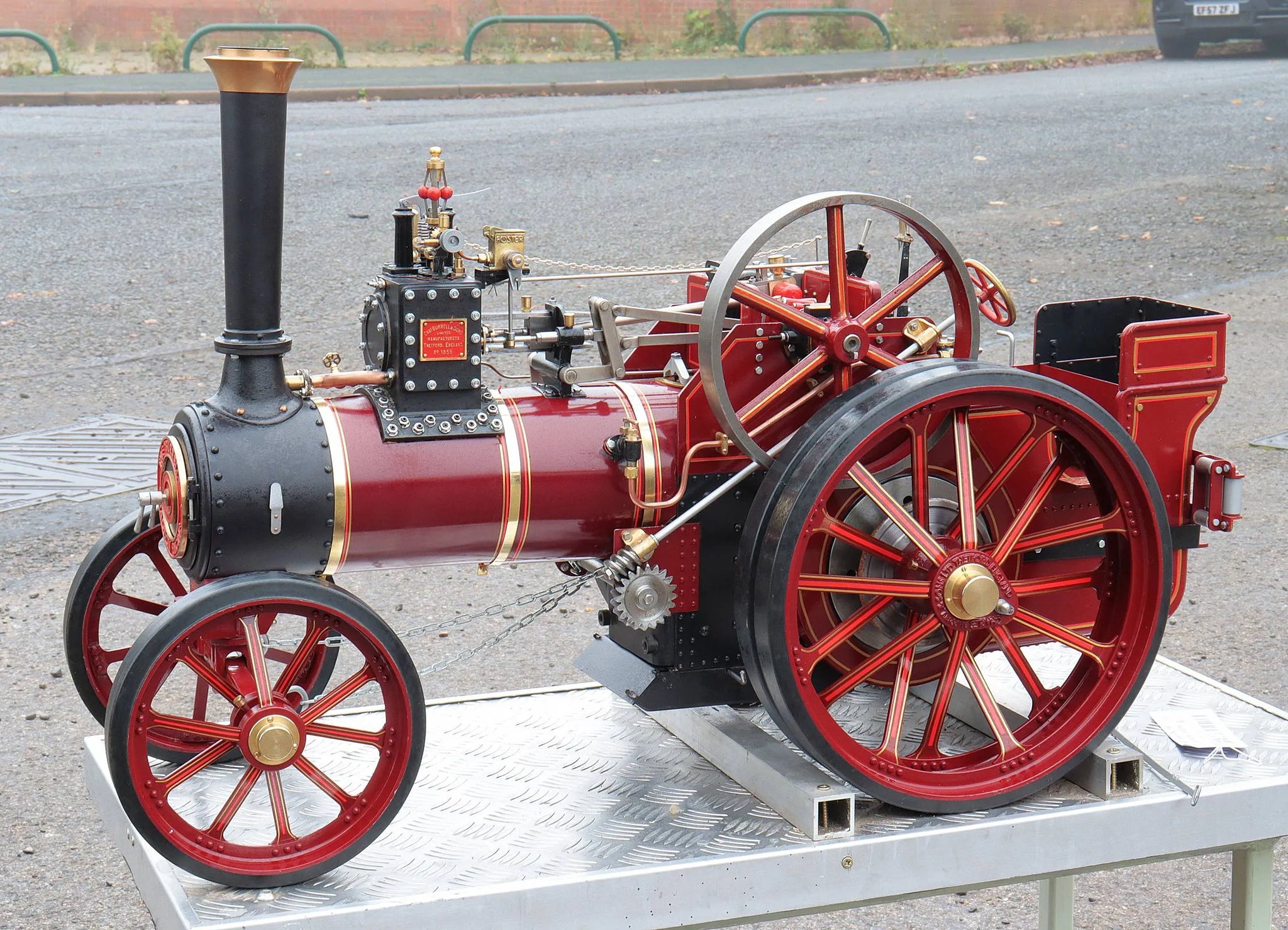

Complete with a purpose-built stand on castors.

Technical information

Stock code

12405

Scale

2 inch

Wheel material

steel

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Boiler maker

Steam Traction World

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

CE/UKCA mark

yes

Year built

2019

Boiler number

STW 2011

Safety valve type

Ramsbottom

Safety valve

2

Fusible plug

yes

Governor type

Pickering

Differential

yes

Road speed

2

Whistle

yes

Mechanical pump

1

Injector

1

Date out

Nov-24
