8574

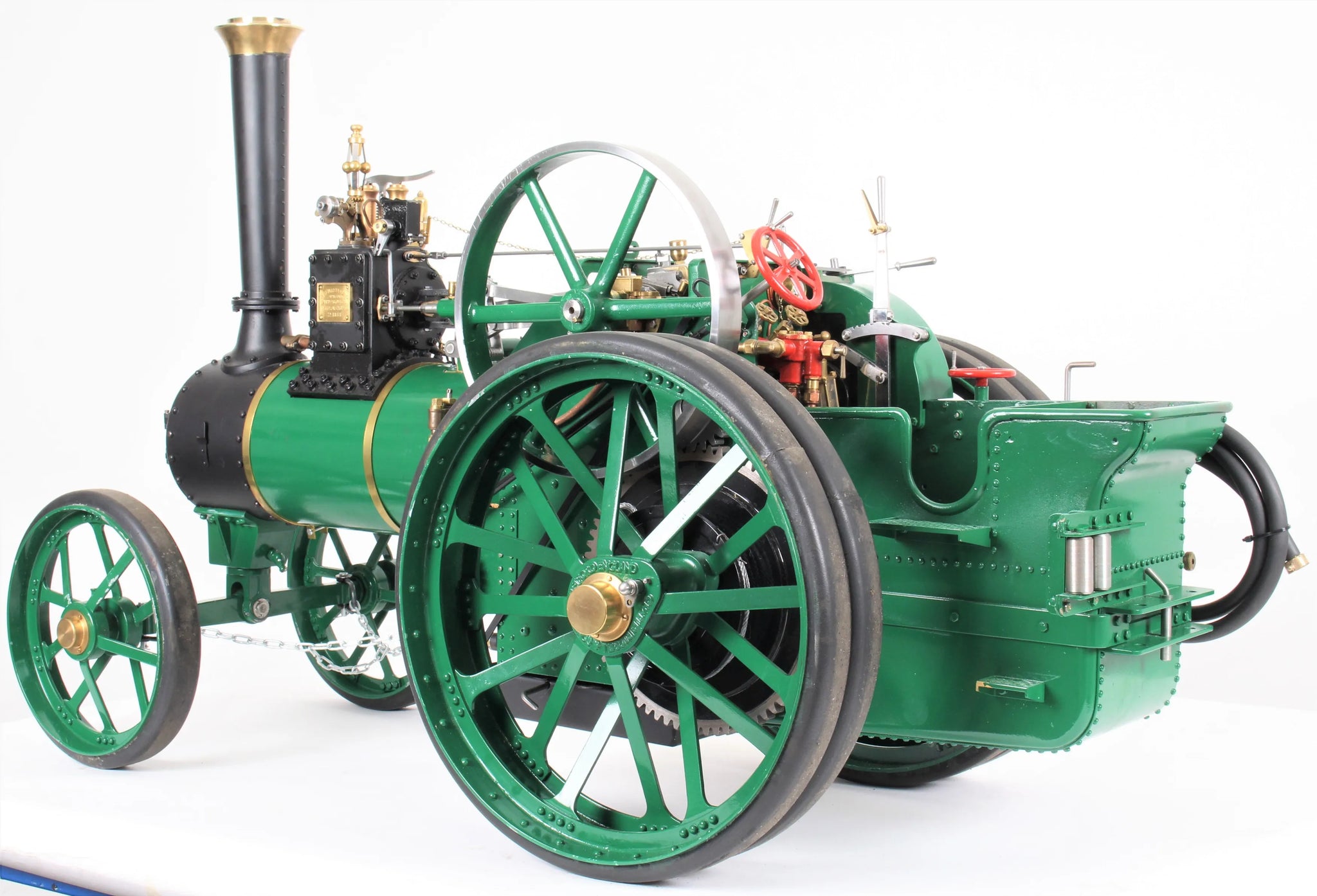

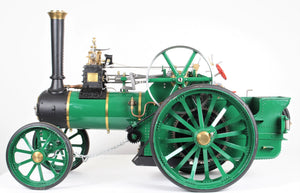

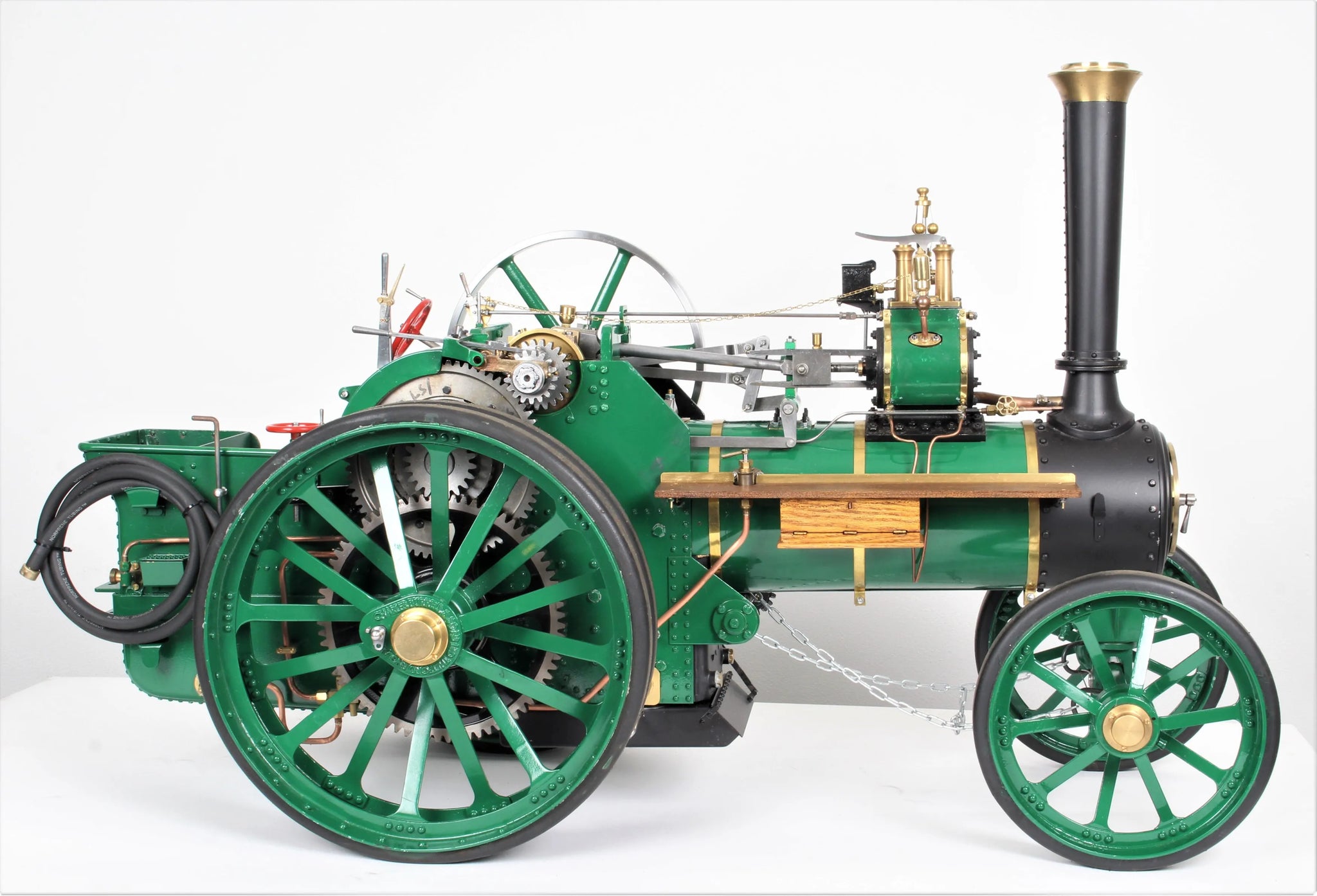

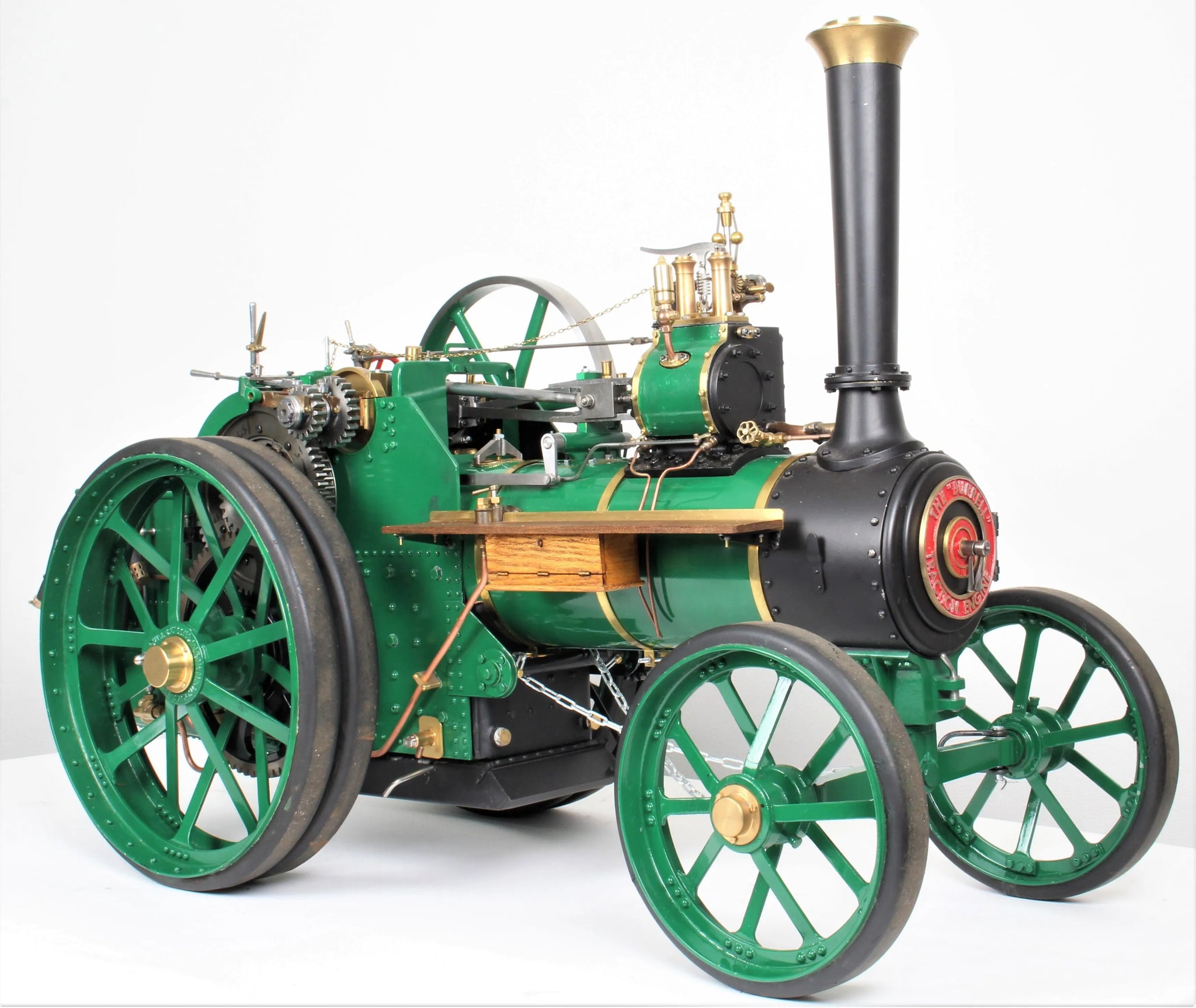

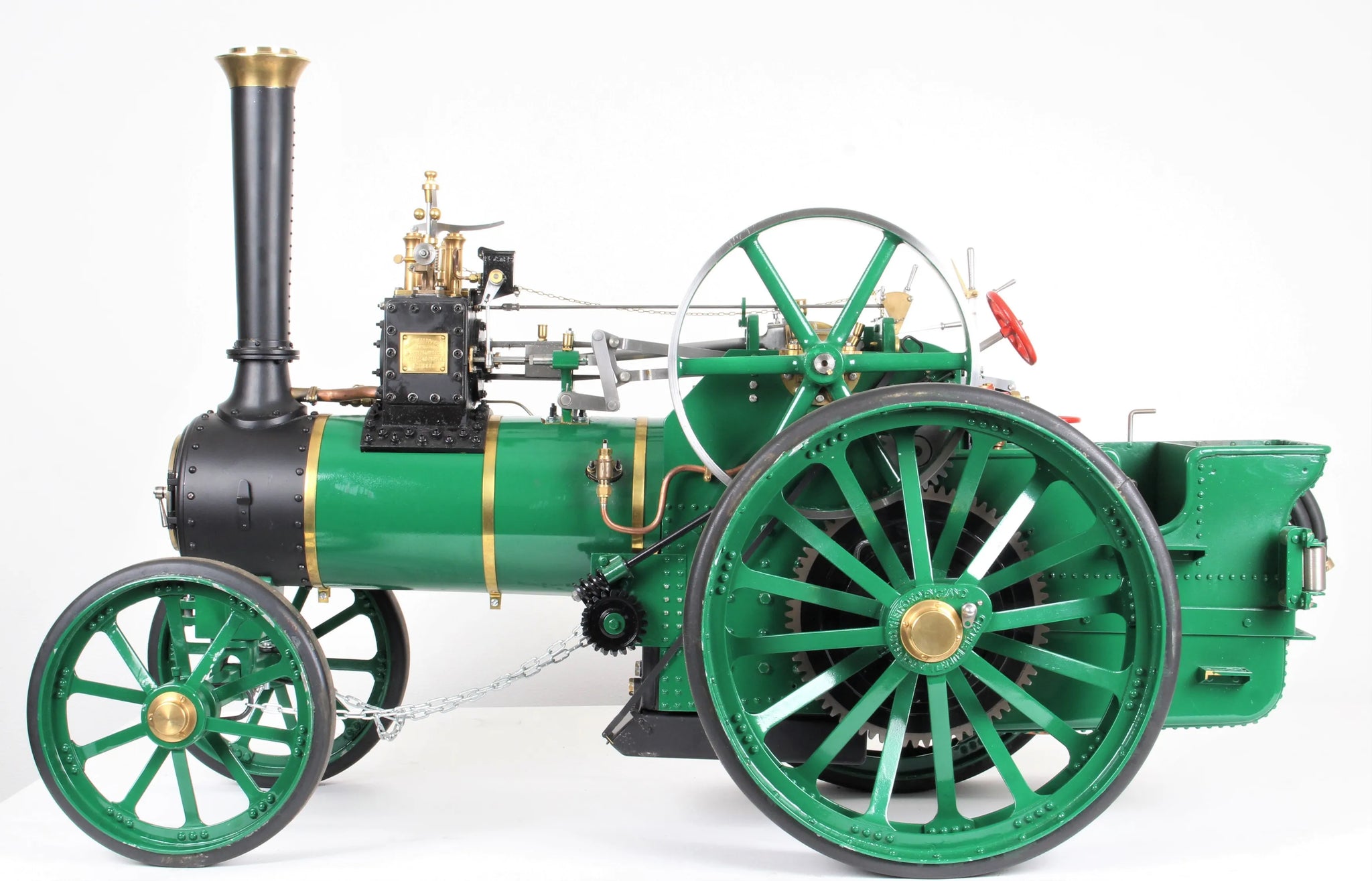

Unsteamed from new, the engine turns over freely.

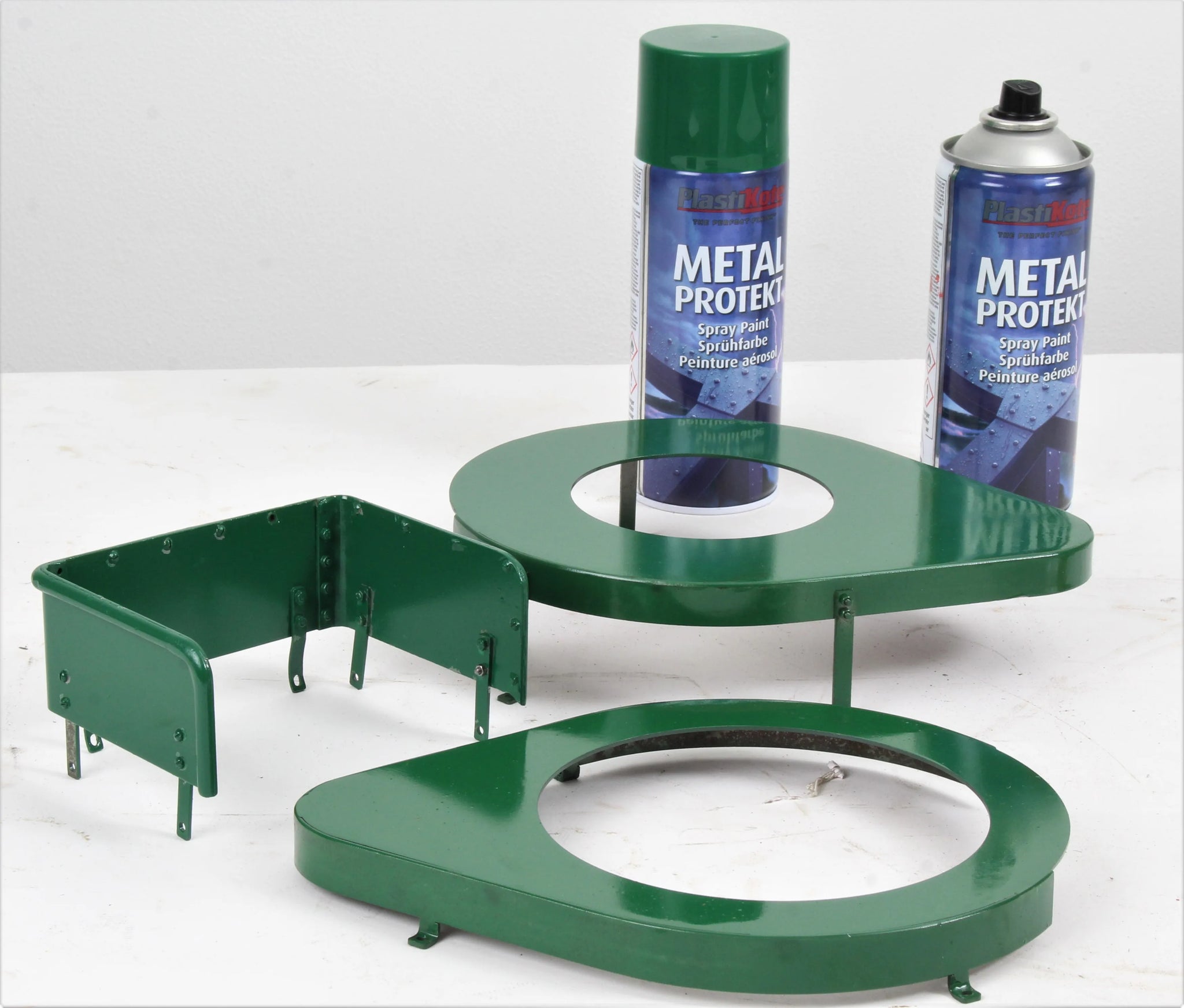

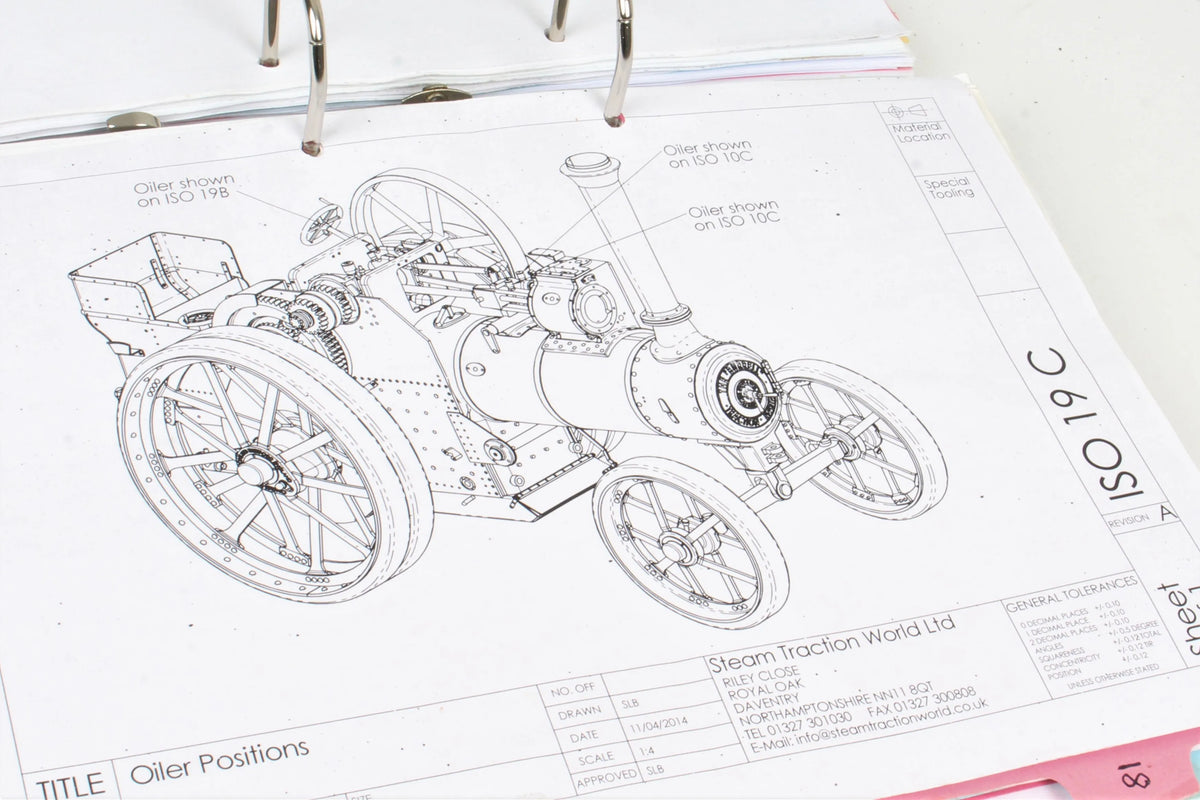

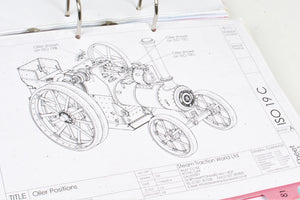

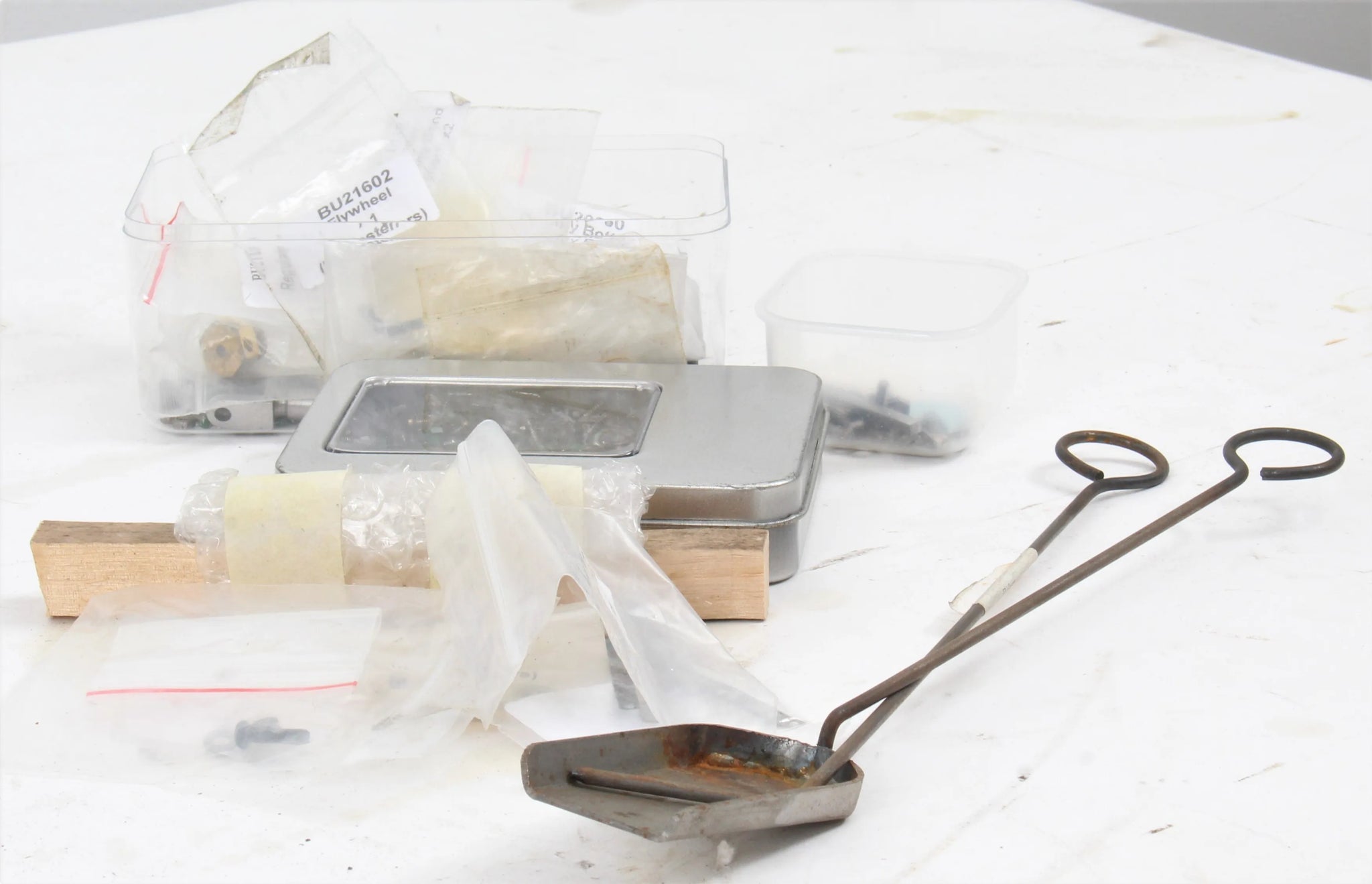

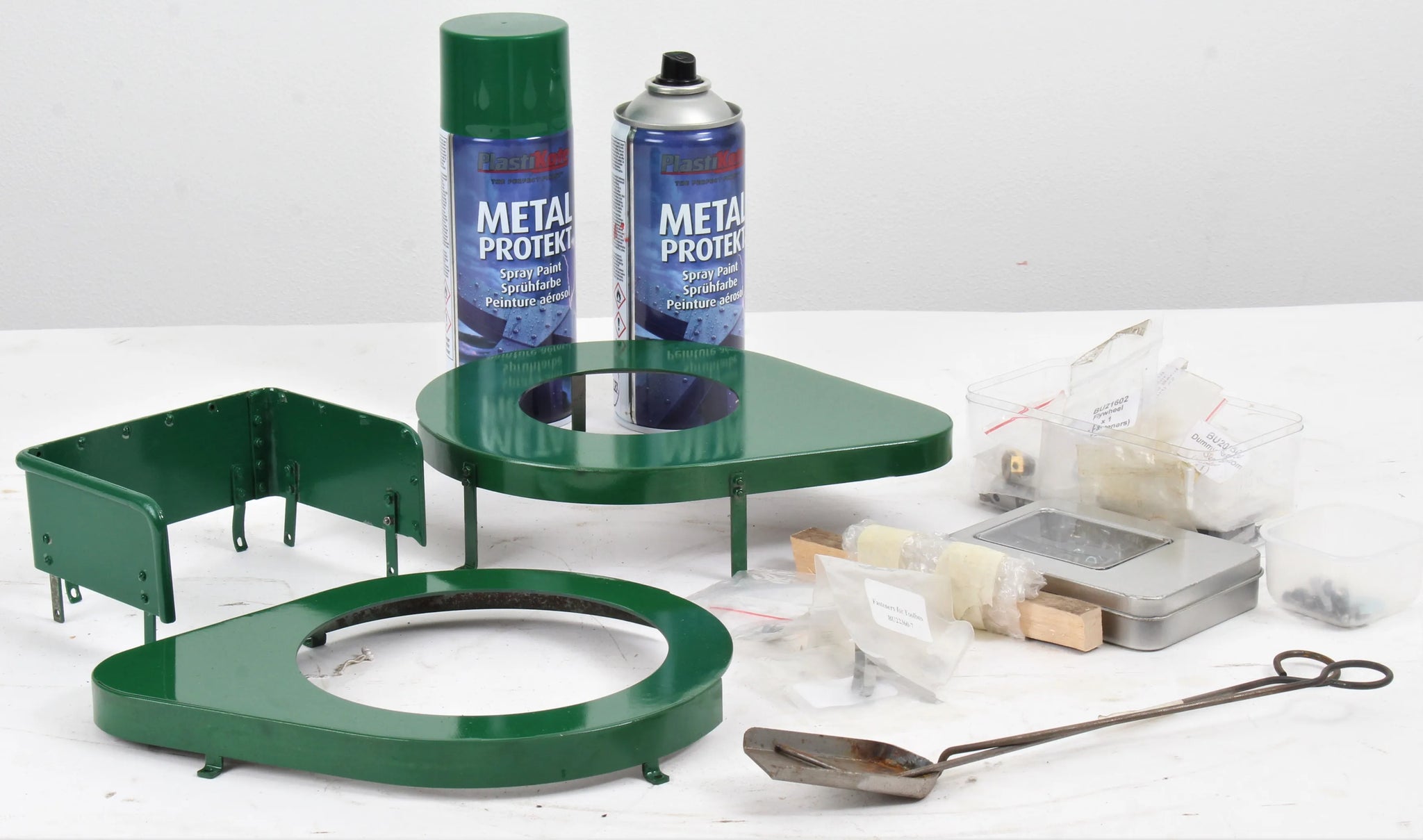

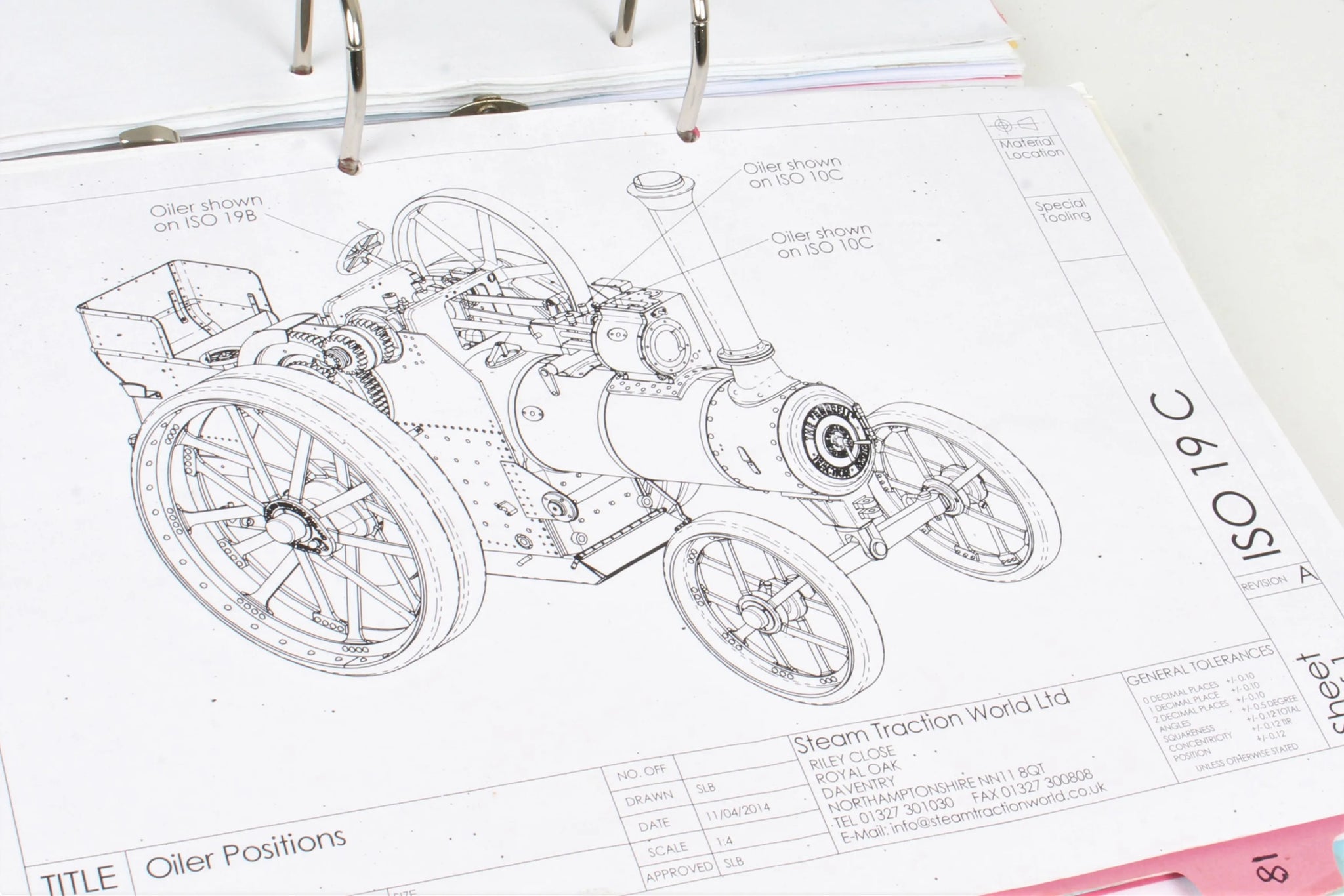

Complete with painted gear guards and various other small parts to be fitted, firing irons, paint, assembly/operating manual and manufacturer's original boiler certificate.
Still in their current product range, there are more details about the engine on Steam Traction World's website.
Stock code |
8574 |
Scale |
2 inch |
Length/inches |
36 |
Width/inches |
15.75 |
Height/inches |
23 |
Weight/Kg |
65 |
Cylinder material |
cast iron |
Valve type |
slide |

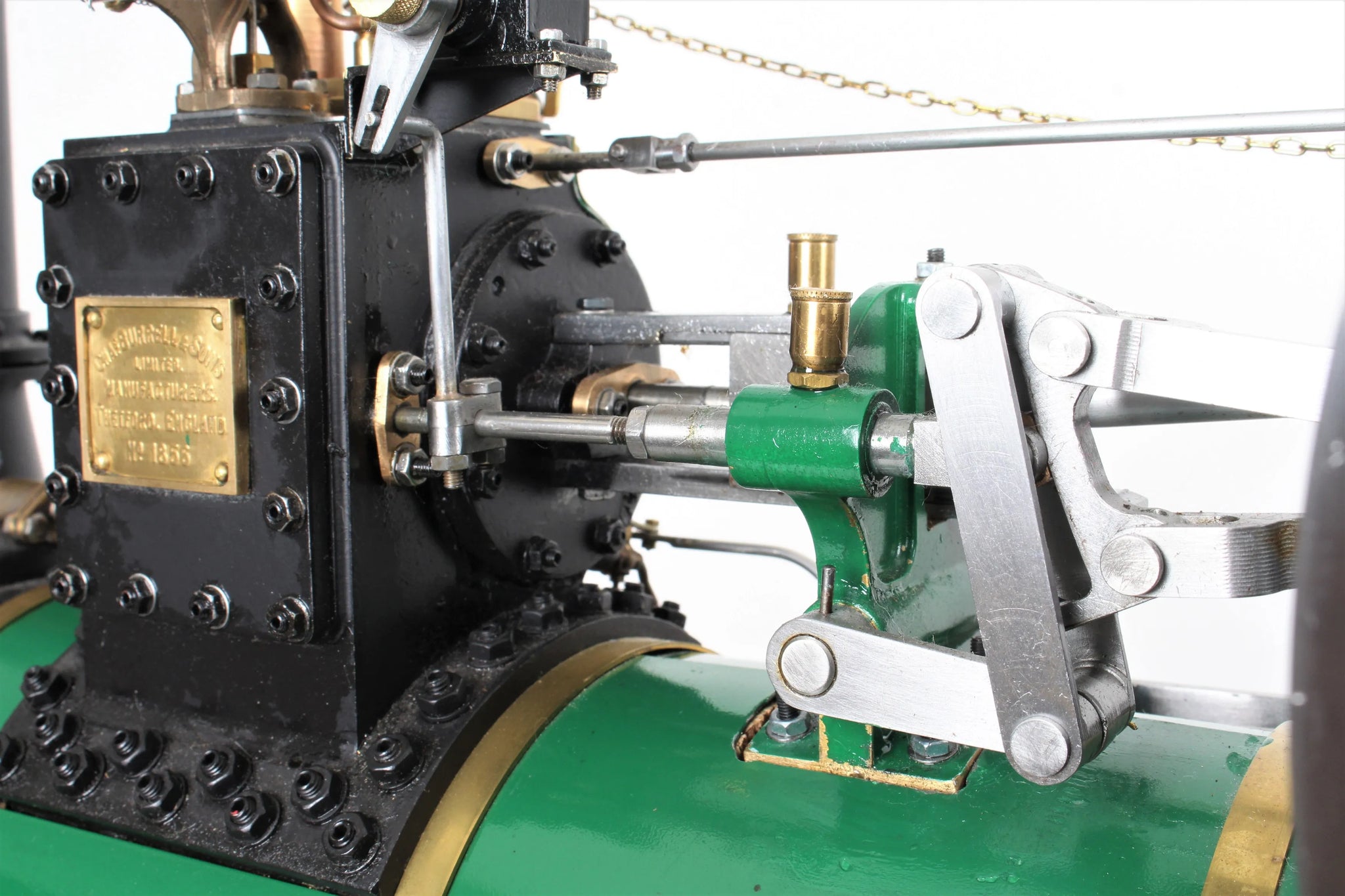

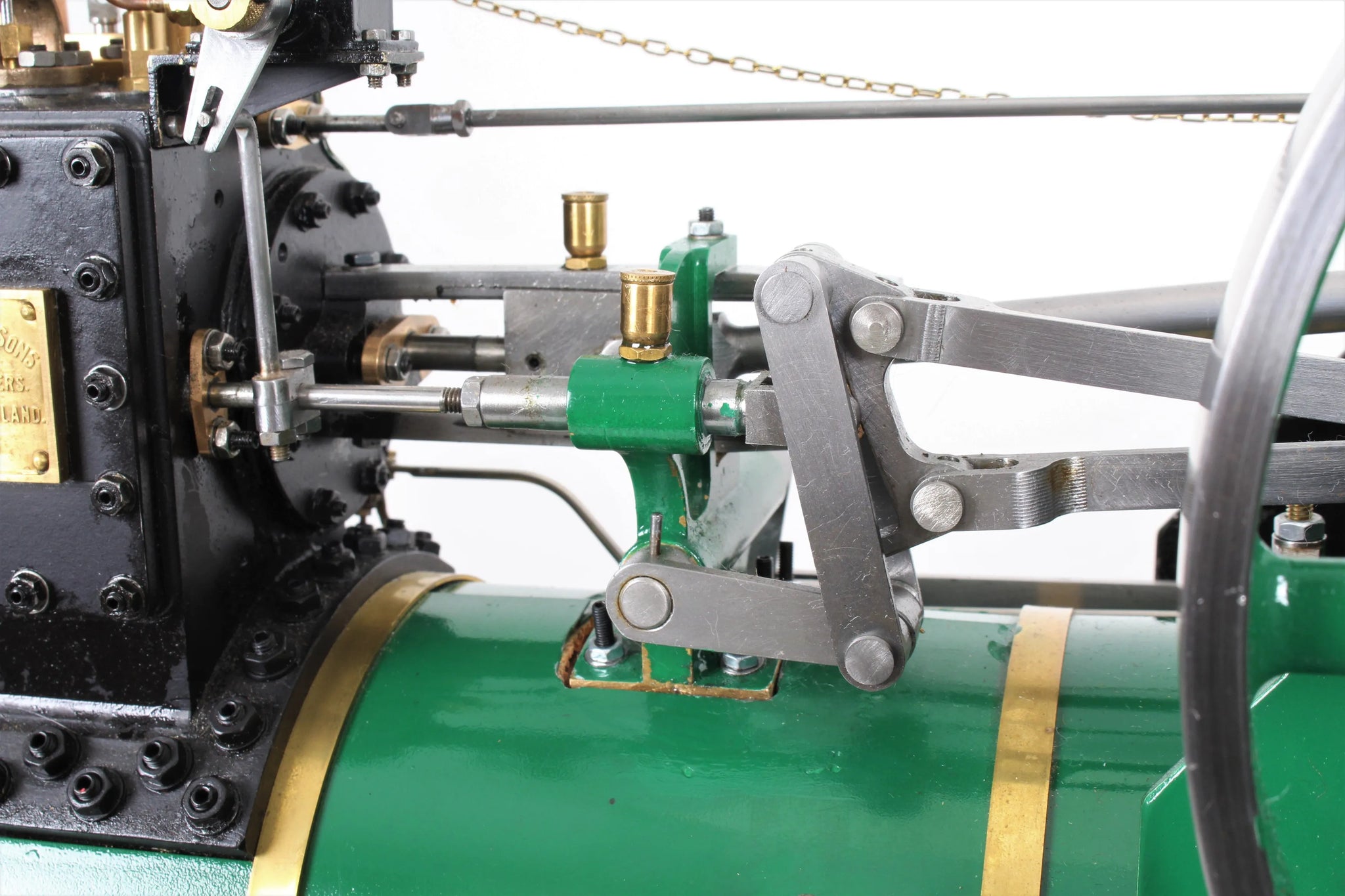

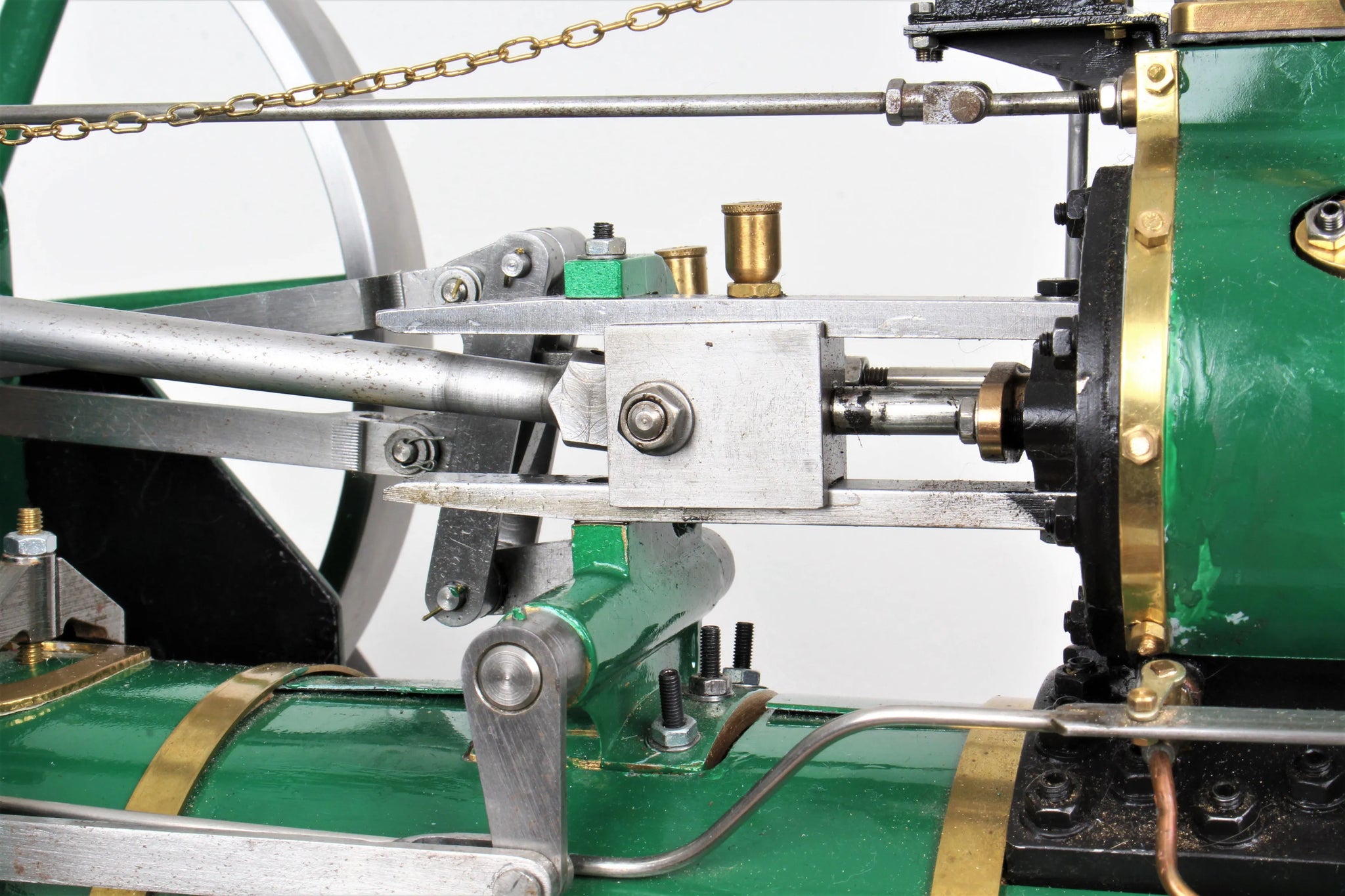

Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler maker |
Steam Traction World |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
100 |
CE/UKCA mark |
yes |
Year built |
2014 |
Boiler number |
STW093 |

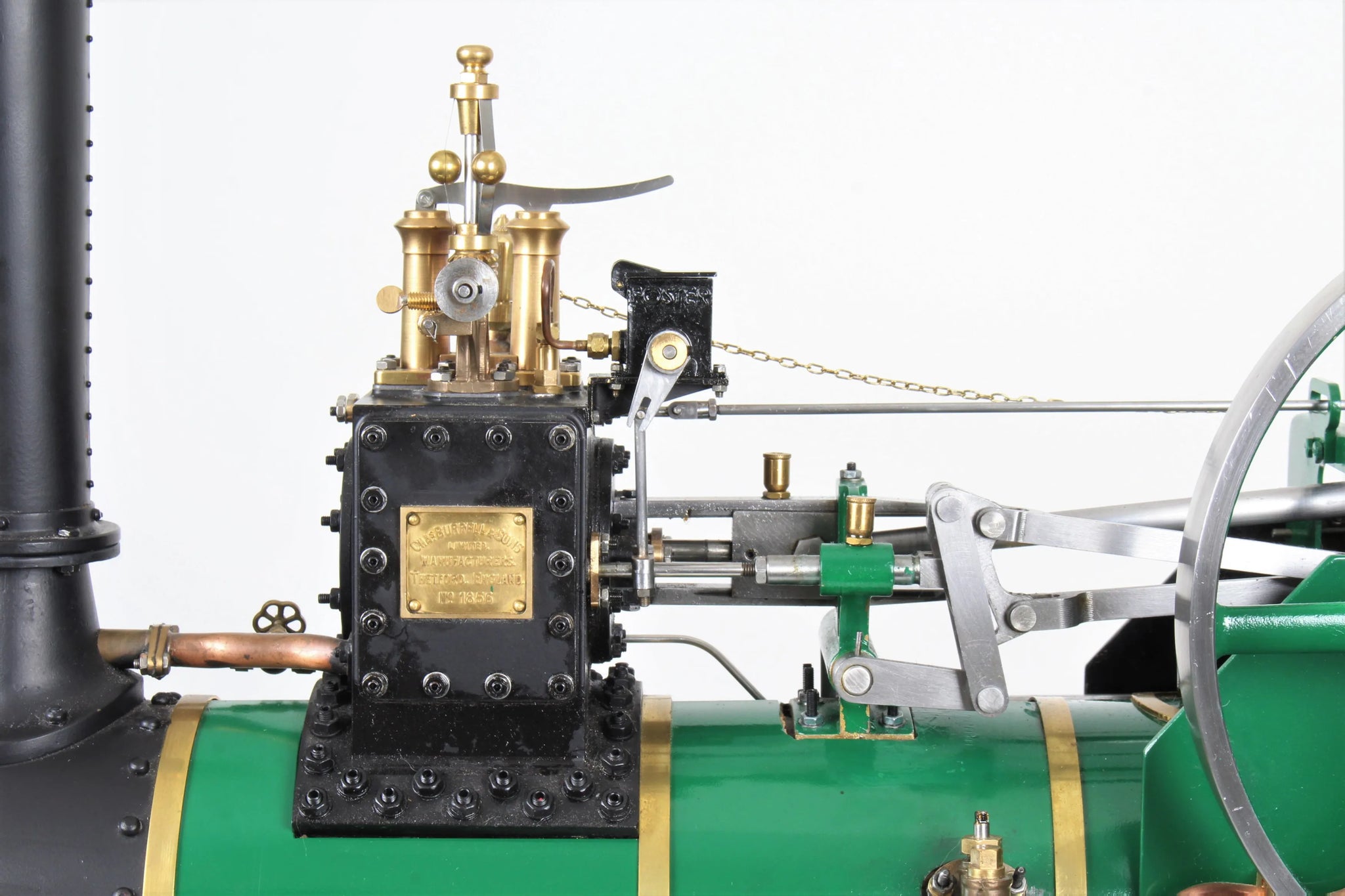

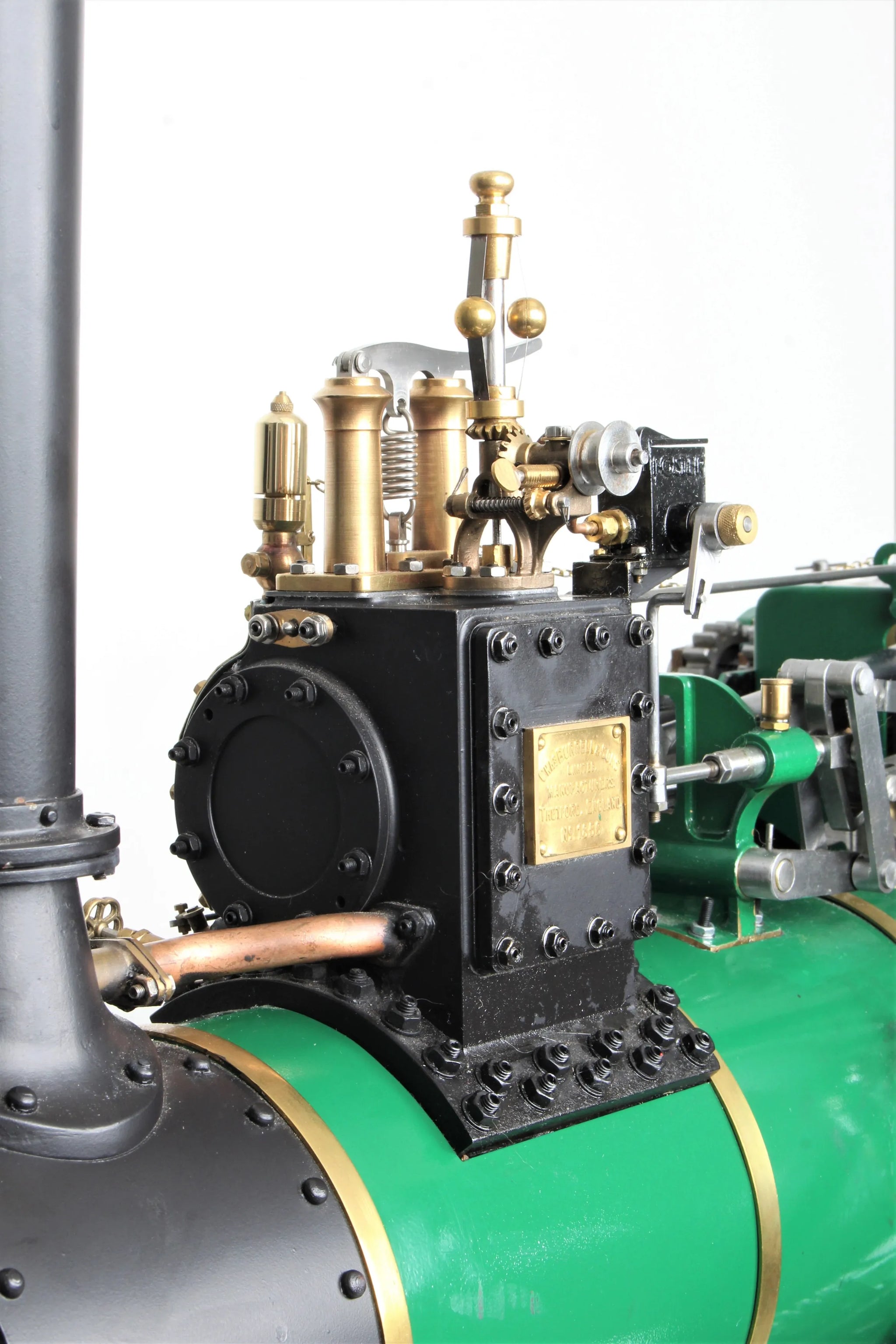

Safety valve type |
Ramsbottom |
Safety valve |
2 |
Fusible plug |
yes |

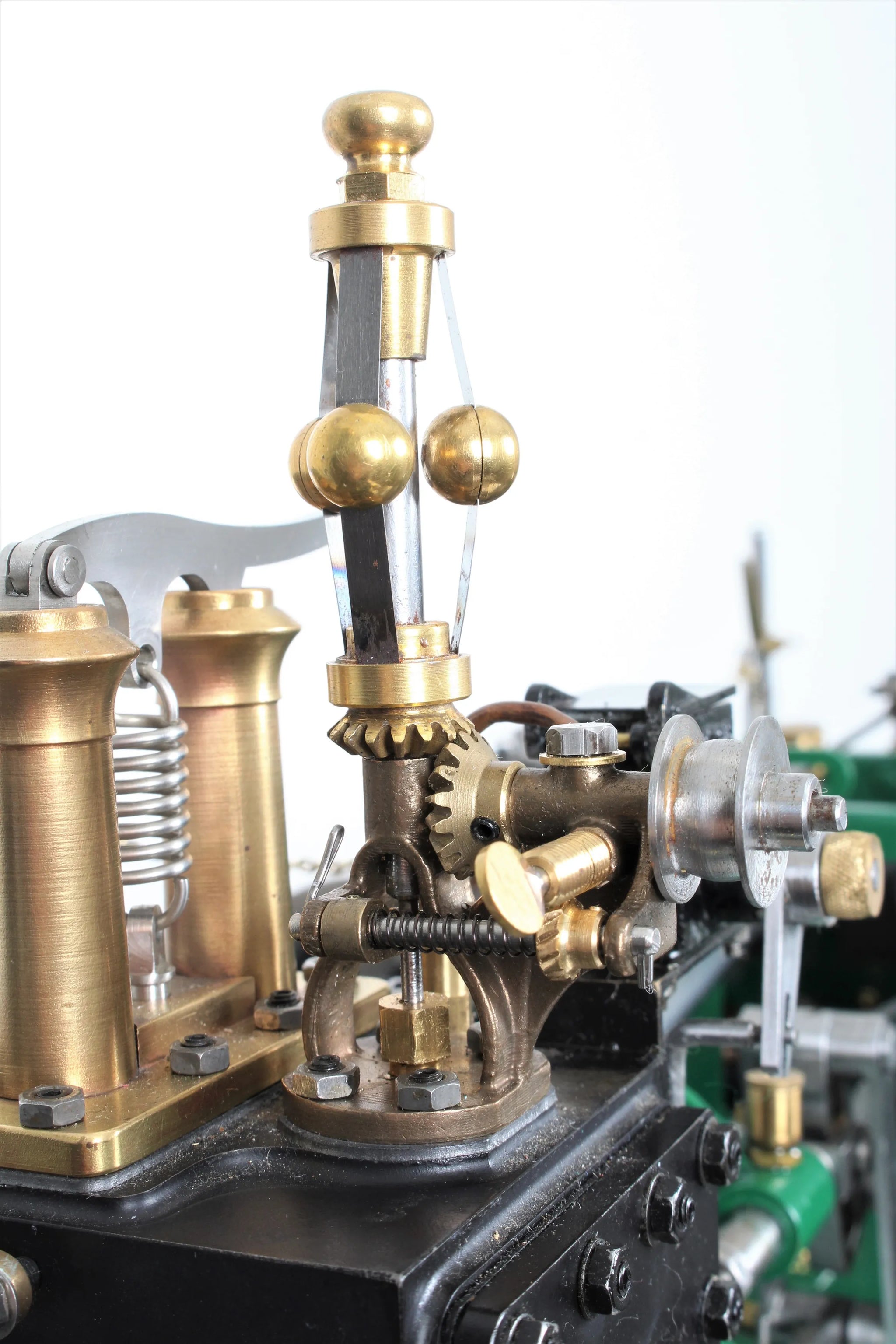

Governor type |
Pickering |
Differential |
yes |
Road speed |
2 |
Whistle |
yes |
Mechanical pump |
1 |
Injector |
1 |
Pack |
Single half pallet |
Date out |
Nov-19 |
