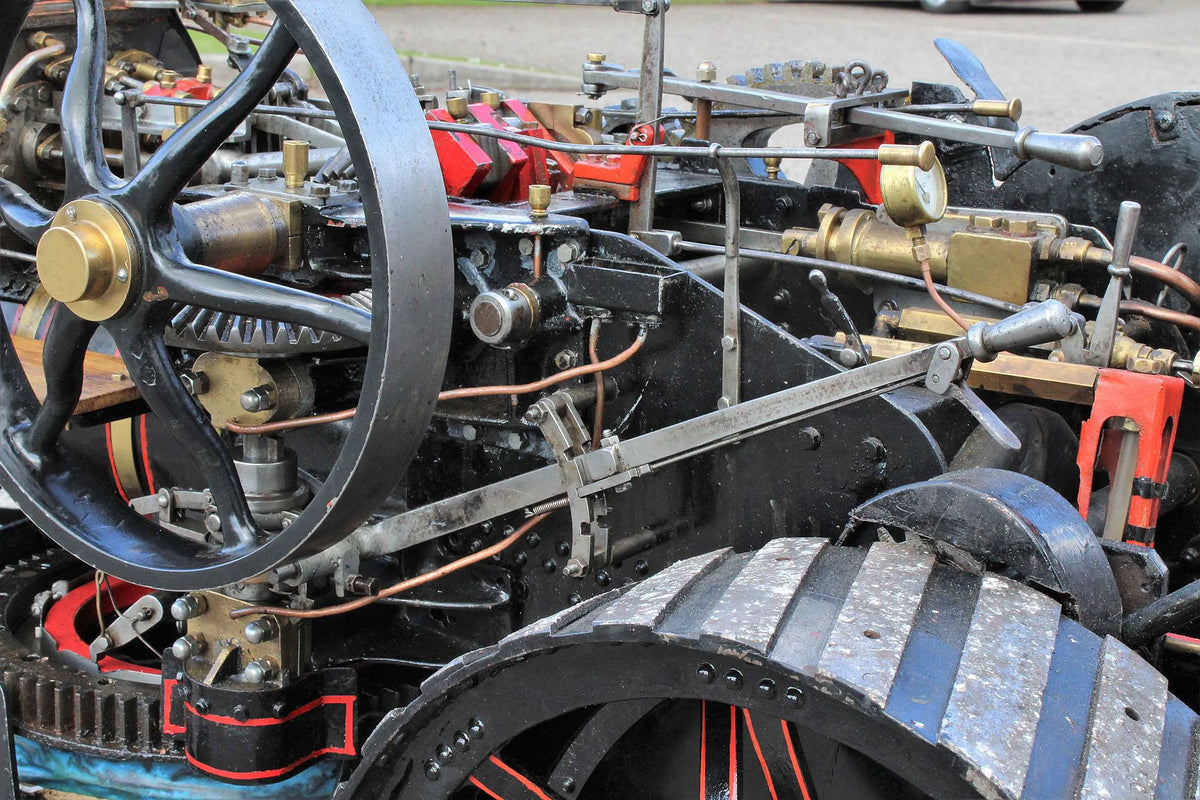

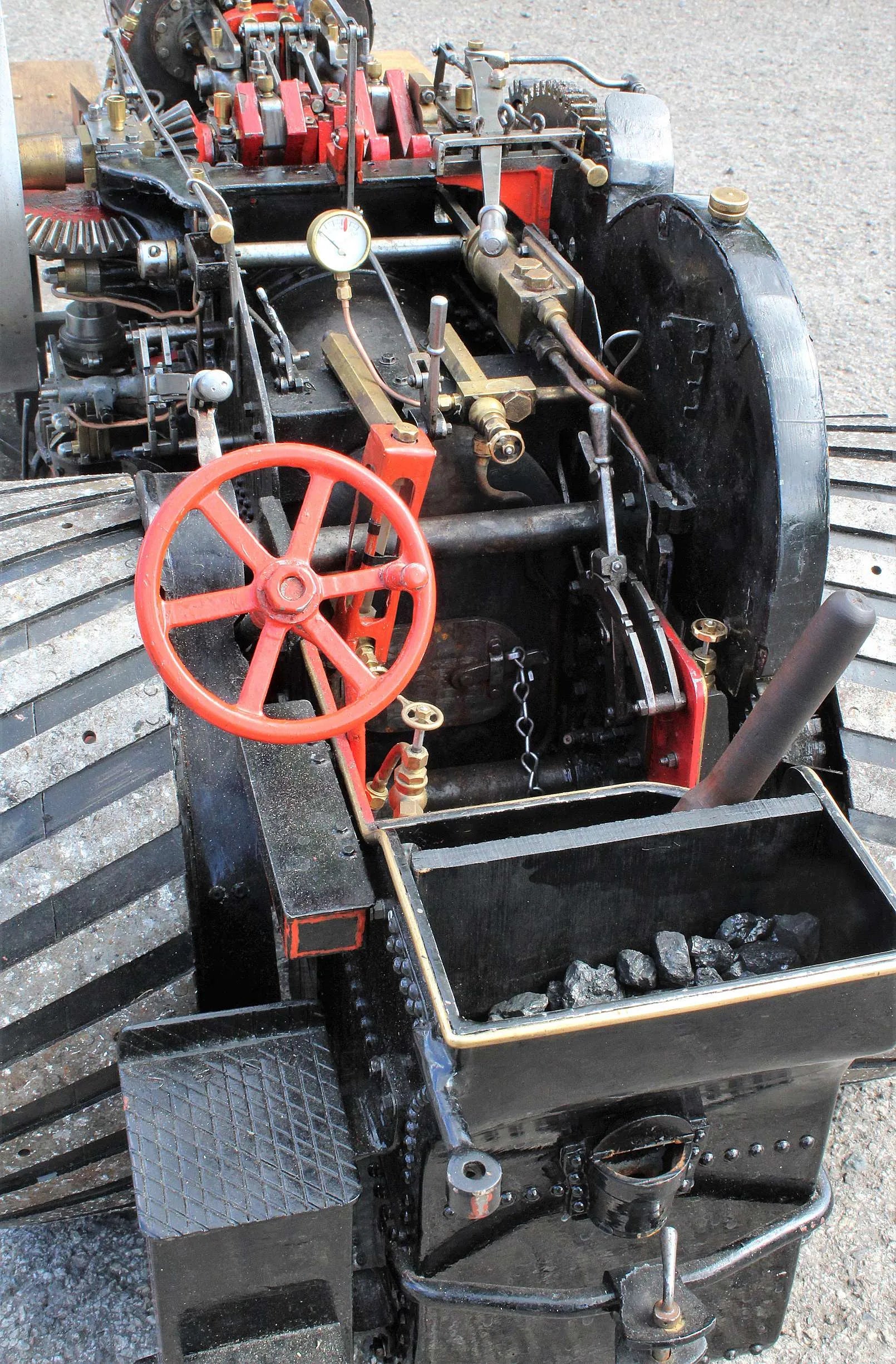

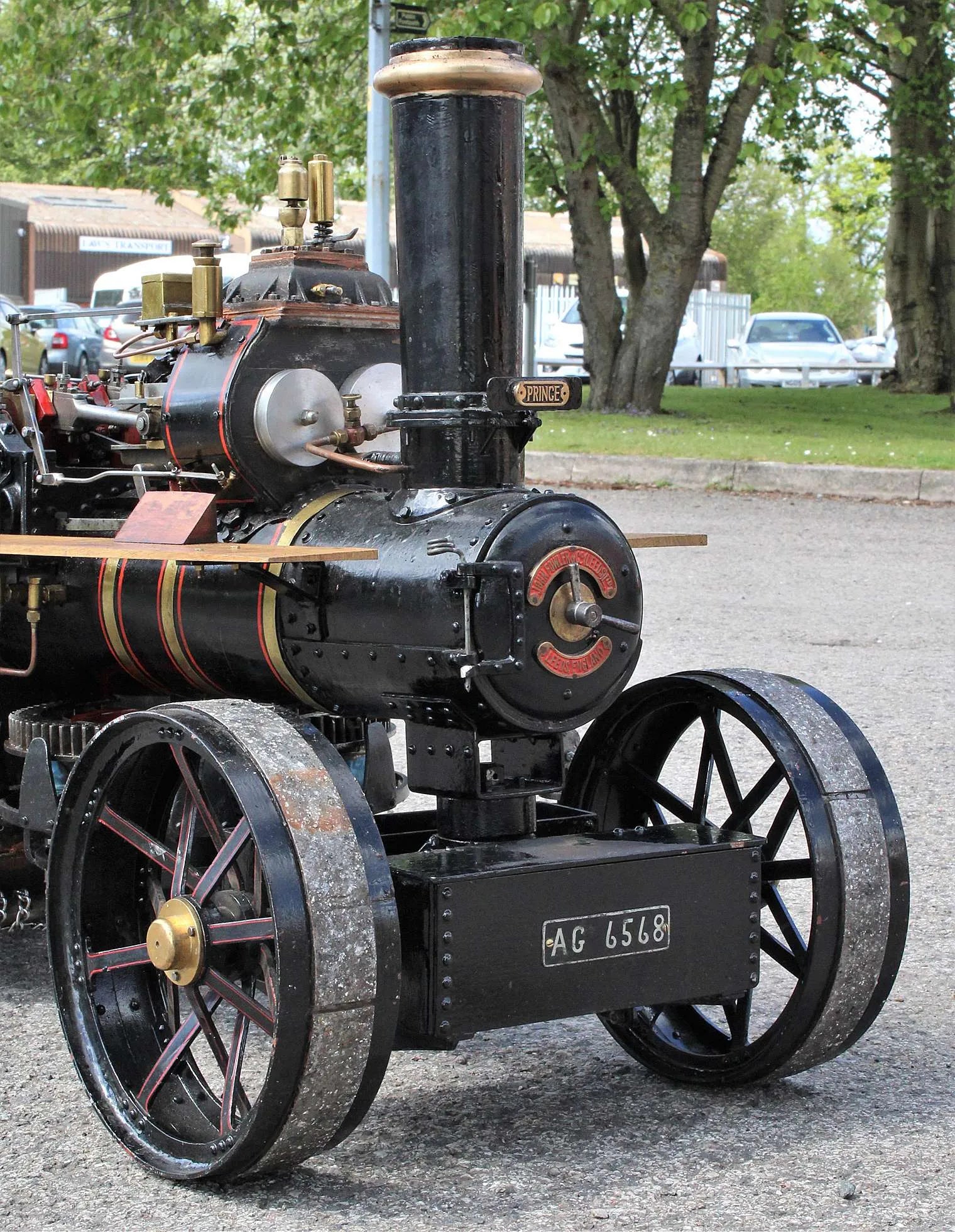

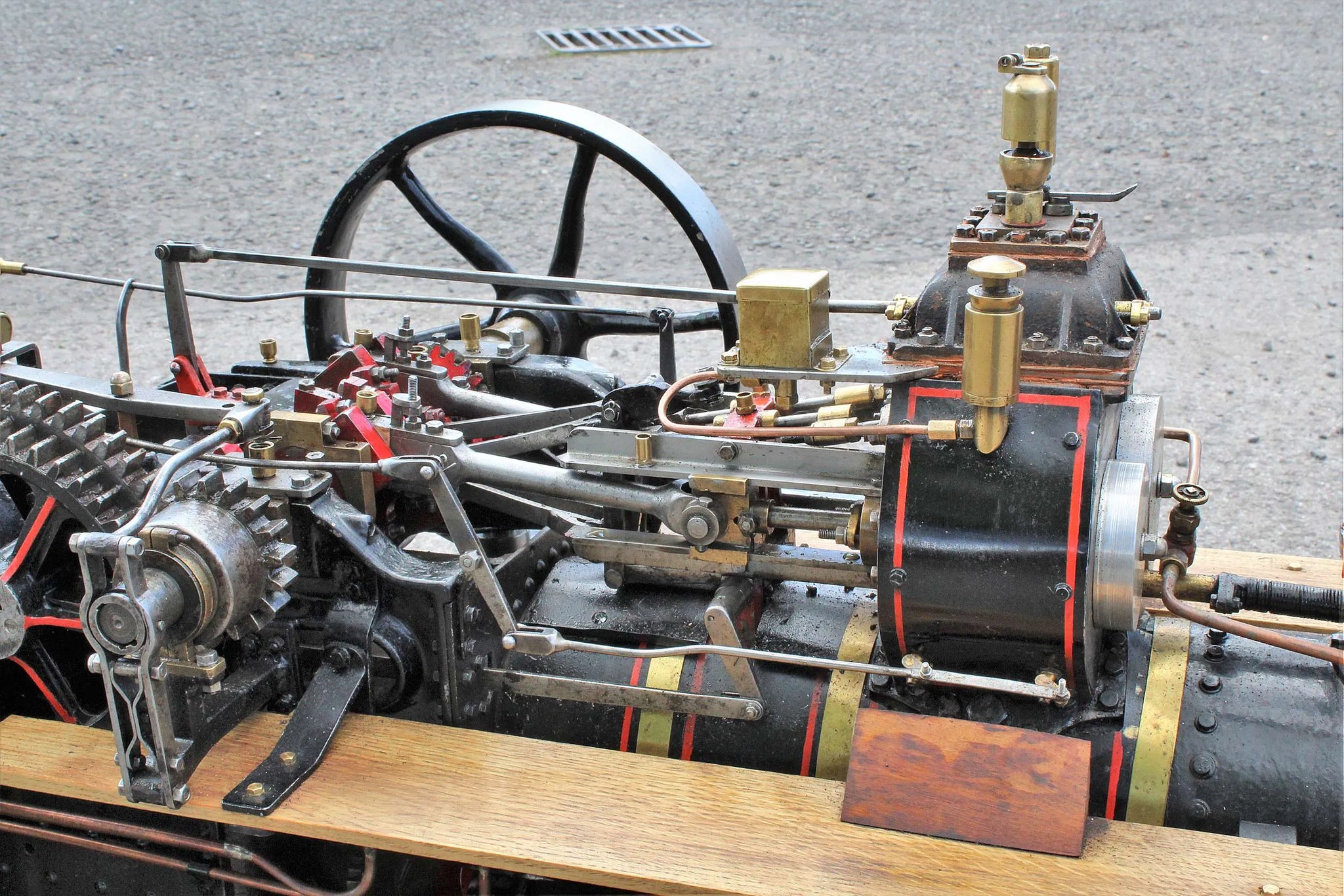

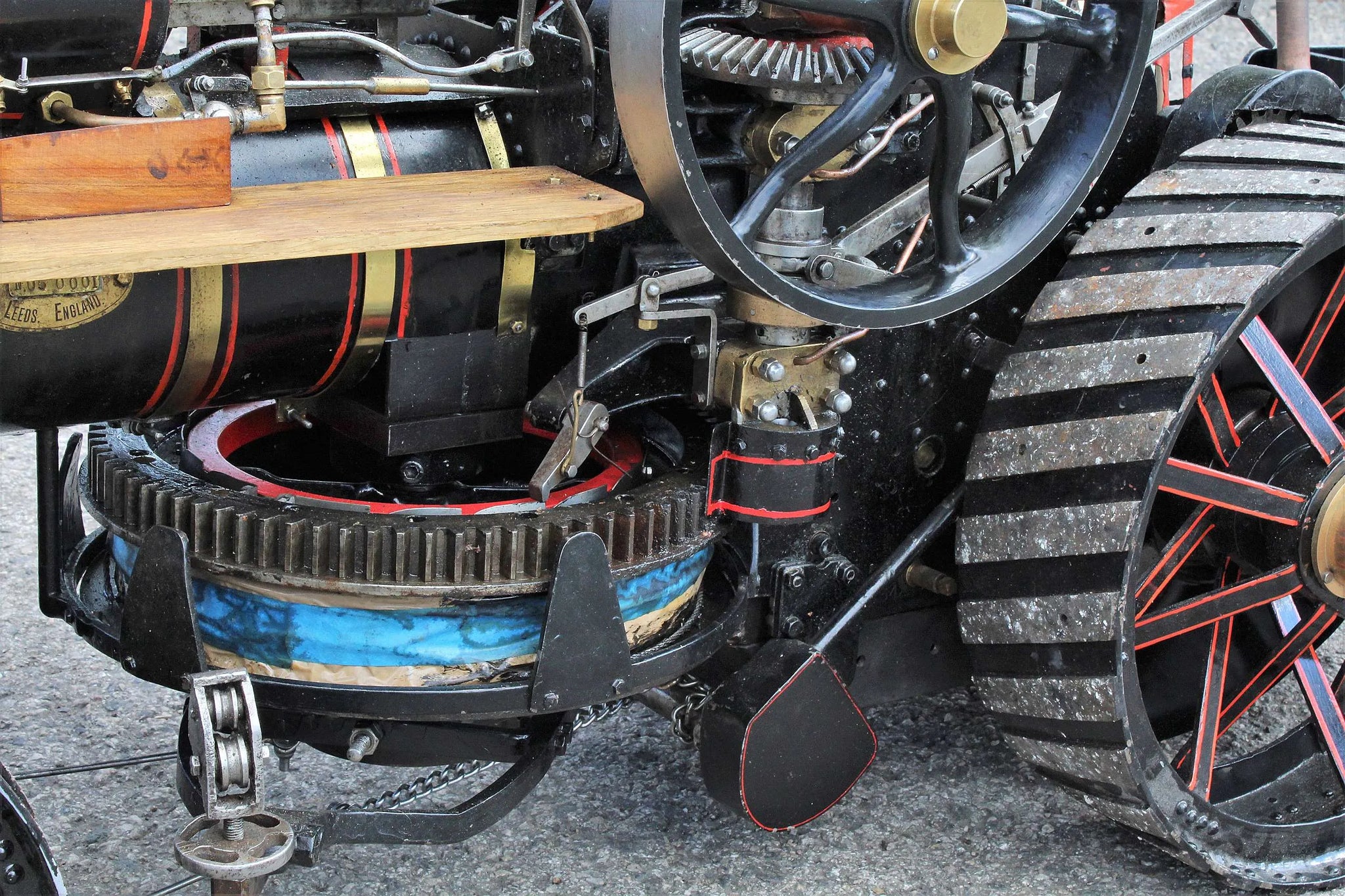

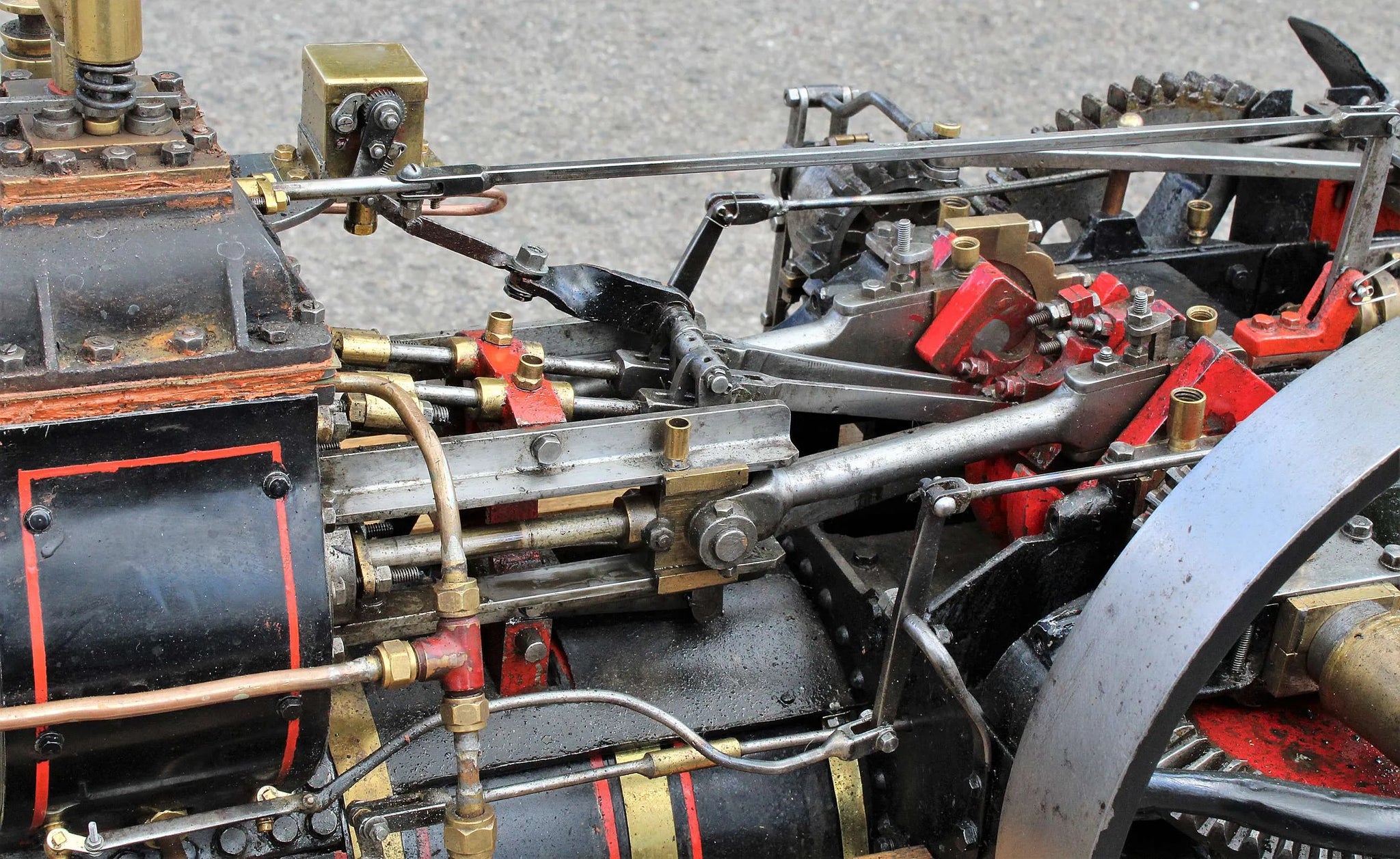

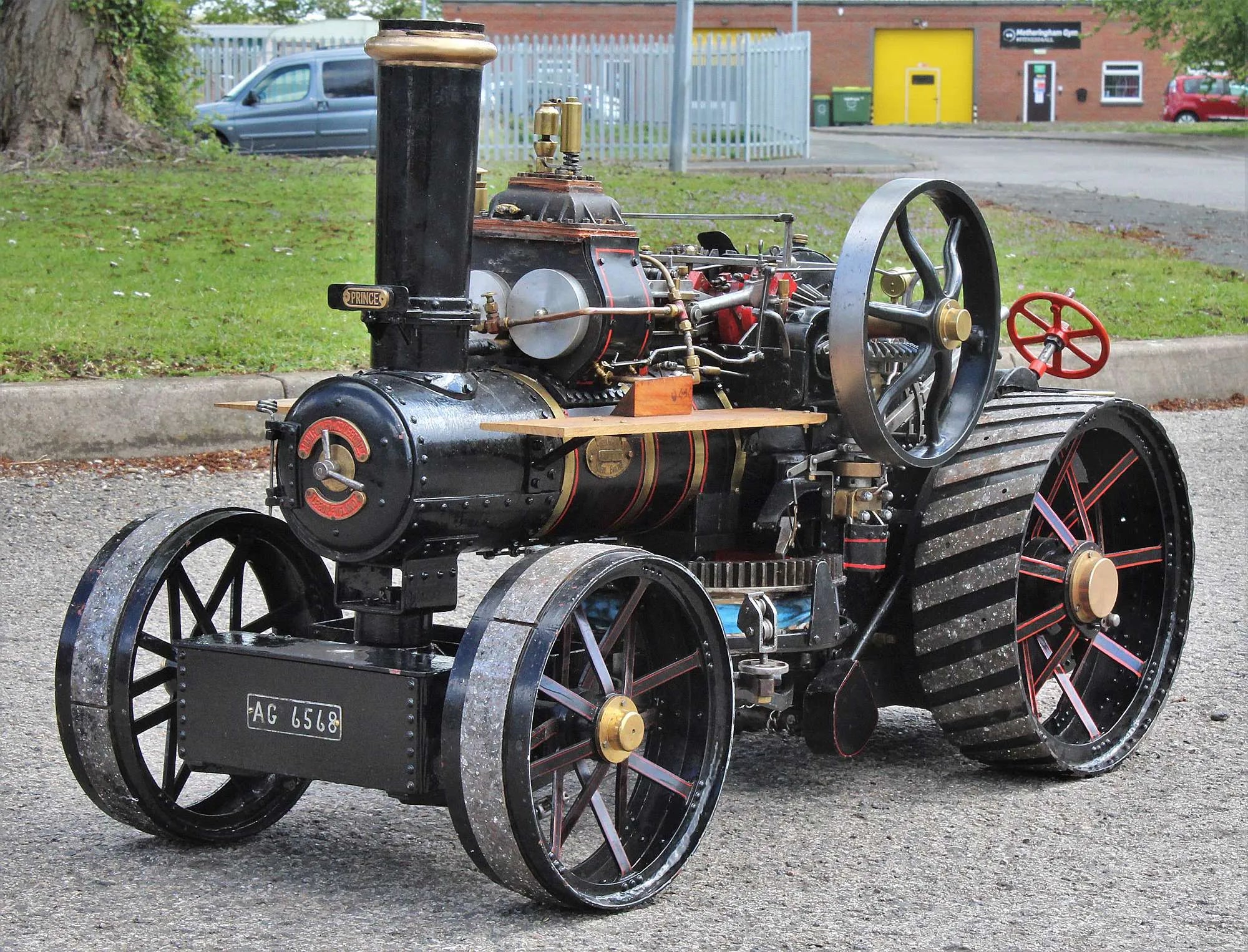

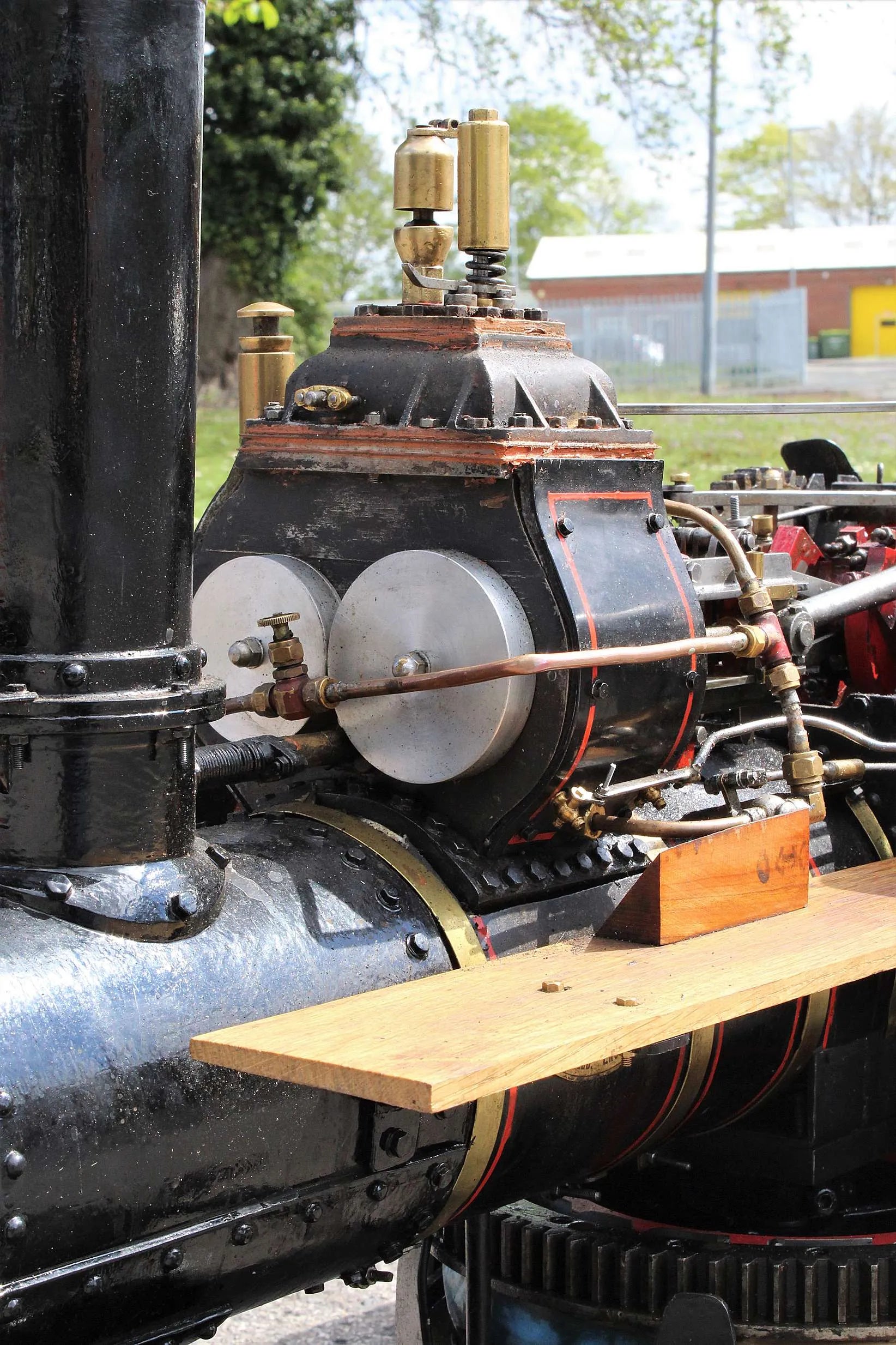

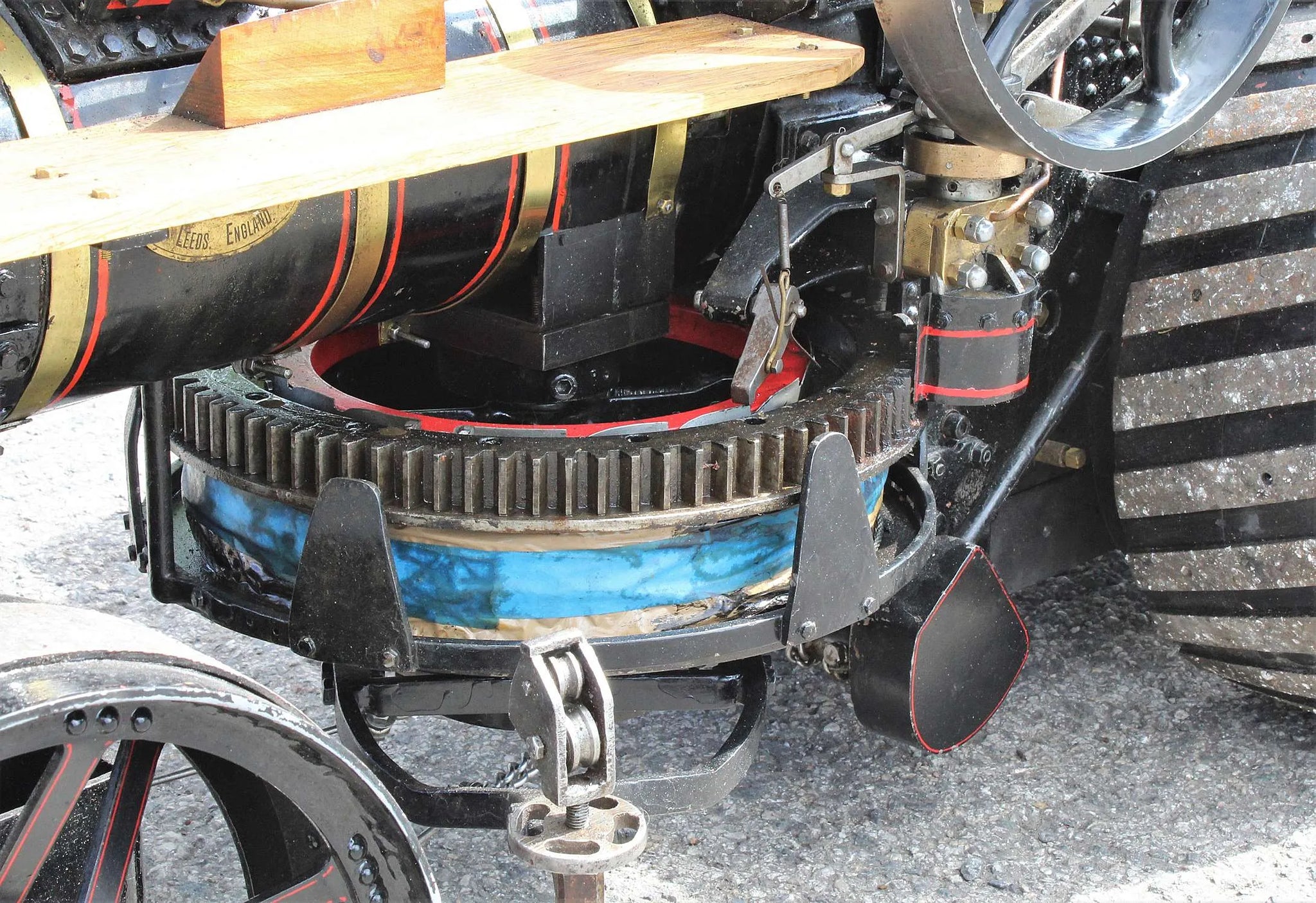

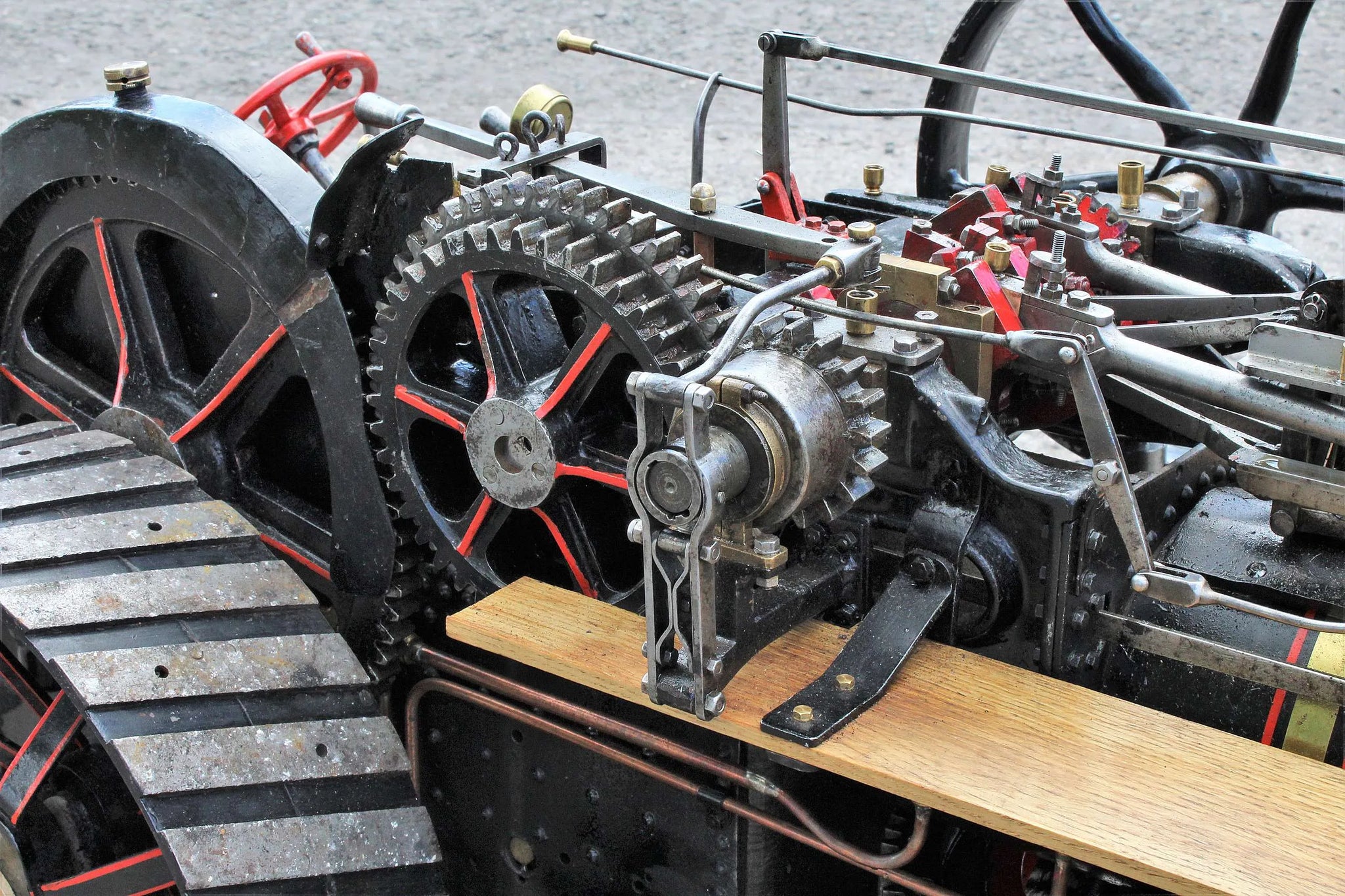

2 inch scale Fowler BB1 ploughing engine

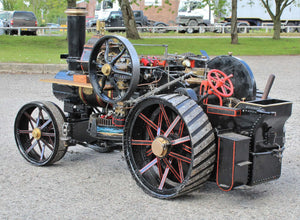

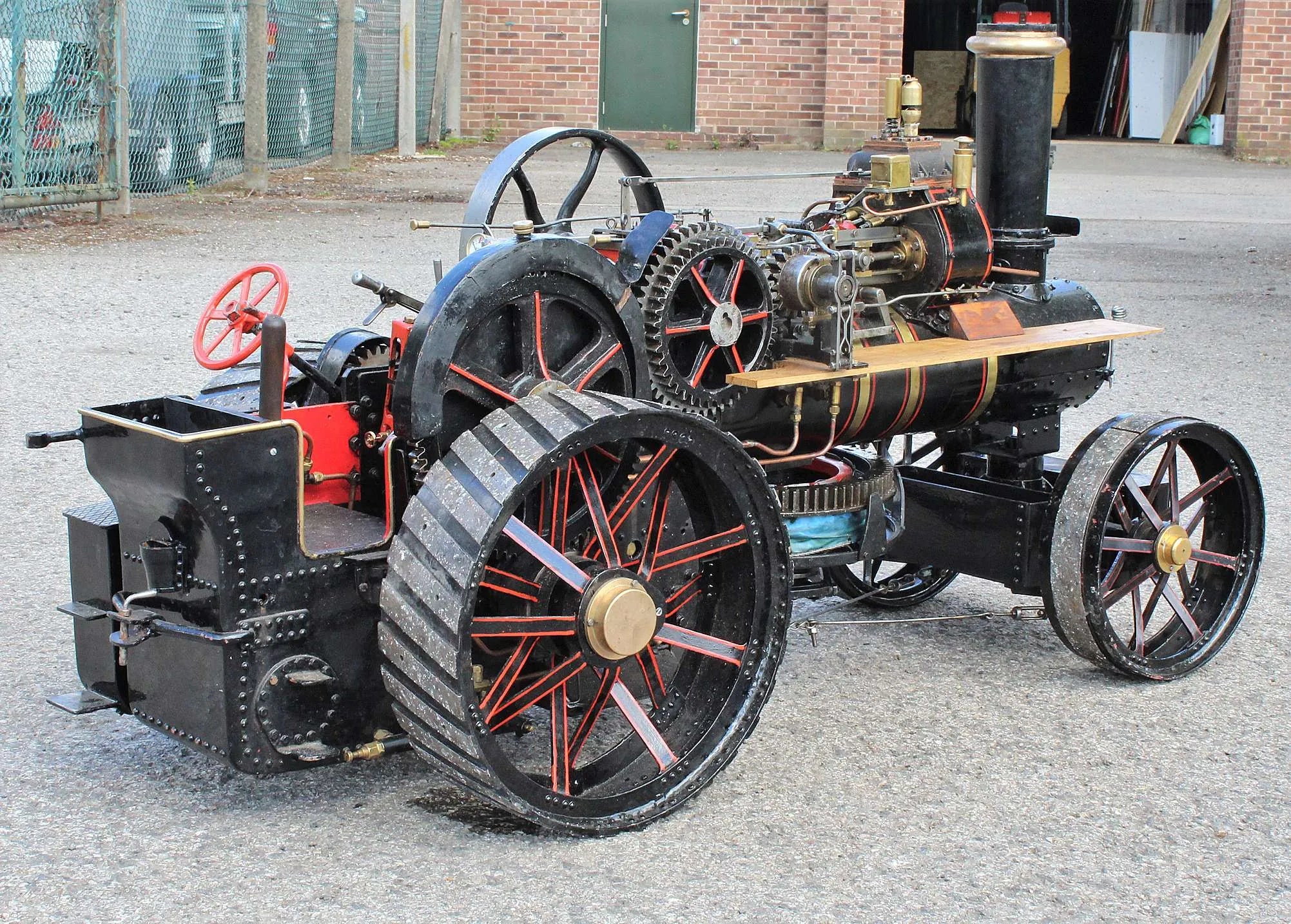

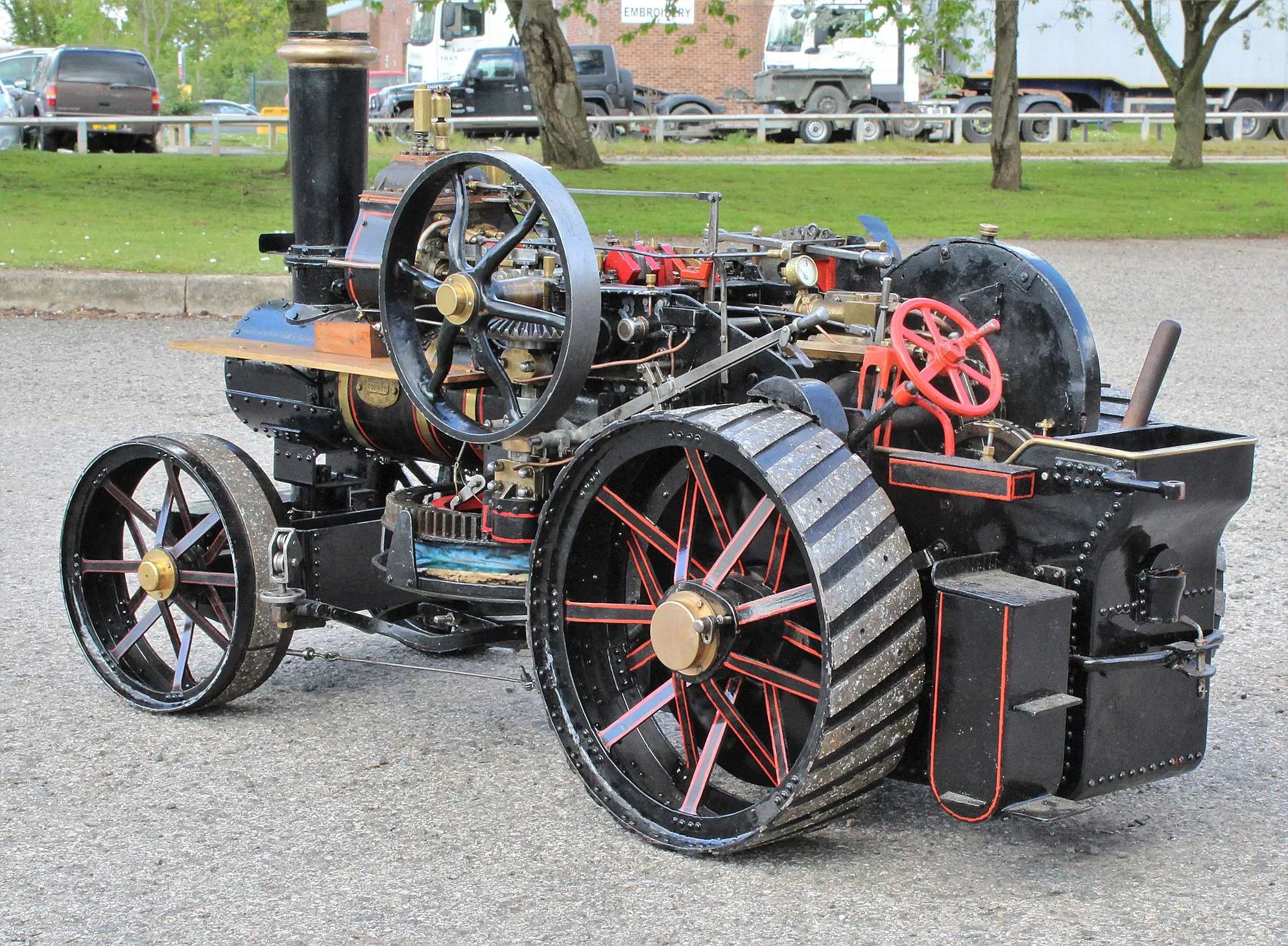

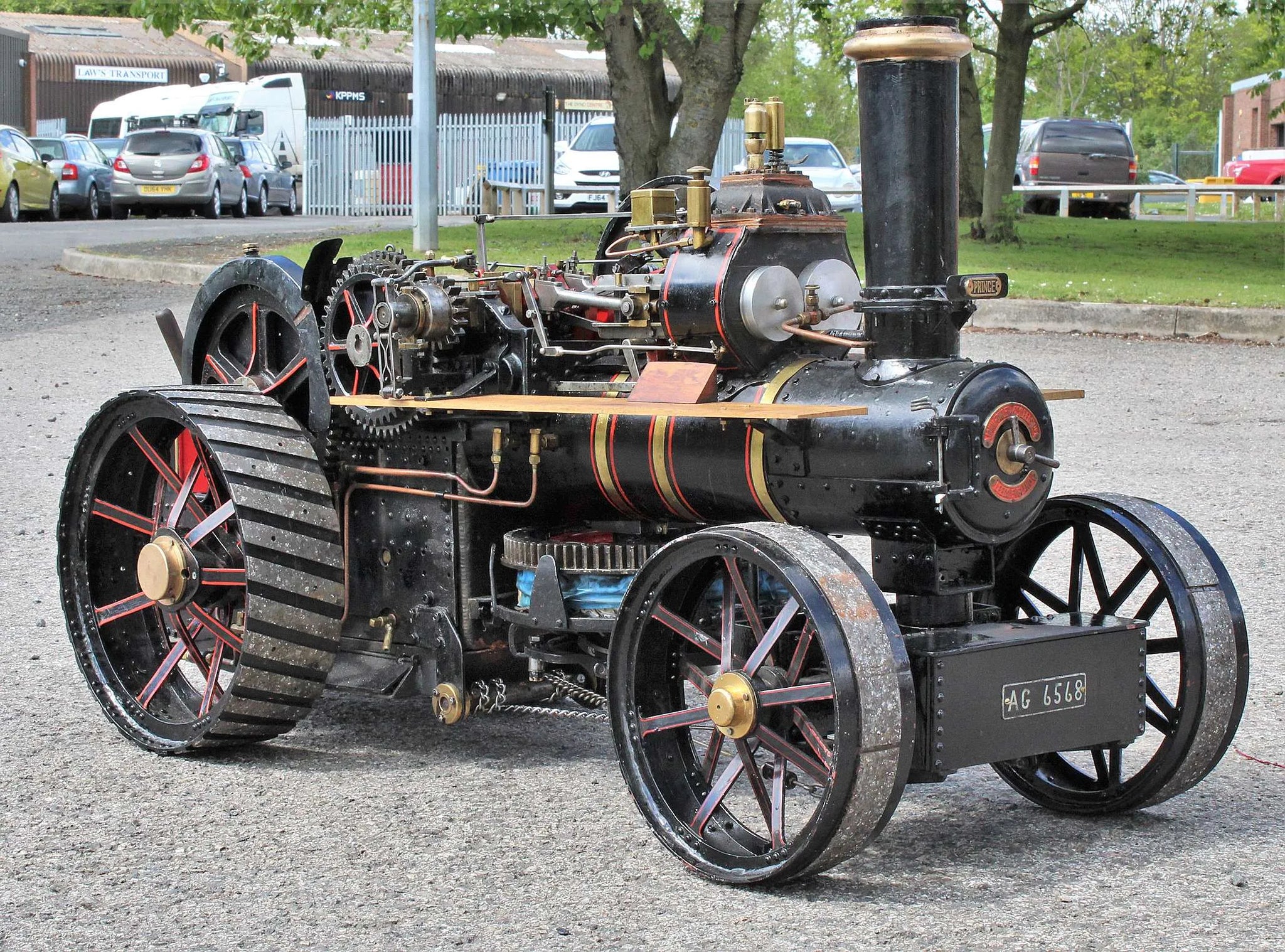

A 2 inch scale Fowler BB1 ploughing engine, an older engine that, following a boiler failure in 1994 was stripped for repair. A new boiler was ordered from Franklin & Bell in 1997, after which the engine languished, dismantled until 2018.

In the hands of a new owner it was put back together and first steamed with its new boiler following a club hydraulic test in 2019.

Tested again in the workshop here the boiler proved in excellent condition, appearing as-new inside - as expected. The engine turns over freely and runs on air, when steamed there were a multitude of fittings along with the whistle valve and regulator leaking.

Technical information

Stock code

9593

Scale

2 inch

Length/inches

47

Width/inches

18.5

Height/inches

26

Wheel material

steel

Axlebox type

plain bearing

Cylinder material

compound, cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Franklin & Bell

Boiler type

locomotive

Boiler construction

welded, expanded tubes

Boiler material

steel

Working pressure

100

CE/UKCA mark

n/a - pre-2002

Year built

1997

Boiler number

FB206

Safety valve type

Ramsbottom

Safety valve

2

Fusible plug

yes

Differential

yes

Road speed

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Date out

May-21

Hydraulic test valid to

27-Apr-23
