7306

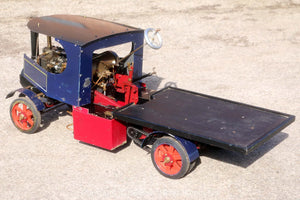

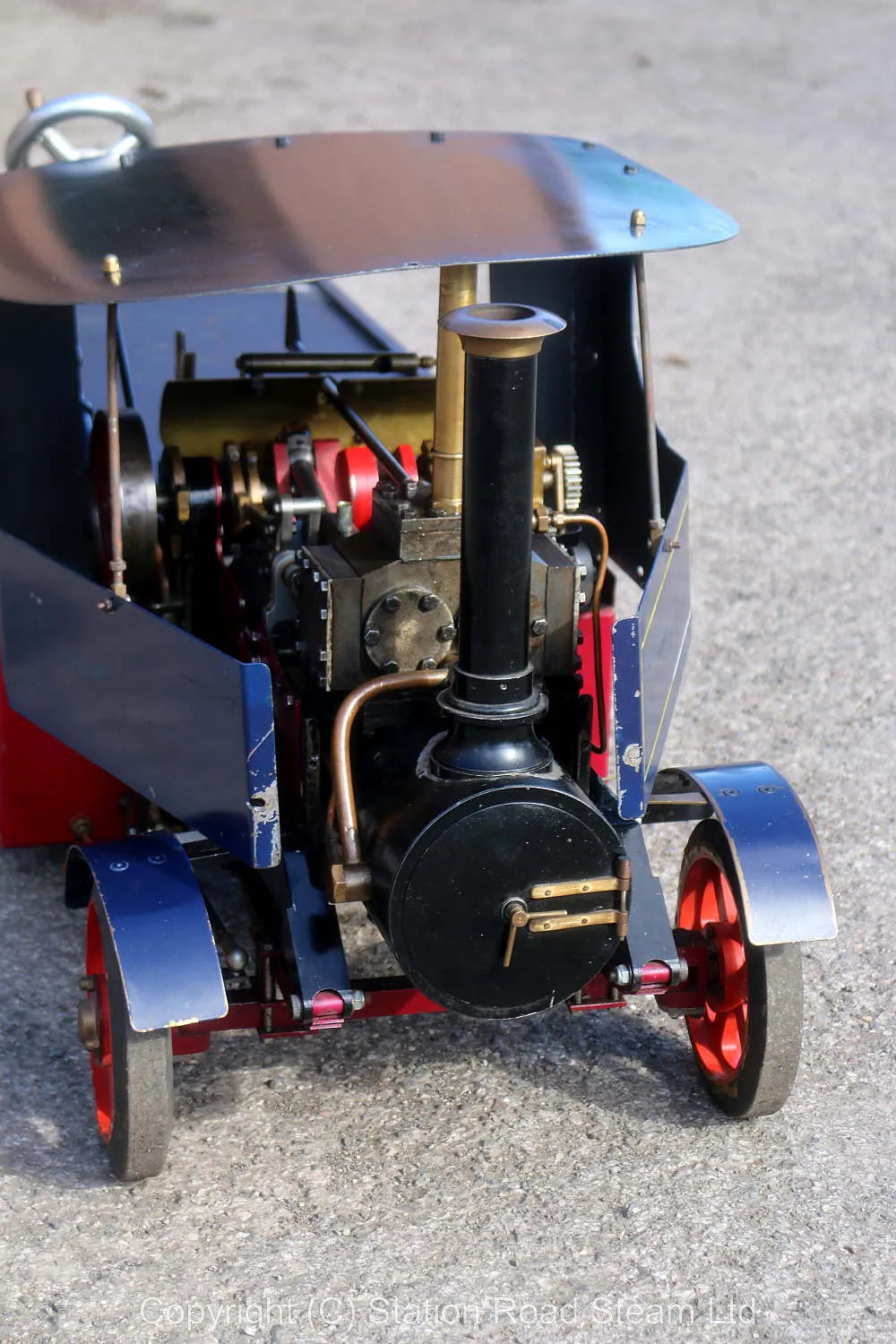

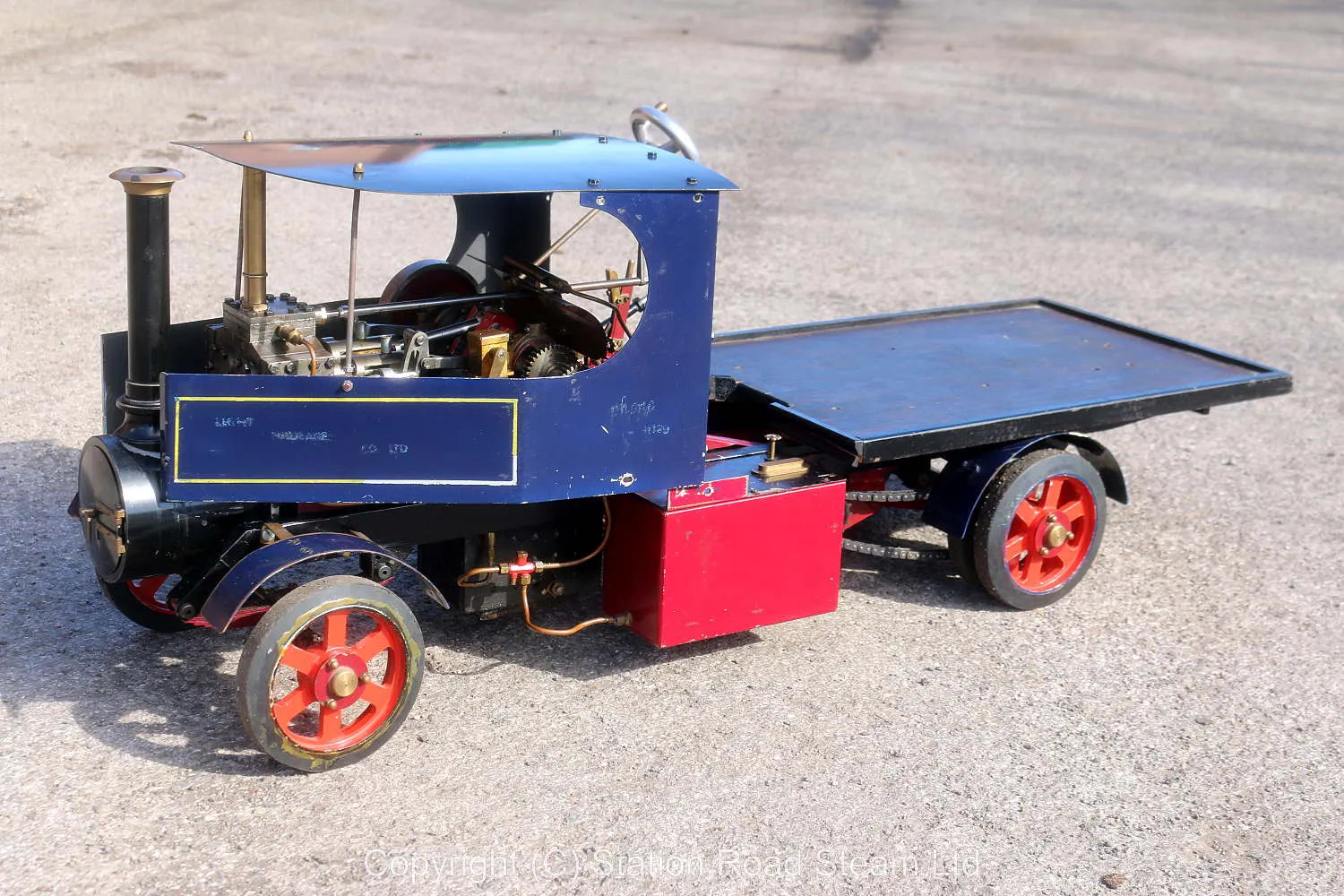

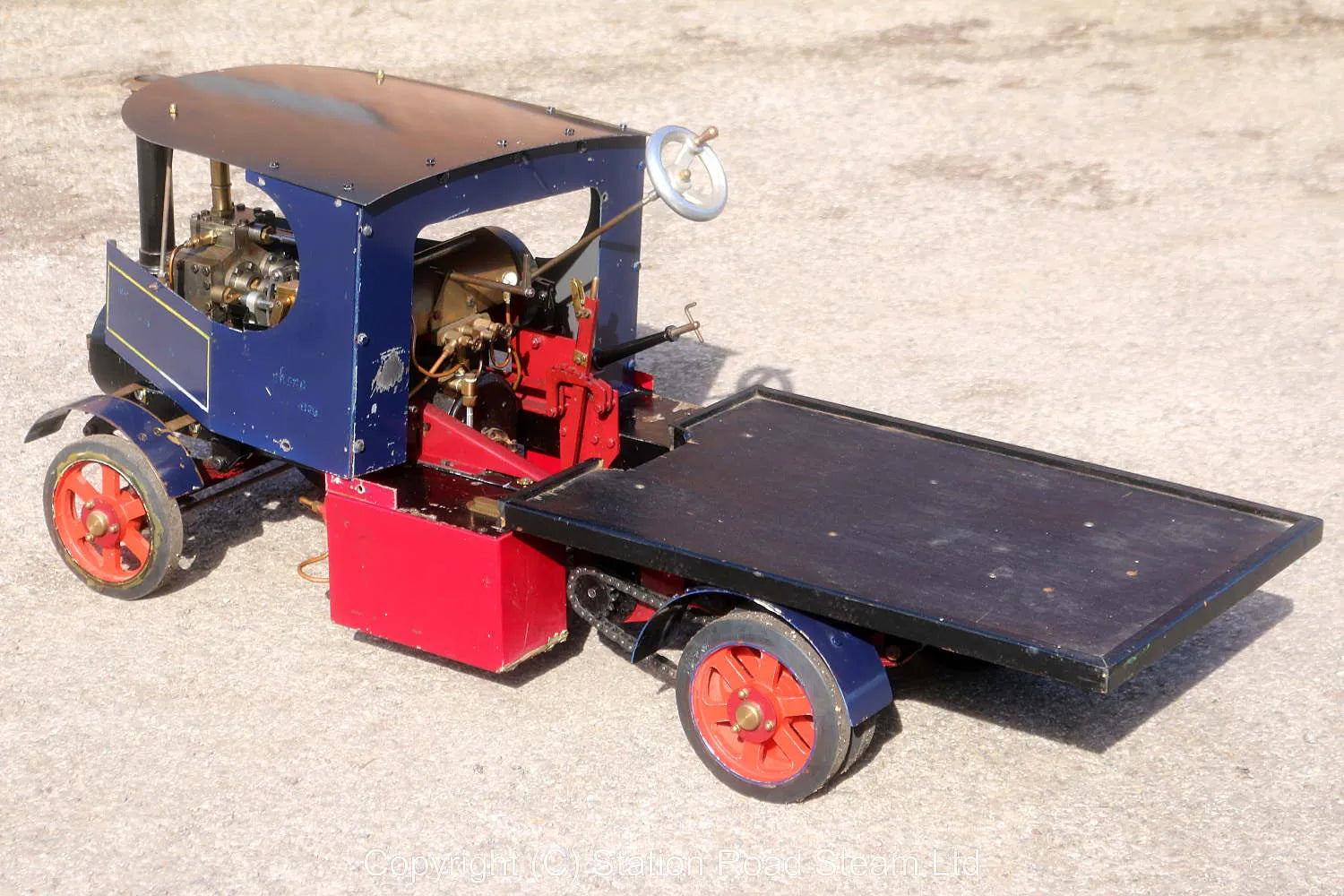

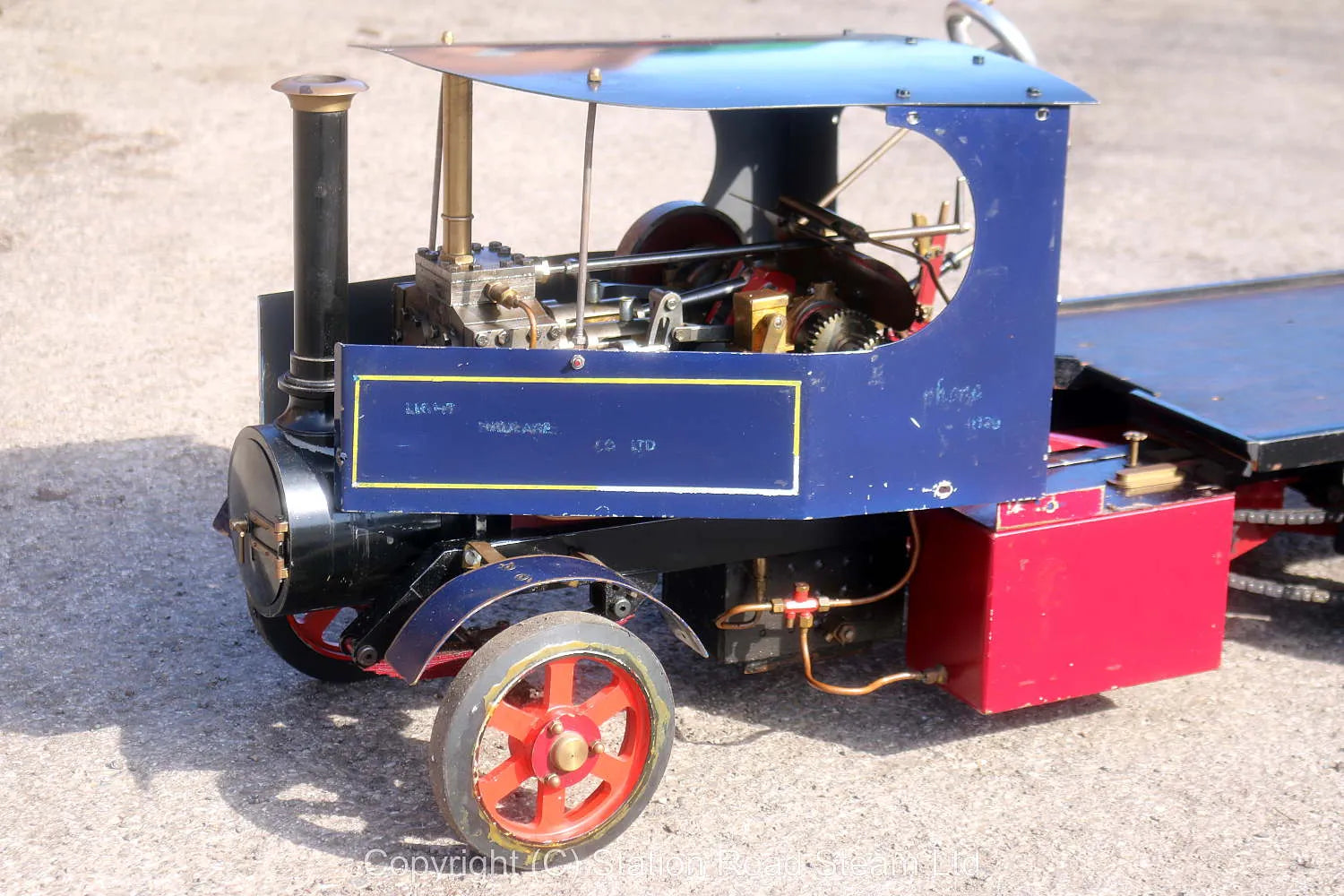

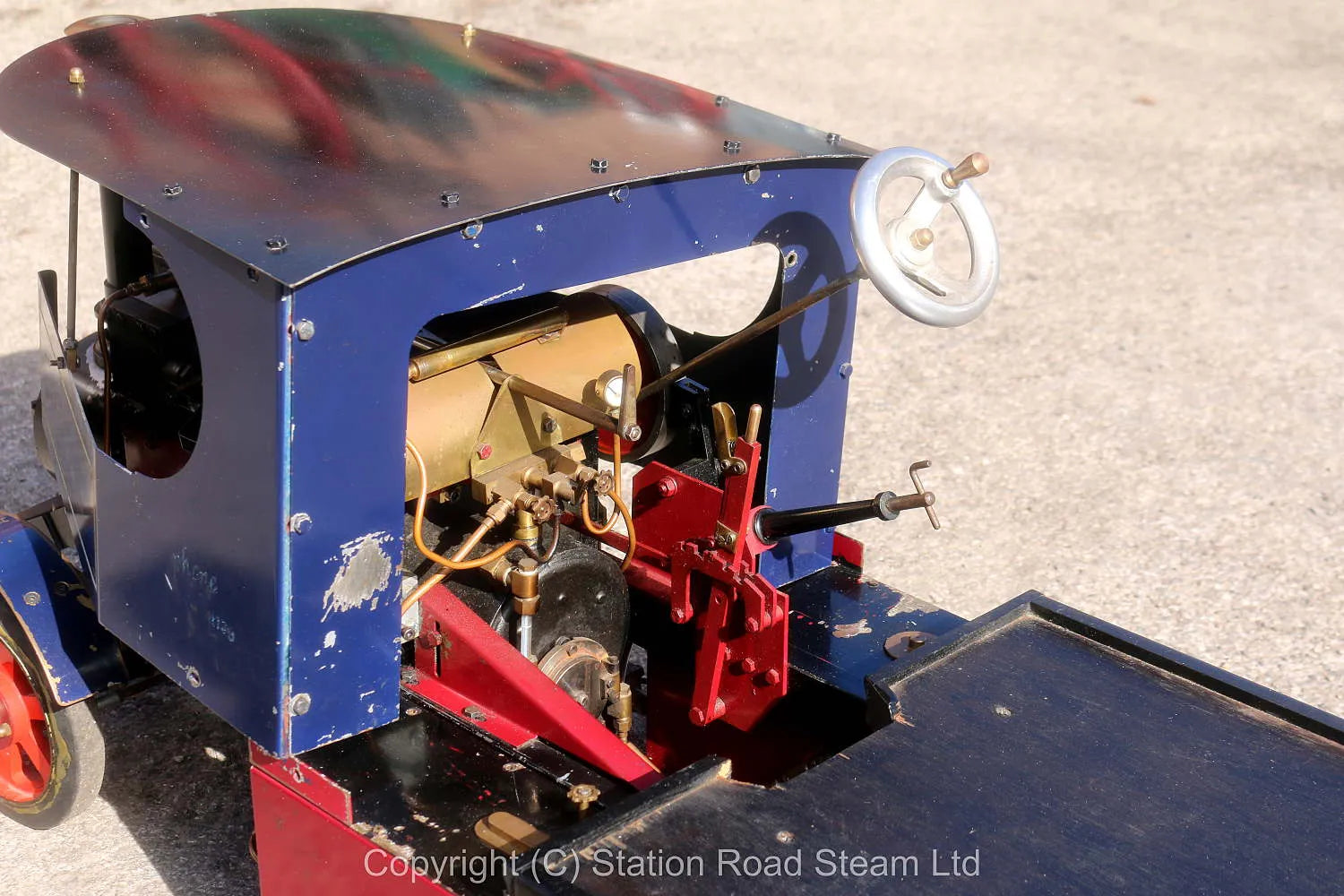

A 2 inch scale kit-built steam wagon "Pride of Penrhyn", somewhat grubby and missing the front cab sheet. Runs on air, it would make a good running restoration project - we've had lots of these through the works over the years, they can be made into quite a decent engine. Bigger and rather easier to fire and drive than the ubiquitous 2 inch scale Clayton wagon.

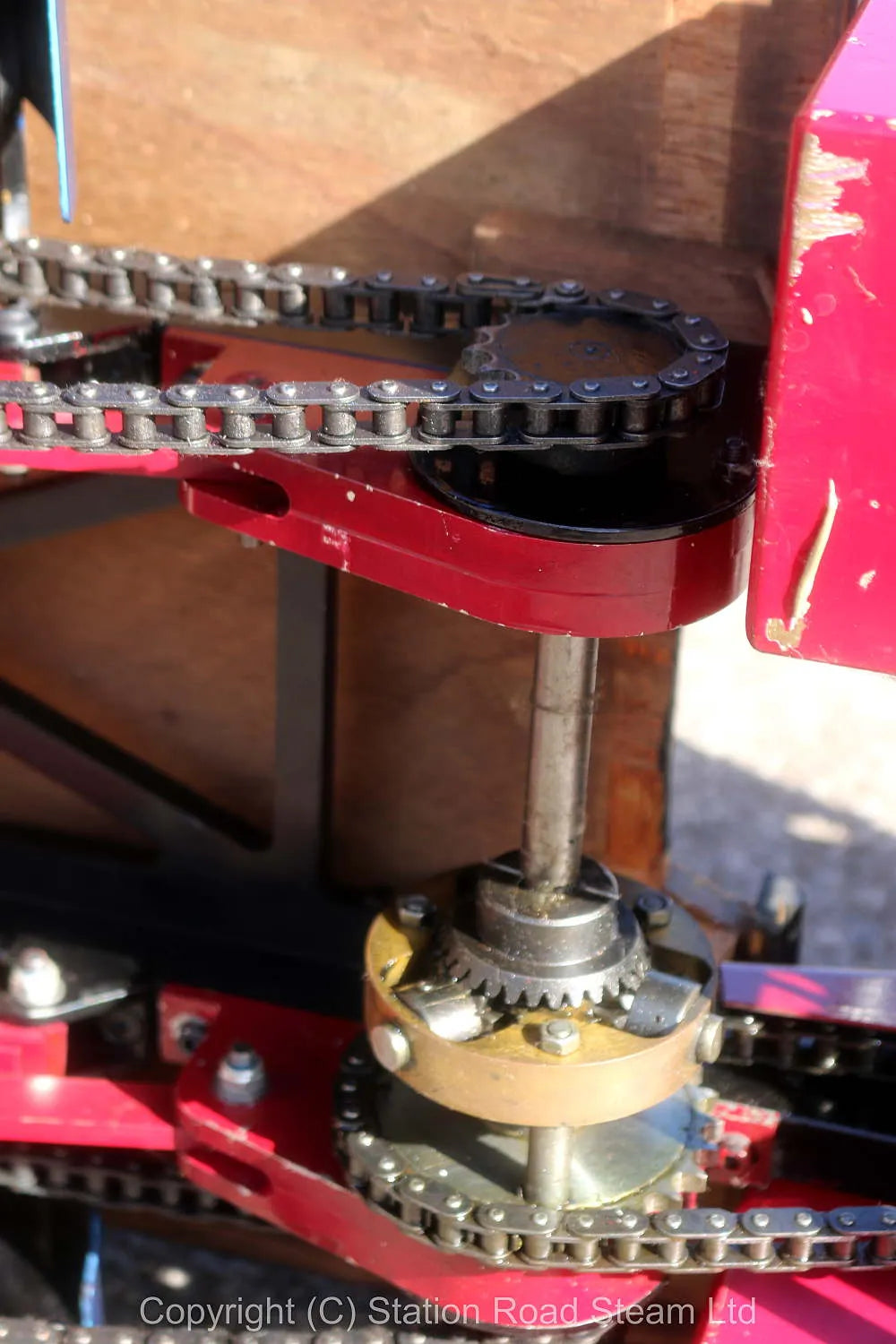

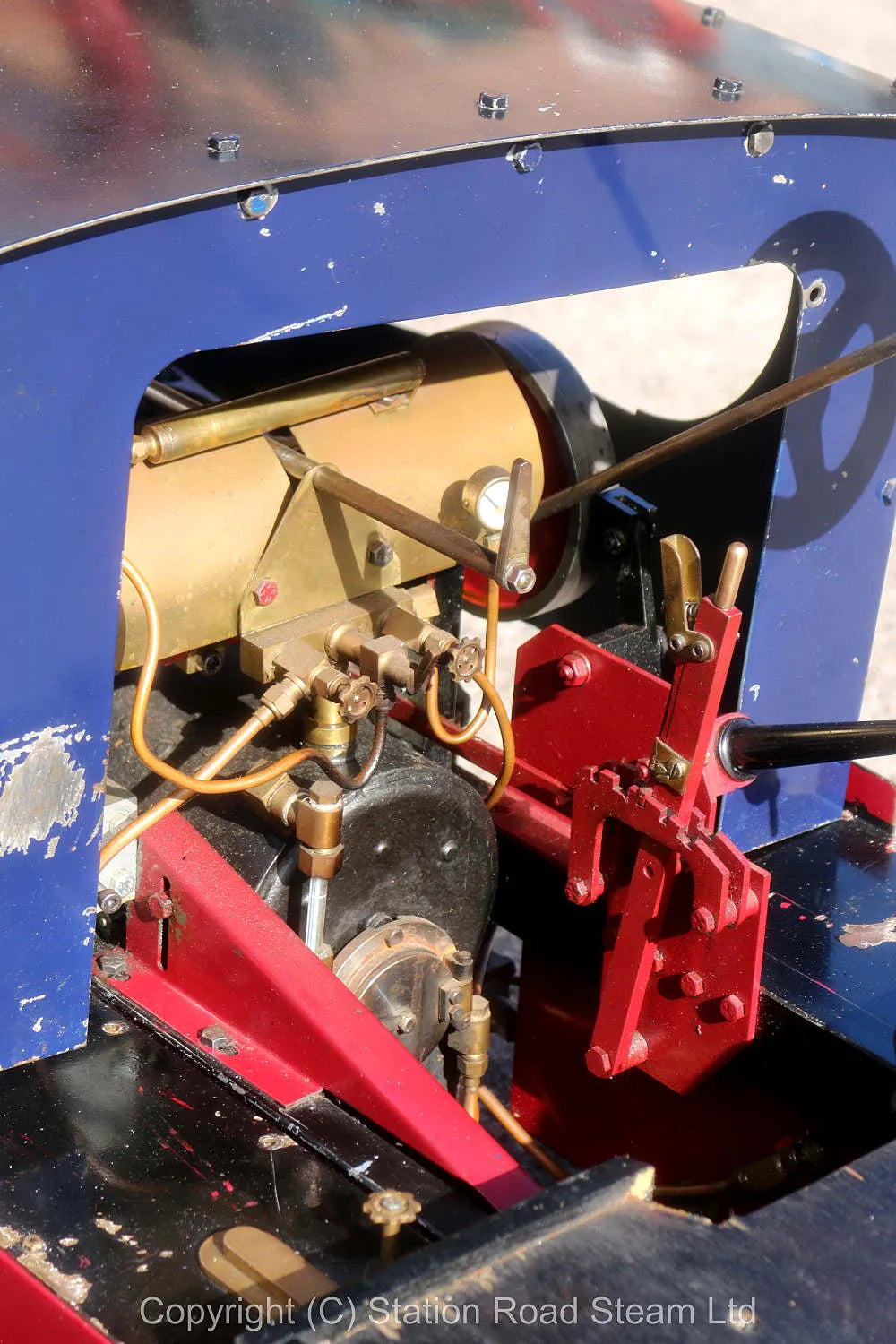

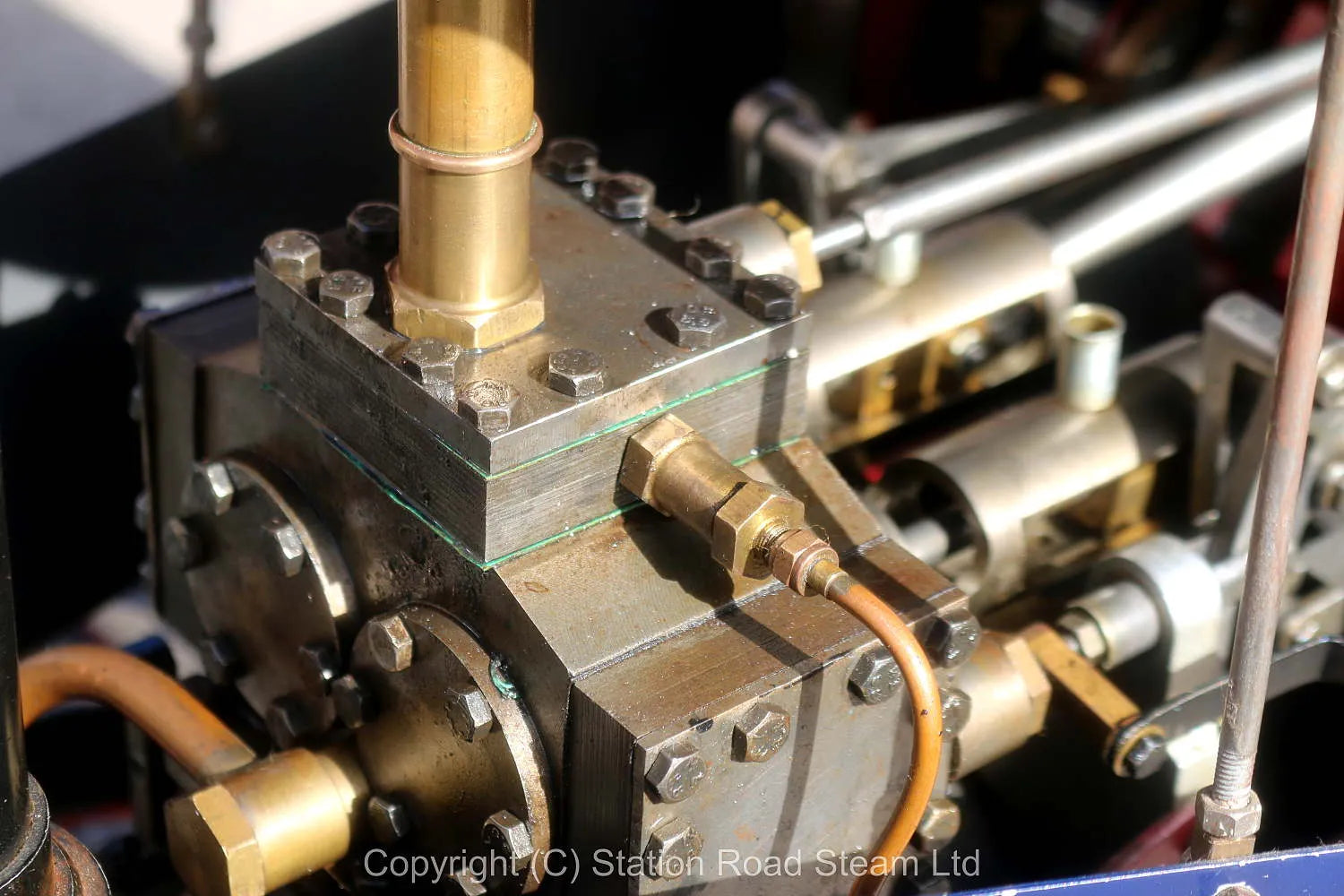

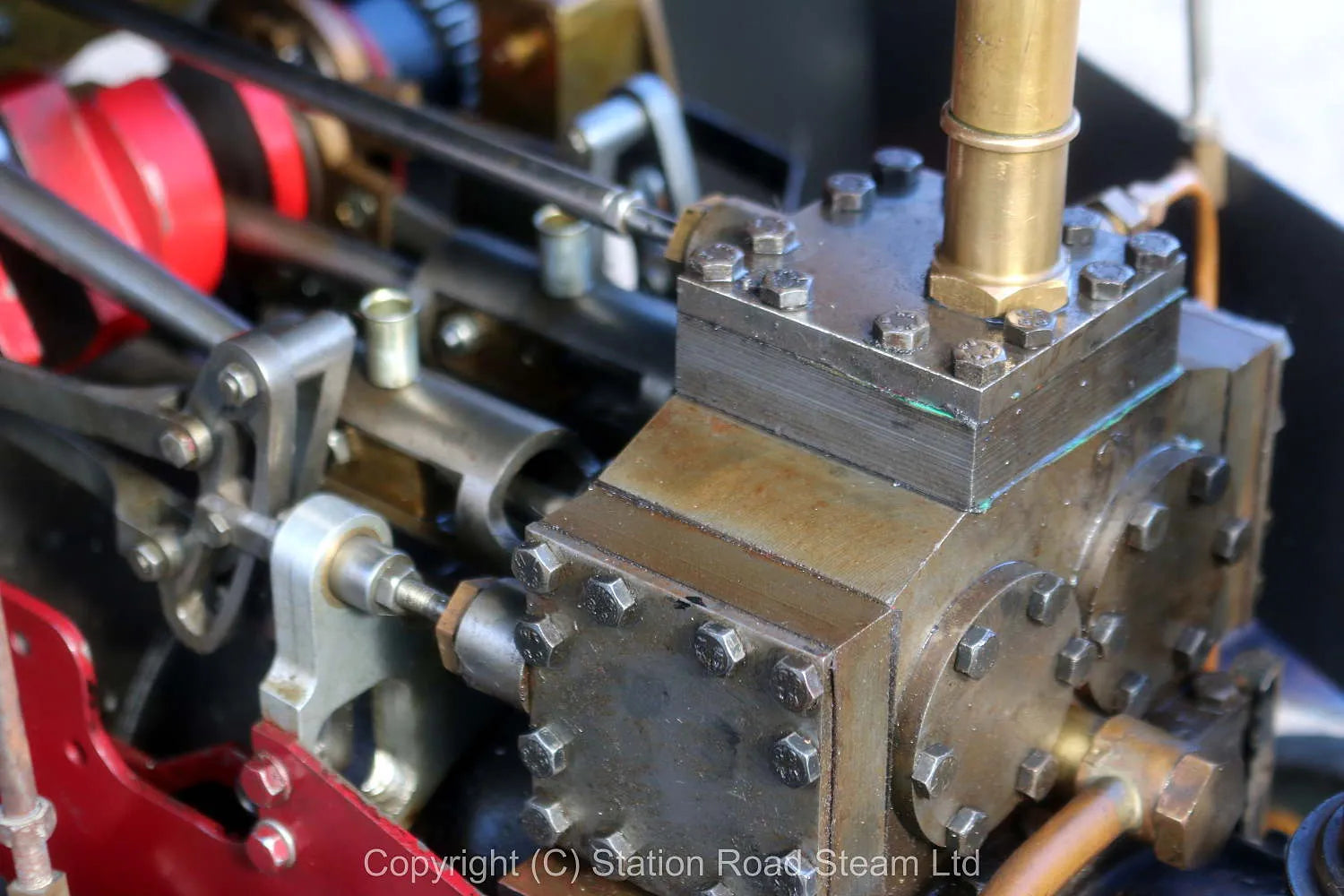

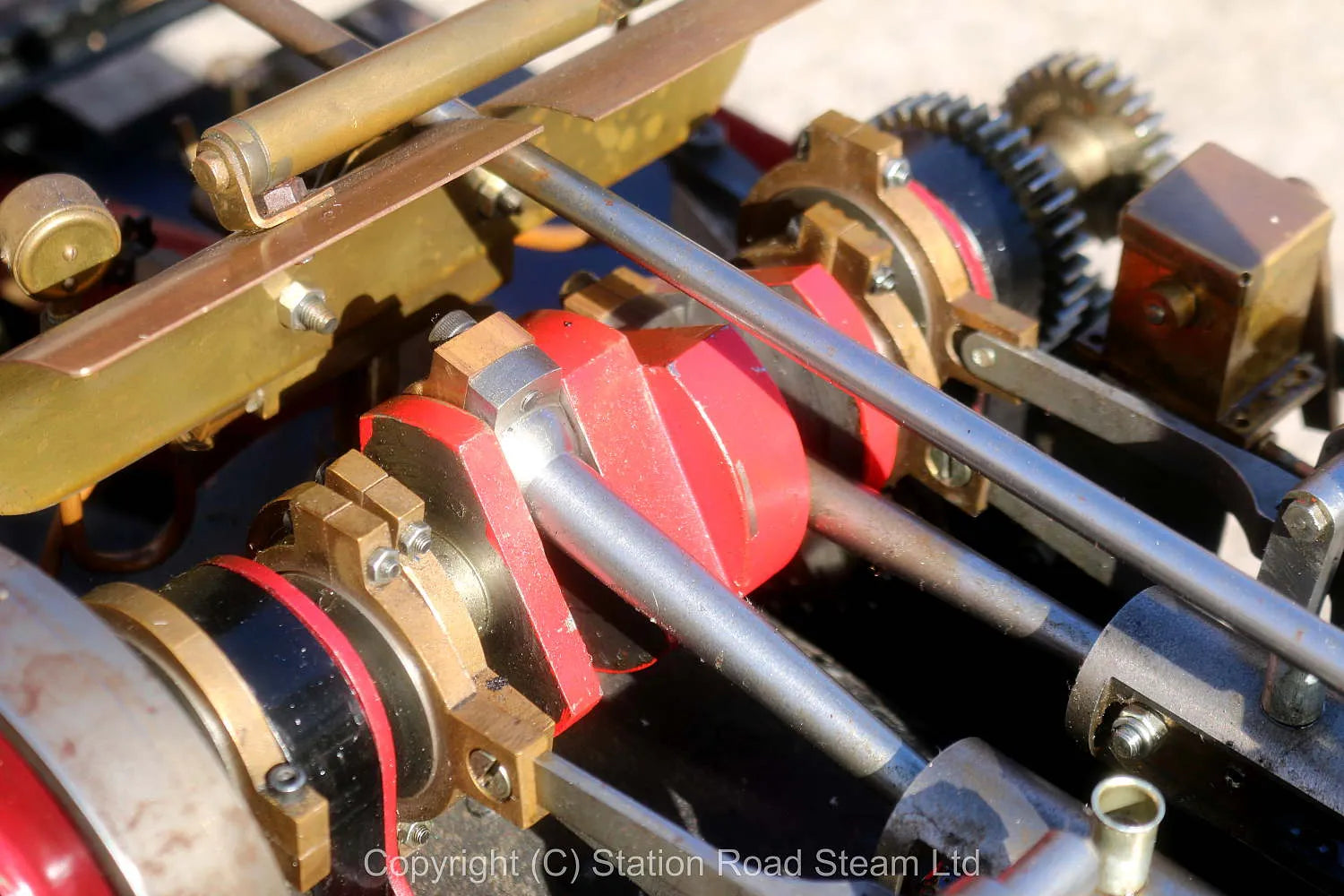

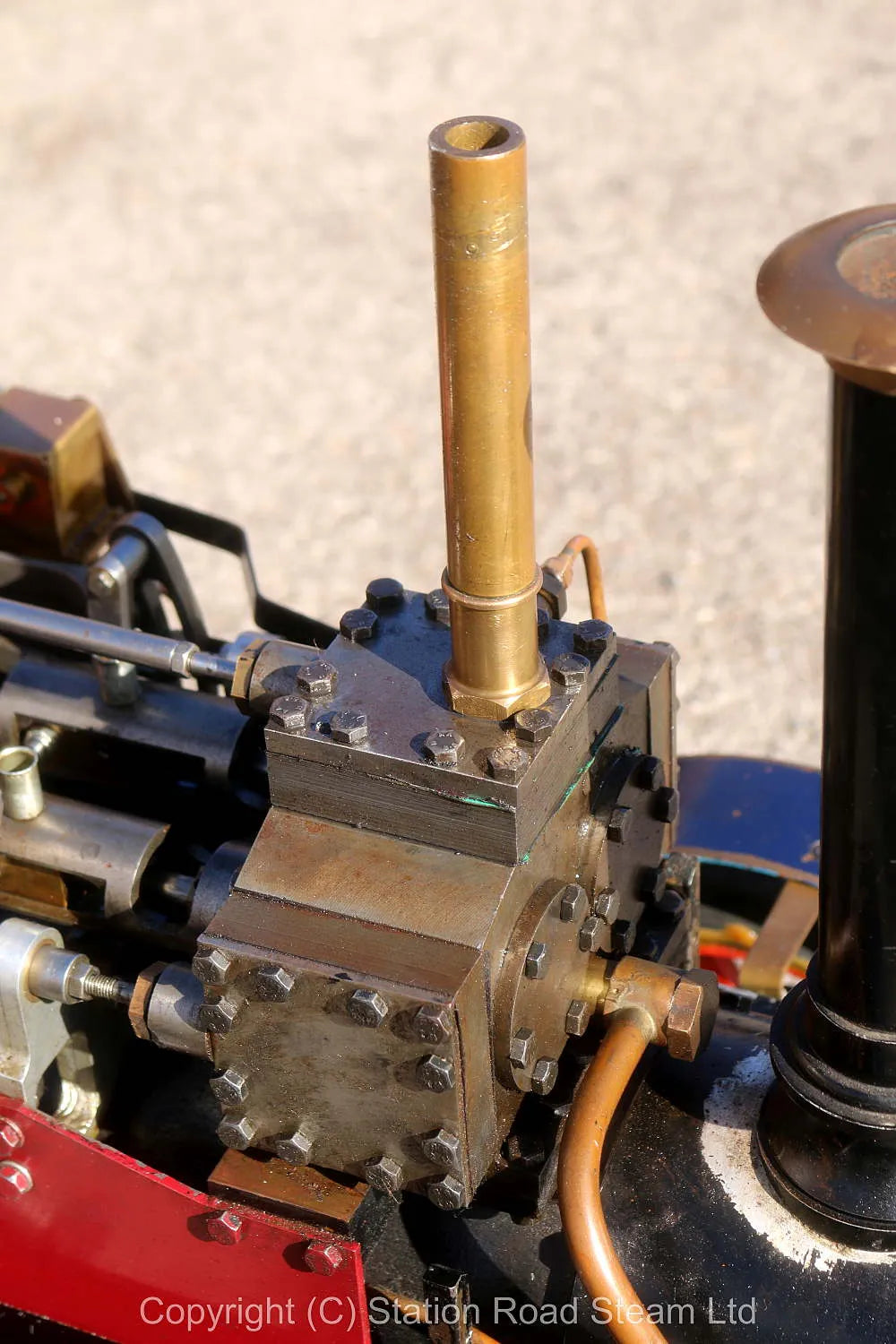

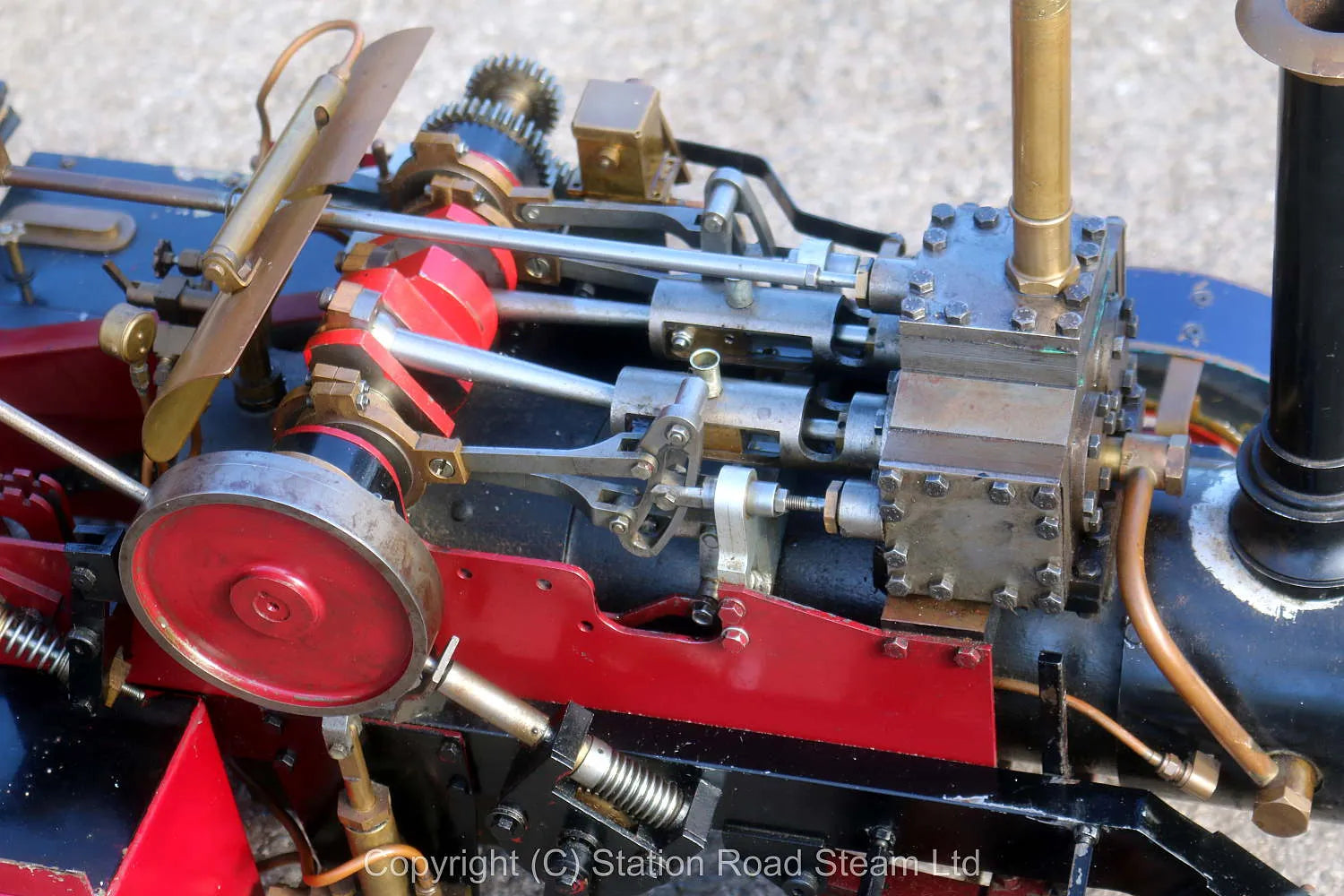

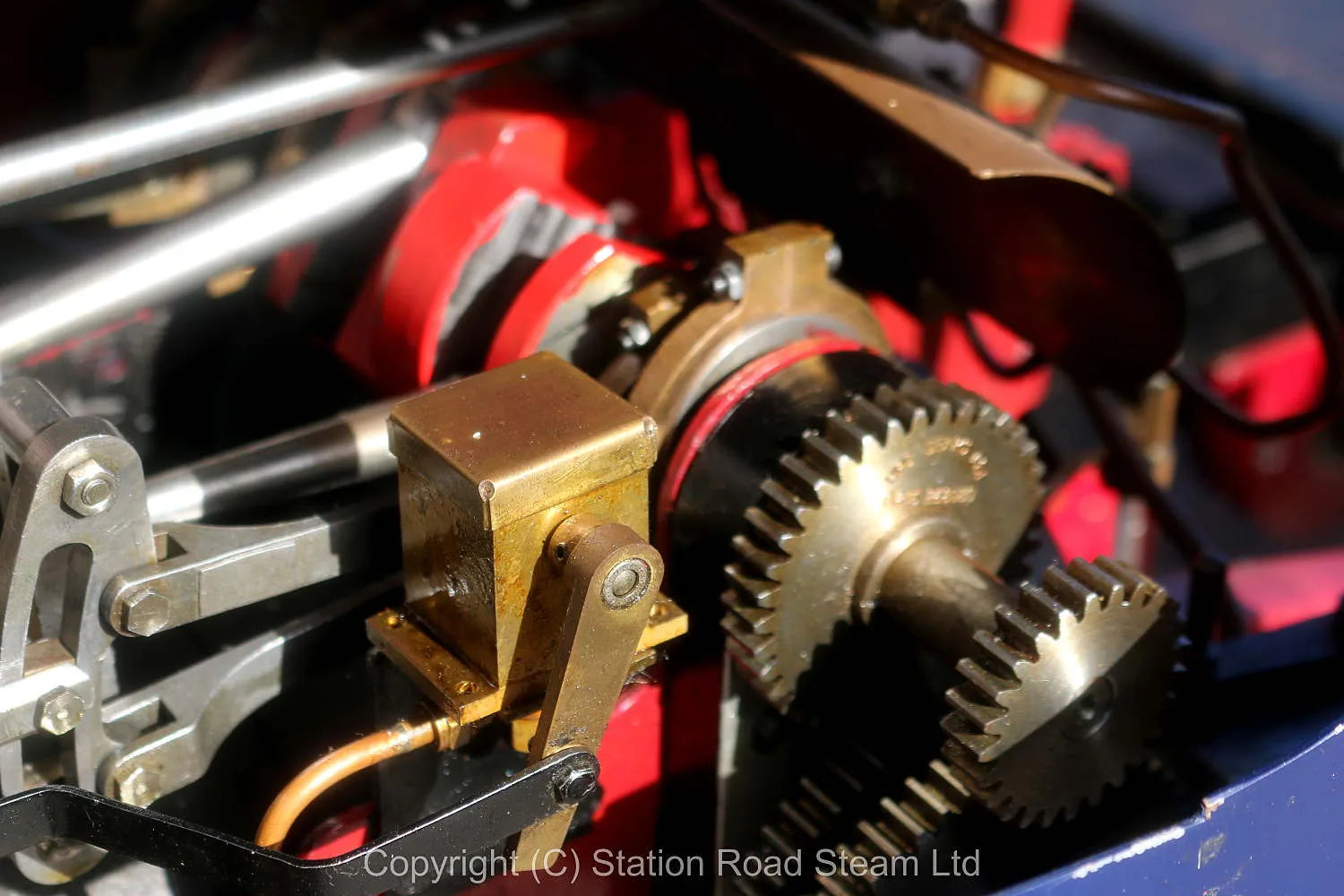

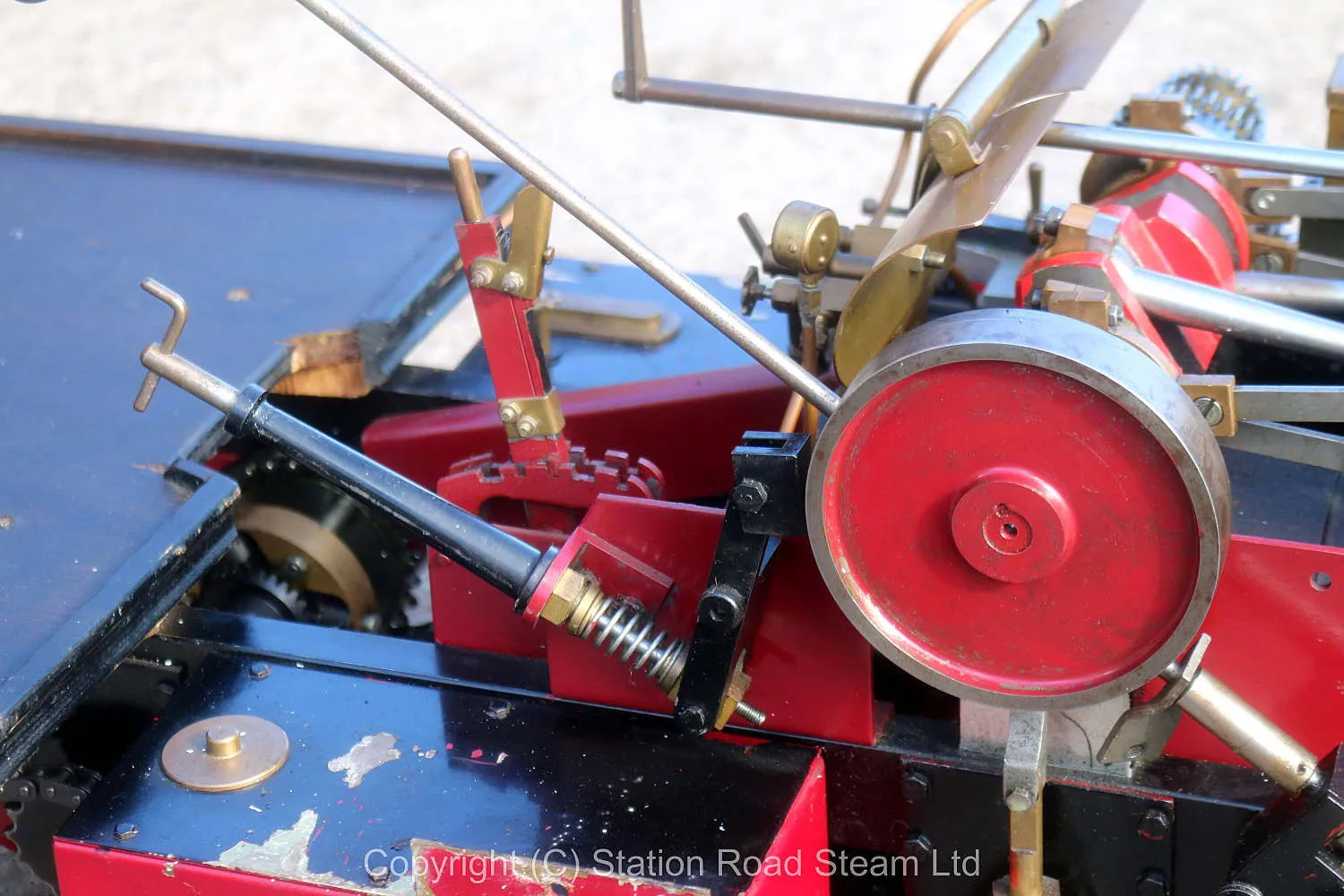

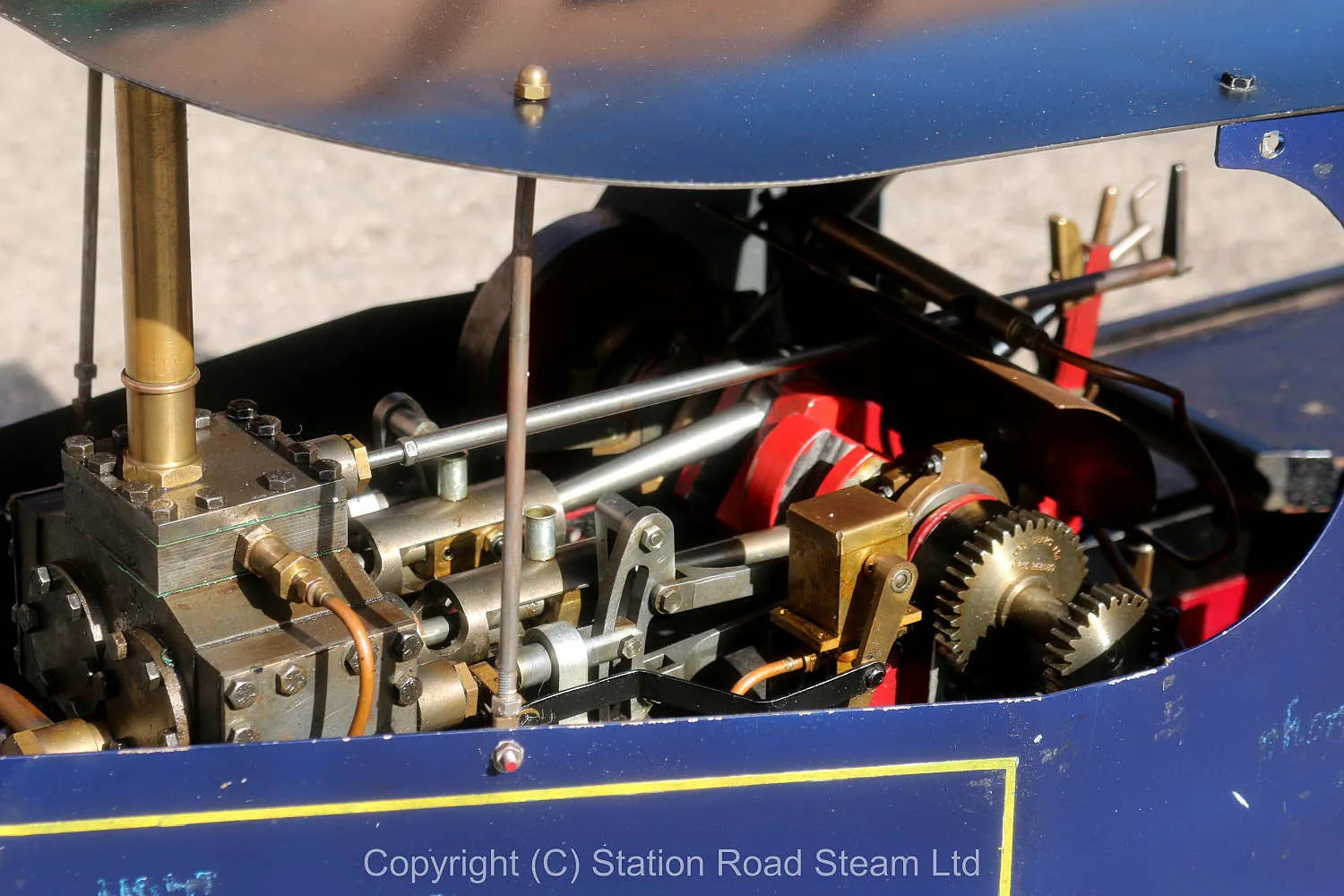

Silver soldered copper boiler, 90psi working pressure, feed by injector and mechanical pump, there's a hand pump in the water tank. Cylinders are in cast iron, Stephenson's valve gear with pole reverser, mechanical lubricator. Transmission is two speed with chain drive to a layshaft-mounted differential, thence by chain to the back axle.
Type: Second hand
Tags: Projects
Stock code |
7306 |
Scale |
2 inch |
Length/inches |
49 |
Width/inches |
16 |
Height/inches |
20 |
Date out |
May-18 |
