8766

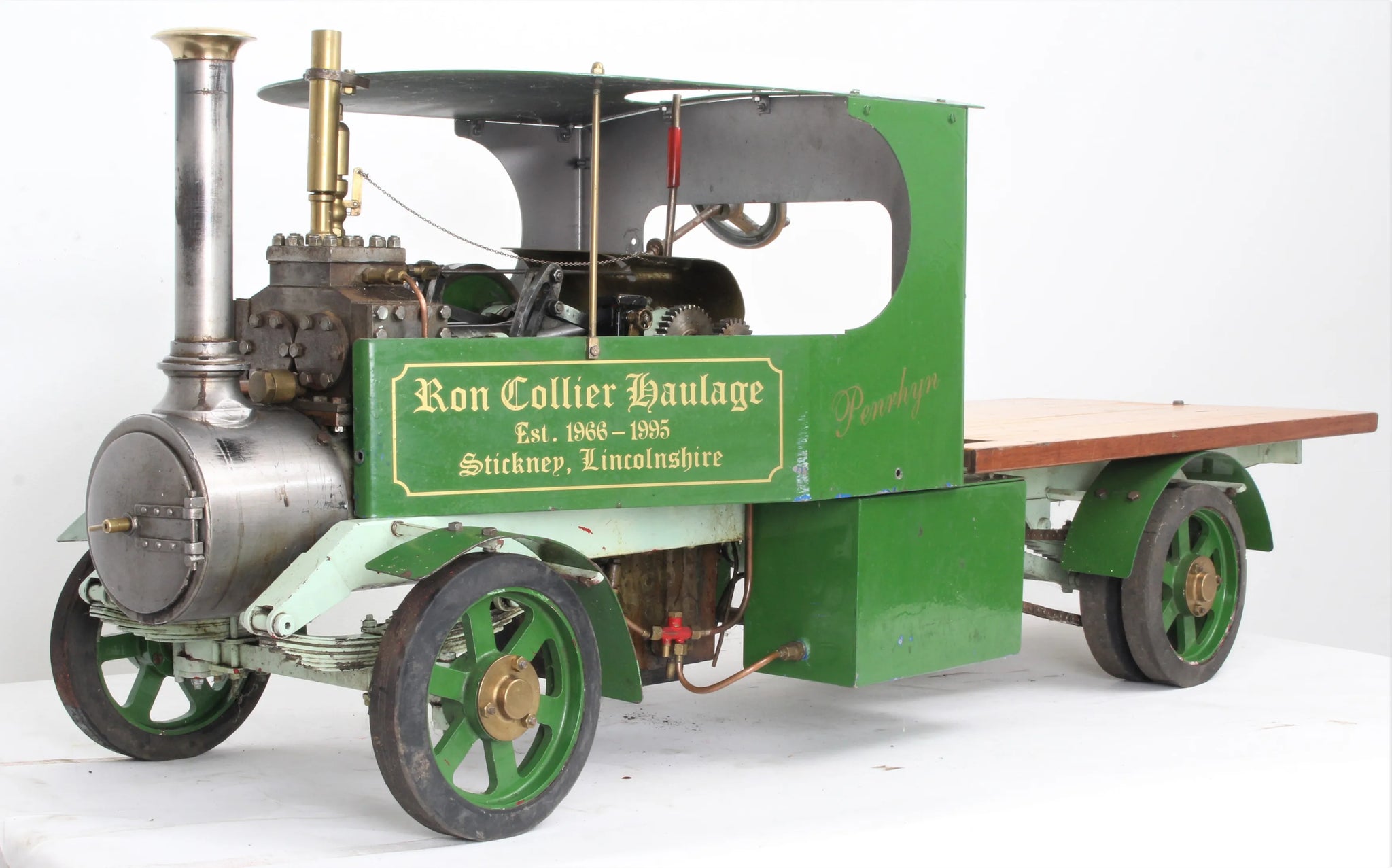

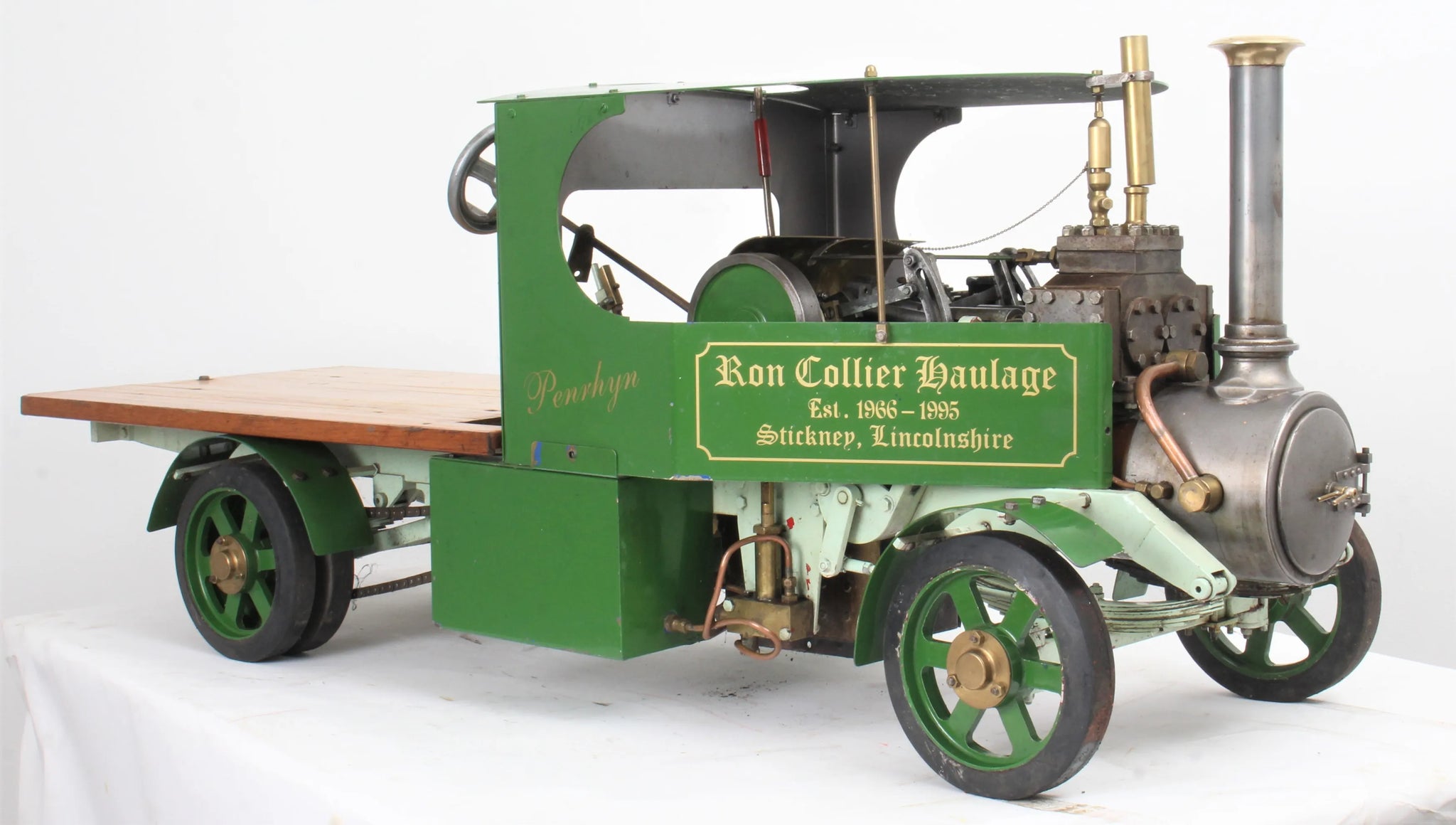

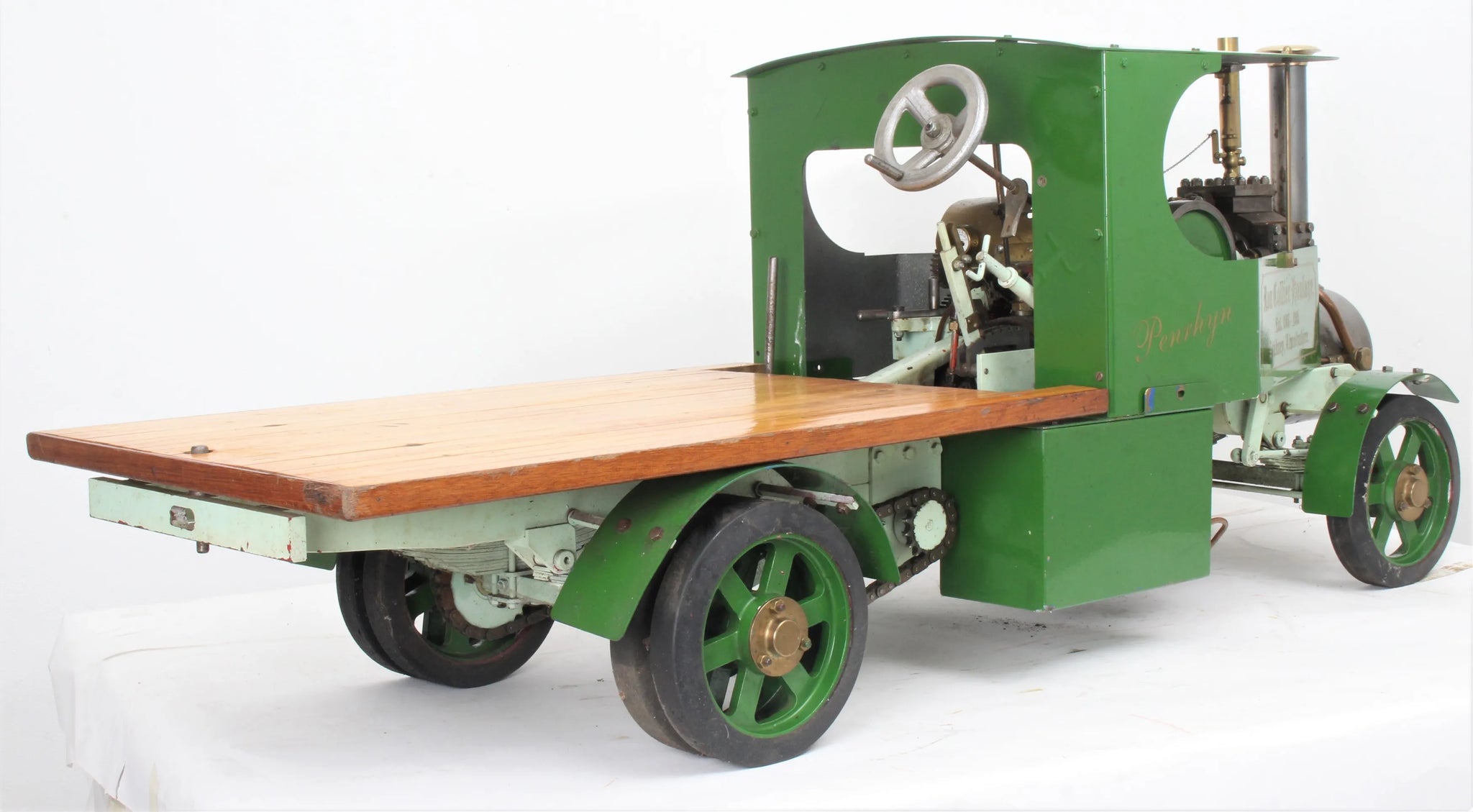

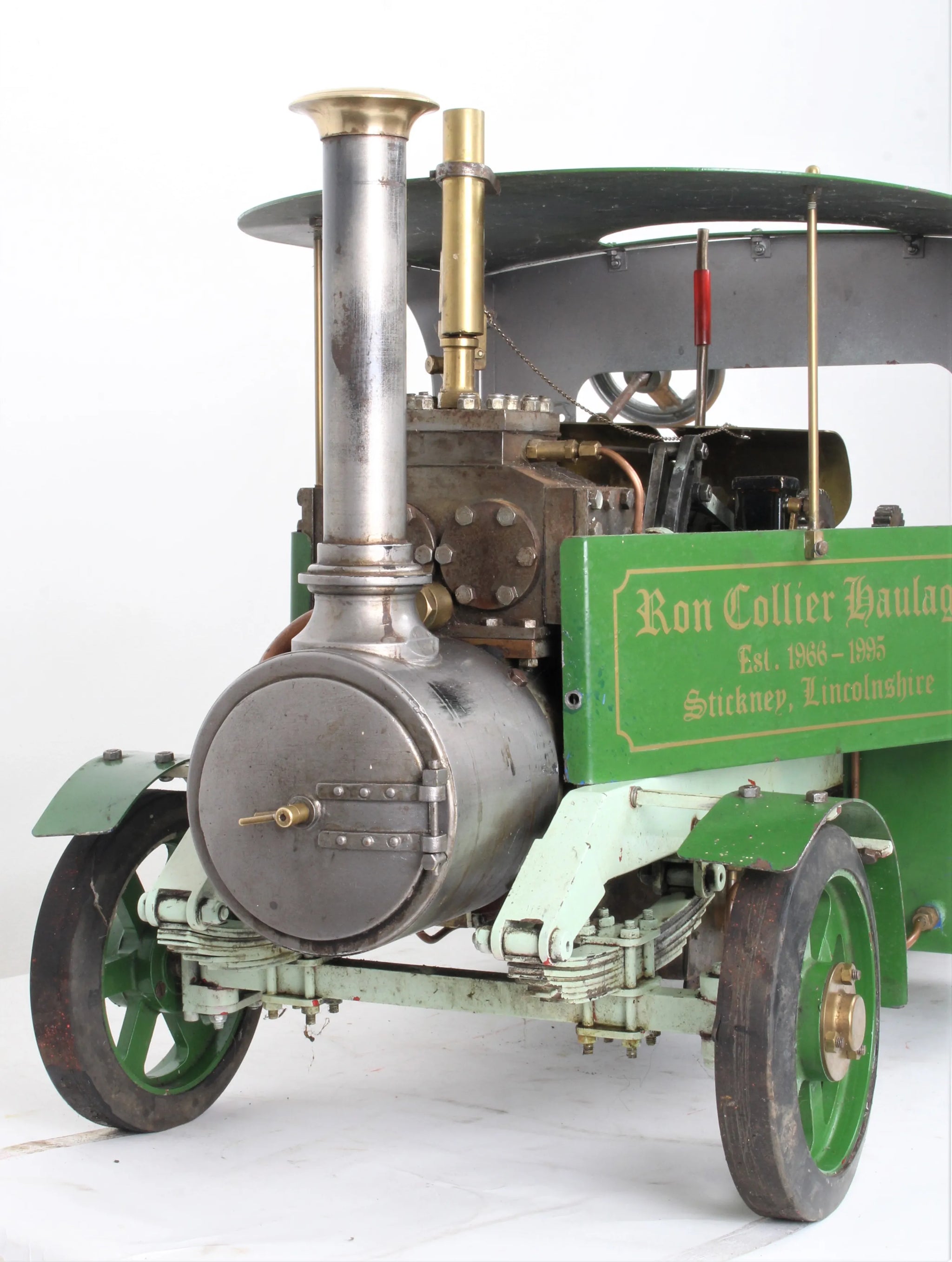

Unused for several years, it's recently come in along with a freelance 4 1/2 inch overtype wagon. We have its last club certification, the boiler has had a recent hydraulic test in the workshop here with certification issued for same.
It will want some recommissioning work - most glands and fittings leak copiously and the valves blow by - but the wagon is complete, the engine free to turn over.
Stock code |
8766 |
Scale |
2 inch |
Length/inches |
48 |
Width/inches |
15.5 |
Height/inches |
19 |
Cylinder material |
cast iron |
Valve type |
slide |
Valve gear |

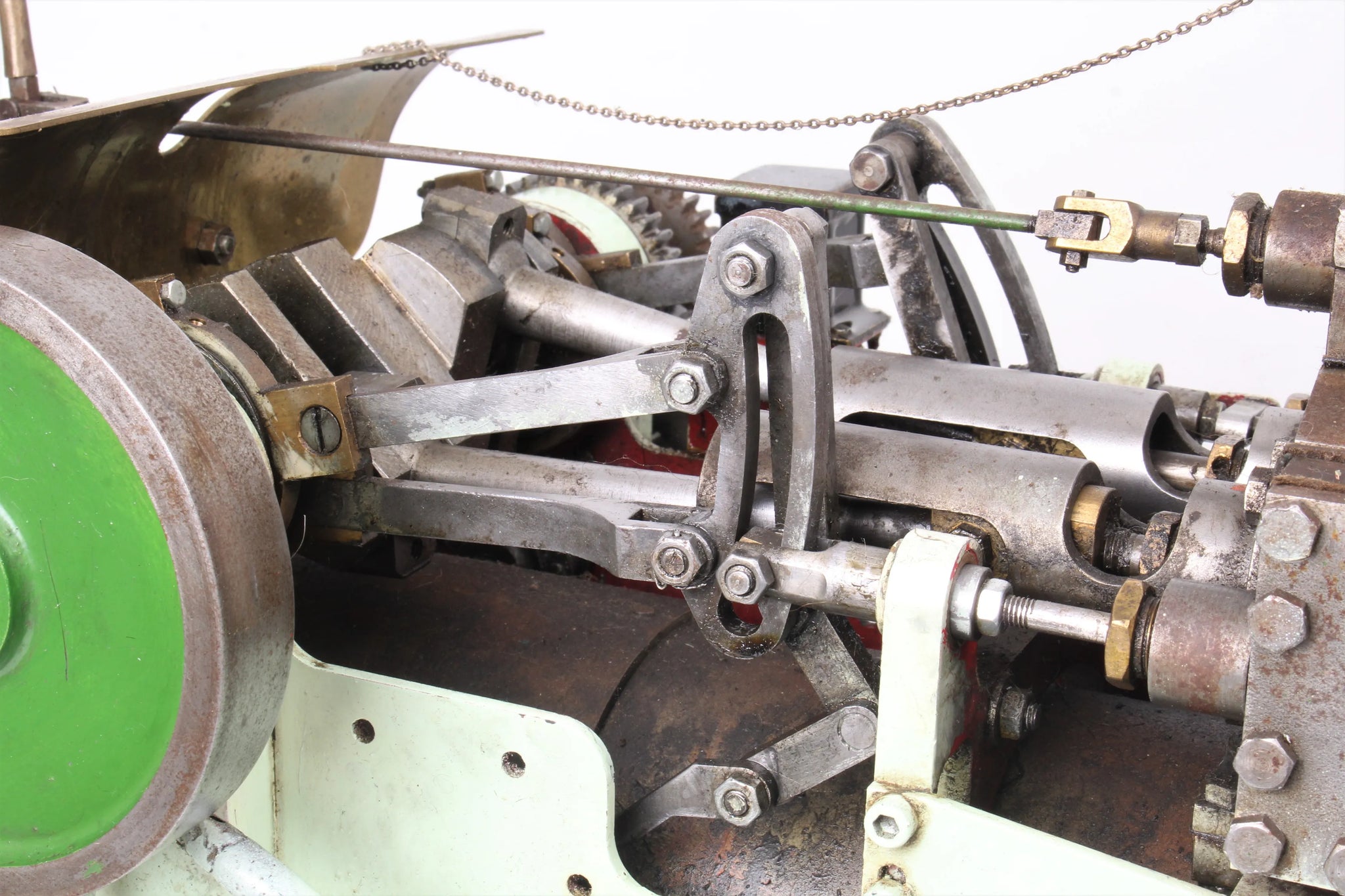

Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler maker |
ModelWorks International |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
Boiler number |
N1421936 |
Safety valve type |
spring |
Safety valve |
1 |
Fusible plug |
yes |
Differential |
yes |
Road speed |
2 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Date out |
Nov-19 |
Hydraulic test valid to |
22-Sep-23 |
