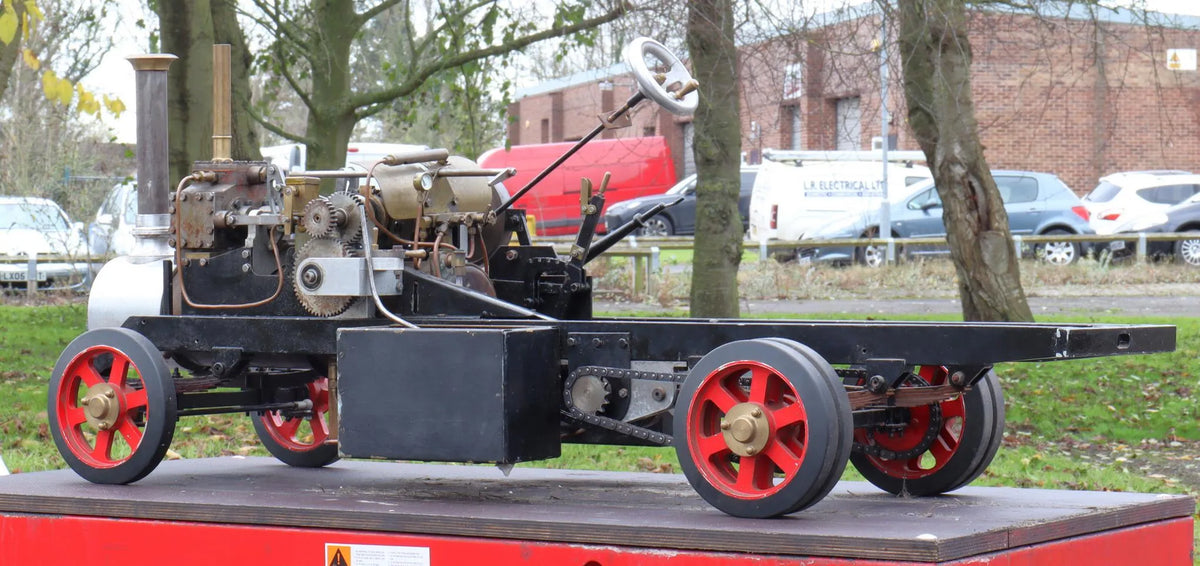

2 inch scale Pride of Penrhyn

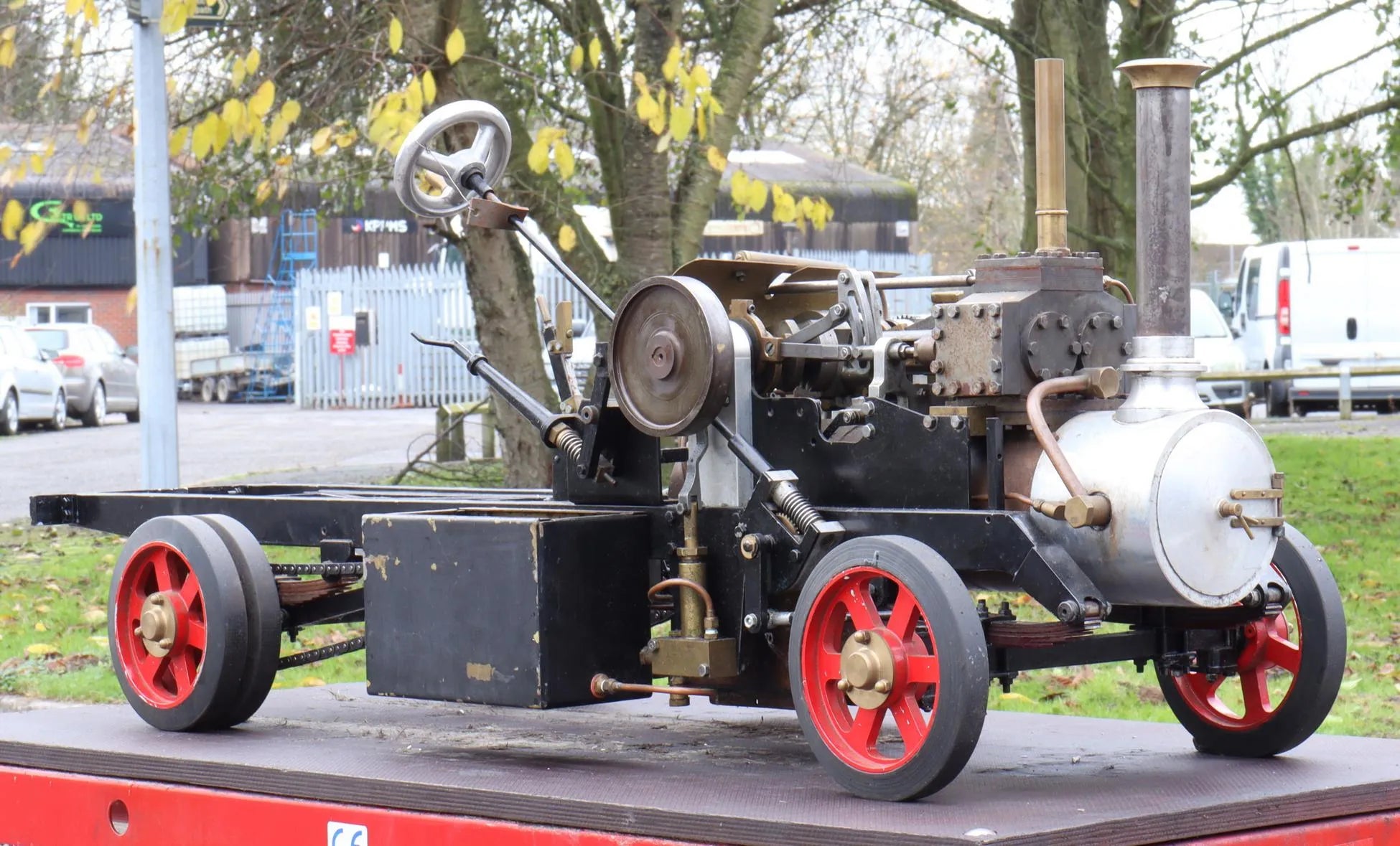

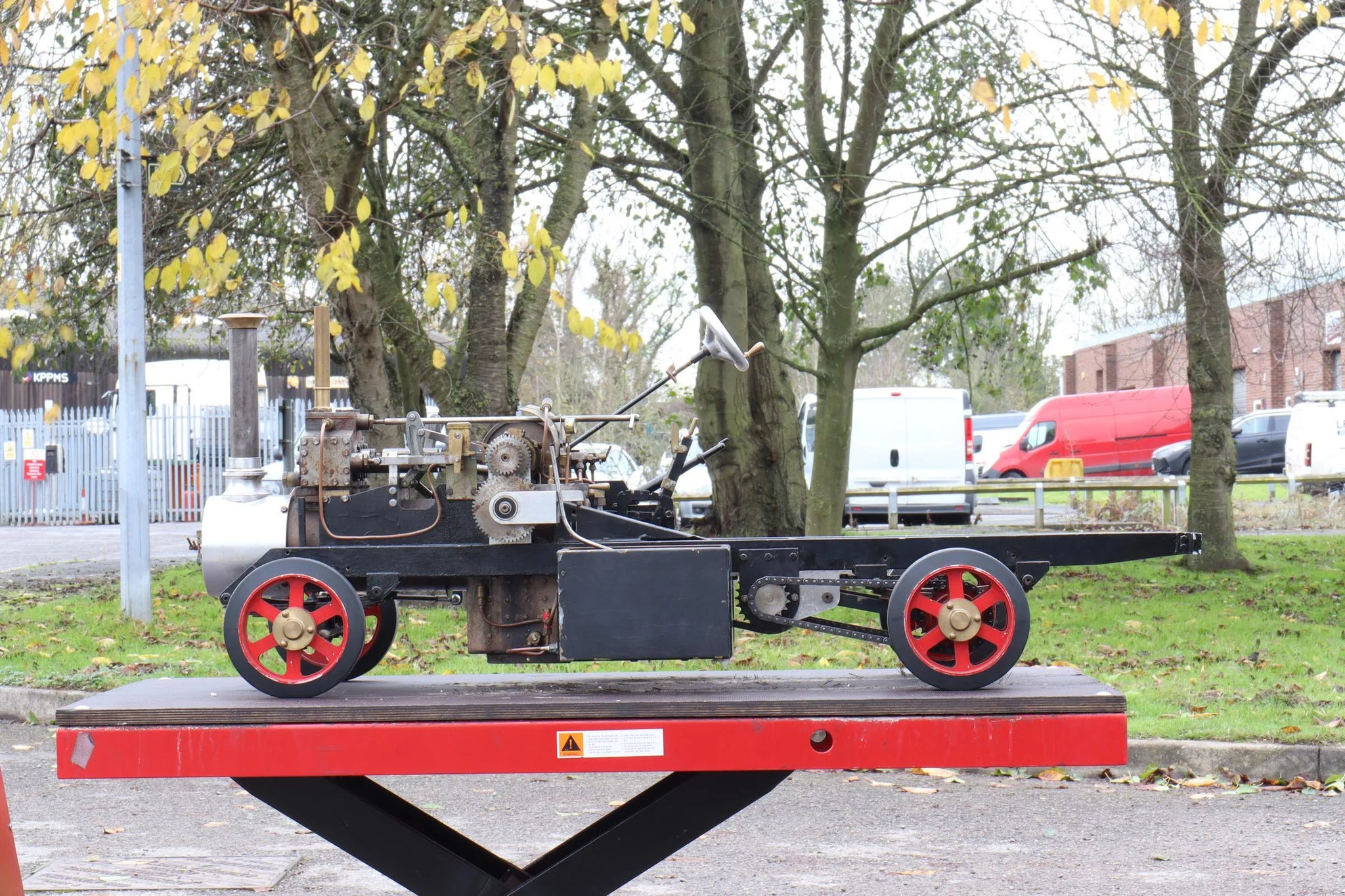

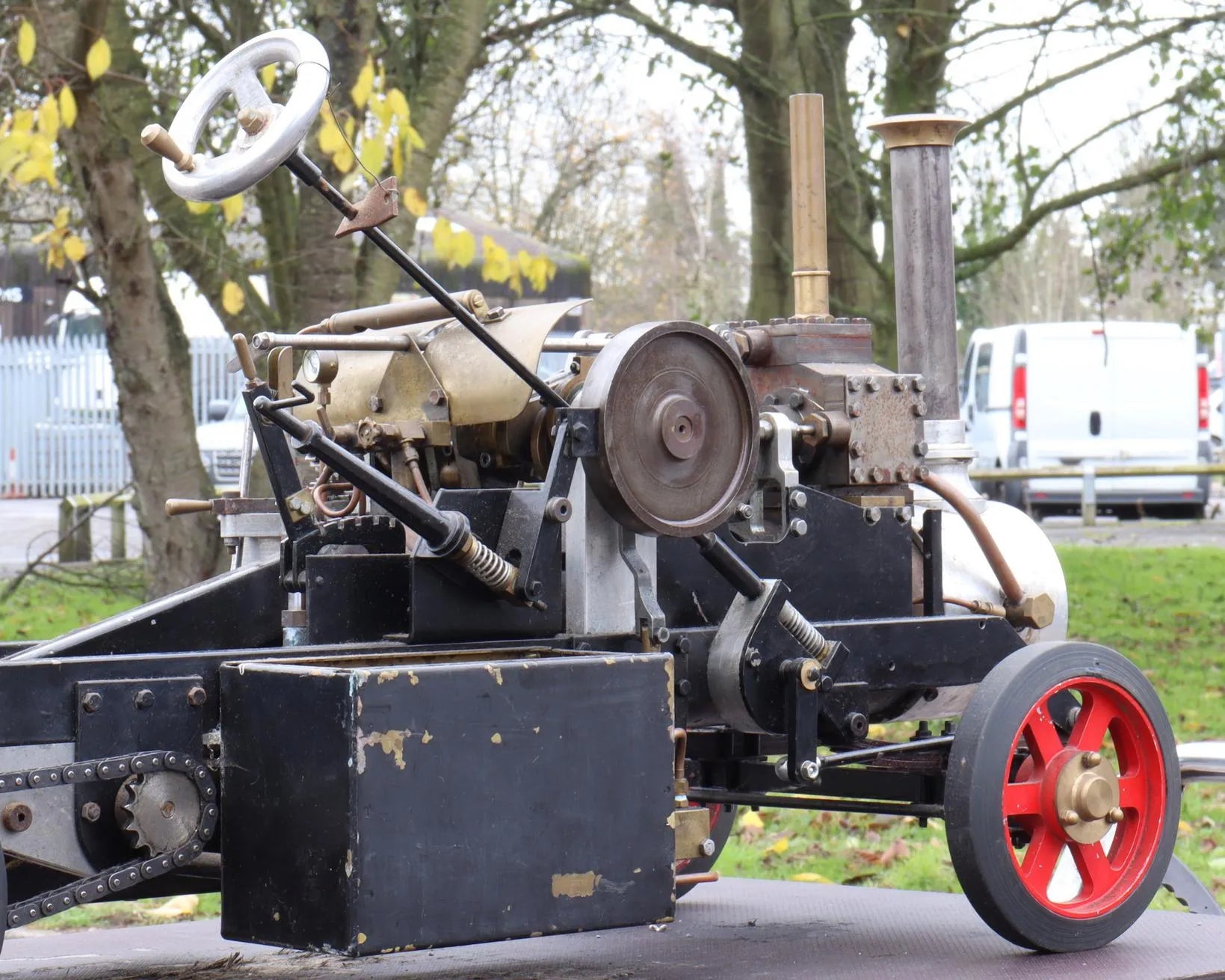

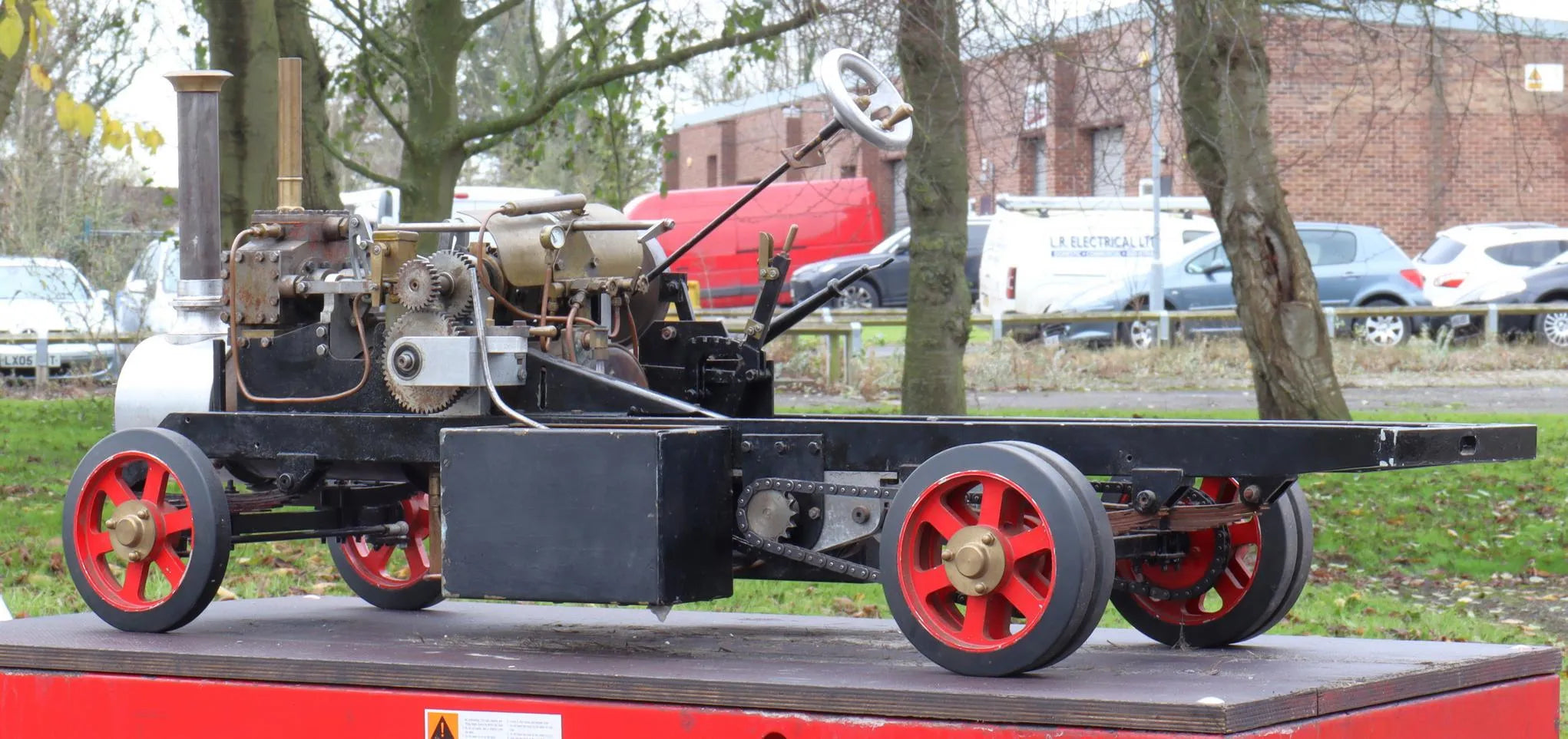

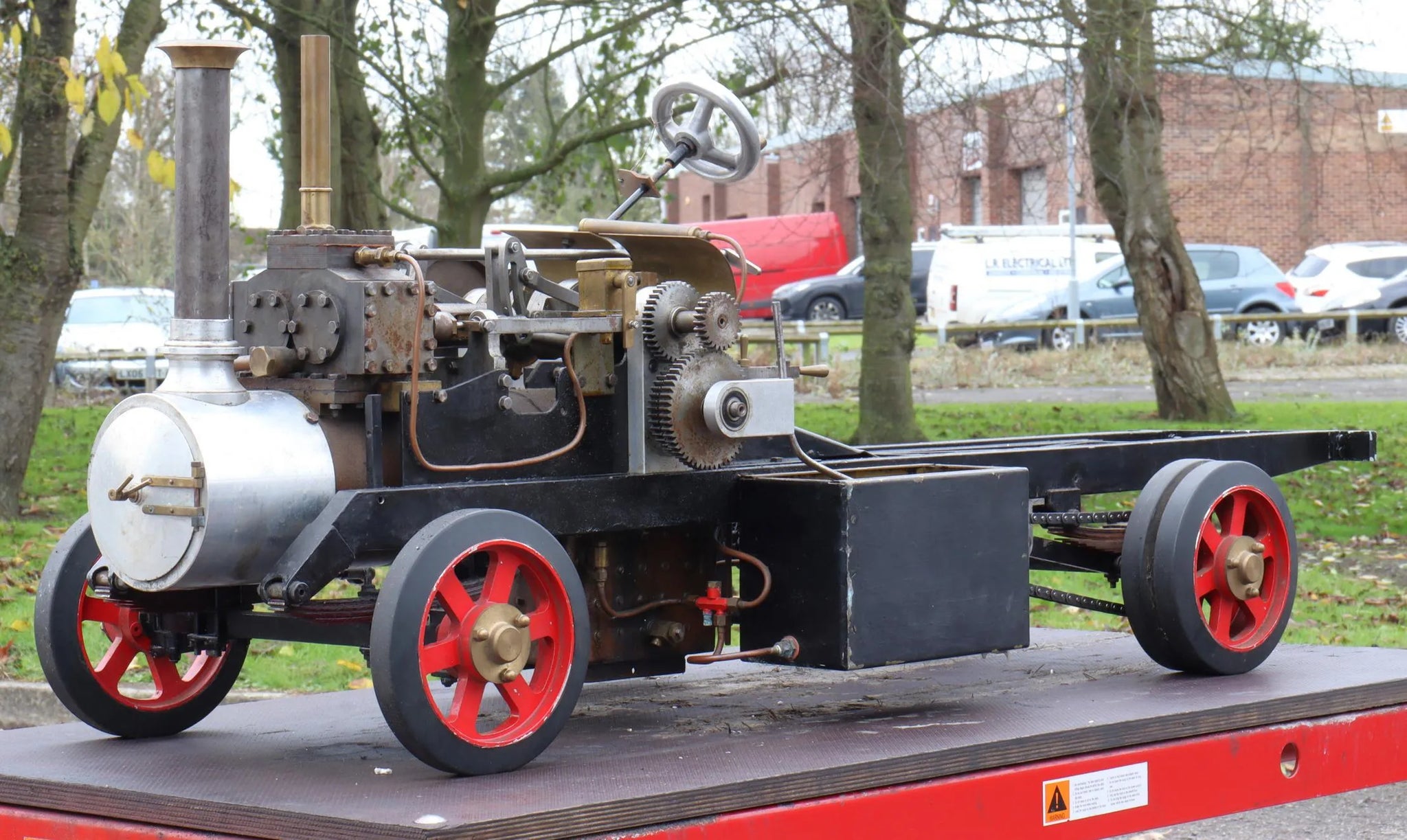

A 2 inch scale "Pride of Penrhyn" steam wagon, originally designed by John Clark of Polly fame, latterly produced in kit form by Winson Engineering.

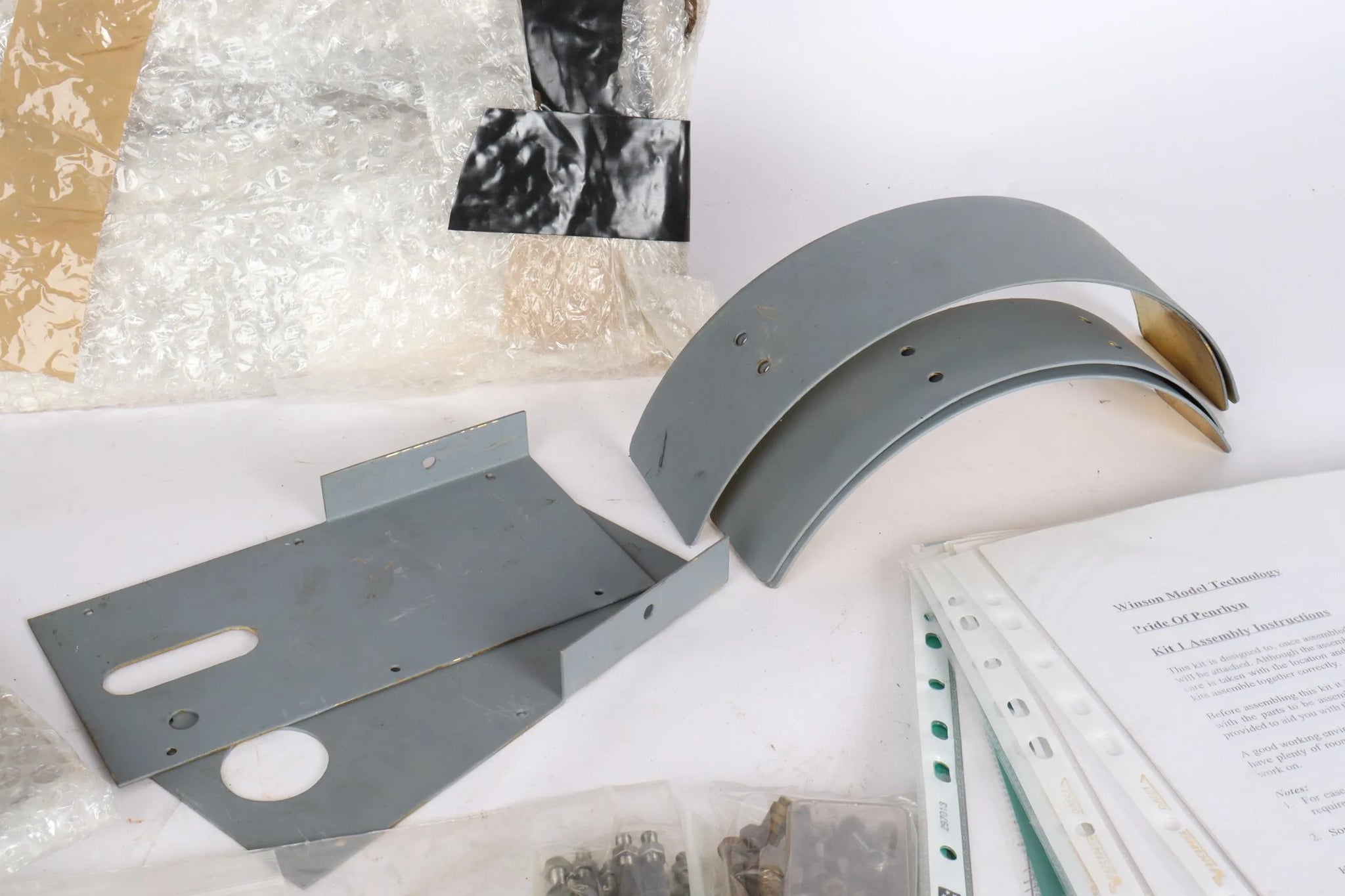

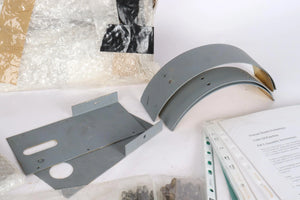

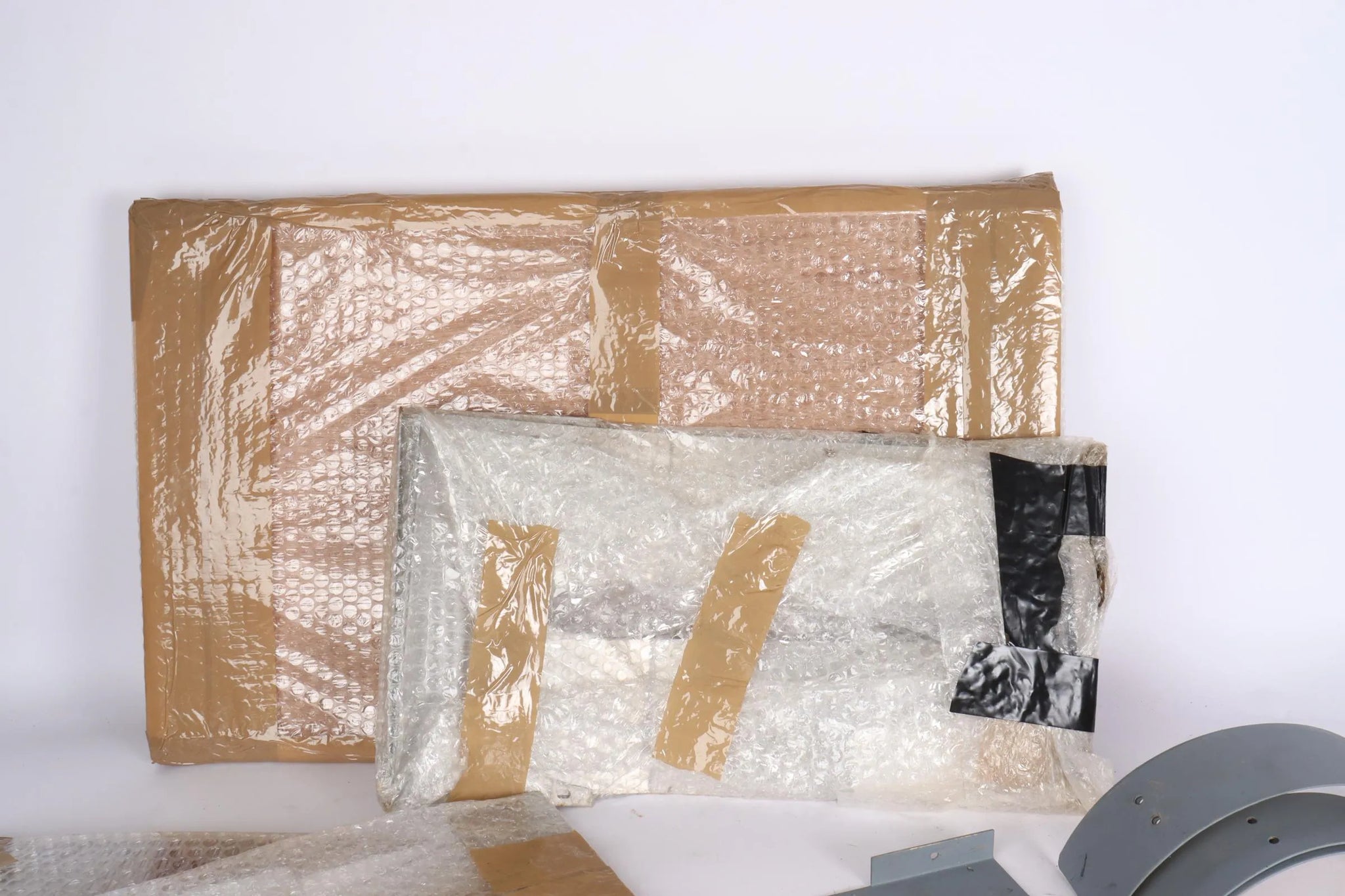

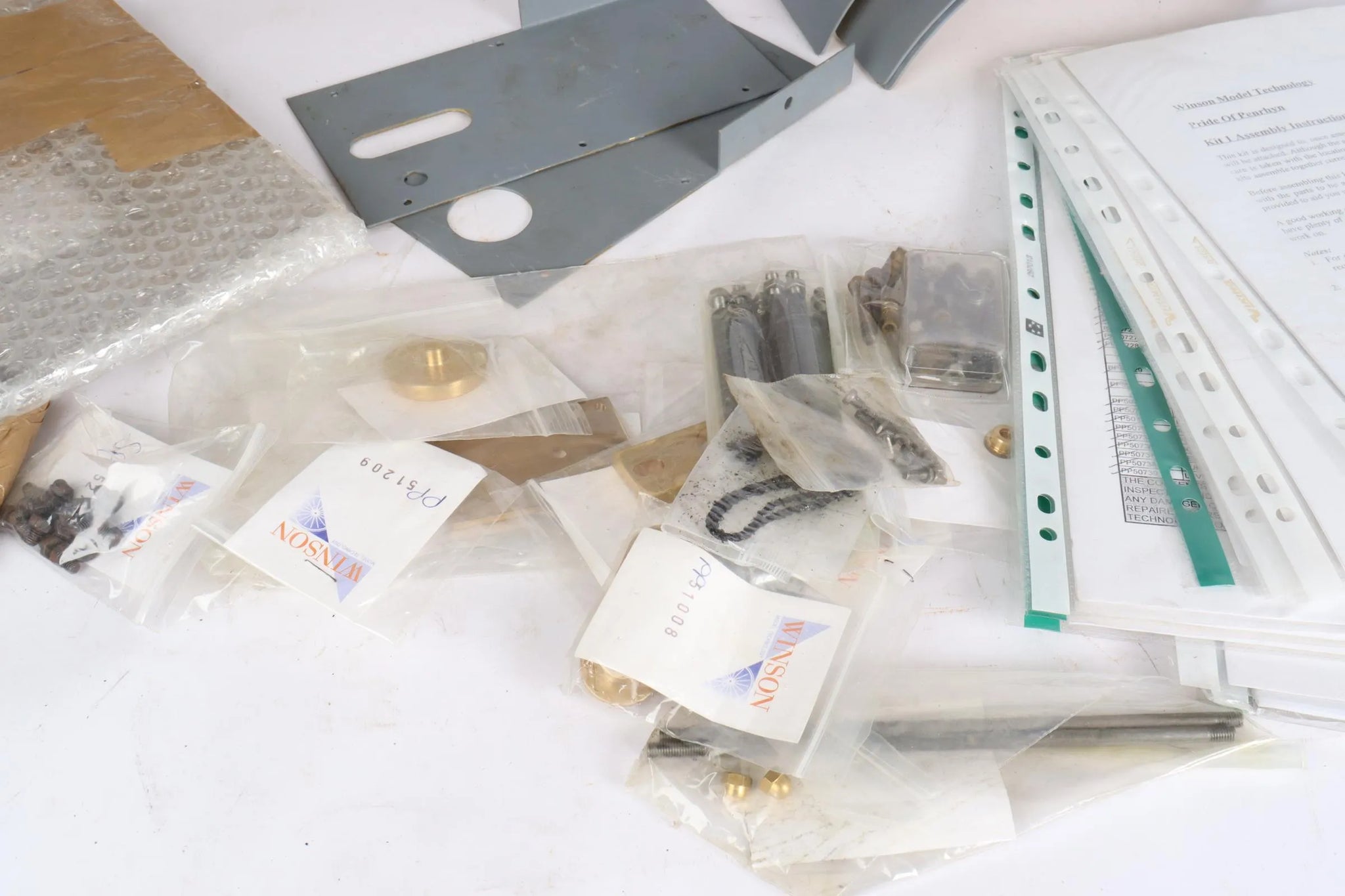

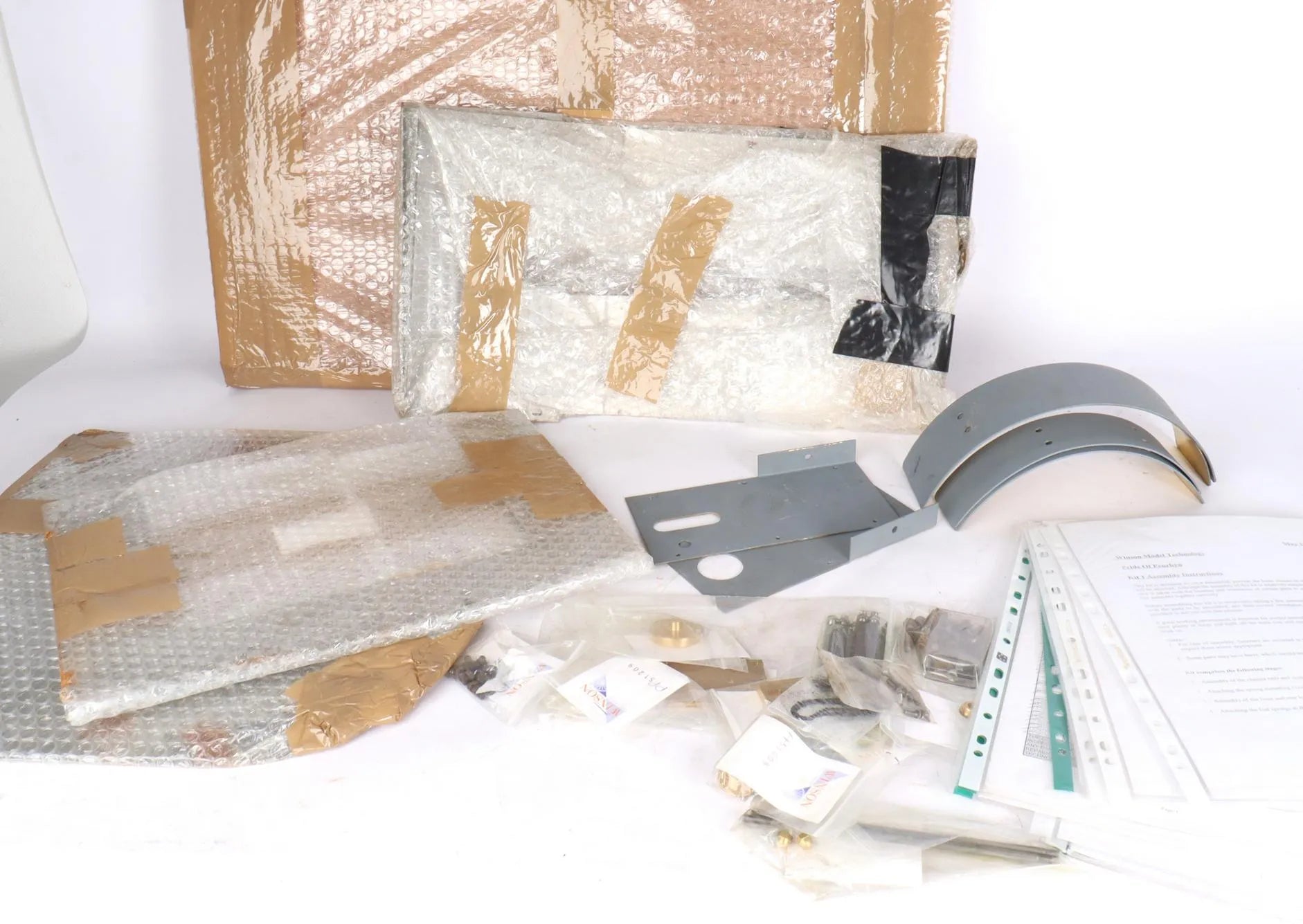

At a well advanced stage of assembly with additional loose parts including the cab roof, deck and mudguards.

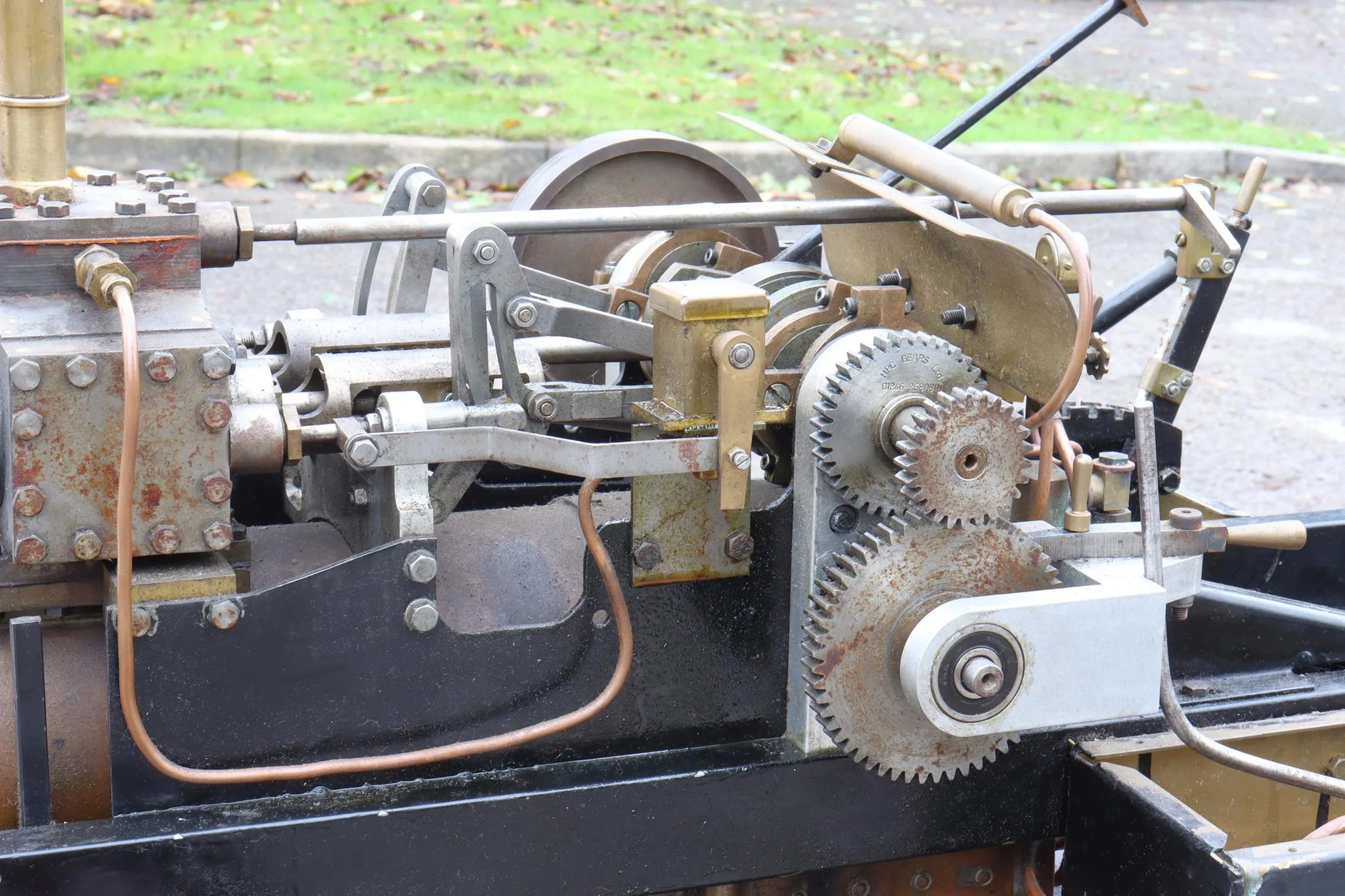

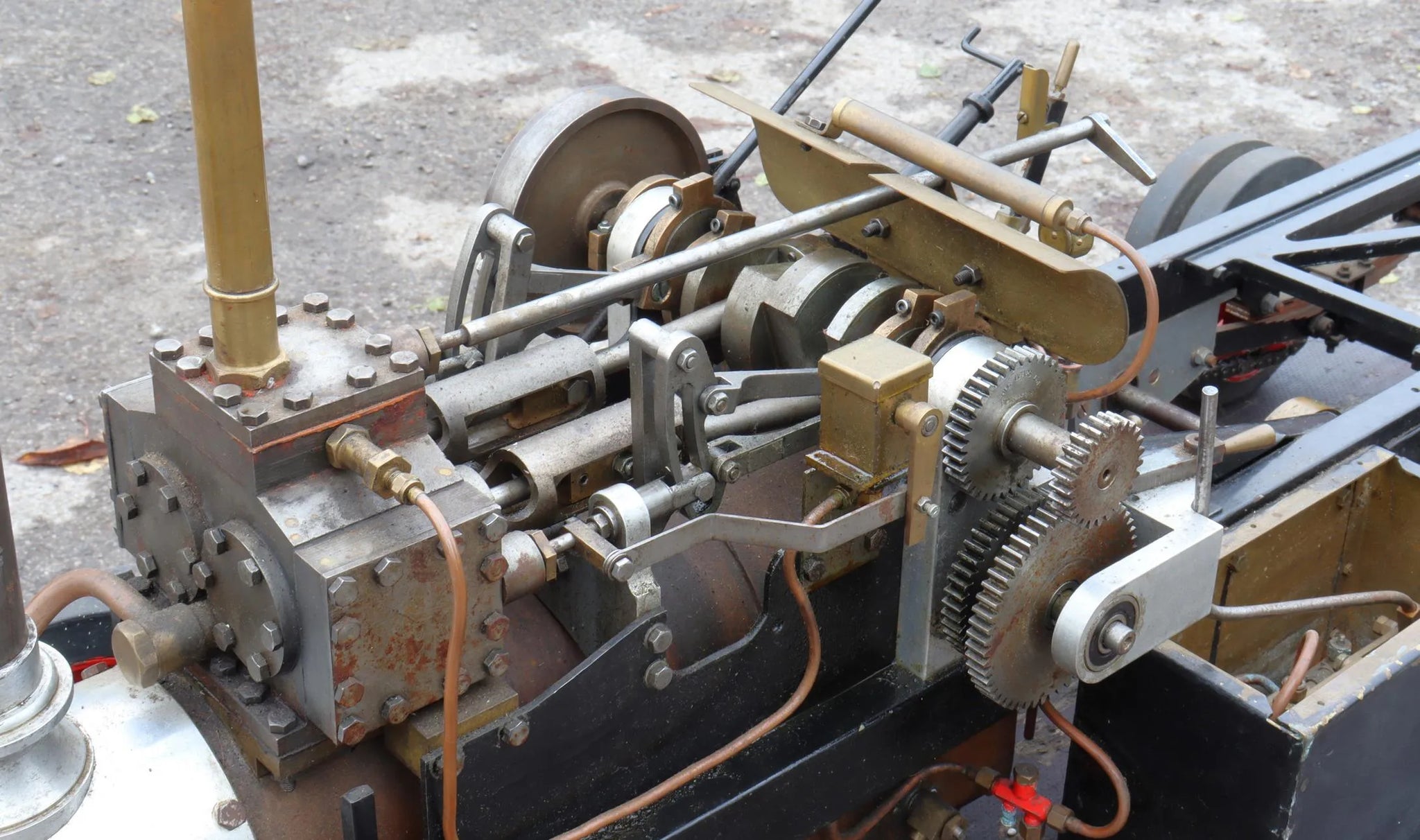

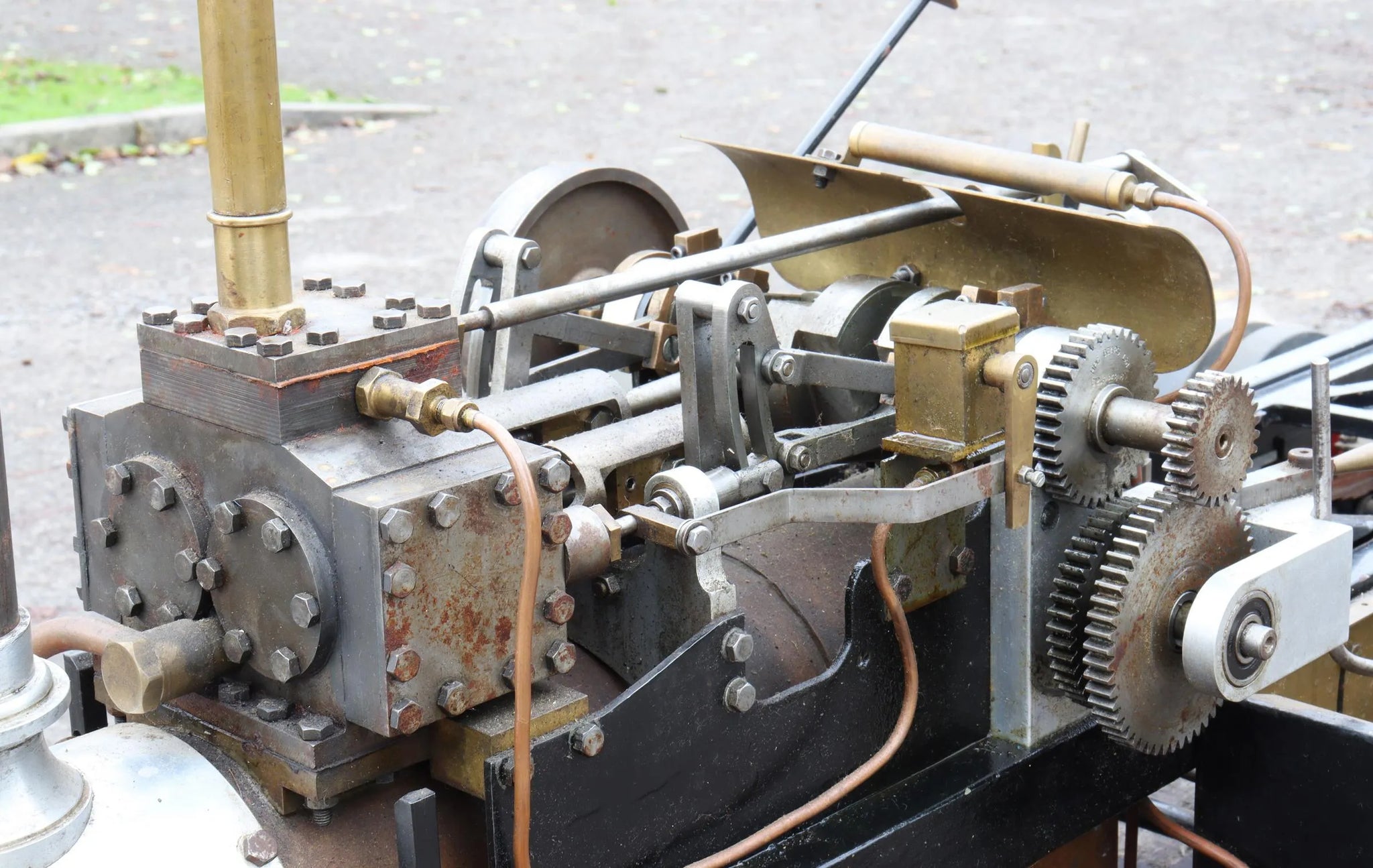

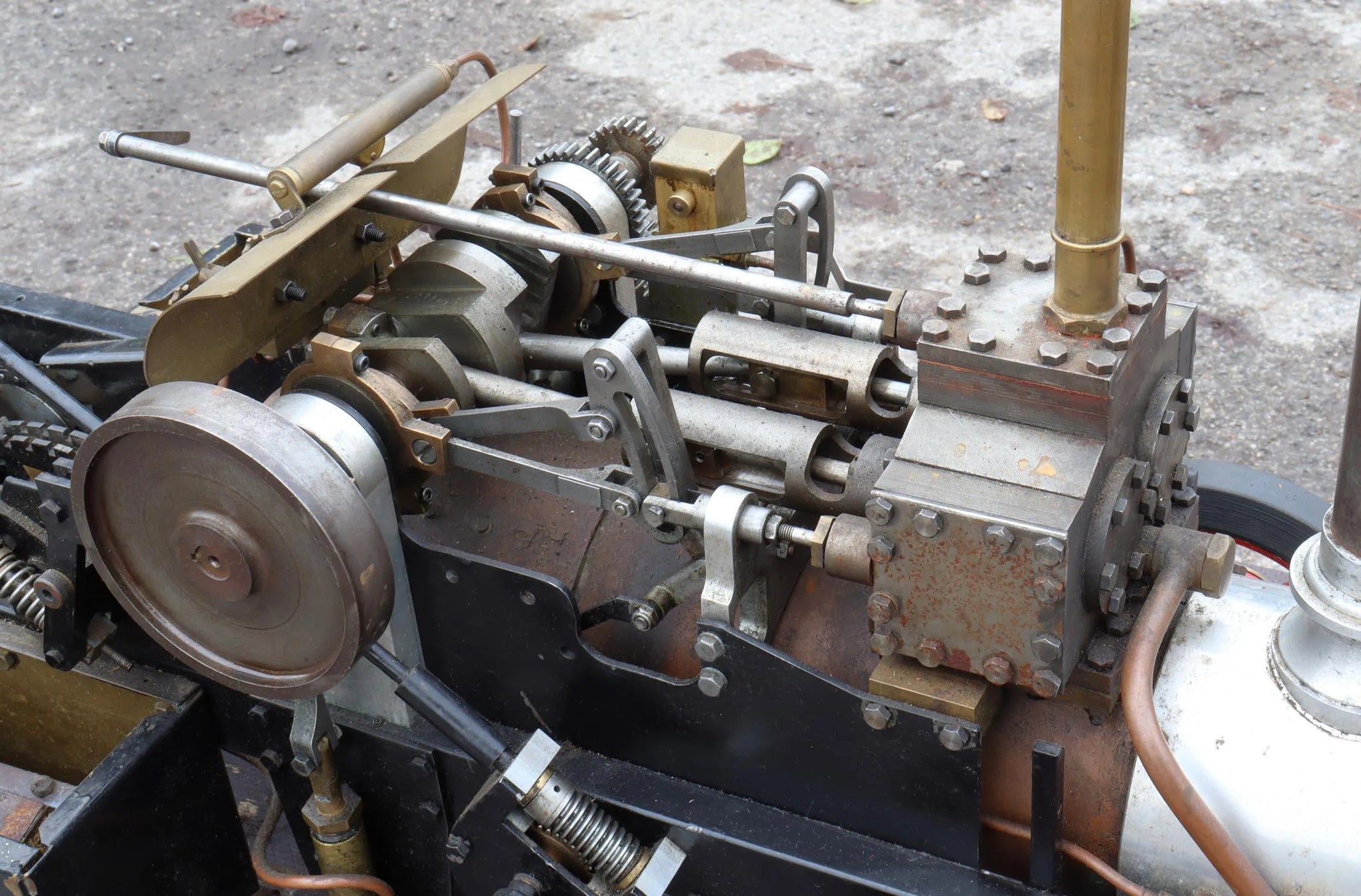

The engine turns over freely although, whilst trying, doesn't run on air - there is leakage past valves and/or pistons.

A large, robustly built model in this scale, they can be made, like this beautifully finished example we sold last year, to run very well.

Complete with original manufacturer's boiler certification.

Technical information

Stock code

12505

Scale

2 inch

Length/inches

48

Width/inches

16

Height/inches

19

Weight/Kg

56

Wheel material

aluminium

Axlebox type

roller bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Boiler maker

Winson Model Technology

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

CE/UKCA mark

n/a pre-2002

Year built

1999

Boiler number

36

Safety valve type

spring

Safety valve

1

Fusible plug

yes

Chassis material

steel, bolted

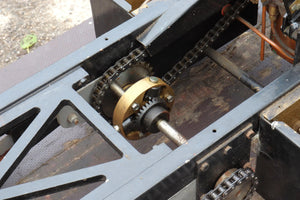

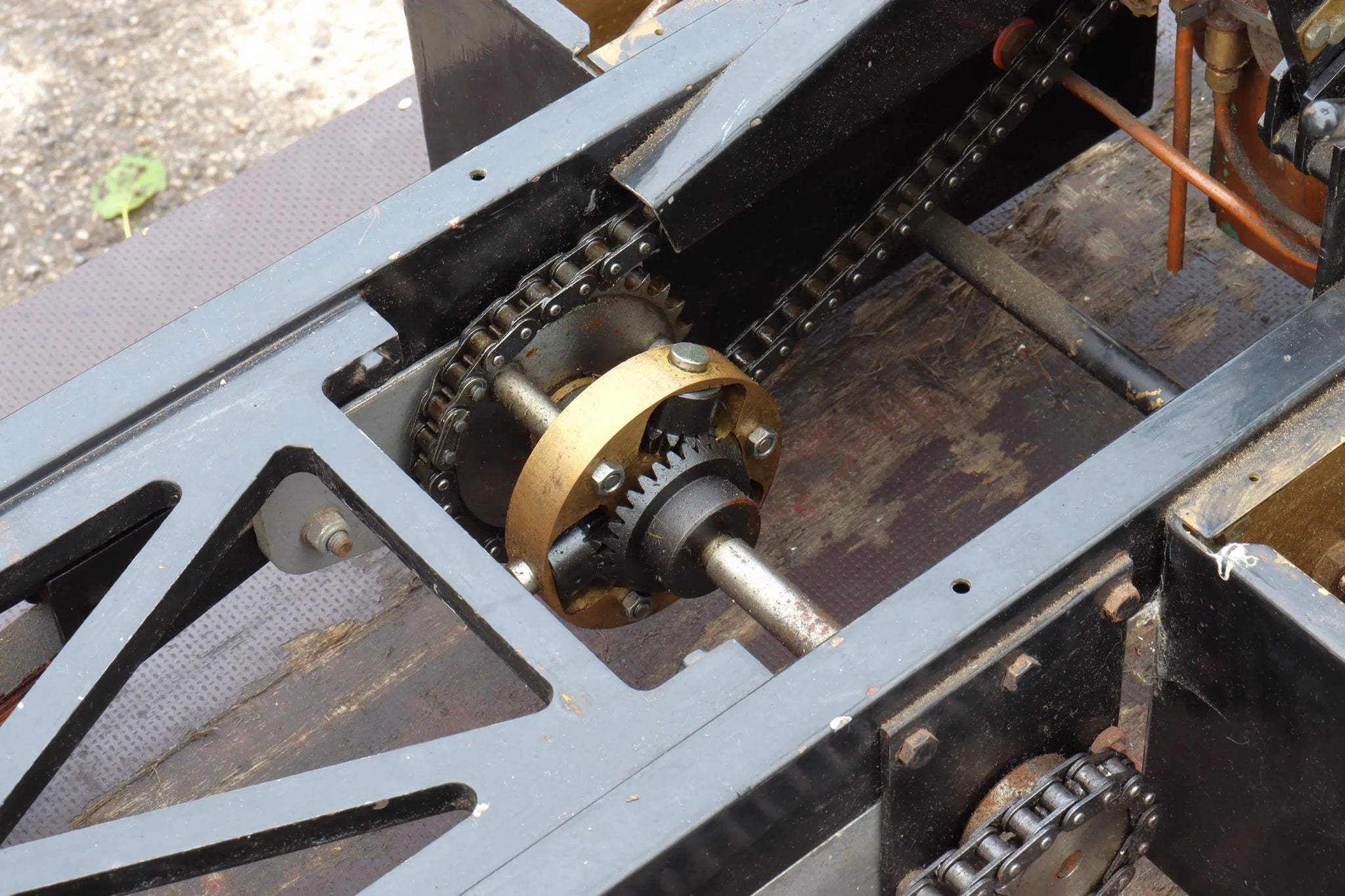

Differential

yes

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Date out

Mar-25
