3 1/2 inch gauge Baldwin 4-8-4 "Columbia" with commercial CE-marked boiler

A 3 1/2 inch gauge Baldwin 4-8-4 to Martin Evans' impressive "Columbia" design. For those who haven't seen one in the metal there are pictures of several in the archive, including this one which we sold some years ago - it comes out at nearly a foot longer than a 5 inch gauge LNER B1 by the same designer.

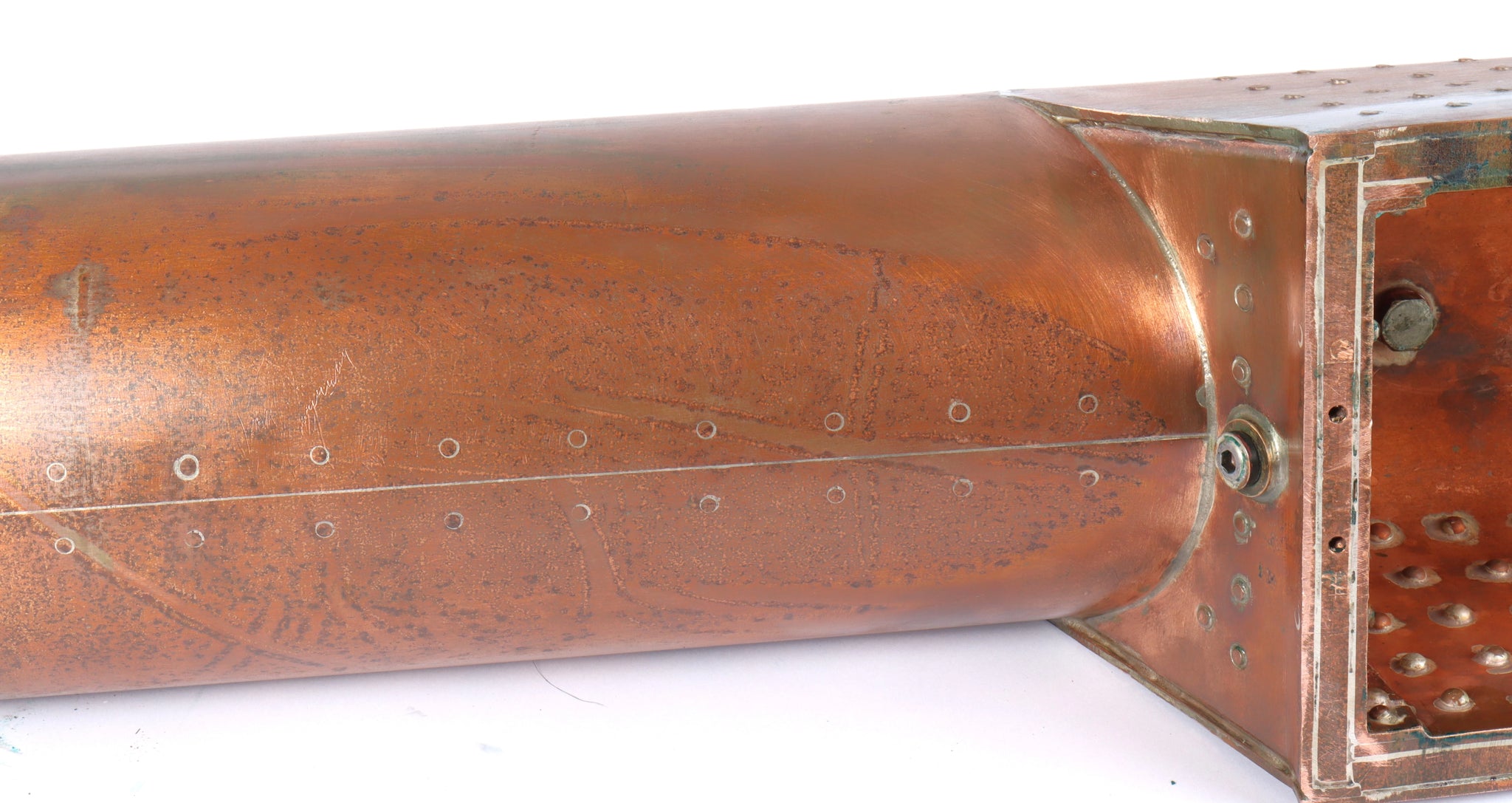

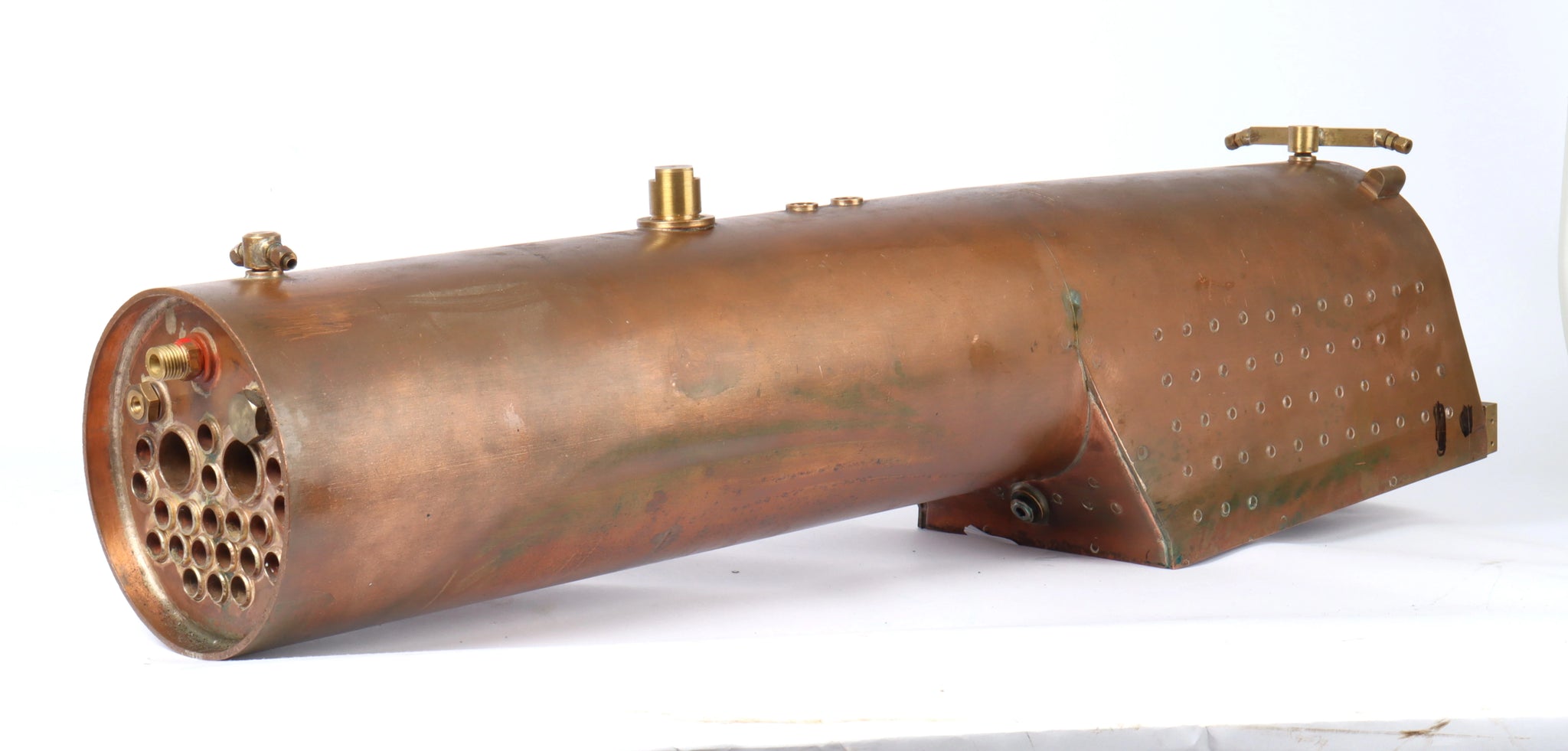

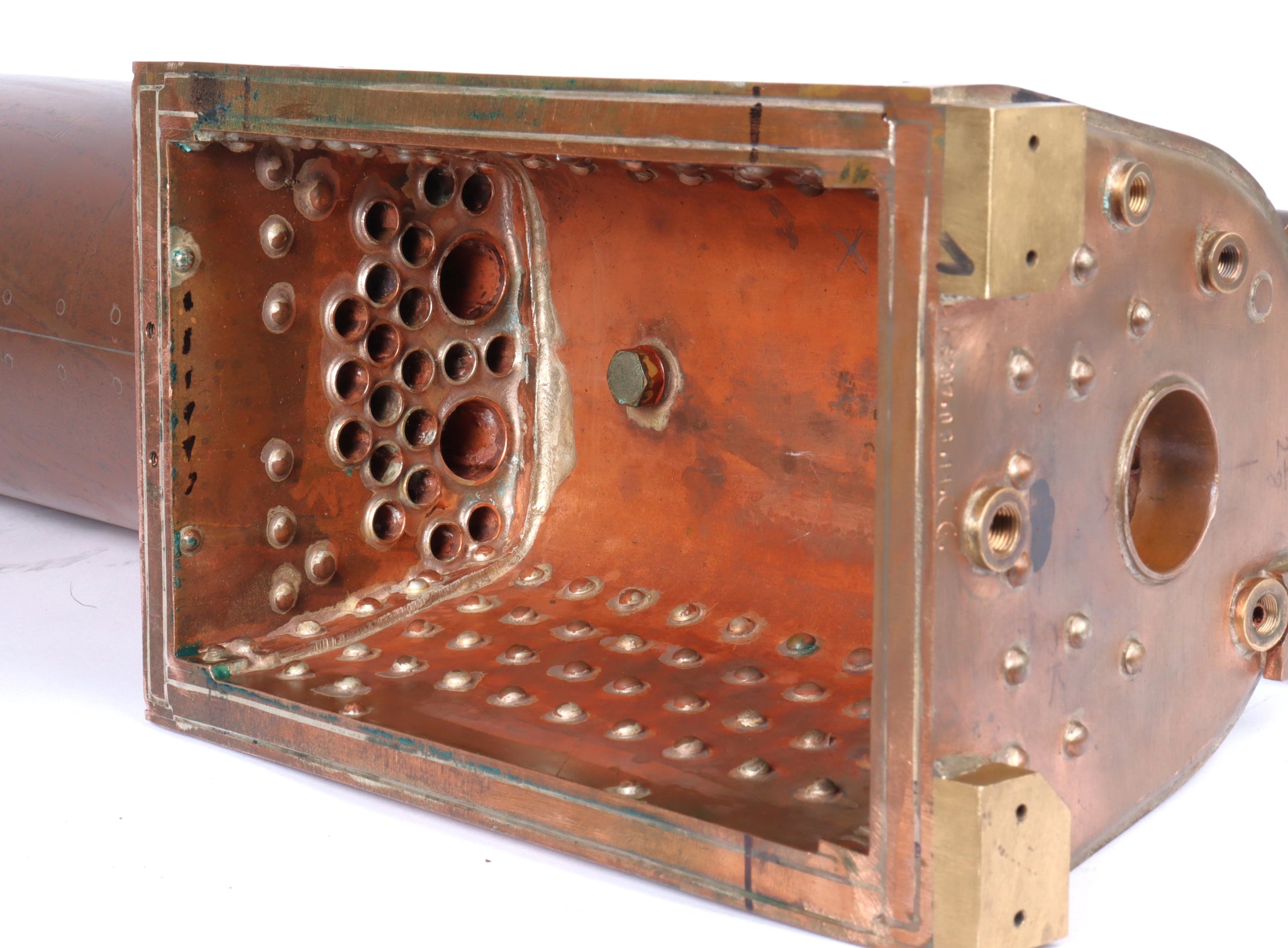

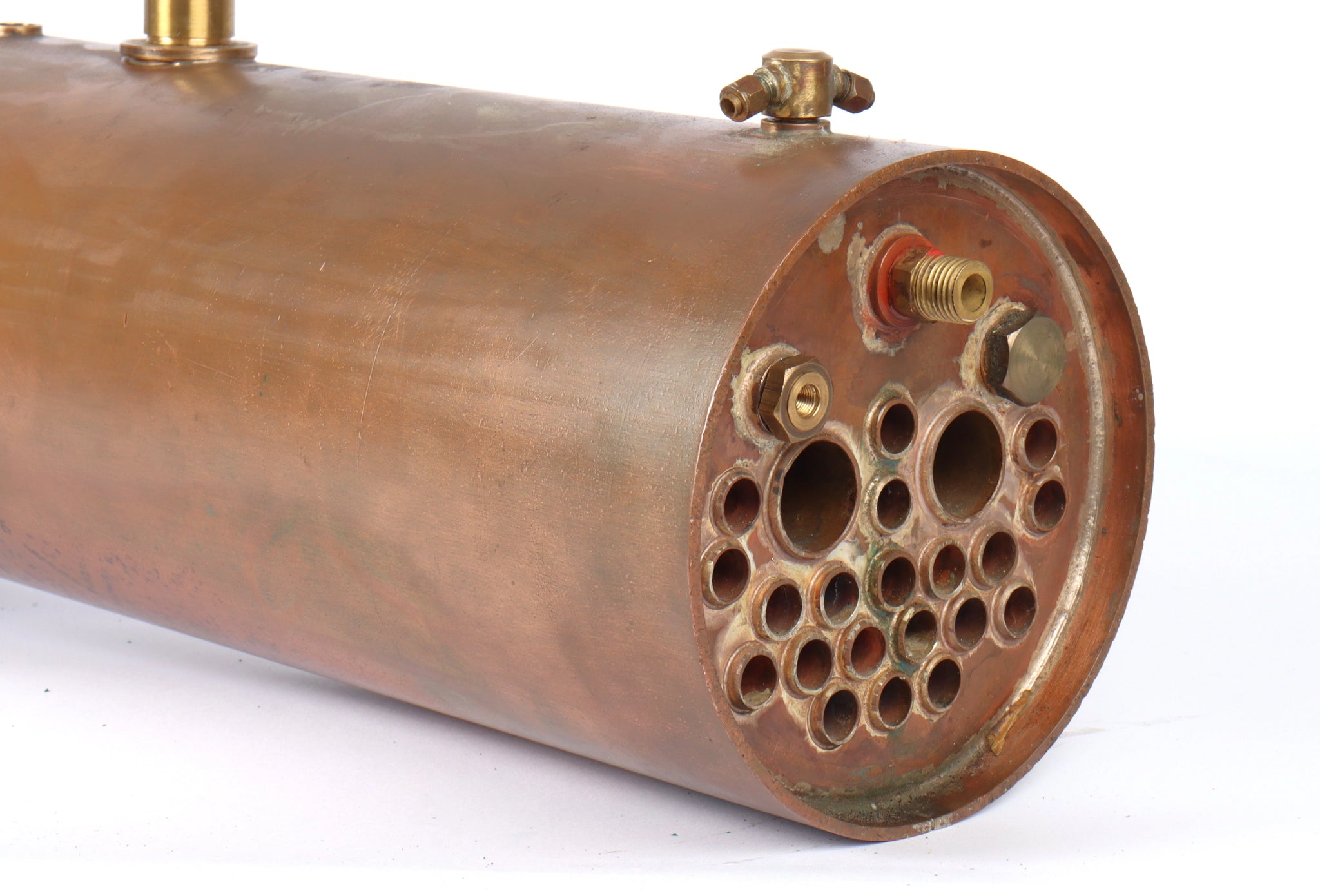

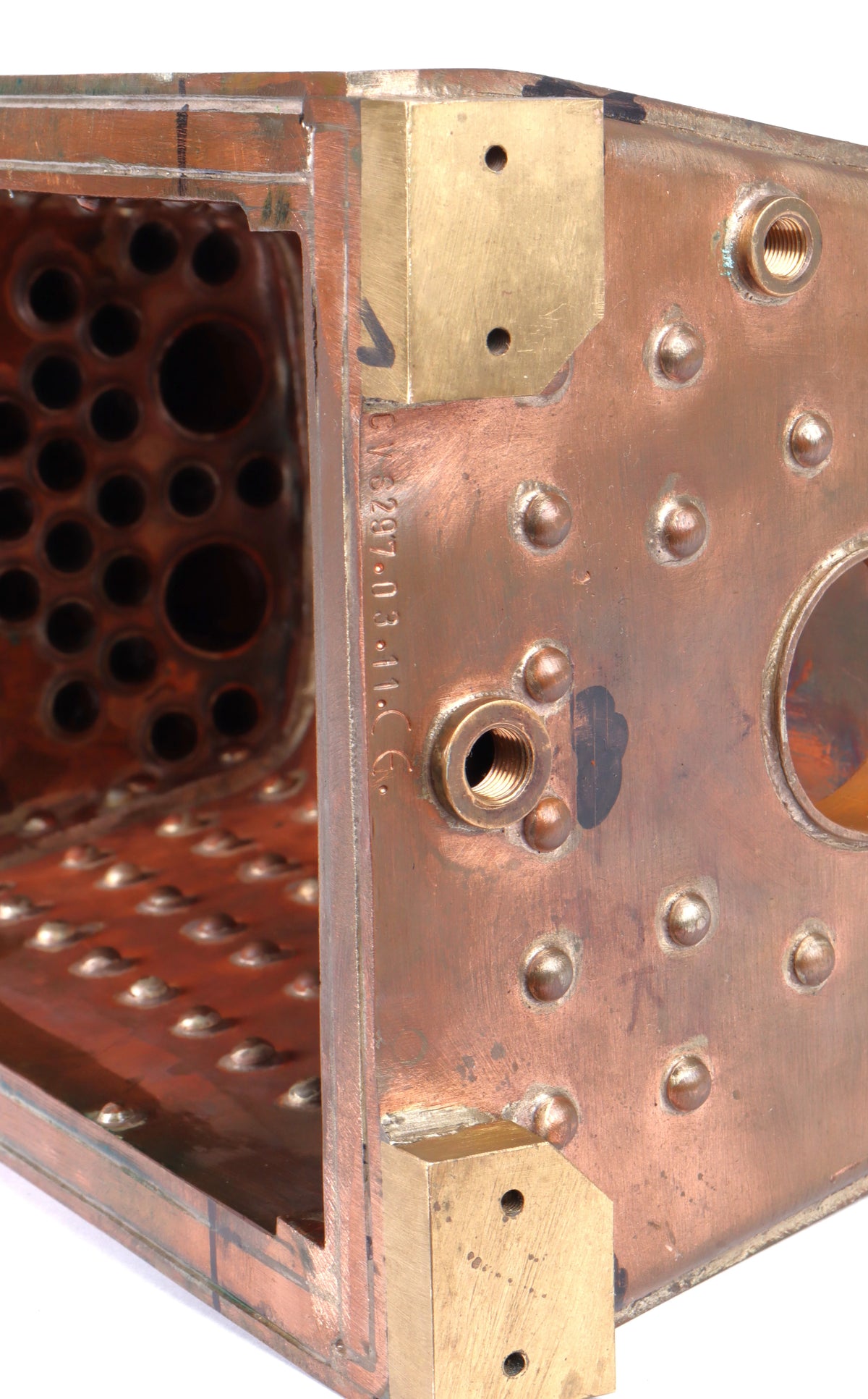

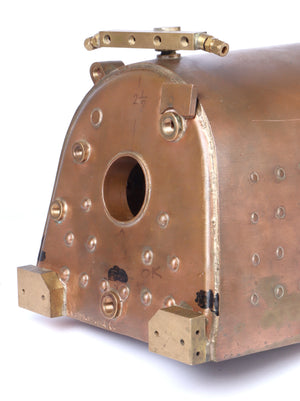

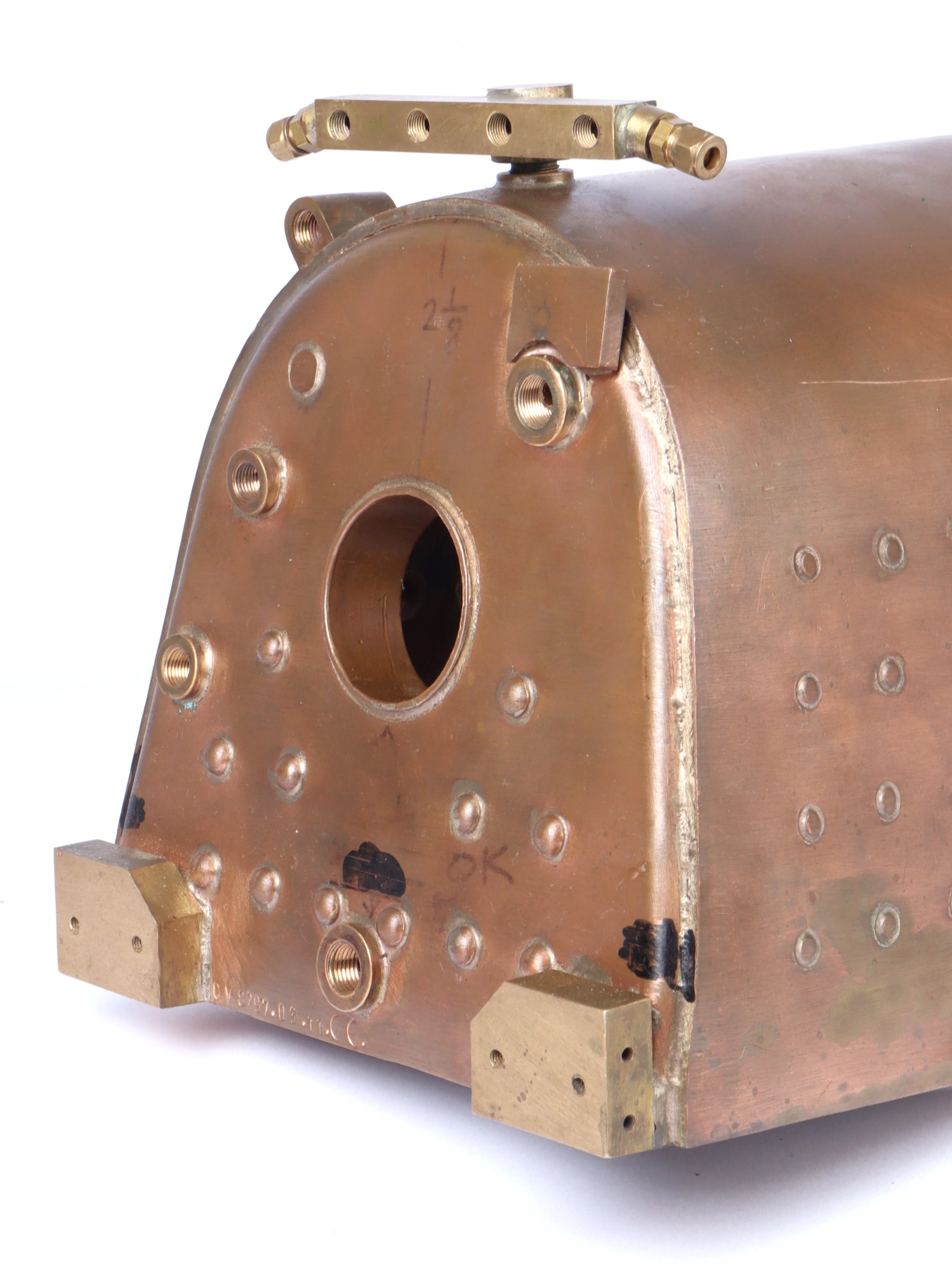

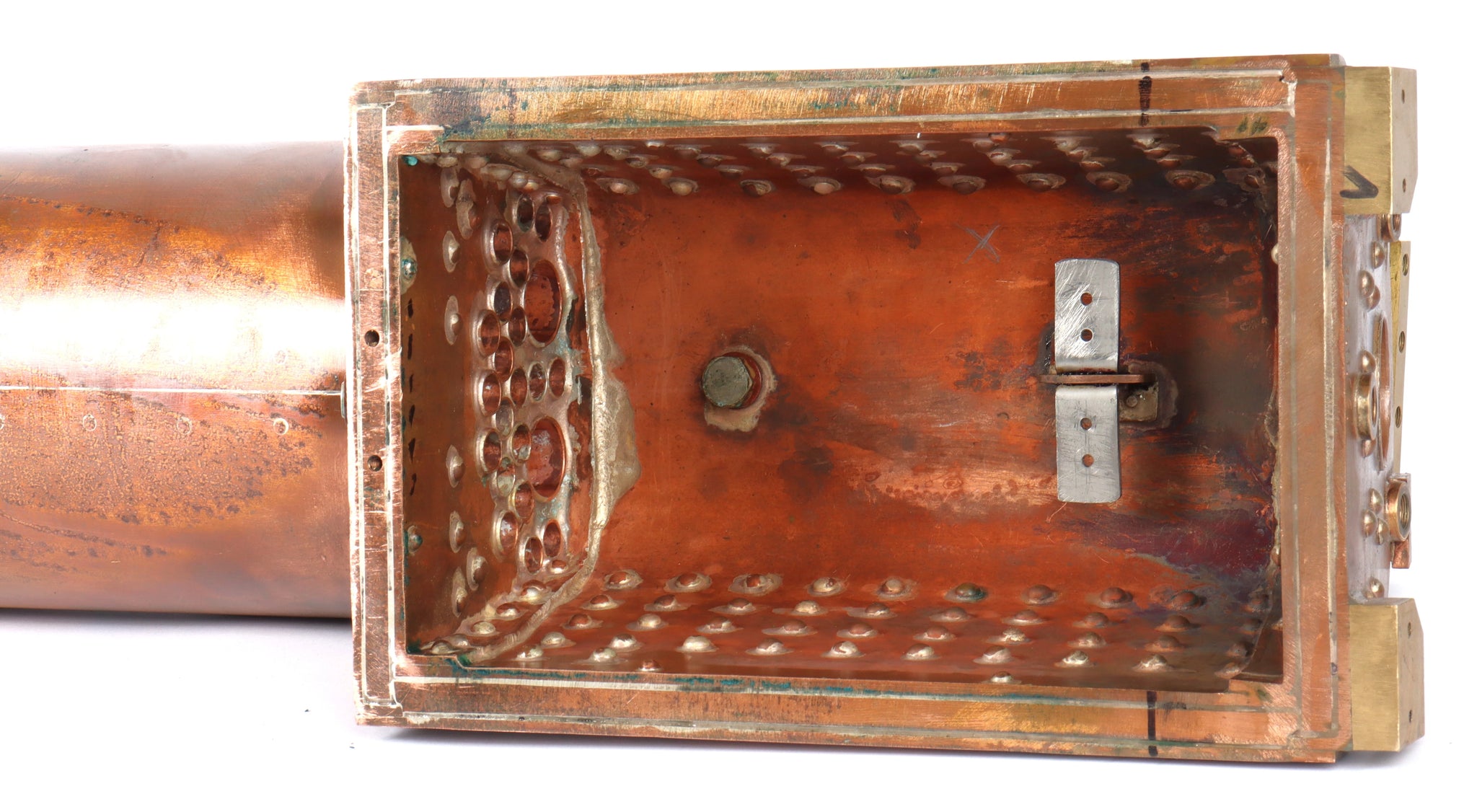

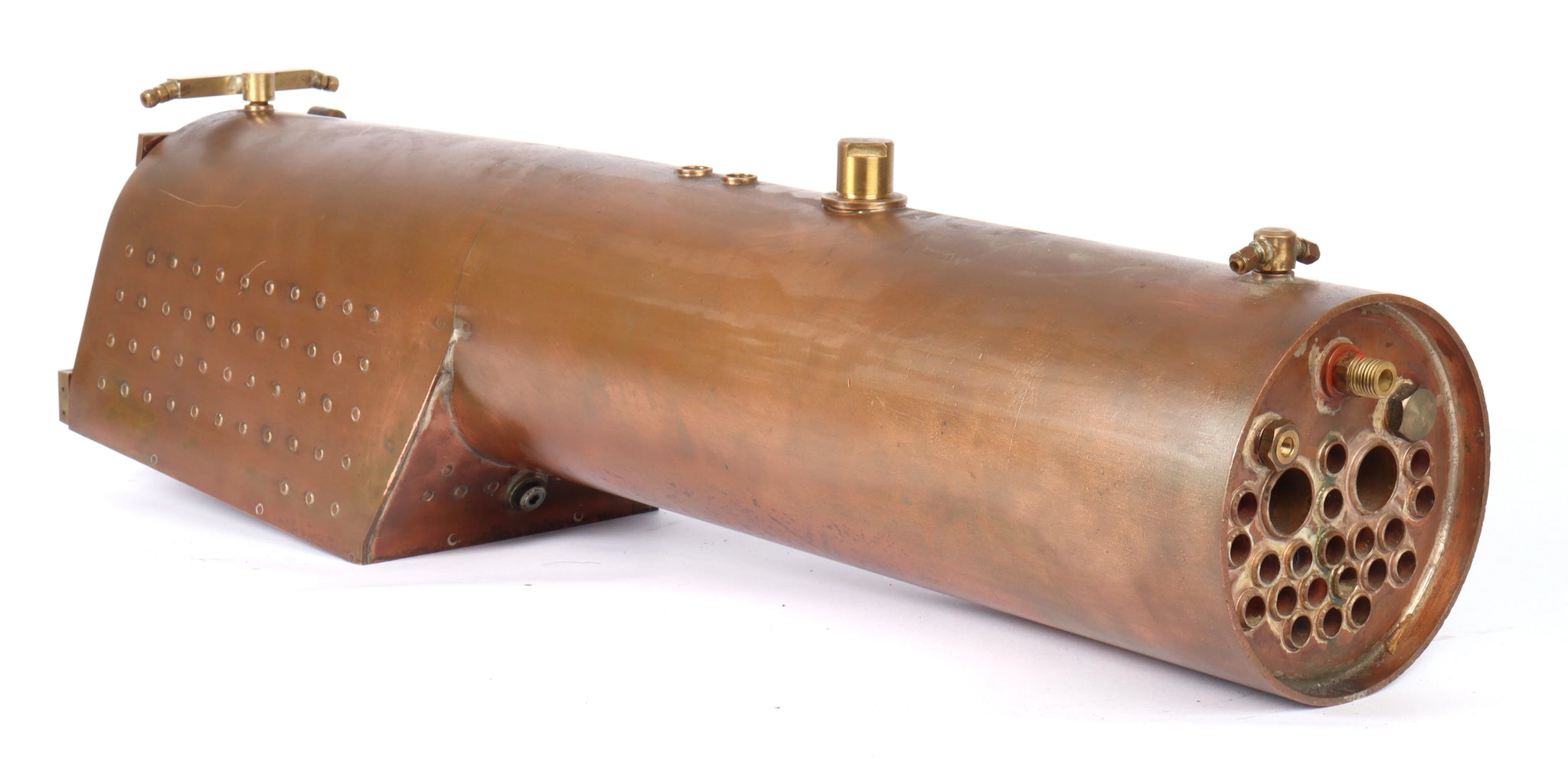

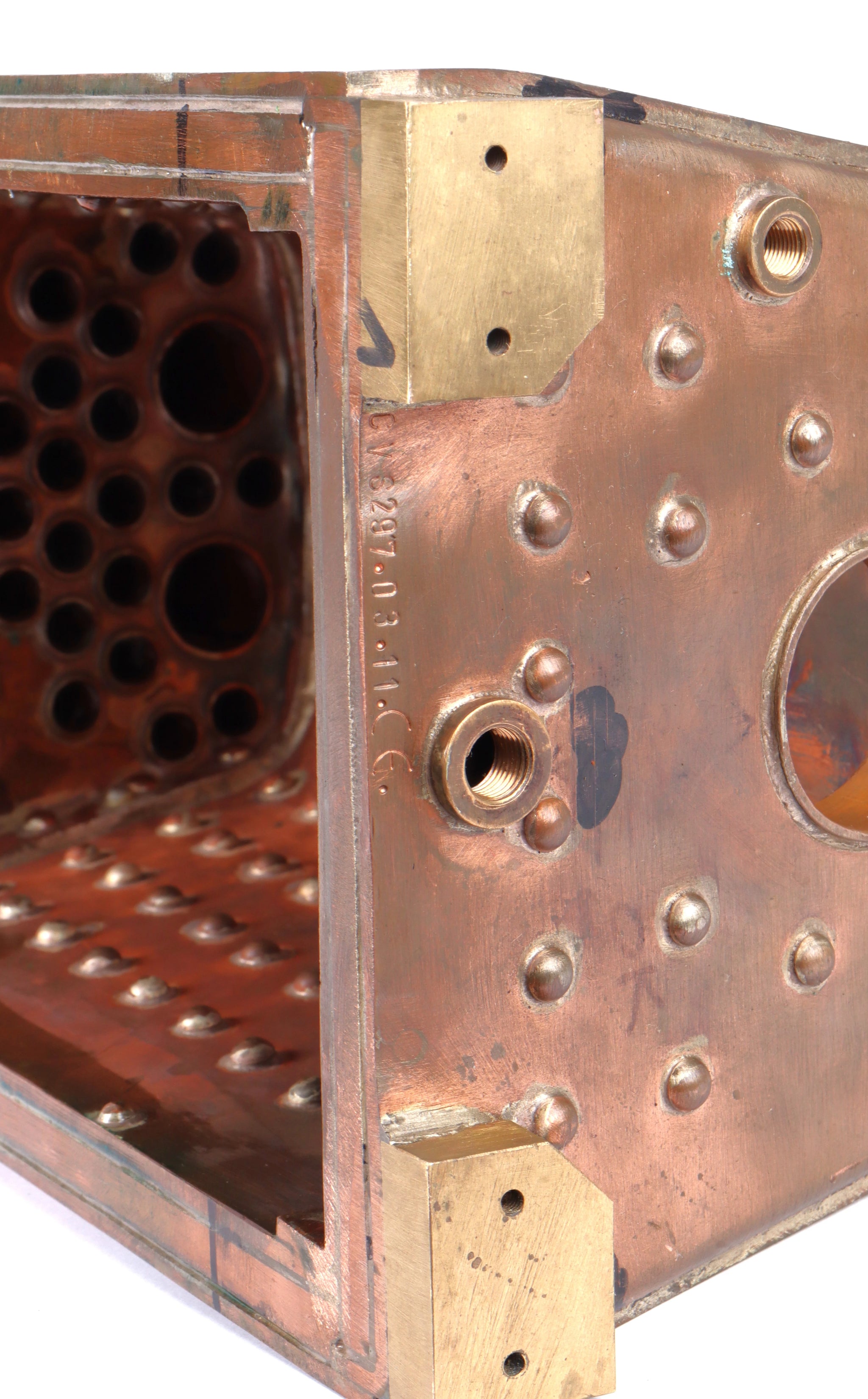

The CE-marked boiler by Cheddar Valley Models is a beautifully made thing, the firebox fitted with a fusible plug and brackets for radiant superheaters.

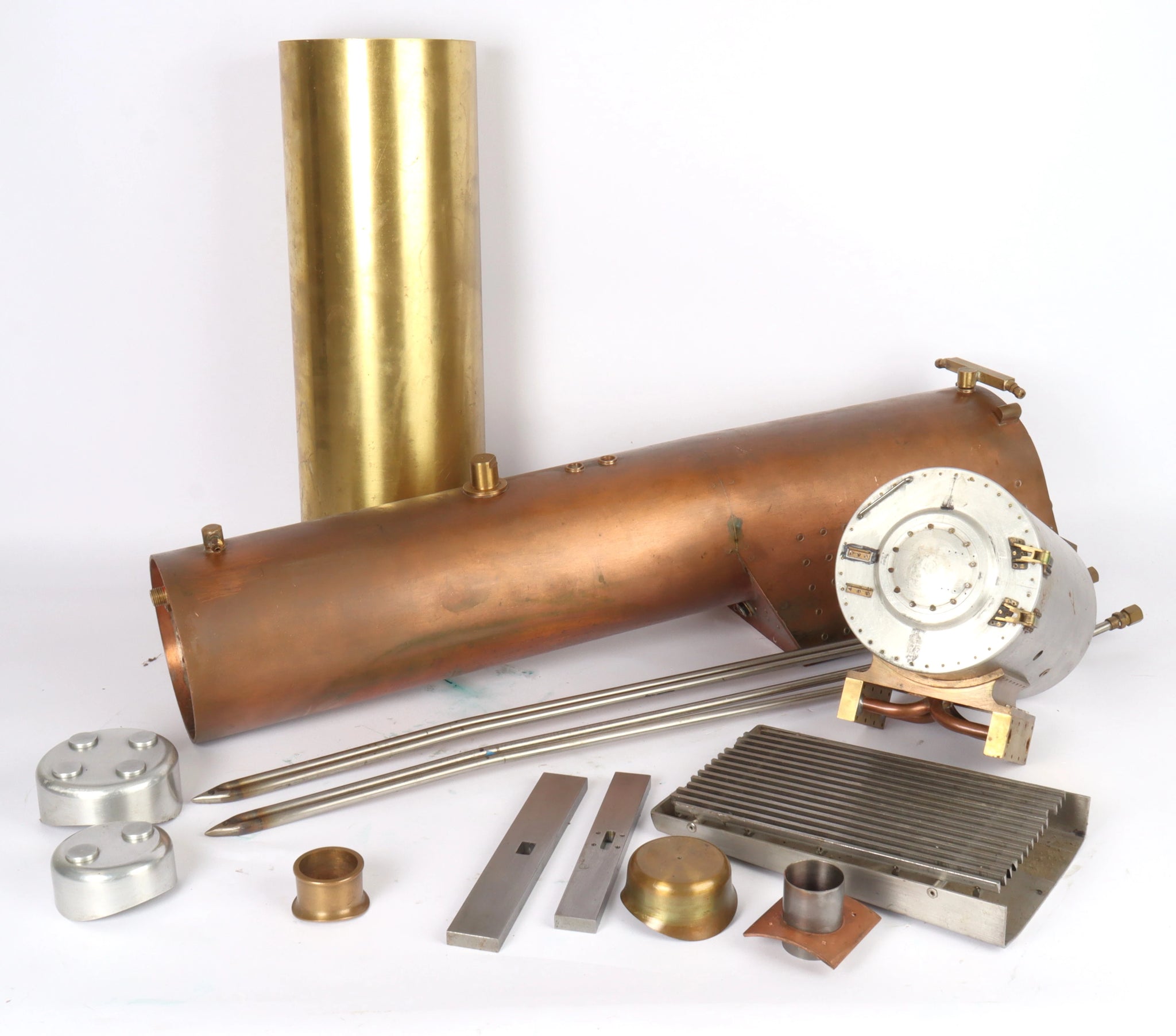

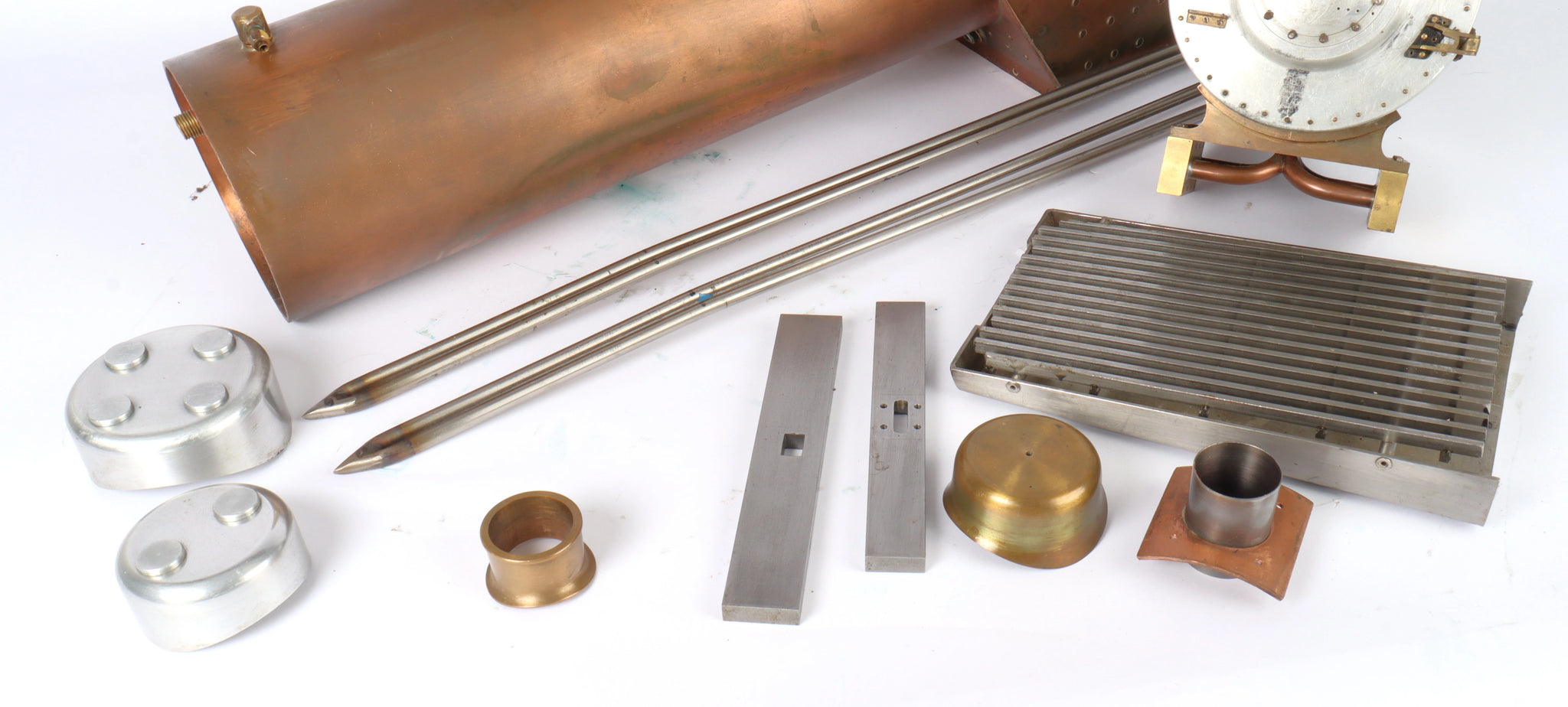

Remainder of the parts comprise:

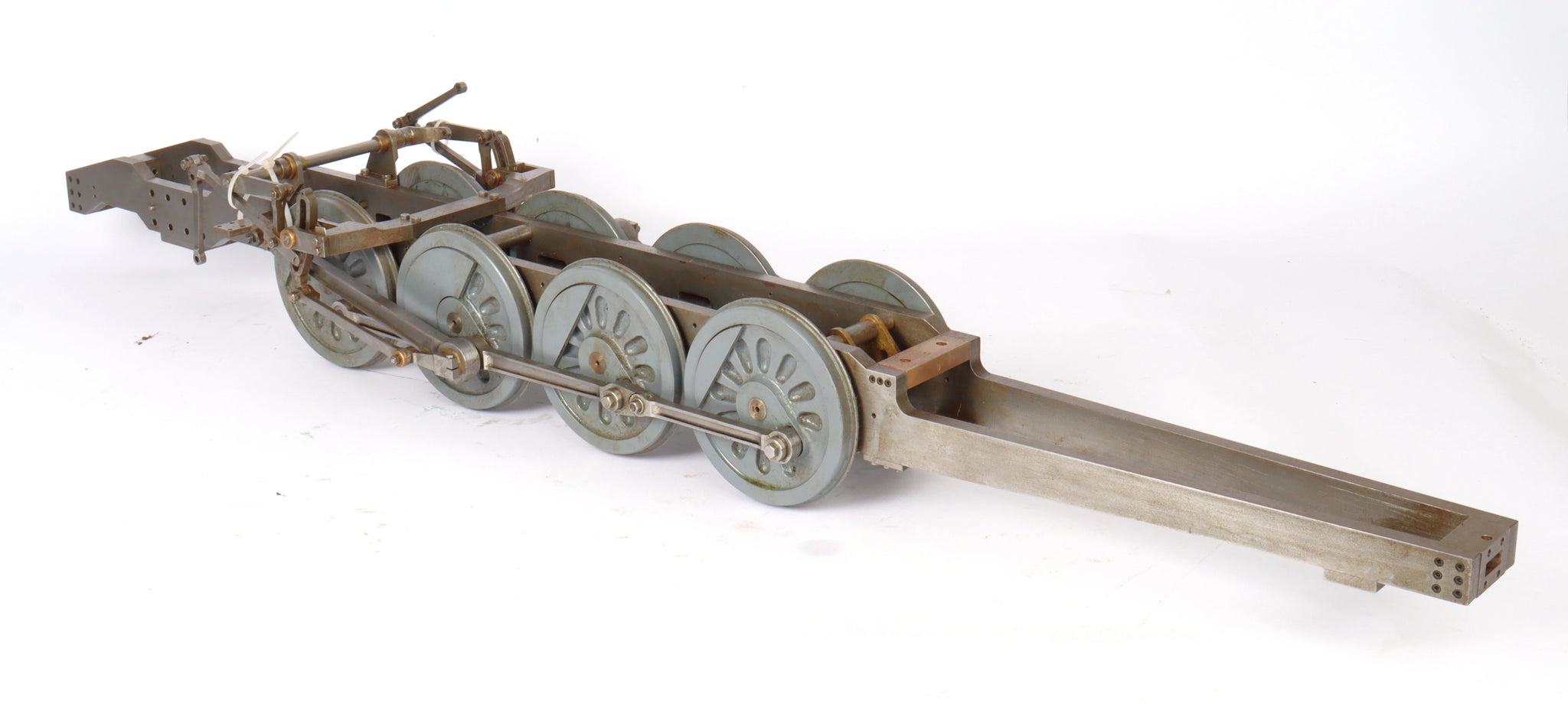

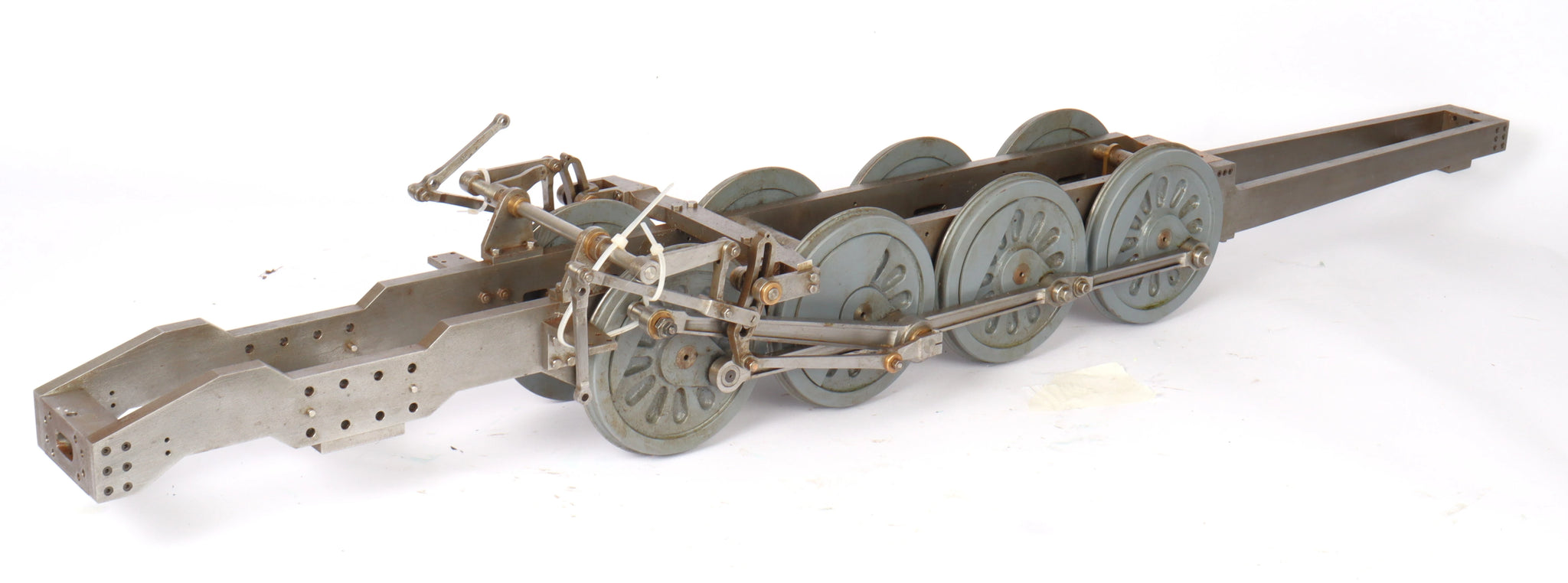

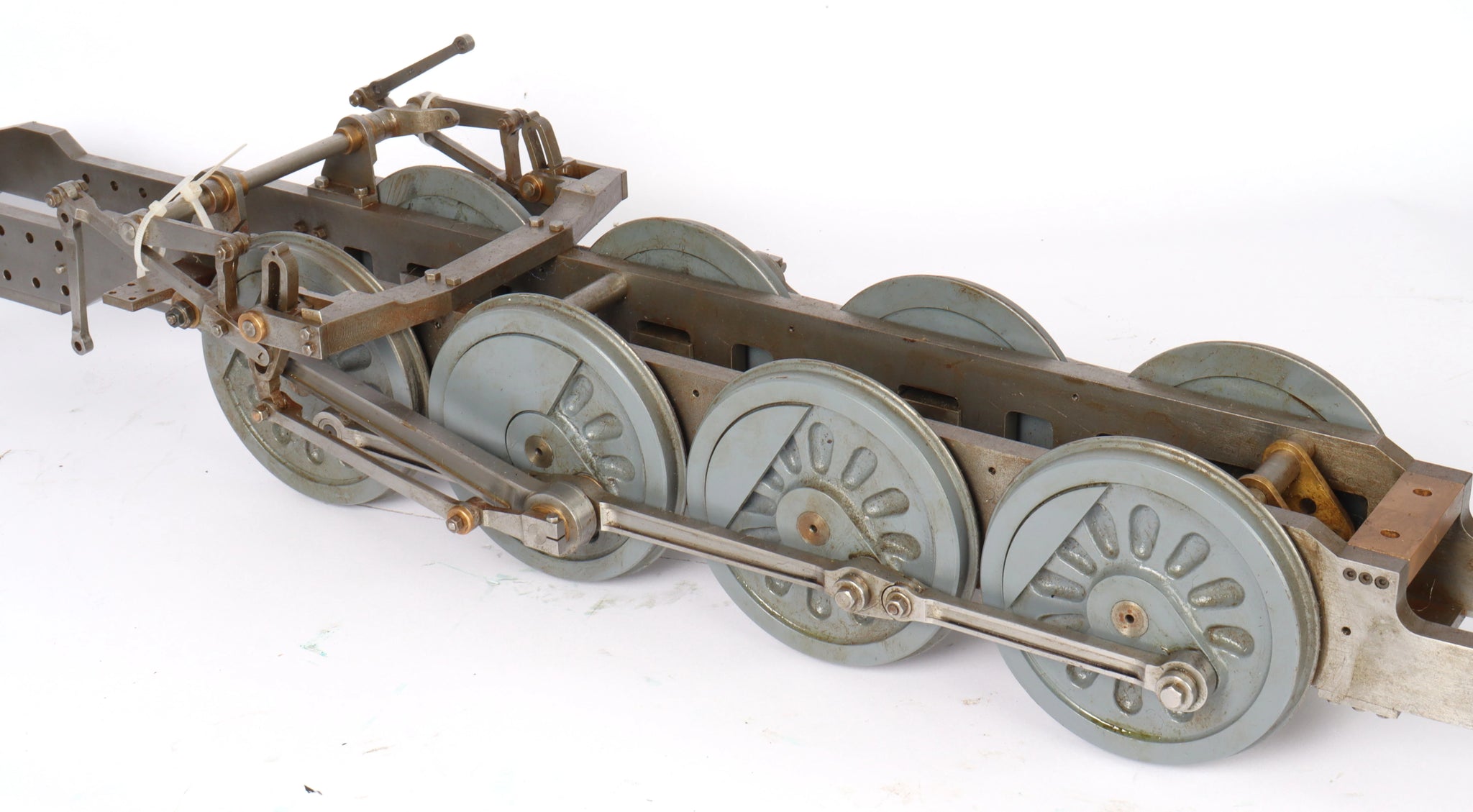

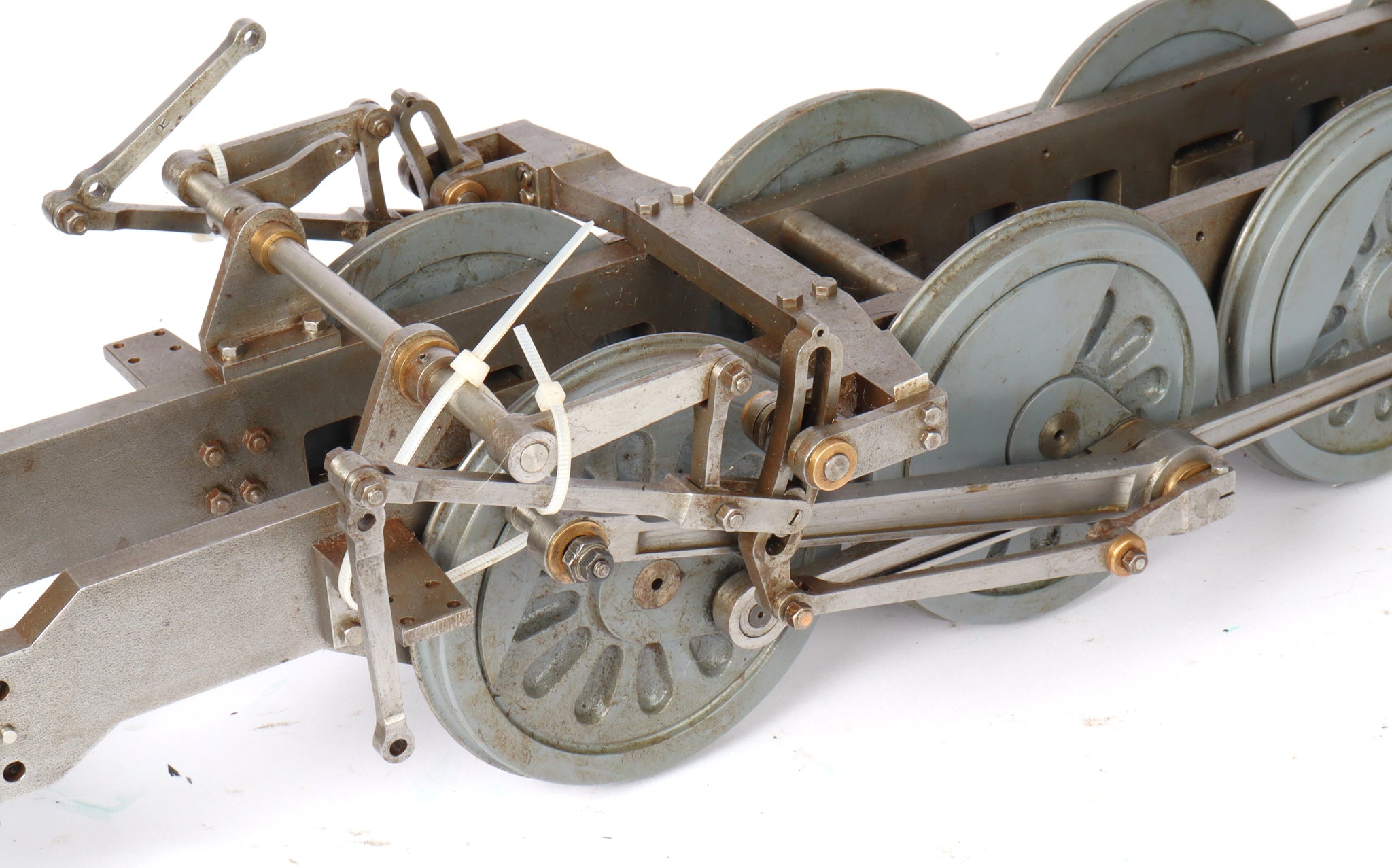

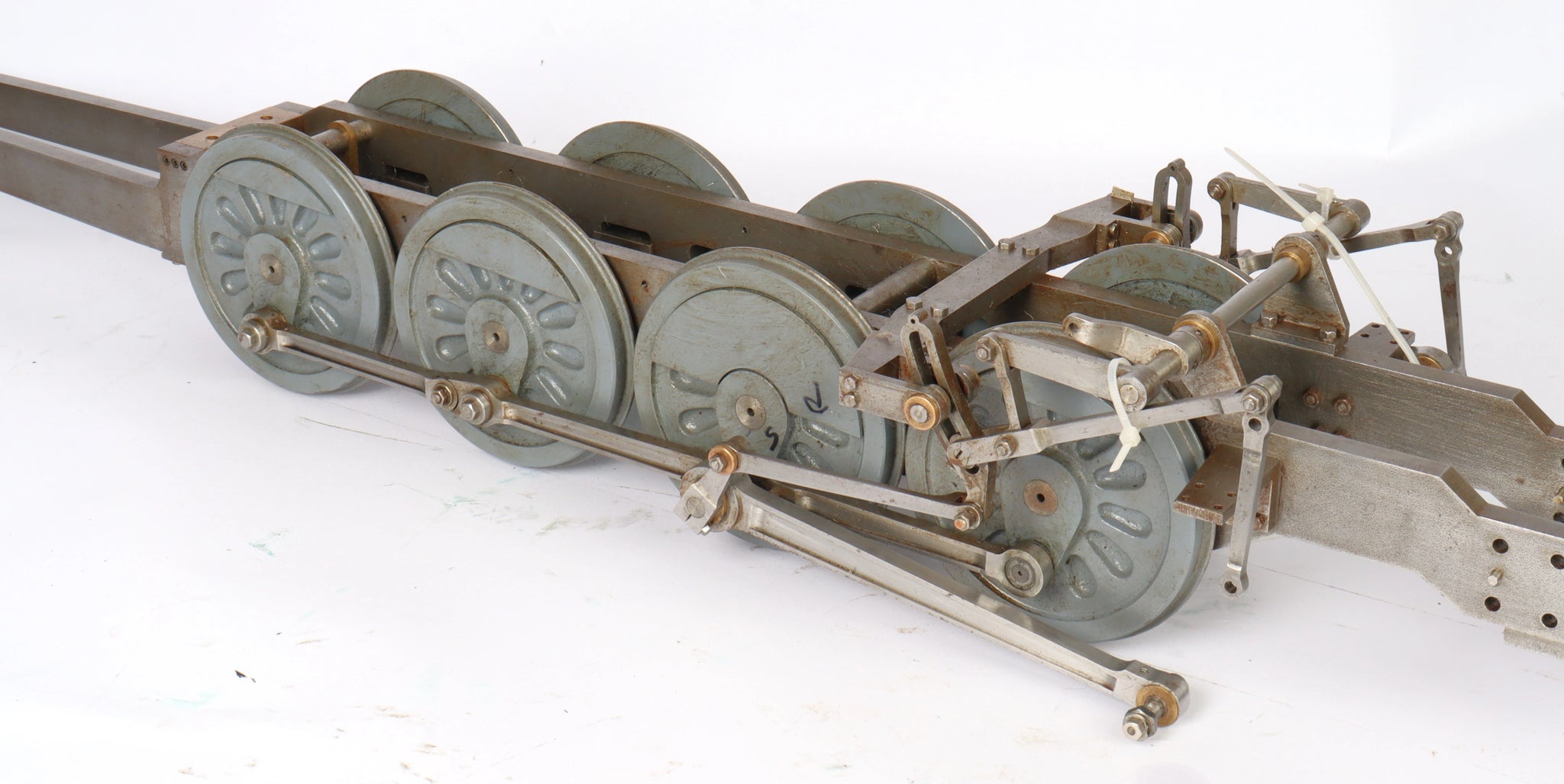

  • rolling chassis with valve gear and motion work

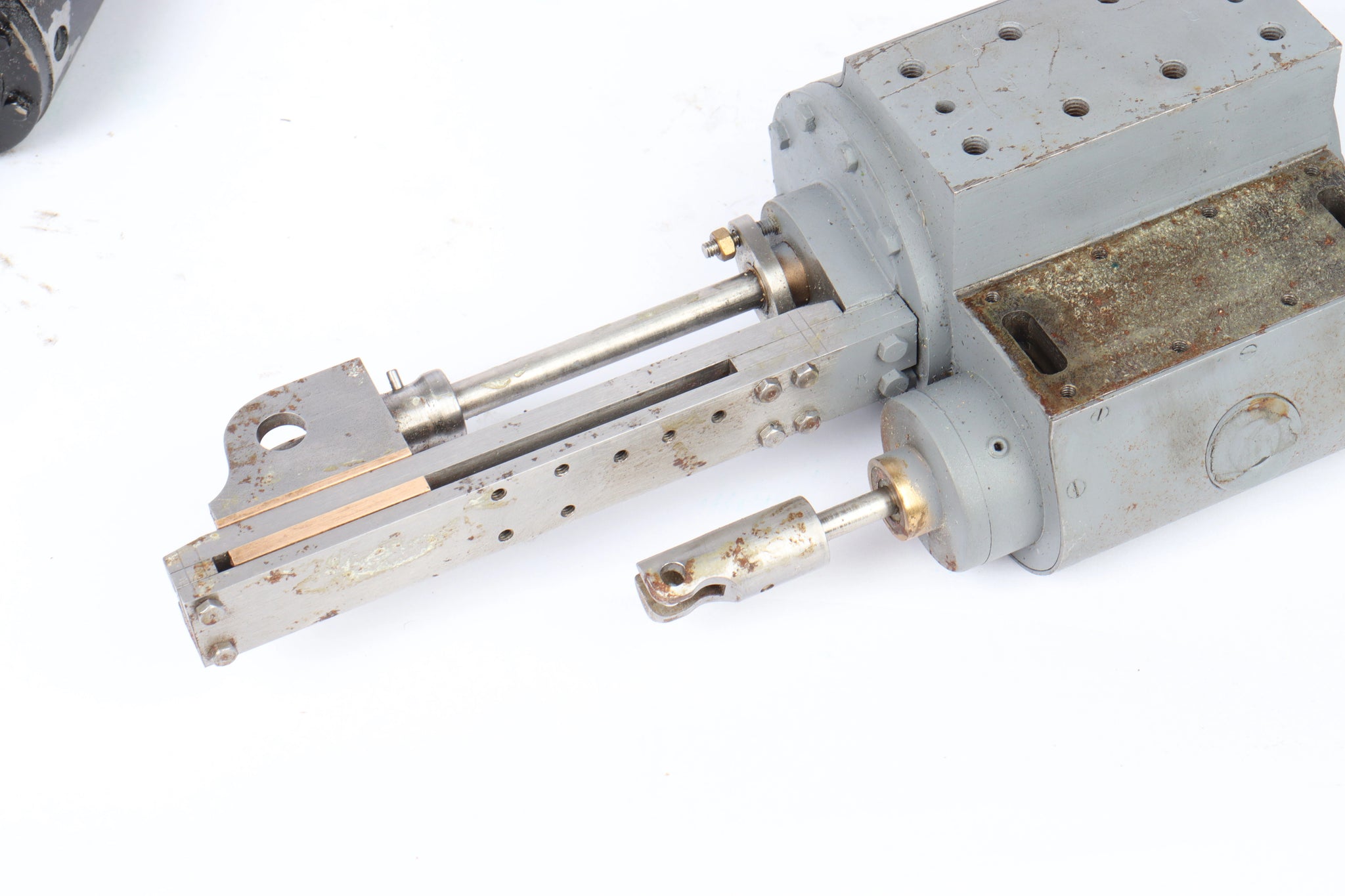

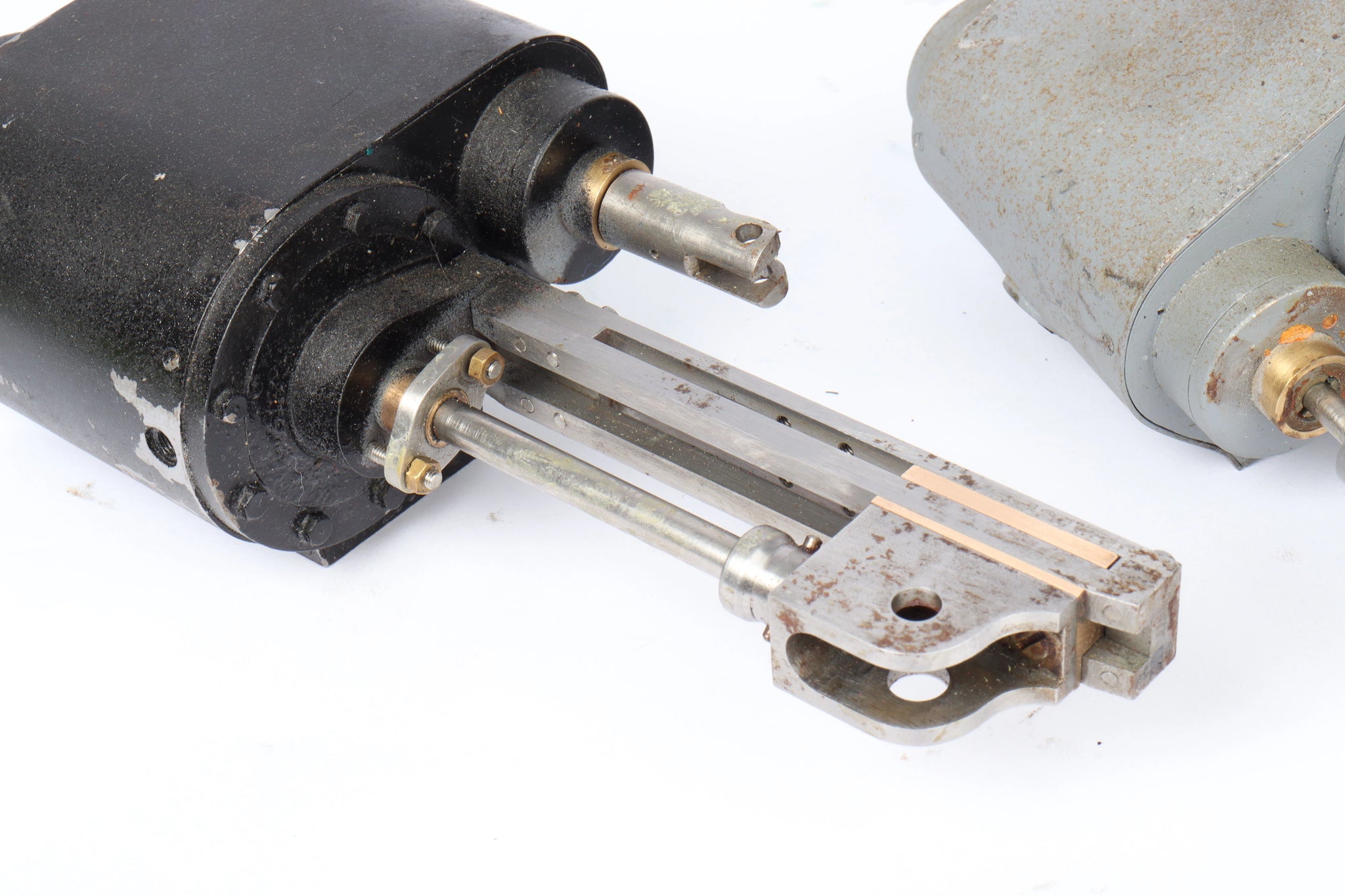

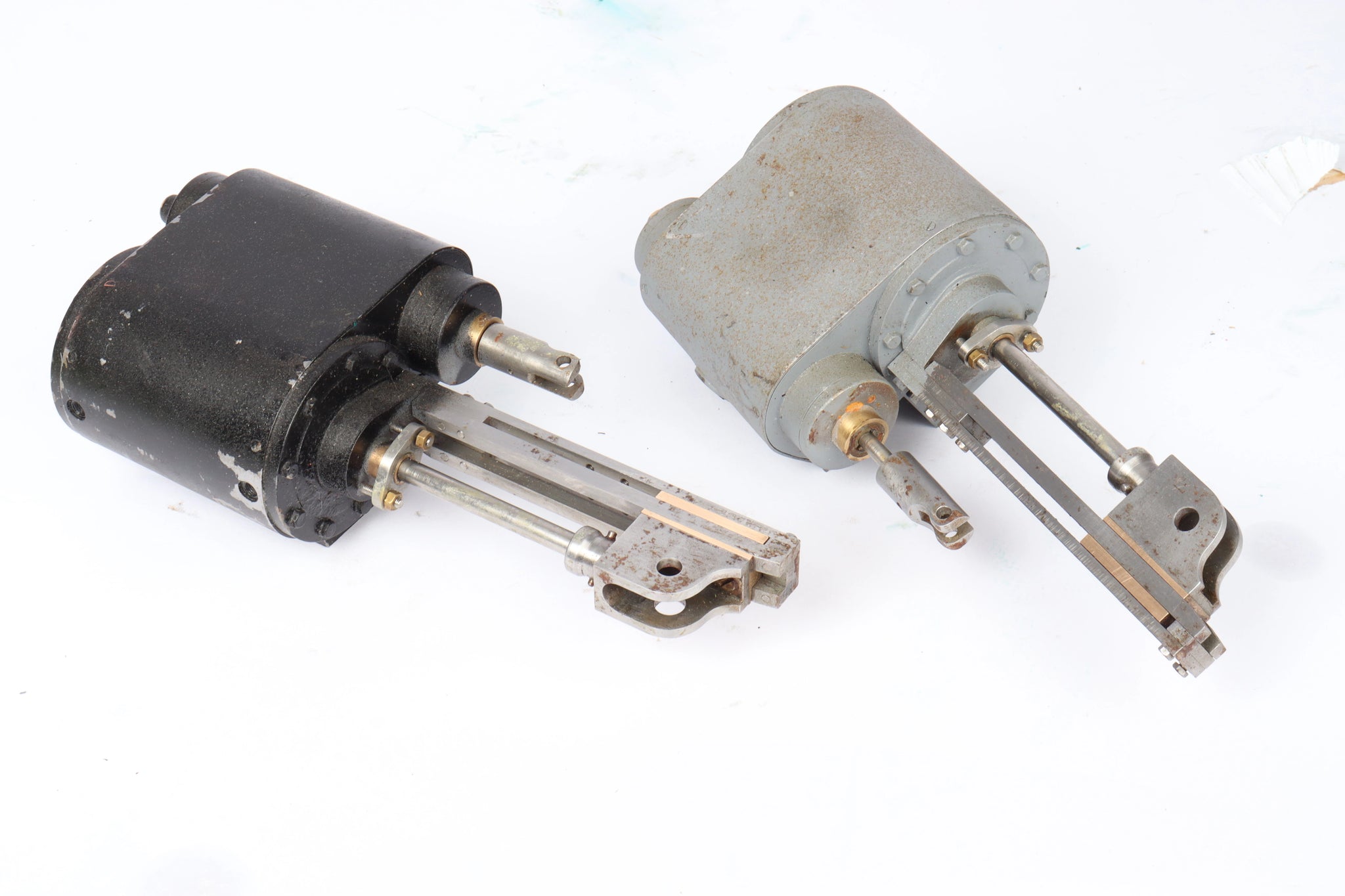

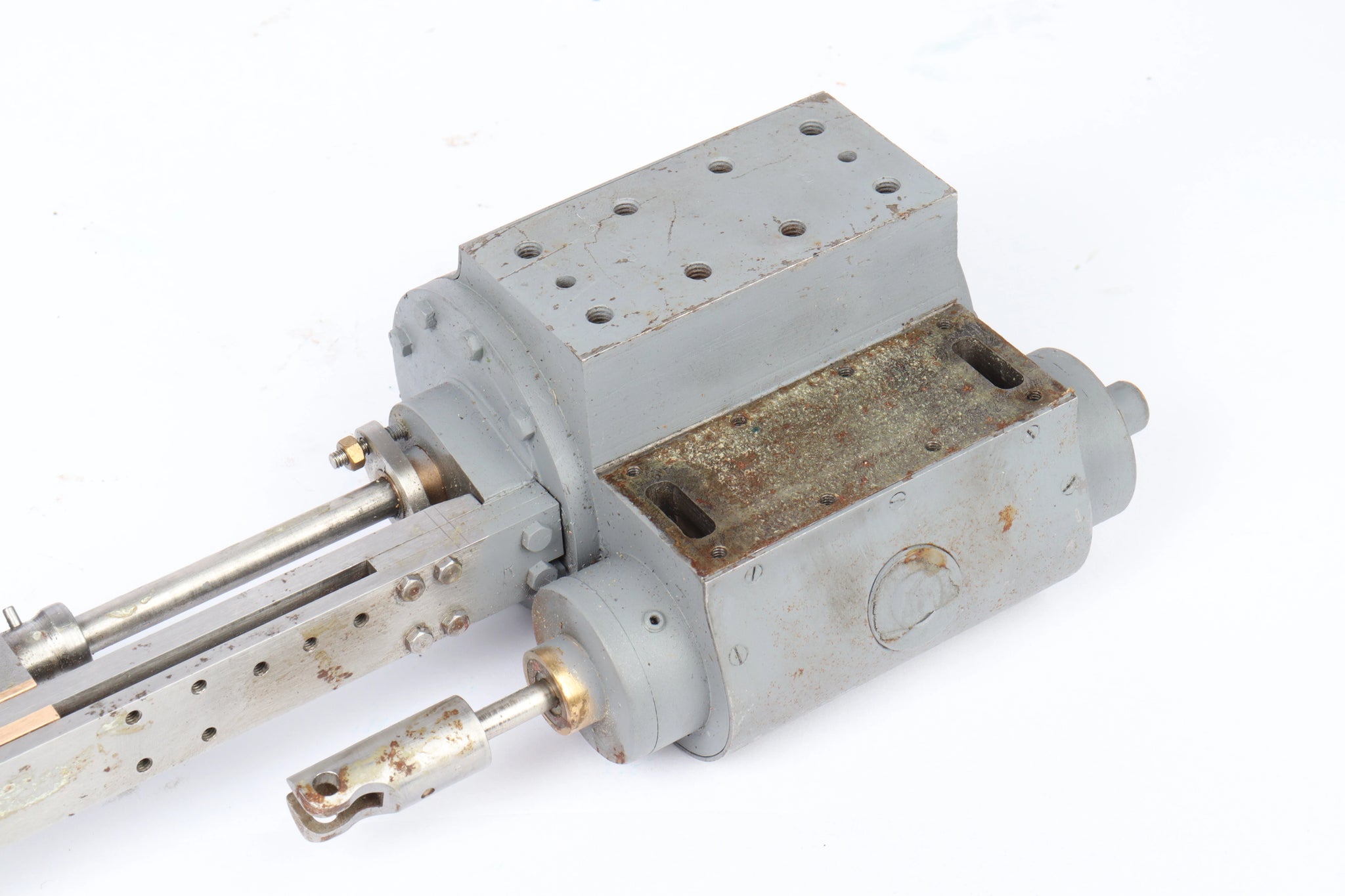

  • pair of piston valve cylinder assemblies

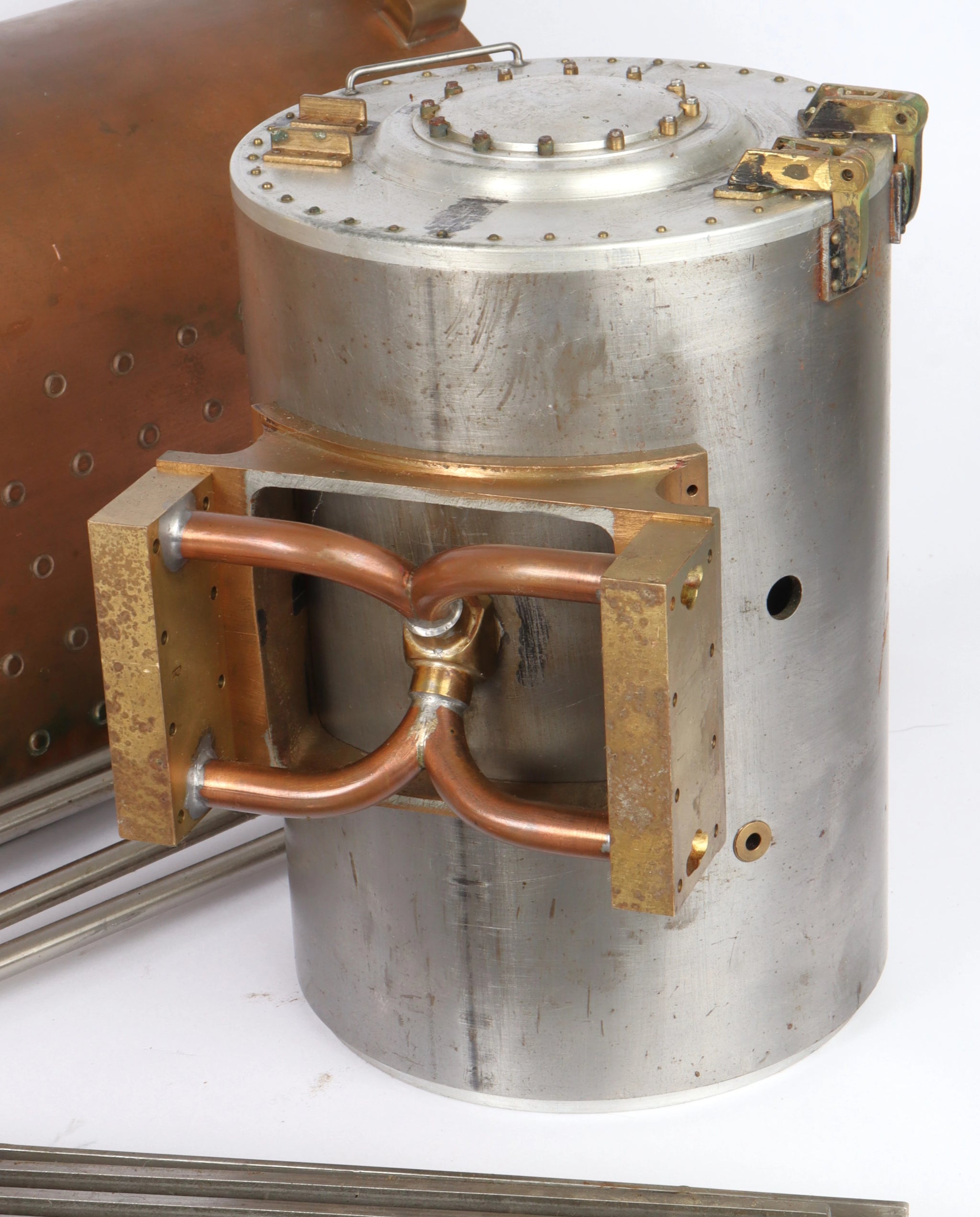

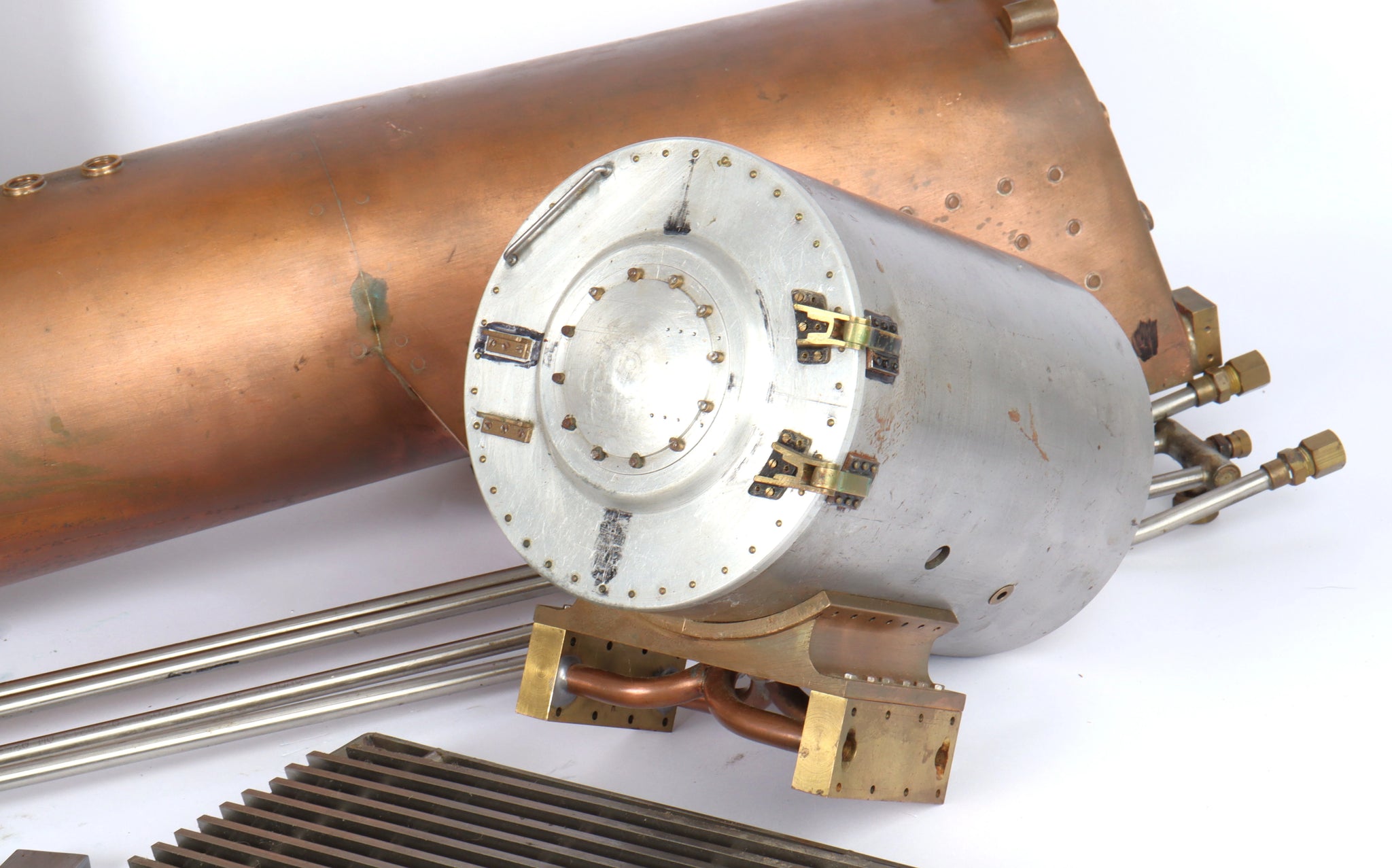

  • smokebox with saddle, door, steam pipes and petticoat pipe
  • outer domes
  • stainless steel grate
  • pair of stainless steel radiant superheaters

Technical information

Stock code

13563

Length/inches

41

Width/inches

8

Height/inches

6

Weight/Kg

60

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Boiler maker

Cheddar Valley Steam

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

CE/UKCA mark

yes

Year built

2011

Boiler number

CVS 297.03.11
