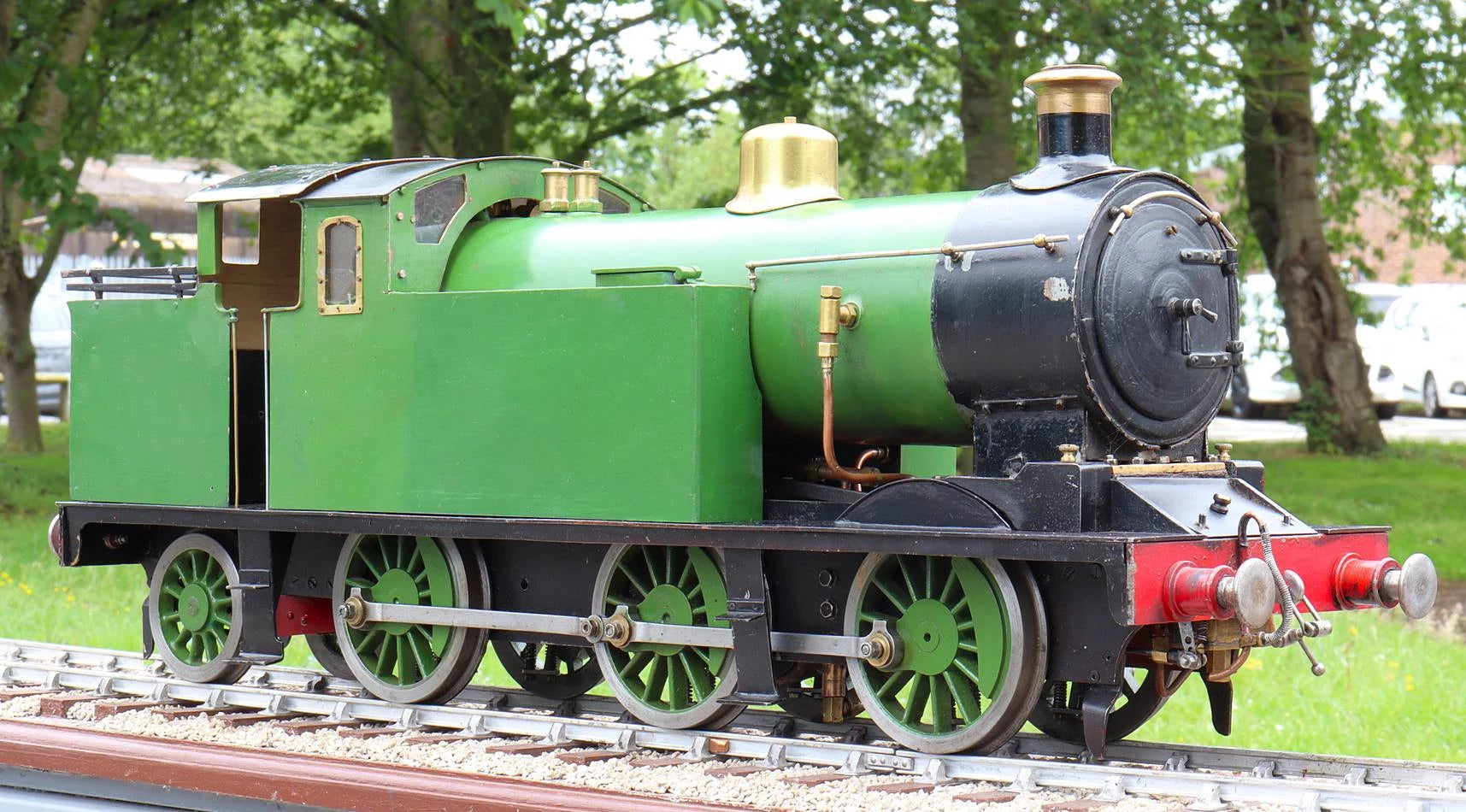

3 1/2 inch gauge "Mona" 0-4-2T

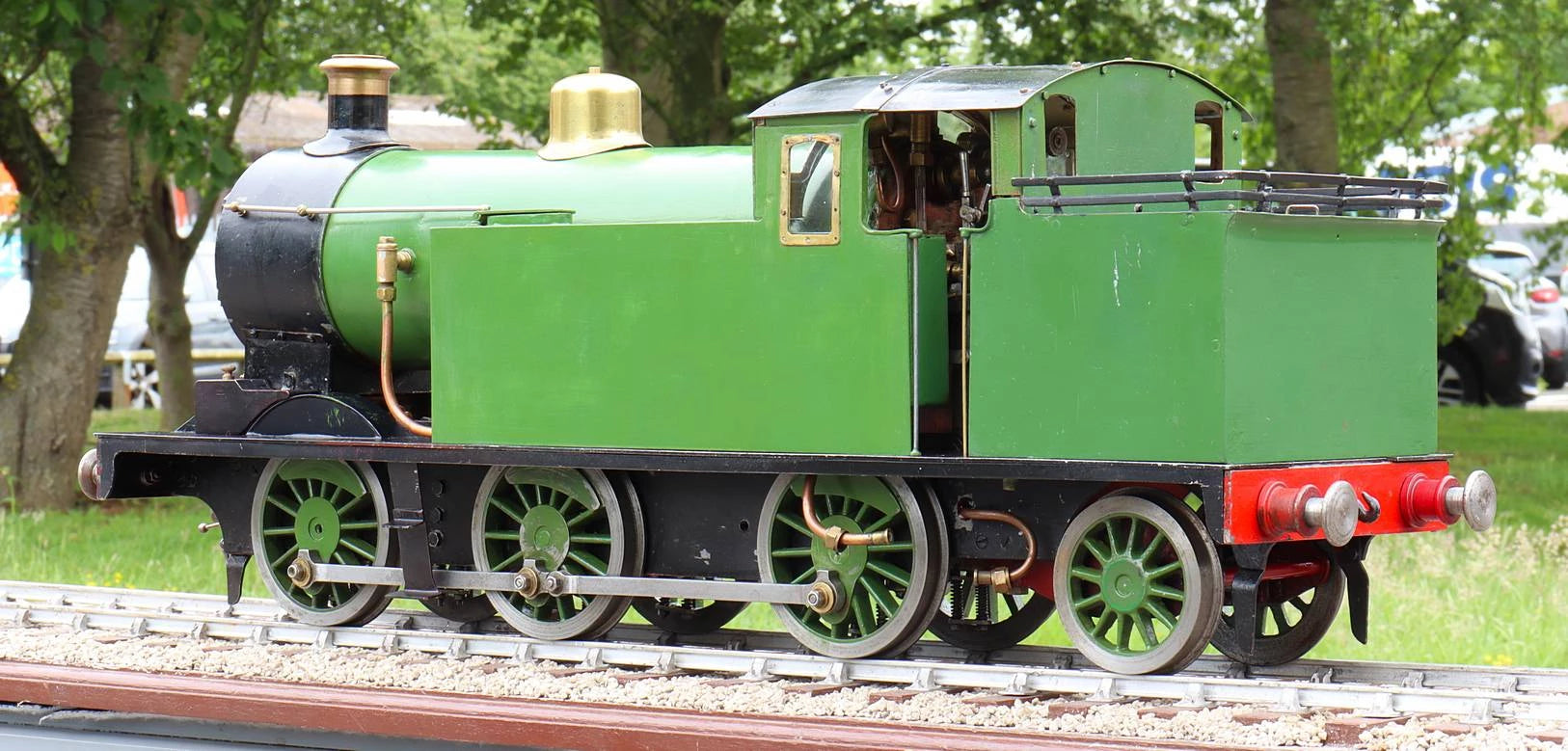

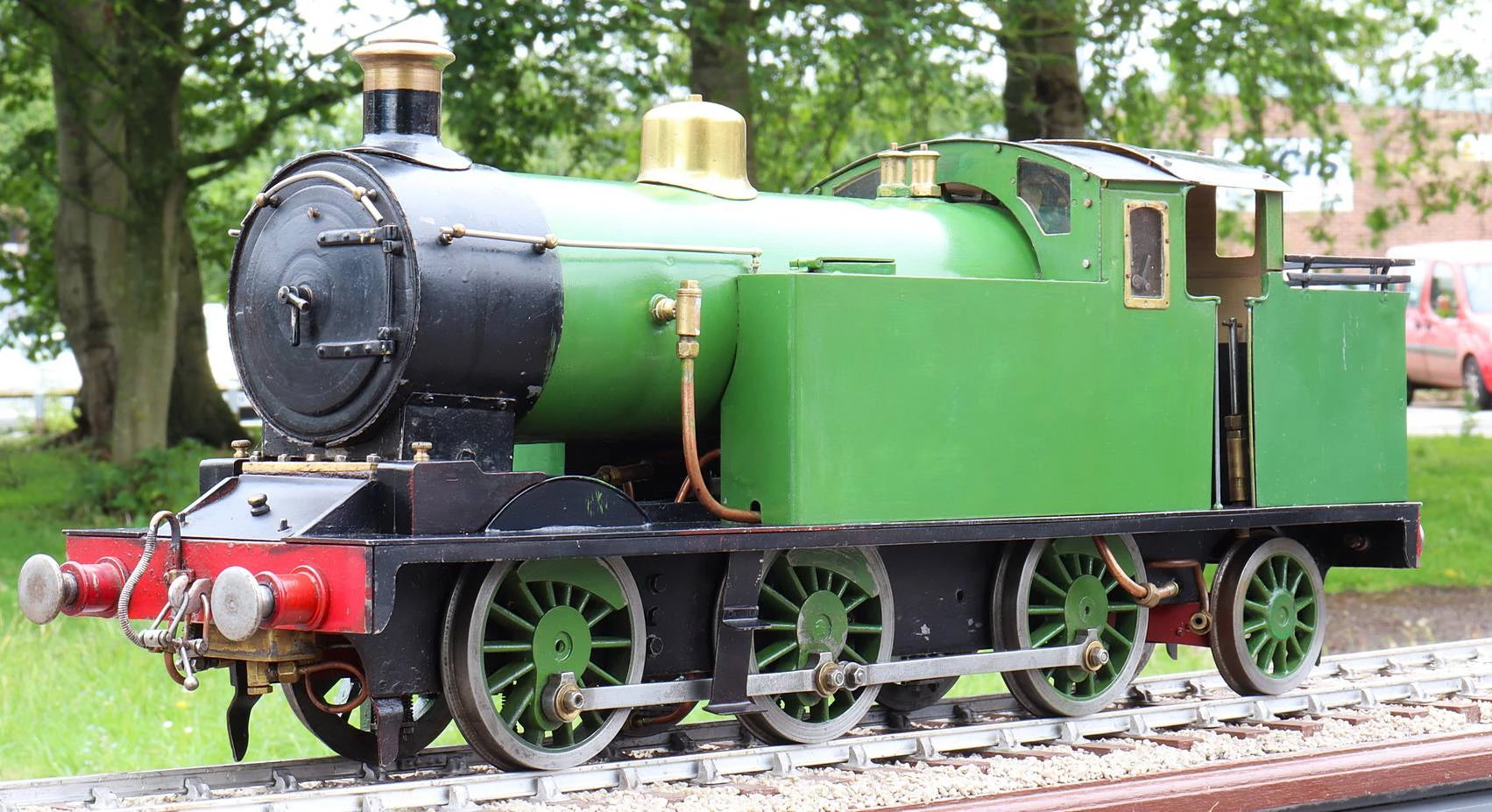

A venerable example of a 3 1/2 inch gauge 0-6-2T to LBSC's "Mona" design.

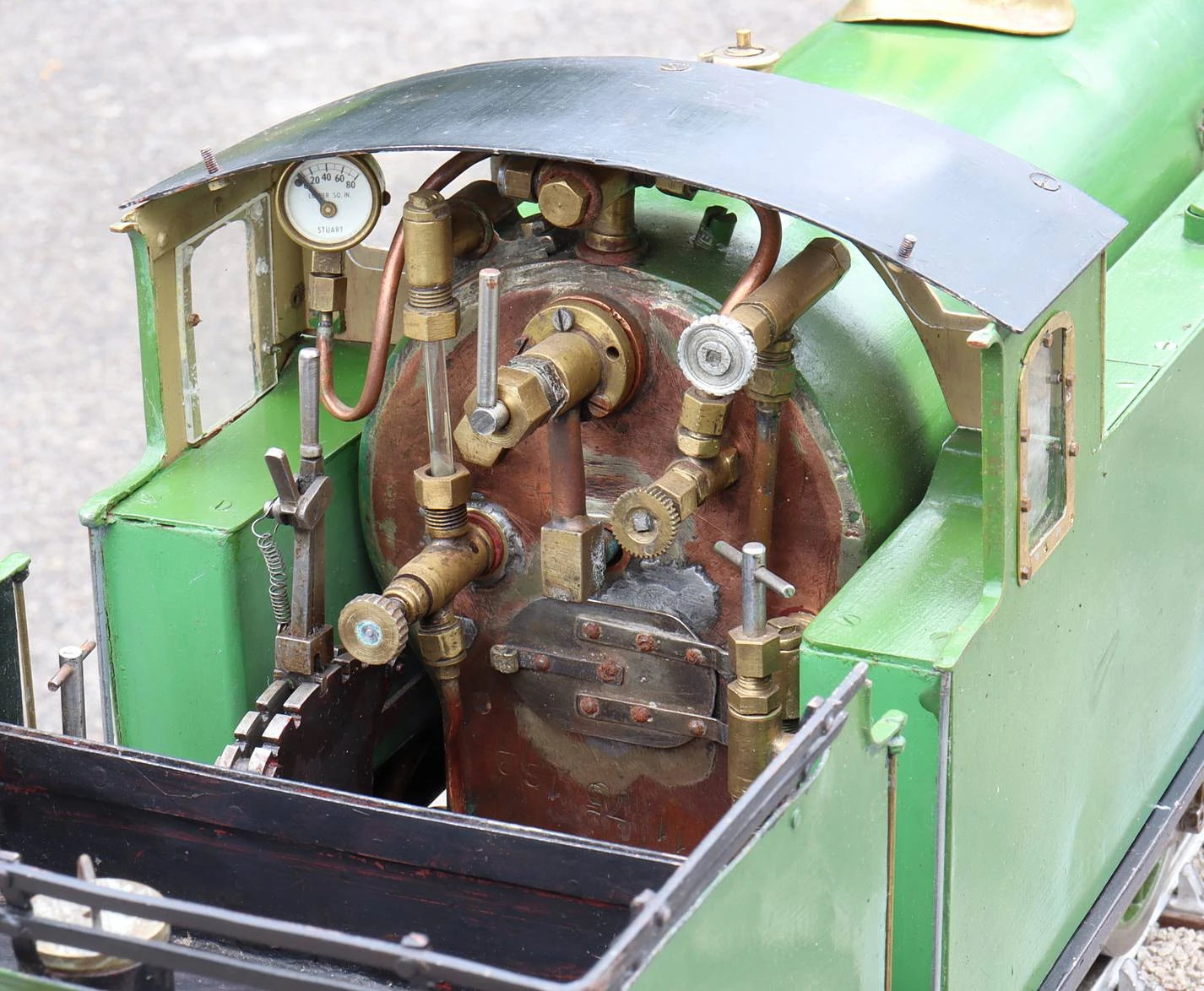

An older engine, the silver soldered copper boiler looks quite well made, although a multiplicity of leaks from dome, regulator and fittings precluded any meaningful hydraulic test.

On air there is leakage to exhaust, requiring attention to either valves, pistons or both.

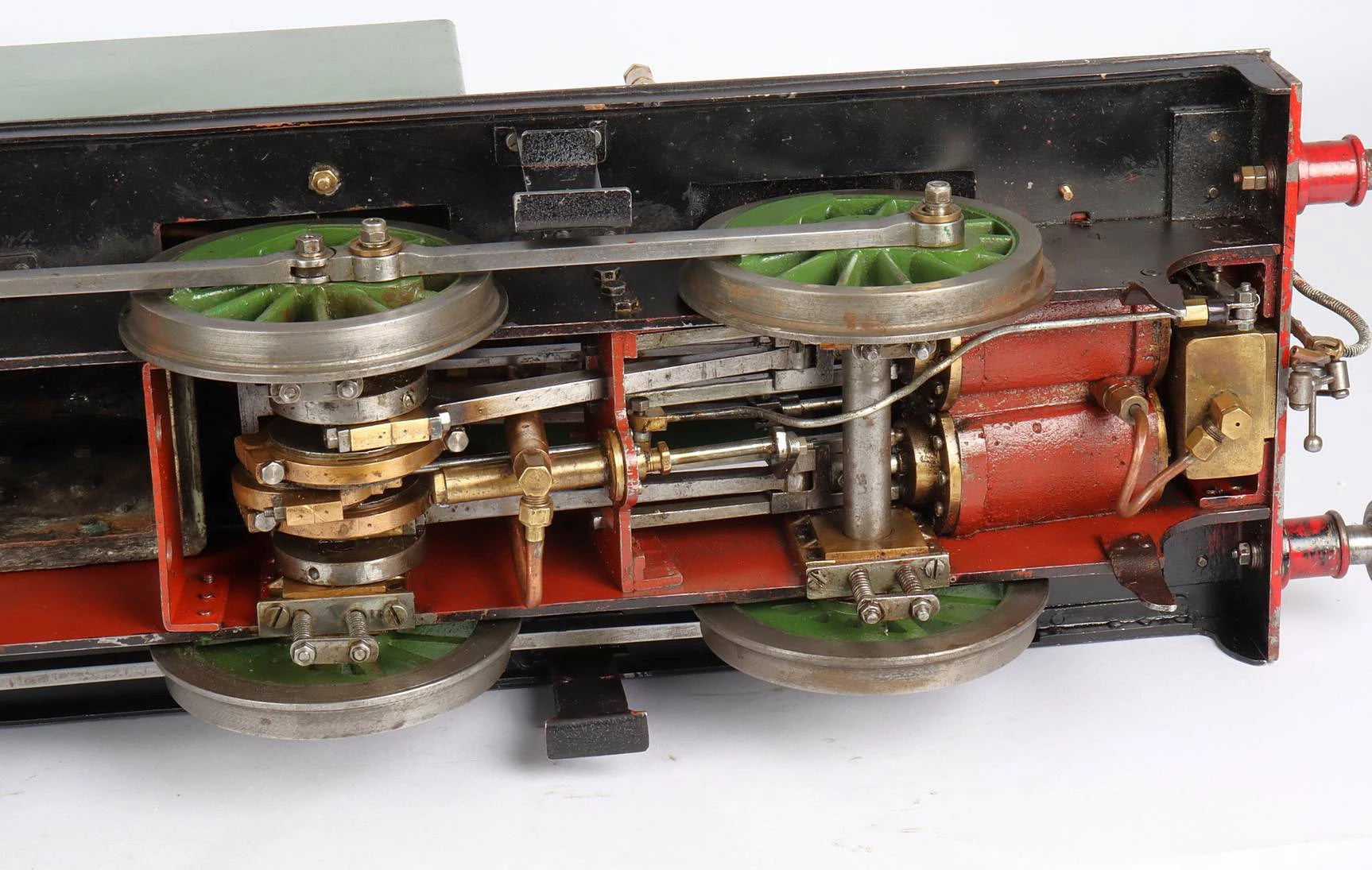

The chassis turns over with one tight spot - it appears to be the lubricator rod the lug driving the water pump from the crosshead.

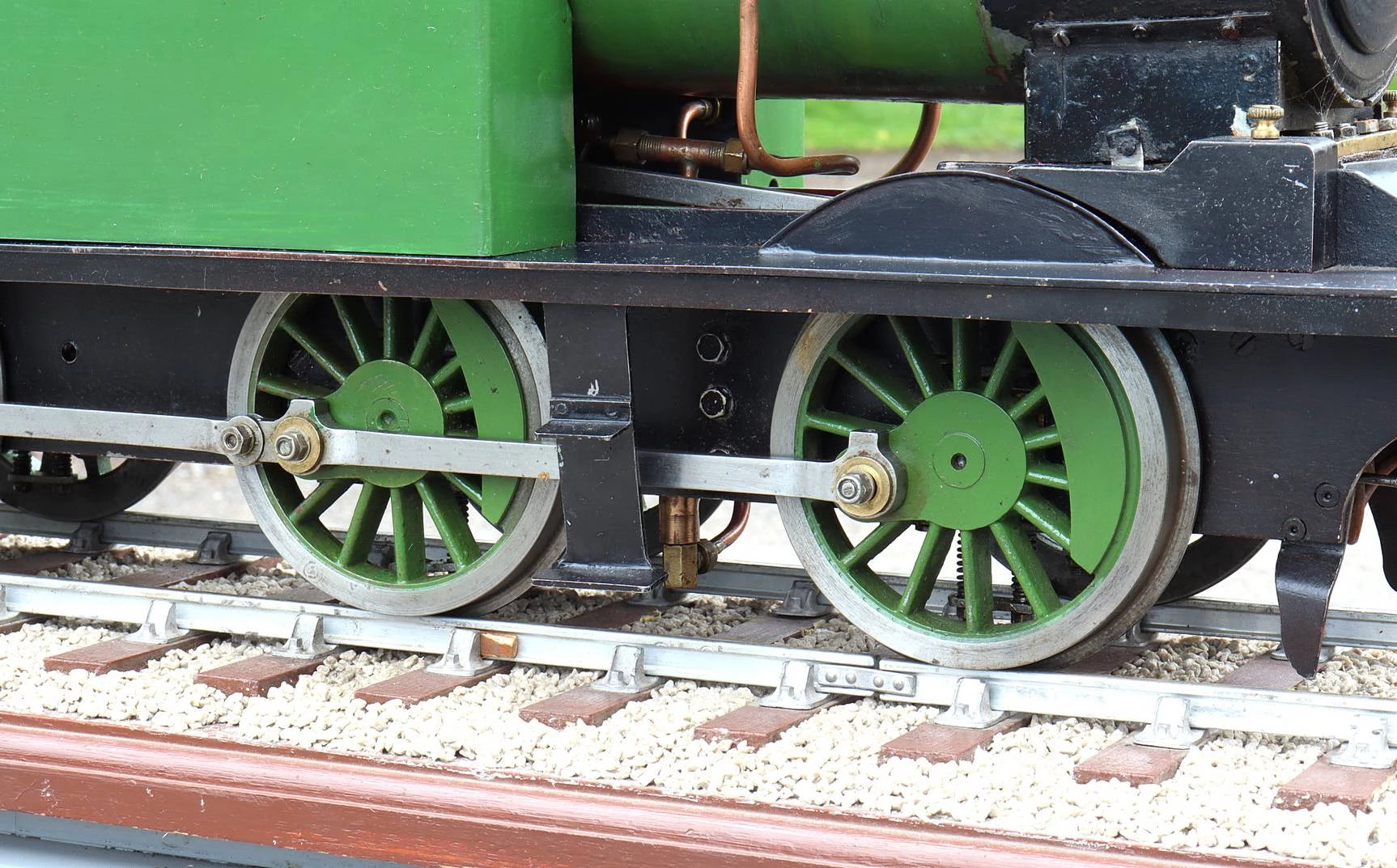

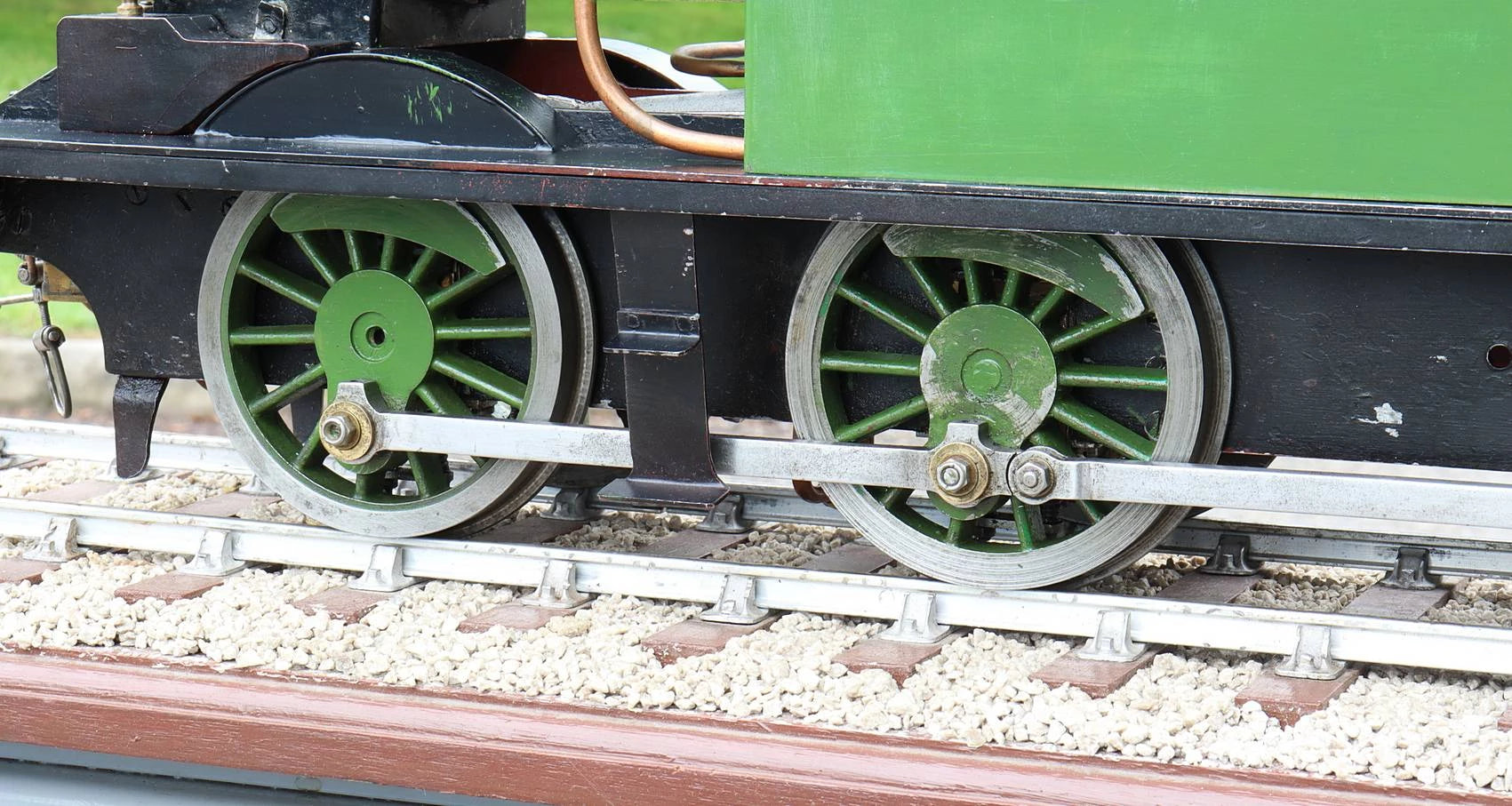

There is a small chip from the flange of one wheel; missing injector, grate and ashpan, the engine otherwise appears complete.

Technical information

Stock code

13392

Length/inches

27 1/2

Width/inches

7

Height/inches

10

Weight/Kg

19

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

Hackworth

Reverser type

pole

Lubricator type

displacement

Boiler maker

unknown

Boiler type

locomotive

Boiler construction

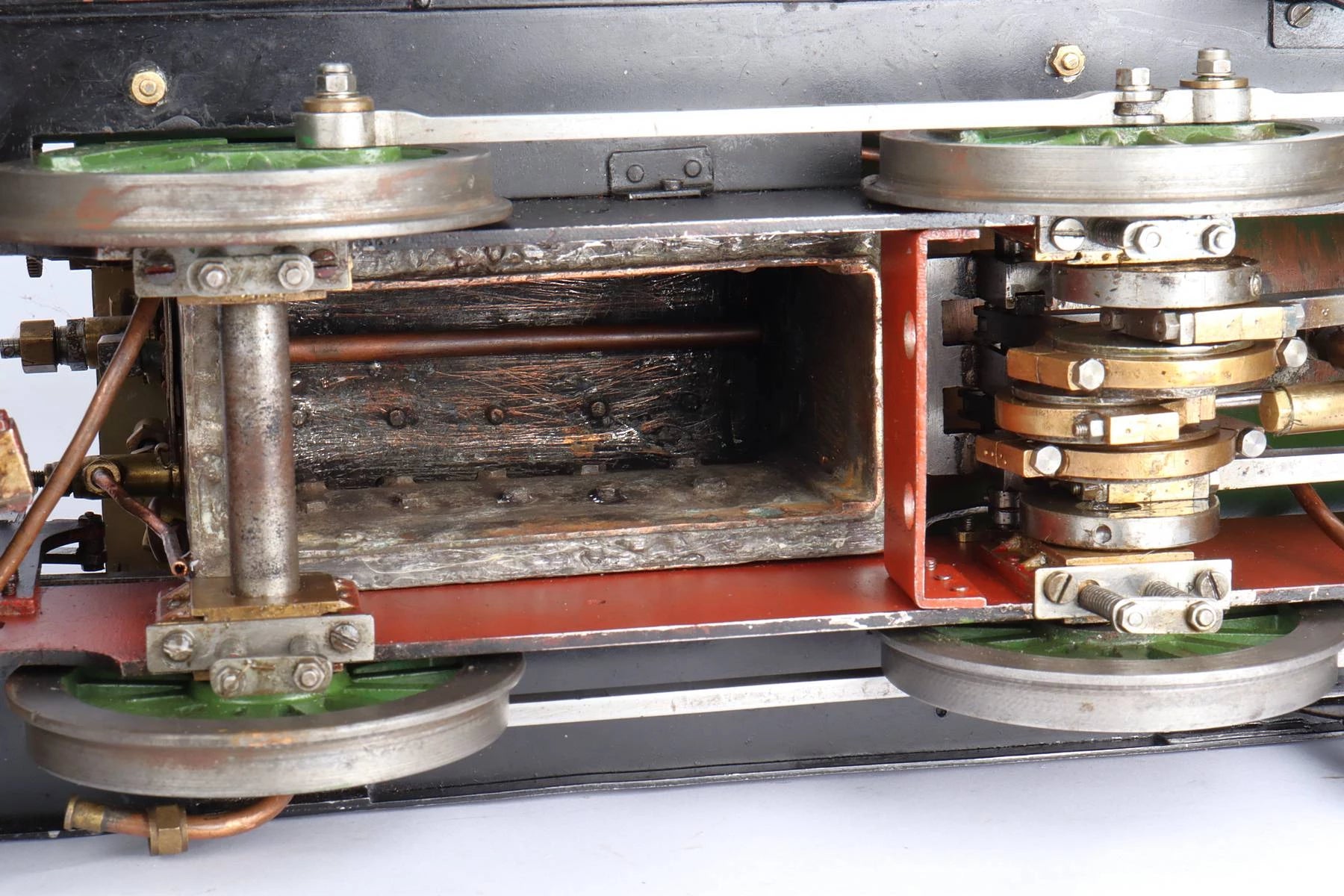

silver soldered with nutted and calked firebox

Boiler material

copper

CE/UKCA mark

n/a - non-commercial

Year built

unknown

Boiler number

N1175162

Safety valve type

spring

Safety valve

2

Hand pump

1

Mechanical pump

1
