10272

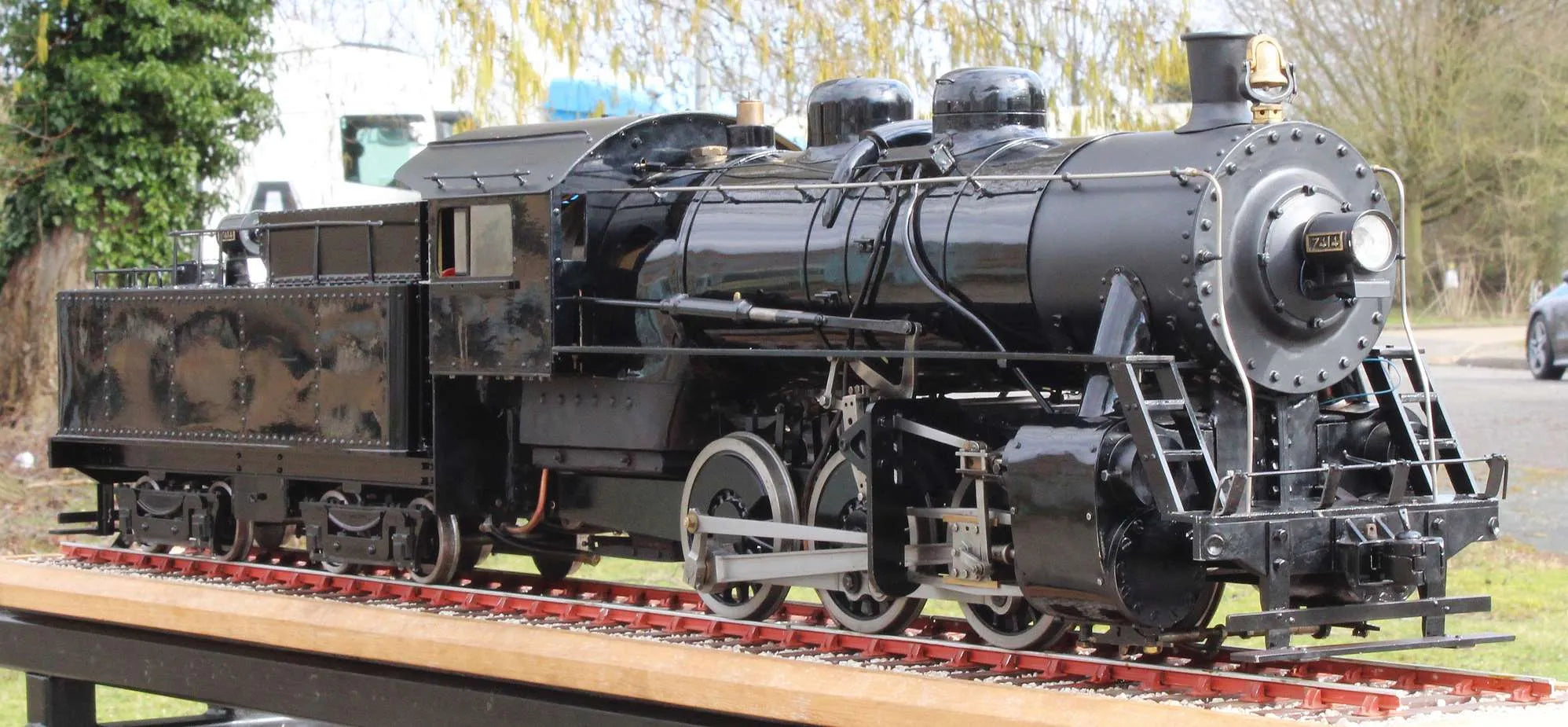

The engine runs well on air in both directions. On hydraulic test at twice working pressure the boiler appeared structurally sound, although with two leaking stays in the firebox which will require attention.
Stock code |
10272 |
Gauge |
3 1/2 inch |
Length/inches |
32+23 |
Width/inches |
9 |
Height/inches |
14 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
cast iron |
Valve type |
piston |

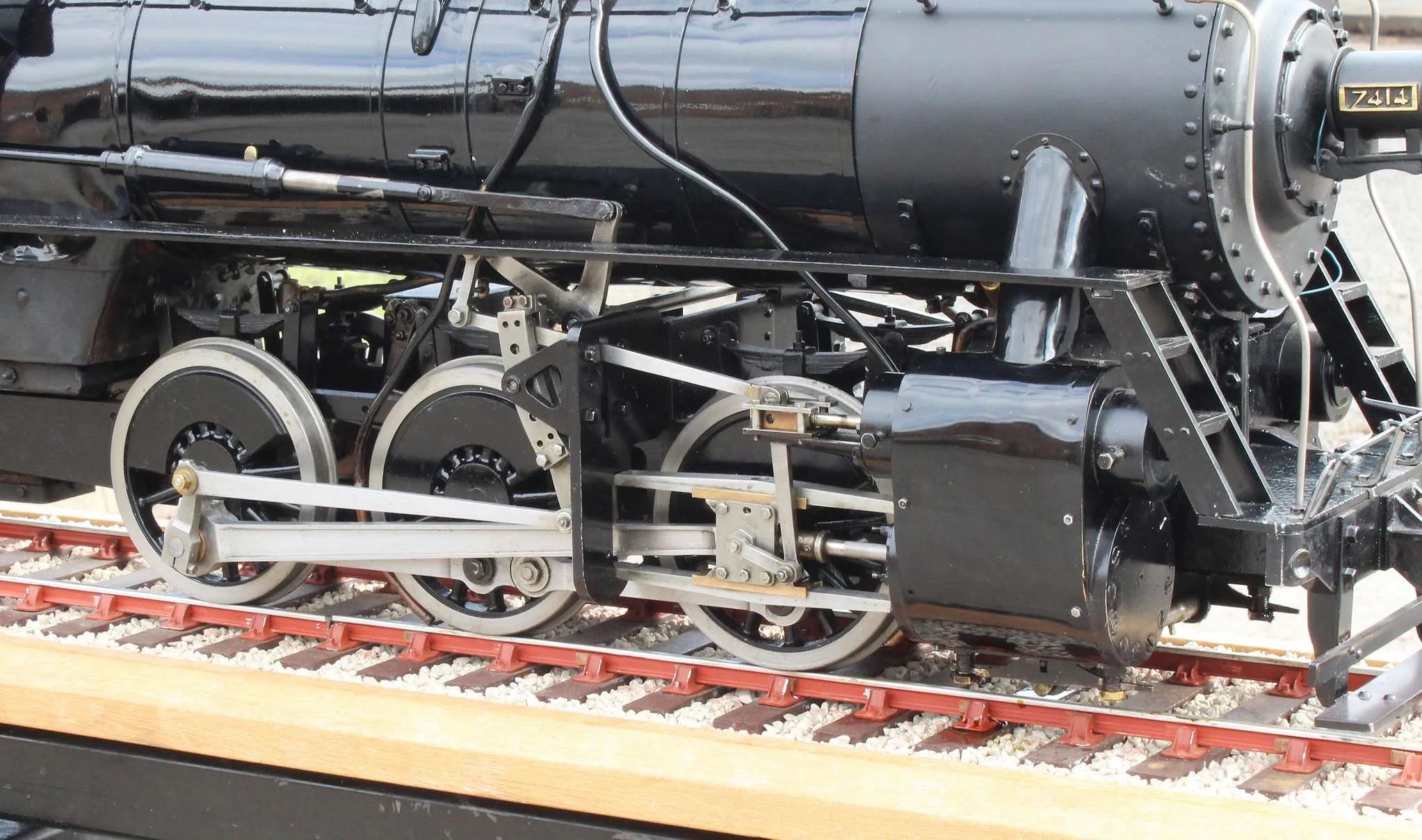

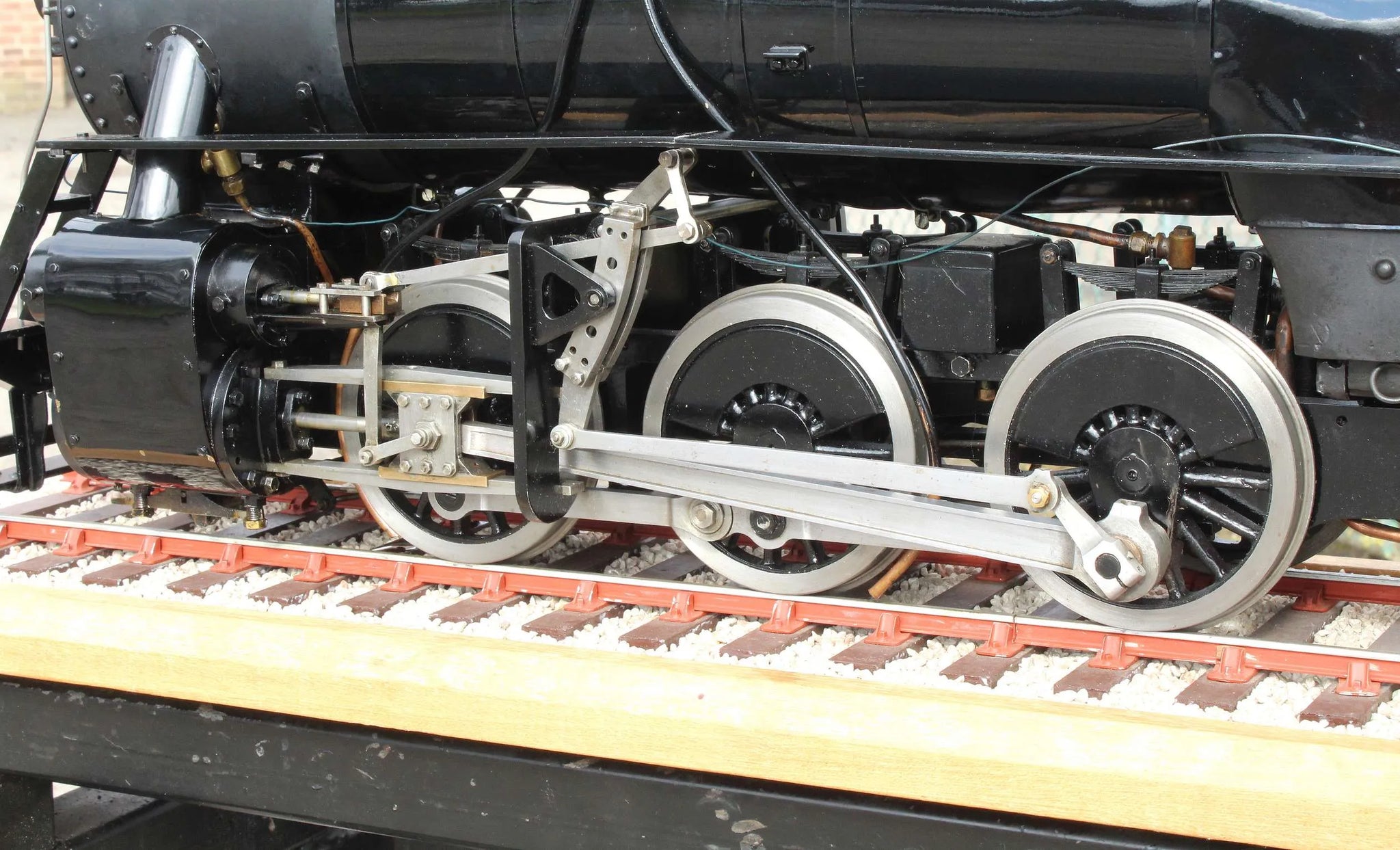

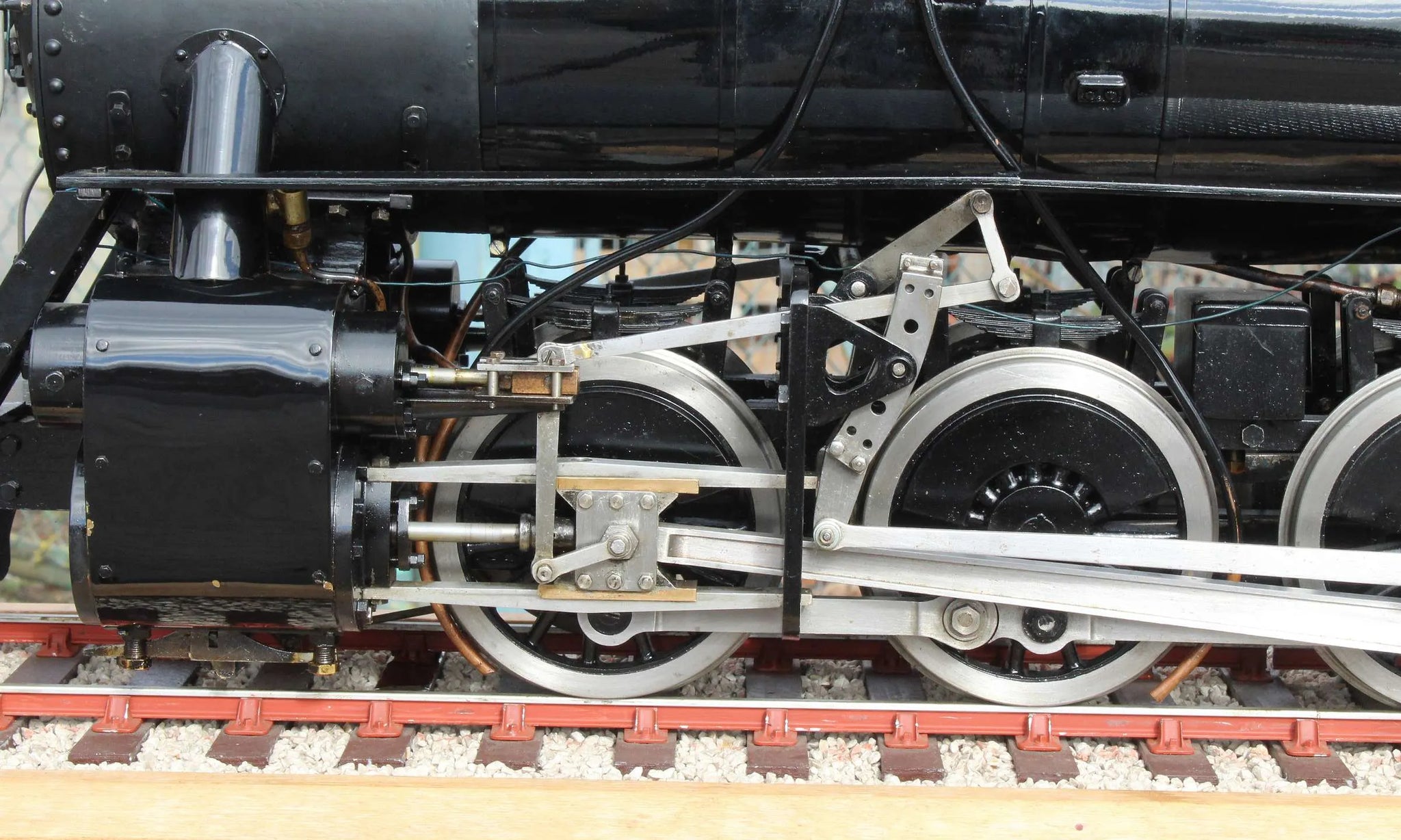

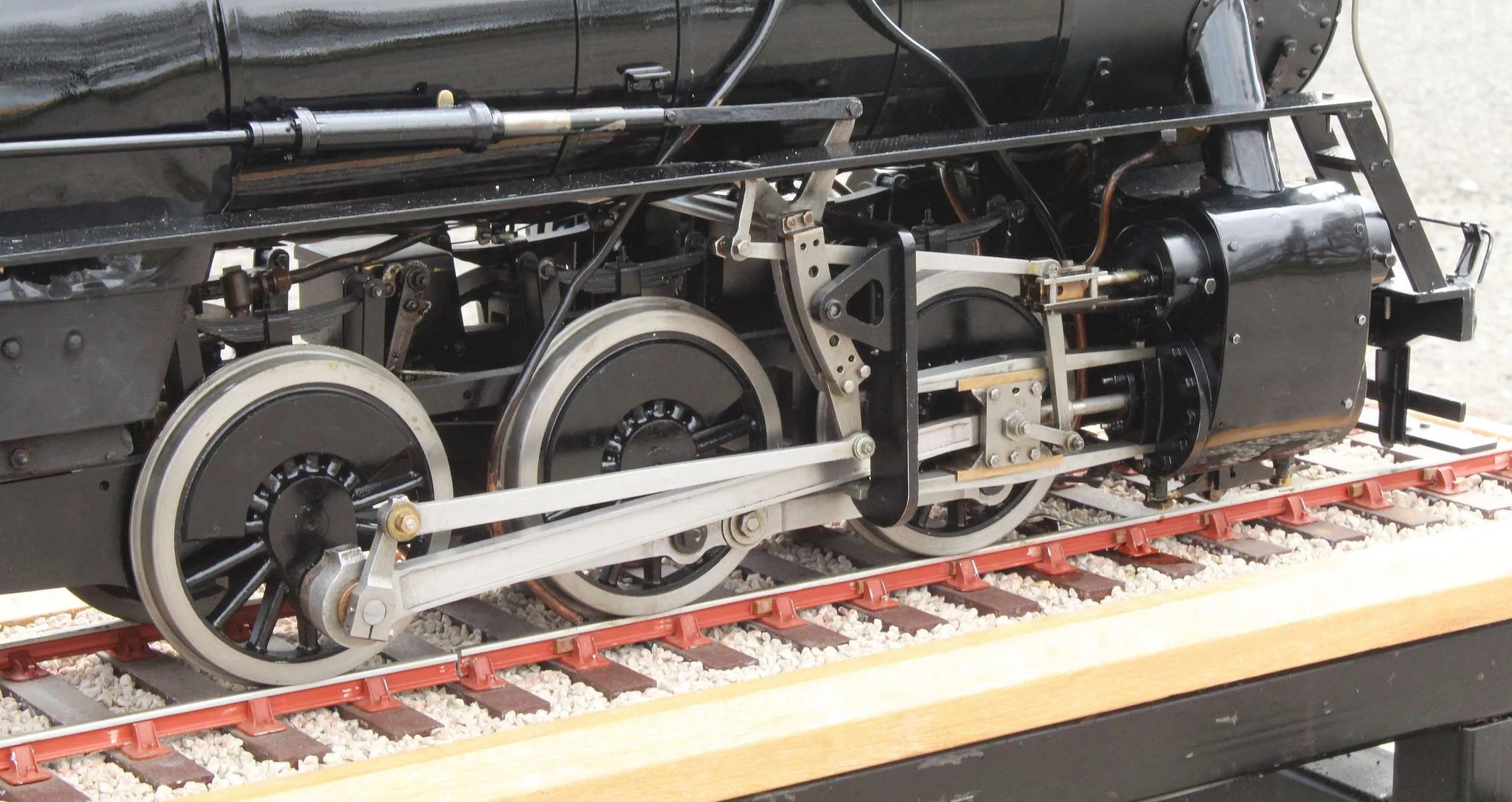

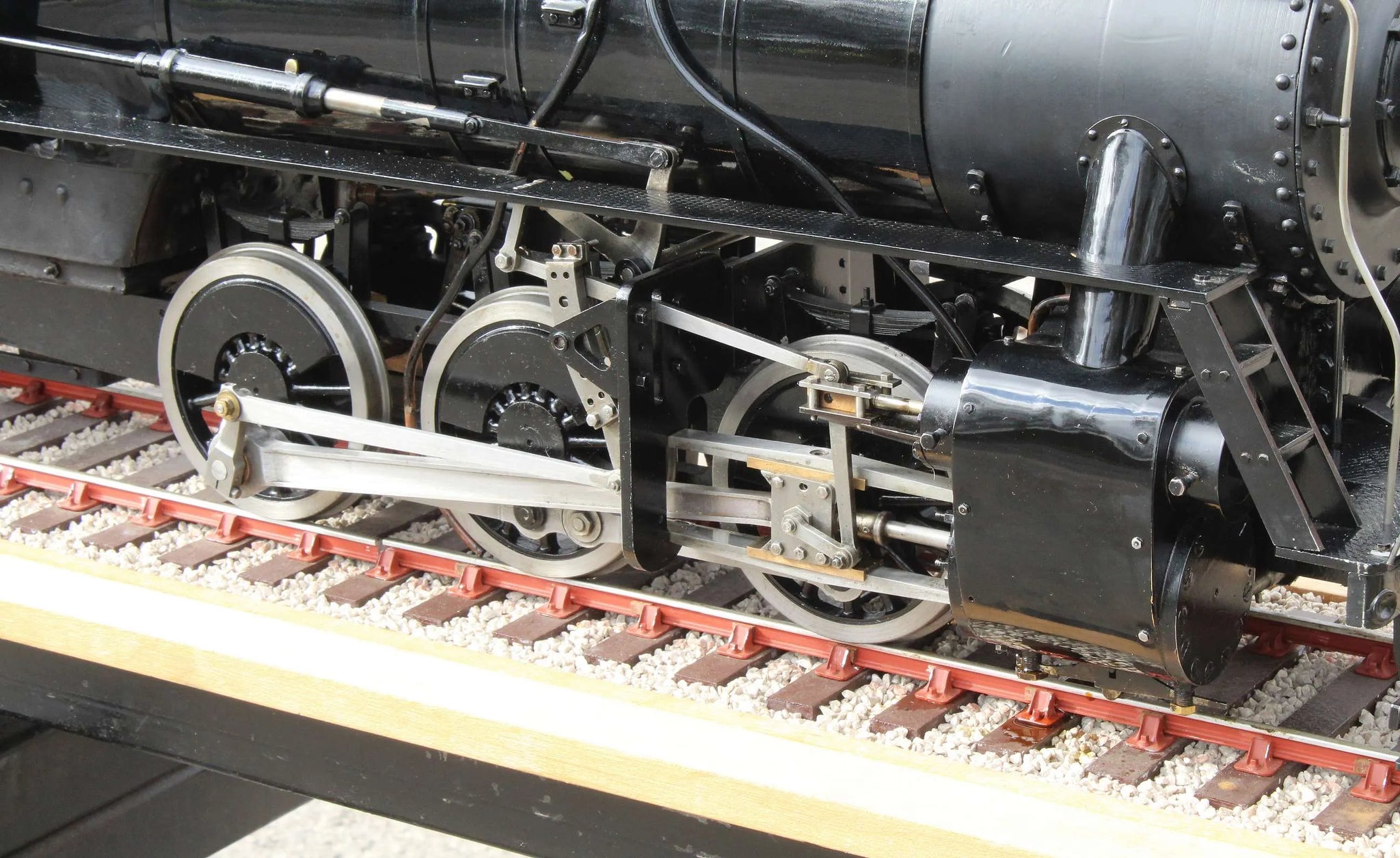

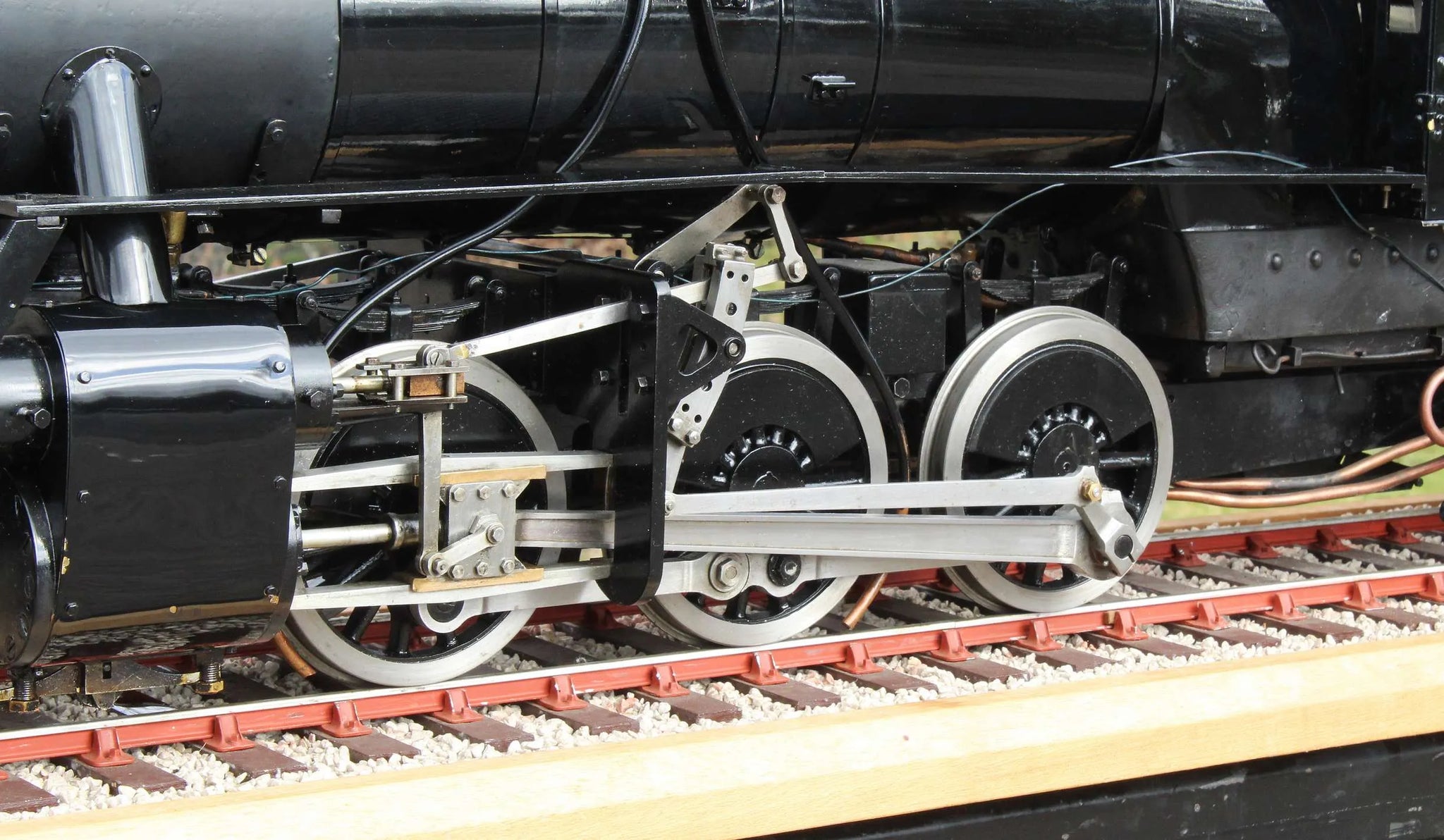

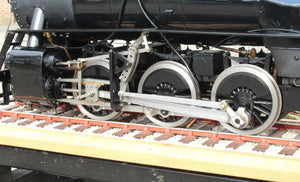

Valve gear |
Walschaerts |
Reverser type |
screw |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a - non-commercial |
Safety valve type |
spring |
Safety valve |
1 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
3 |
Date out |
Jun-22 |
