Sold

2818

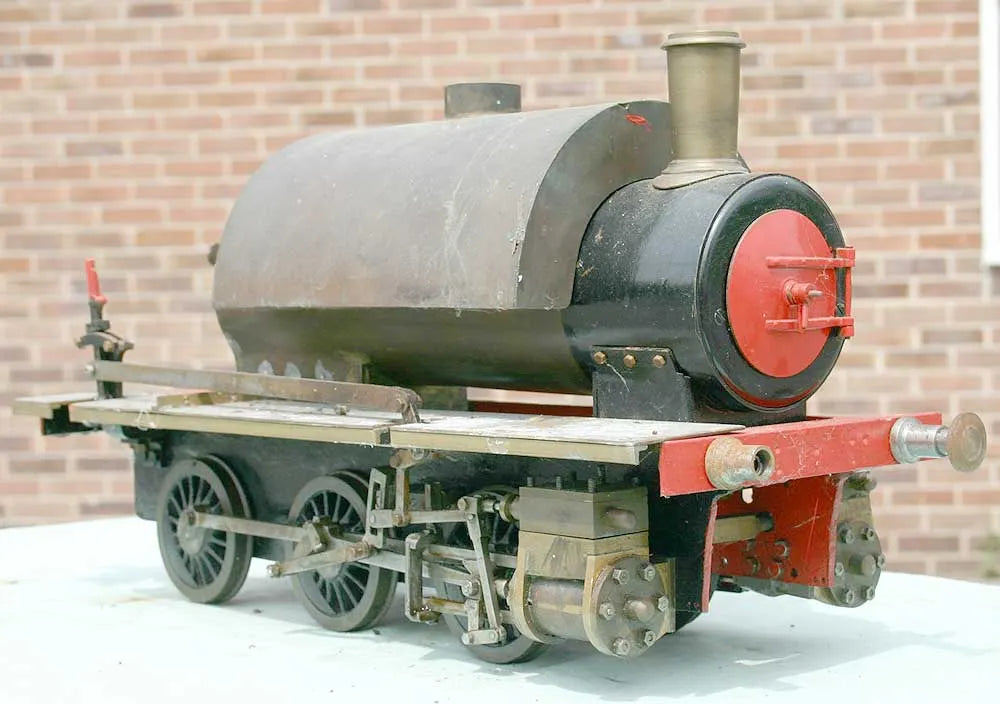

3 1/2 inch gauge 0-6-0 tank engine for completion

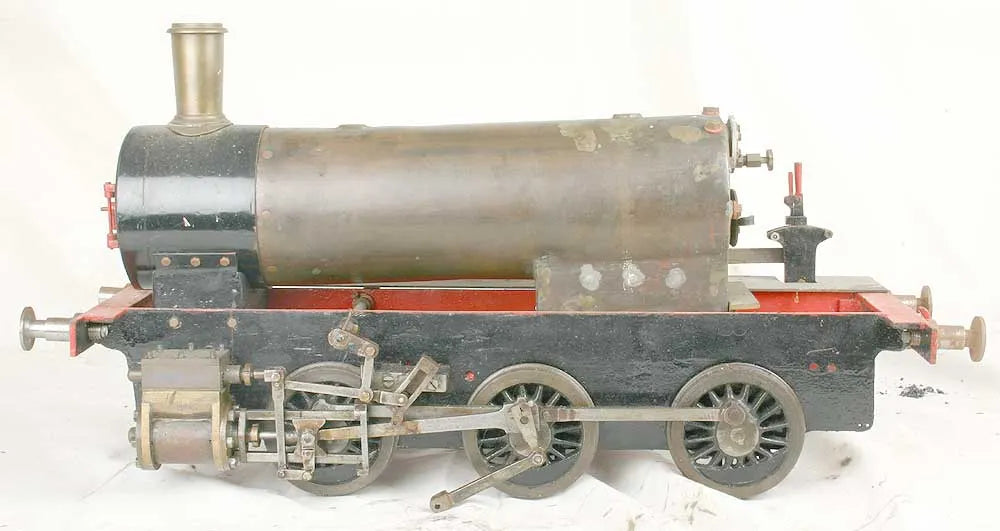

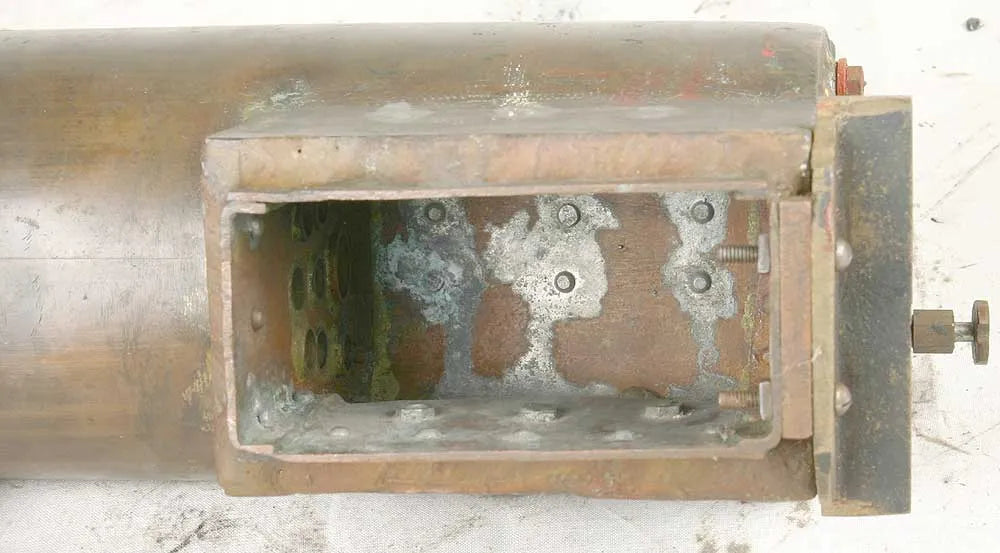

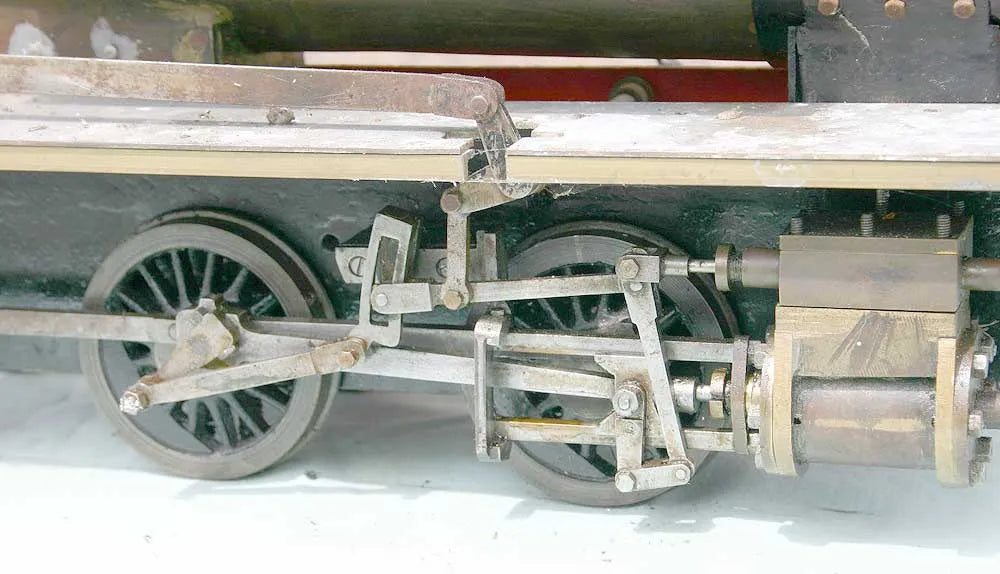

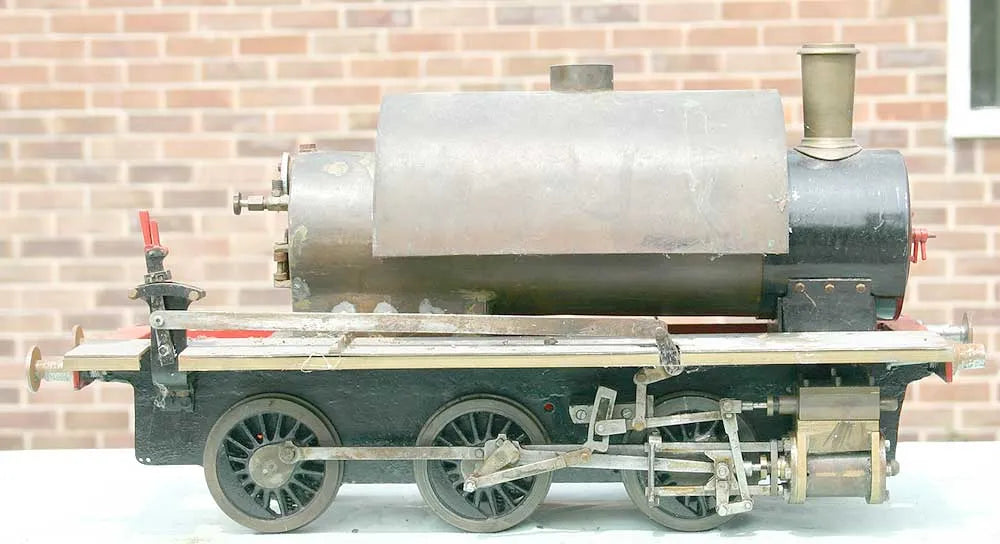

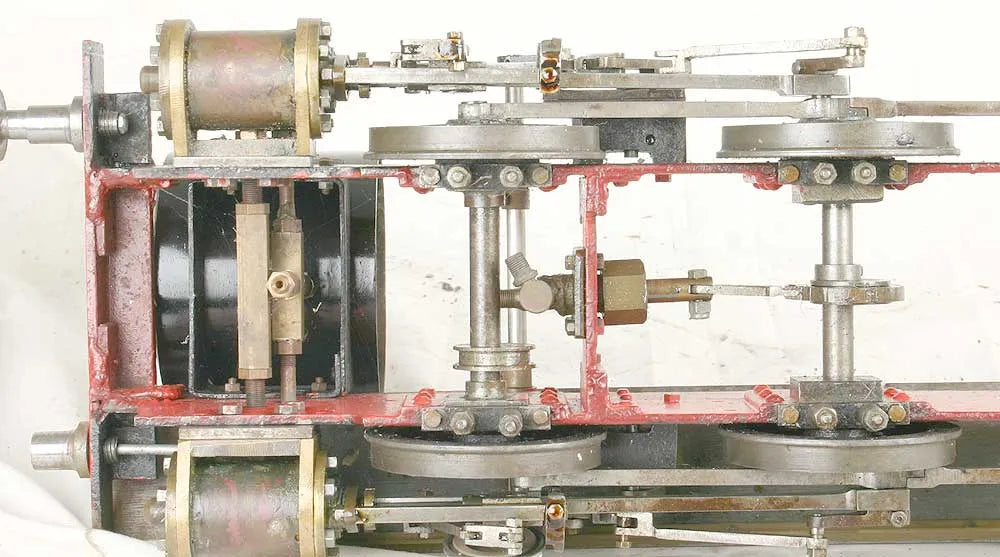

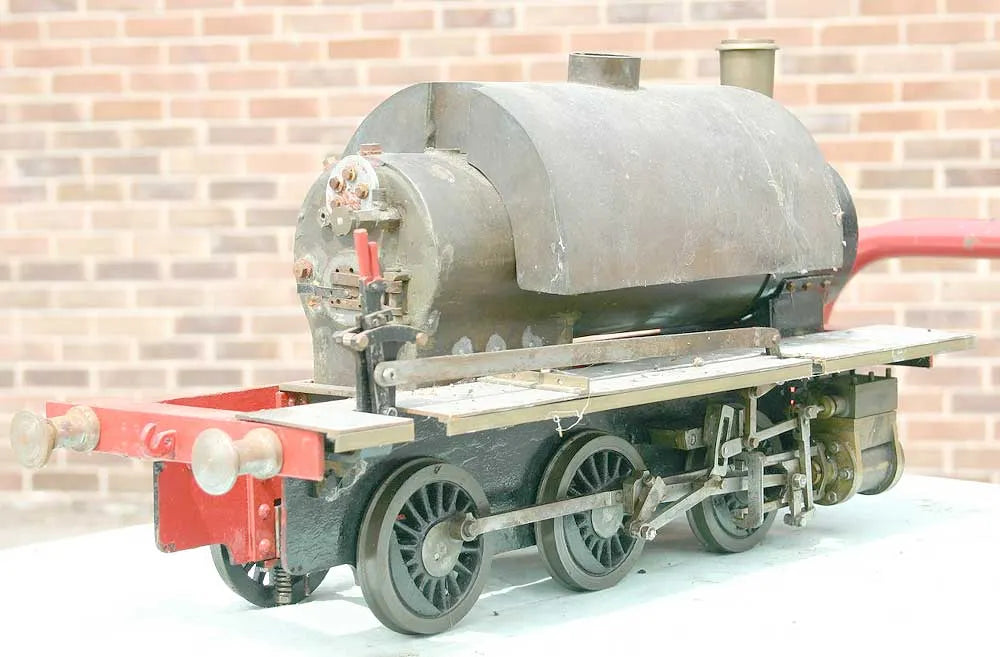

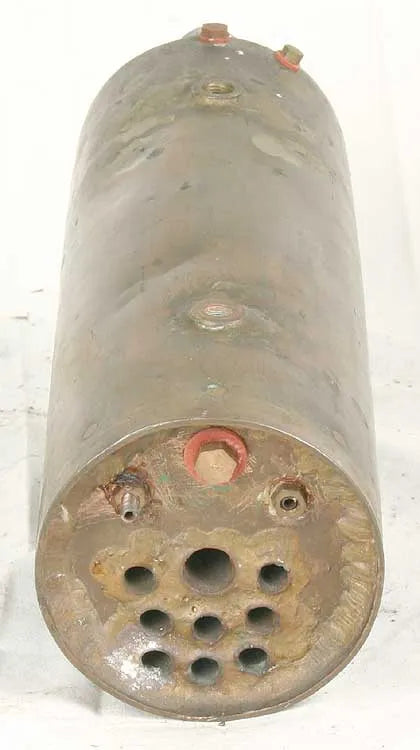

An interesting old engine, part of a "barn find" containing the ancient 4-4-0 I've also got in at the moment. It's never been run but is largely complete - the chassis turns over easily and looks as if it would run with the addition of a pin for the near side radius rod to expansion link joint. The boiler is copper - I have hydraulic tested it at 160psi at which it appears structurally sound. There are two tiny weeps, one from a crown stay inside the firebox, the other from a foundation ring rivet on the outside, both would be easy to calk to give a usable boiler.

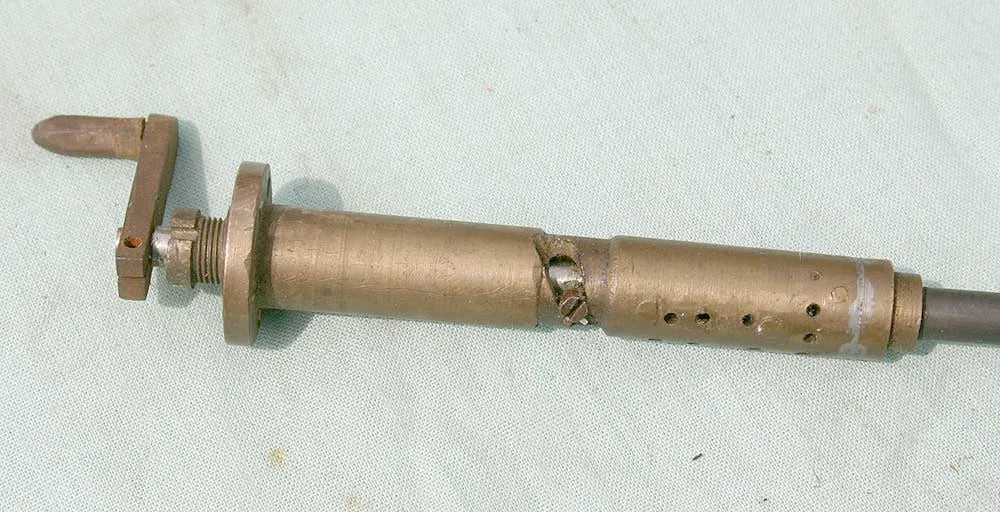

There is a regulator to fit the boiler and a few other odds and sods. The grate casting is too wide but the right length - it could be cut down to fit.

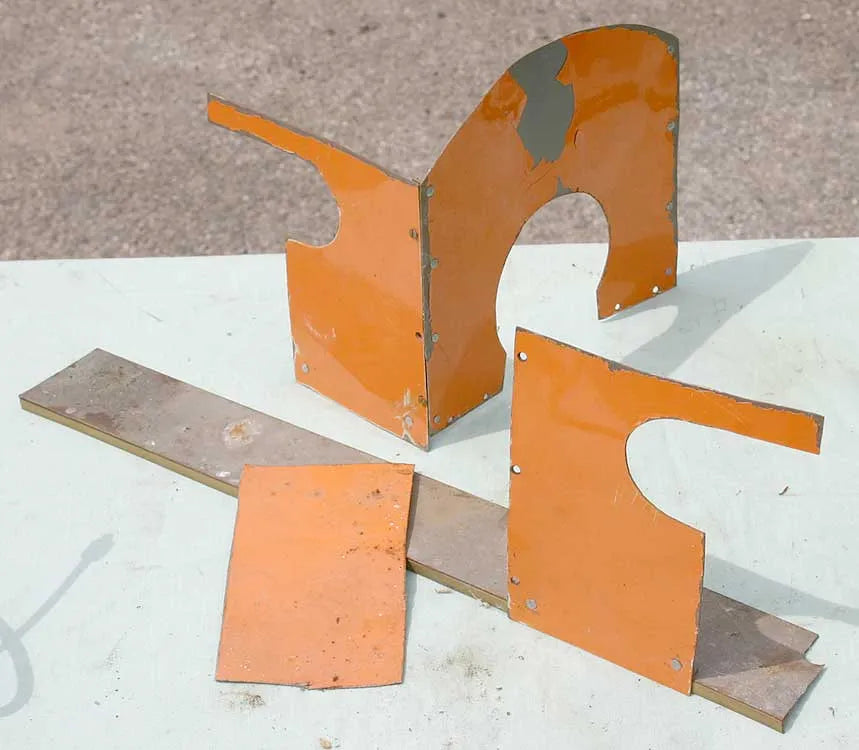

The chassis and boiler look quite old, the orange painted tinware for cab and running boards are more contemporary.

Technical information

Stock code

2818

Gauge

3 1/2 inch

Date out

Feb-07
