9534

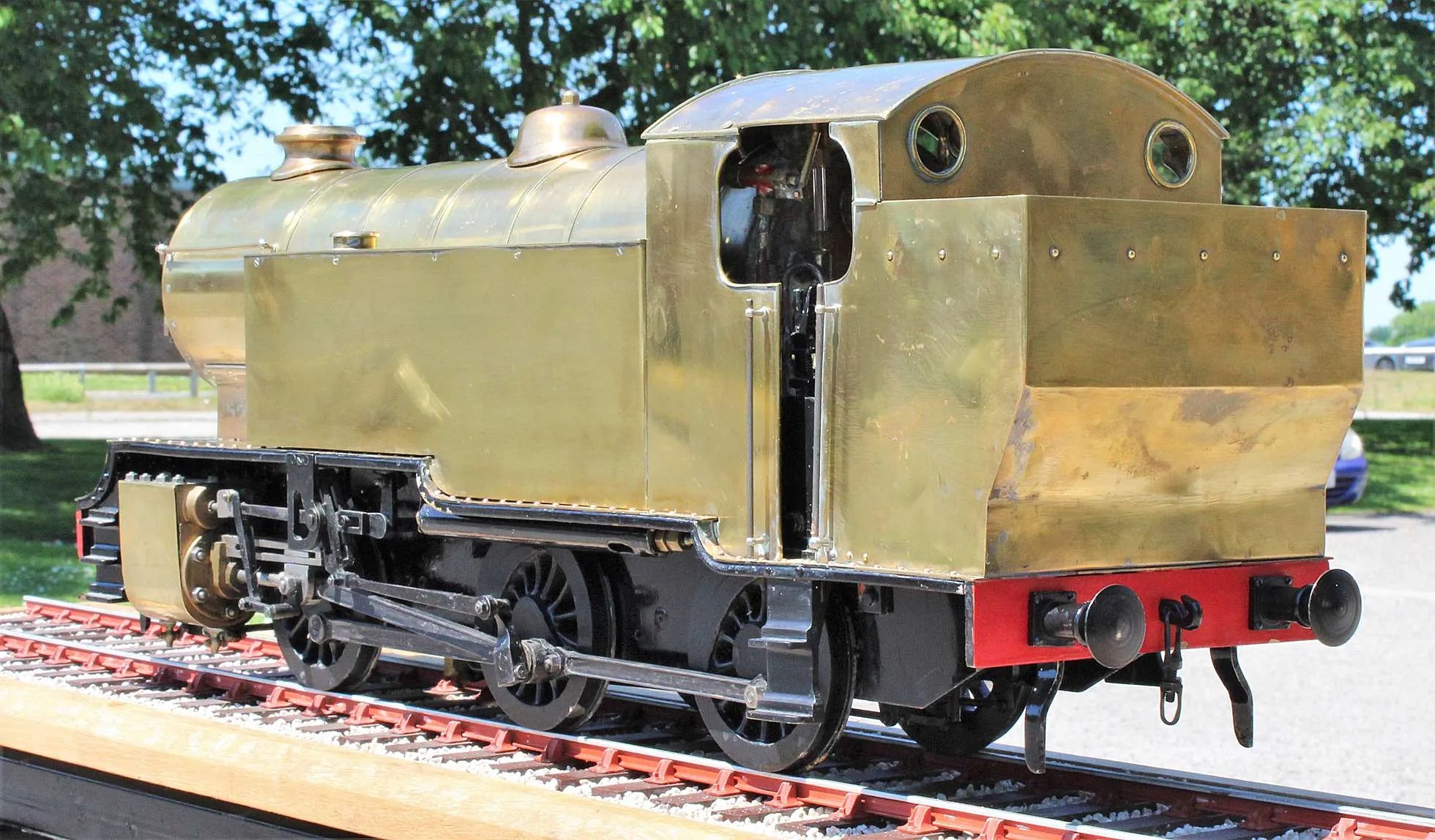

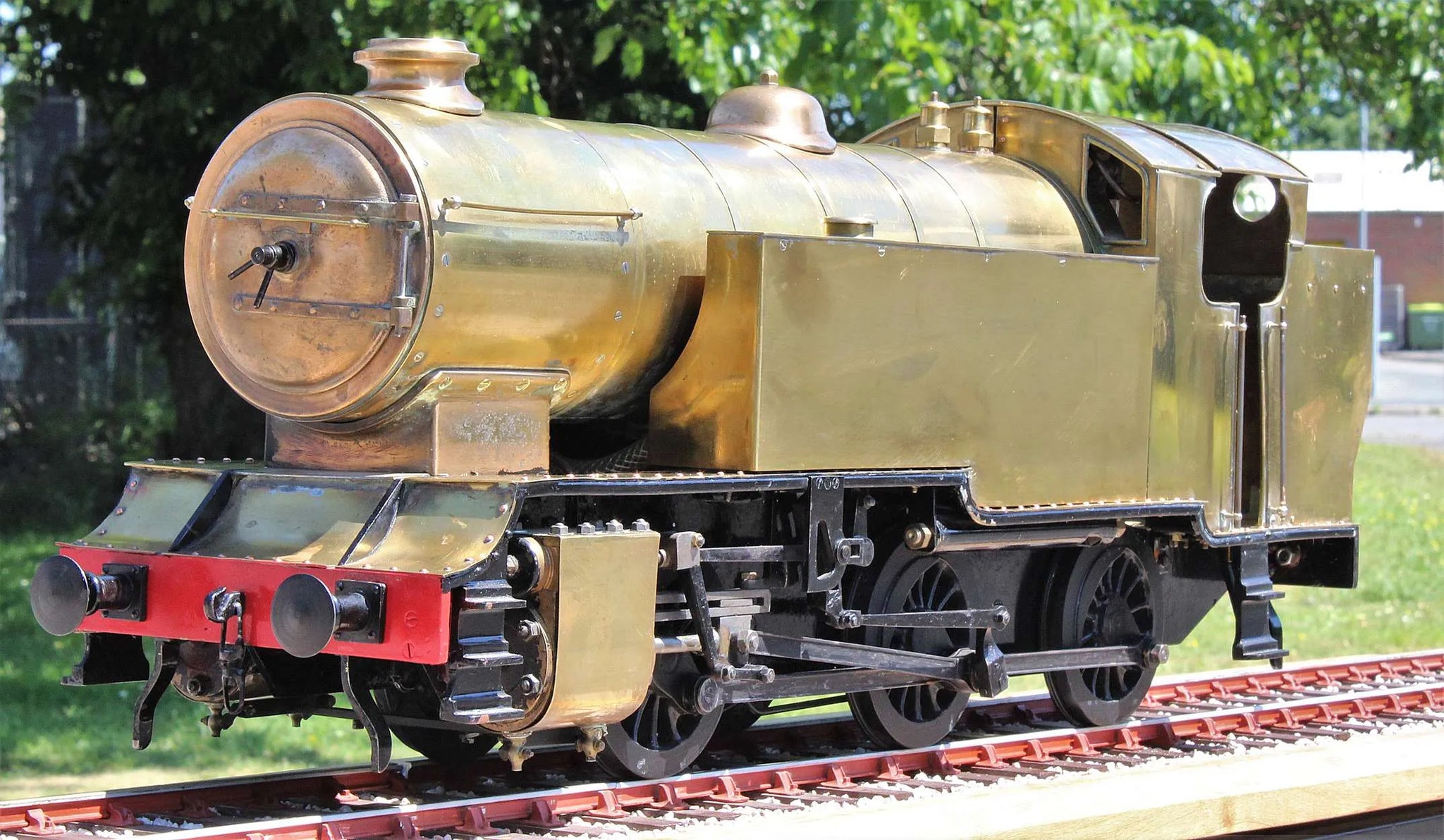

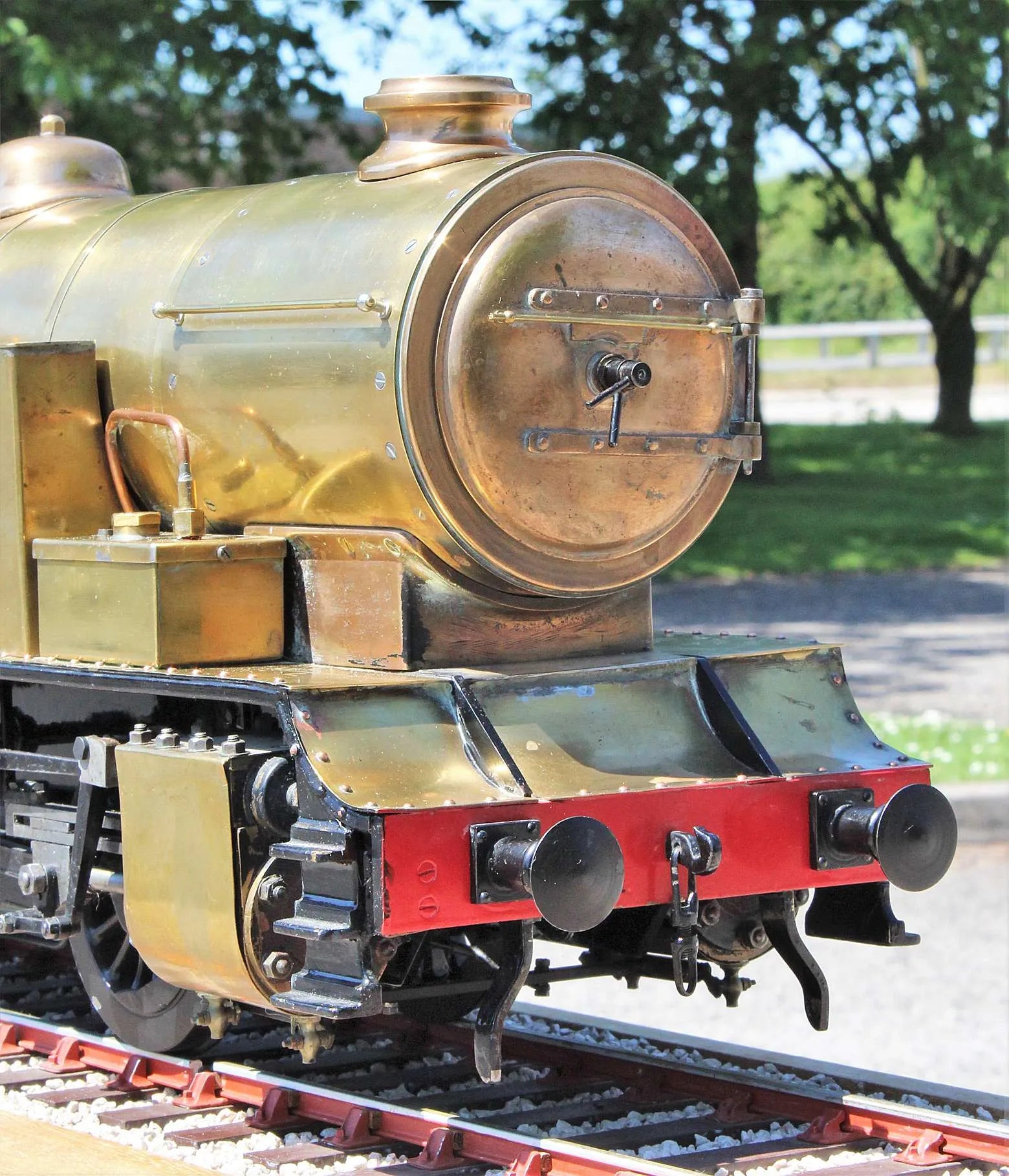

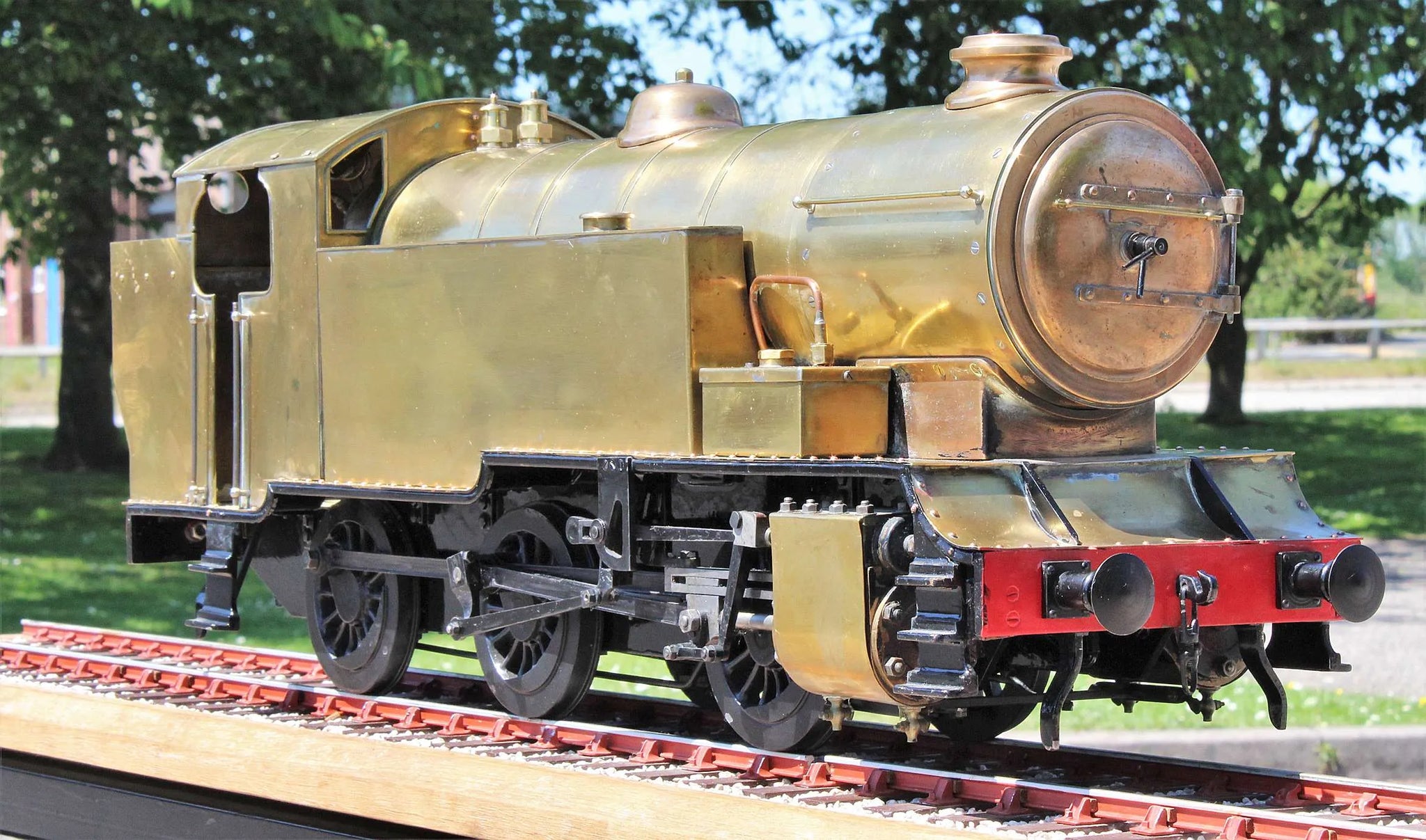

A complete although as yet unpainted model, this one appears to have been in store for many years. Chassis is currently seized, although we suspect would free off easily with attention to cylinders.

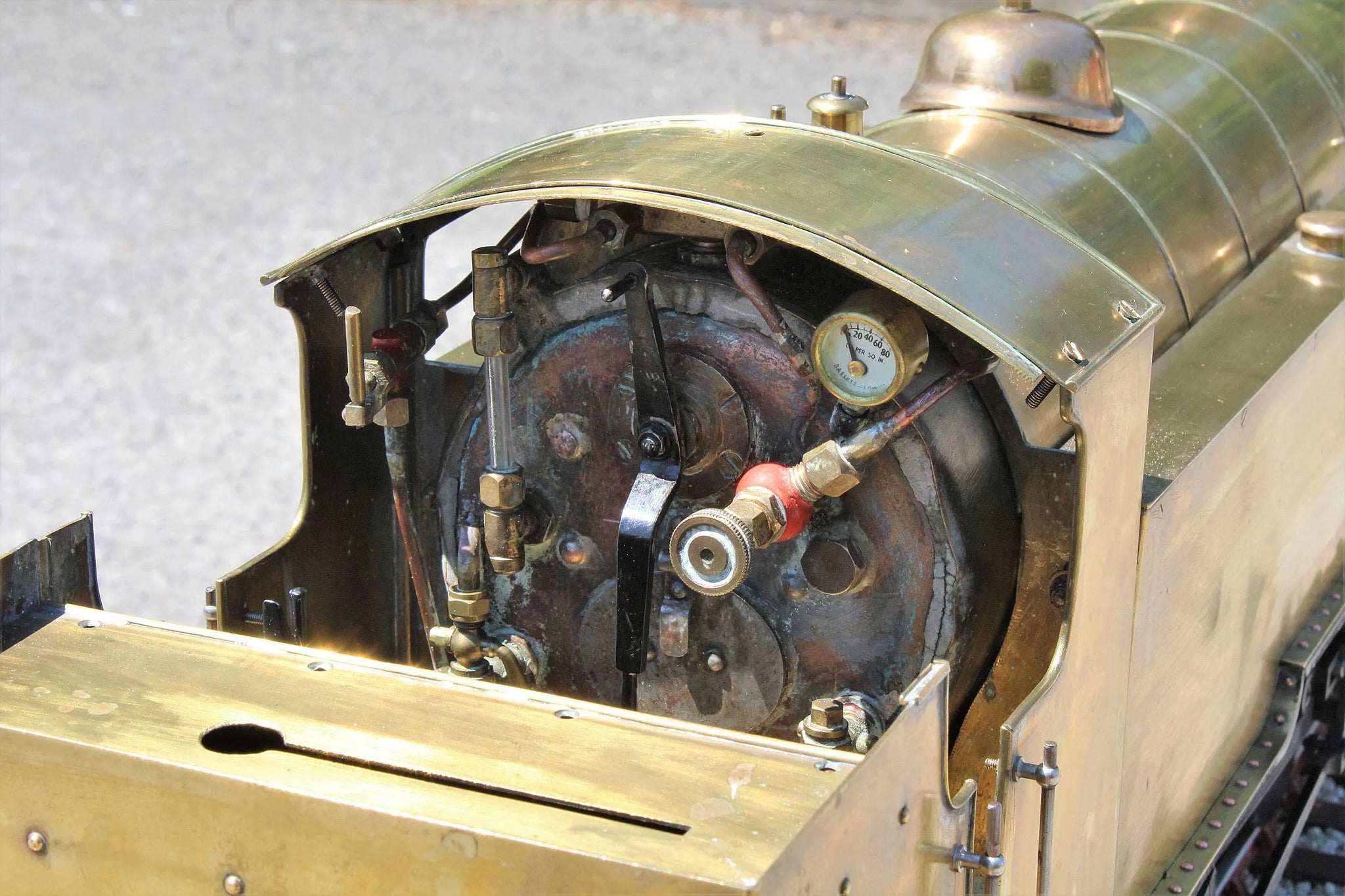

Boiler has had a twice working pressure hydraulic test with certification for same.
Stock code |
9534 |
Gauge |
3 1/2 inch |
Length/inches |
29 |
Width/inches |
7 |
Height/inches |
11.5 |
Weight/Kg |
24.5 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |

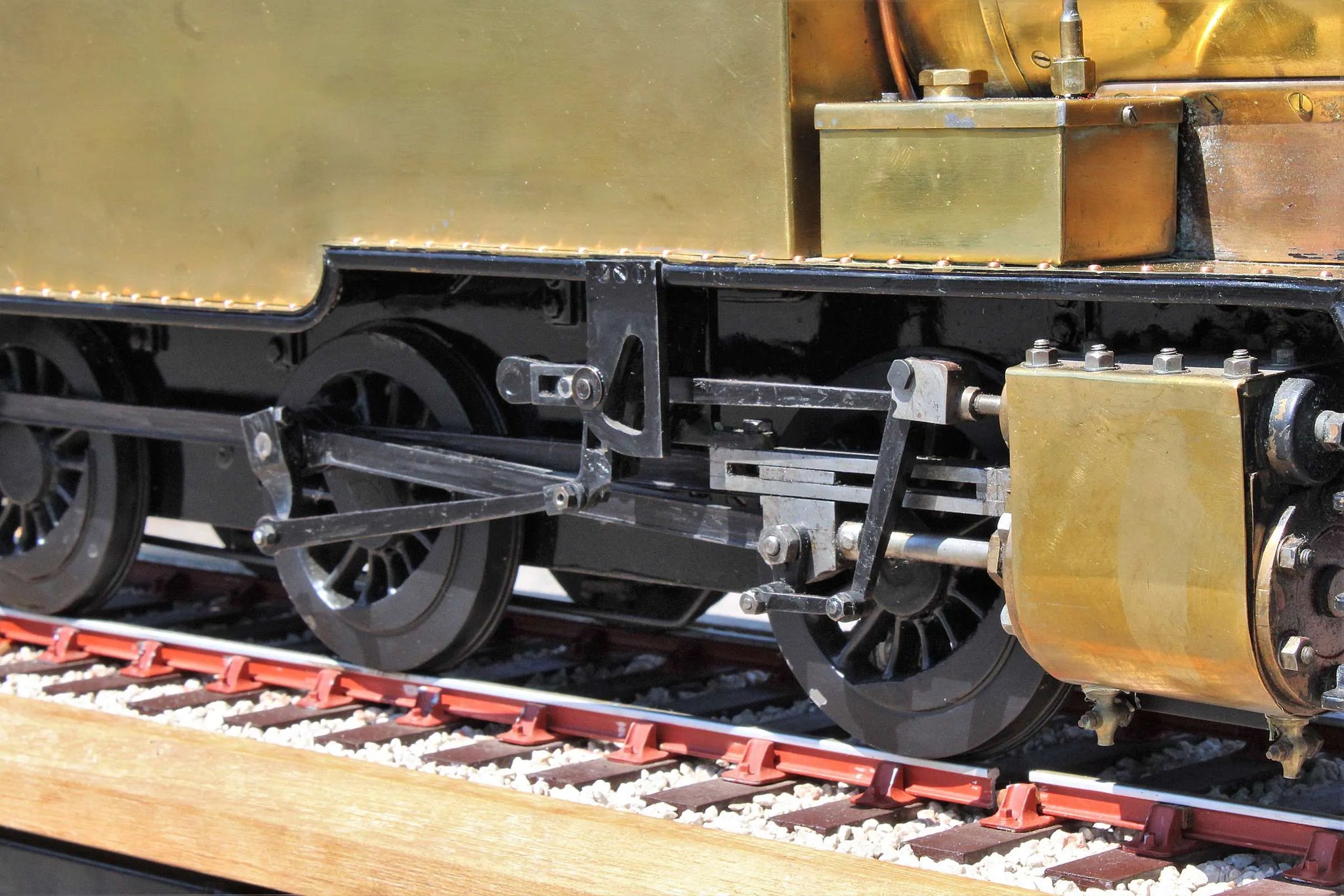

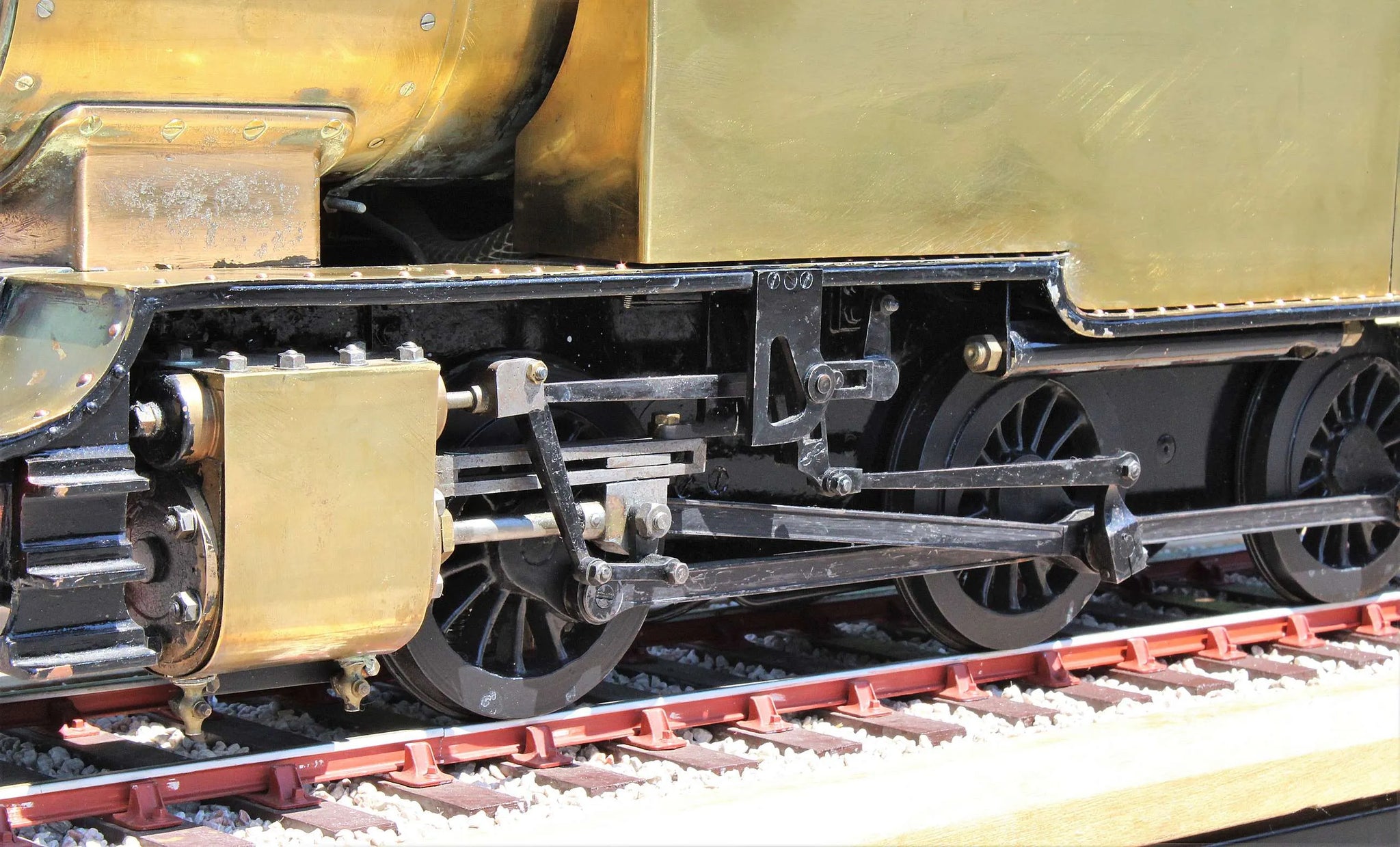

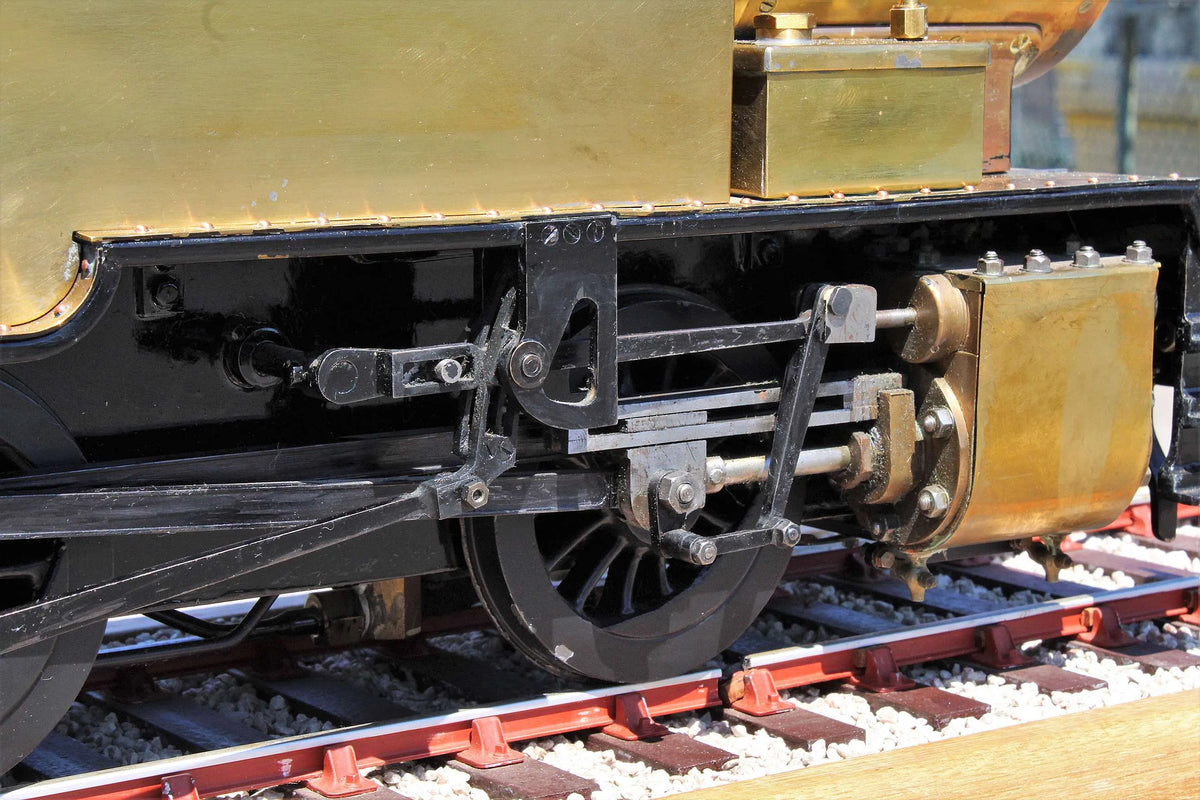

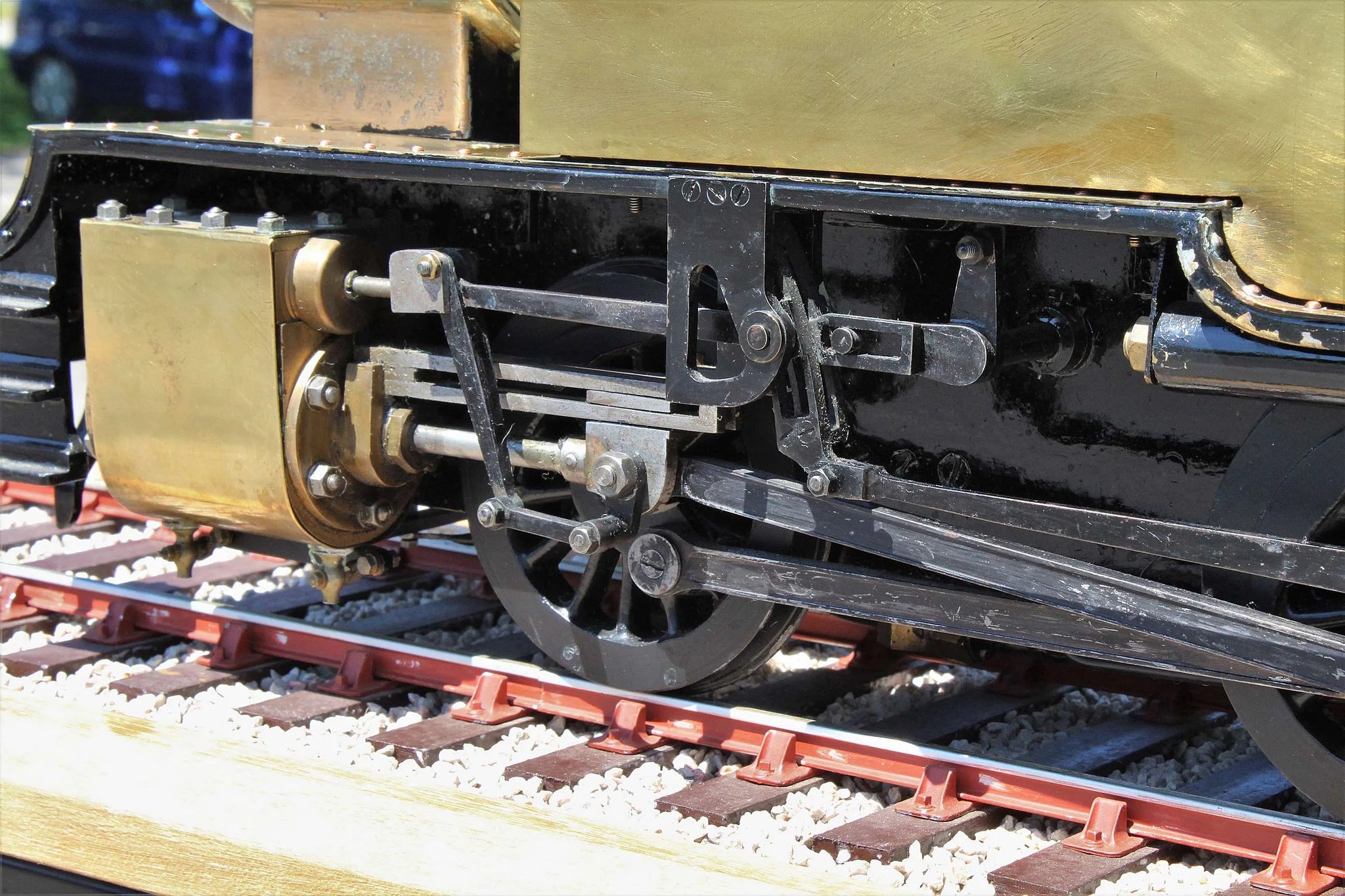

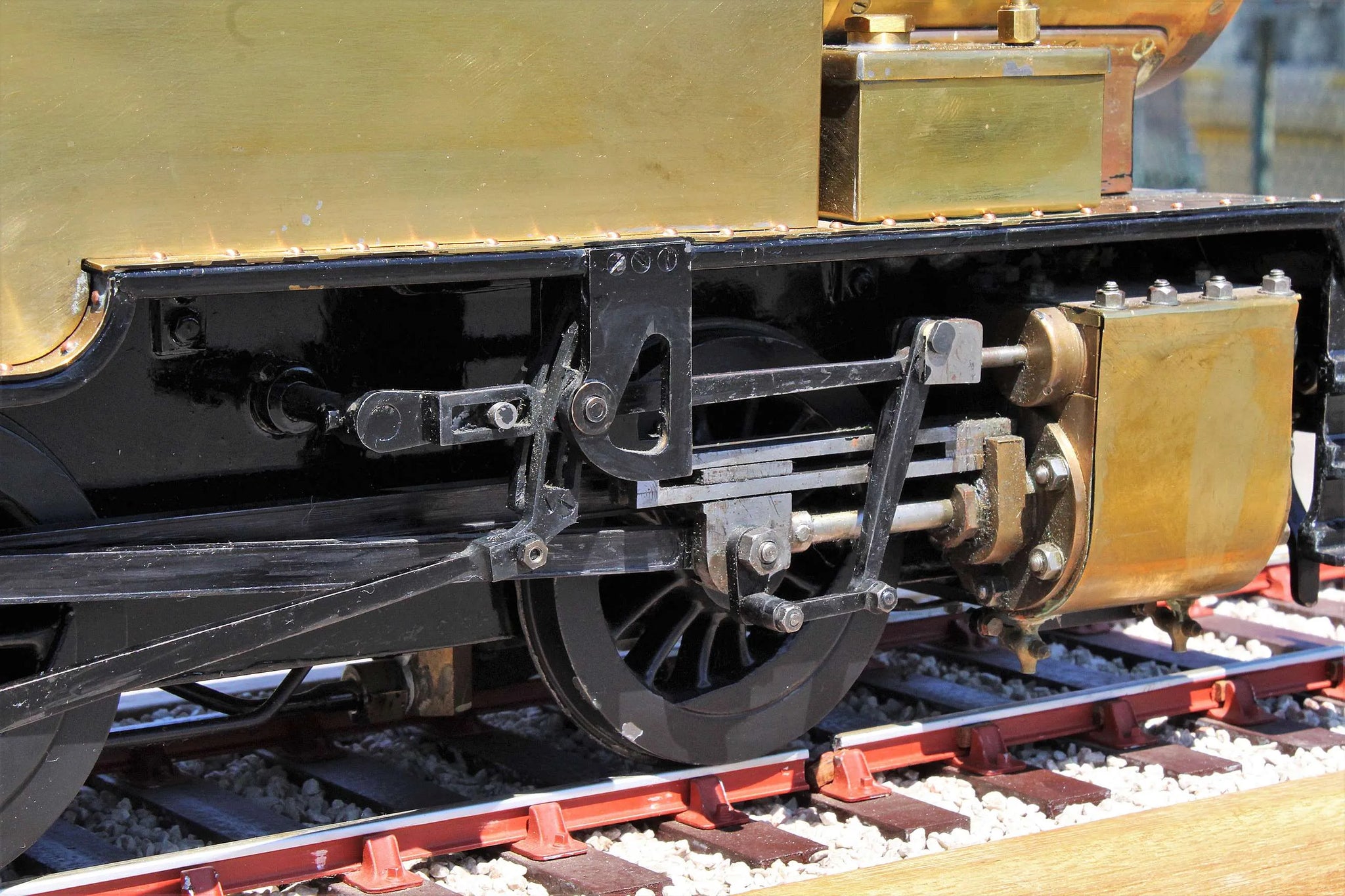

Valve gear |
Walschaerts |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler maker |
unknown |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
Year built |
unknown |
Boiler number |
9534 |
Safety valve type |
spring |
Safety valve |
2 |
Fusible plug |
no |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
axle |

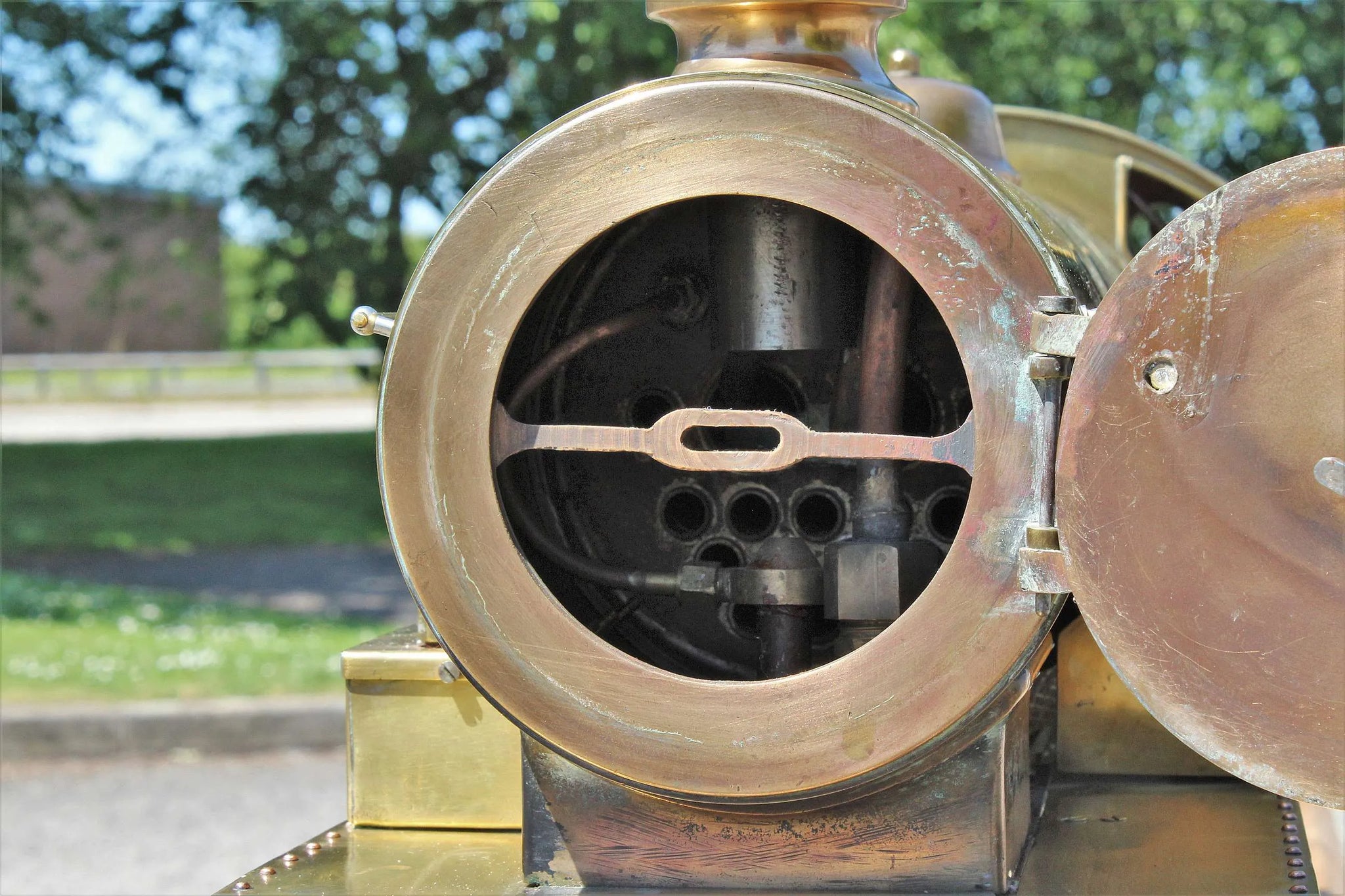

Superheater type |
flue tube |
Superheater |
2 |
Date out |
Aug-21 |
Hydraulic test valid to |
27-Apr-25 |
