Sold

10932

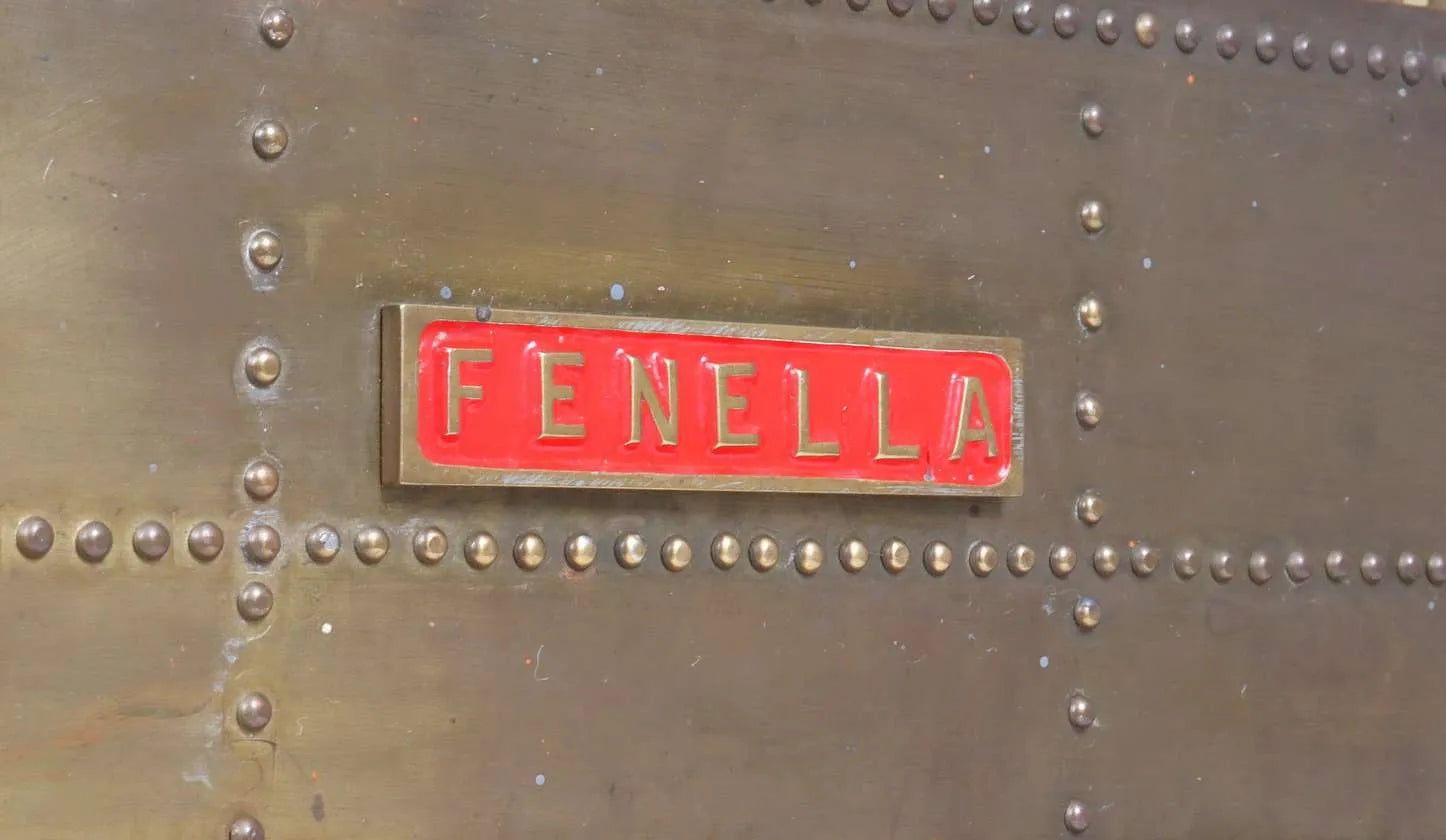

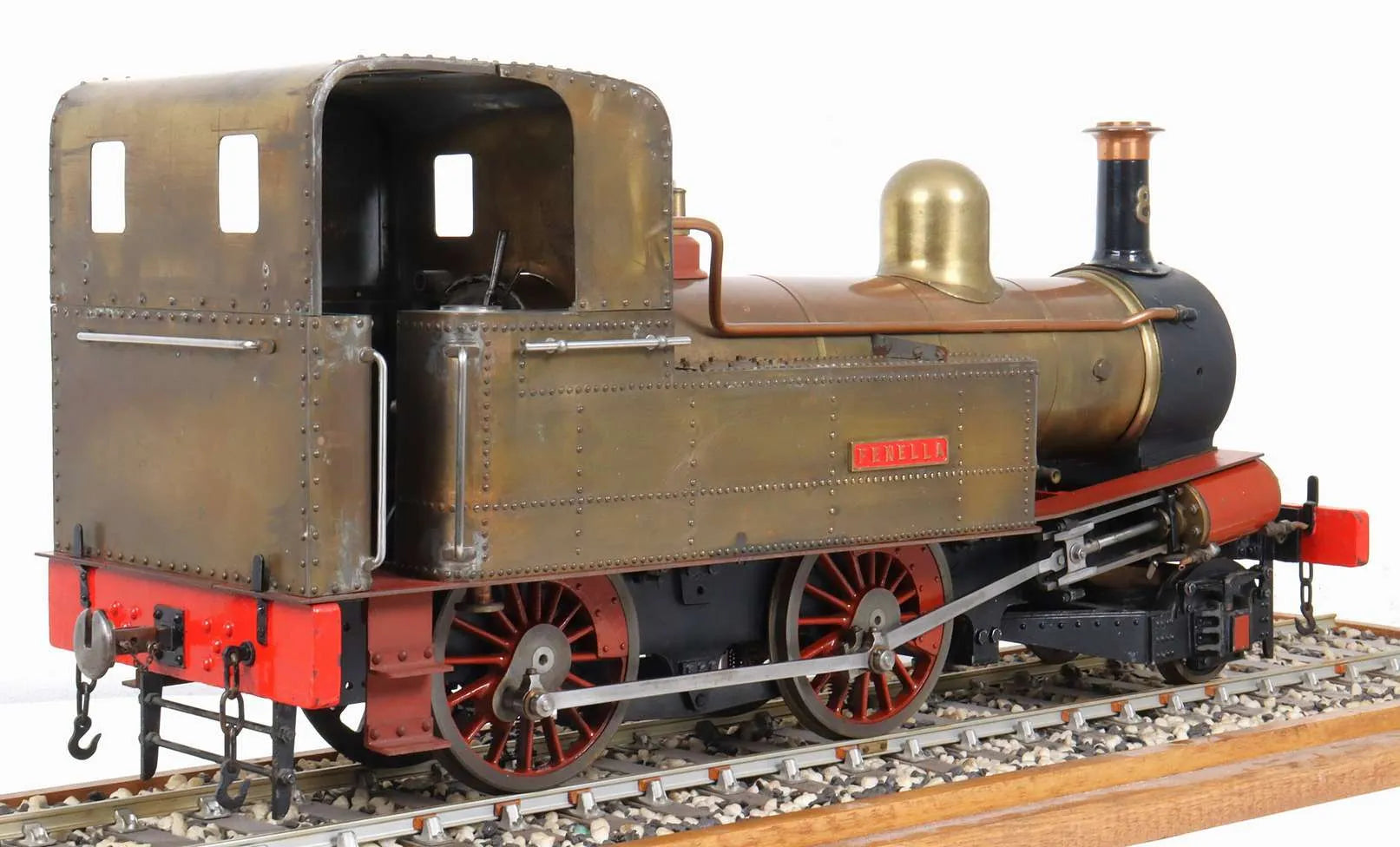

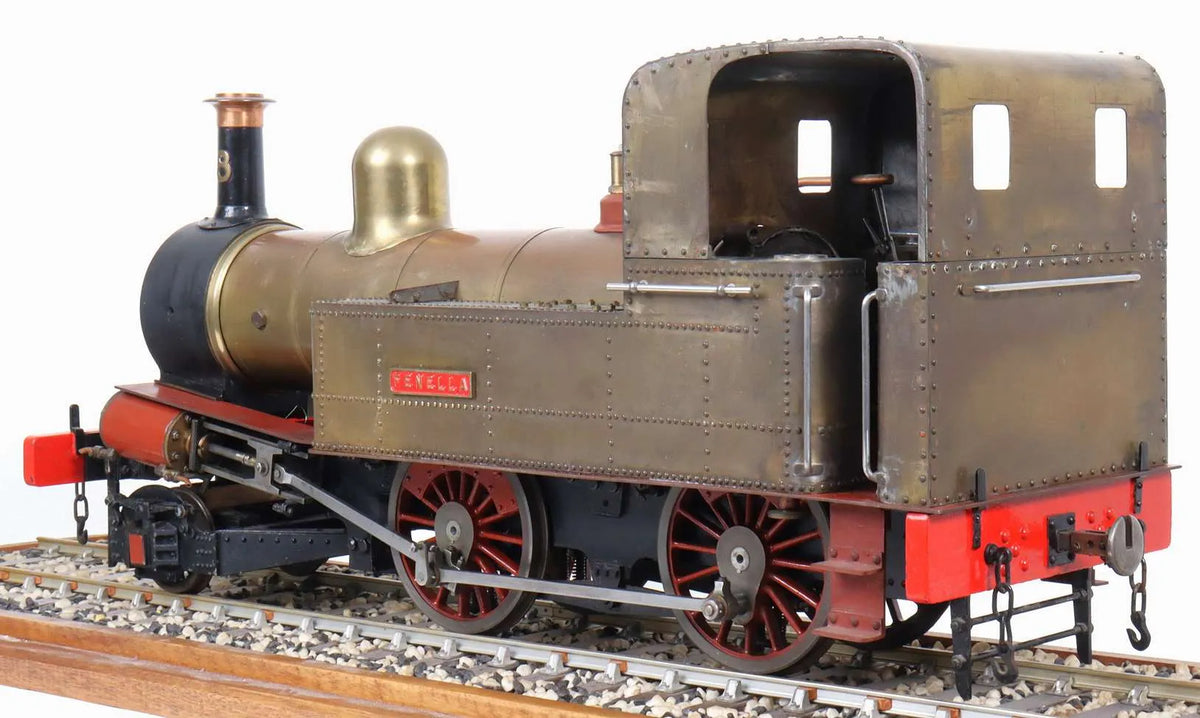

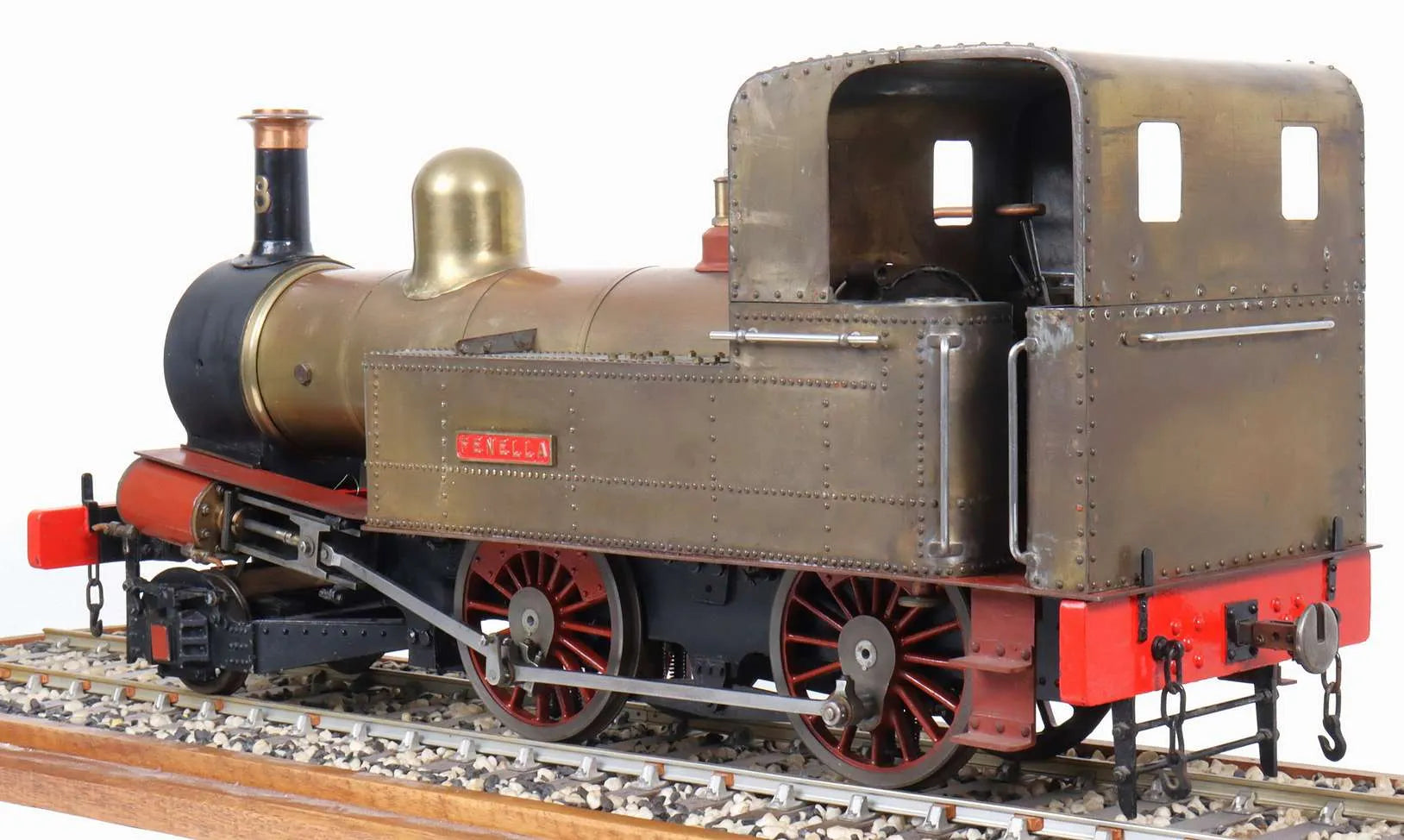

3 1/2 inch narrow gauge Beyer Peacock 2-4-0 "Fenella"

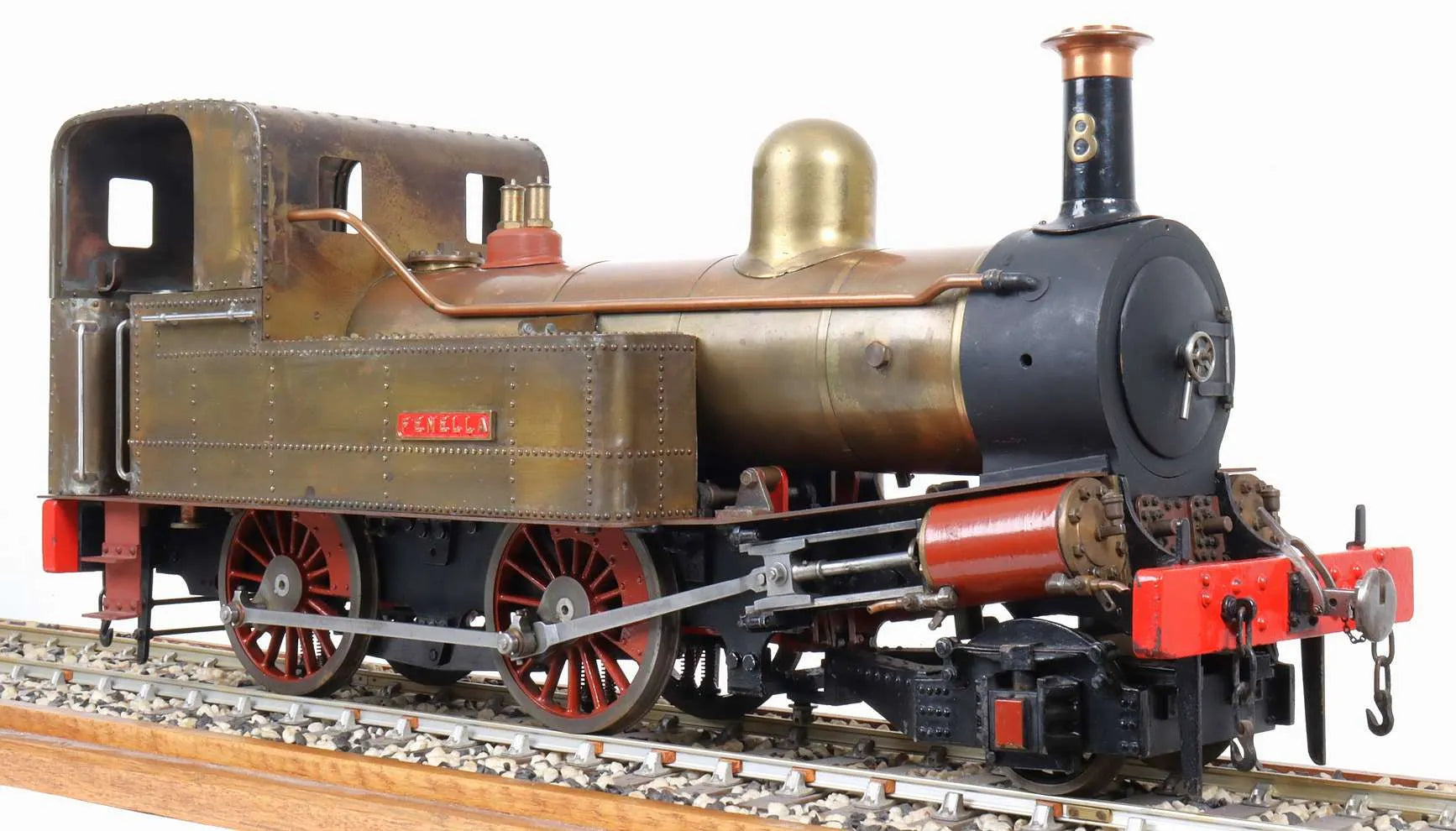

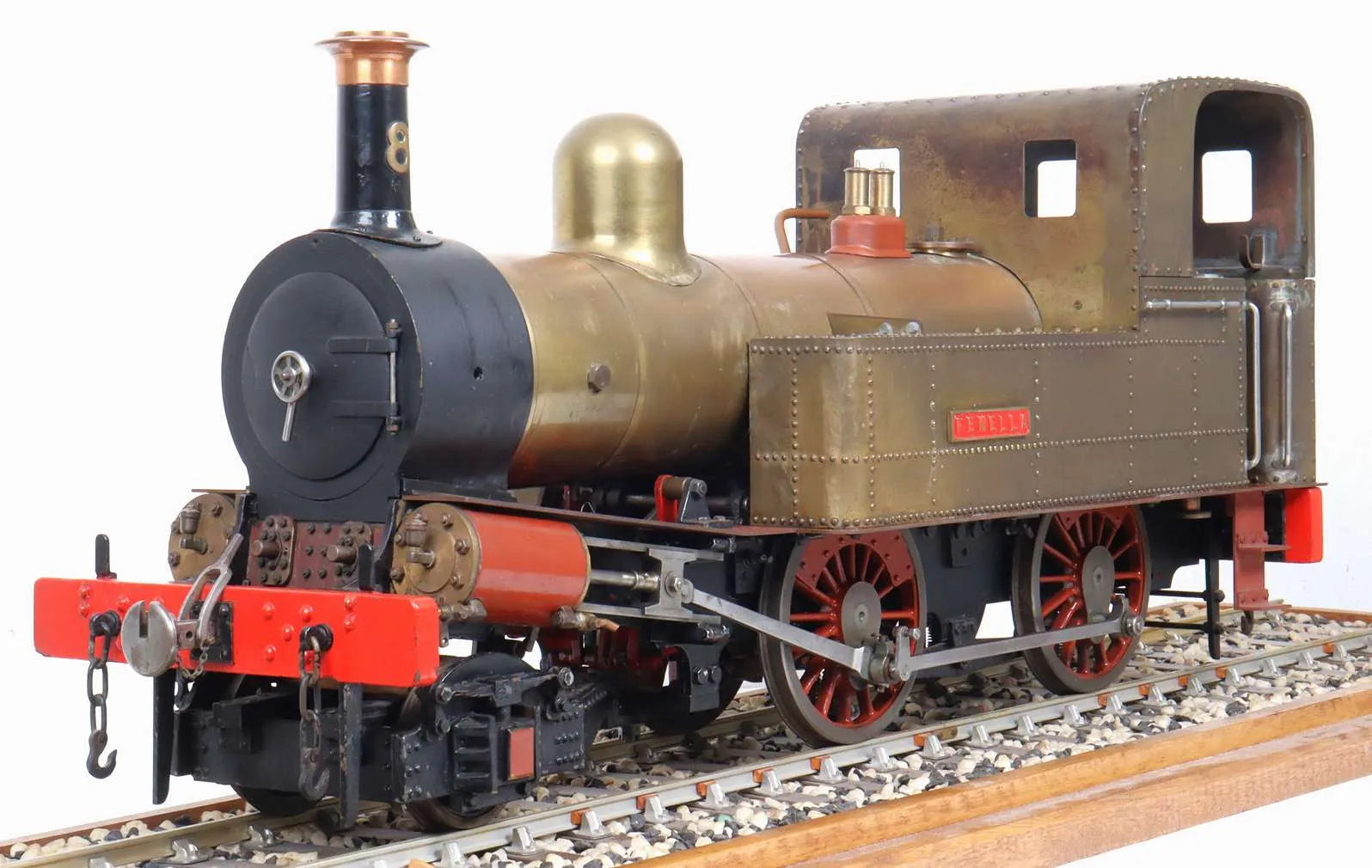

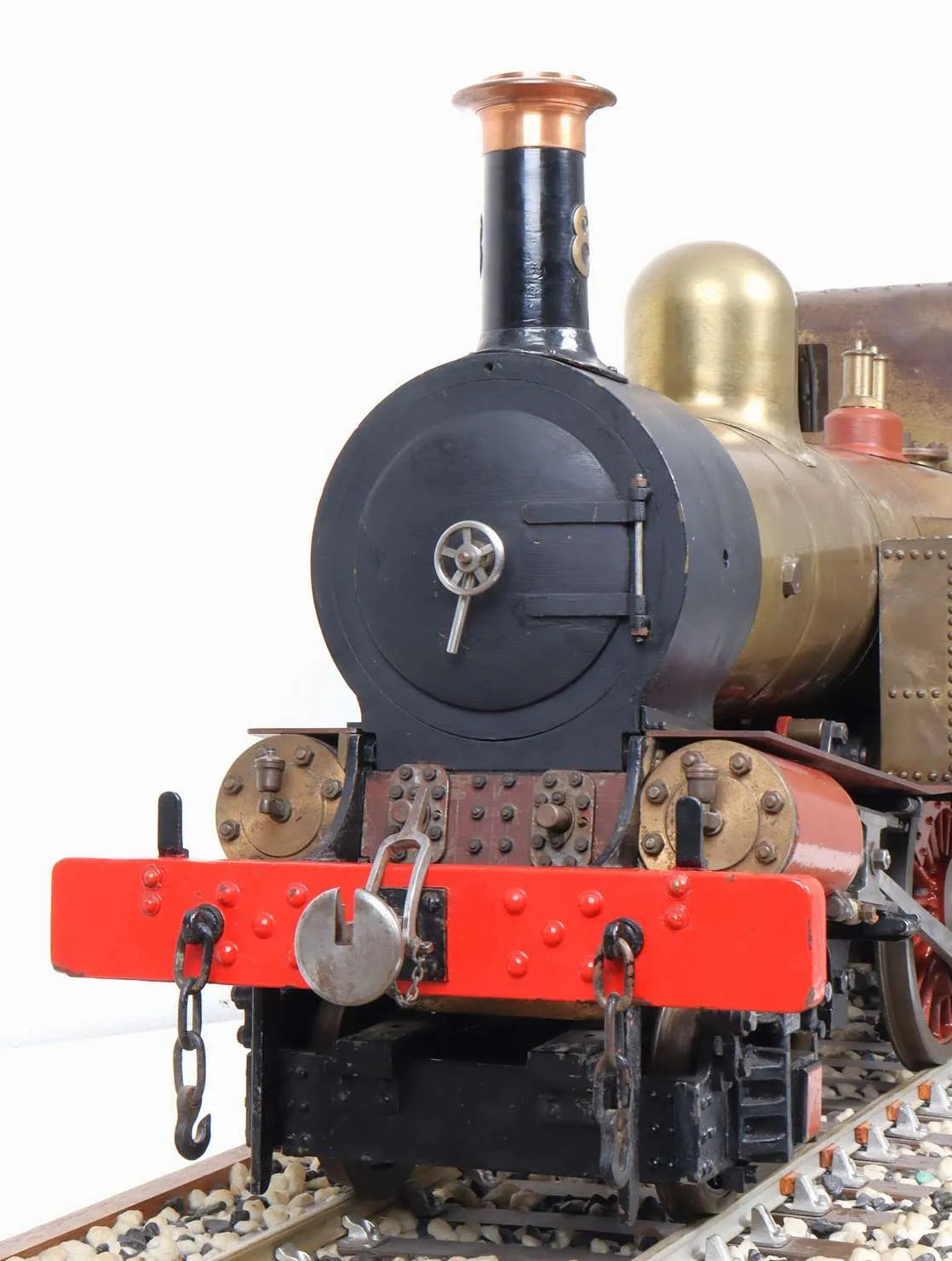

A 3 1/2 inch narrow gauge Beyer, Peacock 2-4-0 "Fenella" - the original, built in 1894 for the Isle of Man Railway, remains there to this day.

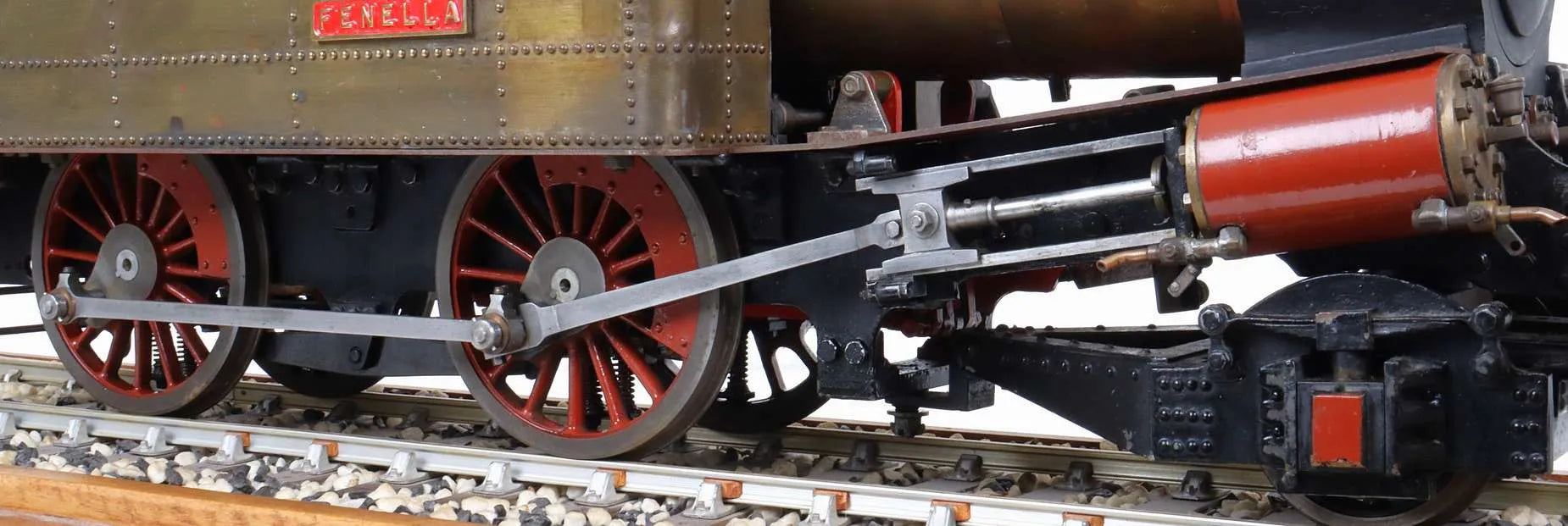

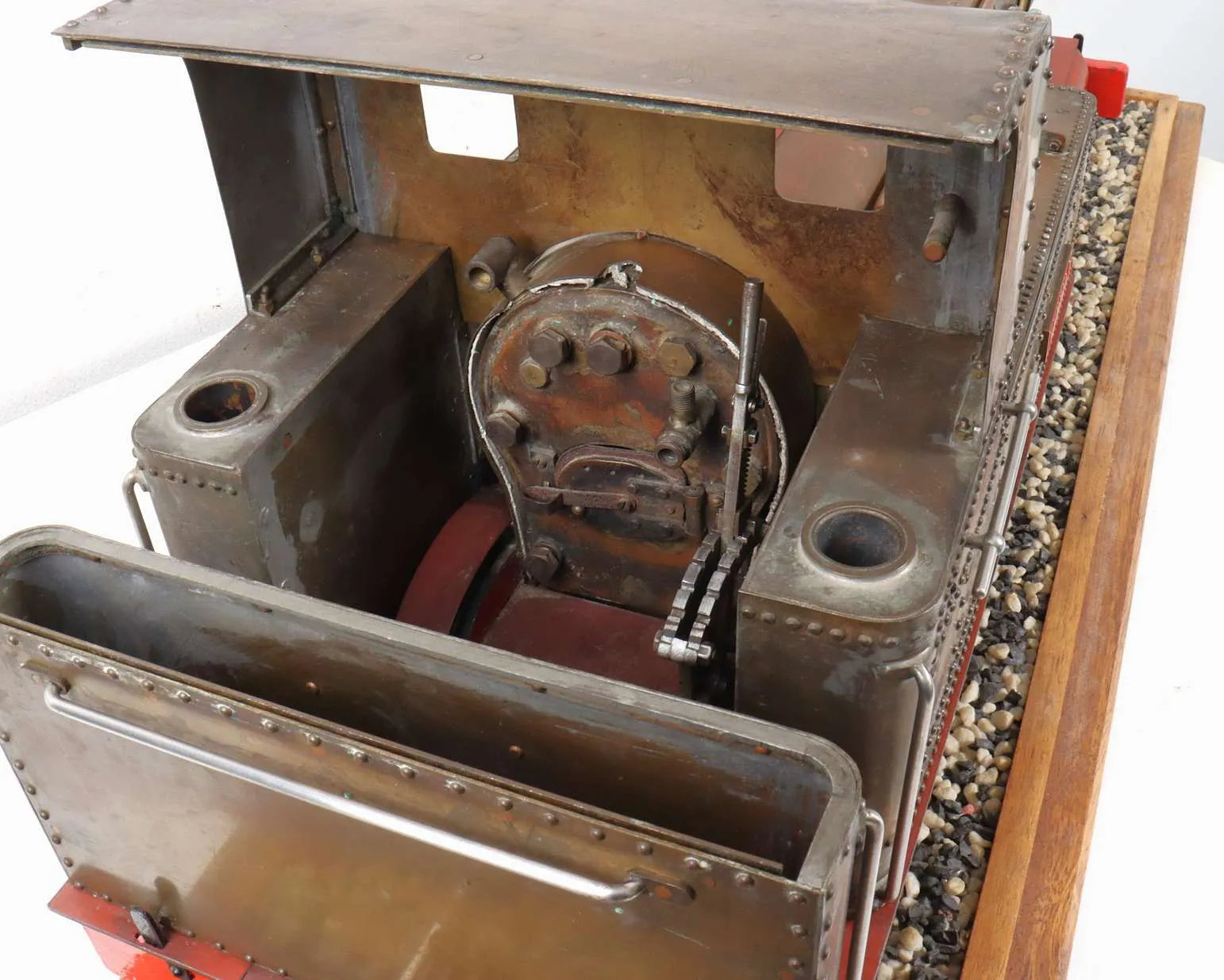

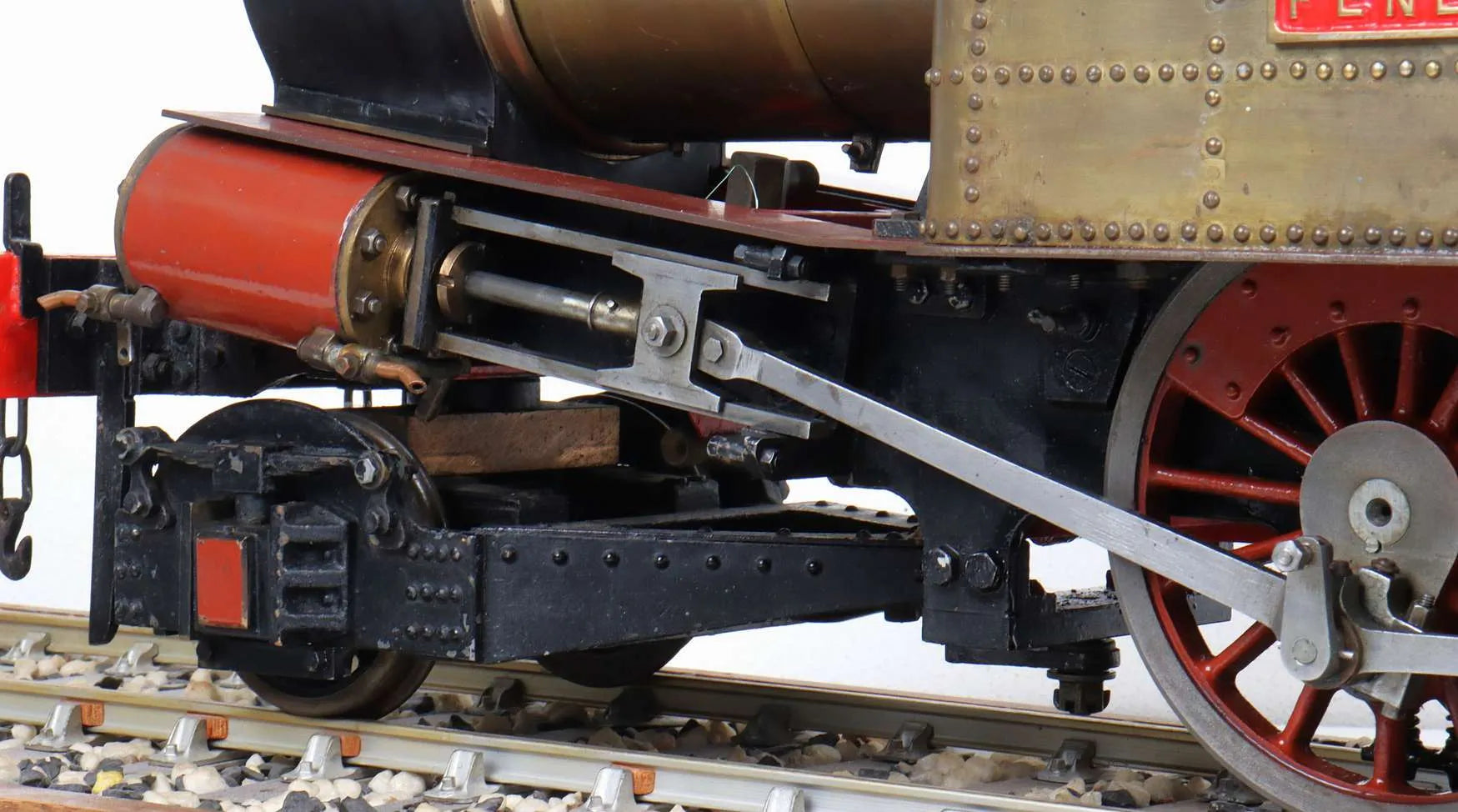

Not too sure if this is a well advanced build or stalled restoration of an older engine. The boiler is missing several fittings although appears to have been fired in the past. The chassis is tight to turn over and needs stripping to investigate - it feels like fit of pistons in bores.

Technical information

Stock code

10932

Length/inches

29

Width/inches

8

Height/inches

12

Weight/Kg

23

Wheel material

cast iron

Axlebox type

plain bearing

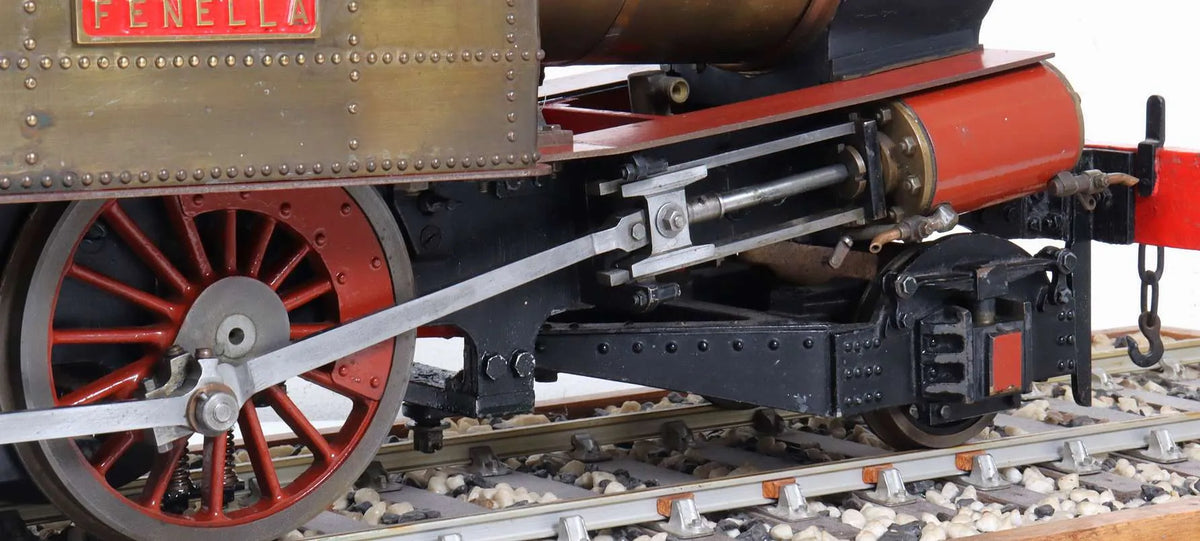

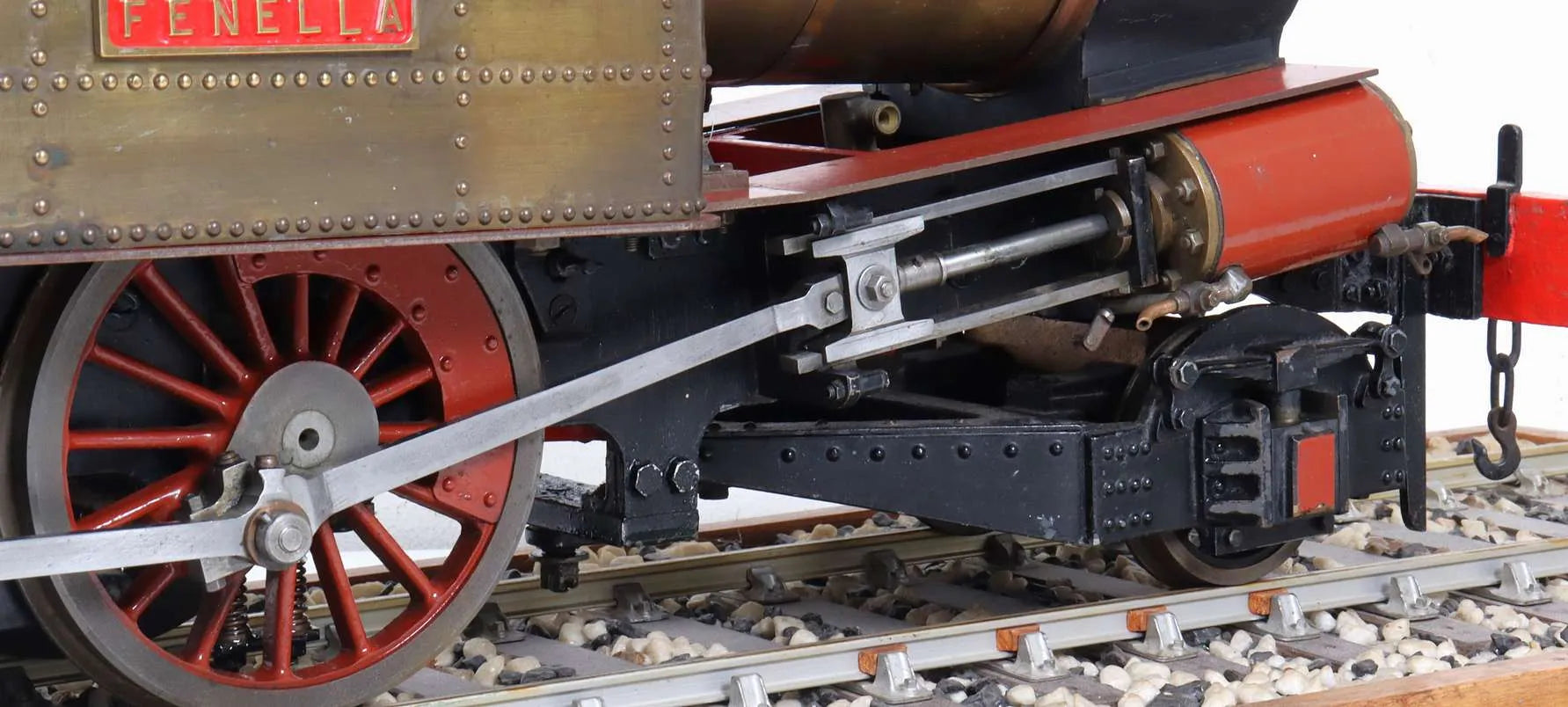

Cylinder material

gunmetal

Valve type

slide

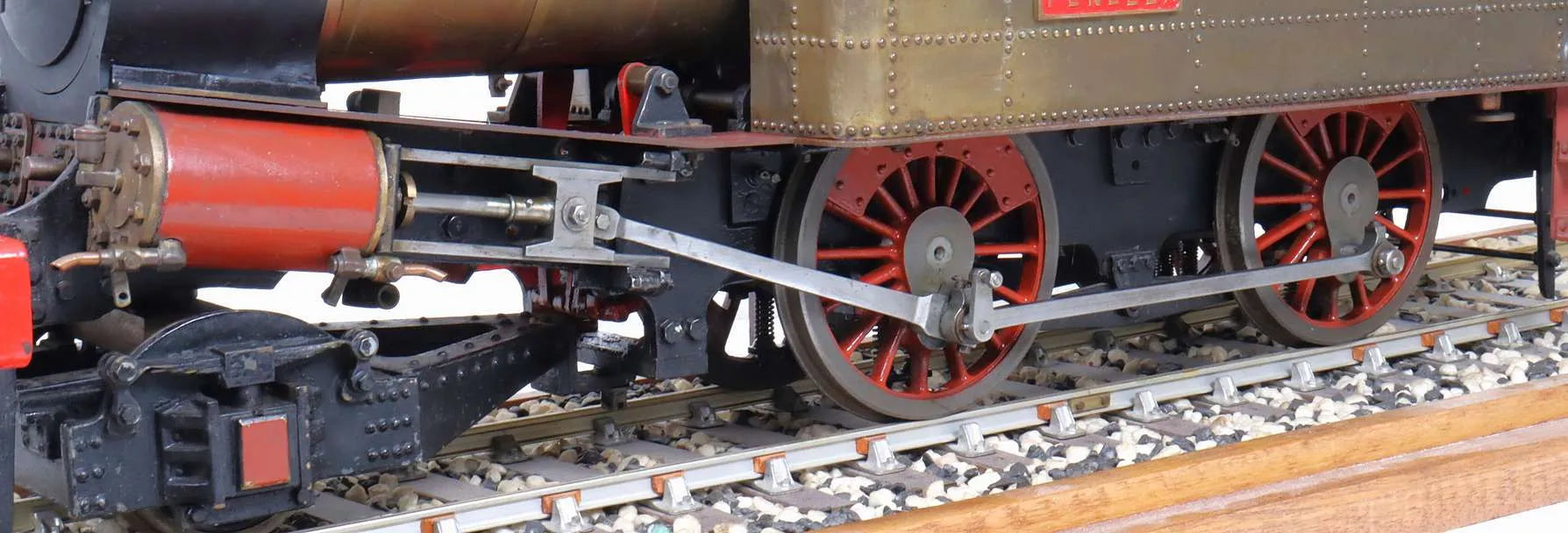

Valve gear

Stephensons

Reverser type

pole

Boiler type

locomotive

Boiler construction

silver soldered with nutted & caulked firebox

Boiler material

copper

CE/UKCA mark

n/a - non-commercial

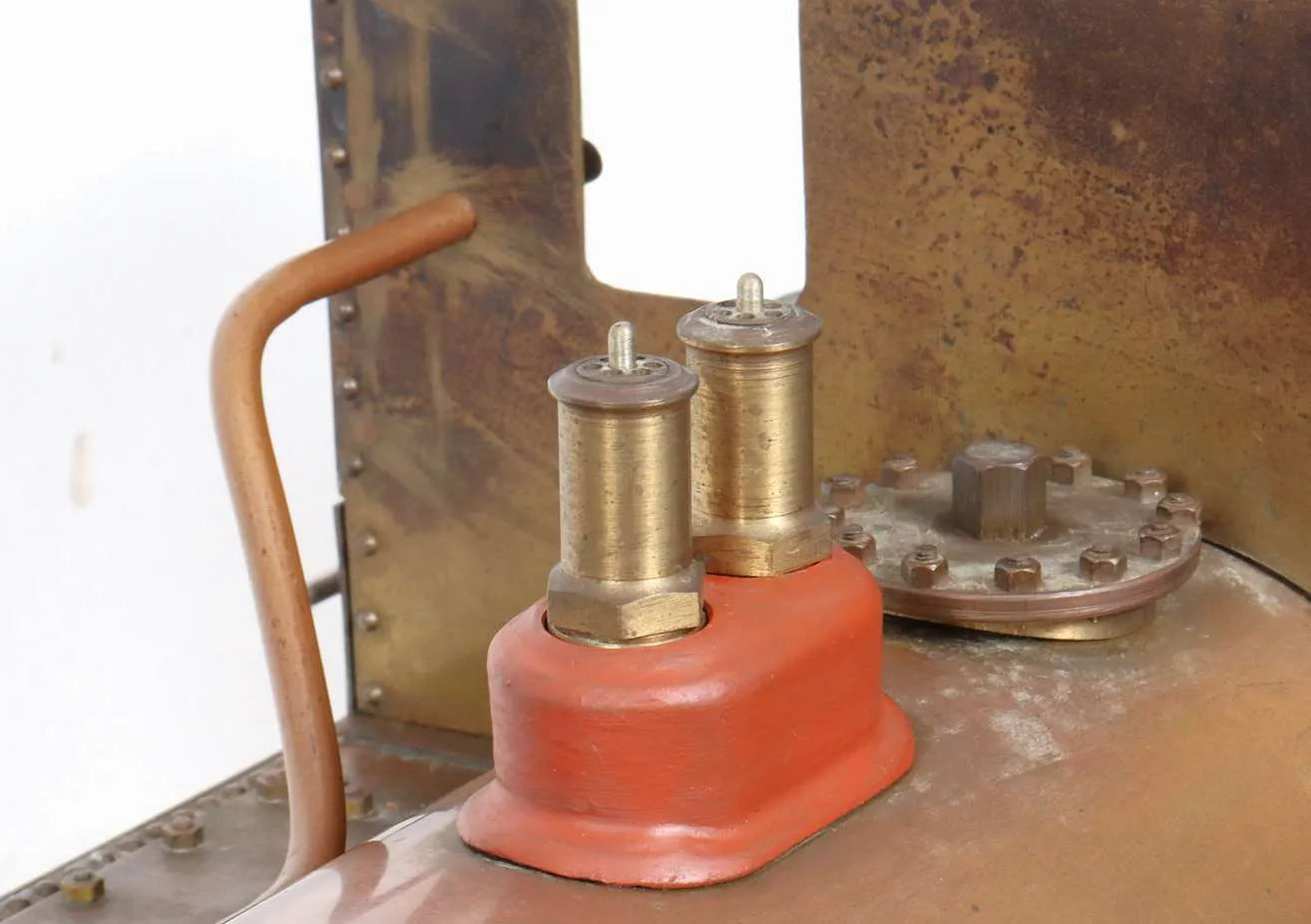

Safety valve type

spring

Safety valve

2

Mechanical pump

1

Superheater

2

Date out

Jun-23
