Sold

8659

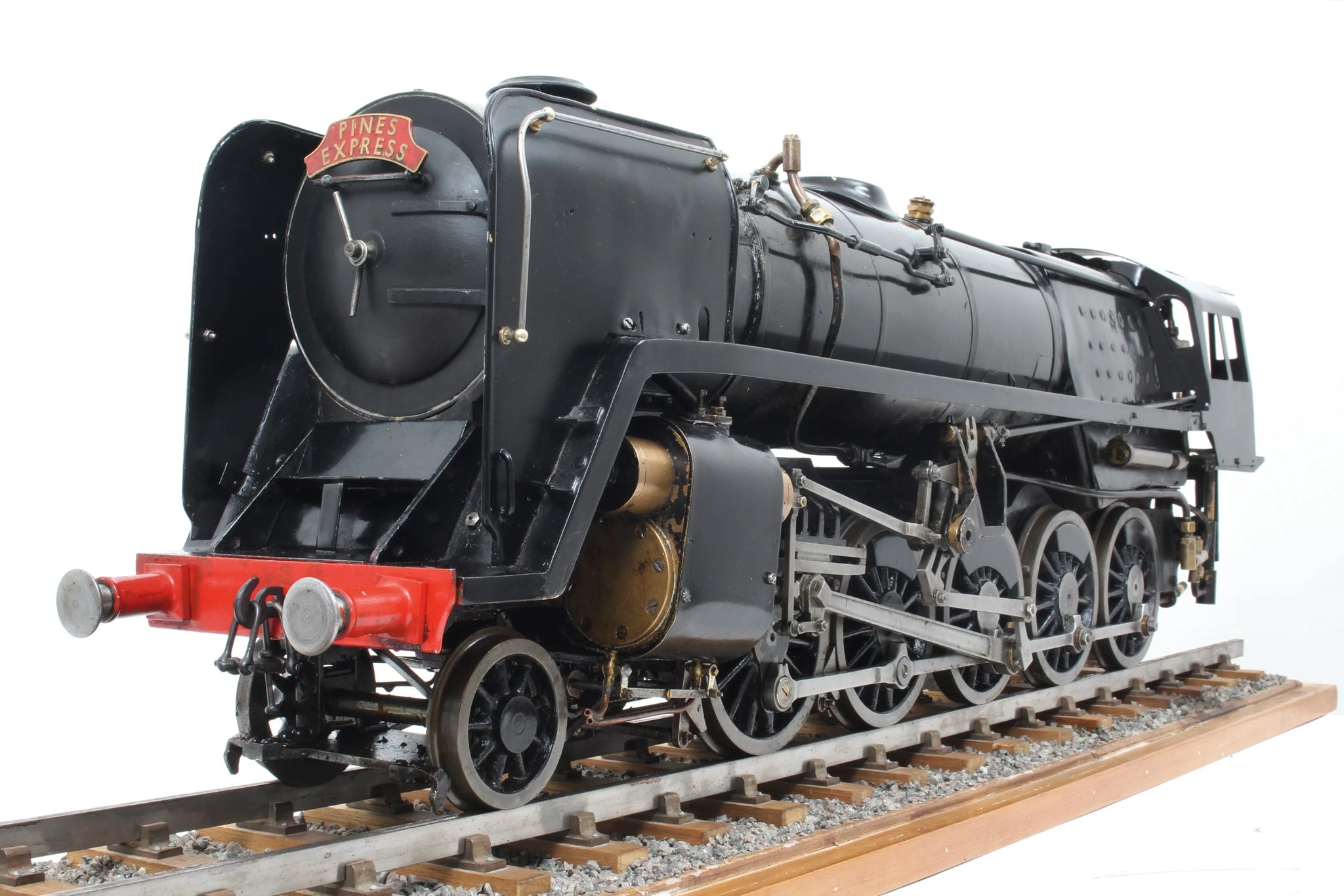

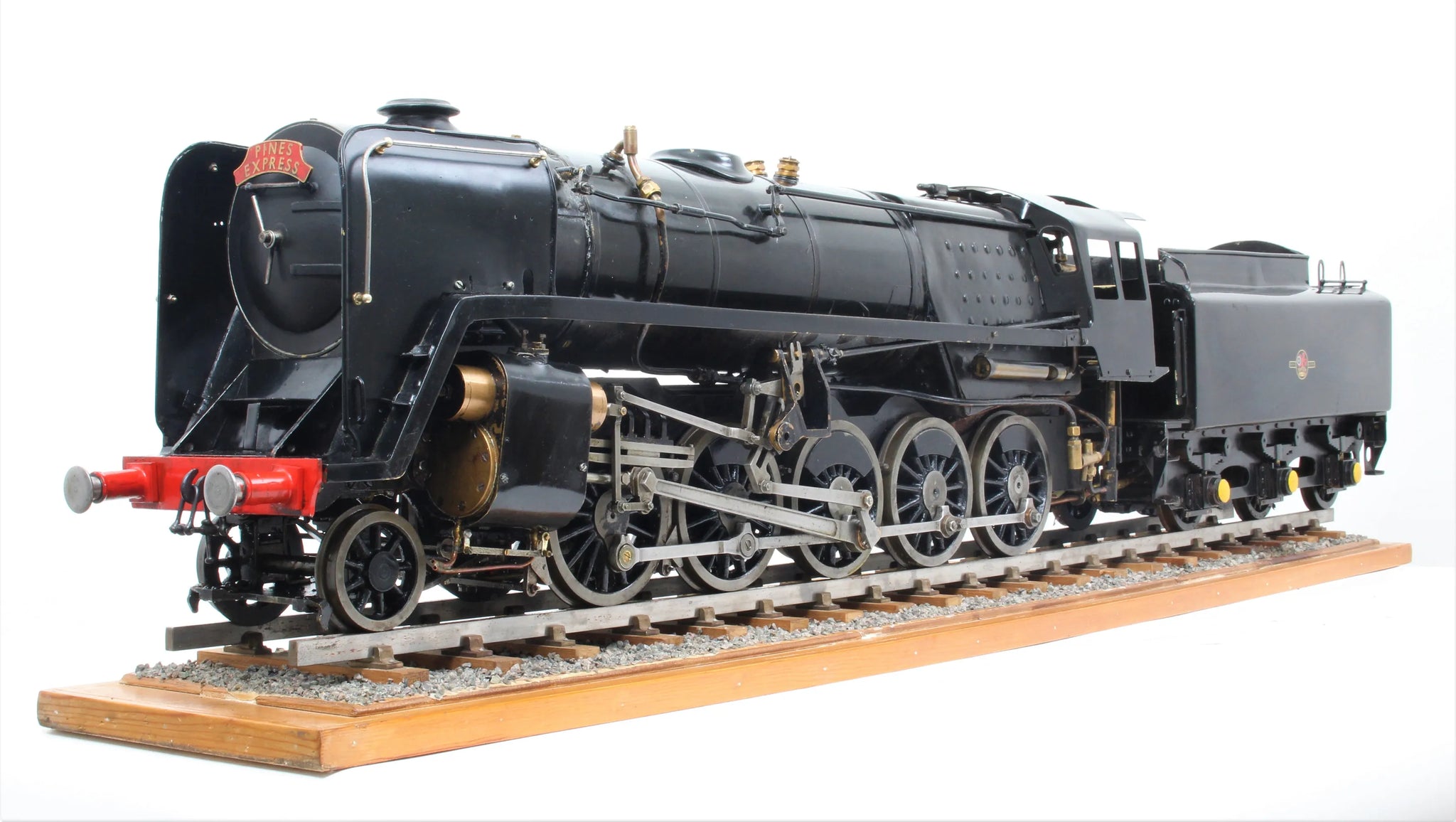

3 1/2 inch gauge BR 9F 2-10-0

A 3 1/2 inch gauge BR 9F 2-10-0 to LBSC's "Evening Star" design, one of the last he worked on, serialised in "Model Engineer" magazine and completed by Martin Evans.

This one came in as an exchange for a 5 inch gauge locomotive, requiring some work although basically in good order with a commercially built boiler in excellent condition.

It's been through the workshop here for servicing, boiler has had hydraulic and steam tests with new certification issued before the engine was run for an hour on the rolling road.

It steams freely and runs well - ready for the track (whenever any of us are next allowed out).

Technical information

Stock code

8659

Gauge

3 1/2 inch

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

piston

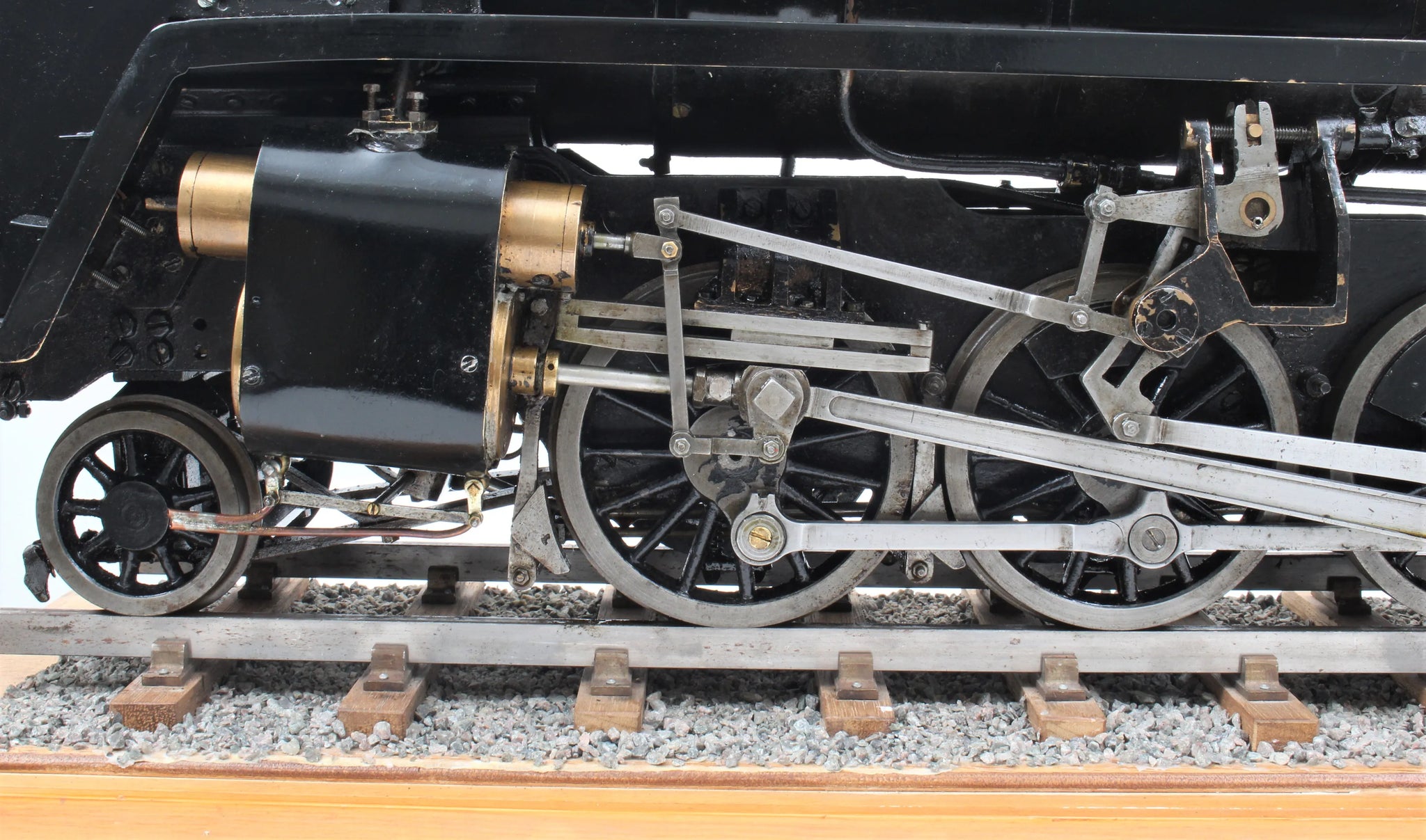

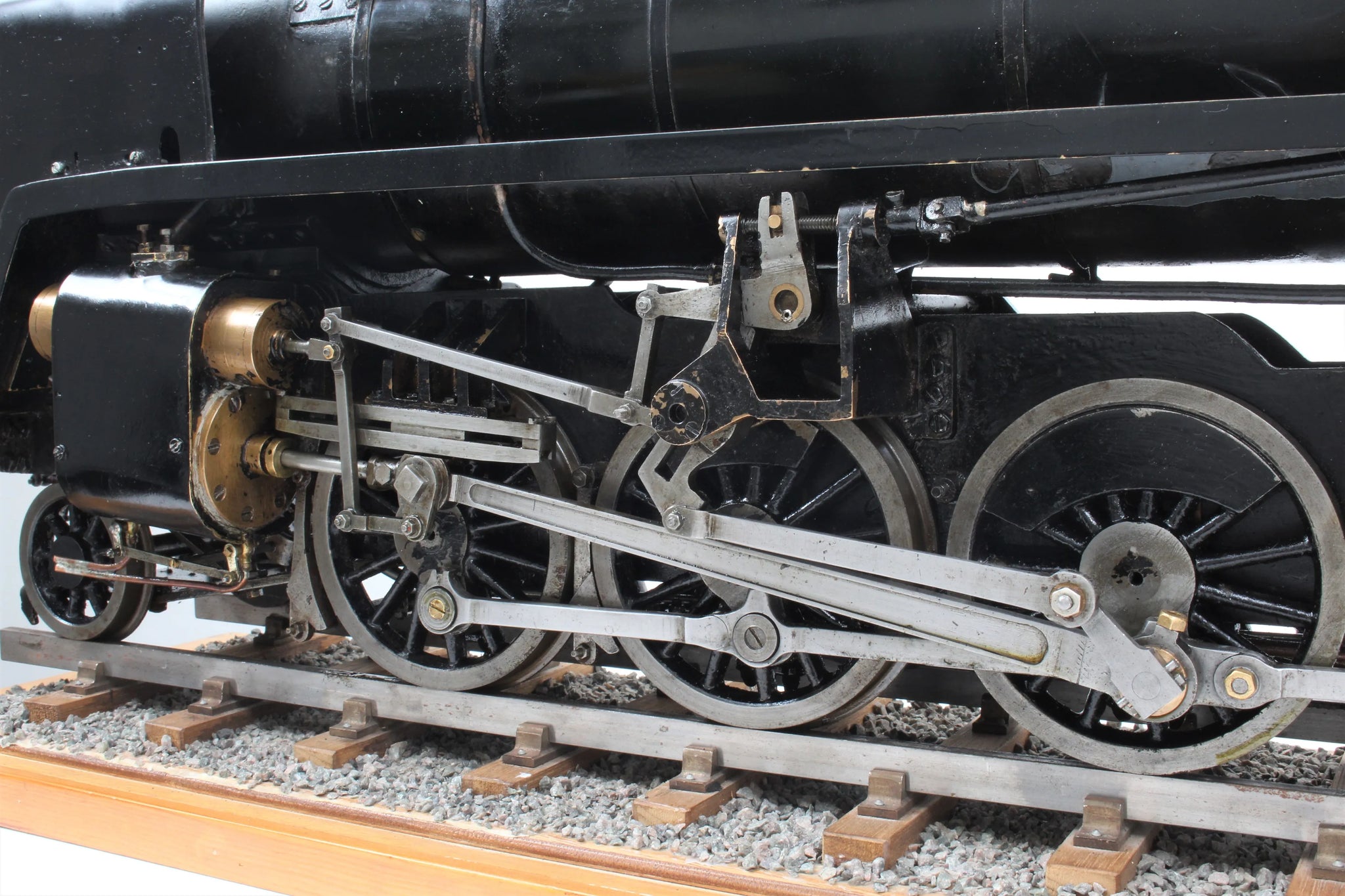

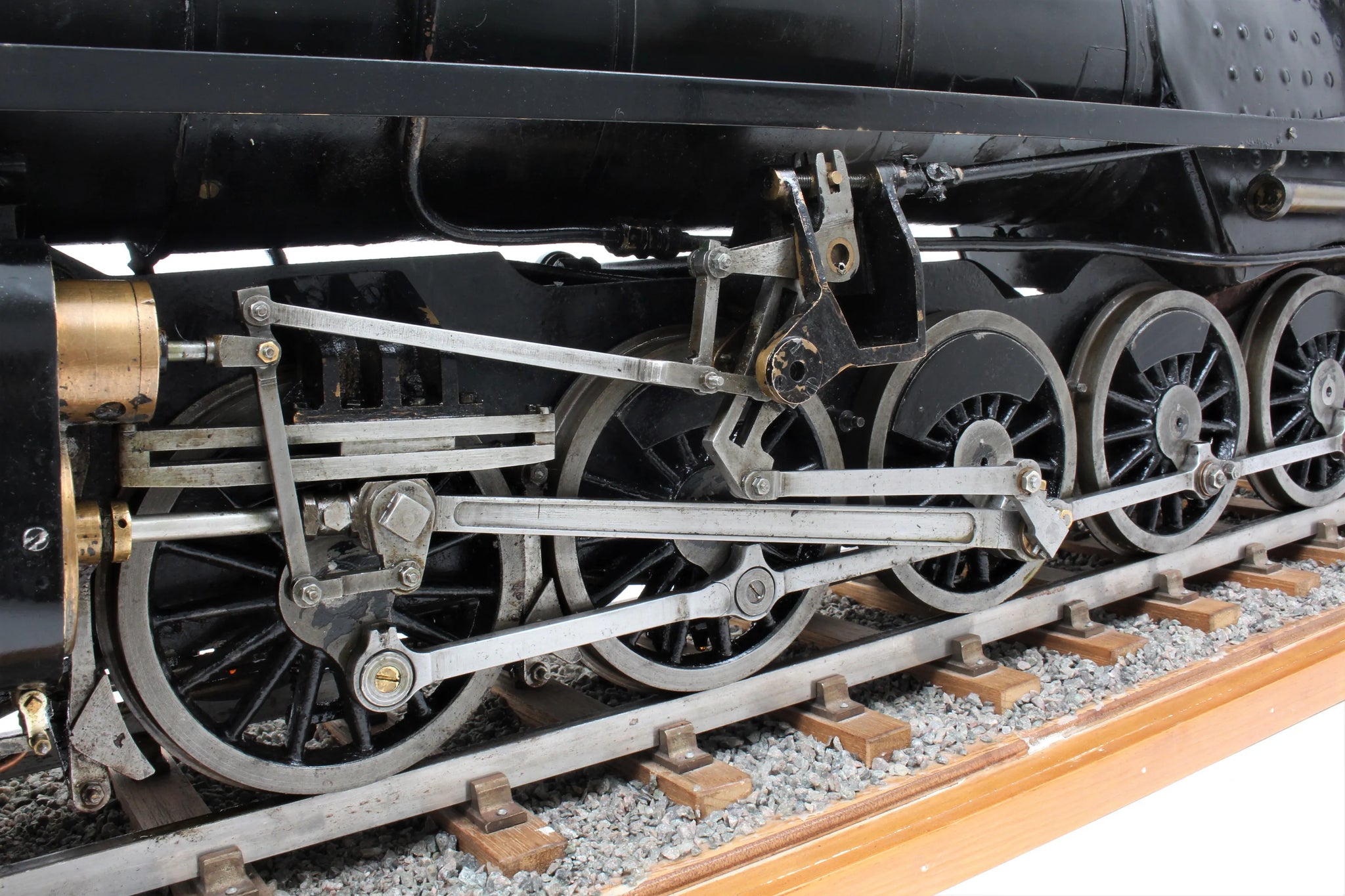

Valve gear

Walschaerts

Reverser type

screw

Lubricator type

mechanical

Boiler maker

John Ellis

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - pre-2002

Year built

2000

Boiler number

ST146

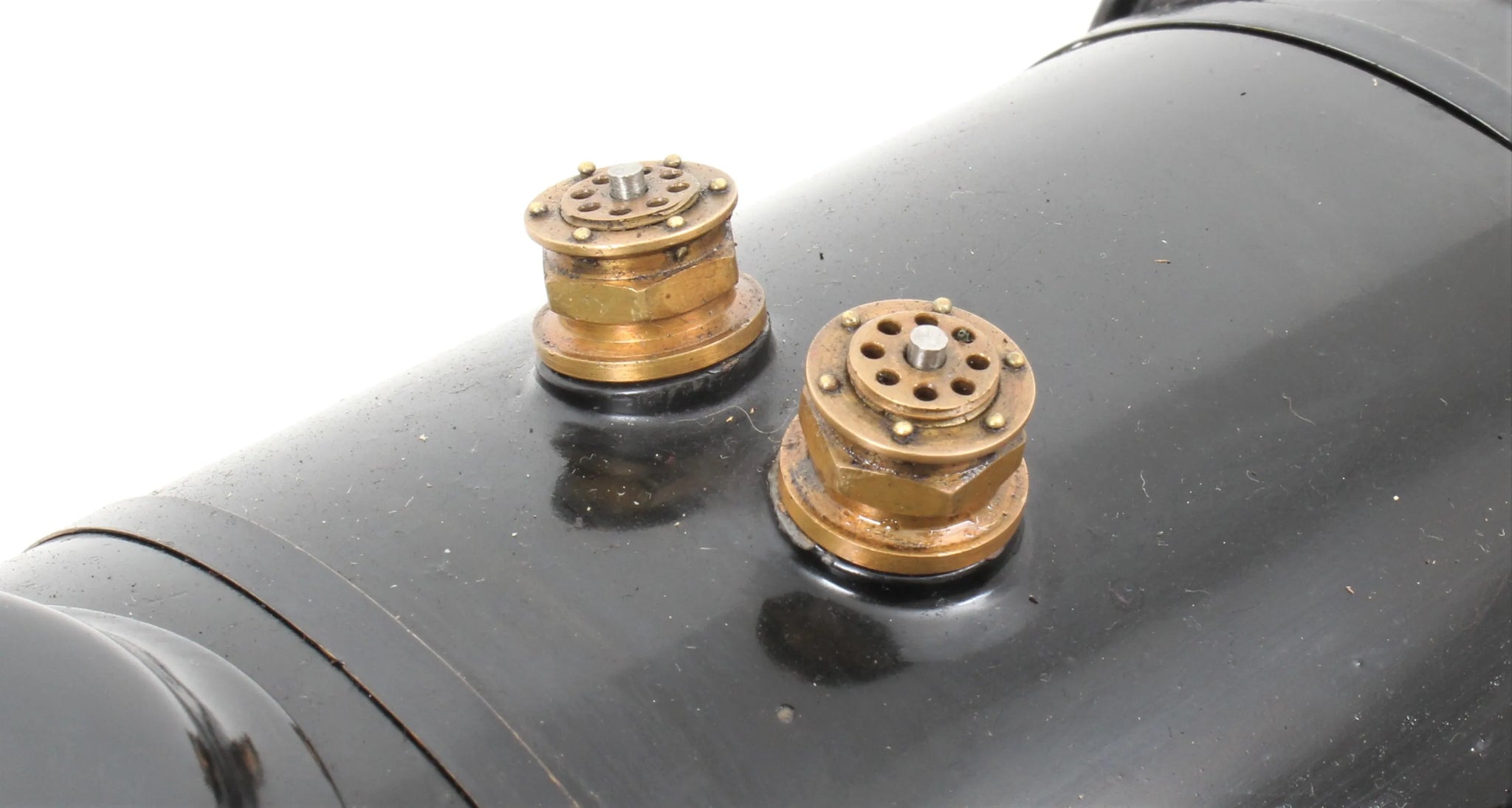

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

4

Date out

Apr-20

Hydraulic test valid to

22-Jan-24
