3 1/2 inch gauge BR "Britannia" Class 4-6-2 "Coeur-de-Lion"

Name: 3 1/2 inch gauge BR "Britannia" Class 4-6-2 "Coeur-de-Lion"
Brand: Station Road Steam
SKU: 13001
Price: 3950.0 GBP
Availability: OutOfStock

Sold

We sold this to a prolific collector in Switzerland back in 2015. It's recently arrived back with us as part of a downsizing effort - we've serviced the draincocks & safety valves, issued new hydraulic and steam certificates and taken some new photographs shown opposite.

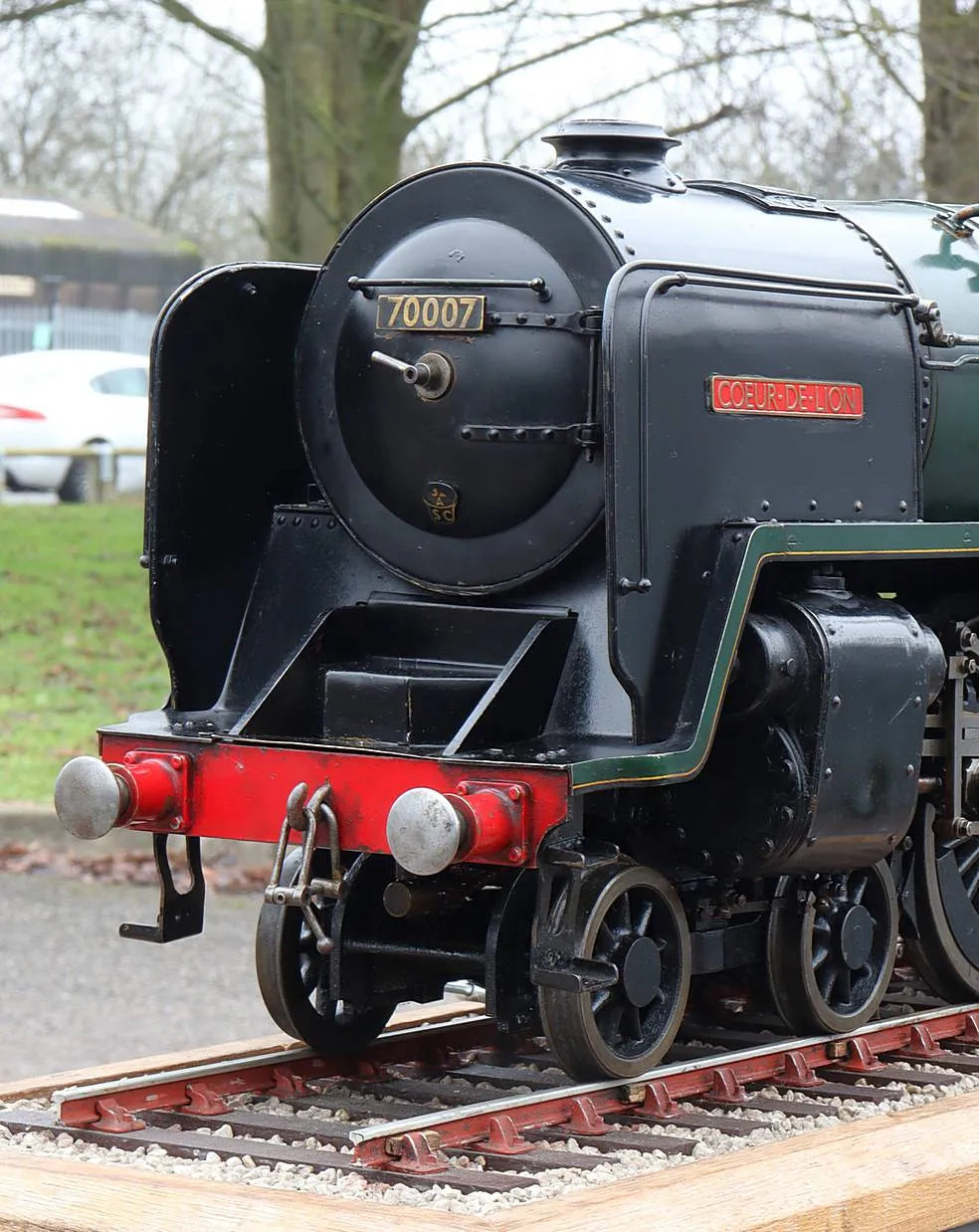

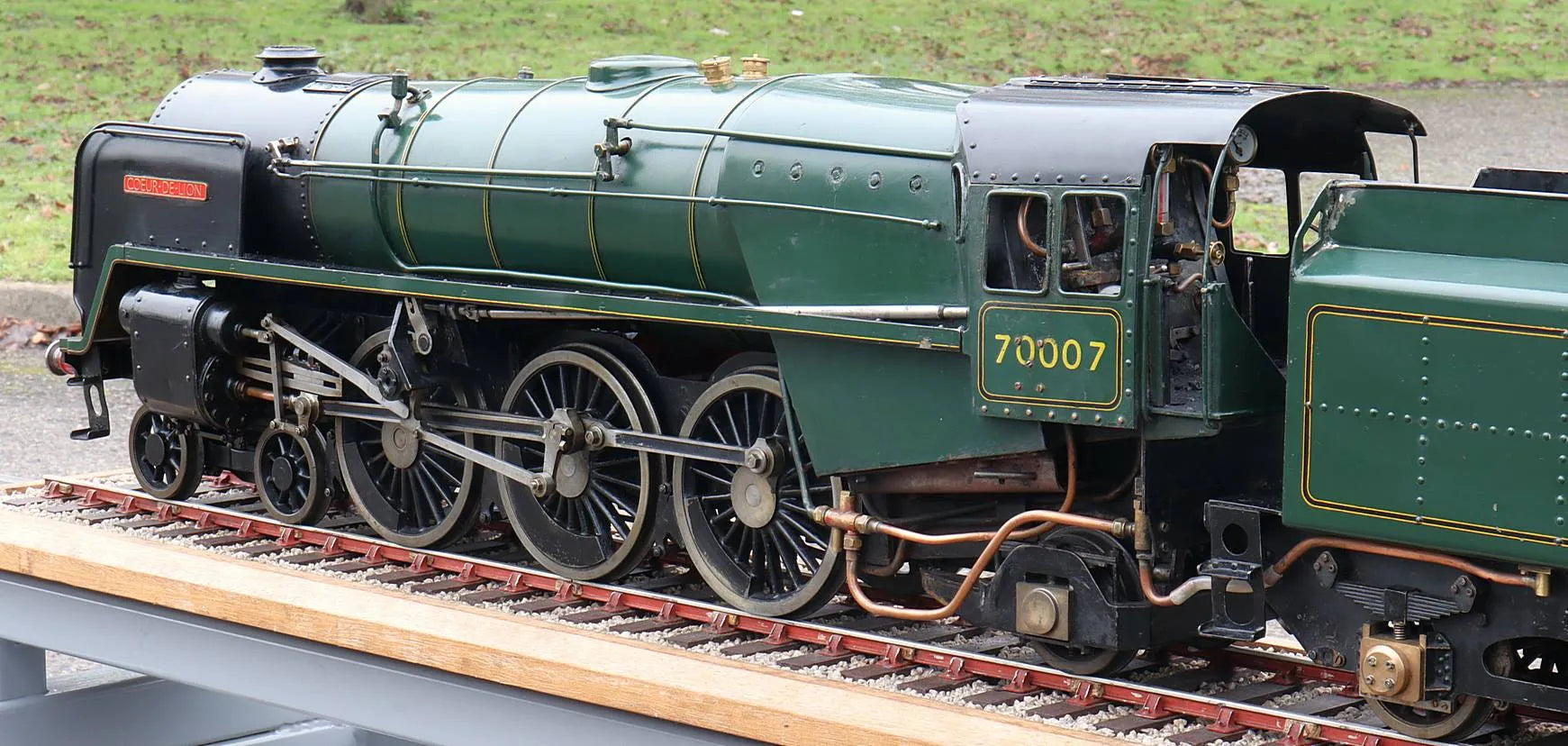

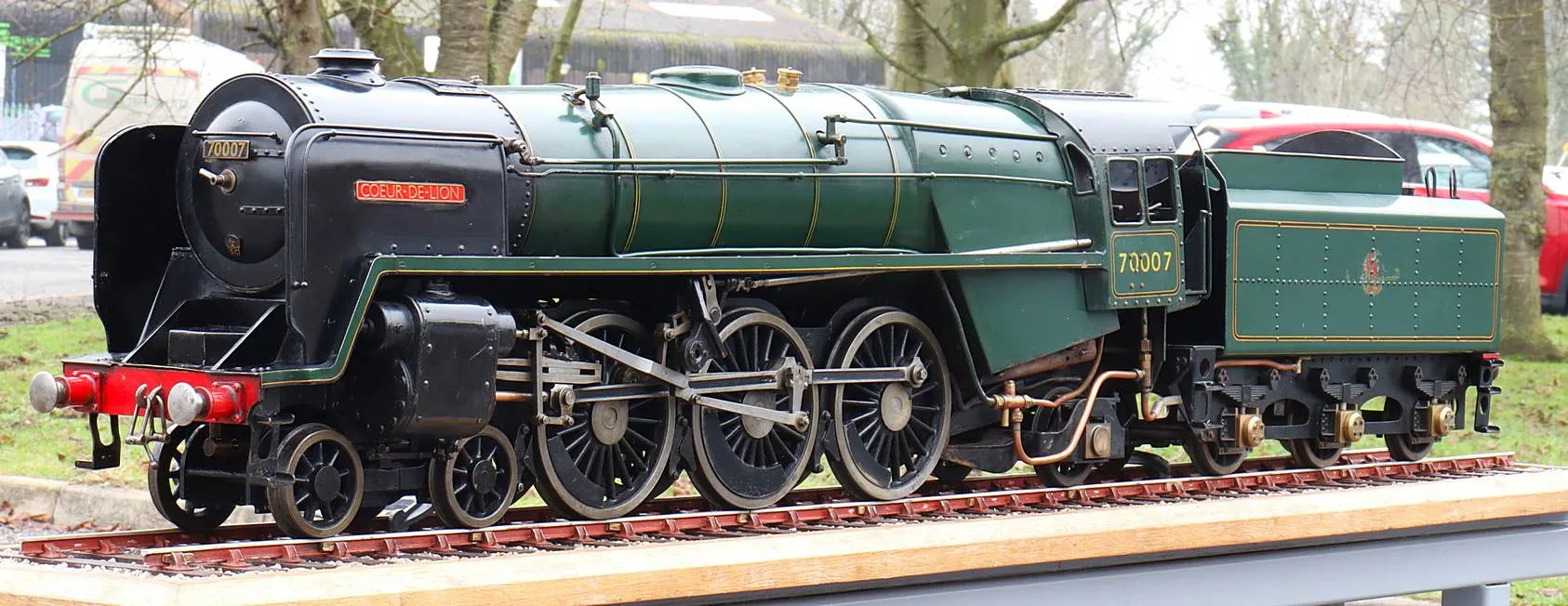

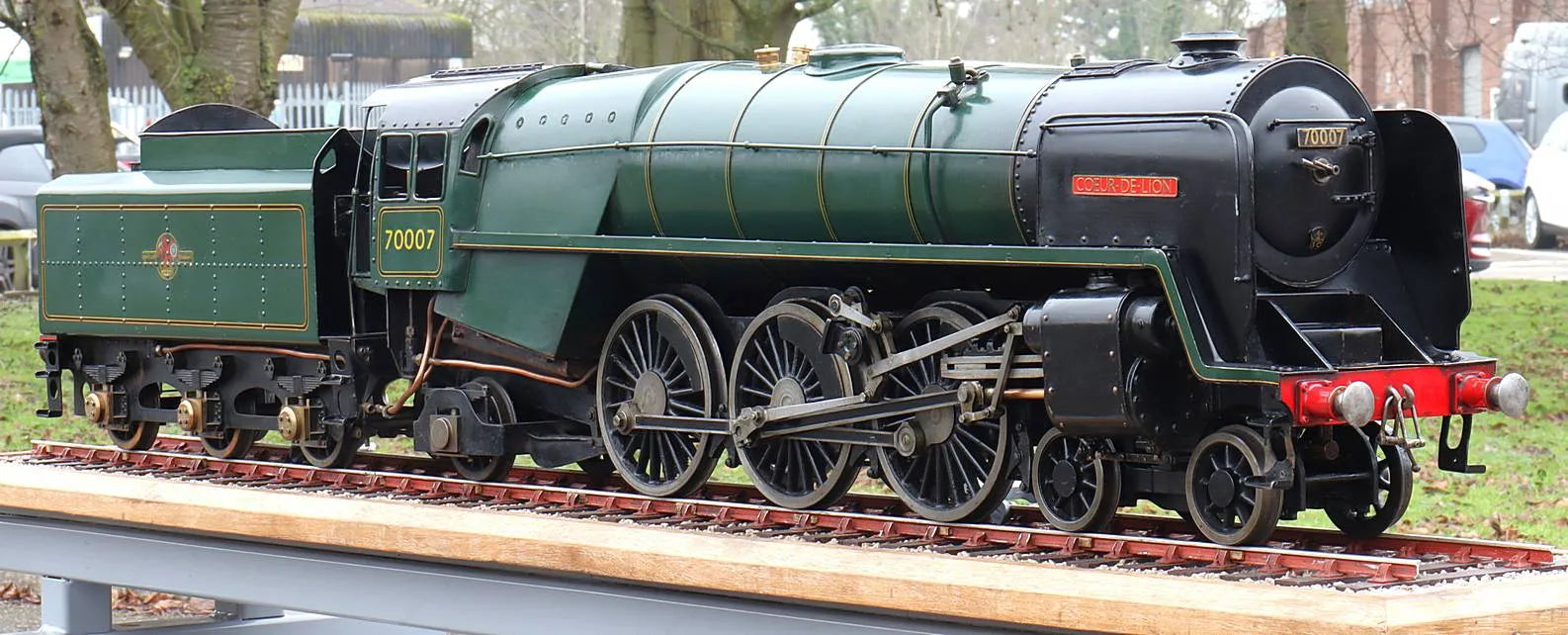

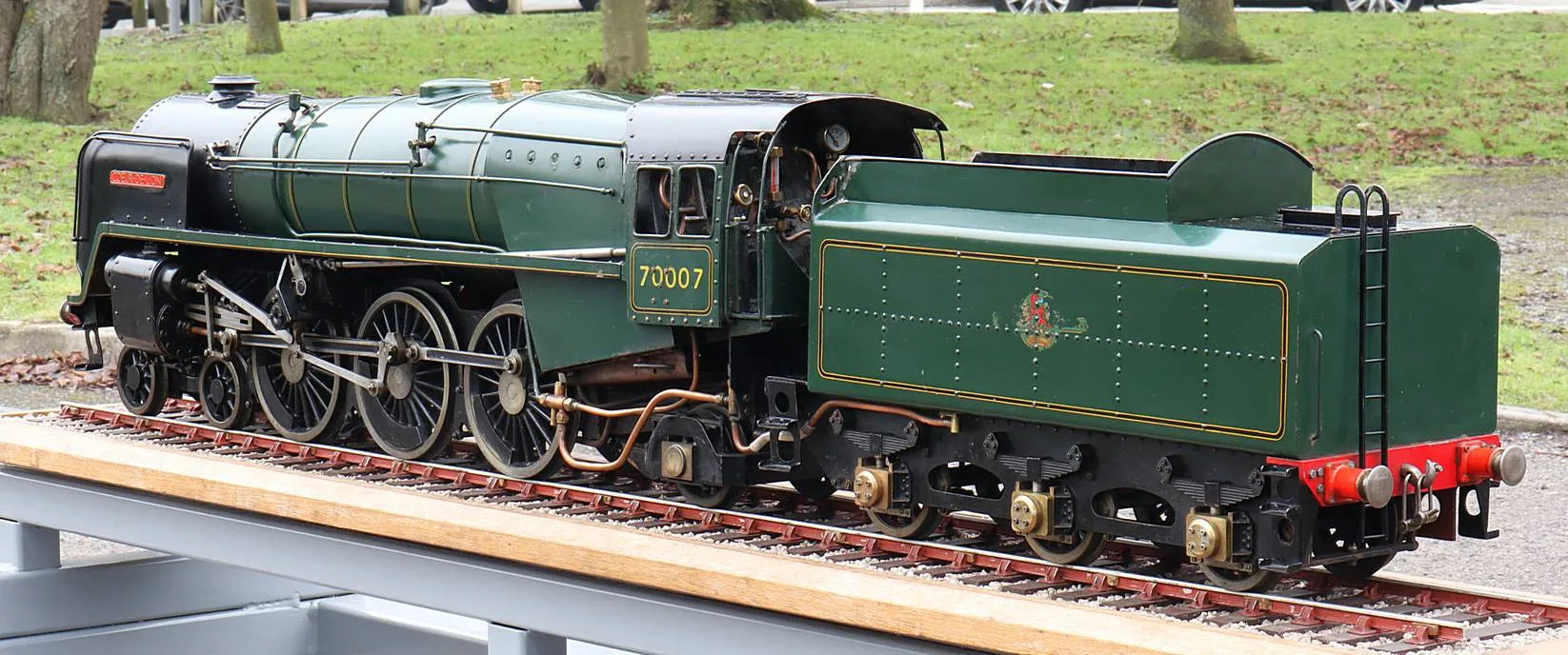

A 3 1/2 inch gauge Britannia, "Coeur-de-Lion", recently come in part-exchange for a new Feldbahn from a collection in Ireland. Built to the popular LBSC design, it's a well made engine that appears not to have done a lot of work - in its last owner's hands it was used only for display.

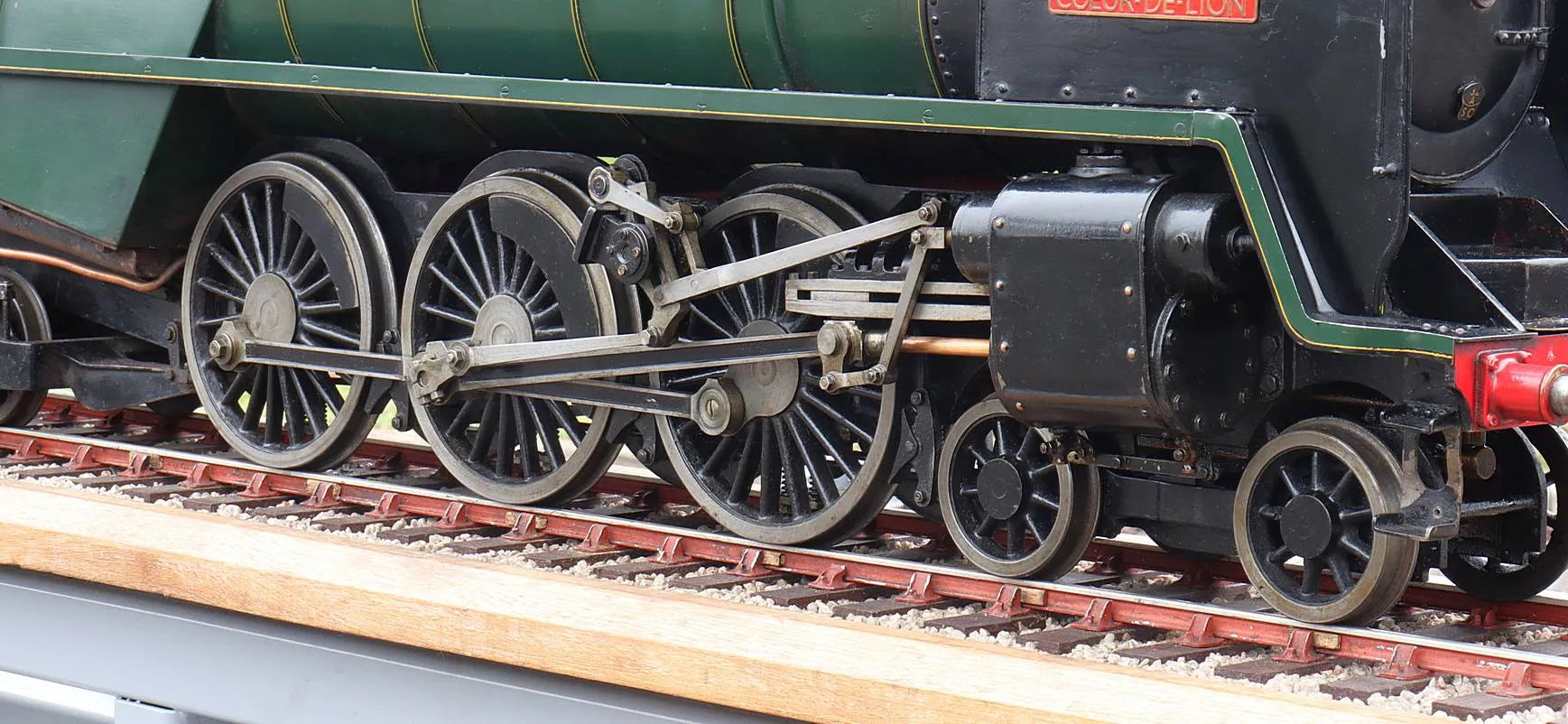

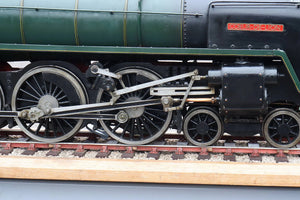

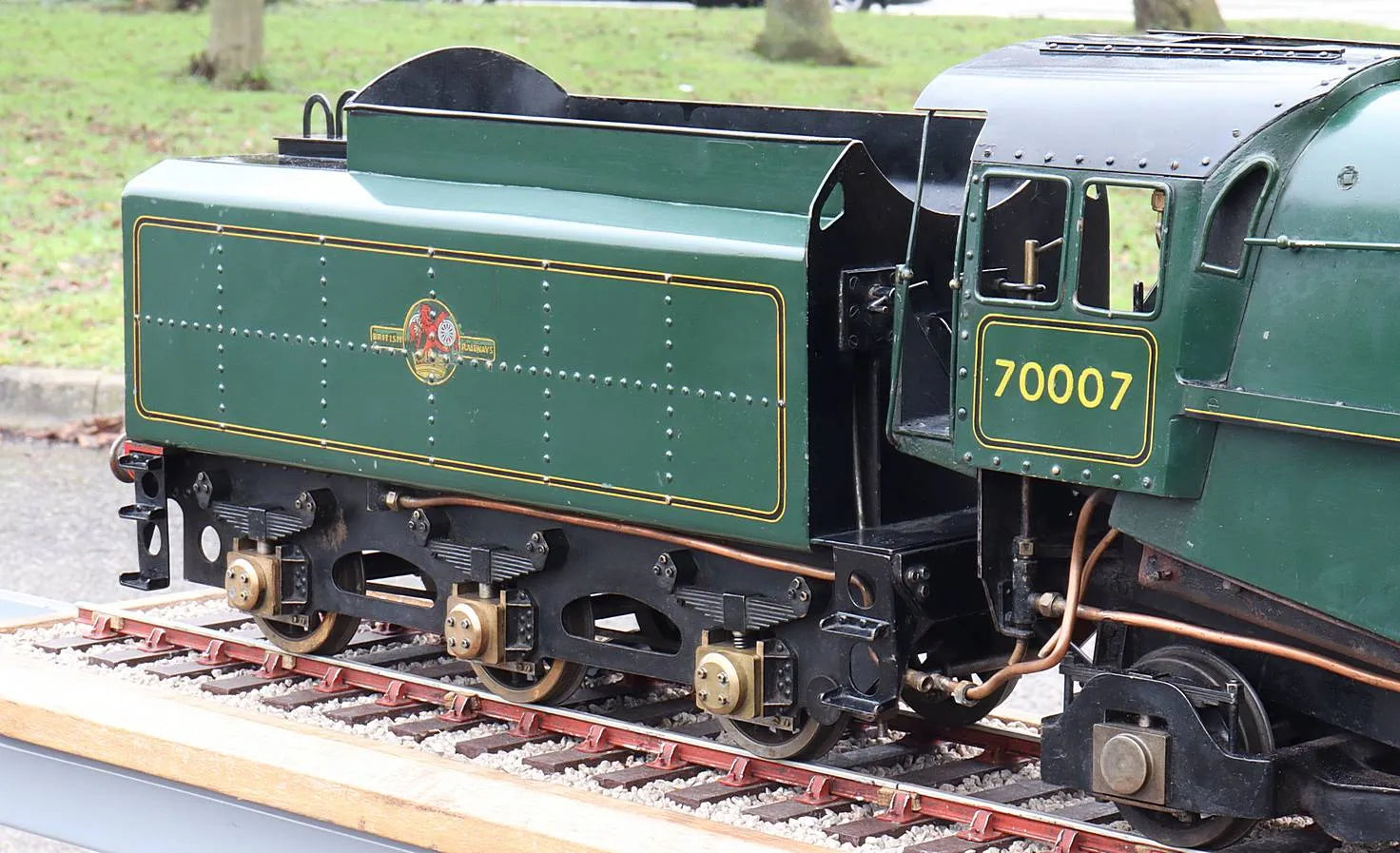

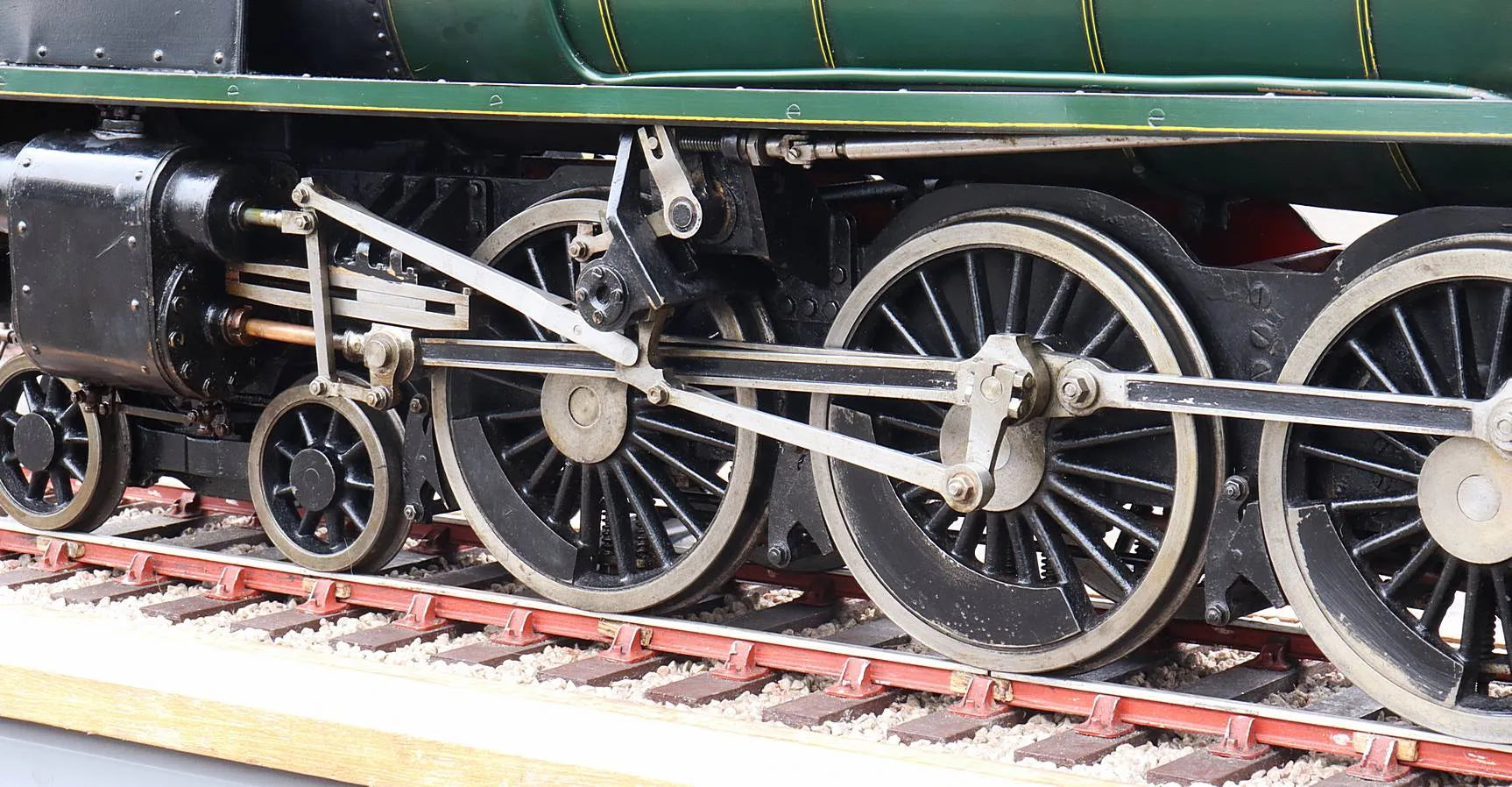

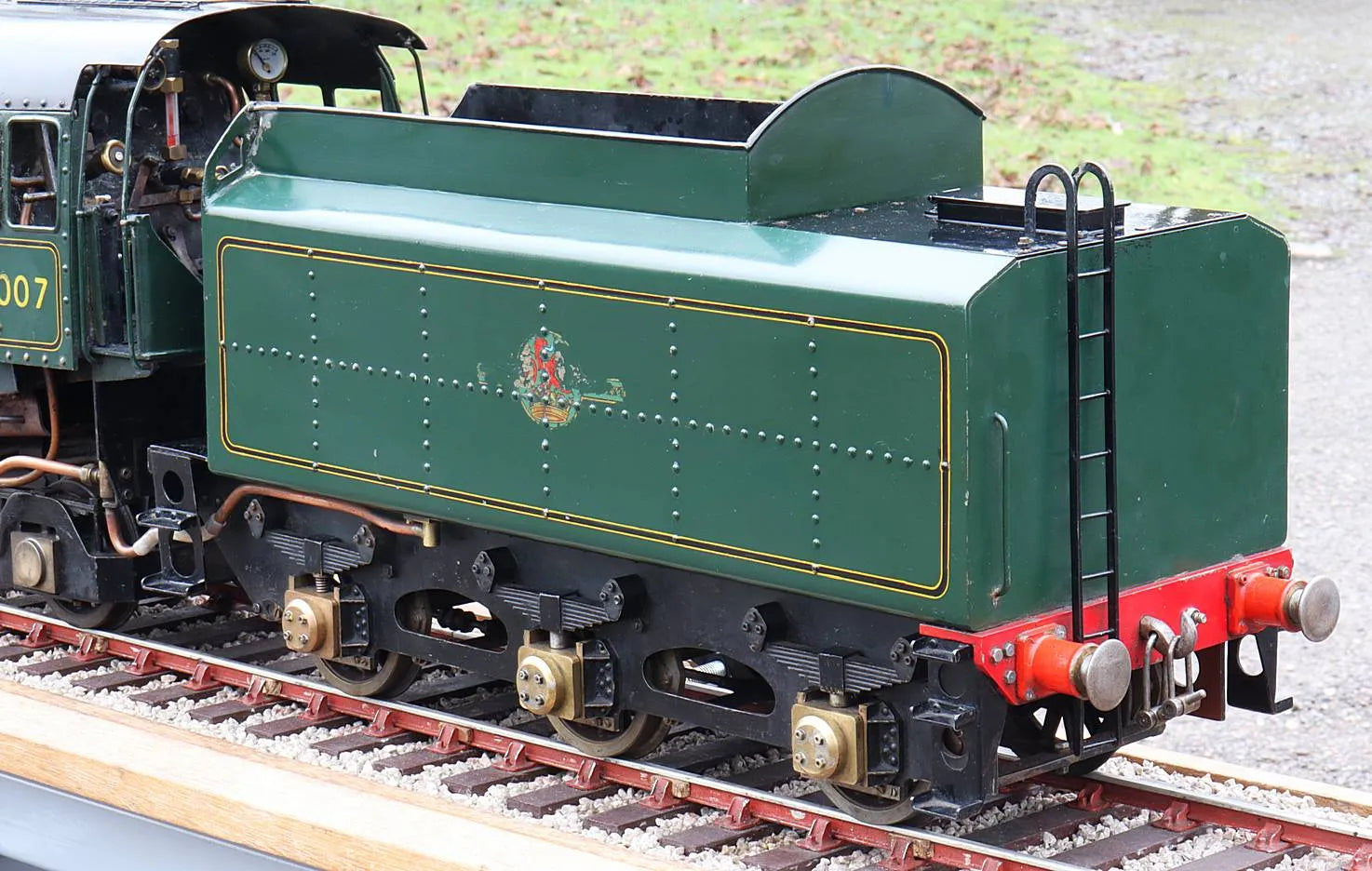

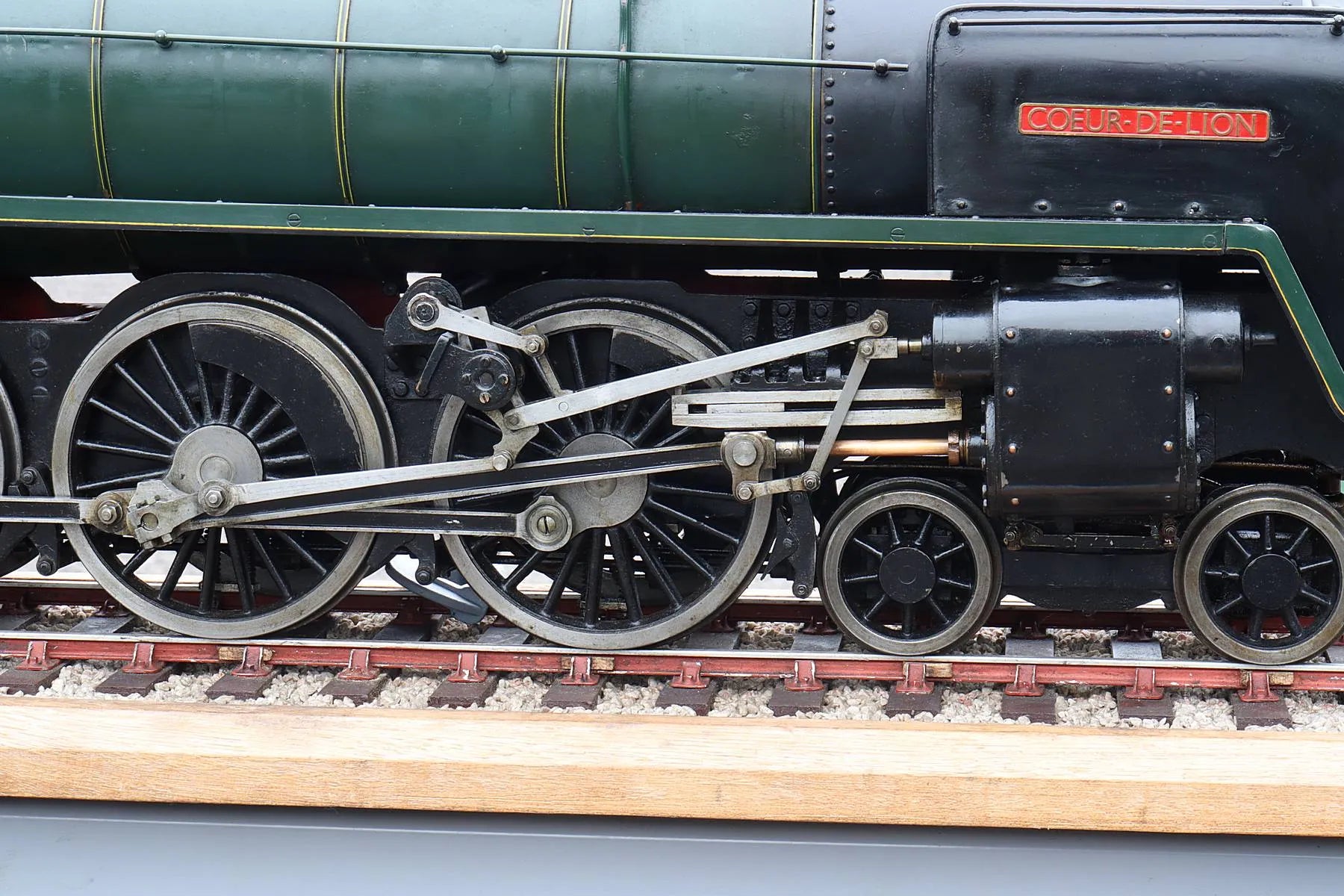

Silver soldered copper boiler, 80psi working pressure, feed by injector and axle pump with auxiliary hand pump in the tender. Gunmetal cylinders with piston valves actuated by Walschaert's gear, screw reverser in cab, mechanical lubricator.

We had this one running outside this morning - it goes well, there's some video of it here.

Type: Second hand

Tags: Locomotives

Technical information

Stock code	13001
Gauge	3 1/2 inch
Length/inches	35 + 18
Width/inches	7.5
Height/inches	11
Weight/Kg	32 +8
Wheel material	cast iron
Axlebox type	plain bearing
Cylinder material	gunmetal
Valve type	piston
Valve gear	Walschaerts

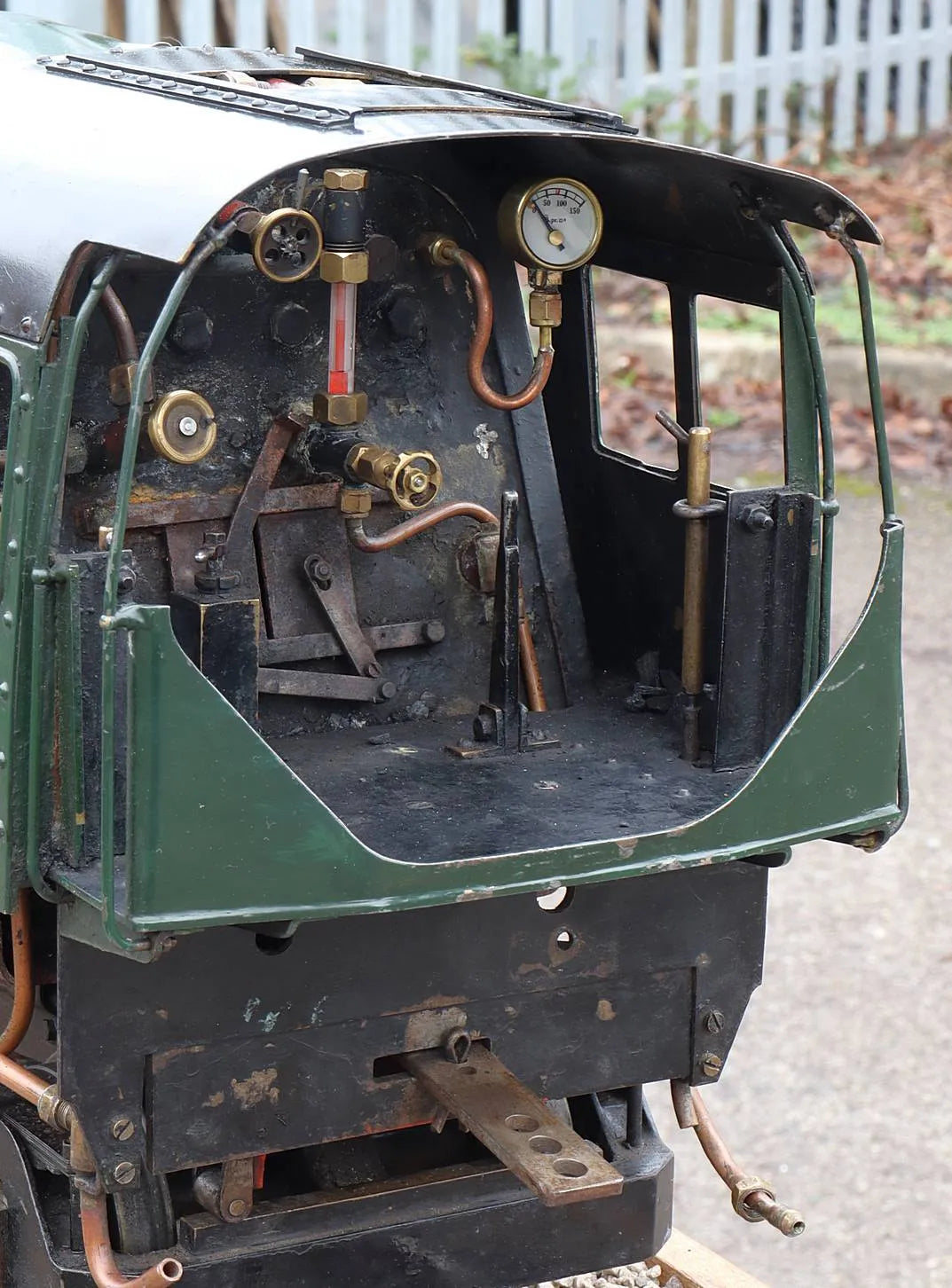

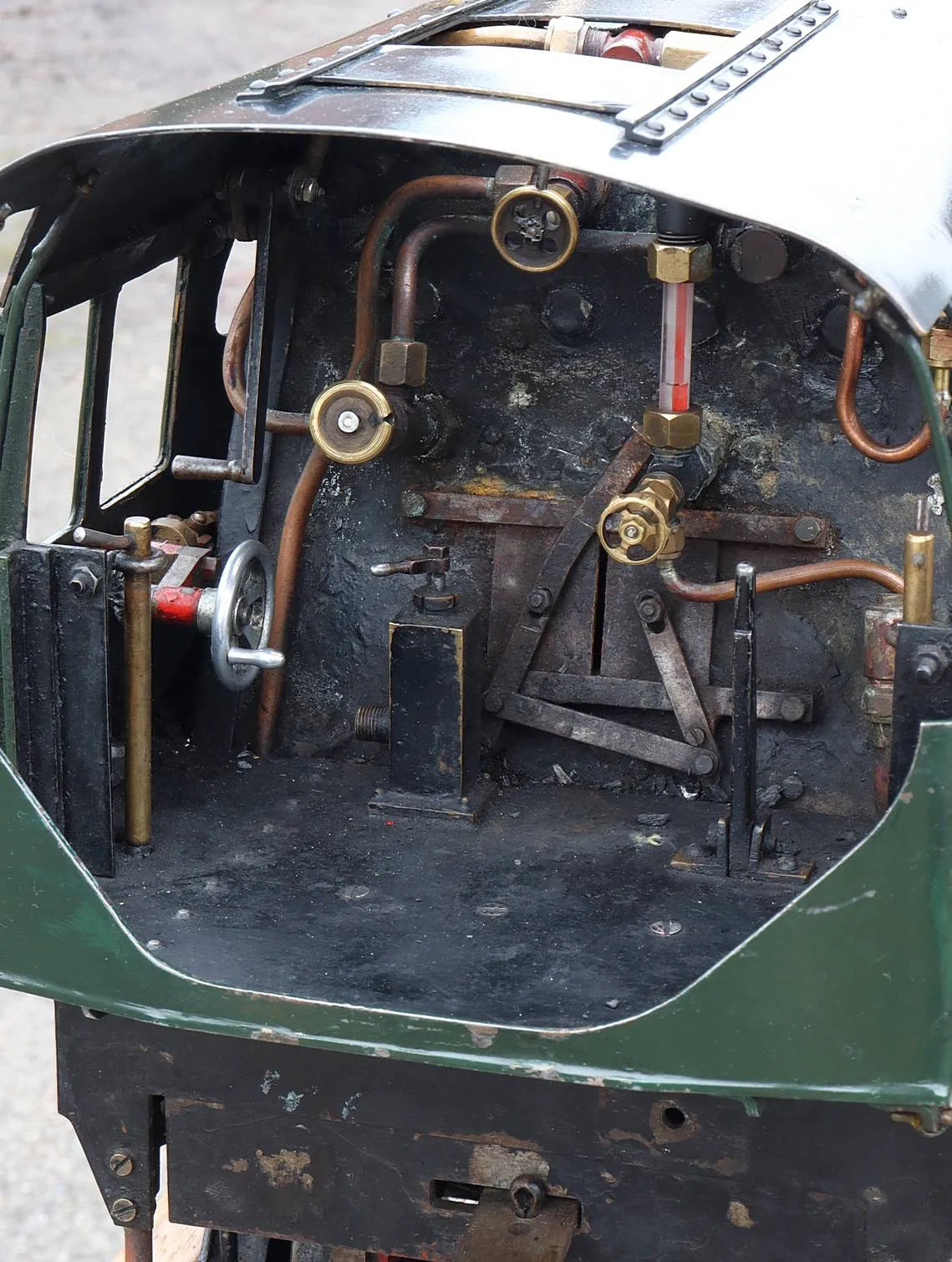

Reverser type	screw
Boiler maker	non-commercial
Boiler type	locomotive with combustion chamber
Boiler construction	silver soldered with nutted and calked firebox
Boiler material	copper
Working pressure	80
CE/UKCA mark	n/a - non-commercial
Boiler number	13
Safety valve type	spring
Safety valve	2
Whistle	yes
Hand pump	1
Mechanical pump	1
Injector	1
Superheater type	flue tube
Superheater	4
Date out	Apr-26
Hydraulic test valid to	10-Jul-29
Steam test valid to	06-Oct-26
