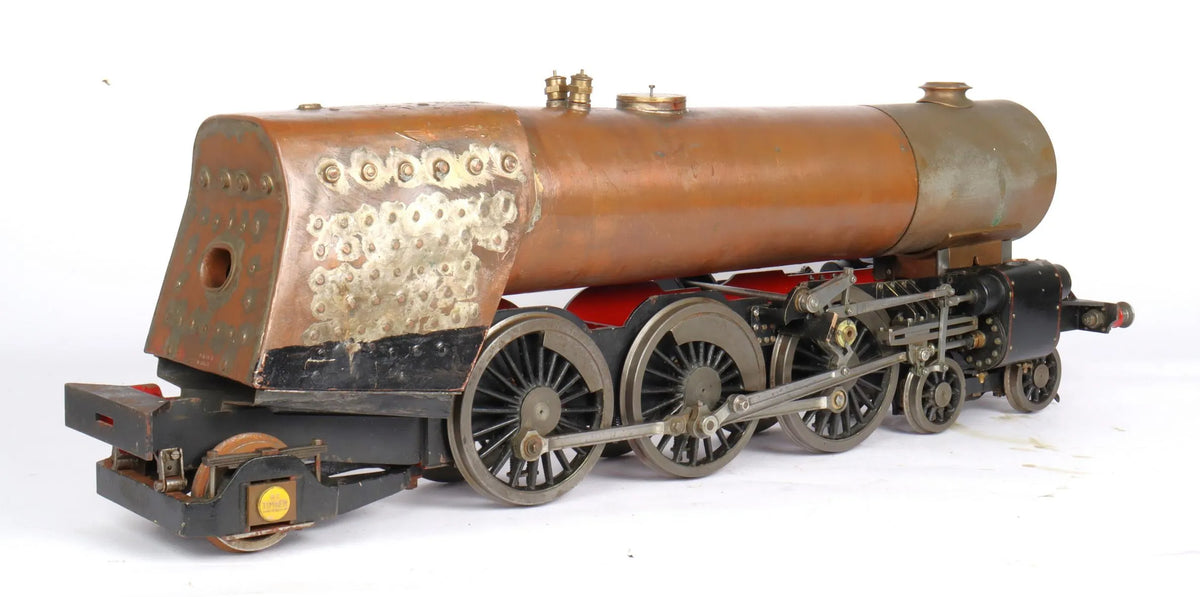

3 1/2 inch gauge BR Class 7 4-6-2

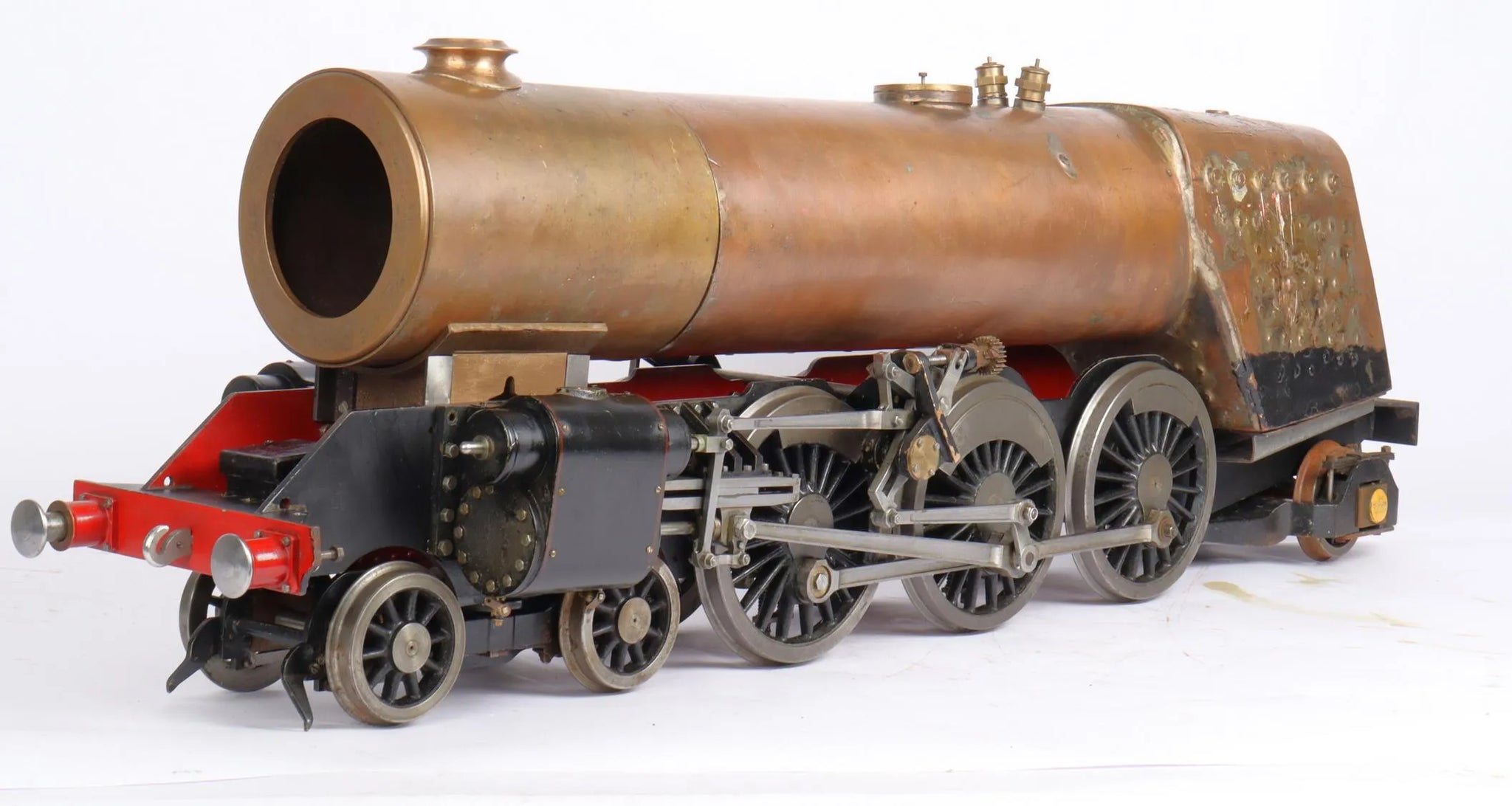

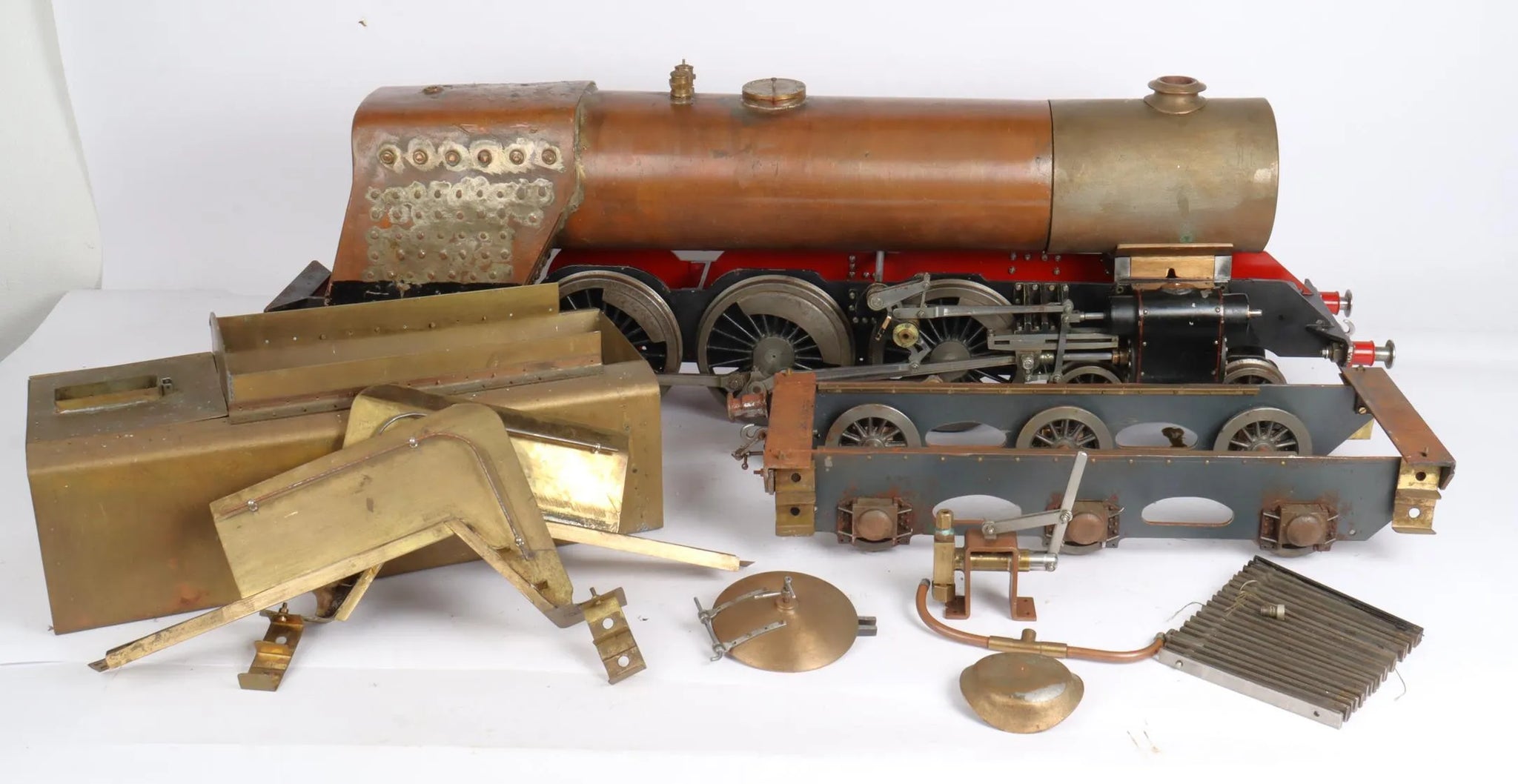

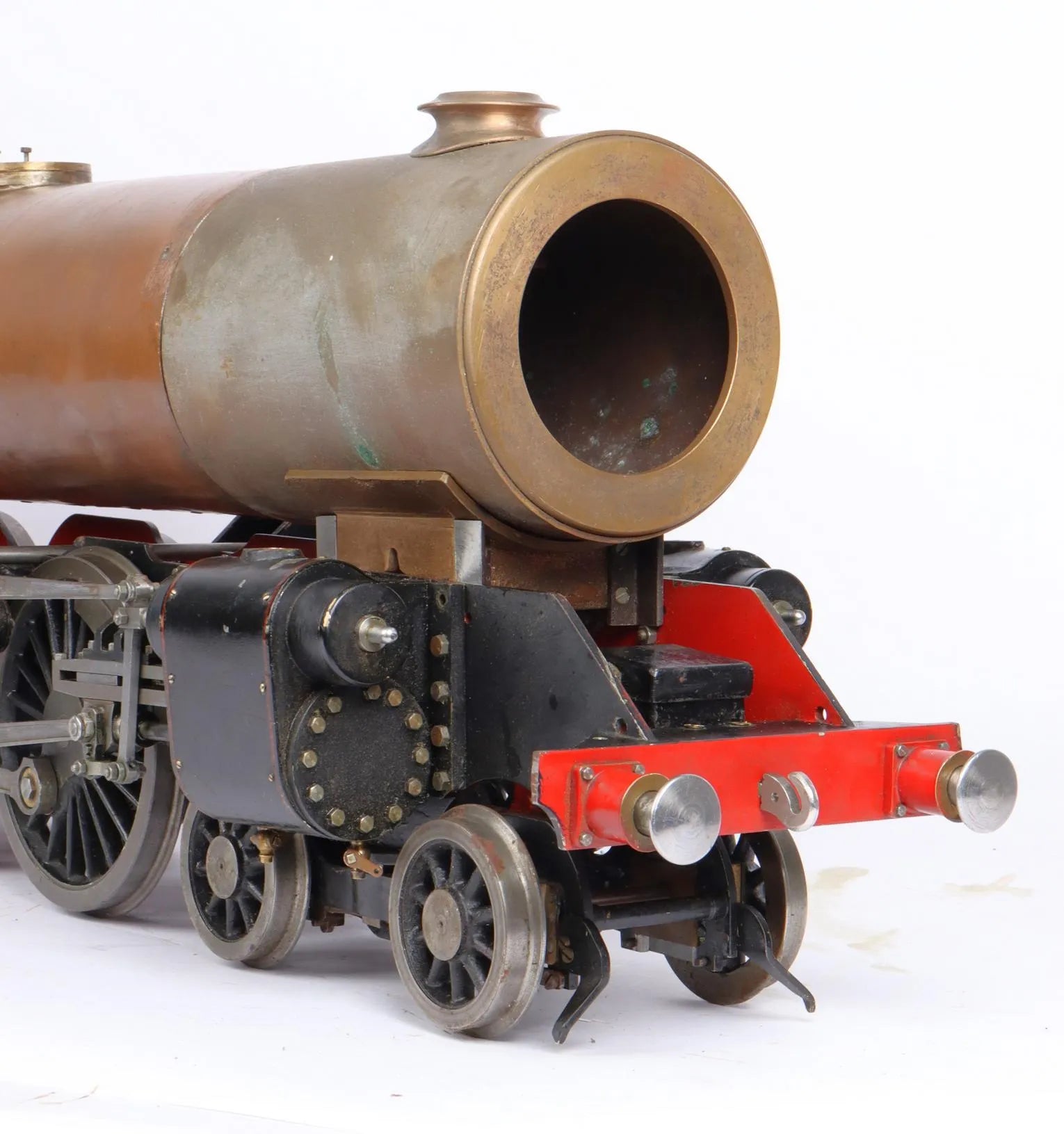

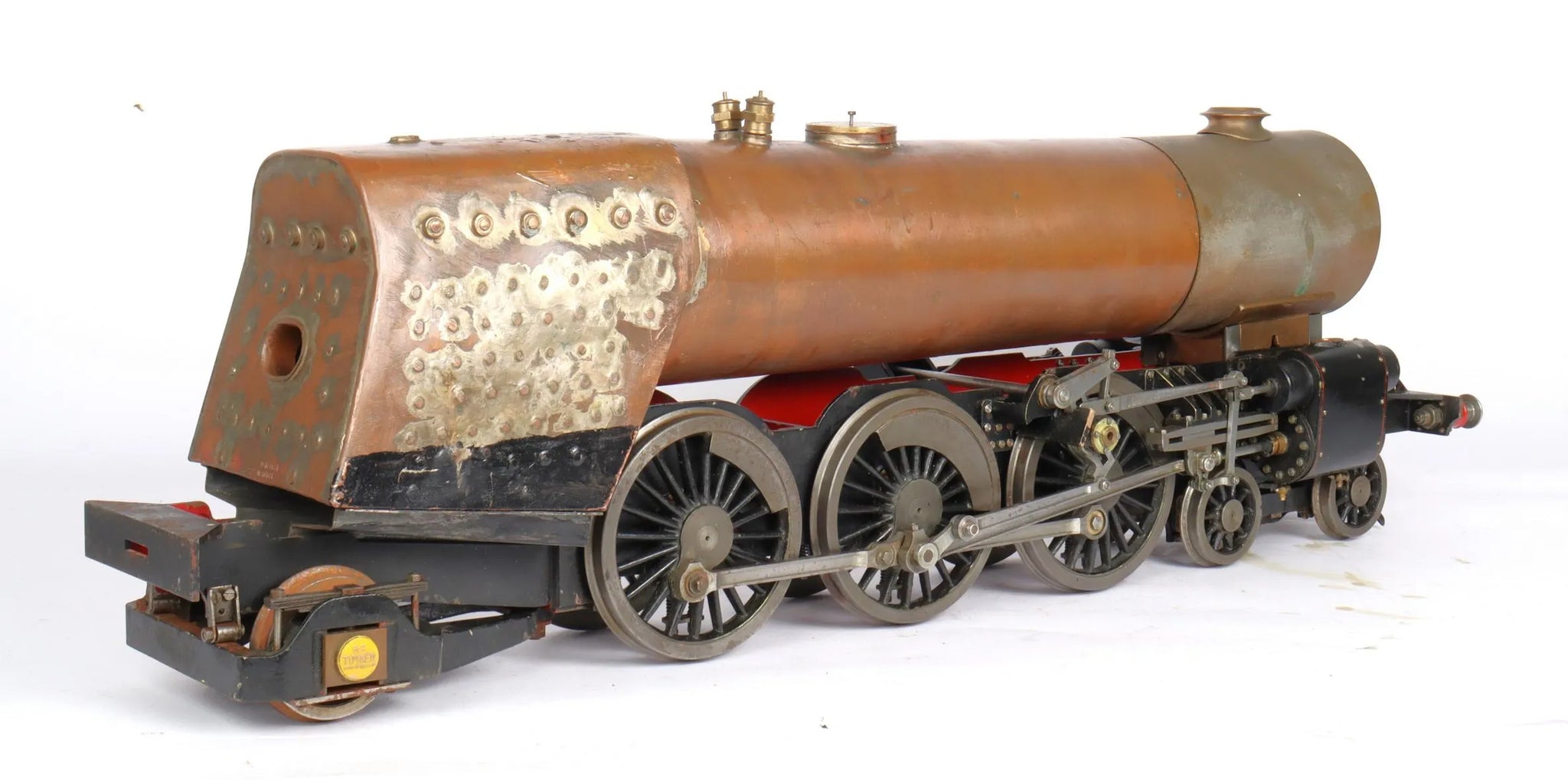

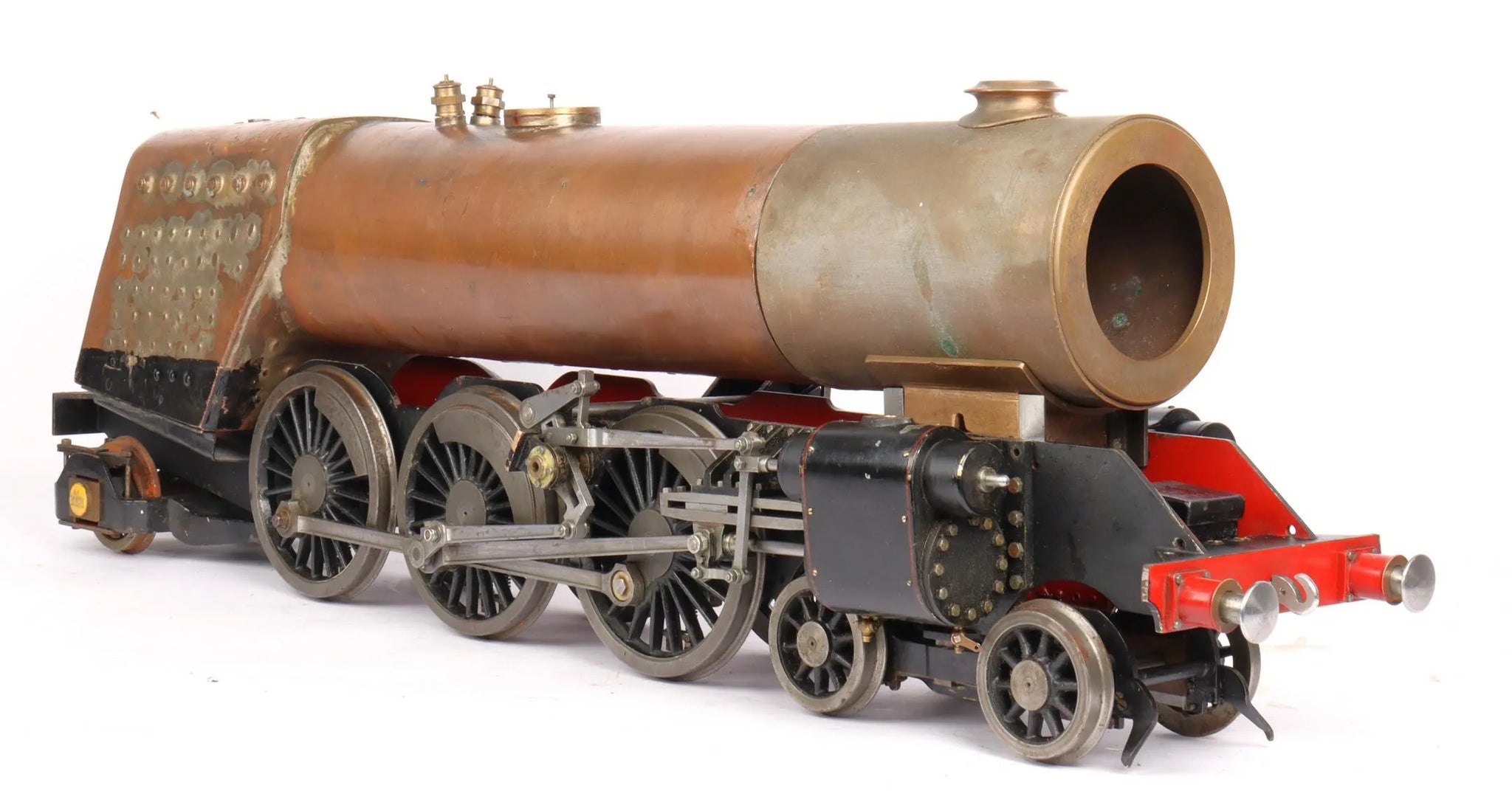

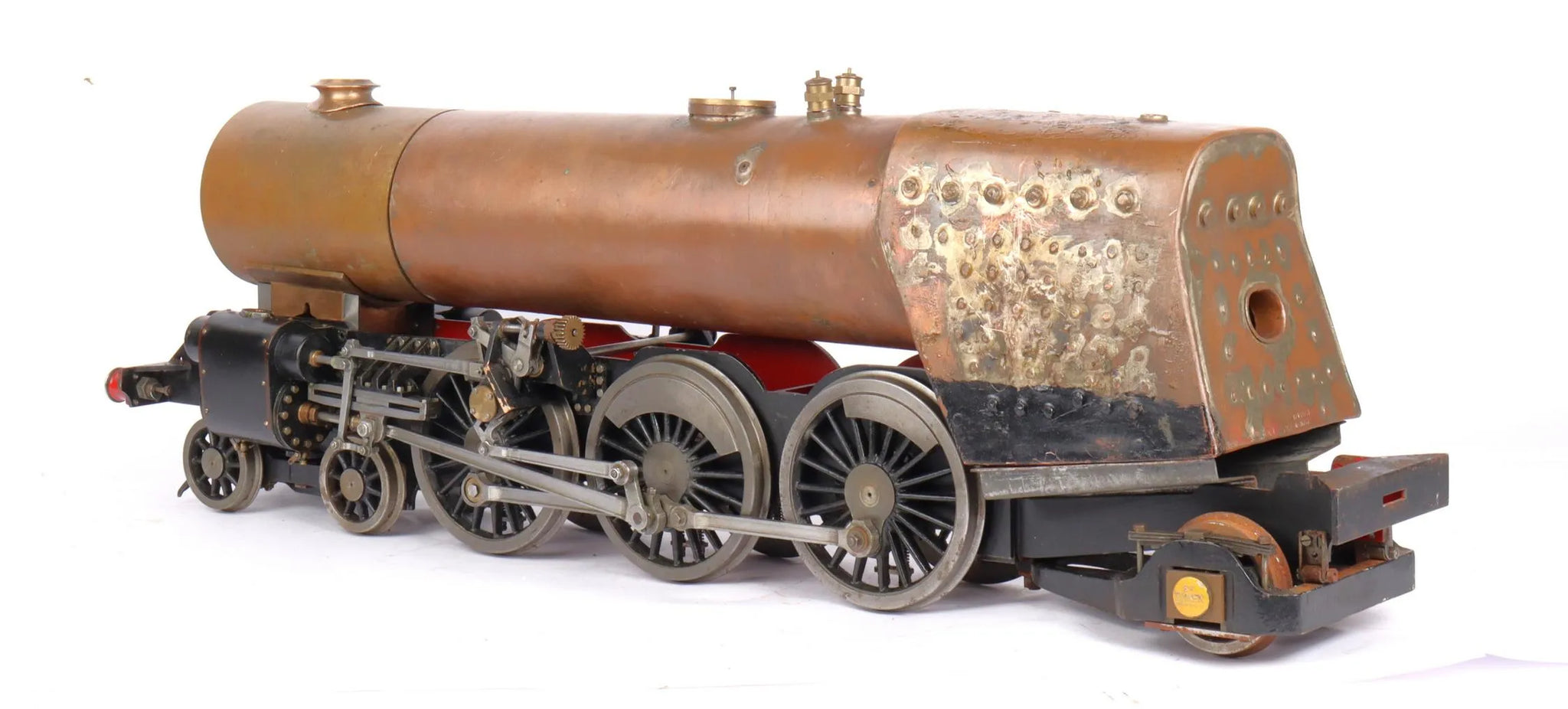

A well advanced 3 1/2 inch gauge Britannia to LBSC's popular design; work to date is to a good standard throughout.

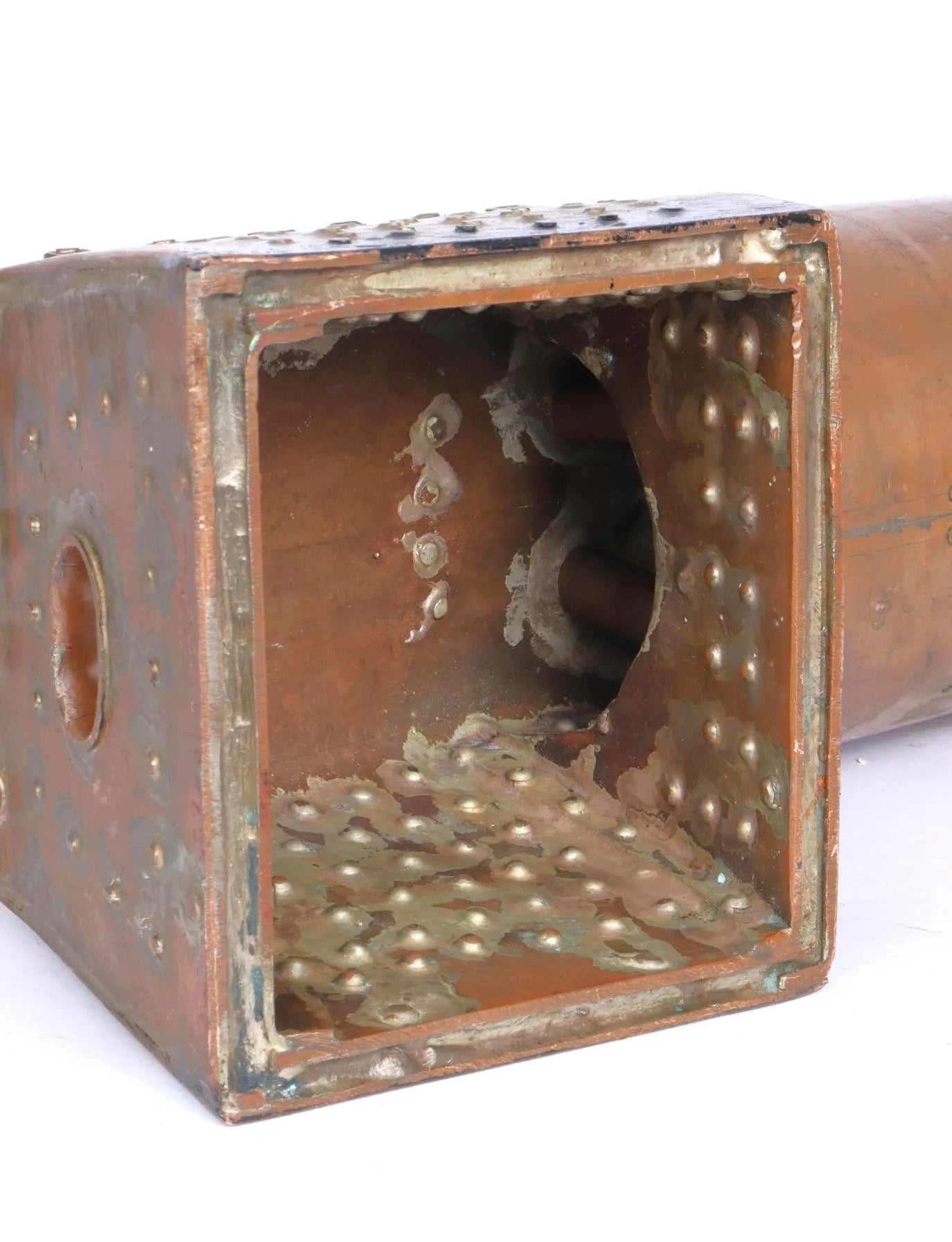

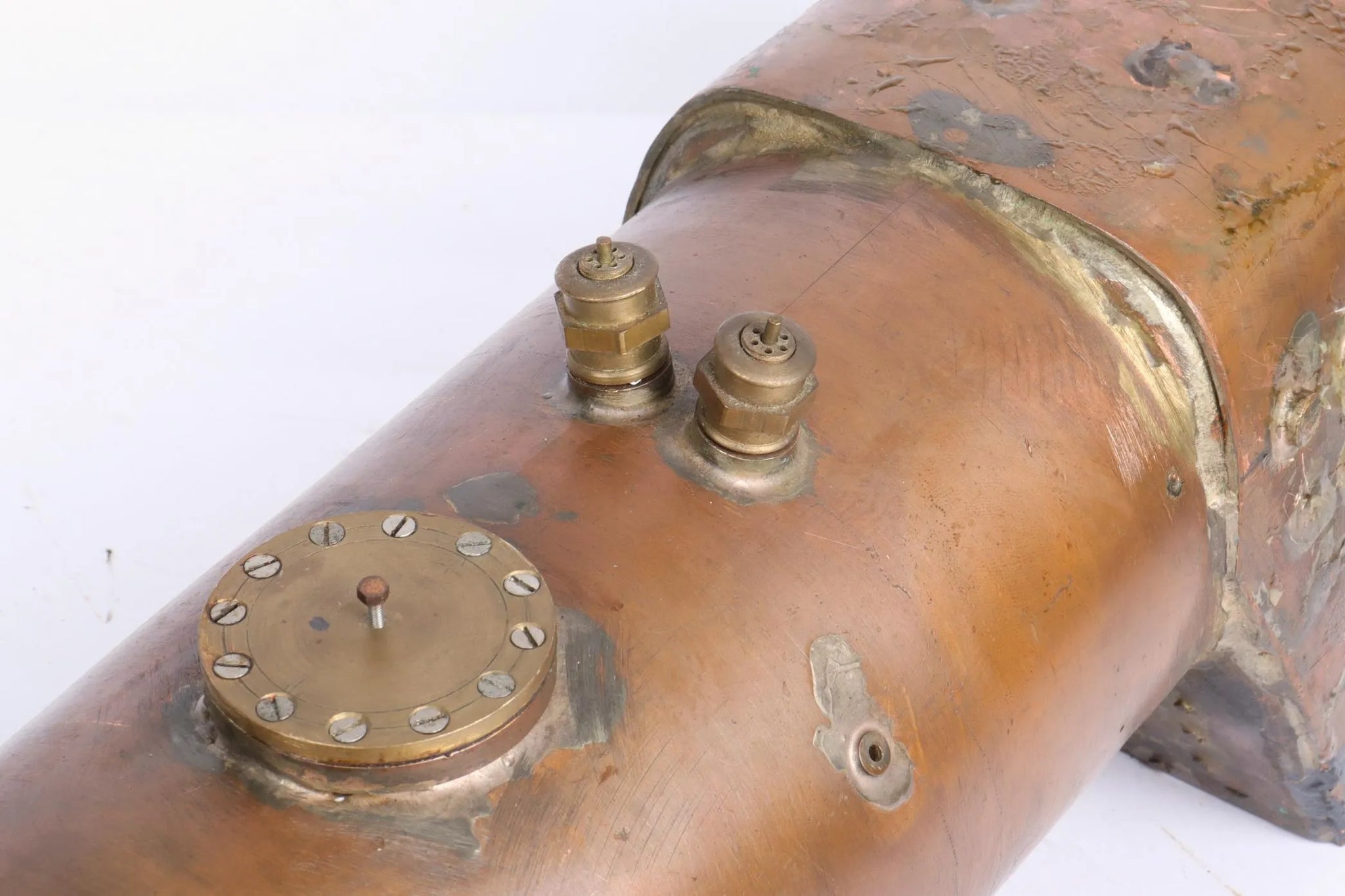

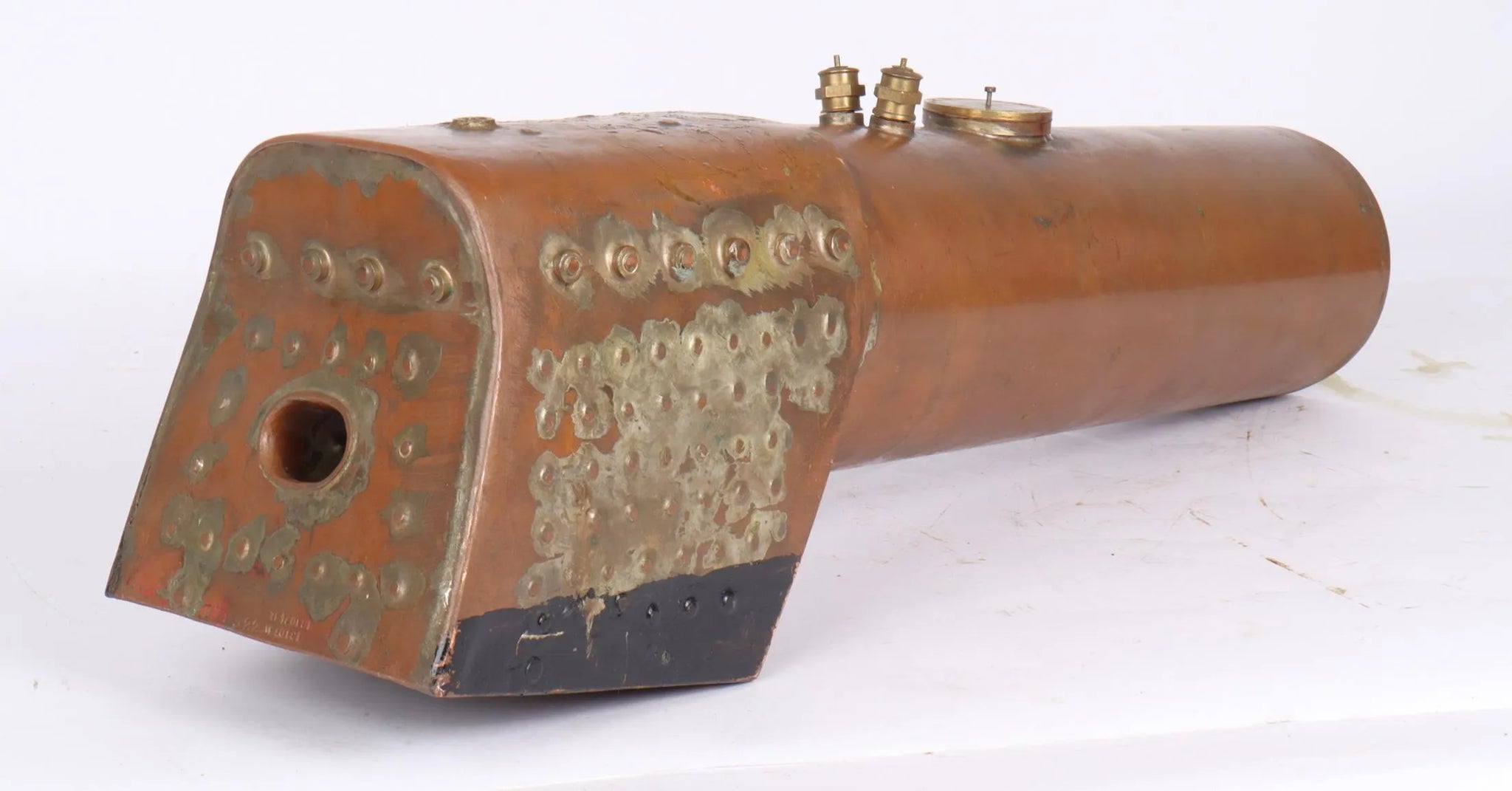

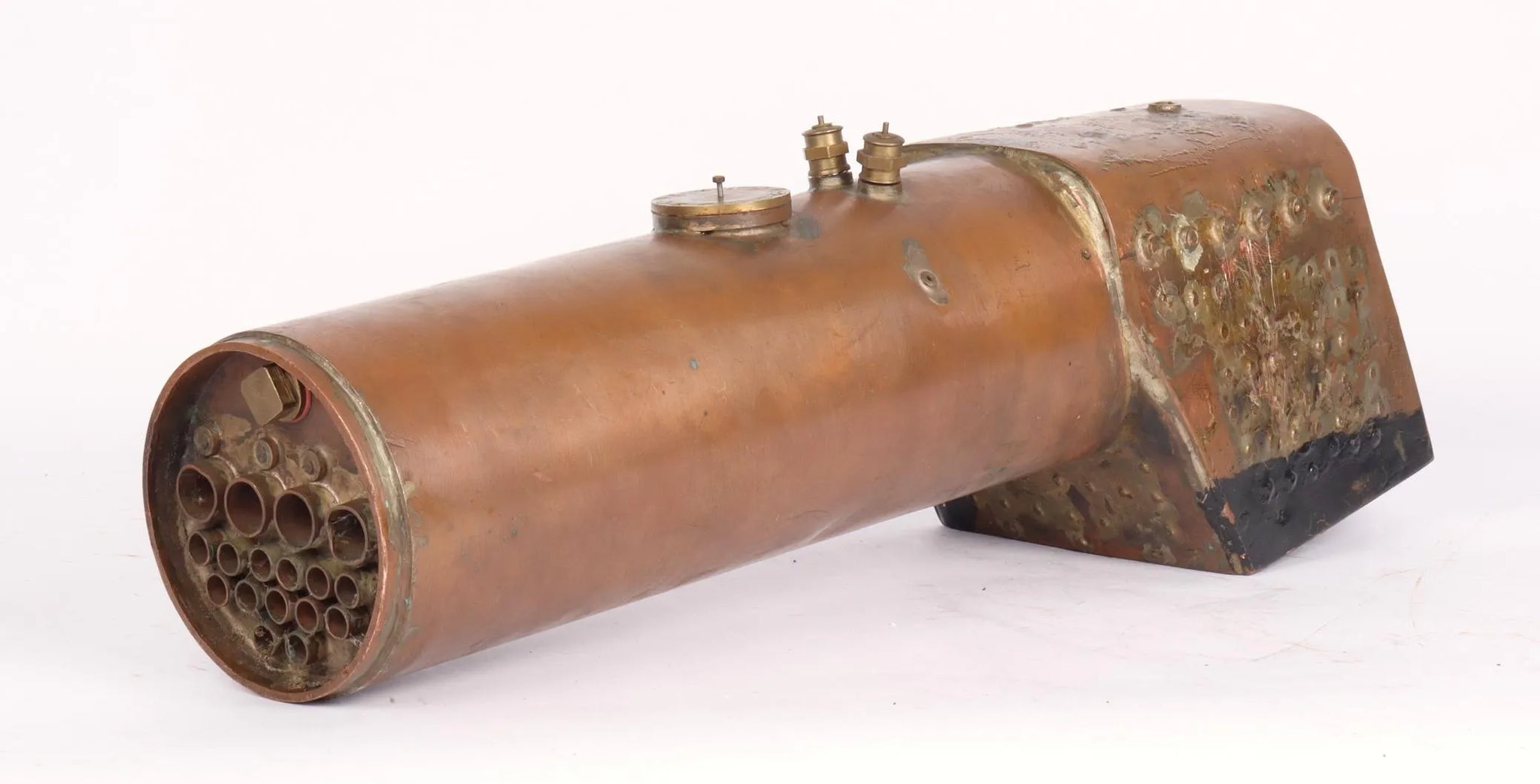

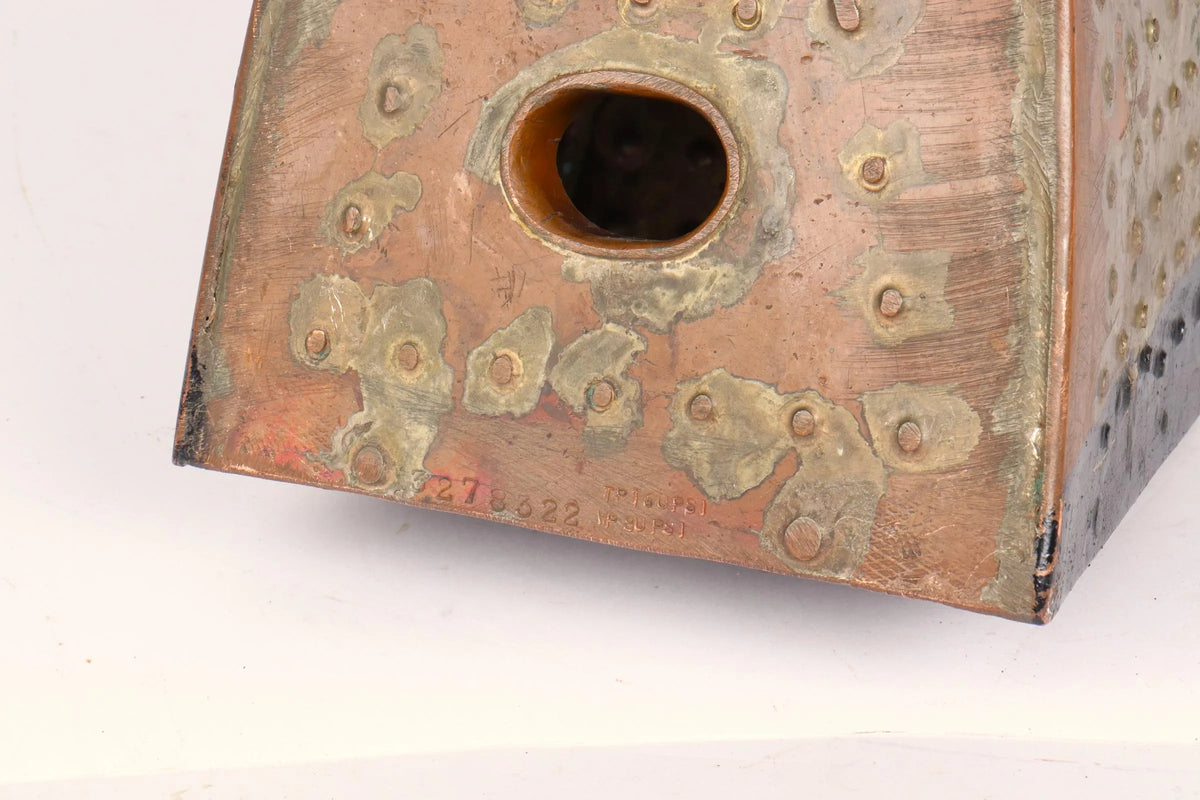

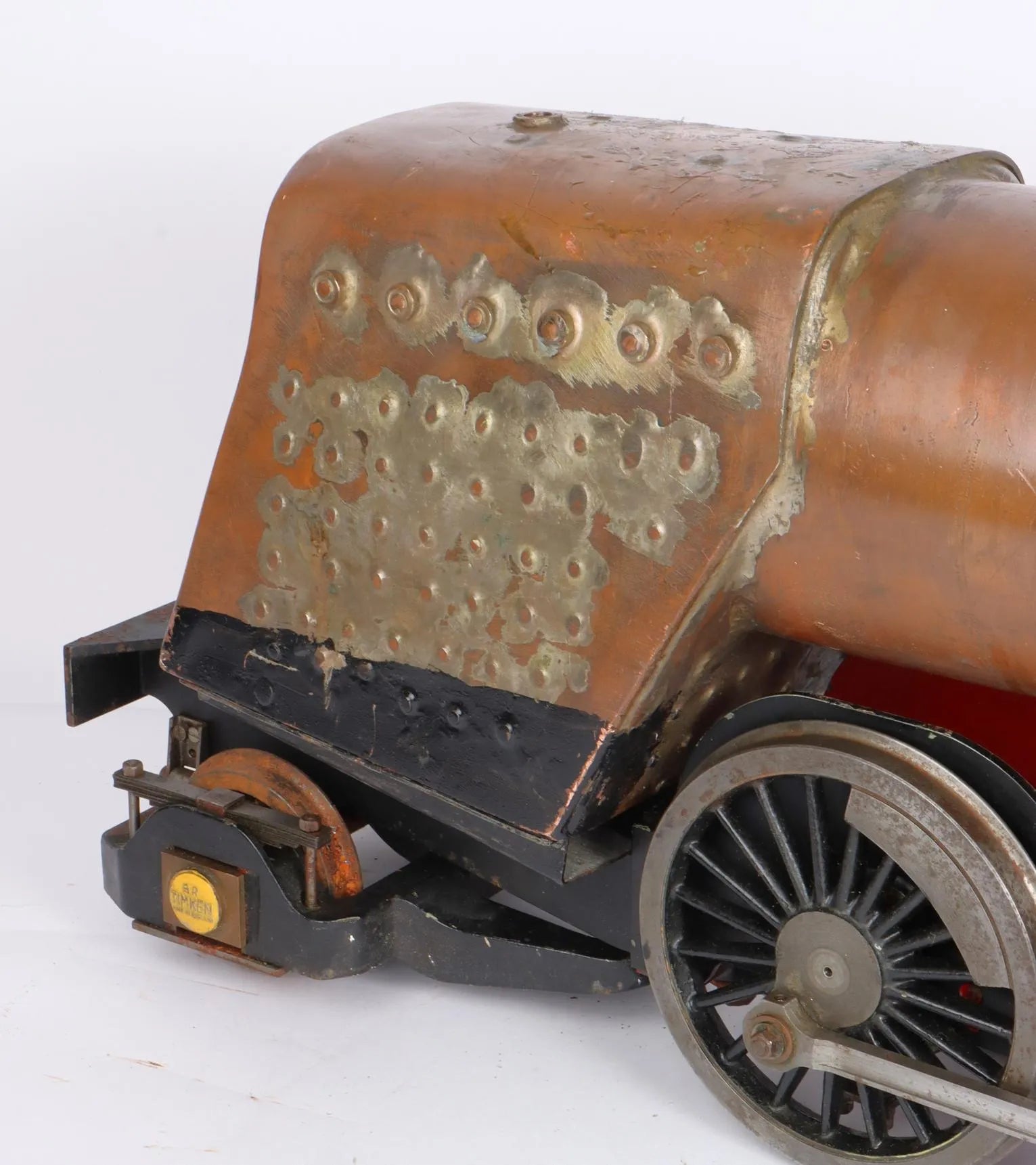

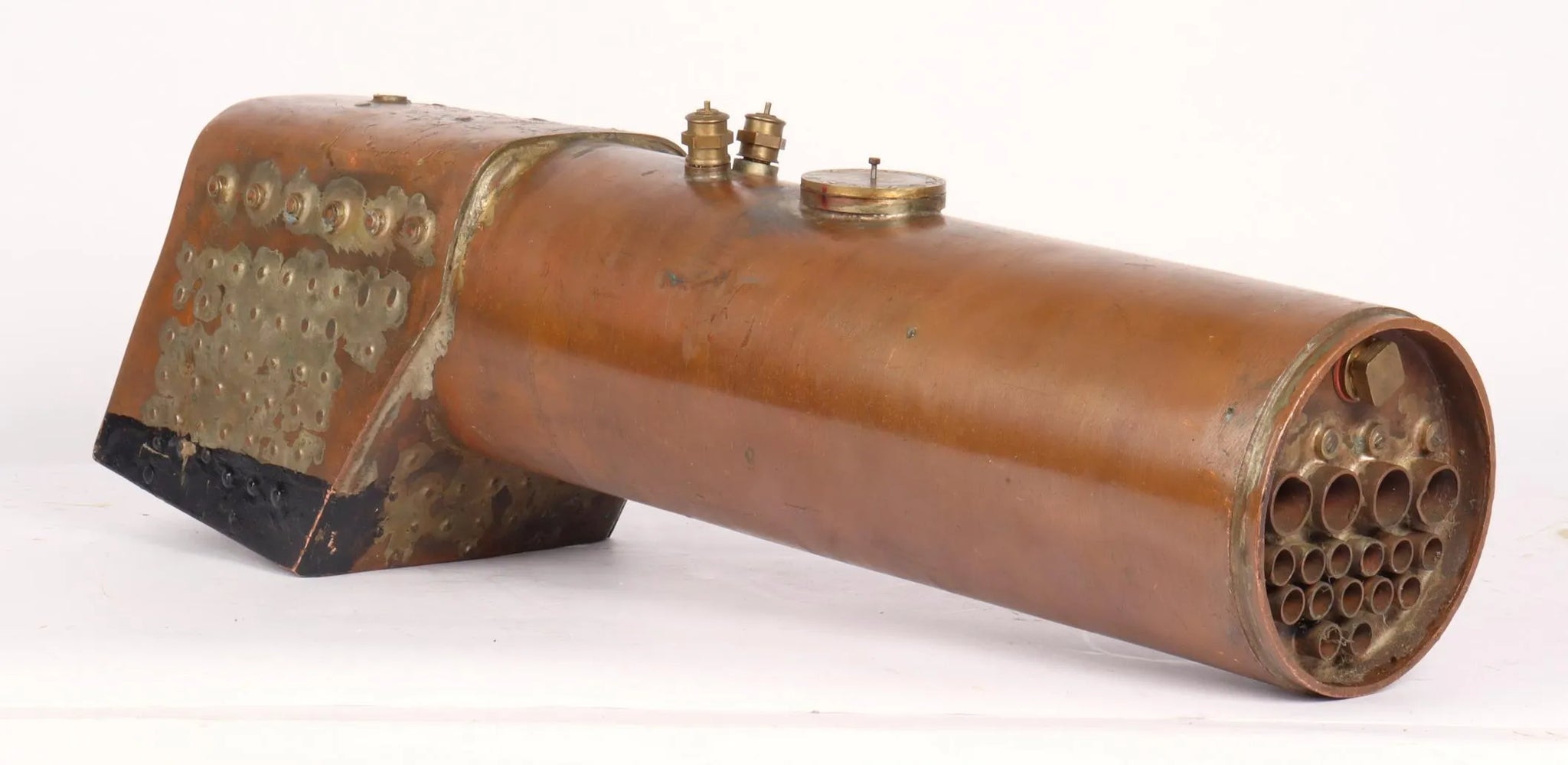

The silver soldered copper combustion chamber boiler has had a twice working pressure hydraulic test with new certification issued - it's nicely made with neatly flanged plates and good solder penetration.

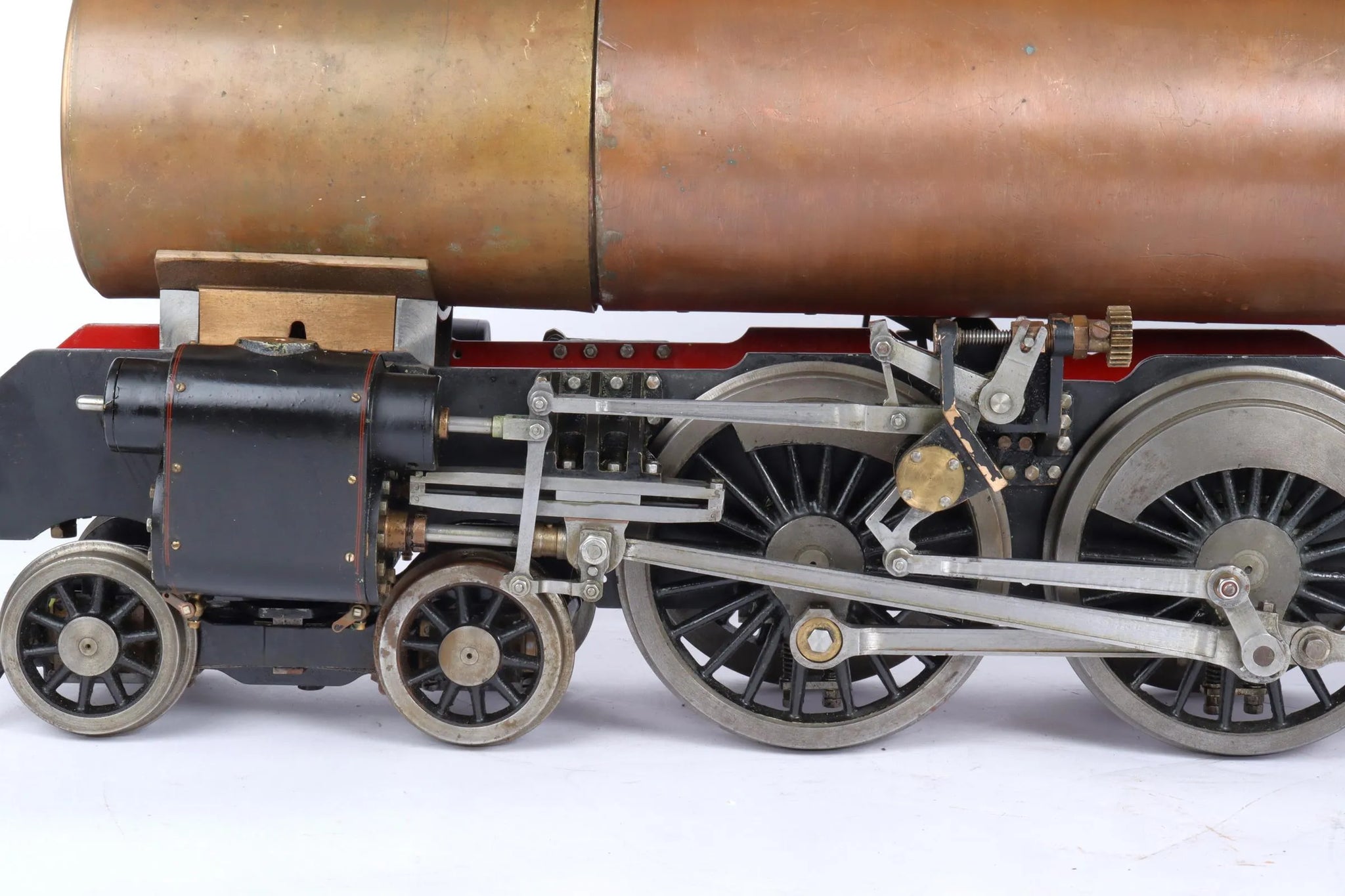

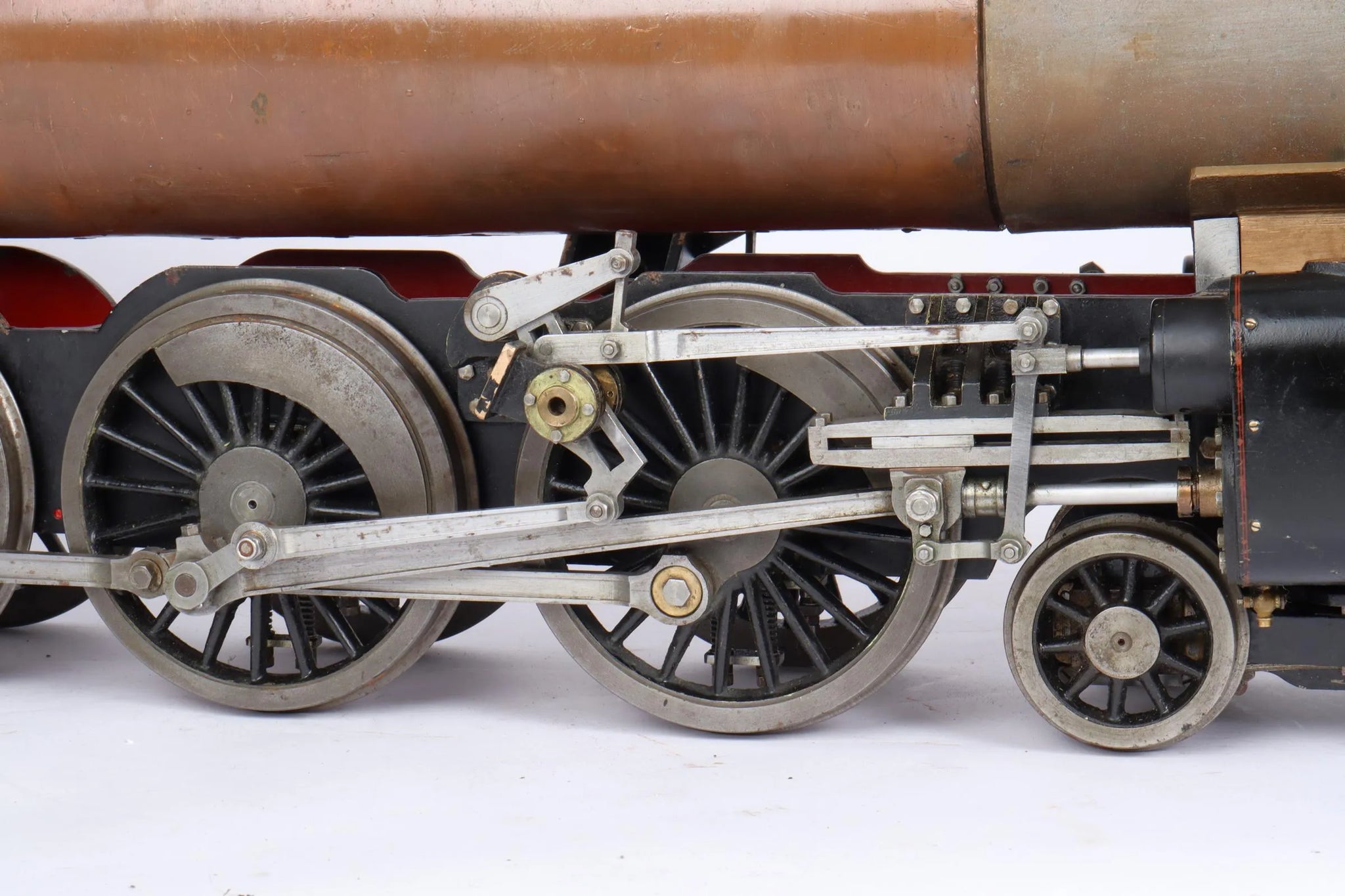

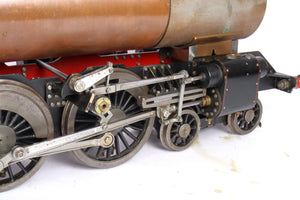

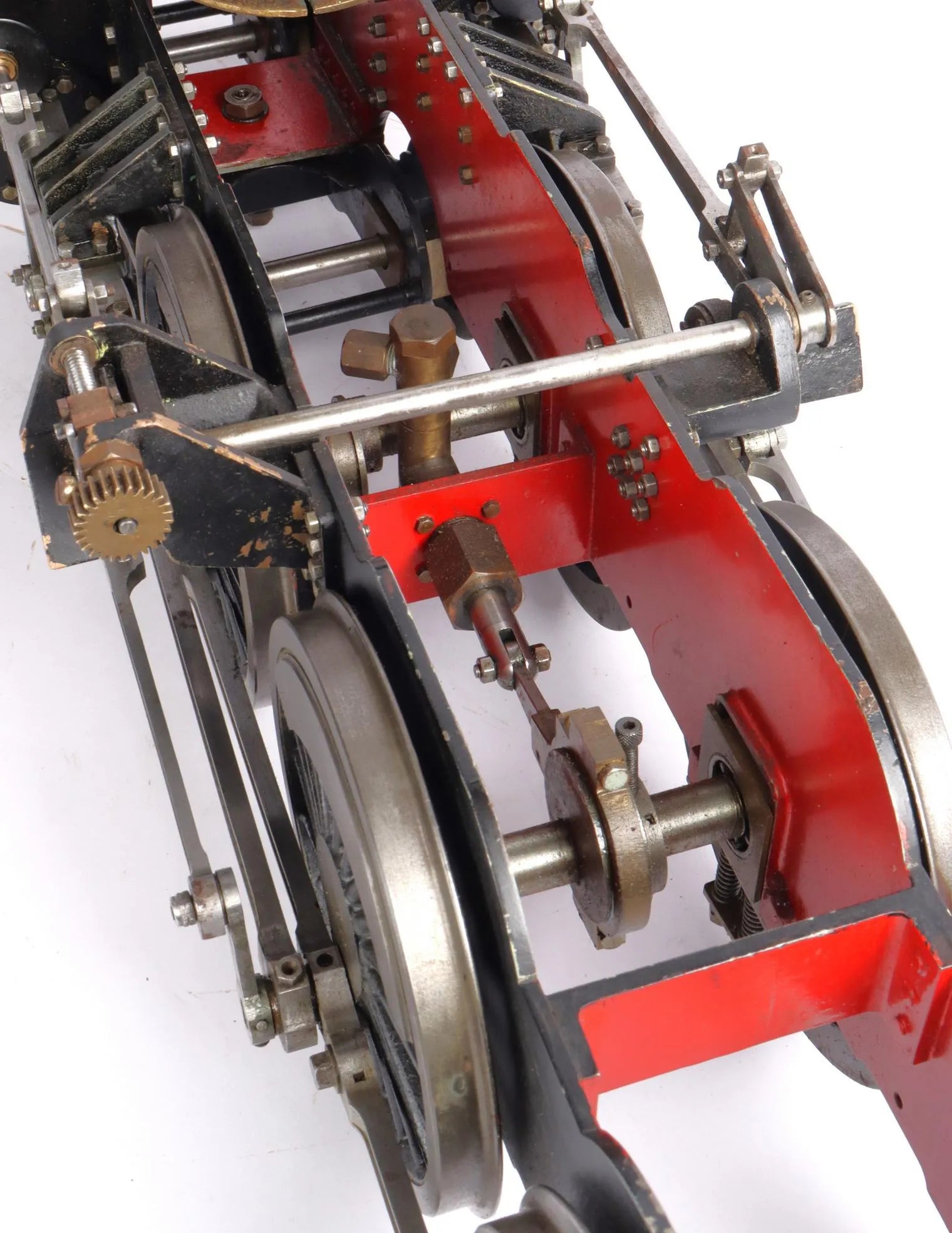

The chassis is still slightly tight but rolls without tight spots. It already runs very well on air in either direction, with some running in it we suspect it will improve further still.

A good starting point to produce a fine example of a Britannia for little additional outlay other than time in the workshop, we'd be interested to see this one when finished.

Technical information

Stock code

12584

Gauge

3 1/2 inch

Length/inches

33 + 18

Width/inches

8

Height/inches

11.5

Weight/Kg

45

Wheel material

cast iron

Axlebox type

roller bearing

Cylinder material

gunmetal

Valve type

piston

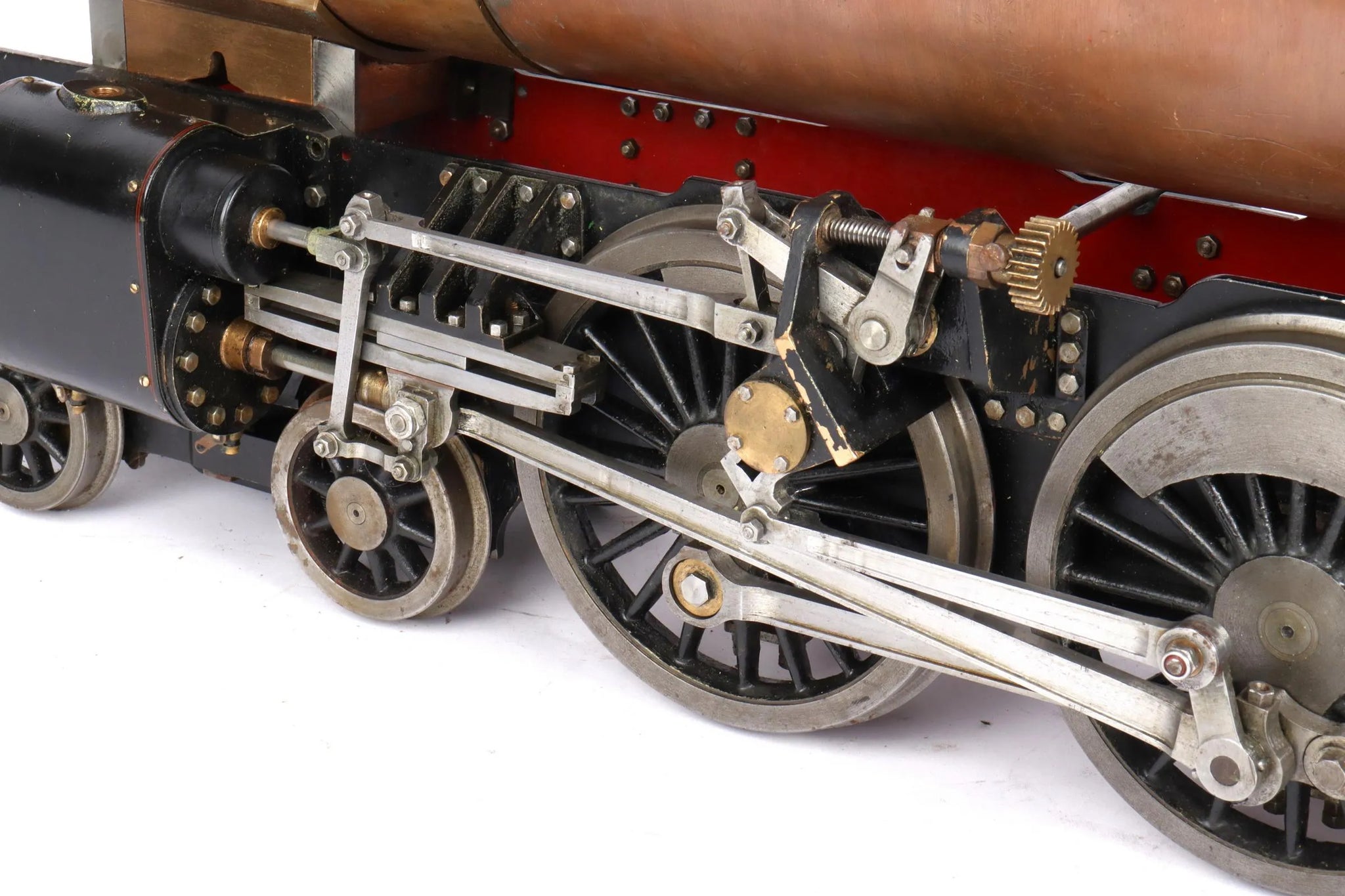

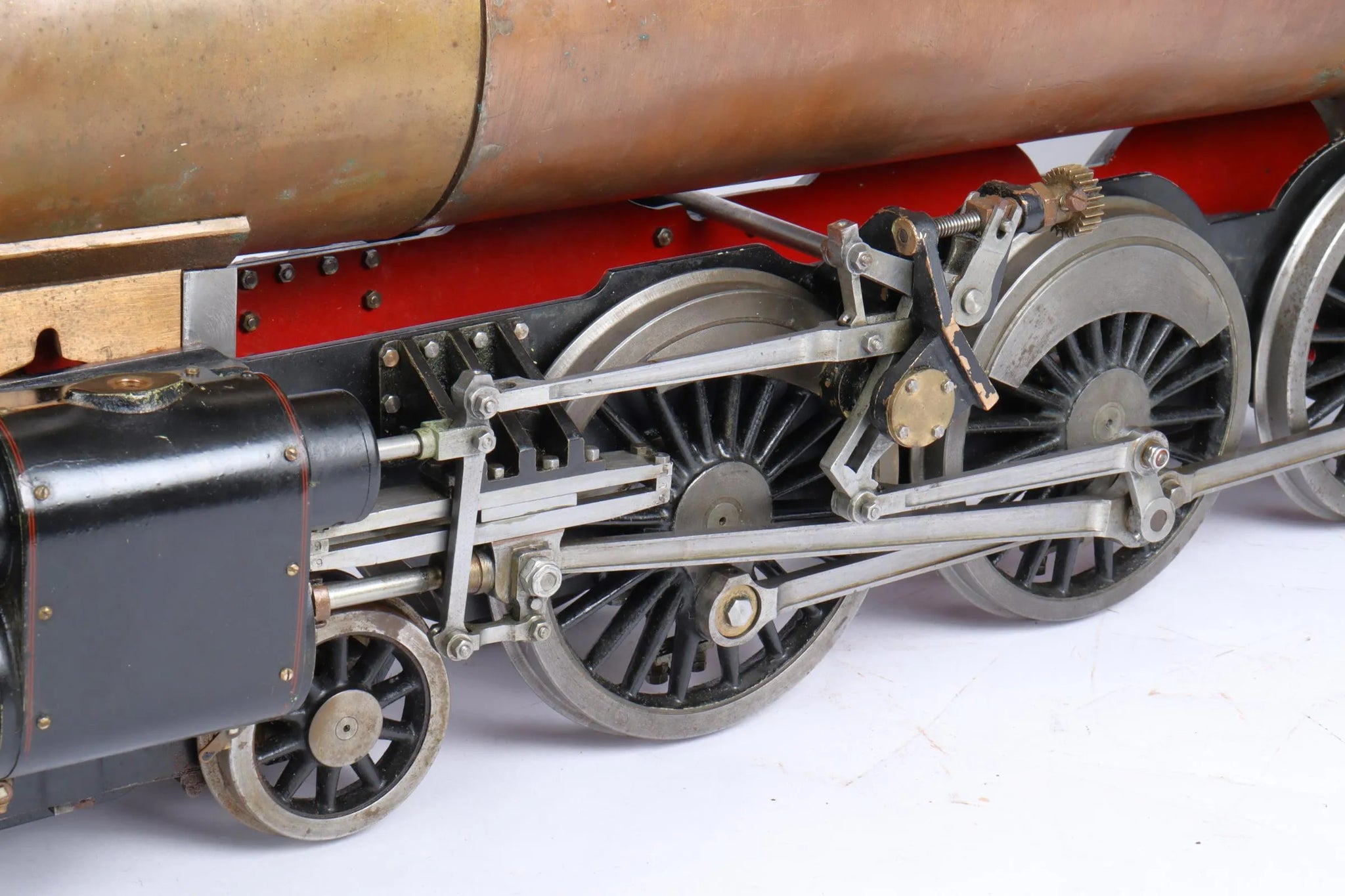

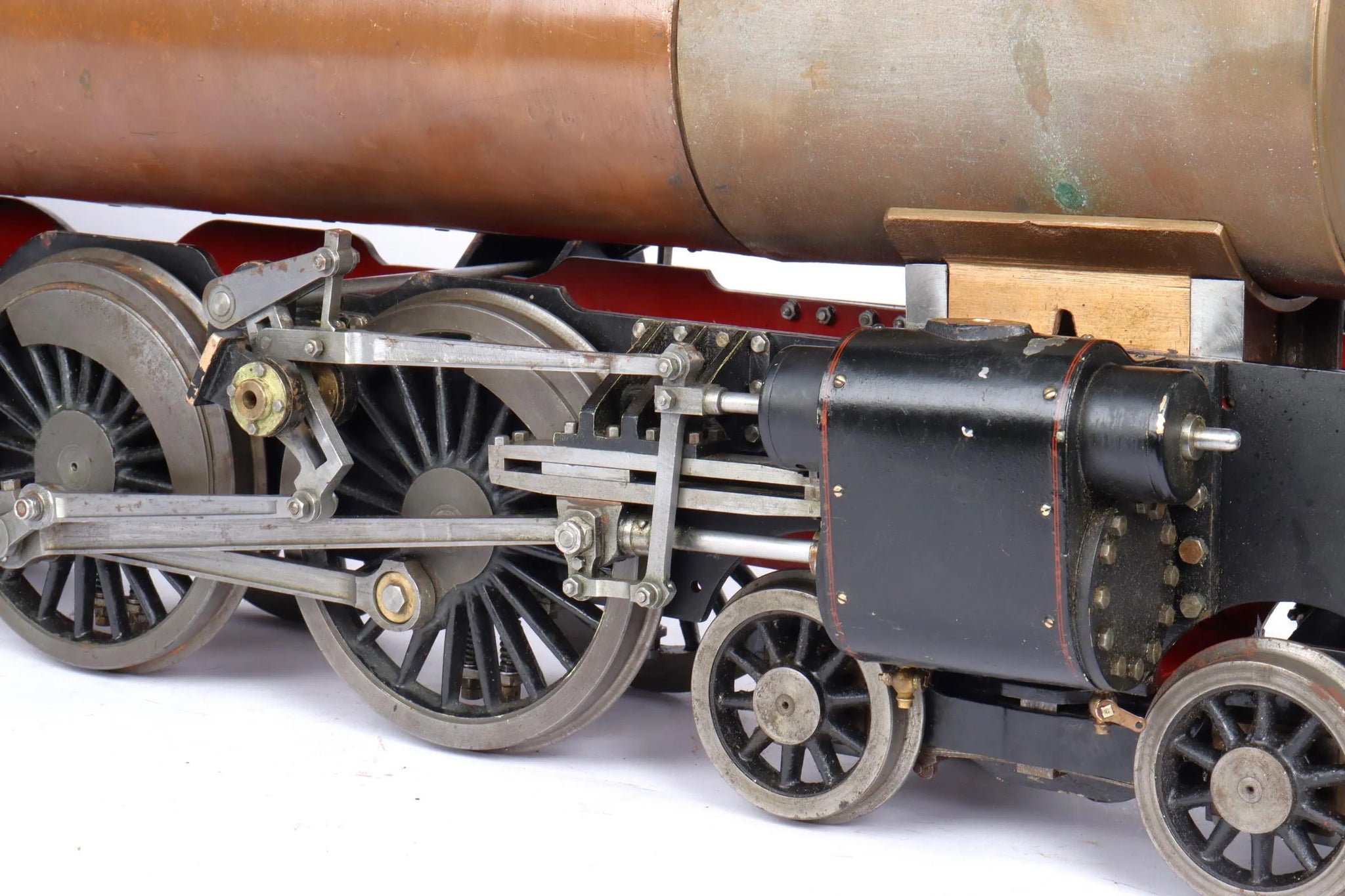

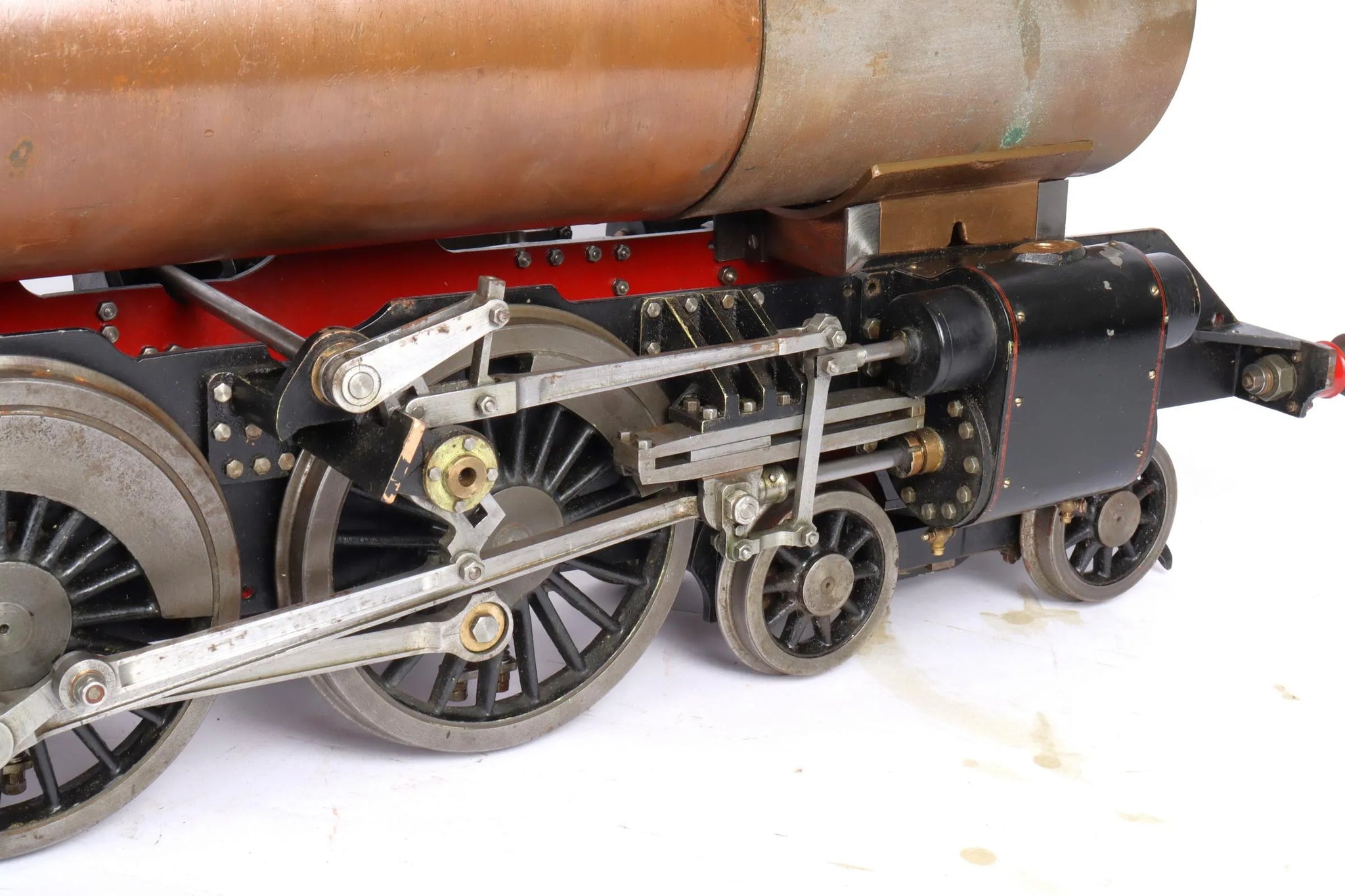

Valve gear

Walschaerts

Reverser type

screw

Boiler type

locomotive with combustion chamber

Boiler construction

silver soldered

Boiler material

copper

CE/UKCA mark

n/a - non-commercial

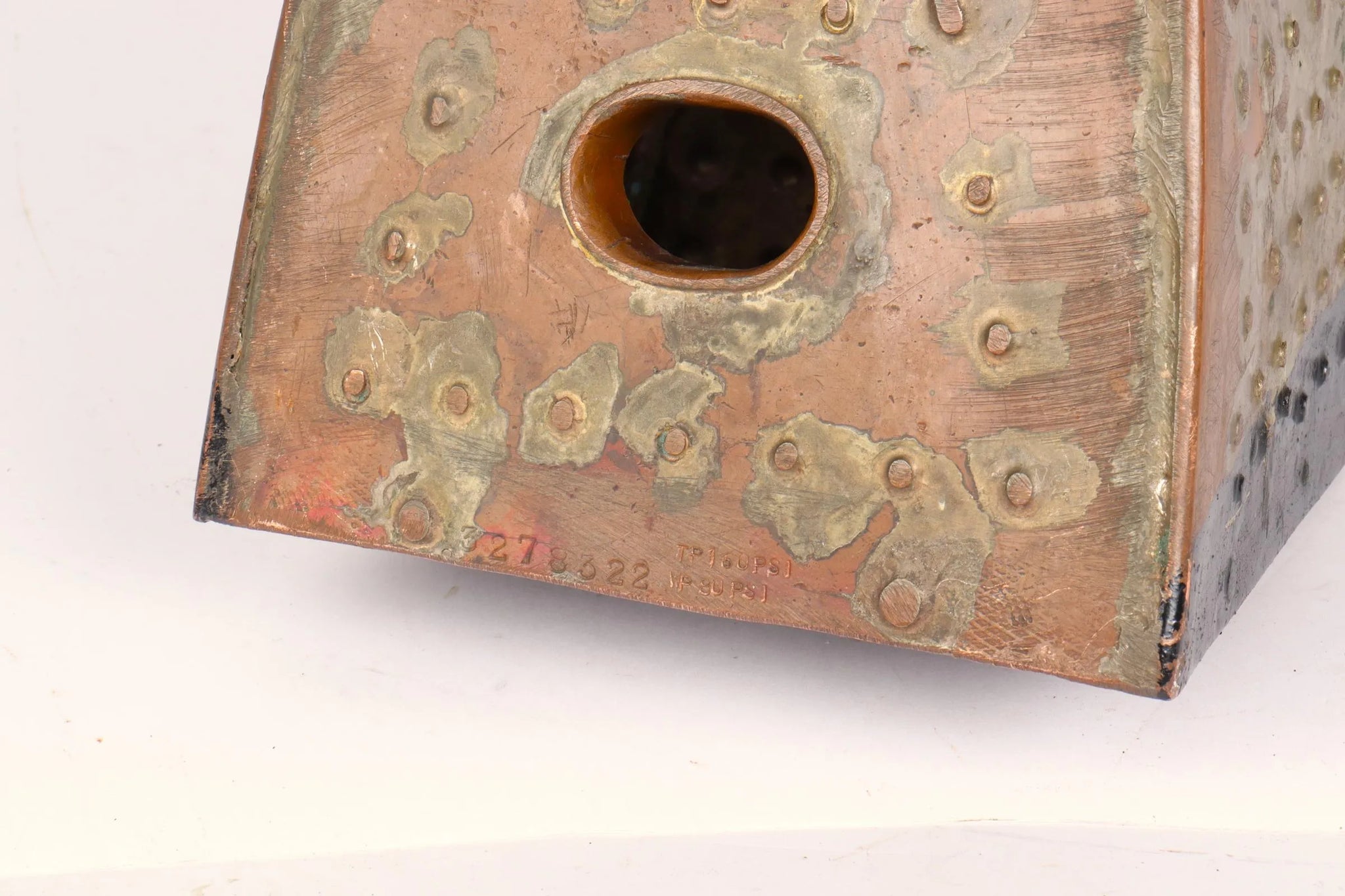

Boiler number

3278322

Safety valve type

spring

Safety valve

2

Date out

May-25

Hydraulic test valid to

28-Jan-29
