Sold

8386

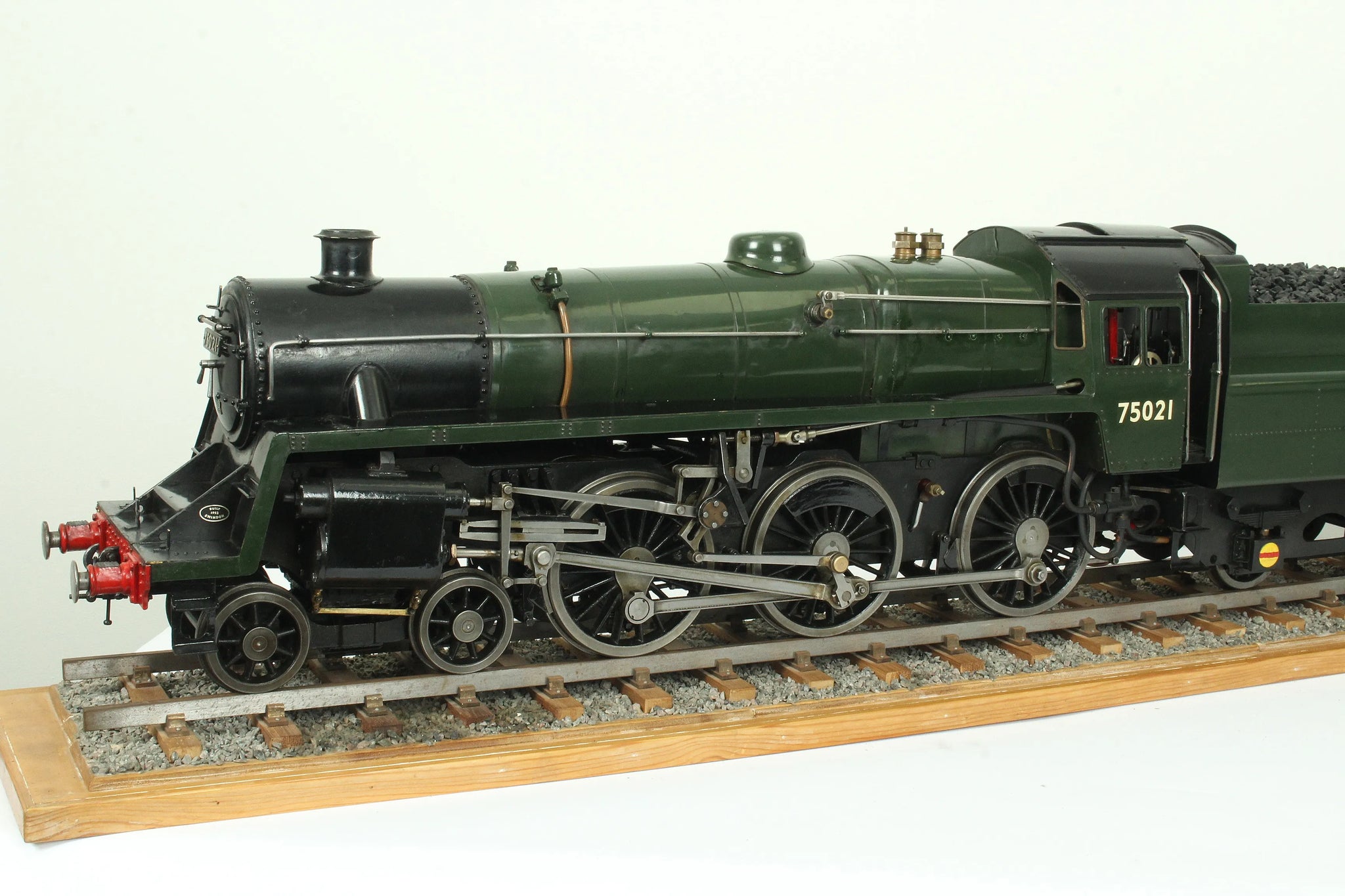

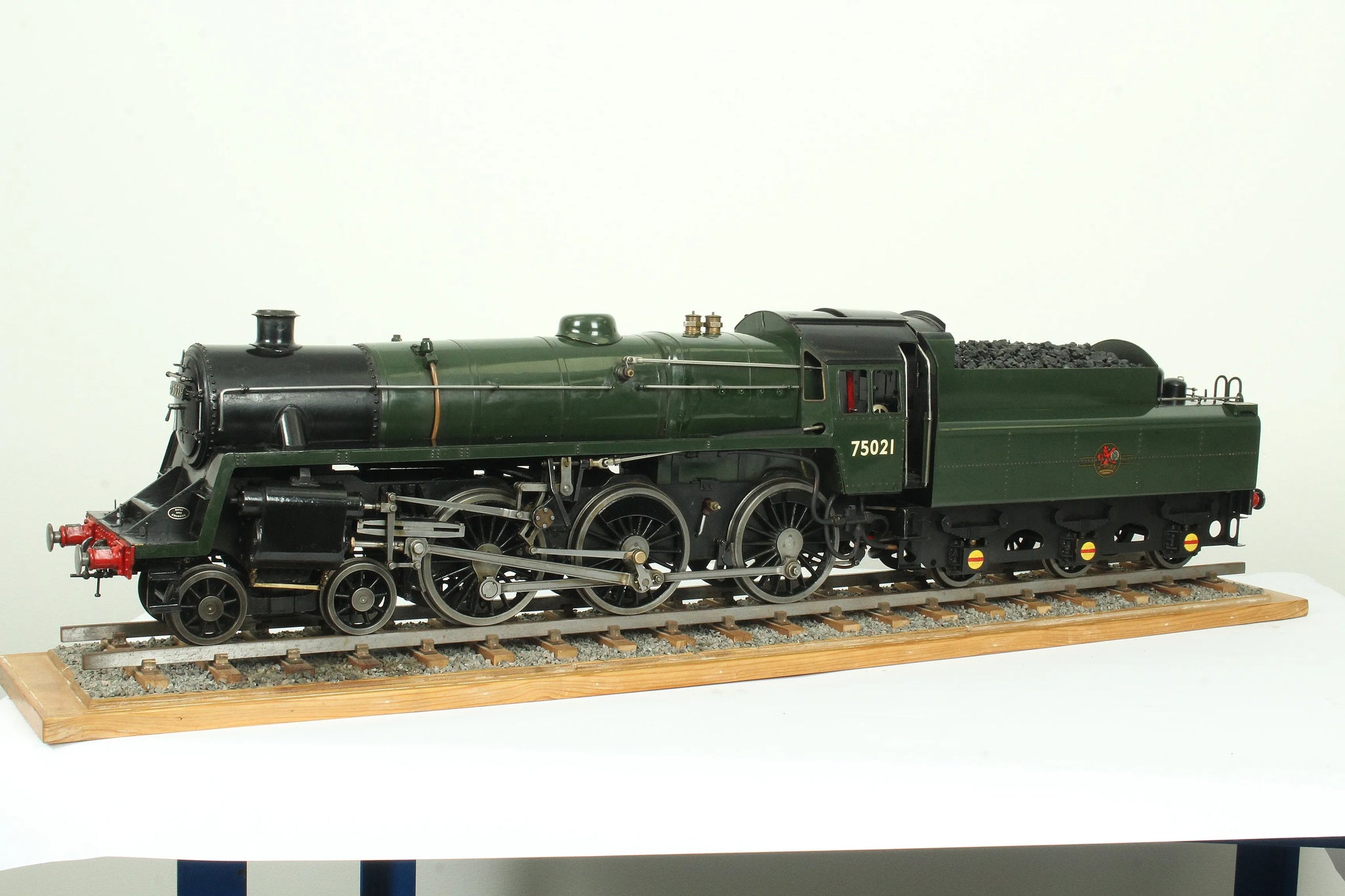

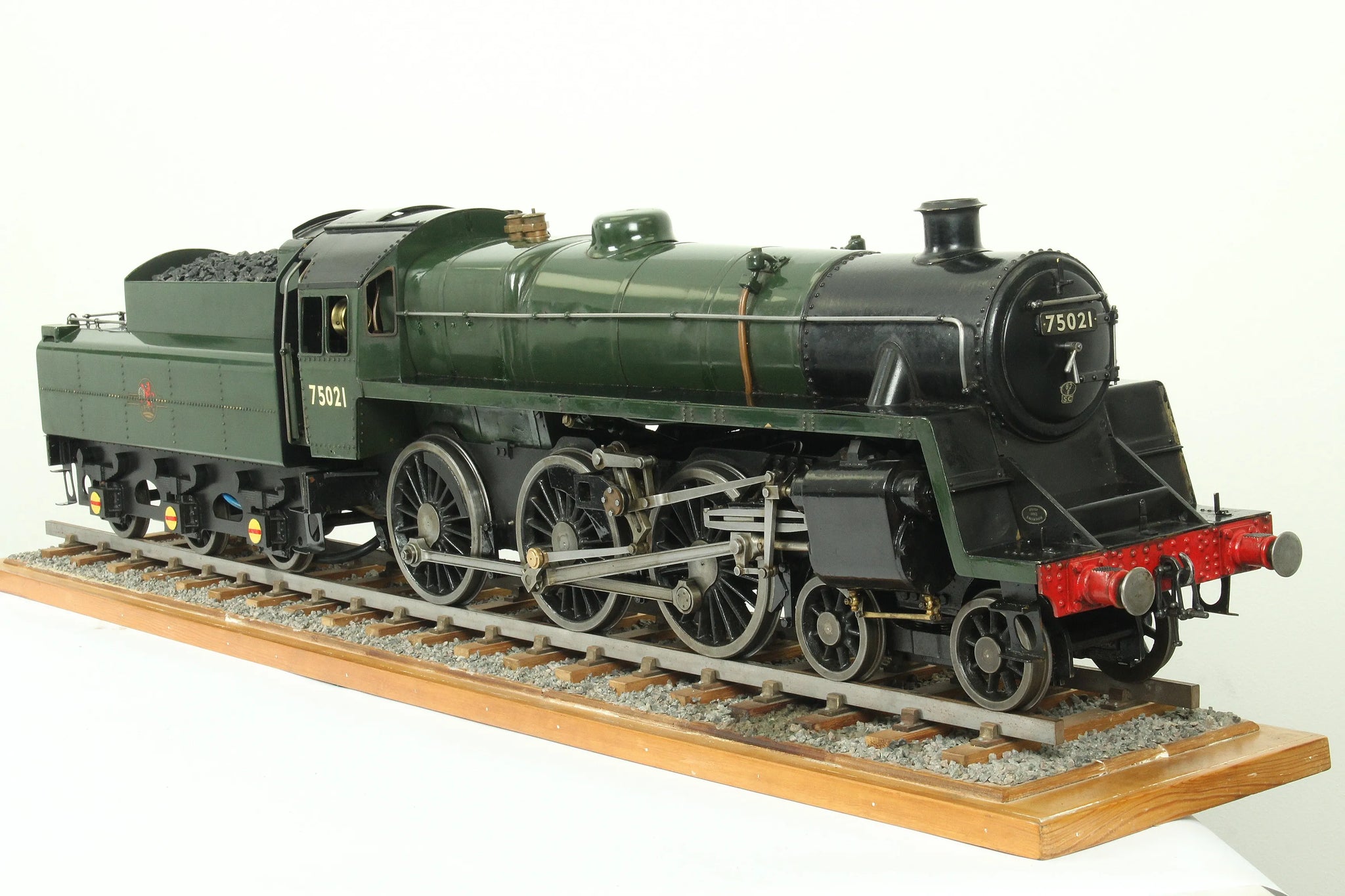

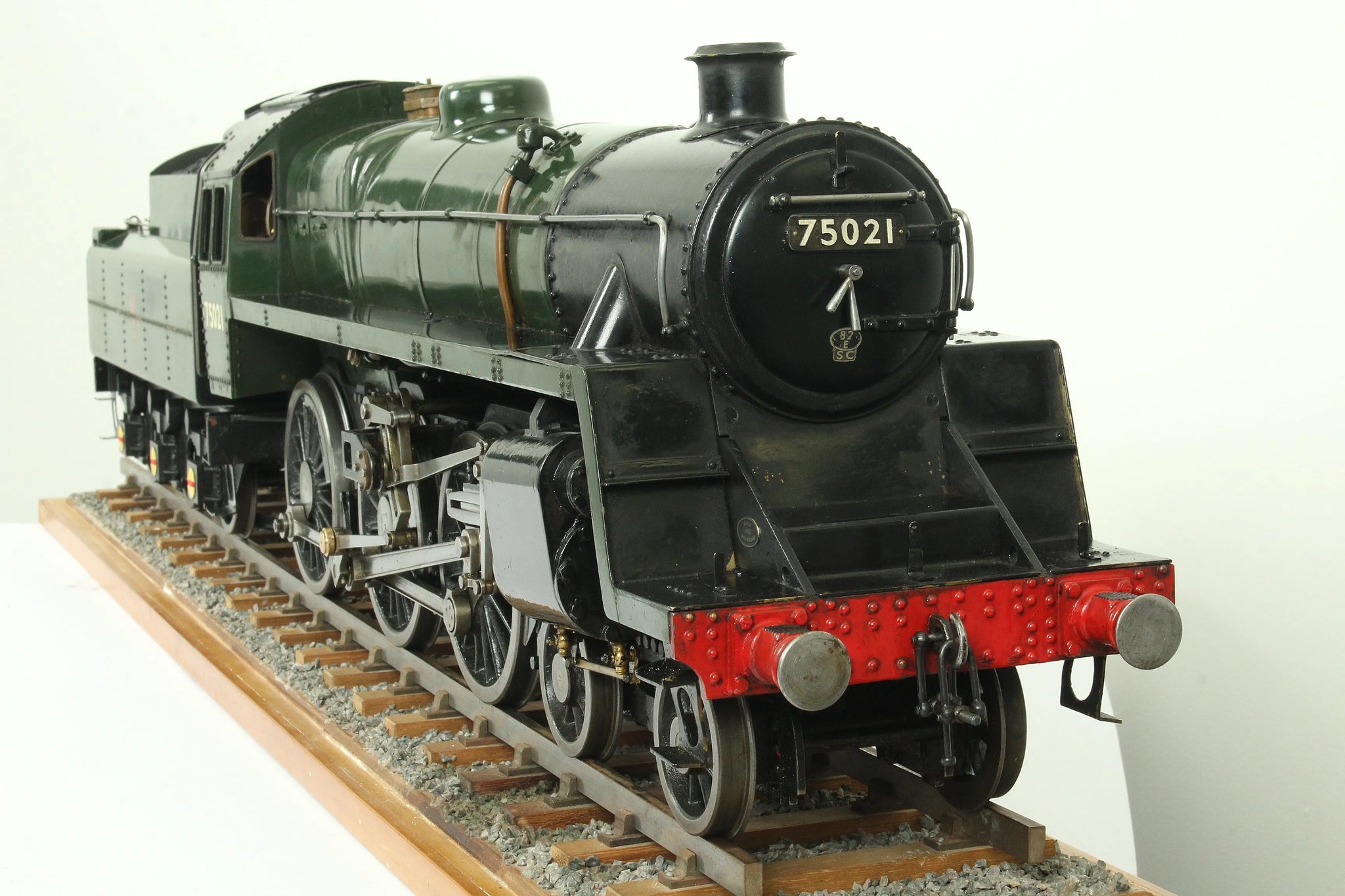

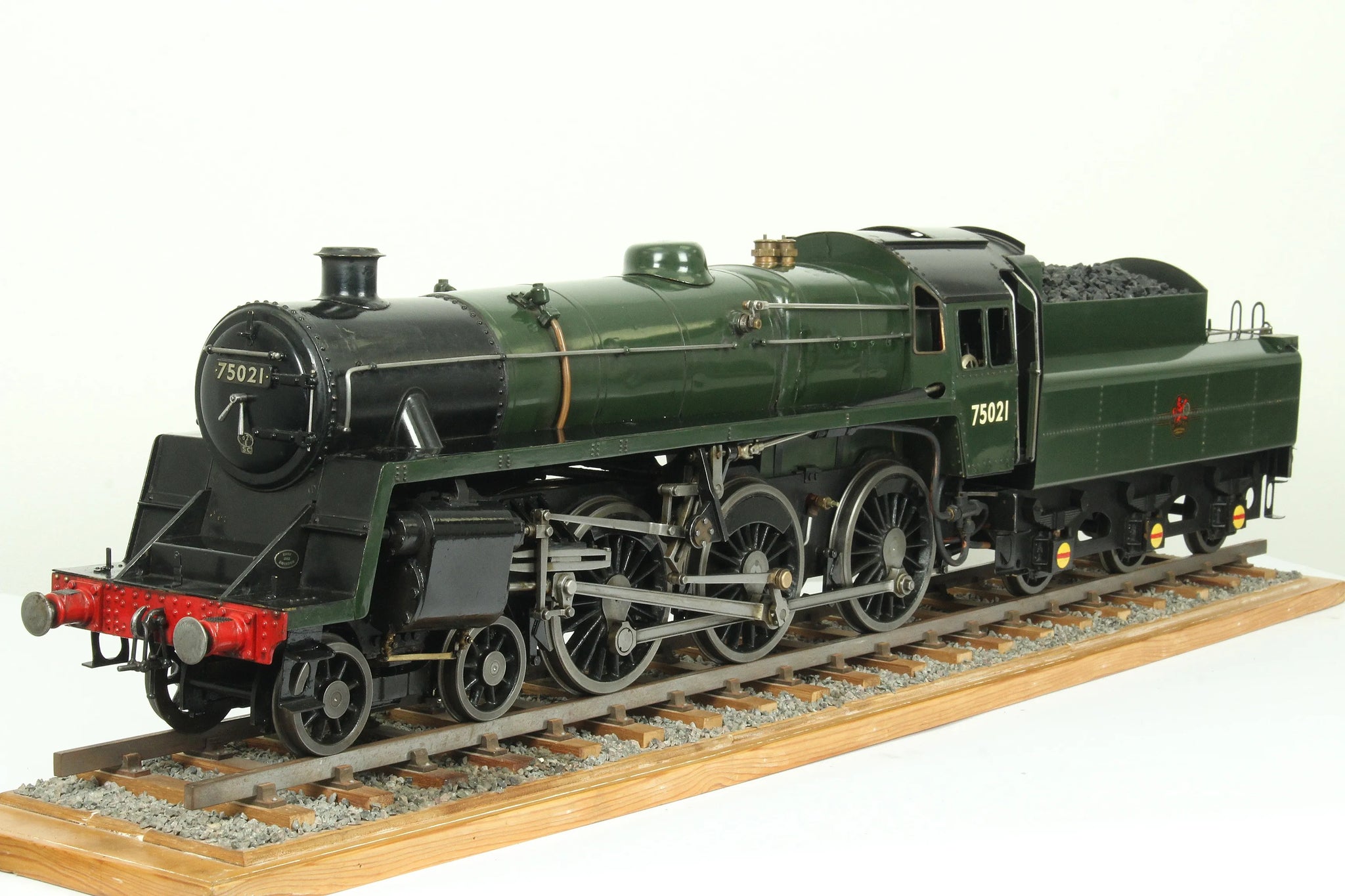

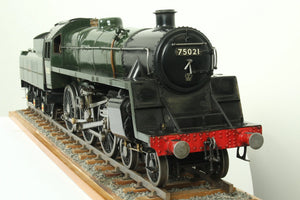

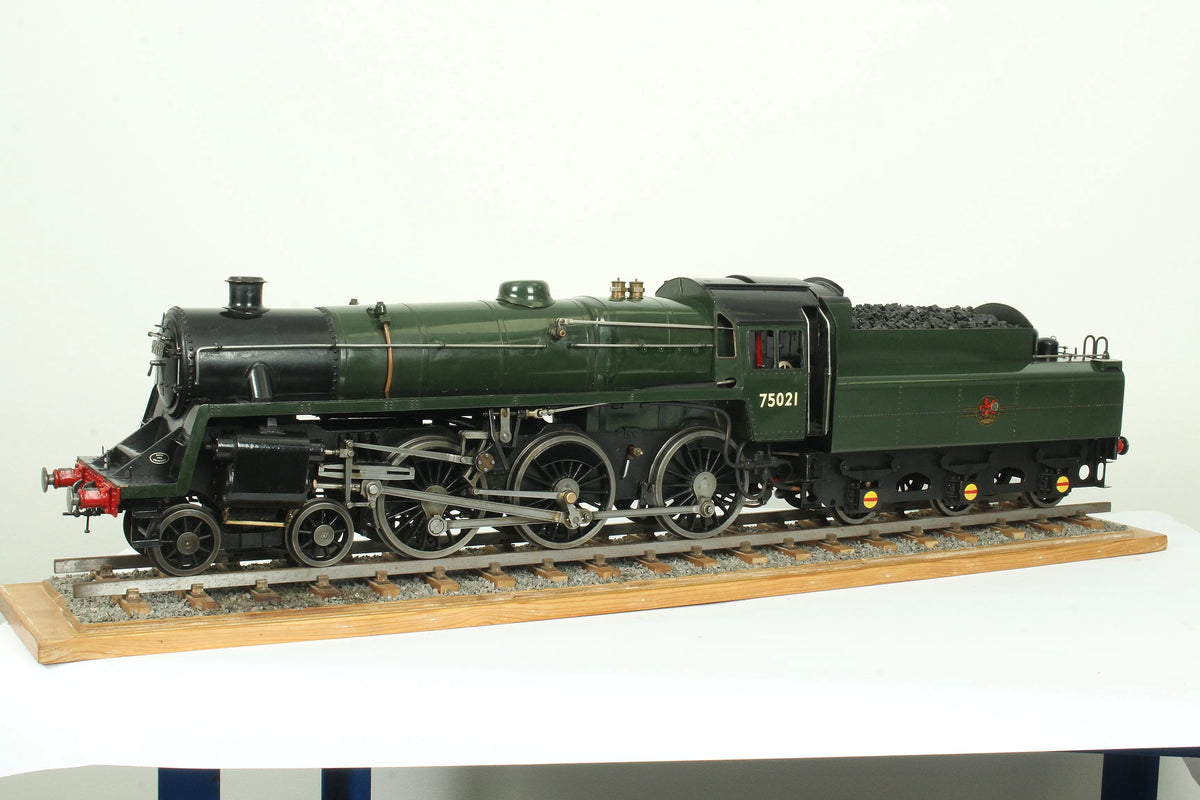

3 1/2 inch gauge BR Standard Class 4

We sold this one back in 2017, it's recently come back in part exchange for another locomotive.

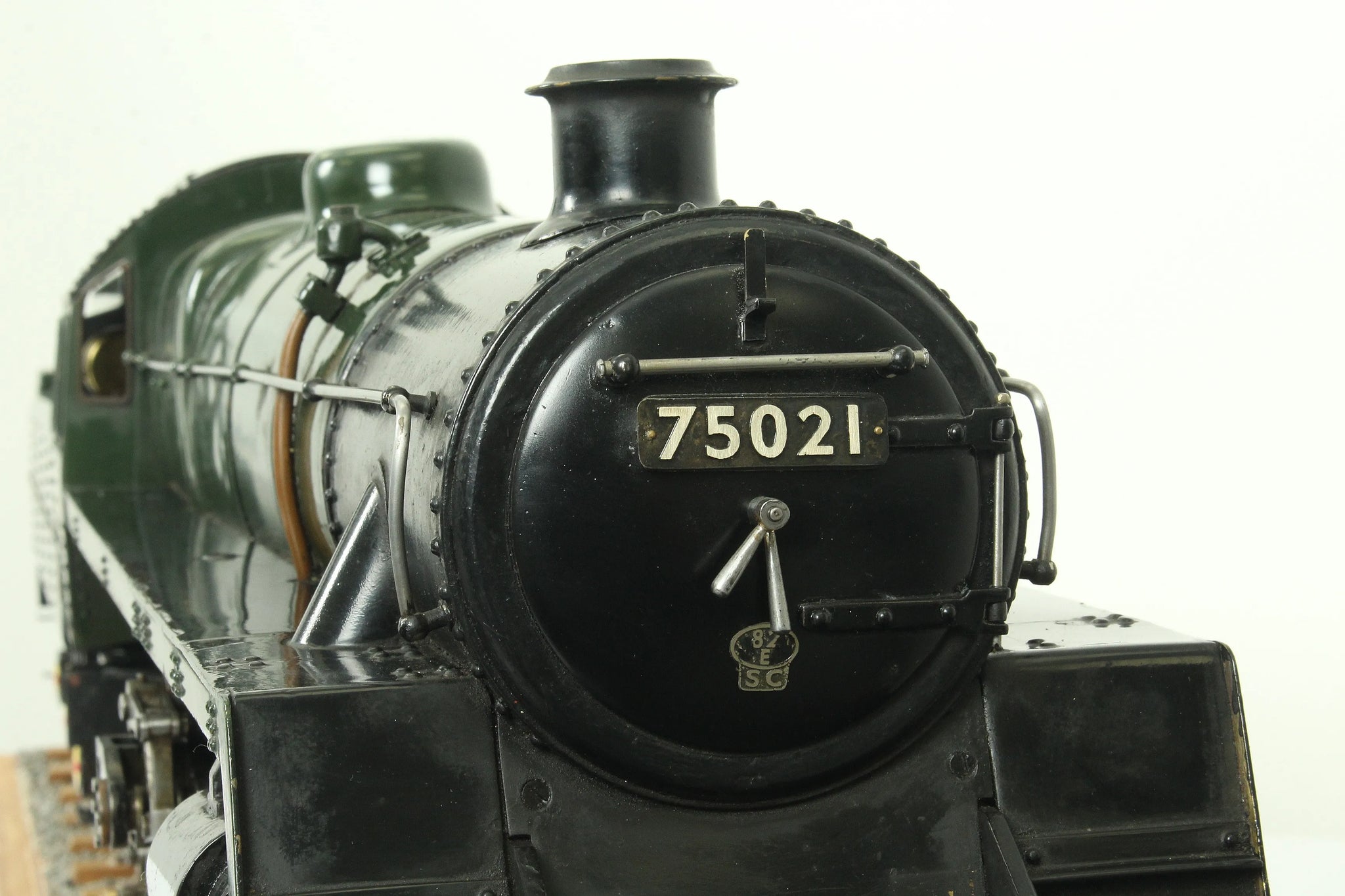

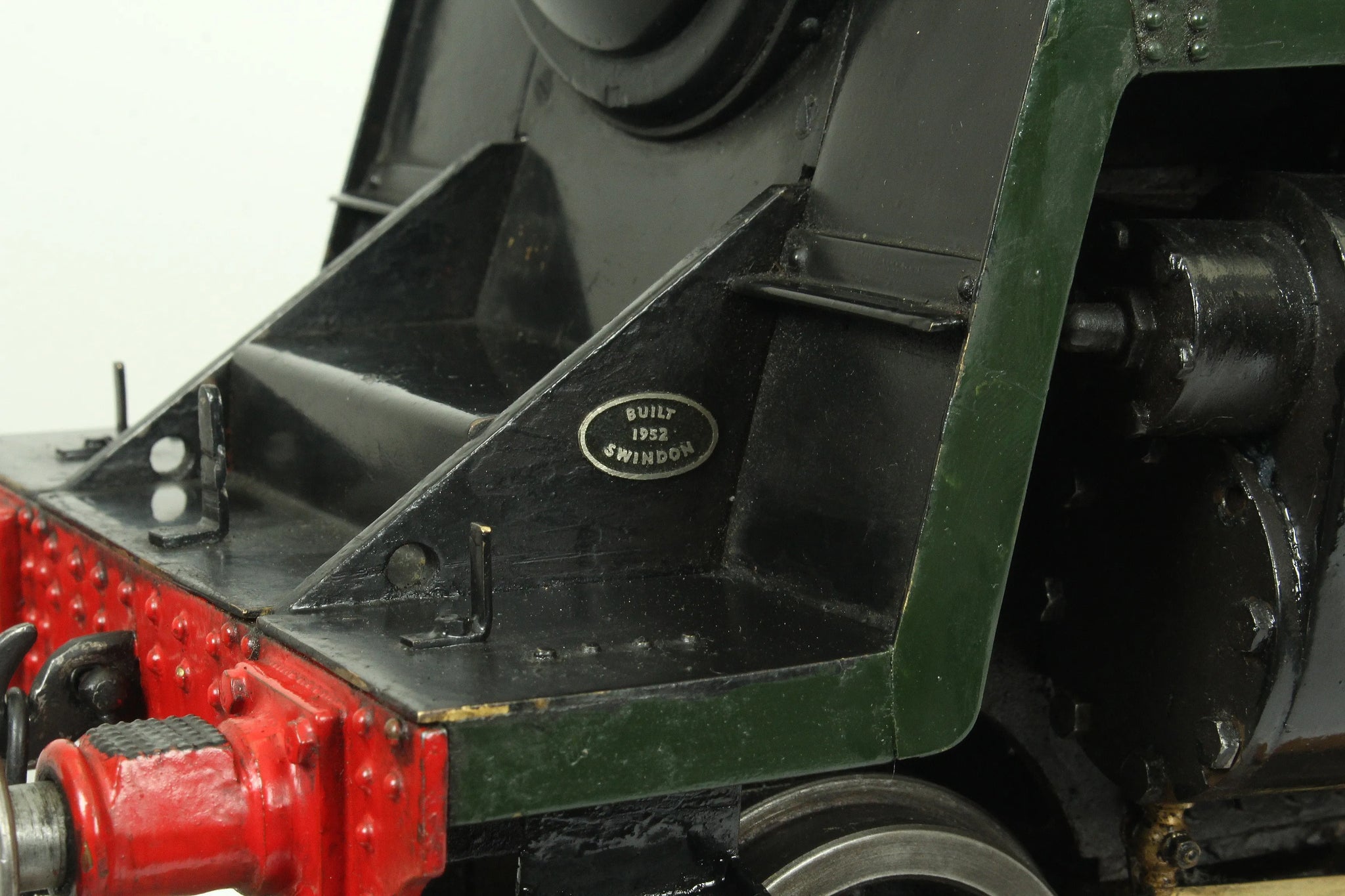

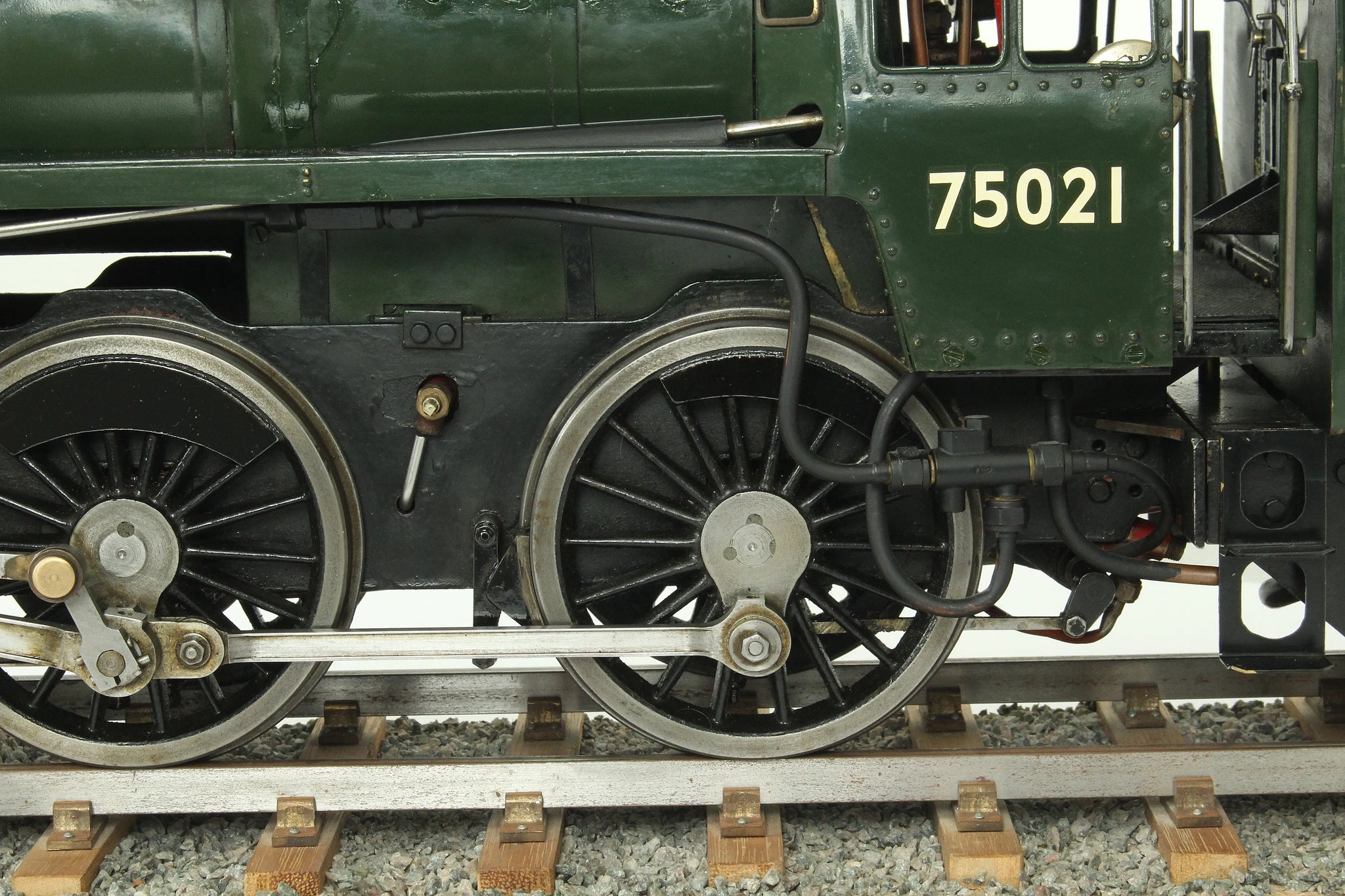

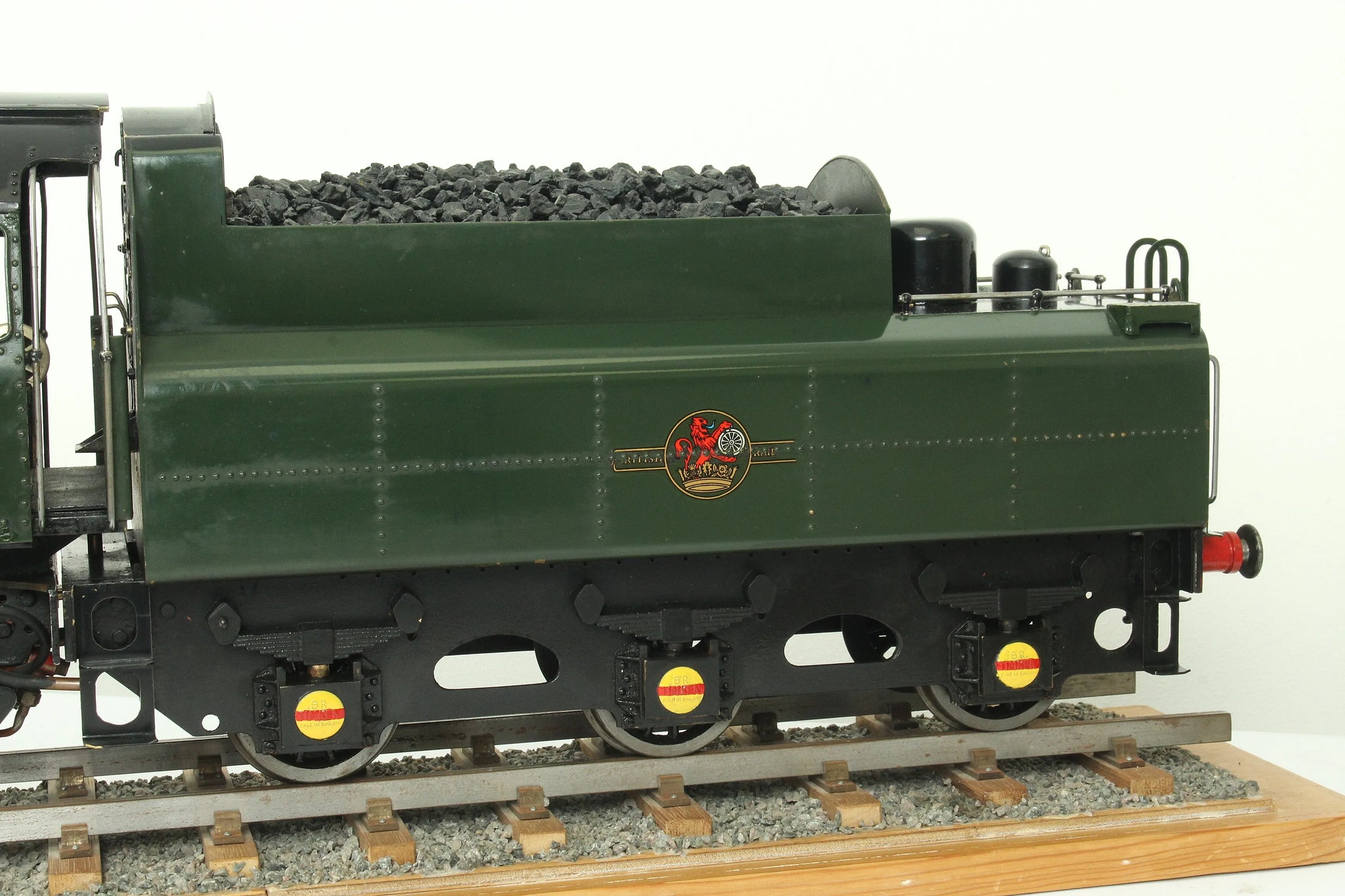

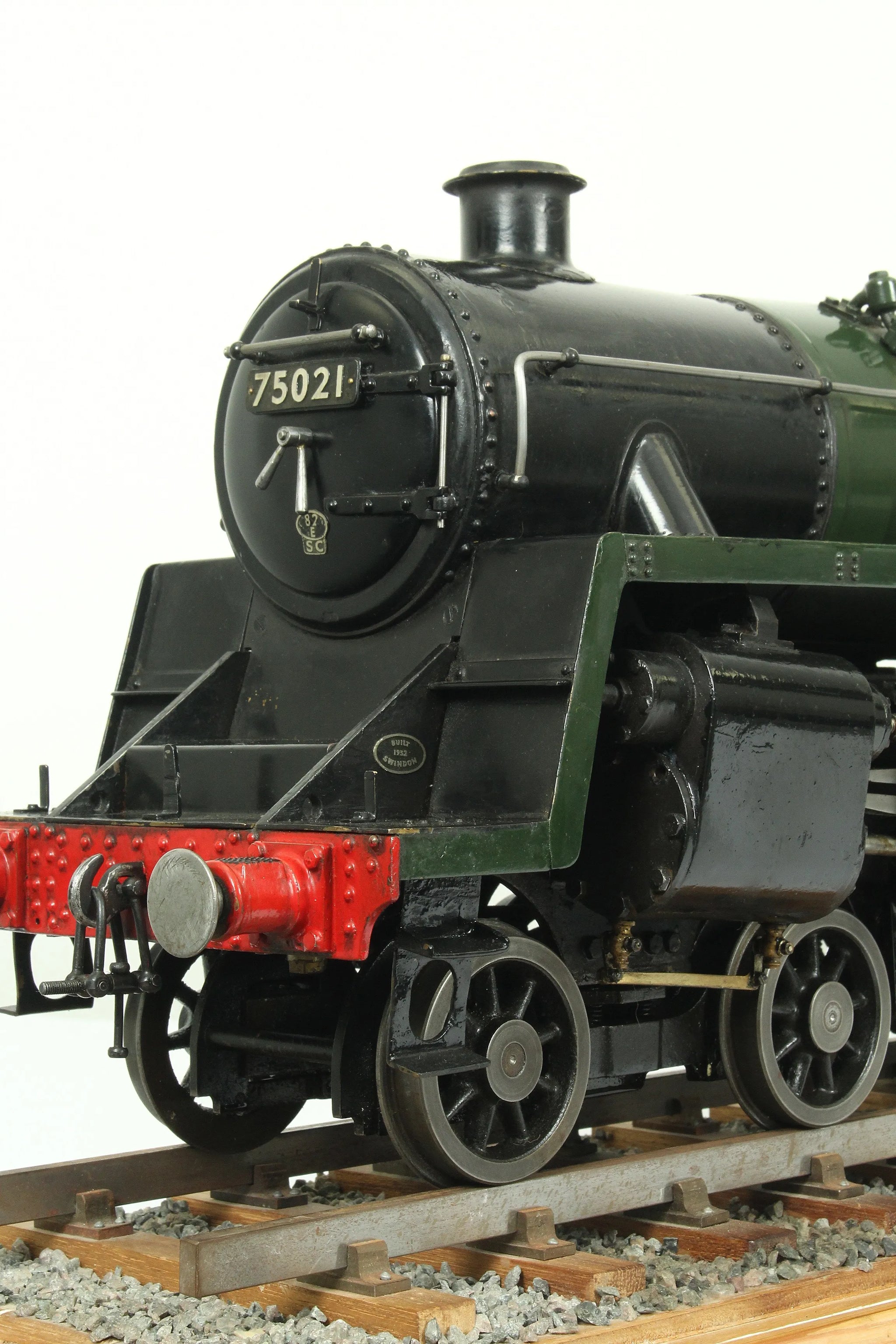

Since last time it was with us there's been some nice cosmetic and detailing work to bring it closer to prototype - the tender has new steps, handrails, front platework, works plates and dummy coal load; the locomotive has been fitted with dummy washout plugs, new number and works plates.

Unsteamed since we last sold it, boiler has been tested in recent weeks and is sound, with new hydraulic certificate issued.

The engine runs on air - better in forwards than reverse - with some leakage past the valves.

Technical information

Stock code

8386

Gauge

3 1/2 inch

Length/inches

29 + 18

Width/inches

7

Height/inches

10

Wheel material

cast iron

Valve type

piston

Valve gear

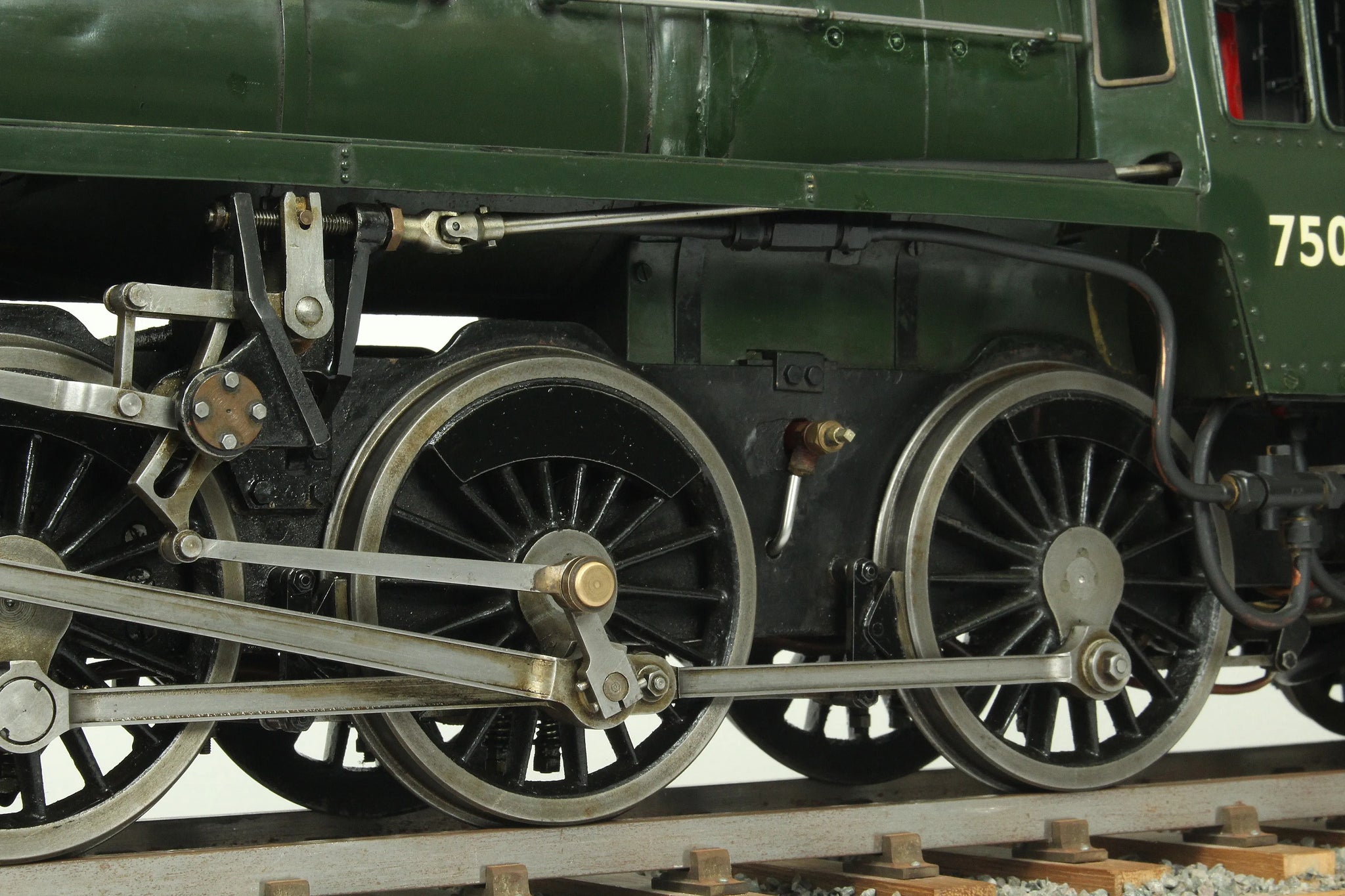

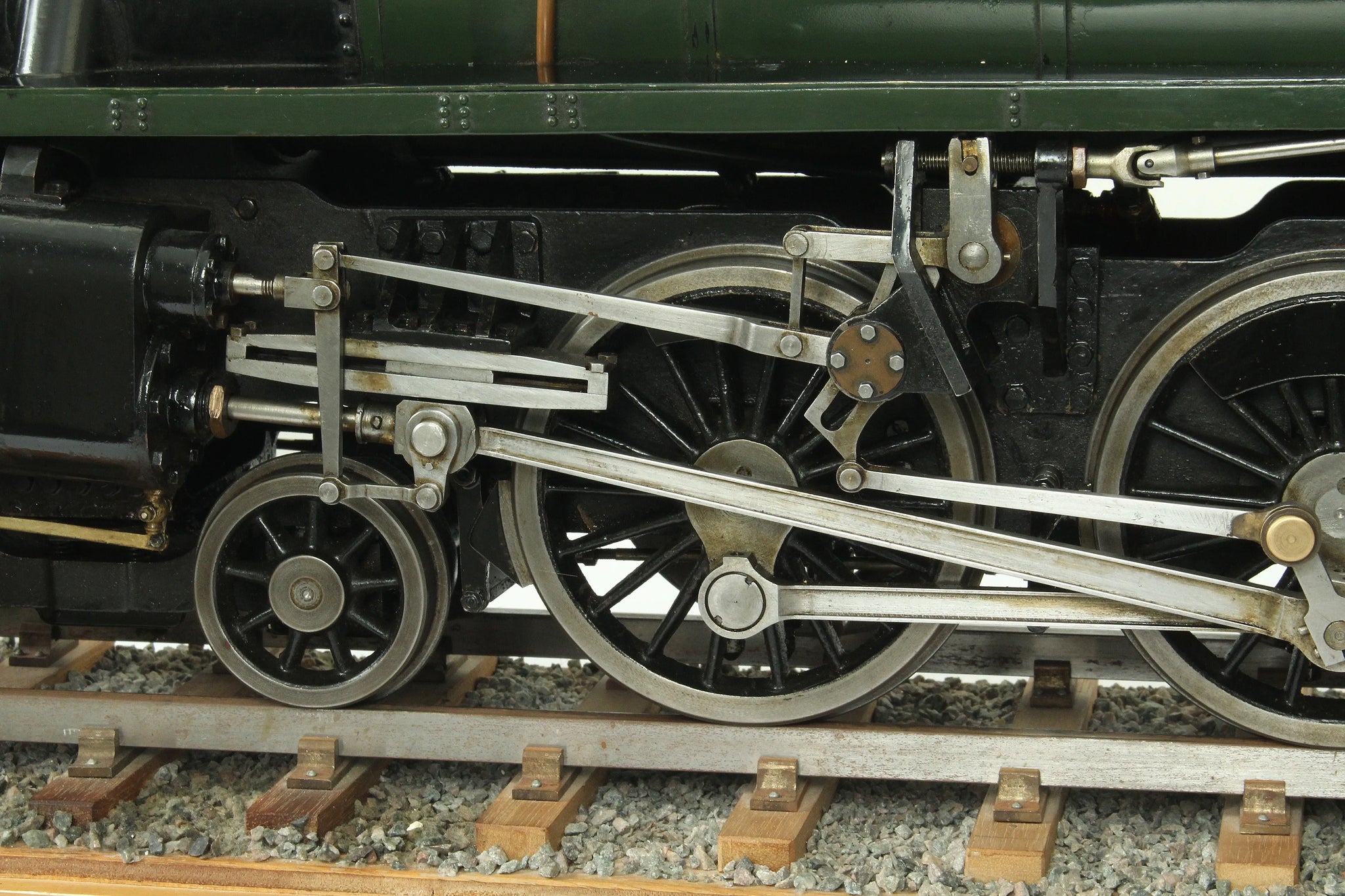

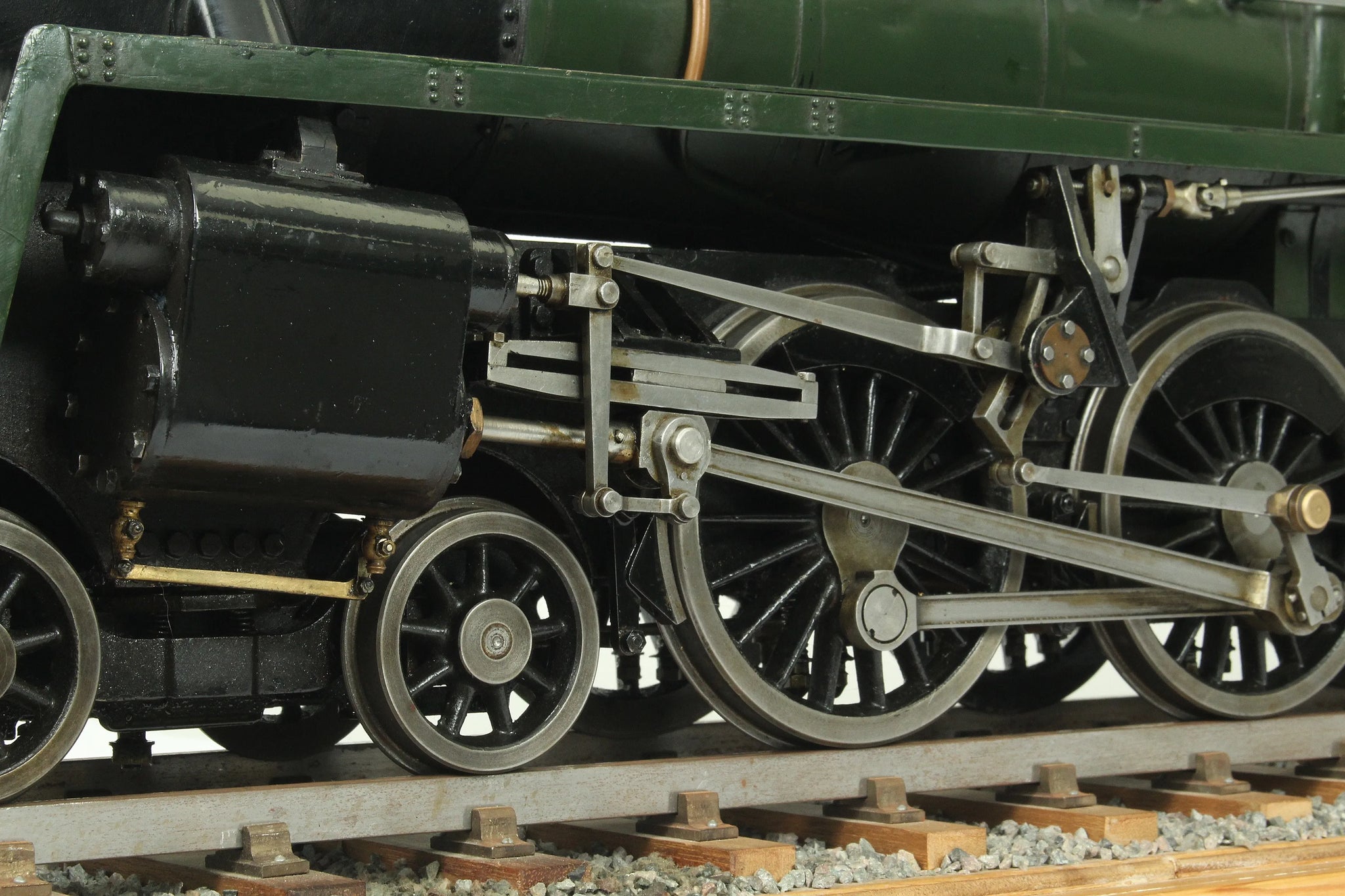

Walschaerts

Reverser type

screw

Lubricator type

mechanical

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Safety valve type

spring

Safety valve

2

Hand pump

1

Mechanical pump

1 x axle

Injector

1

Superheater type

radiant

Date out

Feb-19

Hydraulic test valid to

28-Jan-23
