8477

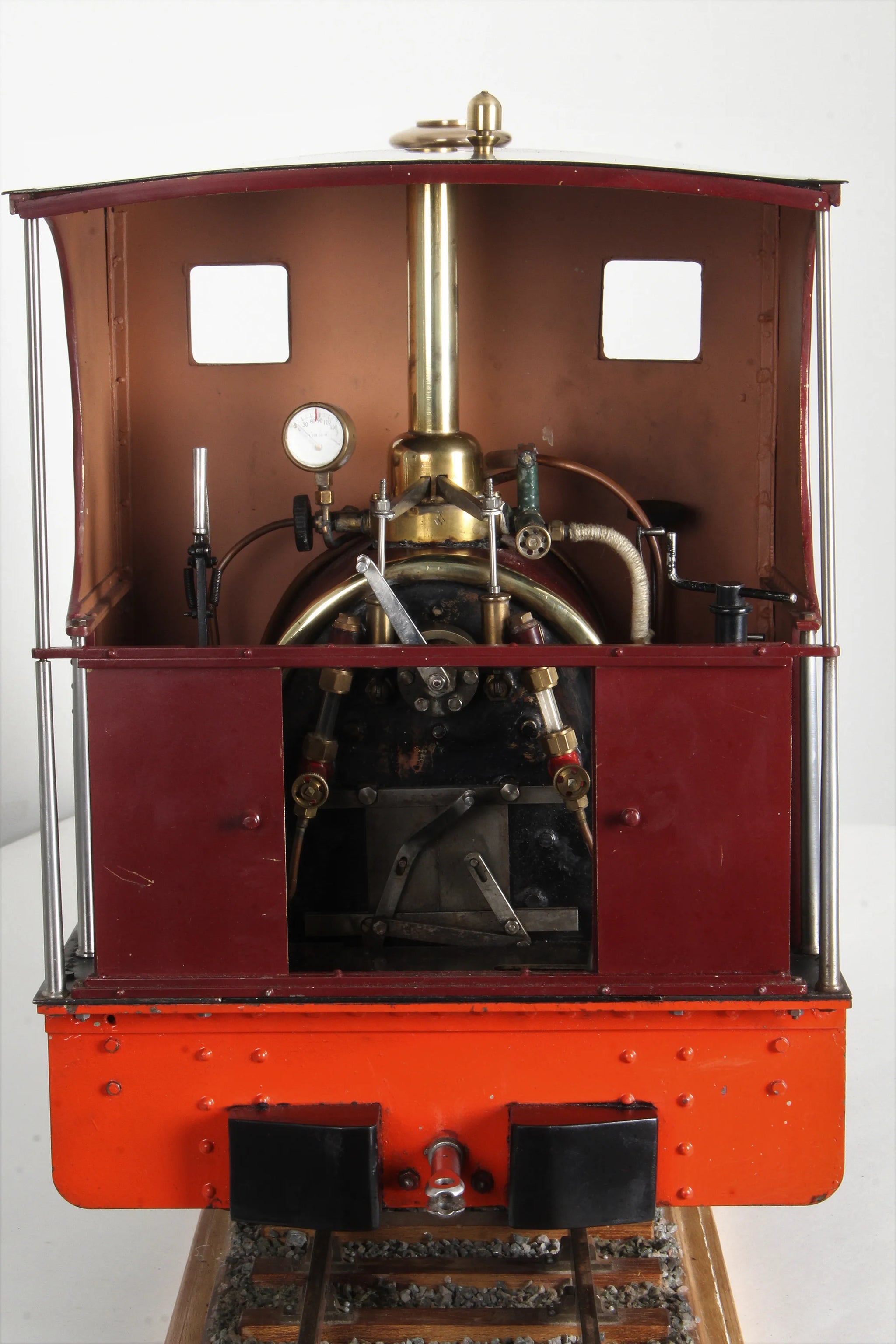

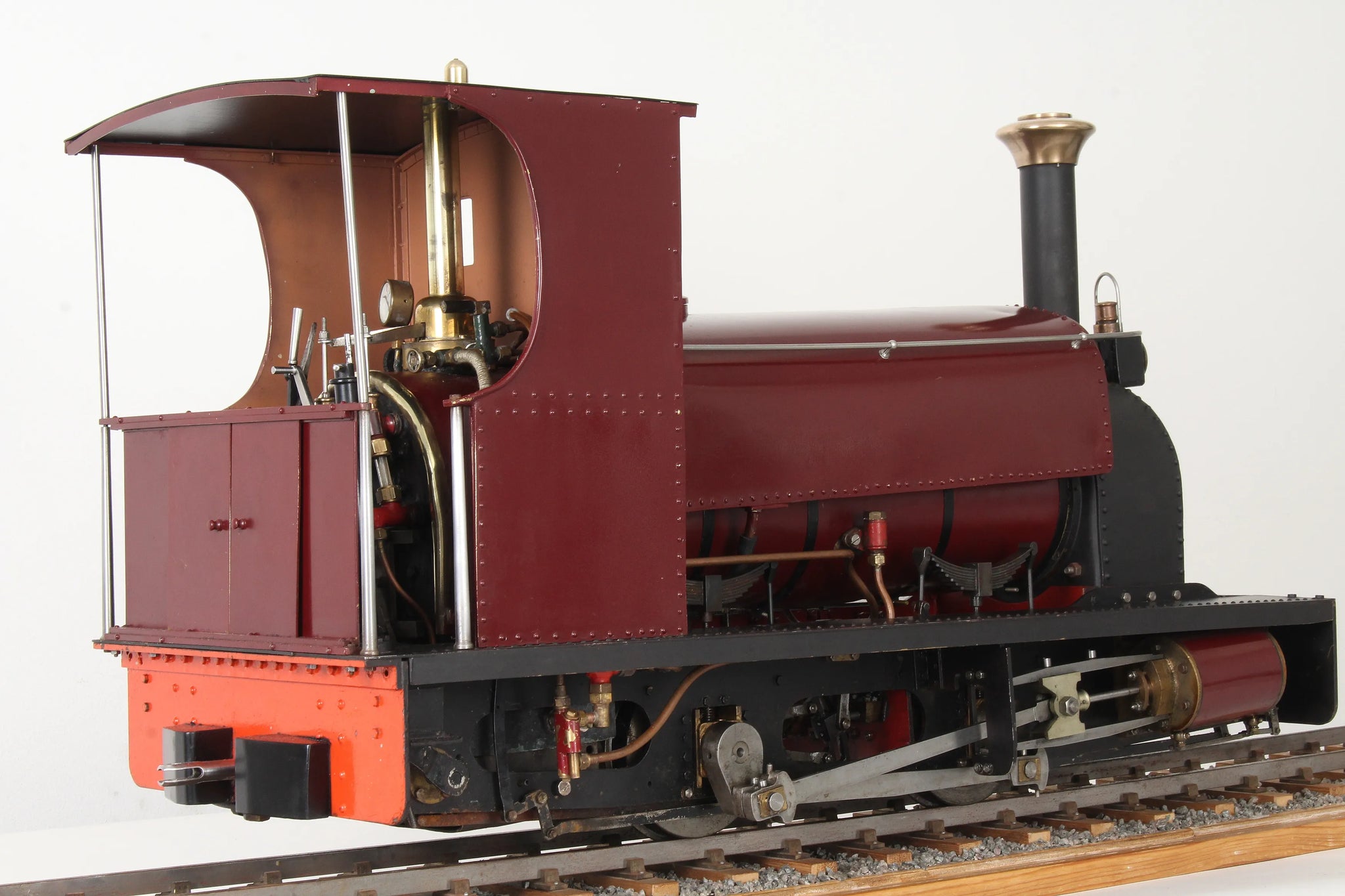

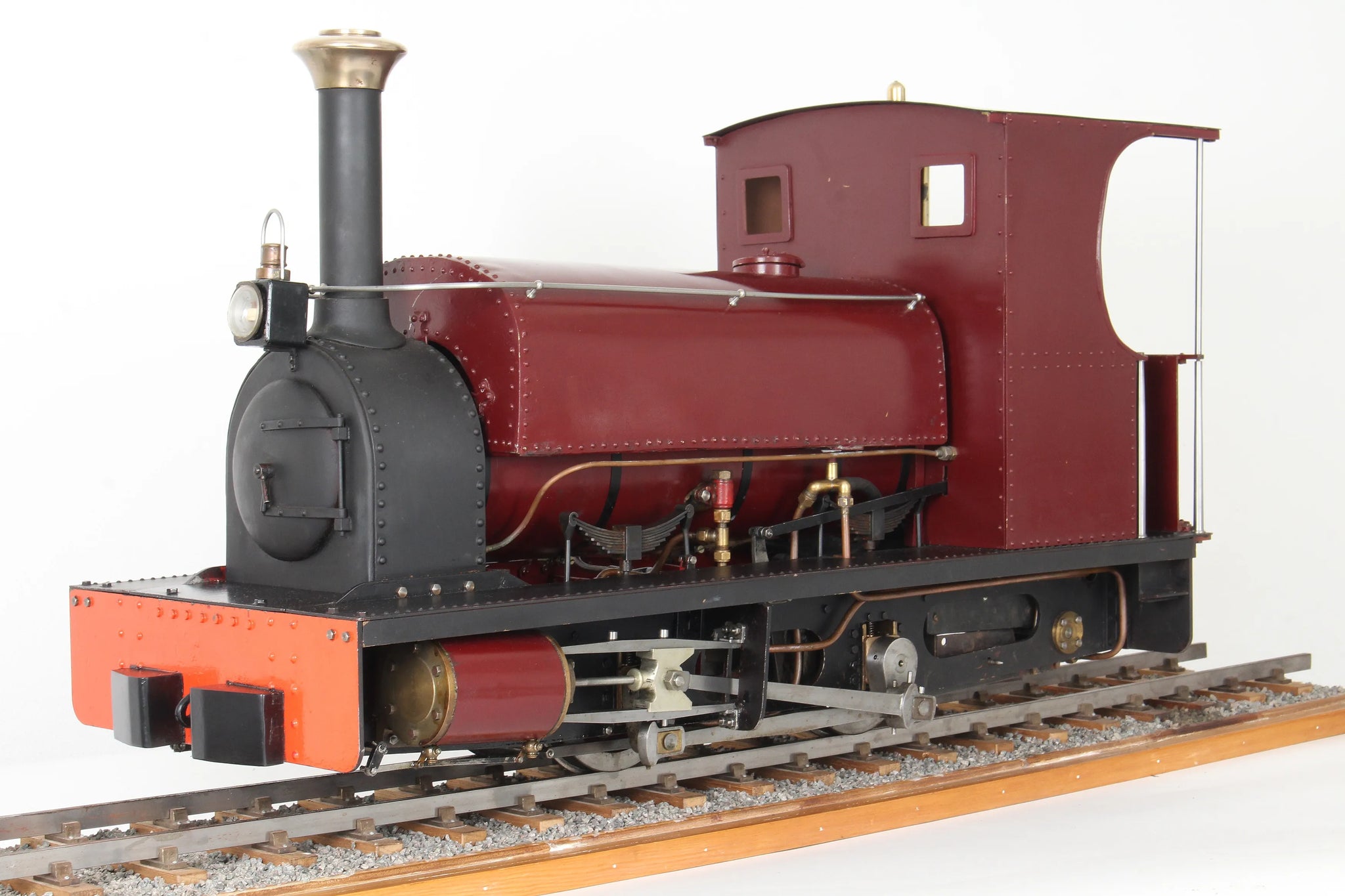

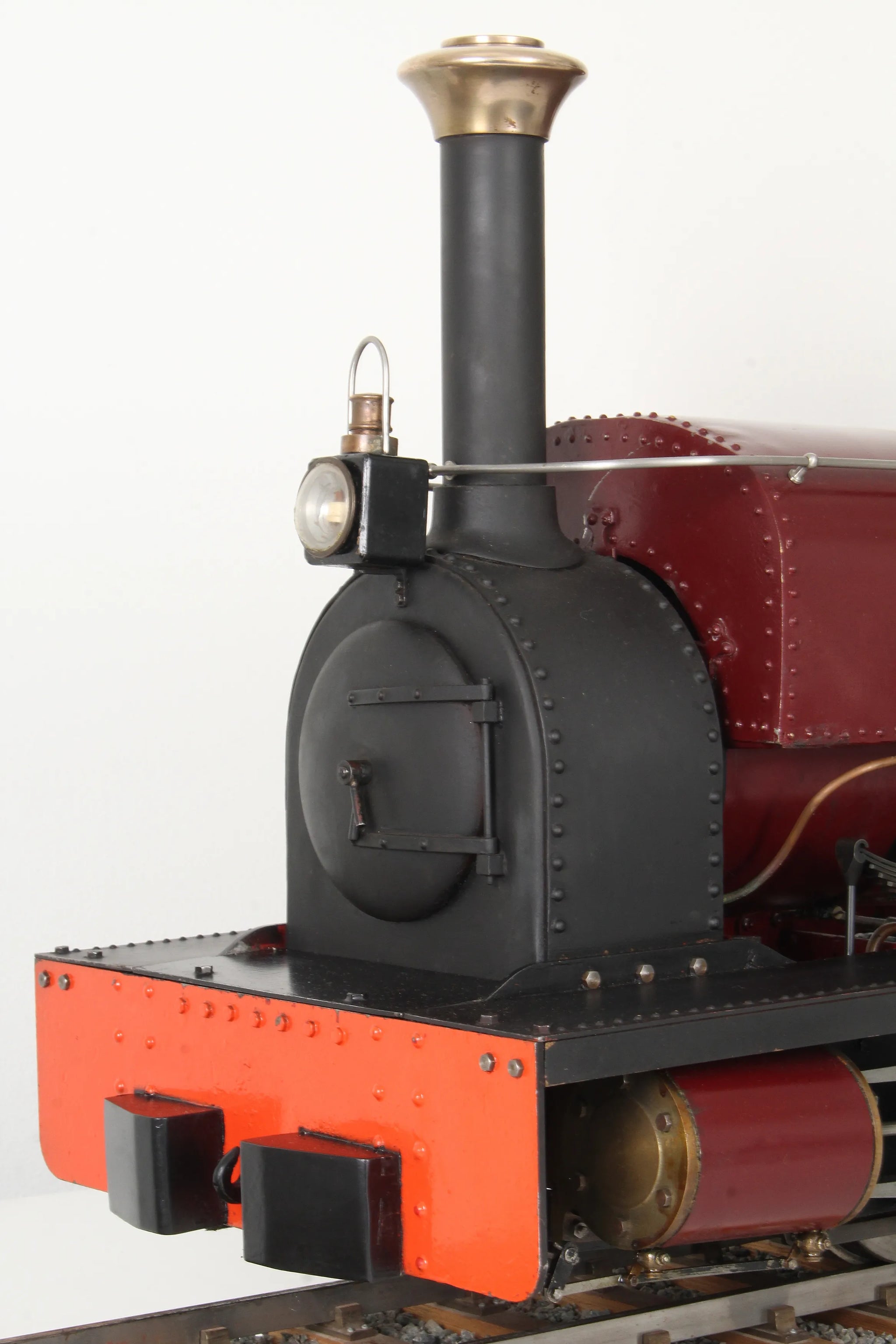

The engine steams freely and runs well - there's a short video of it on the running road when we steam tested it last week.
Stock code |
8477 |
Length/inches |
30 |
Width/inches |
11 |
Height/inches |
16 |
Wheel material |
cast iron |
Axlebox type |
plain |

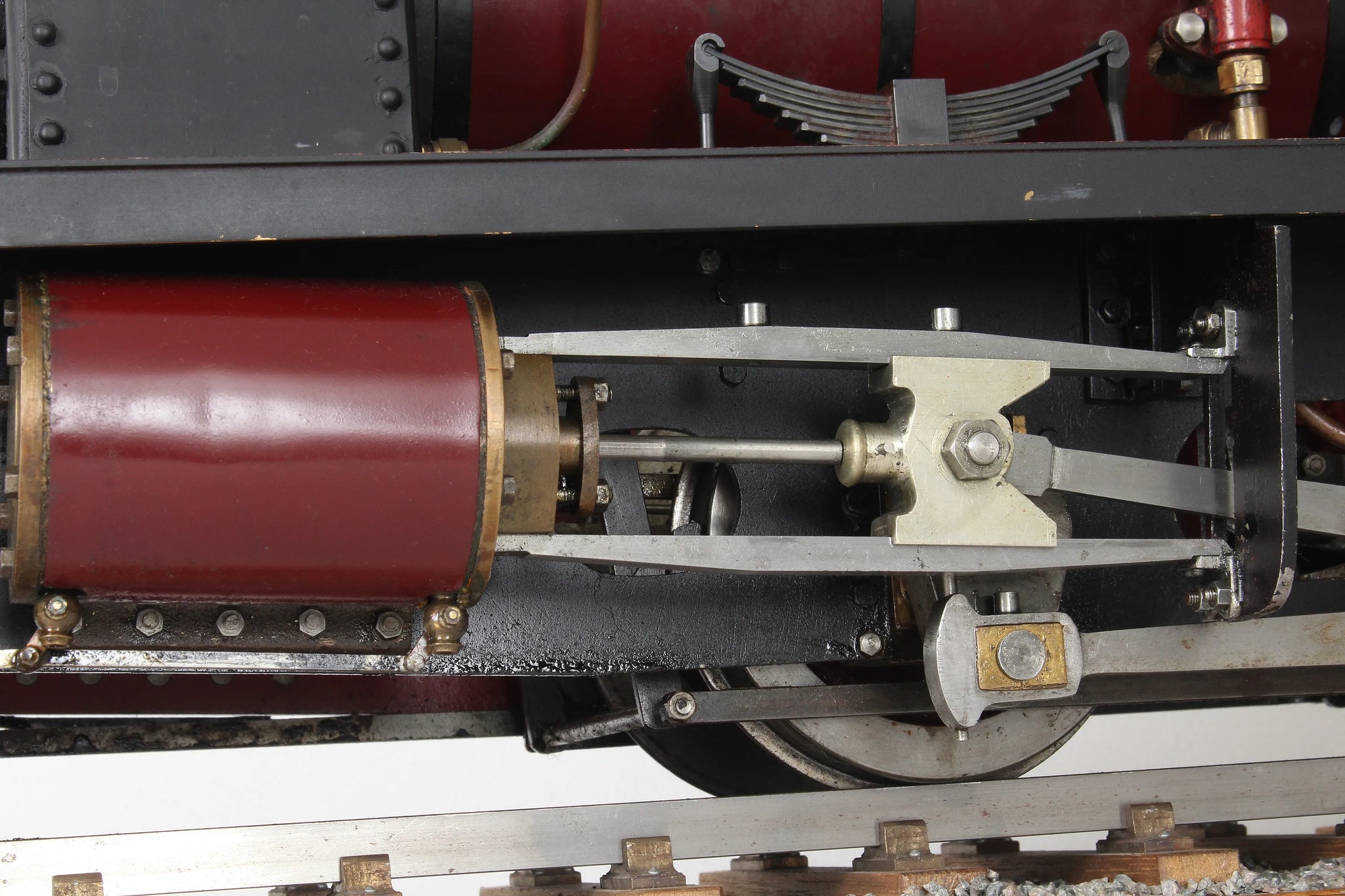

Cylinder material |
gunmetal |
Valve type |
slide |

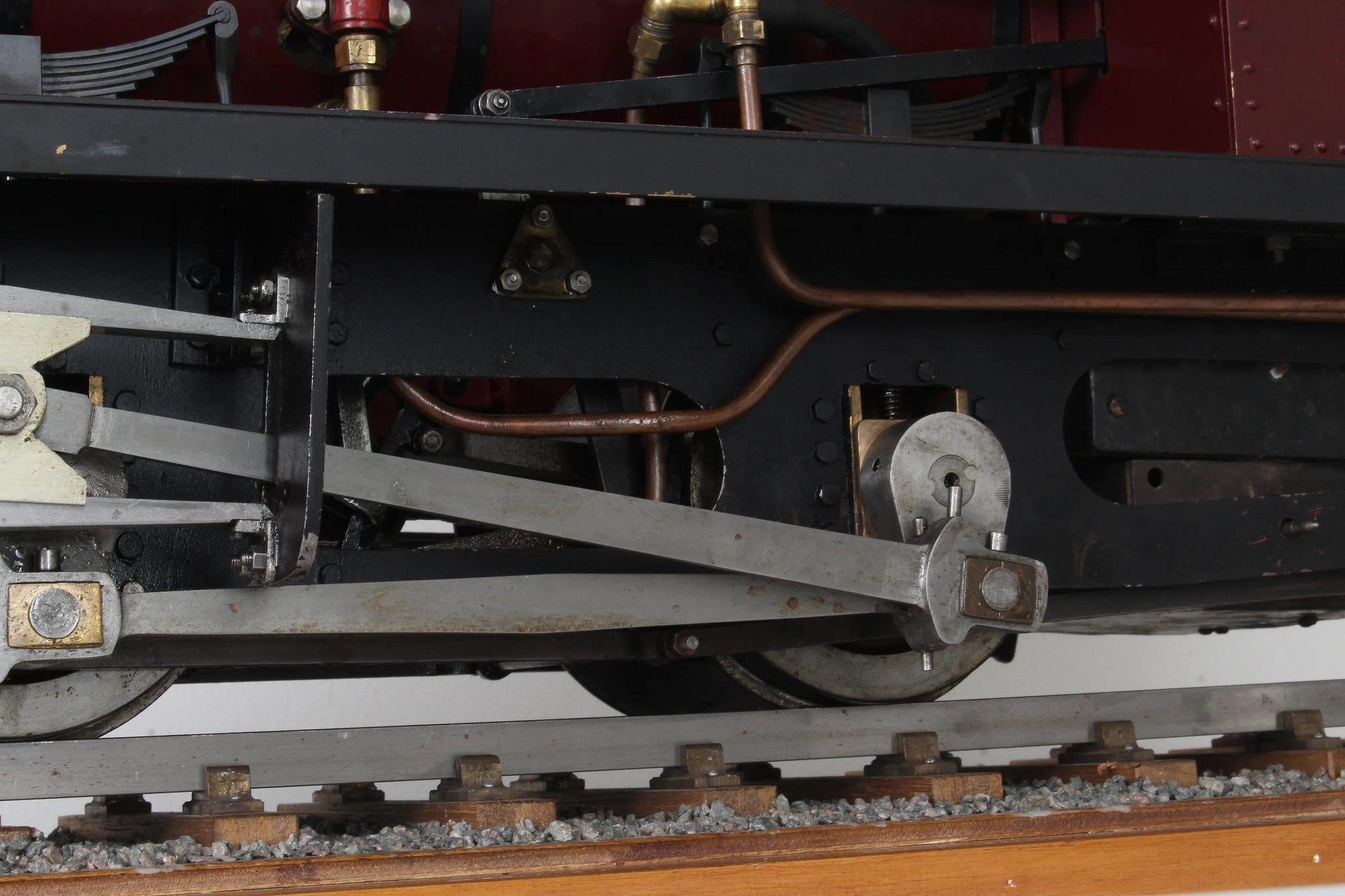

Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a - non-commercial |
Boiler number |
8477 |
Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
1 |
Date out |
Apr-19 |
Hydraulic test valid to |
14-Mar-23 |
Steam test valid to |
26-May-20 |
