3 1/2 inch gauge Conway chassis and boiler

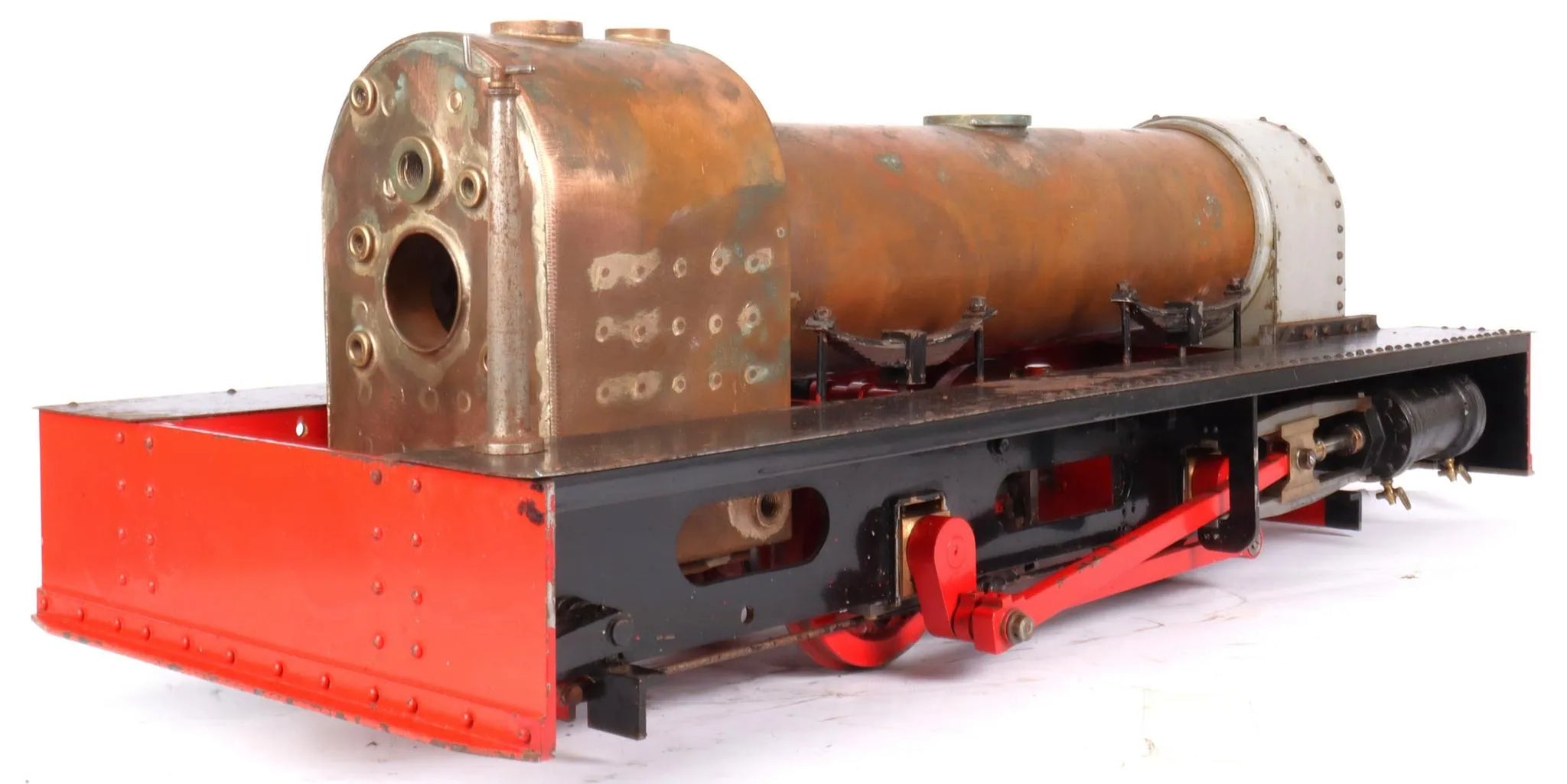

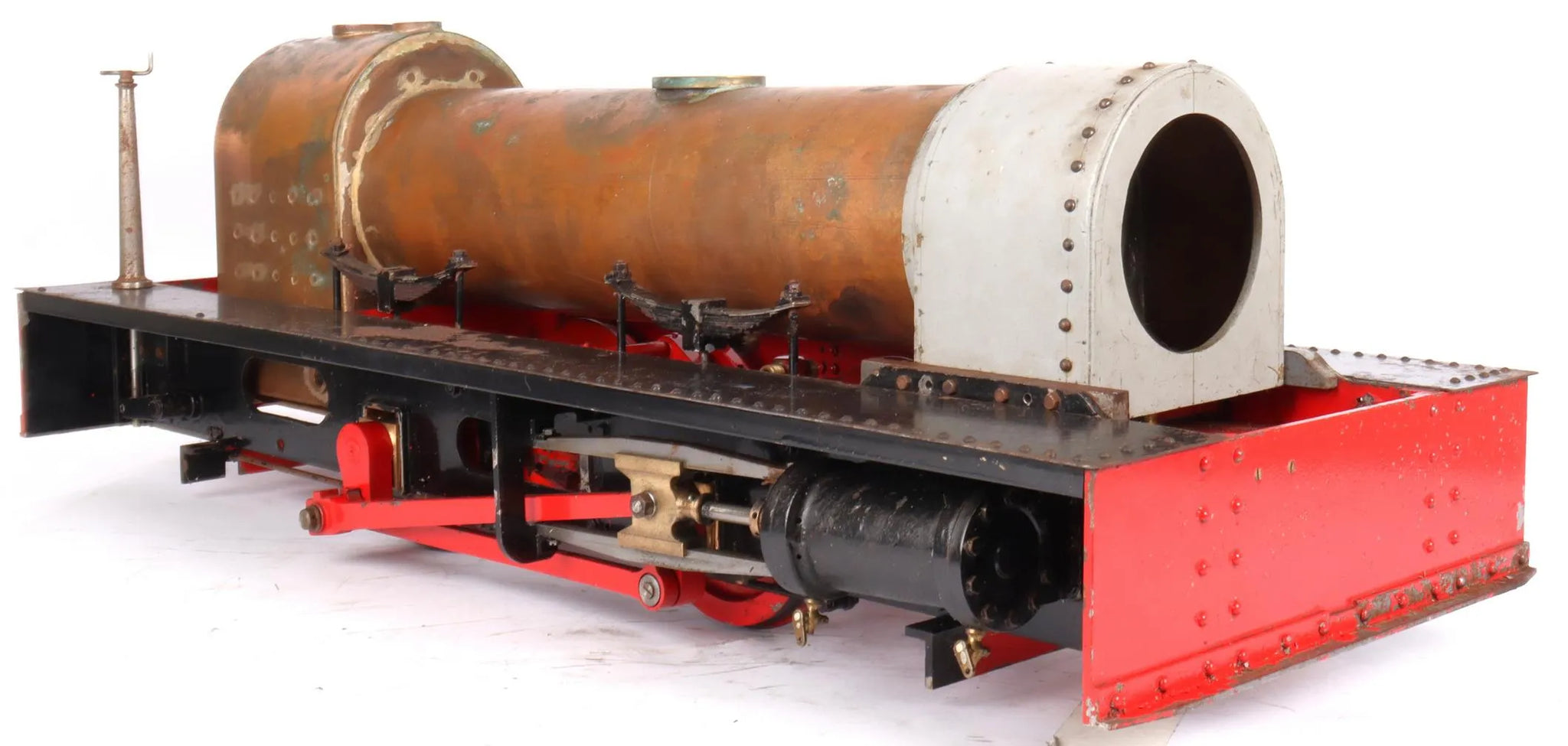

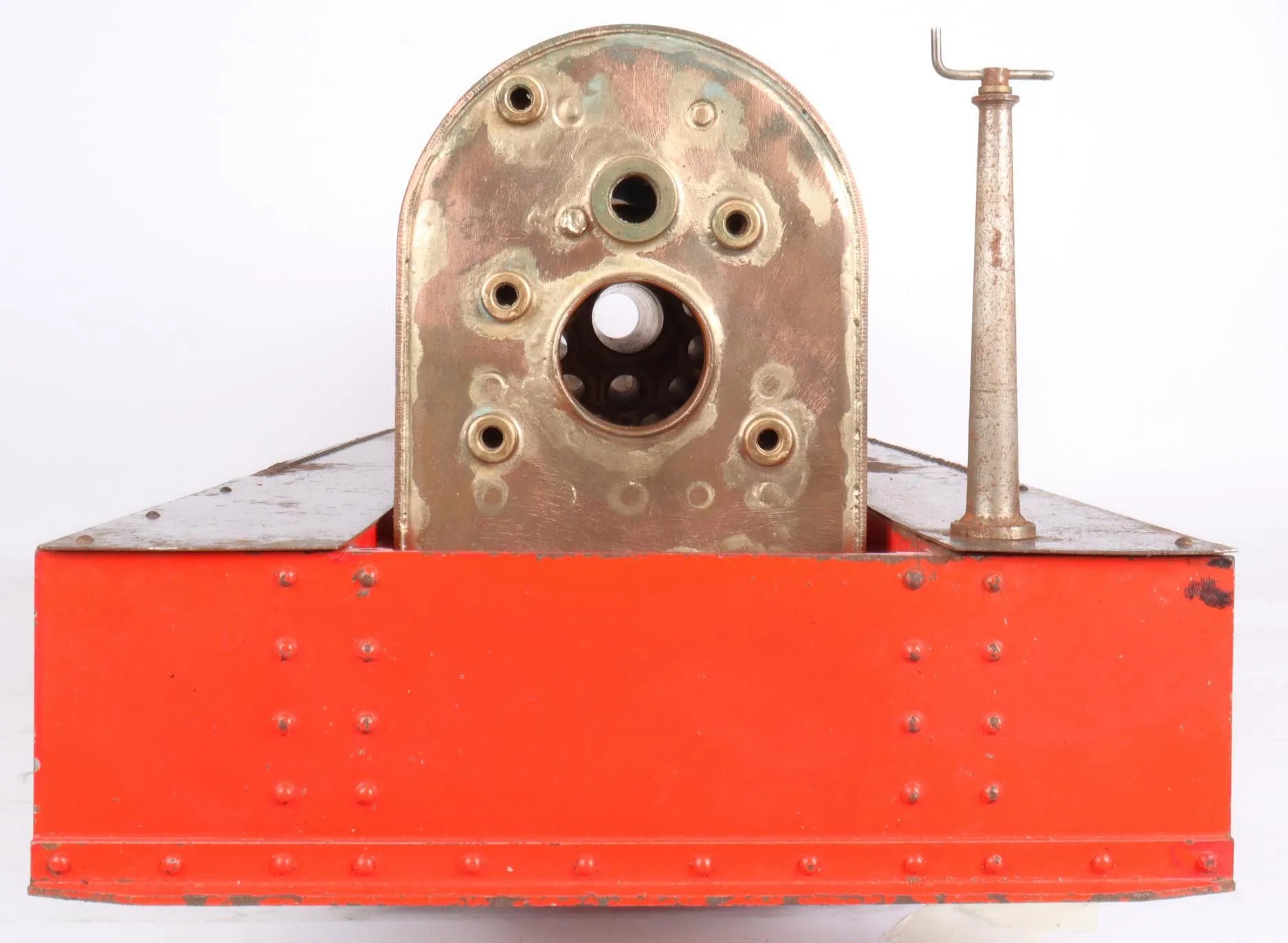

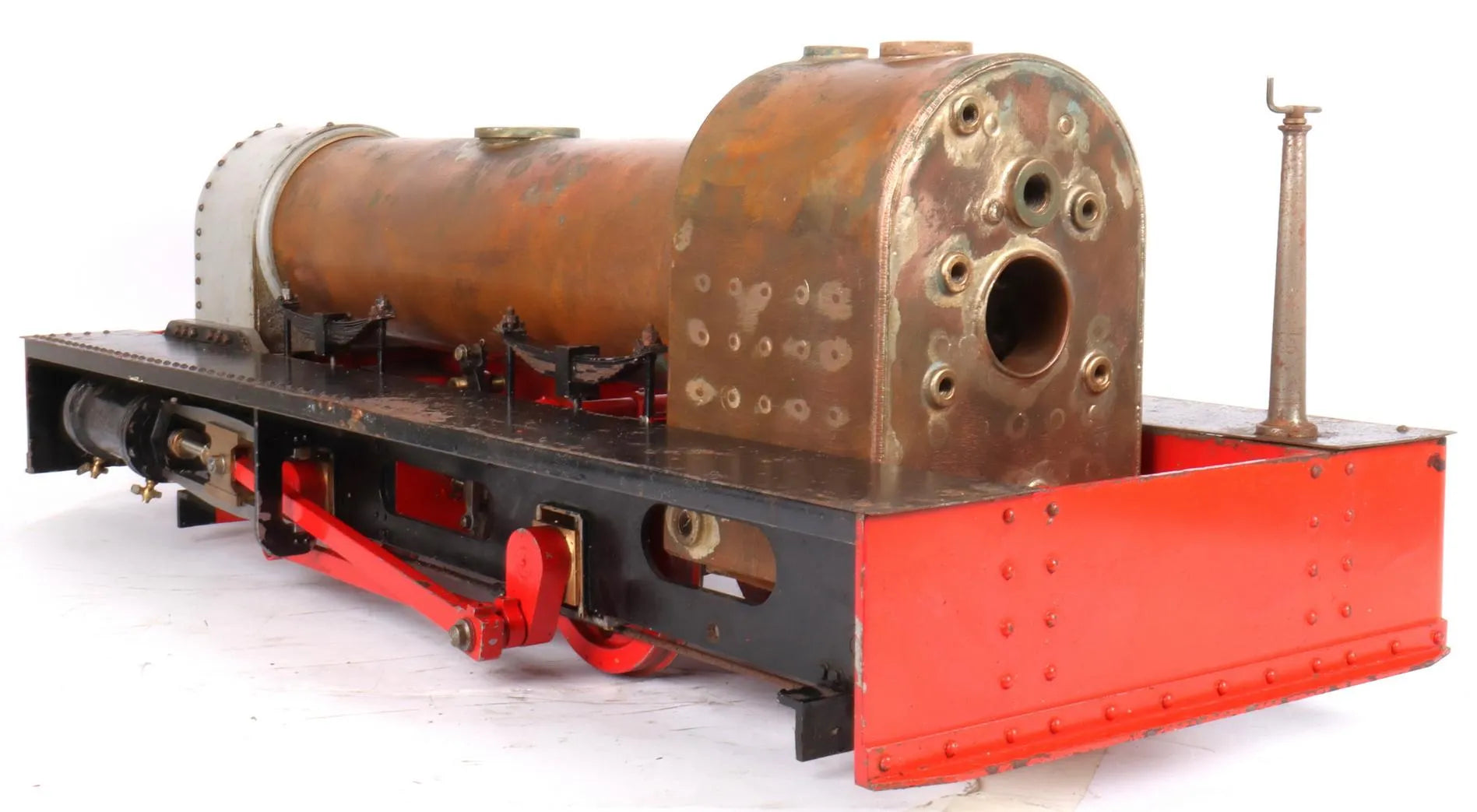

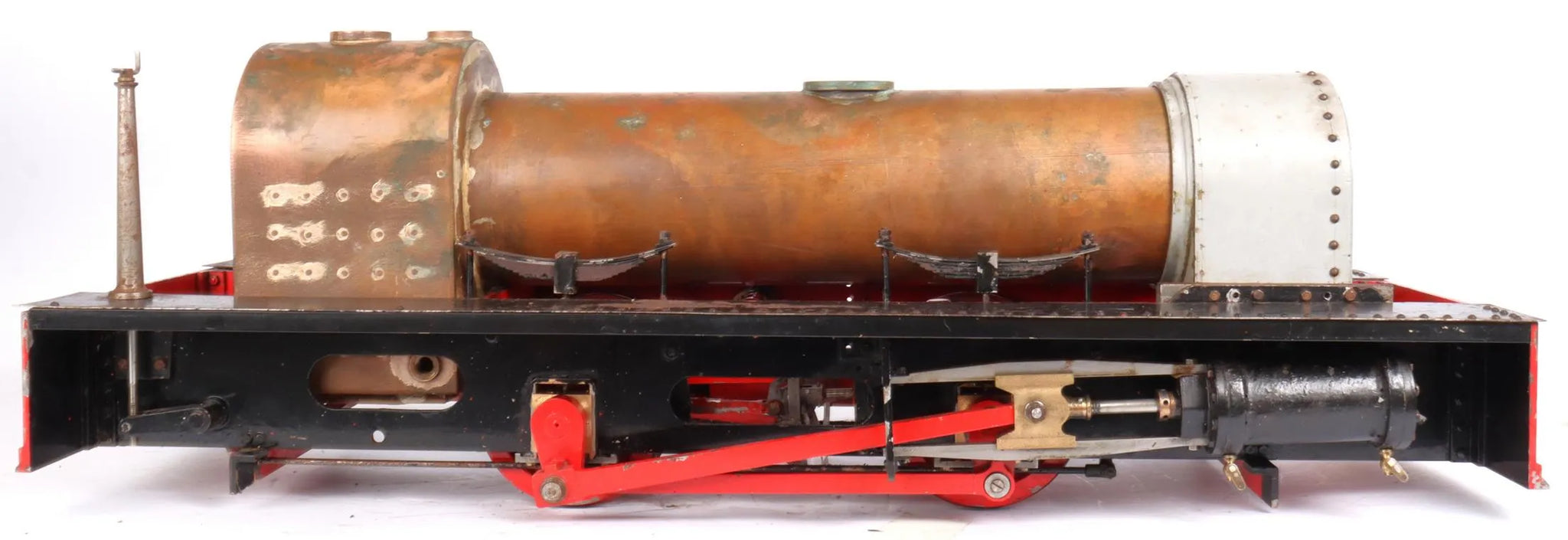

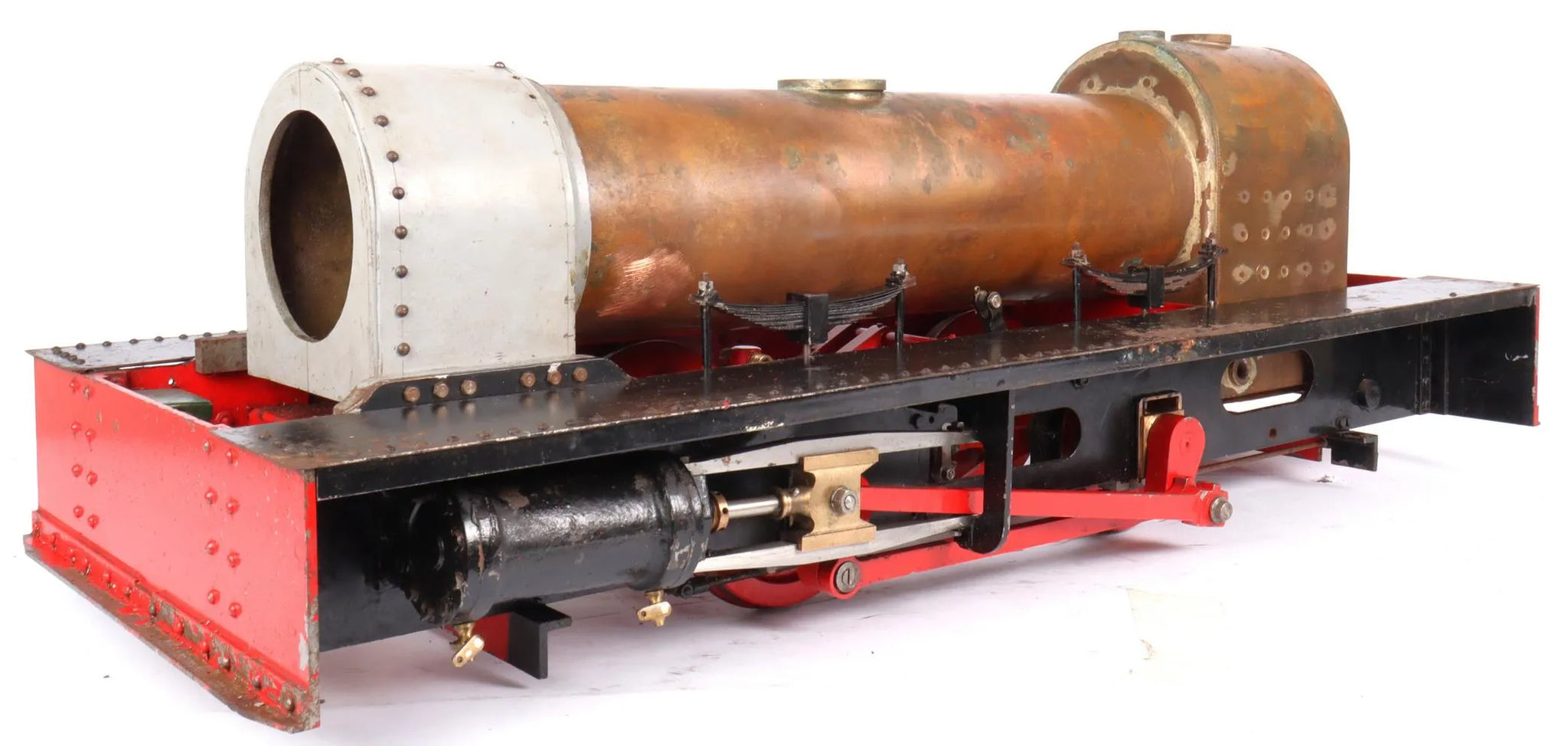

A well-advanced 3 1/2 inch narrow gauge 0-4-0ST to Martin Evans' Hunslet-inspired "Conway" design.

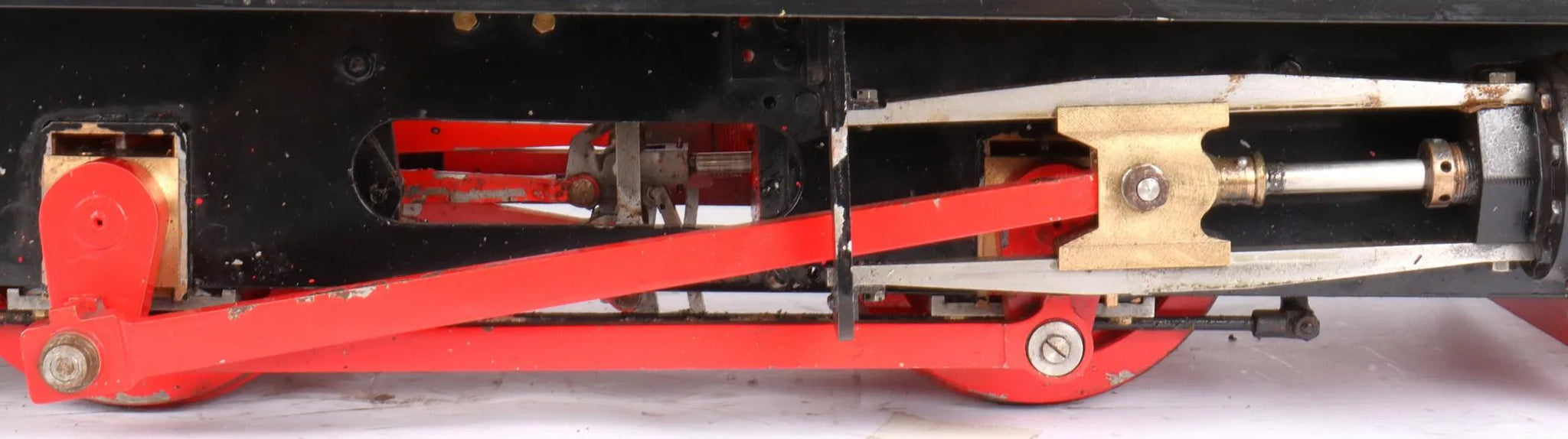

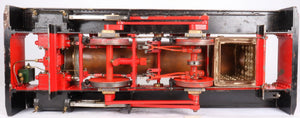

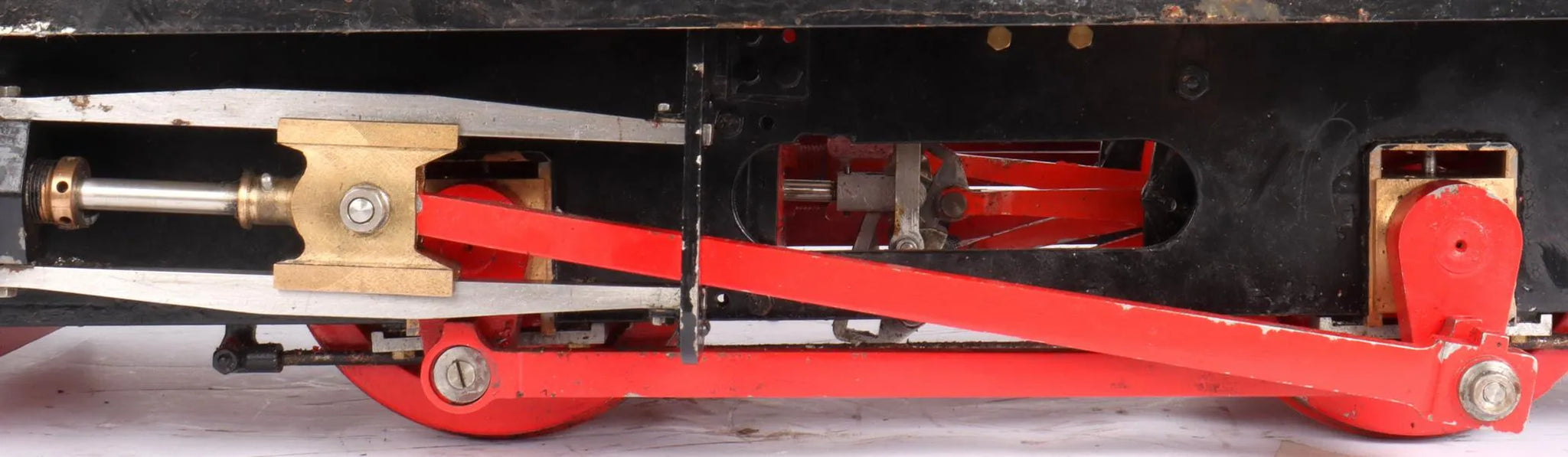

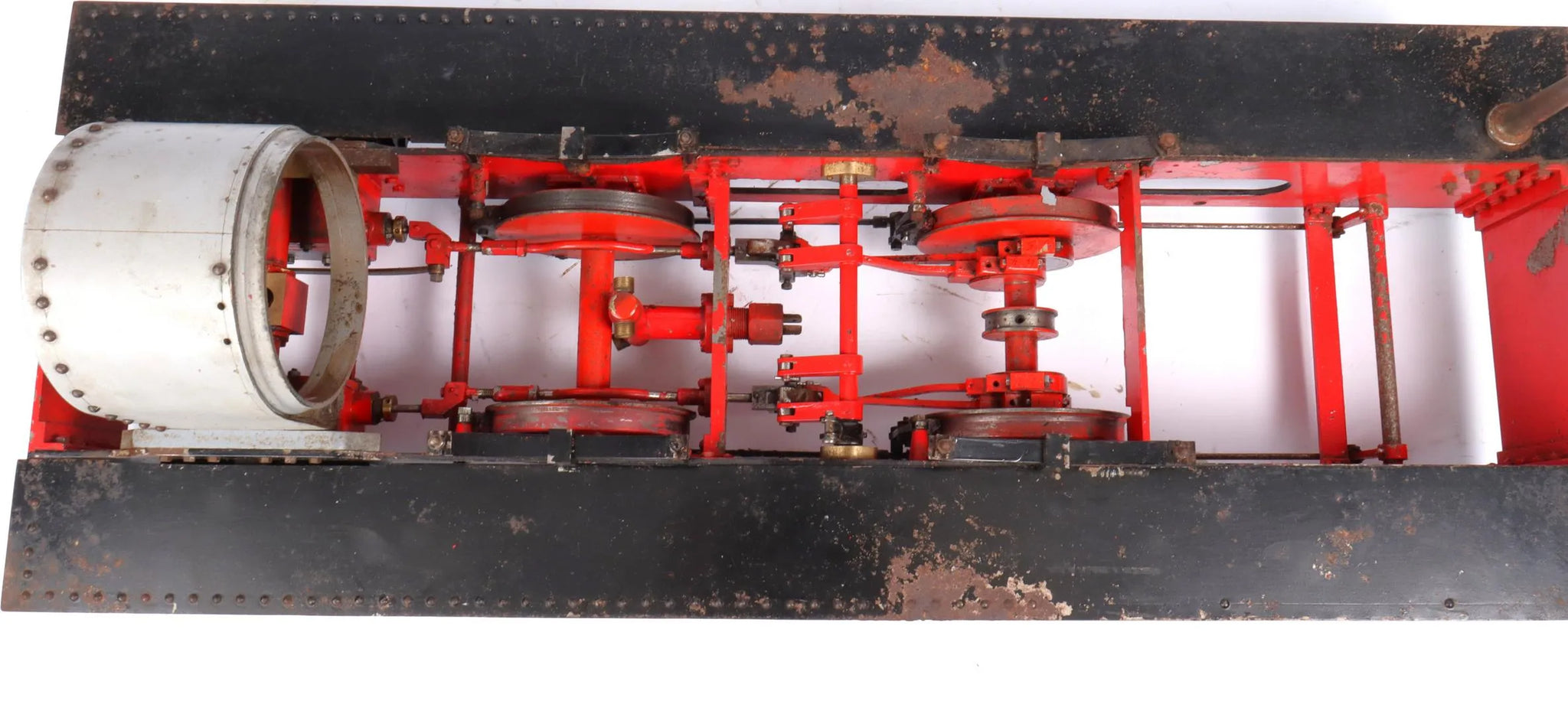

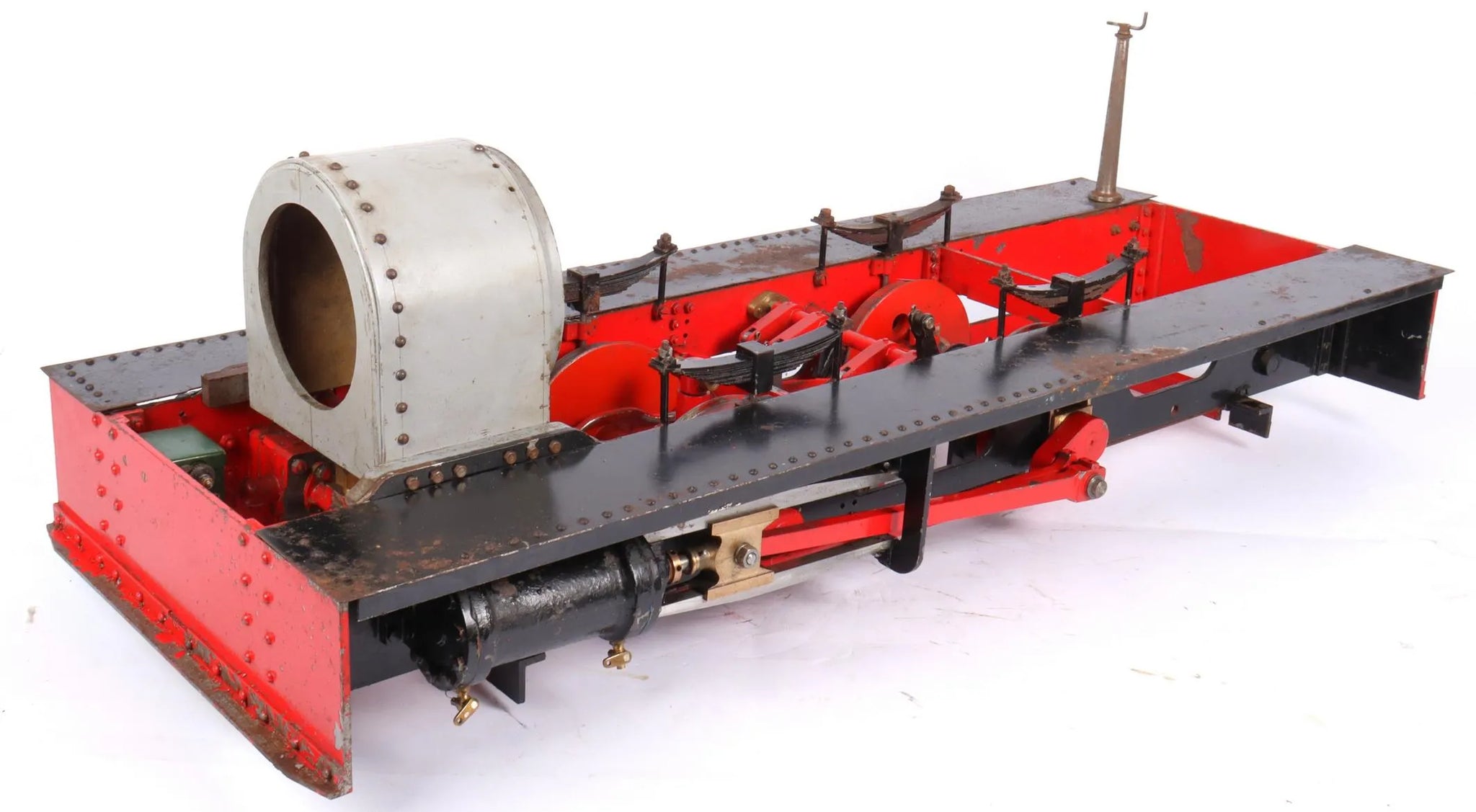

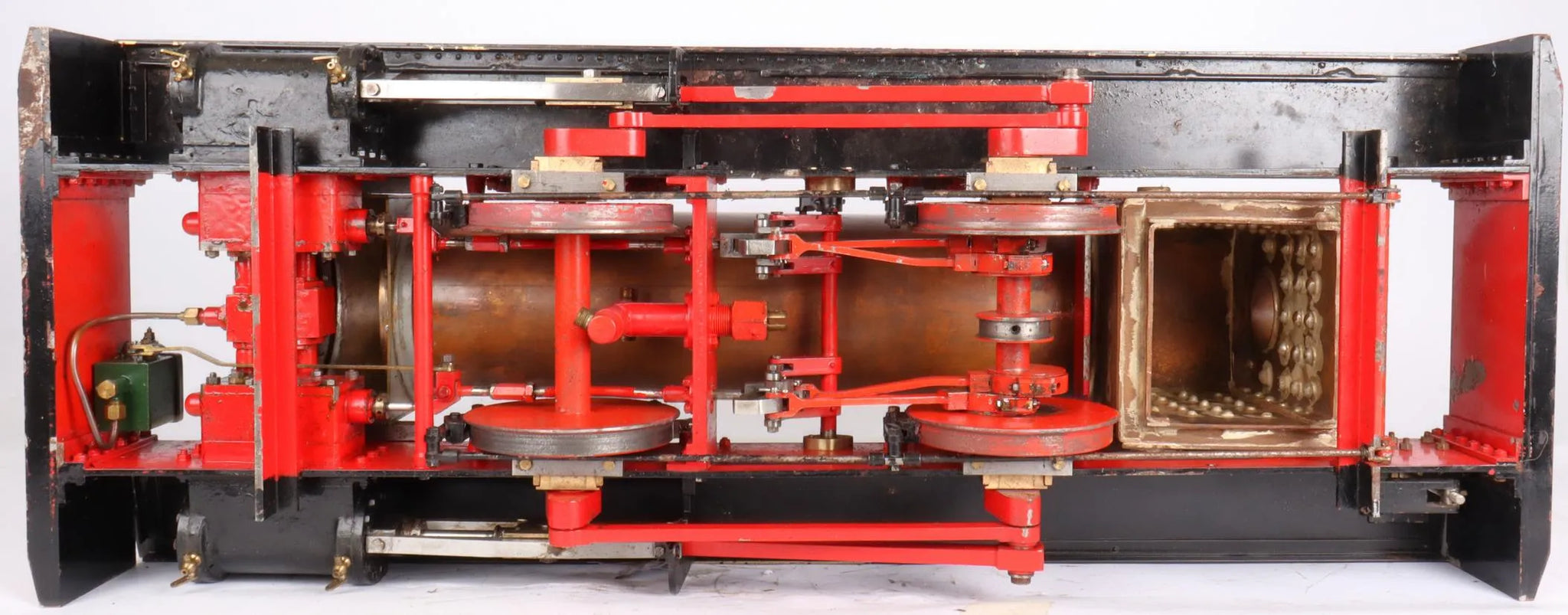

The chassis runs on air, it's complete bar the axle pump eccentric strap and rod.

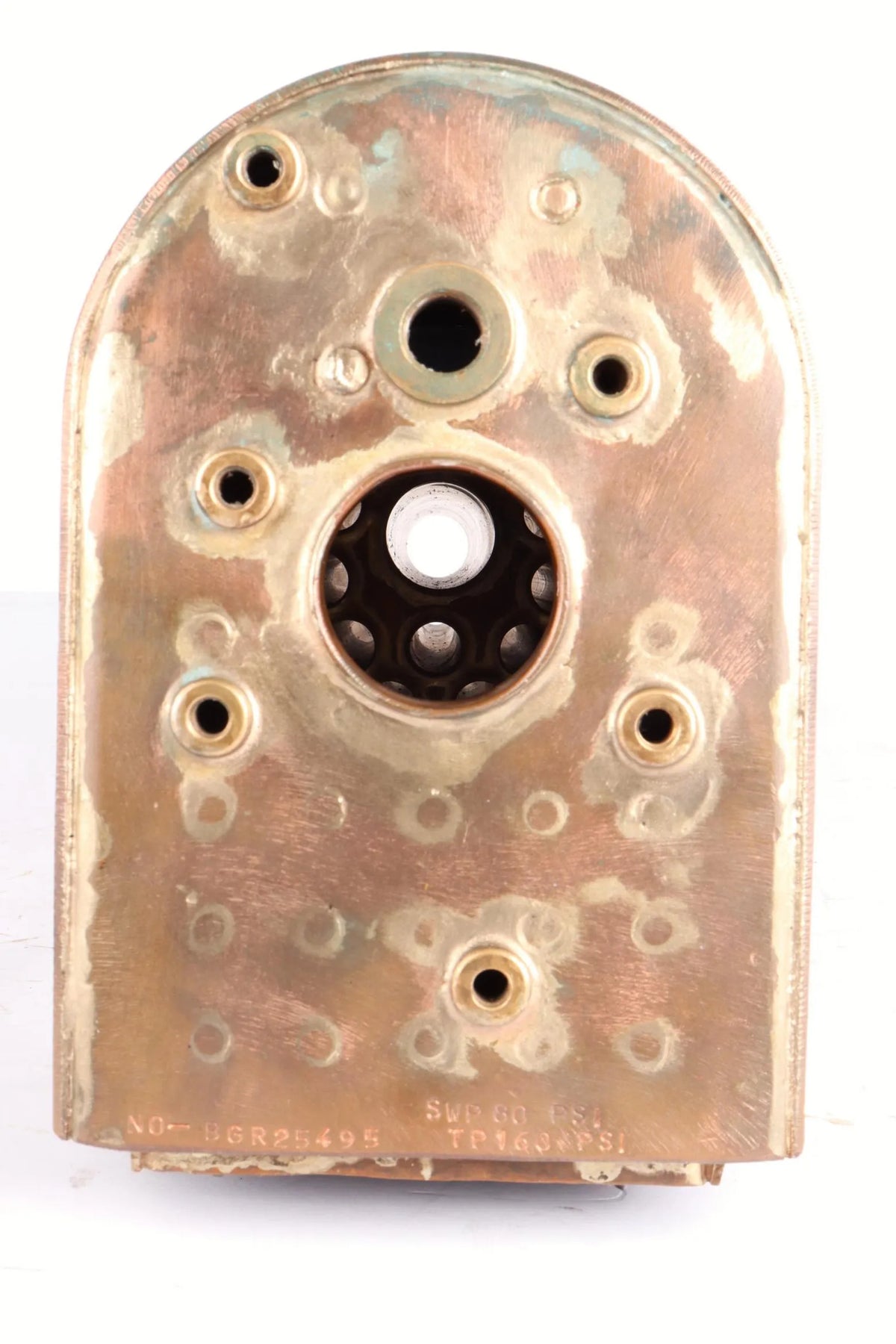

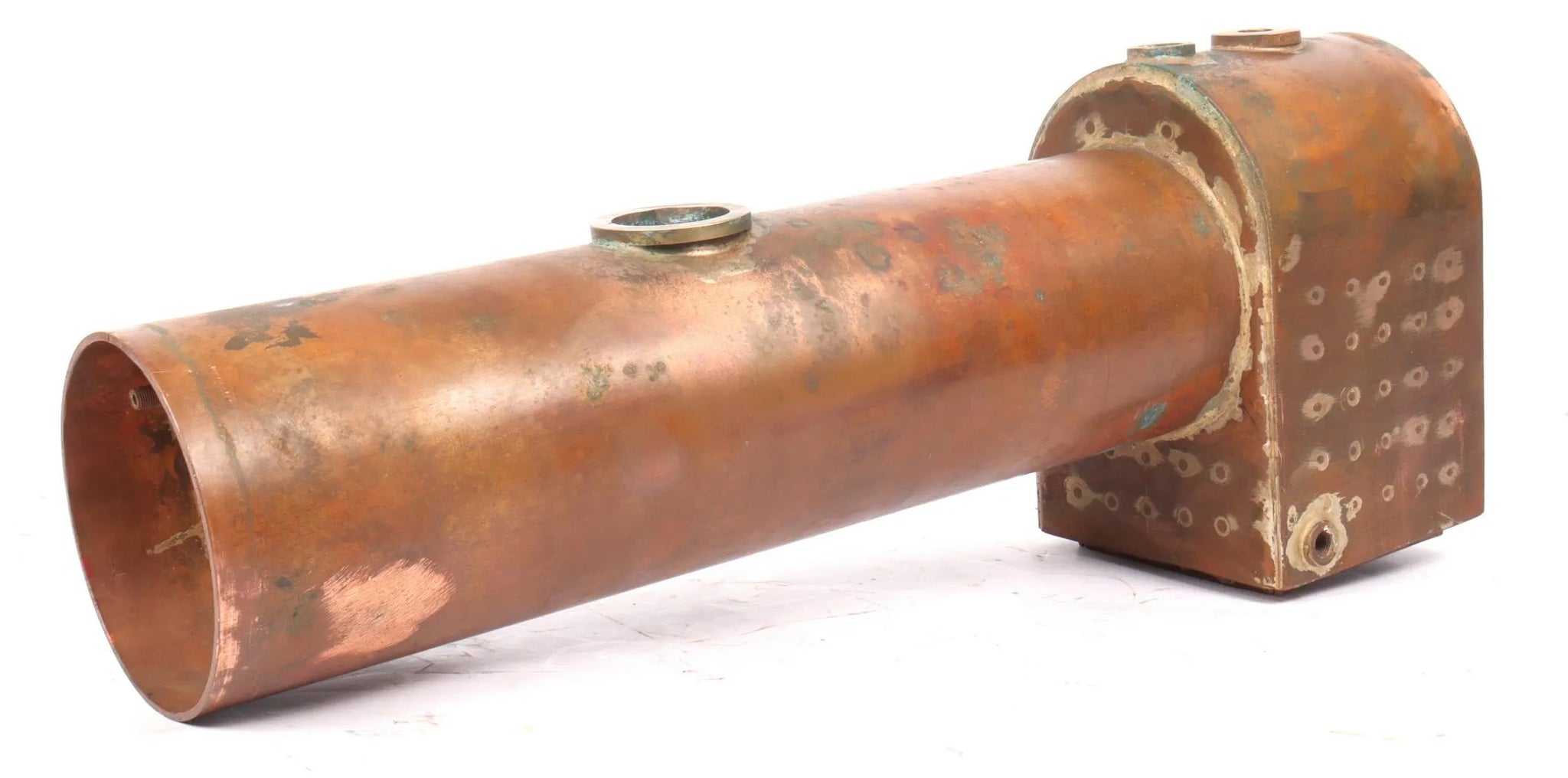

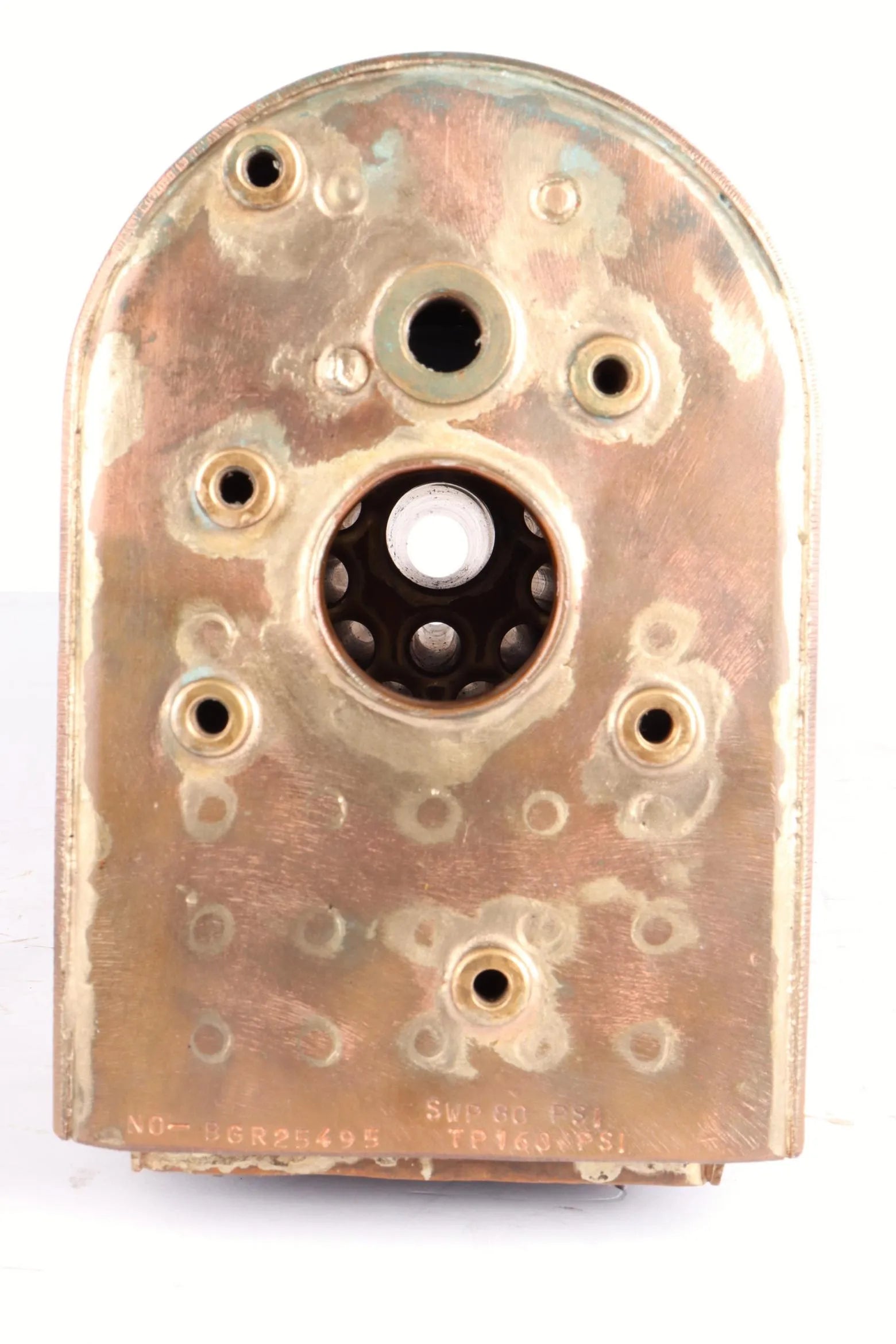

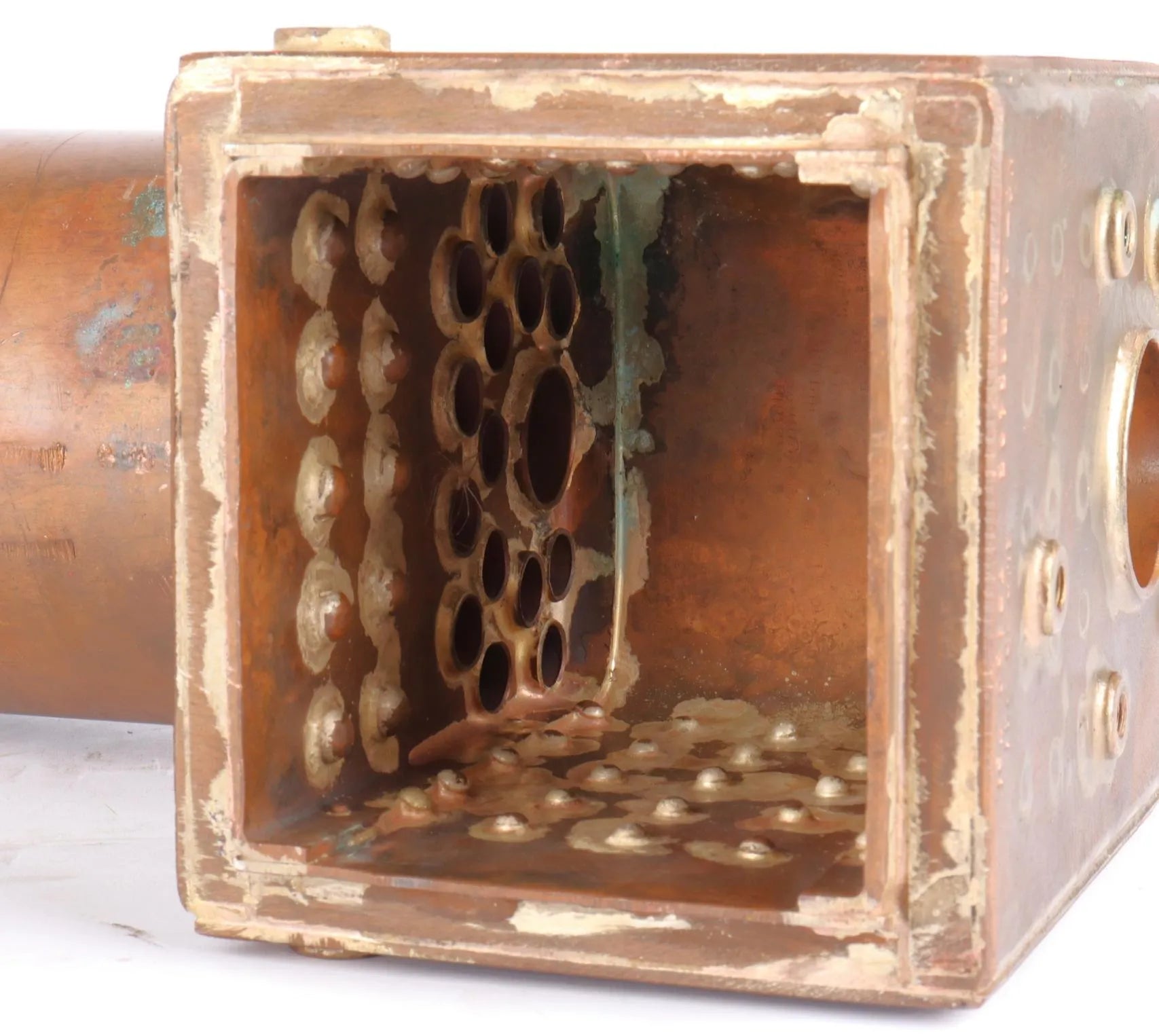

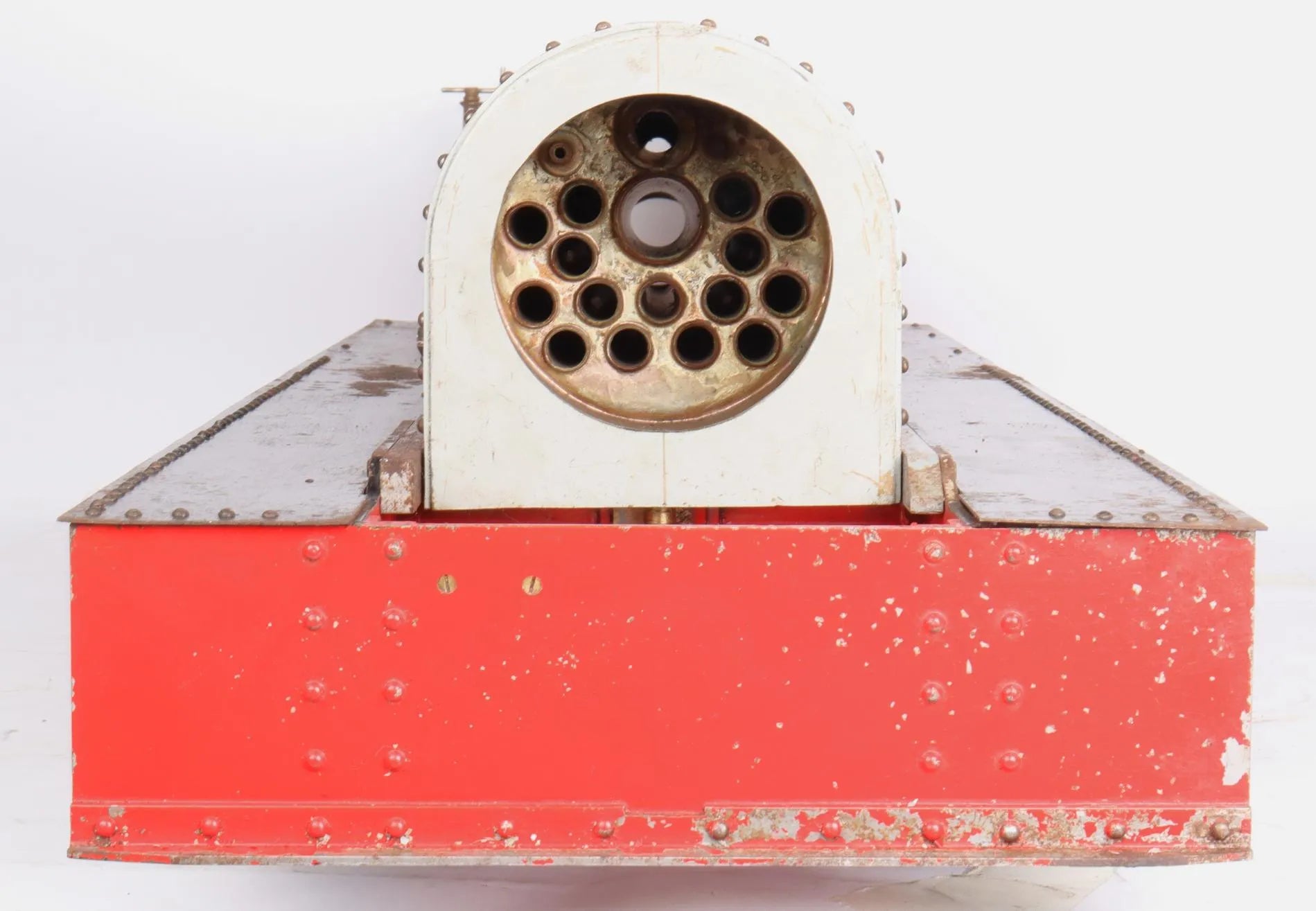

The silver soldered boiler is well made, with neatly flanged plates and good solder penetration, stamped on the backhead with serial number, test and working pressures.

An attractive design, capturing the look of the larger Quarry Hunslet classes. We've had several in over the years, including this particularly nice one which sold back in 2009.

Parts, castings and drawings are available from Reeves.

Technical information

Stock code

11849

Length/inches

28

Width/inches

11

Height/inches

10

Weight/Kg

25

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

Stephensons

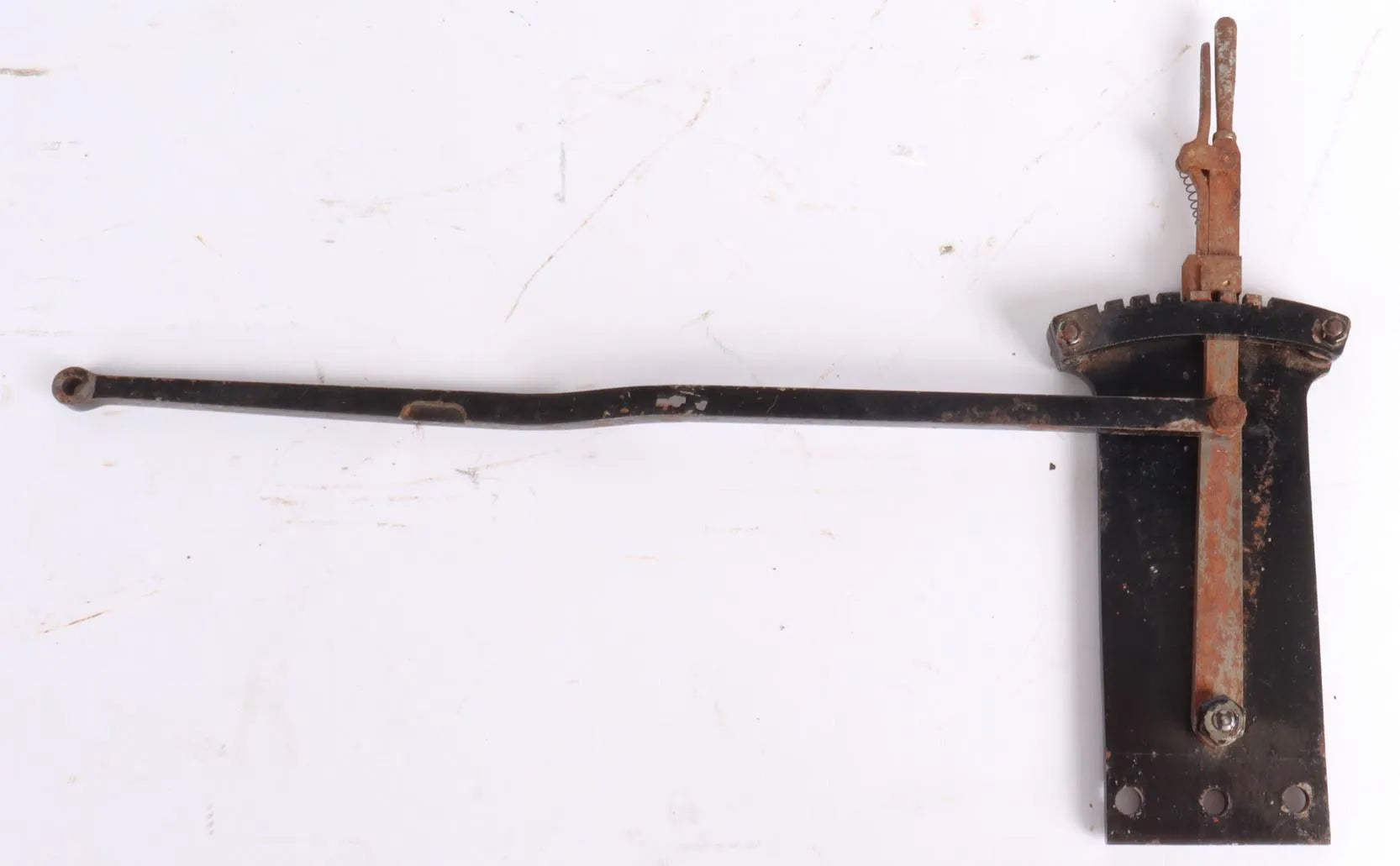

Reverser type

pole

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a non-commercial

Boiler number

BGR25495

Date out

Jun-25
