7979

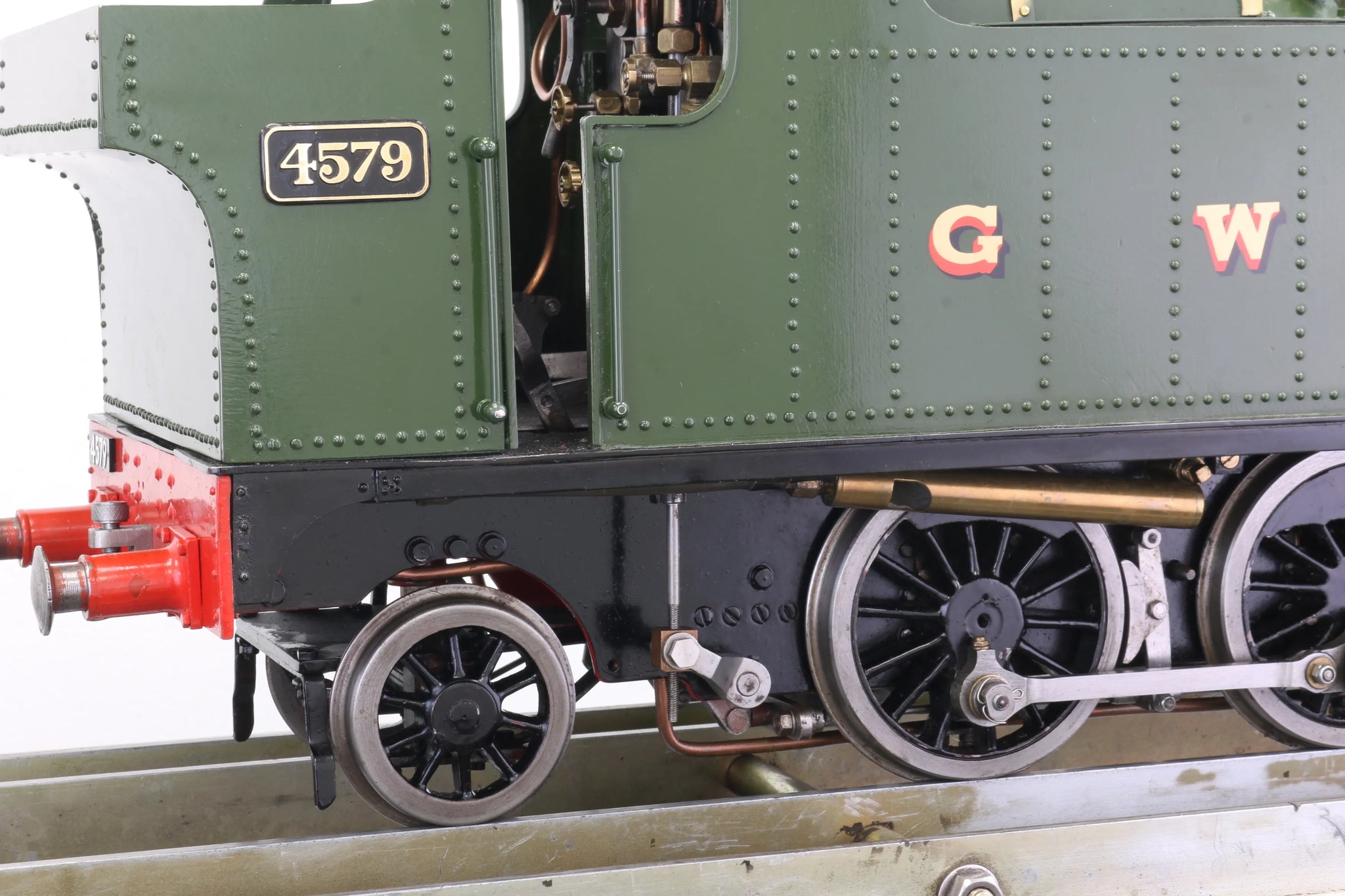

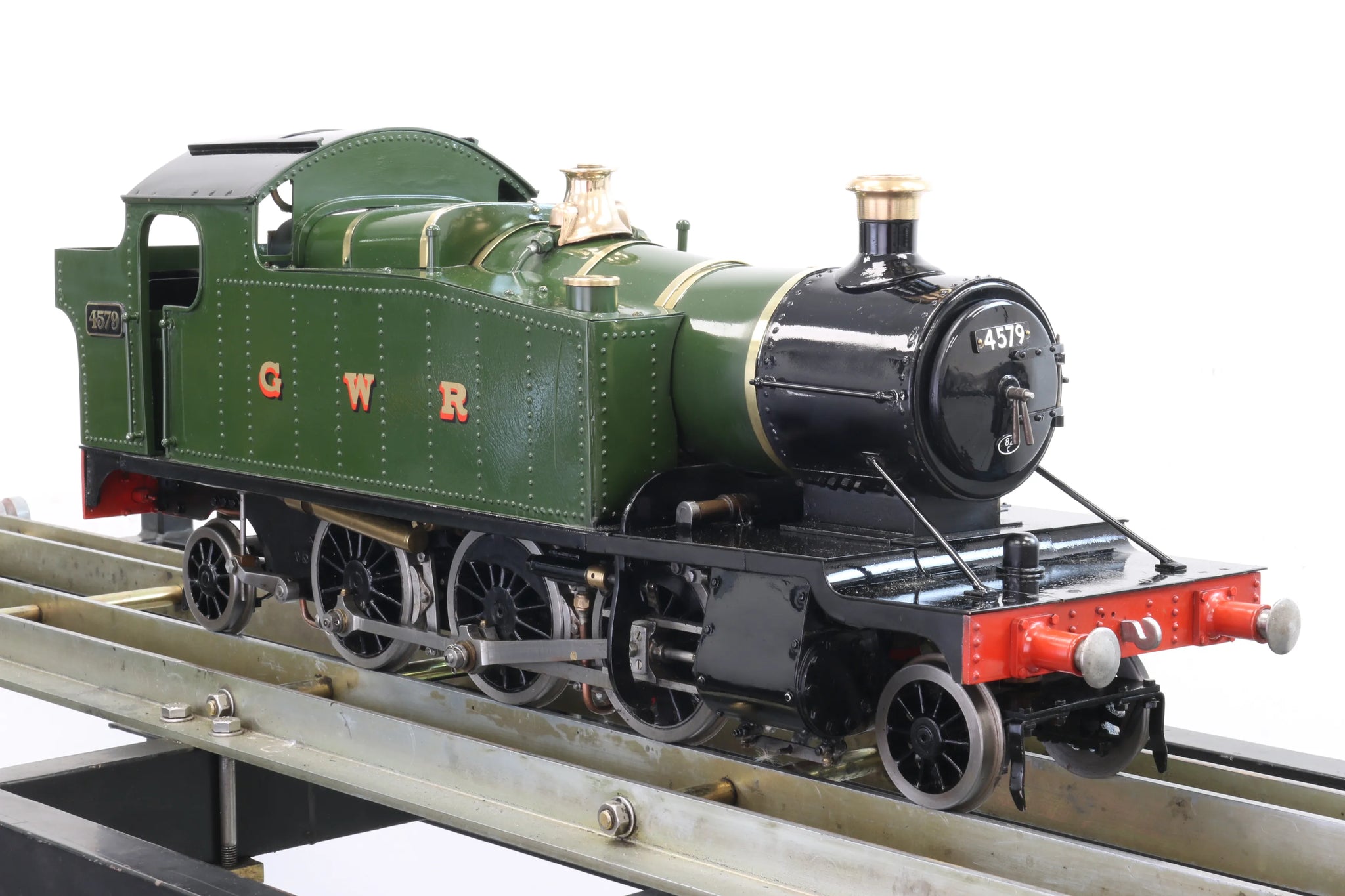

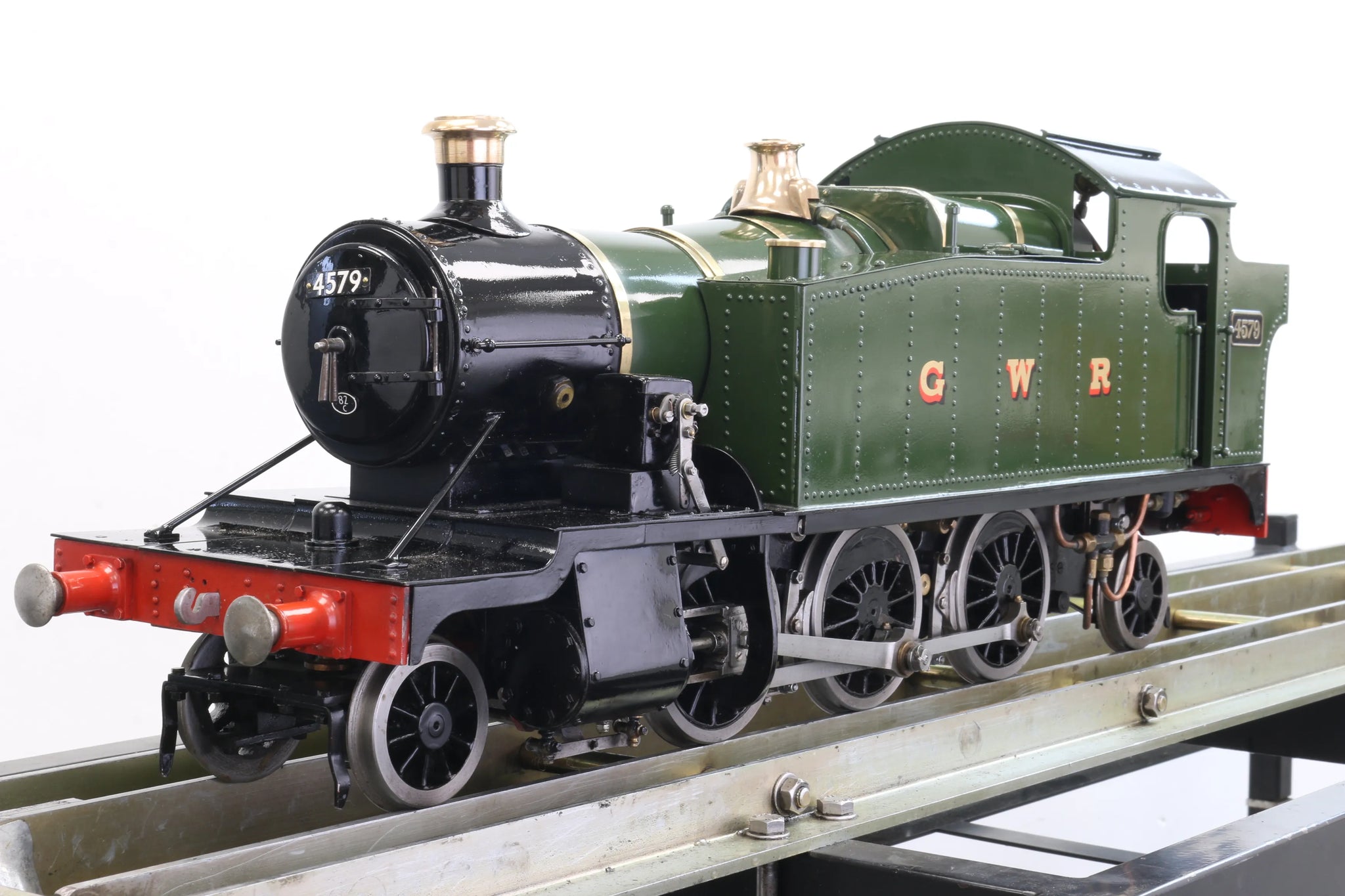

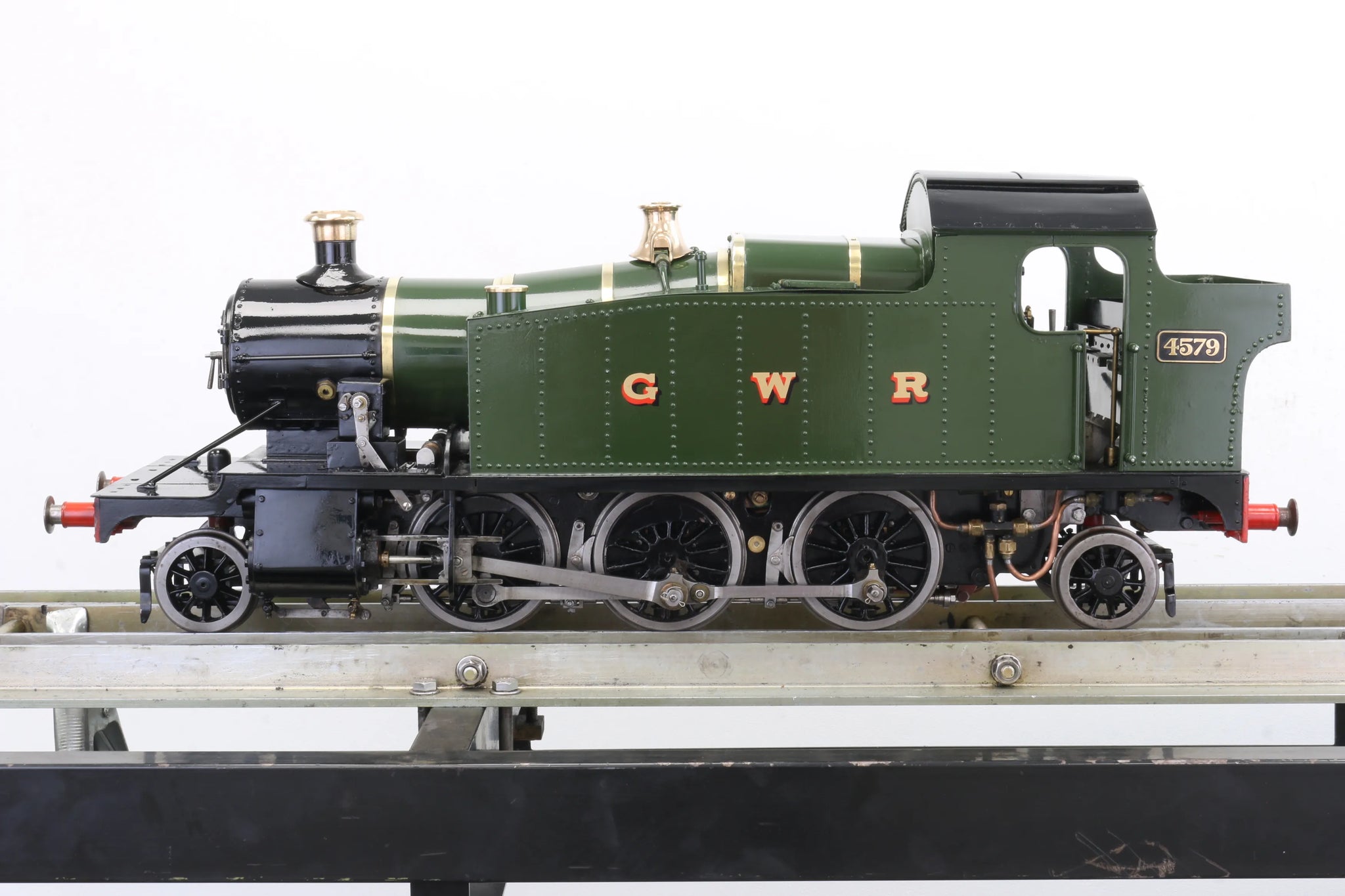

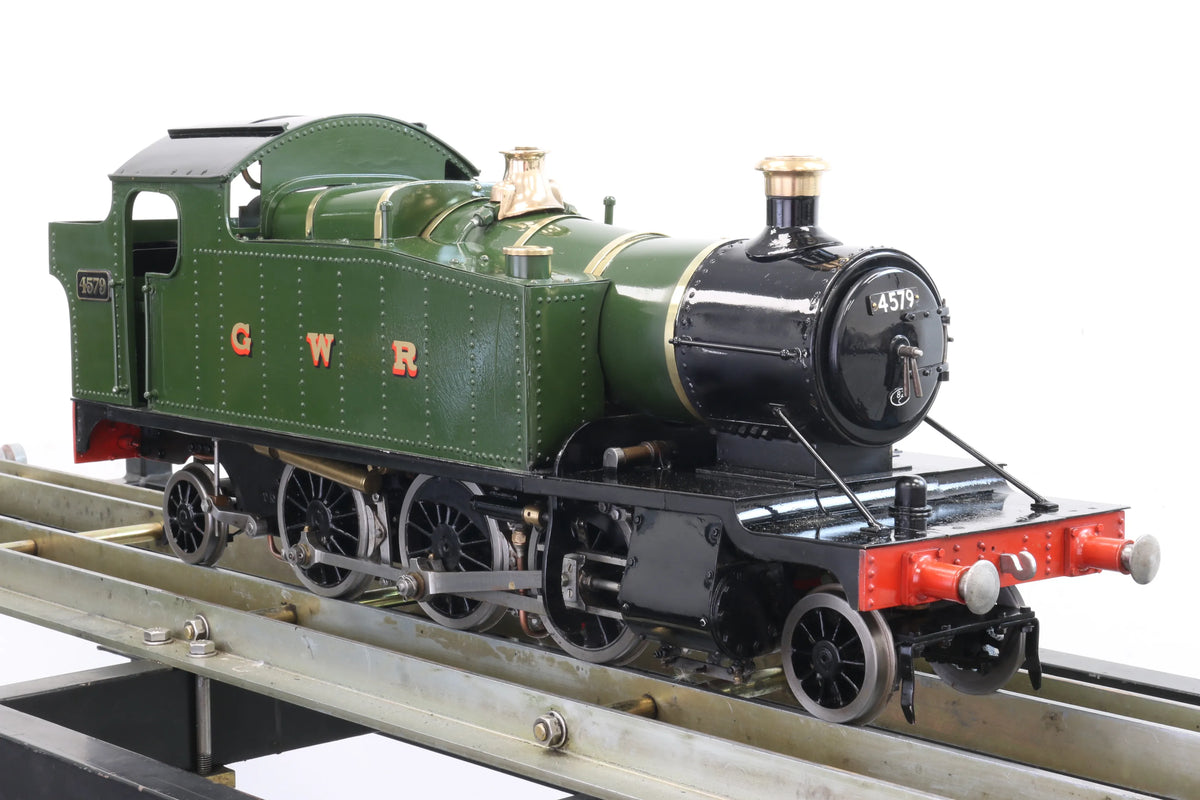

A 3 1/2 inch gauge GWR small Prairie to Martin Evans' "Firefly" design, unsteamed from new.
The locomotive has a silver soldered copper boiler by Western Steam with manufacturer's original shell test certificate - the boiler was supplied new in 2001, the locomotive had its first (and only) club hydraulic test in 2009 when completed.
The engine needs some work to commission for steaming - it runs on air in reverse, not so well forwards so needs either eccentrics or valve setting. There is a minor leak on hydraulic test from the wet header flange.
Stock code |
7979 |
Gauge |
3 1/2 inch |
Length/inches |
29 |
Width/inches |
7.5 |
Height/inches |
12 |

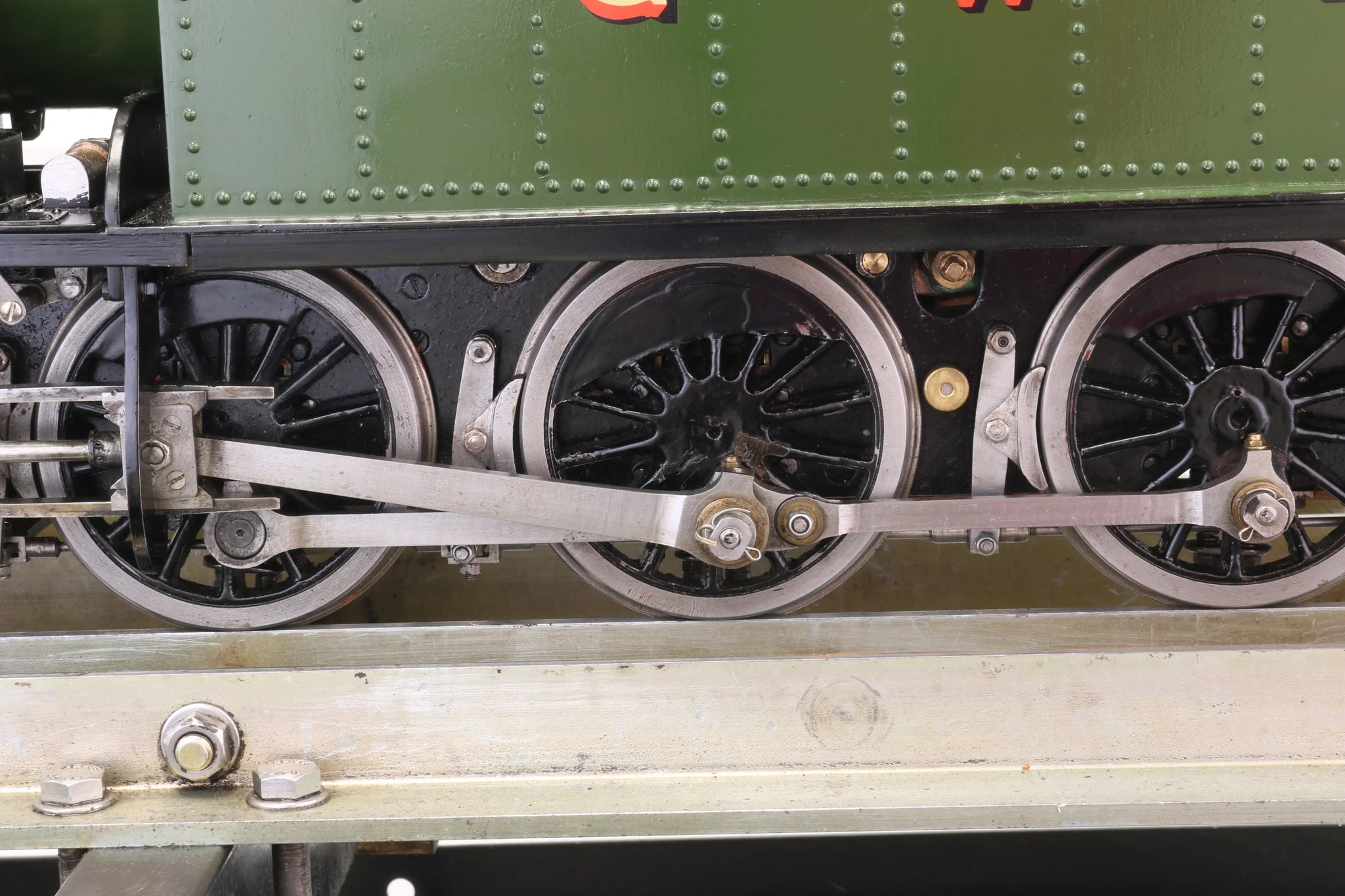

Wheel material |
cast iron |
Axlebox type |
plain |
Valve type |
slide |

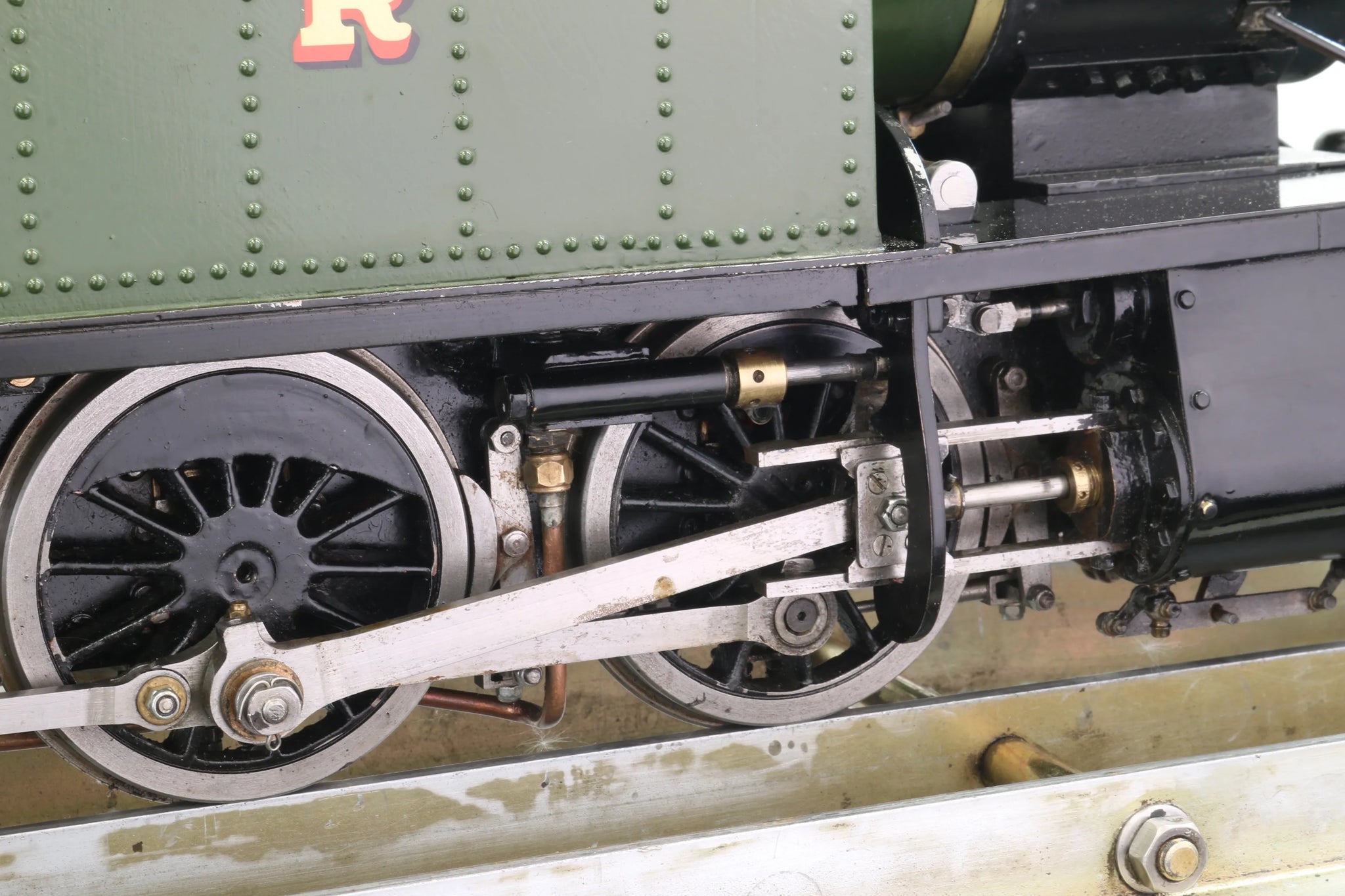

Valve gear |
Stephensons |

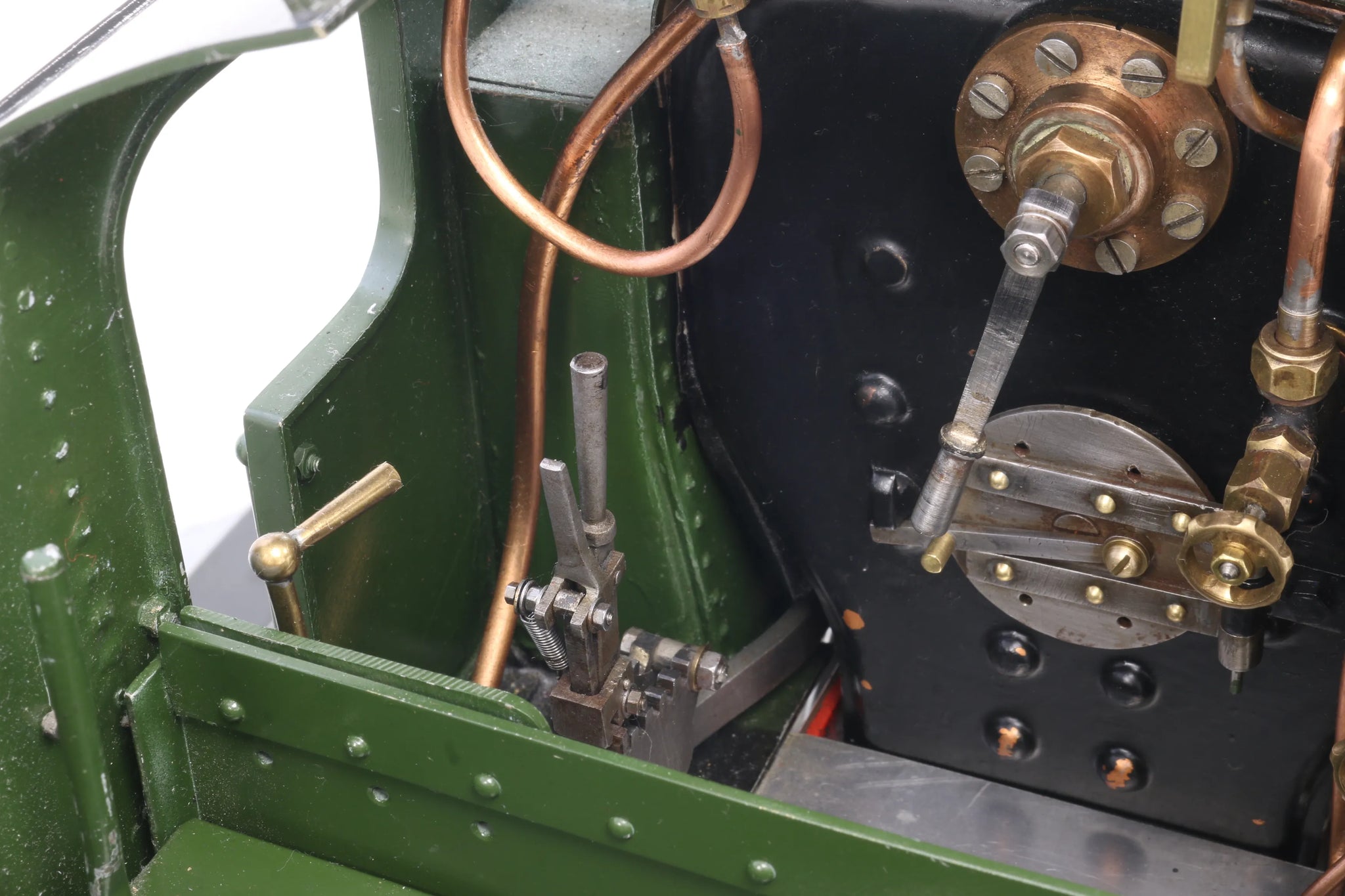

Reverser type |
pole |
Boiler maker |
Western Steam |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
CE/UKCA mark |
n/a, pre-2002 |
Year built |
2001 |
Boiler number |
167-12-01-HV |
Safety valve type |
spring |
Safety valve |
2 |
Fusible plug |
no |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
radiant |
Superheater |
3 |
Date out |
Jan-21 |
Hydraulic test valid to |
24-Apr-22 |
