Sold

8421

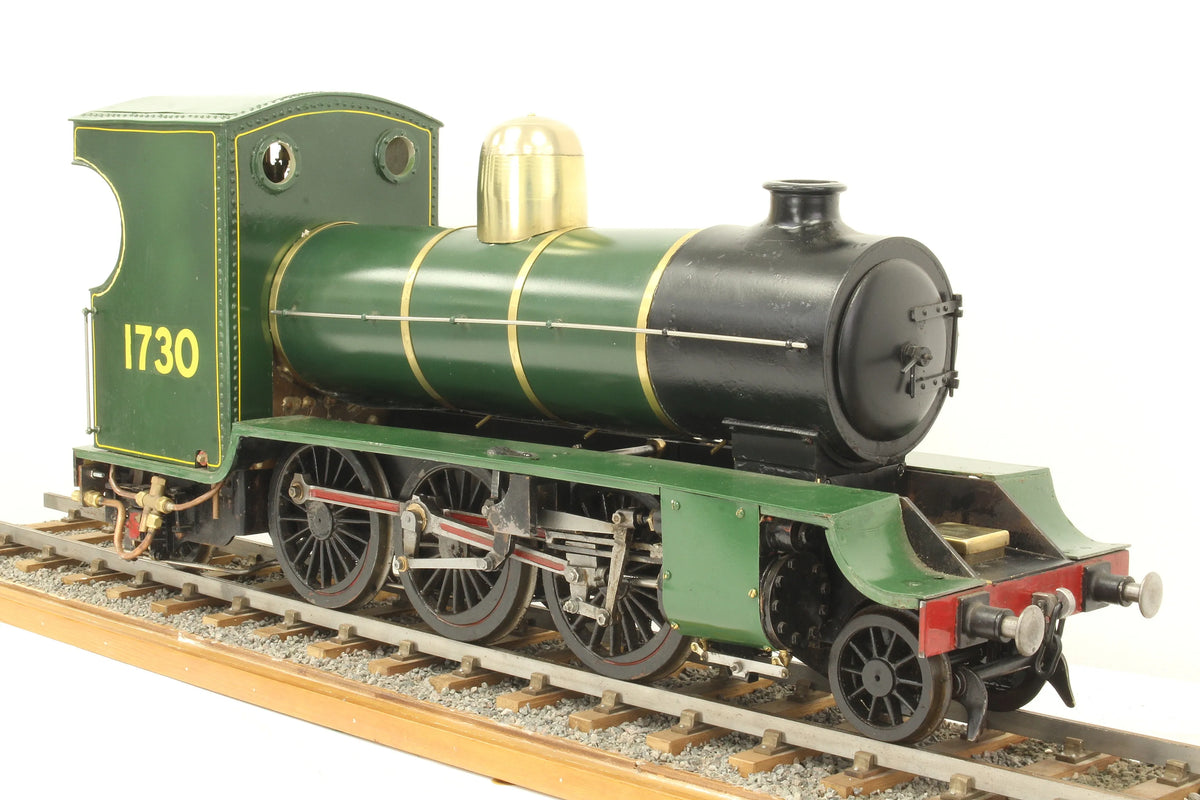

3 1/2 inch gauge freelance 2-6-2

You'll probably not have seen one of these before...

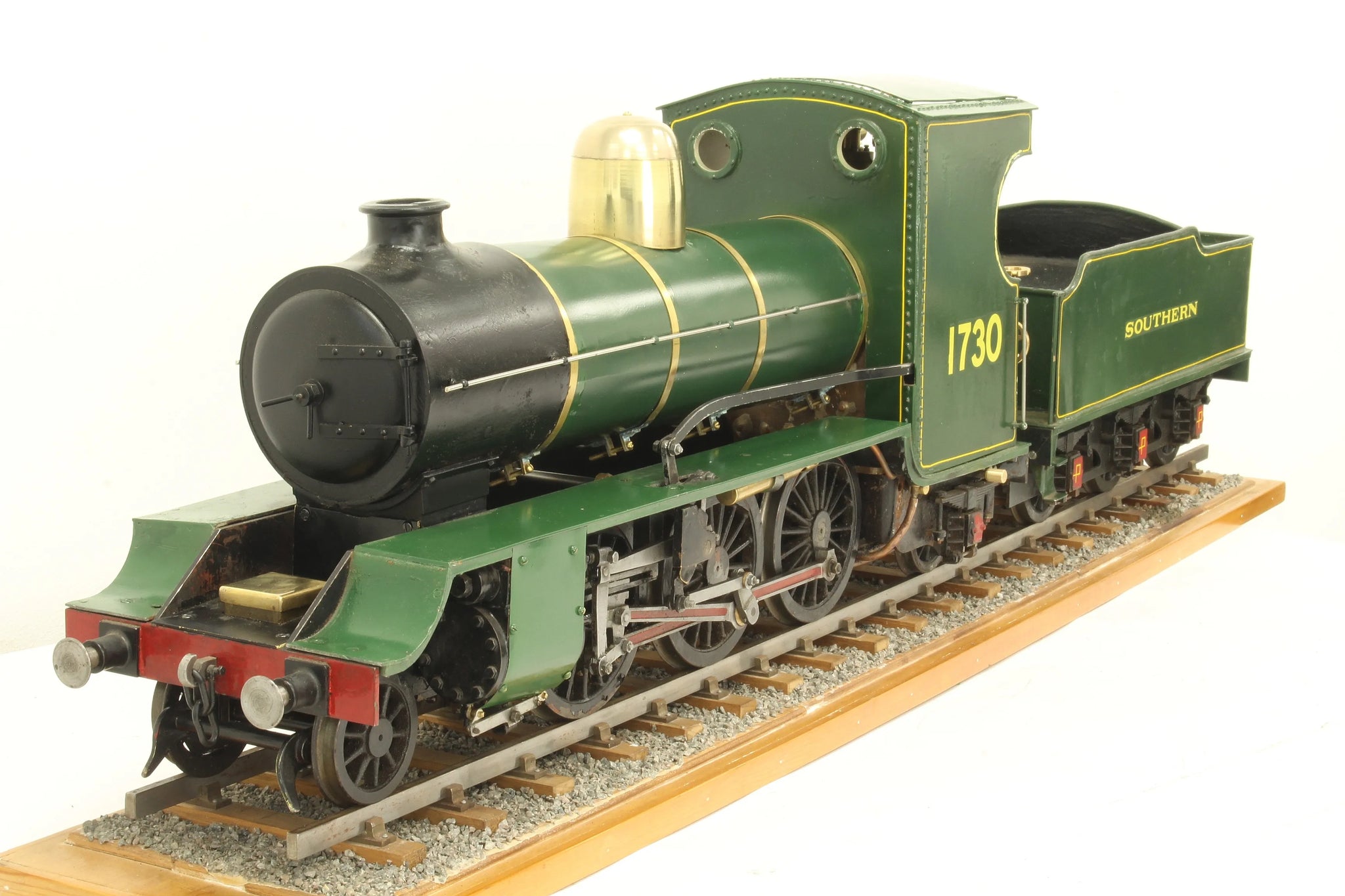

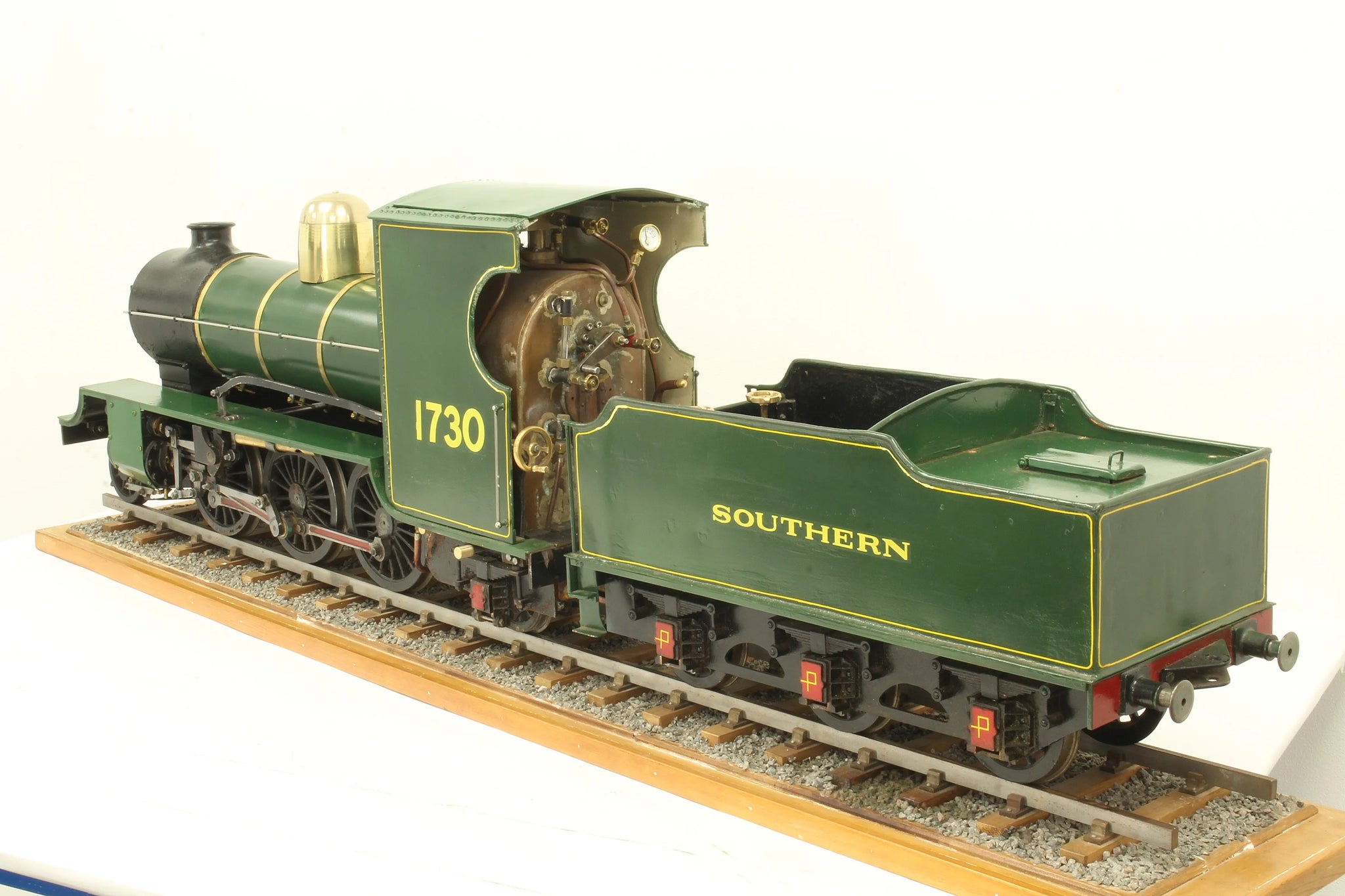

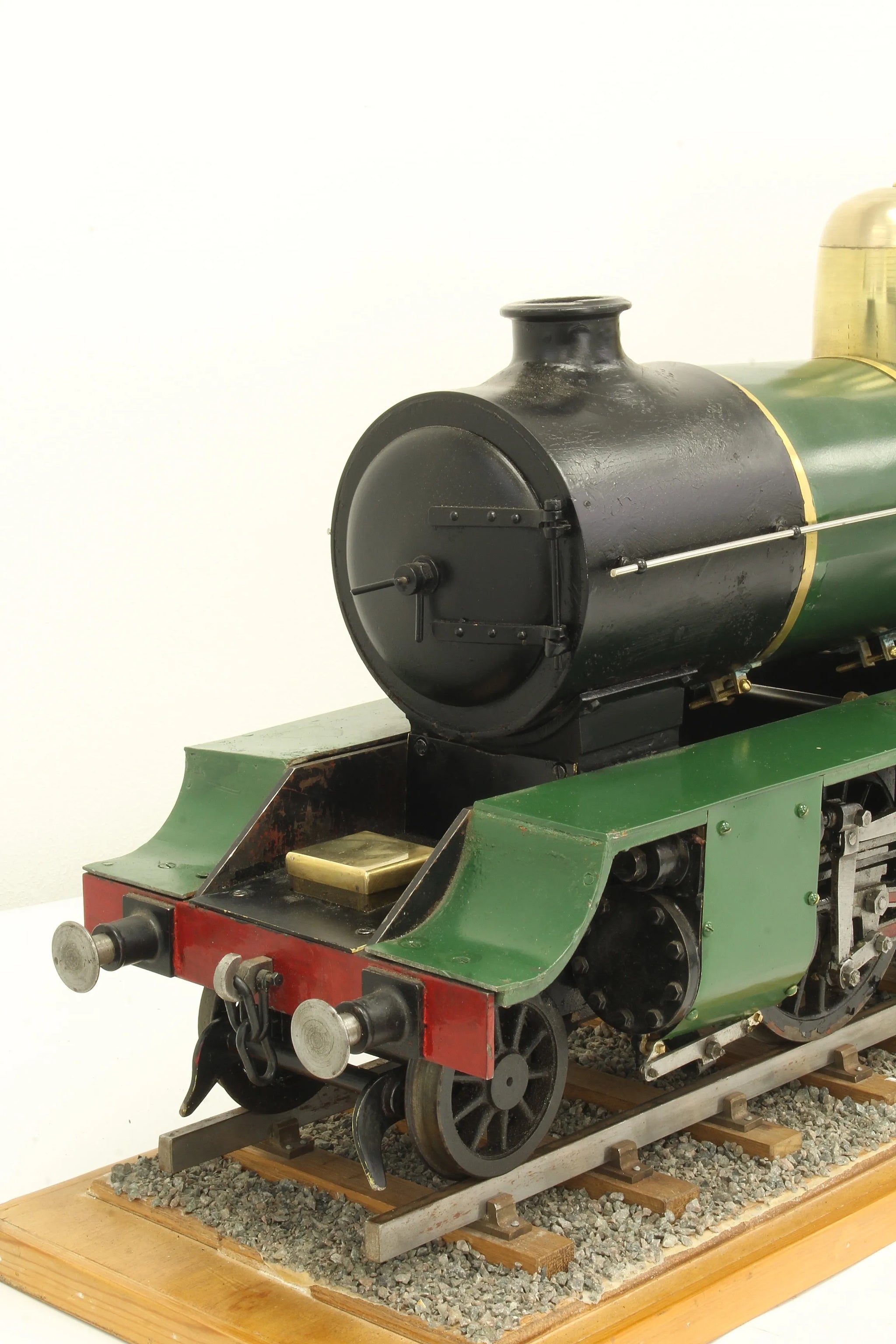

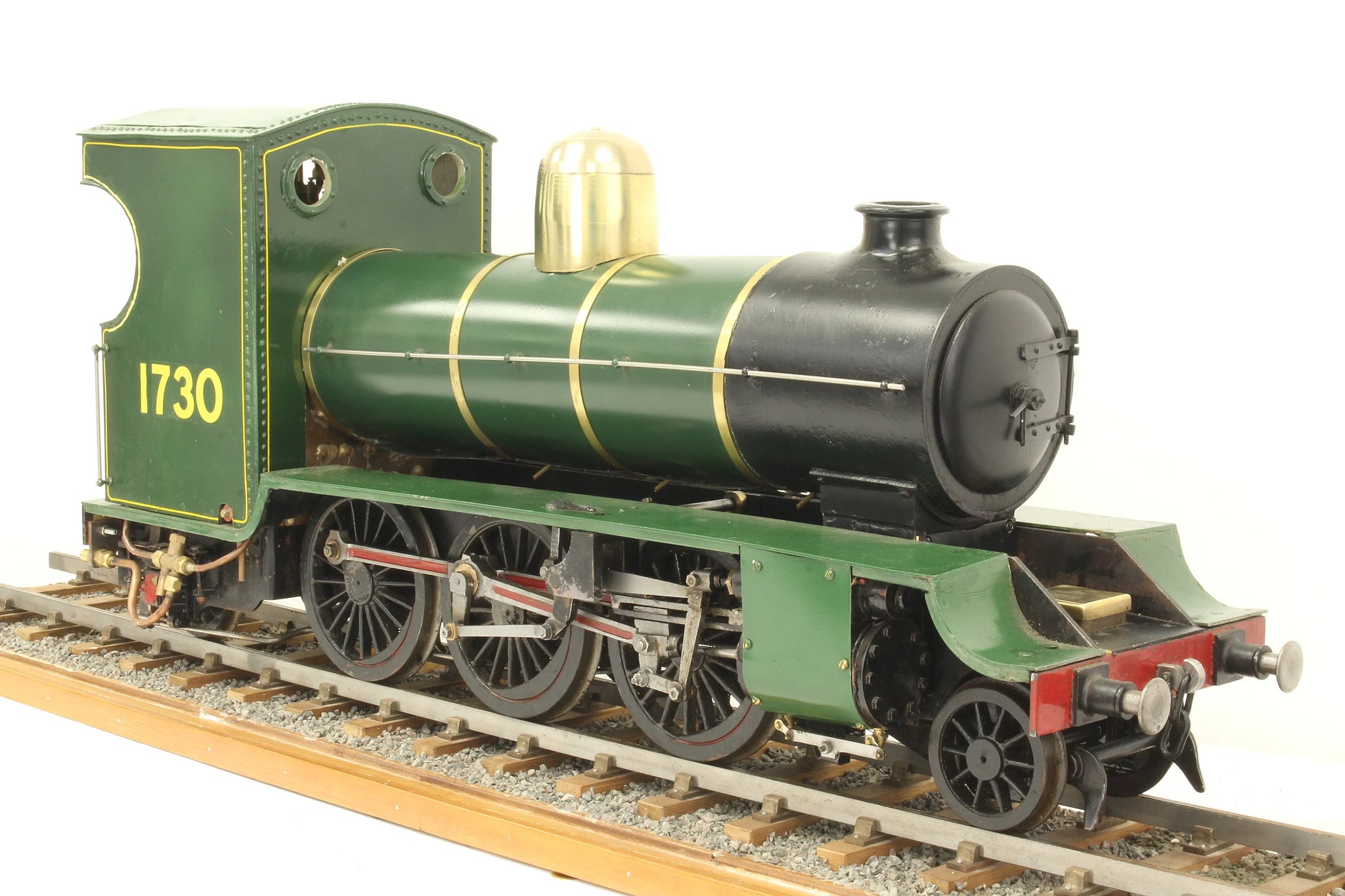

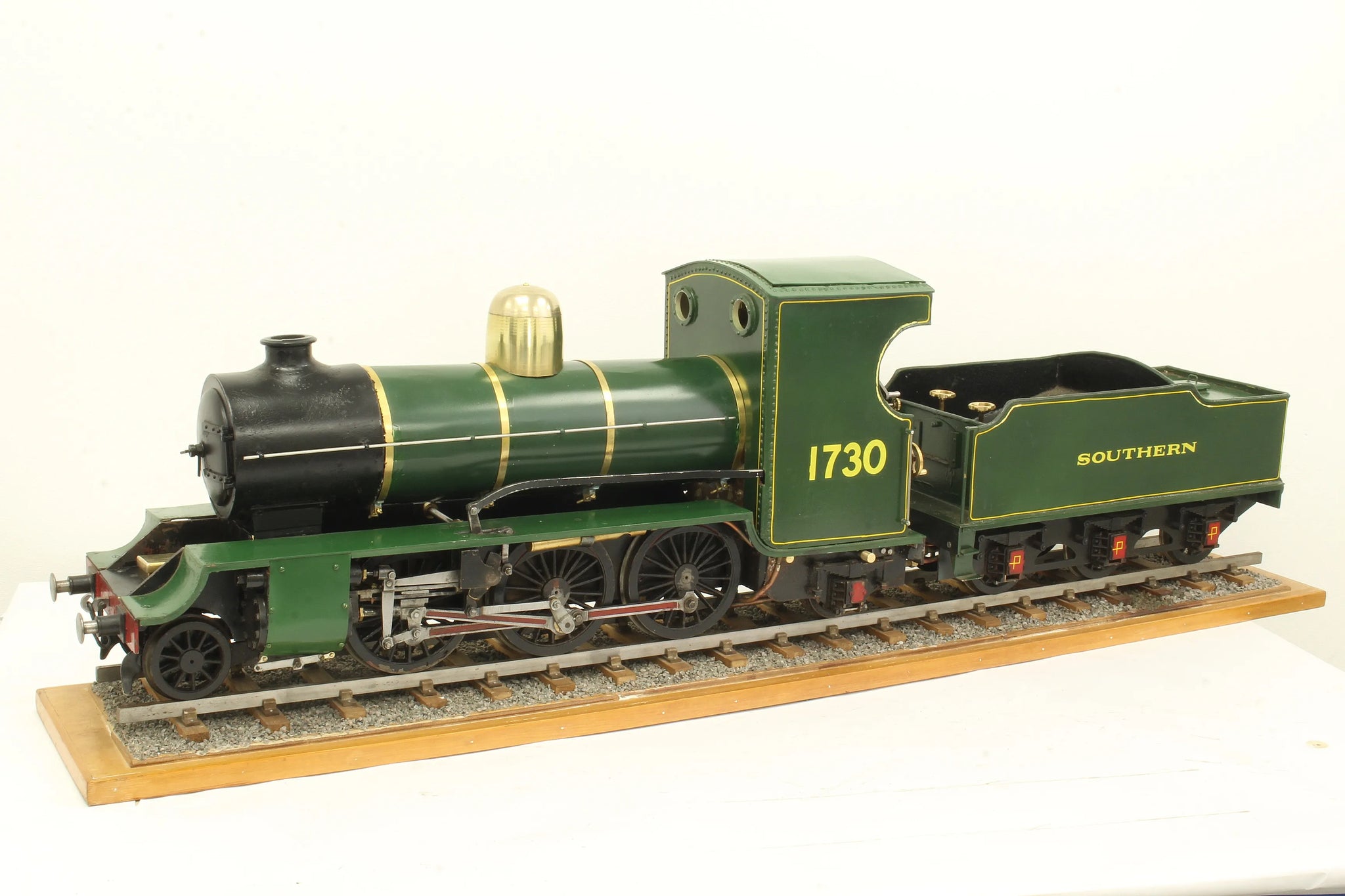

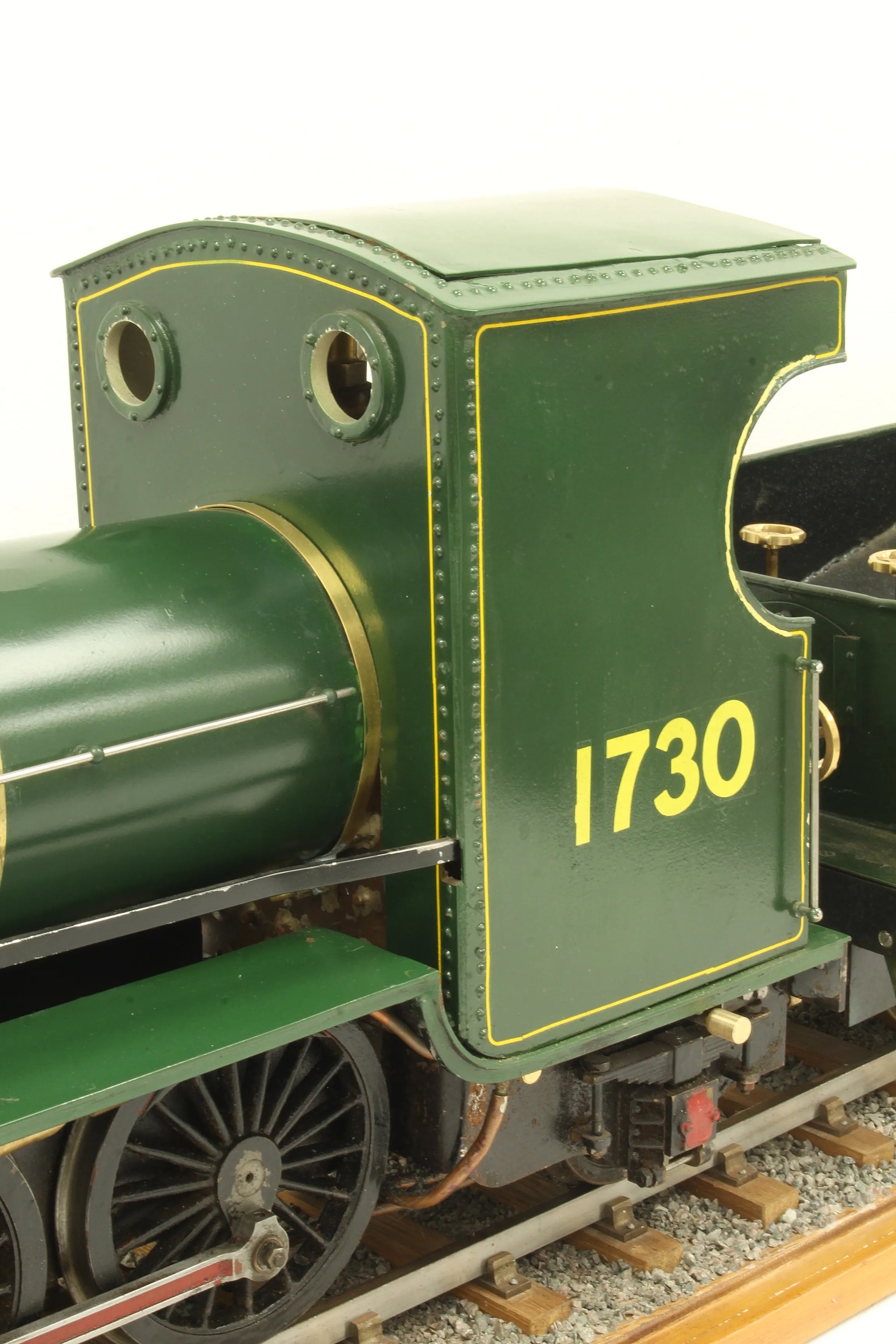

A 3 1/2 inch gauge 2-6-2 tender locomotive, the unlikely love child of "Betty" - LBSC's Southern "Mongoliper" design - and a narrow gauge 0-4-0ST to Martin Evans' "Conway" design which donated the boiler and influenced the cab proportions.

We have some history for the engine, with the club hydraulic certificate expiring November 2019. We've tested the boiler in the last few days, still sound and warrantied as such.

The engine has been running in the recent past according to the previous owner, who part exchanged it for a 5 inch gauge tank engine.

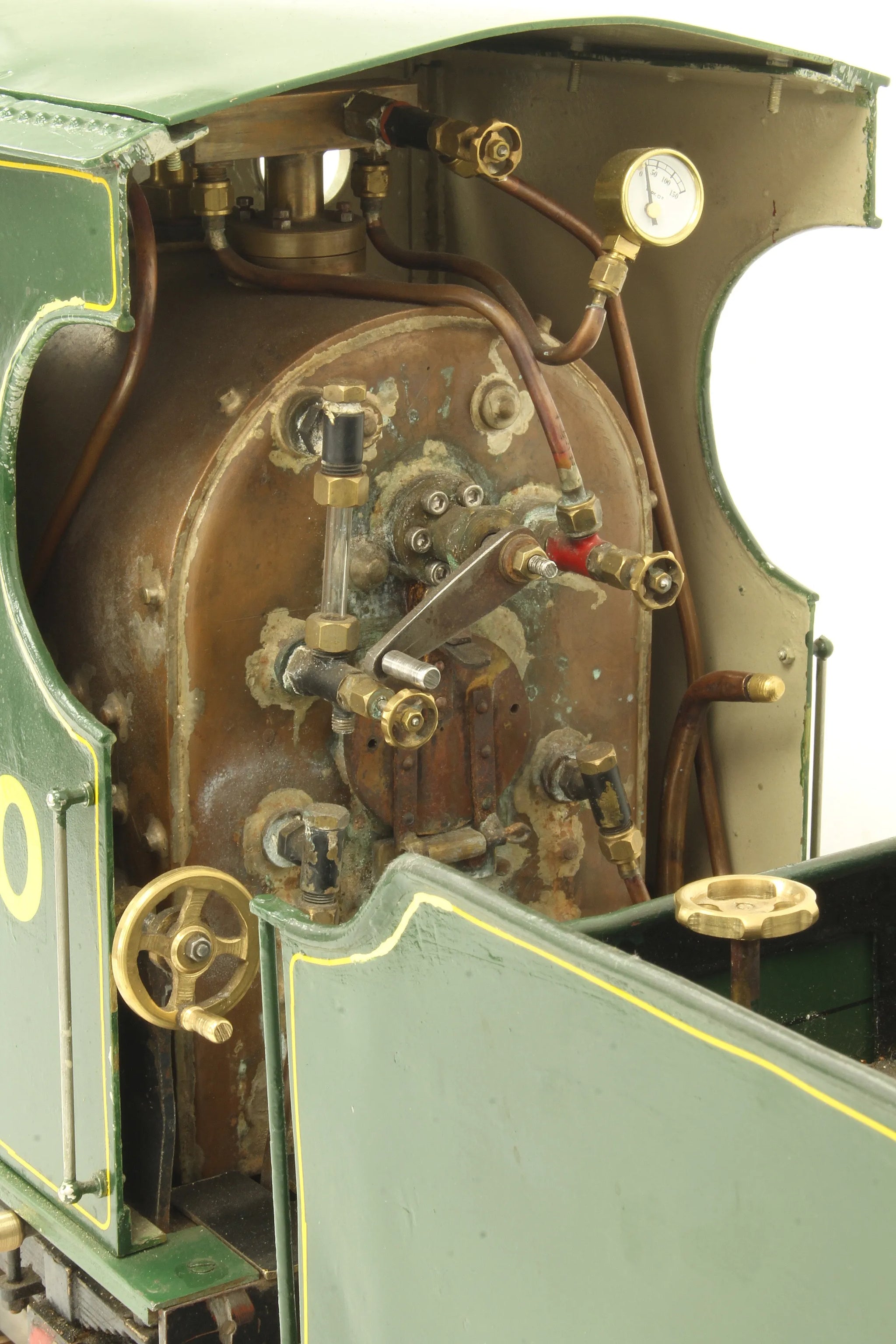

Regulator and wet header both leak slightly, it runs well backwards but not forwards - we can only assume he ran everywhere in reverse, a decent pair of wing mirrors would be a worthwhile investment.

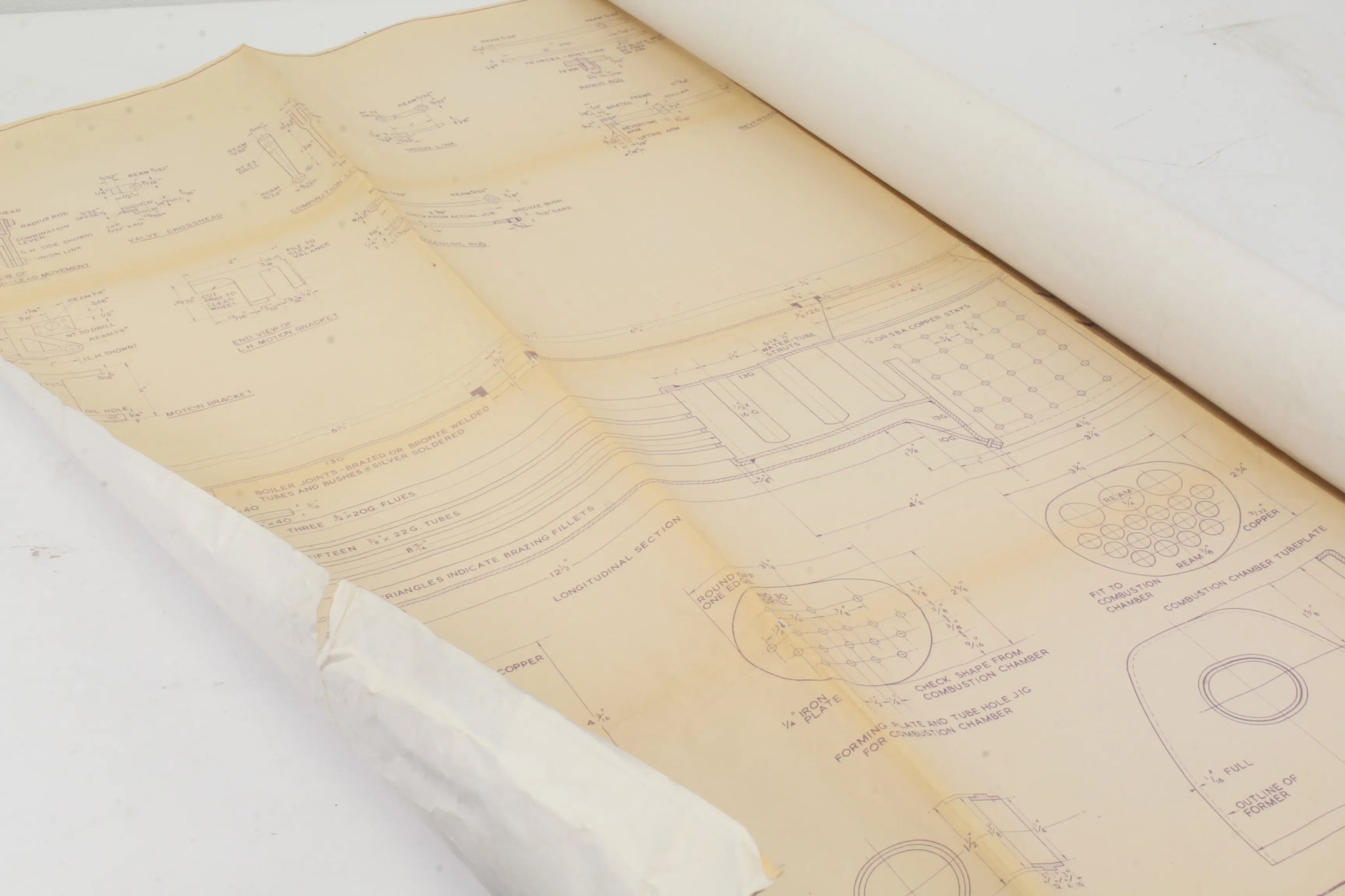

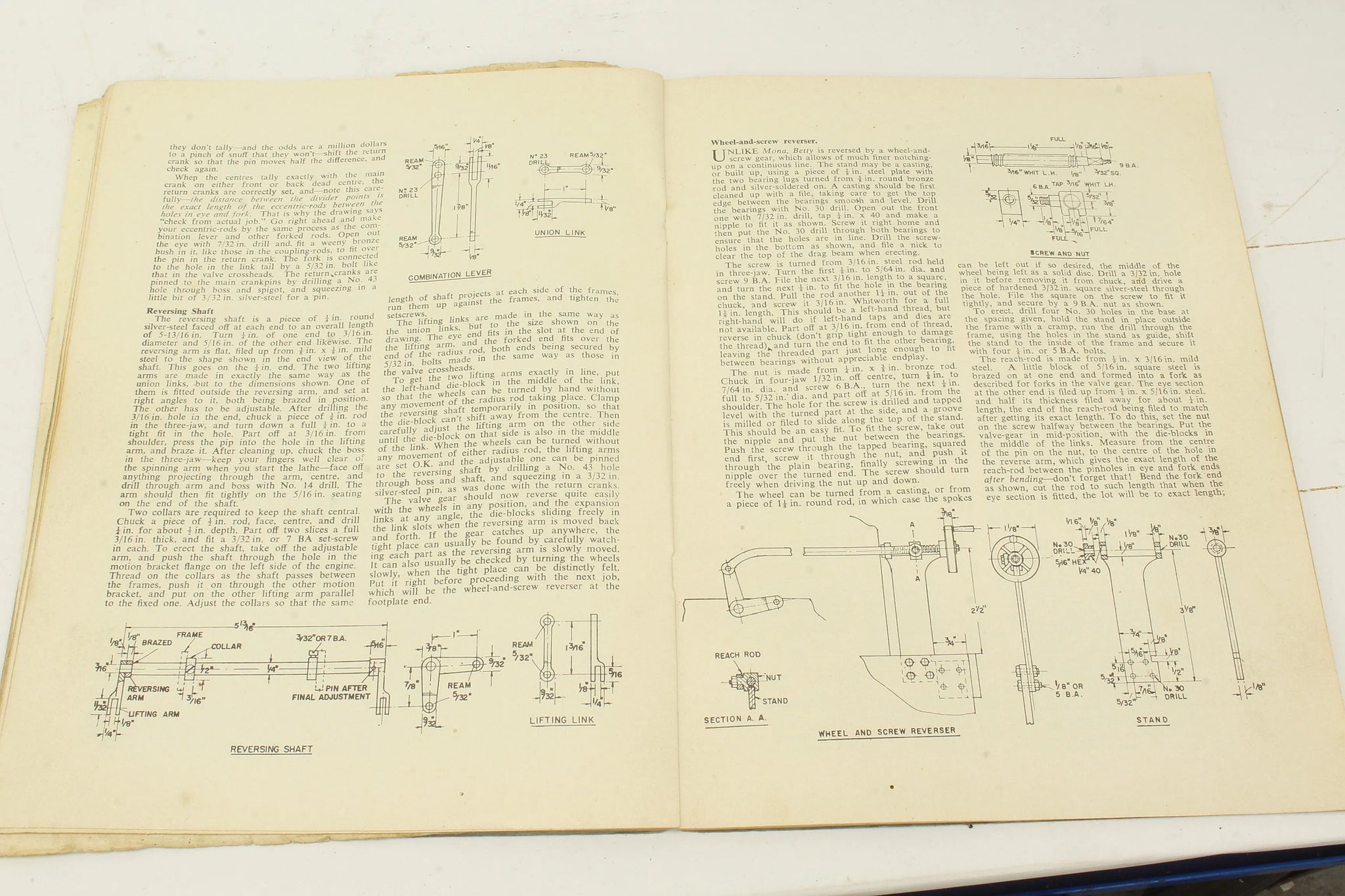

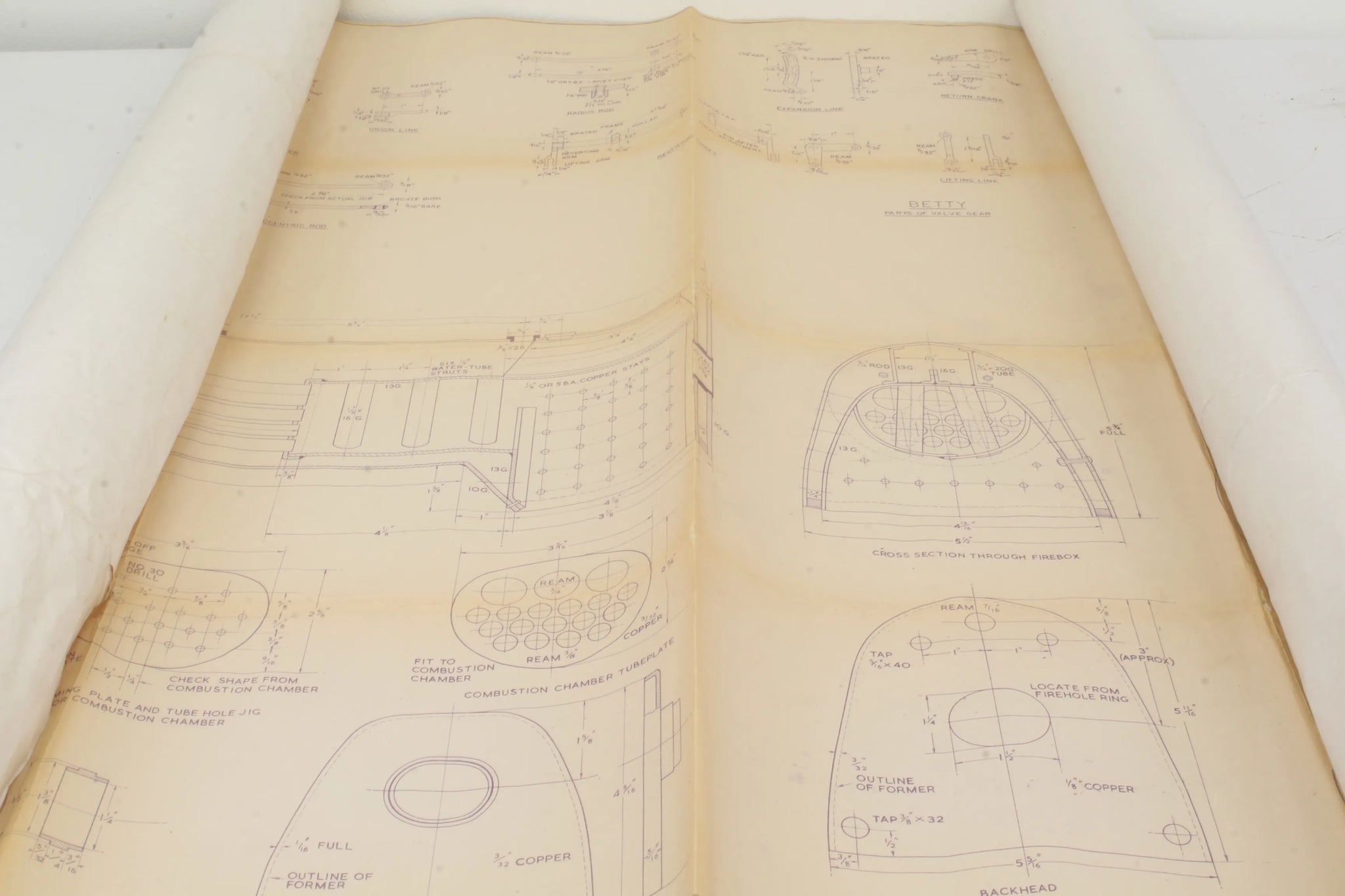

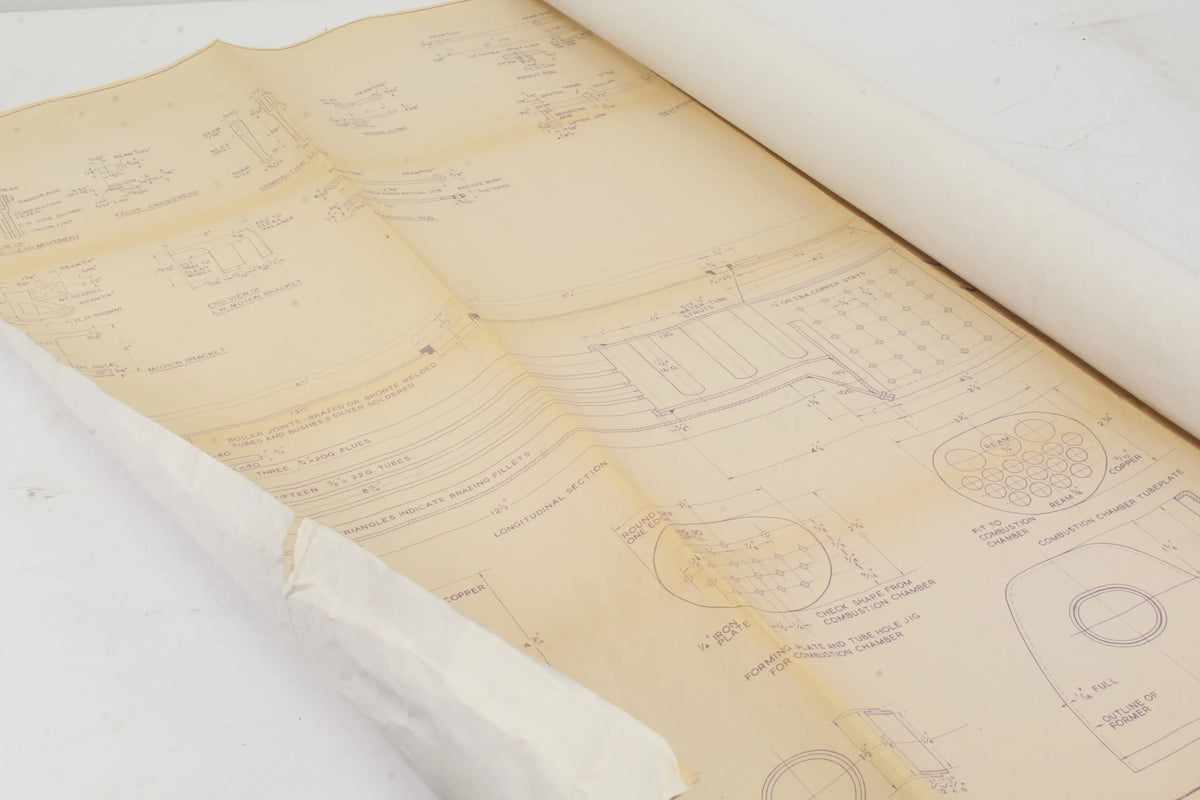

Complete with a set of "Betty" drawings and a copy of the construction manual for that locomotive.

Technical information

Stock code

8421

Gauge

3 1/2 inch

Length/inches

29 + 18

Width/inches

8

Height/inches

14

Wheel material

cast iron

Axlebox type

plain

Valve type

slide

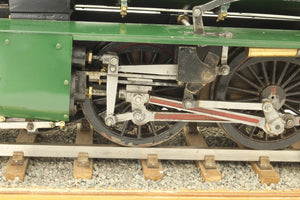

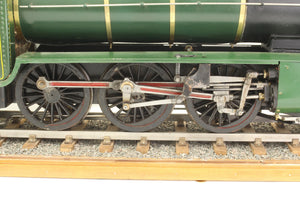

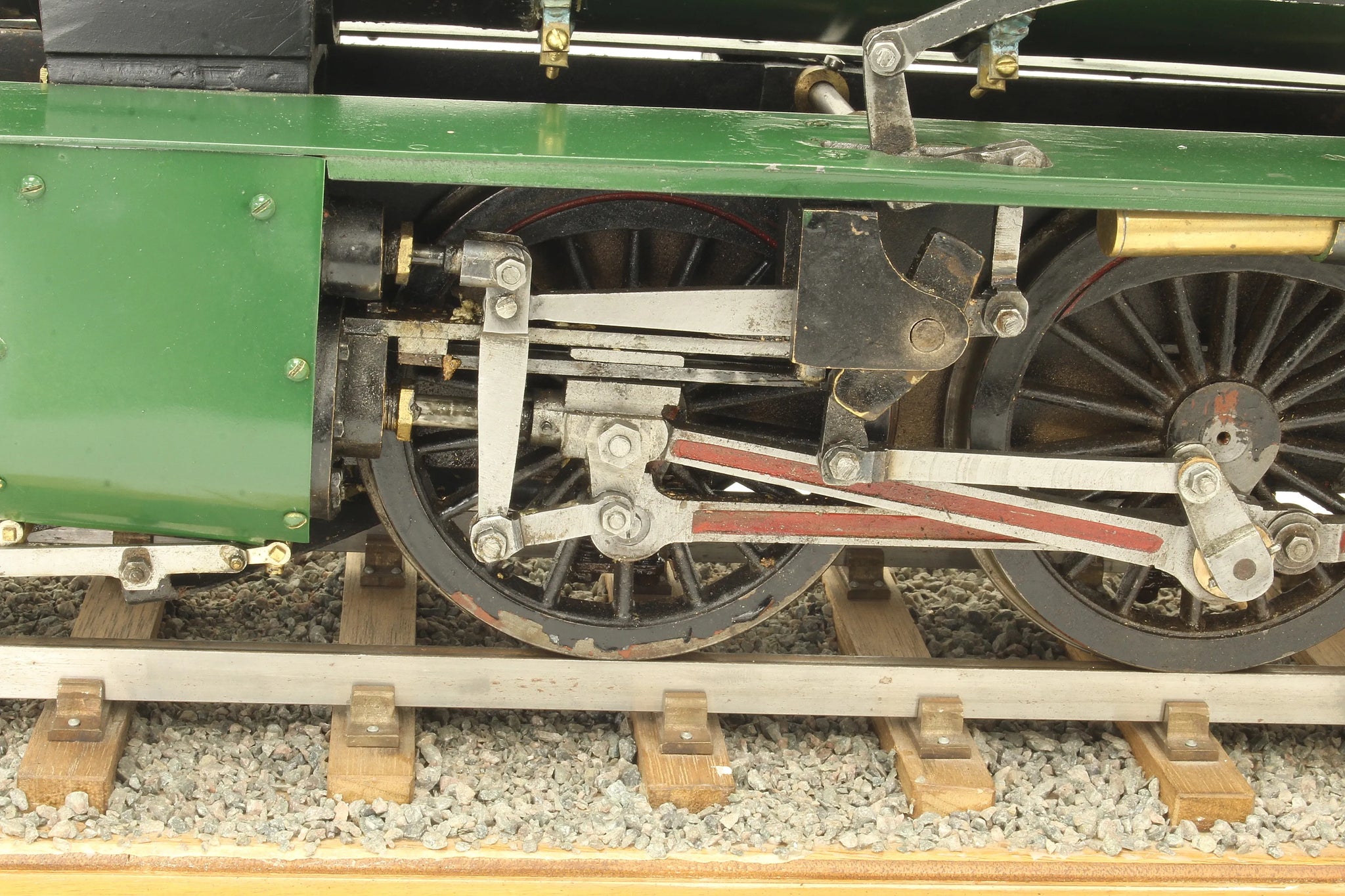

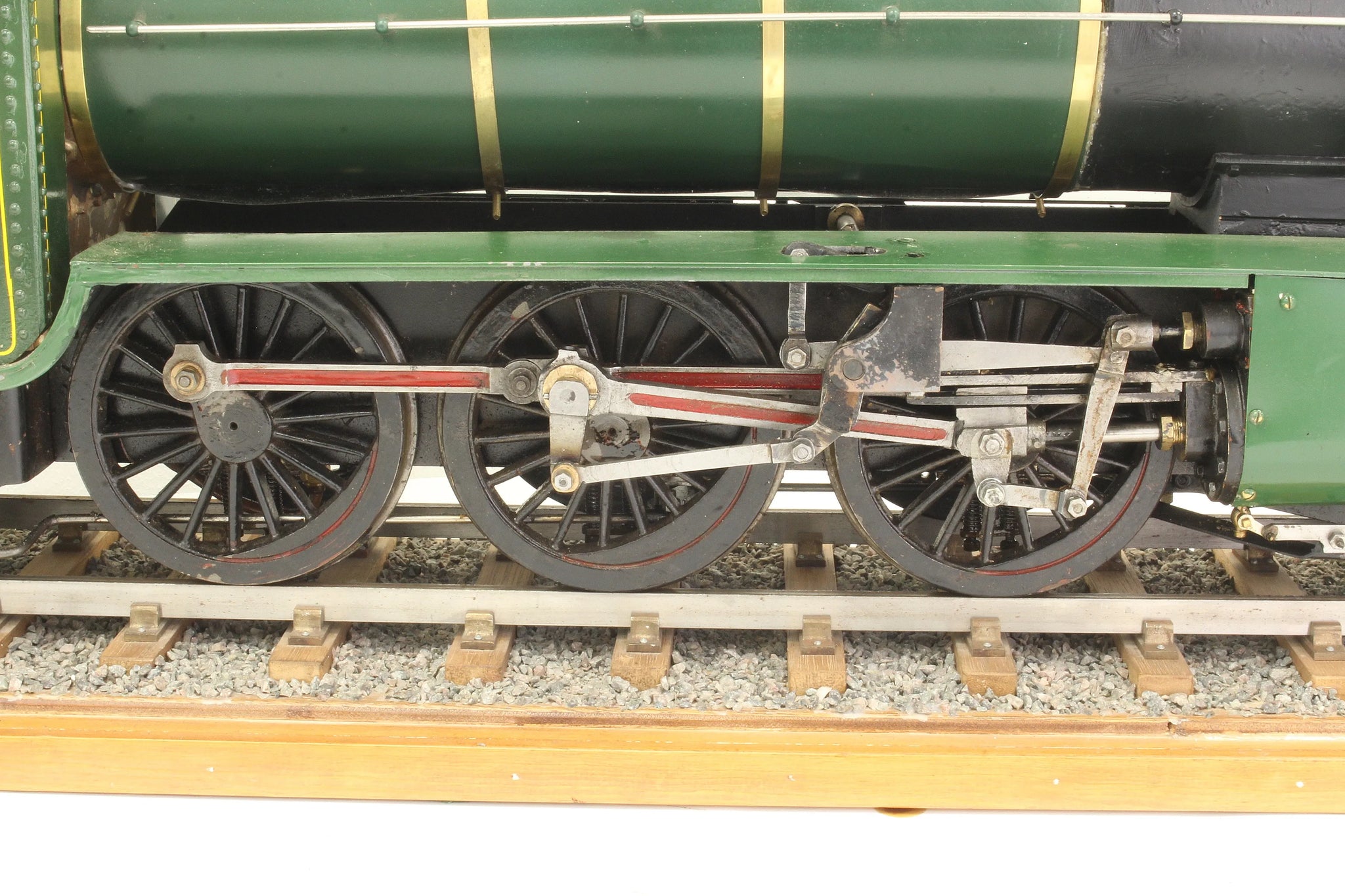

Valve gear

Walschaerts

Reverser type

pole

Boiler maker

K Walton

Boiler type

locomotive

Boiler construction

silver-soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Year built

2011

Boiler number

1942

Superheater type

radiant

Superheater

1

Pack

Single half pallet

Date out

Feb-19

Hydraulic test valid to

13-Feb-23
