11633

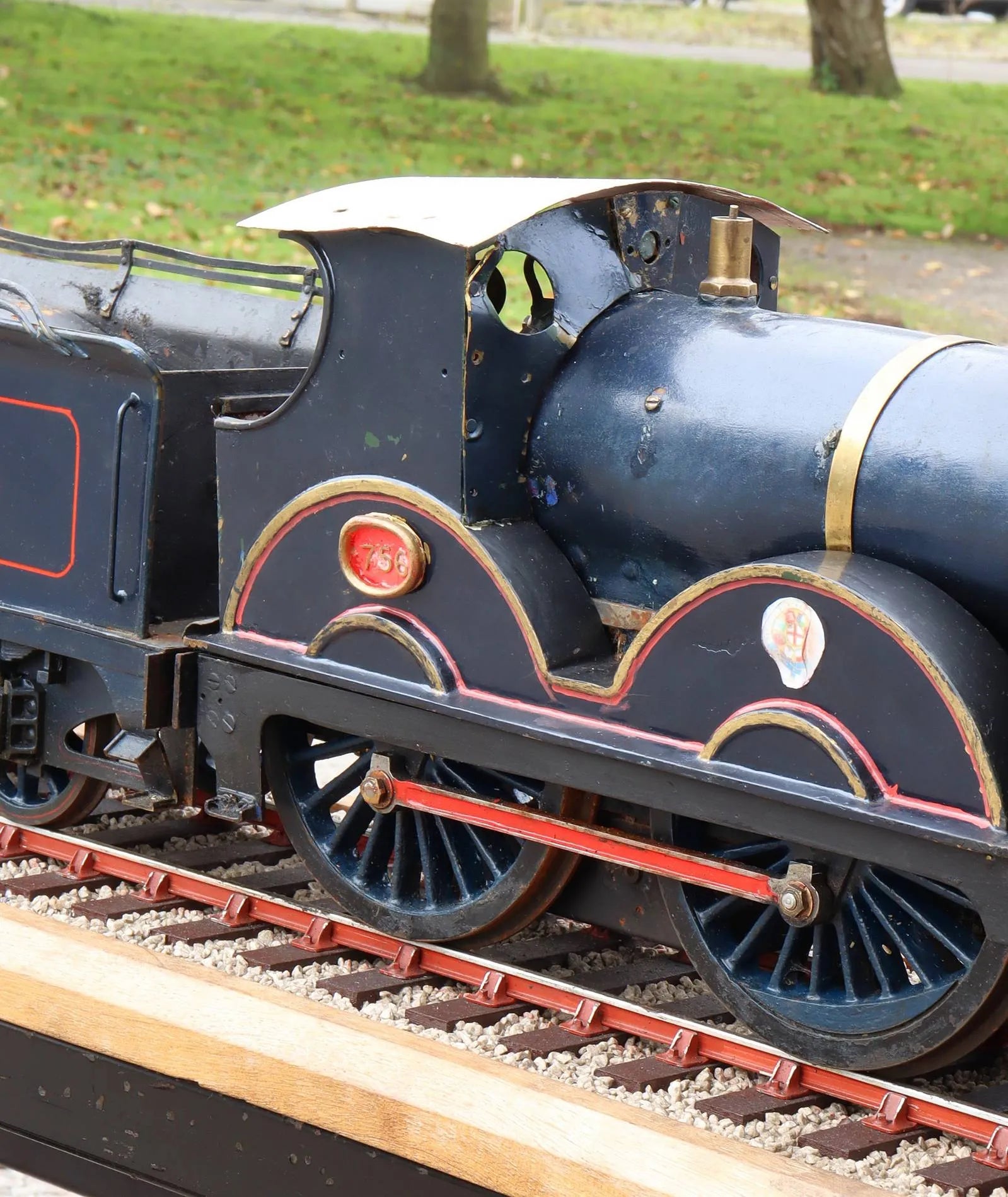

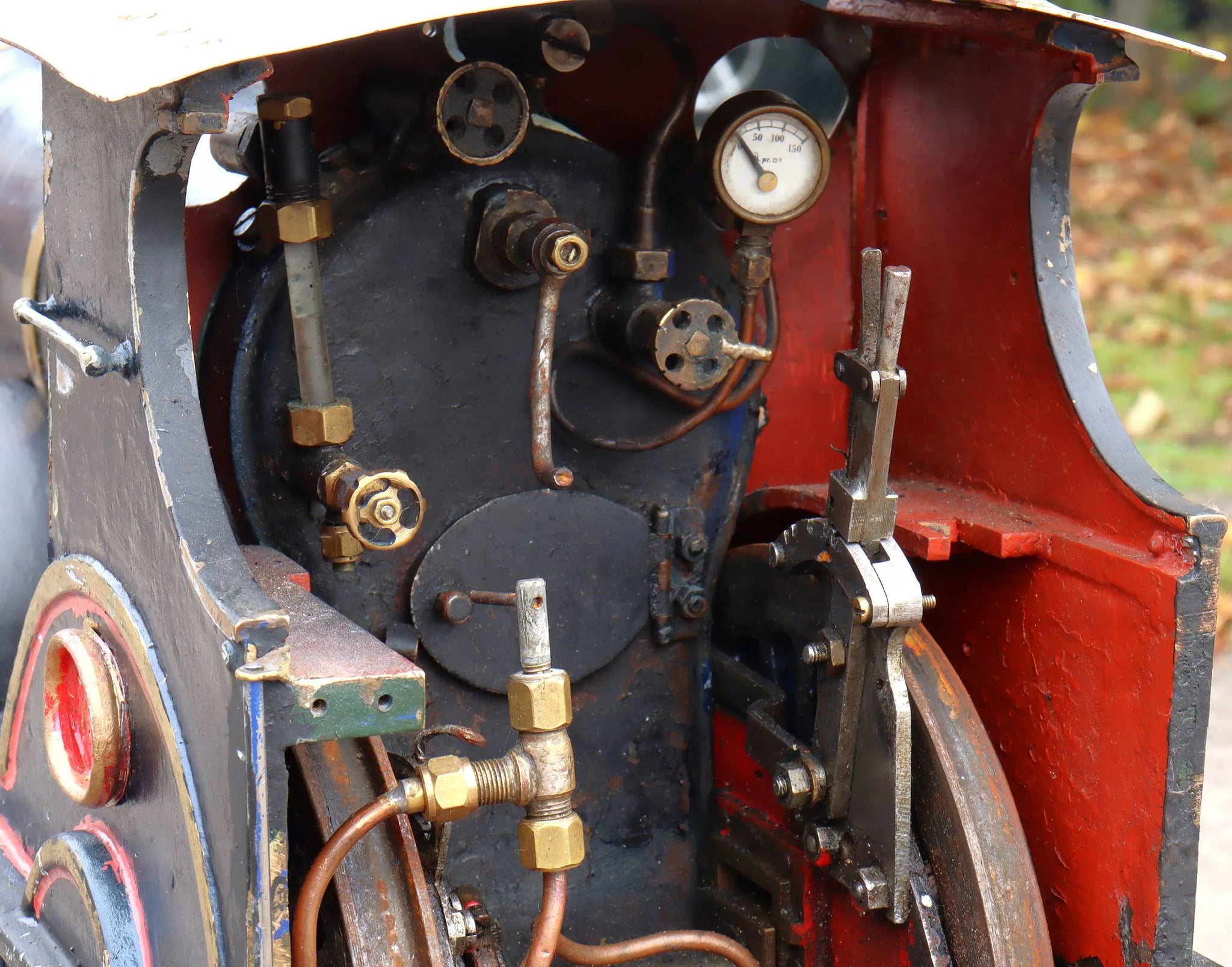

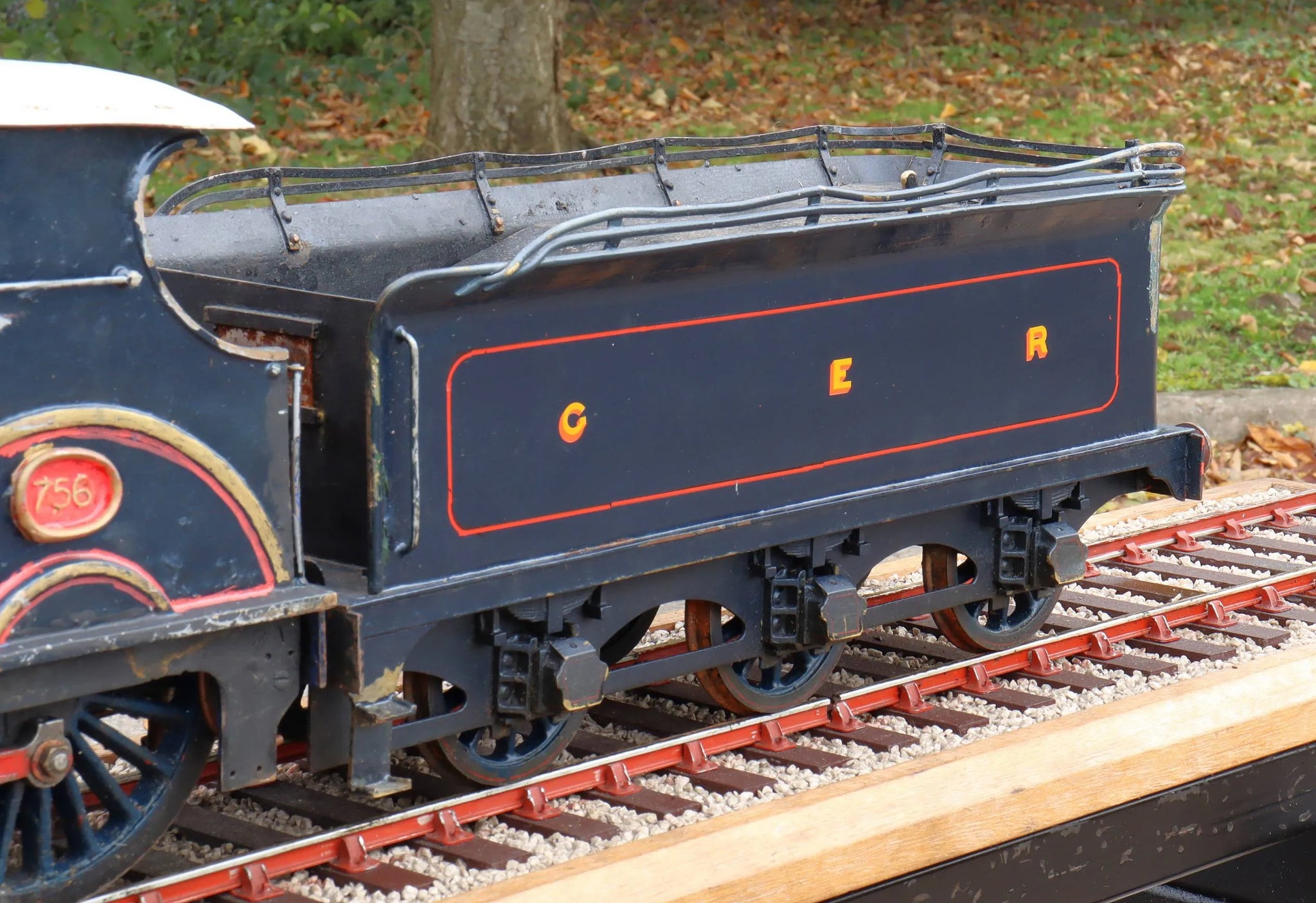

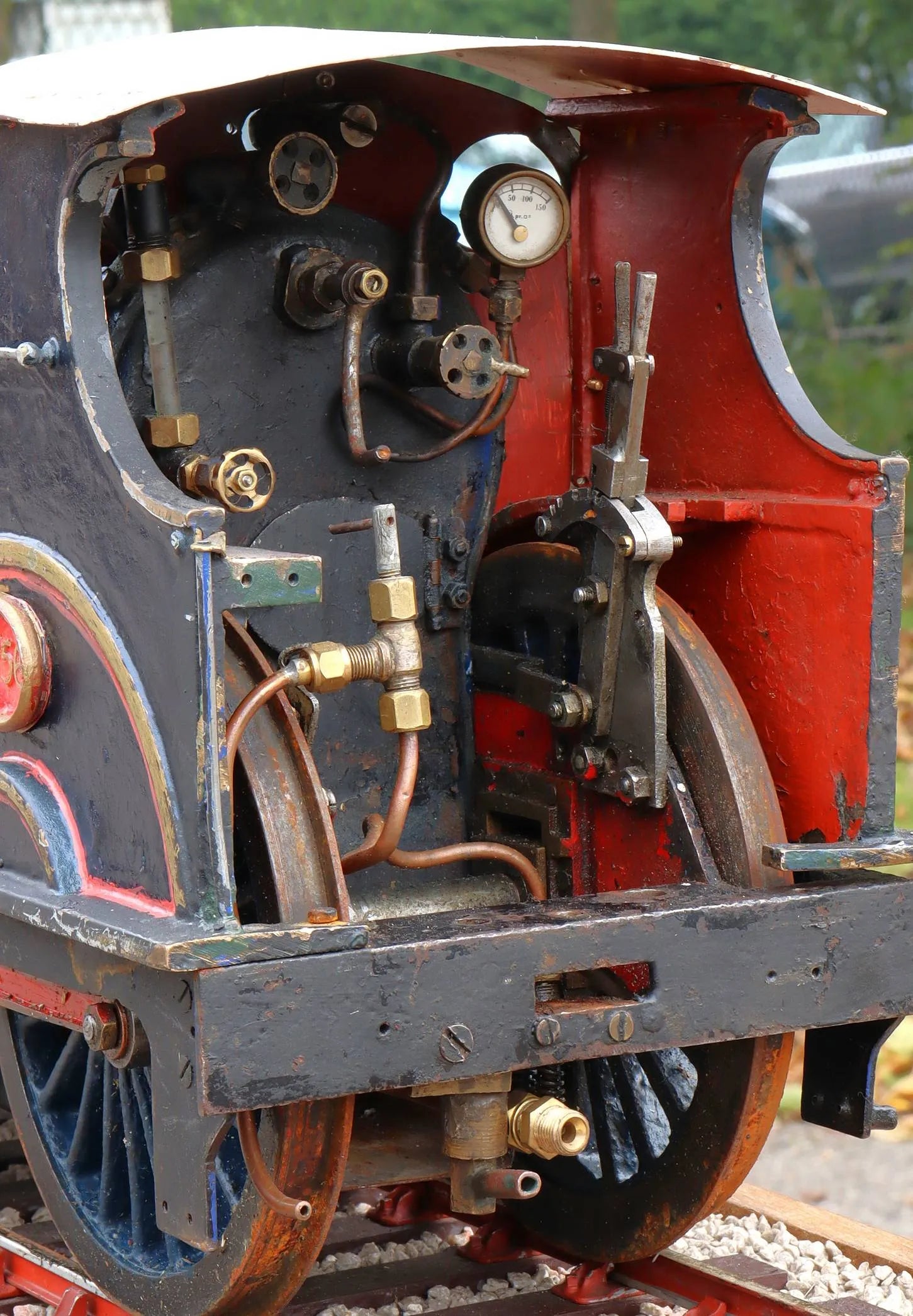

Words below are from last time it was here, pictures opposite taken this week.

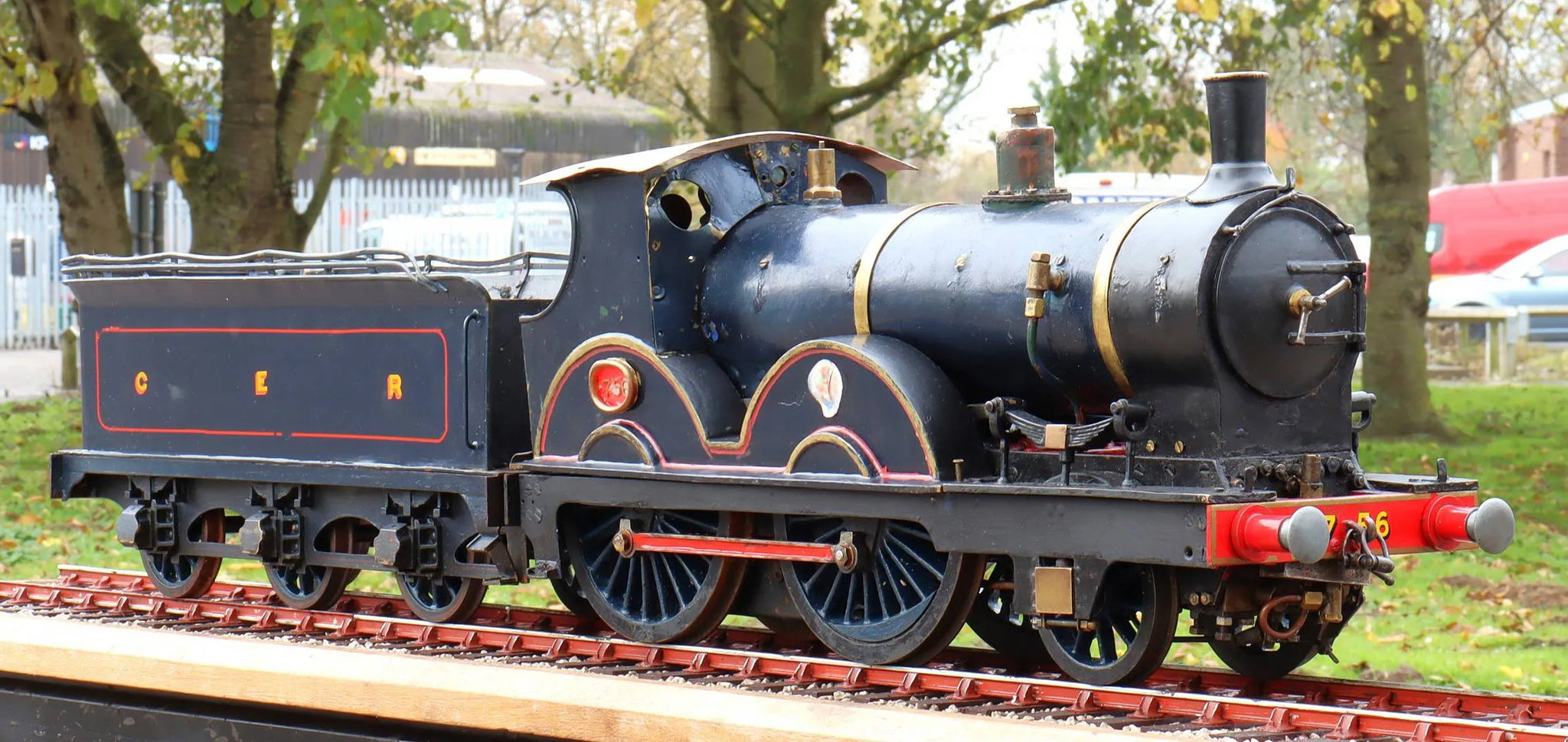

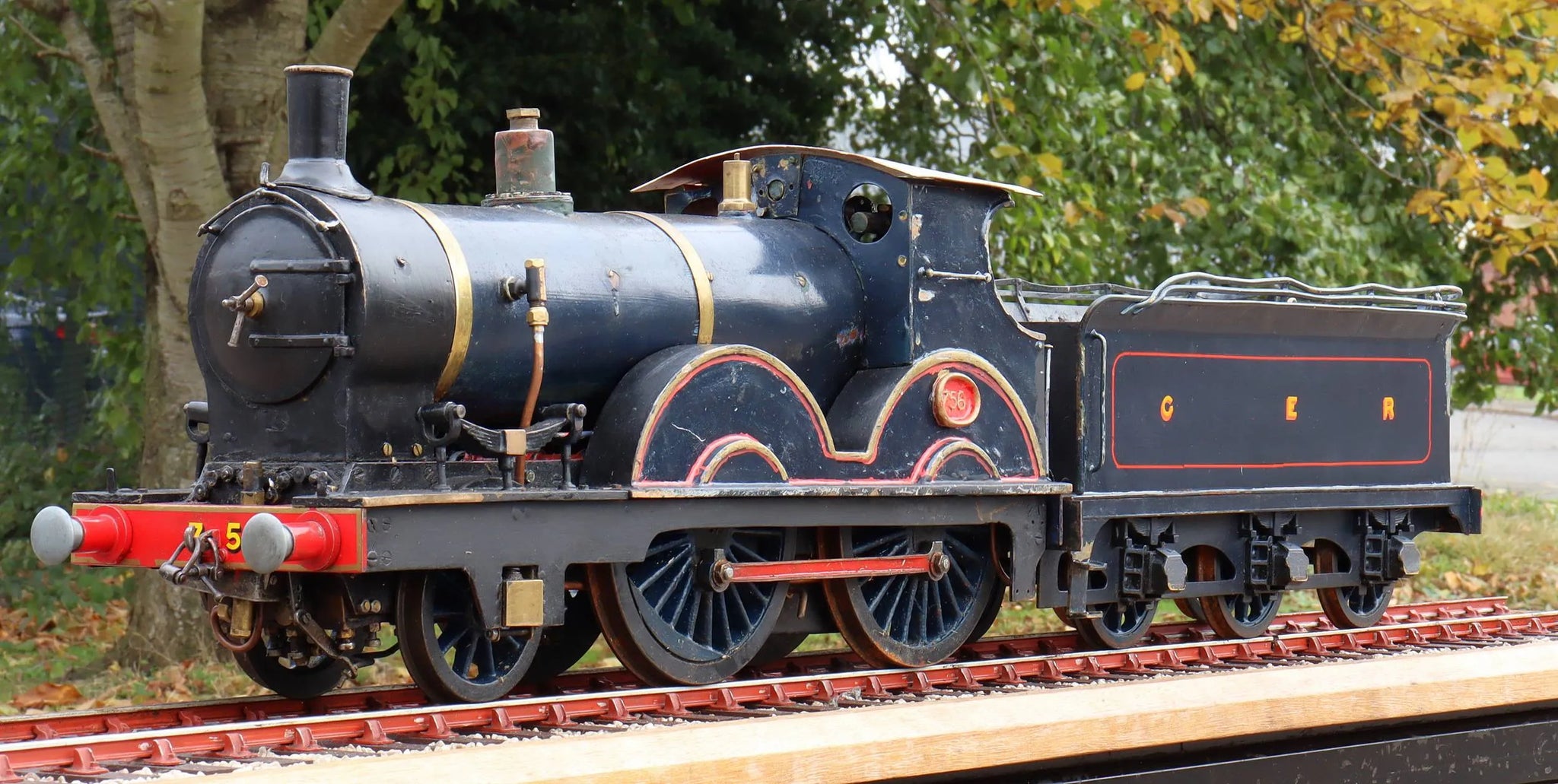

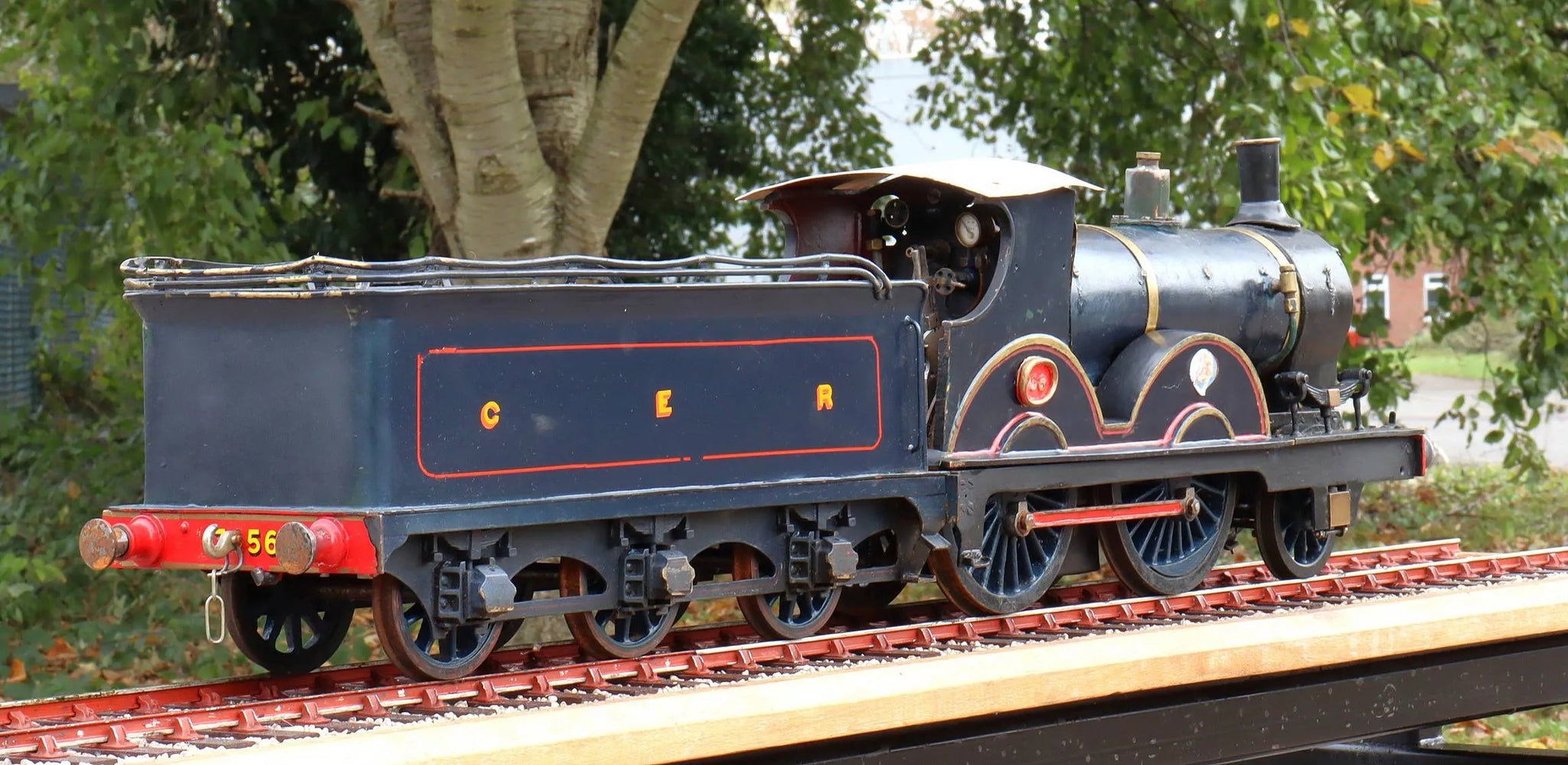

A venerable example of LBSC's "Petrolea", the great man's take on Holden's T19 class of 4-4-0 built for the Great Eastern Railway from 1886 (although for some unfathomable reason somebody decided to paint it in their idea of GWR livery).

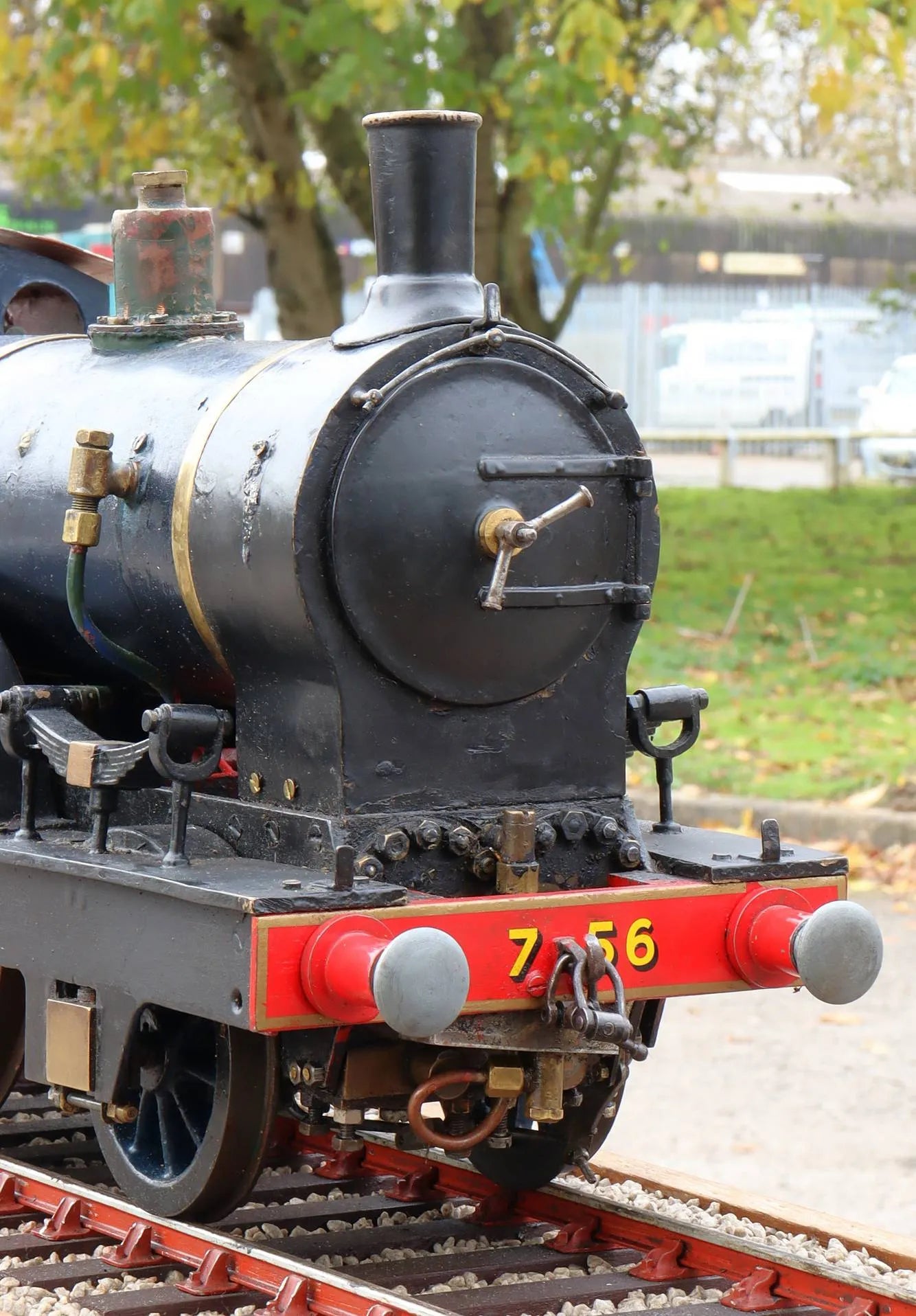

Offered as a restoration project, the regulator is seized open; motion doesn't currently run on air in either direction; the offside coupling rod catches the running board and there's a plug missing from the dome.
A handsome engine, normally seen smartly turned out in Great Eastern dark blue - there are pictures of a nice one (scaled up to 5 inch gauge) which we sold years ago in the archive here.
Stock code |
11633 |
Gauge |
3 1/2 inch |
Length/inches |
21 + 18.5 |
Width/inches |
6.5 |
Height/inches |
10.5 |
Weight/Kg |
19 + 8 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |
Stephensons |
Reverser type |
pole |
Boiler type |
locomotive |
Boiler material |
copper |
Safety valve type |
spring |
Safety valve |
1 |
Fusible plug |
no |
Hand pump |
1 |
Mechanical pump |
1 |
Superheater type |
flue tube |
Superheater |
2 |
Date out |
Jun-24 |
