3 1/2 inch gauge GNR Atlantic

We sold this one back in 2019 to a long-time customer of ours in Norfolk. It's arrived back with us recently as part-exchange for a 3 1/2 inch gauge B1 - unused in his ownership, it's spent the last three years on display and remains in the same condition.

We've issued a new hydraulic test on the boiler - pictures opposite were taken this week, words below were written in 2019.

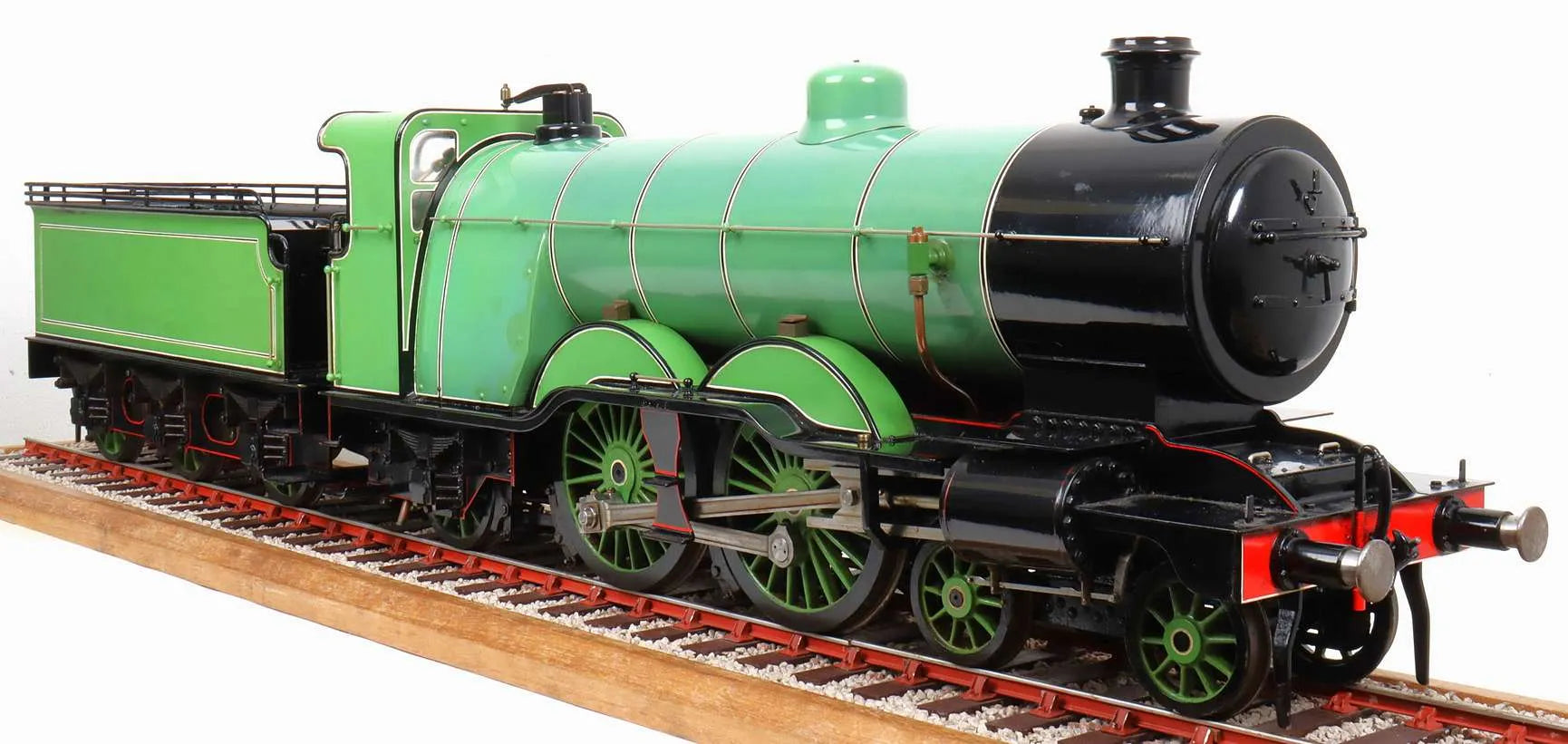

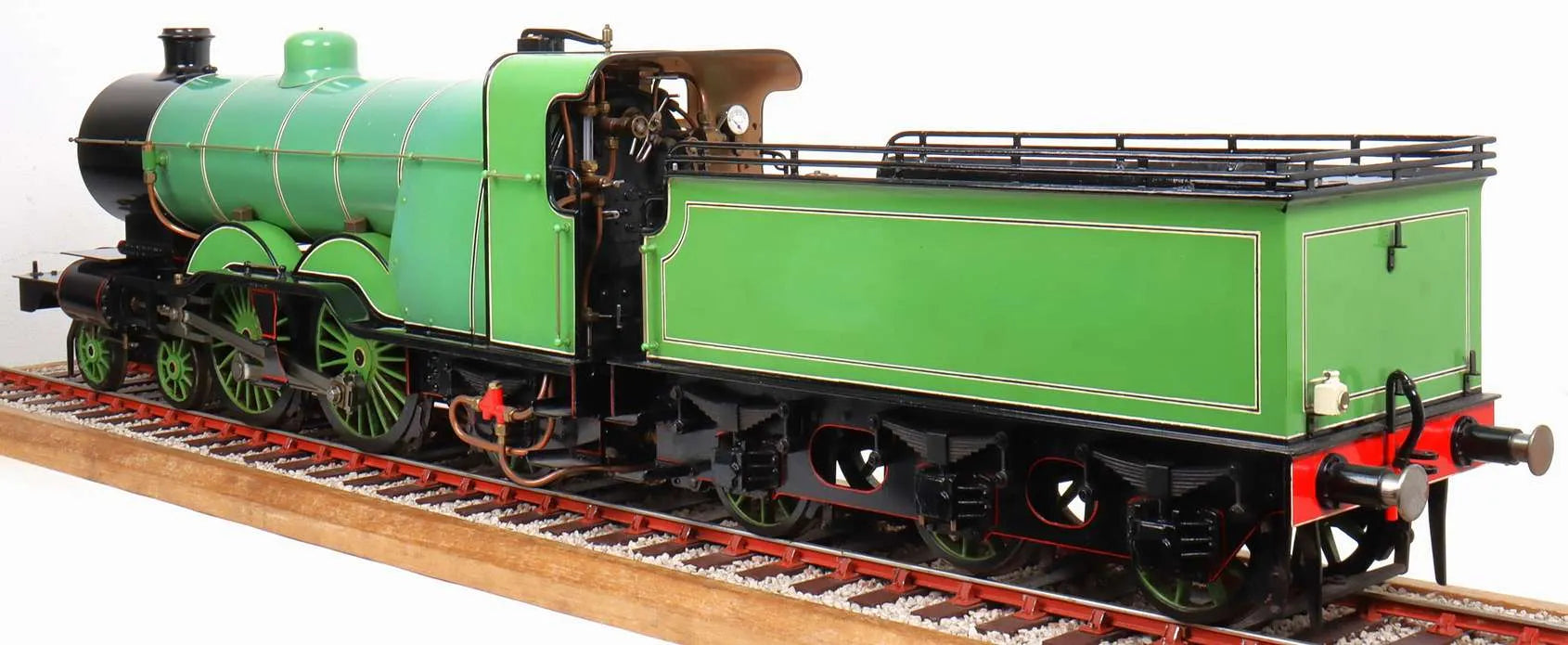

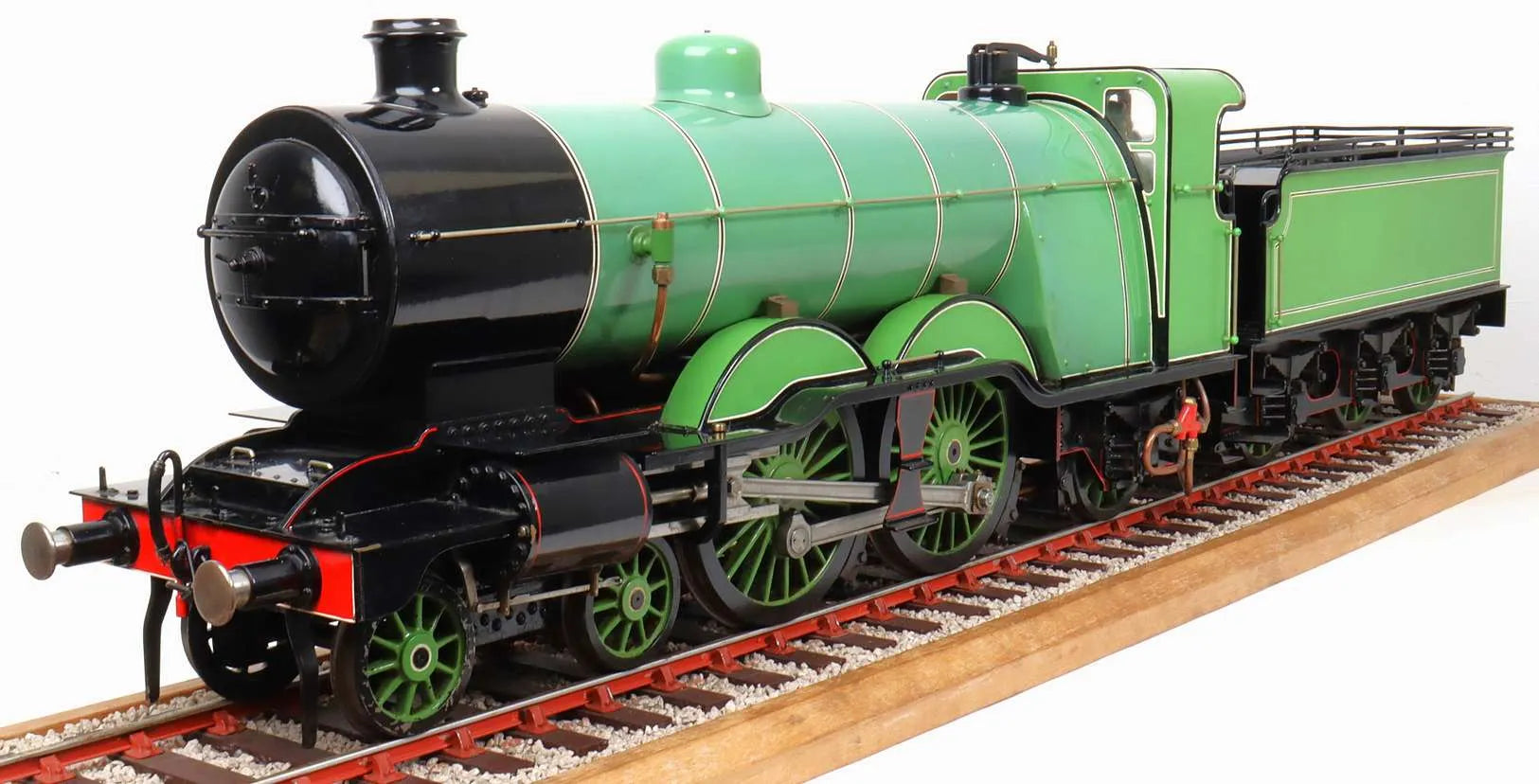

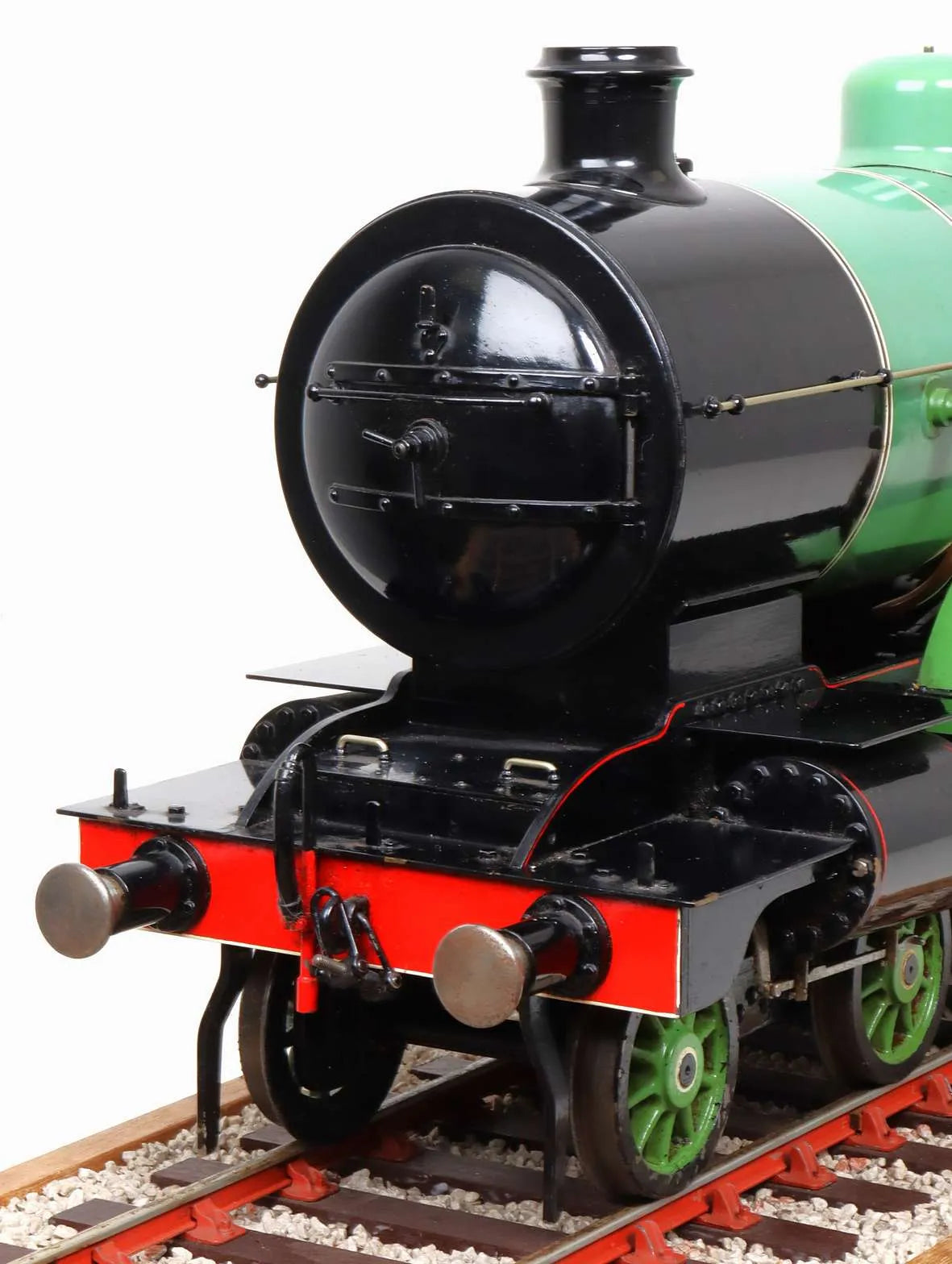

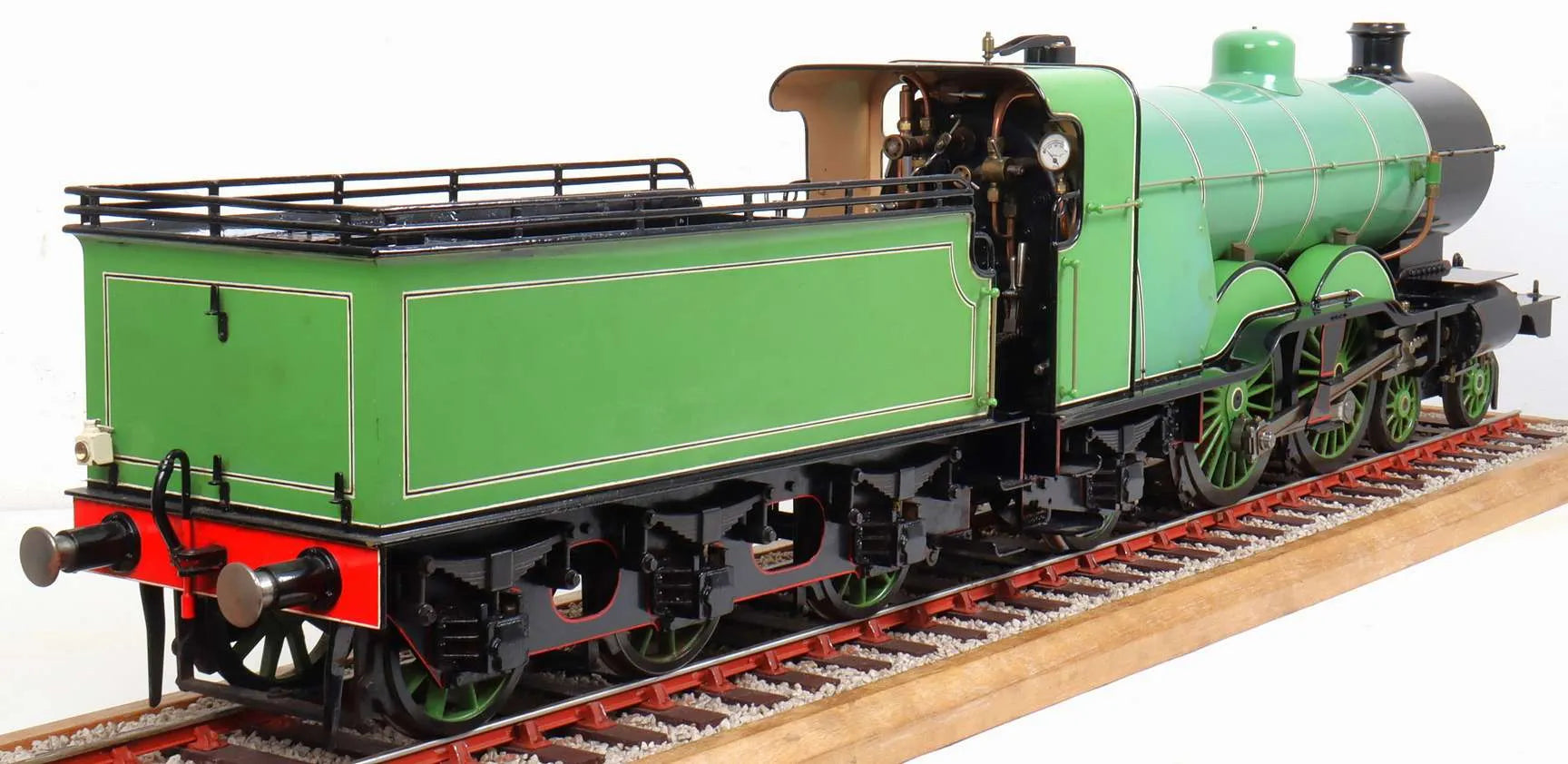

A particularly well made 3 1/2 inch gauge Great Northern Railway Atlantic, built to LBSC's popular "Maisie" design.

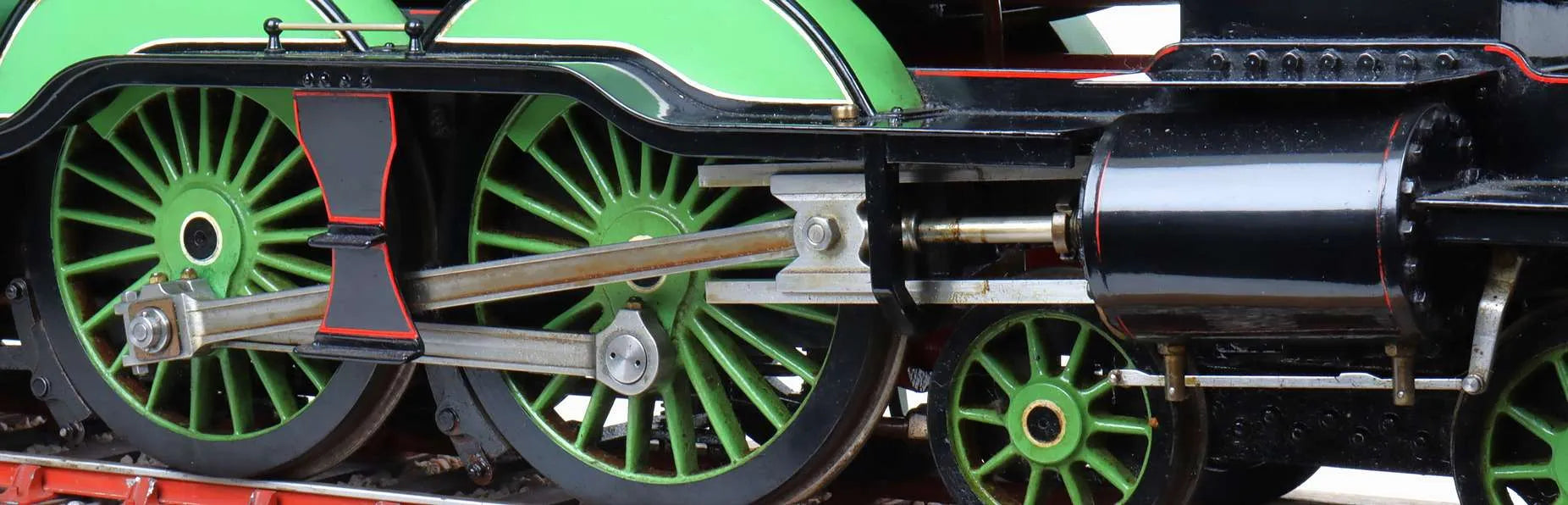

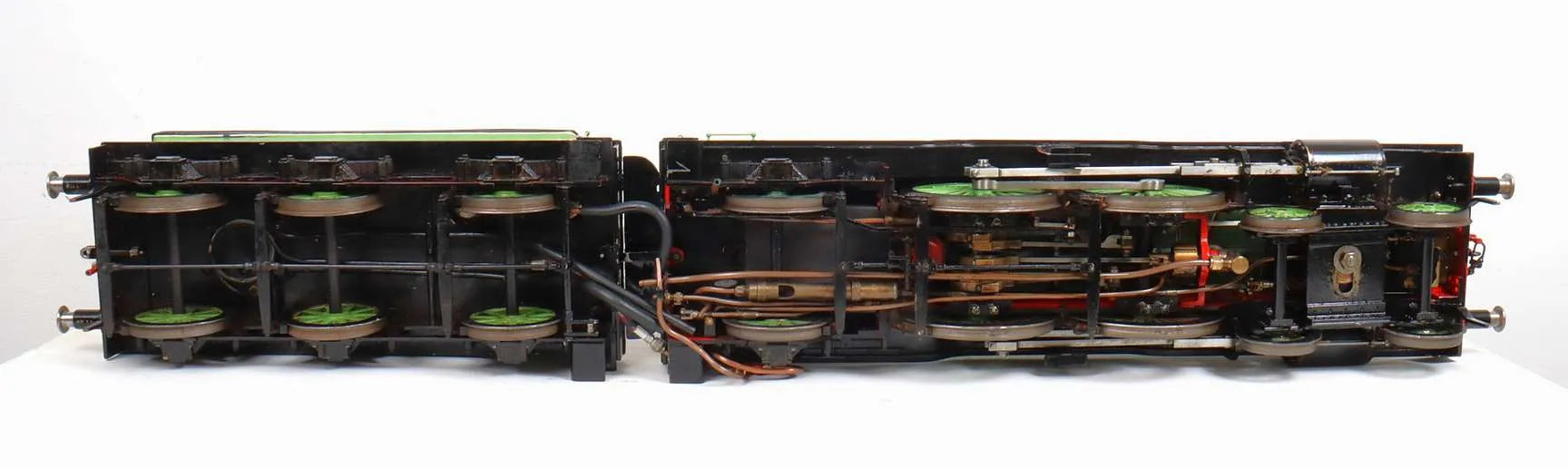

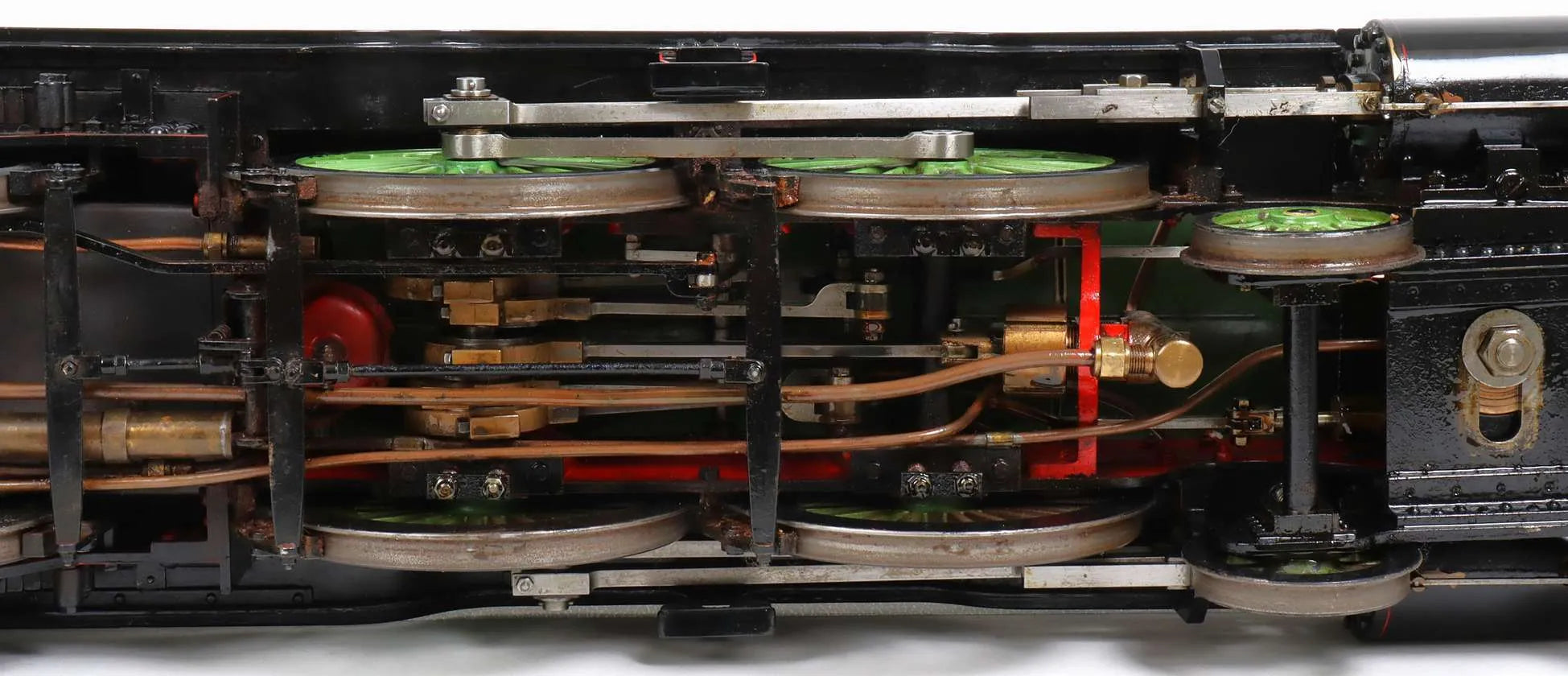

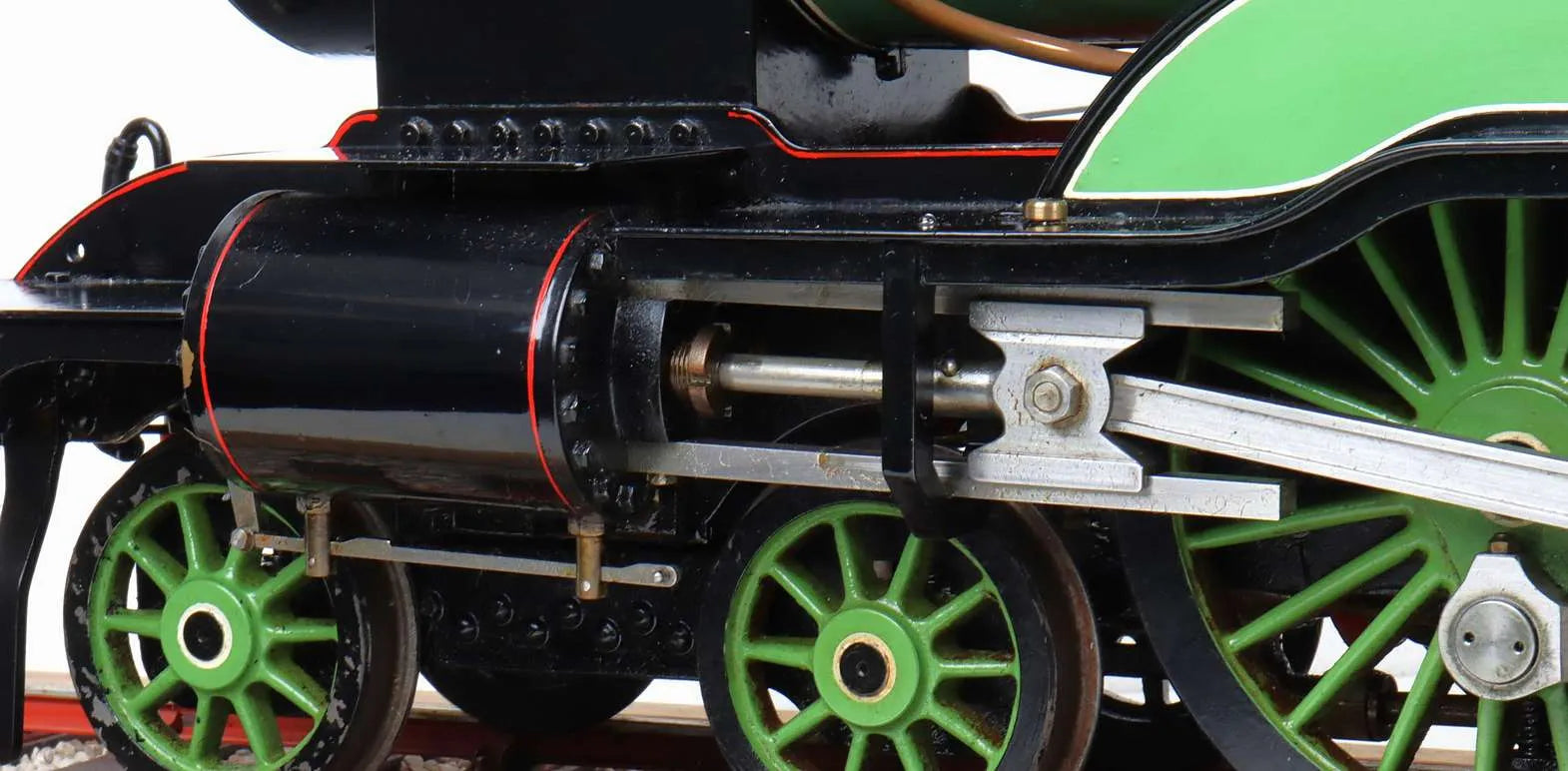

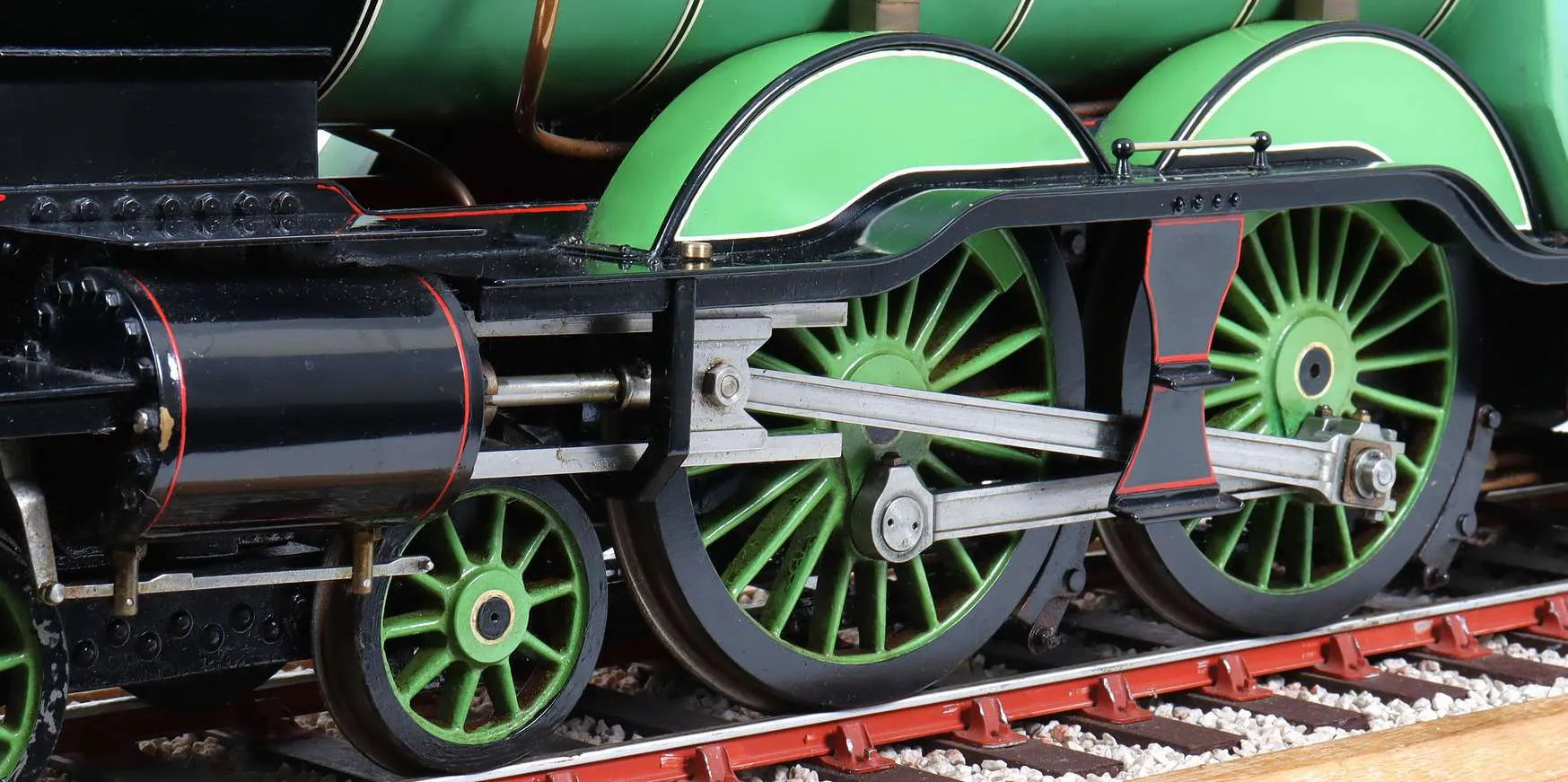

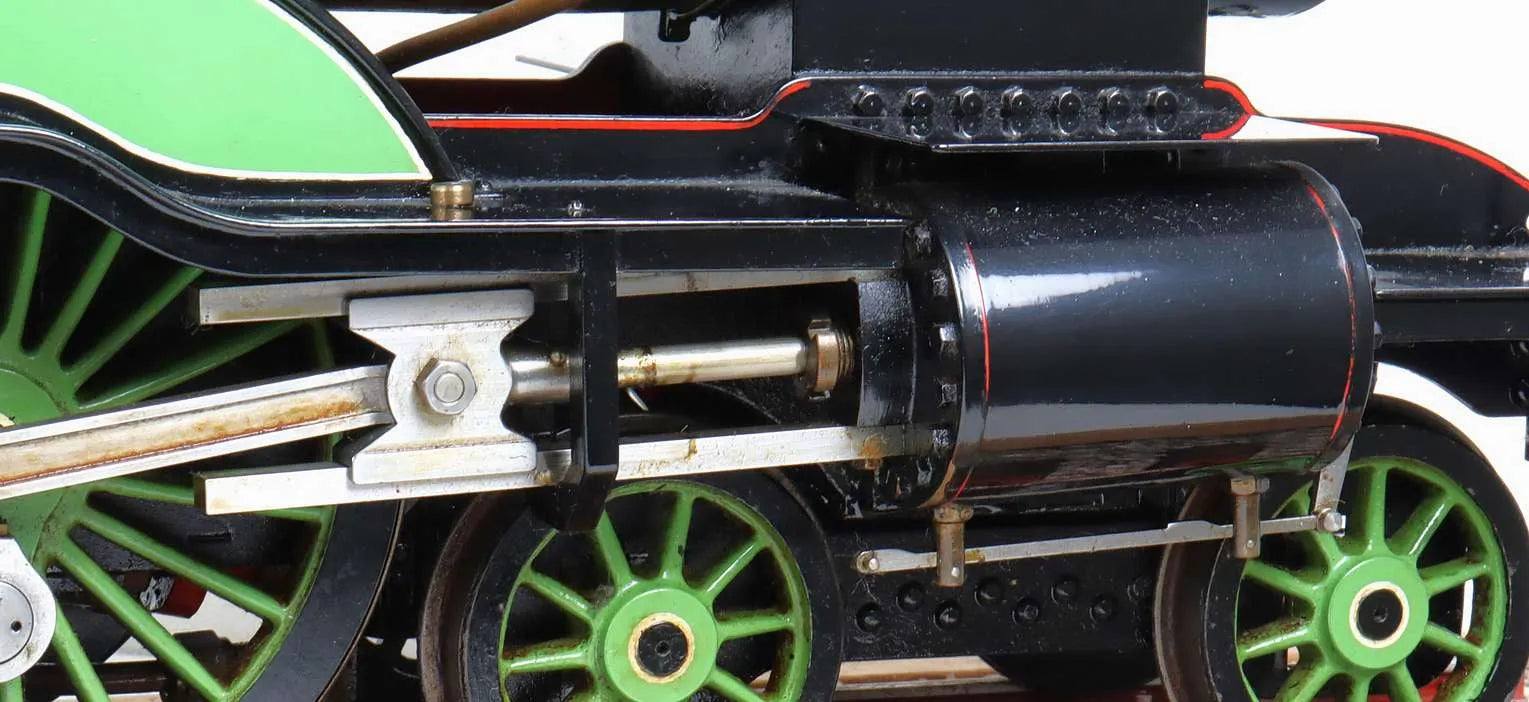

Standard of machining is to a high standard throughout, fit and finish of the motionwork and valve gear is very good. From the condition of boiler, valve gear and tyres, the engine appears to have had light use, showing little sign of wear.

Boiler is LBSC's combustion chamber design, fitted with three element superheater. It has had a twice working pressure hydraulic test, with new certificate issued for same. The engine runs well on air, notching up in both directions.

Paintwork, originally done to a good standard, has faded on the barrel - we suspect through having been displayed on a window sill for many years.

Technical information

Stock code

10823

Gauge

3 1/2 inch

Length/inches

44

Width/inches

7

Height/inches

12

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

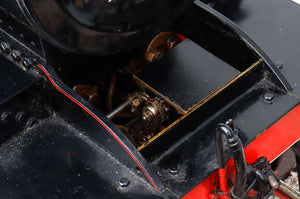

Lubricator type

mechanical

Boiler maker

unknown

Boiler type

locomotive with combustion chamber

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

Year built

unknown

Boiler number

8168

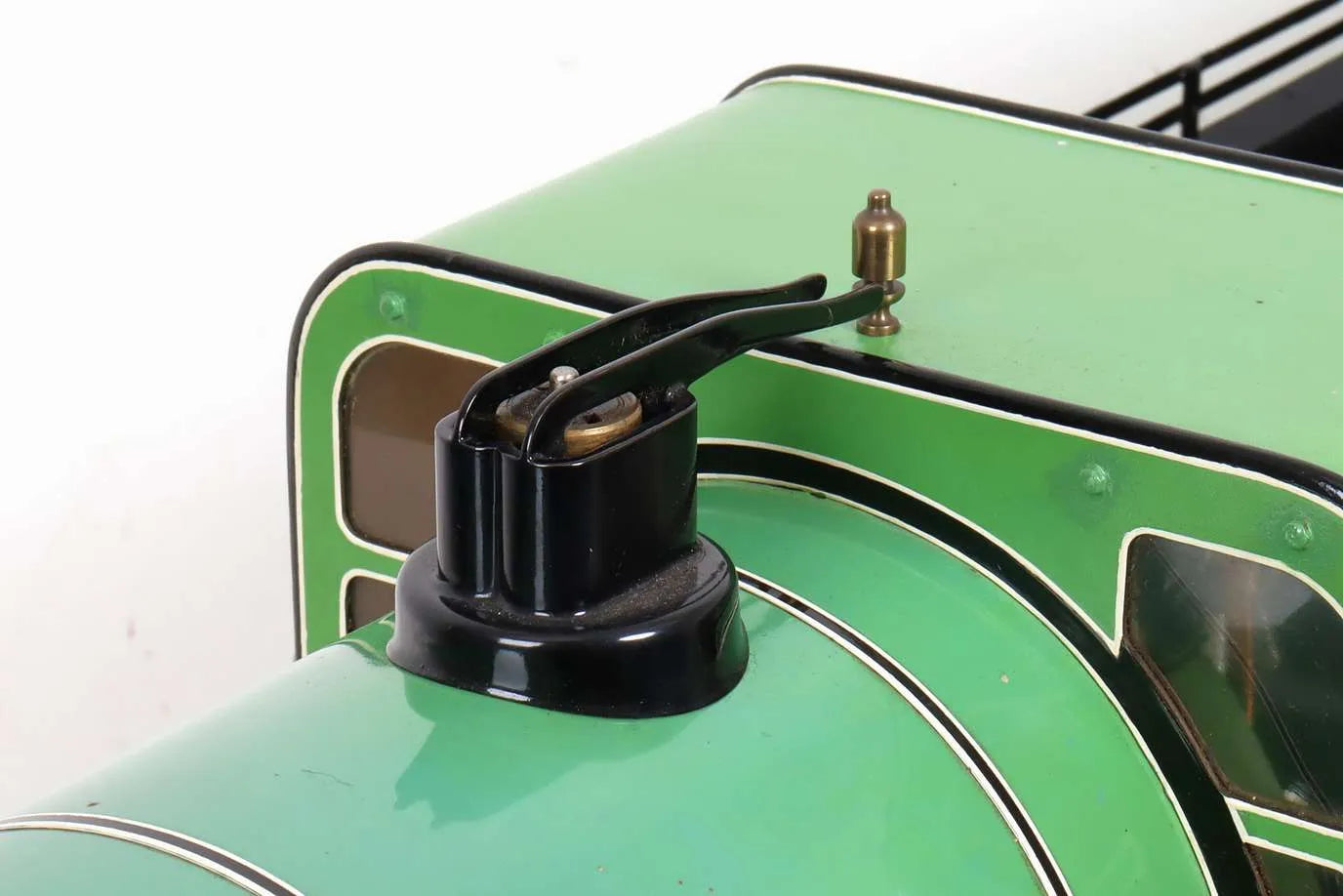

Safety valve type

spring

Safety valve

1

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

3

Date out

Nov-22

Hydraulic test valid to

17-Oct-26
