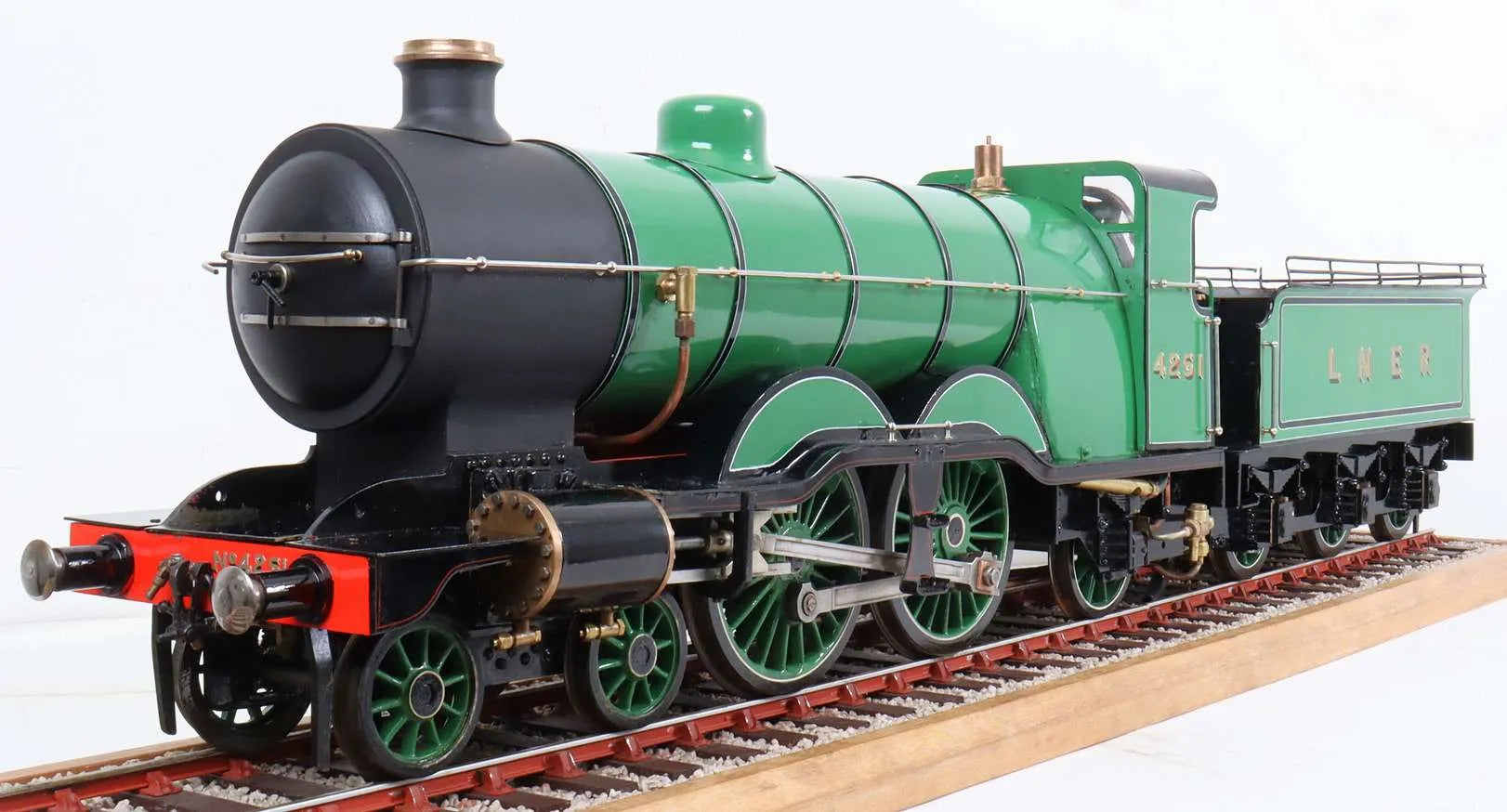

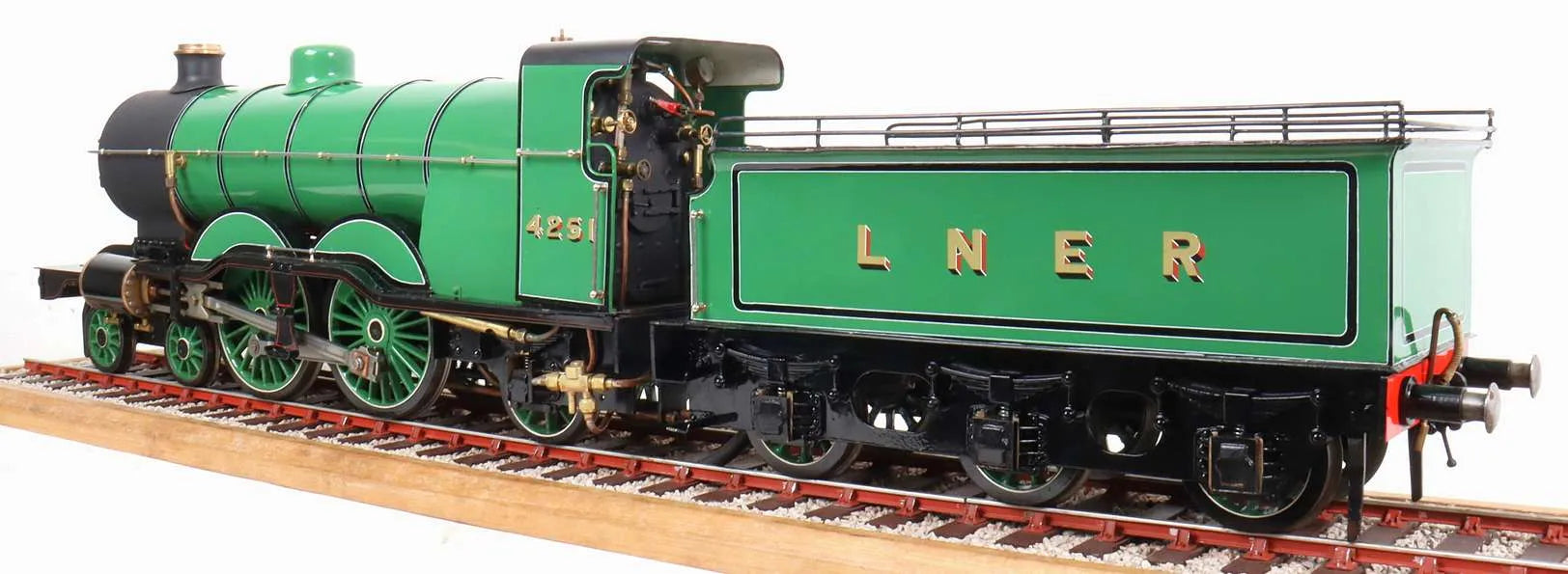

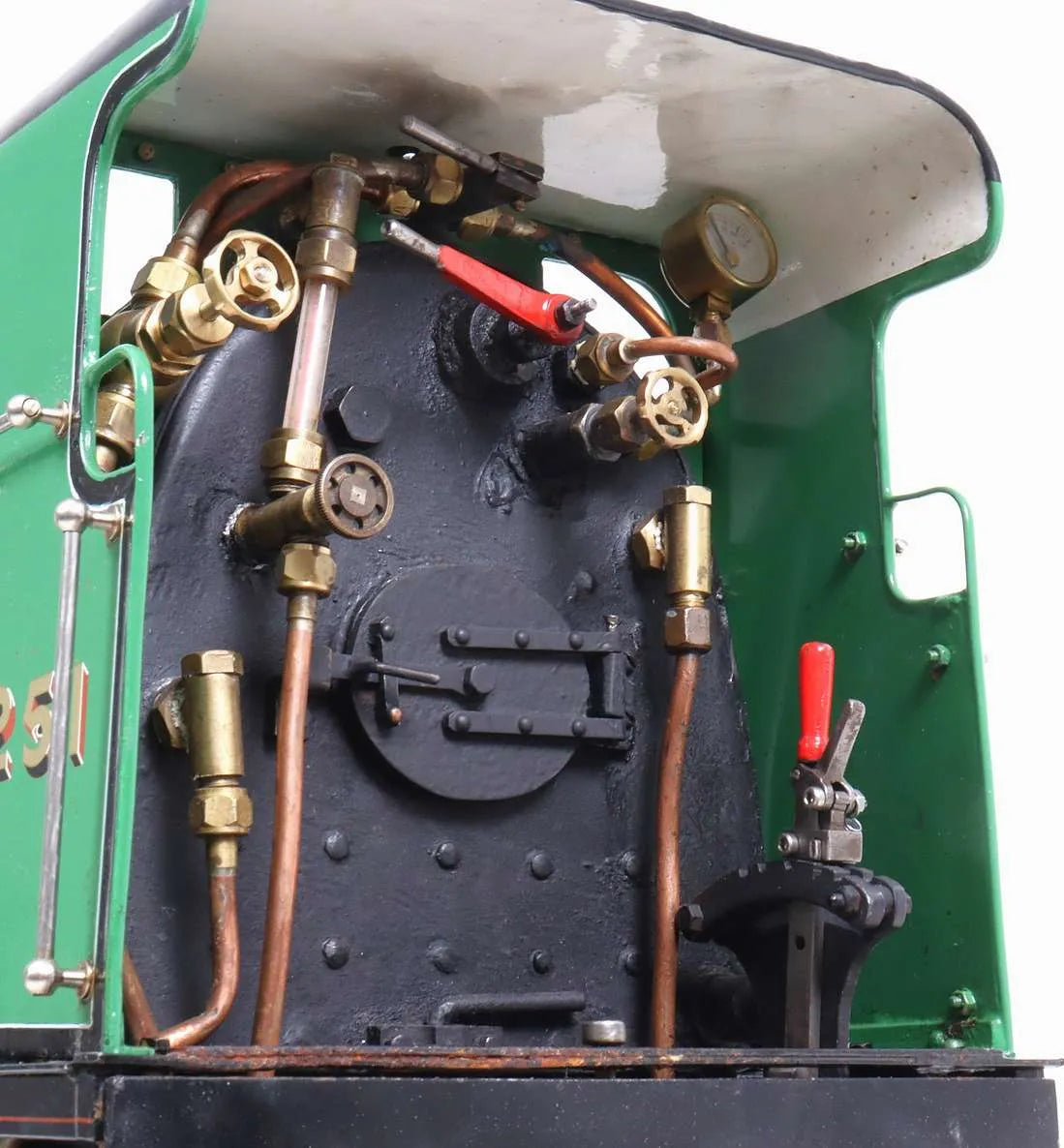

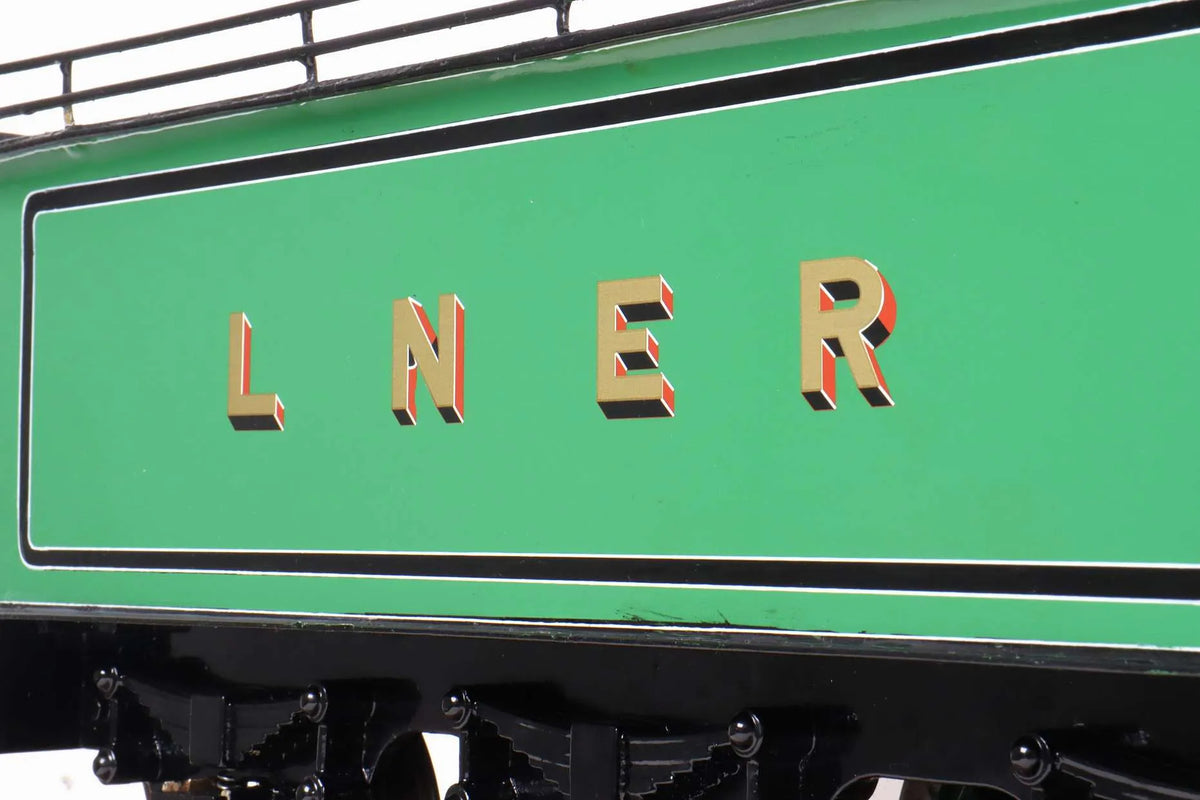

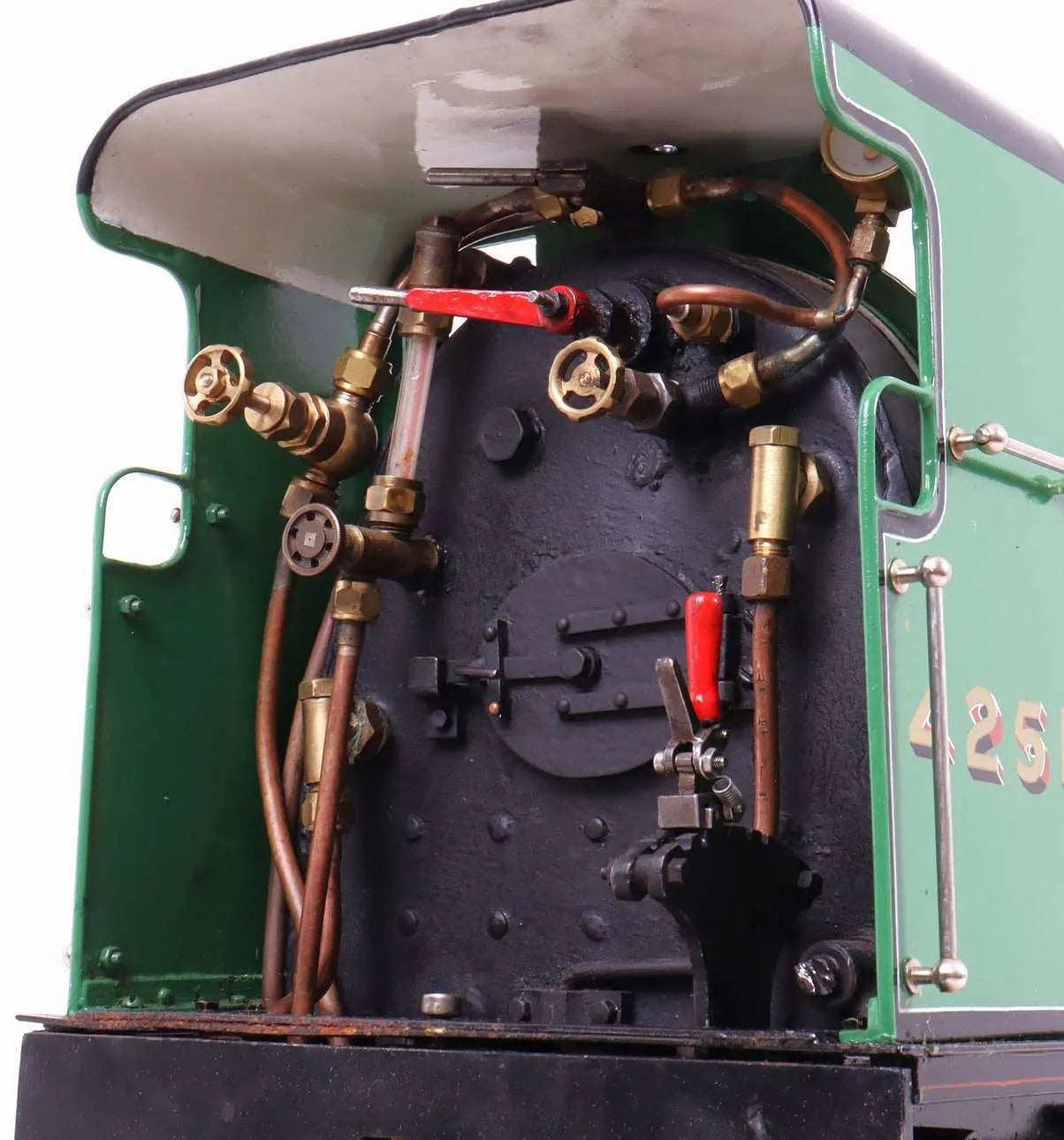

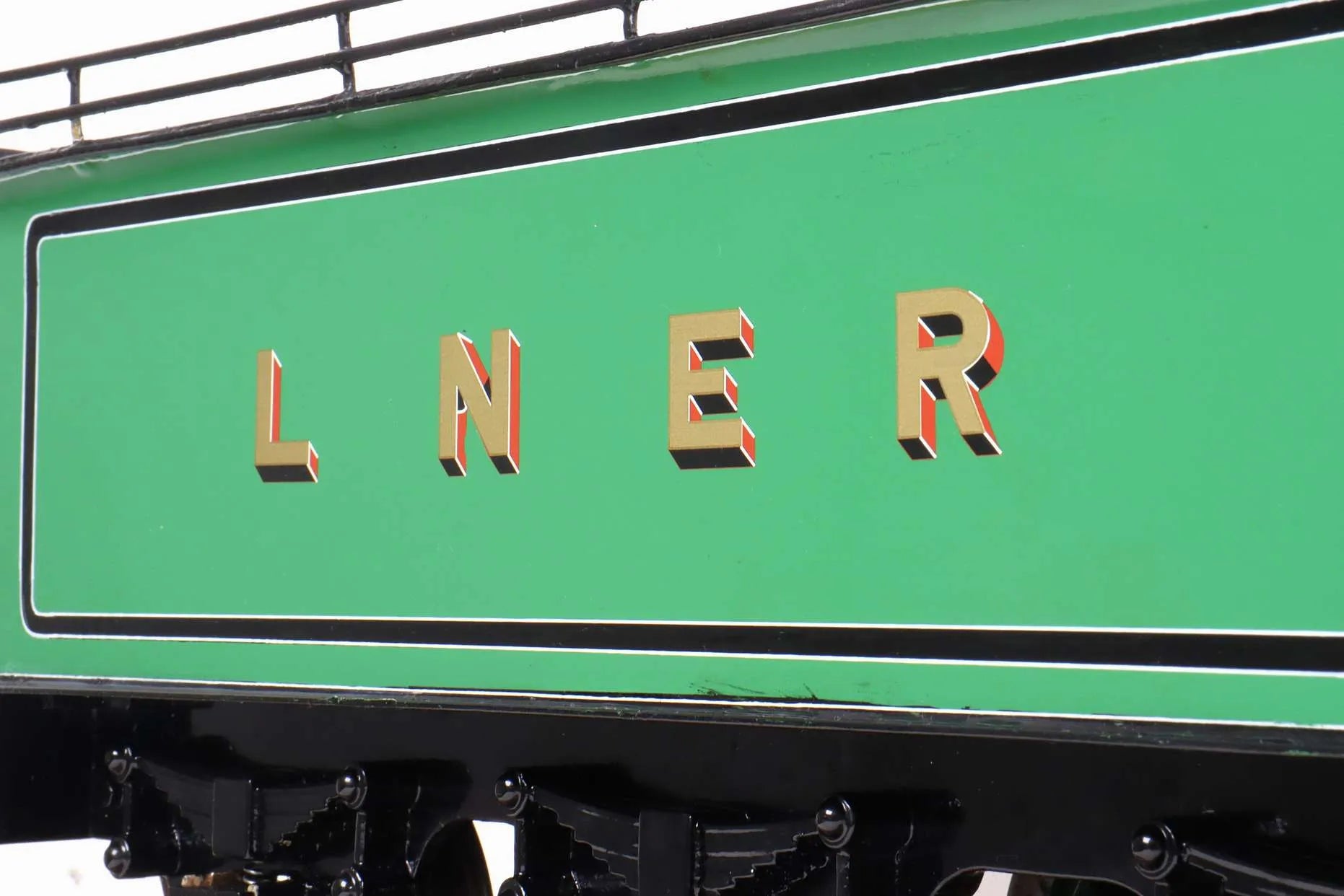

3 1/2 inch gauge GNR Atlantic

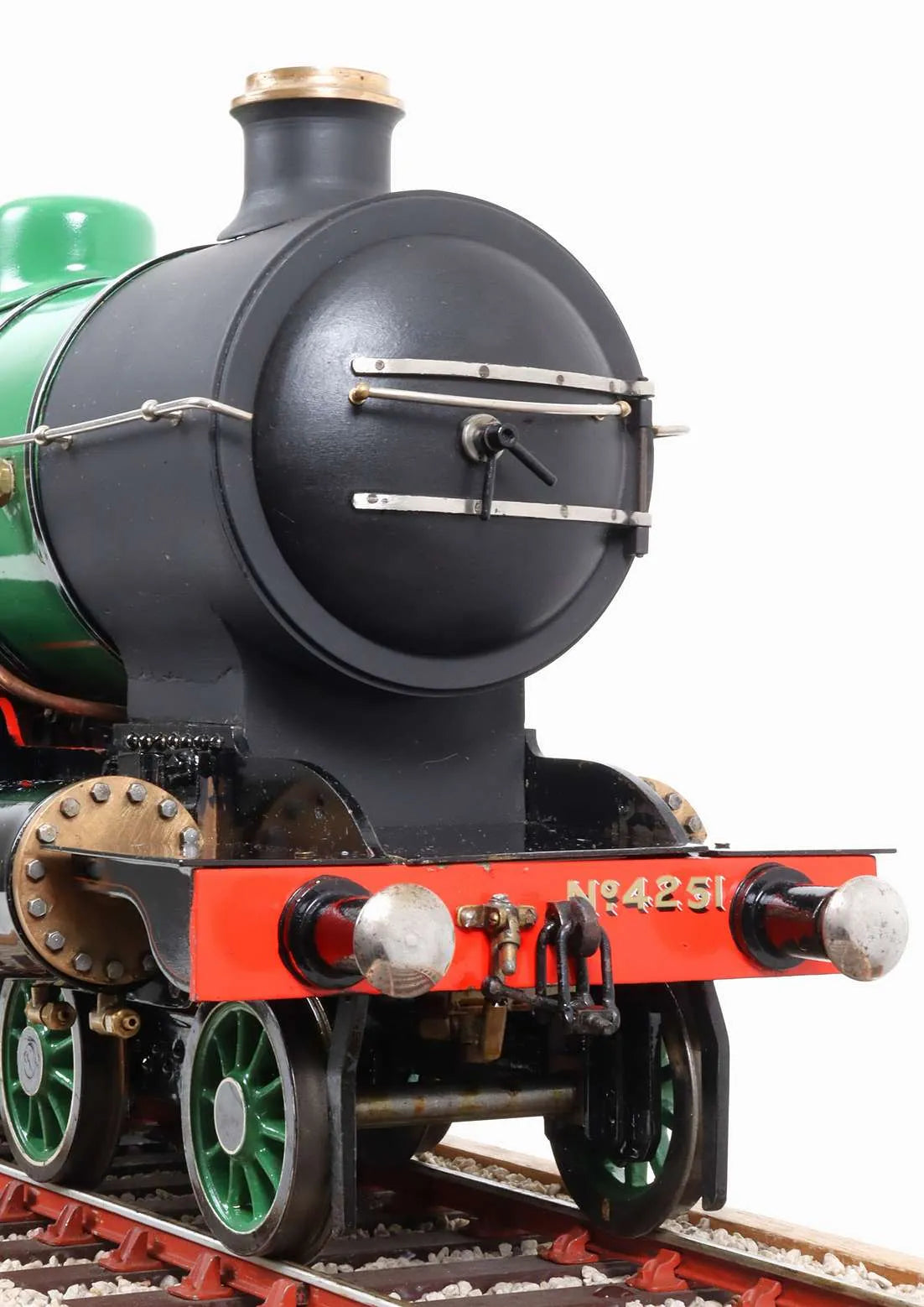

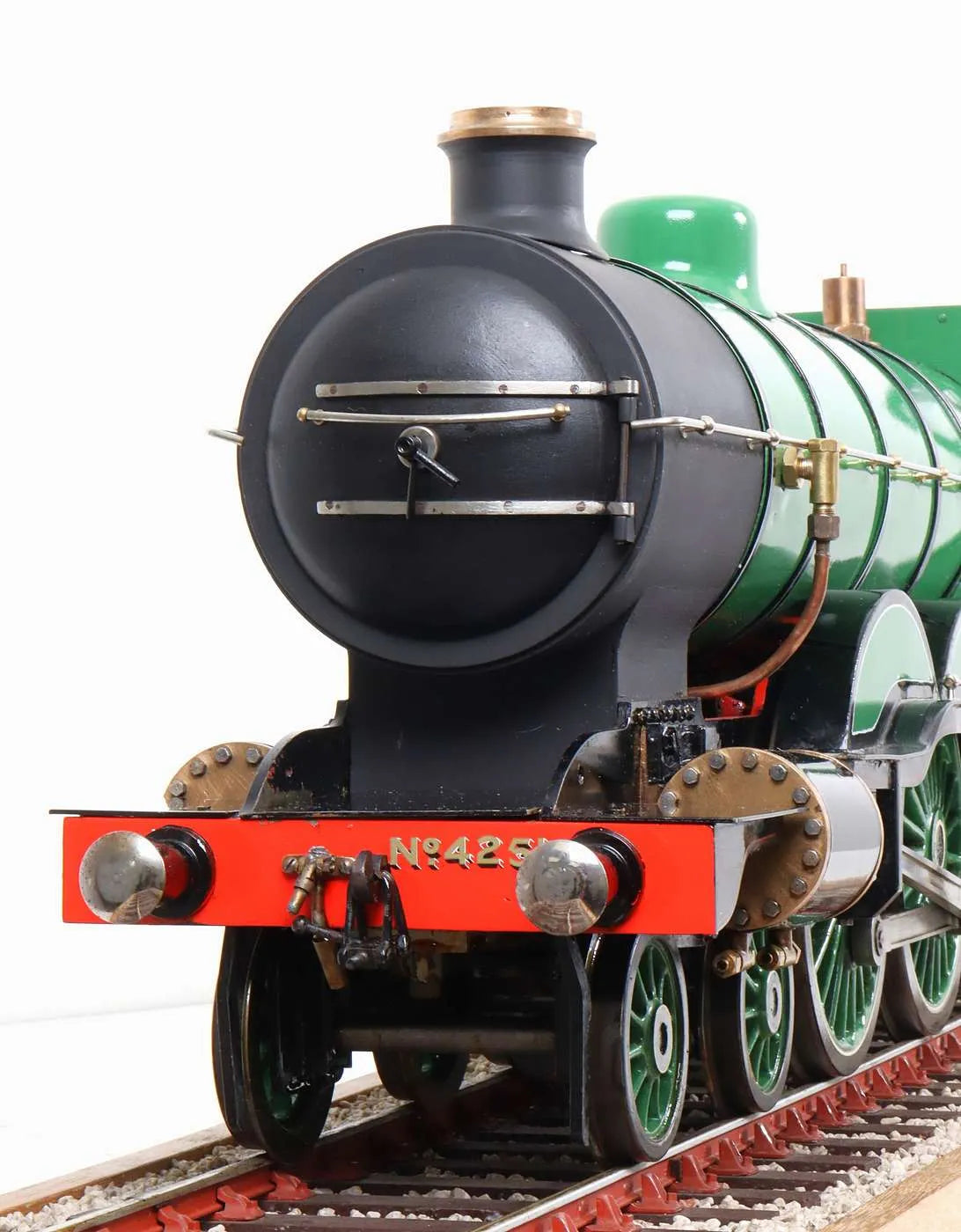

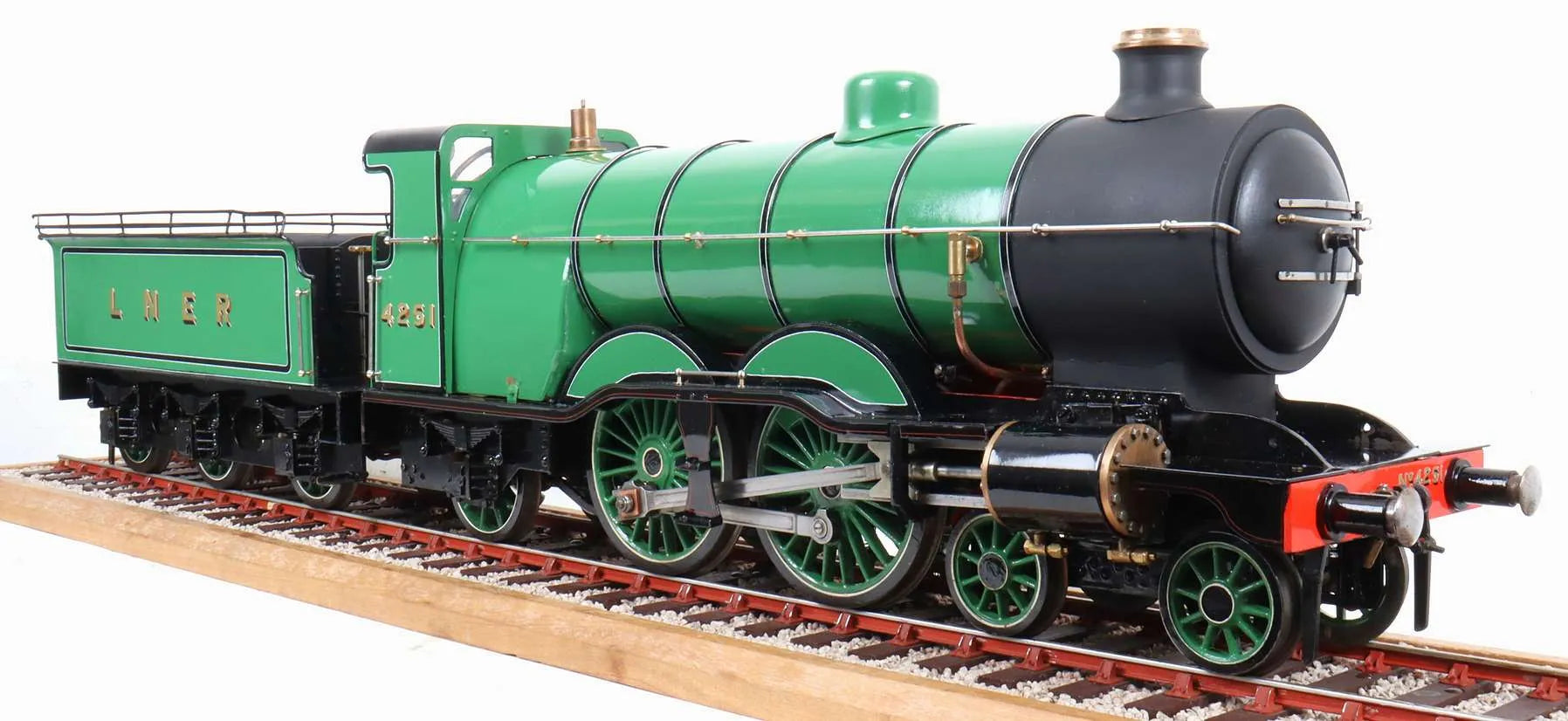

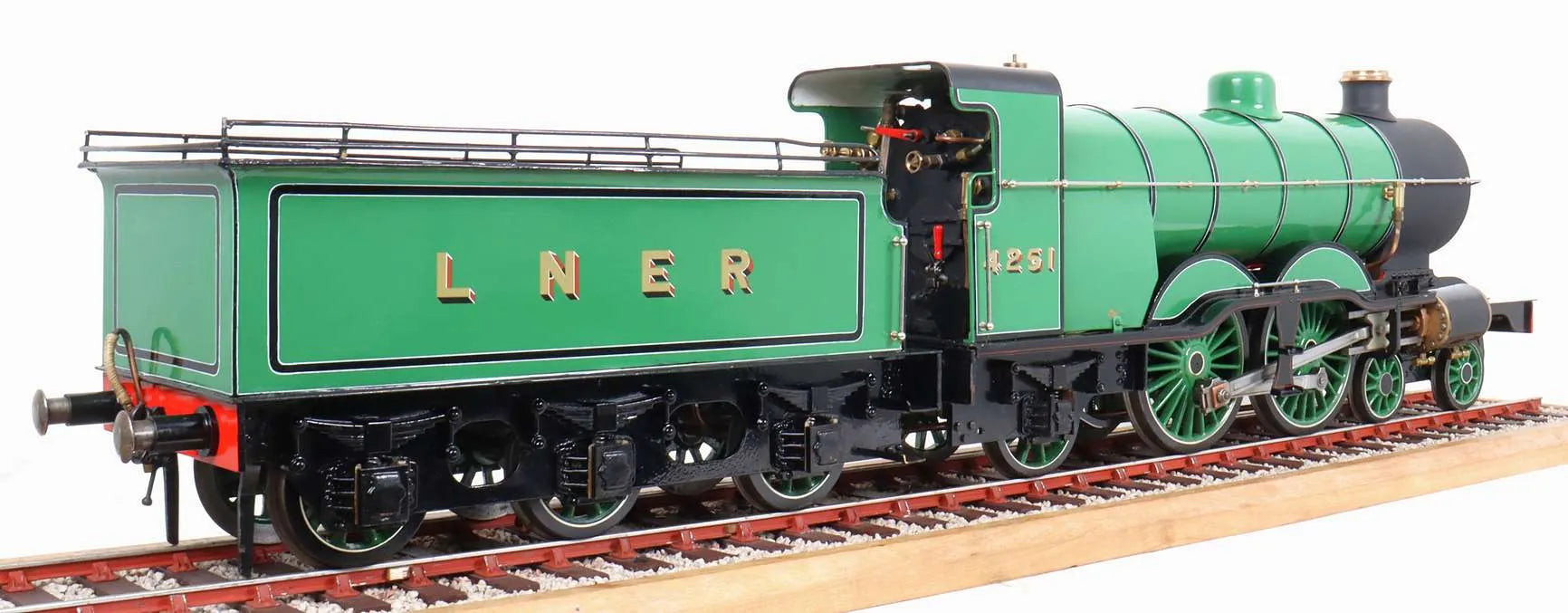

A nicely made and well-painted 3 1/2 inch gauge large-boilered GNR Atlantic to LBSC's popular "Maisie" design, an engine that came to us as part of a large collection of locomotives, stationary and aero engines.

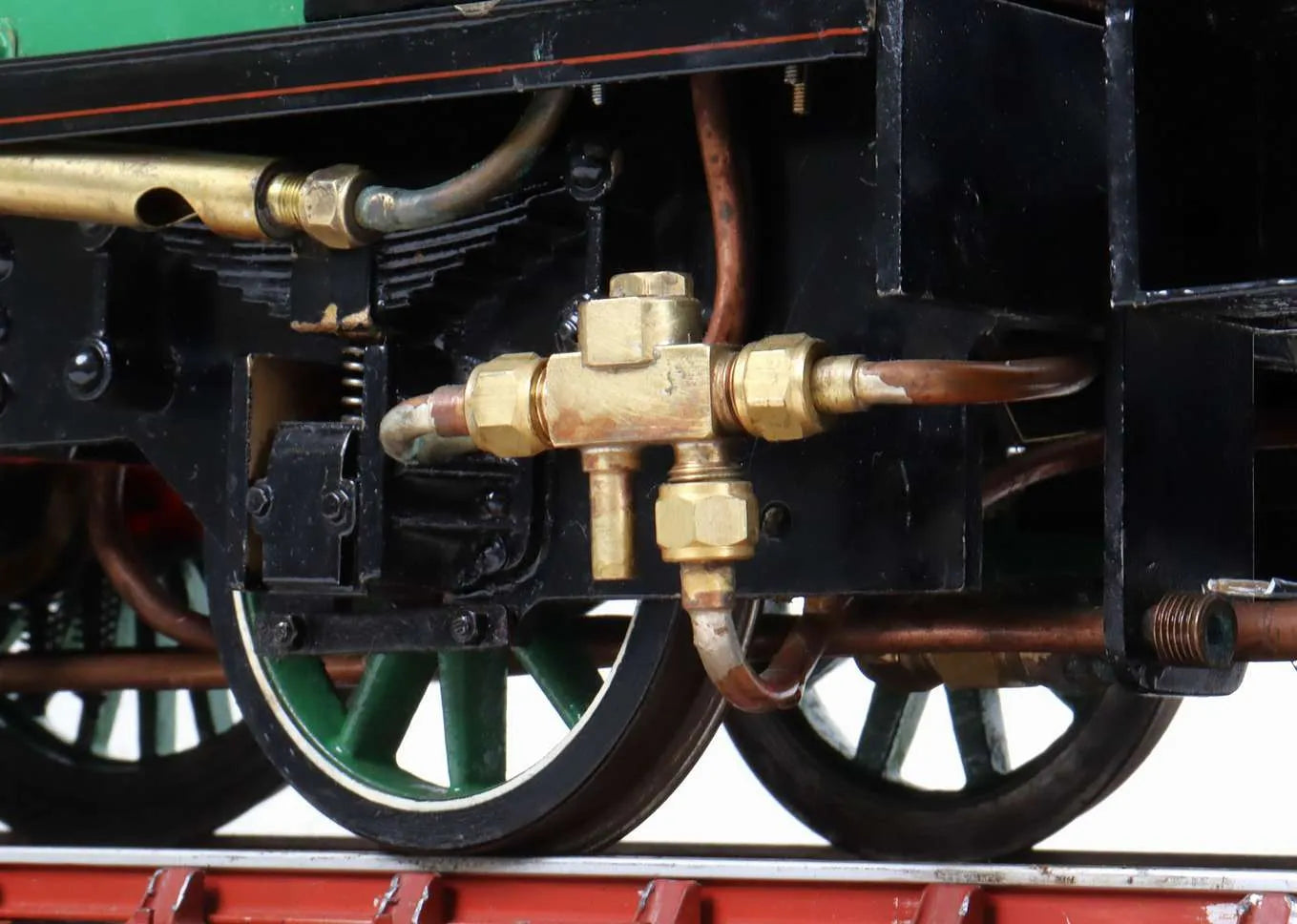

Kept for display by the previous owner it wasn't run in his ownership and, for the last few years, has been in storage. It requires work to recommission, including replacement of the inner dome gasket which leaks, and attention to a seized blowdown valve.

Boiler has had a twice working pressure hydraulic test, with new certification issued. The engine rolls freely and runs on air in either direction, with some blow by past valves or pistons.

Technical information

Stock code

10919

Length/inches

27 + 18

Width/inches

7

Height/inches

11

Weight/Kg

25 + 8

Wheel material

cast iron

Axlebox type

plain

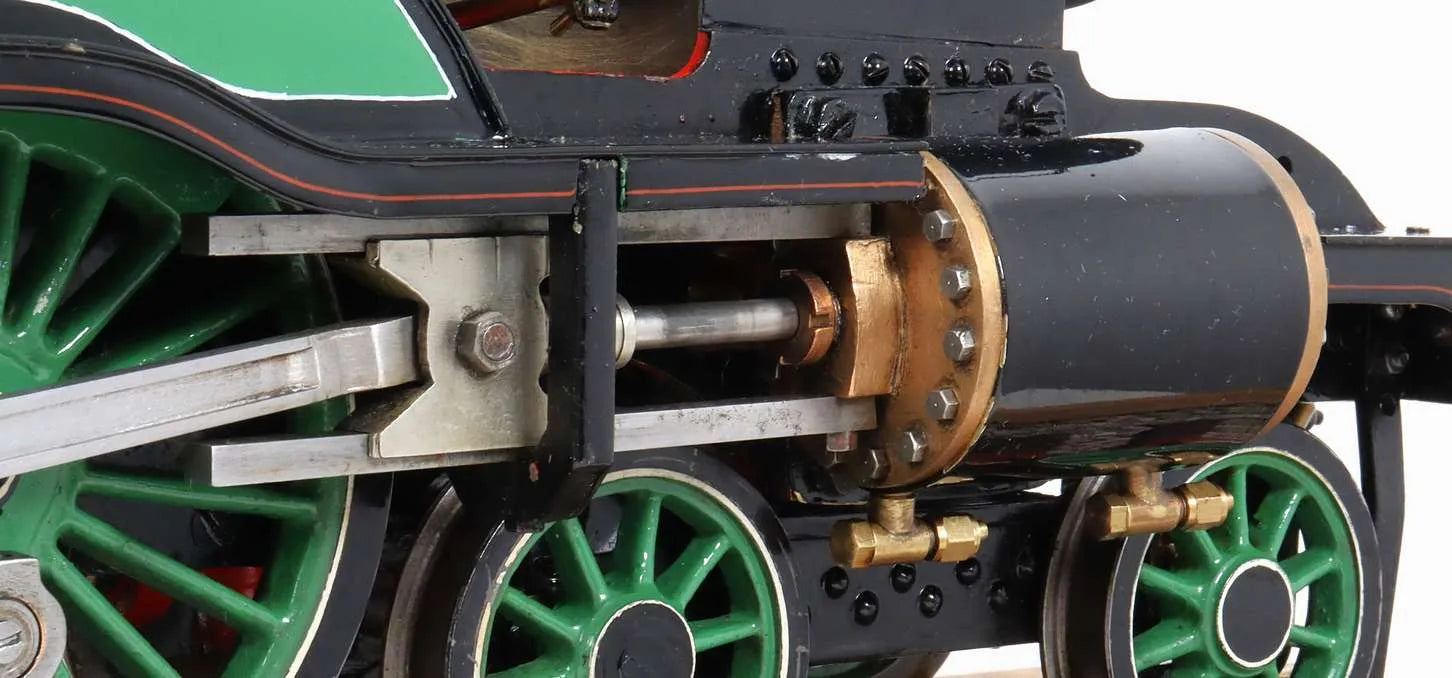

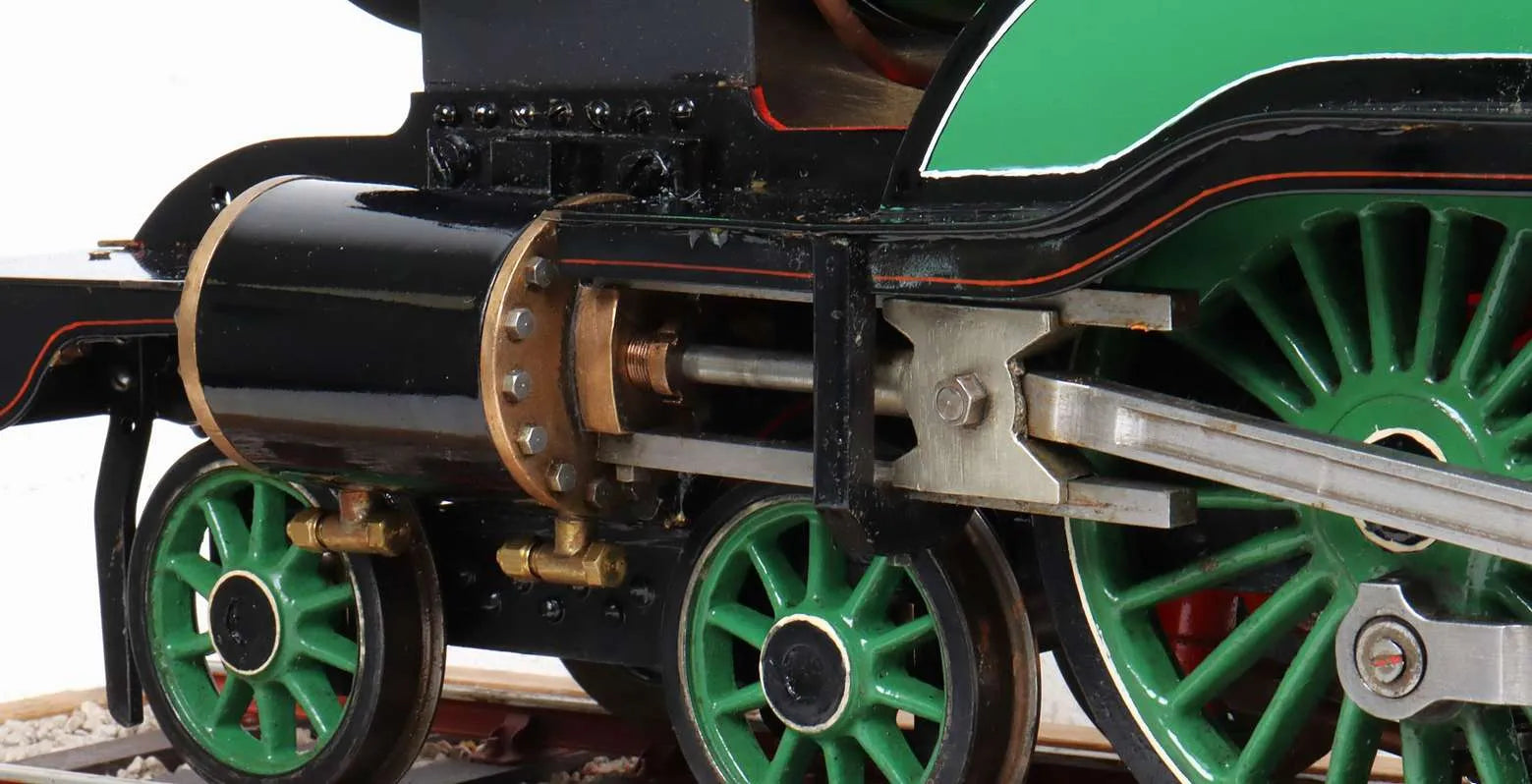

Valve type

slide

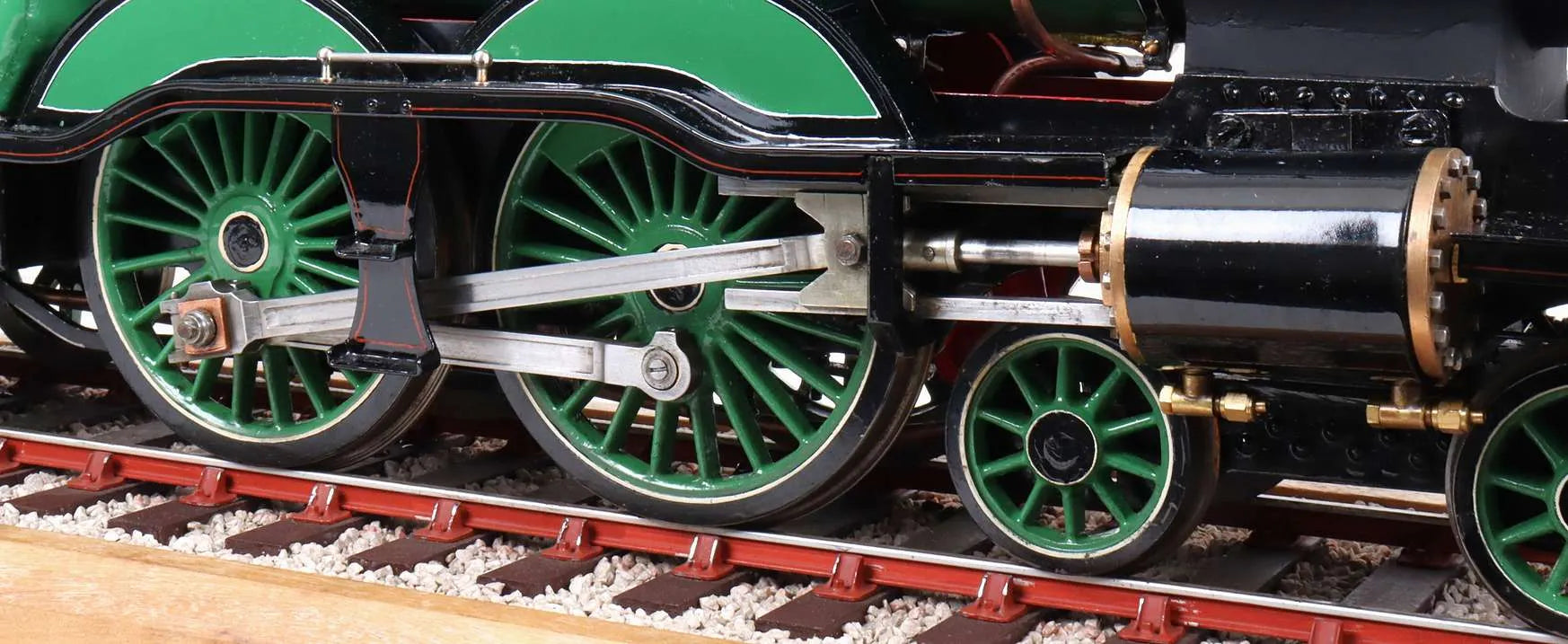

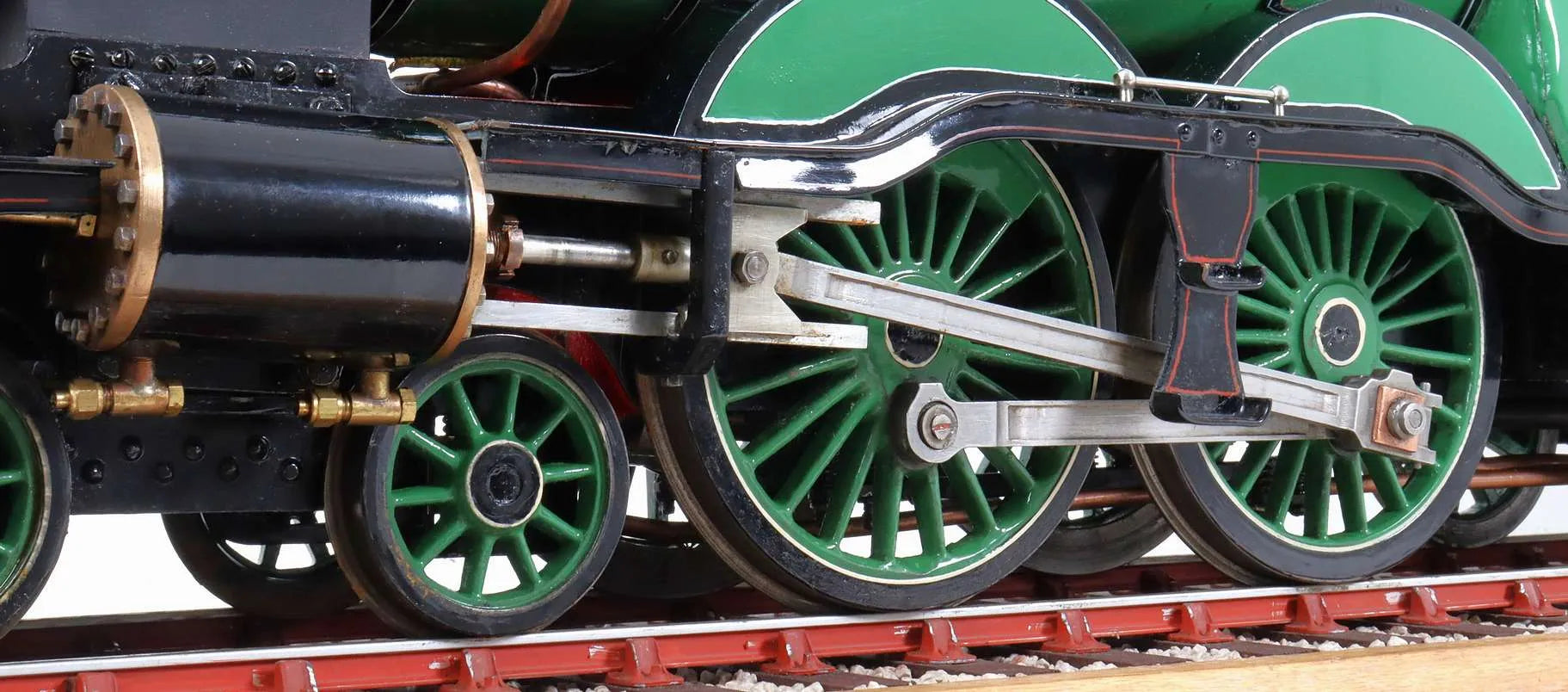

Valve gear

Stephensons

Reverser type

pole

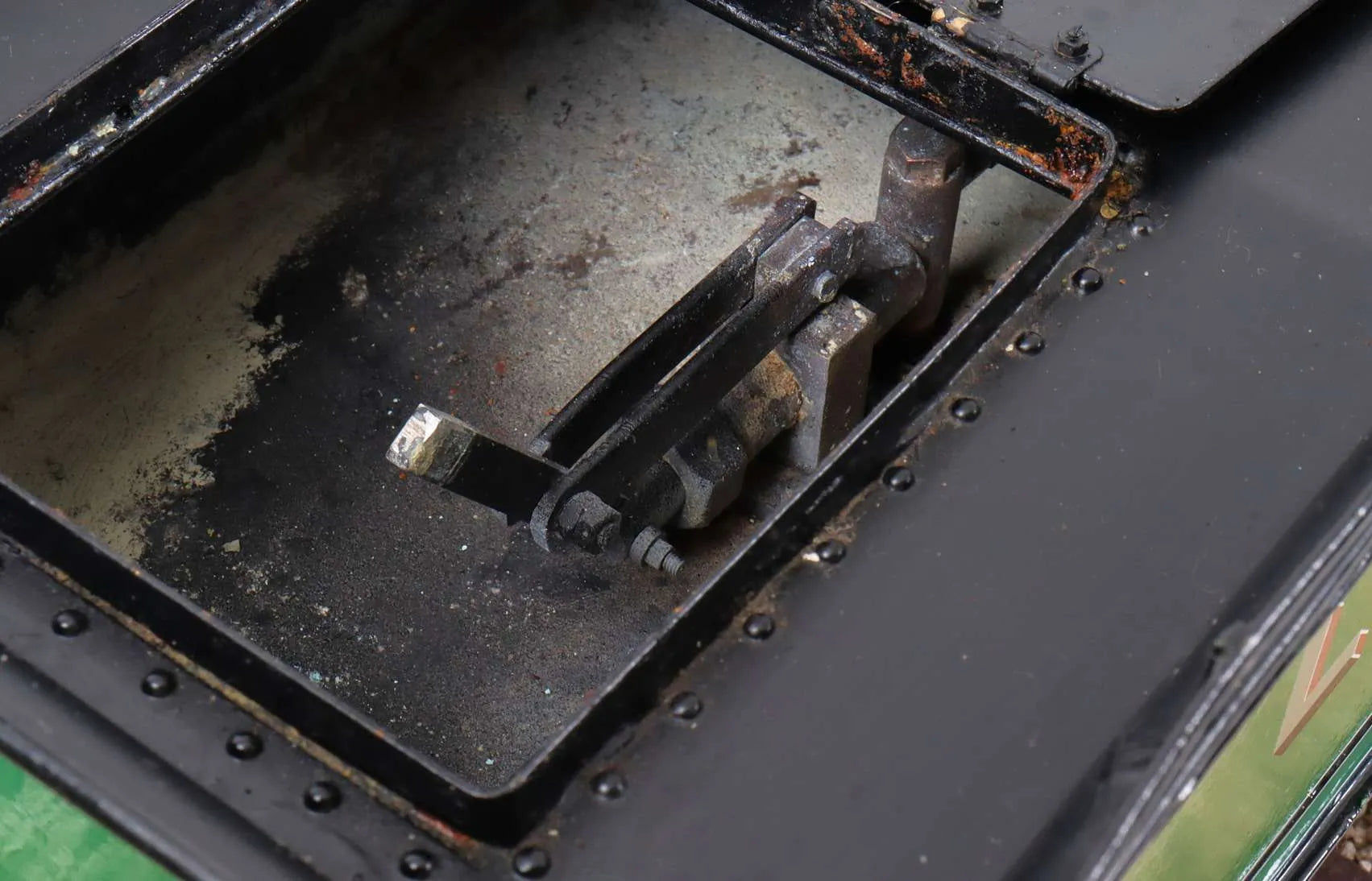

Lubricator type

mechanical

Boiler type

locomotive

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

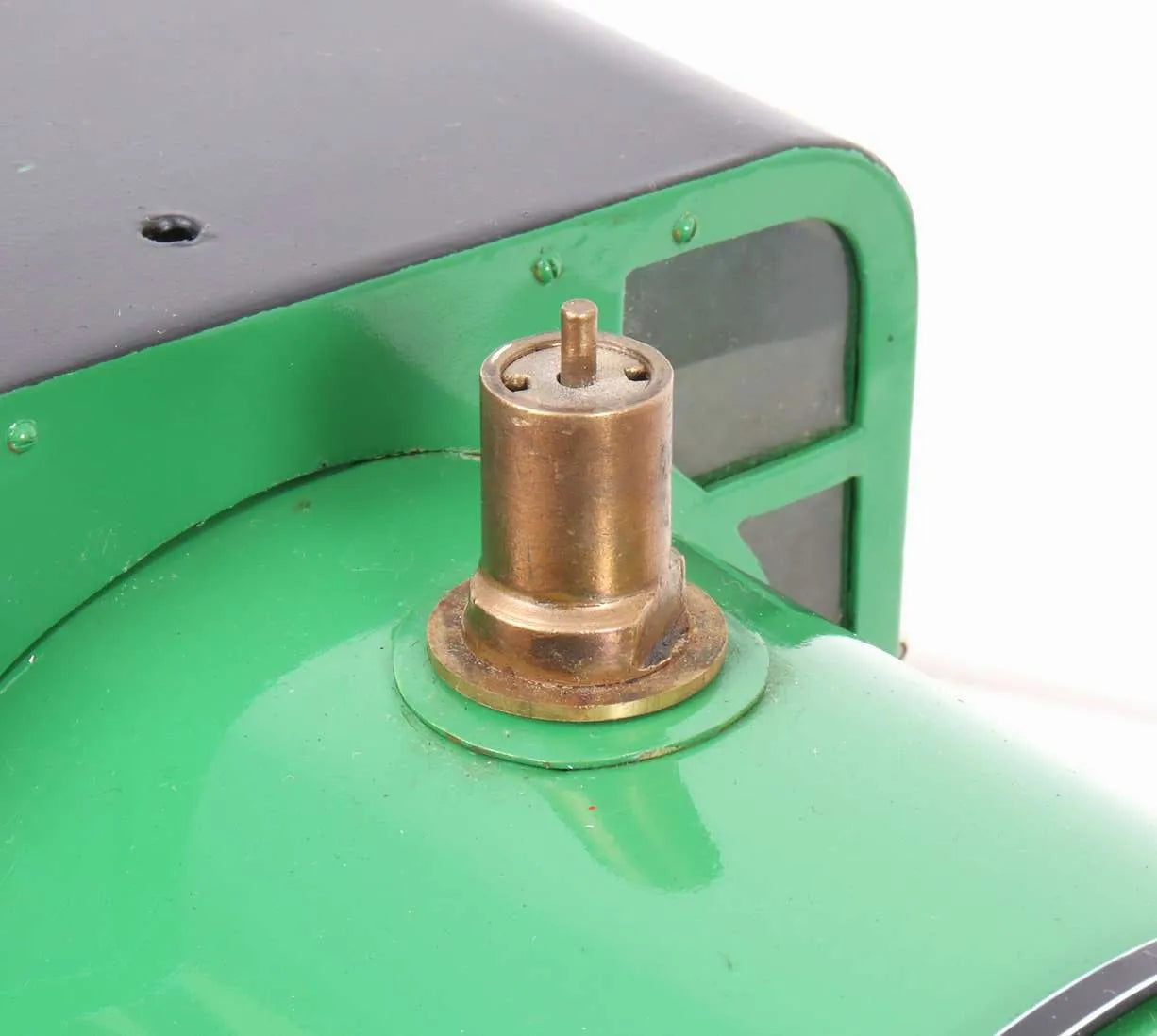

Safety valve type

spring

Safety valve

1

Date out

Sep-23

Hydraulic test valid to

20-Oct-26
