11504

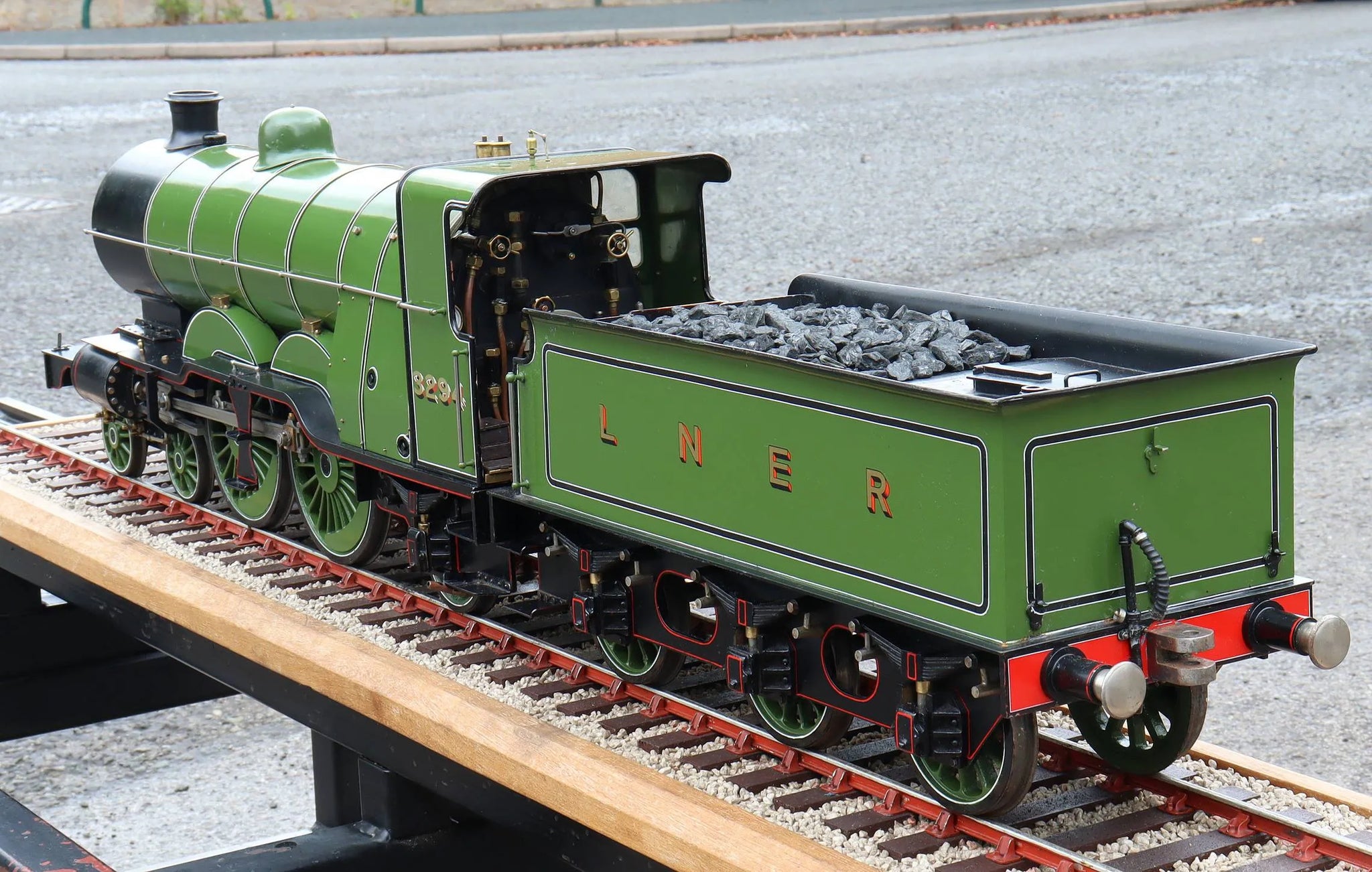

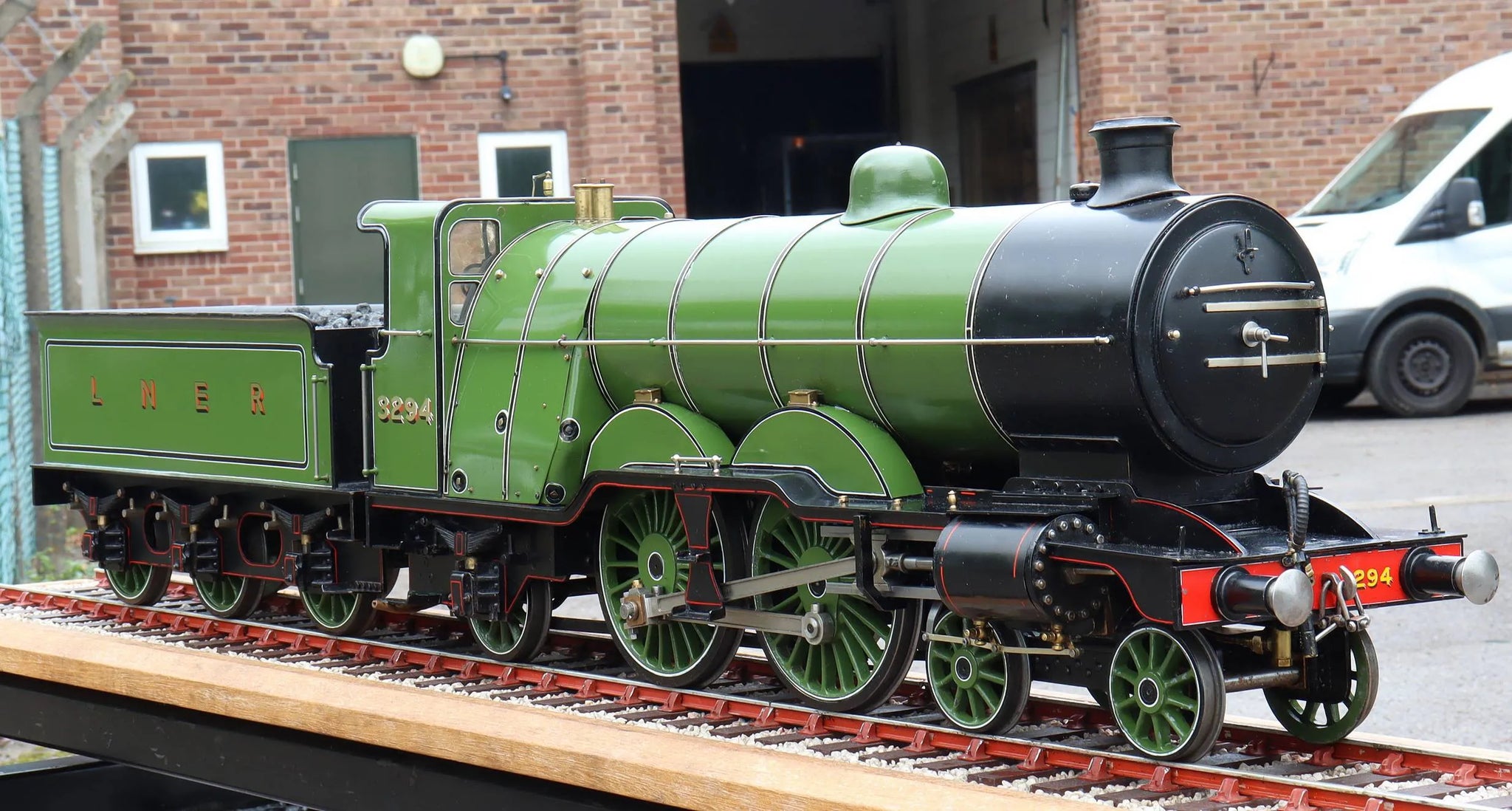

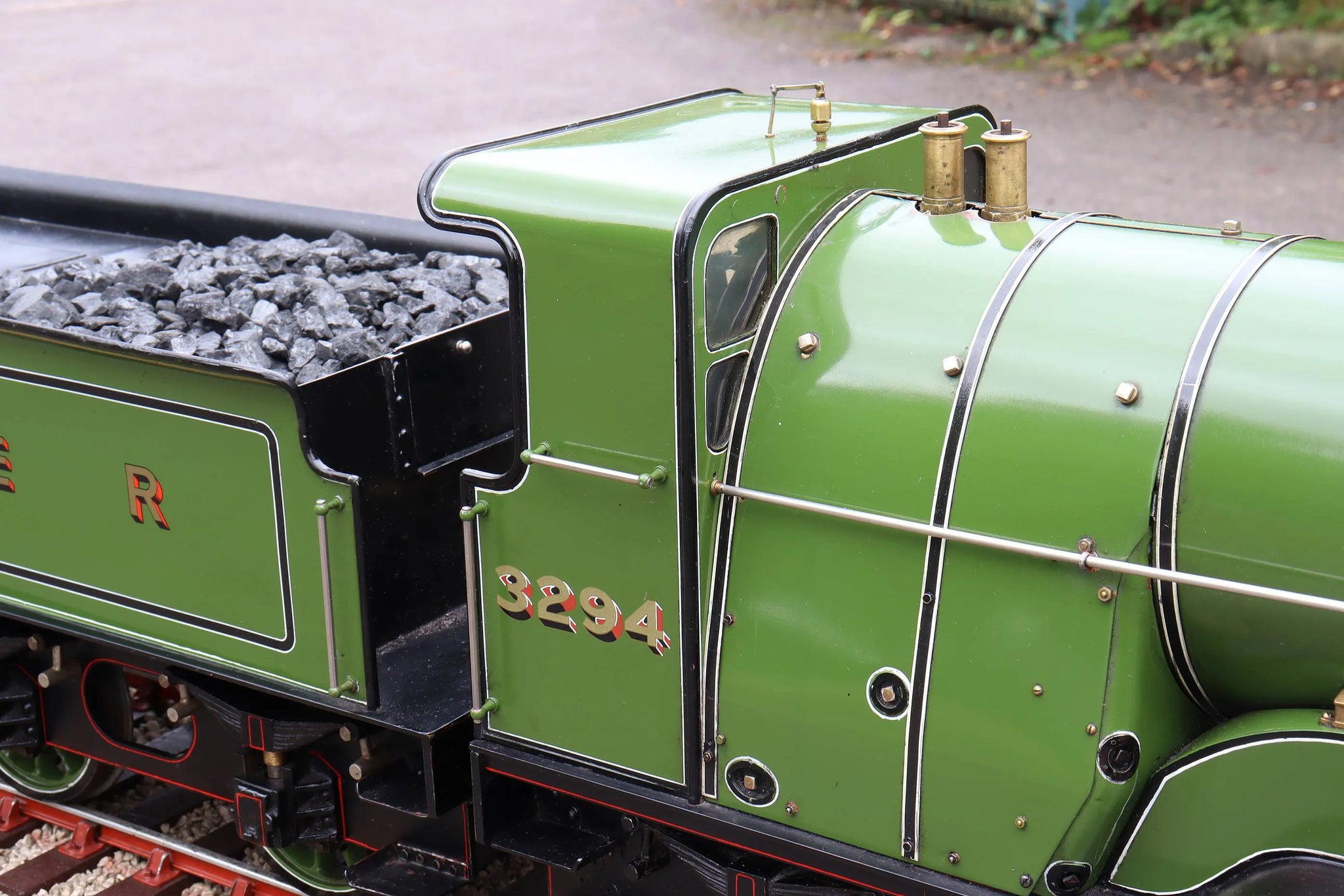

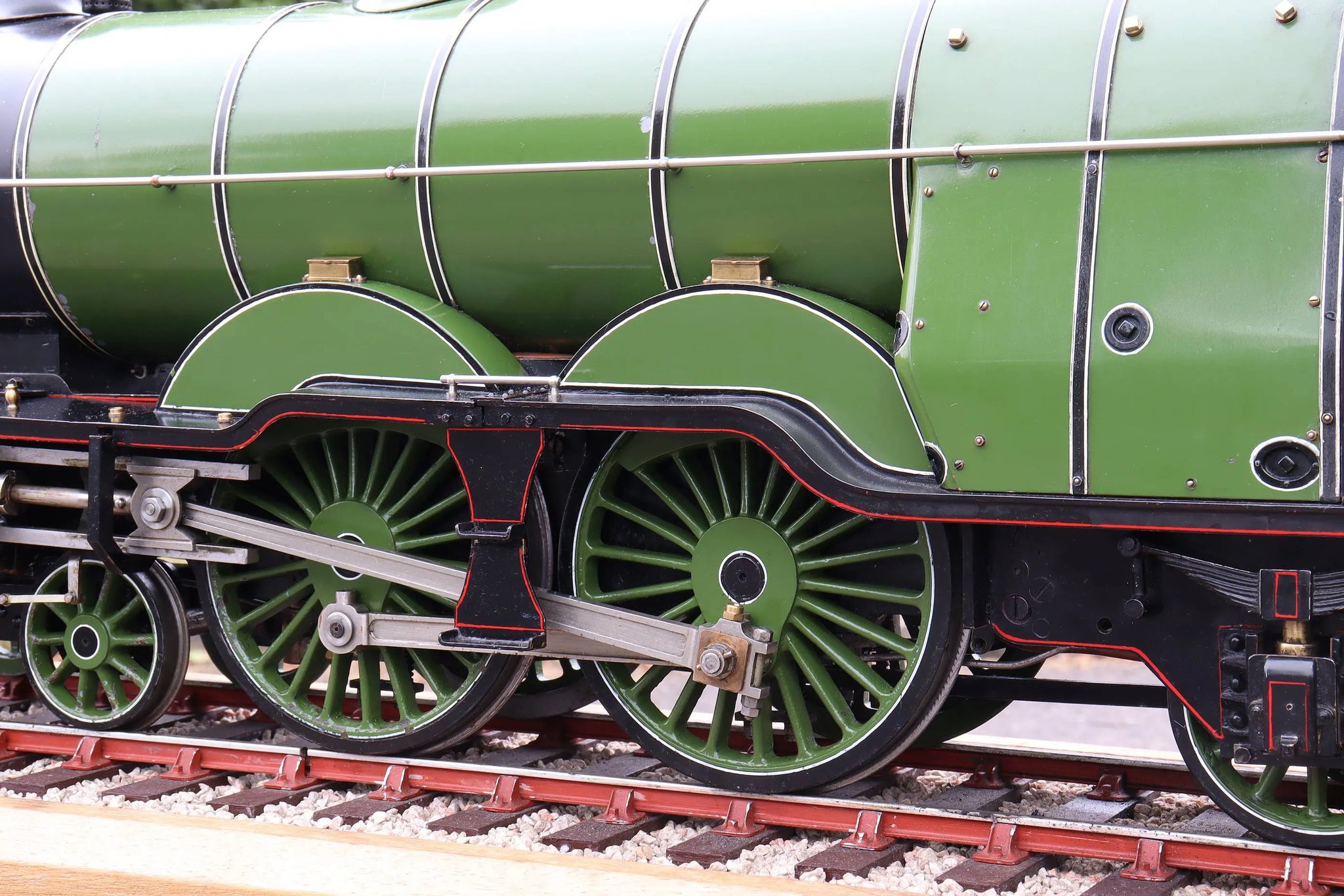

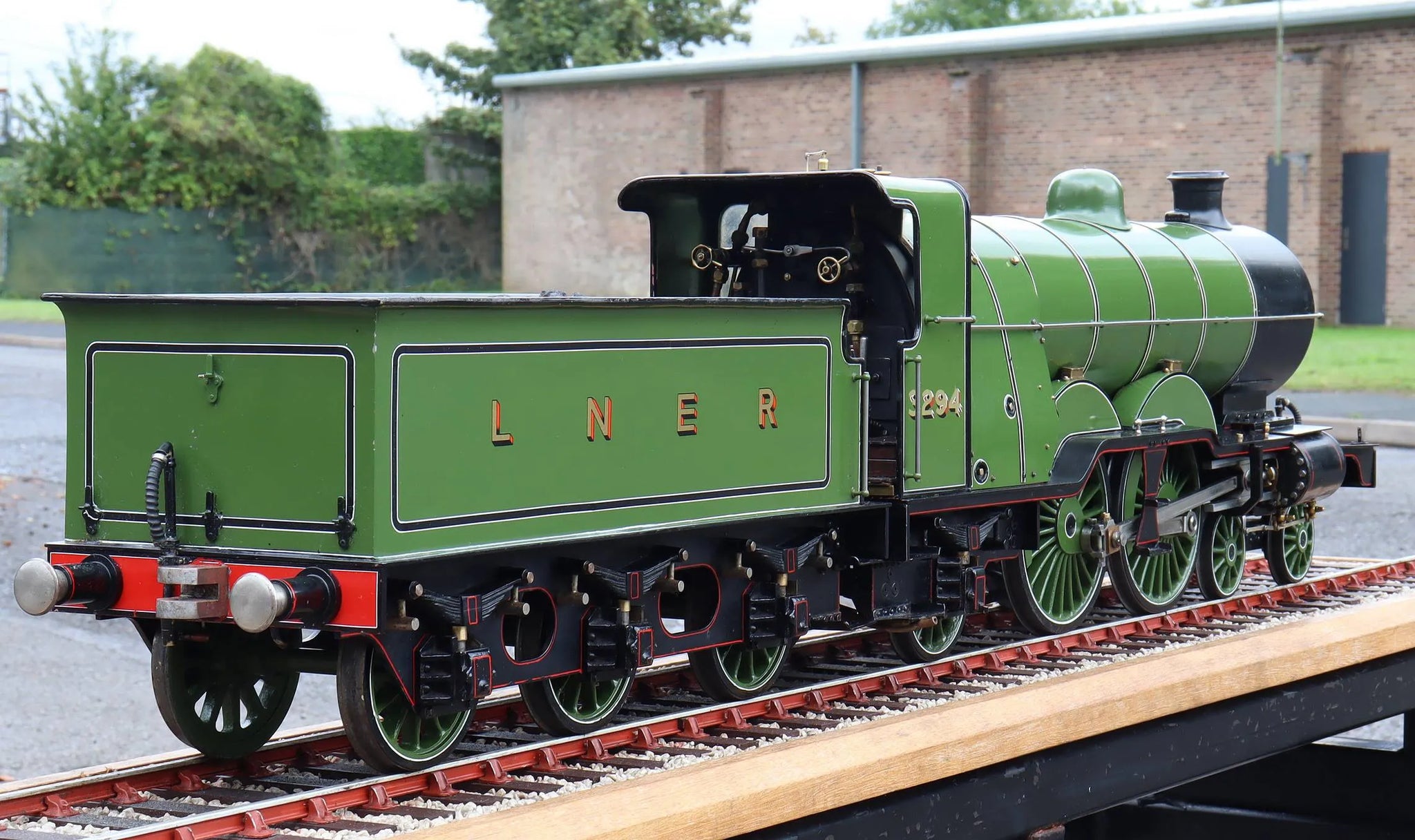

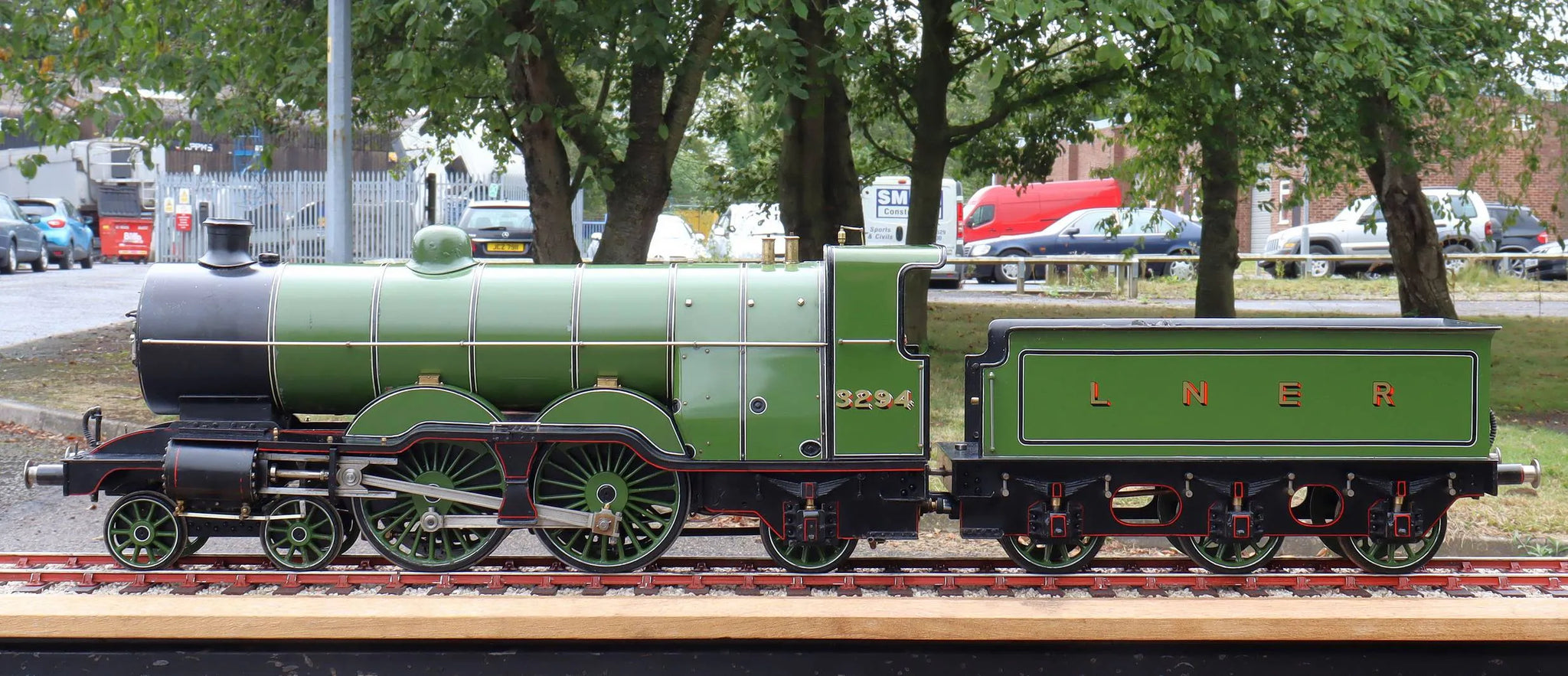

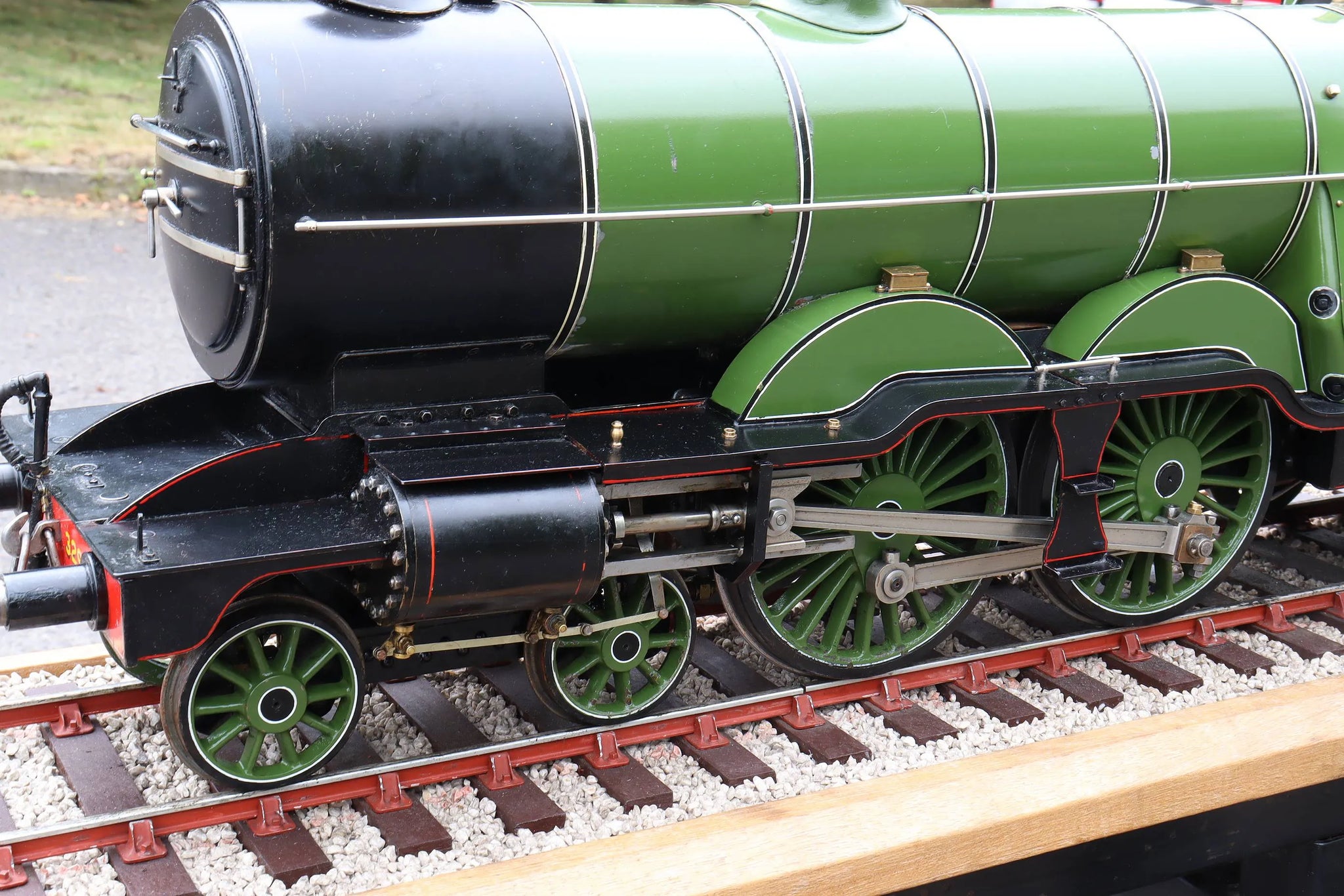

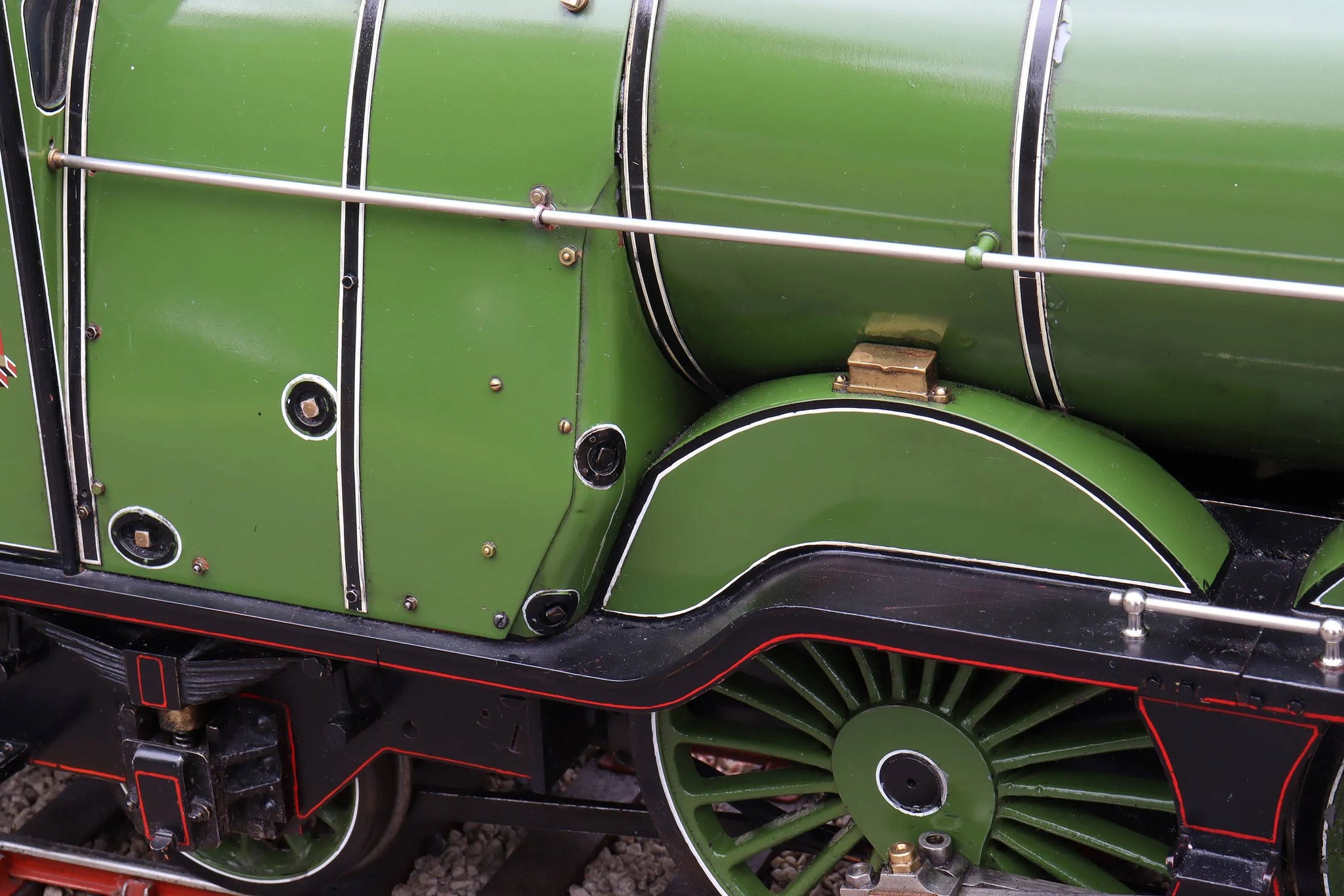

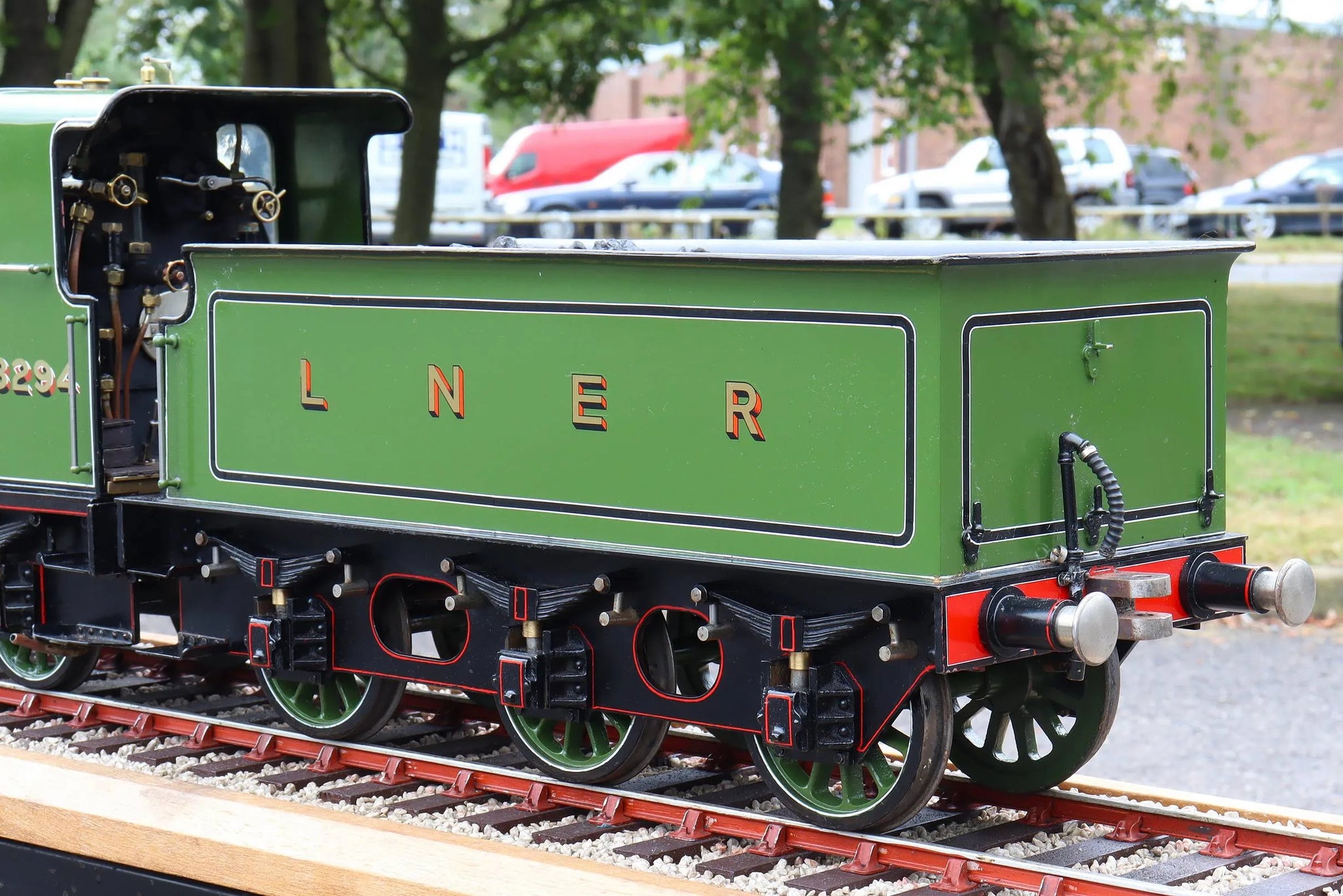

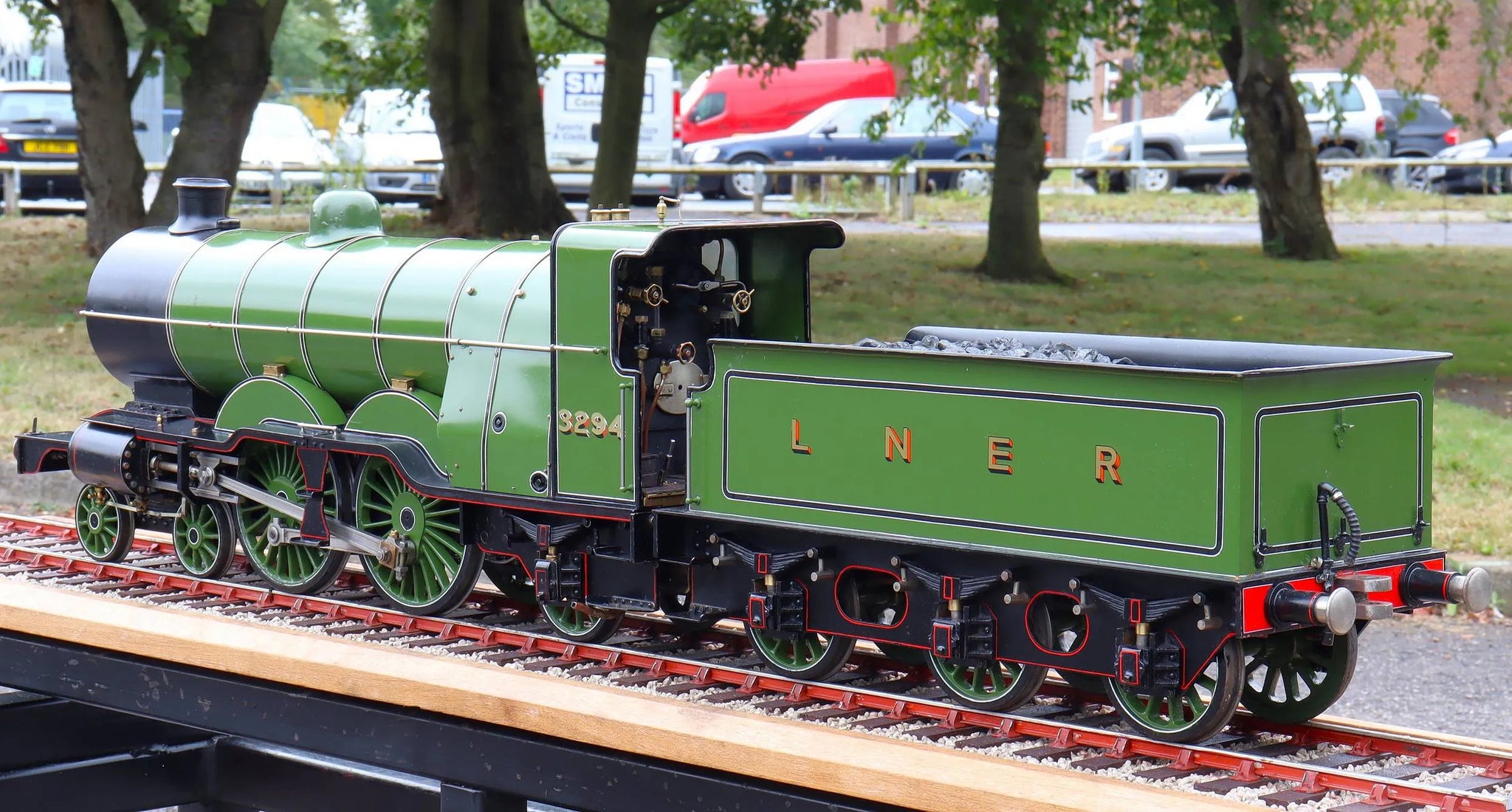

One of the nicest 3 1/2 inch gauge Atlantics we've ever had, based on LBSC's popular "Maisie" design although with modifications and added detailing for greater fidelity to the prototype. Finely made and painted, the engine remains in good condition throughout, the lined Darlington livery presenting very well.
The boiler has had recent hydraulic and steam tests with new certification issued, we've fitted a new injector, the axle and hand pumps work efficiently.

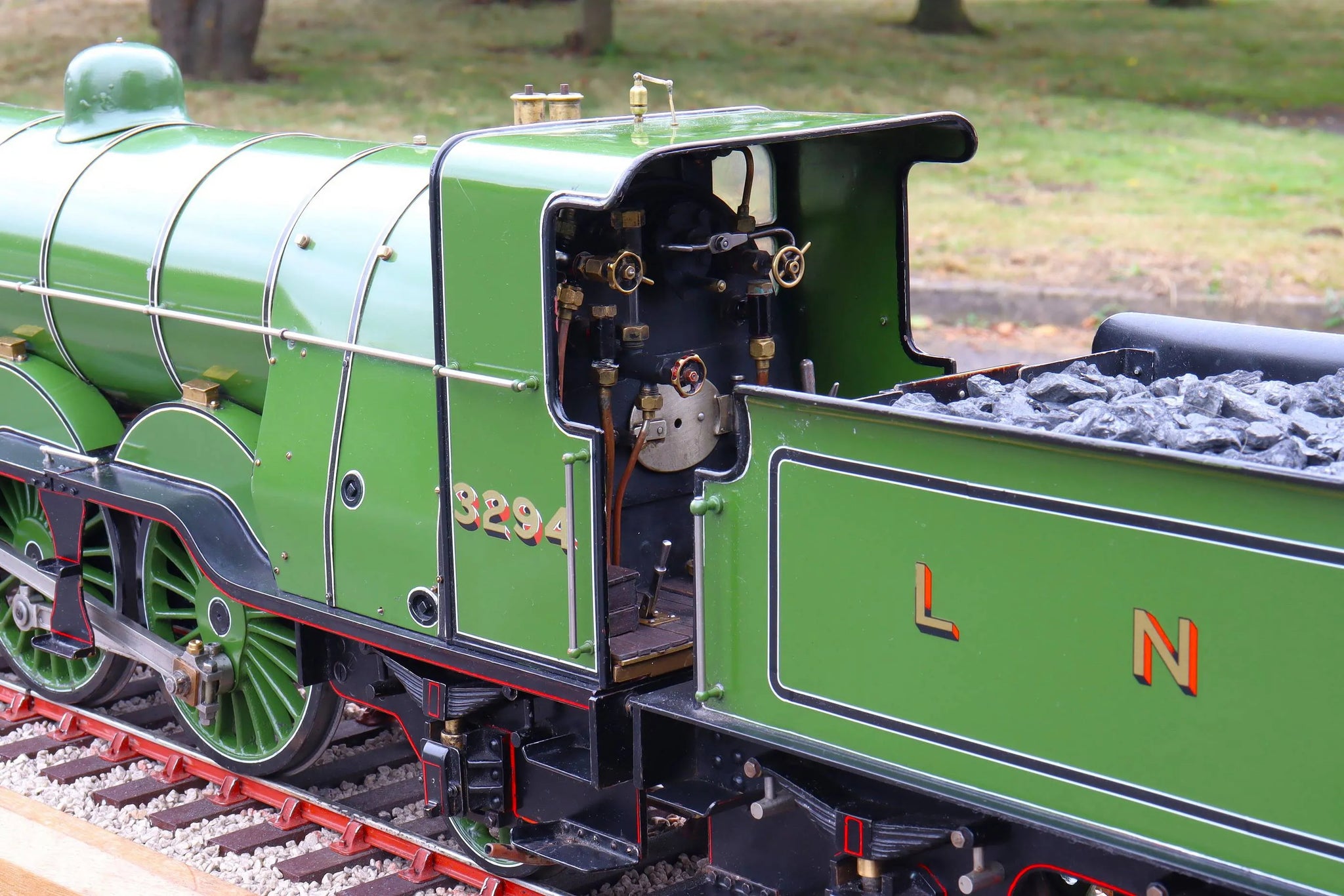

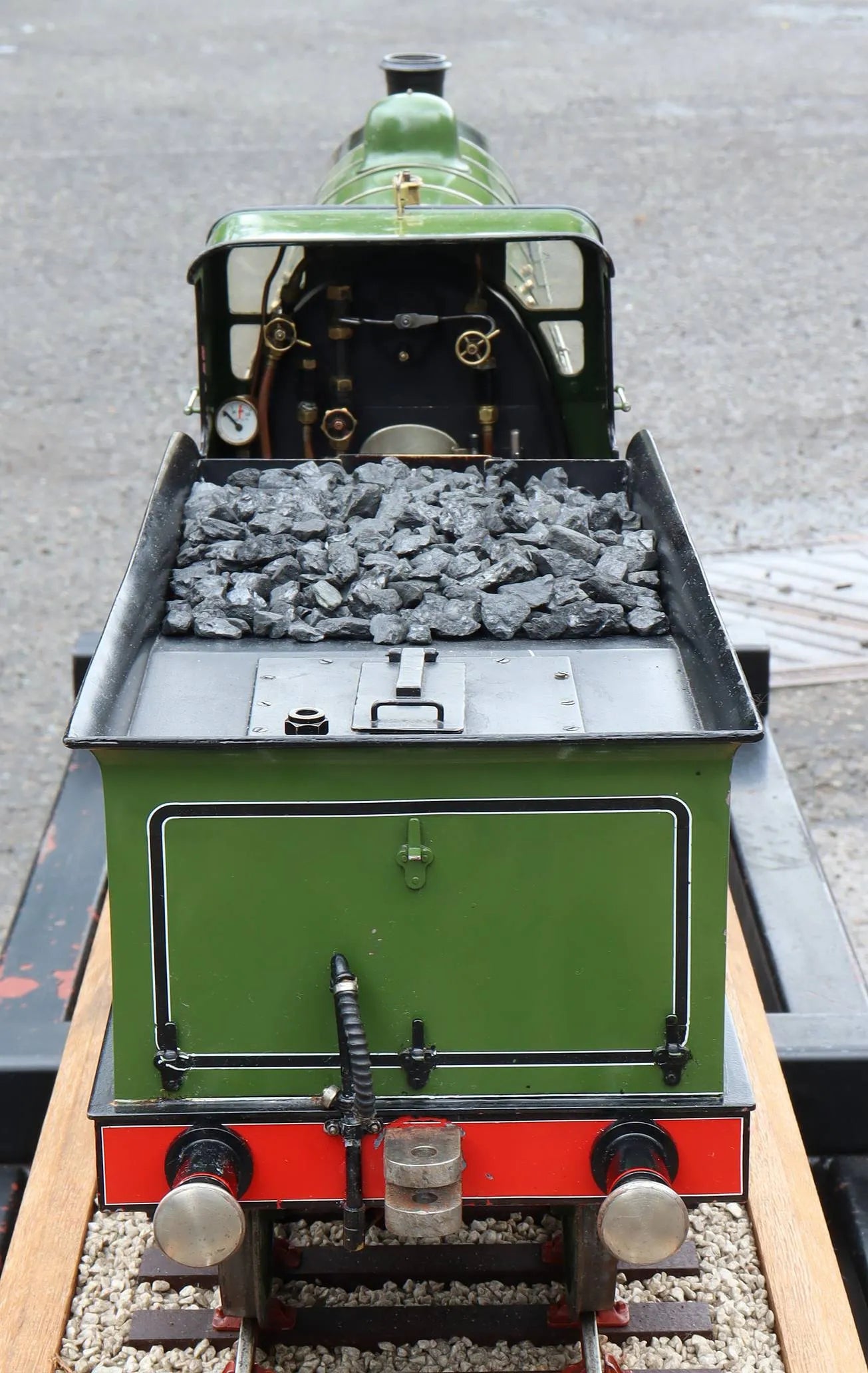

The engine steams freely and runs particularly well in either direction. Disposing of it at the end of the day is made easier by a removable footplate which releases the grate to drop down for ashing out - a nice detail.
Stock code |
11504 |
Gauge |
3 1/2 inch |
Length/inches |
27+18 |
Width/inches |
7 |
Height/inches |
10 |
Weight/Kg |
25+9 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
CE/UKCA mark |
n/a - non-commercial |
Year built |
2010 |
Boiler number |
SNR1 |
Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Date out |
Feb-24 |
Hydraulic test valid to |
04-Sep-27 |
Steam test valid to |
06-Nov-24 |
