Sold

11739

3 1/2 inch gauge GNR Atlantic

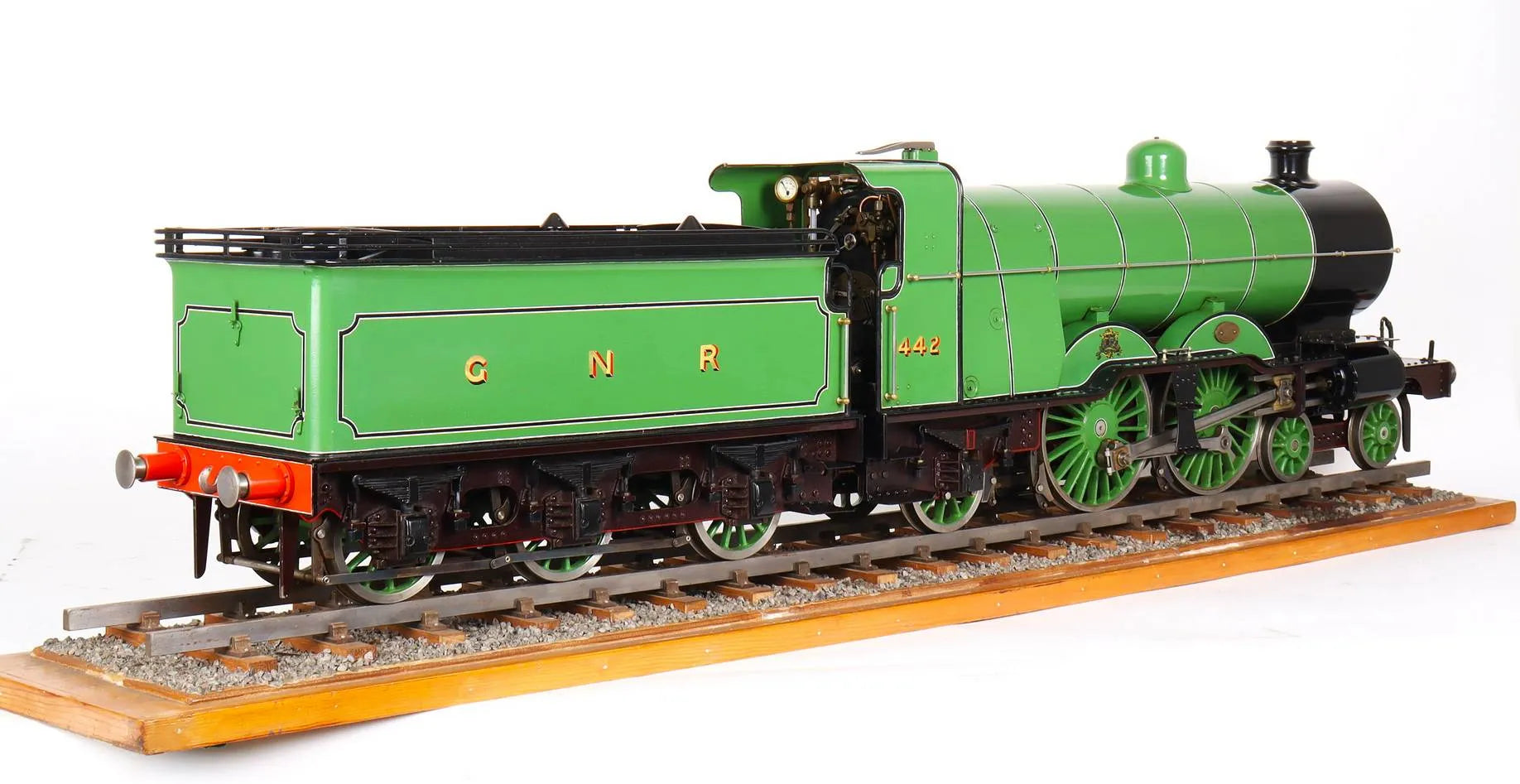

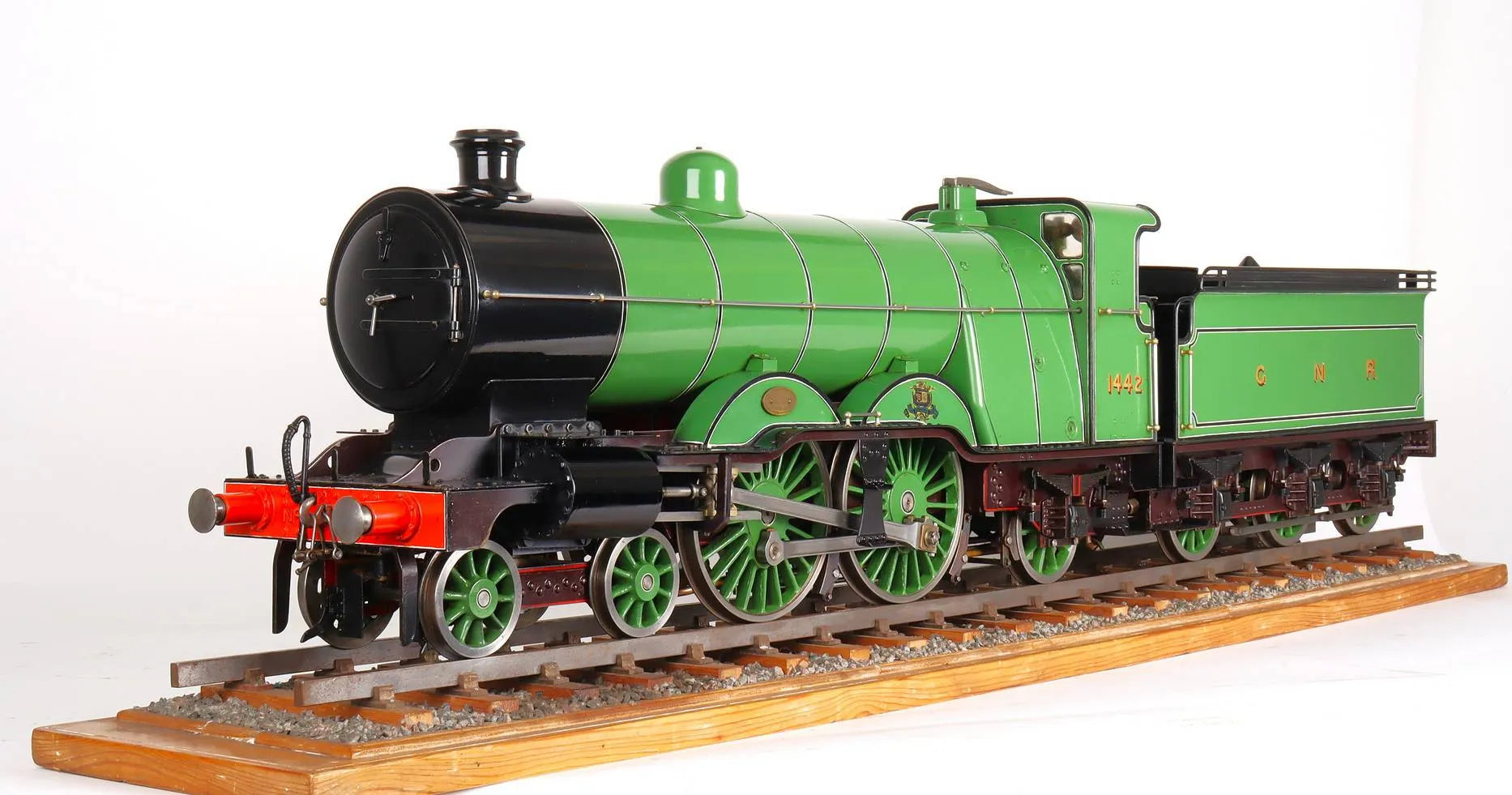

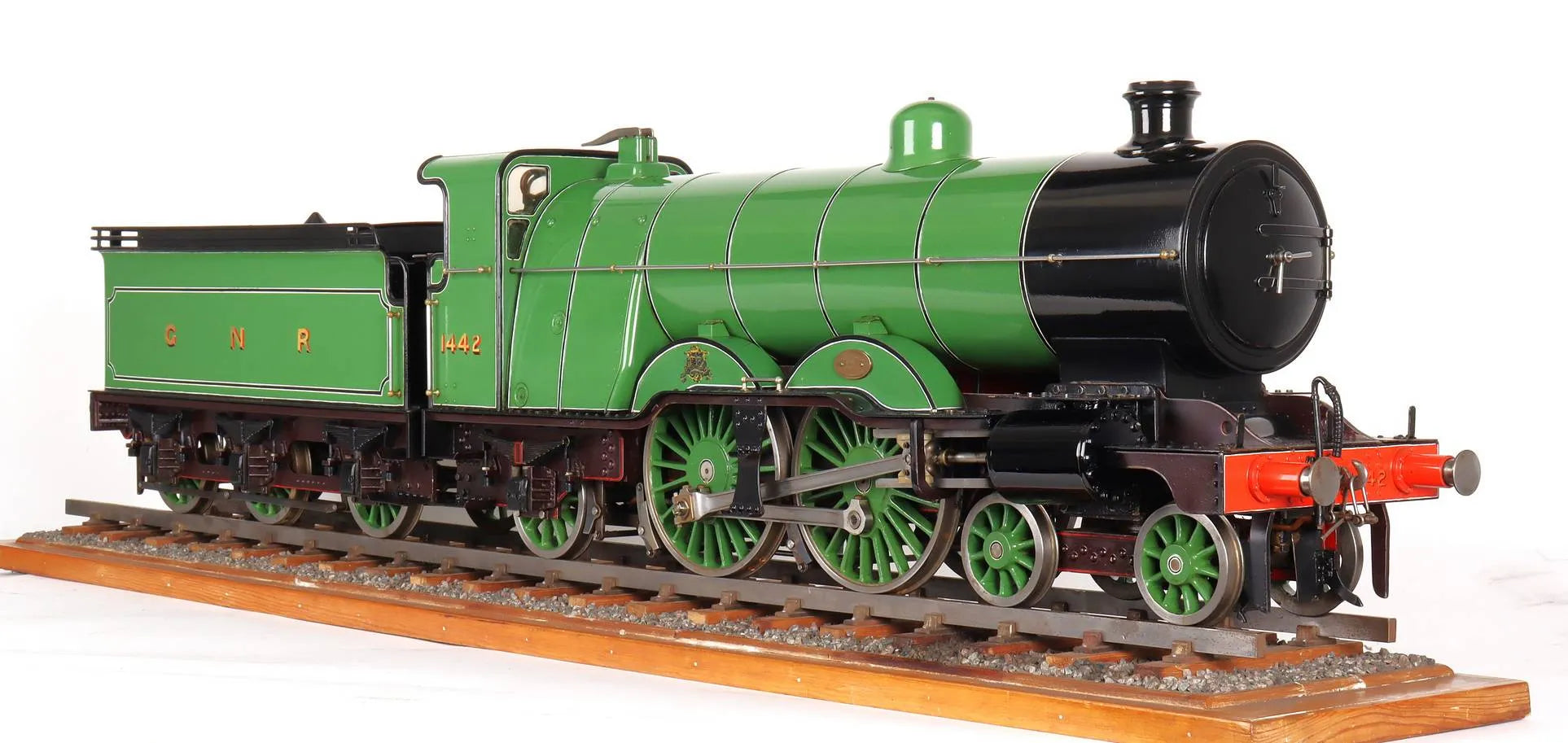

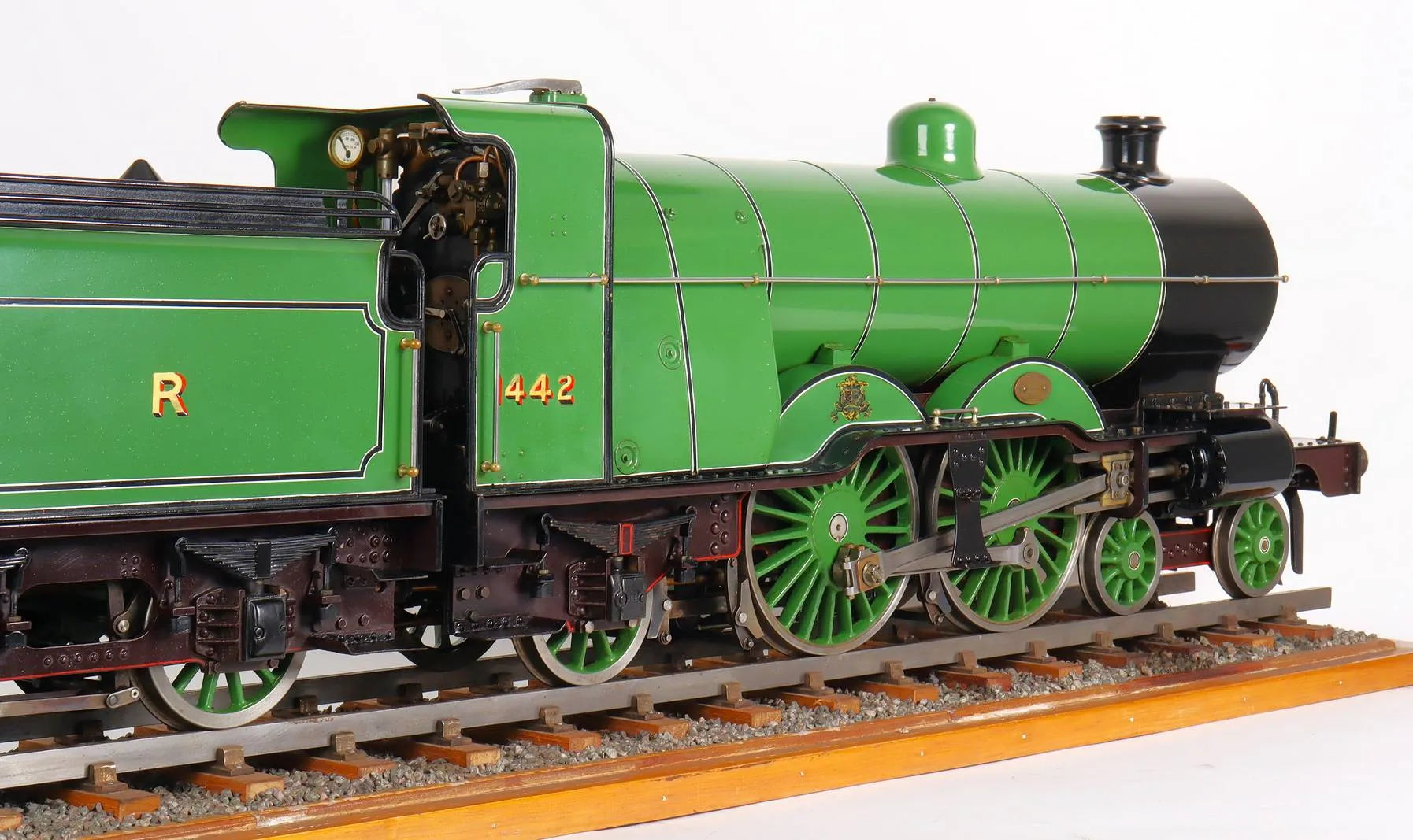

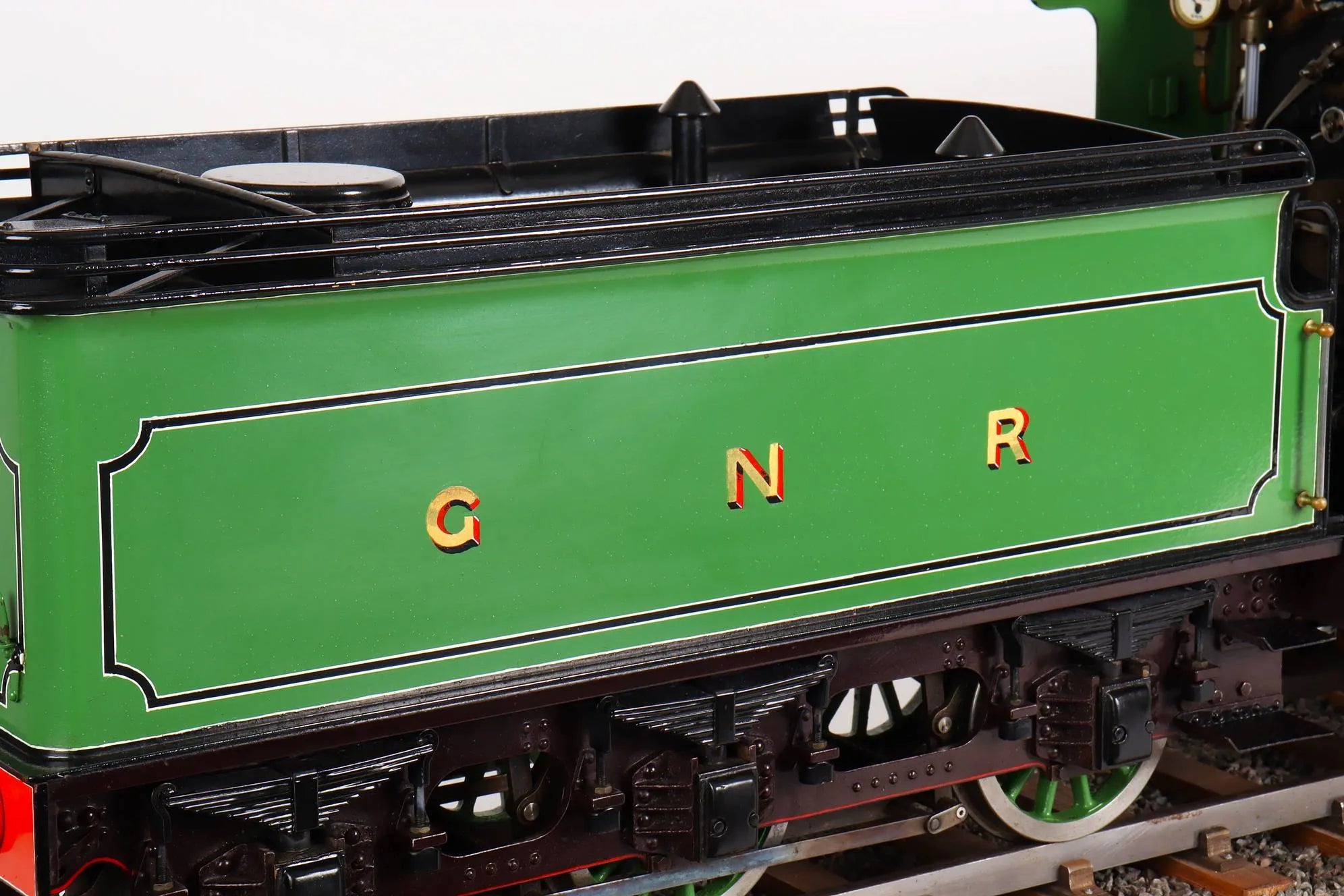

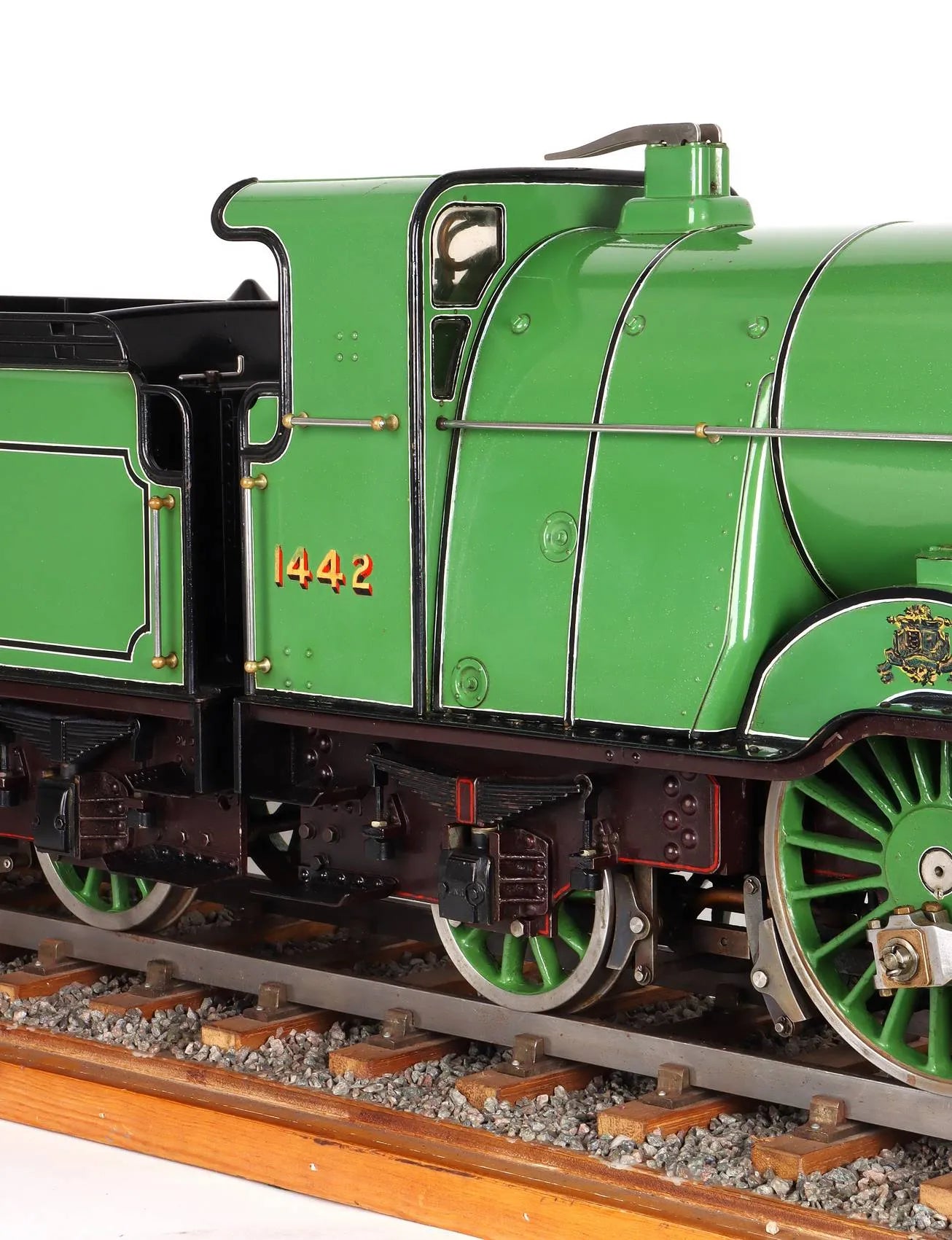

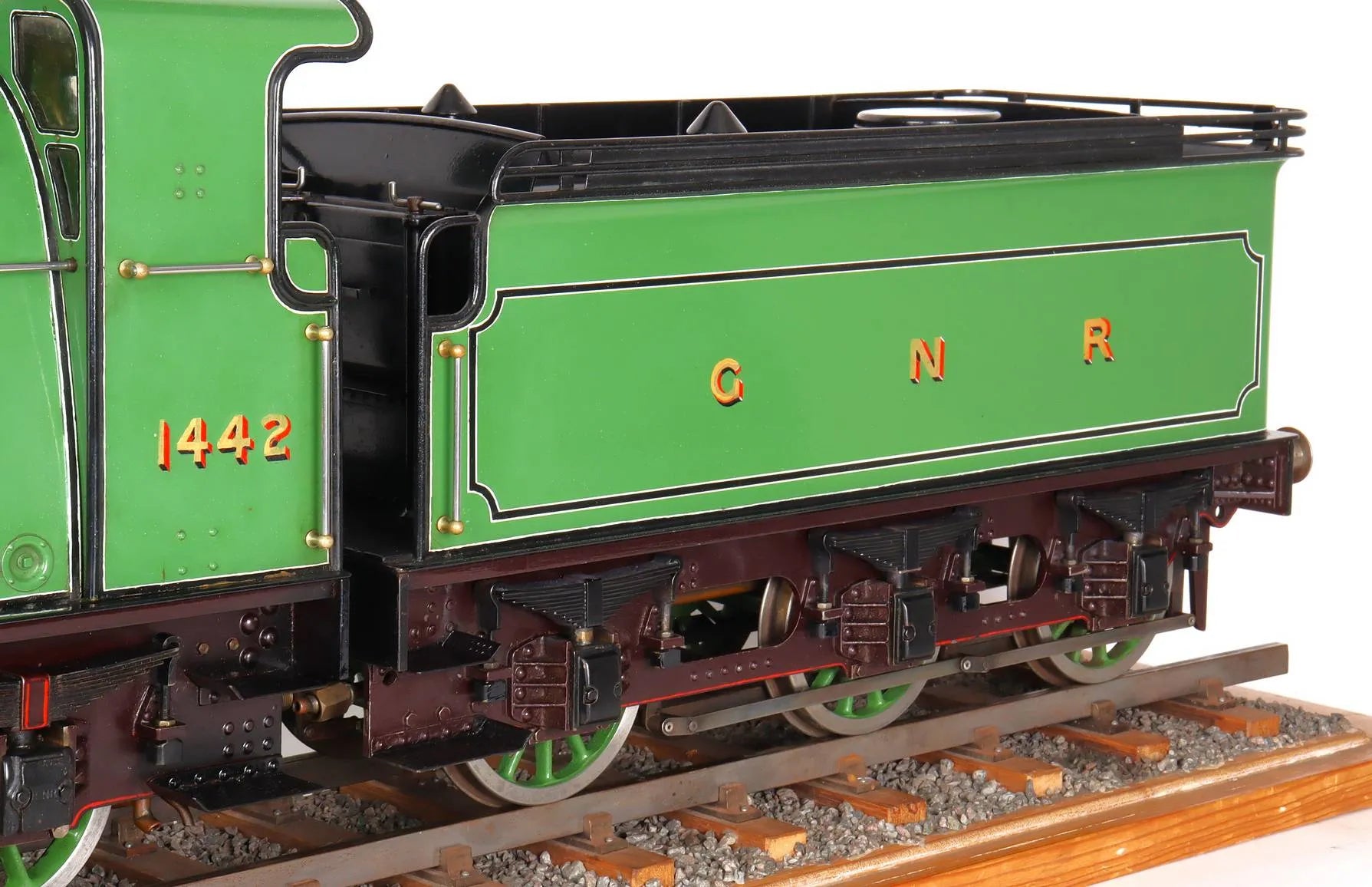

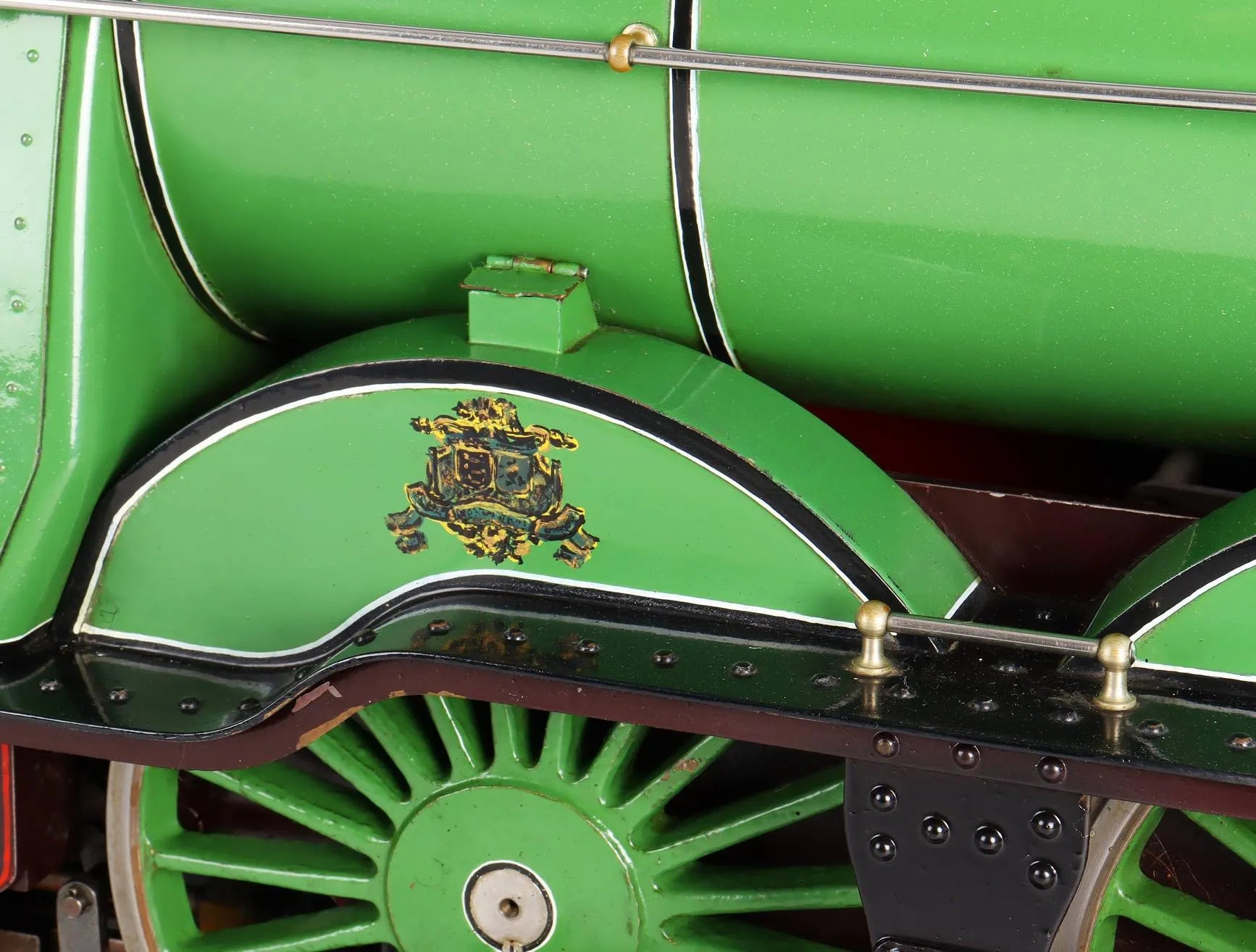

A 3 1/2 inch gauge GNR Atlantic to LBSC's "Maisie" design, an older engine, nicely painted and presented on a length of show track.

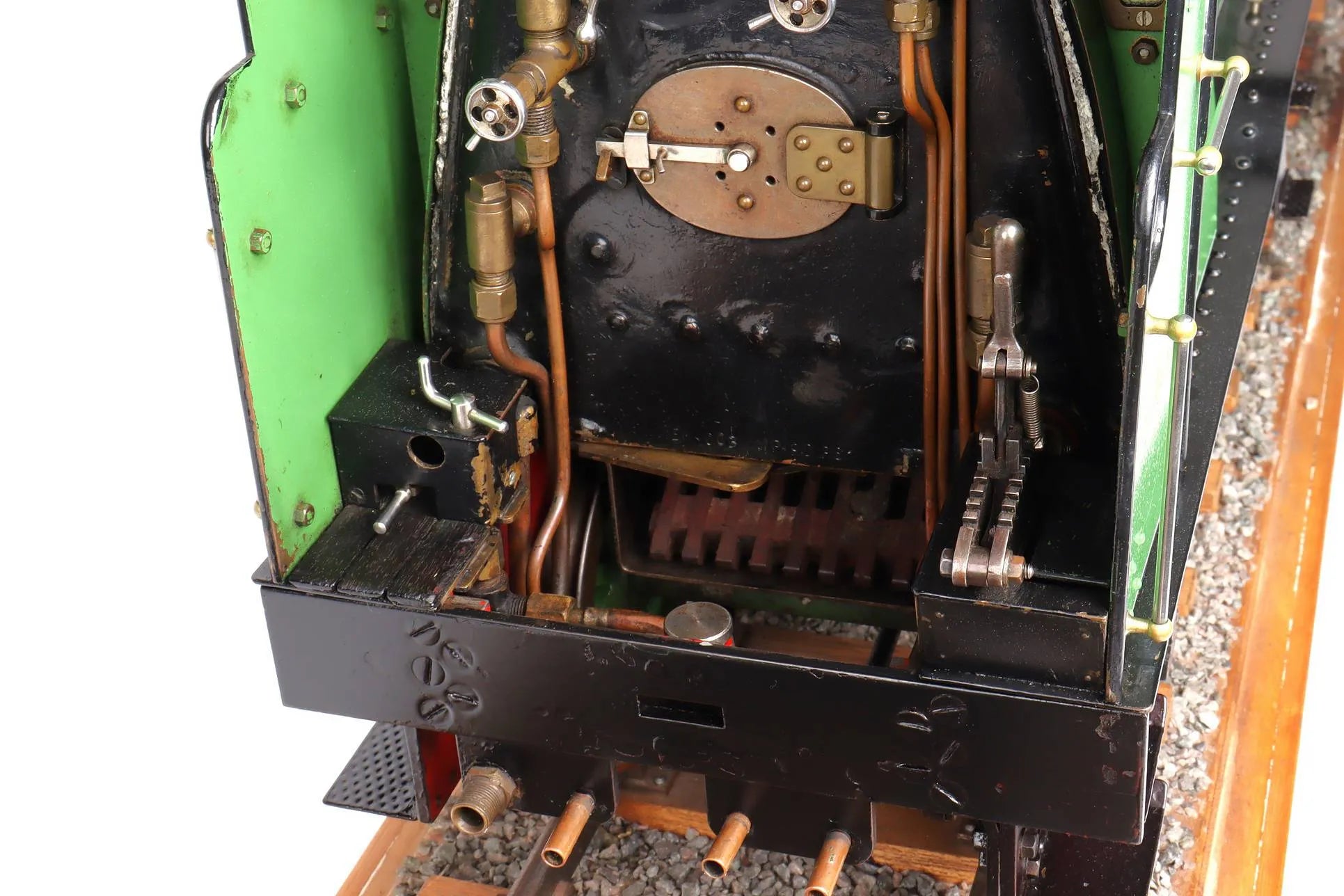

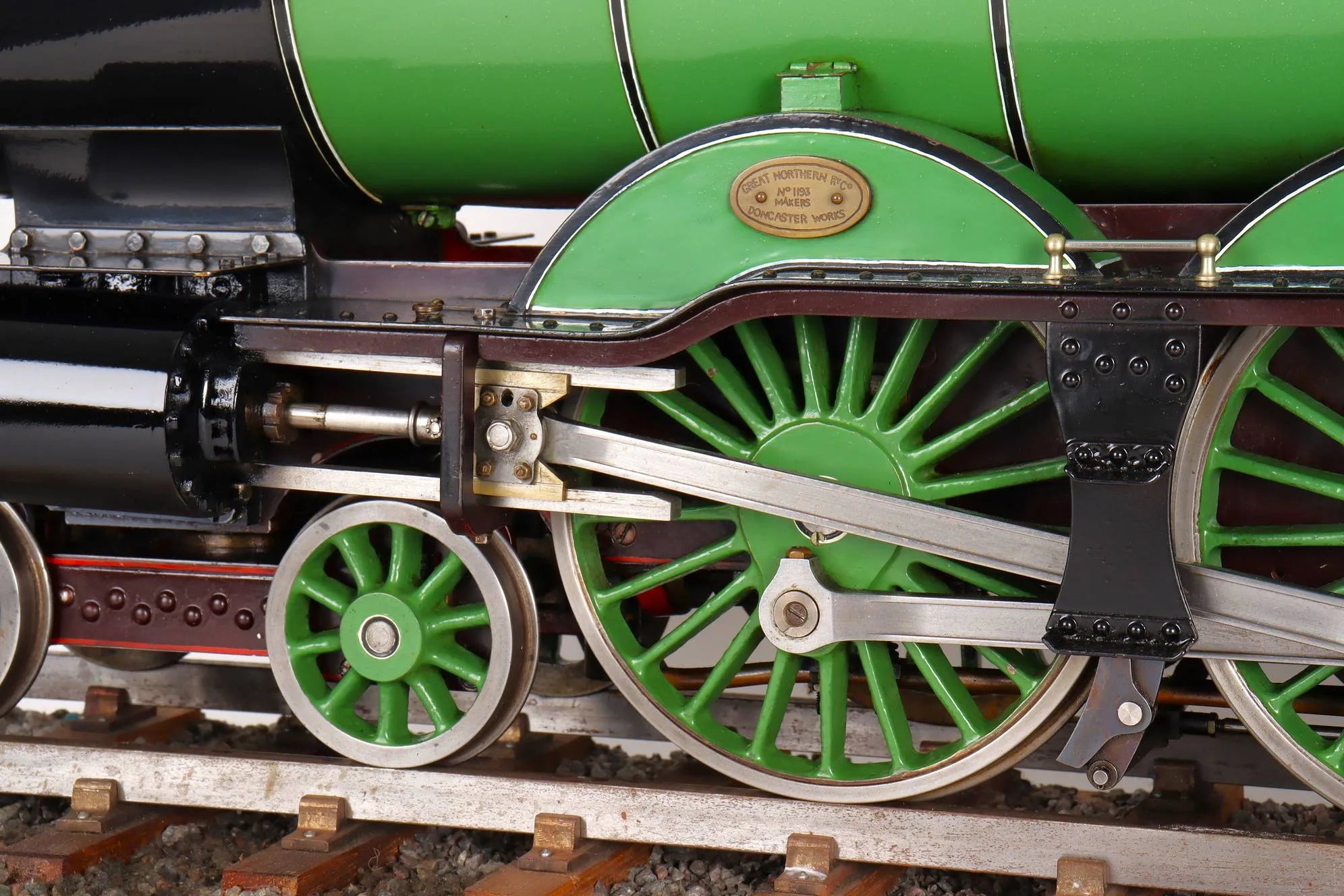

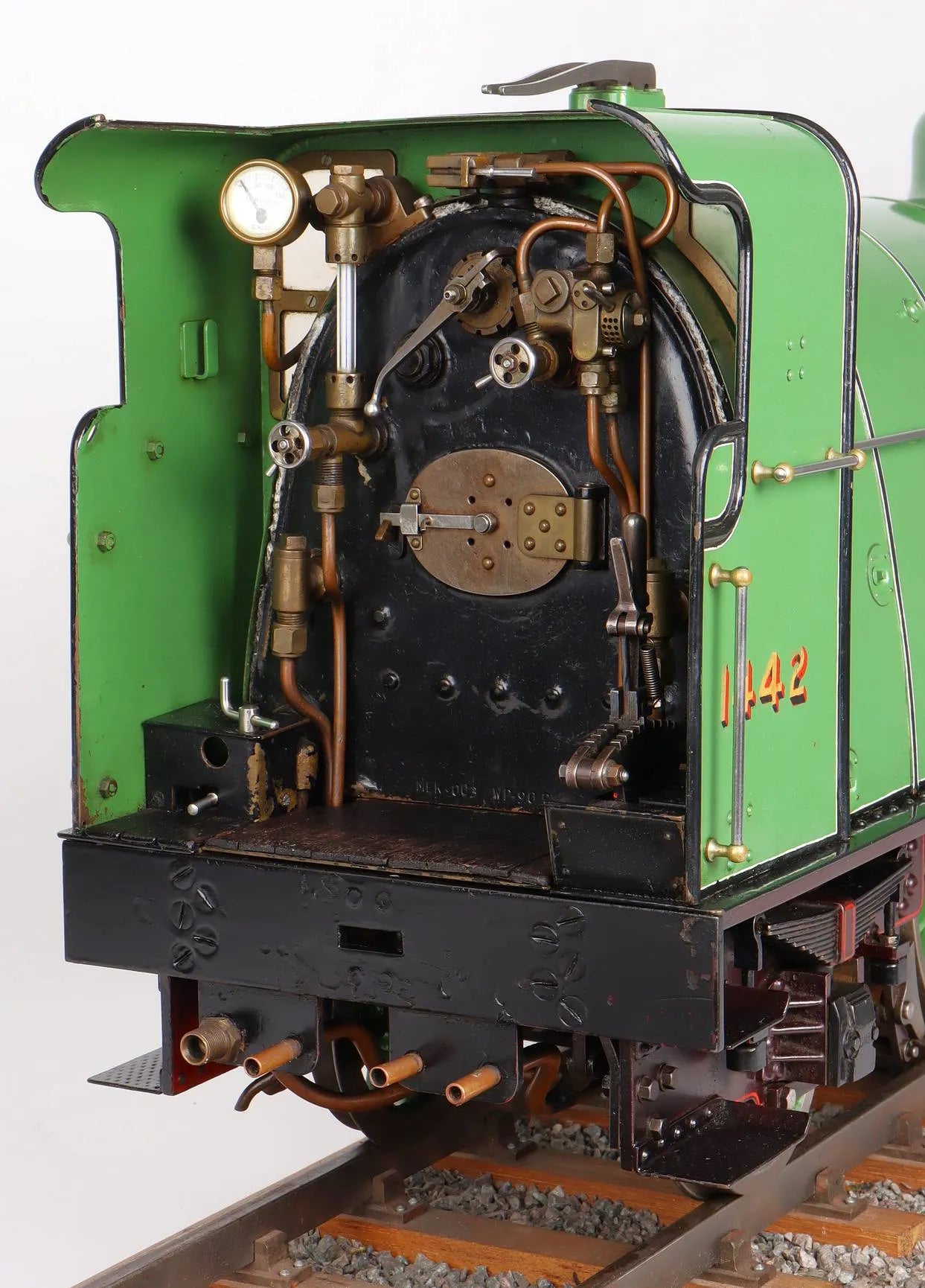

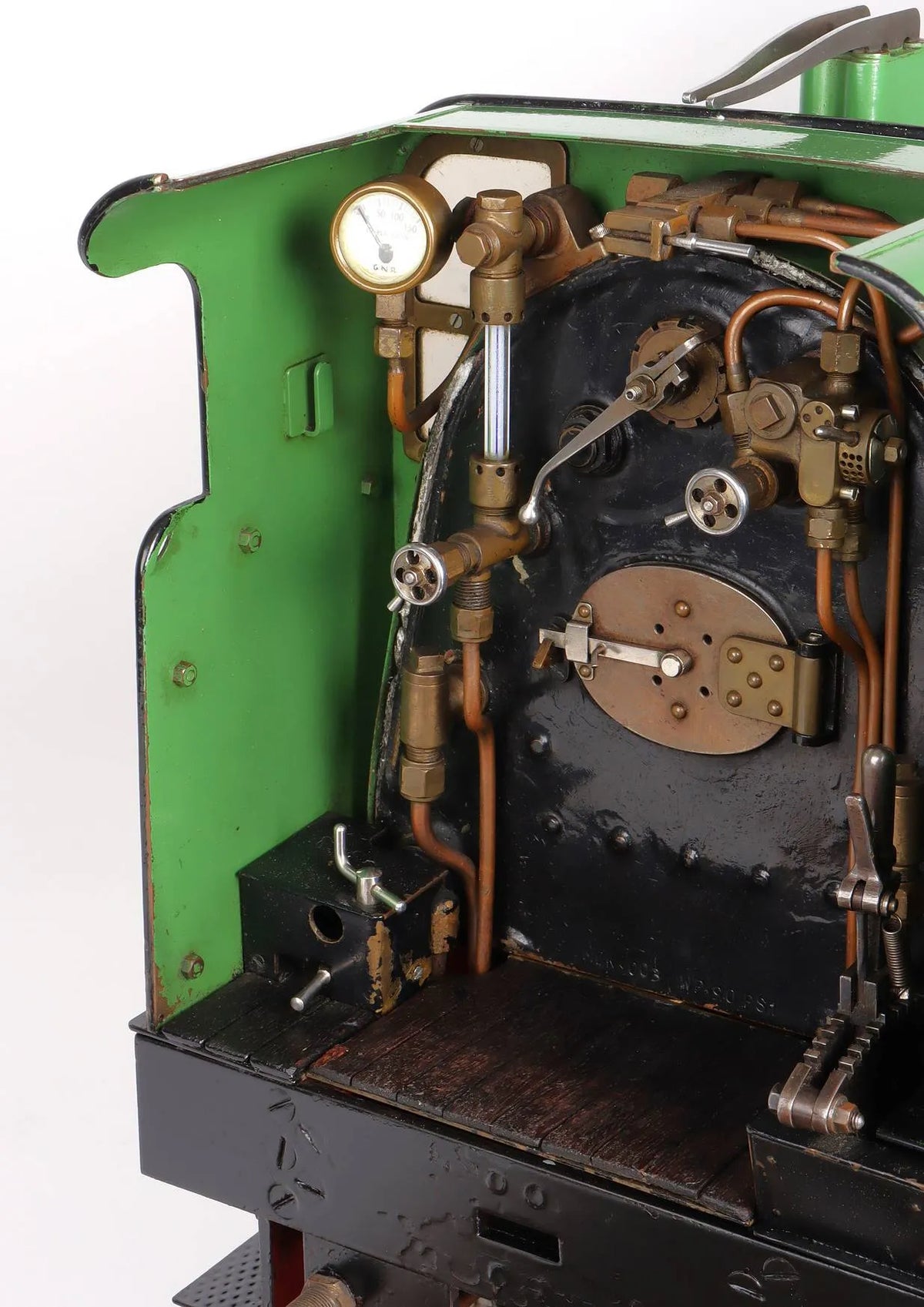

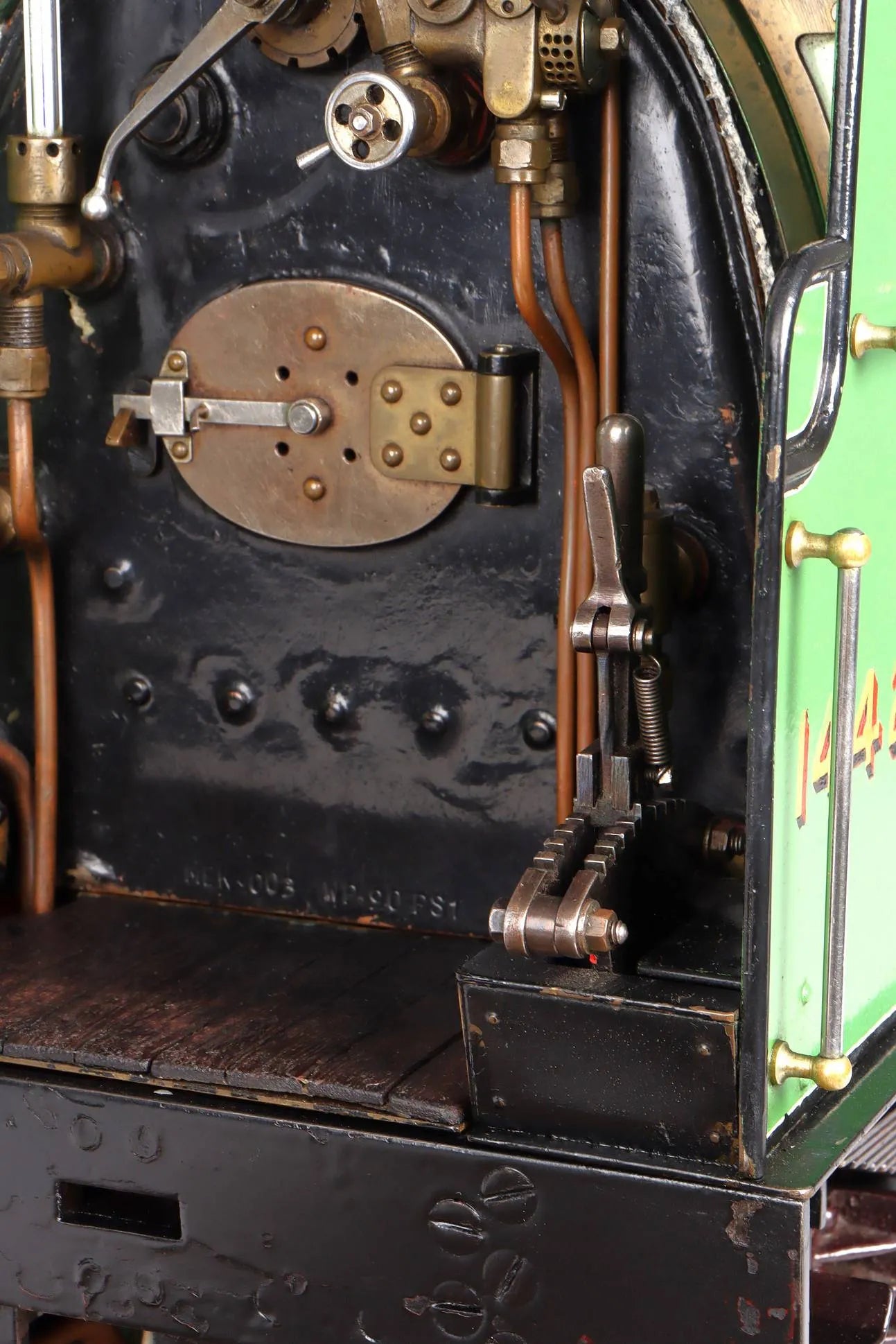

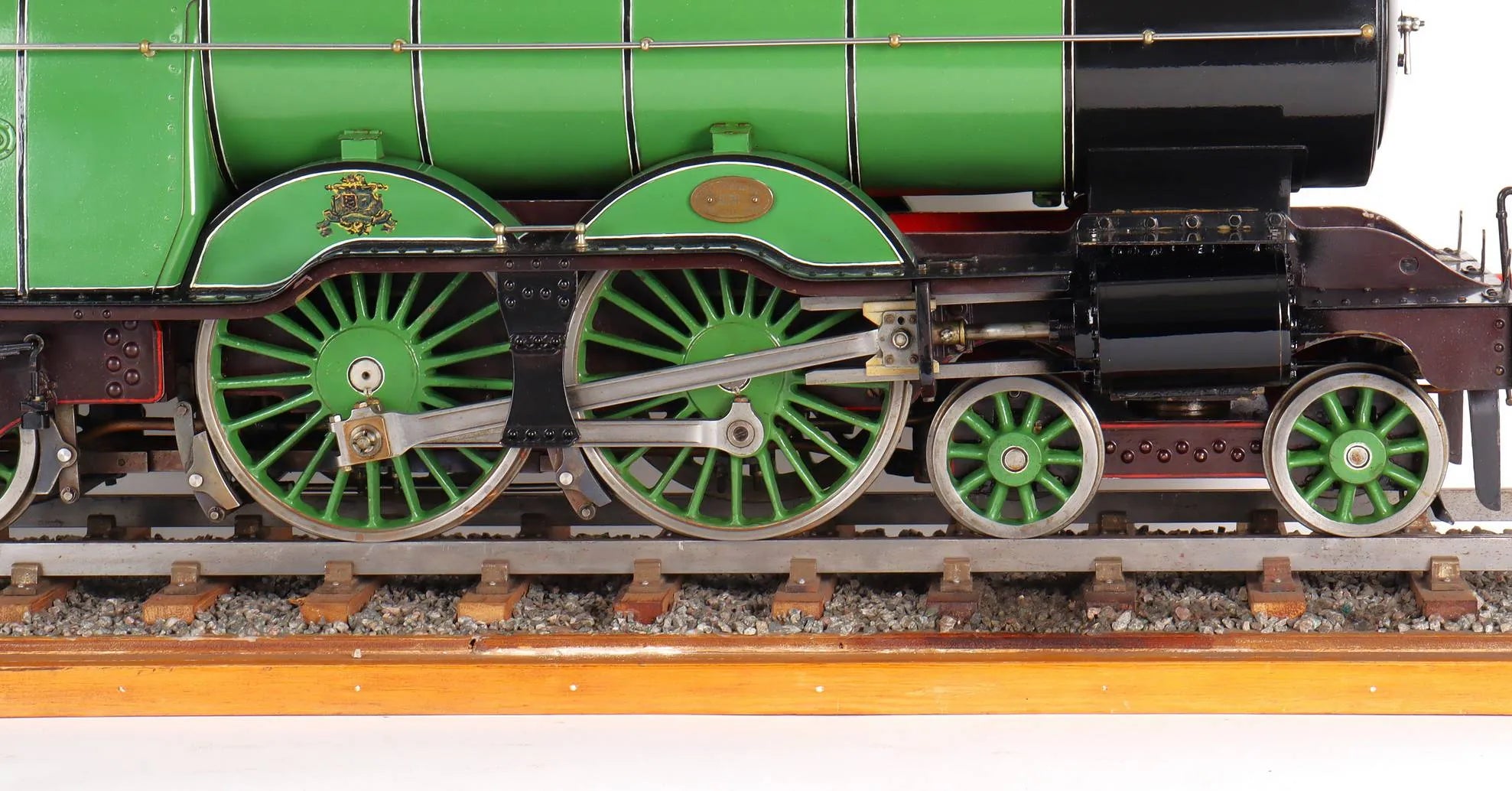

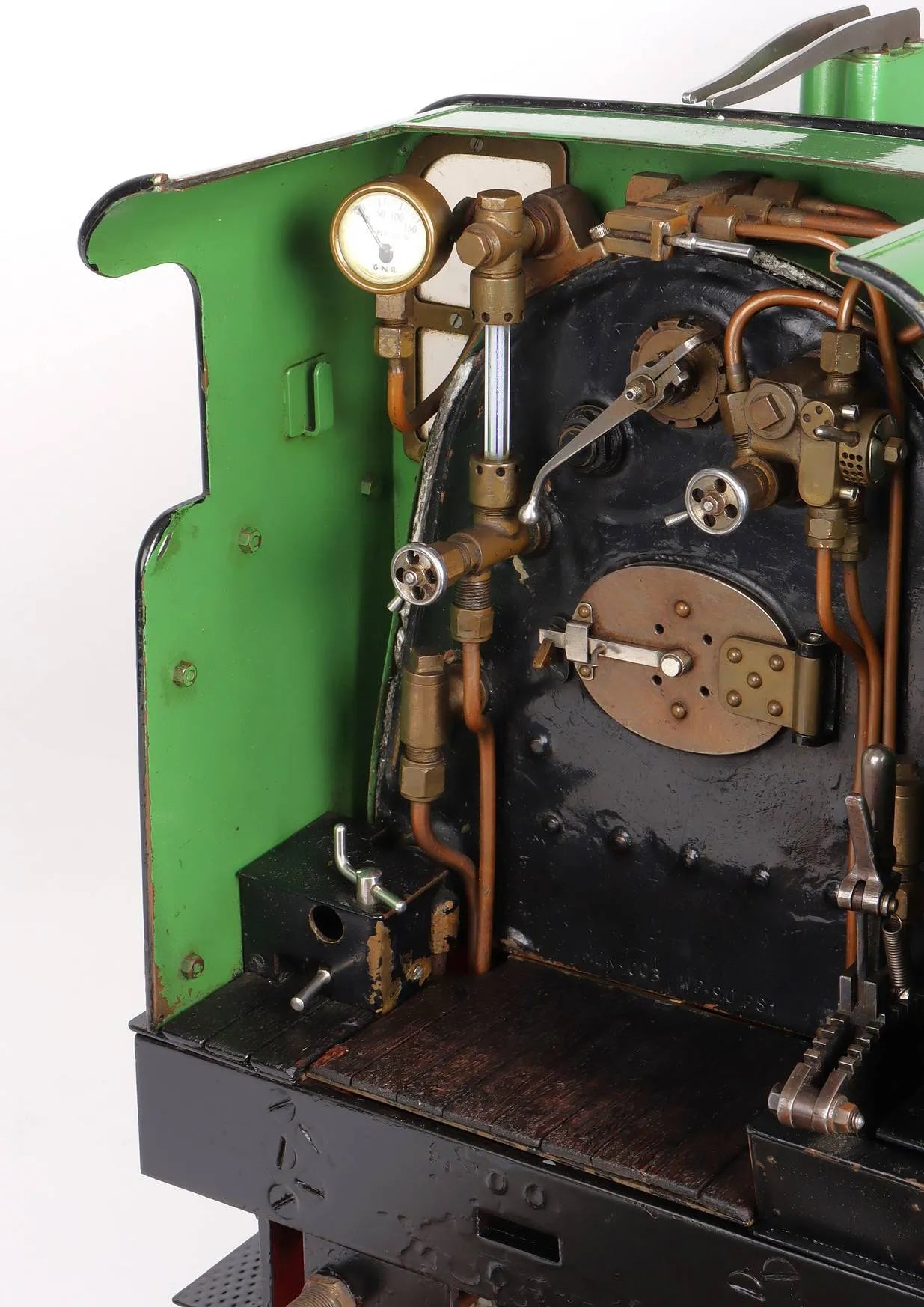

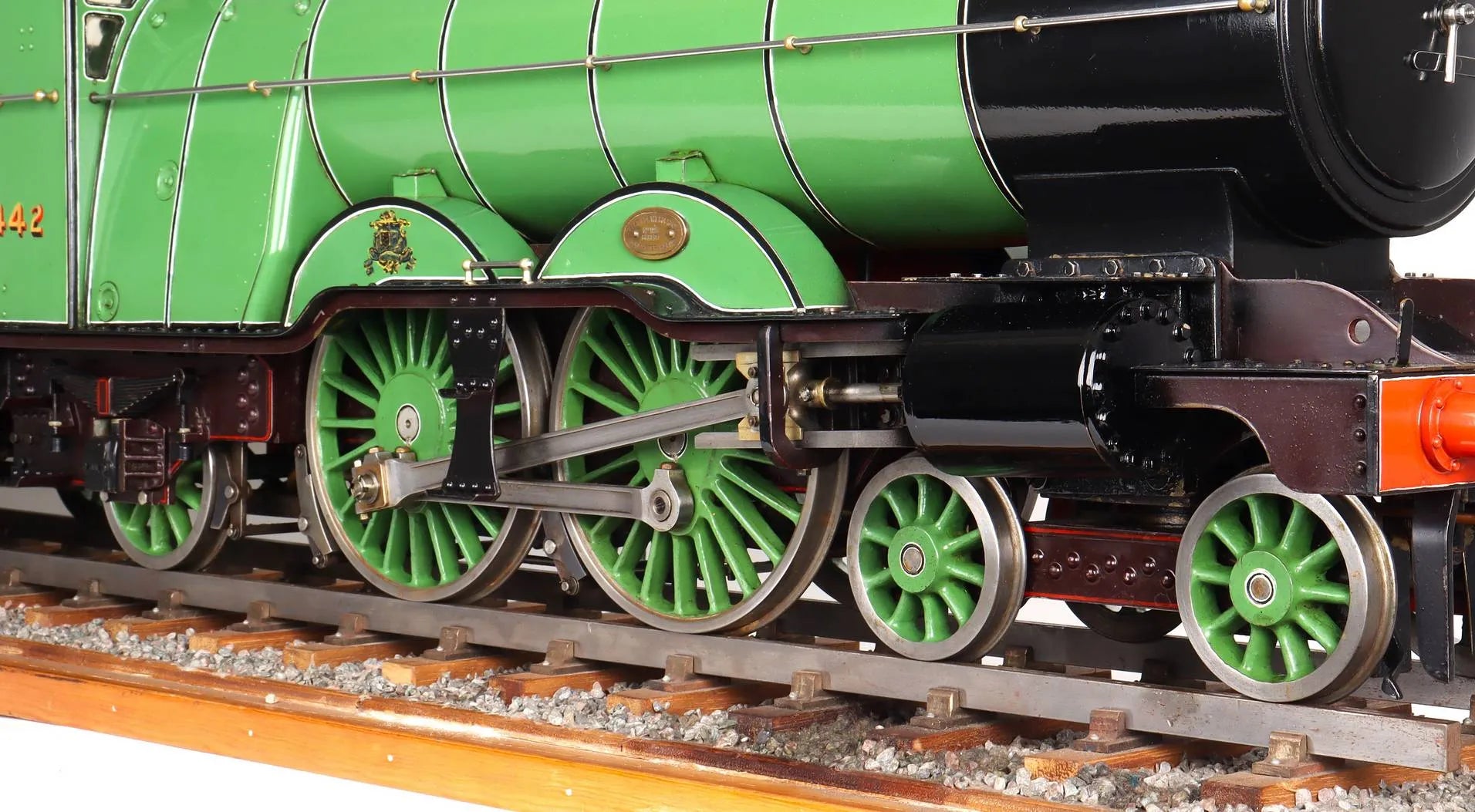

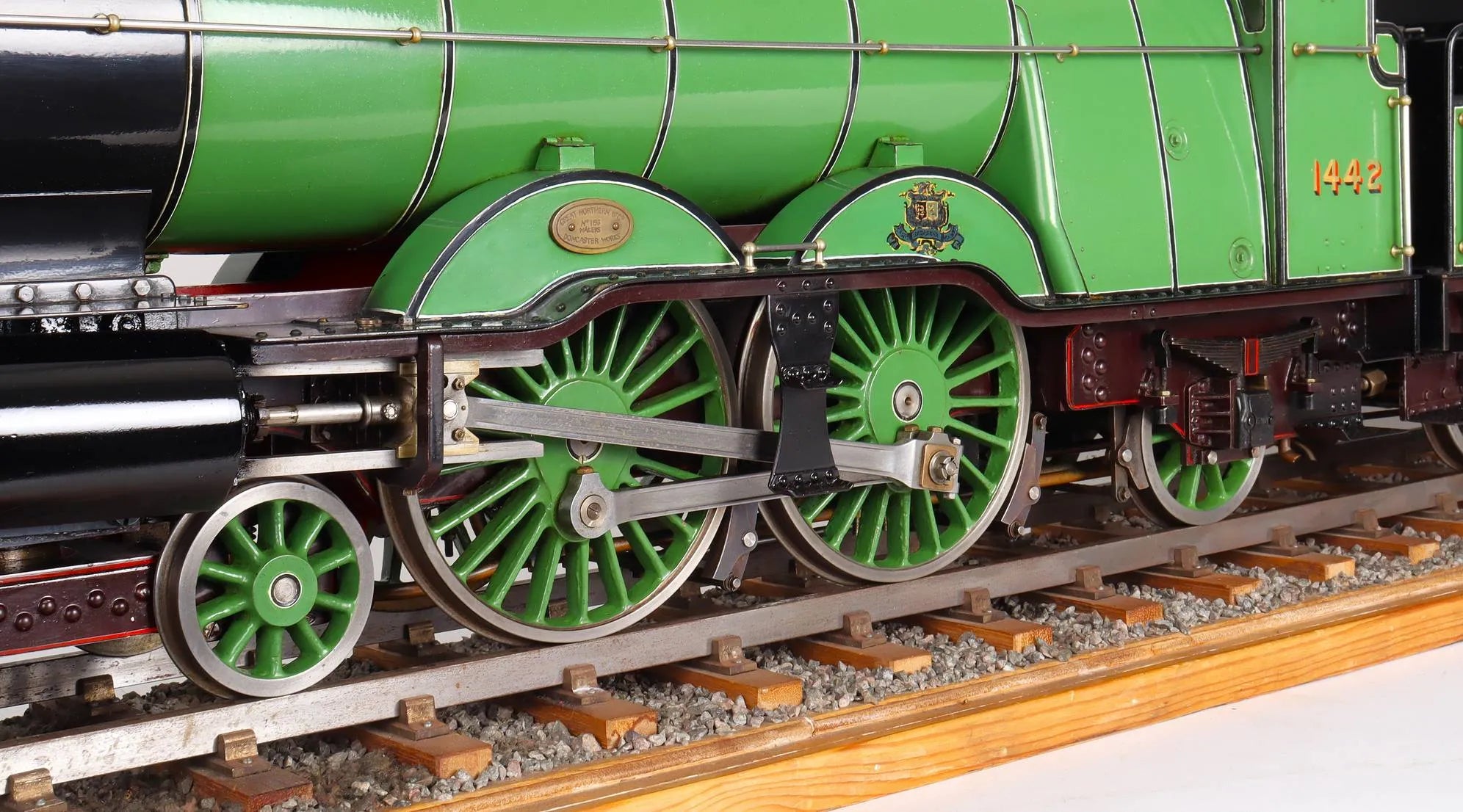

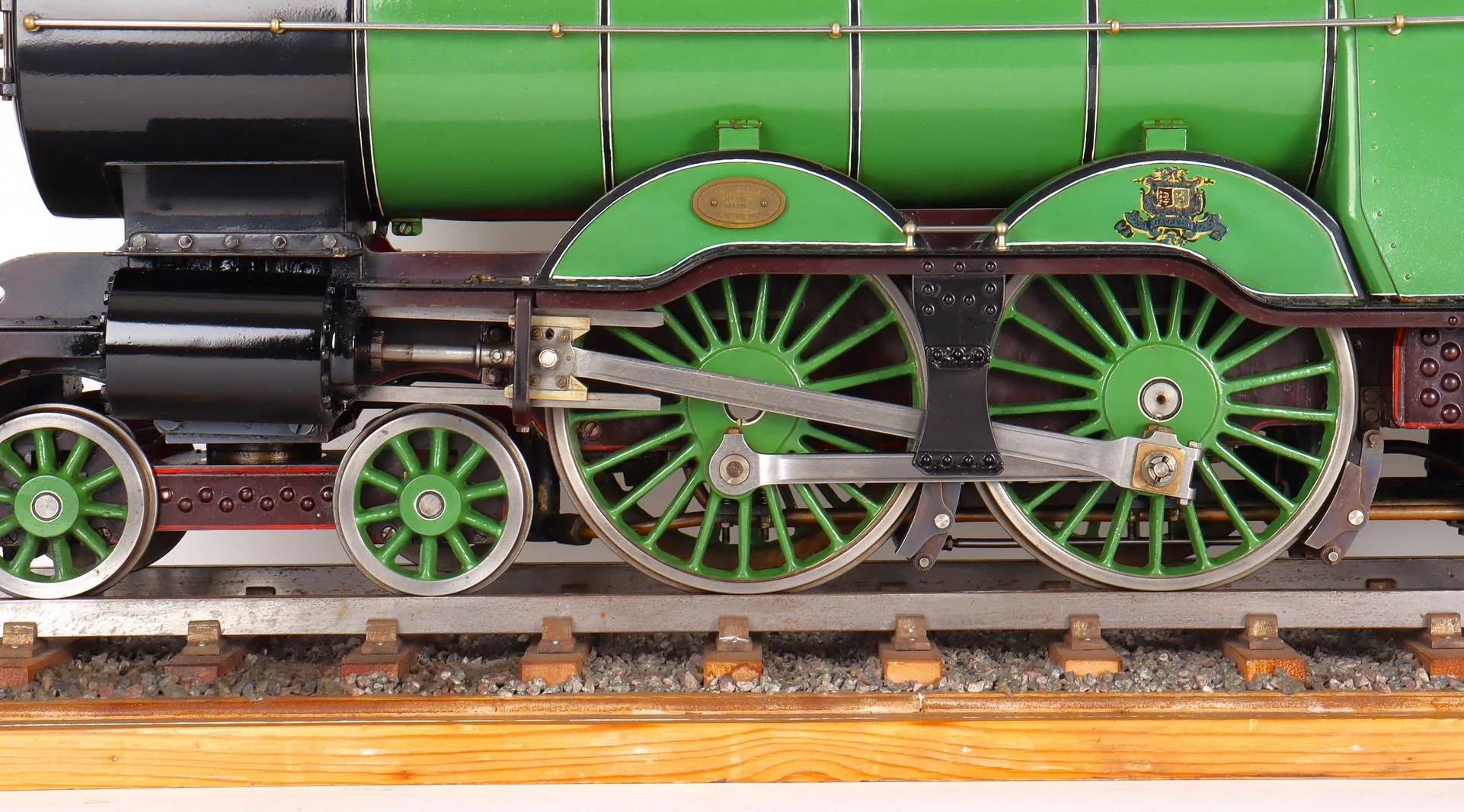

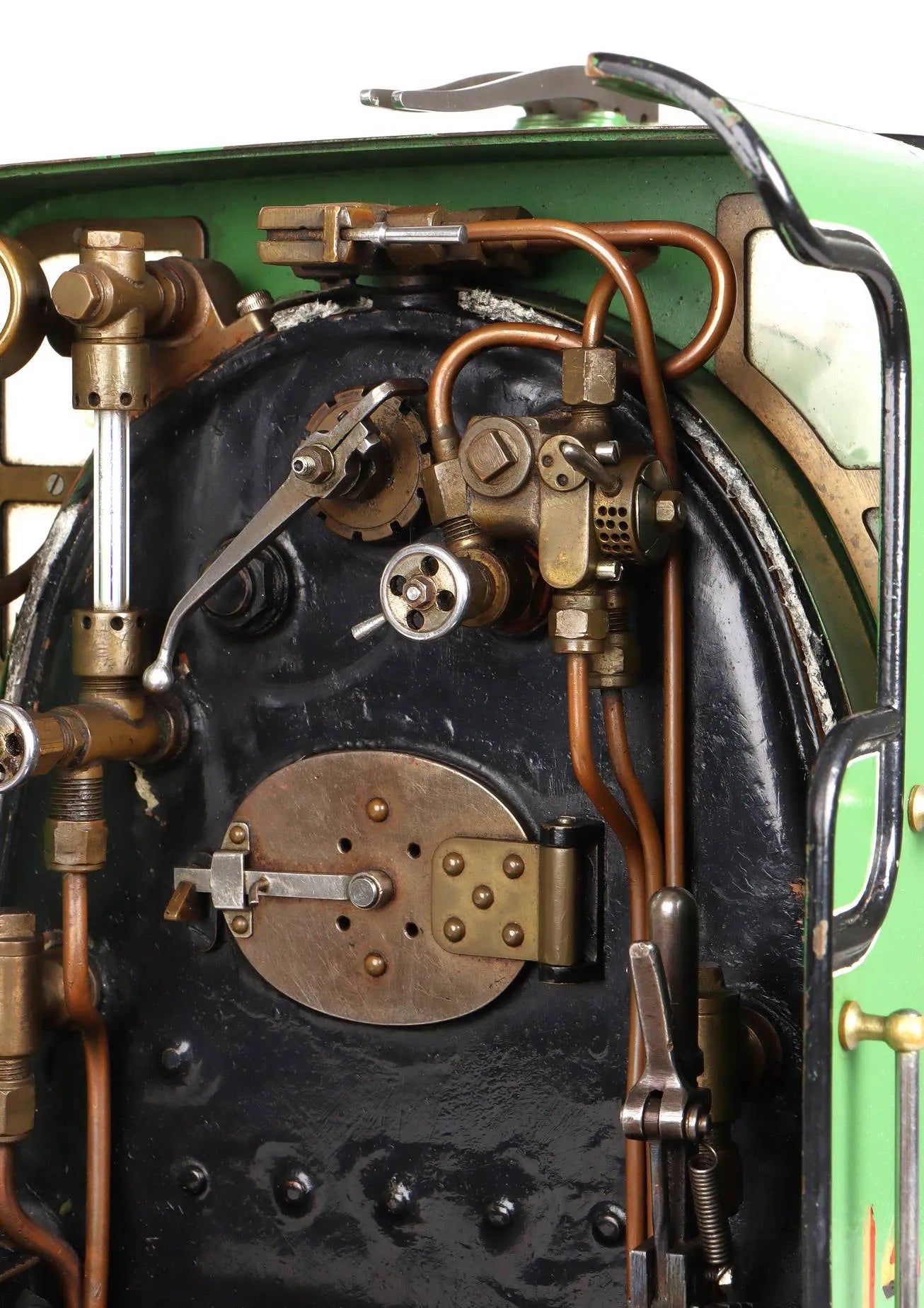

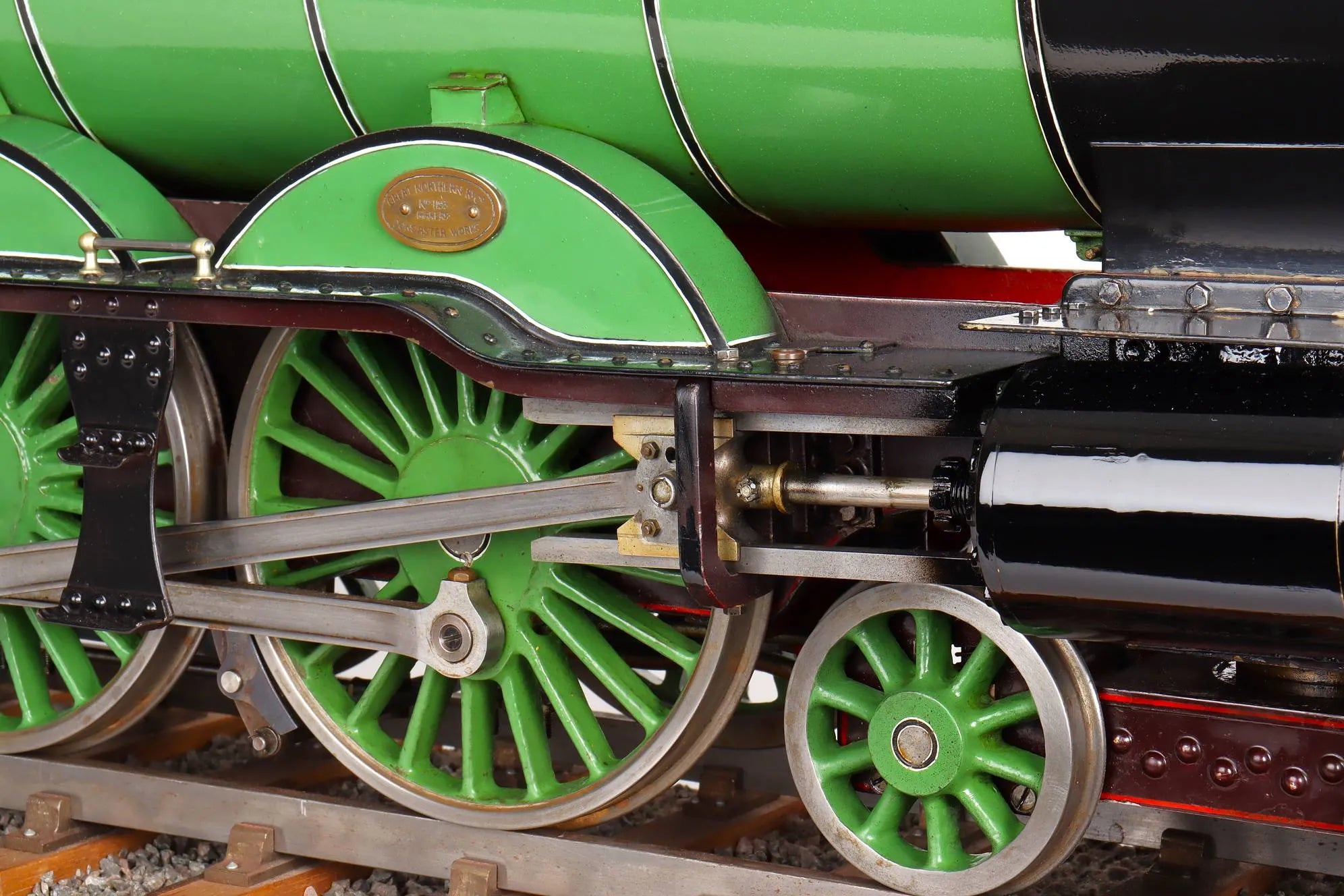

A finely made engine, fit and finish is very good throughout - we like the prototypical split big end bearings, dummy washouts on the boiler cladding and neatly piped up backhead. The engine runs well on air, with some blow by - the effect, we suspect, of spending many years on display. Steaming the engine would, no doubt, improve its running.

The boiler has had a twice working pressure hydraulic test. Structurally sound, however there is a persistent weep from the soldered inner dome joint, which would require the boiler to be lifted from the frames and stripped to repair.

Technical information

Stock code

11739

Gauge

3 1/2 inch

Length/inches

27 + 18

Width/inches

7

Height/inches

11

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

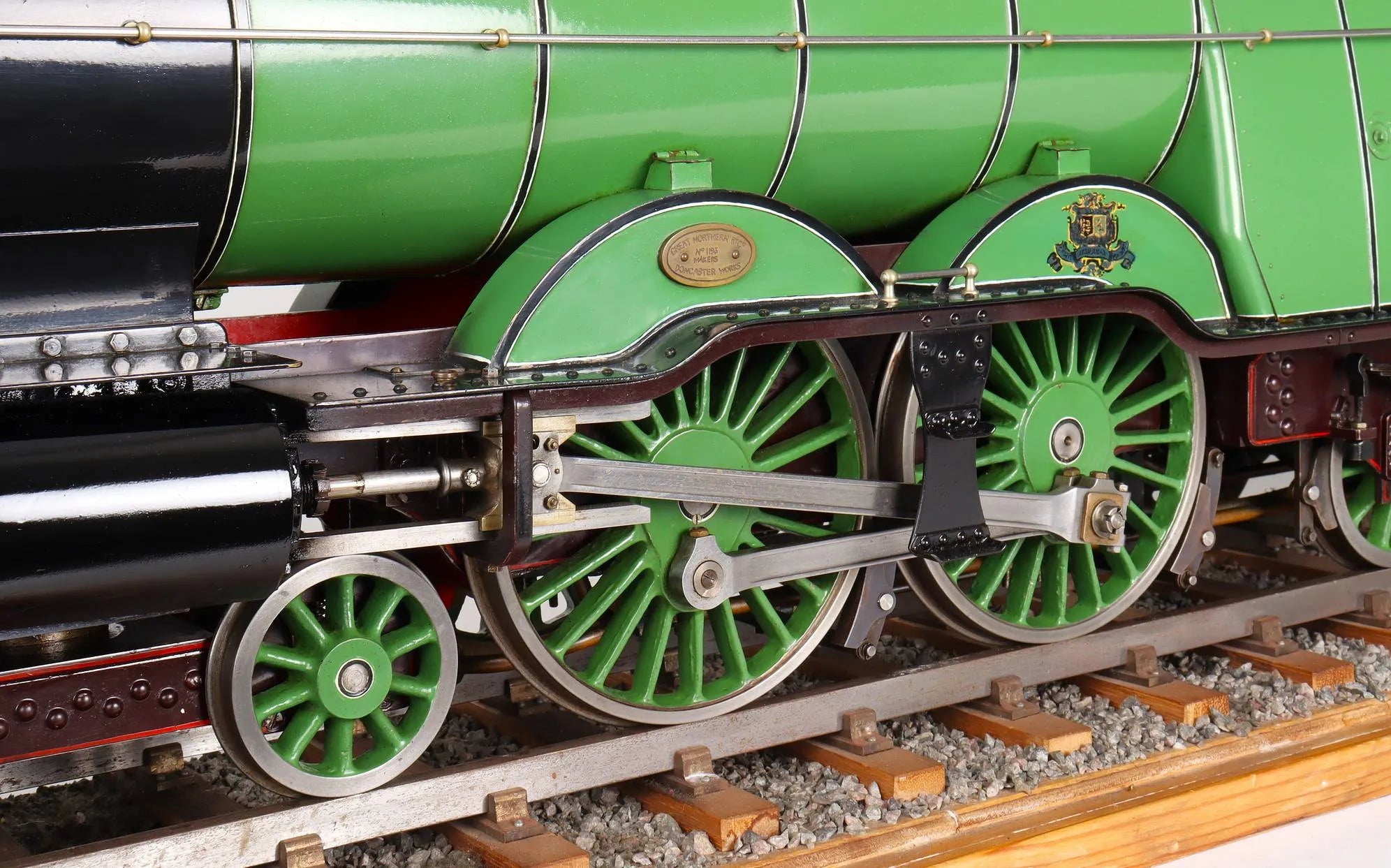

Valve gear

Stephensons

Reverser type

pole

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

Safety valve type

spring

Safety valve

1

Whistle

yes

Hand pump

1

Mechanical pump

1

Superheater type

flue tube

Superheater

3

Date out

Feb-24
