11836

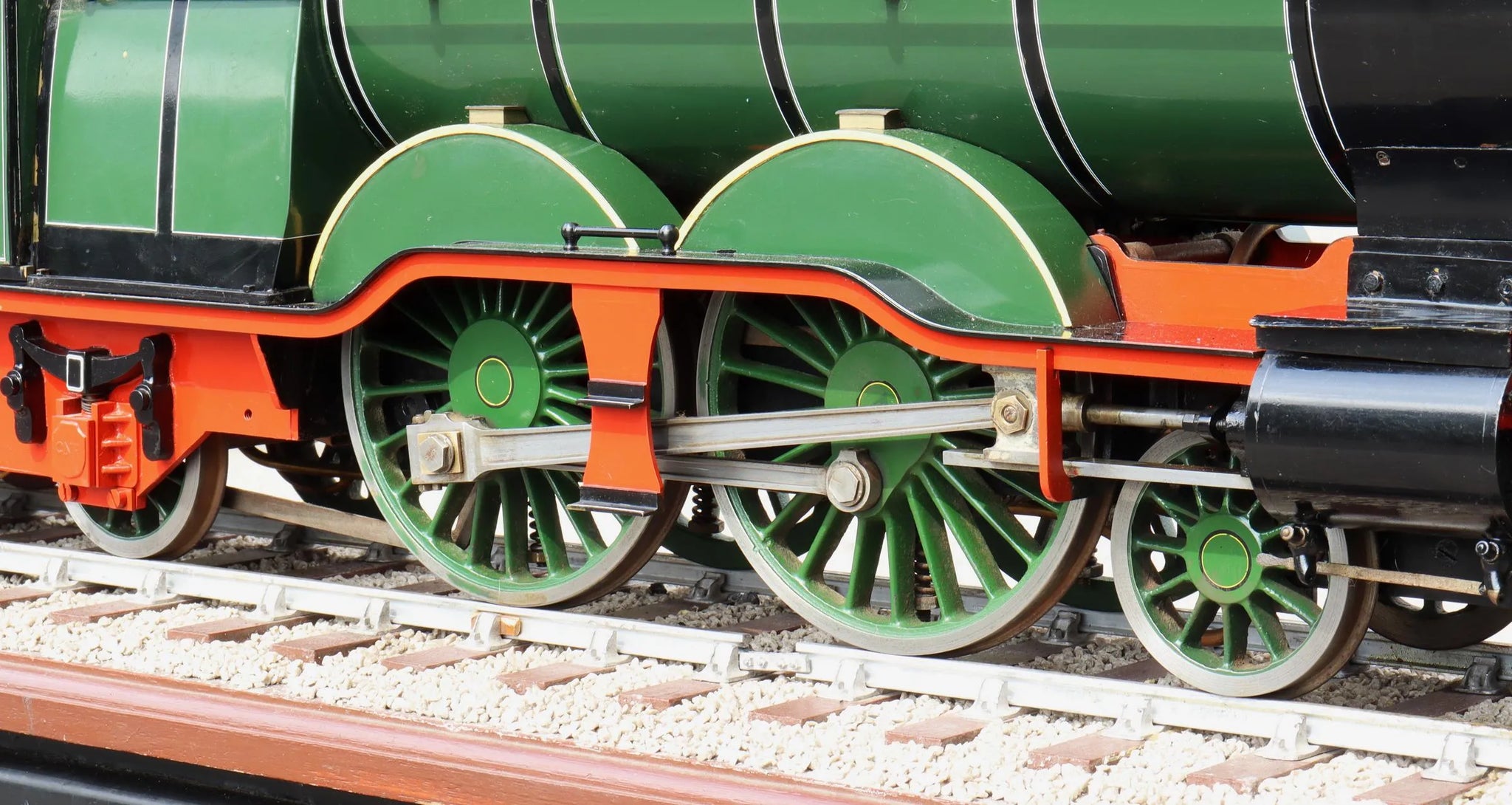

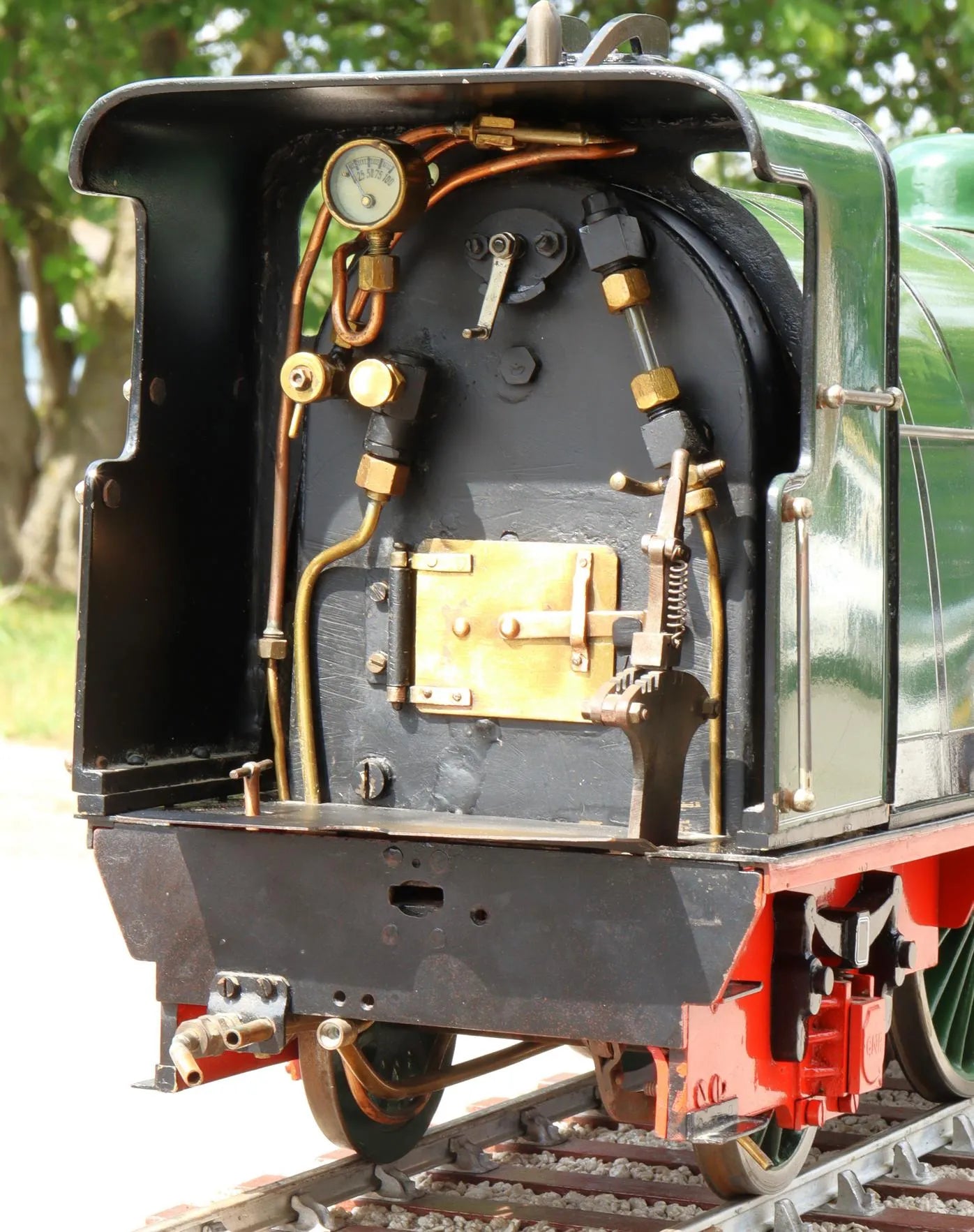

The chassis runs on air in both directions. The boiler has had a hydraulic test, which showed put several small leaks from the firehole door ring and firebox stays.
Stock code |
11836 |
Gauge |
3 1/2 inch |
Length/inches |
27.5+17 |
Width/inches |
7.5 |
Height/inches |
12 |
Weight/Kg |
20 + 7 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |
Stephensons |
Reverser type |
pole |
Boiler maker |
non-commercial |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Year built |
unknown |
Safety valve type |
spring |
Safety valve |
1 |
Fusible plug |
no |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Superheater type |
flue tube |
Superheater |
2 |
Date out |
Nov-25 |
