12146

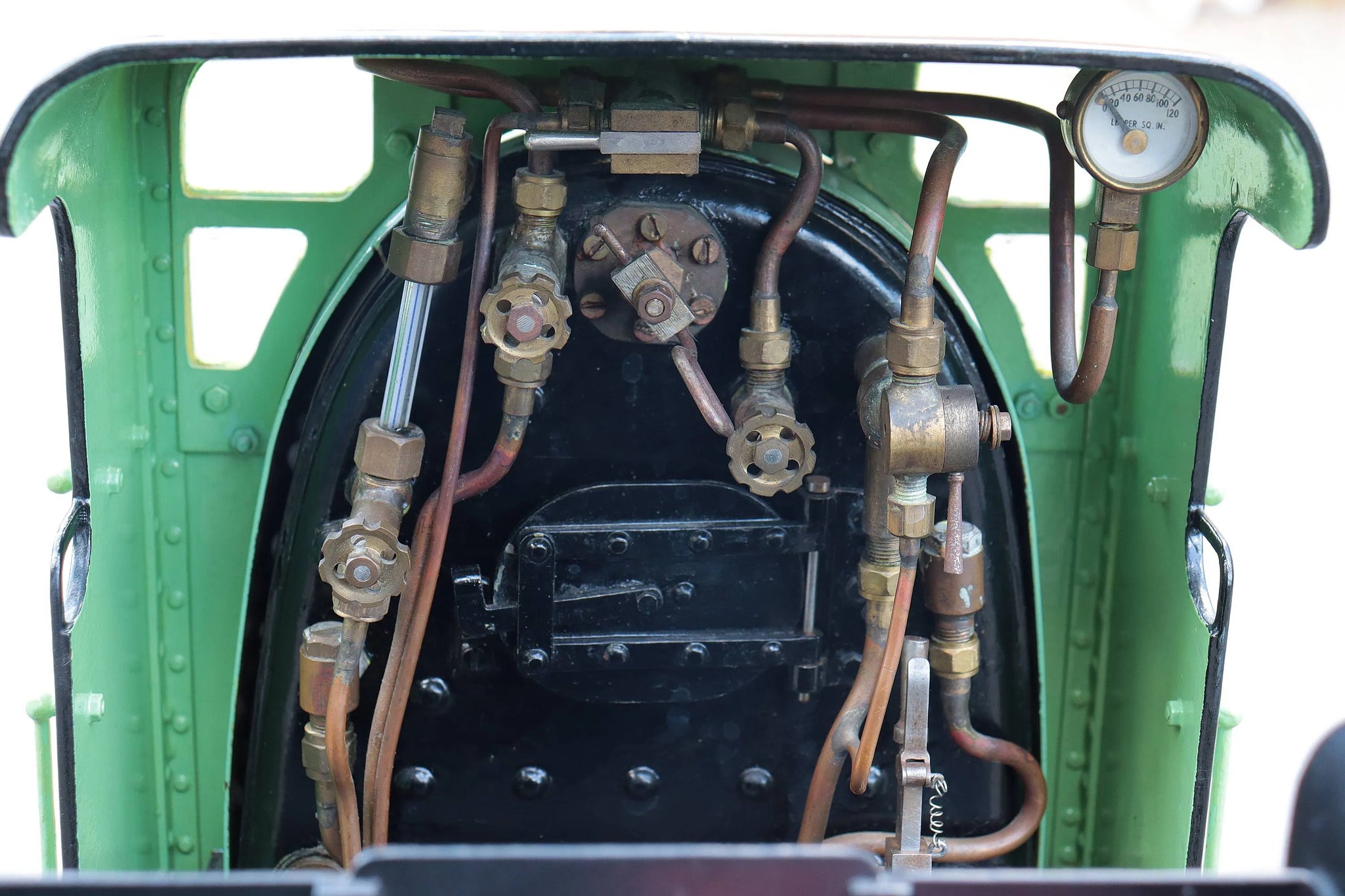

The boiler has had a twice working pressure test with new certification issued, it's warrantied as sound. The whistle and steam brake valves both leaked copiously on hydraulic test.

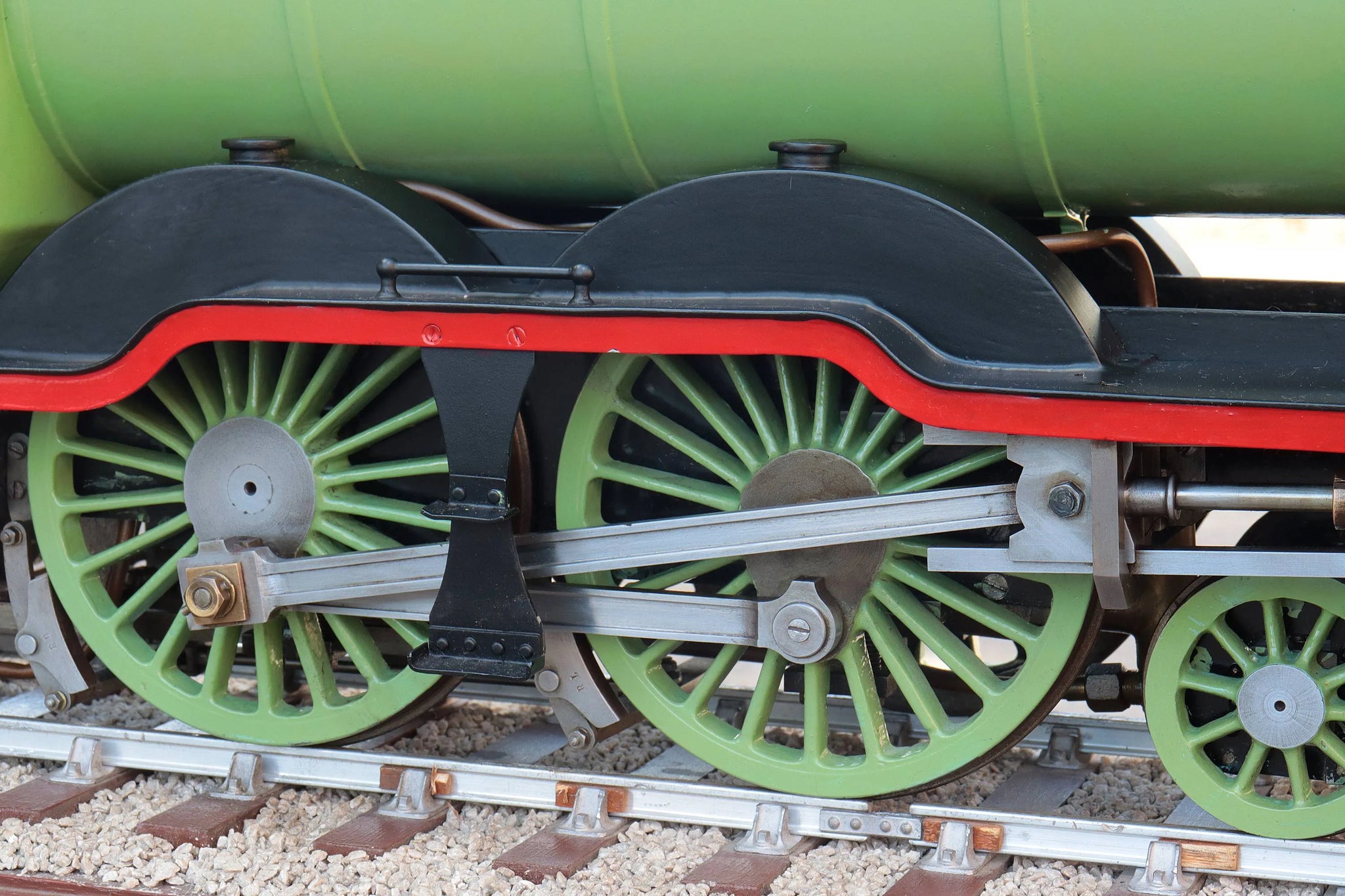

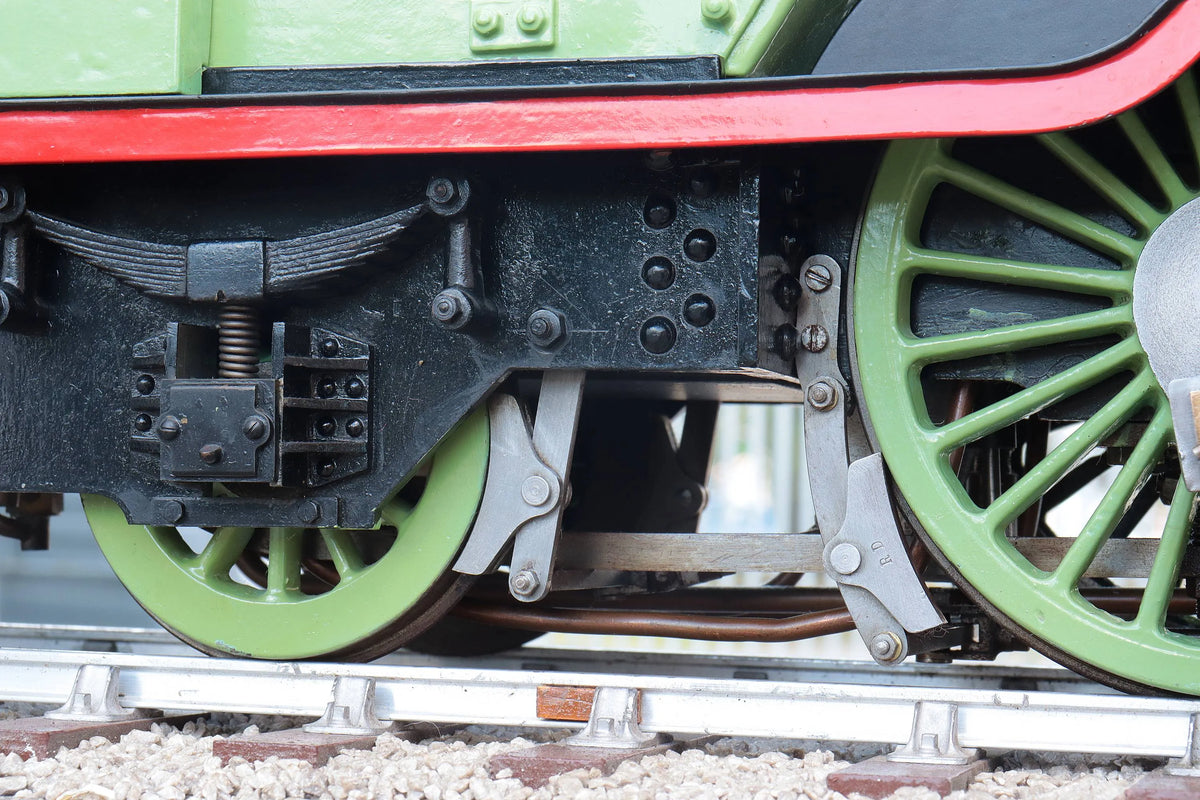

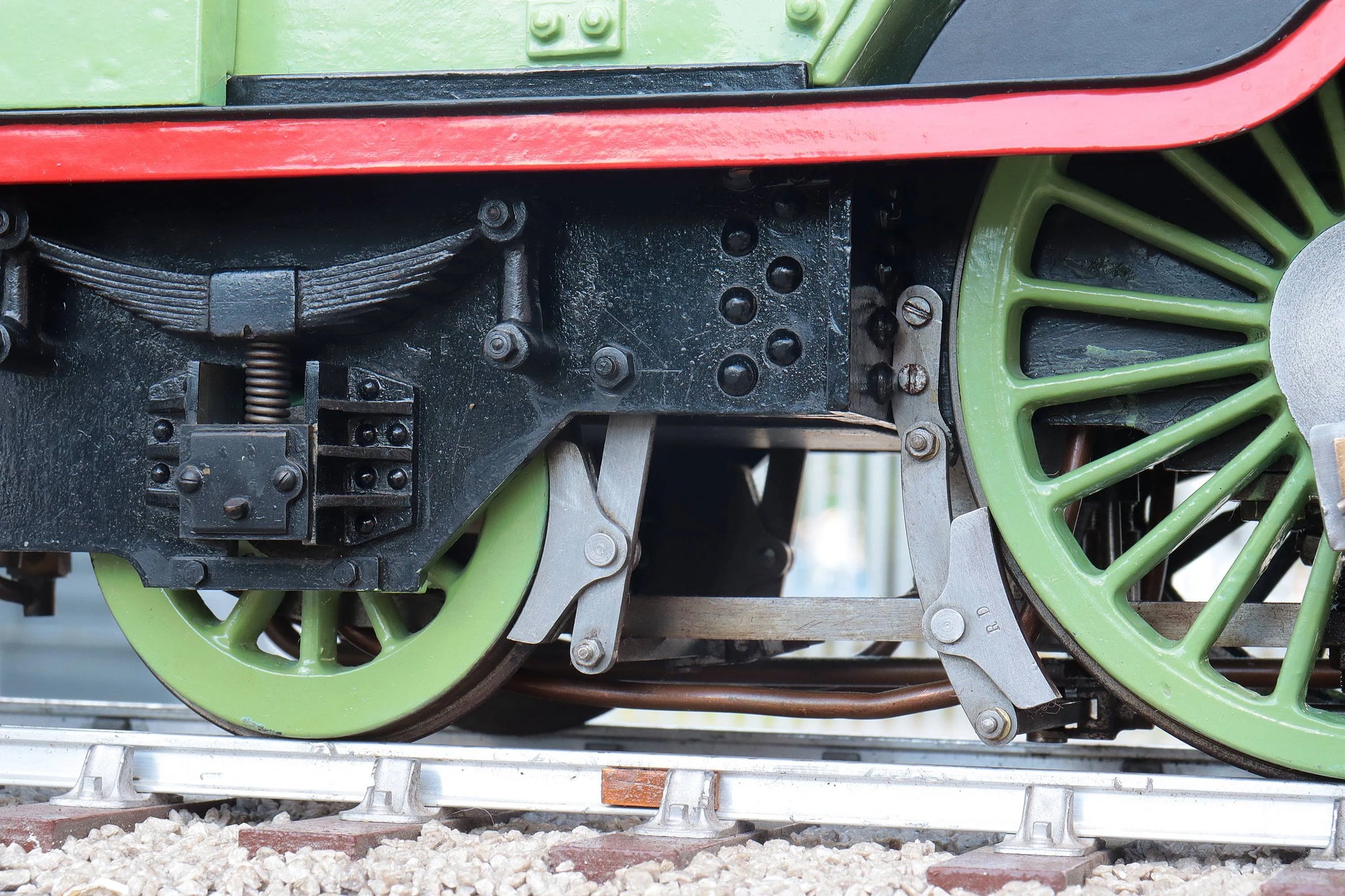

Whilst not seized, the chassis is tight to turn over, finish being better than fit. It wants careful dismantling and easing of the bushes and bearings to give some running clearance.

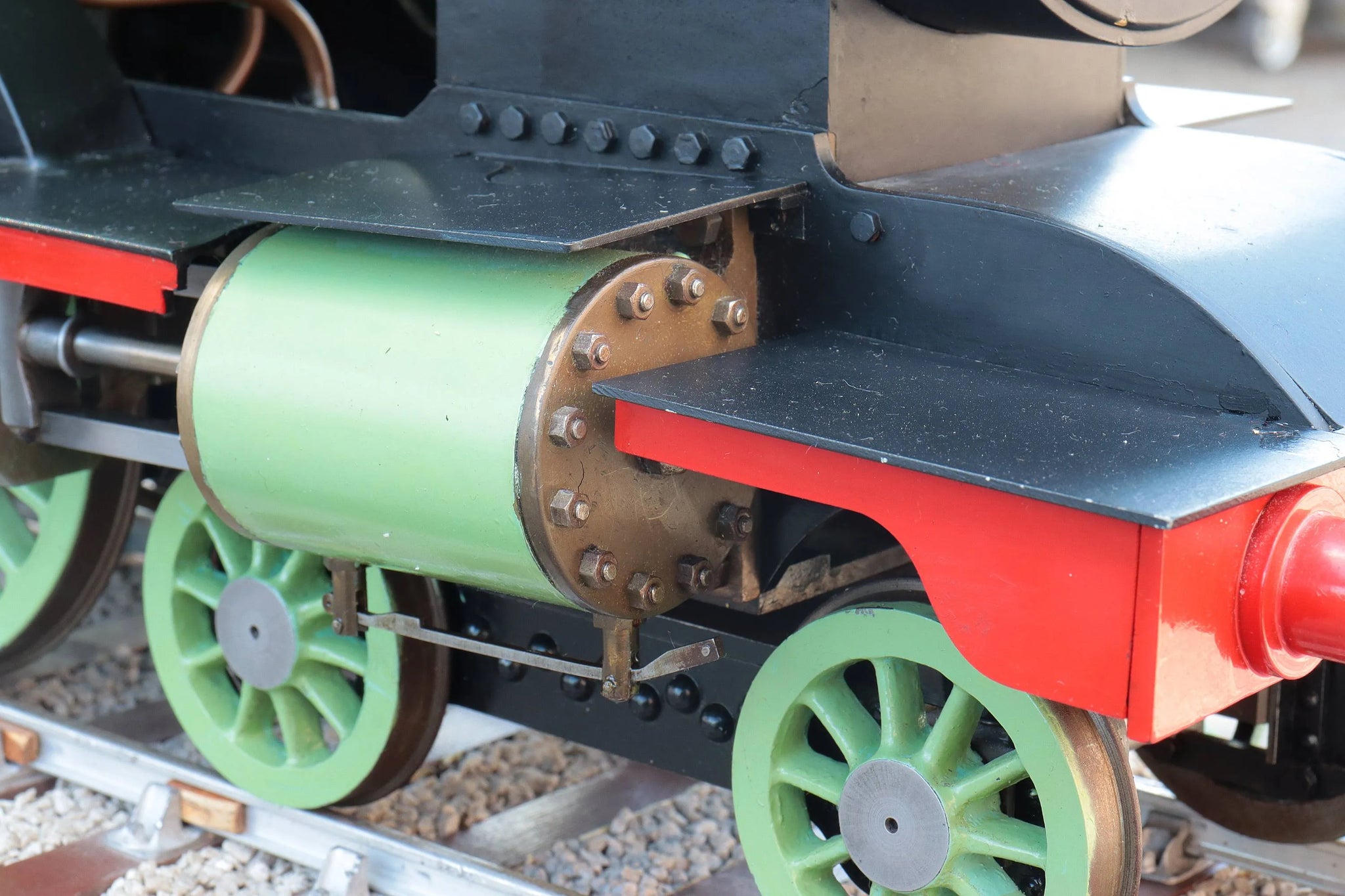

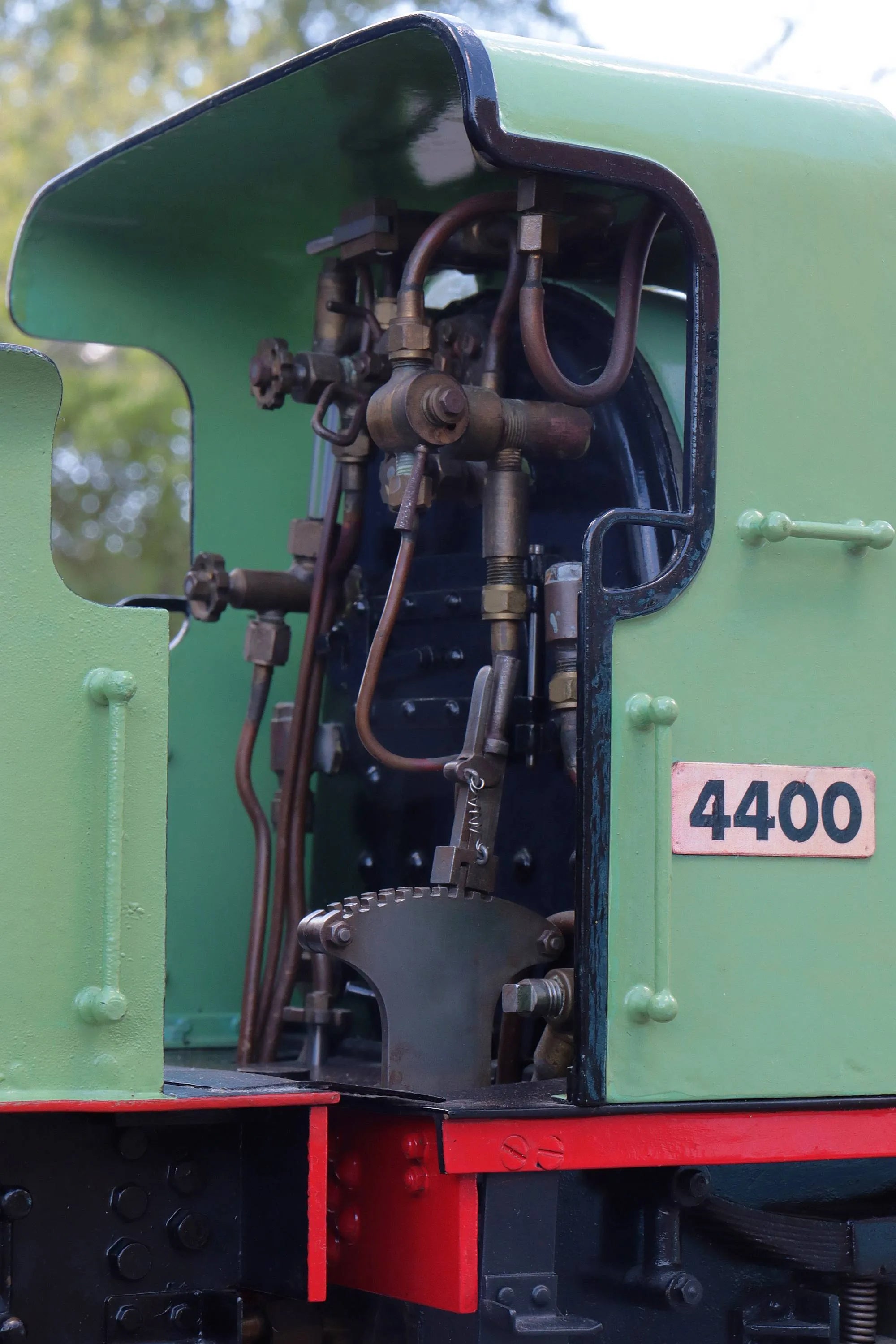

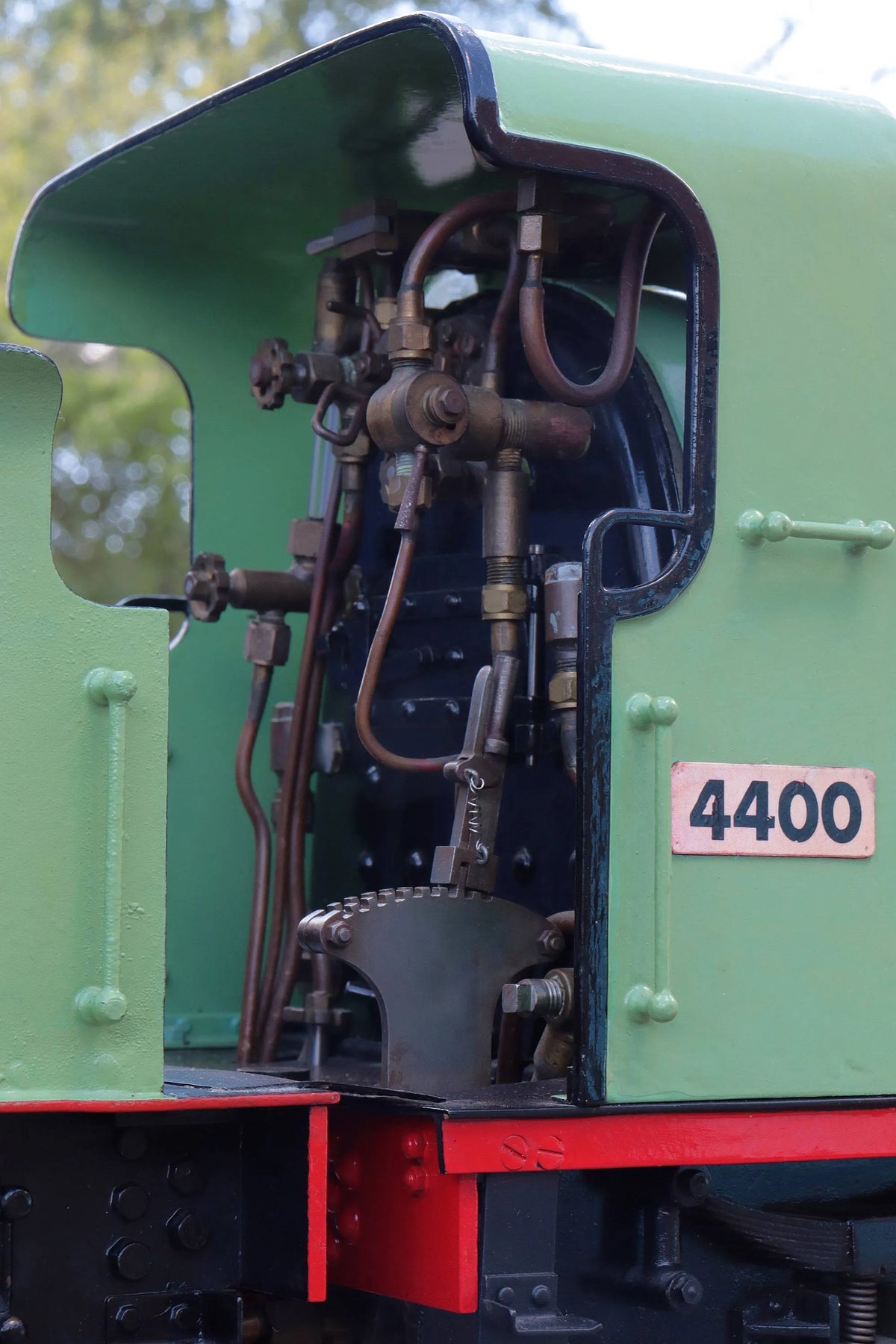

Fitted with drain cocks, although there is no linkage to the cab.
Stock code |
12146 |
Gauge |
3 1/2 inch |
Length/inches |
30+19 |
Width/inches |
7 |
Height/inches |
10 |
Weight/Kg |
25+9 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |
Stephensons |
Reverser type |
pole |
Boiler maker |
non-commercial |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
CE/UKCA mark |
n/a - non-commercial |
Year built |
1974 |
Boiler number |
12146 |
Safety valve type |
spring |
Safety valve |
1 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
2 |
Date out |
Jun-25 |
Hydraulic test valid to |
17-Jul-28 |
