12523

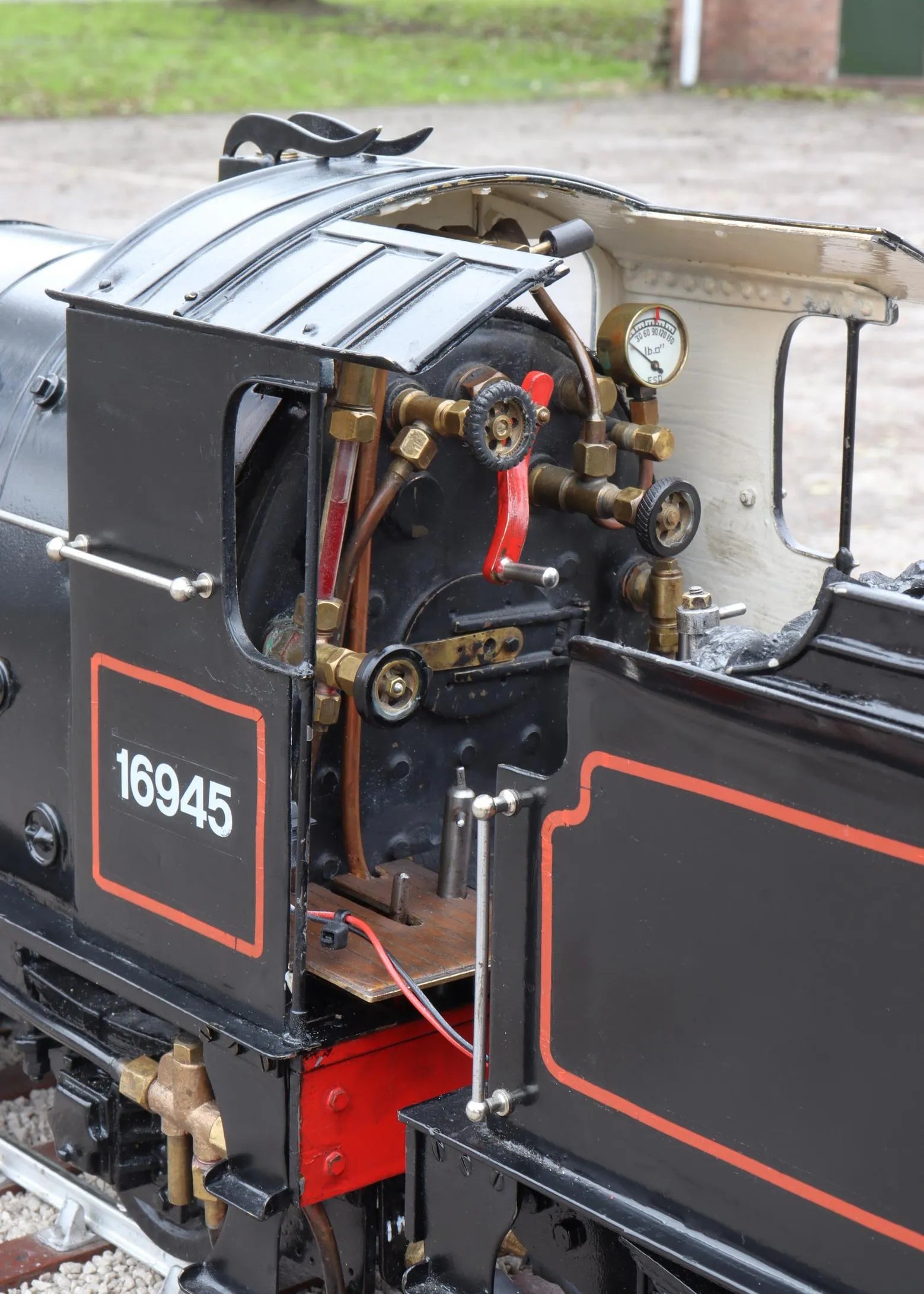

On test the axle and hand pumps worked well and the injector picked up cleanly. The safety valve opened reliably and maintained pressure within prescribed limits, although sometimes needing the lightest of taps with the shovel to close.

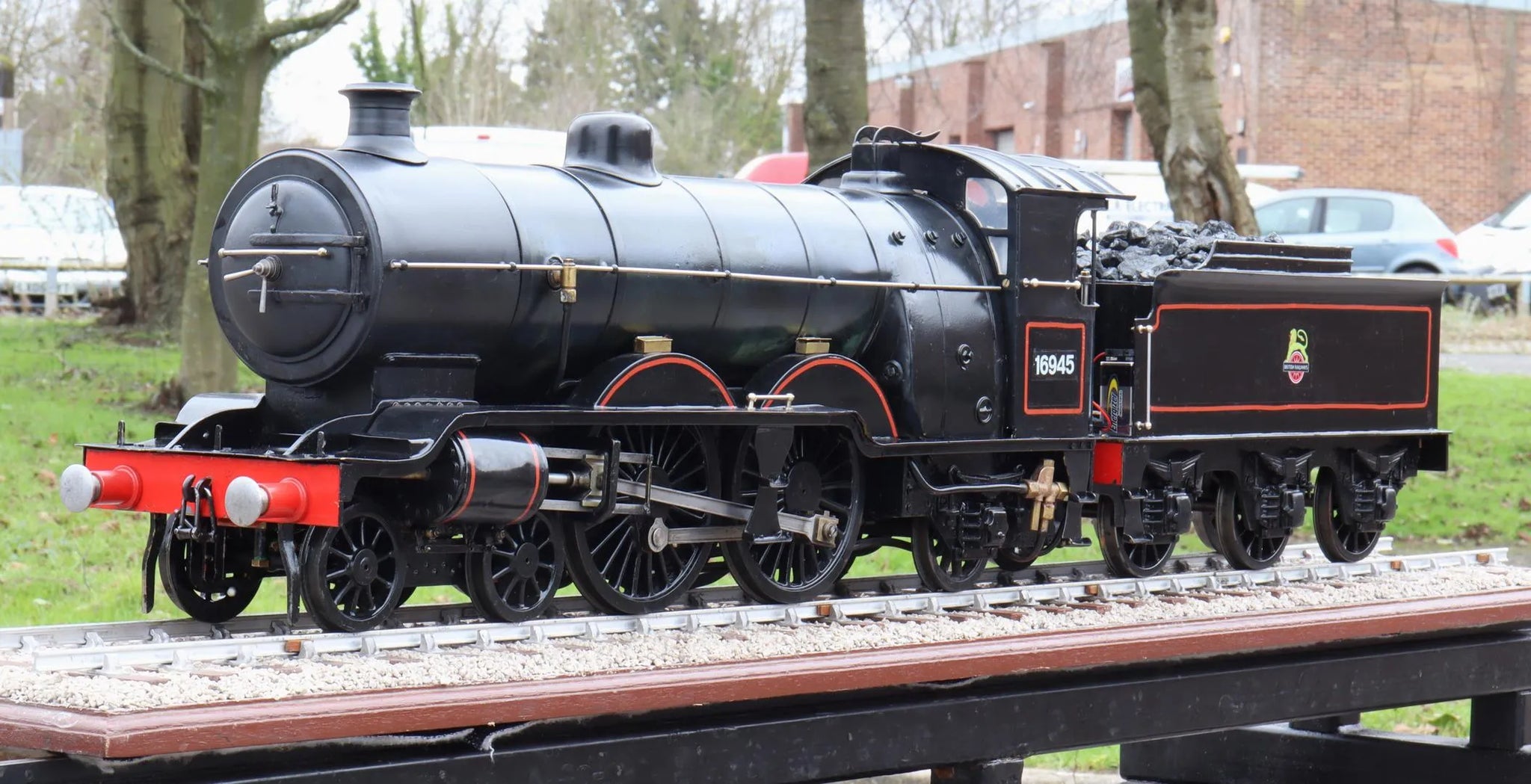

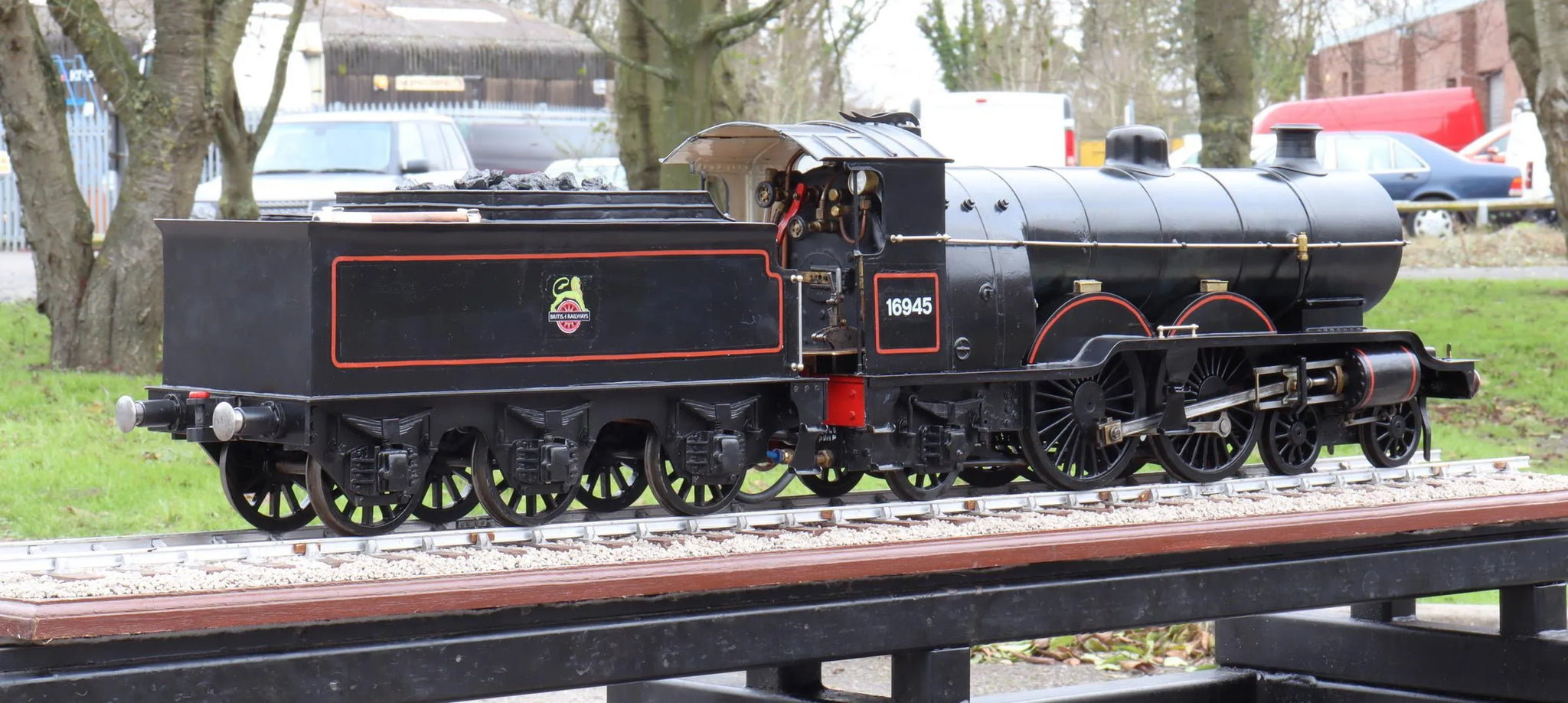

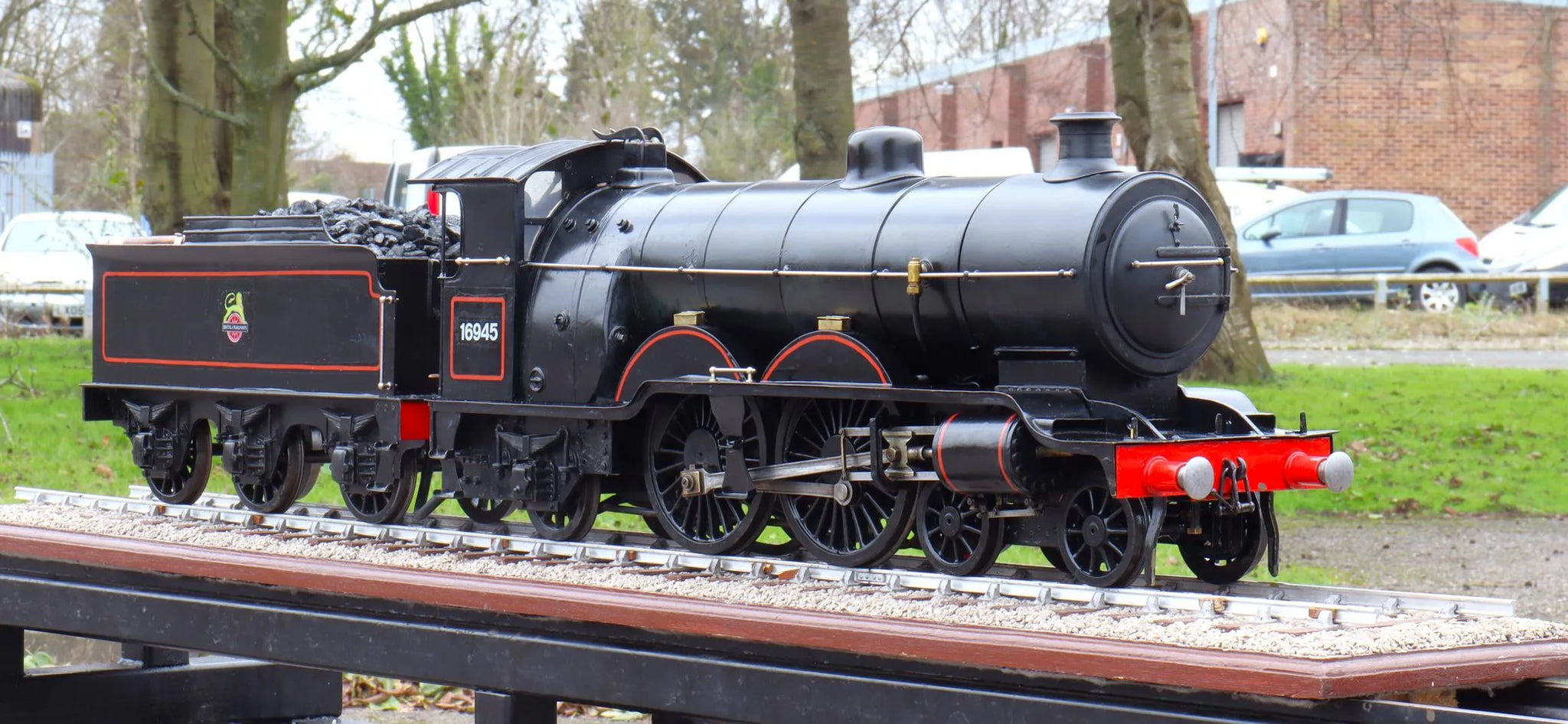

An engine whose performance belies its looks - something that could be run as-is, although with scope for cosmetic improvement if desired.
Stock code |
12523 |
Gauge |
3 1/2 inch |
Length/inches |
27 + 17.5 |
Width/inches |
7.5 |
Height/inches |
11 |
Weight/Kg |
25+9 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |

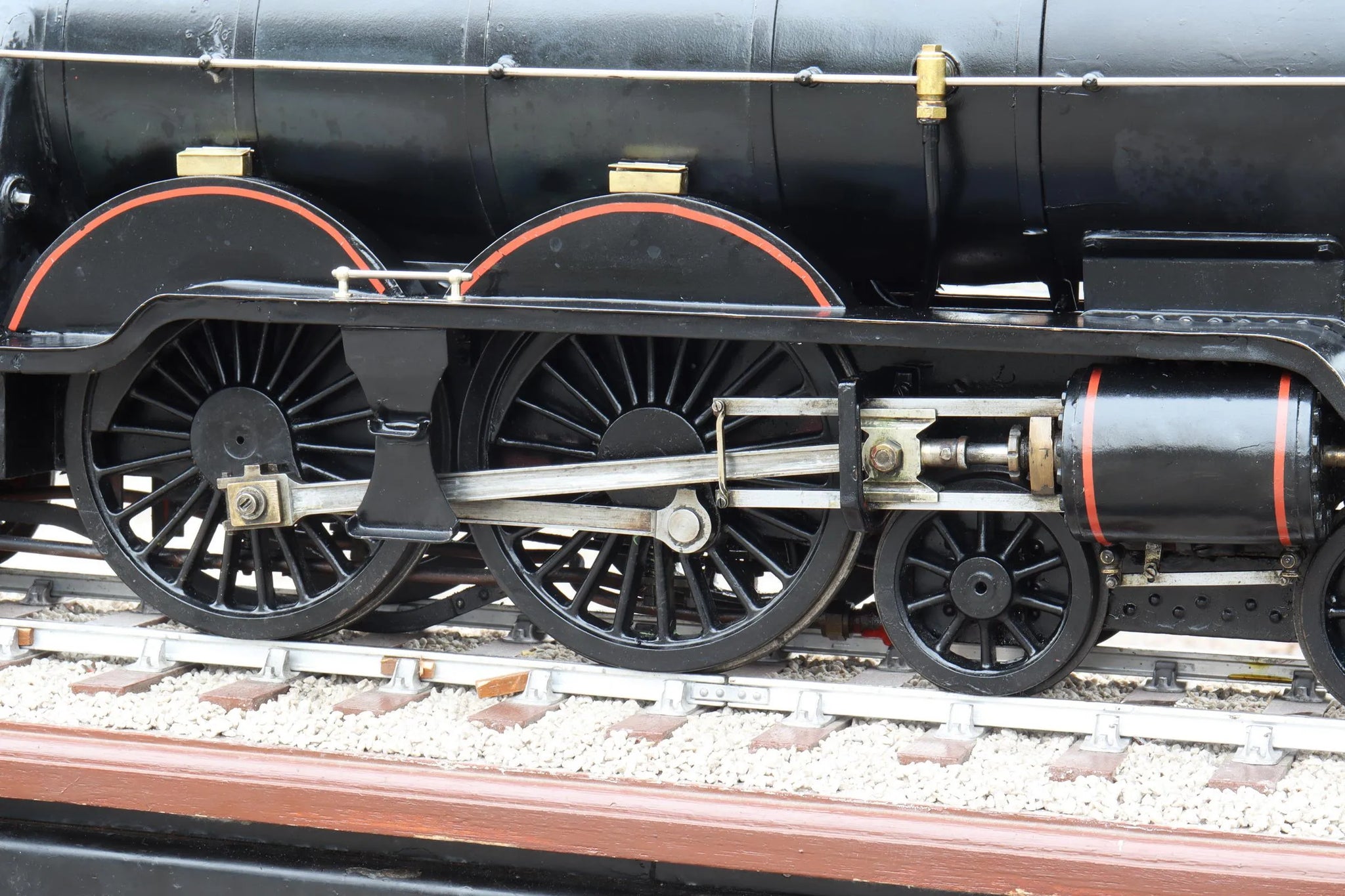

Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a - non-commercial |
Boiler number |
10 006 321 183 |
Safety valve type |
spring |
Safety valve |
1 |
Whistle |
yes - mounted under tender |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
3 |
Date out |
Jan-25 |
Hydraulic test valid to |
04-Dec-28 |
Steam test valid to |
09-Feb-26 |
