3 1/2 inch gauge GNR Atlantic

We sold this one to a prolific collector up in Scotland in January 2025. On display for a few months in the interim, it arrived back with us in part-exchange for a North Eastern R1.

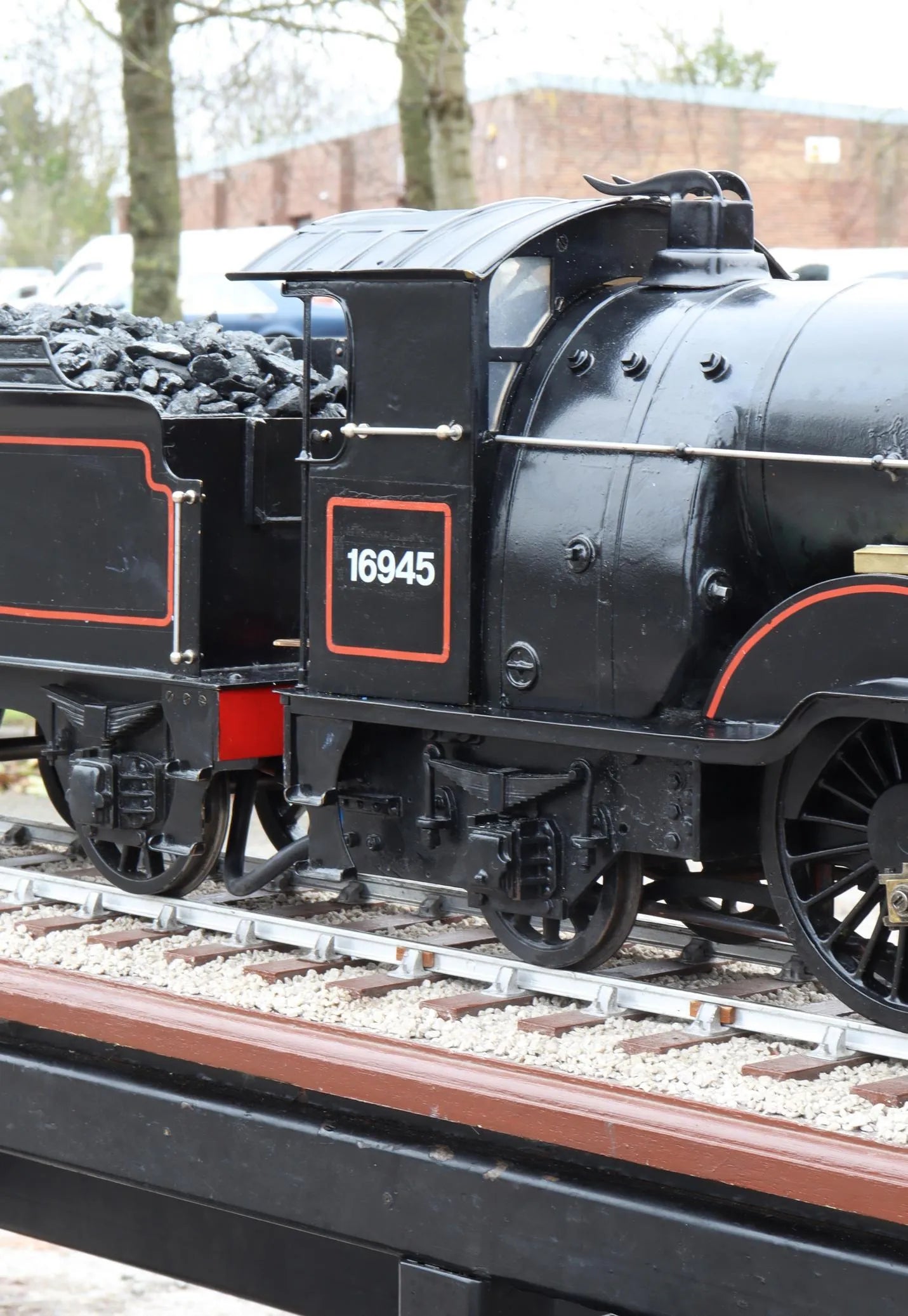

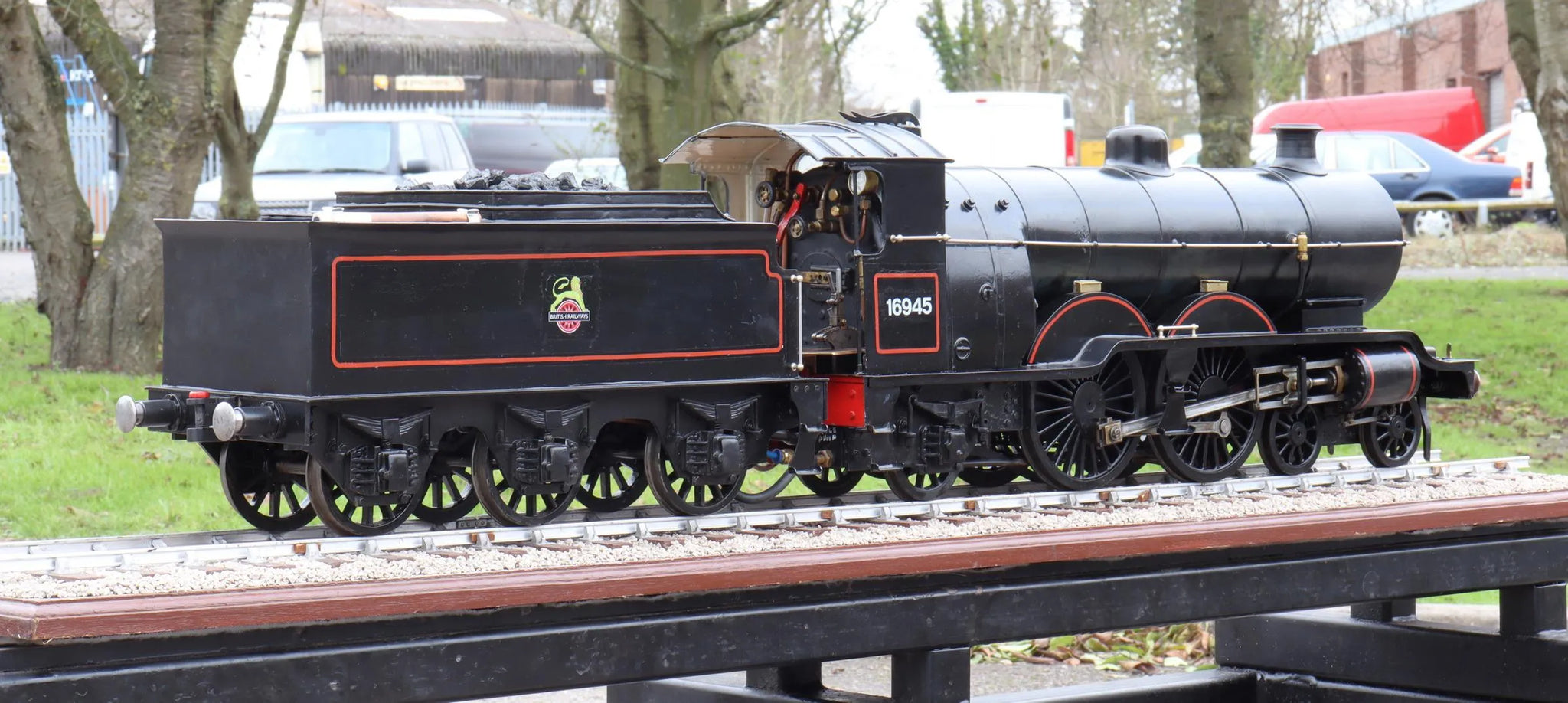

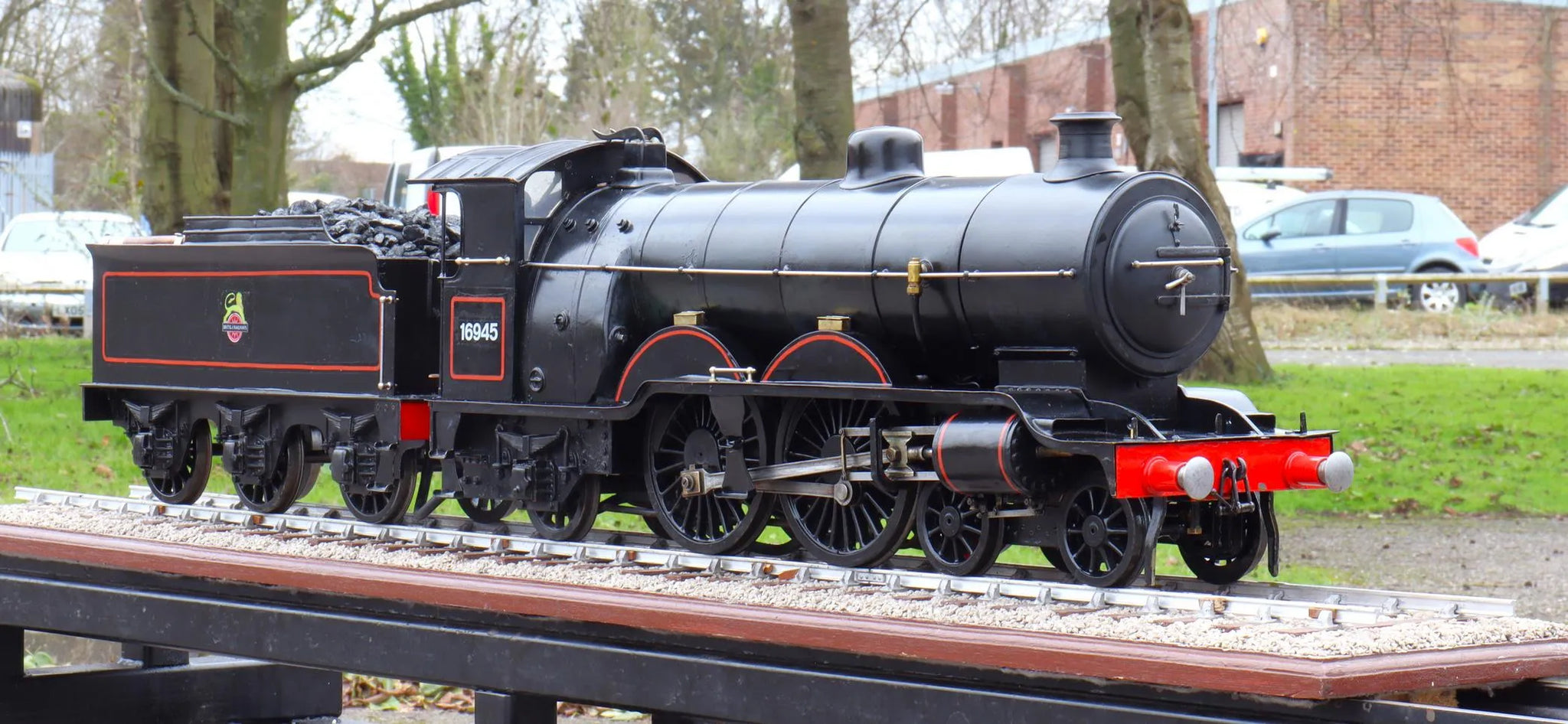

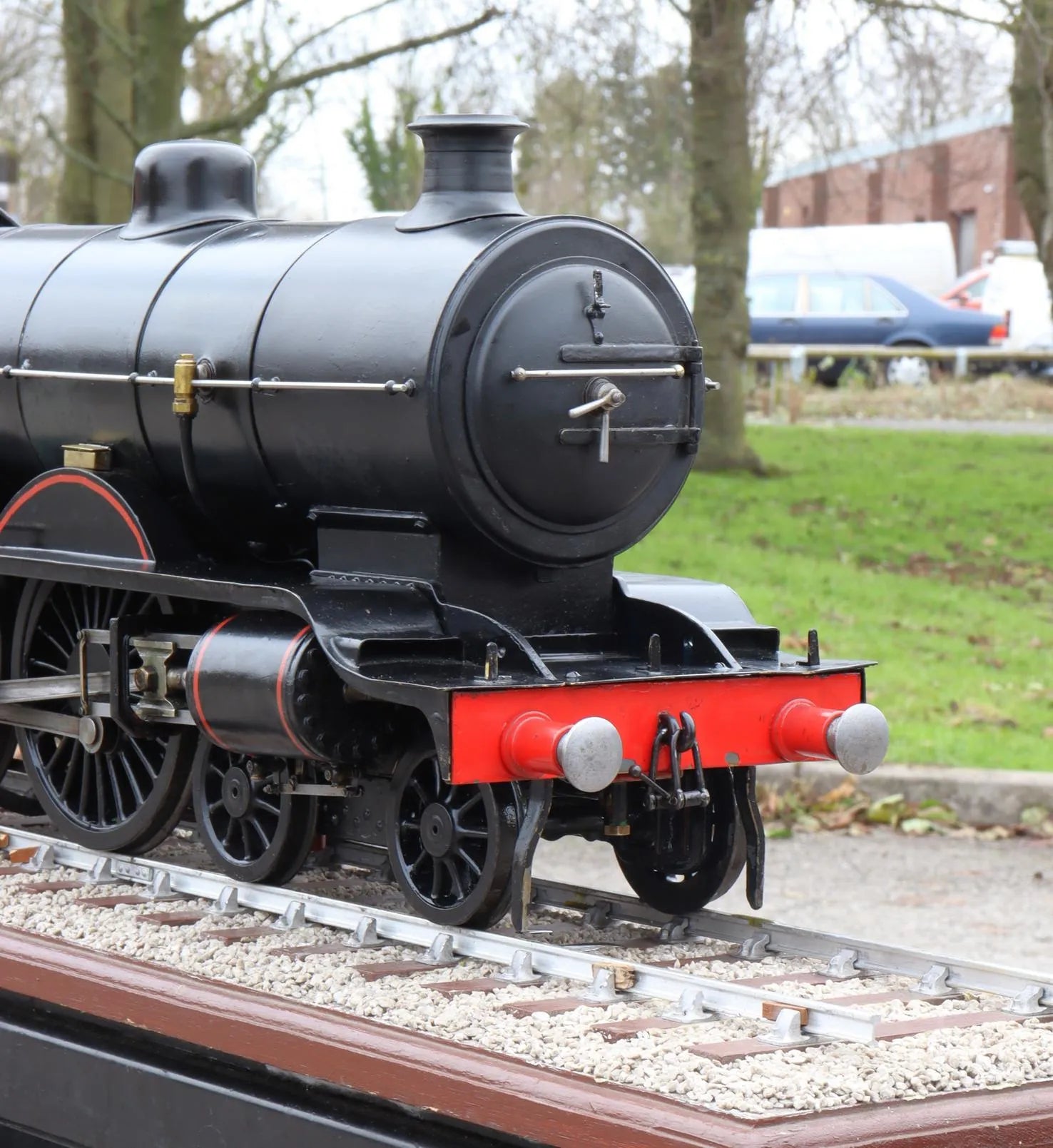

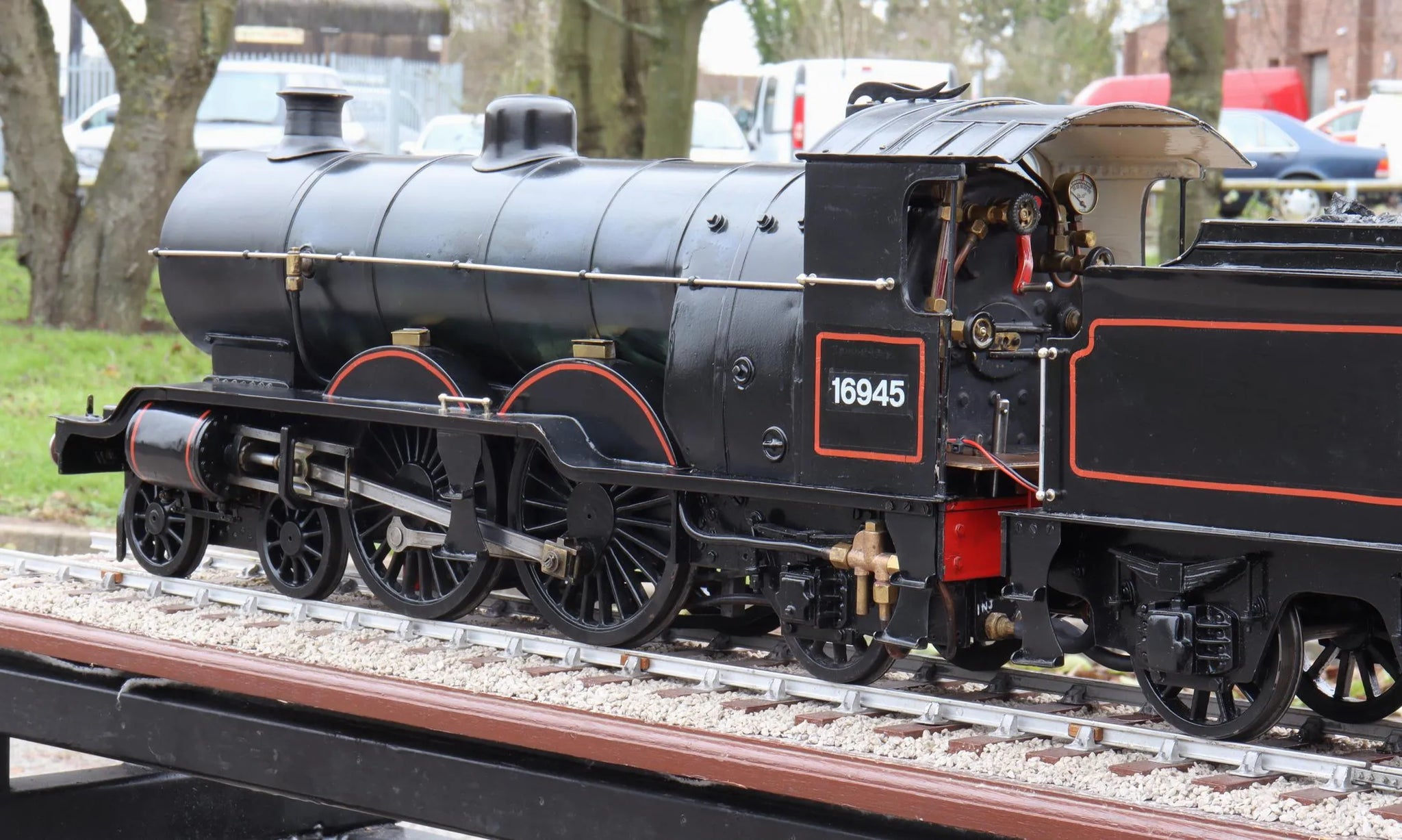

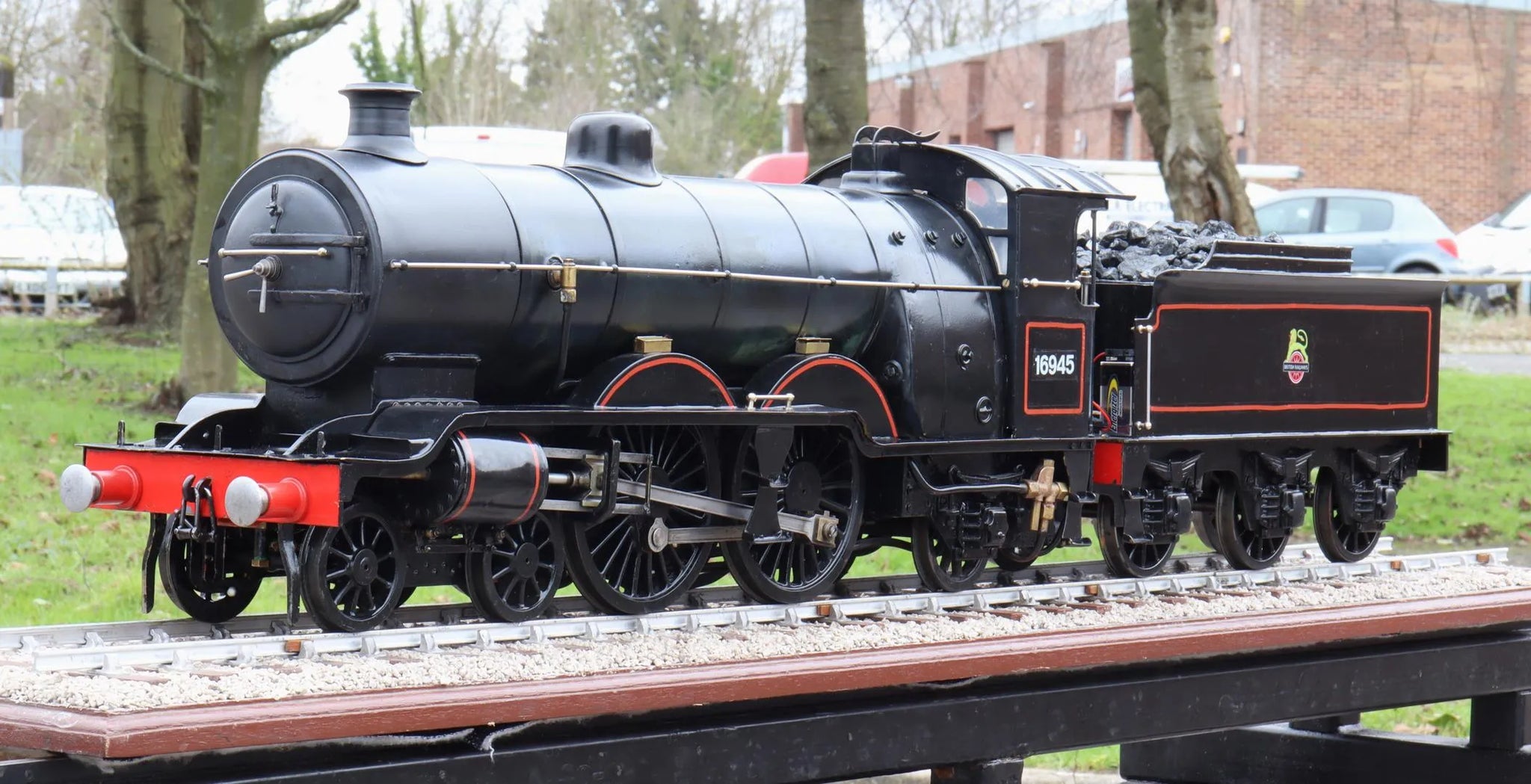

A 3 1/2 inch gauge GNR Atlantic to LBSC's "Maisie" design, underneath the funereal black paintwork and rather alarming neon red "snail trail" lining is a surprisingly well made engine which steamed freely and ran well in forwards, if less surefooted in reverse.

On test the axle and hand pumps worked well and the injector picked up cleanly. The safety valve opened reliably and maintained pressure within prescribed limits, although sometimes needing the lightest of taps with the shovel to close.

An engine whose performance belies its looks - something that could be run as-is, although with scope for cosmetic improvement if desired.

Technical information

Stock code

12773

Gauge

3 1/2 inch

Length/inches

27 + 17.5

Width/inches

7.5

Height/inches

11

Weight/Kg

25+9

Wheel material

cast iron

Axlebox type

plain bearing

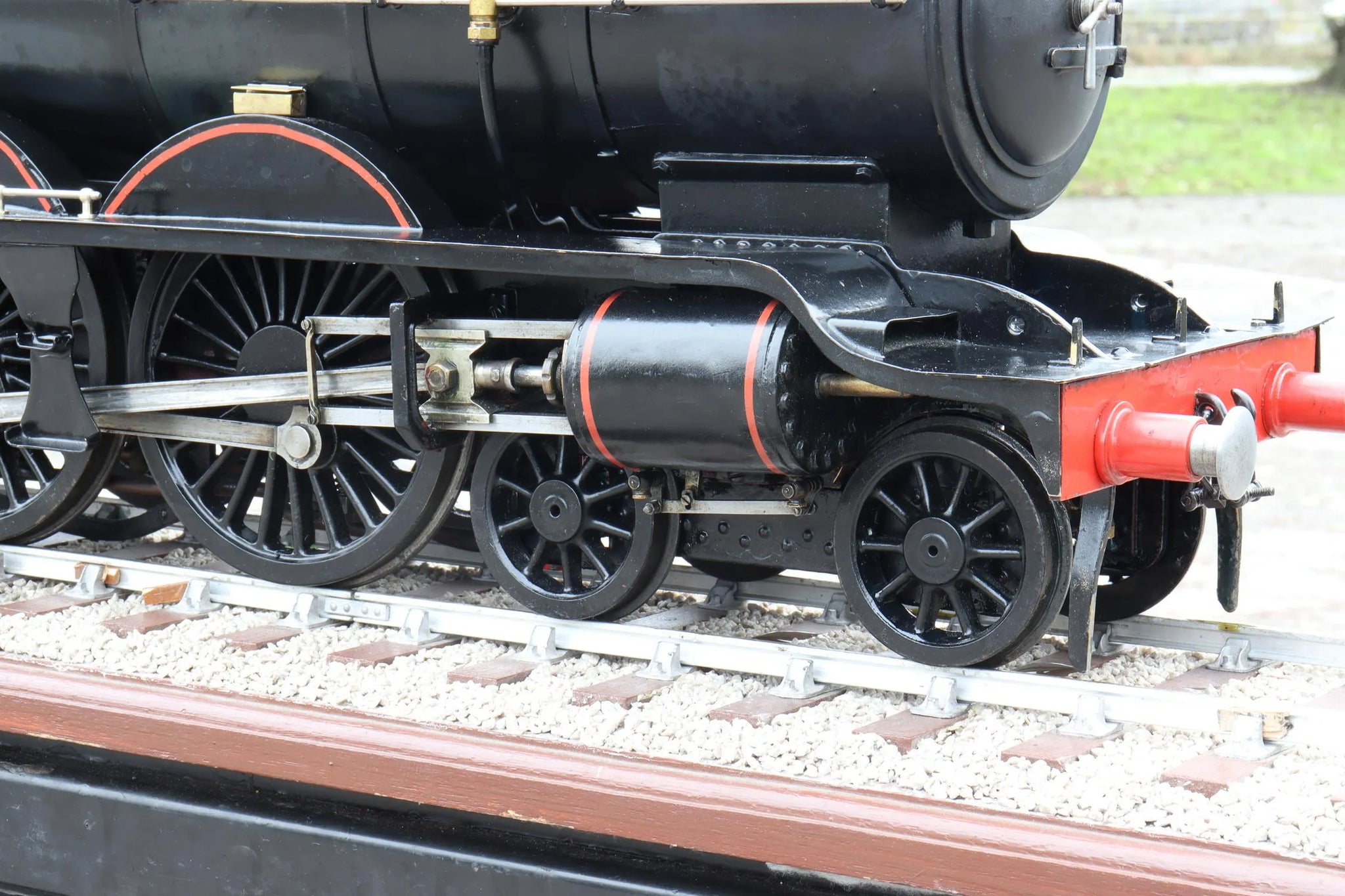

Cylinder material

gunmetal

Valve type

slide

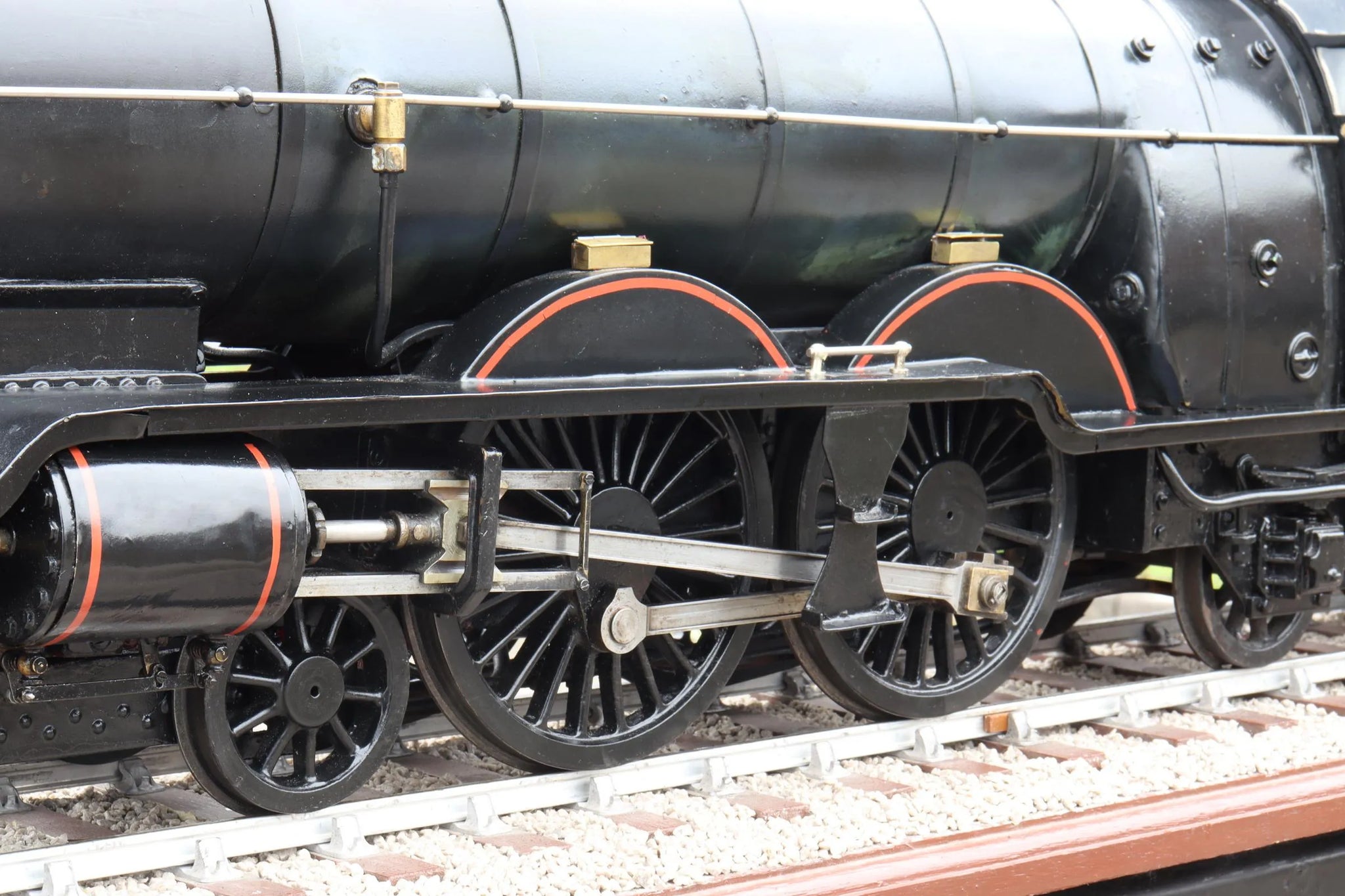

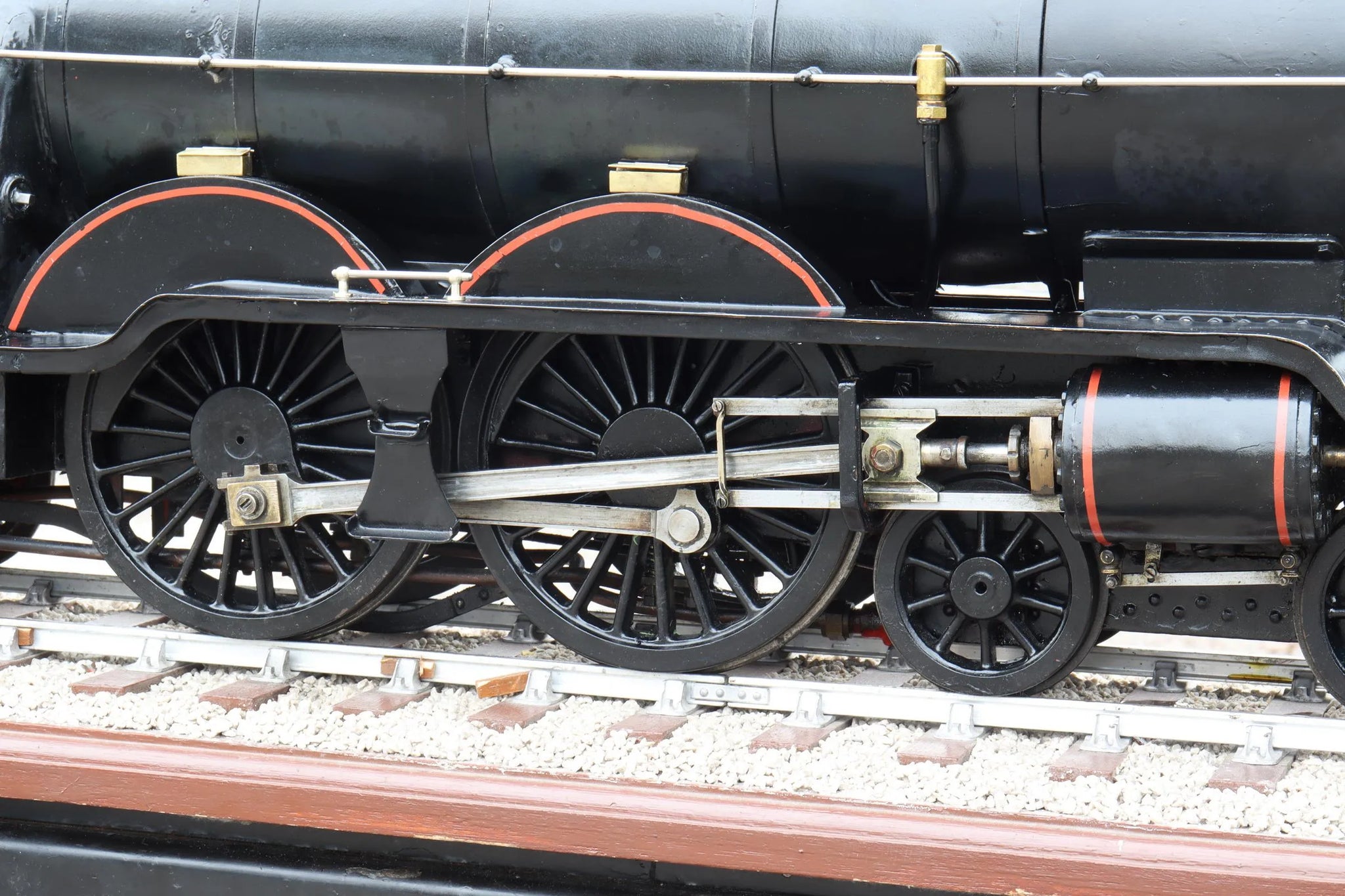

Valve gear

Stephensons

Reverser type

pole

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

CE/UKCA mark

n/a - non-commercial

Year built

unknown

Boiler number

10 006 321 183

Safety valve type

spring

Safety valve

1

Whistle

yes - mounted under tender

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

3

Hydraulic test valid to

04-Dec-2028

Steam test valid to

09-Feb-2026
