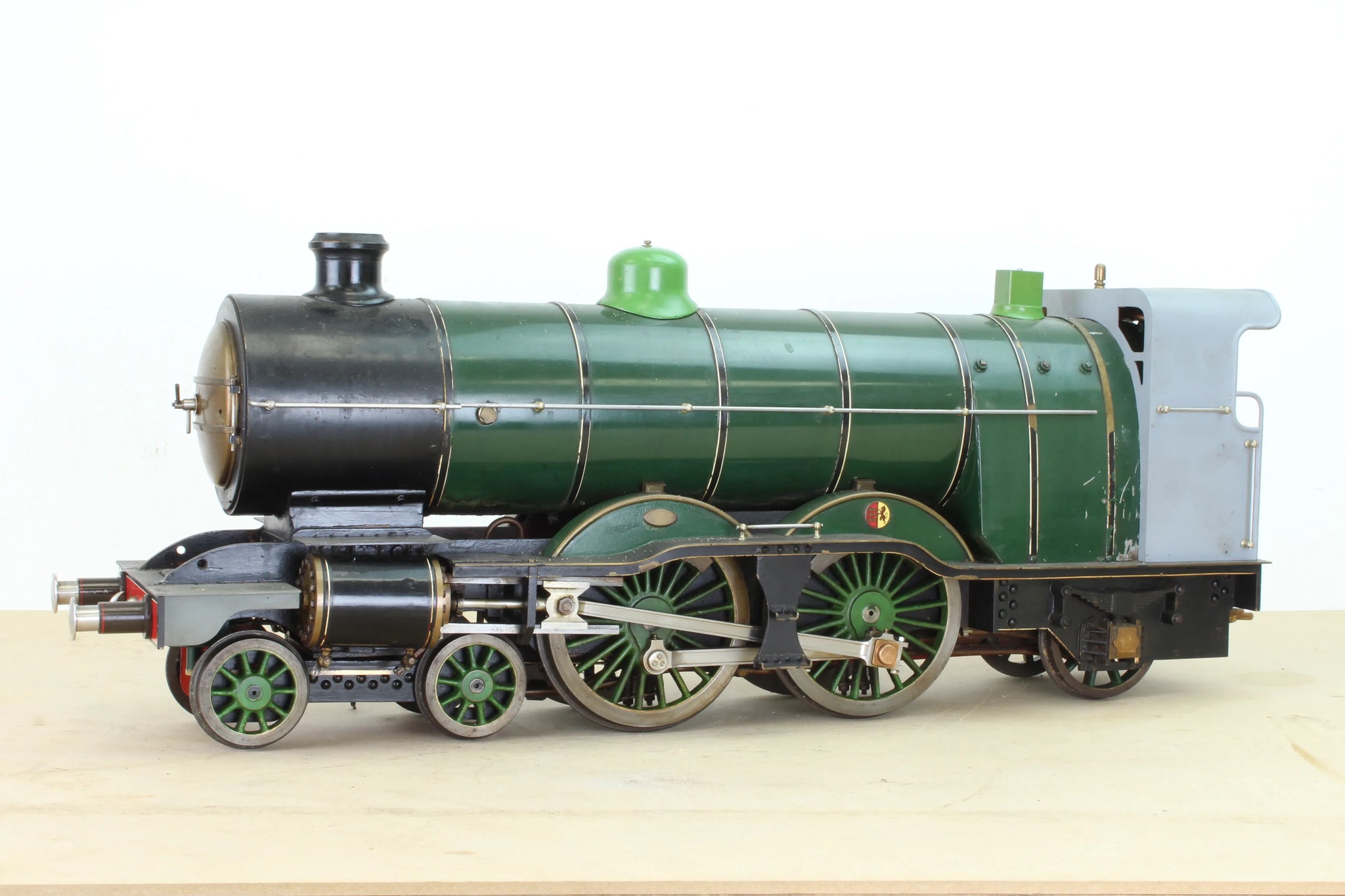

7826
Boiler has had a twice working pressure hydraulic test and is warranted sound, with new test certificate.

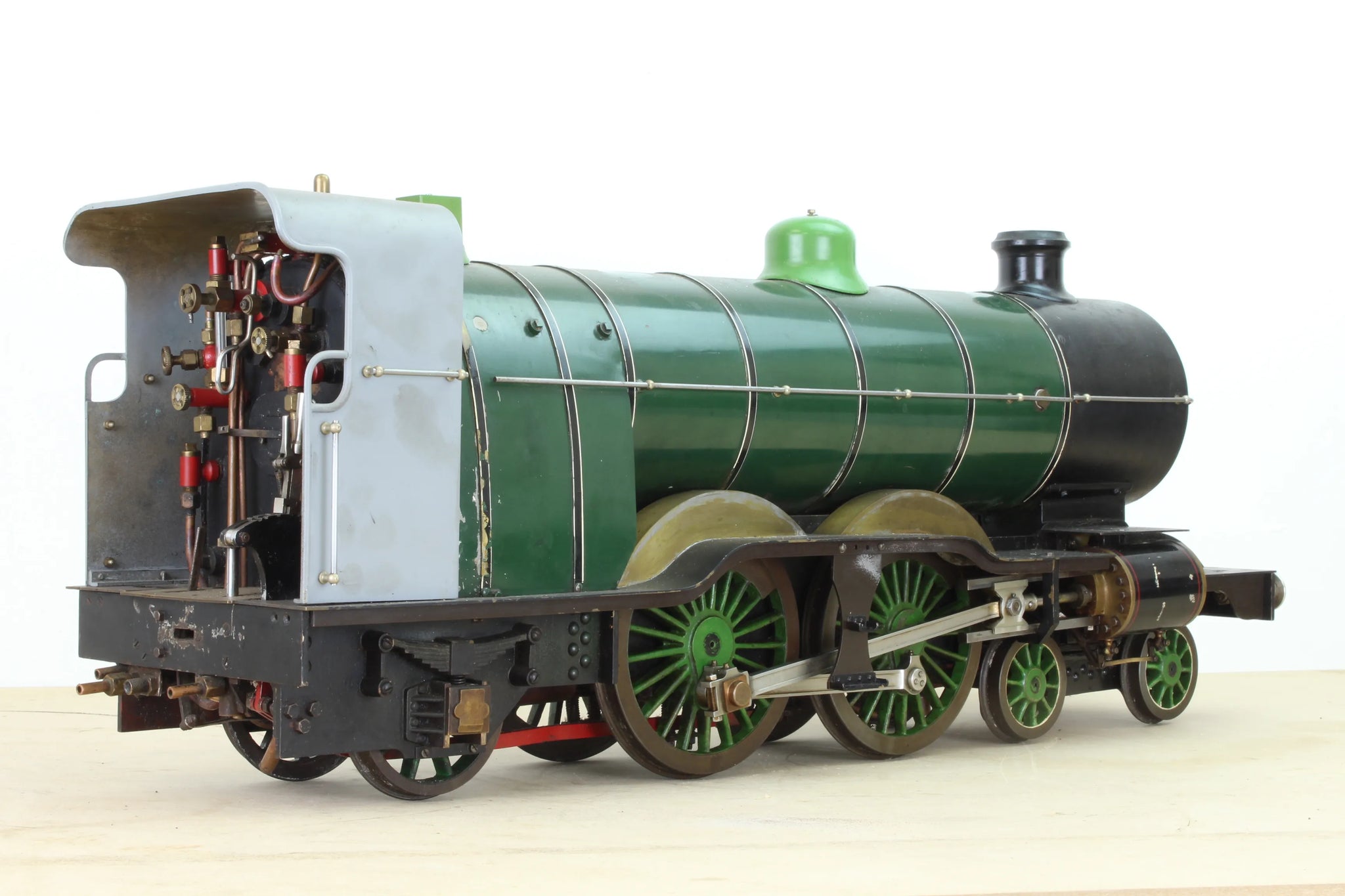

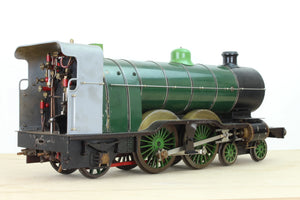

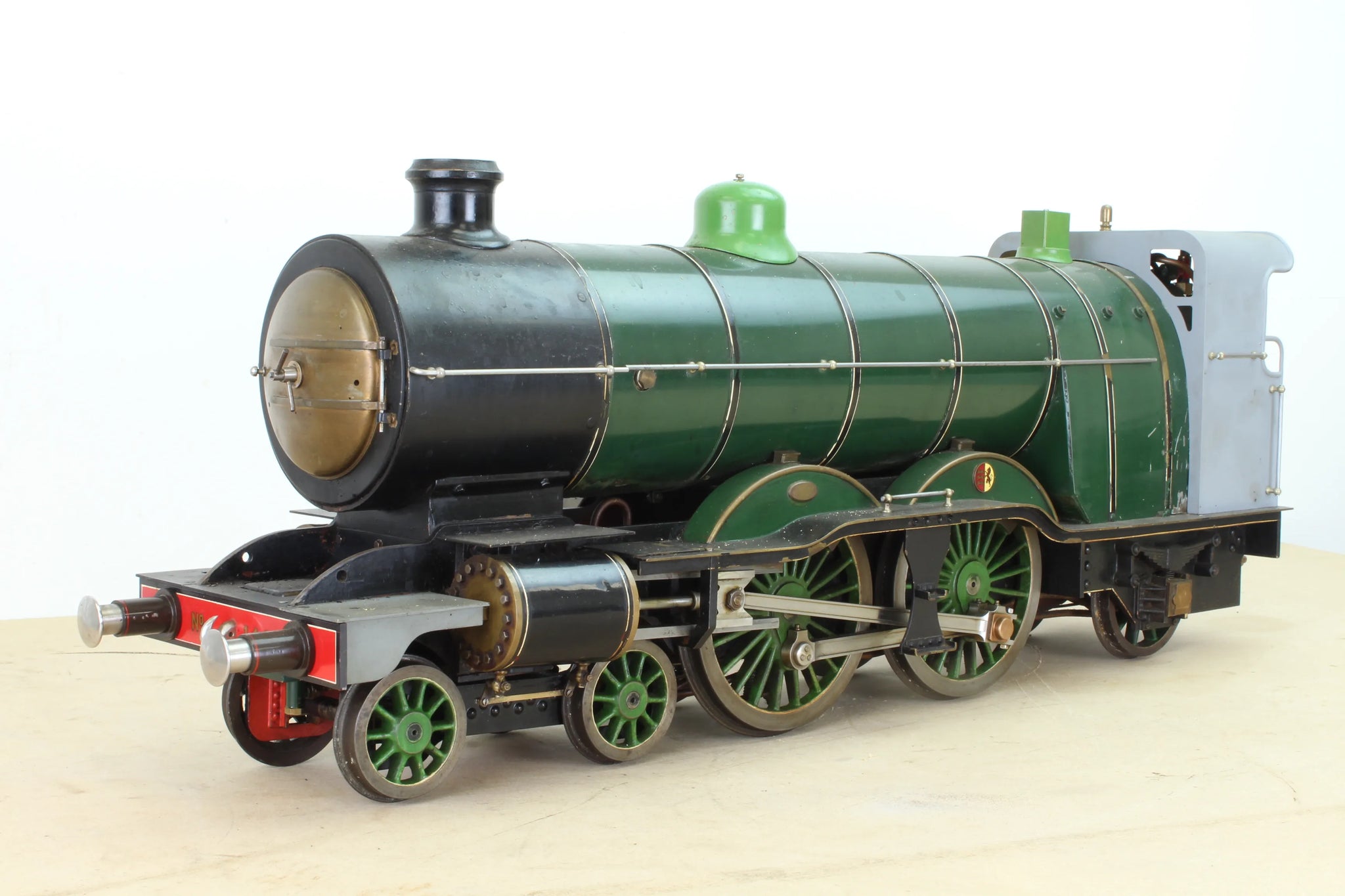

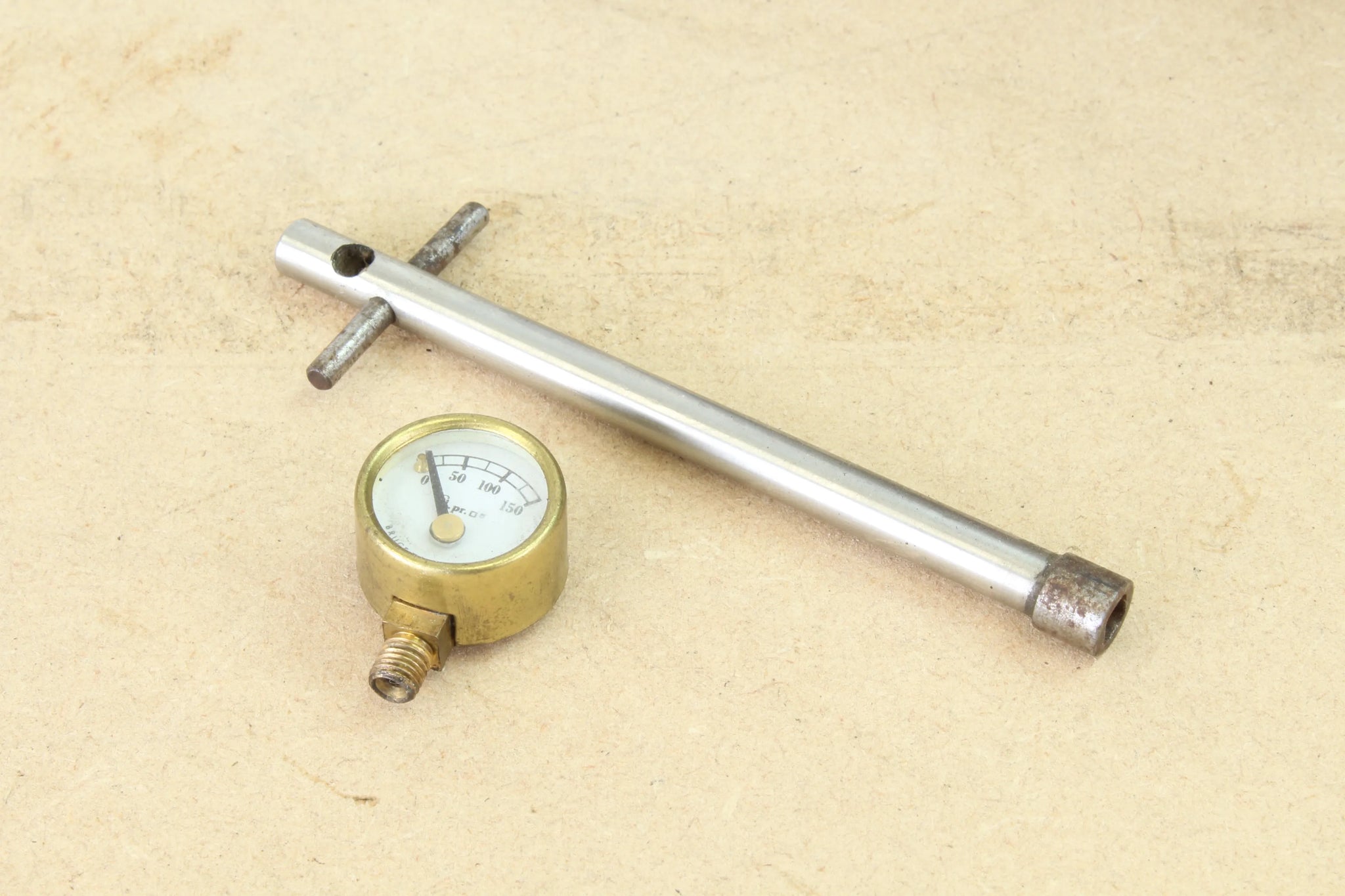

Fit and finish of the machined parts is good, it's siky smooth to turn over. The engine looks like it's halfway through a repaint, the pressure gauge needs a new union sleeve soldering on.
Stock code |
7826 |
Gauge |
3 1/2 inch |
Length/inches |
44 |
Width/inches |
7 |
Height/inches |
12 |

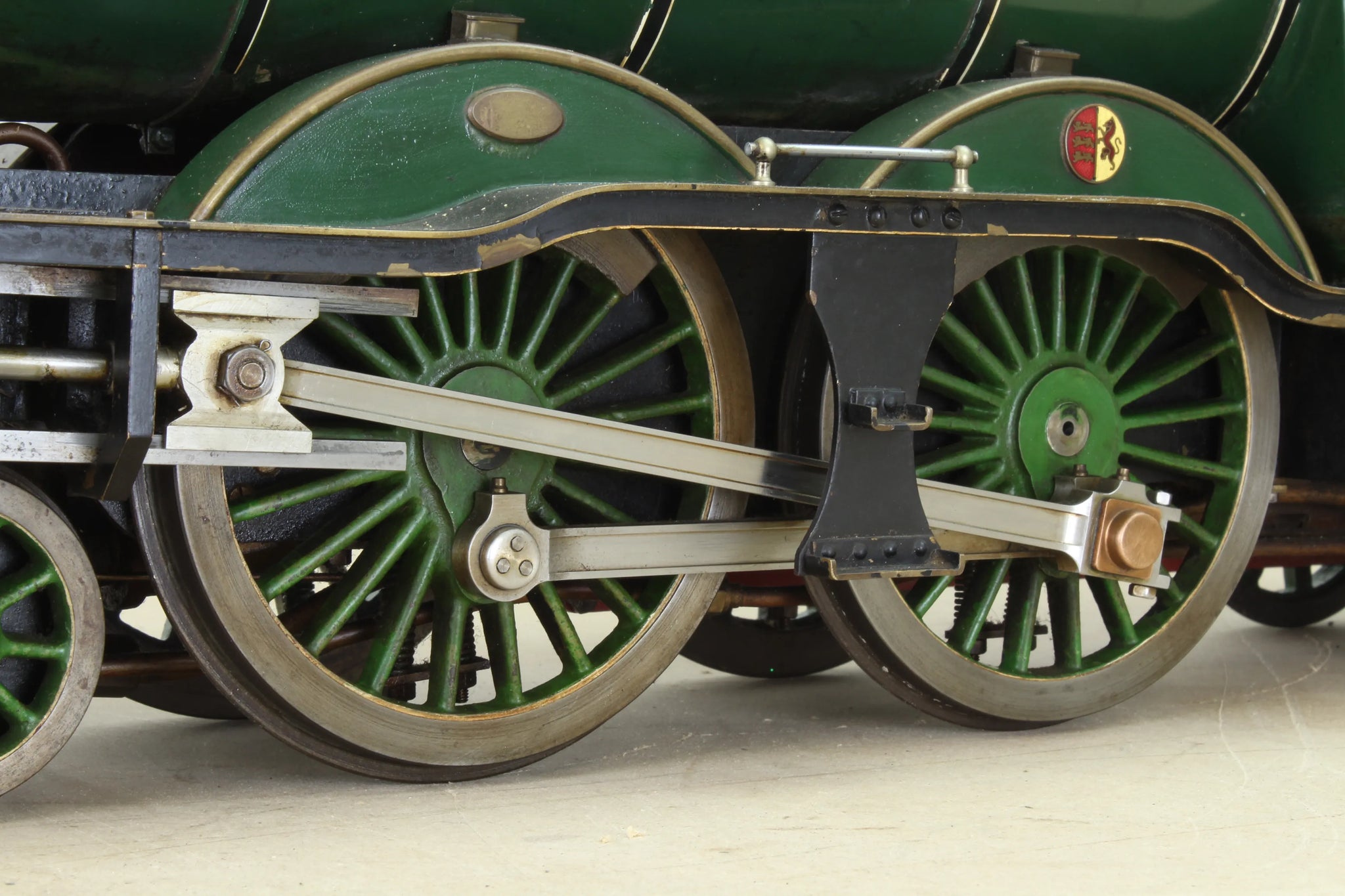

Wheel material |
cast iron |
Axlebox type |
plain bearing |

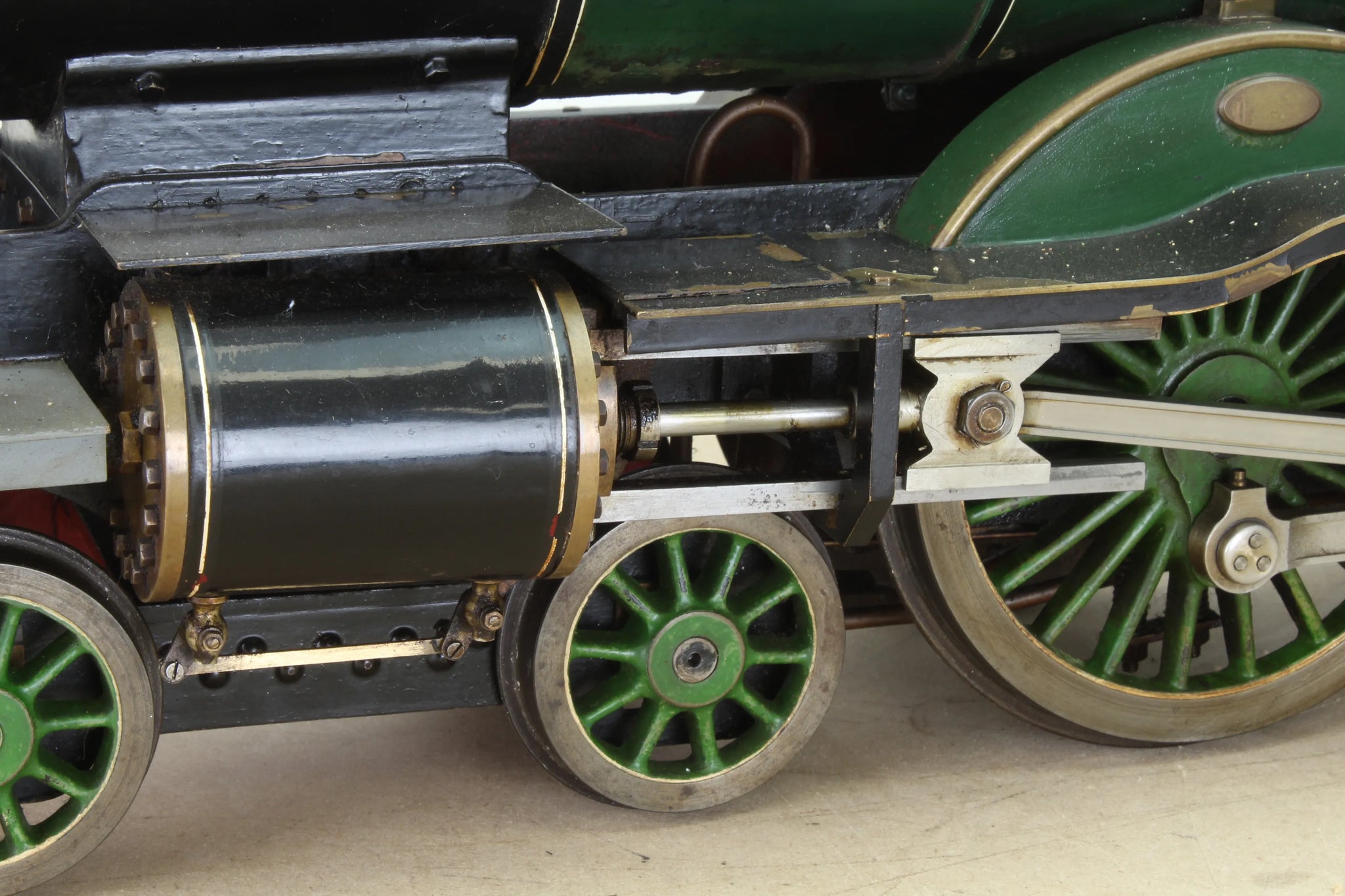

Cylinder material |
gunmetal |
Valve type |
slide |

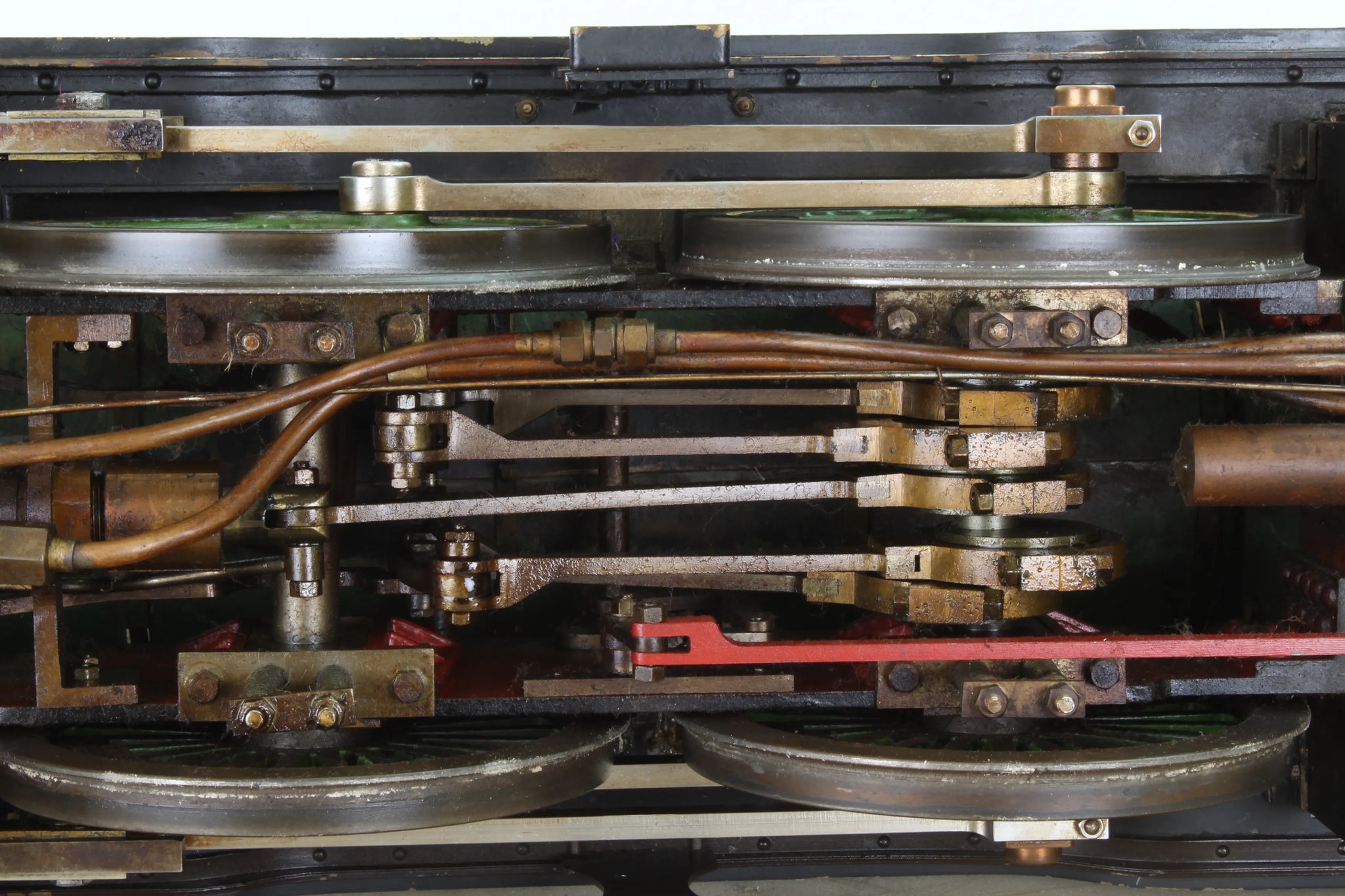

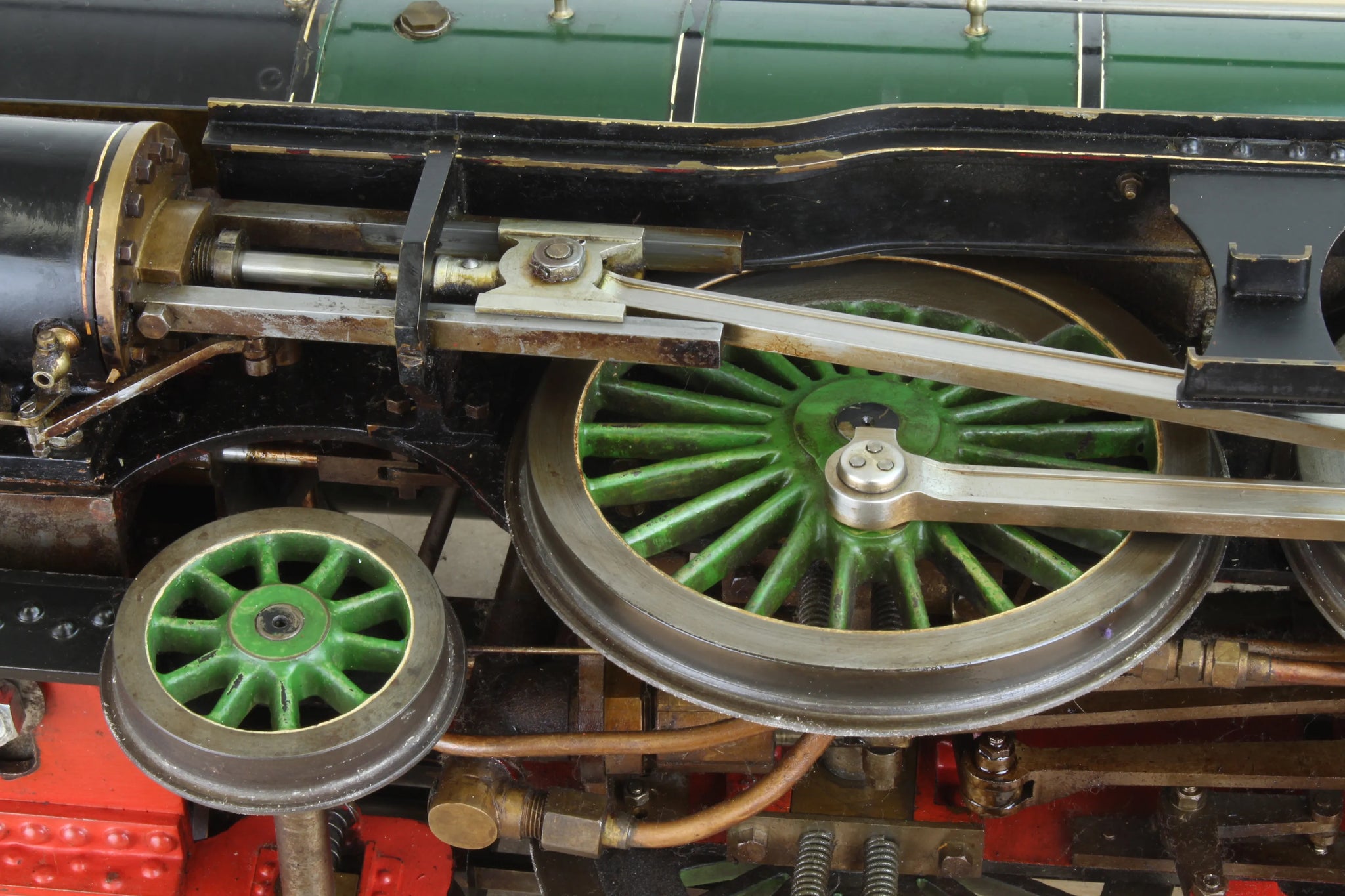

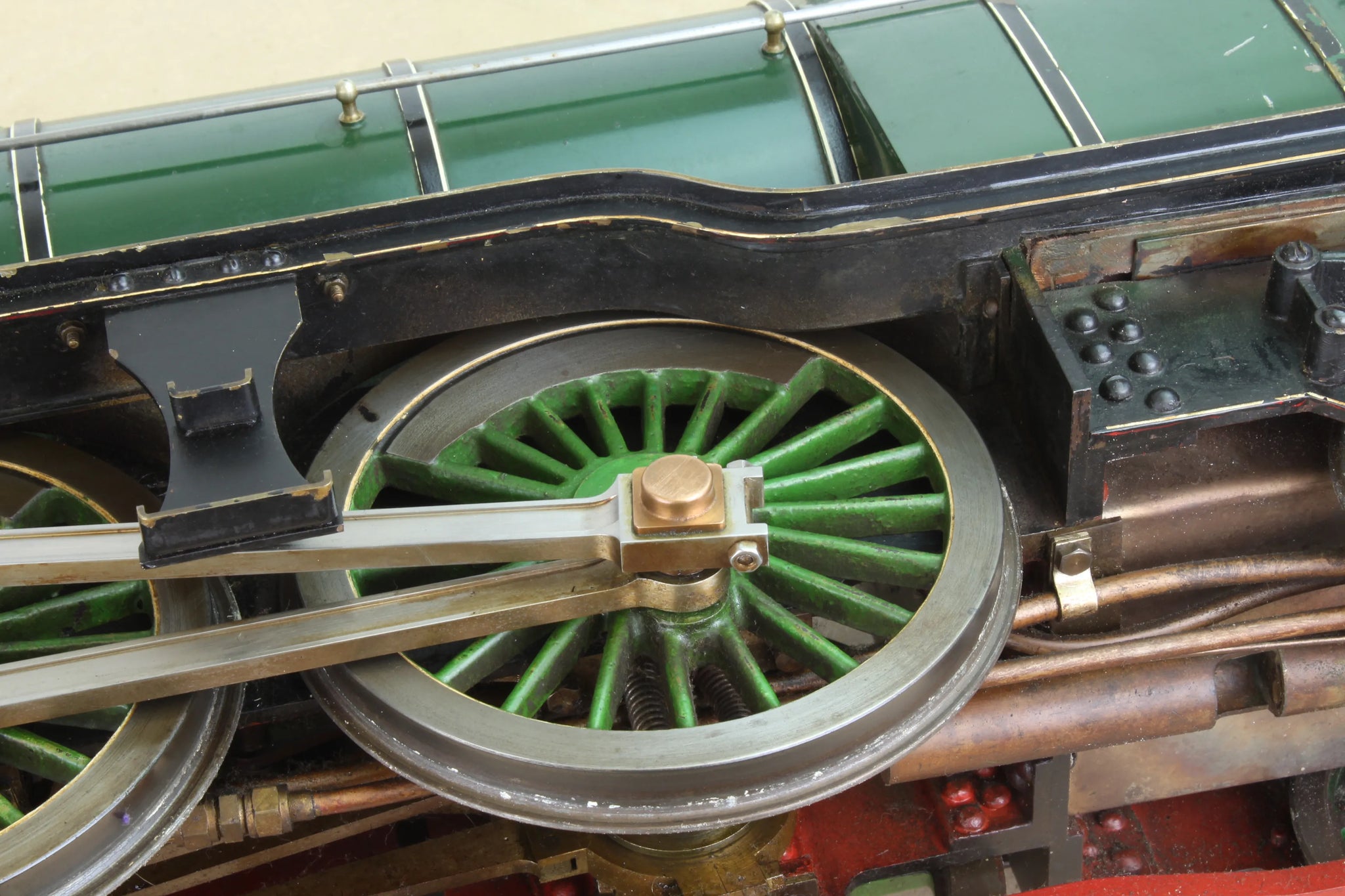

Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
Boiler number |
01/06/2021 00:00 |
Safety valve type |
spring |
Safety valve |
1 |
Fusible plug |
yes |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
2 |
Date out |
Mar-19 |
Hydraulic test valid to |
29-Jan-22 |
